Systematic Review of Acoustic Monitoring in Livestock Farming: Vocalization Patterns and Sound Source Analysis
Abstract
Featured Application
Abstract
1. Introduction
2. Materials and Methods
2.1. Search Strategy

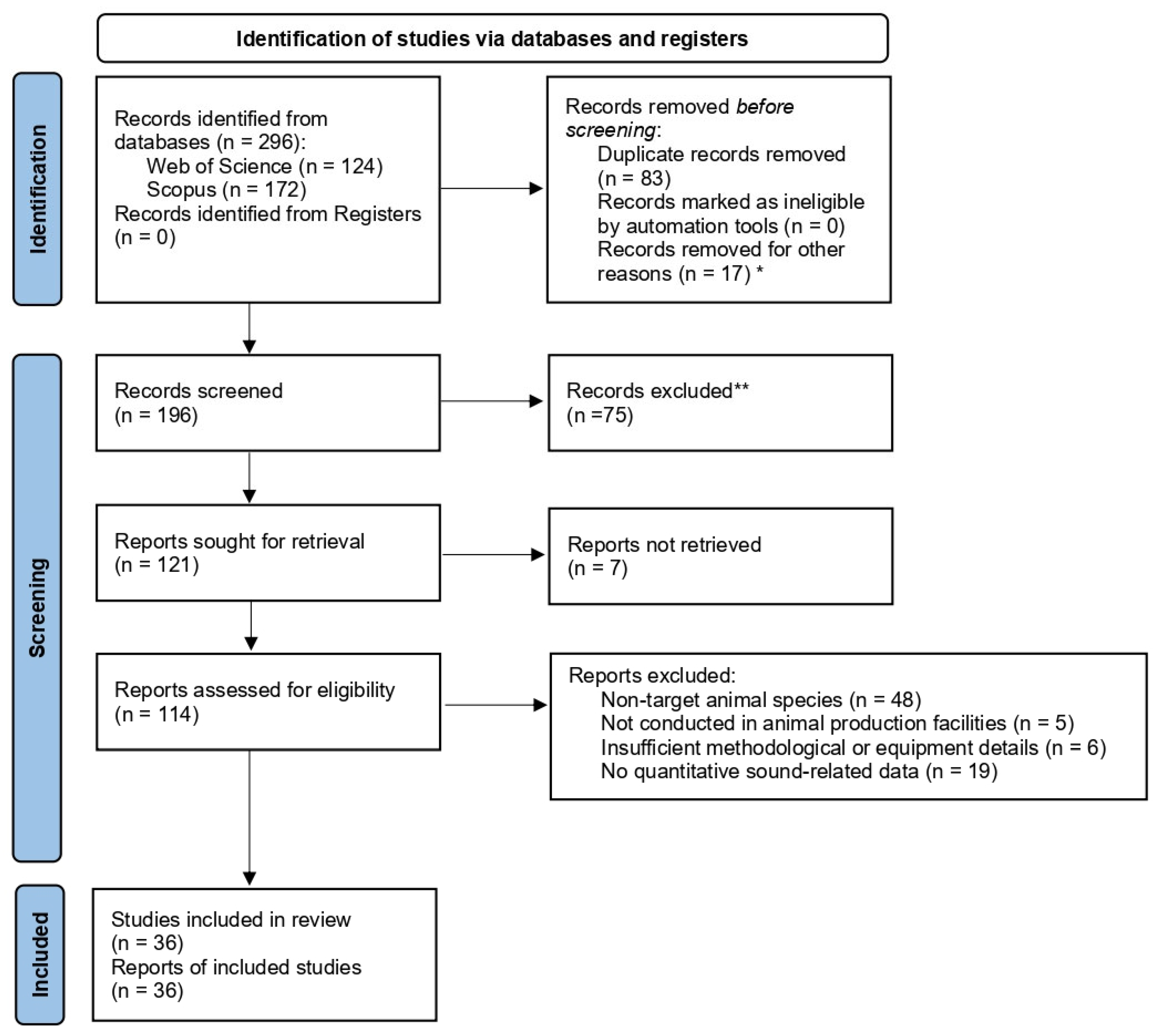

2.2. Study Selection
- Was noise and/or sound measured in facilities housing dairy cattle, beef cattle, laying hens, broiler chicken, or swine?
- Were the measurements conducted within animal production facilities, slaughterhouses, or controlled research environments?
- Was the methodology and the equipment used for sound measurement in animal production described in detail?
- Were quantitative criteria applied to assess sound within animal production systems?
2.3. Data Extraction and Data Processing
3. Results

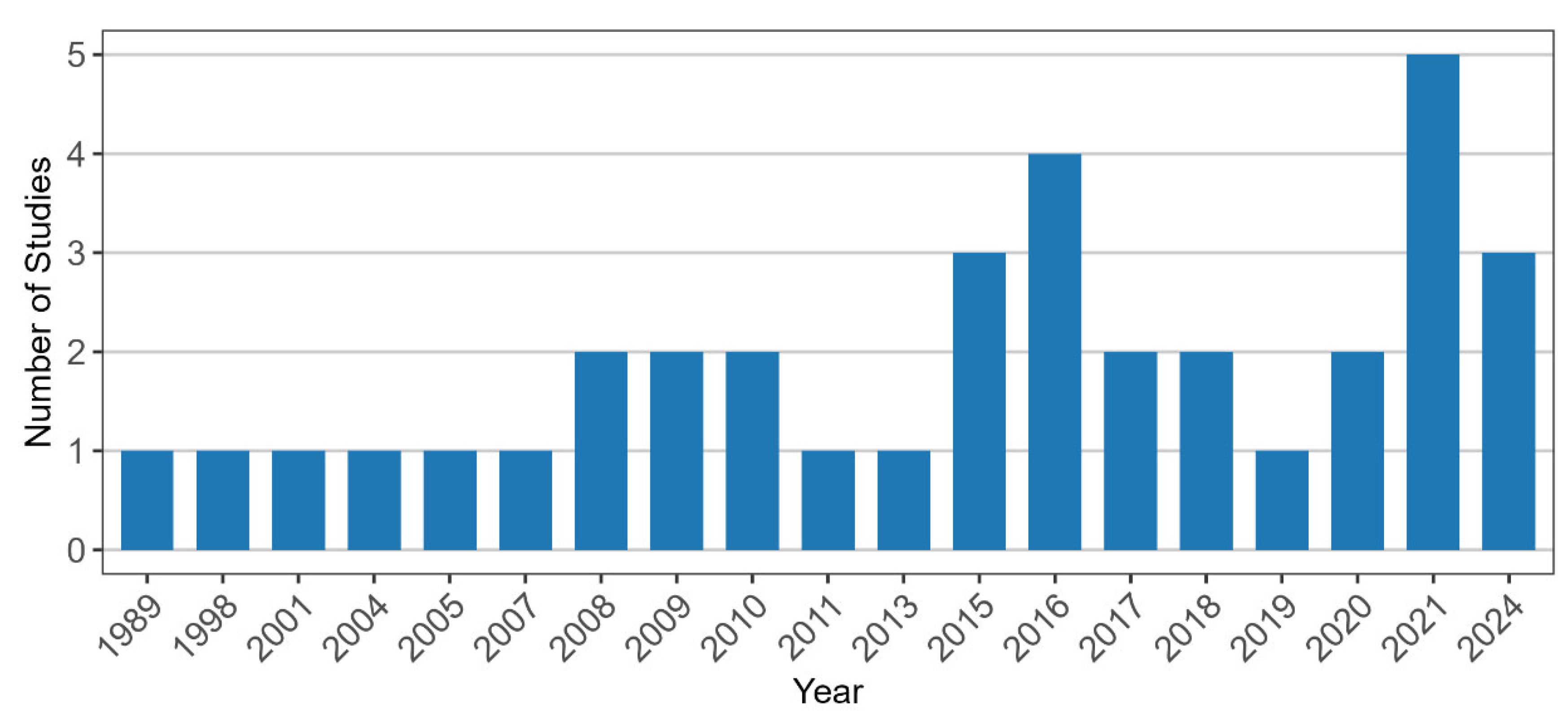

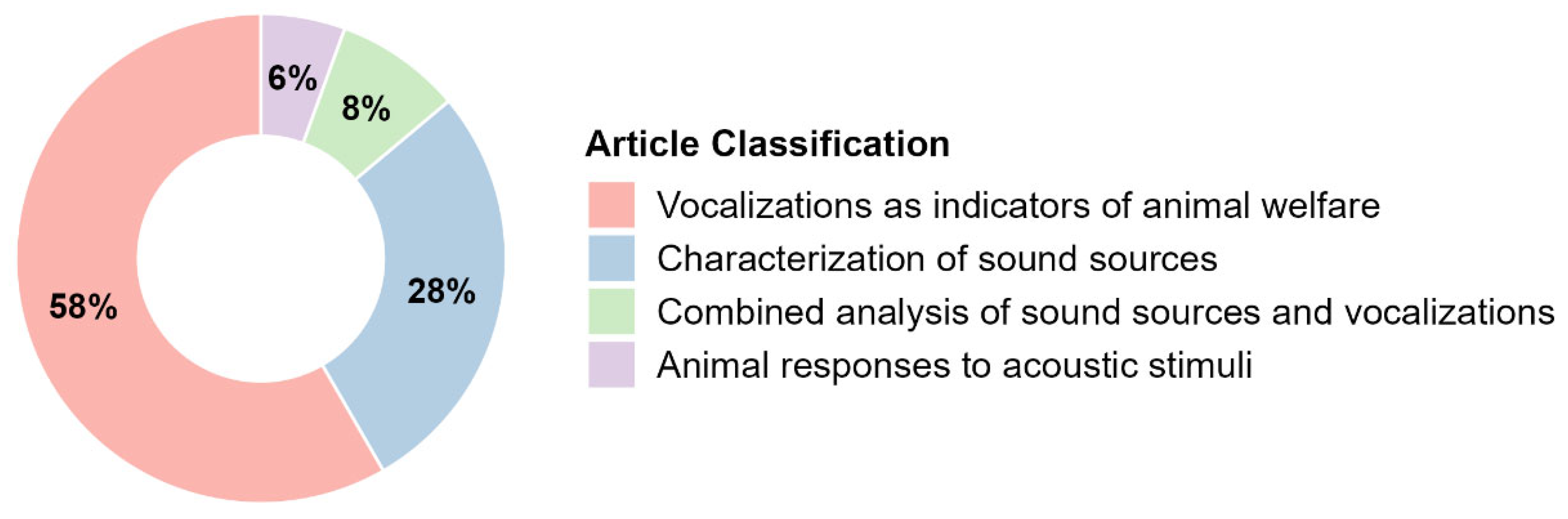

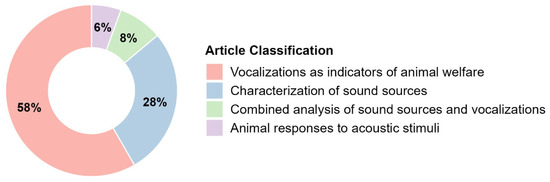

3.1. General Overview of Studies
Paper | Summary of Objectives | Thematic Axis * |
---|---|---|
[27] | Analyze noise levels and gas concentrations in swine housing systems. | (II) |
[51] | Assess gas concentrations and sound pressure levels across three types of facilities for swine growing and finishing phases. | (II) |
[52] | Assess the impact of acute noise exposure on stress responses in broiler chicken. | (IV) |
[53] | Extract and classify acoustic features to develop a model for the identification of vocalizations in laying hens. | (III) |
[29] | Describe the acoustic features of cough sounds associated with pulmonary infection and compare them with coughing induced by citric acid inhalation. | (III) |
[28] | Investigate the feasibility of distinguishing cough sounds from background noise within a livestock facility. | (I) |
[54] | Investigate the relationship between animal vocalizations and body weight. | (I) |
[55] | Analyze and characterize chick vocalizations in relation to social behaviors and age progression. | (I) |
[56] | Identify and validate a model linking broiler growth rate with peak vocalization frequencies. | (I) |
[57] | Explore how vocalizations and phonatory behaviors of Holstein-Friesian cows during peripartum events (e.g., dystocia and calf separation) convey contextual and sensory information relevant to animal welfare assessment. | (I) |
[58] | Determine whether individual swine can be identified through scream analysis in audio recordings. | (I) |
[59] | Evaluate whether swine vocalizations are useful indicators of thermal adaptability. | (I) |
[60] | Measure noise levels in three slaughterhouses (bovine and swine) using a smartphone application. | (II) |
[61] | Update current knowledge regarding noise levels in swine farms in Germany. | (II) |
[62] | Propose a robust system for behavioral characterization of laying hens to enhance monitoring efficiency. | (I) |
[30] | Explore the effects of selected music genres on dairy cows milked by automated milking systems (AMS). | (IV) |
[63] | Evaluate the immediate physiological and behavioral responses of piglets subjected to ear notching, ear tagging, and intraperitoneal transponder injection. | (I) |
[64] | Investigate the relationship between vocal behavior and other behavioral traits in cattle. | (I) |
[65] | Analyze the relationship between sneeze frequency and various strains of influenza virus in domestic swine. | (I) |
[66] | Develop software to monitor piglet vocalizations based on stress-related sound patterns. | (I) |
[67] | Identify and analyze the vocal responses of sows and piglets following short-term separation and assess the potential of such calls to indicate levels of arousal. | (I) |
[68] | Identify changes in swine vocalizations during different stages of the castration process. | (I) |
[69] | Evaluate the impact of multiple daily feedings on body weight, backfat thickness, aggressiveness, and locomotor issues in sows. | (I) |
[70] | Determine whether the energy envelope dynamics of swine coughing sounds are associated with respiratory pathologies. | (I) |
[71] | Test the hypothesis that noise levels in swine housing vary with time of day and season. | (II) |
[72] | Evaluate the potential impact of sound measurements in swine facilities based on distance, time of day, building orientation, and season. | (II) |
[73] | Examine the effects of two injection methods and two local anesthetics on piglet escape behaviors, including vocalizations and resistance movements, as well as procedure duration. | (I) |
[74] | Investigate the effects of tartaric acid nebulization in swine finishing units. | (II) |
[75] | Characterize the types of sounds swine are exposed to during housing, transport, and slaughter stages. | (II) |
[76] | Assess the effectiveness of buprenorphine in mitigating pain during piglet castration using behavioral and vocalization indicators. | (I) |
[77] | Understand vocal behavior in cattle under different stress conditions. | (I) |
[78] | Conduct a situational analysis of noise levels in swine finishing farms and evaluate the adequacy of noise as a welfare indicator. | (II) |
[79] | Assess the feasibility of segmenting animal vocalizations using electronic acoustic analysis tools. | (I) |
[80] | Assess whether significant differences exist among acoustic characteristics of various vocal signals within a herd of crossbred cows. | (I) |
[81] | Determine the frequency ranges of six common sounds in commercial broiler houses, including fans, heaters, feeding systems, vocalizations, wing flapping, and dust bathing. | (III) |
[82] | Evaluate the effectiveness of low-cost, passive strategies for significant noise reduction. | (II) |

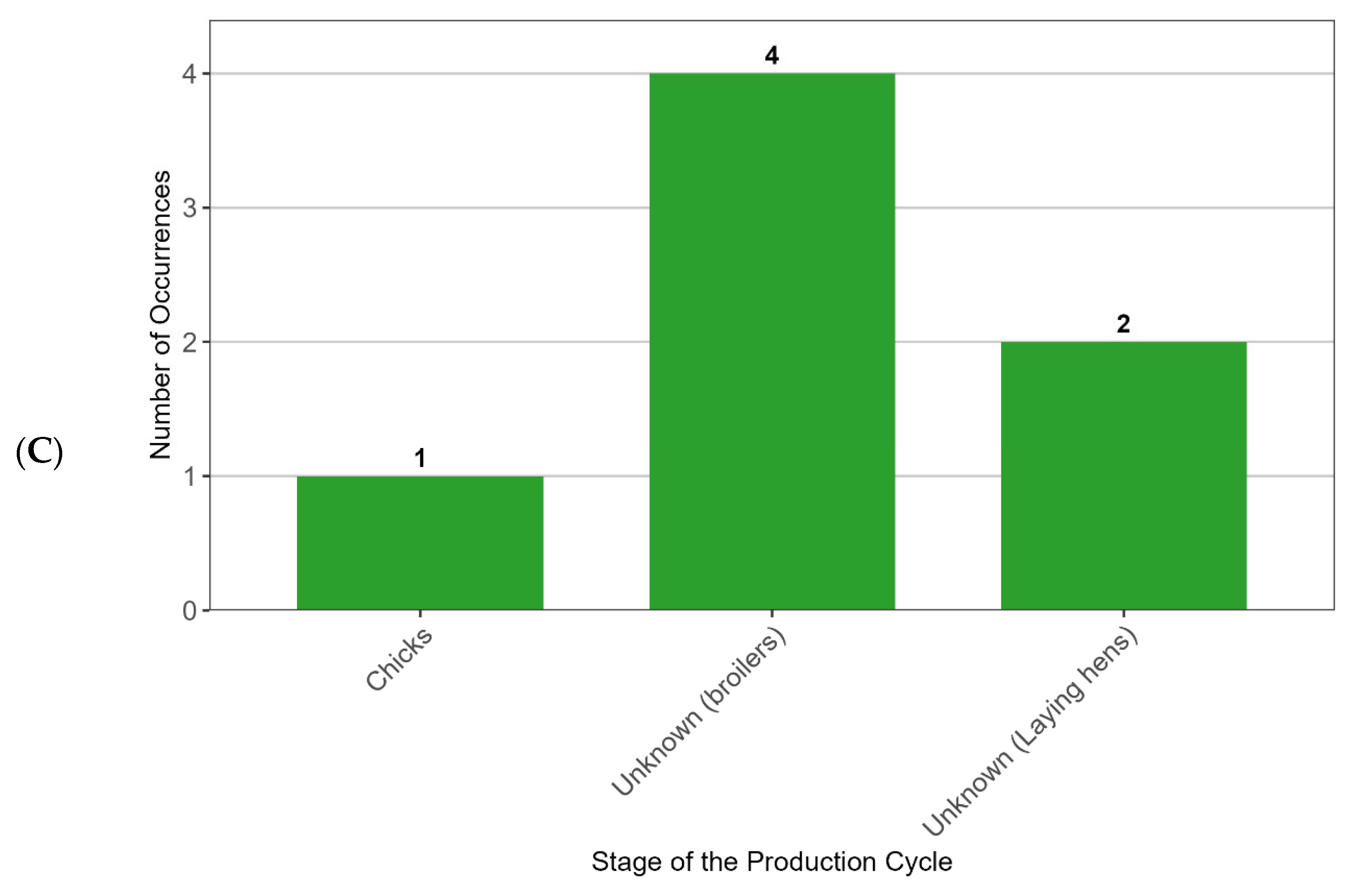

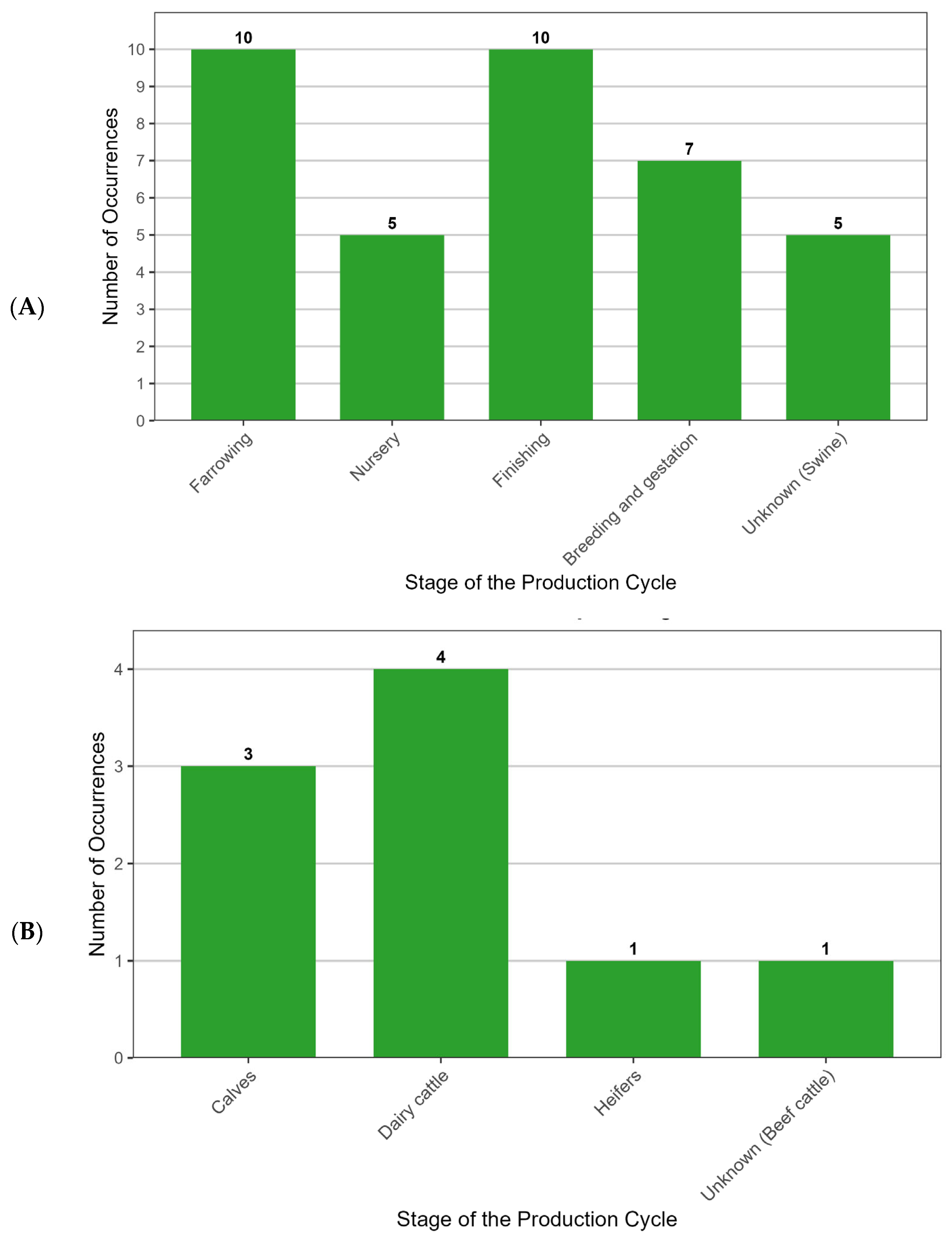

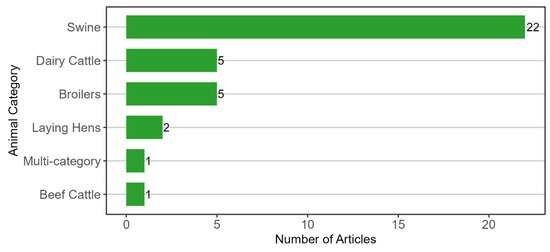

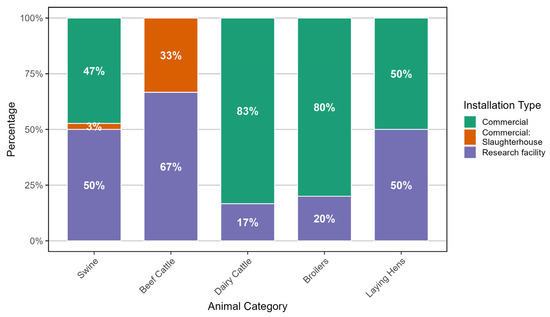

3.2. Animal Production Context

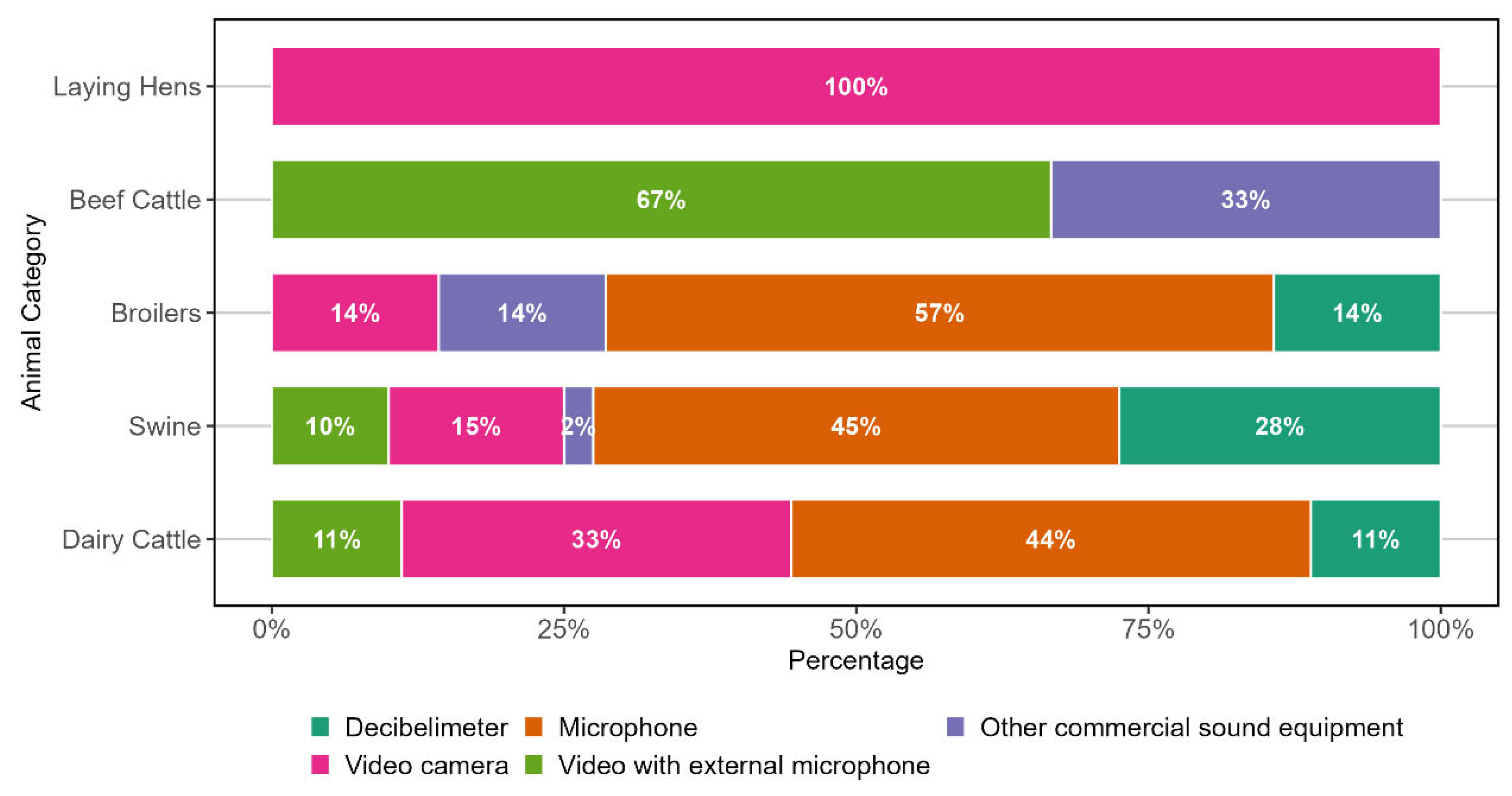

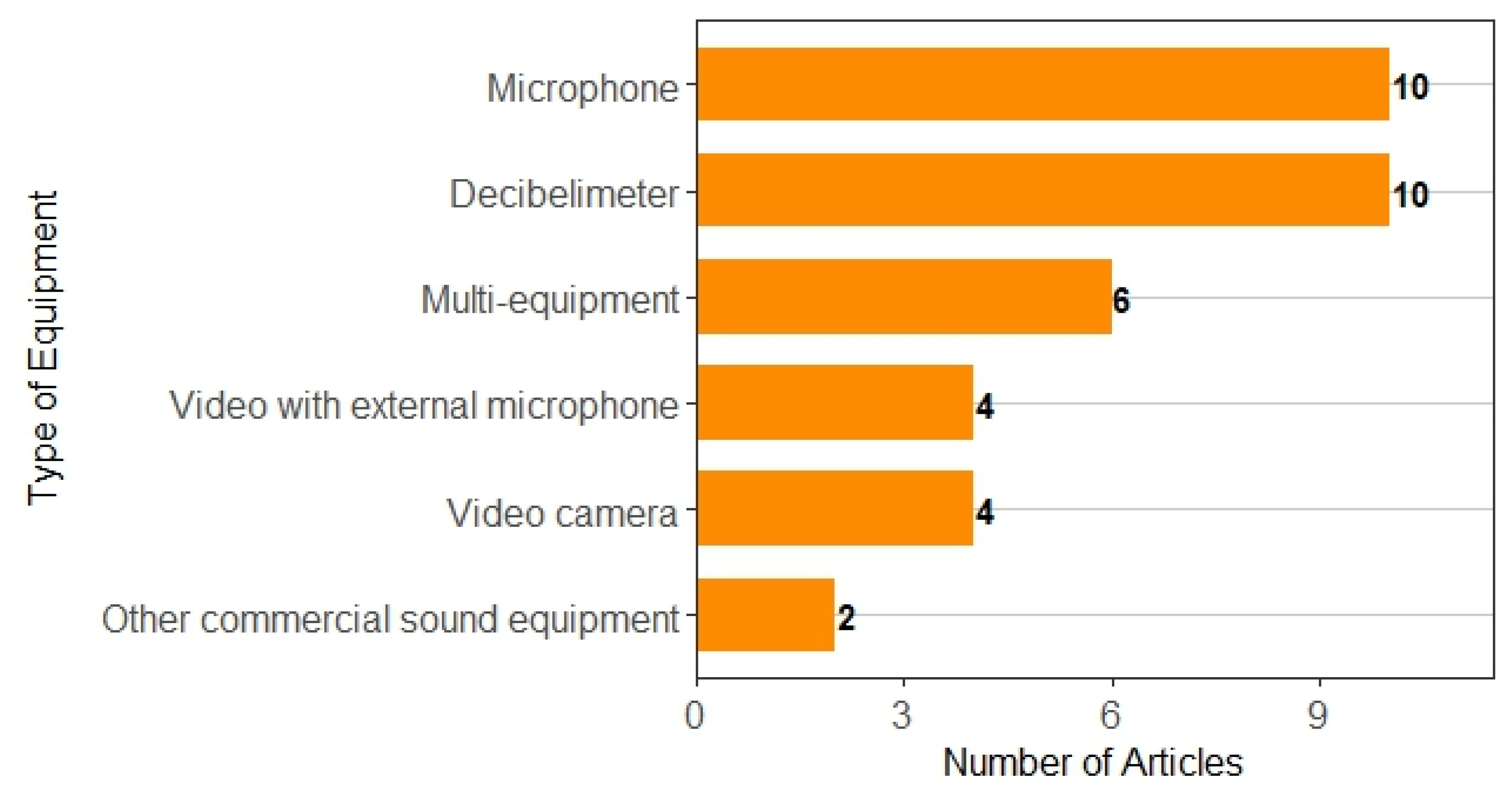

3.3. Sound Capture Technologies
Device Category | Representative Equipment (Brand/Model) | Typical Application | References |
---|---|---|---|
Early studio microphones | Sennheiser MKH416 Tu3; Brüel & Kjær 4165 | Direct vocalization recording, often connected to analog tape recorders | [75,79] |
Portable recorders (cassette/reel) | Uher 4200; Racal Store 4DS | Storage of vocalizations in early studies (1980s–1990s) | [75,77,79] |
Condenser microphones | Monacor ECM3005; Sennheiser ME67 | High-sensitivity recordings, often connected via laptop sound cards (e.g., Realtek AC97) | [28,29,57,70] |
Sound level meters (SLM) | Extech 407764; Voltcraft SL 300 | Background noise measurement in livestock housing | [69,71,72,82] |
Solid-state recorders | Marantz PMD 661 MK II | Modern portable storage of acoustic data | [56,57] |
Calibrators | Brüel & Kjær 4238; Norsonic AS 1251 | Checking equipment levels before data collection | [60,61,71,72,75,78,82] |
Video systems with external microphones | SOMO system (SoundTalks NV); other unspecified video + mic setups | Complement acoustic and visual data; automated detection | [56,62] |
Multi-equipment setups | Microphone + SLM; microphone + video | Combine multiple data sources to enhance environmental and acoustic characterization | [57,64,65,73,81,82] |

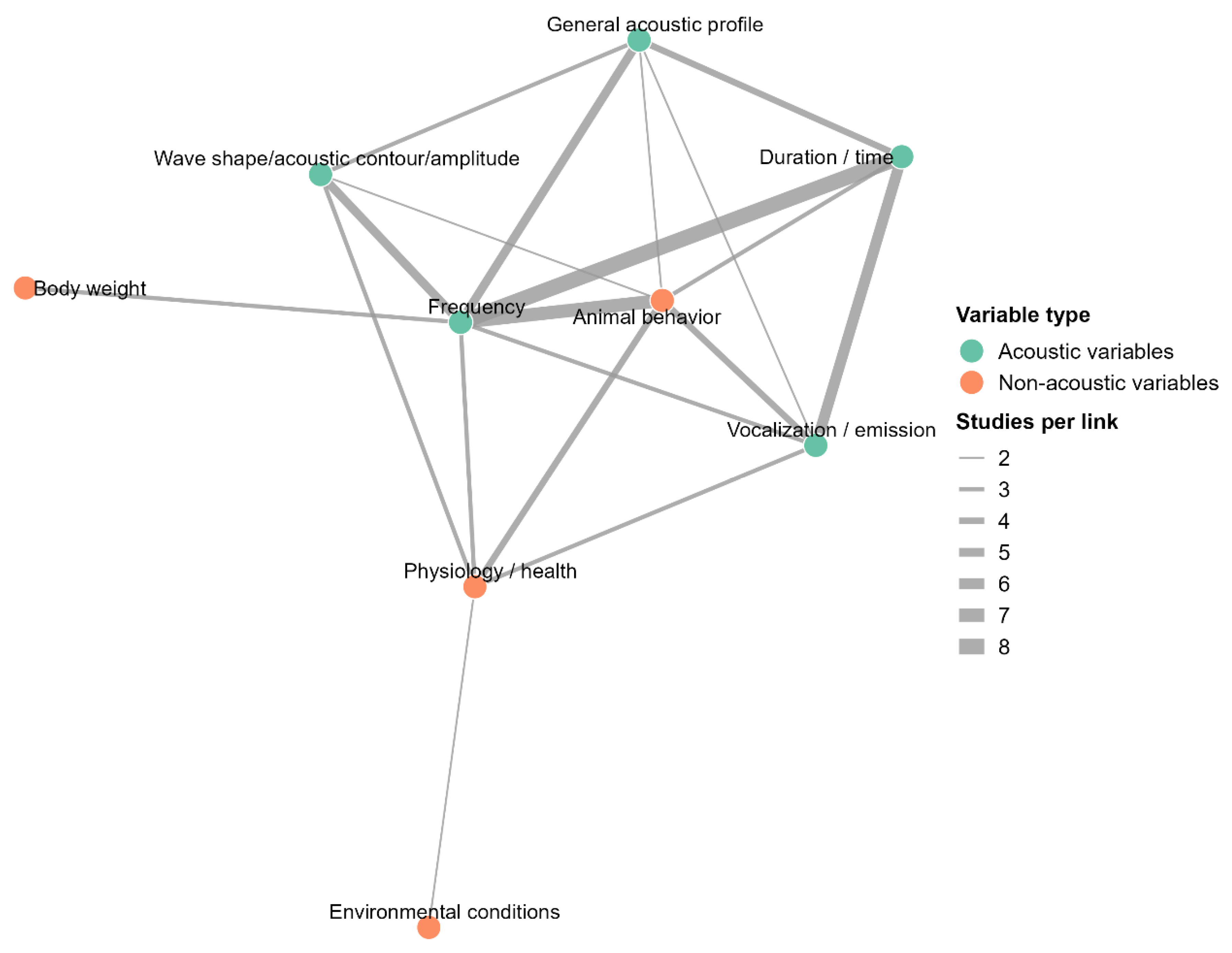

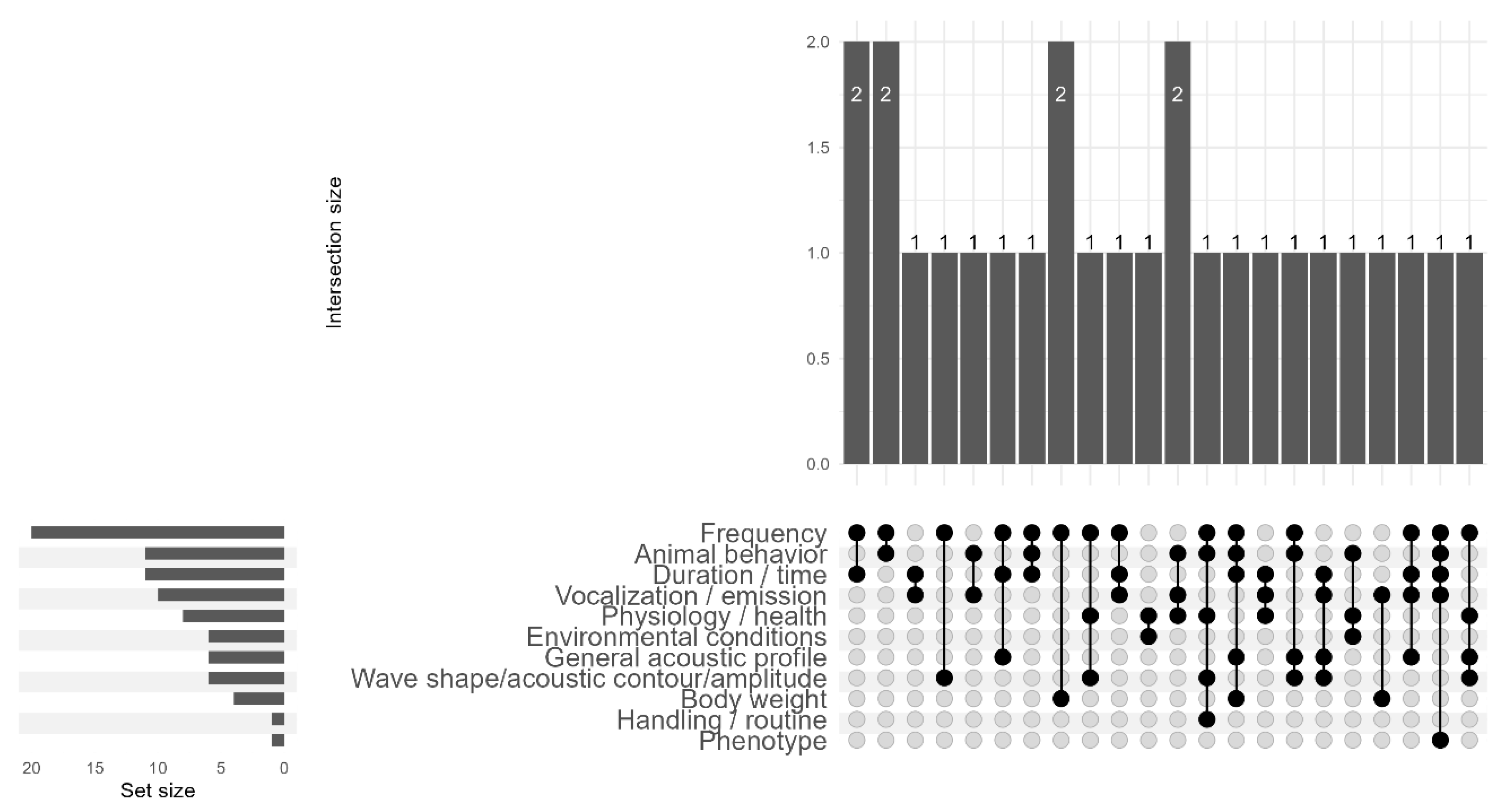

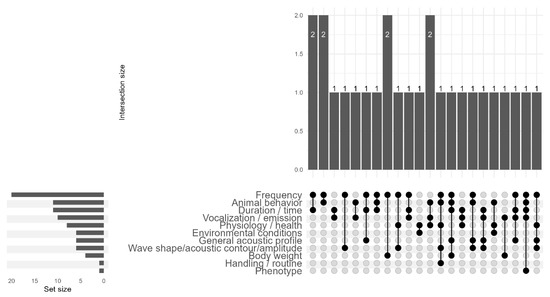

3.4. Variables and Parameters Assessed
4. Discussion
4.1. General Overview of Studies
4.2. Animal Production Context
4.3. Sound Capture Technologies
4.4. Variables and Parameters Assessed
4.5. Key Findings and Perspectives of the Articles
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
