Article

Comparative Analysis of Pressure Platform and Insole Devices for Plantar Pressure Assessment

1
University of Coimbra, CIPER (Interdisciplinary Center for Human Performance), Faculty of Sports Science and Physical Education, 3040-248 Coimbra, Portugal
2
University of Coimbra, CEMMPRE—ARISE Department of Mechanical Engineering, 3040-248 Coimbra, Portugal
3
Coimbra Institute of Engineering, Polytechnic University of Coimbra, 3030-199 Coimbra, Portugal
4
Research Center for Natural Resources, Environment and Society (CERNAS), Polytechnic University of Coimbra, 3045-601 Coimbra, Portugal
5
School of Health Sciences, ciTechCare, CDRSP, Polytechnic University of Leiria, 2411-901 Leiria, Portugal
6
RoboCorp Lab, i2a—IPC Polytechnic Institute of Coimbra, 3045-093 Coimbra, Portugal
*
Author to whom correspondence should be addressed.
Appl. Sci. 2025, 15(13), 7575; https://doi.org/10.3390/app15137575
Submission received: 16 May 2025 / Revised: 20 June 2025 / Accepted: 4 July 2025 / Published: 6 July 2025
(This article belongs to the Section Mechanical Engineering)

Abstract

Foot plantar pressure refers to the pressure or force that the foot generates in contact with the ground, varying across different regions of the foot. This parameter is essential in static and dynamic analyses to access accurate diagnoses, study the human body biomechanics, create functional footwear designs, aid in rehabilitation and physiotherapy, and prevent injuries in athletes during sports practice. This study presents an experimental comparison between two different plantar pressure measurement devices, Pedar® (sensorized insoles) and Physiosensing® (pressure platform). The devices were selected based on their capacity to measure contact area and peak pressure points. Results showed that Physiosensing® provided a more uniform measurement of the contact area, proving its efficiency for weight distribution and stability analysis applications, particularly in posture assessment and balance studies. The Pedar® system showed higher capacity in peak pressure point detection. Therefore, the insole system is more suitable for applications requiring precise high-pressure zone localization. Comparative analysis highlights the strengths and limitations of each device and offers insights regarding its optimal usage in clinical, sports, and research settings.

1. Introduction

The study of biomechanics has paved the way for human movement comprehension assessment and musculoskeletal health evaluation. To obtain more precise information regarding the human body’s behavior during static and dynamic activities, it is necessary to use technologies that measure physical parameters directly in the ambiance in which the activity occurs. In these contexts, sensors have been widely used, offering a quantitative analysis that supports decision-making in clinical, rehabilitation, and athletic performance enhancement [1].
The sole of a foot is an intermediary surface between the ground and the human body [2]. It is subjected to different pressure patterns, which are related to temporary or permanent tissue tensions [3]. One method of assessing these stresses is to measure plantar pressure distribution [4]. This is a necessary indicator in biomechanical analysis for assessing any dynamic or static activity, and it has become almost indispensable in studies of lower limb behavior. Although plantar pressure data is widely recognized for evaluating individuals with diabetes and peripheral neuropathy, these measurements can also be fundamental in assessing and managing disabilities related to neurological disorders [5,6,7]. In addition, it is a determining factor in populations suffering from conditions such as diabetic foot, plantar fasciitis, bone deformities, and gait alterations [8]. Apart from the aforementioned pathological conditions being influenced by the distribution of plantar pressure, it is reported in the published literature that this biomechanical parameter also plays a critical factor in assessing the postural condition of the human body [9]. It is known that an inadequate posture can lead to unequal plantar pressure distribution, thus causing diverse direct musculoskeletal problems. This can be observed in both static and dynamic situations. Therefore, the growing interest and knowledge acquisitions in this area have paved the way for the most diverse diagnosis, physiotherapy, and rehabilitation [5,10,11].
From a clinical perspective, analyzing plantar pressure during different postures and movements allows the detection of biomechanical compensations, which can result in injuries if not detected and corrected in time. Several studies have been published on this interesting topic. Two of these studies, carried out by our research group and already published, are highlighted here. The first examines the differences between the plantar pressure of acrobatic gymnasts when jumping two competition floors [12] and the other assesses the plantar pressure in five different basketball movements [13]. One main conclusion that can be drawn from both reported studies is that the asymmetry between the feet creates an increased propensity for injury. The acquired results can be used to develop several approaches and be helpful in the reduction of the occurrence of lesions. Integrating plantar pressure assessment in different postures has become essential to correctly analyzing the individual’s global biomechanics.
Several technologies have been developed to obtain plantar pressure data. These types of equipment can collect the desired data, which is then used for further analysis with proper software. The results are subsequently used to improve clinical assessment and research accuracy. The technologies created have been grouped mainly into two systems: insoles with integrated sensors [14,15] and pressure platforms [16,17,18]. Rigid pressure platforms are commonly used to measure plantar pressures to assess foot function during standing and walking, particularly barefoot. They are considered the most accurate method for measuring plantar pressures. In-shoe systems are most suitable for measuring plantar pressures in the field during daily living or dynamic sporting movements as they are often wireless and can measure multiple steps. They are the most suitable equipment to assess the effects of footwear and orthotics on plantar pressures. However, they typically have lower spatial resolution and sampling frequency than platform systems [19].
Most commercial smart insole solutions utilize pressure sensors, including resistive, capacitive, or piezoelectric sensors. In some cases, these sensors are complemented with IMU. Regarding the fields of application, there is a balanced distribution between clinical use (rehabilitation, diagnosis of pathologies), sports (performance optimization, injury prevention), and research (data collection for scientific studies). Equipment such as commercial insoles, like the Moticon’s OpenGo, utilize BLE to transmit data from 16 plantar sensors and an inertial unit, enabling them to operate for days on a single battery charge due to optimized protocols. This energy harvesting approach extends usability by eliminating the need for frequent loads. Thus, state-of-the-art electronics for smart insoles focus on maximizing the autonomy and reliability of the transmission without adding volume or weight that compromises use during intense physical activities. Table 1 presents a summary of some equipment available on the market and their specifications.
Although these are distinct systems, the measurement devices share a similar underlying conceptual model that uses a sensor array to measure the pressure exerted in each sensor. These devices allow for the gathering of crucial, leading to a more accurate diagnosis, such as the pressure exerted by the foot (as a whole), the existence of areas that are the focus of superior tensions, the area of contact between the foot and the ground surface and, the center of pressure. Although the operating principle is based on the same fundamentals, there are some differences in the testing methods and data processing, partly due to the specifics of each software. Although several technologies are available for assessing plantar pressure, the effectiveness of each device in accurately capturing postural changes and their biomechanical implications still needs to be fully understood [4].
In more recent years, there were some innovations, and with that, other solutions were presented, such as a speckle-patterned system for strain analysis, utilizing digital image correlation [20]; and the insoles with piezoresistive sensors using carbon nanotube conductive films and ethylene vinyl acetate (EVA) foam [21].
Regarding the smart insole prototypes with a wireless connection, the 3D-printed capacitive insole [22] and the Polydimethylsiloxane (PDMS)-based capacitive sensor insole [23] demonstrated a superior performance, making them highly effective for high-precision plantar pressure and gait monitoring applications. The 3D-printed capacitive insole accomplished high scores in sensitivity, stability, linearity, low hysteresis, and rapid and accurate response. These two prototypes provide robust solutions for accurate real-time plantar pressure monitoring.
In recent investigations of prototypes with AI but without wireless capability, the focus was on studying GRF. In one investigation, the ML technique Gaussian Process Regression was implemented in an insole with pressure sensors [24]. The results were accurate and appropriate for clinical trials and daily life. Another study presented a prototype with 3D-printed porous piezoresistive sensors in a commercial insole and with the employment of Hammerstein–Wiener models [25].
The various studies incorporating wireless transmission and AI technology revealed significant improvements to a range of fields of knowledge and applications. For instance, the study on low-cost smart insoles employing recurrent neural networks enhanced GRF and center of pressure (CoP) predictions by over 30% compared to traditional methods, promising cost-effective gait analysis in clinical and day-to-day life [26]. The CapSoles system reached a 95% accuracy in user identification and 82% in distinguishing floor types using capacitive sensing [27]. Another study involving a sensor insole designed for gait analysis achieved a remarkable 98.75% user recognition accuracy, underscoring its potential for sports and healthcare, where precision is critical [28].
Recent technological developments of smart insoles have driven significant advances in gait analysis and monitoring of plantar pressure distribution. However, relevant limitations persist in terms of anatomical adaptability, intelligent interpretation in real time, and applicability in real contexts outside the laboratory environment.
The literature reports that most published research is based on limited scenarios and does not consider the range of postures or dynamic situations that can influence plantar pressure distribution. Ensuring the accuracy and consistency of these measurements is crucial, as it directly impacts the validity of the outcomes related to posture and diverse activities. Hurkmans et al. [29] studied the Pedar® mobile system, and despite the mentioned systems’ great repeatability, the authors emphasized the importance of correcting minor deviations individually for each insole.
Furthermore, and aligned with the previous study’s topic, Putti et al. [30] studied 122 parameters of Pedar® insoles, obtaining a repeatability coefficient of less than 10% in 114 of the parameters (93.4%). Quesada et al. [31] compared the same system with F-Scan insoles (Tekscan®) and concluded that Pedar® insoles have better precision and repeatability than the F-Scan system. Despite that, Quesada et al. [31] reported that the F-Scan system can benefit some clinical applications. Hughes et al. [32] analyzed the reliability of measurements acquired by a force platform, stating that reliability varies from parameter to parameter. In the case of peak pressure, the authors obtained a reliability of 0.904 for an average of three attempts. Additionally, the increase in reliability values was emphasized as the number of tests increased, proposing a minimum of three attempts for comparison tests between different individuals. Hafer et al. [33] analyzed the reliability of two platforms (Emed-x® and Matscan®), comparing intra-platform and inter-platform results. For Emed-x®, a reliability of 0.9 was achieved for 51 of the 56 parameters studied. In the inter-platform tests, reliability was higher than or equal to 0.7 in almost all the analyzed parameters. This study also indicates that the data collected with different platforms is equivalent, sustaining the idea of Hughes et al. [32] regarding guaranteeing good reliability values with a minimum of three tests. Chevalier et al. [34] compared plantar pressure measurement with platforms (with and without shoes) and pressure insoles. The authors observed that in the tests using the insole devices and where the participants wore shoes, the results presented a lower average peak pressure than platform tests. They also concluded that these results could be attributed to the higher contact area created by the insole. Although many of the differences between the results can be attributed to intrinsic differences in conditions, Chevalier et al. [34] determined that the systems affect the results of the measurements, highlighting that care should be taken when obtaining data with these systems and different conditions.
Several studies [30,35,36,37] have examined plantar pressure assessment, both qualitatively and quantitatively, using insole systems and pressure platforms. However, to the best of the authors’ knowledge, no studies have compared these methods in terms of the values obtained from volunteers.
To fill this gap, the current investigation aims to compare two different plantar pressure assessment devices experimentally: Pedar® insoles by Novel and Physiosensing® pressure platform by Sensing Future. This study aims to provide a scientific basis for selecting the device for collecting plantar pressure data.
It is hypothesized that the Pedar® insole system and the Physiosensing® pressure platform will present significantly different values in plantar pressure measurements, specifically in the parameters of maximum peak pressure (MPP) and contact area, due to the technical and structural characteristics of each device.

2. Materials and Methods

The data collection sample consists of 15 individuals aged between 19 and 24, averaging 21 ± 1.25 years. The group had a mean height of 1.69 ± 0.09 m (m) and a mean Body Mass Index (BMI) of 23.45 ± 4.48 kg/m2. The Ethics Committee of the Polytechnic University of Coimbra approved the study (104CEIPC/2021). All participants were duly informed of the intended objectives and methodology and voluntarily signed an informed consent form.
This study considers two devices, Novel’s Pedar® insoles and Sensing Future Technologies’ Physiosensing® platform.
A test protocol was established that outlined the steps to be taken before the acquisition, the volunteers’ posture, and the acquisitions’ duration and intervals. To ensure that all tests were conducted under the same conditions, each volunteer received instructions from the same researcher on the required posture: feet should be shoulder-width apart, torso should be upright, arms should be at the sides of the body, and gaze should be directed at a marked point located 2 m high and 3.5 m away from the volunteer.
Data collection involved at least five valid acquisitions, each lasting 30 s, with a 30 s interval between each acquisition. All tests were conducted in a laboratory room, with temperature and humidity controlled. The same researcher controlled the data acquisition in all tests.
Table 2 shows technical characteristics of Novel’s Pedar® insoles and Sensing Future Technologies’ Physiosensing® platform.
For data collection, both devices used the same acquisition frequency (100Hz). Each device has its software for data acquisition. Despite being different, each software also allows the monitorization of the evolution of plantar pressure through images. This study evaluated only two parameters: the contact area and the maximum peak pressure (MPP), considered enough for the study purposes.
The Pedar® software (novel gmbh, Munich, Germany) includes tools that enable detailed data analysis, allowing the user to study the values for each measurement instantly and automatically calculate the average and standard deviation of several parameters for each trial. Therefore, it is possible to access data relating to the left and right foot regarding the contact area, the maximum force, and the peak pressure.
Standardization is required since the contact area varies among devices and trials. Therefore, new variables were created to calculate the total contact area (AT) by using the areas of the left (AL) and right feet and (AR) as the contact areas of the left and right feet, respectively.
A_T = A_L + A_R
Pedar®’s software also allows visualization of the distribution of plantar pressure.
At least five valid trials were conducted for each volunteer, and the average total contact area and MPP values were calculated.
The Physiosensing® software allows data collection regarding contact area, MPP, center of pressure coordinates, and average pressure value (MVP), among other parameters not considered in this study. Furthermore, the software presents a document summarizing the analyses conducted, encompassing qualitative (an image of the plantar pressure distribution) and quantitative (calculated parameters) aspects. Figure 1 shows an extract from this document.
To align with the standardization process used in the Pedar® analysis and to achieve comparable values among both equipment types, the averages of the contact area and MPP of the five tests conducted on each volunteer were also calculated.
The same conditions among all trials were defined in the test protocol and communicated to volunteers. It establishes the steps taken before data acquisition, the volunteers’ posture, and the acquisitions’ duration and interval. A Bluetooth connection was used for the Pedar® and the cable connection for the Physiosensing® system to establish a connection between a computer and the device. For the Pedar® System, the right insole size for the volunteer is determined, followed by the calibration process, which uses a memory stick with calibration data for the insoles. Concerning the Physiosensing® platform, the device is placed on the floor, 3.5 m from a wall. The data acquisition process was the same with both equipment, feet shoulder-width apart, torso vertical, arms along the body, and gaze directed at a previously marked point: 2.0 m high and 3.5 m away from the volunteer. Five valid acquisitions with a 30 s duration and a 30 s interval between acquisitions were collected.
The values obtained in this study were evaluated to better understand the reliability between the two instruments (insoles and platforms). Later sections discuss these results in detail, where agreement on specific parameters is analyzed (MPP and contact area).
All data was analyzed using Statistical Package for Social Science (SPSS®) software 25.0 (IBM® Corporation, New York, NY, USA). Descriptive statistics were used to summarize the sample average achievements. The normality of the distribution of the parameters was tested with the Shapiro–Wilk test. Plantar pressure results were compared using Student’s t-test for paired samples. This analysis was complemented by evaluating the effect size using Cohen’s d and Hedges correction. The Intraclass Correlation Coefficient (ICC) was used to assess the level of agreement between the Pedar® and Physiosensing® instruments regarding the measured parameters. According to Portney and Watkins (2009) [38], ICC values inferior to 0.5 (<0.5) indicate poor reliability and suggest the instruments have significant discrepancies. From 0.5 to 0.75 indicates moderate reliability: an acceptable but still limited agreement was reached. From 0.75 to 0.9 reflects good reliability and satisfactory agreement for most applications, and then, higher than 0.9 (>0.9) represents excellent reliability and a high consistency between instrument measurements

3. Results

3.1. Participants Group Results

Each participant’s average MPP and contact area values recorded on each data acquisition device were calculated. The results are shown in Table 3.
Figure 2 shows the average MPP values recorded by each plantar pressure assessment device, for each patient. According to Maetzler et al. [37], when assessing plantar pressure clinically, the peak pressure is the most reliable parameter. For all the volunteers, the values obtained in terms of MPP with the insole system were higher than those obtained with the pressure platform. In accordance with Cohen et al. [39], foot measurements should be taken during gait when the foot is in motion rather than static to capture the dynamic contributions essential for assessing the foot’s biomechanical behavior.
Figure 3 displays the average values of the contact area (CA) registered for each participant and identified by measurement equipment.
It is possible to observe substantial variations between the Pedar® and Physiosensing® systems concerning the values of MPP and contact area. A clear insight into the difference between MPP and the contact area between the volunteers can be observed in Figure 2 and Figure 3, allowing a more in-depth analysis.
It was possible to observe an inverse relationship between MPP and contact area. The volunteers with higher MPP values tend to show lower values in the contact area, which indicates that the pressure is concentrated in specific regions of the plantar surface. For instance, participants with ID 04 and 08 presented the highest and lowest MPP values recorded by Pedar® equipment, 147 kPa and 41 kPa, respectively. However, it is possible to observe an inverse relation between MPP and contact area. For participant 08, larger contact areas were observed, suggesting a more even pressure distribution.
In relation to the equipment used in this study—Pedar® and Physiosensing®—the comparison highlights substantial differences in the sensitivity of MPP and contact area measurements. Pedar® consistently recorded higher MPP values than Physiosensing®.
For instance, in participant 04, the MPP measured 147 kPa with Pedar® compared to 48 kPa with Physiosensing®, representing a difference of 206.3%. Although less pronounced, a similar trend was observed in participant 12, where the MPP was 118 kPa with Pedar® versus 68 kPa with Physiosensing®, a difference of 73.5%.
Conversely, Physiosensing® registered significantly higher contact area values compared to Pedar®. This is exemplified by participant 05, who showed a contact area of 268.0 cm2 with Physiosensing® and 80.9 cm2 with Pedar®, reflecting a difference of 231.3%.
The Bland–Altman plots in Figure 4 compare the two plantar pressure assessment devices (Pedar® and Physiosensing®) for maximum peak pressure (MPP) and contact area.
A systematic bias, as most points lie above zero, indicates that the Pedar® system tends to measure higher MPP and larger contact areas than the Physiosensing® device. There is increasing variability as MPP values increase, suggest that the devices are more inconsistent in measuring higher pressures. In contrast, for the contact area, the bias seems relatively stable across the range of values, as the difference does not increase with larger contact areas.

3.2. Devices Comparison

3.2.1. Student’s T-Test Results for Paired Samples

Table 4 displays the results of the paired-samples t-test for Pedar® and Physiosensing® device comparison, considering the MMP (kPa) and contact area (cm2) parameters.
The analysis of MPP measurements revealed a mean difference of 39.13 kPa between the Pedar® and Physiosensing® platforms, with a standard deviation of 25.01 kPa and a mean standard error of 6.46 kPa. The 95% confidence interval for this difference was between 25.28 kPa and 52.98 kPa, showing an accurate and reliable estimate of the discrepancies. In addition, the p-value < 0.001 confirms that this difference is statistically significant.
Analysis of contact area measurements revealed an average difference of −170.17 cm2, indicating that the Physiosensing® platform records significantly larger contact areas than Pedar®, justified by a greater number of sensors on the Physiosensing® platform. Furthermore, the standard deviation of the differences was 51.47 cm2, with a standard error of the mean of 13.29 cm2, which reflects the variability of measurements. The 95% confidence interval was between −198.67 cm2 and −141.67 cm2, providing a robust estimate of the differences between the platforms. In addition, the p-value < 0.001 confirms the statistical significance of this difference.

3.2.2. Effect Size Analysis with Cohen’s d

To assess the practical magnitude of the observed differences, the effect sizes were calculated using Cohen’s d and adjusted by Hedges’ correction (Table 5). These indicators estimate the practical relevance of the differences beyond statistical significance.
An effect size analysis for MPP revealed Cohen’s d of 1.565, with a 95% confidence interval between 0.788 and 2.317. The adjusted Hedges correction presented a value of 1.479, with a 95% confidence interval between 0.744 and 2.191. According to Cohen’s criteria [39], both values are classified as large effect sizes. This classification indicates that the observed differences between the platforms are statistically significant. Furthermore, the results reinforce that the Pedar® system is superior regarding the detection of the localization of MPP values, making it particularly suitable for studies that require high-precision plantar pressure peak analysis.
The effect size analysis for the contact area variable revealed a Cohen’s d of −3.306, with a 95% confidence interval between −4.610 and −1.985. At the same time, the adjusted Hedges correction had a value of −3.126, with a confidence interval between (−4.358) and (−1.877). According to the criteria established by Cohen et al. [39], these values indicate an extremely high effect size, underlining the considerable practical magnitude of the differences between the platforms.

3.2.3. ICC and Cronbach’s Alpha (α) Coefficient

The ICC parameter is used to evaluate the consistency or concordance of degree between measurements performed in samples with a common characteristic. This correlation coefficient appears to have a high value when there is a reduced result disparity, being equal to 1 in the situations that present total agreement between values. The α coefficient is a measure of internal consistency used to assess a scale’s reliability. High internal consistency is observed when this parameter takes values close to 1, implying that the test’s analyzed data is homogeneous and likely measures the same construct. However, it is essential to note that those high values can indicate redundancy among items, suggesting that some items might provide repetitive information.
The par ICC and Cronbach’s α coefficient were calculated for each comparison par: mean MPP Physiosensing® versus mean MPP Pedar® and mean contact area Physiosensing® versus mean contact area Pedar®. Table 6 displays the values of the ICC and Cronbach’s α values for the MPP and contact area measurements performed by the Pedar® and Physiosensing® platforms.
The MPP analysis revealed an ICC of 0.276, indicating a low consistency between the measurements. Values lower than 0.5 reflect poor reliability, which implies inconsistent measurements between the two devices. The Cronbach’s α score was 0.562, which displays moderate reliability. Nevertheless, it is still below the ideal value of ≥0.7, considered the lowest value required to ensure good internal consistency. The analysis of the contact area parameter revealed an ICC of 0.231, indicating an even lower consistency than the MPP, reflecting weak inter-platform reliability. So, it is reinforced that the two systems diverge significantly in terms of collecting contact area data. On the other hand, Cronbach’s alpha was 0.781, indicating a good internal consistency for the measurements within each system. Despite the low ICC value, it highlights that while individual measurements are consistent within each platform, there are still prominent differences in how the devices acquired the contact area. This discrepancy can be explained by the difference in sensor sensibility between platforms.

4. Discussion

4.1. MPP and Contact Area Values

The number of sensors in each device highly influences the reported divergence values concerning MPP. The Pedar® system, with only 99 sensors, has a lower resolution and tends to focus on specific areas of high pressure. Therefore, each sensor covers a larger area, which can amplify the intensity of the pressure captured at the points of the most significant load [40,41]. This characteristic results in higher values of MPP since the Pedar® system’s sensors capture the pressure concentration at specific sites without dispersing it as much as Physiosensing®. Physiosensing®, in turn, with 1600 sensors, captures the pressure in a more distributed and precise way, softening the pic values due to the existence of a higher-density mesh of sensors. Sensors covering a smaller area distribute the pressure, resulting in a lower average. Therefore, the significant difference observed can be attributed, in large part, to the way each device distributes pressure as a function of the number of sensors [15]. According to Koch et al. [42], when assessing plantar pressure using insoles, it is necessary to consider the fact that the center of pressure is not static, so the pressure distribution changes rapidly due to the smallest movements of the human body. Therefore, each of the 99 sensors that make up the insole must be able to recover between exposures. In fact, the Pedar® system is normally used to read data when the patient is walking, or in any other type of more active movement. However, the tests were carried out with the volunteers in a resting position, which significantly reduces plantar pressure in some areas of the foot, which may explain the differences in MPP.
The difference between the contact area values can be explained by the high-density mesh of sensors in the Physiosensing® system [5]. With 1600 sensors distributed on the platform, this system can record a larger contact area. Furthermore, this system can even access regions of low pressure that Pedar® cannot pick up due to the lower number of sensors. In the case of the Pedar® system, the lower number of sensors means that only areas of higher pressure are recorded. In contrast, lower-pressure contact areas can go unnoticed, resulting in a smaller total contact area. This difference is crucial for applications where full pressure distribution and complete plantar contact are essential, such as postural analysis or balance studies, where the contact area global allows a wider vision of the pressure distribution [5]. The high density of sensors in Physiosensing® allows for capturing a more detailed contact area, including areas with low pressure. This result shows that Physiosensing® is significantly more effective at picking up total plantar contact, which is relevant for studies that require a thorough analysis of the foot surface [5,15].
The effect sizes obtained for both metrics reinforce the relevance of the observed differences. For MPP, Cohen’s d and Hedges’ correction indicated a large effect size, suggesting that the difference in maximum pressure measurement between the devices is substantial in practical terms. This magnitude of difference implies that the choice of the device can significantly influence the results in studies focused on pressure peaks, with Pedar® being more suitable to capture these critical variables. In the case of the contact area, the effect size was even higher, indicating a marked difference between the devices. The result suggests that Physiosensing® provides a more complete measurement of the contact area, which is particularly useful in studies that require a detailed analysis of the plantar pressure distribution. This effect size reinforces that the observed difference is not only statistically significant but also has a considerable practical impact, which should be considered when selecting the device for studies involving global analysis of the contact area.
From Table 6, it is possible to observe that the correlation is satisfactory concerning the α coefficient. However, the absolute agreement of the data falls significantly short of consistency, as the ICC is generally very low. This information agrees with the results of Figure 2 and Figure 3 since that is evidence of a clear difference between the obtained values and the different measurement devices. However, despite the data discrepancy, the difference is consistent among the several trials. There is a clear distinction in the characteristics and data export methods among measurement devices, which aids in explaining the difficulty in achieving comparable results. Nevertheless, the data consistency is acceptable, as evidenced by the findings from studies such as those by J. Hughes et al. [32] and J. Hafer et al. [33], although the reliability is lower than reported in these studies. The results highlight a low inter-platform consistency for the MPP and the contact area, with ICC values below 0.5. This indicates that the two systems are distinct for measurements of these variables. Cronbach’s alpha coefficient showed better results, especially for the contact area (0.781), indicating a good internal consistency of the measurements despite being only within each system.
Accordingly, the systematic bias in Bland–Altman plots suggests that Pedar® consistently measures higher values than the Physiosensing® device. The wider limits of agreement in the contact area measurement indicate greater inconsistency between the two devices in this parameter. The trend of increasing variability at higher MPP values suggests that discrepancies between devices grow as pressure increases, possibly due to differences in sensor sensitivity at high loads. For contact area, the systematic bias suggests that Pedar® records larger contact areas than Physiosensing®, which may be due to variations in sensor placement, calibration, or pressure thresholds for defining contact. These findings suggest that while the two devices may be used interchangeably for trends, direct comparisons of absolute values require caution, as systematic differences exist.

4.2. Research and Clinical Practice Applications

In this investigation context, it is possible to observe several discrepancies among the parameters and systems. It indicates that both devices have distinct characteristics that can directly impact the system’s applicability in research and clinical practice contexts.
The Pedar® equipment monitors plantar pressure under movement conditions, allowing a more accurate measurement of pressure points throughout several gait cycle phases and supporting relevant data for dynamic studies [14]. This feature makes Pedar® the preferred choice for continuous movement analysis, such as studying the biomechanics of locomotion and the redistribution of plantar pressure in physical activities [43]. Despite the study being performed with the participants in a static position, the results showed that Pedar® presents an advantage in collecting the MPP data. This capability can be related to its more sensitive detection capacity in high-pressure regions, which is crucial for a more detailed analysis of the plant pressure distribution in areas of most significant impact. In clinical and research contexts, where the MPP values are essential parameters for injury prevention or clinical procedures, this higher precision capacity of data acquisition of Pedar® offers more detailed information. Another application of this measuring system is to prevent ulcers in people with diabetes using personalized insoles [44]. These patients are prone to this condition due to the excessive pressure on specific foot areas, which can be alleviated by custom-made insoles that can reduce the pressure in this critical region [8,15]. Regarding biomechanical analysis, this type of measurement equipment offers detailed information concerning plantar pressure distribution during impact activities such as running and jumping [45]. The maximum pressure location allows the identification of patterns, making it possible to adjust the athlete’s movement, reducing the risk of injuries and improving performance [46,47]. From a more clinical perspective, Pedar® can be used in post-operatory monitorization since it allows close monitoring of the MPP values and distribution. This information assists the physiotherapists in following up on recovery and gradually adjusting the level of support, preventing an excessive pressure appliance before proper healing [48].
Physiosensing®, a pressure platform, registered higher values of contact area, which can be explained by its sensor configuration, allowing a more general distribution of the plantar pressure. This is particularly interesting when the outcome needed is a complete representation of the contact area between the foot and the ground surface. For example, in postural and balance assessment for patients with postural dysfunctions or pathologies that affect body alignment, Physiosensing® data can be used by physiotherapists to adjust exercises or supports that promote a more balanced weight distribution [49,50,51]. Another application is the production of customizable insoles to bring comfort and prevent injuries to its users by promoting balanced pressure distribution. Patients with uneven footfalls or conditions that require additional plantar arch support could be candidates for this approach. Furthermore, it is possible to reduce the risk of imbalance, which is a concern factor for older people and multiple sclerosis patients, for example [50,51,52].
The pressure platform system demonstrates superiority in measuring parameters such as contact area and a lower sensibility for capturing the pressure points. This makes Physiosensing® ideal for studies involving static postures or biomechanical assessments where immobility is necessary for analysis. On the other hand, the insole system, composed of two insoles with sensors, exhibits a lower capacity to measure the contact area and a higher sensibility for the pressure points. The measurement system selection should address the investigation’s specific objectives, depending on whether the analysis demands static or dynamic posture collected data.

4.3. Study Limitations

Studies based on experimental trials inherently present several limitations, particularly when involving biomechanical measurements in human subjects. One primary challenge lies in the complexity of the human body, which introduces significant variability that is difficult to control. This variability affects the reliability and repeatability of measurements, as it is virtually impossible to replicate identical conditions. Factors such as slight changes in posture, muscle activation, fatigue levels, or even emotional state can influence the outcome.
About the Pedar® in-shoe pressure measurement system, additional technical limitations arise. Over time, the system’s sensors may experience sensitivity degradation due to repeated use and the mechanical stress on the insoles. This wear can lead to subtle calibration or response accuracy shifts, potentially affecting data consistency. Furthermore, while the Pedar® system is designed to be portable and optimized for dynamic conditions, such as walking or running, its performance may be compromised when used in static or quasi-static trials. In these scenarios, minimal movement or inconsistent pressure application can lead to less reliable readings, as the system may struggle to capture stable data outside its optimal operational context.
Although efforts were made to mitigate variability by requiring each subject to repeat the measurement process five times per device, perfect repeatability could not be guaranteed. Human movement naturally involves slight variations, and even with consistent instructions, intra-subject variability is expected. These fluctuations likely contributed to some of the discrepancies observed in the results.
Moreover, a significant constraint of this study was the limited sample size. A small participant group reduces statistical power and increases the influence of individual variability, making it more difficult to draw generalized conclusions. This restricts the findings’ applicability to broader populations and highlights the need for further research with larger and more diverse cohorts to validate and extend the results.

5. Conclusions and Future Directions

This study presents a comparative analysis of plantar pressure data collected under static conditions using two measurement systems: the Physiosensing® pressure platform and the Pedar® sensorized insoles. The results reveal notable pressure distribution and measurement variability differences between the two systems. These differences are justified by their distinct sensing technologies, calibration methods, and measurement contexts.
Both devices demonstrated the capacity to capture plantar pressure data during static evaluations. However, the findings suggest that each system may be more appropriate for different applications. These conclusions are limited to static; as such, they should be interpreted cautiously, and further research is needed to confirm these observations in dynamic contexts or broader clinical populations.
From a practical standpoint, this study provides meaningful insights into each system’s specific strengths within biomechanical analysis and rehabilitation. The Physiosensing® platform appears particularly suited for static assessments, offering higher precision and consistency in measuring plantar pressure during quiet standing. This makes it especially relevant in clinical rehabilitation and physiotherapy, where accurate postural and balance analysis supports individualized therapeutic planning and continuous patient monitoring.
In contrast, the Pedar® insole system seems better adapted for dynamic applications, effectively capturing variations in pressure and contact area during movement. These capabilities make it valuable for studies involving walking, running, and other repetitive motor tasks. Its ability to monitor pressure patterns during movement is beneficial for gait retraining, postural correction, and rehabilitation, aiding in identifying pressure imbalances associated with dysfunction or injury. These insights can inform interventions that reduce overload in vulnerable areas and support gradual, safe recovery.
The observed differences between the systems highlight the importance of understanding their technical specifications, particularly aspects such as sensor density, which significantly influence the accuracy of data collection and the appropriateness of each system for specific applications.
In conclusion, the selection between the Pedar® and Physiosensing® systems should be guided by the study’s specific objectives or clinical evaluation. Using the most appropriate device helps ensure the reliability of the data and contributes to a more precise and meaningful analysis of plantar pressure distribution.
Future directions for research should include expanding the participant sample to encompass a more diverse population, such as older adults, high-performance athletes, and individuals with musculoskeletal or metabolic conditions (e.g., diabetic foot). In addition, a longitudinal analysis of plantar pressure across different rehabilitation phases would provide valuable insights into the evolution of therapeutic outcomes and functional recovery. Monitoring these pressure changes over time could support more tailored interventions and enhance clinical decision-making. Finally, conducting a comparative analysis with other commercially available systems—pressure platforms and sensorized insoles—would help broaden the spectrum of available technologies and offer a more comprehensive perspective on their clinical and research applicability.

Author Contributions

Conceptualization, M.A.C. and A.M.A.; methodology, C.M.A., M.F.P., M.A.C., and A.M.A.; validation, C.M.A., M.F.P., L.R., M.A.C., and A.M.A.; formal analysis, C.M.A., M.F.P., S.V., L.R., M.A.C., and A.M.A.; investigation, C.M.A. and M.F.P.; writing—original draft preparation, S.V., M.A.C., and A.M.A.; writing—review and editing, C.M.A., M.F.P., S.V., L.R., M.A.C., and A.M.A.; supervision, M.A.C. and A.M.A. All authors have read and agreed to the published version of the manuscript.

Funding

C.M.A. acknowledges Fundação para a Ciência e Tecnologia (FCT), Portugal, for the financial support through the PhD Grant 2023.05546.BD; S.V. acknowledges Fundação para a Ciência e Tecnologia (FCT), Portugal, for the financial support through the PhD Grant 2023.00413.BD.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Provided upon request.

Acknowledgments

This research is sponsored by national funds through FCT—Fundação para a Ciência e a Tecnologia, under projects: UID/00285—Centre for Mechanical Engineering, Materials and Processes and LA/P/0112/2020; UIDB/00681; DOI: 10.54499/UIDP/00681/2020—Research Centre for Natural Resources, Environment and Society—CERNAS. The authors acknowledge the support of the student Ana Filipa Pastilha for having collaborated in this work. The authors acknowledge BodyKeeper Clinic and Applied Biomechanics Laboratory, i2a—Polytechnic University of Coimbra for supporting this study.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Re, R.; Scano, A.; Amata, O.; Spinelli, L.; Tomba, A.; Brambilla, C.; Frizziero, A.; Caserta, A.V.; Cubeddu, R.; Torricelli, A.; et al. A personalized clinical assessment: Multi-sensor approach for understanding musculoskeletal health in the frail population. Biomed. Eng. Online 2024, 23, 91. [Google Scholar] [CrossRef] [PubMed]
  2. Kobayashi, Y.; Nakashima, Y. Estimation of posture and joint angle of human body using foot pressure distribution: Morphological computation with human foot. arXiv 2024, arXiv:2401.12464. [Google Scholar] [CrossRef]
  3. Buldt, A.K.; Forghany, S.; Landorf, K.B.; Levinger, P.; Murley, G.S.; Menz, H.B. Foot posture is associated with plantar pressure during gait: A comparison of normal, planus and cavus feet. Gait Posture 2018, 62, 235–240. [Google Scholar] [CrossRef] [PubMed]
  4. Buldt, A.K.; Allan, J.J.; Landorf, K.B.; Menz, H.B. The relationship between foot posture and plantar pressure during walking in adults: A systematic review. Gait Posture 2018, 62, 56–67. [Google Scholar] [CrossRef]
  5. Orlin, M.N.; McPoil, T.G. Plantar Pressure Assessment. Phys. Ther. 2000, 80, 399–409. [Google Scholar] [CrossRef]
  6. Castro-Martins, P.; Marques, A.; Coelho, L.; Vaz, M.; Costa, J.T. Plantar pressure thresholds as a strategy to prevent diabetic foot ulcers: A systematic review. Heliyon 2024, 10, e26161. [Google Scholar] [CrossRef]
  7. Abri, H.; Aalaa, M.; Sanjari, M.; Amini, M.R.; Mohajeri-Tehrani, M.R.; Larijani, B. Plantar pressure distribution in diverse stages of diabetic neuropathy. J. Diabetes Metab. Disord. 2019, 18, 33–39. [Google Scholar] [CrossRef]
  8. Giacomozzi, C.; Uccioli, L. Learning from experience: A simple effective protocol to test footwear prescriptions for the Diabetic foot by using the Pedar system. J. Biomed. Sci. Eng. 2013, 6, 45–57. [Google Scholar] [CrossRef]
  9. De Blasiis, P.; Caravaggi, P.; Fullin, A.; Leardini, A.; Lucariello, A.; Perna, A.; Guerra, G.; De Luca, A. Postural stability and plantar pressure parameters in healthy subjects: Variability, correlation analysis and differences under open and closed eye conditions. Front. Bioeng. Biotechnol. 2023, 11, 1198120. [Google Scholar] [CrossRef]
  10. Keklicek, H.; Cetin, B.; Salci, Y.; Balkan, A.F.; Altinkaynak, U.; Armutlu, K. Investigating the dynamic plantar pressure distribution and loading pattern in subjects with multiple sclerosis. Mult. Scler. Relat. Disord. 2018, 20, 186–191. [Google Scholar] [CrossRef]
  11. Forghany, S.; Nester, C.; Tyson, S.; Preece, S.; Jones, R. Plantar Pressure Distribution in People with Stroke and Association with Functional Mobility. J. Rehabil. Sci. Res. 2019, 6, 80–85. [Google Scholar] [CrossRef]
  12. Paulino, M.; Roseiro, L.; Dias, J.; Neto, M.; Amaro, A. Differences among plantar pressure of acrobatic gymnasts when they jump over two competition floors. Does the presence of mattresses affect the gymnasts’ performance? Sci. Sports 2021, 36, 232.e1–232.e9. [Google Scholar] [CrossRef]
  13. Amaro, C.M.; Castro, M.A.; Roseiro, L.; Neto, M.A.; Amaro, A.M. Plantar pressure evaluation during the season in five basketball movements. Appl. Sci. 2020, 10, 8691. [Google Scholar] [CrossRef]
  14. Santos, V.M.; Gomes, B.B.; Neto, M.A.; Amaro, A.M. A Systematic Review of Insole Sensor Technology: Recent Studies and Future Directions. Appl. Sci. 2024, 14, 6085. [Google Scholar] [CrossRef]
  15. Chen, J.; Dai, Y.; Grimaldi, N.S.; Lin, J.; Hu, B.; Wu, Y.; Gao, S. Plantar Pressure-Based Insole Gait Monitoring Techniques for Diseases Monitoring and Analysis: A Review. Adv. Mater. Technol. 2022, 7, 2100566. [Google Scholar] [CrossRef]
  16. Abdul Razak, A.H.; Zayegh, A.; Begg, R.K.; Wahab, Y. Foot plantar pressure measurement system: A review. Sensors 2012, 12, 9884–9912. [Google Scholar] [CrossRef]
  17. Subramaniam, S.; Majumder, S.; Faisal, A.I.; Deen, M.J. Insole-Based Systems for Health Monitoring: Current Solutions and Research Challenges. Sensors 2022, 22, 438. [Google Scholar] [CrossRef]
  18. Detels, K.; Shin, D.; Wilson, H.; Zhou, S.; Chen, A.; Rosendorf, J.; Taseh, A.; Akhbari, B.; Schwab, J.H.; Ghaednia, H. Clinical Applications of Plantar Pressure Measurement. arXiv 2024, arXiv:2401.04830. [Google Scholar] [CrossRef]
  19. Burnie, L.; Chockalingam, N.; Holder, A.; Claypole, T.; Kilduff, L.; Bezodis, N. Testing protocols and measurement techniques when using pressure sensors for sport and health applications: A comparative review. Foot 2024, 59, 102094. [Google Scholar] [CrossRef]
  20. Crossland, S.R.; Siddle, H.J.; Brockett, C.L.; Culmer, P. Evaluating the Use of a Novel Low-Cost Measurement Insole to Characterise Plantar Foot Strain during Gait Loading Regimes. Front. Bioeng. Biotechnol. 2023, 11, 1187710. [Google Scholar] [CrossRef]
  21. He, Y.; Lin, M.; Wang, X.; Liu, K.; Liu, H.; He, T.; Zhou, P. Textile-Film Sensors for a Comfortable Intelligent Pressure-Sensing Insole. Measurement 2021, 184, 109943. [Google Scholar] [CrossRef]
  22. Samarentsis, A.G.; Makris, G.; Spinthaki, S.; Christodoulakis, G.; Tsiknakis, M.; Pantazis, A.K. A 3D-Printed Capacitive Smart Insole for Plantar Pressure Monitoring. Sensors 2022, 22, 9725. [Google Scholar] [CrossRef] [PubMed]
  23. Luna-Perejón, F.; Salvador-Domínguez, B.; Perez-Peña, F.; Corral, J.M.R.; Escobar-Linero, E.; Morgado-Estévez, A. Smart Shoe Insole Based on Polydimethylsiloxane Composite Capacitive Sensors. Sensors 2023, 23, 1298. [Google Scholar] [CrossRef]
  24. Eguchi, R.; Takahashi, M. Estimation of Three-Dimensional Ground Reaction Forces During Walking and Turning Using Insole Pressure Sensors Based on Gait Pattern Recognition. IEEE Sens. J. 2023, 23, 31278–31286. [Google Scholar] [CrossRef]
  25. Willemstein, N.; Sridar, S.; Van Der Kooij, H.; Sadeghi, A. 3D Printed Graded Porous Sensors for Soft Sensorized Insoles with Gait Phase & Ground Reaction Forces Estimation. arXiv 2023, arXiv:2303.04719. [Google Scholar]
  26. Choi, H.S.; Yoon, S.; Kim, J.; Seo, H.; Choi, J.K. Calibrating Low-Cost Smart Insole Sensors with Recurrent Neural Networks for Accurate Prediction of Center of Pressure. Sensors 2024, 24, 4765. [Google Scholar] [CrossRef]
  27. Matthies, D.J.C.; Roumen, T.; Kuijper, A.; Urban, B. CapSoles. In Proceedings of the 19th International Conference on Human-Computer Interaction with Mobile Devices and Services, Vienna, Austria, 4–7 September 2017; ACM: New York, NY, USA, 2017; pp. 1–14. [Google Scholar]
  28. Ivanov, K.; Mei, Z.; Lubich, L.; Guo, N.; Xile, D.; Zhao, Z.; Omisore, O.M.; Ho, D.; Wang, L. Design of a Sensor Insole for Gait Analysis. In Intelligent Robotics and Applications; Springer: Cham, Switzerland, 2019; pp. 433–444. [Google Scholar]
  29. Hurkmans, H.; Bussmann, J.; Benda, E.; Verhaar, J.; Stam, H. Accuracy and repeatability of the Pedar Mobile system in long-term vertical force measurements. Gait Posture 2006, 23, 118–125. [Google Scholar] [CrossRef]
  30. Putti, A.; Arnold, G.; Cochrane, L.; Abboud, R. The Pedar® in-shoe system: Repeatability and normal pressure values. Gait Posture 2007, 25, 401–405. [Google Scholar] [CrossRef]
  31. Quesada, P.; Rash, G.; Jarboe, N. Assessment of pedar and F-scan revisited. Clin. Biomech. 1997, 12, S15. [Google Scholar] [CrossRef]
  32. Hughes, J.; Pratt, L.; Linge, K.; Clark, P.; Klenerman, L. Reliability of pressure measurements: The EM ED F system. Clin. Biomech. 1991, 6, 14–18. [Google Scholar] [CrossRef]
  33. Hafer, J.F.; Lenhoff, M.W.; Song, J.; Jordan, J.M.; Hannan, M.T.; Hillstrom, H.J. Reliability of plantar pressure platforms. Gait Posture 2013, 38, 544–548. [Google Scholar] [CrossRef] [PubMed]
  34. Chevalier, T.L.; Hodgins, H.; Chockalingam, N. Plantar pressure measurements using an in-shoe system and a pressure platform: A comparison. Gait Posture 2010, 31, 397–399. [Google Scholar] [CrossRef] [PubMed]
  35. Murphy, D.F.; Beynnon, B.D.; Michelson, J.D.; Vacek, P.M. Efficacy of Plantar Loading Parameters During Gait in Terms of Reliability, Variability, Effect of Gender and Relationship Between Contact Area and Plantar Pressure. Foot Ankle Int. 2005, 26, 171–179. [Google Scholar] [CrossRef] [PubMed]
  36. Gurney, J.K.; Kersting, U.G.; Rosenbaum, D. Between-day reliability of repeated plantar pressure distribution measurements in a normal population. Gait Posture 2008, 27, 706–709. [Google Scholar] [CrossRef]
  37. Maetzler, M.; Bochdansky, T.; Abboud, R. Normal pressure values and repeatability of the Emed1 ST2 system. Gait Posture 2010, 32, 391–394. [Google Scholar] [CrossRef]
  38. Portney, L.G.; Watkins, M.P. Foundations of Clinical Research: Applications to Practice; Pearson Education Limited: London, UK, 2014. [Google Scholar]
  39. Cohen, J. Statistical Power Analysis for the Behavioral Sciences; Routledge: New York, NY, USA, 2013. [Google Scholar] [CrossRef]
  40. Ciniglio, A.; Guiotto, A.; Spolaor, F.; Sawacha, Z. The design and simulation of a 16-sensors plantar pressure insole layout for different applications: From sports to clinics, a pilot study. Sensors 2021, 21, 1450. [Google Scholar] [CrossRef]
  41. Zulkifli, S.S.; Loh, W.P. A state-of-the-art review of foot pressure. Foot Ankle Surg. 2020, 26, 25–32. [Google Scholar] [CrossRef]
  42. Koch, M.; Lunde, L.-K.; Ernst, M.; Knardahl, S.; Veiersted, K.B. Validity and reliability of pressure-measurement insoles for vertical ground reaction force assessment in field situations. Appl. Ergon. 2016, 53, 44–51. [Google Scholar] [CrossRef]
  43. Weizman, Y.; Tan, A.M.; Fuss, F.K. Benchmarking study of the forces and centre of pressure derived from a novel smart-insole against an existing pressure measuring insole and force plate. Measurement 2019, 142, 48–59. [Google Scholar] [CrossRef]
  44. Korada, H.; Maiya, A.; Rao, S.K.; Hande, M. Effectiveness of customized insoles on maximum plantar pressure in diabetic foot syndrome: A systematic review. Diabetes Metab. Syndr. Clin. Res. Rev. 2020, 14, 1093–1099. [Google Scholar] [CrossRef]
  45. Elstub, L.; Grohowski, L.; Wolf, D.; Owen, M.; Noehren, B.; Zelik, K. Effect of pressure insole sampling frequency on insole-measured peak force accuracy during running. J. Biomech. 2022, 145, 111387. [Google Scholar] [CrossRef] [PubMed]
  46. Orendurff, M.S.; Rohr, E.S.; Segal, A.D.; Medley, J.W.; Green, J.R.; Kadel, N.J. Regional foot pressure during running, cutting, jumping, and landing. Am. J. Sports Med. 2007, 36, 566–571. [Google Scholar] [CrossRef] [PubMed]
  47. Mann, R.; Malisoux, L.; Urhausen, A.; Meijer, K.; Theisen, D. Plantar pressure measurements and running-related injury: A systematic review of methods and possible associations. Gait Posture 2016, 47, 1–9. [Google Scholar] [CrossRef]
  48. Zhang, Z.; Dai, Y.; Xu, Z.; Grimaldi, N.; Wang, J.; Zhao, M.; Pang, R.; Sun, Y.; Gao, S.; Boyi, H. Insole Systems for Disease Diagnosis and Rehabilitation: A Review. Biosensors 2023, 13, 833. [Google Scholar] [CrossRef]
  49. Cucuzzella, A.R.; Marley, J. Rehabilitation Methods. In Interventional Spine E-Book: An Algorithmic Approach; Elsevier Health Sciences: Amsterdam, The Netherlands, 2007; pp. 685–705. [Google Scholar] [CrossRef]
  50. E Barclay-Goddard, R.; Stevenson, T.J.; Poluha, W.; Moffatt, M.; Taback, S.P. Force platform feedback for standing balance training after stroke. Cochrane Database Syst. Rev. 2004, 2004, CD004129. [Google Scholar] [CrossRef]
  51. Prosperini, L.; Pozzilli, C. The Clinical Relevance of Force Platform Measures in Multiple Sclerosis: A Review. Mult. Scler. Int. 2013, 2013, 756564. [Google Scholar] [CrossRef]
  52. Wafai, L.; Zayegh, A.; Woulfe, J.; Aziz, S.M.; Begg, R. Identification of foot pathologies based on plantar pressure asymmetry. Sensors 2015, 15, 20392–20408. [Google Scholar] [CrossRef]
Figure 1. Summary of the qualitative and quantitative analyses carried out by the software Physiosensing®.
Figure 1. Summary of the qualitative and quantitative analyses carried out by the software Physiosensing®.
Applsci 15 07575 g001
Figure 2. Comparison of the average MPP in the two acquisition devices.
Figure 2. Comparison of the average MPP in the two acquisition devices.
Applsci 15 07575 g002

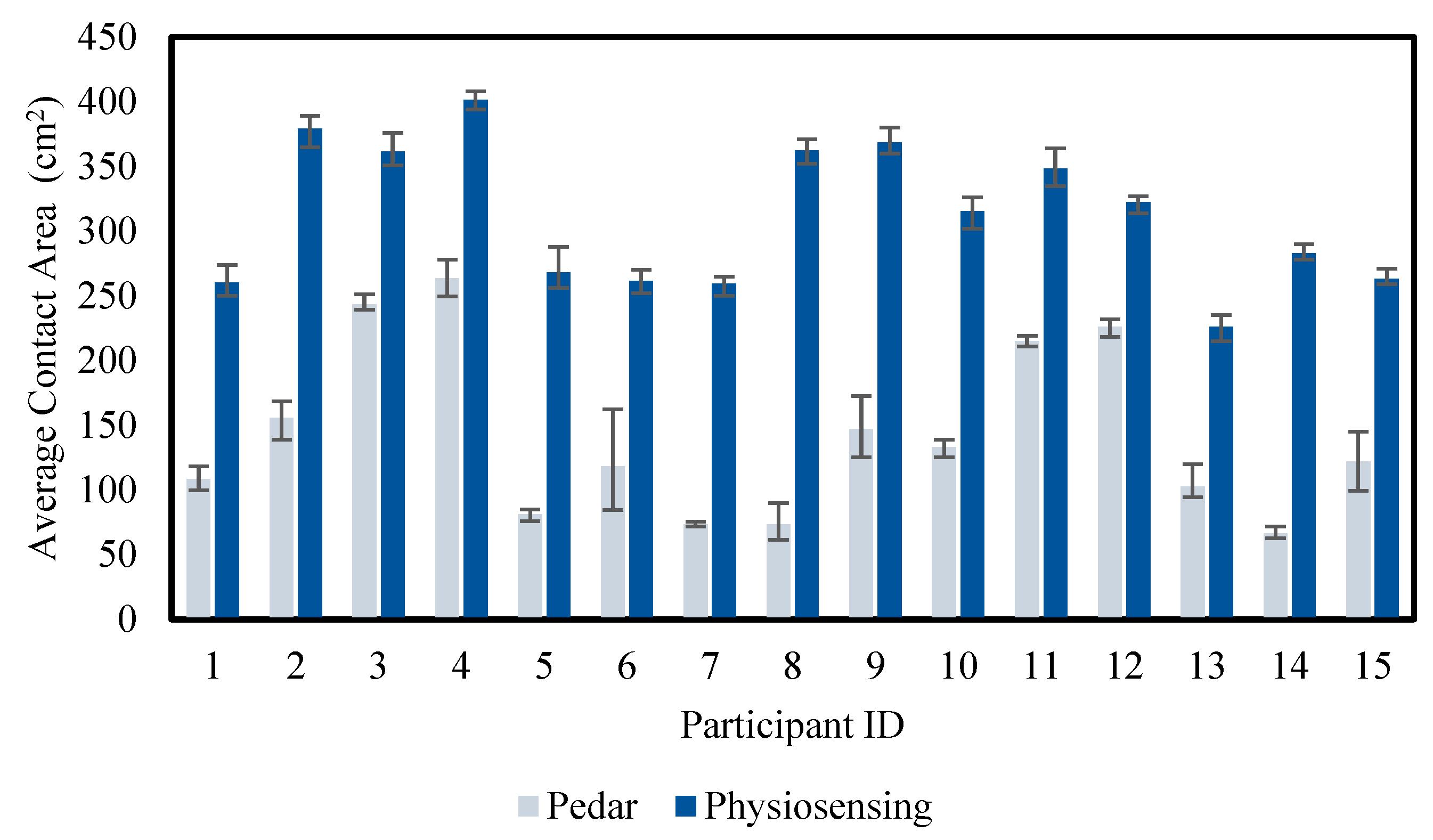

Figure 3. Contact area (CA) values from Pedar® and Physiosensing®.
Figure 3. Contact area (CA) values from Pedar® and Physiosensing®.
Applsci 15 07575 g003
Figure 4. Bland–Altman plot graphic for (a) MPP and (b) contact area.
Figure 4. Bland–Altman plot graphic for (a) MPP and (b) contact area.
Applsci 15 07575 g004
Table 1. Summary of some equipment available on the market and their specifications.
Table 1. Summary of some equipment available on the market and their specifications.
Device NameCompany/EnterpriseType(s) of Sensor(s)Number of Sensors in InsoleWireless (Yes/No)Application(s)
Moticon SCIENCEMoticon (München, Germany)Pressure sensors, accelerometers, and gyroscopes16 pressure sensors and 6-axis IMUYMotion analysis for clinical research and sports science
FootLogger3L Labs (Chicago, IL, USA)Pressure sensors8 pressure sensors, 3D-axis
accelerometer, and 3D-axis gyroscope
YMonitoring foot health for rehabilitation and injury prevention
Nurvv RunNurvv (London, UK)Pressure sensors16 eachNCadence, step length, foot strike
F-ScanTekscan (Norwood, MA, USA)Pressure sensors954 eachNGait analysis parameters such as pressure and force data
Pedar systemNovel (Munich, Germany)Pressure sensors (capacitive)99NGait studies
OpenGoMoticon (München, Germany)Pressure sensors, accelerometers, and
temperature sensors
16 pressure sensors and 6-axis IMUYGait studies, activity tracking
Table 2. Technical characteristics of Pedar® insoles by Novel, and Physiosensing® platform by Sensing Future Technologies.
Table 2. Technical characteristics of Pedar® insoles by Novel, and Physiosensing® platform by Sensing Future Technologies.
Measuring SystemPedar® InsolesPhysiosensing® Platform
Device typeFlexible insolesRigid platform of pressure
SupplierNovelSensing Future Technologies.
Number of sensors99 sensors per insole1600 sensors on the platform
Occupied area1 cm2 per sensor1 cm2 per sensor
Active area: 40 × 40 cm2
DistributionHomogeneousHomogeneous
Sensor typePiezoresistiveResistive
Sensor characteristicsSensor thickness: 1.9 mm
Pressure range: 637.5 kPa
Histerese: 7%
Resolution: 2.5 kPa
Frequency: 50–100 Hz
Maximum pressure: 100 N/cm2
Frequency: 100 Hz
Insole size and platform areaV 1872 R/V 1869 L
W1928 R/W 1927 L
X 2746 R/X 2747 L
XW 532 R/XW 533 L
61x58 cm2
Data acquisition-Connection to a computer (via cable or Bluetooth)
-Registration on memory card for later analysis
-Connecting to a computer (via cable)
Table 3. Average MPP and contact area values for each volunteer from both devices.
Table 3. Average MPP and contact area values for each volunteer from both devices.
IDMPP (kPa)Contact Area (cm2)
Pedar®Physiosensing®Difference Between the Devices (%) *Pedar®Physiosensing®Difference Between the Devices (%) *
011066758.2%108.2260.2140.5%
02914985.7%155.7379.2143.5%
03493540.0%243.4361.448.5%
0414748206.3%263.4401.652.5%
05614438.6%80.9268.0231.3%
06534323.3%117.9261.4121.7%
0711758101.7%73.1259.4254.9%
08413710.8%73.4362.2393.5%
098541107.3%146.9368.6150.9%
10804866.7%132.9315.2137.2%
11854397.7%214.9348.462.1%
121186873.5%226.0322.242.6%
13724175.6%102.3225.8120.7%
14805060.0%66.1283.0328.1%
1512652142.3%122.0263.0115.6%
* Obtained by considering the smallest value in the denominator, and in the numerator, the difference between the two values.
Table 4. Paired-samples t-test comparison of MPP and CA obtained by Pedar® and Physiosensing®.
Table 4. Paired-samples t-test comparison of MPP and CA obtained by Pedar® and Physiosensing®.
Paired Differences
MeanStandard DeviationStandard Error of the Mean95% Confidence Interval of the DifferenceBilateral p
InferiorSuperior
Pair 1Pedar® MPP [kPa] −versus Physiosensing® MPP [kPa]39.1325.016.4625.2852.98<0.001
Pair 2Pedar® contact area [cm2] versus Physiosensing® contact area [cm2]−170.1751.4713.29−198.67−141.67<0.001
Table 5. Effect sizes for paired samples.
Table 5. Effect sizes for paired samples.
Point Estimate95% Confidence Interval of the Difference
InferiorSuperior
Pair 1Pedar® MPP [kPa] versus Physiosensing® MPP [kPa]Cohen’s d1.5650.7882.317
Hedges Correction1.4790.7442.191
Pair 2Pedar® Contact Area [cm2] versus Physiosensing® Contact Area [cm2]Cohen’s d−3.306−4.610−1.985
Hedges Correction−3.126−4.358−1.877
Table 6. ICC and Cronbach’s alpha ( α ) coefficient of the average MPP and contact area regarding Pedar® and Physiosensing® systems.
Table 6. ICC and Cronbach’s alpha ( α ) coefficient of the average MPP and contact area regarding Pedar® and Physiosensing® systems.
ICC α
MPP0.2760.562
Contact Area0.2310.781
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Amaro, C.M.; Paulino, M.F.; Valvez, S.; Roseiro, L.; Castro, M.A.; Amaro, A.M. Comparative Analysis of Pressure Platform and Insole Devices for Plantar Pressure Assessment. Appl. Sci. 2025, 15, 7575. https://doi.org/10.3390/app15137575

AMA Style

Amaro CM, Paulino MF, Valvez S, Roseiro L, Castro MA, Amaro AM. Comparative Analysis of Pressure Platform and Insole Devices for Plantar Pressure Assessment. Applied Sciences. 2025; 15(13):7575. https://doi.org/10.3390/app15137575

Chicago/Turabian Style

Amaro, Catarina M., Maria F. Paulino, Sara Valvez, Luis Roseiro, Maria António Castro, and Ana M. Amaro. 2025. "Comparative Analysis of Pressure Platform and Insole Devices for Plantar Pressure Assessment" Applied Sciences 15, no. 13: 7575. https://doi.org/10.3390/app15137575

APA Style

Amaro, C. M., Paulino, M. F., Valvez, S., Roseiro, L., Castro, M. A., & Amaro, A. M. (2025). Comparative Analysis of Pressure Platform and Insole Devices for Plantar Pressure Assessment. Applied Sciences, 15(13), 7575. https://doi.org/10.3390/app15137575

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
