Development of Technical Diagnostics for Lubrication in Gear Modules for Advanced Robotic Applications

Abstract

The paper focuses on the experimental investigation of the impact of filtration and tribological parameters on the reliability, service life, and functional characteristics of gear mechanisms used in robotics. The primary objective was to analyze the importance of lubricant cleanliness in robotic transmission modules and to assess the effectiveness of filtration as a preventive and protective measure. As part of the research, a dedicated test rig was designed and developed. Based on the measurements and analyses performed, a significant correlation was confirmed between lubricant contamination levels and degradation phenomena in transmission modules. The study also highlights a sharp increase in contamination during the initial hours of operation, emphasizing the need for early intervention and continuous monitoring. The findings have strong practical potential and are highly relevant for manufacturers of robotic systems, maintenance service providers, and operators of automated production lines. The results contribute to increased system reliability and extended service life, reduced maintenance and repair costs, and improved environmental aspects of robotic system maintenance.

1. Introduction

The concept of reliability encompasses the strategy, methodology, and planning that guide the actions necessary to optimize the performance of production systems. The primary objective is to guarantee that robotic equipment performs its intended function without failure, within the stipulated timeframe, and with the requisite precision. A comprehensive reliability approach integrates all of these initiatives into a unified, systematic framework.

The reliability and service life of gear mechanisms or transmission systems used in advanced applications depend not only on their design, precision manufacturing, and appropriate dimensioning according to operational and load conditions, but also on the application of tribological and tribodiagnostic knowledge.

The importance of lubrication and oil care is reflected in various ways in practical applications. It is certainly easier to check the oil level in the reservoir and top it up if necessary or visually monitor for potential lubricant leaks while walking through the production hall than to later investigate the causes of increased vibrations due to high contamination of the lubrication system—or, even worse, to deal with serious damage to the production equipment.

This issue is addressed from multiple perspectives. One article [1] presents a systematic review of vibration-based condition monitoring in rotating machinery, with a focus on the methodologies used in the key phases of automatic fault diagnosis, including signal measurement, pre-processing, processing, feature selection, and fault diagnosis. It explores the application of vibration monitoring across various mechanical systems and components, highlighting the main techniques used in each diagnostic phase. The review analyzes the effectiveness of different signal processing, feature selection, and diagnostic methods, with an emphasis on their impact based on the specific aspects studied. The findings provide insights into current research trends and innovations in vibration-based diagnostics, offering valuable directions for future developments in the field.

The impact of oil type on vibration characteristics—particularly the influence of oil viscosity and pressure on vibration levels in pumps and rotating machinery—plays a crucial role in system performance and reliability. Key oil properties, such as viscosity, significantly affect both average vibration values and the dynamics of peak-to-peak acceleration. Additionally, the physicochemical composition of various oils, including engine, hydraulic, and gear oils, contributes to cavitation behavior and vibration response. These factors are especially important in the context of optimizing and designing more equipment. Another article [2] is devoted to a systematic study and detailed analysis of these aspects.

A third study [3] is devoted to the development of a test rig for monitoring the impact of various operating conditions, such as shaft load, shaft speed, lubrication level, and abrasive contamination, on bevel gear mechanisms over different operating hours. The results demonstrate that combining sound and vibration monitoring provides a reliable approach for diagnosing fault conditions in bevel gears.

Gear misalignment is a critical factor contributing to gearbox failure, leading to increased wear and oil degradation. Real-time monitoring using a combination of sensors enables the detection of misalignment effects through changes in lubricant condition and wear particle generation. The development and implementation of an online diagnostic system integrating these aspects is the focus of this study [4].

A newly developed compound diagnostic system, integrating a compound sensor and signal processor, enables simultaneous monitoring of vibration acceleration and acoustic emission for rolling contact fatigue in grease-lubricated ball bearings, presented in [5]. Diagnostic features, such as RMS, mean, variance, skewness, and kurtosis, are extracted to evaluate bearing condition, with the RMS of vibration acceleration proving most effective. This study demonstrates the system’s effectiveness in detecting early fatigue failure in rolling bearings under lubrication conditions.

Insufficient lubrication of gearboxes in industrial motors shortens their lifespan and can lead to catastrophic failures and losses. One paper [6] proposed diagnosing the lack of lubrication in gear oil systems using motor current signature analysis (MCSA). The study proposed, investigated, and experimentally validated two new technologies for diagnosing inadequate lubrication in gearmotor systems based on MCSA.

Gearboxes are critical components in various industrial applications, where gear wear over time can lead to significant failures and unexpected downtime. Vibration analysis is commonly used to monitor and diagnose gear wear, but its application is limited due to the complexity of vibration characteristics caused by gear wear propagation. A review paper [7] summarizes the progress in vibration-based gear wear monitoring, exploring the relationship between gear surface features and vibration characteristics and offering recommendations for future research in this field to improve predictive maintenance and remaining useful life predictions.

The use of artificial intelligence in fault diagnosis is the subject of another study [8]. In that work, an attempt was made to systematically review the progress of machine learning theories in fault diagnosis from zero to future perspectives.

Another paper [9] focuses on vibration monitoring in rotating machinery, enabling effective diagnostics through specific patterns in vibration signals. A systematic analysis of various methodologies for signal measurement, preprocessing, feature selection, and fault diagnosis highlights the latest research trends and innovations in this field, offering recommendations for future studies.

Furthermore, one paper [10] investigates the structure design and technology of a centralized lubrication system with a distributed structure, addressing the shortcomings of traditional systems, such as poor generality and low measurement precision. It proposes reliable digital detection methods for oil pressure, flow, and temperature, significantly improving lubrication performance when applied in industrial settings.

Another paper [11] deals with problems with intelligent lubrication systems for construction machinery and creates a performance evaluation system for intelligent lubrication systems for construction machinery by analyzing and selecting appropriate evaluation indices.

In another paper [12], a computer program was developed for the analysis of engine lubrication systems, providing mathematical models of oil flow through a hydraulic tappet, as well as models of oil flow and plain bearings.

Proper maintenance of industrial robots is closely linked to their lifespan. How can you ensure that your industrial robots “live” as long as possible? First and foremost, we focus on the most common faults or symptoms observed in robotic systems, such as leakage in gear mechanisms, increased vibrations, positioning errors, irregular movement, oscillations, noise, and robot malfunctions.

In technical practice, we often encounter the need to address various operational issues, with our attention typically focusing on system errors, software malfunctions, or deficiencies in control processes. However, we rarely give enough attention to fundamental elements, such as the condition of the lubricant, specifically, its cleanliness, quality, or suitability for the specific application. The aforementioned faults and negative symptoms are often a result of malfunctioning, improper, or insufficient lubrication. The degradation of the lubricant due to an increased presence of mechanical contaminants leads to failures in the lubrication system and the emergency shutdown of the robot. These parameters can significantly impact the reliability and lifespan of technical equipment.

This paper focuses on experimental research investigating the impact of filtration and tribological parameters on the reliability, lifespan, and functional performance of transmission systems used in robotics. Based on these findings, progressive approaches to the maintenance of manufacturing equipment, including robots and other handling devices, are developed, enabling the rational application of analysis results for flawless operation and reliability of the equipment.

2. Materials and Methods

The sample was investigated on a newly developed test rig, whose main purpose was to monitor the condition of gear reducers online and assess the impact of filtration on the functional characteristics of robots.

2.1. Optimization of Robot Operation and Maintenance Using Tribodiagnostic Methods

Tribotechnical diagnostics is a method of technical diagnostics focused on analyzing lubrication systems as a non-destructive technique [13,14]. This method utilizes information about the condition of the equipment, specifically, the robot, and changes in frictional nodes based on lubricant analysis. The goal of tribotechnical diagnostics is to determine the current state of the lubrication system and identify the presence of foreign substances in the lubricant. Proper interpretation of analytical results enables early detection of potential faults and localization of the damage’s origin.

When moving solid surfaces come into contact, friction occurs, which can lead to undesirable consequences, such as energy losses and mechanical wear of materials [15,16]. This process generates heat, contributing to further wear due to the increased temperature. The change in material structure subsequently results in reduced resistance to loading and loss of surface layers at the contact areas.

The main purpose of lubrication is to separate moving surfaces using a lubricant layer with optimal shear properties [17]. The addition of additives to the lubricant helps optimize friction and improve lubrication performance. In practice, it is essential to correctly determine the type of lubricant, its quantity, and its specific application, considering both economic efficiency and operating conditions.

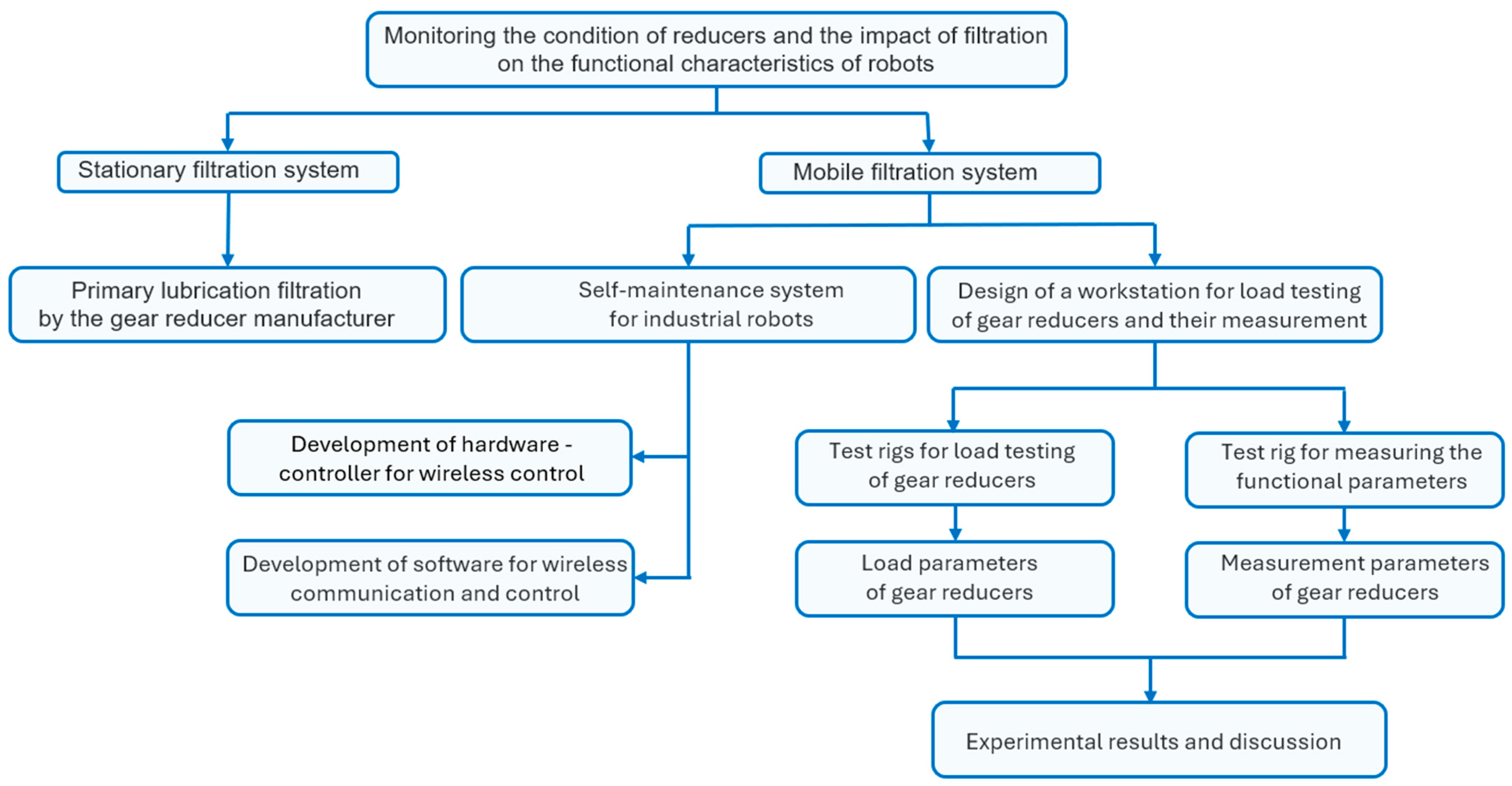

To address this issue, a working plan has been designed (Figure 1) for monitoring the condition of gear reducers and the impact of filtration on the functional characteristics of robots.

Figure 1 illustrates the working plan, which outlines the main steps of the process in a largely one-pass manner. However, it is common practice during development to incorporate feedback loops, often originating from early-stage discussions or iterative evaluations. Although such feedback mechanisms are not explicitly illustrated in the schematic, they are implicitly considered in the design. This includes repeated assessment of operational parameters, dynamic threshold adjustments, and adaptive control of filtration processes. This iterative approach allows for continuous refinement and adaptation to changing conditions, thereby improving the robustness and practical applicability of the proposed solution.

2.2. Transmission System

Industrial robots play a key role in automated manufacturing processes, performing a wide range of tasks–from material handling to assembly operations and precise machining [18]. A fundamental component of their design is robotic arms, which execute the required movements in space using powerful actuators combined with gear mechanisms. These gear systems, most commonly harmonic or planetary, ensure the conversion of speed and torque, enabling precise, smooth, and repeatable movements of end-effectors. Additionally, they contribute to increased mechanical efficiency and controlled motion dynamics, which are crucial for achieving high accuracy and reliability in robotic systems under demanding operating conditions. Proper selection and maintenance of these gear systems are therefore critical factors for the long-term functionality and performance of industrial robots.

Therefore, attention has been focused primarily on the most commonly used types of gear mechanisms, specifically, the high-precision gearbox, which is based on a new reduction mechanism.

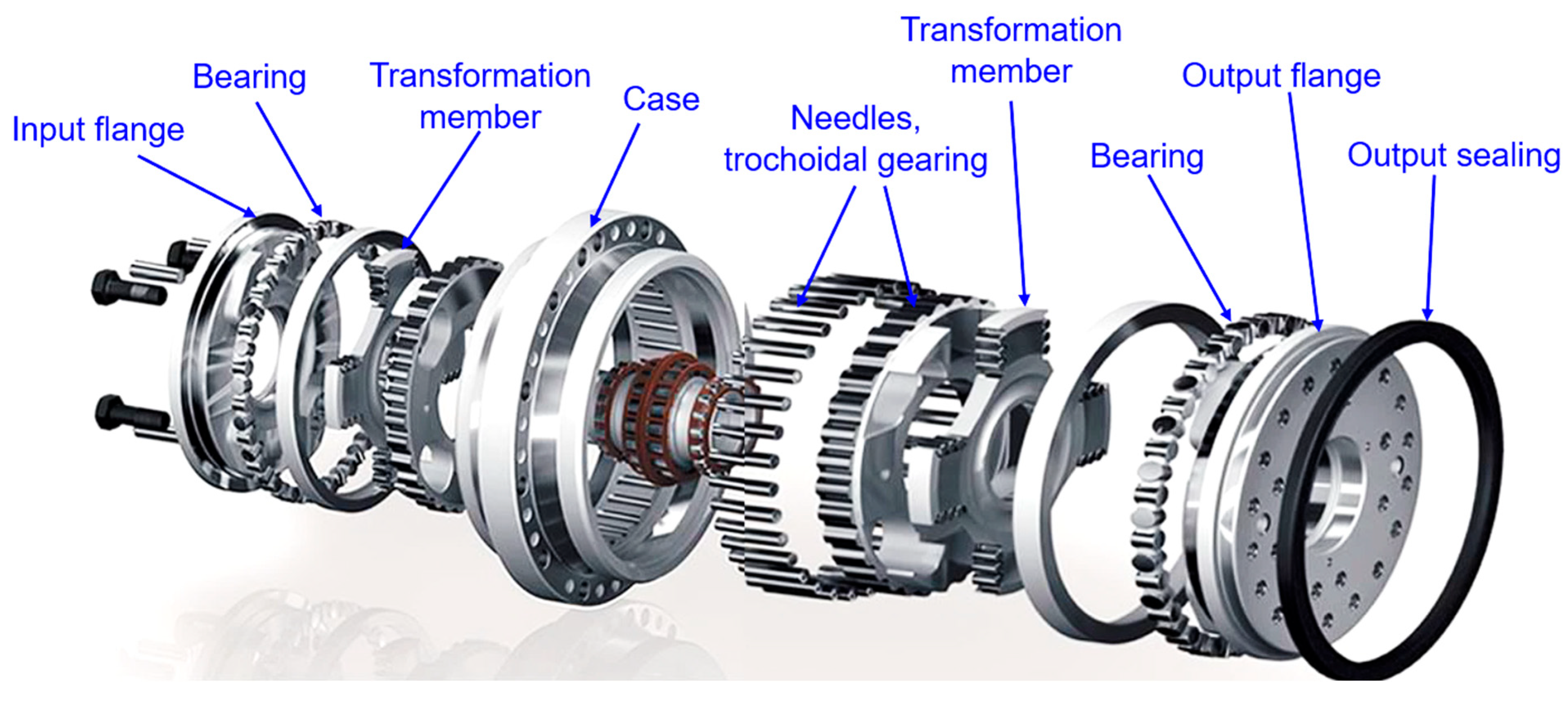

Figure 2 shows the gear mechanism used in addressing the given issue, which represents a gear reducer for power transmission, integrating highly precise trochoidal gears and a radial–axial bearing into a single compact unit.

This type of gear mechanism was chosen for the following reasons:

• Backlash-free motion: Due to minimal backlash, the movements are precise and repeatable, which is essential for accurate operations in robotics.
• High rigidity and durability: The combination of a robust bearing and reducer allows for the transmission of high torques while maintaining stability and resistance to shocks, which is critical for applications like exoskeletons or robotic arms.
• Compact and lightweight solution: The compact size and low weight are advantageous for mobile robotic systems, where every gram counts.
• Versatile use in various fields, such as robotics, automation, engineering, navigation systems, industrial applications, and more.

The utilized reduction gearbox operates with a gear ratio of i = 123, a nominal torque TR = 130 (Nm), a maximum starting torque Tacc = 260 (Nm), and a nominal input speed nR = 2000 (rpm).

2.3. Design Proposal of the Measurement Test Rig

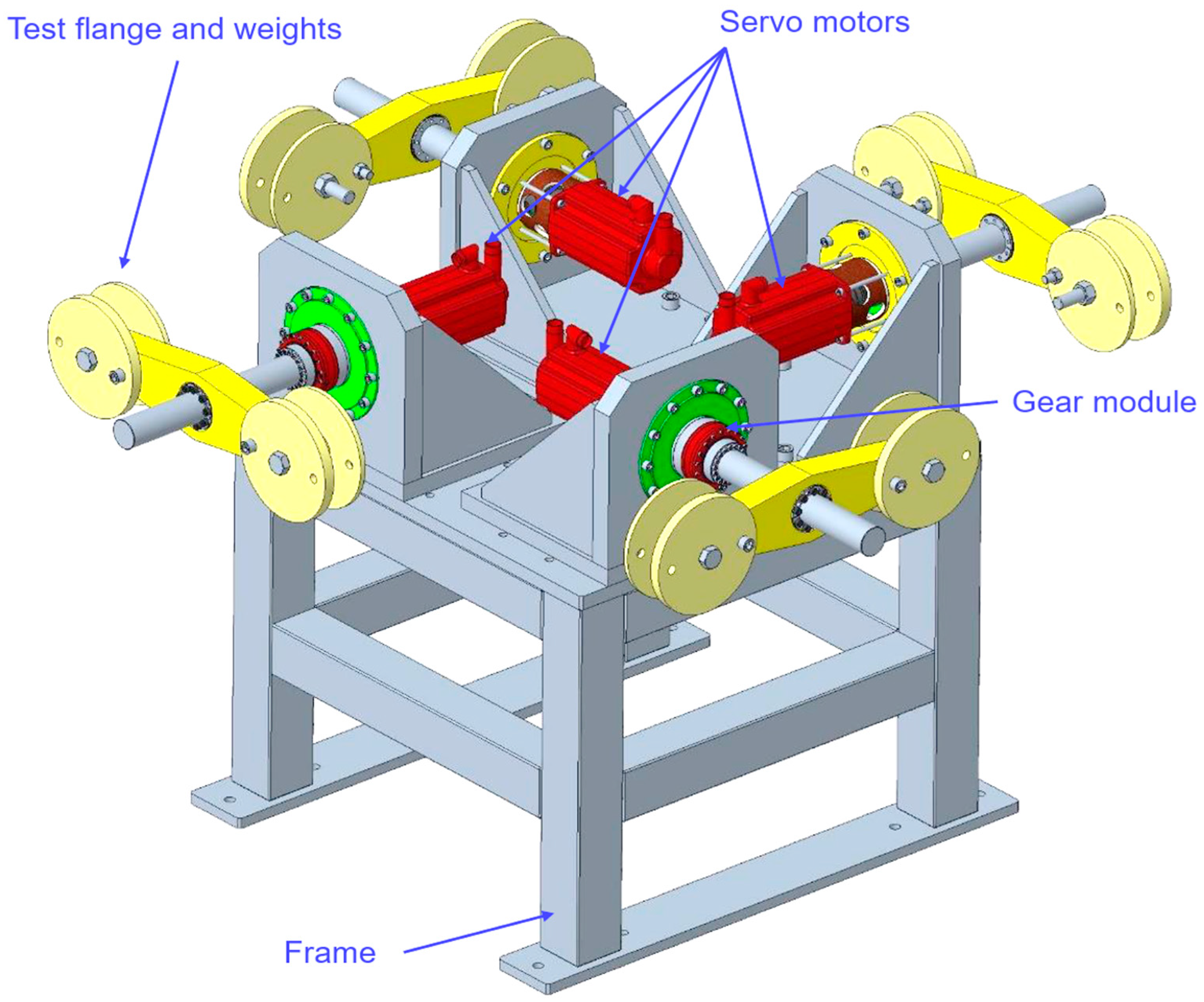

For the implementation of the load test rig, a prototype design was developed from a structural perspective, which assumes the placement of four independent functional units on a common base structure (Figure 3). The arrangement of the individual units was designed to ensure their independent operation while guaranteeing maximum operator safety during the monitoring of the correct cycle of activities in the gear reducer operations.

The goal was to design the structure of a testing device that enables the measurement of multiple static and dynamic characteristics through a single combined measurement station. The design was conceived to minimize the risk of result distortion caused by the versatility of the used measurement system. This was reflected in the selection of appropriate types of measurement sensors, as well as data collection and evaluation units, with an emphasis on their scalability for future expansion or changes in the measured parameters.

The proposed design also allows for the testing of various sizes and types of gear reducers used in robotic drives. Sufficient system rigidity was considered to eliminate undesirable influences on measurement accuracy. The design solution provides flexibility for testing gear reducers from different manufacturers, differing in both external geometry and internal configuration.

2.4. Verification of the Proposed Multi-Purpose Testing System

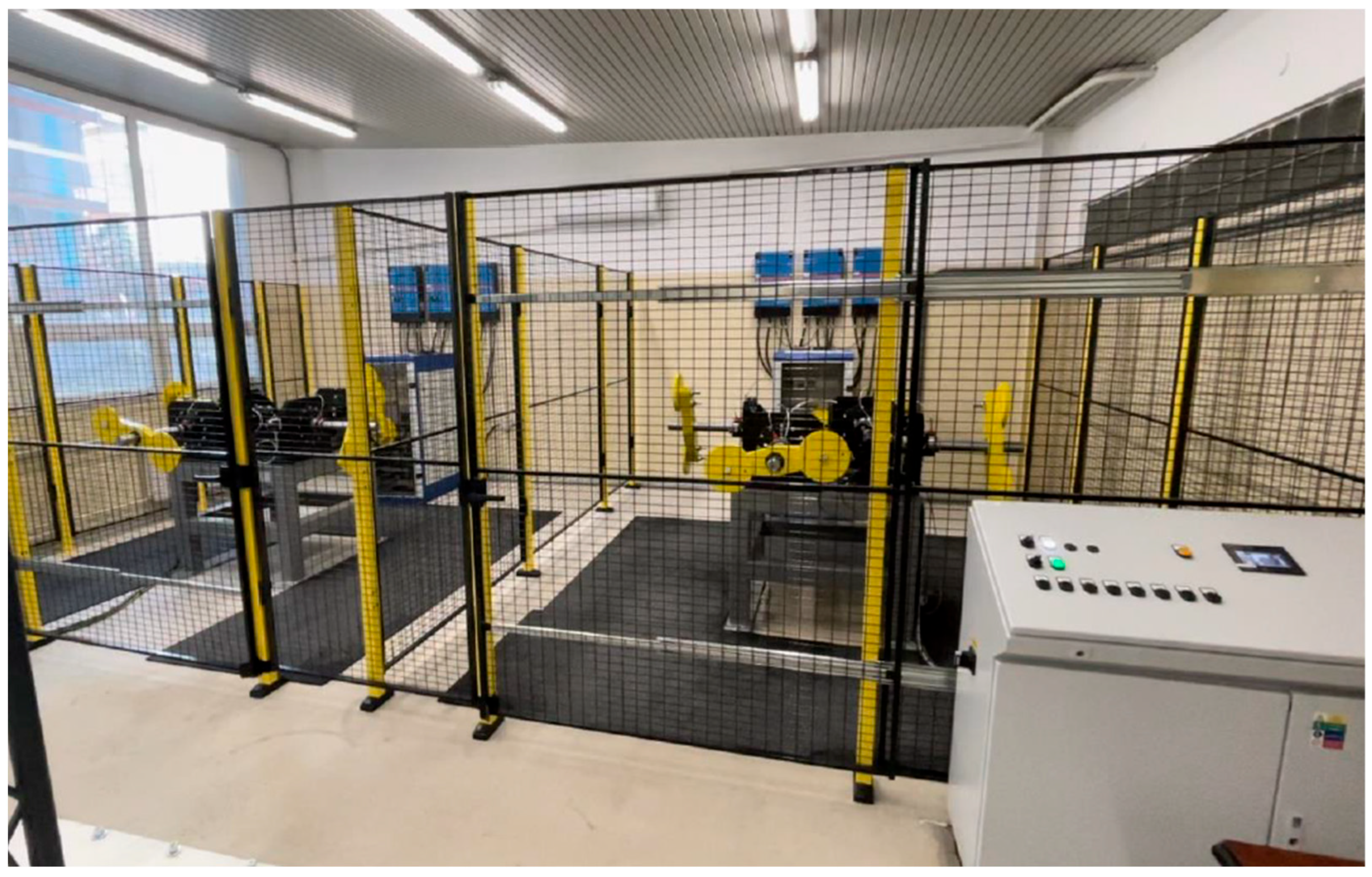

The constructed measurement rig (Figure 4) had to be optimized while simultaneously verifying the functionality of the software for the testing equipment.

During the experimental pilot testing, various types of functional tests were conducted, including measurements of key characteristics of gear modules in robotic drives, such as angular transmission error, hysteresis, lost motion, starting torque, and others. The process also included integration tests, system testing, and acceptance testing.

As part of the task, the connectivity verification between hardware components and the central server was also performed to ensure reliable and uninterrupted data transmission during testing. The processing of measured data occurs after each testing sequence, enabling the comparison of current results with previous measurements. The entire testing process was conducted under conditions simulating a real production environment to ensure the highest relevance of the obtained data.

In addition to the main structural frame, which supports four individually mounted units—each consisting of a support bracket, a servo motor, a gear module, sensors, and a counterweight—the break-in test stand is also equipped with control elements. These control components form part of the operator interface and are used to configure the necessary parameters required for the correct initiation of the test procedure. Furthermore, the system enables fault reset functionality in the event of errors occurring during operation and includes an emergency stop mechanism to ensure immediate shutdown of the entire test stand in hazardous or abnormal conditions. The tested gear modules are labeled G1, G2, G3, and G4. These gearboxes are identical and new, supplied by the same manufacturer.

2.5. Cleanliness of Working Fluids (Lubricant) Contaminated with Solid Particles

The primary objective is to analyze the quality of the lubricant used in the gear mechanism, with a particular focus on its contamination and overall cleanliness [19]. Maintaining optimal cleanliness of the lubricant is a key factor in extending the service life of components, improving operational efficiency, prolonging oil life, and reducing costs associated with routine maintenance. A clean lubricant—or a working fluid with the required moisture content—ensures long-term stable performance of the equipment.

The presence of fine particles in the fluid leads to abrasive wear, whereas larger particles may cause fatigue damage. Contamination of the lubricant with solid particles accelerates its degradation, thereby reducing the overall efficiency and reliability of the system.

To monitor the quantity and size of solid particles in hydraulic fluids, several standards have been established. One such standard is NAS 1638 (National Aerospace Standard), which in recent years has been largely replaced by ISO 4406. A comparison of cleanliness class designations according to these standards is provided in

Table 1. Comparison of cleanliness codes.

Cleanliness Class		Particle Size
Code ISO 4406	NAS 1638	2–5 (μm)	5–15 (μm)	15–25 (μm)	25–50 (μm)	50–100 (μm)	>100 (μm)
12/10/7	1	2500	500	89	16	3	1
13/11/8	2	5000	1000	178	32	6	1
14/12/9	3	10,000	2000	365	63	11	2
15/13/10	4	20,000	4000	712	126	22	4
16/14/11	5	40,000	8000	1425	253	45	8
17/15/12	6	80,000	16,000	2850	506	90	16
18/16/13	7	160,000	32,000	5700	1012	180	32
19/17/14	8	320,000	64,000	11,400	2025	360	64
20/18/15	9	640,000	128,000	22,800	4050	720	128
21/19/16	10	1,280,000	256,000	45,600	8100	1440	256
22/20/17	11	2,560,000	512,000	91,200	16,200	2880	512
23/21/18	12	5,120,000	1,024,000	182,400	32,400	5760	1024

.

The ISO 4406 standard defines cleanliness codes consisting of three numerical values that categorize the size and distribution of solid particles in the following manner:

• The first number represents the quantity of particles larger than 4 μm per mL of fluid;
• The second number represents the quantity of particles larger than 6 μm per mL of fluid;
• The third number represents the quantity of particles larger than 14 μm per mL of fluid.

The recommended cleanliness classes according to ISO 4406 for individual systems are presented in

Table 2. Cleanliness classes according to ISO 4406.

Type of System/Application Environment/Components Used	Recommended Cleanliness Class According to ISO 4406
Systems with servo components sensitive to fine contamination	15/13/10
Industrial hydraulics  • Proportional technologies  • High-pressure systems	17/15/12
Industrial and mobile hydraulics  • Controlled solenoid valves  • Medium-pressure and low-pressure systems	18/15/12 19/16/14
Industrial and mobile equipment not requiring high fluid cleanliness	20/16/15
Pressurized circulating lubrication of gearboxes	18/16/13
Pumps/drives  • Axial piston pumps  • Radial piston pumps  • Gear pumps  • Vane pumps	18/16/13 19/17/13 20/18/15 19/17/14
Valves  • Direct acting valves  • Pressure relief valves  • Flow control valves  • Safety valves  • Proportional valves  • Servo-driven valves	20/18/15 19/17/14 19/17/14 20/18/15 18/16/13 16/14/11

.

An analysis of lubricant from gear modules will be evaluated based on ISO 4406 [20] and also compared to NAS 1638 [21] and technical manual NAVAIR 01-1A-17 [22].

2.6. The Principle of Sampling Working Lubricants for Contamination Analysis Purposes

In order to obtain relevant information about the condition and quality of the lubricant, it is essential to ensure proper sampling. The validity and accuracy of the tribotechnical analysis results are directly dependent on the quality of the sample collected. A sample can only be obtained by following basic sampling principles, and the sample intended for tribotechnical diagnostics must meet the following requirements:

• The lubricant sample must be taken from a representative part of the robotic system, specifically, from each gear mechanism (joint), with the sample being taken from the individual positions on the test rig in this case.
• The lubricant sampling is performed at low speeds of the gear reducer and under operational temperature conditions to ensure sufficient homogeneity of the sample.
• During sampling, it is crucial to prevent contamination of the lubricant by any foreign substances or impurities.
• The sample must always be taken from the same location and in the same manner to ensure the repeatability and comparability of the analysis results.
• Care must be taken to maintain the cleanliness of the surrounding area of the sampling point in order to eliminate the risk of secondary contamination of the sample.

Contaminants in the form of mechanical particles or resinous components tend to settle and form sediments. In the case of improper sampling procedures, a non-homogeneous sample may be obtained, which does not represent the actual condition of the lubricant in the gear mechanism. For the purposes of our analysis, a portable analytical kit designed for lubricant sampling was used.

The portable analytical kit developed is designed for on-site lubricant condition monitoring, enabling rapid and reliable detection of contamination levels. Key features include the following:

• Compact design, suitable for industrial environments and easy handling during field sampling.
• Multi-parameter sensing capability, allowing for simultaneous measurement of contamination particles, viscosity, and temperature of the lubricant.
• Integration of optical and electronic sensors, providing real-time data on particle counts and fluid cleanliness according to ISO 4406 standards.
• User-friendly interface with automated data acquisition and wireless data transmission to a central monitoring system.
• Low power consumption and rechargeable battery, ensuring extended operation times without frequent recharging.
• Modular design, allowing for customization and future expansion with additional sensing modules tailored to specific lubrication conditions.
• This device supports proactive maintenance by enabling immediate detection of lubricant degradation or contamination, reducing downtime and preventing damage to gear components.

3. Results

The results of measurements conducted simultaneously on four gear reducers were analyzed. For the purposes of further analysis and clarity, these reducers will be designated by the symbols G1, G2, G3, and G4.

The measurement and analysis schedule for lubricant contamination was as follows:

• Initial analysis of new (unfiltered) lubricant prior to testing;
• Analysis of lubricant contamination after 1 h of testing without filtration;
• Analysis of lubricant contamination after 10 h of testing without filtration;
• Analysis of lubricant contamination after 11 h of testing and 1 h of filtration;
• Analysis of lubricant contamination after 4 weeks of testing and 4 h of filtration;
• Analysis of lubricant contamination after 8 weeks of testing and 8 h of filtration;
• Analysis of lubricant contamination after 32 weeks of testing and 32 h of filtration.

3.1. Lubricant Condition Analysis Prior to Test Rig Activation

For the lubrication of gear modules G1 through G4, the lubricant Castrol Optigear Synthetic 150 ALR was selected. To enable accurate interpretation of contamination analysis during the operation of individual gear modules, the condition of the new lubricant was assessed prior to its first use. The results of this analysis are presented in Figure 5.

3.2. Lubricant Condition Analysis After the First Hour of Gear Module Run-In

In the second phase of the experiment, an analysis was performed on samples taken from individual gear modules (G1 to G4) after one hour of operation during the initial run-in on the test rigs. The elemental contamination analysis of the lubricant in the individual gear modules G1, G2, G3, and G4 is presented in

Table 3. Elemental lubricant analysis in individual modules.

Chemical Element	Optigear ALR 150	Lubricant in G1	Lubricant in G2	Lubricant in G3	Lubricant in G4
Ag	0.01	0.03	0.02	0.03	0.03
Al	0.36	1.68	1.75	0.86	3.25
B	4.78	0.94	2.8	0.73	2.66
Ba	0.25	0.85	0.82	0.50	0.96
Ca	0.06	11.20	13.95	9.92	12.59
Cd	0.18	0.11	0.07	0.11	0
Cr	0.25	0.73	1.06	0.49	1.79
Cu	0	0.74	0.74	0.11	0.53
Fe	0.33	36.61	40.72	19.60	32.88
K	0.01	0.98	0.45	0.18	0.52
Mg	2.54	4.11	4.26	3.12	3.96
Mn	0.02	2.31	4.33	0.82	2.72
Mo	0.41	29.17	12.84	13.89	12.75
Na	0	6.52	7.57	0.80	5.99
Ni	0	1.0	0.98	0.59	1.02
P	1627.0	1434.0	1458.5	1477.0	1475.5
Pb	0	0.20	0.43	0.32	0.30
Sb	1.9	4.08	7.10	7.72	6.20
Si	0.18	23.28	21.65	19.40	16.73
Sn	1.88	1.89	1.23	0.59	1.32
Ti	0.71	1.12	1.03	1.19	1.04
V	0.38	0.30	0.37	0.43	0.70
Zn	0	25.80	19.82	6.4	20.28

.

The results of the lubricant condition analysis in gear module G1 after the first hour of run-in are presented in Figure 6.

In a similar manner, the results of the analysis were processed for the other gear modules. A comparison of the results according to ISO 4406 for all four gear modules is presented in

Table 4. Lubricant condition after the first hour of run-in according to ISO 4406.

Module G1	Module G2	Module G3	Module G4

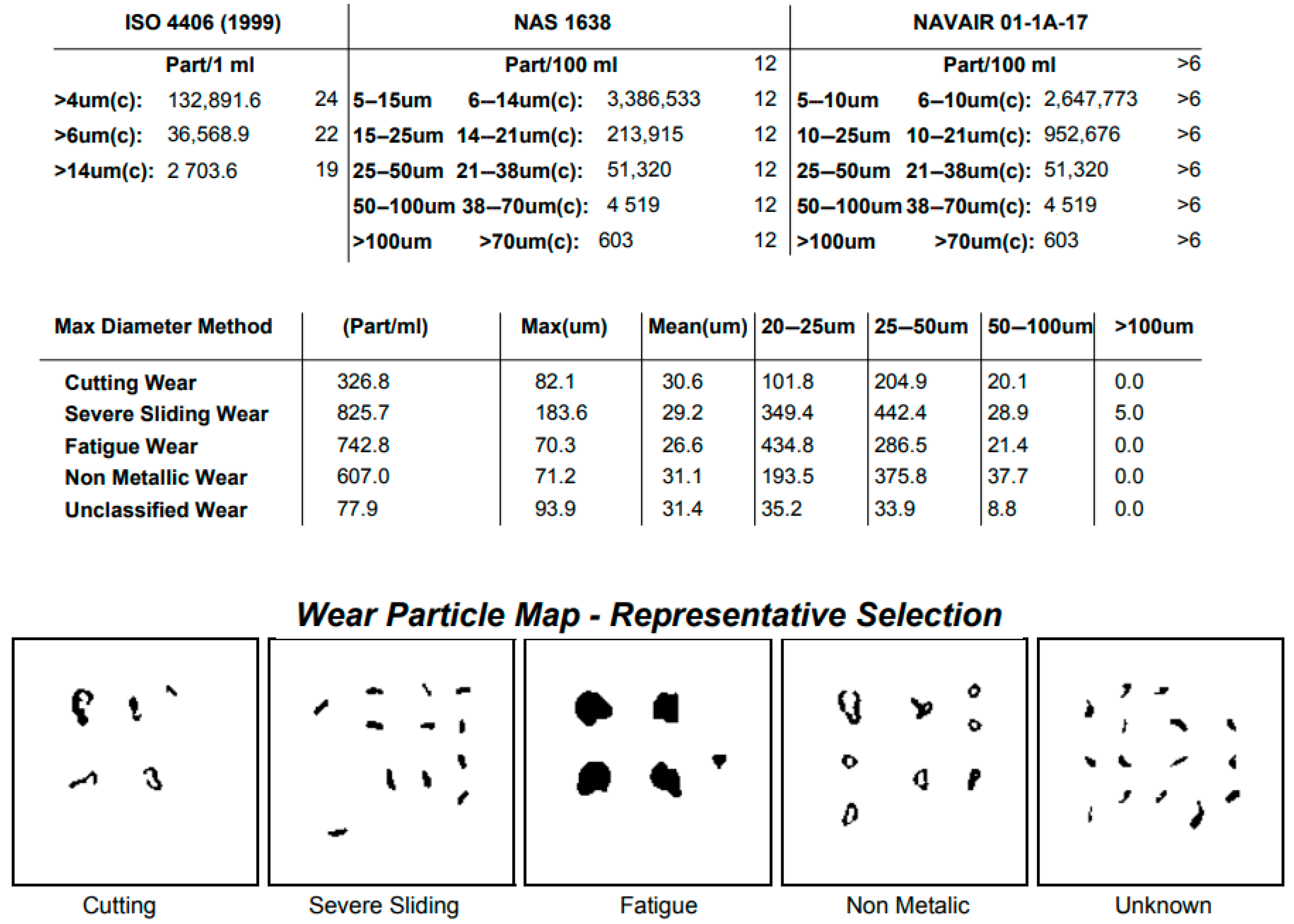

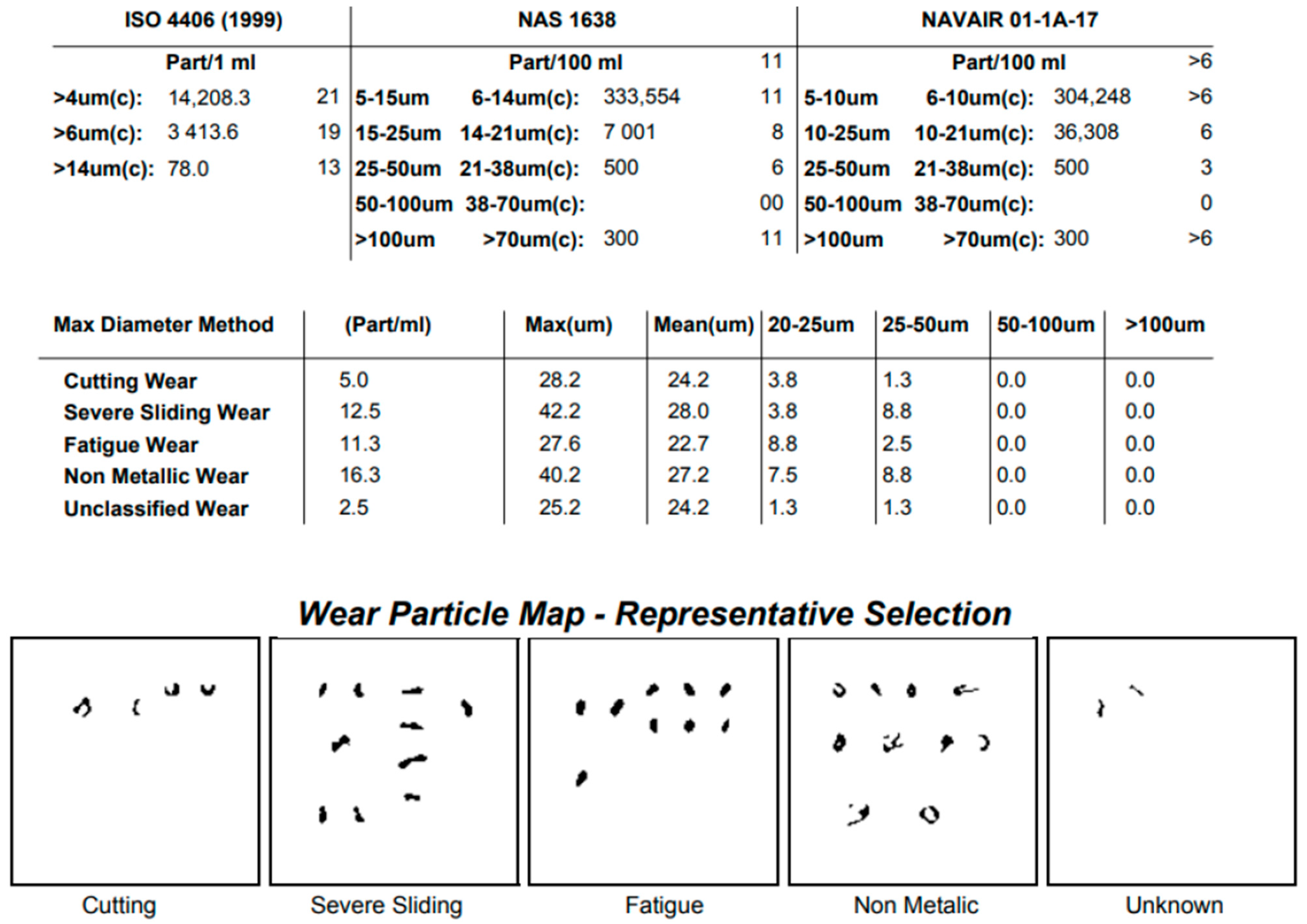

Part/1 mL >4 μm(c):    132,981.6     24 >6 μm(c):     36,568.9     22 >8 μm(c):       2700.6     19	Part/1 mL >4 μm(c):       9762.7     20 >6 μm(c):       8695.1     20 >8 μm(c):       1775.9     18	Part/1 mL >4 μm(c):     33,504.6     22 >6 μm(c):     30,250.9     22 >8 μm(c):       4711.0     19	Part/1 mL >4 μm(c):    291,689.4     25 >6 μm(c):     78,166.6     23 >8 μm(c):       2451.3     18

.

The evaluation results indicate that the level of contamination of the lubricant is approximately uniform across all gear modules.

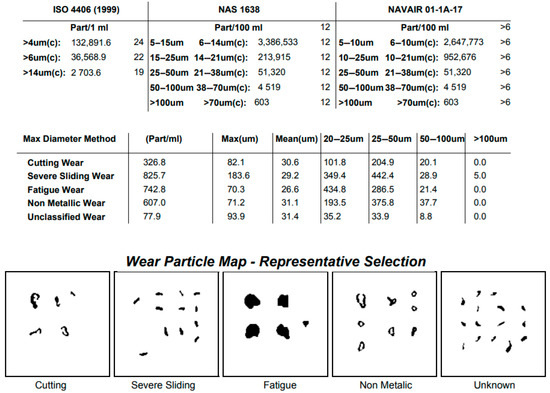

To provide a more detailed understanding of the wear mechanisms and contamination processes, two gear units—G1 and G3—were selected for in-depth analysis. The selection criterion was based on the measured levels of lubricant contamination observed after 32 weeks and 32 h of operational testing. Gearbox G1 exhibited the lowest level of contamination, while gearbox G3 showed the highest. This contrast allows for a comparative assessment of the system’s performance under different contamination conditions.

3.3. Lubricant Condition Analysis in Gear Module G1

This section presents the processing of the results for determining the lubricant condition or, in other words, the results of the analysis for determining the cleanliness class according to ISO 4406 for the first gear module, labeled G1, based on all seven measurements according to the periodicity described in the introduction to Section 3. The results are presented in

Table 5. Analysis of lubricant contamination in periodic intervals of gearbox module G1.

Stage of Measurement Interval	ISO 4406
	>4 μm Part/1 mL	Class	>6 μm Part/1 mL	Class	>14 μm Part/1 mL	Class	Final Class
New lubricating oil	14,208	21	3413	19	78	13	21/19/13
After 1 h of testing without filtration	132,088	24	36,568	22	2703	19	24/22/19
After 10 h of testing without filtration	393,088	26	92,732	24	3662	19	26/24/19
After 11 h of testing and 1 h of filtration	277,427	25	63,464	23	2246	18	25/23/18
After 4 weeks of testing and 4 h of filtration	136,240	24	32,291	22	1132	17	24/22/17
After 8 weeks of testing and 8 h of filtration	73,600	23	18,626	21	490	16	23/21/16
After 32 weeks of testing and 32 h of filtration	3858	19	943	17	59	13	19/17/13

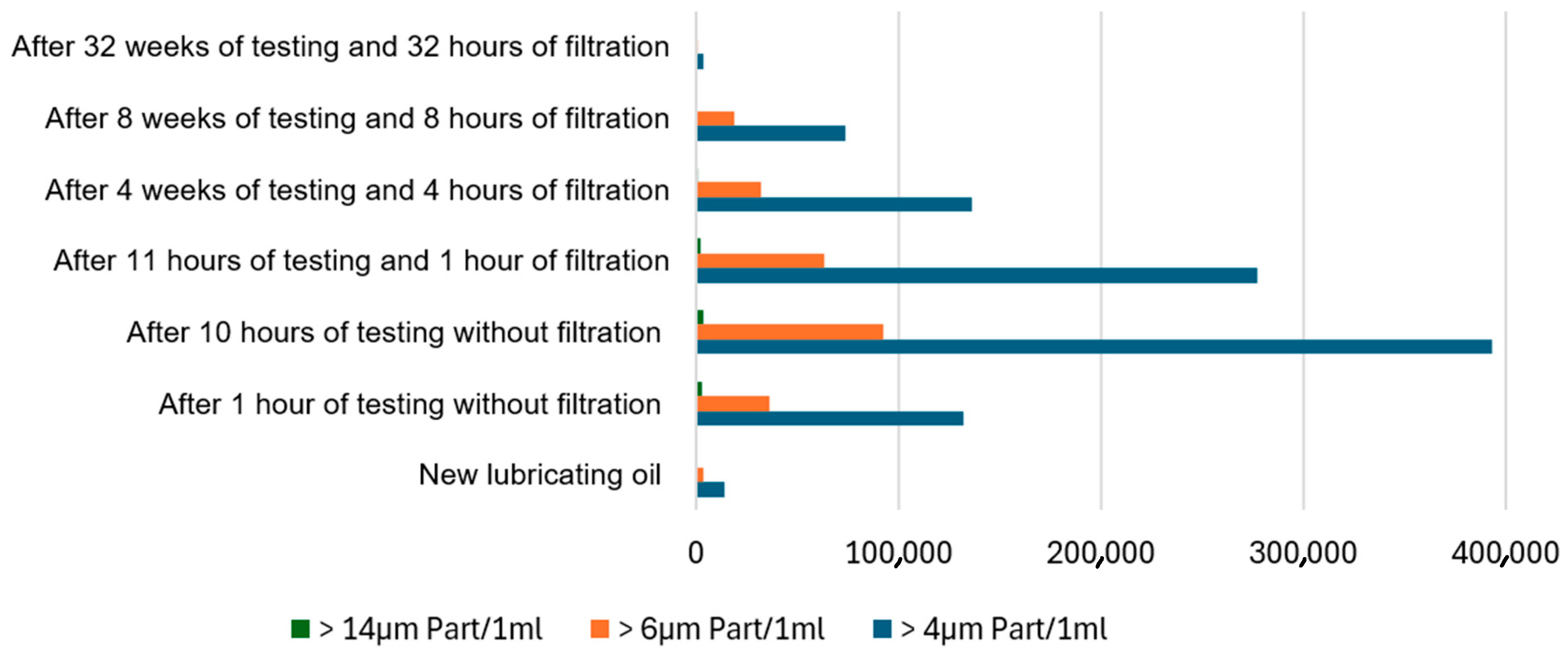

. The graphical representation of this analysis is presented in Figure 7.

Table 6. Elemental analysis of lubricant contamination across the monitoring periods of gearbox module G1.

Chemical Element	New Lubricating Oil	After 1 h Without Filtration	After 11 h and 1 h of Filtration	After 4 Weeks and 4 h of Filtration	After 8 Weeks and 8 h of Filtration	After 32 Weeks and 32 h of Filtration
Ag	0.01	0.03	0.03	0.02	0	0.02
Al	0.36	1.68	0.91	1.19	0.9	0.43
B	4.78	0.94	0.57	0.75	2.3	0.27
Ba	0.25	0.85	0.58	0.58	0.4	0.46
Ca	0.06	11.20	7.64	7.84	6.9	5.19
Cd	0.18	0.11	0.15	0.13	0	0.02
Cr	0.25	0.73	0.45	0.56	0.5	0.3
Cu	0	0.74	0.32	0.45	0.3	0.06
Fe	0.33	36.61	23.39	20.31	19.7	2.96
K	0.01	0.98	0.39	0.39	0.2	0.04
Mg	2.54	4.11	3.48	3.47	3.2	3.22
Mn	0.02	2.31	1.46	1.36	1.1	0.58
Mo	0.41	29.17	20.68	18.68	12.7	10.19
Na	0	6.52	3.21	3.12	1.7	0.85
Ni	0	1.0	0.06	0.45	0.9	0.04
P	1627.0	1434.0	1490.5	1433.5	1514.0	1407.0
Pb	0	0.20	0.39	0.12	0.3	0.18
Sb	1.9	4.08	3.21	2.98	2.6	8.01
Si	0.18	23.28	14.3	14.57	10.3	7.41
Sn	1.88	1.89	1.42	1.11	1.1	1.46
Ti	0.71	1.12	0.85	0.89	0.8	0.69
V	0.38	0.30	0.42	0.42	0.2	0.66
Zn	0	25.80	14.21	14.58	8.6	4.13

presents the elemental analysis of the lubricant in gearbox module G1, conducted over individual periods of lubricant condition assessment.

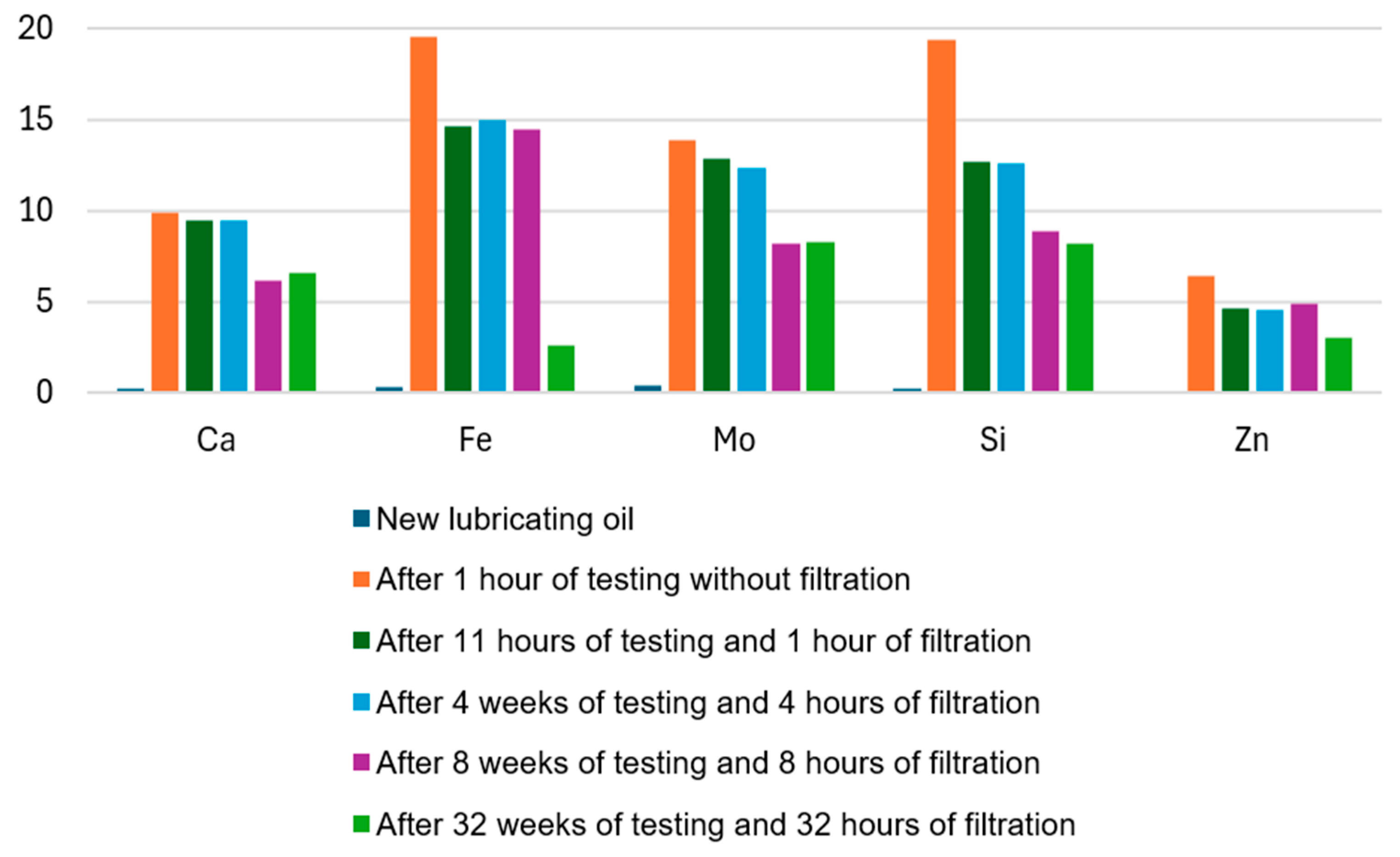

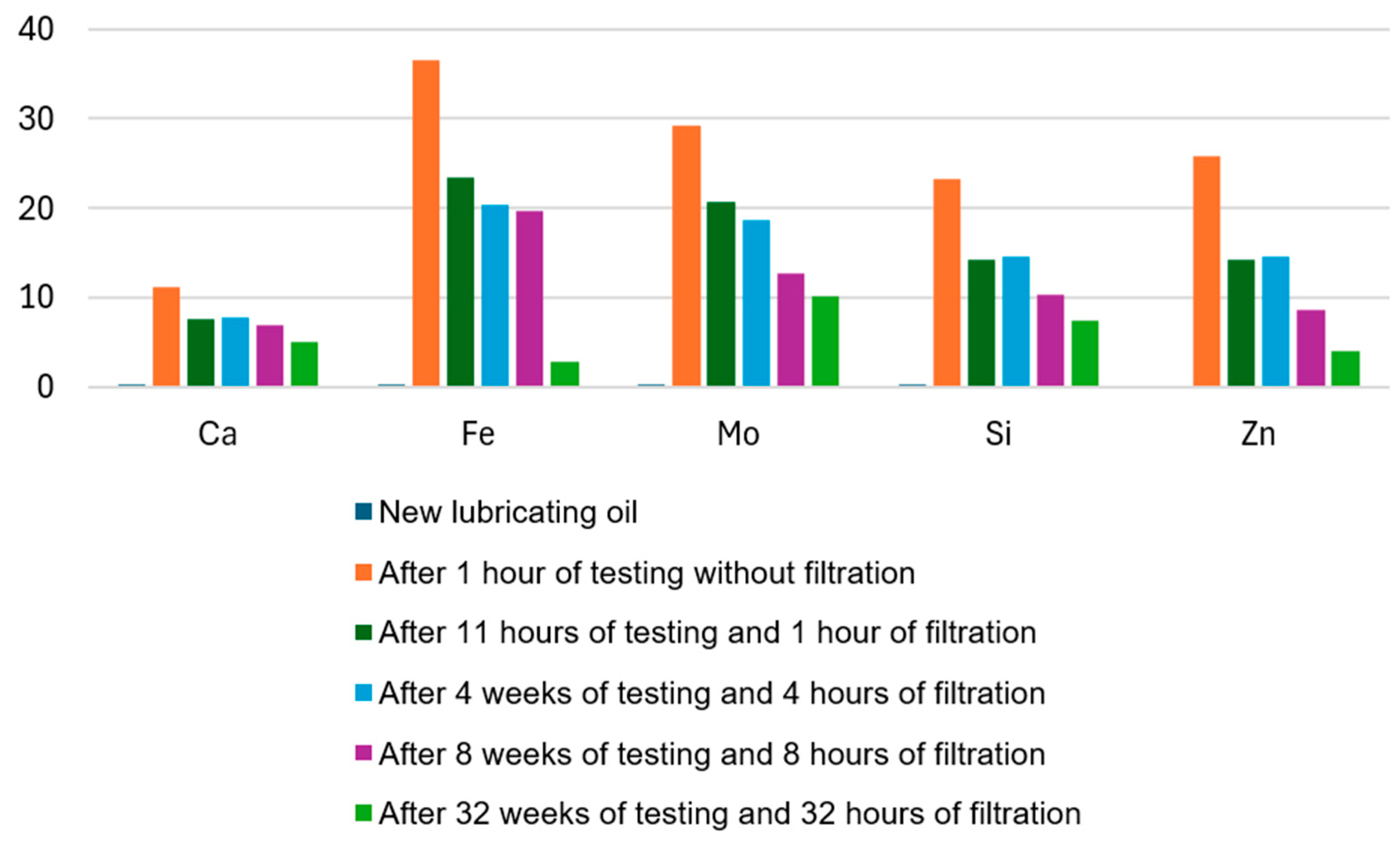

The graphical evaluation of elemental lubricant contamination for selected elements is shown in Figure 8.

Based on the lubricant analysis from gearbox module G1, a period of 32 weeks since the start of testing and filtration resulted in lubricant cleanliness that was two ISO classes better than that of the fresh oil. According to these results, the initially set filtration interval for this gearbox module proved to be sufficient, and, for future tests, the filtration frequency can be adjusted to one hour per month.

3.4. Lubricant Condition Analysis in Gear Module G3

Table 7. Analysis of lubricant contamination in periodic intervals of gearbox module G3.

Stage of Measurement Interval	ISO 4406
	>4 μm Part/1 mL	Class	>6 μm Part/1 mL	Class	>14 μm Part/1 mL	Class	Final Class
New lubricating oil	14,208	21	3413	19	78	13	21/19/13
After 1 h of testing without filtration	33,504	22	30,250	22	4711	19	22/22/19
After 10 h of testing without filtration	79,123	27	232,354	25	8694	20	27/25/20
After 11 h of testing and 1 h of filtration	603,400	26	186,233	25	5292	20	26/25/20
After 4 weeks of testing and 4 h of filtration	354,996	26	98,319	24	2486	18	26/24/18
After 8 weeks of testing and 8 h of filtration	251,234	25	63,319	23	1414	18	25/23/18
After 32 weeks of testing and 32 h of filtration	50,560	23	12,583	21	568	16	23/21/16

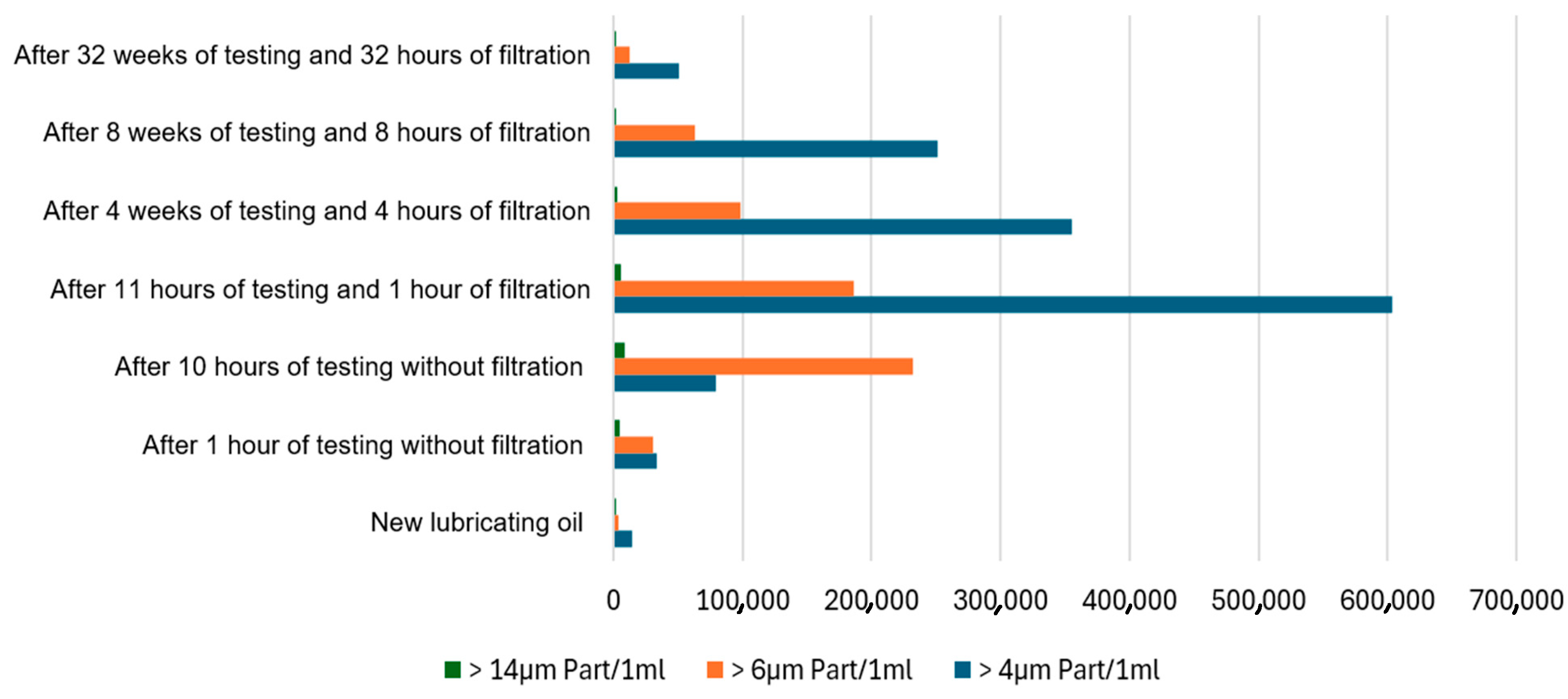

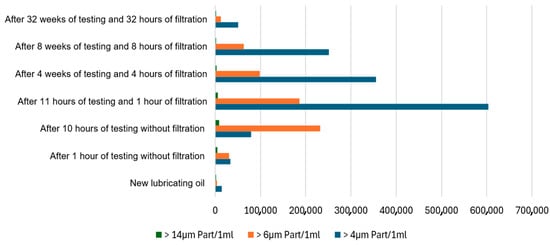

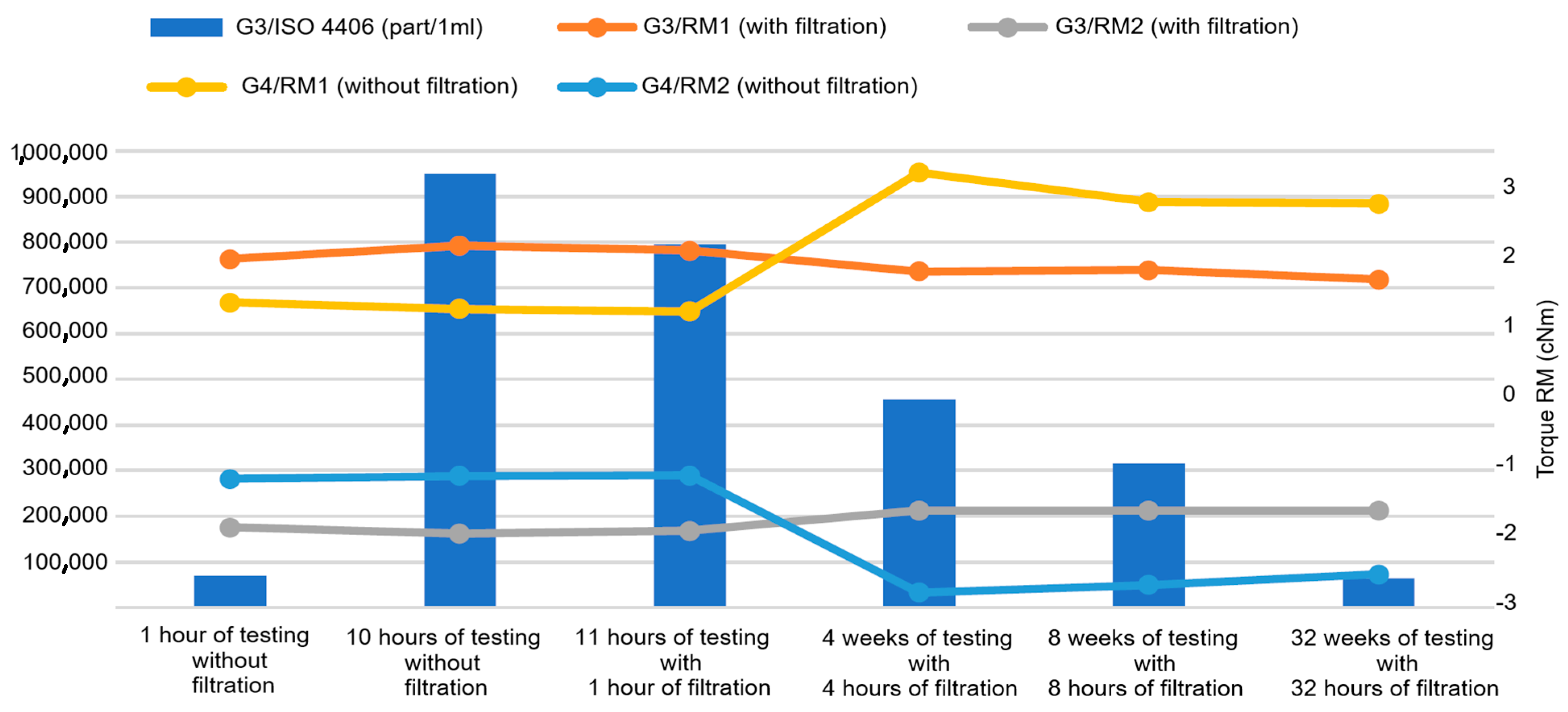

and, subsequently, Figure 9 present the results of the analysis examining the progression of lubricant contamination in gearbox module G3 during load bench testing with additional lubricant filtration.

The elemental analysis of the lubricant in gearbox module G3 for individual lubricant condition monitoring periods is presented in

Table 8. Elemental analysis of lubricant contamination across the monitoring periods of gearbox module G3.

Chemical Element	New Lubricating Oil	After 1 h Without Filtration	After 11 h and 1 h of Filtration	After 4 Weeks and 4 h of Filtration	After 8 Weeks and 8 h of Filtration	After 32 Weeks and 32 h of Filtration
Ag	0.01	0.03	0.01	0.02	0.02	0.04
Al	0.36	0.86	0.62	0.63	0.63	0.46
B	4.78	0.73	0.65	0.69	0.58	0.34
Ba	0.25	0.50	0.39	0.47	0.36	0.44
Ca	0.06	9.92	9.43	9.49	6.13	6.61
Cd	0.18	0.11	0.08	0.05	0.10	0.05
Cr	0.25	0.49	0.51	0.49	0.42	0.23
Cu	0	0.11	0.09	0.14	0.10	0.04
Fe	0.33	19.60	14.65	14.99	14.50	2.63
K	0.01	0.18	0.15	0.12	0.09	0
Mg	2.54	3.12	3.14	3.16	3.01	3.33
Mn	0.02	0.82	0.70	0.81	0.56	0.45
Mo	0.41	13.89	12.89	12.32	8.22	8.24
Na	0	0.80	1.09	1.25	0.75	0.17
Ni	0	0.59	0.54	0.48	0.55	0.02
P	1627.0	1477.0	1473.50	1483.0	1502.5	1384.5
Pb	0	0.32	0.49	0.73	0.02	0.53
Sb	1.9	7.72	6.15	3.95	5.25	8.78
Si	0.18	19.40	12.66	12.64	8.90	8.20
Sn	1.88	0.59	0.69	1.7	0.78	1.05
Ti	0.71	1.19	1.30	1.27	.116	0.71
V	0.38	0.43	0.26	0.42	0.32	0.50
Zn	0	6.4	4.65	4.55	4.89	3.04

and Figure 10.

Based on the lubricant analysis of the G3 gearbox module, after 32 weeks of testing and filtration, the lubricant cleanliness level was found to be worse than the cleanliness observed after just one hour of load testing. This may be related to a more than 2000% increase in lubricant contamination observed during the initial phase (10 h) of load testing. Such a significant rise can be attributed to several potential causes.

Particles present in the contaminated lubricant can cause microscopic damage to gear teeth surfaces and bearings, leading to accelerated wear and the potential generation of additional debris. This is further supported by the increased torque observed at the beginning of the test cycle. Microscopic particles increase friction between the bearing and other moving components. This elevated friction results in higher torque required to overcome resistance.

After the implementation of filtration and the removal of contaminant particles from the lubricant, a reduction in torque values was observed. In contrast, the unfiltered gearbox module showed a continued increase in torque values (Figure 11).

Significant wear due to sliding and slippage was also observed, along with the presence of abrasive particles. This indicates improper rolling of the rolling element bearings, where localized sliding occurs instead of correct rolling motion. Such behavior may also be associated with the increased torque observed in the gearbox module. The presence of these particles was reduced by only approximately 50%.

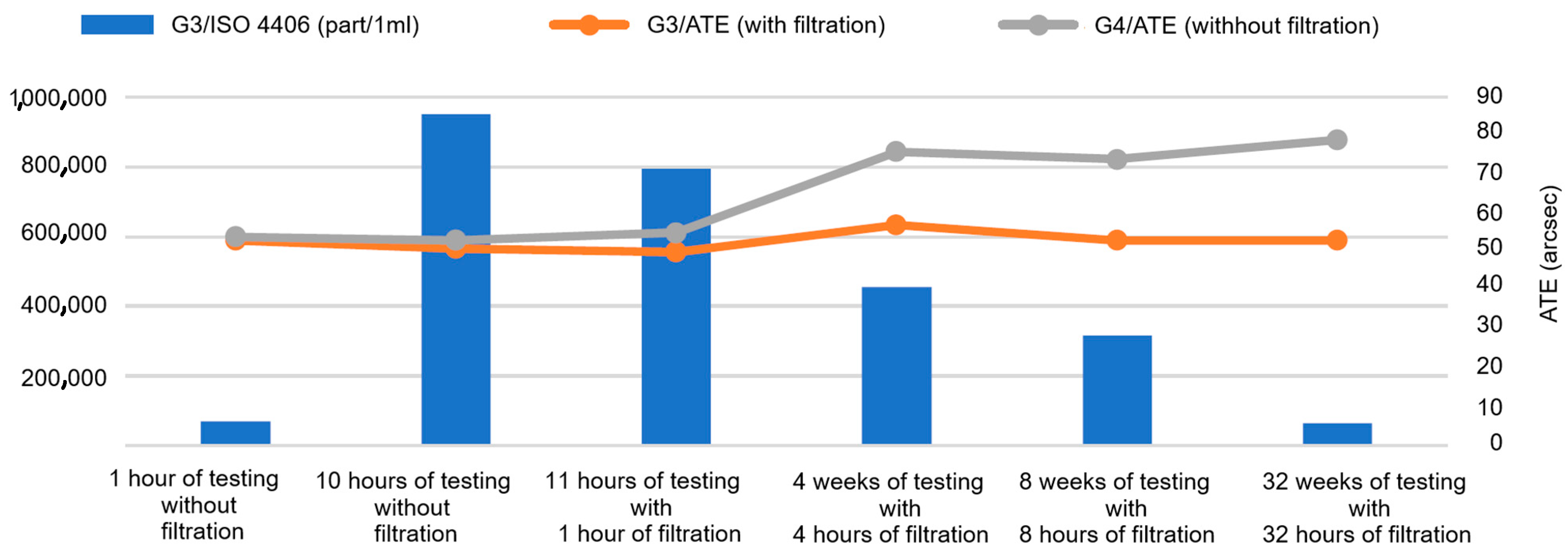

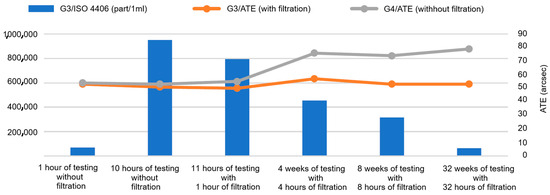

Significant contamination of the lubricant in the robot’s gear modules can significantly affect the accuracy of the angular transmission, also known as “transmission error” (TE). The angular transmission error (ATE) is the deviation between the actual and ideal angular displacement of the gears. This is reflected in a significant increase in the angular transmission error. However, if we compare this with the angular transmission error of a filtered gear module, it is only a negligible value (Figure 12). This reduction in ATE is directly linked to the lower abrasive particle content in the lubricant, which minimizes surface wear and backlash irregularities. As a consequence, the dynamic response and positional accuracy of the robotic system are noticeably enhanced.

4. Discussion

The implementation of modern approaches to the maintenance and monitoring of technical equipment, including robots and handling mechanisms, contributes to the efficient use of analytical outputs to ensure trouble-free operation and the high reliability of equipment.

One of the key aspects of ensuring the operational reliability of robotic systems is the effective filtration of lubricant within the gear modules. This filtration plays a crucial role in eliminating contaminants, such as dust particles, metal debris, and other impurities, that may be present in the lubricant. Their removal significantly contributes to the protection of gear mechanisms and other moving components from excessive wear or mechanical damage. Maintaining lubricant cleanliness leads to improved lubrication performance, reduces the coefficient of friction, and optimizes surface contact, thereby extending the service life of components, such as bearings, gears, and the gear units themselves.

Recent studies, such as that by [23], have demonstrated the effectiveness of advanced electrostatic filtration technologies in improving lubricant quality. In their work, the researchers investigated the use of electrostatic forces to remove solid contaminants from lubricants. Their findings highlighted that electrostatic filtration not only removes fine particles more efficiently but also reduces wear and friction in mechanical systems. This supports the critical role of filtration in maintaining the integrity of gear mechanisms and optimizing the overall performance of robotic systems.

Effective lubricant filtration significantly reduces the likelihood of operational failures and functional malfunctions, thereby minimizing the risk of unplanned downtime and associated repair or component replacement costs. Due to the reduced friction and higher lubricant purity, energy transfer becomes more efficient, leading to improved gear mechanism performance, smoother operation, quicker robot responses, and decreased energy consumption of the entire system.

The reliability of robotic systems is particularly critical in industrial applications that demand high availability and productivity. Implementing filtration technologies directly into maintenance processes contributes to the stability and long-term operability of equipment, especially in environments where robot failure can halt the production process or cause other severe operational impacts. In addition to mechanical filtration, the application of suitable additives to lubricants has also proven effective in enhancing system reliability and reducing component wear. As highlighted by [24], environmentally acceptable lubricant additives can significantly improve tribological performance while simultaneously reducing the ecological footprint of industrial operations. This dual benefit not only strengthens the economic balance of production through extended service intervals and reduced maintenance costs but also supports sustainable engineering practices.

Online monitoring of the tribological parameters of robot gear modules provides a powerful tool for advanced diagnostics and predictive maintenance. It enables real-time detection of abnormalities and early identification of potential faults, allowing operators to take corrective actions before failures occur. Based on the analysis of monitored data, operating parameters can be optimized, robot system efficiency enhanced, and maintenance scheduled proactively. This approach significantly contributes to extended equipment life, reduced failure rates, and minimized costs associated with unplanned service interventions. As demonstrated by [25], the application of condition-based monitoring in high-precision robotic gearboxes effectively supports early fault detection and long-term operational reliability in demanding industrial environments, further validating the importance of integrating online diagnostics into modern maintenance strategies.

Online monitoring can also be part of broader safety strategies, where deviations from normal operation are analyzed to identify potential safety risks. These systems can be implemented as either integrated components of robot control units or standalone software solutions with remote access and control capabilities.

5. Conclusions

This work focuses on the experimental evaluation of the impact of lubricant filtration and tribological parameters on the reliability, longevity, and functional characteristics of gear mechanisms used in robotics. The results were evaluated using the ISO 4406 standard, which is used to determine the contamination class of lubricating fluids. Based on knowledge from the field of gear reducer and robotic system design, a mobile filtration system was proposed and implemented to test the impact of filtration on the operational characteristics of gearboxes, including the introduction of online monitoring of tribological parameters.

As part of the research, a test station was developed, consisting of load benches simulating cyclic loading of gear units. Thanks to precisely defined measurement parameters, it was possible to analyze and quantify the effect of filtration on the kinematic and performance characteristics of gear mechanisms, creating space for maintenance optimization and the design of effective technical solutions in industrial robotics.

The novelty of the presented research lies in the combination of a custom-designed mobile filtration unit with an online diagnostic system for real-time monitoring of lubricant condition and gear performance under dynamic load. Unlike conventional approaches, which rely on offline oil sampling and visual inspection, the method enables early detection of critical wear-related trends and real-time response to contamination spikes.

After the implementation of the filtration system and the removal of contaminant particles from the lubricant, a decrease in the required torque values was observed. In contrast, the unfiltered gear module showed a continuous increase in torque due to progressive wear and contamination. Comparative analysis of lubricant samples revealed that after 10 h of operation without filtration, the contamination level was significantly higher than after 32 weeks of operation with 32 h of cumulative filtration. For the smallest contaminant particles, the concentration was reduced to approximately 7% of its original value.

Significant sliding and micro-slip wear were also detected, particularly affecting the rolling elements, where improper rolling led to local sliding behavior. This condition contributed to higher torque values and the occurrence of wear particles typical for fatigue and abrasive wear. The filtration system succeeded in reducing the occurrence of these particles by approximately 50%, indicating a partial but meaningful mitigation of the underlying wear mechanisms.

The benefits can be summarized through the following points:

• The research highlights a sharp rise in contamination during initial operation hours, stressing the need for timely intervention to avoid reduced gear module reliability.
• The study confirms that efficient filtration reduces failures, extends gearbox life, and lowers maintenance costs.
• A specialized test station was developed for assessing lubrication strategies, and online monitoring of tribological parameters was introduced to support predictive maintenance.
• The approach promotes environmental responsibility by minimizing waste and offers strong practical value in industries demanding high robotic system reliability.
• The study emphasizes the importance of addressing tribological components from the design phase to operation, supporting system reliability in robotics.
• The conclusions are supported by experimental data reflecting the reduction of contaminant particle levels and torque stabilization, providing a clear correlation between lubrication cleanliness and system performance.
• Although the study is focused on robotic gear mechanisms, the methodology and results offer a transferable framework for condition monitoring and maintenance optimization in other high-precision, cyclically loaded gear systems.
• An advantage of the proposed method is its modularity and applicability in real-time conditions without interrupting system operation. A limitation is that the solution is optimized for specific gear configurations and lubricant types, which may require adaptation for broader implementation.

Future research will focus on extending the method to different types of transmission systems, improving sensor integration for even more detailed wear analysis, and exploring automated decision making based on data-driven diagnostics.

In summary, the implementation of lubricant filtration combined with real-time monitoring led to a measurable decrease in torque fluctuations, suppression of wear particle generation, and overall improvement in the operational stability of the gear system.

6. Patents

The research presented in this manuscript contributed to the development of the patent “Oil-lubricated kinematic module connecting system, mainly the transmission or bearing modules of industrial robot; method of kinematic module lubrication”, Ilečko Ľubomír, 2018–2024, PATENT: US11685062B2, CN111712358A; CN111712358B; EP3720668A1; EP3720668B1; EP3720668C0; JP2021505422A; U2020122180A; RU2020122180A3; SK2692017U1; SK8191Y1; US2020298428A1; WO2019111232A1; WO2019111232A4.
