Systematic Review

Implementation of Artificial Intelligence Technologies for the Assessment of Students’ Attentional State: A Scoping Review

by
Rosabel Roig-Vila
1,*,
Paz Prendes-Espinosa
2 and
Miguel Cazorla
3
1
Department of General Teaching and Specific Teaching Methods, University of Alicante, 03690 Alicante, Spain
2
Department of Teaching and School Organisation, University of Murcia, 30100 Murcia, Spain
3
Department of Computer Science and Artificial Intelligence, University of Alicante, 03690 Alicante, Spain
*
Author to whom correspondence should be addressed.
Appl. Sci. 2025, 15(11), 5990; https://doi.org/10.3390/app15115990
Submission received: 7 April 2025 / Revised: 12 May 2025 / Accepted: 14 May 2025 / Published: 26 May 2025
(This article belongs to the Special Issue Emerging Trends in Artificial Intelligence and Computer Science for E-Learning)
Browse Figures
Versions Notes

Abstract

:
Artificial intelligence (AI) has recently erupted into the field of education, offering novel opportunities, particularly in the analysis of student behaviour. There is a lack of knowledge on the use of AI in assessing attention; hence, a scoping review (ScR) is proposed. The aim is to explore and analyse the scientific literature related to such implementations in educational settings. We included empirical studies published in English between 2017 and 2023, focusing on the application of AI in formal learning environments. Theoretical reviews and studies conducted outside the field of education were excluded. The databases consulted were Scopus, Web of Science, and APA PsycInfo. The studies were selected by three independent reviewers using Rayyan, and the data were organised with predefined forms and analysed using VOSviewer. A total of 26 studies were identified. Research conducted in Asia (China) was predominant, although we found significant contributions from Europe and America. The methodological approaches were primarily experimental, focusing on mechanical observation and AI-based analytical techniques. The approaches adopted and the elements common to AI applications are discussed, highlighting implications for researchers, professionals and teachers.

1. Introduction

In the current educational scenario, the integration of artificial intelligence (AI) technologies has become a crucial area of research, driven by the growing number of applications and the interest they have generated, although this interest is, in some cases, accompanied by concern, worry, or even fear. In 2023, in his strikingly titled blog “The Age of AI has Begun”, Bill Gates defended the idea that the scientific fields most likely to see the advances and applications of AI were health and education [1].
This study addresses the potential applications of AI at its intersection with student attention, exploring the various tools and experiences shaping this line of research. The use of AI technologies to analyse students’ attention is a growing phenomenon. This approach not only involves a technological revolution, but also raises fundamental questions about the effectiveness, ethics, and pedagogical implications of such implementations. In this context, we seek to understand the adoption of these technologies and their impact on learning strategies and situations, as is the case in certain studies [2], but specifically, we are interested in identifying attention patterns.
This study delves into the theoretical basis underpinning initiatives and practices that seek to assess and improve student attention through the use of AI. In addition, the methodology and experimental designs used in these experiences play an essential role in validating the results. The different methodological approaches and types of experiments are explored. The various specific AI techniques and tools used to measure students’ attention levels are also examined. From image processing algorithms to machine learning models, we address the breadth and specialisation of technologies used in the assessment of attentional state.
Further analysis of these AI systems designed to detect attentional patterns in students is needed, and a systematic review of the work hitherto conducted is hence of great interest. This necessity justifies our scoping review, with the main aim being to analyse and discuss the literature on artificial intelligence technologies and their use in assessing students’ attentional state. The article is organised as follows: Section 2 presents the theoretical background of the research conducted; Section 3 covers the detailed methodology of the systematic review carried out; Section 4 presents the results obtained; Section 5 discusses these results; Section 6 presents the conclusions; and Section 7 describes the limitations.

2. Literature Review

Numerous applications of AI exist in all areas of our society, but its use in education requires particular exploration. AI has been shown to have interesting applications in the design and production of educational content [2], student assessment [3], designing innovative educational experiences incorporating AI [4], personalising training [5], and even promoting student engagement [6]. Changes are becoming particularly evident in higher education, making it crucial to examine the possibilities and risks of AI in this context [7], as well as to critically analyse the myths emerging around its use [8,9].
One of the ongoing lines of research is focused on analysing the use of AI either to monitor or to improve students’ attention. In this sense, attention is a basic element in the construction of learning and to ensure the effectiveness of communication in the educational process. As reported by Arciniegas et al. [10], students with a higher level of attention increase their retention capacity and therefore improve their learning, which is why they tend to be more academically successful. Studies have tracked students’ gaze to analyse what attracts their attention [11].
The research most closely linked to our study is that which uses AI as a tool to analyse students’ attention, both in face-to-face classroom situations and in e-learning models. Research has analysed how students express their attention levels and emotions through the analysis of facial expressions or body positions while in the classroom [12]. In this paper, the authors demonstrate how AI can help improve teaching strategies, as AI can determine the emotions that students reflect in their facial expressions and thus detect whether they are paying sufficient attention.
Along the same lines, other authors [13] complement the use of AI with biometric analysis tools (smart watches, sensors, cameras, etc.) to monitor students in online teaching systems, also suggesting that the resulting attention indicators can be used by teachers to redefine their teaching strategies. The research by Hou et al. [14] was also carried out in online teaching contexts, with the authors coinciding on the need for further research in this area, as the results show the effectiveness of identifying emotions. Another study focusing on these objectives is that by Trabelsi et al. [15], who also use AI to analyse emotions and attention through students’ facial expressions, reporting that the training of the AI system performed correctly in 76% of the situations. Other work shows similar results [16] and connect these technologies with “smart classroom” environments [17,18,19], with that by Hou et al. [14] also being of interest. Meanwhile, new environments have been tested [20,21,22] in order to analyse their educational possibilities.
Our research is based on the scoping review (ScR) method, with the aim of exploring the relevant literature on the use of AI technologies for identifying students’ attentional state during an educational activity and to describe the experiences being developed in this field of study. To this end, the following research questions are posed:
  • Question 1: Are AI technologies being used to analyse students’ attention or concentration levels?
  • Question 2 (RQ2): What theoretical frameworks underpin the experiences analysed on the use of artificial intelligence in educational settings?
  • Question 3 (RQ3): What methodologies and types of interventions have been used in studies implementing artificial intelligence in education?
  • Question 4: What types of AI techniques and tools are used to measure the attention span of learners?

3. Methodology

The ScR has been proposed as a method to explore, identify, evaluate and synthesise the relevant literature on a given research topic in a systematic, structured and reproducible way [23]. The methodology emerged in scientific disciplines in the 1980s with the aim of providing objectivity and rigour when developing the literature review process [24] and is used largely in health-related areas. However, it is becoming increasingly relevant in the social sciences [25] and, specifically, in studies on technology-related education [3,26,27].
This scoping review was conducted in accordance with the PRISMA 2020 statement [28], introduced by Moher et al. in 2009 [29], and its extension for scoping reviews, the PRISMA-ScR (Preferred Reporting Items for Systematic Reviews and Meta-Analyses extension for Scoping Reviews) [30]. The corresponding checklist was completed, and a flow diagram describing the identification, screening, and inclusion process of the studies is included. The review was not registered prior to its being conducted, as there are currently no official platforms for registering scoping reviews.

3.1. Inclusion Criteria and Sample Selection

The research corpus focused on original double-blind peer-reviewed publications, following the criteria detailed below (Table 1): (a) the research period was confined to the last 6 years, given the novelty of the topic under study (2017–2023); (b) queries were performed on the title, abstract, and keywords, as they are considered to represent the essence of scholarly publications [31]; (c) the Scopus and WOS databases were used, as they are the main databases of quality scientific production [32,33], and APA PsycInfo was used due to its being one of the most extensive databases in the field of psychology [34]; (d) publications in English were selected since it is the language of more than 75% of scientific production in the social sciences and 90% in the natural sciences [35,36] and it was taken into account that the use of a single language for the analysis facilitates the identification of lexical relationships in the research corpus [31]; (e) only papers presenting empirical primary research were considered; (f) the subject of study should be related to the use of artificial intelligence to measure students’ attention and concentration; and (g) the scope of the studies was education, considering all levels of education (primary, secondary, and higher).

3.2. Search Strategy

In accordance with the objective and the questions posed, the following keywords were considered for inclusion in the SLR search strategy: ‘Education’, ‘Artificial Intelligence or AI’, ‘Attention Level’ or ‘Concentration’, and ‘Students’. With these terms, and in line with the research period indicated in the previous subsection, the search protocol for each database was established as shown below (Table 2).

3.3. Study Selection

The articles obtained from the search using the above keywords were analysed and selected according to the criteria described in the previous two subsections, by two reviewers independently, based on the content of the titles and abstracts. A third reviewer intervened in the event of discrepancies to make the final decision. For this purpose, we used the artificial intelligence tool Rayyan [37], which facilitates selection and blind review between researchers.

3.4. Coding, Data Extraction, and Analysis

The process of coding and labelling the items was also supported by the Rayyan tool, as it allows codes to be assigned to items for categorisation. Subsequently, Excel 2021 software (Microsoft: Redmond, WA, USA) was used for creating spreadsheets and for the development of graphs. Meanwhile, Vosviewer software (version 1.6.20) [38] was used for creating and visualising networks for the analysis of bibliometric mapping supporting the exploration of relationships between elements, given its widespread use in multiple systematic reviews [39,40].
Finally, a critical assessment of the studies was conducted using the Joanna Briggs Institute (JBI) critical appraisal tools for cross-sectional and quasi-experimental studies [41]. The aim was to determine the reliability, relevance, and findings of the articles selected in the ScR. To this end, the three participating researchers jointly evaluated the studies identified in the scoping process.

4. Results

Following the indications of the PRISMA-ScR protocol (Figure 1), the inclusion and exclusion criteria, and the search strategy, the final phase of sampling and selection of the research corpus yielded a total of 26 publications.
The first search was conducted in December 2023, finding a total of 229 initial results. After eliminating non-papers and duplicates, 177 articles were analysed.

4.1. A General Bibliometric Overview

Table 3 shows the main data of the selected studies: authors, year of publication, journal, authors’ country of origin, and professional affiliation.
Table 4 complements the one above with information on the type of study and a summary of the work conducted, including information on the theoretical foundations and the types of instruments applied. The table also includes an appraisal using the JBI tools [41] (for each corresponding study type), along with a brief description and the score obtained for each study, according to the items fulfilled and the percentage of fulfilment. We thus accepted the studies that scored over 60% on appraisal, with the review finally covering 26 studies.

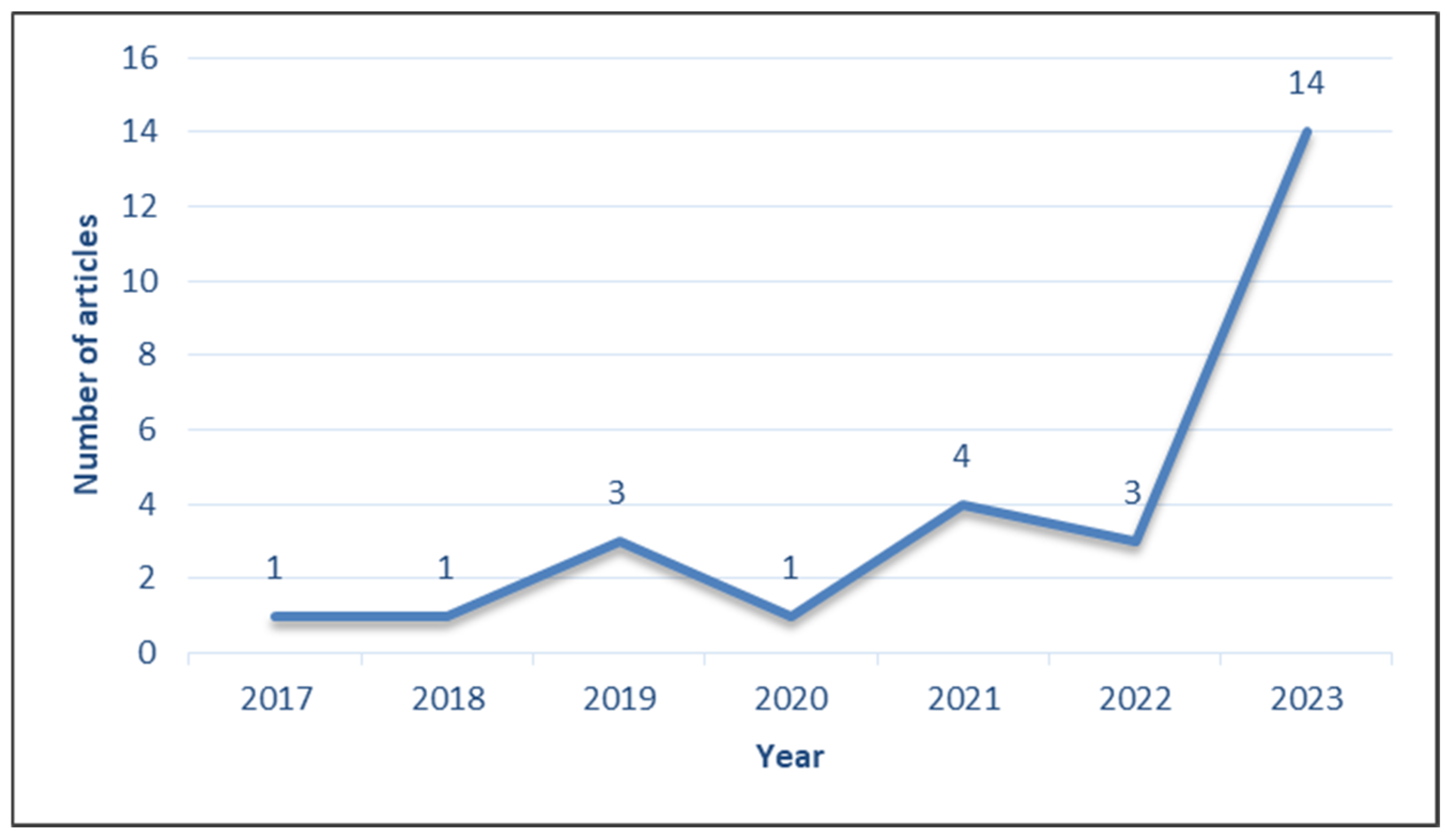

Furthermore, the time distribution of the selected publications (Figure 2) shows that the turning point in the growth of interest in using IA tools to analyse student attention span was in 2021, after which it has continued to rise.
The changes in education generated by the enforced confinement during the COVID-19 pandemic highlighted the importance of digital and distance education, and, with it, the study of tools that can measure the attention span of students to improve their motivation and learning.
There is interest in studying the subject under analysis in both Europe and America. However, the majority of the publications identified in this review and for this subject are concentrated among research teams from Asia, particularly from China (Figure 3).

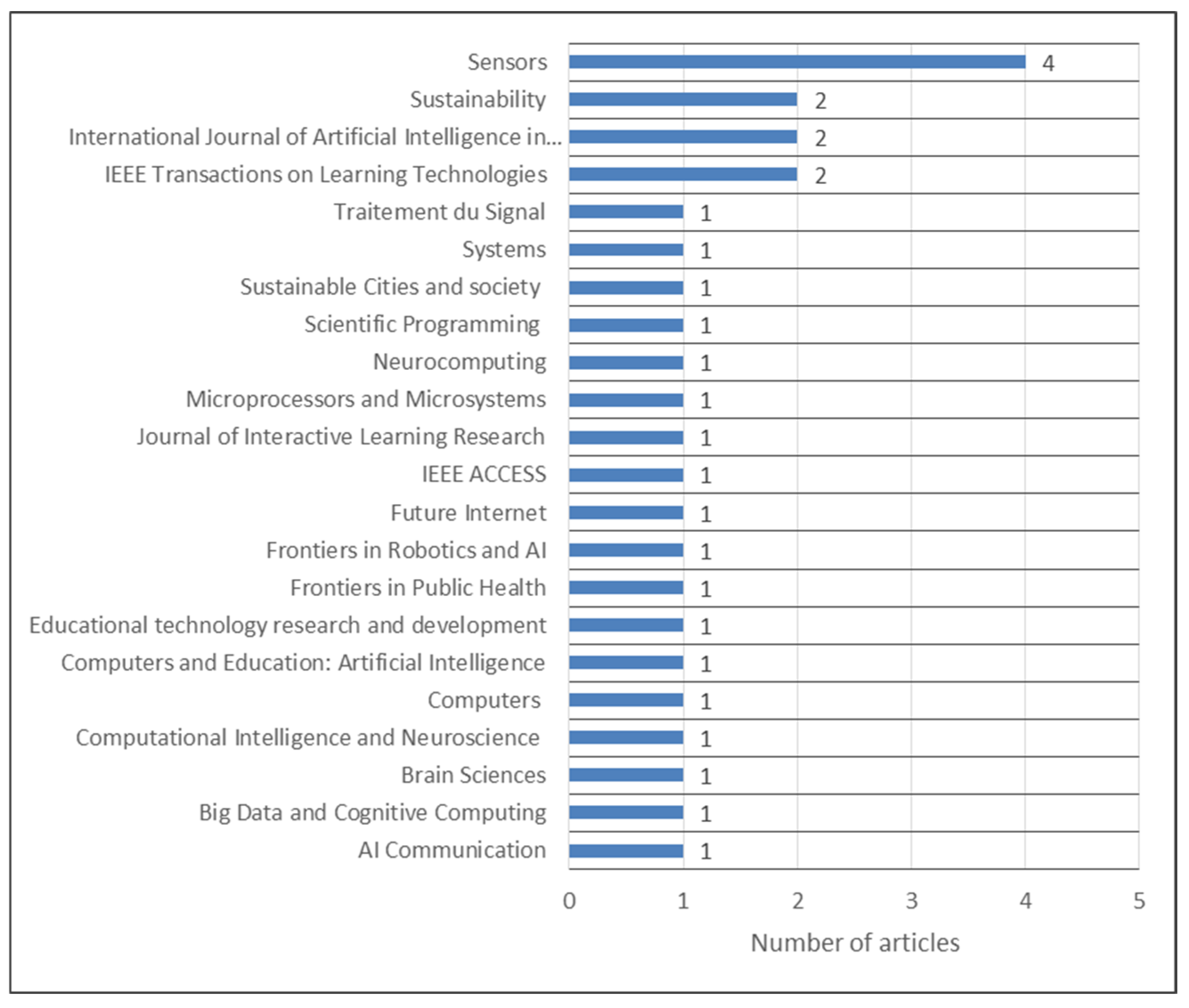

A few journals account for the largest number of studies on this topic, such as Sensors and Sustainability (Figure 4). MDPI is the main publisher of journals that include this type of study, followed by Springer and IEEE, an aspect that may be related to the total volume of publications of these publishing groups in recent years.

4.2. Keyword Analysis

To analyse the keywords in the selected articles, we first carried out a standardisation process based on the following criteria: (a) standardising words in singular and plural (e.g., intelligence and intelligences); (b) unifying synonyms in the same concept and purifying terms to avoid potential semantic conflicts or conceptual redundancies; (c) eliminating neutral words not directly related to the topic, such as “article”, but keeping others that in their context did have a related meaning such as “cognition” [66]. Once the process of standardising and debugging the keywords had been completed, the final list was extracted using the Vosviewer software [38], and the keywords are listed according to their relevance in the light of their frequency/presence in the corpus (Table 5).
The item “learning” clearly stands out among the main keywords in the analysis, given that the main objective of the use of AI in the studies was to improve learning. In second place comes the term “attention”, which highlights its importance in the studies analysed. This is followed by the item “indicator recognition”, which brings together various keywords in the standardisation process and refers to the measurement and recognition of various aspects and indicators for subsequent analysis, such as facial or postural recognition, gaze, actions, etc. “Intelligence” and “artificial intelligence”, in fourth and fifth place, are key terms for the analysis insofar as their use formed part of the methodology of the research selected. “Student behaviour” is also shown to be a relevant term, being the object of the research analysed. “Adaptive learning” is also prominent, as the aim of the studies was to improve learning systems based on measurements of students’ attention, with “data analysis” being central to their methodology. The extracted keywords can be contextualised using Figure 5, which illustrates their co-occurrence network, underlining both their incidence and interrelationships [67,68].
This analysis uses 30 nodes with their corresponding terms extracted from the titles, keywords, and abstracts of the articles selected from the Wos, Scopus, and APA PsycInfo databases. As a result, four distinct clusters were established (Figure 5).
The first cluster, in blue, refers to artificial intelligence and several related technologies used in studies, such as xgbost [58], as well as online and adaptive learning. On the other hand, Cluster 2, in yellow, shows the relationship between the concepts of learning and attention, as well as the terms game-based learning and one of the techniques used in several studies to measure the level of attention, namely electroencephalography [42,52]. The green cluster shows the relationship between the concept of intelligence and the recognition of attention indicators, with cognition, theoretical models, teaching, machine learning, and the human–computer relationship. Finally, the red cluster relates student behaviour in the context of education to emotions, data analysis, object recognition, and privacy protection methods in the context of this type of research, among other keywords.
In short, the analysis of the co-occurrences of the keywords used in the studies selected provides an insight into how the research corpus is structured at the micro level in order to interpret the object of study.

4.3. Use of AI Technologies to Analyse Students’ Attention or Concentration Levels (QR1)

In response to research question 1 (RQ1), it has been observed that numerous studies have been conducted to analyse and improve the students’ attention or concentration of students, in the fields of both education and psychology, with the aim of improving educational quality and student performance [66]. Different techniques have traditionally been used for this purpose, of which the most prominent are observation and the application of various tests. The d2 Attention Test is one of the best known and most widely applied since its creation by Brickenkamp and Zilmer [69].
Technological advances in recent years, especially in relation to artificial intelligence and its application in the field of education [70], have aroused the interest of researchers in studying student attention and concentration using new technological tools [71], among the various applications and developments of AI that are being carried out in the field of education. Undoubtedly, the studies presented in this systematic review are proof of this, especially considering the extensive growth in publications in the last year, that is, 2023.

4.4. Theoretical Basis for the Experiments Being Developed (QR2)

The main objective of the selected research is to analyse students’ attention and/or concentration level in order to improve learning, as stated in QR2. For this reason, the studies are based on theoretical theories of attention and learning.
Durães et al. [43], for example, build on Keefe [44], who argues that learning styles can be defined as cognitive, affective, and physiological characteristics that indicate how individuals interact with and respond to learning environments. Tau and Acebedo base their theoretical framework on Winne and Hadwin’s [45] information processing theory of self-regulated learning (SRL). Liang et al. propose that the use of an interactive learner feedback system can help increase learner concentration [46]. Behera et al. [47] base their work on the possibility of recognising students’ affective states in order to accordingly adapt teaching methodologies, as do Serrano-Mamolar et al. [48] and Hou et al. [14], who specifically focus on emotions. This is also the case in the study by Hossen and Uddin [58], who also refer to cognitive states.

4.5. Methodological Designs and Types of Experiences Proposed to Implement These Types of Experiences (QR3)

According to QR3, it has been observed that the methodological designs used were fundamentally experimental and grounded in mechanical observation through technological elements, with data analysis based on artificial intelligence. The participants analysed (students) were exposed to various educational activities to measure the indicators that allow their levels of attention and/or concentration to be estimated and predicted.
On the other hand, it has also been noted that several studies were applied in specifically designed contexts, either because the technology to be used for measurement required it, as with the use of electroencephalography or other elements [42,52], or to facilitate the performance of the experiments [45]. Other investigations were carried out in real classroom conditions with the intention of collecting information during their standard development [49], mostly with small samples ranging from three or four cases [51] to classrooms of thirty to fifty students [49], although some studies used larger samples [61].
Similarly, it can be seen that several studies also combined data collection using technological devices with various questionnaires and tests to cross-check the data [14].
Finally, in response to QR3, it should be noted that research was been carried out at different educational levels from primary [48,50,63,65], secondary [43,44,46], or university levels [45,47] and, in some cases, also involving teachers [50,58].

4.6. AI Techniques and Tools Used to Measure Learners’ Attention Level (QR4)

The analysis of the selected studies has enabled us to answer QR4, showing that the techniques and technological tools used to measure the level of student attention in the studies analysed are varied, including the use of electroencephalograms [42,52], video cameras to capture body and/or facial images [15,45,47,48,49,52,58,60,65], analysis of mouse and keyboard use [41,42], the use of wristbands or bracelets to measure biometric indicators [45,54], physiological sensors [48], and recording students’ hand gestures [44].
Depending on the research approach and the techniques and tools used, different types of information were collected. These included eye tracking or tracking of facial expressions [45,47,49,60] and biometric data [45,54], which were analysed with artificial intelligence systems for two purposes. On the one hand, the intention was to determine students’ levels of attention and concentration and, on the other, some of the research aimed to generate and enrich datasets for future use in AI applications in the classroom [48,63].

5. Discussion

The results obtained in this systematic review show a growing interest in the implementation of AI technologies for assessing students’ attentional state. The literature reviewed shows that most studies adopted experimental methodological approaches, based on automated observation using AI technologies and data analysis through machine learning algorithms [10,12]. These findings are in line with previous research highlighting the potential of AI in education for measuring attention and recognising behavioural patterns [11,14].
One of the main aspects identified is the predominance of studies conducted in Asia, especially in China, suggesting a consolidation of research lines in this geographical context [14,15,17]. Although there is interest in Europe and America, scientific production in these regions is comparatively lower, suggesting the need to extend the analysis to different educational and cultural environments to validate the applicability of these technologies in different contexts [13,19].
From a methodological perspective, most of the studies used face and body recognition techniques to analyse students’ attentional state in the classroom [12,15,19]. This trend is consistent with previous studies demonstrating the effectiveness of these methods in inferring students’ attentional state and engagement in real time [14,16]. However, authors have warned of the need to consider ethical issues, such as student privacy and informed consent in the use of these technologies [9,17]. The studies reviewed also reflect a diversification in the tools used. While some studies used video cameras and computer vision algorithms to assess attention [12,15], others combined these methods with biometric sensors, such as smart bracelets or electroencephalograms, in order to obtain more accurate measurements [13,18]. This combination of techniques allows for a triangulation of data that can improve the reliability of results but poses additional challenges in terms of implementation in real educational settings [16,19].
The findings also highlight the need to establish clear policy frameworks for the integration of AI in the assessment of students’ attentional state. While some studies highlighted the potential of these technologies to optimise pedagogical strategies and personalise teaching [5,7], others warned about the risk of over-reliance on automated systems, which could affect the teacher–student relationship and autonomy in the learning process [8,9].
In terms of effectiveness, the studies report accuracy levels in detecting students’ attentional state ranging from 70% to 90%, depending on the technology used and the AI model implemented [14,15,16]. However, the variability in the results suggests the need to standardise assessment procedures and to develop more robust models capable of adapting to different educational settings [12,19].
The results of this systematic review have important implications for both educational practice and research. In practical terms, the use of artificial intelligence technologies to measure student attention can promote personalised teaching. These tools allow teachers to adapt their teaching strategies based on real-time indicators of the group’s level of engagement [14,15,46]. However, it is essential to define ethical protocols and regulatory frameworks that protect privacy and ensure informed consent, especially in contexts involving minors [9,50].
Several future lines of research are emerging. These include the design of more adaptive and less invasive AI models, the validation of these technologies in diverse educational settings, and the analysis of their impact on students’ academic performance and emotional well-being [57,59].
It is also important to emphasise the urgent need to study the balance between automation and teacher autonomy. It is essential that these tools support the educational task without replacing professional judgement [5,7]. Although AI technologies show great technical potential, their pedagogical implications require attention. Over-reliance on these systems can simplify the complexity of student behaviour, displace pedagogical decision-making and encourage behaviourist approaches [7]. In addition, algorithmic biases that disadvantage students with non-normative attention styles or diverse cultural backgrounds have been identified, which can lead to unfair educational decisions [8,9]. For all these reasons, it is essential to consolidate the role of teachers as critical mediators of learning and to ensure that these tools support their work without replacing contextualised pedagogical understanding [5].

6. Conclusions

The analysis confirms the growing interest in the application of artificial intelligence for the assessment of students’ attentional state and its potential to improve teaching and pedagogical decision-making. Most of the studies reviewed employed experimental methodologies based on automated observation and data analysis using advanced algorithms, allowing for more accurate identification of attention patterns. However, there remain challenges related to privacy, implementation in real educational settings, and the validation of these technologies in different contexts. Scientific production is concentrated in certain regions, which highlights the need to extend studies to other educational systems. Despite the progress made, the diversity of approaches and tools used hinders comparison of the results, highlighting the need for standardised models to enhance their applicability.
In addition to the findings obtained, this review identifies relevant gaps in the literature and formulates useful recommendations for advancing the use of AI in education, such as the following. Firstly, there is a need to design more accessible and ethically sustainable artificial intelligence systems. These systems must be able to be effectively integrated into real classrooms without compromising student privacy or autonomy. Secondly, it is recommended that teacher training in the critical and pedagogical use of these technologies be strengthened. This preparation is key to avoiding excessive dependence on automated systems and to maintaining the role of teachers as mediators of learning. Thirdly, it is suggested that future research adopt a comparative and interdisciplinary approach in order to analyse the effectiveness of these systems at different educational levels and in different sociocultural contexts.
In summary, the application of AI technologies to measure student attention represents a promising avenue for personalising teaching and improving educational processes. However, their effective integration requires ensuring ethics, equity, and the active participation of teachers. In the short term, pilot projects should be launched in real environments, and collaboration between disciplines should be promoted to ensure responsible development. In addition, future research should consider the technical effectiveness as well as the emotional, social, and educational impact of these tools in diverse contexts.
Similarly, recommendations can be made for different stakeholders. It is a priority for education professionals to receive training in the critical and pedagogical use of AI technologies, integrating them as a support for teaching judgement and not as a substitute for it. Policy makers should promote clear regulatory frameworks that ensure privacy protection and fairness in the implementation of these tools, especially in contexts involving minors. Finally, the research community is encouraged to expand studies in diverse contexts, explore the longitudinal impact of these technologies on learning, and move towards more transparent, ethical, and culturally sensitive models.

7. Limitations

Although the review followed rigorous procedures and relied on three of the most comprehensive and authoritative academic databases (Scopus, Web of Science, and APA PsycInfo), it is possible that some relevant studies were not identified due to being published in other languages or indexed in less accessible or less widely used sources. In addition, literature not formally published, such as grey literature, was not included, which may have limited the overall breadth of the evidence base.
In this regard, the decision to include only English-language publications, in order to make the review process more effective, may have introduced some linguistic bias that could affect the geographical representativeness of the findings. This limitation may have reduced the visibility of interesting research published in other languages, especially in regions such as Latin America, Eastern Europe, and French-speaking Africa. This bias is a recognised concern in contemporary systematic reviews and should be taken into consideration [35,36].

Author Contributions

Conceptualization, R.R.-V.; research design, R.R.-V. and P.P.-E.; data curation, R.R.-V. and M.C.; formal analysis, R.R.-V. and P.P.-E.; writing—original draft preparation, R.R.-V.; writing—review and editing, P.P.-E. and M.C.; funding acquisition, M.C. and R.R.-V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Conselleria de Innovación, Universidades, Ciencia y Sociedad Digital, Generalitat Valenciana, grant number CIPROM/2021/017 (PROMETEU 2022).

Data Availability Statement

All data extracted and analysed during this study are available from the corresponding author upon reasonable request.

Acknowledgments

We would like to thank the “Direcció General de Ciència i Investigació de la Generalitat Valenciana” for awarding us the grant ID CIPROM/2021/017 within the Prometheus programme for research groups of excellence, thanks to which we have been able to present this paper.

Conflicts of Interest

The authors declare no conflicts of interest.
