1. Introduction
With the rapid growth of data, and textual data in particular, the need for adequate techniques to analyse and extract information from huge data volumes has grown substantially. In the case of textual data, the process of identifying and extracting relevant information from unstructured text documents and transforming this information into a structured representation for easy analysis is called text (data) mining [
1]. Text mining encompasses many techniques like text classification, text clustering, visualisation, summarisation and information extraction, and it is applicable in many fields, including but not limited to information retrieval, flexible query answering, artificial intelligence, coreference detection, statistics, linguistics or biomedical applications [
2,
3]. A crucial component in most of these techniques is the measurement of similarity between (parts of) the textual documents under consideration. The need for similarity measures also exists in structured databases where coreferent record detection involves these similarity scores in order to quantify the resemblance between individual attributes of those records.Whereas, in information retrieval and flexible query answering, a similarity measure is required in order to make a comparison between the data and a user query. The result of such similarity measures is a value between 0 and 1 which indicates the degree of similarity among two text elements, with a similarity score of 0 (resp. 1) indicating that the two elements are completely dissimilar (resp. similar).
Text documents often display certain connections among (parts of) their textual content. For interconnected texts, which are texts that contain many such connections, the identification and analysis of these connections hold significant importance. Imagine two texts where the only difference between them is that two consecutive sections are switched. Traditional similarity measures, which compute a similarity based on a sequence of characters or tokens, are not able to capture this structural difference, resulting in a poor similarity score between these texts. Furthermore, based on this single similarity score, no assumptions can be made about the similarity between parts of the texts, indicating the loss of crucial information. Tools for analysing and mining (interconnected) texts can greatly benefit from specific similarity measures where the different levels on which these interconnections can occur are taken into account. Since traditional orthographic similarity measures are not always able to adequately handle highly interconnected texts based on their structure, this paper aims to propose a highly customisable method able to deal with the nuances of highly structured and interconnected texts, based on the needs of (expert) text analysis.
In this paper, we propose a novel way of calculating an orthographic similarity score between texts, especially performant in handling interconnected texts. First, the textual corpus is transformed into a graphbased text representation. The structure of this graph is determined by the hierarchy of textual elements in a document (e.g., words, tokens, sentences, paragraphs…) where (parts of) the texts are represented by nodes and subgraphs. On this graph, we then hierarchically calculate the orthographic similarity between all elements on the same textual level. As a novelty, the similarity calculation between these text elements incorporates the similarity scores among lower level text elements, computed in the previous hierarchical steps. These (intermediate) similarity values are then all included in the graph. In essence, this method can be construed as a generalised soft measure over entire texts, transcending beyond the idea of only combining character and tokenbased measures [
4]. The choice of the textual elements in the graph and the similarity calculation on every textual level can be adjusted according to the characteristics of each corpus, resulting in a highly customisable approach.
By using this novel method, text mining applications are not only limited to using our proposed similarity score between toplevel text elements; they can also refer to similarity values between smaller parts of the text. The hierarchical computation of the similarity scores and the availability of the similarity values between lower level text values greatly contribute to the interpretability of the similarity measure as well as to the explainability of text analysis and text mining applications (and artificial intelligence in general) using this measure. Finally, the resulting graph, including all calculated similarity scores, can be implemented in a graph database system. This does not only allow for easy reference in text mining applications using the computed values but also allows for flexible querying and efficient graphbased analytics on the corpus at hand.
This work is relevant for the analysis of texts, and especially interconnected texts, in a language independent manner. In their current form, the proposed techniques are better suited for small or mediumsized texts, but can be considered as a starting point for a novel framework, capable of handling and analysing unstructured texts in a semistructured manner.
The remainder of this paper is structured as follows. First, related work is discussed in
Section 2. In
Section 3, some preliminaries about similarity measures, (fuzzy) graphs and graph databases are stated. The proposed graph structure for a textual corpus as well as the process of transforming texts into this graph are described in
Section 4. Next,
Section 5 describes the proposed hierarchical similarity algorithm used to determine the orthographic similarity score between all nodes and subgraphs representing (parts of) the corpus.
Section 6 reports on the experiments, where the accuracy and performance of the proposed method are quantified and discussed. Finally, in
Section 7, the conclusions of our work are formulated, and some directions for future research are proposed.
2. Related Work
A similarity score between two texts can be determined in several ways, including orthographically or semantically [
5,
6]. Orthographic similarity is based on the resemblance between individual characters or tokens, without taking into account the meaning of the textual content or making assumptions on the used language [
7]. Characterbased orthographic methods, like (Damerau–)Levenshtein [
8,
9], Jaro(–Winkler) [
10,
11] and Ngrams [
12], determine the distance or similarity between two strings by comparing character sequences. Tokenbased orthographic methods on the other hand, like the Jaccard Similarity [
13], Dice’s Coefficient [
14], the Cosine Similarity [
6], the Overlap Coefficient [
6] or even tokenbased adaptations of characterbased methods, calculate a similarity between texts based on a sequence or set of entire tokens. Some of these orthographic techniques result in a distance rather than a similarity score. Since (normalised) distance and similarity are in fact inverse functions, these two types of measurements can be used interchangeably.
Both character and tokenbased similarity measures calculate the similarity score based on one specific text element, i.e., either tokens or characters. Few techniques have been proposed to combine both types of orthographic similarity measures into one. Such composite techniques, commonly referred to as soft (similarity) measures, consider two tokens to be equal not solely in a case of an exact match but also when the characterbased similarity between the two tokens is at least as high as a predefined threshold [
4,
5,
15,
16]. In fact, soft tokenbased measures do not apply an exact (or crisp) matching technique but rather a near (or approximate) matching technique. In the case of name matching for example, the soft cosine similarity, which combines both the cosine similarity and Ngrams, outperforms each individual component [
17]. Another study shows that leveraging the dissimilarity between two tokens, calculated using a characterbased measure as the replacement cost in a soft tokenbased measure, has a great performance in search applications [
18].
In contrast to orthographic similarity measures, semantic similarity measures do rely on the meaning of the textual content as well as assumptions made about the language in which the text is written. Semantic measures can be corpusbased, knowledgebased or a combination of both [
19]. Corpusbased measures calculate a similarity value based on information obtained from analysing large corpora. In Latent Semantic Analysis (LSA) [
20], for instance, a tokenparagraph matrix is constructed to indicate the frequency of a specific token’s usage in a given paragraph. Based on this matrix and the assumption that contextually similar tokens will occur in related pieces of text, a token vector is determined. Finally, the similarity score between two tokens is determined by computing the cosine of the angle between their respective token vectors. Other corpusbased techniques like Word2vec [
21] and Pairwise Mutual Information (PMI) [
22] are based on the same principles.
Knowledgebased methods on the other hand determine a similarity score between texts by utilising information derived from semantic networks. These semantic networks are large lexical databases that store semantic relations between their contents. In the case of the English language, WordNet [
23] is one of the most popular semantic networks available. Consider the depth of a word as the number of semantic links between the root word of WordNet and that specific word. A possible method to determine a similarity score between two words is based on the depth of both words and the depth of their lowest common ancestor [
24]. Since semantic methods rely on specific (large) corpora and/or on assumptions about a particular language, their applicability is limited, making them less general than orthographic measures.
Much research has already been carried out into text analysis based on graphs [
25], albeit mostly with a different objective than determining a similarity score. In order to accurately handle the attribution of authorship for revised content in wiki environments, a graphbased text representation, similar to the one described in this work, has been proposed, where each revision is a graph that is hierarchically composed of tokens, sentences, and paragraphs [
26]. Other graphbased approaches for handling the authorship attribution problem are based on text networks only storing word nodes, connected based on their adjacency in the original text [
27,
28]. These socalled cooccurrence networks are used in many text analysis applications to date, including text clustering and classification [
29,
30,
31]. Recent studies into graphbased text representations mostly enrich the text network’s structure by means of semantic properties, which differs from the approach in this paper where we solely focus on the orthographic properties of textual documents.
Graphbased text representations also have a use in Natural Language Processing (NLP). In this case, the textual graphs do not portray the hierarchical structure of a textual document or the cooccurrence of words within a text but instead indicate the semantic relations, by means of a semantic network, between objects within a specific text [
25,
32,
33].
Traditional orthographic techniques, where the similarity calculation of entire texts is generally based on sequences or sets of characters or tokens and the similarities among them result in the loss of structural information of the texts under consideration. Especially in the case of some highly structured or highly interconnected (short) texts, we believe that current orthographic similarity measures are not always able to adequately compare texts tuned to the needs of experts. In this paper, we propose advanced methods to handle texts in a more structured way, in order to deal with the underlying structural information.
4. Representing a Textual Corpus as a Graph
Before proposing our novel similarity measure between two texts, we introduce the graphbased representation on which our similarity measure is computed. In this section, we first describe how texts can be structured as a hierarchy of textual elements. Next, we propose a graph model where the content of the texts is partitioned into smaller textual units based on the hierarchical properties of the corpus. Each text element is represented by either a node or a subgraph in the resulting graph. Lastly, the process of transforming a text into this graph representation is explained.
4.1. Hierarchical Decomposition of Textual Documents
Textual documents usually display some kind of hierarchical structure of textual elements. We define these textual elements as the textual components that constitute a text. These components all have an associated unit of discourse, including but not limited to words, tokens, sentences, (half)verses, paragraphs, sections, chapters, full documents, etc. For example, a possible textual decomposition for this paper, which in itself represents the top level element of the hierarchy, consists of one or more sections. Each of these sections comprises at least one paragraph, and in turn, all of these paragraphs are composed of one or more sentences, which in turn are made up of one or more tokens. As another example, poems and lyrics have a possible hierarchical decomposition of the poem (or lyric) as a whole, which is hierarchically composed of verses and tokens.
The hierarchical decomposition of a text, or of all the texts in a corpus, is defined by an ordered list of discourse units
where each
${l}_{i},0\le i\le n$ depicts the unit of a textual component. In this paper, we also refer to these units as labels for textual elements. The size of the list
$\leftL\right$ is equal to the number of hierarchical levels in the decomposition of a text, and
${l}_{i+1}$ is the label of the textual component which is hierarchically higher than the elements with label
${l}_{i},0\le i\le n$. Revisiting the examples described above, a possible decomposition of this paper is
$L=\left[\mathtt{token},\mathtt{sentence},\mathtt{paragraph},\mathtt{section},\mathtt{document}\right]$ and of a poem or lyric is
$L=\left[\mathtt{token},\mathtt{verse},\mathtt{document}\right]$.
Naturally, there is no fixed hierarchical decomposition for every (type of) text or corpus, as one can always add or remove an (intermediate) level. The most suitable decomposition depends on the context in which the text is used and can be determined through expert knowledge, empirical analysis or visual inspection of the texts at hand. For interconnected texts that exhibit a high level of interconnectivity between certain parts of the texts, an interesting decomposition would be based on the text elements where these numerous connections occur.
Hereafter, we will refer to texts elements with a label ${l}_{i}\in L$ as the higher (resp. lower) level text elements in comparison with texts elements with label ${l}_{j}$ when $i>j$ (resp. $i<j$). The top level elements of a hierarchy have a label ${l}_{\leftL\right1}={l}_{n}$, and the lowest level elements have a label ${l}_{0}$.
4.2. Graph Representation of a Textual Corpus
We propose a graph model to represent a set of texts, where the content of each text is partitioned into smaller textual components. The units of these textual components are based on a given hierarchical decomposition of the texts, as described in
Section 4.1. Each text element is assigned to a node with a corresponding label and connected by numbered edges either to higherlevel elements, in which this element occurs, or to lowerlevel elements, of which this element is made up, or both. For example, in a text with decomposition
$L=\left[\mathtt{token},\mathtt{verse},\mathtt{document}\right]$, a
verse node is connected to the
document nodes in which this verse occurs and to the
token nodes that make up this verse. Only the nodes that represent the smallest unit within the hierarchy store the actual textual content. The textual content in higherlevel text elements can then be reconstructed from their subgraph by traversing down to the lowestlevel components. Moreover, textual components with the exact same content are represented by the same nodes in the graph. Hence, a basic notion of similarity between (parts of) texts can be deducted simply from the structure of the proposed textual graph. A formal definition of this graph model is provided in Definition 3.
Definition 3 (graphbased text model).
Let L be an ordered list of labels denoting the hierarchical structure of the texts in a corpus, as described in Section 4.1. The graph model for representing texts is a fuzzy labelled property graph $\tilde{G}\left(N,\tilde{E},\rho ,{\lambda}_{N},{\lambda}_{E},\sigma \right)$ and is defined by the following:The set N consists of all nodes representing a textual element of a text in T and is a composition of the subsets representing textual components with a specific label, i.e., $N={\bigcup}_{l\in L}{N}_{l}$. The subsets ${N}_{l\in L}$ are pairwise disjointed.
The set of edges $\tilde{E}={\tilde{E}}_{CONTAINS}$ represents the relationships of containment between textual elements, with ${\mu}_{\tilde{E}}\left(e\right)=1,e\in \mathrm{supp}\left(\tilde{E}\right)$.
The relationships in ${\tilde{E}}_{CONTAINS}$ are mapped on the corresponding nodes by the ρ function $\rho \left(e\right)\in {N}_{{l}_{i+1}}\times {N}_{{l}_{i}}$, with $e\in \mathrm{supp}\left({\tilde{E}}_{CONTAINS}\right)$ and ${l}_{i+1},{l}_{i}\in L$. This mapping indicates which nodes with a lowerhierarchy label ${l}_{i}$ are contained in a node with label ${l}_{i+1}$.
The $\mathsf{rank}$ property, indicating the rank of a textual node within its higherlevel text element, is assigned as $\sigma \left(e,\mathsf{rank}\right)\in \mathbb{N},e\in \mathrm{supp}\left({\tilde{E}}_{CONTAINS}\right)$. This property is required to reconstruct a certain text based on its graphrepresentation.
Toplevel nodes $n\in {N}_{{l}_{\leftL\right1}}$, which represent an entire textual document, are assigned a unique $\mathsf{id}$ by $\sigma \left(n,\mathsf{id}\right)\in \mathbb{N}$.
The lowest nodes in the hierarchy, which are nodes $n\in {N}_{{l}_{0}}$, store the actual textual information in a $\mathsf{text}$ property by $\sigma \left(n,\mathsf{text}\right)\in {T}_{{l}_{0}}$. Here, ${T}_{{l}_{0}}$ represents all the unique text elements from texts in T at hierarchical level ${l}_{0}$. The full texts or text elements with intermediate labels can be reconstructed from their subgraph by traversing down to the lowestlevel elements.
Additionally, two or more textual elements, except for the toplevel elements, that contain the exact same content and have the same hierarchical level are represented by the same node. Consequently, these nodes can have multiple relationships of containment to nodes with a higherlevel label. Toplevel elements, on the other hand, are always represented by distinct nodes, each assigned a unique identifier, such that each text in the graph is uniquely identifiable.
Starting from a set of texts
T, the graphbased representation for this corpus, adhering to Definition 3, can be constructed using Algorithm 1. The algorithm starts from an empty fuzzy graph and adds each text document individually to the graph. First, a preprocessing step allows the texts to be altered or simplified before they are inserted into the graph. Next, for each of these texts, a node is created with the label of the highestlevel element (
${l}_{\leftL\right1}$). This node serves as the root node for a specific text and is also assigned a unique identifier.
Algorithm 1 Graphbased text model construction algorithm.
Input: $\mathrm{A}\phantom{\rule{4.pt}{0ex}}\mathrm{set}\phantom{\rule{4.pt}{0ex}}\mathrm{of}\phantom{\rule{4.pt}{0ex}}\mathrm{text}\phantom{\rule{4.pt}{0ex}}\mathrm{documents}\phantom{\rule{4.pt}{0ex}}T\phantom{\rule{4.pt}{0ex}}\mathrm{and}\phantom{\rule{4.pt}{0ex}}\mathrm{a}\phantom{\rule{4.pt}{0ex}}\mathrm{hierarchical}\phantom{\rule{4.pt}{0ex}}\mathrm{list}\phantom{\rule{4.pt}{0ex}}\mathrm{of}\phantom{\rule{4.pt}{0ex}}\mathrm{units}\phantom{\rule{4.pt}{0ex}}L=\left[{l}_{0},{l}_{1},\dots ,{l}_{n}\right]$ Output: $\mathrm{A}\phantom{\rule{4.pt}{0ex}}\mathrm{fuzzy}\phantom{\rule{4.pt}{0ex}}\mathrm{graph}\phantom{\rule{4.pt}{0ex}}\tilde{G}\left(N,\tilde{E},\rho ,{\lambda}_{N},{\lambda}_{E},\sigma \right)\phantom{\rule{4.pt}{0ex}}\mathrm{representing}\phantom{\rule{4.pt}{0ex}}\mathrm{the}\phantom{\rule{4.pt}{0ex}}\mathrm{documents}\phantom{\rule{4.pt}{0ex}}\mathrm{in}\phantom{\rule{4.pt}{0ex}}T$ 1:
$\mathrm{Create}\phantom{\rule{4.pt}{0ex}}\mathrm{empty}\phantom{\rule{4.pt}{0ex}}\mathrm{fuzzy}\phantom{\rule{4.pt}{0ex}}\mathrm{graph}\phantom{\rule{4.pt}{0ex}}\tilde{G}\left(N,\tilde{E},\rho ,{\lambda}_{N},{\lambda}_{E},\sigma \right)\phantom{\rule{80.pt}{0ex}}$▹$\tilde{G}$ is a global object  2:
for all $t\in T$ do  3:
$t\leftarrow \mathrm{P}\mathrm{R}\mathrm{E}\mathrm{P}\mathrm{R}\mathrm{O}\mathrm{C}\mathrm{E}\mathrm{S}\mathrm{S}(t)$  4:
$i\leftarrow \leftL\right1$  5:
$\mathrm{Create}\phantom{\rule{4.pt}{0ex}}\mathrm{node}\phantom{\rule{4.pt}{0ex}}n$  6:
$\sigma \left(n,\mathsf{id}\right)\leftarrow \mathrm{U}\mathrm{N}\mathrm{I}\mathrm{Q}\mathrm{U}\mathrm{E}\mathrm{I}\mathrm{D}($)  7:
${\lambda}_{N}\left(n\right)\leftarrow \left\{{l}_{i}\right\}$  8:
$\mathrm{C}\mathrm{O}\mathrm{M}\mathrm{P}\mathrm{U}\mathrm{T}\mathrm{E}\mathrm{C}\mathrm{H}\mathrm{I}\mathrm{L}\mathrm{D}\mathrm{N}\mathrm{O}\mathrm{D}\mathrm{E}\mathrm{S}(t,i1,n)$  9:
$N\leftarrow N\cup \left\{n\right\}$  10:
end for  11:
$\mathbf{return}\tilde{G}\left(N,\tilde{E},\rho ,{\lambda}_{N},{\lambda}_{E},\sigma \right)$

From this root node, the lower levels of the text document are computed in a recursive manner by means of Algorithm 2. For each intermediate level of the hierarchical decomposition
L, the text element is split up into smaller elements. The approach for splitting text elements into these smaller components depends on the current unit of discourse
${l}_{i}$ and can be decided upon during implementation. For example, in the case of words, the string can be split based on white spaces within the text. For tokens or sentences, on the other hand, tokenisation [
45] or sentence segmentation [
46] methods can be used. Next, for each of these smaller components
${s}_{j}$, it is checked whether or not a node with an identical label representing the exact same textual content as
${s}_{j}$ already exists. Should this be the case, the already existing node is linked to the parent node, and no further operations or recursive steps are required. Conversely, in the absence of such node, a new node with the corresponding label is created. In case the recursion has reached the lowest label (i.e., when
$i=0$), the node is associated with the actual textual content, and the recursion is finished. In all other cases, the
ComputeChildNodes procedure is recursively called to compute the lowerlevel text elements at level
$i1$. Lastly, the newly created node is connected to its parent node and is added to the graph.
When the recursion, which is started in Algorithm 1, is completed, the root node of a text document is also added to the graph. This entire process is repeated until all text documents are incorporated into the graph. The resulting graph is then returned at the end of the algorithm. In order to illustrate the graph model from Definition 3 and the construction procedure in Algorithm 1, a simple example of a corpus of two small texts is given in Example 1.

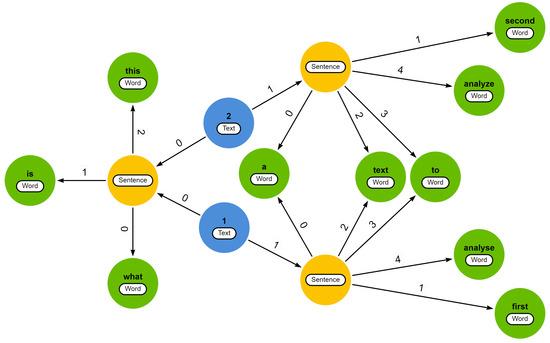

Example 1. Consider a set of two slightly different textsand a list of textual units L = [], where elements with the label represent a text as a whole. Executing Algorithm 1 on this example results in the graphbased text representation displayed in Figure 1. In this example, the texts are segmented in sentences and, subsequently, the sentences are split into words based on white spaces. Moreover, the texts undergo preprocessing involving the removal of punctuation and the transformation of uppercase letters into lowercase letters.Algorithm 2 Recursive procedure to construct the different levels of the graph model.
 1:
procedure ComputeChildNodes($t,i,p$)  2:
$S\leftarrow S\mathrm{P}\mathrm{L}\mathrm{I}\mathrm{T}(t,i)\phantom{\rule{55.pt}{0ex}}$▹ Text splitting is based on the current discourse unit  3:
for $j\leftarrow 0,\leftS\right1$ do  4:
if $\mathrm{a}\phantom{\rule{4.pt}{0ex}}\mathrm{node}\phantom{\rule{4.pt}{0ex}}\mathrm{already}\phantom{\rule{4.pt}{0ex}}\mathrm{exists}\phantom{\rule{4.pt}{0ex}}\mathrm{on}\phantom{\rule{4.pt}{0ex}}\mathrm{level}\phantom{\rule{4.pt}{0ex}}i\phantom{\rule{4.pt}{0ex}}\mathrm{that}\phantom{\rule{4.pt}{0ex}}\mathrm{represents}\phantom{\rule{4.pt}{0ex}}{s}_{j}$ then  5:
$\mathrm{Define}\phantom{\rule{4.pt}{0ex}}\mathrm{that}\phantom{\rule{4.pt}{0ex}}\mathrm{existing}\phantom{\rule{4.pt}{0ex}}\mathrm{node}\phantom{\rule{4.pt}{0ex}}\mathrm{as}\phantom{\rule{4.pt}{0ex}}n$  6:
else  7:
$\mathrm{Create}\phantom{\rule{4.pt}{0ex}}\mathrm{node}\phantom{\rule{4.pt}{0ex}}n$  8:
${\lambda}_{N}\left(n\right)\leftarrow \left\{{l}_{i}\right\}$  9:
if $i>0$ then  10:
ComputeChildNodes$({s}_{j},i1,n)$  11:
else  12:
$\sigma \left(n,\mathsf{text}\right)\leftarrow {s}_{j}$  13:
end if  14:
$N\leftarrow N\cup \left\{n\right\}$  15:
end if  16:
$\mathrm{Create}\phantom{\rule{4.pt}{0ex}}\mathrm{edge}\phantom{\rule{4.pt}{0ex}}e$  17:
$\rho \left(e\right)\leftarrow \left(p,n\right)$  18:
$\sigma \left(e,\mathsf{rank}\right)\leftarrow j$  19:
${\lambda}_{E}\left(e\right)\leftarrow \mathtt{CONTAINS}$  20:
$\tilde{E}\leftarrow \tilde{E}\cup \left\{e\right\}$  21:
${\mu}_{\tilde{E}}\left(e\right)\leftarrow 1.0$  22:
end for  23:
end procedure

The first sentence of both texts (left) is represented by a single sentence node, signifying that both (preprocessed) sentences are orthographically identical. The second sentence on the other hand, differs by two words, resulting in a distinct sentence node for each text. In fact, when both texts consist of orthographically identical words, the graph’s structure inherently provides an indication of the similarity between the texts.
Additional text documents can still be included into the graph after its initial construction. This can simply be achieved by reexecuting Algorithm 1, with the set T consisting of one or more new text documents, and instead of creating a new graph, the algorithm should use the already constructed graph $\tilde{G}$.
5. A Hierarchical Orthographic Similarity Measure for GraphBased Text Representations
Now that a graph model is in place, representing an entire textual corpus, we propose a novel hierarchical orthographic similarity measure for these graphbased text representations. Analogous to the construction of the textual graph, as proposed in
Section 4.2, the hierarchical computation is performed in a bottomup manner. In
Section 5.1, we first propose a stringbased similarity measure that computes a pairwise similarity between all nodes representing the smallest textual components in the graph. Next, in
Section 5.2, we propose a nodebased similarity measure, where a similarity score is hierarchically determined between all nodes situated at the same level. This is achieved by utilising the similarity values between lowerlevel nodes, calculated in a preceding step. As a result, the graph model for texts is extended with relationships that denote the similarity between all text elements at the same level and between the full texts in the corpus. In
Section 5.3, we describe the full computation of our proposed similarity measure and revisit our example from the previous section. A graphical overview of the proposed similarity measure is provided in

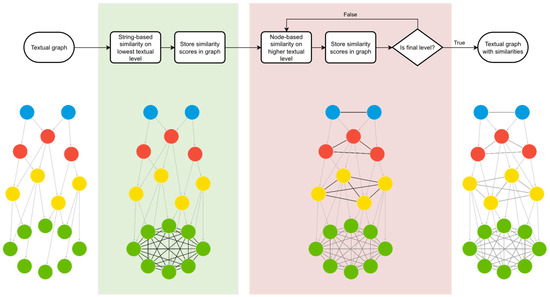

Figure 2.
5.1. StringBased Similarity Measure
A first step in the hierarchical calculation of the proposed similarity measure consists of calculating the pairwise similarity between all nodes that represent the smallest textual components in the graph. Since these nodes actually contain textual content, a stringbased similarity measure is employed. As a similarity measure, we propose a characterbased method that is based on the edit distance between two strings.
Calculating this pairwise similarity measure between all lowestlevel node pairs,
$\left({n}_{1},{n}_{2}\right)\in {N}_{{l}_{0}}^{2}$ starts by determining the edit distance between the texts contained by those nodes. In this paper, the edit distance is defined as the minimum cumulative cost of edit operations necessary to transform one string into another. The supported edit operations are the insertion, deletion and replacement of a single character, as well as the transposition between two consecutive characters. A formal definition of this stringbased edit distance, which is inspired by the Damerau–Levenshtein distance [
8], is provided in Definition 4.
Definition 4 (stringbased edit distance)
. Let insertions (I), deletions (D) and replacements (R) of a single character and transpositions (T) between two consecutive characters be the allowed edit operations. The edit distance between two character strings a and b is recursively defined by the function ${d}_{a,b}^{s}(i,j)$, whose value is the minimum cost between the prefix of a up to the ith character and the prefix of b up to the jth character.The cost for each edit operation is represented by ${c}_{*}\in [0,1]$, where ∗ is a placeholder for one of the edit operations $\{(I,D),R,T\}$, and $\mathbb{1}$ is the indicator function.
The cost for the insertion and deletion operations must be equal in order to ensure a symmetric edit distance [
47]. When all costs are equal to 1, this edit distance corresponds to the Damerau–Levenshtein edit distance [
8]. This proposed stringbased edit distance can only be considered a metric when each cost
${c}_{*}$ is larger than 0. In instances where the cost of any edit operation is 0, the resulting distance between distinct strings can be 0, thereby deviating from the defining properties of a metric [
48].
Consider
${s}_{1}=\sigma \left({n}_{1},\mathsf{text}\right)$ and
${s}_{2}=\sigma \left({n}_{2},\mathsf{text}\right)$ as the strings represented by the nodes
${n}_{1}$ and
${n}_{2}$. The edit distance between those strings is found by the recursive application of Equation (
15) and results in a positive real number between 0 and the maximal length (in characters) of both texts (i.e.,
$\mathrm{max}\left({s}_{1},{s}_{2}\right)$), depending on the assigned costs for each supported edit operation. As this edit distance indicates dissimilarity rather than similarity between two strings, Equation (
16) is required to convert this dissimilarity into a similarity score within the required bounds
$\left[0,1\right]$. Note that, since the defined edit distance and the conversion to a similarity are both symmetric, the resulting similarity measure is also symmetric. The calculation of this similarity measure is illustrated in Example 2.

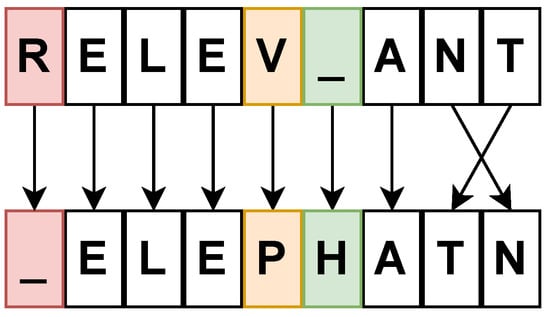

Example 2. Consider two strings ${s}_{1}=\mathtt{RELEVANT}$ and (conveniently misspelled) ${s}_{2}=\mathtt{ELEPHATN}$ and all costs ${c}_{I,D}={c}_{R}={c}_{T}=1$. The minimal edit distance between these two strings can be identified by once performing each of the four supported edit operations, as shown in Figure 3, and is ${d}_{{s}_{1},{s}_{2}}^{s}({s}_{1},{s}_{2})=4$. The similarity score is determined by Equation (
16)
and is ${\mathrm{sim}}^{s}({s}_{1},{s}_{2})=0.5$. The time complexity of a single edit distance calculation between two strings is $\mathcal{O}\left(\left{s}_{1}\right\xb7\left{s}_{2}\right\right)$ and relates to the length of both strings. Since the stringbased edit distance is computed on the lowestlevel text elements, the strings under consideration are often short and therefore have a manageable execution time. The time complexity of calculating the edit distance on all nodes in ${N}_{{l}_{0}}$, on the other hand, is $\mathcal{O}\left({m}^{2}\right)$, with m equal to the amount of nodes $\left{N}_{{l}_{0}}\right$, which can result in performance issues for a very large corpus.
To ascertain the edit distance between two strings, denoted as ${s}_{1}$ and ${s}_{2}$, a matrix to store all intermediary distances between the prefixes of those strings is required.
The dimensions of said matrix are determined by the respective lengths of the aforementioned strings.
The implementation can, however, be optimised to store the intermediate results using only two rows, where both rows have the same length as the longest string.
As a result, the space complexity of a single edit distance calculation is $\mathcal{O}\left(\mathrm{max}\left({s}_{1},{s}_{2}\right)\right)$.
The space required to store all calculated similarities between all nodes in ${N}_{{l}_{0}}$ is $\mathcal{O}({m}^{2})$, where m is equal to the amount nodes at that base level of the hierarchy.

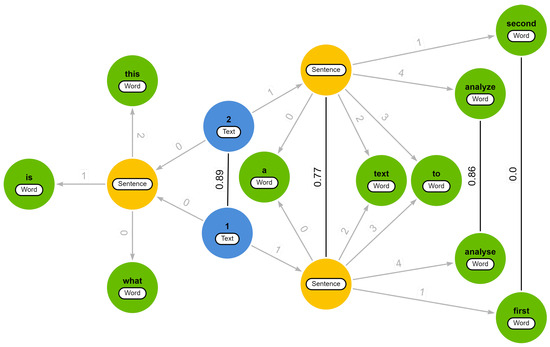

Finally, after calculating the similarity scores between all node pairs
$({n}_{1},{n}_{2})$, these similarities are also incorporated into the graph. For that purpose, a new fuzzy edge
e is created with label
${\lambda}_{E}(e)=$ SIMILAR_TO for each obtained similarity score. The membership grade for this new edge is equal to the obtained similarity score
This new edge is then associated with the related nodes
$\rho (e)=({n}_{1},{n}_{2})$. Since this similarity measure is symmetric, this edge can be interpreted as an undirected edge and is only stored once.
5.2. NodeBased Similarity Measure
As a next step in the calculation of our proposed similarity measure, we calculate the pairwise similarity scores between higherlevel text elements in a hierarchical manner. The hierarchical computation follows the order of the hierarchical decomposition, as presented in
Section 4.1, starting with all pairs
$\left({n}_{1},{n}_{2}\right)\in {N}_{{l}_{1}}^{2}$. The similarity calculation between all pairs of nodes at the same hierarchical level is repeated for every subsequent level until the similarities between all node pairs
$\left({n}_{1},{n}_{2}\right)\in {N}_{{l}_{n}}^{2}$ representing the entire texts are determined. Just like the stringbased similarity measure proposed in the previous section, the nodebased similarity measure is based on the edit distance principle. In fact, the nodebased similarity measure diverges in only three aspects from the edit distance described in Definition 4.
5.2.1. Child Nodes Instead of Characters
A first difference compared to the edit distance calculation from the previous section is that the nodebased edit distance defines its operations on the nodes in a subgraph rather than considering characters in a string. Consider a node
$n\in {N}_{{l}_{i}}$,
$0<i<\leftL\right$. The edit distance is calculated on the ordered list of child nodes of
n
where
${k}_{j}\in {N}_{{l}_{i1}}$ and
$\rho \left({e}_{j}\right)=\left(n,{k}_{j}\right),$ with
${e}_{j}\in \mathrm{supp}\left({\tilde{E}}_{\mathtt{CONTAINS}}\right)$ and
$j=\sigma \left({e}_{j},\mathsf{rank}\right)$. Additionally, the number of children
$m+1$ of
n (i.e.,
$\mathrm{child}\left(n\right)$) is equal to the number of relationships in
${\tilde{E}}_{\mathtt{CONTAINS}}$ between the node
n and individual elements of
${N}_{{l}_{i1}}$.
5.2.2. Fuzzy Transposition Matching

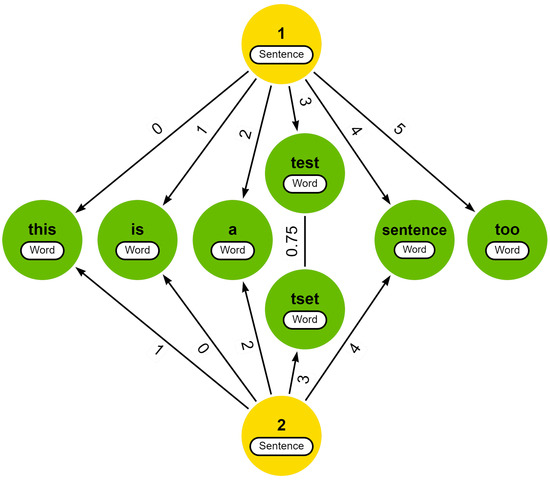

Another difference is related to how we determine whether or not a transposition between two consecutive elements actually occurs. In contrast to the stringbased edit distance, where a transposition between two consecutive characters is detected in case of an exact match, the nodebased edit distance identifies a transposition between two consecutive child nodes by means of a fuzzy match, according to a fixed threshold value
$r\in \left[0,1\right]$. Consider two nodes
${n}_{1},{n}_{2}\in {N}_{{l}_{i}}$,
$0\le i<\leftL\right$. A fuzzy match between these nodes occurs when
with the edge between both nodes
$e\in {\tilde{E}}_{\mathtt{SIMILAR}\_\mathtt{TO}}$ and
$\rho \left(e\right)=\left({n}_{1},{n}_{2}\right)$.
5.2.3. Adaptive Replacement Costs
A third and final distinction from the stringbased edit distance lies in how the cost of a replacement between child nodes is determined. In the stringbased edit distance, a replacement between two characters has a fixed cost ${c}_{R}$. The replacement cost in this nodebased edit distance is determined by the dissimilarity between a child node and its replacement. This dissimilarity is acquired by subtracting the similarity between two nodes from 1. Additionally, we propose to introduce a similarity threshold $t\in \left[0,1\right]$ as an additional way to deal with orthographic inconsistencies in a corpus. Before calculating the dissimilarity, the similarity between child nodes is assumed to be fully similar (i.e., a similarity score of 1) when the similarity is greater than or equal to the threshold t.
Consider two nodes
${n}_{1},{n}_{2}\in {N}_{{l}_{i}},0\le i<\leftL\right$. The cost of a replacement between these two nodes is determined by the membership function between them
where
$\rho \left(e\right)=\left({n}_{1},{n}_{2}\right)$ and
$e\in {\tilde{E}}_{\mathtt{SIMILAR}\_\mathtt{TO}}$. The similarity threshold
t is enforced by means of the Gödel Rimplication as defined in Equation (
21) [
49].
5.2.4. NodeBased Similarity Calculation
Based on the stringbased edit distance, described in
Section 5.1, and the adaptations described in the previous sections, a full definition for the nodebased edit distance is proposed in Definition 5. This edit distance is computed as the minimum cumulative cost of the edit operations required to transform a text element, represented by its child nodes, into another.
Definition 5 (nodebased edit distance)
. Let insertions (I), deletions (D) and replacements (R) of a single node and transpositions (T) between two consecutive nodes be the allowed edit operations. The nodebased edit distance between two ordered lists of nodes a and b is recursively defined by the function ${d}_{a,b}^{n}\left(i,j\right)$, the value of which is the minimum cost between the prefix of a up to the ith node and the prefix of b up to the jth node.The predefined costs for insertions, deletions of single nodes and transpositions of two consecutive nodes are represented by ${c}_{I,D},{c}_{T}\in \left[1,0\right]$. The predefined similarity threshold, utilised to determine the cost of a replacement, and the predefined fuzzy matching threshold, employed to identify transpositions between consecutive nodes, are represented by $t,r\in \left[0,1\right]$, respectively.
Much like the stringbased edit distance, this nodebased edit distance can only be considered a metric when all edit operation costs are larger than 0.
For the replacement cost, this is only the case when the similarity threshold is equal to 1 and when the underlying similarity measure is equal to 0 only when considering the exact same child nodes.
Consider two nodes
${n}_{1},{n}_{2}\in {N}_{{l}_{i}},0<i<\leftL\right$ and their ordered lists of child nodes
${K}_{{n}_{1}}=\mathrm{child}\left({n}_{1}\right)$ and
${K}_{{n}_{2}}=\mathrm{child}\left({n}_{2}\right)$ for which the similarity scores between these child nodes have been predetermined. Just like the stringbased edit distance, the nodebased edit distance is a measure of dissimilarity and has to be transformed into a similarity measure. This transformation is achieved through the application of the (symmetric) Equation (
23).
We can now show the following properties of this nodebased similarity measure.
Proposition 1. The nodebased similarity in Equation (
23)
is reflexive: Proof. Consider
${K}_{{n}_{1}}=\mathrm{child}({n}_{1})$ as the ordered sequence of children of the node
${n}_{1}$. The nodebased edit distance in Equation (
22) results in
${d}_{{K}_{{n}_{1}},{K}_{{n}_{1}}}^{n}\left(\left{K}_{{n}_{1}}\right,\left{K}_{{n}_{1}}\right\right)=0$ since no transformations are required to transform
${K}_{{n}_{1}}$ into itself. It follows that Equation (
23) results in a similarity score of 1. □
Proposition 2. The nodebased similarity in Equation (
23)
is symmetric: Proof. Proof by induction on i, the level in the hierarchy.
Base step: If
$i=0$, similarity is computed with the stringbased similarity (Equation (
16)), where the underlying stringbased edit distance is symmetric by definition [
47]. Since the max operator is also symmetric, it follows that the stringbased similarity is symmetric, which settles the base case.
Inductive step: Assume that the similarity measure at level
$i\ge 0$ is symmetric, we prove that the nodebased similarity at level
$i+1$ is also symmetric. Since it is clear that the max operator is symmetric, this suffices to prove that the underlying nodebased edit distance used in Equation (
23) is symmetric. An edit distance is symmetric when it has a reverse operation for every edit operation with the same cost [
47]. Insertions and deletions are reverse operations of each other and have the same fixed cost as stated in Definition 5. Replacements, on the other hand, are their own reverse operations. The cost of replacements, as shown by Equation (
20), depends on the similarity scores between nodes at level
i. Since the similarity measure at level
i is symmetric, it follows that the costs of reversed replacement operations for the same child nodes are equal to each other. Finally, transpositions always have a fixed cost and are the reverse operations of themselves if their fuzzy match operator is symmetric. Because this operator, as stated in Equation (
19), is fully determined by the similarity scores at level
i, it is also symmetric. By showing that the four edit operations always have a reversed operation with the same cost, it follows that the nodebased edit distance and consequently the nodebased similarity are symmetric.
□
The calculation of the proposed nodebased similarity measure is now illustrated in Example 3.
Example 3. Consider a set of two slightly different textswith a hierarchical decomposition into L = [] and a typo for the word “test” in the second text. The graphbased text representation for this small corpus is displayed in Figure 4. The relevant similarity scores between words have already been determined. In this example, we assume that the costs for the edit operations, the similarity threshold and the fuzzy match threshold for the nodebased edit distance are all set equal to 1.
To calculate the similarity, it is necessary to first determine the edit distance between the child nodes. Based on the edit operation costs, the minimum edit distance for this example is found by (i) a transposition between the first two nodes, with a cost of 1
, (ii) a replacement of the word “test” with the word “tset”, with a cost equal to the dissimilarity between those words (i.e., $0.25$), and (iii) an insertion (or deletion) of the last node, with a cost of 1
. As a result, the edit distance equals $2.25$, and the similarity, as per Equation (
23)
, equals $0.625$. Now imagine another scenario where the similarity threshold t is $0.75$ leading to a replacement cost of 0 between the words “test” and “tset”. Therefore, the similarity score between the two sentences results in $0.666\dots $.
The time complexity of a single nodebased edit distance calculation between node ${n}_{1}$ and ${n}_{2}$ is related to the length of both lists of child nodes and is equal to $\mathcal{O}\left(\left\mathrm{child}({n}_{1})\right\xb7\left\mathrm{child}({n}_{2})\right\right)$.
Since the amount of child nodes at any level of the hierarchy depends on the hierarchical decomposition of the considered texts, the execution time can be kept within reasonable bounds by adopting a hierarchical decomposition that results in a short list of child nodes.
Additionally, much like the stringbased similarity measure, the time complexity of calculating the similarities on all nodes in ${N}_{{l}_{i}}$, with $0<i<\leftL\right$ and m equal to the amount of nodes in ${N}_{{l}_{i}}$, is $\mathcal{O}({m}^{2})$.
The space requirements of the nodebased edit distance are equal to the space complexities of the stringbased edit distance, as described in
Section 5.1, except for the space complexity of a single nodebased edit distance calculation, which now relates to the length of two child node lists instead of to the length of two strings.
5.3. GraphBased Text Model with Similarities
With the various components of our similarity measure in place, we can now describe our proposed hierarchical orthographic similarity measure in full. The procedure for the computation of the similarity values between all text elements, and most importantly between all full texts, is provided in Algorithm 3.
Algorithm 3 Similarity calculation in the graphbased text representation.
Input: $\mathrm{A}\phantom{\rule{4.pt}{0ex}}\mathrm{fuzzy}\phantom{\rule{4.pt}{0ex}}\mathrm{graph}\phantom{\rule{4.pt}{0ex}}\tilde{G}\left(N,\tilde{E},\rho ,{\lambda}_{N},{\lambda}_{E},\sigma \right)\phantom{\rule{4.pt}{0ex}}\mathrm{representing}\phantom{\rule{4.pt}{0ex}}\mathrm{the}\phantom{\rule{4.pt}{0ex}}\mathrm{texts}\phantom{\rule{4.pt}{0ex}}\mathrm{in}\phantom{\rule{4.pt}{0ex}}\mathrm{a}\phantom{\rule{4.pt}{0ex}}\mathrm{corpus}$ Output: $\mathrm{The}\phantom{\rule{4.pt}{0ex}}\mathrm{fuzzy}\phantom{\rule{4.pt}{0ex}}\mathrm{graph}\phantom{\rule{4.pt}{0ex}}\tilde{G}\phantom{\rule{4.pt}{0ex}}\mathrm{with}\phantom{\rule{4.pt}{0ex}}\mathrm{the}\phantom{\rule{4.pt}{0ex}}\mathrm{calculated}\phantom{\rule{4.pt}{0ex}}\mathrm{similarity}\phantom{\rule{4.pt}{0ex}}\mathrm{scores}$ 1:
for $i\leftarrow 0,\leftL\right1$ do  2:
$\mathrm{Determine}\phantom{\rule{4.pt}{0ex}}\mathrm{parameters}\phantom{\rule{4.pt}{0ex}}{c}_{I,D},{c}_{R}\phantom{\rule{4.pt}{0ex}}\mathrm{and}\phantom{\rule{4.pt}{0ex}}{c}_{T}\phantom{\rule{4.pt}{0ex}}\mathrm{or}\phantom{\rule{4.pt}{0ex}}{c}_{I,D},{c}_{T},r\phantom{\rule{4.pt}{0ex}}\mathrm{and}\phantom{\rule{4.pt}{0ex}}t$  3:
for all $\left({n}_{1},{n}_{2}\right)\in {N}_{{l}_{i}}^{2}$ do  4:
if $i=0$ then  5:
$s=si{m}^{s}\left(\sigma \left({n}_{1},\mathsf{text}\right),\sigma \left({n}_{2},\mathsf{text}\right)\right)$  6:
else  7:
$s=si{m}^{n}\left({n}_{1},{n}_{2}\right)$  8:
end if  9:
$\mathrm{Create}\phantom{\rule{4.pt}{0ex}}\mathrm{edge}\phantom{\rule{4.pt}{0ex}}\mathrm{e}$  10:
$\rho \left(e\right)\leftarrow \left({n}_{1},{n}_{2}\right)$  11:
${\lambda}_{E}\left(e\right)\leftarrow \mathtt{SIMILAR}\_\mathtt{TO}$  12:
$\tilde{E}\leftarrow \tilde{E}\cup \left\{e\right\}$  13:
${\mu}_{\tilde{E}}\left(e\right)\leftarrow s$  14:
end for  15:
end for  16:
$\mathbf{return}\tilde{G}\left(N,\tilde{E},\rho ,{\lambda}_{N},{\lambda}_{E},\sigma \right)$

In this algorithm, we hierarchically compute the pairwise similarity for all node pairs sharing a specific label. For the lowestlevel text elements, the stringbased similarity proposed in
Section 5.1 is used. The similarities between all other text elements sharing the same label are determined by the nodebased similarity, as described in
Section 5.2. Note that the parameters
${c}_{I,D},{c}_{R}$ and
${c}_{T}$ for the stringbased similarity and parameters
${c}_{I,D},{c}_{T},r$ and
t for the nodebased similarity may vary at each level within the hierarchy but remain fixed throughout the calculations within a specific level. As a result, each parameter at every level of the hierarchical calculation can be finetuned, either through expert knowledge or empirical analysis, to suit the specifics of a given corpus. Once the similarity between two nodes is determined, a new edge is created to indicate the similarity between those two elements. As the similarity measure between two nodes is symmetric, only a single undirected edge is created between the nodes. Upon completion of the procedure, the graphbased text representation is returned, including the similarity scores between all elements within the same discourse unit. As an illustration, the result of the hierarchical computation between two texts is provided in Example 4.
Example 4. In Figure 5, we revisit our textual graph from Example 1 and display the similarity scores between all text elements that are required to compute the similarity between both full texts. For the calculation of this example, all parameters ${c}_{I,D},{c}_{R},{c}_{T},t$ and r are equal to 1
for every level. The time required to calculate the the similarities between all nodes on every level of the graph is equal to the sum of the calculation time at every level of the hierarchy.
In
Section 5.1 and
Section 5.2, we concluded that the time required for every level is
$\mathcal{O}({n}_{i})$, where
${n}_{i}$ is equal to the amount of nodes at a specific level
$\left{N}_{{l}_{i}}\right$ and
$0\le i<\leftL\right$.
Since the time complexity is dominated by the largest term, the overall time complexity is equal to
$\mathcal{O}\left({\mathrm{max}}_{i}{n}_{i}^{2}\right)$.
The space complexity of the complete algorithm, on the other hand, is equal to the largest space requirement among the different hierarchical levels.
As a result, the space complexity is also equal to $\mathcal{O}\left({\mathrm{max}}_{i}{n}_{i}^{2}\right)$.
After the initial computation of the similarity values between text elements in the graph, there remains the possibility of incorporating additional text documents into this graph. First, the new texts should be included into the graph as described in
Section 4.2. Then, only the additional similarity values between the newly added nodes and all existing nodes at the same hierarchical level should be computed in the same manner as outlined in Algorithm 3.
6. Experiments
In this section, we demonstrate and motivate the relevance of the proposed technique by its use as a research tool for the analysis of ancient texts and compare it to another stateoftheart soft measure. In
Section 6.1, we illustrate the characteristics of Byzantine book epigrams [
50], the corpus used as a dataset in the following experiments. Then, we discuss the graphbased text representation of this corpus and the methods used in the experiments in
Section 6.2. In
Section 6.3, we describe the setup of the experiments alongside the methods employed for evaluating the proposed similarity measure. Next, we list and discus the results of our experiments in
Section 6.4. Lastly, in
Section 6.5, we provide an illustrative example, where we show the interactive capabilities of the proposed graph model implemented in a graph database.
6.1. Dataset: Byzantine Book Epigrams
Byzantine book epigrams are poems nestled in the margins of medieval Greek manuscripts. They are typically short and tell the reader more about, for instance, the manuscript’s content, the individuals involved in its production or even the emotions experienced by the scribe upon completing the manuscript. These epigrams are typically known to be orthographically inconsistent texts with a complex tradition. That is a tradition, or in other words the transmission of the texts throughout history, in which texts were splitup, (re)combined or elseways reworked during their copying process. As a result of this complex tradition, where combinations of words and (half)verses are often reused throughout a variety of epigrams, the corpus of Byzantine book epigrams displays an expansive amount of interconnections among its texts [
41,
50].
The orthographic irregularities displayed in these book epigrams arise not solely from factors like spelling and transcription errors, unstandardised punctuation, and text wrapping. They are also caused by the evolution of the Greek language. Particularly noteworthy is the phonetic evolution known as
itacism.
Itacism denotes the shift of the classical pronunciation of the vowels ι, η, υ, ῃ and the diphthongs ει, οι converging towards the pronunciation of
i. This results in a corpus where all the aforementioned vowels and diphthongs are used interchangeably [
41,
50,
51]. The complex and interconnected nature of these Byzantine book epigrams makes them an ideal corpus for evaluating the capabilities of the proposed similarity measure.
The Database of Byzantine Book Epigrams (DBBE) (
https://dbbe.ugent.be, accessed on 1 February 2024) [
50,
52] is composed of experts and contains an extensive collection of Byzantine book epigrams, complemented by manually composed groups of similar texts. These groups of similar texts within the DBBE serve as a ground truth for evaluating the proposed similarity measure. Two categories of such groups exist in the DBBE: those comprising similar epigrams and those composing similar verses. Since these groups are manually composed by experts, they include texts that are only partially known or variants of a text where synonyms are used.
For the experiments, a representative subset for each category of these groups is carefully identified by experts and exported from the DBBE dataset. The subset of verses is composed of the verses contained in the verse groups with identifiers 15681, 15470, 14667, 11233, 14852, 12251, 15904, 14932, 14802, 10671, 4634, 15377, 12290, 14866, 15278, 12121, 13035, 15327, 6342, 5549, 445, 2520, 3949, 5354, 5840, 6353, 9033, 10869, 12122, 15261, 15652 and 14872, resulting in a subset of 750 verses to be compared. Additionally, the subset of epigrams is composed of the epigram groups with identifiers 2148, 2150, 4245, 2326, 3147, 3436, 4152, 4155, 5030, 5248, 6473, 1953, 6475, 1862, 1982, 2225, 3987, 2311, 31190, 3762, and 2054, resulting in a subset consisting of 500 epigrams.
Because of the complex orthographic characteristics of Byzantine book epigrams, the original epigrams and verses from the selected datasets need to undergo preprocessing before we use them in our experiments in order to standardise the texts and reduce noise. First, all uppercase letters are converted to their lowercase counterparts. The next step involves the removal of any punctuation or other special characters. All accents and other diacritical marks are then stripped off, because of the frequent occurrence of unstandardised accentuation in these epigrams [
41,
50]. In the fourth and final step, all vowels η, υ, ῃ and the diphthongs ει, οι are systematically replaced with ι in order to tackle with the phenomenon of
itacism.
6.2. Methods
In the experiments, two methods for text similarity are considered. The first method is the similarity measure proposed in this paper, with different values for various parameters. Before the similarity scores can be determined, the corpus must be transformed into a graphbased representation. The transformation of a set T, representing a corpus of Byzantine book epigrams, into the required graph representation is accomplished through Algorithm 1. To successfully execute this algorithm, certain design decisions, related to the given corpus, must first be made.
As discussed in the previous section, words, half verses and verses are the key textual elements contributing to the interconnected nature of Byzantine book epigrams. Given that half verses are not stored in the DBBE and no (wellperforming) automatic method for their identification exists, the discourse units that make up the hierarchical decomposition of epigrams, and therefore define the structure of the graph, are $L=\left[\mathtt{Word},\mathtt{Verse},\mathtt{Epigram}\right]$.
As a last step in defining the graph representation, the procedures for segmenting the text documents into smaller components need to be determined. Given that the DBBE stores epigrams as a list of verses, extracting the verses directly from the database is a straightforward process. Conversely, the identification of words is accomplished by partitioning the verses based on white spaces.
Based on this graph representation, we have implemented our approach using two Neo4j (
https://www.neo4j.org, accessed on 1 February 2024) databases: one for the subset of verses and one for the subset of epigrams. The proposed hierarchical similarity measure for Byzantine book epigrams is implemented as a Neo4j plugin (the Java code for this Neo4j plugin can be found at
https://github.com/MaximeDeforche/DBBESimilarity, accessed on 1 February 2024) and can be executed on the graph (database) by providing it with valid cost and threshold values for every level of the hierarchical decomposition.
The second method we include in the experiments is a stateoftheart soft similarity measure that combines the idea of tokenbased and characterbased similarity [
15,
16]. More specifically, this method computes the similarity between two texts by first transforming each text into a bag of tokens. Then, each token from the first bag is compared with each token from the second bag by means of a token matcher. The result of this comparison is a similarity score for both tokens. All token similarities are stored in a matrix that is used to compute a leximaxoptimal assignment between tokens from both bags. Based on this assignment, a sequence of scores is obtained, and this sequence is aggregated into a final score by using a weighted minimum. The weights are computed by means of a parameterised quantifier function. Because of this twostep methodology, where one first computes similarities on the level of tokens and then on the level of bags, the method is called a twolevel string matcher.
The twolevel string matcher has some properties that are relevant to mention in the context of the experiments we report. First, by using a bag model, it neglects the order of tokens in a text completely. Second, the token matcher can account for spelling errors on the level of tokens, for example, by using edit distances to compare tokens. The original method, however, uses a dedicated token matcher that is designed to be fast and to produce similarity matrices that are sparse. Third, if two bags of tokens have different cardinalities, a quantifier function allows us to model the influence of the difference in cardinality on the final similarity. The choice of this function can influence the effectiveness of the twolevel matcher significantly [
16], and it therefore needs to be chosen with care. An implementation of the twolevel string matcher is available in Java as part of the ledcframework (
https://ledc.ugent.be/, accessed on 1 February 2024) and can be found on GitLab (
https://gitlab.com/ledc/ledcmatch, accessed on 1 February 2024).
6.3. Experiment Setup
In the first experiment, we want to assess the capabilities and usefulness of our proposed method. For each of the two Neo4j databases, we have conducted three distinct similarity calculations, each with different parameter settings. The three sets of parameter values are listed in
Table 1, where the parameters used for the
Word level relate to the parameters of the stringbased edit distance in Equation (
15). The parameters used for the
Verse and
Epigram levels, on the other hand, relate to the parameters of the nodebased edit distance in Equation (
22). The first parameter set resembles the default values for all parameters, whereas the other two parameter sets reduce the cost for edit operations, as well as lower the thresholds for similarity and transposition matching. These adjustments increase the tolerance for certain (minor) differences between texts as a way to optimise the similarity measure for the given corpus.
In the second experiment, we compute similarities on both datasets with the twolevel string matcher. We did so with two different token matchers. The first token matcher is the default token matcher for the twolevel string matcher [
15]. Using this default matcher yields sparse similarity matrices, resulting in faster resolution of assignments. In the current experiment, however, this might also lead to many pairs of tokens that are wrongly assigned a similarity of zero. To deal with this, we also use a token matcher that is based on the Damerau distance. This second token matcher is the same as the one that we used on the
Wordlevel in our approach, with the exception that distances above 3 resulted in a similarity of 0. The latter was necessary to ensure that the twolevel string matcher finished within a reasonable time.
Next to the token matcher, we must also choose a quantifier function for weight computation. We found empirically that the default parameters of this function are too strict in the scope of the current experiment, and that better results were obtained when setting the main quantifier parameter $\alpha $ to $0.9$.
The results of both experiments can be expressed by means of a fuzzy similarity relation $\tilde{S}$, representing the pairwise similarity between two epigrams or verses. In order to compare the resulting similarities in both experiments against the crisp definition of similar texts in the ground truth, which are assigned by experts, we perform an $\alpha $cut on the resulting fuzzy similarity relation $\tilde{S}$. For each remaining pair of verses or epigrams in the relation (after the $\alpha $cut), it is checked whether the verse or epigram pair is also similar according to the ground truth. If this is the case, it leads to a true positive (TP), and when it is not the case, it results in a false positive (FP). Likewise, all pairs of verses and epigrams that were pruned by the $\alpha $cut are checked in the same manner. Pruned pairs linking two verses or epigrams that are similar according to the ground truth are counted as false negatives (FN), whereas the others are counted as true negatives (TN). These four values enable the calculation of various quality measures offering insight into the performance of the different similarity measures concerning individual verses or full epigrams, according to the provided parameter values and a given $\alpha $ value.
As a first quality measure, we calculate the recall of the proposed similarity measure
where the fraction of successfully identified similar texts is determined. Secondly, we calculate the precision:
The precision depicts the fraction of correctly identified similar texts among all identified similar texts. As a third and last quality measure, we compute the F
_{1}score. This is the harmonic mean of the precision and recall:
The F
_{1}score provides us with a single value that indicates an overall performance of the similarity measure, balancing precision and recall into a single measure.
For each similarity calculation in both experiments, we have calculated these quality measures for a set of nine distinct $\alpha $ values, ranging from $0.1$ till $0.9$. Ultimately, the quality measures are computed for 54 different situations in the first experiment and for 36 situations in the second experiment.
6.4. Results

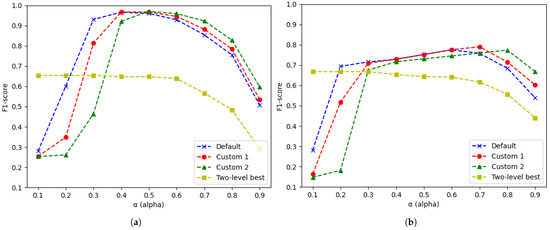

Table 2 showcases the results of the calculated quality measures for the verse and epigram test sets and three distinct parameter sets in our first experiment. In each column, the highest value for each performance measure is highlighted in bold. Additionally, the F
_{1}score results for verses and epigrams are visualised by plots in
Figure 6a and
Figure 6b, respectively.
In the case of verses, we observe the same trend across all three parameter sets. For low $\alpha $ values, we find a very high recall but a very low precision. This suggests that (nearly) all similar texts are detected, albeit at the expense of misclassifying numerous text pairs as similar. With high $\alpha $ values, we observe the reverse scenario, coupled with a slightly higher F_{1}score. The peak overall performance for verses is achieved with the third, most tolerant parameter set (i.e., the second custom parameter set) and an $\alpha $ threshold of $0.5$.
For epigrams, the resulting values are generally lower in comparison to verses, yet the same trend can be observed across the three parameter sets. The lower scores are explained by the fact that these epigrams can structurally vary in more ways than the individual verses, coupled with the increased potential for orthographic inconsistencies in longer texts. Overall, the best score for the epigram test set is achieved by using the second set of parameters with an $\alpha $ value of $0.7$.
In general, the choice of the hierarchical decomposition of a text and the parameters choices for each level in the hierarchical computation of the similarity can significantly influence the performance of the similarity measure. The high customisability of the proposed method provides the flexibility to finetune numerous parameters when determining the optimal parameter set for a given corpus. This adaptability also empowers researchers to carefully select each parameter based on the specific requirements of a textual analysis. Furthermore, the possibility to chose an $\alpha $ value allows us to indicate whether we want to identify more similar texts (higher recall), be more certain about the identified text pairs (higher precision) or strike a balance between the two. Lastly, it is noteworthy that using more tolerant parameter sets can, up to some point, enhance the overall performance of the similarity measure and the similarity scores between genuinely similar texts. However, making the parameter sets too tolerant for structural and orthographic variations between texts results in a suboptimal performance of the proposed measure.
Considering the fact that not all possible orthographic inconsistencies can be automatically dealt with and that the expertbased similarity groups, which serve as the ground truth, include texts that are only partially complete and/or contain variations where synonyms are used, the proposed orthographic similarity measure shows encouraging results.
Table 3 lists the computed quality measures for the verse and epigram test sets in the second experiment. In each column, the highest value for each performance measure is highlighted in bold. Additionally, the F
_{1}scores for verses and epigrams of the best performing similarity measure are also visualised in
Figure 6a and
Figure 6b, respectively.
A first thing to notice in this second experiment is that the overall precision in all similarity calculations is quite high, or almost perfect in the case of verses, and is not heavily affected by the choice of the $\alpha $threshold. This is a direct result of the weighted minimum that is used in the baglevel similarity computation of the twolevel string matcher. In addition, this method focuses strongly on words with a high similarity among them and penalises word similarities that are (too) low. As a result, we miss quite a lot of interconnections between the compared texts. This effect is only magnified by the fact that we are dealing with a corpus characterised by its large amount of orthographic inconsistencies, which also explains the lower recall values.
Secondly, the difference between the default implementation and the implementation using the Damerau distance measure is noteworthy. By introducing an underlying measure that heavily relies on the structure of the text, like the Damerau distance, we can greatly improve the recall of the twolevel string matcher, with only a slight loss in precision. Since the secondlevel of the twolevel string matcher still uses a bag of tokens approach, unlike the more structured method in the proposed similarity measure, we can explain the lower results in comparison to the first experiment, especially in the case of verses.
In general, we can conclude that the similarity measure proposed in this paper is better at handling the corpus used in this experiment, especially when looking at the overall F_{1}scores. When comparing the F_{1}scores of the second experiment to the ones of the first experiment, we notice that the proposed method outperforms the second method starting from $\alpha >0.3$.
The success of the proposed method for this corpus can be explained by two factors, with the first being related to the prioritisation of the structure of the texts. By hierarchically diving texts into important structural components and by employing an edit distancebased measure on every level of the hierarchy, we are able to handle the structural similarities among texts. The second factor is related to the high customisability of the proposed measure, allowing for the required tolerance for a corpus with many orthographic inconsistencies.
6.5. Illustrative Example
In addition to a quantitative analysis, we present an illustrative example showcasing the capabilities of the proposed measure as a handson research tool. For this example, we have implemented the proposed graph model as a graph database and utilised the interactive and visual tool from Neo4j, called Bloom (
https://neo4j.com/product/bloom/, accessed on 1 February 2024), to explore and analyse the data.
As the dataset in this example we have imported three groups of similar epigrams into the Neo4j graph database. The data are imported using the same method outlined in
Section 6.2, and similarities are calculated with the default parameters. All three groups contain epigrams that are variations of the fourverse epigram presented in
Table 4. A first group, with identifier 4245, comprises fourverse epigrams that feature minor deviations from the referenced epigram. The second group, with identifier 2150, primarily consists of threeverse epigrams representing variants of verses 1, 2 and 4 in
Table 4, respectively. The last group, that has identifier 2148, contains twoverse epigrams that are variations of the first and last verse of the referenced epigram [
52].

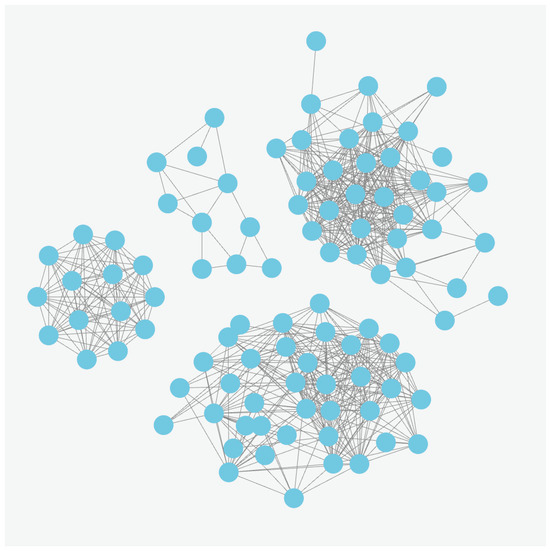

Using the Neo4j interactive tool, we have queried the database to display all epigrams and the similarity relationships between them with a similarity score of at least
$0.9$. The outcome of this query is displayed in
Figure 7, where we can clearly distinguish four different groups of nodes representing epigrams. In order not to cloud the image, nodes that are not connected to any of the four groups of nodes have been omitted. These outliers represent epigrams for which the text is barely known and, as such, do not display a high similarity with the epigrams that are part of a node group after executing the query. Upon closer examination of the query results, we observed that the leftmost group of nodes predominantly corresponds to the original group of fourverse epigrams. The bottom group of nodes relates to the original group of threeverse epigrams, and the rightmost group of nodes primarily corresponds to the original group of twoverse epigrams.
Upon further investigation, it becomes evident that the sparsely connected group of nodes in the middle of the image also comprises epigrams associated with the original group featuring twoverse epigrams. The epigrams in this fourth node group exhibit a common variation compared to the other twoverse epigrams. This variation is substantial enough that the similarity scores between the epigrams from these distinct node groups fall below the specified threshold of
$0.9$. Neo4j’s interactive environment facilitates a detailed investigation by allowing us to expand the epigram nodes into their hierarchical components.

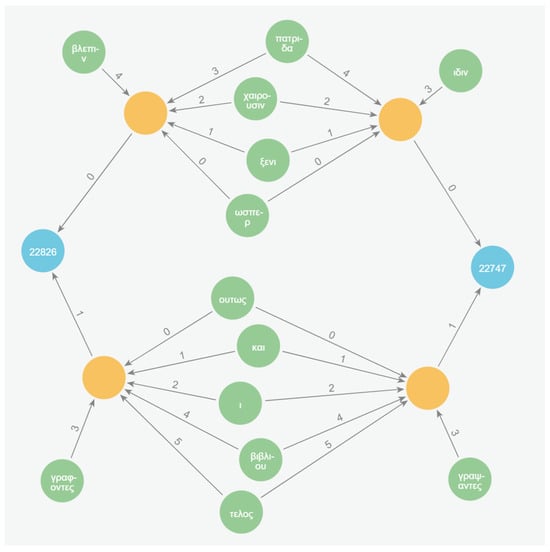

Figure 8 shows the expanded view of an epigram from this fourth node group (left) and an epigram from the other node group representing the twoverse epigrams (right).
This image reveals a subtle spelling variation in a word within the verses ranked 1. A more significant variation occurs in the verses ranked 0, where the last two words are swapped, and the left epigram uses the word βλεπιν instead of ιδιν, which are synonymous. Upon examining other epigrams from both groups, it becomes apparent that this larger variation in the first verse distinguishes the original group of twoverse epigrams into two separate groups of nodes.
This example demonstrates a potential application for the proposed graph model when implemented in a graph database system. The visual and interactive query capabilities of a graph database, paired with the proposed graph model, provide an ideal research tool for exploring and analysing (the connections within) a given corpus or computing graphbased statistics on textual data. Furthermore, by delving into the underlying structure of the texts and the similarities among these smaller text elements, the overall similarity score between two entire text documents becomes more interpretable compared to a similarity measure calculated solely on a sequence of characters and/or tokens.
7. Conclusions and Future Work
In this paper, we proposed a novel orthographic similarity measure designed for handling interconnected texts. We began by discussing the hierarchical decomposition of texts into textual components based on the discourse units within a given textual corpus. We then proposed a graphbased text representation where different types of nodes correspond to different discourse units of such a hierarchical decomposition, where the smallest textual elements are represented by nodes storing the actual textual data. Higherlevel textual elements are represented by subgraphs, where the original text can be reconstructed by traversing down to the smallest textual components. By representing the identical textual content with a single node, a basic notion of similarity between texts can be deducted from the resulting graph structure.
Building on this graph representation, we proposed a method for hierarchically computing pairwise similarity scores between all textual components on the same level of the graph. This procedure, which found its origin in edit distances between strings, starts by determining pairwise stringbased similarity scores between the lowestlevel text elements. As a novelty, the pairwise similarities between higherlevel nodes with the same label are hierarchically computed using a nodebased edit distance that incorporates the precomputed similarity values between lowerlevel nodes. This hierarchical procedure is repeated until the similarity between the toplevel elements, representing entire text documents, are determined.
The resulting graphbased text representation, along with the computed similarity scores, opens up avenues for developing novel text analysis or mining applications that leverage the structural information of texts and the similarities among text components. Since the intermediate similarity scores are also stored in the graph, the computation of the overall similarity scores can be easily interpreted and therefore contributes to the explainability of artificial intelligence applications using this measure. Moreover, the resulting graph can be implemented in a graph database system, enabling flexible and nuanced queries for textual analysis as well as the computation of graphbased statistics on texts.
The usefulness and performance of these novel techniques were determined by means of a corpus of Byzantine book epigrams, showcasing effectiveness on highly interconnected and orthographically inconsistent texts. A quantitative analysis demonstrated the proposed technique’s performance on these complex texts as well as how they relate to a stateoftheart soft similarity measure, only considering two levels of textual components. Additionally, a handson example illustrated the similarity measure’s potential as a research tool for visually and interactively analysing textual data and the connections among them. As the methods proposed in this paper aim to handle texts by leveraging their underlying structure, it serves as an initial step toward establishing a framework for handling unstructured texts in a semistructured manner.
Given its orthographic and highly customisable nature, this approach extends beyond Byzantine book epigrams and can also be applied to analyse other short textual documents, such as, abstracts, lyrics or short product descriptions, as well as texts written in different languages. This technique can later be extended and tested to handle larger types of text documents.
In future work, we plan to explore the extension of this hierarchical similarity measure to other orthographic or semantic measures. When different similarity scores between nodes are stored in the graph, we will also investigate methods to aggregate two or more of these measures in the hierarchical computations or in flexible queries. Furthermore, we will investigate existing new text mining techniques, including clustering or classification methods, and asses how they can be adapted to leverage this innovative hierarchical similarity measure.
