# Unsteady Aerodynamic Design of a Flapping Wing Combined with a Bionic Wavy Leading Edge

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Aerodynamic Characteristics Analysis of Baseline Flapping Wing

#### 2.1. Flapping Wing Motion Model

**L**and aspect ratio is $AR=\frac{L}{c}$. The set flapping wing motion law is expressed as Equation (1) [35], where, $f$ is the flapping frequency, $\psi \left(t\right)$ represents the flapping motion, ${\psi}_{1}$ is the amplitude of the flapping motion, $\alpha \left(t\right)$ represents the pitching motion, ${\alpha}_{0}$ is the pre-installation angle of the wing, ${\alpha}_{1}$ is the amplitude of the pitching motion, $\varphi $ is the phase difference, and the center of the pitching motion is the quarter chord length of each section of the wing. Figure 2 shows the time history plot corresponding to Equation (1).

#### 2.2. Calculation Method and Verification

#### 2.3. Grid and Time Step Independence Verification

#### 2.4. Flow Field Structure Characteristics of Baseline Flapping Wing

## 3. Design of Wavy Leading Edge Flapping Wing

#### 3.1. Flow Control Mechanism of Wavy Leading Edge

#### 3.2. Characteristic Parameters of Wavy Leading Edge

#### 3.3. Grid Independence Verification

## 4. Numerical Results

#### 4.1. Effects of Different Wavelengths on Aerodynamic Performance of Flapping Wing

#### 4.2. Effects of Different Amplitudes on Aerodynamic Performance of Flapping Wing

#### 4.3. Sensitivity Analysis of Design Parameters

## 5. Conclusions

- The wavy leading edge separates the airflow, which reduces the pressure on the upper surface of the flapping wing, increases the pressure difference between the upper and lower surfaces, and increases the lift. Moreover, the different velocity distributions at the peak and trough also changes the aerodynamic performance of the flapping wing. The wavy leading edge wing loses part of the trust while gaining flapping lift.
- The calculated amplitude is $\overline{A}=0.05\u20130.2$, and the wavelength is $\overline{W}=0.01\u20130.1$. At the same amplitude, the larger the wavelength of the wavy leading edge flapping wing, the smaller the time averaged lift coefficient and the larger the time averaged thrust coefficient. At the same wavelength, the larger the amplitude, the larger the time averaged lift coefficient and the smaller the time averaged thrust coefficient.
- In order to obtain the maximum lift coefficient while losing the least thrust, the wavelength and amplitude should be selected as small as possible in the design, and the wavelength has the greatest influence on the time averaged lift coefficient. In the configuration calculated in this paper, the configuration 1–4 with wavelength $\overline{W}=0.01$ and amplitude $\overline{A}=0.05$ is the best. Compared with the straight wing, this configuration can increase the average lift coefficient by 32.86% and reduce the average thrust coefficient by 14.28%.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Thielicke, W.; Stamhuis, E. The influence of wing morphology on the three-dimensional flow patterns of a flapping wing at bird scale. J. Fluid Mech.
**2015**, 768, 240–260. [Google Scholar] [CrossRef] - Shahzad, A.; Mumtaz Qadri, M.N.; Ahmad, S. Numerical analysis of high aspect ratio flexible wings in flapping motion. J. Appl. Fluid Mech.
**2019**, 12, 1979–1988. [Google Scholar] [CrossRef] - Ajanic, E.; Feroskhan, M.; Mintchev, S.; Noca, F.; Floreano, D. Bioinspired wing and tail morphing extends drone flight capabilities. Sci. Robot.
**2020**, 5, eabc2897. [Google Scholar] [CrossRef] [PubMed] - Kang, C.-K.; Aono, H.; Cesnik, C.E.S.; Shyy, W. Effects of flexibility on the aerodynamic performance of flapping wings. J. Fluid Mech.
**2011**, 689, 32–74. [Google Scholar] [CrossRef][Green Version] - Kleinheerenbrink, M.; Johansson, L.C.; Hedenström, A. Multi-cored vortices support function of slotted wing tips of birds in gliding and flapping flight. J. R. Soc. Interface
**2017**, 14, 20170099. [Google Scholar] [CrossRef][Green Version] - Lynch, M.; Mandadzhiev, B.; Wissa, A. Bioinspired wingtip devices: A pathway to improve aerodynamic performance during low Reynolds number flight. Bioinspiration Biomim.
**2018**, 13, 036003. [Google Scholar] [CrossRef] - Avallone, F.; PröBsting, S.; Ragni, D. Three-dimensional flow field over a trailing-edge serration and implications on broadband noise. Phys. Fluids
**2016**, 28, 3818–3831. [Google Scholar] [CrossRef][Green Version] - Rao, C.; Liu, H. Aerodynamic robustness in owl-inspired leading-edge serrations: A computational wind-gust model. Bioinspiration Biomim.
**2018**, 13, 056002. [Google Scholar] [CrossRef] - Lee, S.I.; Choi, H. Characteristics of the alula in relation to wing and body size in the Laridae and Sternidae. Anim. Cells Syst.
**2017**, 21, 63–69. [Google Scholar] [CrossRef][Green Version] - Linehan, T.; Mohseni, K. Investigation of a sliding alula for control augmentation of lifting surfaces at high angles of attack. Aerosp. Sci. Technol.
**2019**, 87, 73–88. [Google Scholar] [CrossRef] - Fish, F.E.; Battle, J.M. Hydrodynamic design of the humpback whale flipper. J. Morphol.
**1995**, 225, 51–60. [Google Scholar] [CrossRef] [PubMed] - Sudhakar, S.; Karthikeyan, N.; Venkatakrishnan, L. Influence of leading edge tubercles on aerodynamic characteristics of a high aspect-ratio UAV. Aerosp. Sci. Technol.
**2017**, 69, 281–289. [Google Scholar] [CrossRef] - Sudhakar, S.; Karthikeyan, N.; Suriyanarayanan, P. Experimental Studies on the Effect of Leading-Edge Tubercles on Laminar Separation Bubble. AIAA J.
**2019**, 57, 1–11. [Google Scholar] [CrossRef] - Wei, Z.Y.; New, T.H.; Cui, Y.D. Aerodynamic performance and surface flow structures of leading-edge tubercled tapered swept-back wings. AIAA J.
**2018**, 56, 423–431. [Google Scholar] [CrossRef] - Abdelrahman, A.; Emam, A.; Adam, I.; Hassan, H.; Ookawara, S.; El-Wardany, A. A Numerical Study Into the Influence of Leading Edge Tubercles on the Aerodynamic Performance of a Highly Cambered High Lift Airfoil Wing at Different Reynolds Numbers. In Proceedings of the ASME 2020 International Mechanical Engineering Congress and Exposition, Virtual, 16–19 November 2020. [Google Scholar]
- Seyhan, M.; Sarioglu, M.; Akansu, Y.E. Influence of Leading-Edge Tubercle with Amplitude Modulation on NACA 0015 Airfoil. AIAA J.
**2021**, 59, 3965–3978. [Google Scholar] [CrossRef] - Gopinathan, V.T.; Rose, J. Aerodynamic performance investigation of sweptback wings with bioinspired leading-edge tubercles. Int. J. Mod. Phys. C
**2022**, 33, 3. [Google Scholar] [CrossRef] - Pérez-Torró, R.; Kim, J.W. A Large-eddy Simulation on a Deep-stalled Aerofoil with a Wavy Leading edge. J. Fluid Mech.
**2017**, 813, 23–52. [Google Scholar] [CrossRef][Green Version] - Ikeda, T.; Ueda, T.; Nakata, T.; Noda, R.; Tanaka, H.; Fujii, T.; Liu, H. Morphology Effects of Leading-edge Serrations on Aerodynamic Force Production: An Integrated Study Using PIV and Force Measurements. J. Bionic Eng.
**2018**, 15, 661–672. [Google Scholar] [CrossRef] - Ramachandiran, V.; Vt, G. On the role of leading-edge tubercles in the pre-stall and post-stall characteristics of airfoils. In Proceedings of the Emerging Trends in Engineering, Science and Technology for Society, Energy and Environment, Thrissur, India, 18–20 January 2018. [Google Scholar]
- Ferreira, P.H.; Brondani, L.M.; Scarpari, J.R.; Corrêa, F.L.; de Paula, A.A.; da Silva, R.G. Evaluation of wavy leading edge for rotary-wing applications. In Proceedings of the 2018 Flow Control Conference, Atlanta, Georgia, 25–29 June 2018. [Google Scholar]
- Shi, W.; Atlar, M.; Norman, R.; Aktas, B.; Turkmen, S. Numerical optimization and experimental validation for a tidal turbine blade with leading-edge tubercles. Renew. Energy Int. J.
**2016**, 96, 42–55. [Google Scholar] [CrossRef][Green Version] - Chen, T.; Xie, D.; Yang, C.; Zhang, H.; Xiong, Y.; Haifen, D.U.; Zhang, J.; Turbine, D. Application of Biologically Inspired Wavy Leading Edge in Nuclear Steam Turbine Cascade. Proc. Chin. Soc. Electr. Eng.
**2018**, 38, 3605–3612. [Google Scholar] - Tu, B.; Wang, H.; Hu, J. Investigation on the aerodynamic performance of high camber turning angle cascade with tubercle leading edge. Proc. Inst. Mech. Eng. Part A J. Power Energy
**2021**, 235, 29–43. [Google Scholar] [CrossRef] - Abate, G.; Mavris, D.N. Performance analysis of different positions of leading-edge tubercles on a wind turbine blade. In AIAA Journal, Proceedings of the 2018 Wind Energy Symposium, Kissimmee, FL, USA, 8–12 January 2018; AIAA: Sterling, TX, USA, 2018; pp. 1–11. [Google Scholar]
- Abate, G.; Mavris, D.N.; Sankar, L.N. Performance effects of leading-edge tubercles on the NREL phase V wind turbine blade. J. Energy Resour. Technol.
**2019**, 141, 051206.1–051206.9. [Google Scholar] [CrossRef] - Ke, W.; Hashem, I.; Zhang, W.; Zhu, B. Influence of leading-edge tubercles on the aerodynamic performance of a horizontal-axis wind turbine: A numerical study. Energy
**2022**, 239, 122186. [Google Scholar] [CrossRef] - Roy, S.; Das, B.; Biswas, A. A comprehensive review of the application of bio-inspired tubercles on the horizontal axis wind turbine blade. Int. J. Environ. Sci. Technol.
**2022**, 1–28. [Google Scholar] [CrossRef] - Wei, Z.; Zang, B.; New, T.; Cui, Y. A proper orthogonal decomposition study on the unsteady flow behaviour of a hydrofoil with leading-edge tubercles. Ocean. Eng.
**2016**, 121, 356–368. [Google Scholar] [CrossRef] - Rostamzadeh, N.; Kelso, R.M.; Dally, B. A numerical investigation into the effects of reynolds number on the flow mechanism induced by a tubercled leading-edge. Theor. Comput. Fluid Dyn.
**2016**, 31, 1–32. [Google Scholar] [CrossRef] - Zhao, M.; Zhang, M.M.; Xu, J.Z. Numerical simulation of flow characteristics behind the aerodynamic performances on an airfoil with leading-edge protuberances. Eng. Appl. Comput. Fluid Mech.
**2017**, 11, 193–209. [Google Scholar] [CrossRef][Green Version] - Pendar, M.R.; Esmaeilifar, E.; Roohi, E. LES Study of Unsteady Cavitation Characteristics of a 3-D Hydrofoil with Wavy Leading Edge. Int. J. Multiph. Flow
**2020**, 132, 103415. [Google Scholar] [CrossRef] - Anwar, M.B.; Shahzad, A.; Qadri, M. Investigating the effects of leading-edge tubercles on the aerodynamic performance of insect-like flapping wing. Proc. Inst. Mech. Eng. Part C J. Mech. Eng. Sci.
**2021**, 235, 330–341. [Google Scholar] [CrossRef] - Jones, K.; Castro, B.; Mahmoud, O.M.K.M.; Pollard, S.; Platzer, M.; Neef, M.; Gonet, K.; Hummel, D. A collaborative numerical and experimental investigation of flapping-wing propulsion. In Proceedings of the 40th Aerospace Sciences Meeting and Exhibit, Reno, NV, USA, 14–17 January 2002. [Google Scholar]
- Lin, S.Y.; Hu, J.J. Numerical Study of Flapping Wing; AIAA: Sterling, TX, USA, 2003; pp. 2003–3448. [Google Scholar]
- ANSYS Inc ANSYS FLUENT 2022 (Theory Guide). Available online: http://WWW.Fluent.com (accessed on 1 October 2022).
- Menter, F.R. Two-equation eddy-viscosity turbulence models for engineering applications. AIAA J.
**1994**, 32, 8. [Google Scholar] [CrossRef][Green Version] - Wilcox, D.C. Turbulence Modeling for CFD; DCW Industries, Inc.: La Canada, CA, USA, 1993. [Google Scholar]
- Lai, J.C.S.; Platzer, M.F. The jet characteristics of a plunging airfoil. AIAA J.
**1998**, 37, 12. [Google Scholar] - Delaurier, J.D. An ornithopter wing design. Can. Aeronaut. Space J.
**1999**, 40, 1. [Google Scholar] - Whale and Dolphin Conservation. Available online: https://uk.whales.org/whales-dolphins/species-guide/humpback-whale/ (accessed on 1 November 2022).
- Johari, H.; Henoch, C.; Custodio, D.; Levshin, A. Effects of leading-edge protuberances on airfoil performance. AIAA J.
**2007**, 45, 2634–2642. [Google Scholar] [CrossRef]

**Figure 5.**Grid and boundary conditions. (

**a**) Background grid; (

**b**) Component grid; (

**c**) Boundary layer and surface mesh.

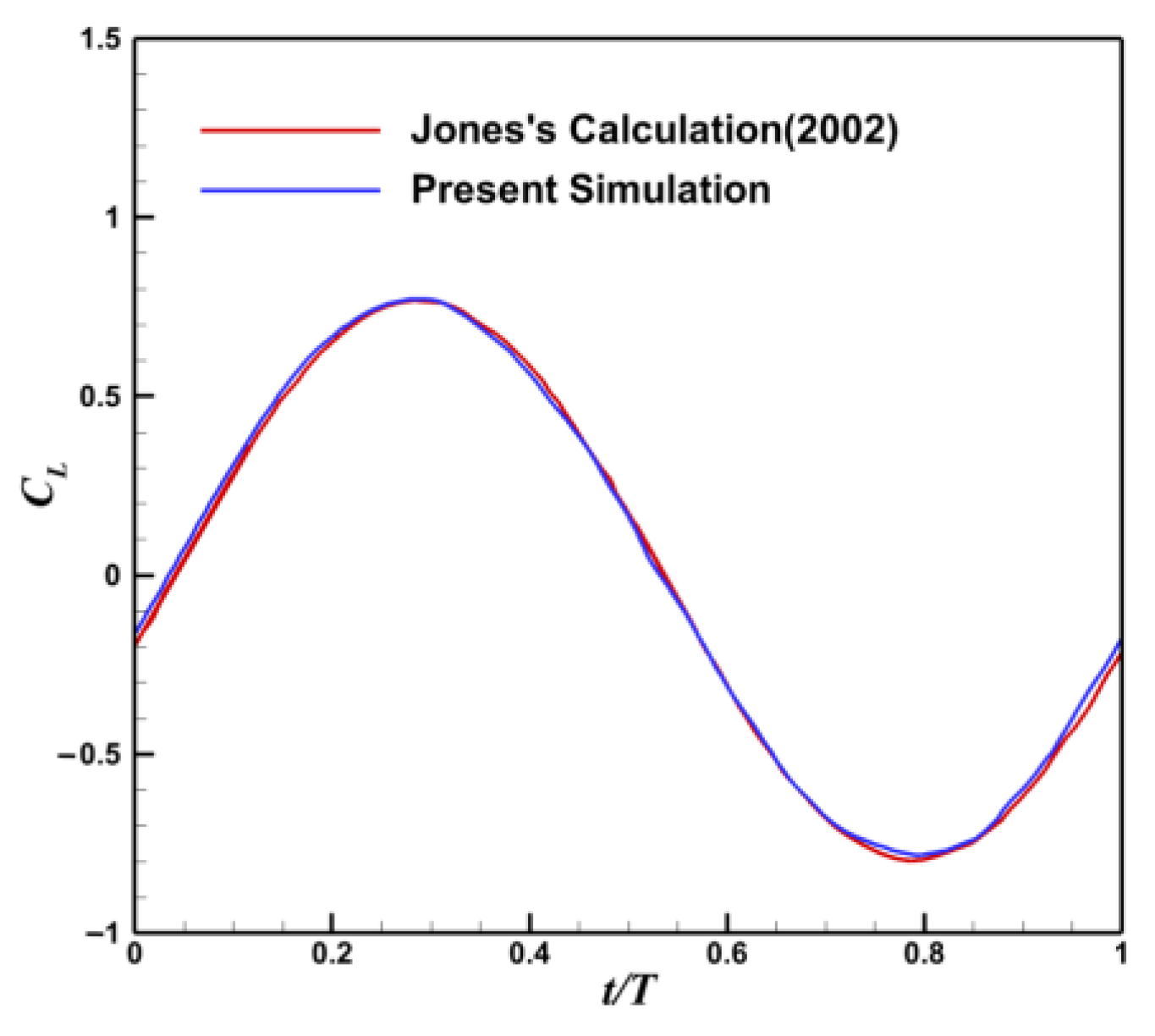

**Figure 7.**The comparison of time history of lift and thrust coefficient. (
