Next Article in Journal
Machine Learning Algorithms for Raw and Unbalanced Intrusion Detection Data in a Multi-Class Classification Problem
Previous Article in Journal
Experimental Investigation of the Effect of Delay Time on Rock Fragmentation in Multi-Hole Bench Blasting


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Applied Sciences
Volume 13
Issue 12
10.3390/app13127327
applsci-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

In Vitro Comparison of the Fluoride Ion Release from the First- and Second-Generation Fluoride Varnishes

by
Dagmara Piesiak-Panczyszyn
1,*,
Adam Watras
2,3,*,
Rafal J. Wiglusz
2 and
Maciej Dobrzynski
3,*
1
Department of Conservative Dentistry with Endodontics, Wroclaw Medical University, 50-425 Wroclaw, Poland
2
Institute of Low Temperature and Structure Research, Polish Academy of Sciences, 50-422 Wroclaw, Poland
3
Department of Pediatric Dentistry and Preclinical Dentistry, Wroclaw Medical University, 50-425 Wroclaw, Poland
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2023, 13(12), 7327; https://doi.org/10.3390/app13127327
Submission received: 15 May 2023 / Revised: 10 June 2023 / Accepted: 16 June 2023 / Published: 20 June 2023
(This article belongs to the Section Materials Science and Engineering)
Browse Figures
Versions Notes

Abstract

Fluoride varnishes, both the first and the second generations, are effective in inhibiting caries, especially in children and adolescents, by reducing it on average by 43% for permanent teeth and 37% for deciduous teeth. The aim of this study was to evaluate the dynamics of in vitro fluoride ion release from first- (Duraphat) and second-generation (MI Varnish and Embrace Varnish) fluoride varnishes and the impact of the type of varnish, the time from its application and the pH of the environment on this process. Materials and methods: The test material (90 specimens), prepared from extracted human teeth, were divided into nine groups of 10 specimens each. Measured amounts of the examined varnishes were applied onto specimens and the levels of fluoride release were assessed at the baseline and after 1, 2, 24, 48 and 168 h from the application with the use of an ion-specific electrode. The specimens were immersed into artificial saliva with pH adjusted to 4, 5 and 7. The highest cumulative release of fluoride was obtained by MI Varnish (11.52 ppm/mg), regardless of the pH of the environment, whereas the lowest released fluoride concentration was achieved by Embrace Varnish (4.82 ppm/mg). In the acidic environment, the release of fluoride was significantly higher than in the neutral environment for all investigated varnishes, with no change in the overall fluoride release profile and with maximum fluoride release in the first two hours after application. The findings of this study indicate that all examined fluoride varnishes released the maximum amount of fluoride within the first hours after application and that it was related to the acidity of the immersion medium.

1. Introduction

For almost 70 years, fluoride compounds have played an important role in preventing dental caries as the most effective method of fighting this disease. Their action is based on two mechanisms: pre-eruptive (endogenous) and post-eruptive (exogenous), whereby exogenous methods are now considered more effective and safer [1,2,3,4,5,6]. The post-eruptive effect, i.e., after the emergence of teeth in the mouth, consists in affecting the adhesion of the bacterial plaque and its metabolism, thus causing a bacteriostatic and/or bactericidal effect, inhibiting the demineralization process and supporting the remineralization of the enamel [1,3,7,8,9,10,11]. Fluoride varnishes used in the contact fluoridation method were approved in 1994 by the FDA (Food and Drug Administration), but as a medicine for tooth hypersensitivity. Over the years, they have become standard practice in dentistry, currently recommended by international dental organizations and associations, i.e., ADA (American Dental Association), AAPD (American Academy of Paediatric Dentistry), EAPD (European Academy of Paediatric Dentistry) and the American Dental Association Council on Scientific Affairs [12,13,14,15]. Numerous meta-analyses [9,16,17,18] have shown their effectiveness in inhibiting caries, especially in children and adolescents, by reducing it on average by 43% for permanent teeth and 37% for milk teeth. The lack of continuation of caries prevention with the aid of administration of fluoride, according to Bravo et al. [19], resulted in an increase in caries activity.
The exact chemical composition of varnishes is not fully known because, according to the statement developed by OSHA, the so-called Hazard Communication Standard 29 CFR 1910.1200, only those ingredients that can be dangerous and life-threatening require documentation; the others are a trade secret [20]. Typically, each fluoride varnish consists of three basic elements. Two of them are resin (mastic, shellac or/and rosin, also called collophony), which is responsible for viscosity, elasticity and fluidity and thus extending the contact time with the tooth surface; and alcohol (usually ethanol), used as a solvent which evaporates after exposure to air and active agents [7,21]. In addition, in the so-called first generation of varnishes, there are fluoride salts, commonly known as fluorides, usually in the form of neutral or acidified 5% NaF containing 2.26% fluoride ions (22,600 ppm F) or 1% difluorosilane containing 0.1% fluoride ions (1000 ppm F). The second-generation varnishes are additionally enriched with calcium and phosphorus compounds in various forms, e.g., as so-called functionalized tricalcium phosphate (β-TCP), amorphous calcium phosphate (ACP), casein phosphopeptide amorphous calcium phosphate nanocomplex (CPP-ACP), calcium sodium phosphosilicate (Novamin) or xylitol-coated calcium phosphate (CXP) [22,23]. According to many researchers [22,24,25,26,27,28,29,30] these increase the bioavailability of fluoride and the rate of its release as well as improve oral retention and enhance the antibacterial effect. The aim of this study was to evaluate the dynamics of in vitro fluoride ion release from first- and second-generation fluoride varnishes and the impact of the type of varnish, the time from its application and the pH of the environment on this process. The extent to which factors influence the durability of the applied varnish, the amount of released fluoride ions over time and the duration of maintaining an elevated level of fluoride may alter the accepted treatment standards and contribute to enhancing the effectiveness of therapy.

2. Results

The average values of the varnish (the quantity of varnish in mg) used ranged from 7.9 ± 0.2645 mg to 8.2 ± 0.1527 mg, which corresponded to the average fluoride content in the range from 0.1249 ± 0.0055 mg for MI Varnish, 0.1512 ± 0.0027 mg for Duraphat and 0.1640 ± 0.0065 mg for Embrace Varnish.
Figure 1 graphically represents the cumulative release of fluoride for the three varnishes in three different pH (4, 5 and 7) environments, expressed in ppm. Within 168 h of the experiment, regardless of the pH of the environment, the highest amount of fluoride was released by MI Varnish, and the lowest level was released by Embrace Varnish. The cumulative release of fluoride for MI Varnish was 11.52 ppm F− at pH = 4, 9.297 ppm F− at pH = 5 and 6.470 ppm F− at pH = 7. Duraphat achieved 9.753 ppm F−, 7.513 ppm F− and 9.276 ppm F−, respectively; Embrace Varnish achieved 6.826 ppm F−, 5.724 ppm F− and 4.821 ppm F−, respectively.
In most research groups, significantly higher values were obtained in acidic environments (pH = 4 and 5) as compared with the neutral environment. For MI Varnish, the release of fluoride in the environment with various acidities was different after the first hour; for Duraphat, after 2 h; and for Embrace Varnish, after 24 h. For all three varnishes tested, the highest increases in fluoride release were recorded during the first two hours of observation, with both MI Varnish and Embrace Varnish releasing, respectively, more than 50% and 60% of the total 168 h fluoride release during the first 2 h after application, and more than 90% and 85% after 24 h. Duraphat, on the other hand, during the same time, showed a slower release rate at an average level of 36% after 2 and 68% after 24 h. Based on the results of the variance analysis and post hoc tests, the cumulative release of fluoride from the three tested varnishes differed significantly in each hour of observation and at each acidity of the environment (p ˂ 0.001) (Table 1). For pH = 7 at 168 h, a significant difference occurred only between Embrace Varnish and MI Varnish (4.82 vs. 6.47 mg; p = 0.012).
In the investigated groups, fluoride was released throughout the experiment, with the rate of release decreasing over time for all tested products, with a view to the differences between the first-generation (Duraphat) and second-generation (Embrace Varnish and MI Varnish). The hourly drop in fluoride release from three types of varnish in different pH environments is shown in Figure 2. The analysis uses mathematical models of fluoride release. Due to the non-linear nature of the obtained fluoride release rate scatterplots as a function of time, the results of the measurements were approximated by the exponential function. For empirical data obtained for each of the three types of varnish and three levels of pH, the following types of exponential models were matched:
y = b0 × exp(b1 × x)
where y = F (ppm/h)—hourly fluoride release and x = time (h)—fluoride release duration. The parameters of the b0 and b1 models were estimated using the quasi-Newton method. Based on the obtained data for all tested varnishes in all three environments (pH = 4, 5 and 7), in the first hours, the fluoride release rate is highest, and in the hours that follow, it rapidly decreases. For MI Varnish and Embrace Varnish, the fluoride release proceeds in a similar way and is completed after about 24 h, while for Duraphat, it takes much longer (at least 48 h).
The absorption measurements (see Figure 3) of all three varnishes reveals that each of them has more than 98% of light transmission in the visible and NIR regions. Differences are visible in the UV region where MI Varnish is almost transparent (above 85% of light transmission), while transmission of MI Varnish and Embrace Varnish drops to about 60% at 275 nm.

3. Discussion

Application of fluoride varnish involves the use of high concentrations of fluoride salts suspended in resin, which allows them to remain on the surface of the teeth for a period of time. The saliva-dissolved salts release fluoride ions, thus causing accumulation in higher concentrations (above 100 ppm) both on the enamel surface and in the enamel itself, as well as in the plaque. The presence of fluoride attracts calcium and phosphate ions from saliva or dissolved hydroxyapatites, forming small grains of calcium fluoride with integrated phosphates [3,10,11,24,25,26,28,31,32,33]. Since pure CaF2 crystal is more cubic than spherical, the resulting spherical deposits are described as calcium fluoride-like compounds, which, on the one hand, block the diffusion of acids, while on the other hand form a fluoride reservoir that is stable and insoluble in a pH-neutral environment. Phosphate ions increase its solubility compared with pure CaF2 [5,34,35,36]. In the event of a decrease in pH, the membrane coating is dissolved and fluoride ions are released and embedded in the enamel structure. A decrease in fluoride concentration below 100 ppm and an increase in pH result in saturation of the enamel in relation to the surrounding fluid and inhibition of the process described above [1,3,5,7,10,24,26,33,37,38]. According to many researchers [27,33,35,39,40,41,42,43], the CaF2 formation process, in addition to a sufficiently high concentration of fluoride ions, is also affected by calcium and phosphate ions present in the oral environment, and the quantity of which is insufficient to bind the whole released fluoride [33,44,45,46,47]. The supply of these ions in second-generation varnishes, according to Attin et al. [41], causes deposits of more calcium fluoride on the enamel surface, which in turn enhances the therapeutic effect [32,44,45,48,49,50,51,52,53,54,55,56,57,58,59]. According to Ogaard [35], these deposits can be observed in vitro at a high magnification up to 4 months after application. In vivo, due to chewing, swallowing, speaking and individual hygienic procedures, this time is much shorter and varies from several hours, according to Beltran et al. [5]; to 24 h, according to Schemehorn et al. [59] and Fernández et al. [60]; or up to 3 days, according to Hatrick et al. [61]. It follows that in the oral environment, the release of ions from fluoride varnishes should take place in the shortest possible time before they are completely lost [45].
All three varnishes used in the study had the same fluoride ion content (2.26% F− in 5% NaF). In order to minimize the differences between specimens, uniform amounts of varnish were applied to the normalized area of exposed enamel, where possible—and quickly, so as to reduce the possible change in the weight of the varnish due to evaporation of volatile components. Duraphat, considered by many [61] as a so-called gold standard, is classified as the first-generation varnish, in which 5% NaF is the active ingredient. In addition to 5% NaF, the second-generation varnishes used in this experiment contain CPP-ACP (MI Varnish) and calcium phosphate coated with xylitol (CXP) (Embrace Varnish). Many researchers [25,27,44,45,46,55,57,62,63] claim that caseine phosphopeptide complex with amorphous calcium phosphate is the best technology, enabling both the stable combination of high concentrations of calcium, phosphate and fluoride ions with the tooth surface and plaque, as well as high bioavailability and the possibility of free movement into the enamel, resulting in active remineralization of subsurface lesions. According to Shen et al. [22], Cochrane et al. [44] and Sleibi et al. [64], it also causes faster and easier release of fluoride ions in the first 24 h after application. In turn, according to Yapp et al. [65], it is better to place calcium and phosphate ions, but in the form of CXP, into permeable resin, as is the case with Embrace Varnish, preventing uncontrolled separation of fluoride salts from the resin matrix and allowing uniform and long-term dosing. Xylitol, additionally, provides a longer antibacterial effect [25,66].
The authors of this paper hypothesized that there would be no differences in the release of fluoride ions associated with the type of varnish applied, the time that elapsed from the application, and the pH of the artificial saliva. The results obtained proved to be highly significant for all three aspects (p ˂ 0.001), which resulted in the rejection of the zero hypothesis. In the experiment, all varnishes released fluoride throughout the test period and showed a gradual decrease in time, while the shape and slope of the release curves were different, as were the values of cumulative release of fluoride and the maximum fluoride levels, which is consistent with previous studies [43,64,67,68,69]. In any case, regardless of the pH of the environment and the type of varnish, the release of fluoride was at the highest level during the first two hours after application, as shown in the studies carried out by Sleibi et al. [64], Carvalho et al. [26], Shen et al. [70], Jablonowski et al. [43], Cochrane et al. [45] and Milburn et al. [27]. In the case of second-generation varnishes, fluoride was released in two phases, described earlier by Pichaiaukrit et al. [71]. The first phase is the so-called phase of initial rapid release of large amounts of fluoride, which took place in the first two hours after application, reaching the second phase—referred to in the literature as the so-called “plateau”—after 24 h, characterized by a much slower, constant increase of fluoride. Similar results were obtained by other researchers, yet Milburn et al. [27] observed a dynamic increase in fluoride released from MI Varnish during the first four hours, rather than two hours, and a ‘plateau’ between 8 and 12 h after application, while Comar et al. [40] observed these patterns after three hours and 12 h, respectively. As for the first-generation varnish, Duraphat, the increase in the amount of fluoride released was slower but systematic with a slow decrease after 48 h without the “plateau” phase, which is consistent with the observations by Castillo et al. [72] and Fernández et al. [60]. After 24 h, both second-generation varnishes released 90% of the total amount of fluoride measured on average, which is consistent with the study by Shen et al. [22], where, within 24 h, MI Varnish released 96% of the total fluoride. Based on previous considerations, which assumed that the time to release fluoride ions in vivo should not exceed 24 h, such a feature of the varnish profile seems to be very desirable. In addition, according to previous observations by Clifton et al. [10], a sufficiently high initial concentration of fluoride enables the formation of more calcium fluoride on the surface of the enamel and facilitates its binding to the tissues of the tooth. In the study, the cumulative release of fluoride was at the highest level for MI Varnish regardless of the pH of the environment, which seems consistent with the research conducted by other authors. Similar results were obtained by Cochrane et al. [45], where MI Varnish ranked ahead of Clinpro White, Enamel Pro, Bifluoride 5 and Duraphat. This confirms the thesis that the addition of calcium and phosphate ions in the form of CPP-ACP complex supports the release of fluoride ions.
This study shows that similar products (varnish vs. varnish) with identical fluoride concentrations, identically applied on surfaces prepared in the same manner, can present different parameters of fluoride release, as previously noted by other researchers [22,27,43,67,70,72,73]. The resulting variability in the fluoride release models may be related to the composition of the varnishes, i.e., the type of resin used as a matrix for the components contained in it, the presence of additional substances, and the consistency, homogeneity and viscosity of the varnish or the particle size [22,35,43,45,64,67,70,72,73]. The significantly higher cumulative fluoride release at each measuring point in MI Varnish may be due to several factors. Cochrane et al. [17], Schemehorn et al. [59] and Cross et al. [74] emphasize very good solubility of the CPP-ACP complex itself in aqueous solutions, which can directly accelerate the release of fluoride. Some researchers pointed to the behavior of polyvinyl acetate polymer, i.e., the so-called PVA, present in MI Varnish. In the study, it was noted that it also showed great ease and speed of dissolution in water [75], and at the same time, the maximum release took place within the first hour after the application [76]. In addition, its solubility increased in the presence of organic solvents (in this case, ethanol), which facilitated its rapid evaporation, thus leaving free spaces for easier and faster contact with water [76]. In addition, based on recent reports, the constitution of CPP-ACP varnish molecules—which are smaller and more homogeneous than those of other varnishes—can cause their faster dissolution and easier ion release [64].
The pH of the environment turned out to be an additional factor having a highly significant (p ˂ 0.001) effect on the rate of fluoride ion release. The greatest cumulative release of fluoride was achieved at pH = 4 for all tested varnishes. Slightly lower amounts were measured for pH = 5, but when comparing acidic environments, these differences were not statistically significant. The level of released fluoride in the neutral environment was significantly lower than in environments with pH = 4 and pH = 5, as confirmed by post hoc tests. In addition, between the 48th and 168th hour, the decrease in fluoride release in the environment with pH = 4 was greater than in the environment with pH = 5, while the decrease in fluoride release in the environment with pH = 7 was insignificant. In the literature—although there is relatively little research comparing the fluoride release depending on the pH of the environment—attention is paid to the effect of low pH on both the release of fluoride ions and on the formation of calcium fluoride [3,24]. Ten Cate et al. [24], when comparing the formation of calcium fluoride after application of 2% neutral NaF with acidified fluoride preparations, found the presence of significantly larger amounts of CaF2 deposited on the surface of the enamel. Interesting conclusions were also drawn by Twetman et al. [77], who showed that Fluor Protector, containing the lowest concentration of fluoride ions in relation to other varnishes but low in pH, initiates the formation of the largest amount of CaF2 on the surface of the enamel. This was explained by the affinity of the fluoride released in the acidic environment to the enamel that was higher than in neutral conditions. This was confirmed by Mohd Said et al. [38], who showed that in an acidic environment, the concentration of calcium ions and phosphates in carious lesions is higher than in the fluids surrounding the tooth, which promotes increased absorption of fluoride by the tooth structure. However, it should be emphasized that the behaviour of different varnishes in an acidic environment is not the same, and that it would be wrong to assume that it always causes faster release of ions. This was demonstrated by Lippert [78] and Shen et al. [22] in their research, where only a portion of fluoride-containing preparations released more fluoride at low pH. As for MI Varnish, the pH value an additional factor influencing the balance between free and loosely bound calcium, phosphorus and fluoride ions, affecting their bioavailability, and, according to Cochrane et al. [17] and Cochrane et al. [44], its decrease should promote the release of ions from the CPP complex associated with plaque.
However, when analyzing the obtained results, it should be always noted that in vitro models are in some way limited by inadequate selection of biological conditions and artefacts associated, for example, with reaction conditions, and even the most accurate simulation of the in vitro oral environment does not fully mimic in vivo conditions. This should always be taken into account when in vitro data are transferred to in vivo conditions.

4. Conclusions

The study showed that in vitro fluoride release is affected by the type of varnish, the time elapsed from application and the pH of the environment, and their interdependencies seem to be of high statistical significance. All the varnishes investigated—Duraphat, Embrace Varnish and MI Varnish—regardless of the pH of the environment, released fluoride during 168 h of testing, yet the most dynamic part of the process took place in the first two hours following application. For second-generation varnishes, the release took place in two phases, with a clear marking of the second phase of the so-called plateau. In the acidic environment, the release of fluoride was significantly higher than in the neutral environment for all investigated varnishes, with no change in the overall fluoride release profile, with maximum fluoride release in the first two hours after application. All the varnishes investigated have more than 98% of light transmission in the visible region, which makes them invisible on teeth.

5. Materials and Methods

In vitro studies were conducted on 45 human teeth (premolars and molars) that were free from caries, enamel defects and demineralization, removed for orthodontic reasons after obtaining the prior consent of the patients. Each tooth was cut along the long axis with the buccal and palatal surface intact. Until the start of the study, the specimens were stored in thymol solution. Each specimen, after washing and drying, was coated with acid-resistant varnish while leaving exposed enamel (4 mm/4 mm) on the smooth buccal and palatal surface (Figure 4a,b).
Three fluoride varnishes were used for the purposes of the study: one first-generation varnish (Duraphat) and two second-generation varnishes (MI Varnish and Enamel Varnish). Table 2 provides information on the type and composition of the applied agents.
The test material was divided into nine groups of 10 specimens each, depending on the type of varnish applied and the pH of the environment (Table 3).
The prepared specimens were weighed before and after the application in order to accurately determine the amount of the preparation applied, using a Radwag laboratory balances with a readability of 3 decimal places. The specimens were then placed in sealed plastic containers and immersed in 5 mL of artificial saliva at pH = 4.0 for groups DV/A, MV/A and EV/A; pH = 5.0 for groups DV/B, MV/B and EV/B; and pH = 7.0 for groups DV/C, MV/C and EV/C. The composition of artificial saliva was as follows: NaCl (0.4 g), KCl (4.0 g), urea (1.0 g), Na2S·9H2O (0.005 g), NaH2PO4·2H2O and CaCl2·2H2O (0.795 g). pH = 7.0 was achieved with 1 M NaOH, whereas pH = 4.0 and 5.0 were achieved with the use of 1 M HCL. During the measurements, the specimens were stored at 37 °C. The determination of fluoride levels in the artificial saliva environment was performed three times each after 1, 2, 24, 48 and 168 h, and followed by calculation of the average value. In any case, after the measurement period, 5 mL of eluate was used for the determination; then the sample was dried and placed into a fresh artificial saliva solution. The ORION 9609 Model ion selective electrode combined with the CPI-551 Elmetron (Thermo Fisher Scientific Co., Waltham, MA, USA) microcomputer were used for the determination of fluoride ions. The system was calibrated before each subsequent determination using TISAB. Measurements of the released fluoride ion concentration were expressed in ppm, later converted into µmol/L and in relation to the quantity of applied varnish converted into µg/mg. In the study, the cumulative level of ion release and the increase in release measured within specified time intervals and for a unit of time, namely, 1 h.
The statistical analysis was carried out using the STATISTICA v. 13.3 software (TIBCO Software Inc., Palo Alto, CA, USA). The consistency of distribution for measured quantitative parameters with normal distribution was verified with the Shapiro–Wilk test. The critical significance level was p < 0.05. When comparing the mean values of the analyzed parameters in subgroups, one-factor analysis of variance (ANOVA) was used. For multiple comparisons (post hoc tests), Tukey’s least significant difference (LSD) test was used.
The zero hypothesis assumed that there would be no differences in the fluoride ion release associated with the time that passed from application, the type of varnish used and the pH of the artificial saliva.
The room temperature electron absorption spectra were measured in the 275–750 nm spectral range using a Cary-Varian 5E UV–vis-NIR spectrophotometer (Varian Medical Systems, Palo Alto, CA, USA) [7].

Author Contributions

Conceptualization, D.P.-P. and M.D.; methodology, D.P.-P. and A.W.; validation, A.W. and M.D.; formal analysis, D.P.-P., A.W. and M.D.; investigation, D.P.-P. and A.W.; resources, D.P.-P.; data curation, D.P.-P. and A.W.; writing—original draft preparation, D.P.-P. and A.W.; writing—review and editing, A.W., M.D. and R.J.W.; visualization, D.P.-P. and A.W.; supervision, M.D. and R.J.W.; project administration, M.D.; funding acquisition, M.D. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financed by a subsidy from Wroclaw Medical University, number SUBZ.B180.23.054.

Institutional Review Board Statement

The study was approved by the Bioethics Committee, Wrocław Medical University (KB 45/2016).

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Olczak-Kowalczyk, D.; Borysewicz-Lewicka, M.; Adamowicz-Klepalska, B.; Jackowska, T.; Kaczmarek, U. Consensus Statement of Polish Experts on Individual Caries Prevention with Fluoride in Children and Adolescents. Nowa Stomatol. 2016, 21, 47–73. [Google Scholar] [CrossRef]
  2. Longbottom, C.; Ekstrand, K.; Zero, D.; Kambara, M. Novel Preventive Treatment Options. In Detection, Assessment, Diagnosis and Monitoring of Caries; KARGER: Basel, Switzerland, 2009; pp. 156–163. [Google Scholar]
  3. Kaczmarek, U.; Jackowska, T.; Mielnik-Błaszczak, M.; Jurczak, A.; Olczak-Kowalczyk, D. Individualised Caries Prevention with Fluoride in Children and Adolescents—Recommendations of Polish Experts. Nowa Stomatol. 2019, 24, 74–85. [Google Scholar] [CrossRef]
  4. O’Mullane, D.M.; Baez, R.J.; Jones, S.; Lennon, M.A.; Petersen, P.E.; Rugg-Gunn, A.J.; Whelton, H.; Whitford, G.M. Fluoride and Oral Health. Community Dent. Health 2016, 33, 69–99. [Google Scholar]
  5. Beltrán-Aguilar, E.D.; Goldstein, J.W.; Lockwood, S.A. Fluoride Varnishes. J. Am. Dent. Assoc. 2000, 131, 589–596. [Google Scholar] [CrossRef] [PubMed]
  6. American Dental Association. Fluoridation Facts; American Dental Association: Chicago, IL, USA, 2018. [Google Scholar]
  7. Baik, A.; Alamoudi, N.; El-Housseiny, A.; Altuwirqi, A. Fluoride Varnishes for Preventing Occlusal Dental Caries: A Review. Dent. J. 2021, 9, 64. [Google Scholar] [CrossRef]
  8. Simmer, J.; Hardy, N.; Chinoy, A.; Bartlett, J.; Hu, J.-C. How fluoride protects dental enamel from demineralization. J. Int. Soc. Prev. Community Dent. 2020, 10, 134–141. [Google Scholar] [CrossRef]
  9. Azarpazhooh, A.; Main, P.A. Fluoride Varnish in the Prevention of Dental Caries in Children and Adolescents: A Systematic Review. J. Can. Dent. Assoc. 2008, 74, 73–79. [Google Scholar]
  10. Carey, C.M. Focus on Fluorides: Update on the Use of Fluoride for the Prevention of Dental Caries. J. Évid. Based Dent. Pr. 2014, 14, 95–102. [Google Scholar] [CrossRef]
  11. Weyant, R.J.; Tracy, S.L.; Anselmo, T.; Beltrán-Aguilar, E.D.; Donly, K.J.; Frese, W.A.; Hujoel, P.P.; Iafolla, T.; Kohn, W.; Kumar, J.; et al. Topical fluoride for caries prevention: Executive summary of the updated clinical recommendations and supporting systematic review. J. Am. Dent. Assoc. 2013, 144, 1279–1291. [Google Scholar] [CrossRef]
  12. Al Dehailan, L.; Martinez-Mier, E.A.; Lippert, F. The effect of fluoride varnishes on caries lesions: An in vitro investigation. Clin. Oral Investig. 2016, 20, 1655–1662. [Google Scholar] [CrossRef]
  13. Bonetti, D.; Clarkson, J.E. Fluoride Varnish for Caries Prevention: Efficacy and Implementation. Caries Res. 2016, 50, 45–49. [Google Scholar] [CrossRef] [PubMed]
  14. American Academy of Pediatric Dentistry Fluoride Therapy. The Reference Manual of Pediatric Dentistry; American Academy of Pediatric Dentistry: Chicago, IL, USA, 2021. [Google Scholar]
  15. American Dental Association Council on Scientific Affairs. Professionally Applied Topical Fluoride: Evidence-Based Clinical Recommendations. J. Am. Dent. Assoc. 2006, 137, 1151–1159. [Google Scholar] [CrossRef] [PubMed]
  16. Carvalho, D.M.; Salazar, M.; de Oliveira, B.H.; Coutinho, E.S.F. O uso de vernizes fluoretados e a redução da incidência de cárie dentária em pré-escolares: Uma revisão sistemática. Rev. Bras. Epidemiol. 2010, 13, 139–149. [Google Scholar] [CrossRef] [PubMed]
  17. Marinho, V.C.C. Cochrane Reviews of Randomized Trials of Fluoride Therapies for Preventing Dental Caries. Eur. Arch. Paediatr. Dent. 2009, 10, 183–191. [Google Scholar] [CrossRef]
  18. Marinho, V.C.; Worthington, H.V.; Walsh, T.; Clarkson, J.E. Fluoride Varnishes for Preventing Dental Caries in Children and Adolescents. Cochrane Database Syst. Rev. 2013, 11, CD002279. [Google Scholar] [CrossRef]
  19. Gao, S.S.; Zhang, S.; Mei, M.L.; Lo, E.C.-M.; Chu, C.-H. Caries Remineralisation and Arresting Effect in Children by Professionally Applied Fluoride Treatment—A Systematic Review. BMC Oral Health 2016, 16, 12. [Google Scholar] [CrossRef]
  20. Elkassas, D.; Arafa, A. Remineralizing Efficacy of Different Calcium-Phosphate and Fluoride Based Delivery Vehicles on Artificial Caries like Enamel Lesions. J. Dent. 2014, 42, 466–474. [Google Scholar] [CrossRef]
  21. Wagner, J.A.; Kawamoto, A.T. Fluoride Varnish Compositions Including an Organo Phosphoric Acid Adhesion Promoting Agent. U.S. Patent 20,130,149,391A1, 7 October 2014. [Google Scholar]
  22. Shen, P.; Bagheri, R.; Walker, G.; Yuan, Y.; Stanton, D.; Reynolds, C.; Reynolds, E. Effect of Calcium Phosphate Addition to Fluoride Containing Dental Varnishes on Enamel Demineralization. Aust. Dent. J. 2016, 61, 357–365. [Google Scholar] [CrossRef]
  23. Lubojanski, A.; Piesiak-Panczyszyn, D.; Zakrzewski, W.; Dobrzynski, W.; Szymonowicz, M.; Rybak, Z.; Mielan, B.; Wiglusz, R.J.; Watras, A.; Dobrzynski, M. The Safety of Fluoride Compounds and Their Effect on the Human Body—A Narrative Review. Materials 2023, 16, 1242. [Google Scholar] [CrossRef]
  24. Ten Cate, J.M.; Larsen, M.J.; Pearce, E.I.F.; Fejerskov, O. Chemical Interactions between the Tooth and Oral Fluids. In Dental Caries: The Disease and Its Clinical Management; Fejerskov, O., Kidd, E.A.M., Eds.; Blackwell Publishing: Oxford, UK, 2003; pp. 49–69. [Google Scholar]
  25. Jafari, K.; Hekmatfar, S.; Fereydunzadeh, M. In Vitro Comparison of Antimicrobial Activity of Conventional Fluoride Varnishes Containing Xylitol and Casein Phosphopeptide-Amorphous Calcium Phosphate. J. Int. Soc. Prev. Community Dent. 2018, 8, 309. [Google Scholar] [CrossRef]
  26. Carvalho, T.S.; Peters, B.G.; Rios, D.; Magalhães, A.C.; Sampaio, F.C.; Buzalaf, M.A.R.; Bönecker, M.J.S. Fluoride Varnishes with Calcium Glycerophosphate: Fluoride Release and Effect on in Vitro Enamel Demineralization. Braz. Oral Res. 2015, 29, 1–6. [Google Scholar] [CrossRef] [PubMed]
  27. Milburn, J.L.; Henrichs, L.E. Substantive Fluoride Release from a New Fluoride Varnish Containing CXP. Dentistry 2015, 5, 12. [Google Scholar] [CrossRef]
  28. Reynolds, E.C. Casein Phosphopeptide-Amorphous Calcium Phosphate: The Scientific Evidence. Adv. Dent. Res. 2009, 21, 25–29. [Google Scholar] [CrossRef] [PubMed]
  29. Piesiak-Pańczyszyn, D.; Kaczmarek, U. Fluoride Release from Fluoride Varnish under In Vitro and In Vivo Conditions. Dent. Med. Probl. 2017, 54, 327–331. [Google Scholar] [CrossRef]
  30. Chhatwani, S.; Hoppe, J.; Naumova, E.A.; Arnold, W.H.; Möhlhenrich, S.C.; Bizhang, M.; Danesh, G. Fluoride Ion Release Characteristics of Fluoride-Containing Varnishes—An In Vitro Study. Appl. Sci. 2021, 11, 1452. [Google Scholar] [CrossRef]
  31. Cury, J.A.; Tenuta, L.M.A. Enamel Remineralization: Controlling the Caries Disease or Treating Early Caries Lesions? Braz. Oral. Res. 2009, 23, 23–30. [Google Scholar] [CrossRef]
  32. Girish Babu, K.; Subramaniam, P.; Teleti, S. Remineralization Potential of Varnish Containing Casein Phosphopeptides-Amorphous Calcium Phosphate with Fluoride and Varnish Containing Only Fluoride: A Comparative Study. Saudi J. Oral Sci. 2018, 5, 35. [Google Scholar] [CrossRef]
  33. Vogel, G.L. Oral Fluoride Reservoirs and the Prevention of Dental Caries. Monogr Oral. Sci. 2011, 22, 146–157. [Google Scholar]
  34. Martínez-Mier, E.A. Fluoride: Its Metabolism, Toxicity, and Role in Dental Health. J. Evid. Based Complement. Altern. Med. 2012, 17, 28–32. [Google Scholar] [CrossRef]
  35. Ogaard, B. CaF(2) Formation: Cariostatic Properties and Factors of Enhancing the Effect. Caries Res. 2001, 35 (Suppl. S1), 40–44. [Google Scholar] [CrossRef]
  36. Rosin-Grget, K.; Lincir, I. Current Concept on the Anticaries Fluoride Mechanism of the Action. Coll. Antropol. 2001, 25, 703–712. [Google Scholar] [PubMed]
  37. Mielczarek, A.; Michalik, J.; Kujawa, M. The Effect of Selected Fluoride Products on Microstructure of Early Caries Lesions. Nowa Stomatol. 2013, 3, 120–124. [Google Scholar]
  38. Mohd Said, S.N.B.; Ekambaram, M.; Yiu, C.K.Y. Effect of Different Fluoride Varnishes on Remineralization of Artificial Enamel Carious Lesions. Int. J. Paediatr. Dent. 2017, 27, 163–173. [Google Scholar] [CrossRef] [PubMed]
  39. Whitford, G.M.; Wasdin, J.L.; Schafer, T.E.; Adair, S.M. Plaque Fluoride Concentrations Are Dependent on Plaque Calcium Concentrations. Caries Res. 2002, 36, 256–265. [Google Scholar] [CrossRef] [PubMed]
  40. Comar, L.; De Souza, B.M.; Grizzo, L.T.; Buzalaf, M.A.R.; Magalhães, A.C. Evaluation of fluoride release from experimental TiF4 and NaF varnishes in vitro. J. Appl. Oral Sci. 2014, 22, 138–143. [Google Scholar] [CrossRef]
  41. Attin, T.; Lennon, A.M.; Yakin, M.; Becker, K.; Buchalla, W.; Attin, R.; Wiegand, A. Deposition of fluoride on enamel surfaces released from varnishes is limited to vicinity of fluoridation site. Clin. Oral Investig. 2007, 11, 83. [Google Scholar] [CrossRef]
  42. Ellwood, R.; Fejerskov, O.; Cury, J.A.; Clarkson, B. Fluorides in Caries Control. In Dental Caries: The Disease and Its Clinical Management; Fejerskov, O., Kidd, E.A.M., Eds.; Blackwell Publishing: Oxford, UK, 2008; pp. 287–327. [Google Scholar]
  43. Jablonowski, B.L.; Bartoloni, J.A.; Hensley, D.M.; Vandewalle, K.S. Fluoride Release from Newly Marketed Fluoride Varnishes. Quintessence Int. 2012, 43, 221–228. [Google Scholar]
  44. Cochrane, N.J.; Cai, F.; Huq, N.L.; Burrow, M.F.; Reynolds, E.C. New Approaches to Enhanced Remineralization of Tooth Enamel. J. Dent. Res. 2010, 89, 1187–1197. [Google Scholar] [CrossRef]
  45. Cochrane, N.; Shen, P.; Yuan, Y.; Reynolds, E. Ion Release from Calcium and Fluoride Containing Dental Varnishes. Aust. Dent. J. 2014, 59, 100–105. [Google Scholar] [CrossRef]
  46. Reynolds, E. Calcium Phosphate-Based Remineralization Systems: Scientific Evidence? Aust. Dent. J. 2008, 53, 268–273. [Google Scholar] [CrossRef]
  47. Santos, L.d.M.; dos Reis, J.I.L.; de Medeiros, M.P.; Ramos, S.M.; de Araújo, J.M. In Vitro Evaluation of Fluoride Products in the Development of Carious Lesions in Deciduous Teeth. Braz. Oral. Res. 2009, 23, 296–301. [Google Scholar] [CrossRef] [PubMed]
  48. Ekambaram, M.; Mohd Said, S.N.B.; Yiu, C.K.Y. A Review of Enamel Remineralisation Potential of Calcium- and Phosphate-Based Remineralisation Systems. Oral. Health Prev. Dent. 2017, 15, 415–420. [Google Scholar] [CrossRef] [PubMed]
  49. Majithia, U.; Venkataraghavan, K.; Choudhary, P.; Trivedi, K.; Shah, S.; Virda, M. Comparative Evaluation of Application of Different Fluoride Varnishes on Artificial Early Enamel Lesion: An in Vitro Study. Indian J. Dent. Res. 2016, 27, 521. [Google Scholar] [CrossRef]
  50. Damyanova, D.D.; Angelova, D.S.; Targova-Dimitrova, D.T. Clinical Study Remineralization Effect of Mineralization Varnish. IOSR J. Dent. Med. Sci. 2016, 15, 134–136. [Google Scholar] [CrossRef]
  51. Somasundaram, P.; Mandke, L.; Vimala, N. Protective Potential of Casein Phosphopeptide Amorphous Calcium Phosphate Containing Paste on Enamel Surfaces. J. Conserv. Dent. 2013, 16, 152. [Google Scholar] [CrossRef] [PubMed]
  52. Llena, C.; Leyda, A.M.; Forner, L. CPP-ACP and CPP-ACFP versus Fluoride Varnish in Remineralisation of Early Caries Lesions. A Prospective Study. Eur. J. Paediatr. Dent. 2015, 16, 181–186. [Google Scholar] [PubMed]
  53. Dai, Z.; Liu, M.; Ma, Y.; Cao, L.; Xu, H.H.K.; Zhang, K.; Bai, Y. Effects of Fluoride and Calcium Phosphate Materials on Remineralization of Mild and Severe White Spot Lesions. BioMed Res. Int. 2019, 2019, 1271523. [Google Scholar] [CrossRef]
  54. Memarpour, M.; Fakhraei, E.; Dadaein, S.; Vossoughi, M. Efficacy of Fluoride Varnish and Casein Phosphopeptide-Amorphous Calcium Phosphate for Remineralization of Primary Teeth: A Randomized Clinical Trial. Med. Princ. Pract. 2015, 24, 231–237. [Google Scholar] [CrossRef]
  55. Güçlü, Z.A.; Alaçam, A.; Coleman, N.J. A 12-Week Assessment of the Treatment of White Spot Lesions with CPP-ACP Paste and/or Fluoride Varnish. BioMed Res. Int. 2016, 2016, 1271523. [Google Scholar] [CrossRef]
  56. Pithon, M.M.; Baião, F.S.; Sant’Anna, L.I.D.; Tanaka, O.M.; Cople-Maia, L. Effectiveness of Casein Phosphopeptide-amorphous Calcium Phosphate-containing Products in the Prevention and Treatment of White Spot Lesions in Orthodontic Patients: A Systematic Review. J. Investig. Clin. Dent. 2019, 10, e12391. [Google Scholar] [CrossRef]
  57. Tuloglu, N.; Bayrak, S.; Tunc, E.S.; Ozer, F. Effect of Fluoride Varnish with Added Casein Phosphopeptide-Amorphous Calcium Phosphate on the Acid Resistance of the Primary Enamel. BMC Oral. Health 2016, 16, 103. [Google Scholar] [CrossRef] [PubMed]
  58. Salman, N.R.; ElTekeya, M.; Bakry, N.; Omar, S.S.; El Tantawi, M. Comparison of Remineralization by Fluoride Varnishes with and without Casein Phosphopeptide Amorphous Calcium Phosphate in Primary Teeth. Acta Odontol. Scand. 2019, 77, 9–14. [Google Scholar] [CrossRef] [PubMed]
  59. Schemehorn, B.R.; Orban, J.C.; Wood, G.D.; Fischer, G.M.; Winston, A.E. Remineralization by Fluoride Enhanced with Calcium and Phosphate Ingredients. J. Clin. Dent. 1999, 10, 13–16. [Google Scholar] [PubMed]
  60. Fernández, C.E.; Tenuta, L.M.A.; Zárate, P.; Cury, J.A. Insoluble NaF in Duraphat® May Prolong Fluoride Reactivity of Varnish Retained on Dental Surfaces. Braz. Dent. J. 2014, 25, 160–164. [Google Scholar] [CrossRef] [PubMed]
  61. Hatrick, C.D.; Eakle, W.S. Dental Materials: Clinical Applications for Dental Assistants and Dental Hygienists, 3rd ed.; Elsevier Heatlh Sciences: Amsterdam, The Netherlands, 2015; ISBN 1455773859. [Google Scholar]
  62. Eakle, W.S.; Featherstone, J.D.B.; Weintraub, J.A.; Shain, S.G.; Gansky, S.A. Salivary fluoride levels following application of fluoride varnish or fluoride rinse. Community Dent. Oral Epidemiol. 2004, 32, 462–469. [Google Scholar] [CrossRef] [PubMed]
  63. Zhang, Q.; Zou, J.; Yang, R.; Zhou, X. Remineralization effects of casein phosphopeptide-amorphous calcium phosphate crème on artificial early enamel lesions of primary teeth. Int. J. Paediatr. Dent. 2011, 21, 374–381. [Google Scholar] [CrossRef]
  64. Sleibi, A.; Tappuni, A.; Karpukhina, N.G.; Hill, R.G.; Baysan, A. A comparative evaluation of ion release characteristics of three different dental varnishes containing fluoride either with CPP-ACP or bioactive glass. Dent. Mater. 2019, 35, 1695–1705. [Google Scholar] [CrossRef]
  65. Yapp, R.; Powers, J.M. Fluoride Ion Release from Several Fluoride Varnishes. Dent. Advis. 2012, 44, 1. [Google Scholar]
  66. Almaz, M.E.; Oba, A.A. Antibacterial activity of fluoride varnishes containing different agents in children with severe early childhood caries: A randomised controlled trial. Clin. Oral Investig. 2020, 24, 2129–2136. [Google Scholar] [CrossRef]
  67. Virupaxi, S.G. Comparative Evaluation of Longevity of Fluoride Release from three Different Fluoride Varnishes—An Invitro Study. J. Clin. Diagn. Res. 2016, 10, ZC33–ZC36. [Google Scholar] [CrossRef]
  68. Piesiak-Pańczyszyn, D.; Kaczmarek, U. Salivary Fluoride Level Following Application of Three Different 5% Sodium Fluoride Varnishes. Stomatol. Współcz. 2017, 3, 22–27. [Google Scholar]
  69. Castillo, J.L.; Milgrom, P. Fluoride Release from Varnishes in Two in Vitro Protocols. J. Am. Dent. Assoc. 2004, 135, 1696–1699. [Google Scholar] [CrossRef] [PubMed]
  70. Shen, C.; Autio-Gold, J. Assessing Fluoride Concentration Uniformity and Fluoride Release from Three Varnishes. J. Am. Dent. Assoc. 2002, 133, 176–182. [Google Scholar] [CrossRef] [PubMed]
  71. Pichaiaukrit, W.; Thamrongananskul, N.; Siralertmukul, K.; Swasdison, S. Fluoride Varnish Containing Chitosan Demonstrated Sustained Fluoride Release. Dent. Mater. J. 2019, 38, 1036–1042. [Google Scholar] [CrossRef] [PubMed]
  72. Castillo, J.L.; Milgrom, P.; Kharasch, E.; Izutsu, K.; Fey, M. Evaluation of Fluoride Release from Commercially Available Fluoride Varnishes. J. Am. Dent. Assoc. 2001, 132, 1389–1392; quiz 1459–1460. [Google Scholar] [CrossRef]
  73. Ritwik, P.; Aubel, J.; Xu, X.; Fan, Y.; Hagan, J. Evaluation of Short Term Fluoride Release from Fluoride Varnishes. J. Clin. Pediatr. Dent. 2012, 36, 275–278. [Google Scholar] [CrossRef]
  74. Cross, K.J.; Huq, N.L.; Reynolds, E.C. Casein Phosphopeptides in Oral Health—Chemistry and Clinical Applications. Curr. Pharm. Des. 2007, 13, 793–800. [Google Scholar] [CrossRef]
  75. Kolter, K.; Wichtner, M.; Schönherr, M.; Mittwollen, J.-P. Pharmaceutical Formulation for Producing Rapidly Disintegrating Tablets. U.S. Patent 8,425,935B2, 11 December 2006. [Google Scholar]
  76. Wang, W.; Xie, Q.; Xu, T.; Wang, Q.; Malmstrom, H.S.; Ren, Y.-F. Fluoride Release and Anti-Erosive Effects of Dentifrices Containing PVM/MA Copolymers. J. Dent. 2013, 41, 148–154. [Google Scholar] [CrossRef]
  77. Twetman, S.; Sköld-Larsson, K.; Modéer, T. Fluoride Concentration in Whole Saliva and Separate Gland Secretions after Topical Treatment with Three Different Fluoride Varnishes. Acta. Odontol. Scand. 1999, 57, 263–266. [Google Scholar] [CrossRef]
  78. Lippert, F. Fluoride Release from Fluoride Varnishes under Acidic Conditions. J. Clin. Pediatr. Dent. 2014, 39, 35–39. [Google Scholar] [CrossRef]
Applsci 13 07327 g001
Figure 1. Cumulative fluoride release for three varnishes: Duraphat, MI Varnish and Embrace Varnish at pH = 4, pH = 5, pH = 7.
Figure 1. Cumulative fluoride release for three varnishes: Duraphat, MI Varnish and Embrace Varnish at pH = 4, pH = 5, pH = 7.
Applsci 13 07327 g001
Applsci 13 07327 g002

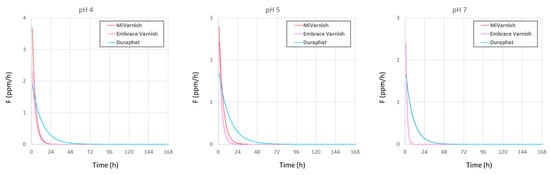

Figure 2. The course of the hourly release of fluoride in three types of varnish in three different pH environments.
Figure 2. The course of the hourly release of fluoride in three types of varnish in three different pH environments.
Applsci 13 07327 g002
Applsci 13 07327 g003

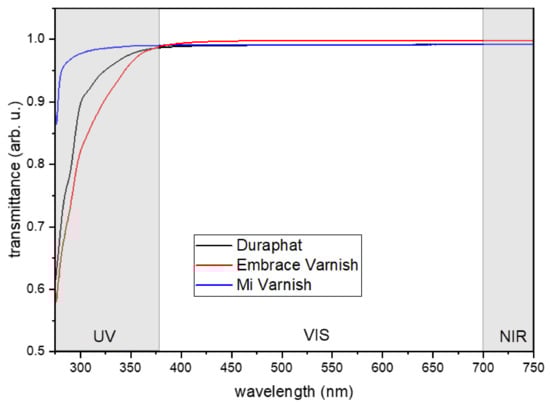

Figure 3. Transmittance spectra of Duraphat, Embrace Varnish and MI Varnish in UV-VIS-NIR region.
Figure 3. Transmittance spectra of Duraphat, Embrace Varnish and MI Varnish in UV-VIS-NIR region.
Applsci 13 07327 g003
Applsci 13 07327 g004
Figure 4. (a) Varnish–coated enamel specimen. (b) Diagram of prepared sample.
Figure 4. (a) Varnish–coated enamel specimen. (b) Diagram of prepared sample.
Applsci 13 07327 g004
Table 1. Cumulative release of fluoride from three varnishes during subsequent observation hours and results of variance analysis (ANOVA) and post hoc tests. Descriptive data were presented as mean ± SD (± standard deviation).
Table 1. Cumulative release of fluoride from three varnishes during subsequent observation hours and results of variance analysis (ANOVA) and post hoc tests. Descriptive data were presented as mean ± SD (± standard deviation).
pHTime/
Duration
(h)		DP
N = 10		EV
N = 10		MV
N = 10		ANOVA
p
411.47 ± 0.27 1,22.34 ± 0.50 1,33.68 ± 0.21 2,3<0.001
23.67 ± 1.02 1,24.18 ± 0.78 1,36.52 ± 0.79 2,3<0.001
246.85 ± 0.96 1,26.01 ± 1.11 1,310.63 ± 0.77 2,3<0.001
489.24 ± 1.11 1,27.02 ± 1.15 1,311.23 ± 0.80 2,3<0.001
1689.86 ± 1.10 1,27.51 ± 1.17 1,311.52 ± 0.84 2,3<0.001
511.19 ± 0.30 1,22.43 ± 0.51 1,32.81 ± 0.21 2,3<0.001
23.30 ± 0.81 1,24.24 ± 0.76 1,35.05 ± 0.71 2,3<0.001
246.61 ± 1.63 1,25.93 ± 1.02 1,38.43 ± 0.70 2,3<0.001
488.80 ± 2.48 1,26.45 ± 1.08 1,39.00 ± 0.75 2,30.002
1689.30 ± 2.54 1,26.83 ± 1.10 1,39.33 ± 0.77 2,30.003
711.16 ± 0.53 1,22.41 ± 0.77 1,31.64 ± 0.20 2,3<0.001
22.14 ± 0.89 1,23.63 ± 0.79 1,33.13 ± 0.35 2,3<0.001
243.87 ± 1.63 1,24.29 ± 0.80 1,36.09 ± 0.47 2,3<0.001
485.05 ± 1.69 1,24.64 ± 0.82 1,36.31 ± 0.43 2,30.007
1685.72 ± 1.82 1,24.82 ± 0.85 1,36.47 ± 0.43 2,30.016
DP–Duraphat, EV–Embrace Varnish, MV–MI Varnish, 1 DP vs EV, p < 0.05; 2 DP vs MV, p < 0.05; 3 EV vs MV, p < 0.05.
Table 2. Type and composition of studied varnishes.
Table 2. Type and composition of studied varnishes.
Fluoride VarnishCodeManufacturersIngredients
Colgate® Duraphat Varnish-single doseDVColgate Oral Care, Sydney, NSW, Australia30–60% colophonium, 10–30% ethanol, 5% sodium fluoride, other ingredients
MI VarnishTMMVGC, Tokyo, Japan30–50% polyvinylacetate, 10–30% hydrogenated rosin, 20–30% ethanol, 5% sodium fluoride, 1–5% CPP-ACP, 1–5% silicon dioxide
Embrace VarnishTMEVPulpdent, Watertown, MA, USA5% natrium fluoride with CXP (xylitol coated calcium and phosphate)
Table 3. Experimental groups.
Table 3. Experimental groups.
Fluoride VarnishGrouppH of Artificial Saliva
DuraphatDV/A
DV/B
DV/C		4.0
5.0
7.0
MI VarnishMV/A
MV/B
MV/C		4.0
5.0
7.0
Embrace VarnishEV/B
EV/B
EV/C		4.0
5.0
7.0
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Piesiak-Panczyszyn, D.; Watras, A.; Wiglusz, R.J.; Dobrzynski, M. In Vitro Comparison of the Fluoride Ion Release from the First- and Second-Generation Fluoride Varnishes. Appl. Sci. 2023, 13, 7327. https://doi.org/10.3390/app13127327

AMA Style

Piesiak-Panczyszyn D, Watras A, Wiglusz RJ, Dobrzynski M. In Vitro Comparison of the Fluoride Ion Release from the First- and Second-Generation Fluoride Varnishes. Applied Sciences. 2023; 13(12):7327. https://doi.org/10.3390/app13127327

Chicago/Turabian Style

Piesiak-Panczyszyn, Dagmara, Adam Watras, Rafal J. Wiglusz, and Maciej Dobrzynski. 2023. "In Vitro Comparison of the Fluoride Ion Release from the First- and Second-Generation Fluoride Varnishes" Applied Sciences 13, no. 12: 7327. https://doi.org/10.3390/app13127327

APA Style

Piesiak-Panczyszyn, D., Watras, A., Wiglusz, R. J., & Dobrzynski, M. (2023). In Vitro Comparison of the Fluoride Ion Release from the First- and Second-Generation Fluoride Varnishes. Applied Sciences, 13(12), 7327. https://doi.org/10.3390/app13127327

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
