The Role of AI in Warehouse Digital Twins: Literature Review †
Abstract
:1. Introduction
- What AI techniques are mostly used for warehouse management under the DT paradigm?
- How is AI employed to ensure and elevate WDT functions?
- What are the challenges and barriers to adopting WDT and AI in warehouses?
2. Research Methodology

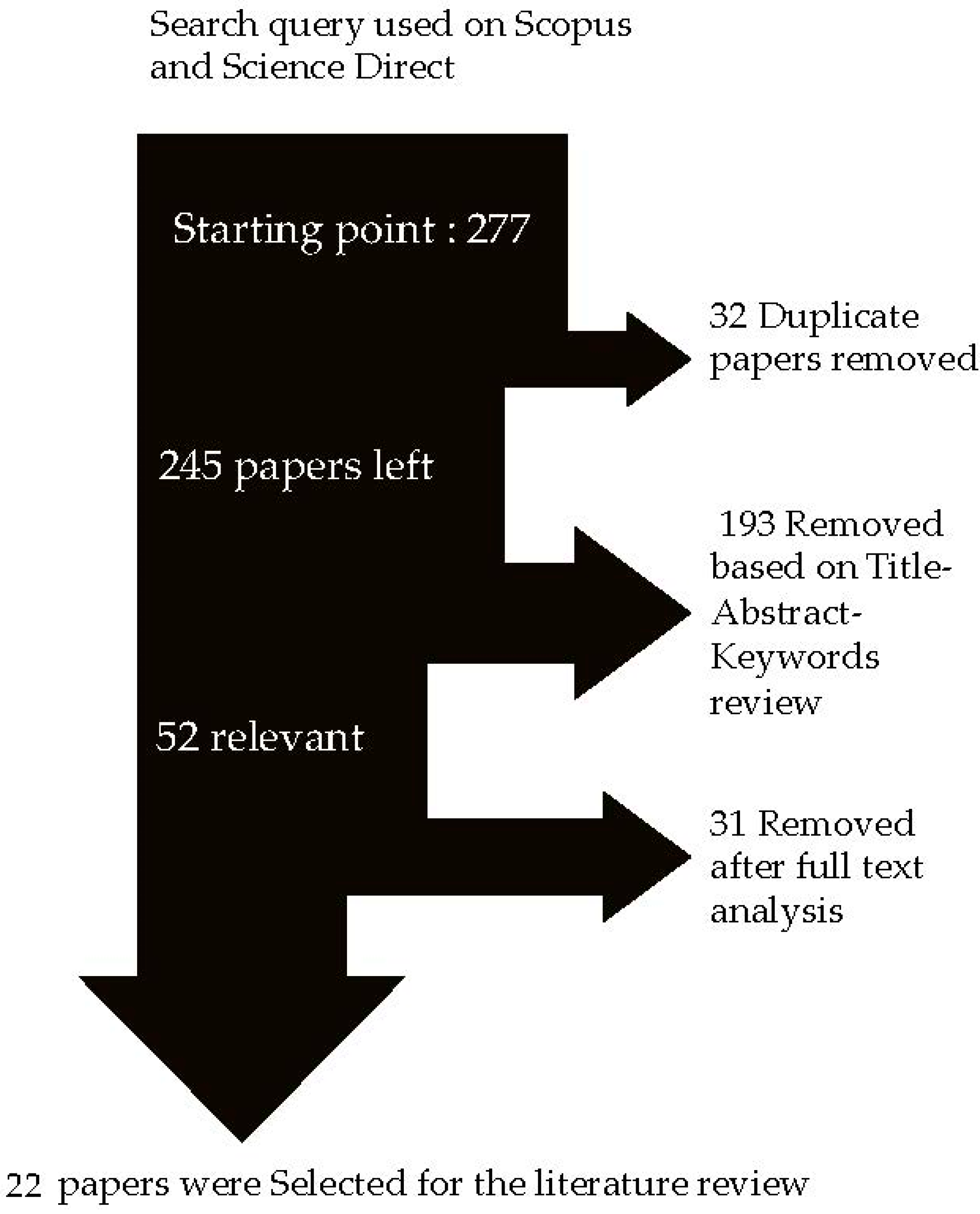

3. Bibliometric Analysis

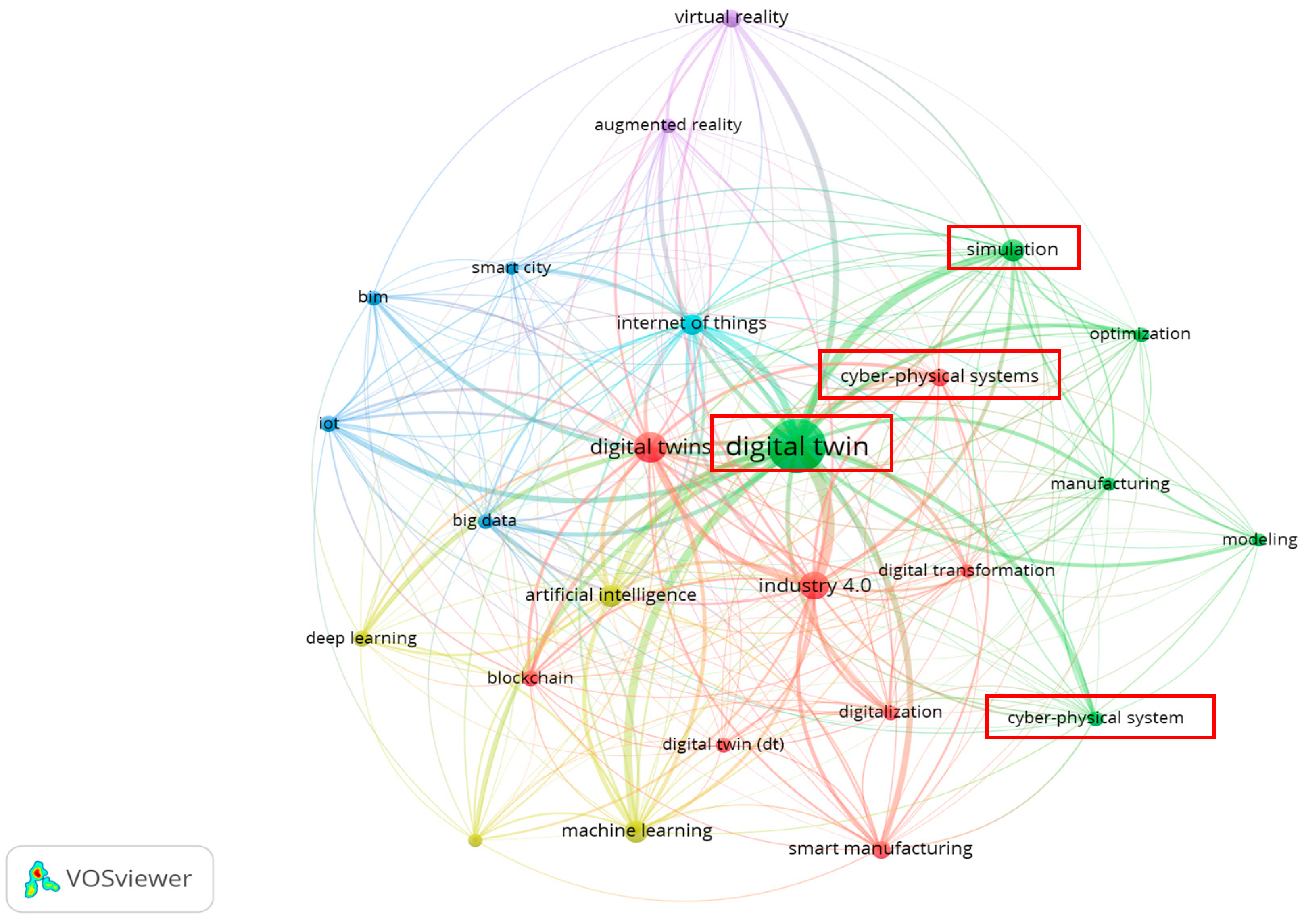

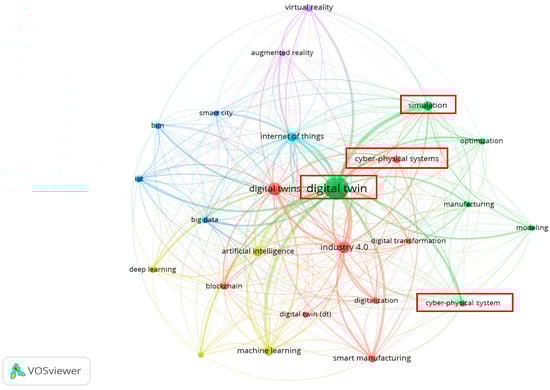

- “Digital Twin” AND (“warehouse” OR “warehousing” OR “material handling” OR “inventory” OR “packing” OR “store” OR “storage”),

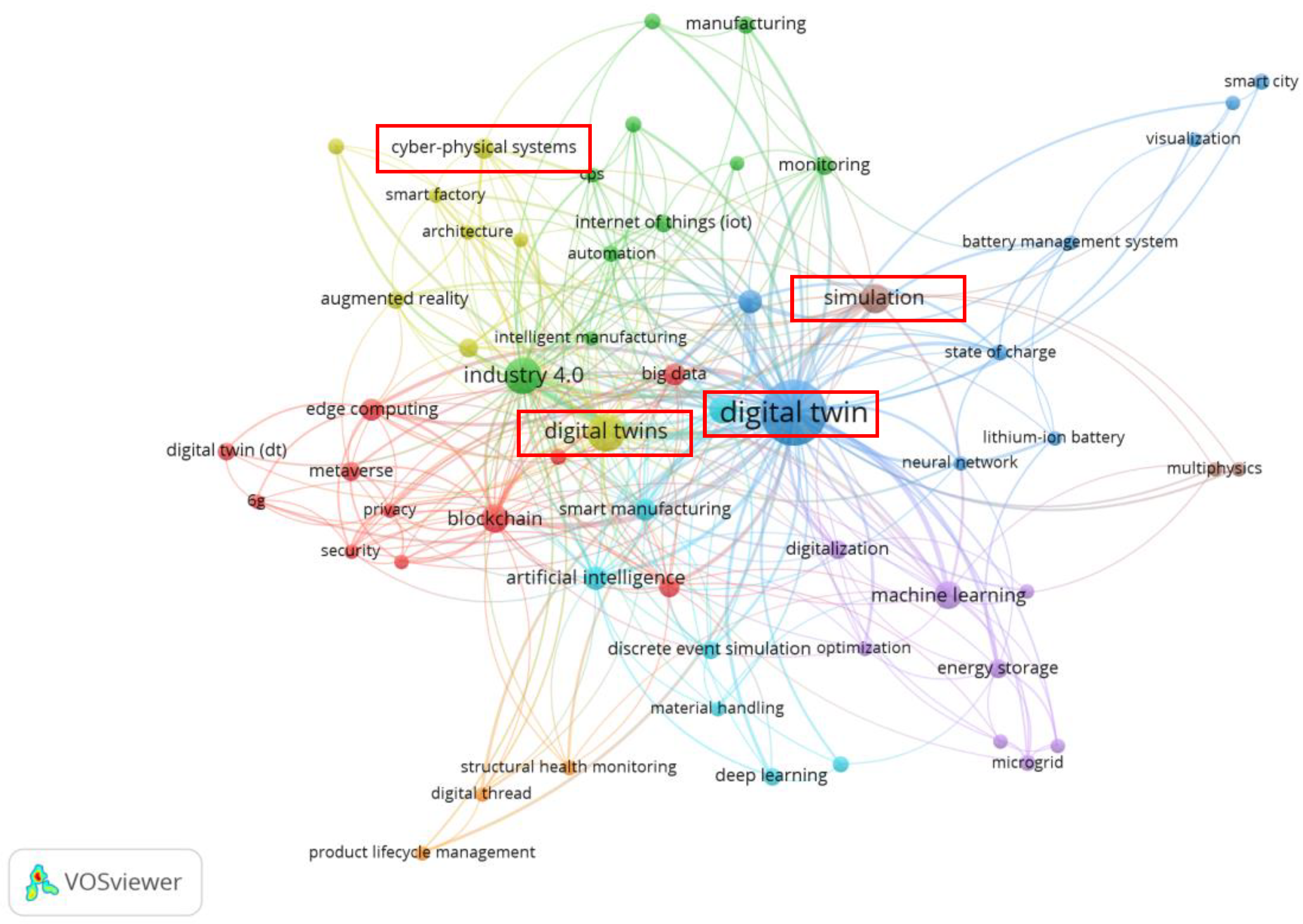

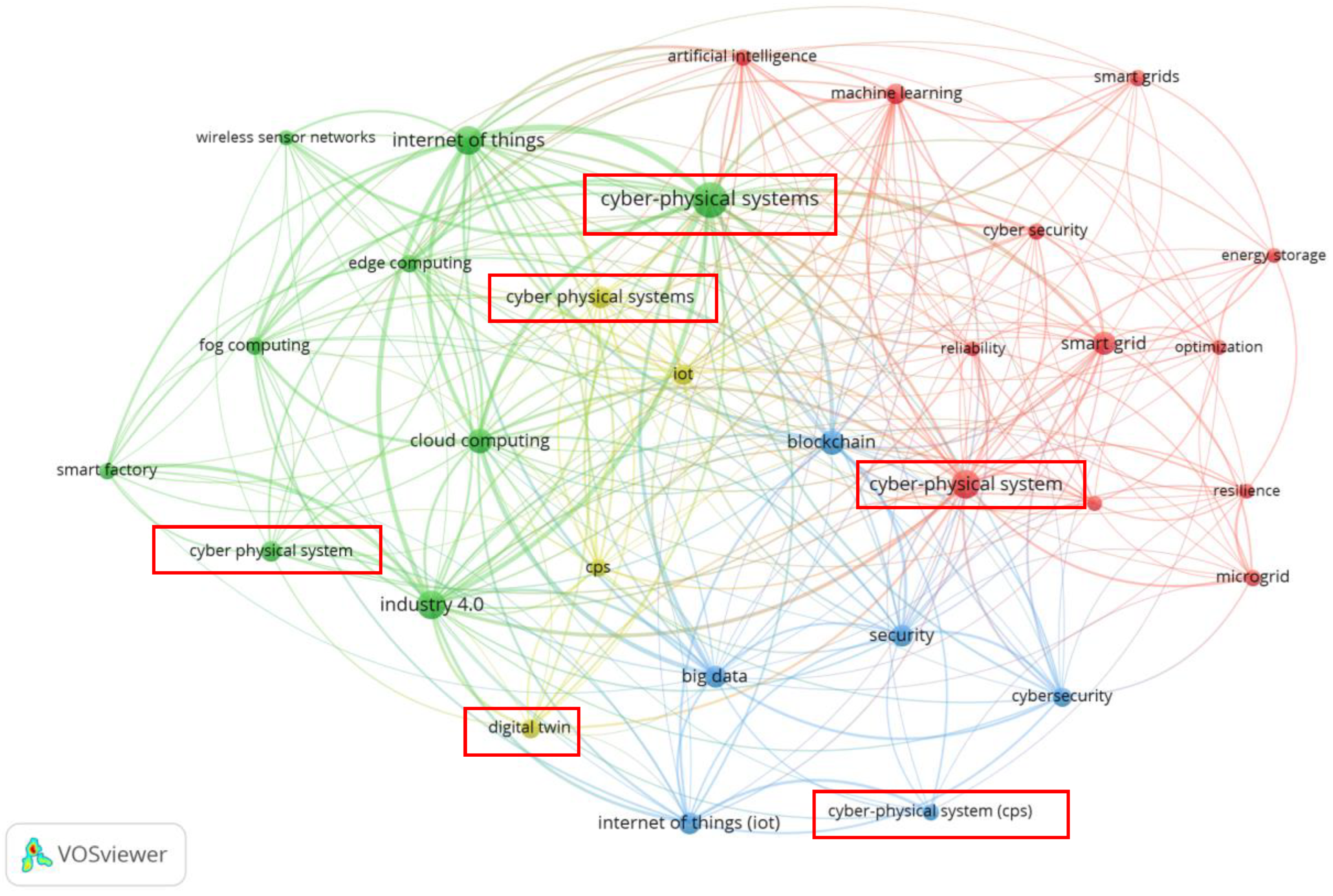

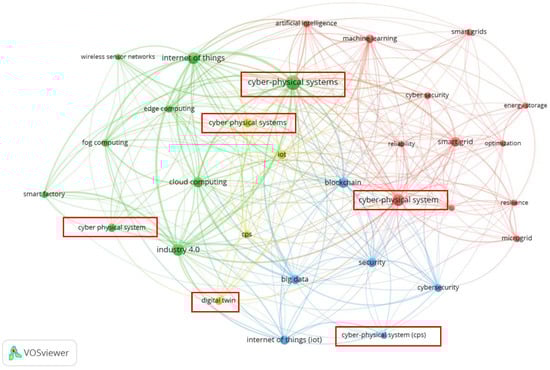

- “cyber” AND” physical” and “system” AND (“warehouse” OR “warehousing” OR “material handling” OR “inventory” OR “packing” OR “store” OR “storage”).
4. Analysis Framework
4.1. Digital Twin
- Digital Model: There is no automatic data exchange between the physical and digital worlds. Once the model is created, a change made to the physical object has no impact on it.
- Digital Shadow: A digital shadow is a digital model with a one-way data flow from the physical to the digital objects. A change in the state of the physical object leads to a change in the digital representation.
- Digital Twin: the data flow between the two counterparts is bidirectional. A change to the physical object automatically changes its virtual replica and vice versa.
- Context-awareness (CA) is the ability to distinguish incoming stimuli meaningfully. It encompasses more than just IoT and information systems (IS), extending to representing diverse situations in a virtual copy.
- Autonomy (Auto) is the DT’s ability to function independently without human intervention. This capability empowers the system to take action and make decisions based on pre-determined rules or learned behaviors, streamlining the decision-making process without human assistance or a minimum level of human intervention.
- Continuous evolving (CE) is the ability of a DT system to grow and evolve with the real system throughout its lifecycle. DT systems should continuously update themselves based on changing data, information, and knowledge from the real system and all other interconnected software. This feature allows the DT system to adapt to new environmental conditions and changes, ensuring that it remains relevant and effective over time.

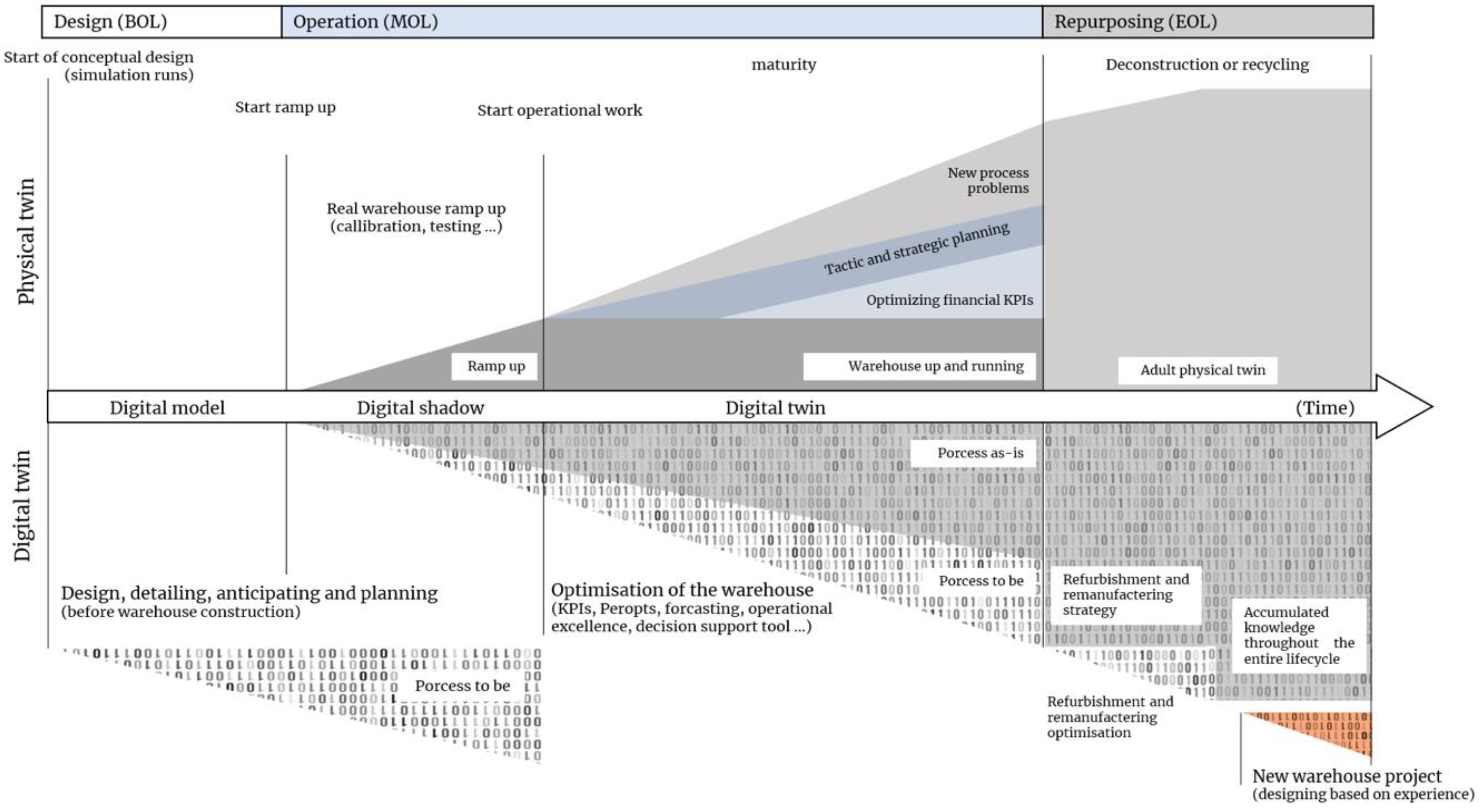

- Full lifecycle management (FLM) allows the model to cover different phases across the entire system lifecycle. FLM includes the beginning of life (BOL), such as design, building, and testing; the middle of life (MOL), such as operating, usage, and maintenance; and the end-of-life (EOL), such as disassembly, recycling, and remanufacturing. By addressing all lifecycle phases, FLM enables the DT system to be more sustainable, efficient, and effective over the long term.
4.2. Artificial Intelligence
- Supervised learning (SL): the algorithm is provided with a clearly defined set of input features X and corresponding output labels Y. Supervised learning can be used in intralogistics to predict demand for specific products, to optimize inventory levels, or to predict delivery times.
- Unsupervised learning (UL): the algorithm is provided only input features X. The goal is to find patterns or structures within the data that can be used to group similar data points or to identify outliers using techniques such as cluster analysis. UL is typically used when there is no clear understanding of the underlying structure of the data or when there is no prior knowledge about the data. UL, such as clustering, can be used in intralogistics to identify similar groups of products or to cluster similar customers based on their buying behavior.
- Reinforcement learning (RL): involves an agent that learns by interacting with an environment and receiving rewards or punishments based on its actions. The learner aims to maximize the cumulative reward value over time through trial and error. Reinforcement learning is commonly used in tasks such as game playing, robotics, and autonomous navigation. RL can be applied to train an automated guided vehicle (AGV) in a warehouse to navigate through the facility while avoiding obstacles and maximizing the number of delivered packages. By interacting with the environment, the AGV learns which actions lead to the most desirable outcomes and adjusts its behavior accordingly, gradually improving its performance over time. This allows for a more flexible and adaptive approach to learning in general, which responds to new challenges and changing environments without explicit programming.
4.3. Data
- Environmental data (ED): such as temperature, humidity, and light intensity, could be crucial in decision-making processes or to represent and supervise the physical process accurately. Depending on the type of goods stored in the warehouse, these data may provide valuable insights into the most suitable storage conditions.
- Product data (PD): which entails information on inventory levels and storage locations is another key data type. Technologies such as radio frequency identification (RFID) can monitor storage locations and quantities, linking this information to the warehouse management system (WMS) and DTs for effective replenishment and stockkeeping.
- Handler data (HD) is the third type of data collected in warehouses, providing crucial information on workers and equipment, including their real-time locations. This data may be collected from workers’ handheld devices, allowing for location tracking, and measuring other physical variables. It can also refer to equipment and automation data such as conveyors and AGVs.
4.4. Intralogistics
5. Results
5.1. What AI Technics Are Most Used for Warehouse Management under the DT Paradigm?
5.1.1. Artificial Intelligence

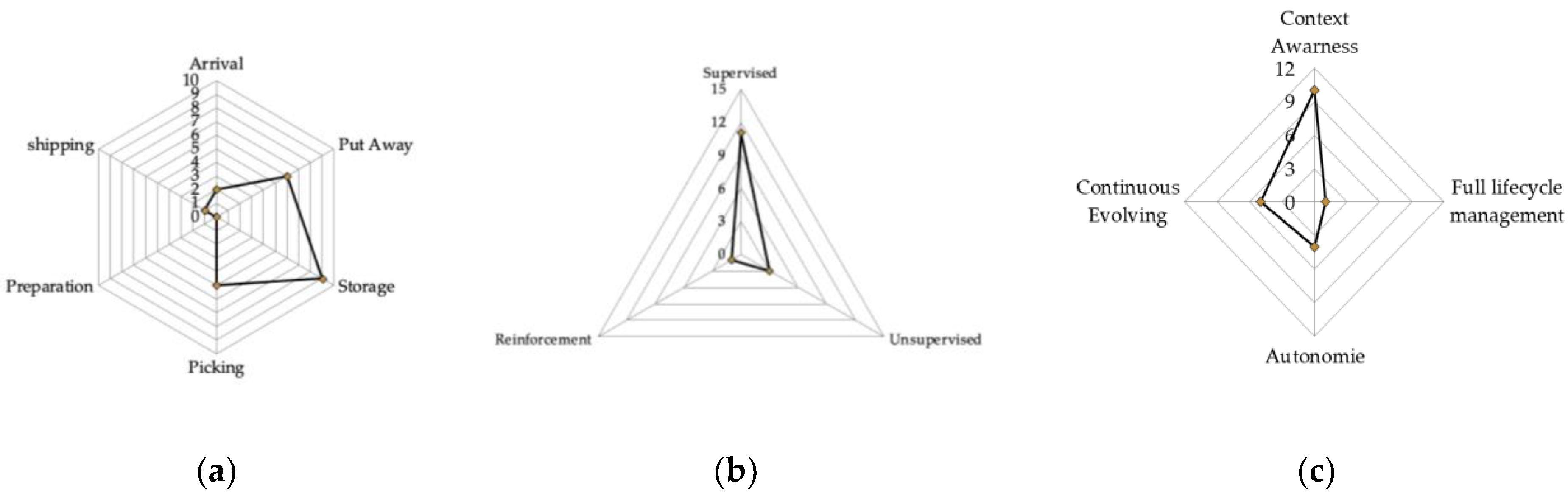

ML | Other AI Technics | Level of DT | DT Characteristics | Data Types | Data Source | Warehouse Activities | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SL | UL | RL | FL | GA | DM | DS | DT | CA | FLM | Auto | CE | Nature | ED | PD | HD | IS | IoT | Manuel Input | Arrival | Put Away | Storage | Picking | Preparation | Shipping | |
[30] | X | X | X | (X) | (X) | R | X | X | X | X | X | ||||||||||||||
[20] | X | (X) | (X) | ||||||||||||||||||||||
[35] | X | X | X | X | S | X | X | X | X | X | X | X | X | ||||||||||||
[36] | X | X | X | R | X | X | |||||||||||||||||||
[37] | X | X | (X) | R | X | X | X | X | X | ||||||||||||||||
[38] | X | (X) | X | S | X | X | |||||||||||||||||||
[31] | X | X | X | (X) | X | R | X | X | X | X | X | X | X | ||||||||||||
[28] | X | ||||||||||||||||||||||||
[27] | X | X | X | X | |||||||||||||||||||||
[39] | X | ||||||||||||||||||||||||
[32] | X | X | R | X | X | X | X | ||||||||||||||||||
[26] | X | X | R | X | X | X | X | X | X | ||||||||||||||||
[40] | X | (X) | R | X | X | X | X | ||||||||||||||||||
[41] | X | X | X | X | X | R | X | X | X | X | X | ||||||||||||||
[42] | X | X | X | (X) | X | X | R | X | X | X | X | X | X | ||||||||||||
[34] | X | X | X | X | X | R | X | X | X | X | |||||||||||||||
[33] | X | X | X | X | R | X | X | X | X | X | X | ||||||||||||||
[25] | X | X | X | X | S | X | X | X | X | X | X | ||||||||||||||
[43] | X | X | X | X | R | X | X | X | X | (X) | X | X | |||||||||||||
[44] | X | (X) | X | (X) | R | X | X | X | X | X | X | X | X | ||||||||||||
[45] | X | X | (X) | R/S | X | X | X | X | |||||||||||||||||
[46] | X | (X) | (X) | R | X | X | X | X |
5.1.2. Data
5.2. How Is AI Employed to Ensure and Elevate WDT Characteristics?
5.2.1. Context Awareness
5.2.2. Autonomy
5.2.3. Continuous Evolving
5.2.4. Full Lifecycle Management
6. Discussion and Further Research Perspectives
- Reconstruction: AI can be an important tool for the reconstruction process, creating and revisiting the virtual representation based on the raw data from the sensors.
- Application: Once the digital twin is reconstructed, another AI algorithm can be applied to the semantically rich representation of the digital twin to support the business goals.
7. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
