Experiment on Noise Reduction of a Wavy Cylinder with a Large Spanwise Wavelength and Large Aspect Ratio in Aeroacoustic Wind Tunnels
Abstract
:1. Introduction
2. Experimental Setup

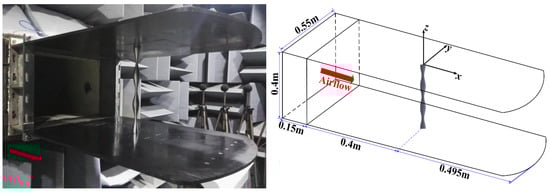

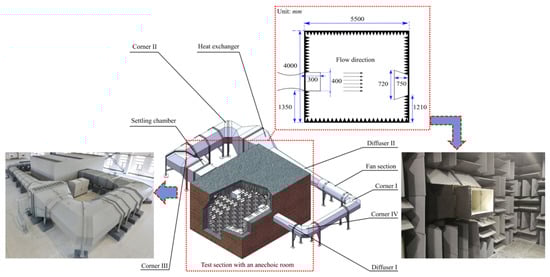

2.1. The 0.55 m × 0.4 m Aeroacoustic Wind Tunnel

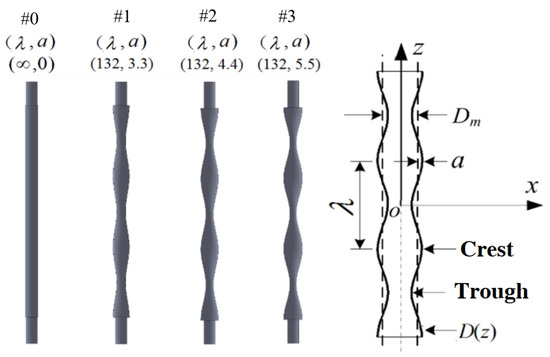

2.2. Experimental Model

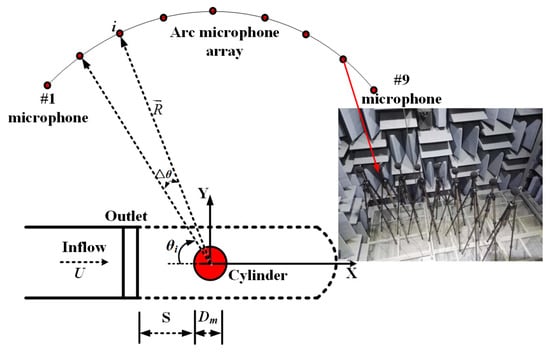

2.3. Noise Measurement
3. Experiment Results

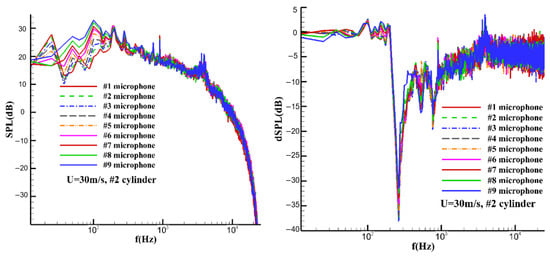

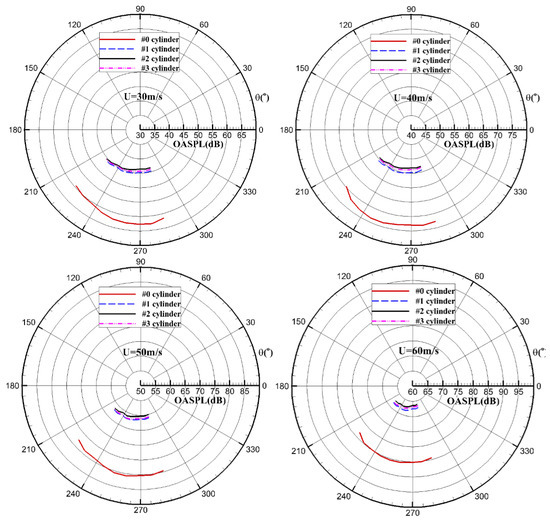

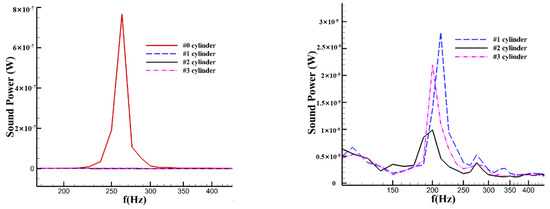

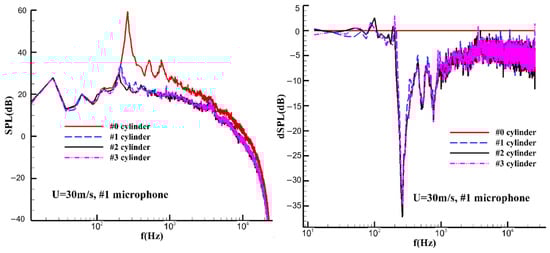

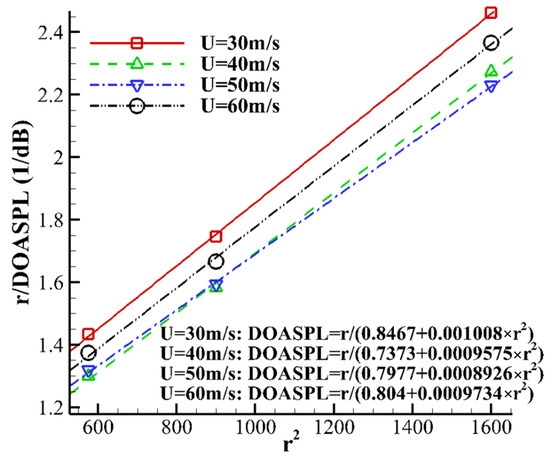

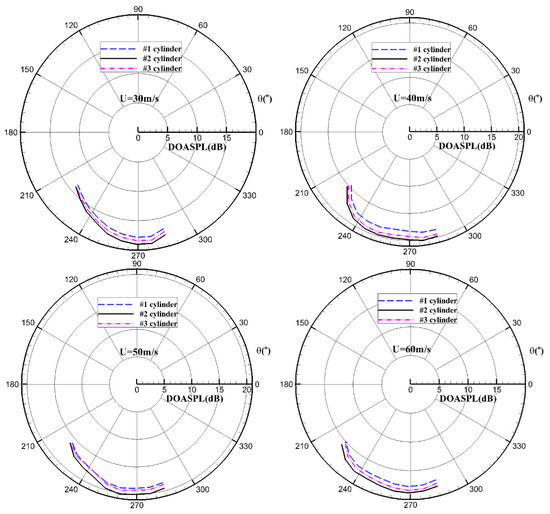

3.1. Effect of the Aspect Ratio

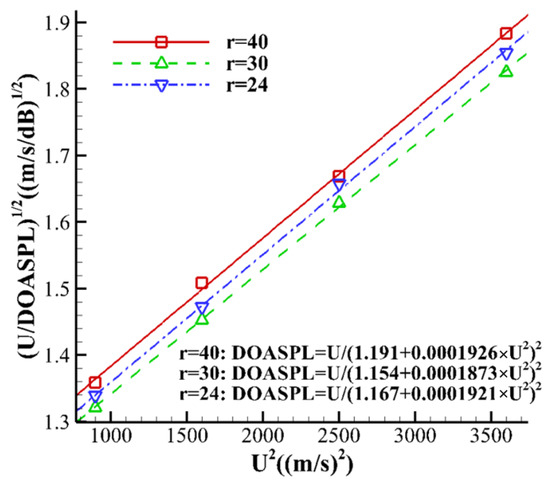

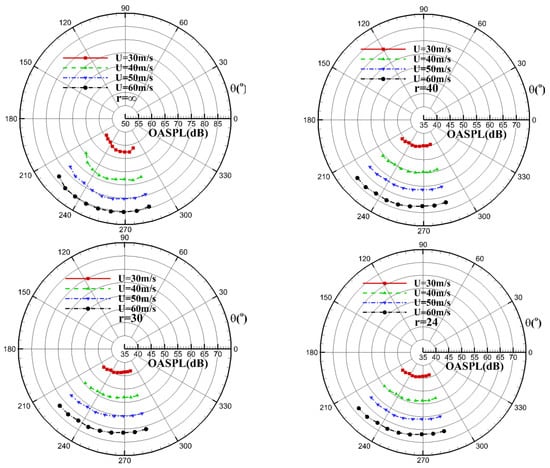

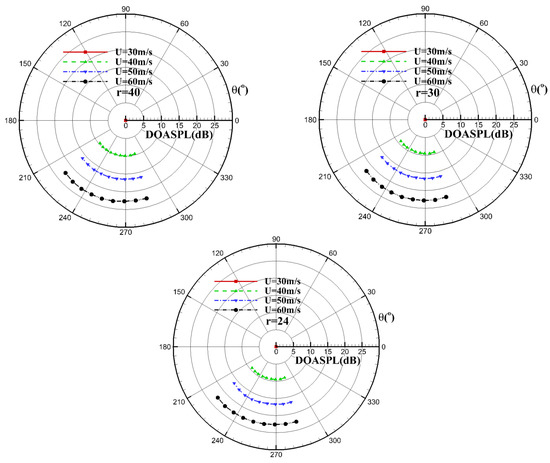

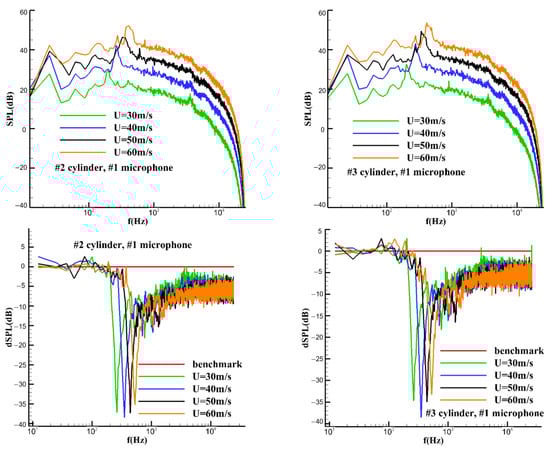

3.2. Effect of Airflow Speed
4. Numerical Simulation

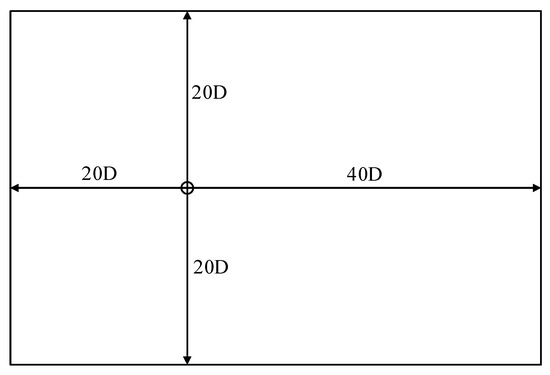

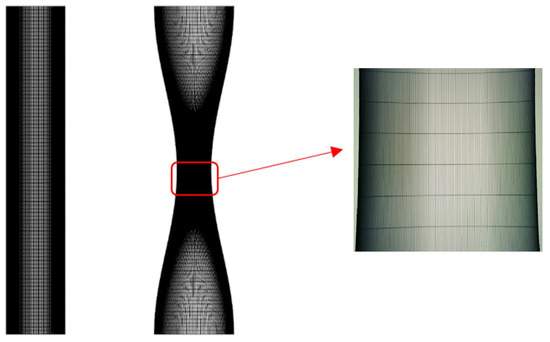

4.1. Numerical Simulation Method and Set-Up

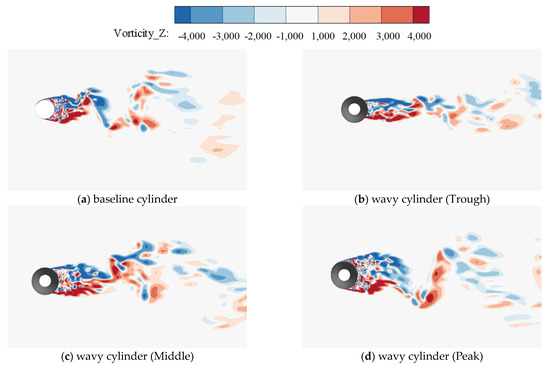

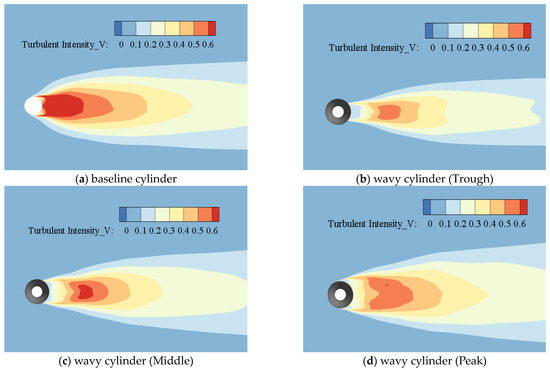

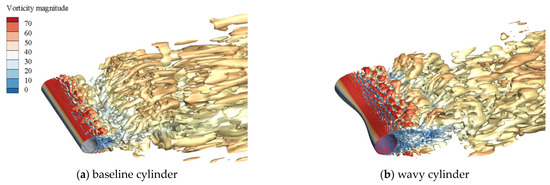

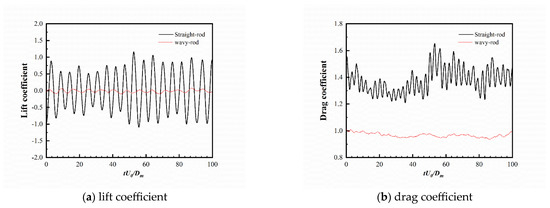

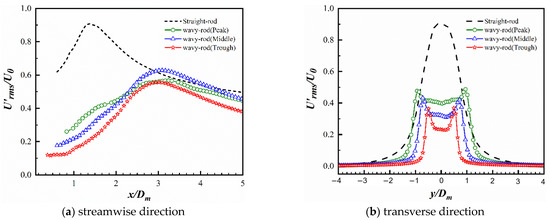

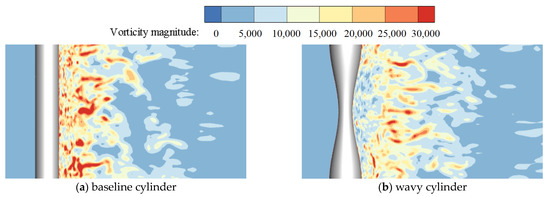

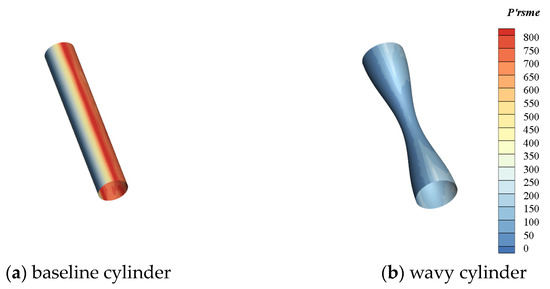

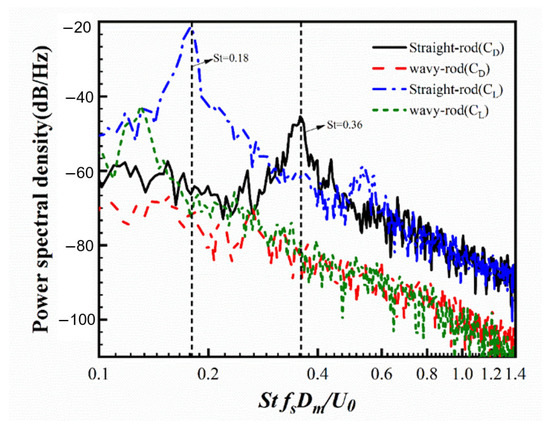

4.2. Mechanism Analysis on Noise Reduction
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
Nomenclature
SPL | Sound pressure level (dB) |
PWL | Sound power level (dB) |
dSPL | Increment in sound pressure level between the wavy cylinder and the baseline cylinder (dB) |
dPWL | Increment in sound power level between the wavy cylinder and the baseline cylinder (dB) |
OASPL | Overall sound pressure level (dB) |
DOASPL | Difference in OASPL between the wavy cylinder and the baseline cylinder (dB) |
Dm | Mean diameter of the wavy cylinder (mm) |
L | Span length of the cylinder (mm) |
ReD | Reynolds number calculated based on the mean diameter Dm |
U | Airflow speed (m/s) |
θi | Included angle between the microphone and airflow direction (°) |
Δθ | Included angle between adjacent microphones (°) |
φ | Far-field sound pressure spectrum density |
P0 | Reference sound pressure (Pa), 2 × 10−5 Pa |
W0 | Reference sound power (W), 1 × 10−12 W |
W | Integrated sound power (W) |
R | Radius of the arc microphone array (m) |
c0 | Sound speed (m/s) |
f | Frequency (1/s) |
St | Strouhal number |
λ | Wavelength of a period wave on the wavy cylinder (mm) |
a | Amplitude of a period wave on the wavy cylinder (mm) |
r | Aspect ratio of wavelength and amplitude of a period wave on the wavy cylinder |
