Thermal Catalytic Decomposition of Dimethyl Methyl Phosphonate Using CuO-CeO₂/γ-Al₂O₃

Abstract

Chemical warfare agents (CWAs) are highly toxic and fast-acting and are easy to cause large-scale poisoning to humans and livestock after being released. The activated carbon used for CWAs adsorption has disadvantages of limited adsorption capacity, easy aging and deactivation. Metal oxides have environmental stability, and they are characterized by long lasting and broad spectrum when used for thermal catalytic decomposition. Therefore, in this study, the supported copper–cerium catalyst CuO-CeO₂/γ-Al₂O₃ was prepared using an equal volume impregnation method. The thermal catalytic decomposition performance was studied using sarin CWAs simulant dimethyl methyl phosphonate (DMMP) as the target compound. The results show that the CuO-CeO₂/γ-Al₂O₃ catalyst with a CeO₂ loading of 5% exhibited better thermal catalytic decomposition performance of DMMP. The catalyst provided protection against DMMP for 237 min at 350 °C; CuO was highly dispersed on CuO-5% CeO₂/γ-Al₂O₃, and there was a strong interaction between Cu and Ce on CuO-5% CeO₂/γ-Al₂O₃, which promoted the generation of surface-adsorbed oxygen, leading to a better thermal catalytic decomposition performance of DMMP. This study is expected to provide a reference for the study of catalysts for the thermal catalytic decomposition of CWAs.

1. Introduction

Chromium-free impregnated carbon adsorption technology is the preferred method for protection of chemical warfare agents (CWAs). However, it has disadvantages, such as short protection time, narrow protection spectrum, and easy aging and inactivation. To this end, further research on and development of alternative technologies is required. Thermal catalytic purification is one of the most commonly used technologies for the treatment of volatile organic pollutants [1,2]; it can also be used for the removal of CWAs. The technology can be used to convert poisonous molecules into non-toxic or low-toxicity small molecules through catalysis, and has a broad spectrum, long-lasting effects, and broad application prospects for chemical protection.

Long-term research has been conducted on catalysts for the thermal catalytic decomposition of CWAs. Pt catalysts are the most widely studied catalysts. Numerous reports have shown that Pt catalysts have the advantages of high catalytic oxidation activity and long protection time [3,4,5,6]; however, they are prone to chemical poisoning and are difficult to regenerate after deactivation. In addition, Pt catalysts have limitations, such as high prices and scarcity of reserves [7]; therefore, the discovery of other catalysts that can achieve long-term protection against poisonous vapors is necessary. Recently, research on supported metal oxide catalysts for the thermal catalytic decomposition of CWAs has progressed [8,9,10,11]. Cu catalysts have considerable potential in such cases. For example, Wang et al. [12] reported the thermal catalytic decomposition performance of HCN CWAs by metal oxide catalysts (Mn, Fe, Co, Ni, and Cu) supported by activated carbon, and activated carbon-supported CuO had superior performance, with a conversion of HCN exceeding 96% between 200 and 350 °C. Cao et al. [6] demonstrated that CuO/γ-Al₂O₃ can achieve complete conversion of dimethyl methyl phosphonate (DMMP) at 400 °C with a protection time as long as 7.5 h. However, the supported single-component CuO catalysts reported to date do not meet the requirements for protective applications, and their thermal catalytic decomposition performance requires further improvement. Recently, Chen et al. [13] reported the complete decomposition of DMMP is achieved based on crystalline ceria films under vacuum heating. Furthermore, CeO₂ can influence the charge transfer between catalyst components through the conversion of Ce³⁺/Ce⁴⁺ and is often used as a catalyst promoter or carrier to improve the oxygen storage capacity of catalysts [14,15,16]. Therefore, it is worthwhile to prepare CuO-CeO₂/γ-Al₂O₃ catalyst and investigate the effect of CeO₂ loadings on thermal catalytic decomposition of CWAs.

Herein, CuO/γ-Al₂O₃ and CuO-CeO₂/γ-Al₂O₃ with different CeO₂ loadings were prepared to investigate whether the addition of CeO₂ could improve the thermal catalytic decomposition performance of the catalyst, and the mechanism of the catalyst was studied. The sarin simulant DMMP was selected as the target for catalytic decomposition. CuO/γ-Al₂O₃ and CuO-CeO₂/γ-Al₂O₃ with different CeO₂ loadings were prepared using an equal volume impregnation method, and their thermal catalytic decomposition of DMMP was investigated. The crystal structure, pore distribution, chemical state, and interaction of the active components were studied using X-ray powder diffraction (XRD), N₂ adsorption, X-ray photoelectron spectroscopy (XPS), and hydrogen temperature-programmed reduction (H₂-TPR). This study provides a reference for the development of high-performance catalysts for the thermal catalytic decomposition of CWAs. Moreover, this study is of great significance for the decontamination of pollutants in the fields of national defense security and environmental protection, and the as-prepared materials have potential application value in decontamination of CWAs.

2. Materials and Methods

2.1. Materials

The active component precursors used in catalyst preparation were analytically pure cerium nitrate hexahydrate (Ce(NO₃)₃·6H₂O, Aladdin Reagent Co., Ltd., Shanghai, China), analytically pure copper nitrate trihydrate (Cu(NO₃)₂·3H₂O, Beijing Chemical Factory, Beijing, China), and analytically pure γ-alumina powder (γ-Al₂O₃, Aladdin Reagent Co., Ltd., particle diameter = ~20 nm).

2.2. Synthesis of Catalysts

The CuO-CeO₂/γ-Al₂O₃ catalyst was prepared using the equal volume impregnation method. First, the water absorption rate of γ-Al₂O₃ was measured, and the concentrations of copper nitrate and cerium nitrate in the mixed impregnation solution were calculated according to the water absorption rate of γ-Al₂O₃ and the CuO and CeO₂ content to be supported. A mixed solution of the corresponding concentration was prepared, and a certain volume of the mixed solution was immersed in the corresponding mass of γ-Al₂O₃ powder, stirred rapidly for 15 min, and then aged for 24 h in air. After drying at 110 °C for 10 h, the obtained block material was ground into powder and calcined at 550 °C for 5 h. The obtained catalyst was denoted CuO-X CeO₂/γ-Al₂O₃, where X represents the mass percentage of CeO₂.

In addition, CuO/γ-Al₂O₃ was prepared using the same impregnation method for comparison. The concentrations of copper nitrate in the mixed impregnation solution were calculated according to the water absorption rate of γ-Al₂O₃ and the CuO content to be supported. A certain volume of copper nitrate solution was immersed in the corresponding mass of γ-Al₂O₃ powder, stirred rapidly for 15 min, and then aged for 24 h in air. After drying at 110 °C for 10 h, the obtained block material was ground into powder and calcined at 550 °C for 5 h. The obtained catalyst was denoted CuO/γ-Al₂O₃. Preliminary experimental studies demonstrated that when the CuO loading is 5%, the thermal catalytic decomposition of DMMP by CuO/γ-Al₂O₃ is enhanced [17]. Therefore, the loading of both CuO in CuO/γ-Al₂O₃ and CuO-CeO₂/γ-Al₂O₃ was 5%.

2.3. Catalyst Characterization Methods

The phase structure of the catalyst was characterized using a SmartLab X-ray powder diffractometer from Rigaku Corporation, Saitama, Japan (Cu target, Kα ray, λ = 0.15418 nm, tube flow 40 mA). The scanning speed was set to 6°/min and the scanning range (2θ) was between 5° and 80° with a scan step size of 0.02°.

The N₂ adsorption isotherm was measured using a NOVA 4200e automatic specific surface analyzer (Quantachrome Instruments, Boynton Beach, FL, USA) at 77 K. The specific surface area of the material was obtained using the the Brunauer–Emmett–Teller (BET) model, and the mesopore distribution of the material was obtained using the Barret–Joyner–Halend (BJH) method.

The surface elements and corresponding chemical valence states of the samples were analyzed using an AXIS Ultra DLD X-ray photoelectron spectrometer (XPS) from (Shimadzu Corporation, Kyoto, Japan). The incident light was an Al Kα ray, and the spectrum was corrected using the binding energy of C1s (284.8 eV) as a reference. The XPS data was analyzed using the Avantage software. All peaks of the corrected spectra were fitted with a Gaussian–Lorentzian shape function to fit the data.

The temperature-programmed reduction of H₂ was carried out using a CATLAB catalytic microreactor (Hiden Company, Warrington, UK). A 100 mg sample was weighed and pretreated in an He atmosphere at 300 °C for 3 h to remove absorbed water from the catalyst surface. After the temperature dropped to 50 °C, 5 vol% H₂/Ar mixed gas was introduced, the gas flow rate was maintained at 30 mL/min, the heating rate was 10 °C/min, and the temperature range was 50–650 °C. The H₂ signal was measured using a HPR-20 mass spectrometer (HIDEN Company, Warrington, UK).

2.4. Evaluation of Catalyst Performance

In this study, the thermal catalytic decomposition of DMMP was evaluated using protection time as a criterion. Protection time usually refers to the duration required for the complete conversion of a target object [8]. To mitigate potential errors, protection time is considered to be the duration from the beginning of the reaction to the conversion below 99%. The performance of the catalyst was evaluated using a thermocatalytic fixed-bed reactor, and the experimental setup is shown in Figure 1. Prior to testing, the catalyst powder was tableted, crushed, and sieved. The catalyst particles (0.3 g of 20–40 mesh) were weighed, loaded into the reactor, and fixed with quartz wool. The reactor temperature was set to 350 °C. A dried-air carrier gas of 100 mL·min⁻¹ was bubbled through a flask of DMMP at 30 °C to generate a DMMP vapor of 4 g·m⁻³. The concentration of DMMP in the exhaust gas was determined using gas chromatography (Agilent 6890N) with a DB-1701 column and an FID detector. The conversion is calculated using the following formula:

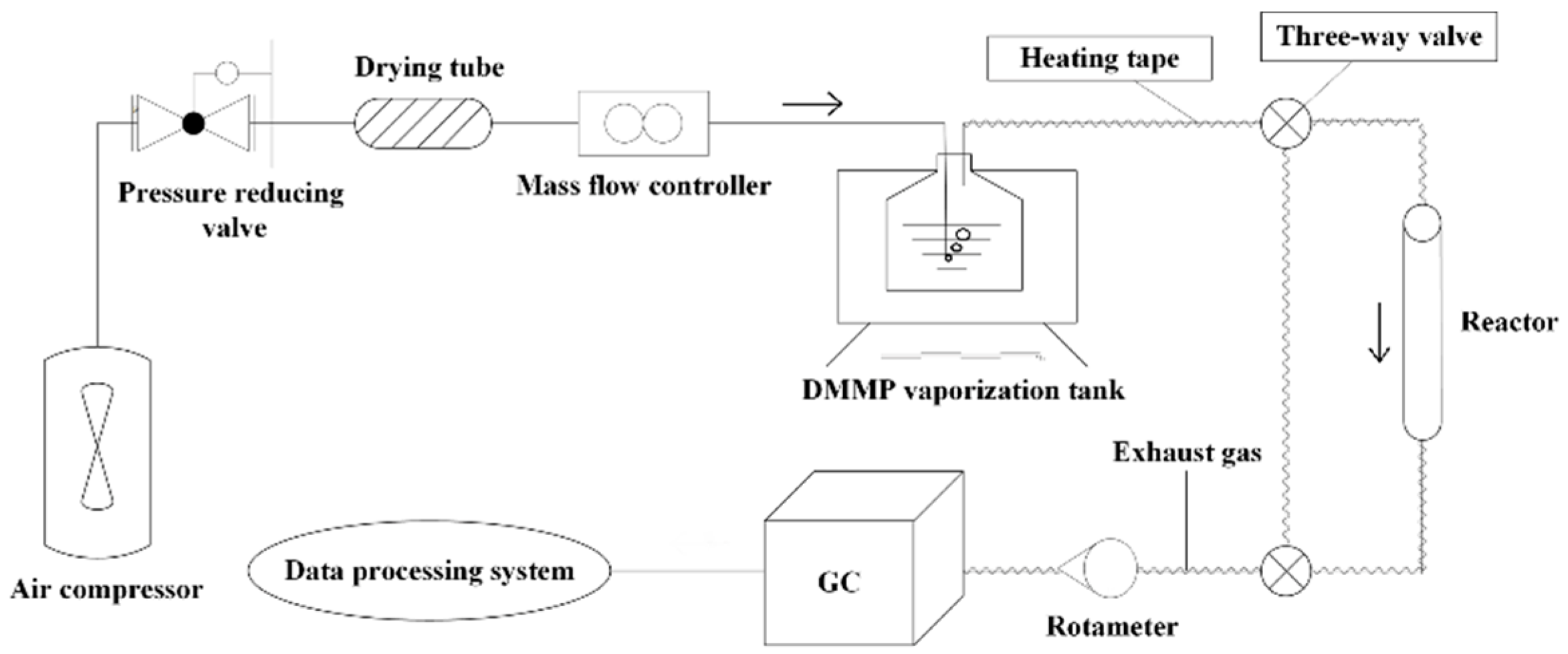

$$\mathrm{Conv}.\%=\left(1-\frac{{\mathrm{c}}_{\mathrm{out}}}{{\mathrm{c}}_{\mathrm{in}}}\right)\times 100\%$$

(1)

where C_out represents the concentration of DMMP in the exhaust, C_in represents the concentration of DMMP created by bubbling.

3. Results and Discussion

3.1. Thermal Catalytic Decomposition of DMMP by CuO-CeO₂/γ-Al₂O₃

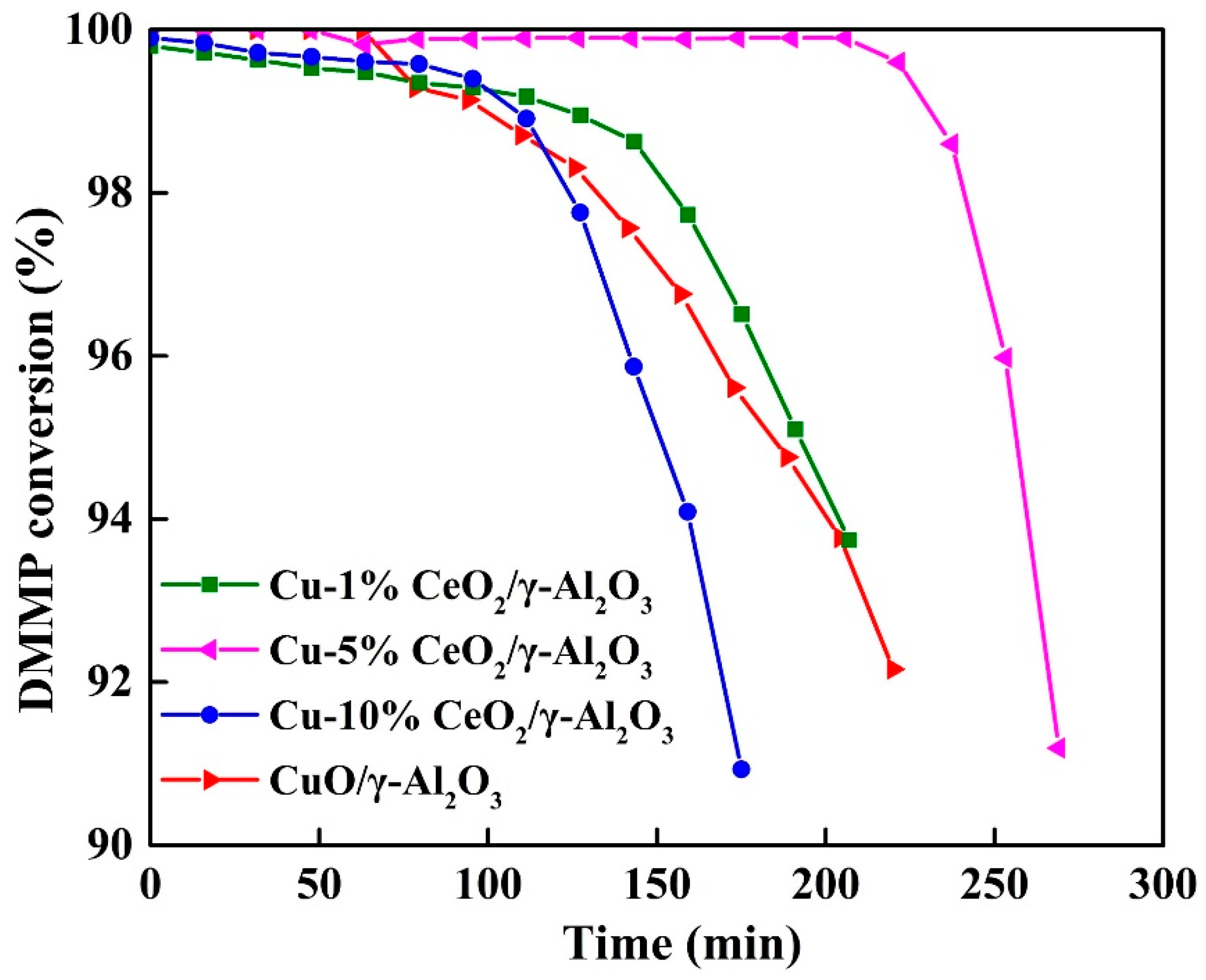

Figure 2 shows the DMMP conversion of CuO/γ-Al₂O₃ and CuO-CeO₂/γ-Al₂O₃ as a function of the reaction time. The protection time decreased in the following order: CuO-5% CeO₂/γ-Al₂O₃ (237 min) > CuO-1% CeO₂/γ-Al₂O₃ (127 min) > CuO-10% CeO₂/γ-Al₂O₃ (112 min) > CuO/γ-Al₂O₃ (110 min). Only the catalytic performance of CuO-5% CeO₂/γ-Al₂O₃ was significantly improved relative to that of CuO/γ-Al₂O₃, indicating that the thermal catalytic decomposition performance of the catalyst can be manipulated using the CeO₂ loading. Therefore, good catalytic performance of CuO-5% CeO₂/γ-Al₂O₃ is attributable to the interactions between the components. CeO₂ affects the chemical state and redox activity of the Cu component and improves the catalytic performance for the thermal decomposition of DMMP. A comparison of protection time on various catalysts reported in literatures is shown in

Table 1. A comparison of protection time on various catalysts.

Catalyst	Reaction Condition	Protection Time	Reference
0.5%Pt-Al2O3	299 °C, DMMP concentration 3.5 g/m3, flow rate 8.85 L/min	8 h	Graven et al. [18]
Cu2-HA	400 °C, DMMP concentration 3.58 g/m3, flow rate 100 mL/min	7.5 h	Lee et al. [19]
1.6%Pt-TiO2	300 °C, DMMP concentration 3.58 g/m3, flow rate 100 mL/min	8 h
10% V/Al2O3	400 °C, DMMP concentration 1300 ppm, flow rate 50 mL/min	12.5 h	Cao et al. [8]
1% Pt/Al2O3		8.5 h
10% Cu/Al2O3		7.5 h
Al2O3		4.0 h
10% Fe/Al2O3		3.5 h
10% Ni/Al2O3		1.5 h
10% V/SiO2		25 h
CuO/γ-Al2O3	350 °C, DMMP concentration 4.0 g/m3, flow rate 100 mL/min	1.8 h	This work
CuO-1% CeO2/γ-Al2O3		2.1 h
CuO-5% CeO2/γ-Al2O3		3.9 h
CuO-10% CeO2/γ-Al2O3		1.8 h

.

3.2. Phase Analysis of CuO-CeO₂/γ-Al₂O₃

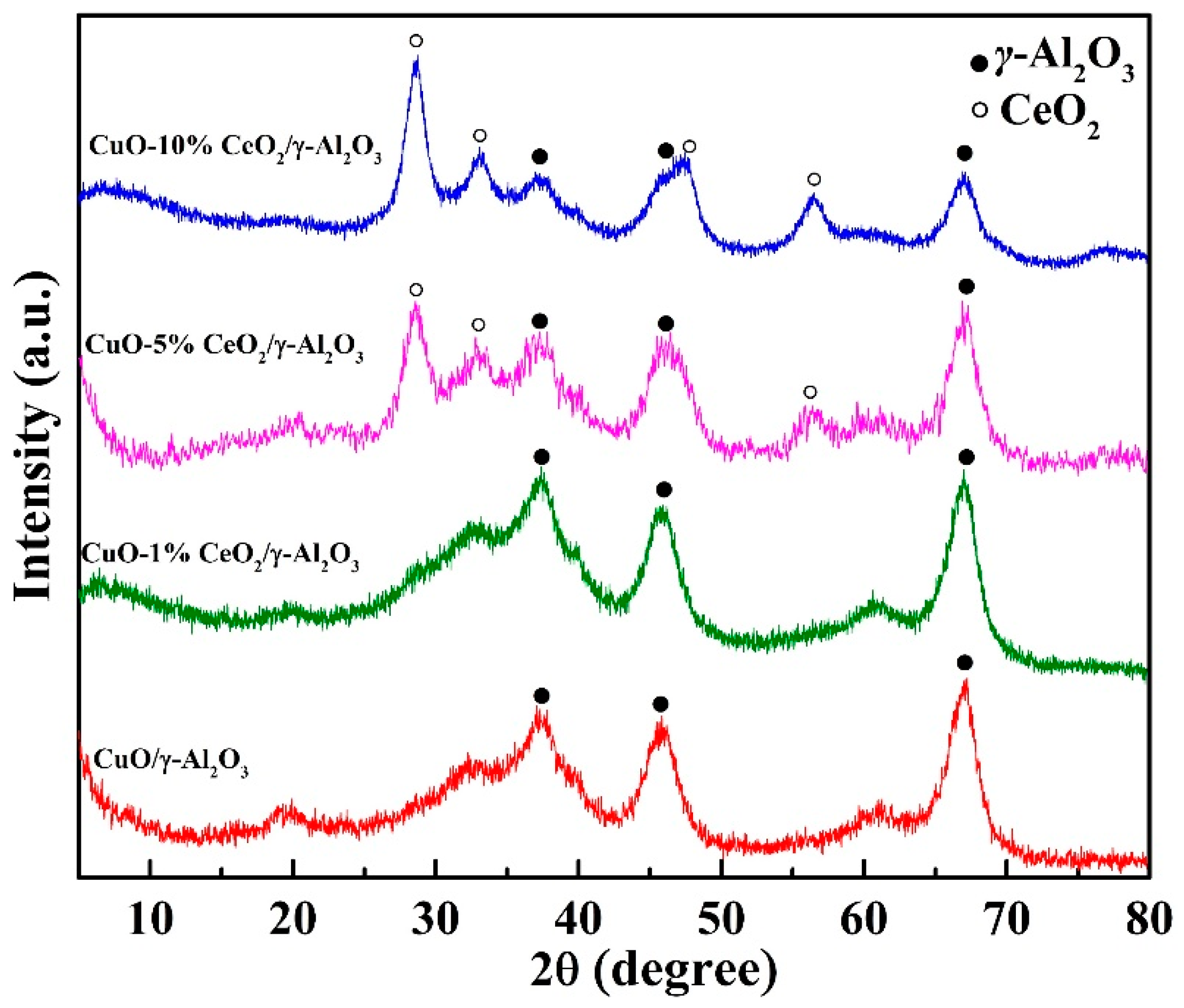

Figure 3 shows the XRD results for the catalyst. The CeO₂ and CuO diffraction patterns match the characteristic peaks of the fluorite structure of CeO₂ (PDF# 75-0151) and the monoclinic structure of CuO (PDF# 80-1916), respectively. There were no diffraction peaks for the CuO on the CuO/γ-Al₂O₃ and CuO-CeO₂/γ-Al₂O₃ catalysts. A study by Xia et al. [20] demonstrated that the capacity of CuO dispersed in the monolayer on the surface of γ-Al₂O₃ is 0.75 mmol/100 m² Al₂O₃; in the highly dispersed state, Cu²⁺ occupies octahedral and tetrahedral vacancies on γ-Al₂O₃. Related studies by Wan et al. [21] reveal that when the Cu loading is less than 0.6 mmol/100 m² Al₂O₃, CuO is highly dispersed on the surface of γ-Al₂O₃ and no crystalline CuO are formed. For the CuO/γ-Al₂O₃ and CuO-CeO₂/γ-Al₂O₃ prepared in this experiment, the Cu loading is 0.35 mmol/100 m² Al₂O₃, which is within the range described in the literature. Therefore, the high dispersion of CuO components on the surface of γ-Al₂O₃ explains the absence of CuO diffraction peaks in the three catalysts spectra.

There were no diffraction signals for the Ce component of CuO-1% CeO₂/γ-Al₂O₃. CuO-5% CeO₂/γ-Al₂O₃ shows characteristic diffraction peaks of CeO₂ crystals at 28.5°, 33.1°, and 56.3° (PDF# 75-0151). The CeO₂ diffraction peaks for CuO-10% CeO₂/γ-Al₂O₃ have greater intensity, and the peak widths at half height are smaller, indicating the formation of larger CeO₂ grains. There is no diffraction signal for the Ce component of CuO-1% CeO₂/γ-Al₂O₃, because the Ce component is also a highly dispersed amorphous species, whereas there is a CeO₂ crystal on the CuO-5% CeO₂/γ-Al₂O₃ grain. When considered in combination with the performance evaluation results, CuO-1% CeO₂/γ-Al₂O₃ did not demonstrate significantly better thermal catalytic decomposition of DMMP than CuO/γ-Al₂O₃, whereas CuO-5% CeO₂/γ-Al₂O₃ performed significantly better. These results indicate that the key to improving the catalyst performance maybe the size of the CeO₂ grains, rather than the highly dispersed Ce species. This may be due to the catalysis of the specific crystal plane of CeO₂ or the Cu component entering the crystal lattice of CeO₂ as a dopant atom, resulting in an increase in the number of oxygen defects [22,23]. In addition, the grain size of CeO₂ in the CuO-10% CeO₂/γ-Al₂O₃ catalyst was larger than that of CeO₂ on CuO-5% CeO₂/γ-Al₂O₃. However, the thermal catalytic decomposition performance of CuO-10% CeO₂/γ-Al₂O₃ was relatively limited. Therefore, the size of the CeO₂ grains is one of the essential considerations for the successful development of catalysts for thermal catalytic decomposition [24].

3.3. Pore Structure Analysis of CuO-CeO₂/γ-Al₂O₃

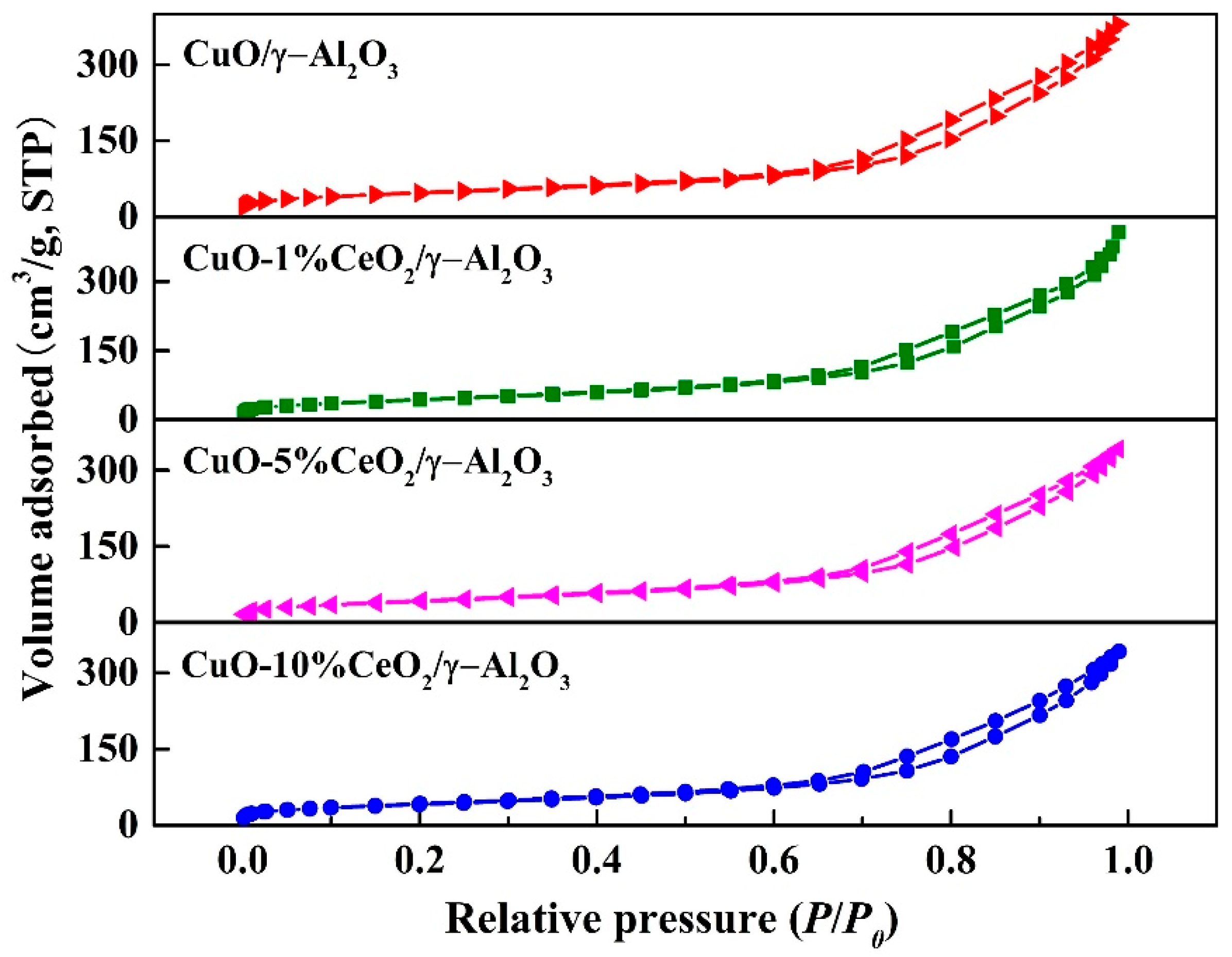

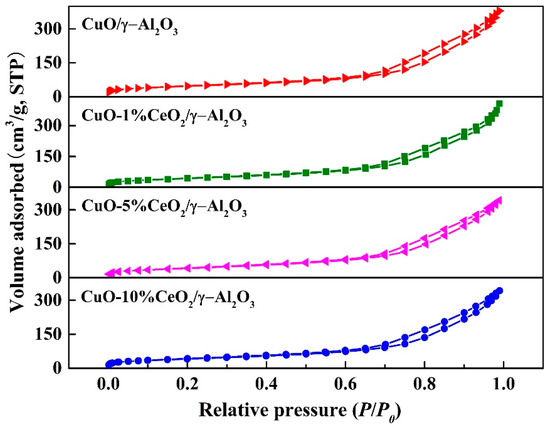

Figure 4 shows the N₂ adsorption and desorption isotherms of the catalysts. The adsorption and desorption isotherms of the four catalysts were all type III [25]. When the relative pressure (P/P₀) was low, the adsorption and desorption curves of the catalysts overlapped. When the relative pressure (P/P₀) was high, the adsorption–desorption curves had a hysteresis loop. This indicates that the pore structure in each catalyst results from the slit-like pores formed by the accumulation of loose flaky particles. In addition, when the relative pressure (P/P₀) was close to 1, the adsorption isotherm did not reach equilibrium, confirming the existence of a slit-like pore structure in the catalyst.

Table 2. Specific surface area and pore structure data of CuO/γ-Al₂O₃ and CuO-CeO₂/γ-Al₂O₃.

Sample	BET Surface Area (m2/g)	Mean Pore Size (nm)	Pore Volume (cm3/g)
CuO/γ-Al2O3	167	7.79	0.601
CuO-1% CeO2/γ-Al2O3	157	7.76	0.650
CuO-5% CeO2/γ-Al2O3	153	7.78	0.546
CuO-10% CeO2/γ-Al2O3	148	7.81	0.544

shows the specific surface area, pore diameter, and pore volume of CuO/γ-Al₂O₃ and CuO-CeO₂/γ-Al₂O₃. The specific surface area and pore volume of the catalysts decreased with increasing Ce loading. In addition, the mean pore size of CuO-CeO₂/γ-Al₂O₃ was similar to that of CuO/γ-Al₂O₃. The experimental results show that the CeO₂ loading does not have a significant effect on the pore size of the catalyst.

3.4. H₂-TPR Analysis of CuO-CeO₂/γ-Al₂O₃

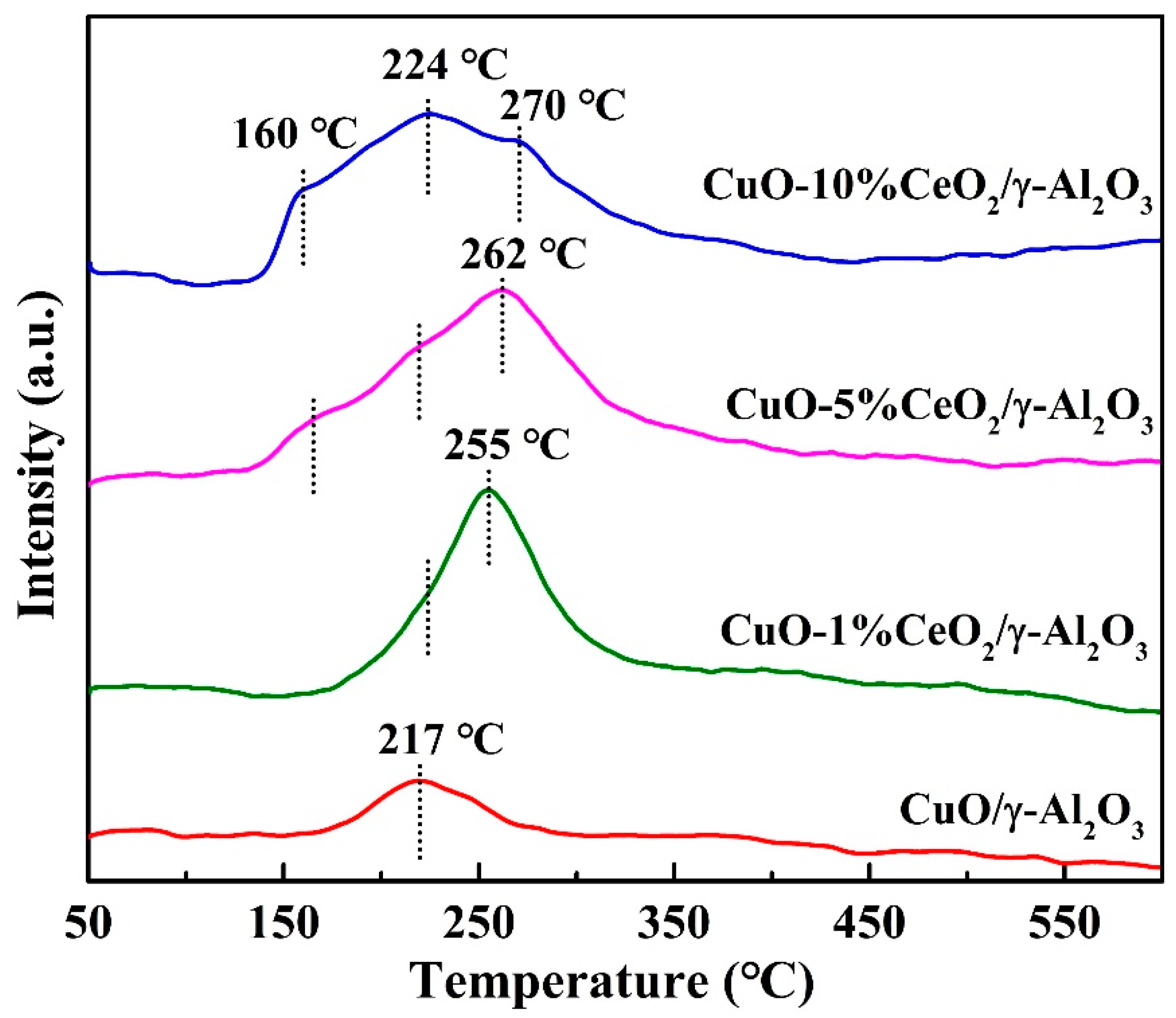

Figure 5 shows the H₂-TPR spectra of CuO/γ-Al₂O₃ and CuO-CeO₂/γ-Al₂O₃. As the reduction temperature of CeO₂ is higher than 400 °C [14], the reduction peaks shown in the figure are all reduction signals of the Cu component. The reduction peak temperatures of CuO/γ-Al₂O₃, CuO-1% CeO₂/γ-Al₂O₃, and CuO-5% CeO₂/γ-Al₂O₃ were 217, 255, 262, and 270 °C, respectively, which correspond to the reduction of Cu²⁺. According to the literature [26,27], when Cu²⁺ is doped into the lattice of CeO₂, a relatively stable system can be formed, resulting in an increase in the reduction temperature. The same phenomenon was observed in this experiment: the reduction temperature of CuO in CuO-CeO₂/γ-Al₂O₃ was higher than that in CuO/γ-Al₂O₃, and the reduction temperature of CuO increased with increasing CeO₂ content. The CuO-CeO₂/γ-Al₂O₃ catalysts show a strong reduction peak at approximately 220 °C. This peak was attributed to CuO, which was highly dispersed and weakly interacted with CeO₂. In addition, it is speculated that the reduction peak appears at 160 °C for the CuO-5% CeO₂/γ-Al₂O₃ and CuO-10% CeO₂/γ-Al₂O₃ catalysts is due to the electron transfer between the Cu and Ce components, and the Cu component that receives electrons can be reduced at a lower temperature. The new reduction peak appears at 160 °C for the CuO-5% CeO₂/γ-Al₂O₃ and CuO-10% CeO₂/γ-Al₂O₃ catalysts, suggesting that the loaded catalyst had more active oxygen. Evidently, the addition of CeO₂ improved the oxidation activity of CuO/γ-Al₂O₃ catalyst.

3.5. XPS Analysis of CuO-CeO₂/γ-Al₂O₃

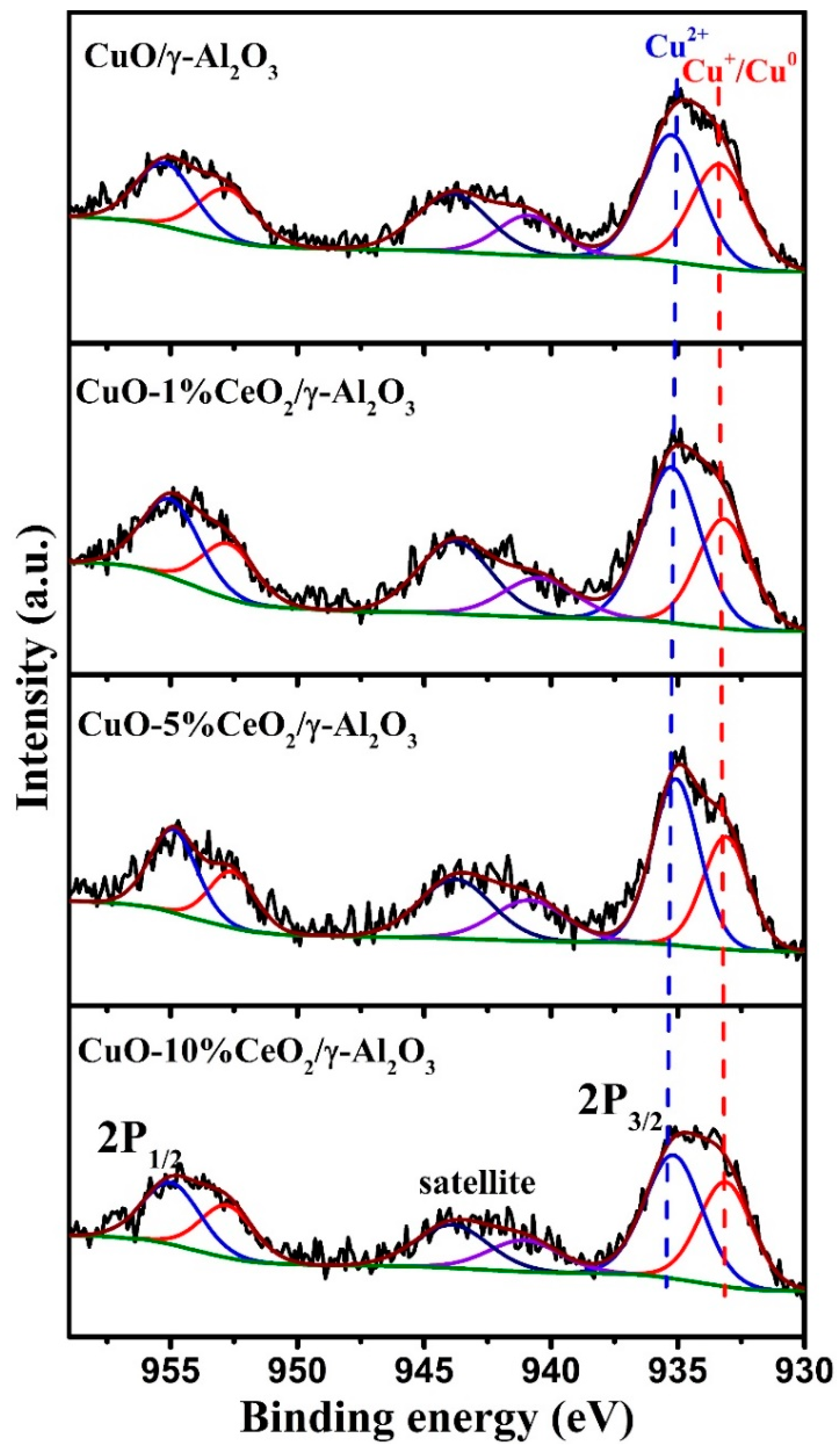

Figure 6 shows the Cu 2p XPS spectra of CuO/γ-Al₂O₃ and CuO-CeO₂/γ-Al₂O₃. CuO/γ-Al₂O₃ shows signals of Cu²⁺ at approximately 934.9 eV and Cu⁺ and/or Cu⁰ 932.6 eV, respectively [28,29]. The XPS spectra of CuO-1% CuO/γ-Al₂O₃ were similar to those of CuO/γ-Al₂O₃, indicating that the chemical states and electronic structures of the two catalysts were similar. When the CeO₂ content increased to 5% (CuO-5% CeO₂/γ-Al₂O₃) and 10% (CuO-10% CeO₂/γ-Al₂O₃), the XPS spectra revealed a significant change. This was a result of the doping of Cu into the CeO₂ lattice, which strengthened the interactions between Cu and Ce and promoted electron transfer between Cu and Ce. The reversible reactions Ce³⁺ + Cu²⁺ ↔ Ce⁴⁺ + Cu⁺ and 2Ce³⁺ + Cu²⁺ ↔ 2Ce⁴⁺ + Cu⁰ can occur on the surface of the CuO/CeO₂ catalyst [30,31,32]. As Zeng et al. reported [28], Cu⁺ is bonded on oxygen vacancy (O_v) of CeO₂, forming a Cu⁺–O_v–Ce³⁺ structure, which further enhanced the performance of the CuO/CeO₂ catalyst.

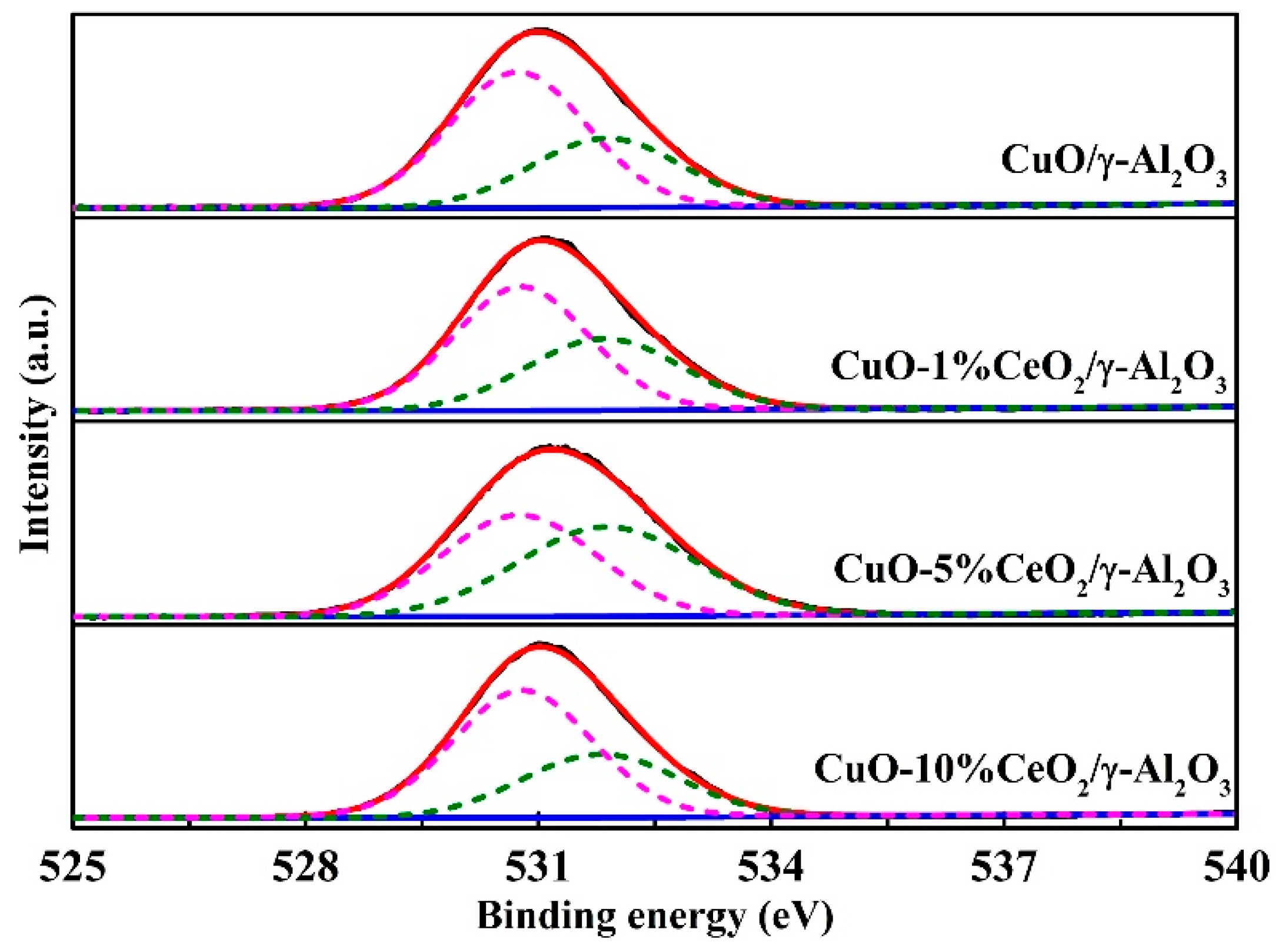

Figure 7 shows the O1s XPS spectra of CuO/γ-Al₂O₃ and CuO-CeO₂/γ-Al₂O₃. The oxygen species on the catalyst surface can be divided into two categories: (1) lattice oxygen (O_lat), which typically produces a binding energy peak at 529.0–531.0 eV; (2) surface adsorbed oxygen (O_ads), which includes chemically adsorbed oxygen, hydroxyl oxygen, and oxygen in adsorbed water, and produces a binding energy peak at 531.0–534.0 eV. Compared with lattice oxygen, surface-adsorbed oxygen has greater mobility and higher reactivity [14,33].

The O1s XPS spectra of the catalyst are fitted, and the ratio of surface-adsorbed oxygen and lattice oxygen to total surface oxygen species (O_ads/[O_ads + O_lat], O_Lat/[O_ads + O_lat]) were calculated in

Table 3. The various oxygen ratios of CuO/γ-Al₂O₃ and CuO-CeO₂/γ-Al₂O₃.

Catalyst	Oads/[Oads + Olat]	Olat/[Oads + Olat]
CuO/γ-Al2O3	0.35	0.65
CuO-1% CeO2/γ-Al2O3	0.39	0.61
CuO-5% CeO2/γ-Al2O3	0.50	0.50
CuO-10% CeO2/γ-Al2O3	0.35	0.65

. The results show that the ratio of surface-adsorbed oxygen on CuO-5% CeO₂/γ-Al₂O₃ is the highest, at 0.50; CuO-1% CeO₂/γ-Al₂O₃ has the second highest, at 0.39, and the surface adsorption oxygen ratios of CuO-10% CeO₂/γ-Al₂O₃ and CuO/γ-Al₂O₃ are both 0.35. Considering these results together with the protection time, the thermal catalytic decomposition performances of the catalysts were consistent with the amount of surface-adsorbed oxygen.

4. Conclusions

In this study, CuO-CeO₂/γ-Al₂O₃ was prepared using an equal volume impregnation method. The CuO was highly dispersed on CuO/γ-Al₂O₃ and CuO-CeO₂/γ-Al₂O₃. The CeO₂ loading had minimal effect on the pore structure of the catalyst. The thermal catalytic decomposition performance of DMMP was studied by measuring the protection time. Compared with the other CuO/γ-Al₂O₃ and CuO-CeO₂/γ-Al₂O₃ catalysts tested, CuO-5% CeO₂/γ-Al₂O₃ exhibited the longest protection time (237 min at 350 °C). A strong interaction between Cu and Ce was evident in the case of the CuO-CeO₂/γ-Al₂O₃ catalysts with 5% CeO₂. This interaction promotes the generation of more surface-adsorbed oxygen, which is favorable for the thermal catalytic decomposition of DMMP. This research provides a reference for the design and preparation of efficient CWAs removal catalysts.
