The Ameliorating Effect of Lizhong-Tang on Antibiotic-Associated Imbalance in the Gut Microbiota in Mouse

Abstract

Some herbal medicines have anti-inflammatory and anti-diarrheal effects. This study analyzed the modulating effect of gut microbiota of anti-inflammatory herbal medicines on antibiotic-associated diarrhea (AAD). The anti-inflammatory effects of 10 herbal medicines and Lizhong-tang active compounds were studied by measuring the nitric oxide production in an in vitro experiment. This was followed by an in vivo experiment in which the anti-diarrheal effects of Lizhong-tang and Magnolia officinalis in a lincomycin-induced AAD mouse model were measured. Changes in the intestinal microflora were observed using terminal restriction fragment length polymorphism analysis. Both Lizhong-tang and M. officinalis were effective against AAD, with Lizhong-tang’s anti-diarrheal effects being particularly effective. In addition, the active compounds of Lizhong-tang, liquiritin and 6-gingerol, inhibited the expression of inducible nitric oxide synthase and cyclooxygenase-2, thus showing an anti-inflammatory effect. Gut microbiota analysis showed that Lizhong-tang could alter the composition of the gut microbiota and ameliorated imbalance in the gut microbiota in a lincomycin-induced AAD mouse model.

1. Introduction

Intestinal microbes constitute a community of various bacterial phyla that influence the health of the human body by locally affecting nutrient absorption, metabolic immunity, and intestinal health [1]. The composition of the intestinal microflora is determined by changes in not only the environmental background of an individual’s lifestyle, such as the host’s diet, but also the genetic background and prevalent diseases, such as obesity, intestinal disease, autoimmune disease, and allergy [2]. Newborns are born with low levels of gut microbiome, and exposure to microbes, gradually through childbirth and lactation, leads to the formation of the gut microbiome. Therefore, infants have an incomplete gut microbiome. In addition, compared to adults, children have a weaker gastrointestinal immune system, resulting in frequent digestive system diseases [3,4,5,6]. Intestinal microbes influence the structure and function of the immune system of weak digestive organs by acting as a barrier in the gastrointestinal tract through the induction of the expression of proteins necessary to maintain the structure of the intestinal epithelial villi. Therefore, the diversity and settlement of intestinal microbes in children directly affects their health from infancy to adolescence, and gut microbes play an important long-term role in children [7,8].

Antibiotics are drugs used to treat bacterial infections by killing bacteria or inhibiting their growth. With the development of antibiotics, human mortality and life expectancy due to infectious diseases has improved; however, side effects such as antibiotic-resistant strains appearing due to the exploitation and overuse of antibiotics, reduced compliance with antibiotics, and diarrhea have also been observed [9,10,11,12]. Notably, according to the 2021 Organization for Economic Co-operation and Development (OECD), the domestic antibiotic use in Korea was 26.1 daily doses per 1000 inhabitants per day (DID), which was higher than the OECD average of 19.1 DID, and reportedly the third-highest among OECD countries [12]. The most common side effect of antibiotic use is antibiotic-associated diarrhea (AAD), which disrupts the intestinal microbial ecosystem and causes an imbalance in the intestinal microbiota, leading to symptoms of diarrhea.

An imbalance in the gut microbiome can exert negative health effects. Locally, it increases the sensitivity of the intestine and by affecting homeostasis, is also associated with diseases such as obesity (due to systemic metabolic disorders), allergies, and autoimmune diseases [13,14,15].

AAD, a major symptom during antibiotic treatment, is associated with intestinal microbiome imbalance, inflammation, and changes in intestinal structure. So, we confirmed the inflammation-related factors iNOS, NO, Cox-2, MAPKs, and NF-kB in Raw 264.7 cells, and observed changes in the intestinal microflora in animal experiments.

Herbal medicines contain small molecules that can be absorbed by the intestine. Herbal medicines can cause physiological changes in the body by affecting intestinal microflora [14]. Therefore, further studies have to investigate whether herbal medicine treatment can preserve and regulate the diversity of the intestinal microflora. Studies on antibiotics and herbal medicines related to intestinal microbes, such as Shen Ling Bai Zhu San [16], Qiweibaizhu [17], ginseng [18], and Schisandra chinensis [19], have already been conducted. In this present study, we investigated the effects of herbal medicines on the improving of antibiotic-mediated imbalance of intestinal microflora to evaluate the potential of Eastern medicine.

2. Materials and Methods

2.1. Plant Material

In this study, we tested 10 herbal medicines (3 prescription drugs and 7 plant-based herbal medicines). The prescriptions were Lizhong-tang, Osuyu-tang, and Oryeng-san. Lizhong-tang consists of Panax ginseng, Atractylodes lancea, Zingiber officinale Rosc, and Glycyrrhiza glabra; Osuyu-tang consists of osuyu, Zingiber officinale, Panax ginseng, and Ziziphus jujuba Mill; and Oryeong-san consists of Alisma canaliculatum, Poria cocos, Crepidiastrum platyphyllum, and Magnolia officinalis. The seven herbal medicines tested included Paeoniae radix, Atractylodes lancea, Coicis semen, Angelica dahurica, Cinamomum cassia, Saussurea lappa, and Magnolia officinalis. Herbal medicines were purchased from the Department of Pharmacy, Cheonan Oriental Medicine Hospital, Daejeon University, Korea. For the three prescriptions, the amount of medicinal ingredients was formulated according to the ratio of the existing medicinal ingredients, by referring to Bang-Yak-Hap-Pyun [20] and Donguibogam [21]. Lizhong-tang contained 24 g of Panax ginseng, 24 g of Atractylodes lancea, 24 g of Zingiber officinale Rosc, and 12 g of Glycyrrhiza glabra. Osuyu-tang contained 12 g of osuyu, 9 g of Atractylodes lancea, 6 g of Panax ginseng, and 4.5 g of Ziziphus jujuba Mill. Oryeong-san contained 30 g of Alisma canaliculatum, 18 g of Poria cocos and Atractylodes lancea, 18 g of Polyporus umbellatus, and 6 g of Cinamomum cassia. In total, 40 g of each of the seven herbal medicines was used. The medicinal material was extracted by boiling the herbs in 1000 mL of water at 100 °C for 150 min.

2.2. Isolation of Compounds

Based on the results of a quantitative analysis of the active compounds of Lizhong-tang [22], ginsenoside Rb1 and ginsenoside Rg1 from ginseng, 6-gingerol from Zingiber officinale Rosc, and liquiritin·glycyrrhizin from Glycyrrhiza glabra were selected as representative ingredients. Ginsenoside Rb1, ginsenoside Rg1, and liquiritin were isolated from Panax ginseng, while 6-gingerol and glycyrrhizin were supplied by the Natural Material Bank (NIKOM).

2.3. Cell Culture

The mouse macrophage cell line, RAW 264.7 (American Type Culture Collection, Rockville, MD, USA), was cultured in DMEM (Manassas, VA, USA) containing 4 mM L-glutamine, antibiotics (1% penicillin/streptomycin), and 10% fetal bovine serum, in a humidified air environment with 5% CO₂, at 37 °C.

2.4. Cell Viability Assay

RAW 264.7 cells were inoculated into 96-well plates at a density of 5 × 10⁴ cells/well for 24 h, and then treated with different concentrations of the samples. To evaluate the effect of the samples on the viability of RAW 264.7 cells, after 24 h of incubation, the cells were tested using a 10% Ez-Cytox Cell Viability Assay Kit (Daeil Lab Service, Seoul, Korea). Cell viability was evaluated by measuring the optical density (OD) at a wavelength of 450 nm using a microplate spectrophotometer (PowerWave™ XS, Bio-Tek Instruments, Winooski, VT, USA).

2.5. Western Blot Analysis

RAW 264.7 cells were seeded into 6-well plates at a density of 1 × 10⁶ cells/well. After incubation for 24 h, the cells were treated with samples in the treatment medium, as described previously. After 20 h of treatment with lipopolysaccharide (LPS), the cells were washed with Dulbecco’s phosphate-buffered saline (Welgene Inc., Daegu, Korea). Subsequently, the cells were harvested and lysed in 1× radioimmunoprecipitation assay buffer (Tech & Innovation, Gangwon, Korea) supplemented with a proteinase inhibitor cocktail (Roche Diagnostics, Basel, Switzerland) to obtain whole-cell extracts. Proteins in the cell extracts of each sample were quantified using a Pierce BCA Protein Assay Kit (Thermo Fisher Scientific, Waltham, MA, USA). Equal amounts of proteins (20 µg/lane) were separated using 10% sodium dodecyl sulfate-polyacrylamide gel electrophoresis and transferred onto polyvinylidene difluoride membranes. The membranes were then blocked with 5% skim milk in Tris-buffered saline (1×) for 1 h, following which the separated proteins were identified through incubation with epitope-specific primary and secondary antibodies (Cell Signaling Technology, Danvers, MA, USA). The membranes were visualized using SuperSignal™ West Femto Maximum Sensitivity Substrate (Thermo Fisher Scientific, Waltham, MA, USA) and imaged using a FUSION Solo Chemiluminescence System (Vilber Lourmat Deutschland GmbH, Eberhardzell, Germany).

2.6. In Vivo AAD Model Generation and Treatment Experiments

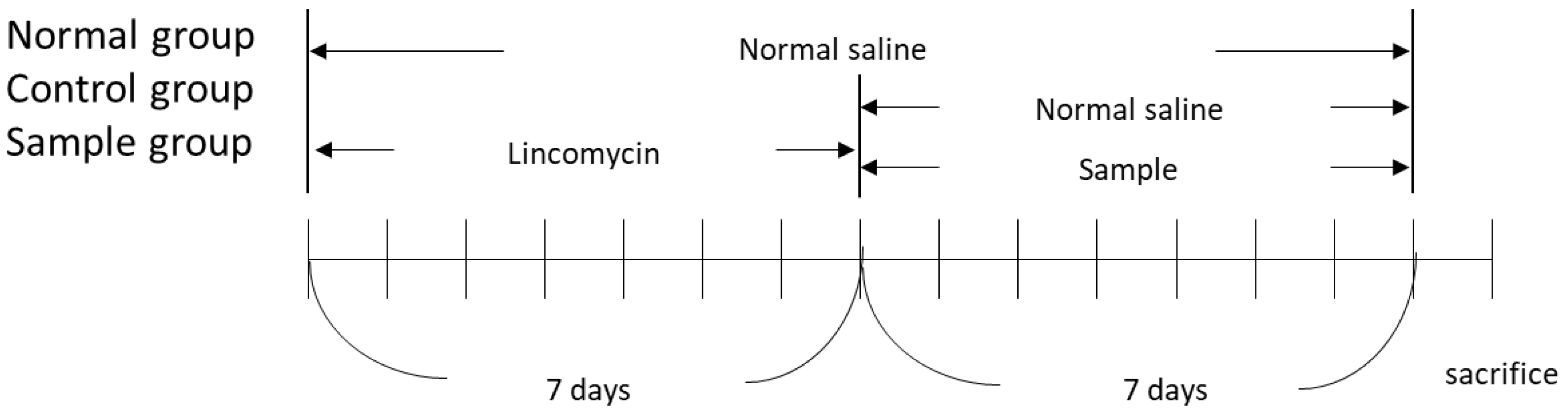

The in vivo investigations were supported by the Institutional Animal Care and Use Committee (Internal Review Board deliberation number: KBIO-IACUC-2018-106). BALB/c mice (6-weeks-old), with an average body weight of 20–21 g, supplied by Daehan Biolink (Chungcheongbuk-do, Korea) were used in the experiment. The animals were maintained in a room under standard laboratory condition with a 12:12 h light–dark cycle with a constant temperature of 22 ± 2 °C and humidity of 55 ± 10%. All animals were alive until the end of the experiment, and after the end of the experiment, they were anesthetized and euthanized. All procedures involving animals throughout the experiments were conducted in strict accordance with the legislation on the use and care of laboratory animals. Moreover, all efforts were made to minimize suffering. After 7 d of acclimatization, a total of four groups (n = 5/group) were tested: control group, untreated group (normal), and two experimental groups (sample 1: Lizhong-tang; sample 2: M. officinalis). To establish the AAD model, lincomycin was orally administered to the animals at a dosage of 3 g/kg, twice daily (8 h apart) for 7 d. The untreated group (normal) was administered the same amount of physiological saline without lincomycin. After constructing the AAD model, a 10 mL/kg sample (M. officinalis or Lizhong-tang) was administered to the experimental group (sample) twice a day, while the control group was administered saline twice daily. The body weight, water intake, and diarrhea (diarrheal status score) were assessed for all the groups. At the end of the experiment, animals were first anesthetized using 2% isoflurane O₂ inhalation, and the intestinal tissues were dissected and their fecal contents were collected under sterile conditions and stored at −80 °C. The stored tissues were analyzed for diversity and community structure of the gut microbiota using terminal restriction fragment length polymorphism (T-RFLP) (Figure 1)

2.7. Gene Expression Analysis Using Quantitative Real-Time Polymerase Chain Reaction (qRT-PCR)

DNA was extracted from the dissected intestinal tissue contents, homogenized through bead beating using Precellys^® 24 (Bertin, Montigny-le-Bretonneux, France), and purified using the High Pure PCR Template Preparation Kit (Roche Diagnostics). The primers used included 5′-FAM-labeled 35f (5′-CCTGGCTCAGGATGAACG-3′; E. coli positions 35–52) and 1492r (5′-GGTTACCTTGTTACGACTT-3′; E. coli positions 1510–1492). Amplification was performed using A-Star Lamp Taq DNA Polymerase (BioFACT™, Seoul, Korea) for 30 cycles at 95 °C for 3 min, 95 °C for 30 s, 55 °C for 60 s, 72 °C for 30 s, and 70 °C for 10 min. The PCR products were purified using the HiGene™ Gel & PCR Purification System (BioFACT™) (

Table 1. Primer sequences for quantitative real-time polymerase chain reaction.

Primer Sequence	Product Size (bp)
1 Forward: 5′-CCTGGCTCAGGATGAACG-3′	approximately 1500
1 Reverse: 5′-GGTTACCTTGTTACGACTT-3′
2 Forward: 5′-CCTTAAACAGGCCCACTTGA-3′	approximately 1400
2 Reverse: 5′-CCTTCCACAATGCCAAAGTT-3′	GAPDH

¹ The 16S rRNA genes were amplified using the primers, 5’ FAM-labeled 35f (5′-CCTGGCTCAGGATGAACG-3′) and 1510r (5′-GGTTACCTTGTTACGACTT-3′); ² The rRNA genes housekeeping gene (5′-CCTTAAACAGGCCCACTTGA-3′) and (5′-CCTTCCACAATGCCAAAGTT-3′).

). The purified PCR products were digested with the restriction endonuclease, MspI (Thermo Fisher Scientific), and fragment analysis was performed using an ABI PRISM 3130xl genetic analyzer (Applied Biosystems, Waltham, MA, USA). The DNA size marker used was MM-ROX X-Rhodamine (BioVentures, Wellesley, MA, USA). Fragment size, peak height, and area were analyzed using GeneMapper^® software (version 3.0; Applied Biosystems).

2.8. Measurement of Nitric Oxide (NO) Produced by RAW 264.7 Cells

An NO assay was conducted to assess the ability of the samples to inhibit NO secretion. After 2 h of sample treatment, the cells were stimulated with 100 ng/mL LPS from Escherichia coli O26:B6 (Sigma-Aldrich, St. Louis, MO, USA). After 20 h of stimulation, the supernatant of the cultured cells was incubated with the same amount of Griess reagent. NO concentration was evaluated by measuring the OD at the wavelength of 550 nm using a microplate spectrophotometer.

2.9. Statistical Analysis

All data are presented as mean ± standard deviation (SD). Statistical significance was determined using one-way analysis of variance and multiple comparisons with Bonferroni correction. Statistical significance was set at a p value < 0.05. All analyses were performed using SPSS Statistics ver. 19.0 (IBM, Chicago, IL, USA).

3. Results

3.1. Effect of Herbal Extracts on LPS-Induced NO Production in RAW 264.7 Cells

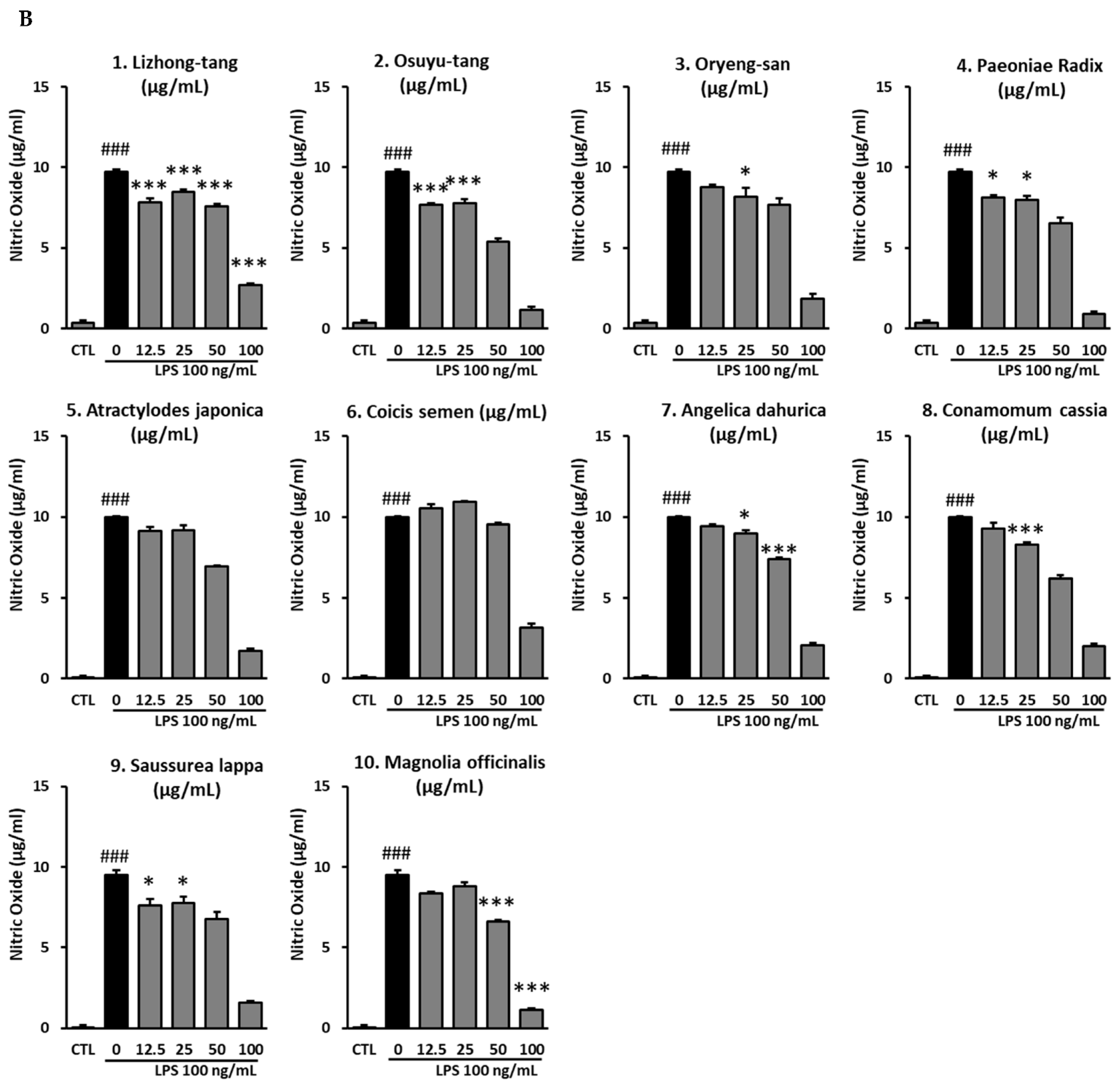

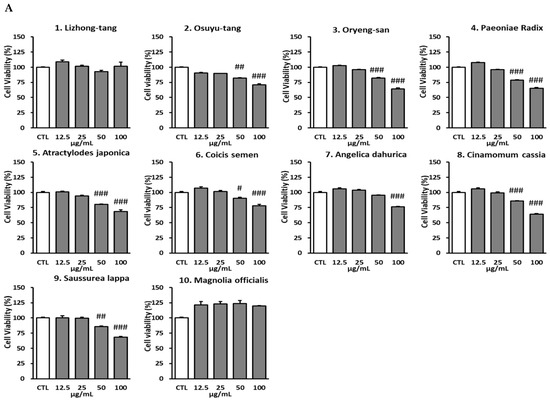

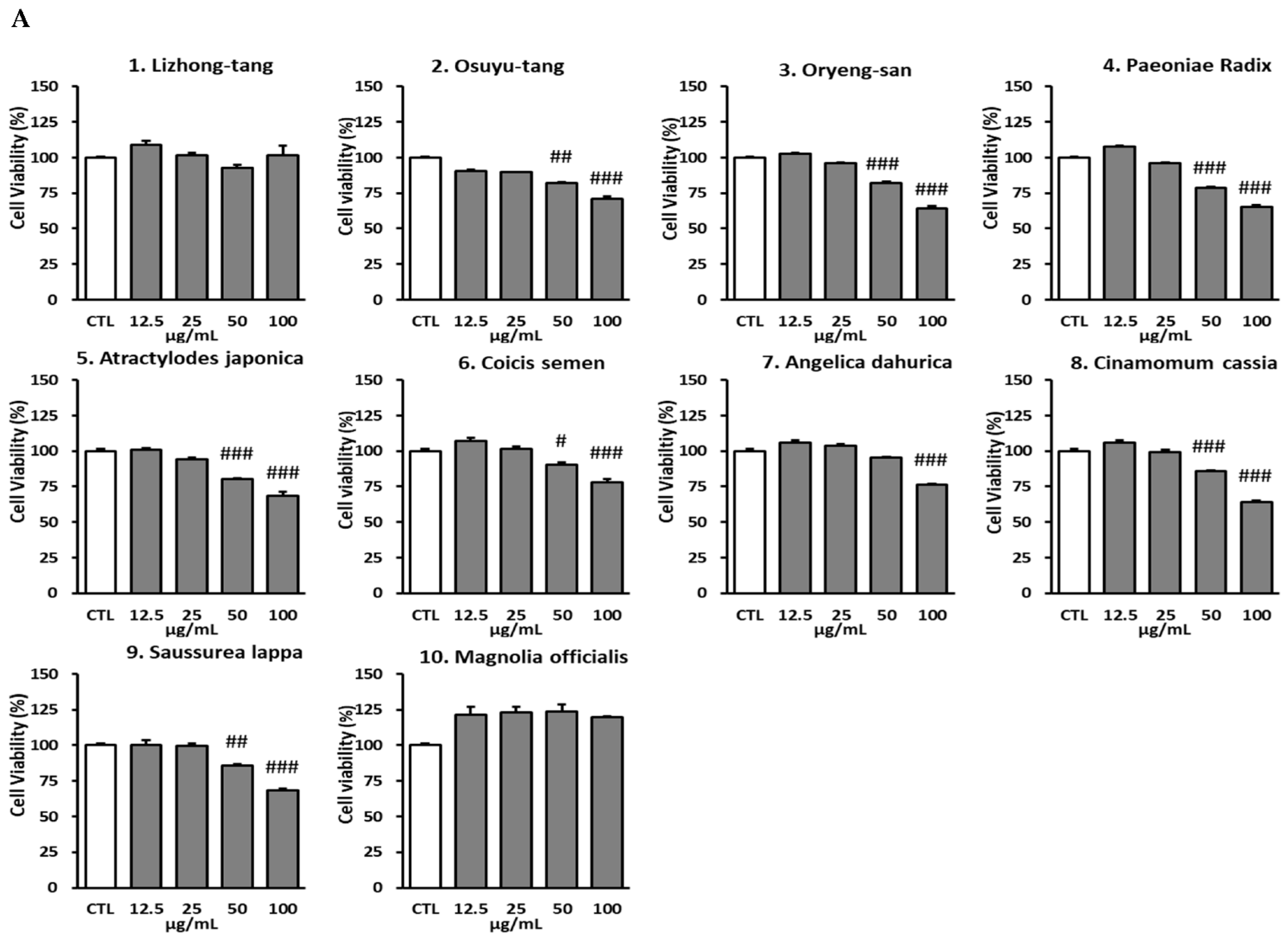

NO plays many important roles in the immune system. Specially, NO is produced in high amounts in macrophages to respond to stimulation. To investigate the anti-inflammatory effect of the 10 extracts, the inhibitory effect of the extracts 1–10 on NO production in LPS-activated RAW 264.7 macrophages was measured. In addition to evaluating their cytotoxicity in RAW 264.7 cells, cell viability was observed. At non-cytotoxic concentrations, 8 out of the 10 extracts caused a significant reduction in NO production in LPS-activated RAW 264.7 cells. These eight extracts included the herbal extracts Lizhong-tang and M. officinalis. Compared to those in the LPS-treated group (9.48 ± 0.30 μM), the NO levels in the co-culture with Lizhong-tang (12.5, 25, 50, and 100 μM) and LPS were significantly lower, at 7.81 ± 0.26 μM, 8.48 ± 0.13 μM, 7.59 ± 0.13 μM, and 2.70 ± 0.10 μM, respectively (Figure 2). Similarly, M. officinalis (50 μM and 100 μM) extracts significantly reduced the NO levels to 6.59 ± 0.10 μM and 1.15 ± 0.10 μM, respectively, as compared to those in the LPS-treated group (9.48 ± 0.30 μM). These results suggest that Lizhong-tang and M. officinalis may have anti-inflammatory activities in LPS-activated RAW 264.7 cells. Considering the cell viability results after treatment with Lizhong-tang and M/officinalis, it was observed that the inhibitory effect on NO levels in LPS-activated RAW 264.7 cells was not due to cytotoxicity.

3.2. Evaluation of the Inhibitory Activity of the Active Compounds of Lizhong-Tang on LPS-Induced NO Production in RAW 264.7 Cells

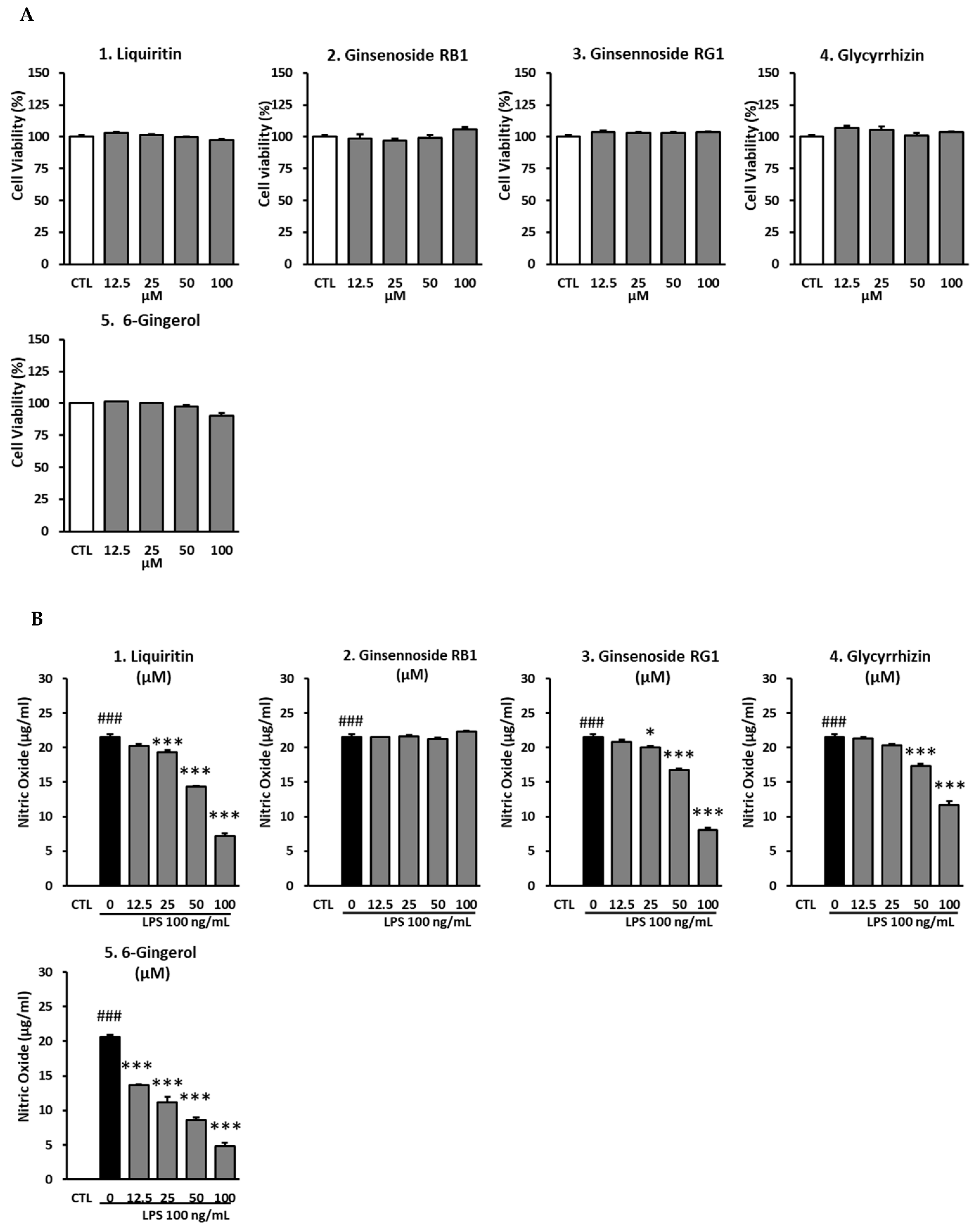

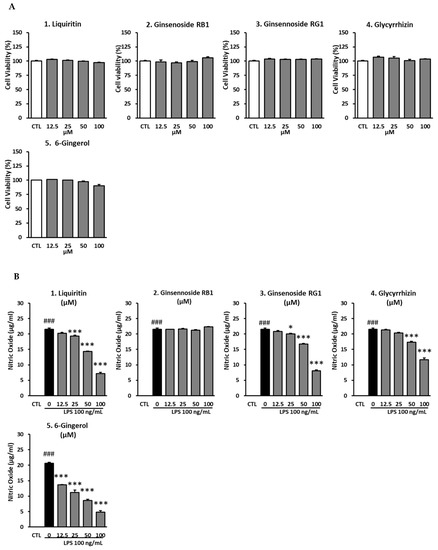

To determine the NO-inhibitory effects of the active compounds of Lizhong-tang, NO assays were carried out post-treatment of RAW 264.7 cells with the six compounds from Lizhong-tang, including liquiritin, ginsenoside Rb1, ginsenoside Rg1, glycyrrhizin, and 6-gingerol. Liquiritin, ginsenoside Rg1, glycyrrhizin, and 6-gingerol significantly reduced the NO levels in the LPS-stimulated RAW 264.7 cells. Of these compounds, liquiritin and 6-gingerol were the most effective at non-cytotoxic concentrations.

No cytotoxicity was observed at all the tested concentrations of liquiritin (12.5, 25, 50, and 100 μM), similar to that in the untreated group. In the group stimulated with 100 ng/mL LPS, the NO levels were 21.52 ± 0.42 μg/mL, while in the experimental group treated with 12.5 μM liquiritin, the NO levels decreased compared to those in the group stimulated with LPS to 20.19 ± 0.34 μg/mL; this decrease, however, was not significant. In the group treated with 25 μM, 50 μM, and 100 μM liquiritin, NO levels were 19.33 ± 0.27 μg/mL, 14.33 ± 0.13 μg/mL, and 7.19 ± 0.14 μg/mL, respectively, which represented an inhibition (p < 0.001) of the NO levels in the LPS-stimulated group (Figure 3).

For ginsenoside Rb1, no cytotoxicity was observed at the 12.5, 25, 50, and 100 μM, concentrations similar to that seen in the untreated group. In the group stimulated with 100 ng/mL LPS, the NO levels were 21.52 ± 0.42 μg/mL, while that in the experimental groups treated with 12.5, 25, 50, and 100 μM ginsenoside Rb1 were 21.48 ± 0.05 μg/mL, 21.57 ± 0.25 μg/mL, 21.24 ± 0.17 μg/mL, and 22.33 ± 0.05 μg/mL, respectively (Figure 3). Thus, no significant change was observed in the NO levels, after treatment with Rb1 at any of the concentrations tested. No cytotoxicity was observed at all concentrations of ginsenoside Rg1 (12.5, 25, 50, and 100 μM), similar to that seen in the untreated group. In the group stimulated with 100 ng/mL LPS, the NO levels were 21.52 ± 0.42 μg/mL, while in the experimental group treated with 12.5 μM of ginsenoside Rg1, there was no significant change, with the NO levels at 20.81 ± 0.33 μg/mL. In the group treated with 25 μM ginsenoside Rg1, the NO levels decreased to 20.00 ± 0.22 μg/mL (p < 0.05). The NO levels decreased (p < 0.001) (Figure 3) in the groups treated with 50 μM and 100 μM ginsenoside Rg1 to 16.76 ± 0.17 μg/mL and 8.10 ± 0.29 μg/mL, respectively.

No cytotoxicity was observed at all concentrations (12.5, 25, 50, and 100 μM) of glycyrrhizin, similar to that seen in the untreated group. In the group stimulated with 100 ng/mL LPS, the NO levels were 21.52 ± 0.42 μg/mL, while in the experimental group treated with 12.5 μM glycyrrhizin, there was no significant change in the NO levels at 21.29 ± 0.22 μg/mL. In the group treated with 25 μM glycyrrhizin, the NO levels decreased to 20.33 ± 0.17 μg/mL, but the difference was not statistically significant. NO levels reduced (p < 0.001) to 17.33 ± 0.34 μg/mL and 11.67 ± 0.60 μg/mL in the groups treated with 50 μM and 100 μM glycyrrhizin, respectively (Figure 3). No cytotoxicity was observed at concentrations of 12.5, 25, 50, and 100 μM 6-gingerol, similar to that seen in the untreated group. In the group stimulated with 100 ng/mL LPS, the NO levels were 20.67 ± 0.27 μg/mL, while in the groups treated with 12.5 μM, 25 μM, 50 μM, and 100 μM 6-gingerol, there was a decrease (p < 0.001) in the NO levels to 13.62 ± 0.17 μg/mL, 11.14 ± 0.80 μg/mL, 8.57 ± 0.43 μg/mL, and 4.76 ± 0.48 μg/mL, respectively (Figure 3).

3.3. Evaluation of Inhibition of LPS-Induced NO Production in RAW 264.7 Cells by a Mixture of Liquiritin and 6-Gingerol

In RAW 264.7 cells, the inhibition of NO production by five active compounds (liquiritin, ginsenoside Rb1, ginsenoside Rg1, glycyrrhizin, and 6-gingerol) was evaluated. Liquiritin and 6-gingerol, which showed the best inhibitory efficacy, were evaluated at the highest concentration of 50 μM. Following that, the effect of a mixture of liquiritin and 6-gingerol mixture on the inhibition of NO production was also evaluated.

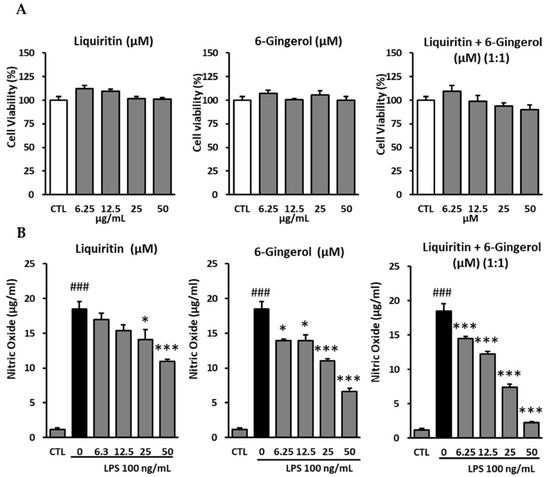

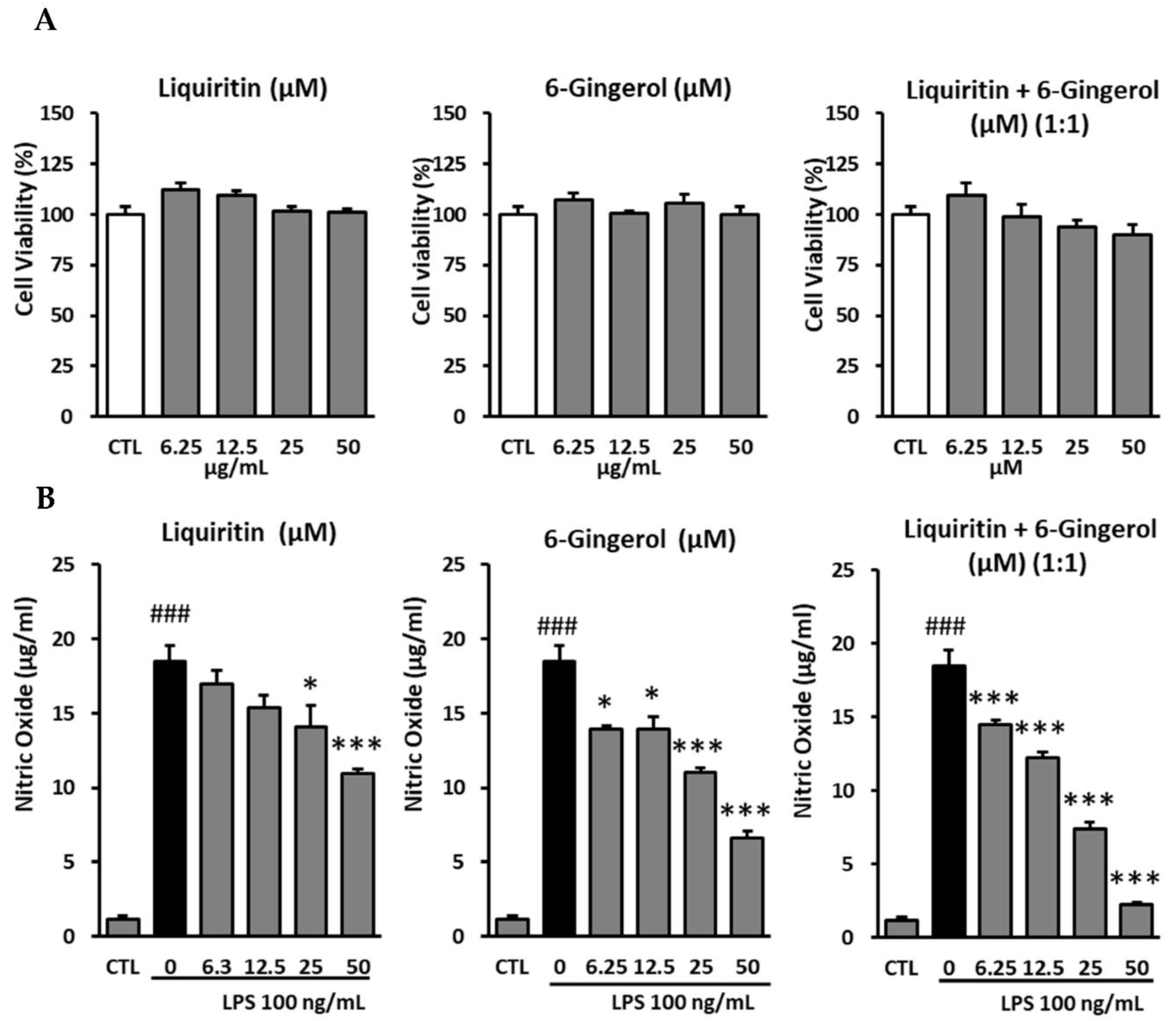

There was no cytotoxicity upon treatment with any concentration of liquiritin (6.25, 12.5, 25, and 50 μM), similar to that seen in the untreated group. In the group stimulated with 100 ng/mL LPS, the NO levels were 18.48 ± 1.06 μg/mL, while that in the groups treated with 6.25 μM and 12.5 μM liquiritin was decreased to 17.00 ± 0.86 μg/mL and 15.38 ± 0.85 μg/mL, respectively; this difference, however, was not significant. In the group treated with 25 μM liquiritin, there was an inhibition (p < 0.05) of the NO levels (14.05 ± 1.46 μg/mL) compared to those in the LPS-treated group. In the group treated with 50 μM liquiritin, the NO levels were 10.95 ± 0.31 μg/mL. The NO levels were suppressed after treatment with 50 μM (p < 0.001) liquiritin, compared to those in the LPS-stimulated group (Figure 4).

No cytotoxicity was observed upon treatment with any concentration of 6-gingerol (6.25, 12.5, 25, and 50 μM), similar to that in the untreated group. In the group stimulated with 100 ng/mL LPS, the NO levels were 18.48 ± 1.06 μg/mL, while that in the experimental groups treated with 6.25 μM and 12.5 μM 6-gingerol, was reduced (p < 0.05) to 13.90 ± 0.25 μg/mL and 13.90 ± 0.88 μg/mL, respectively, compared to those in the LPS-treated group. There was a decrease in the NO levels (p < 0.001) in the groups treated with higher concentrations of 6-gingerol, (i.e., 25 μM and 50 μM), with the NO levels at 11.00 ± 0.38 μg/mL and 6.62 ± 0.48 μg/mL, respectively, compared to those in the LPS-stimulated group (Figure 4).

Liquiritin and 6-gingerol were mixed in a 1:1 ratio to reach the final concentrations of 6.25, 12.5, 25, and 50 μM to evaluate the effect of the mixture on the inhibition of NO production. No cytotoxicity of liquiritin and 6-gingerol was observed at 6.25, 12.5, 25, and 50 μM, similar to that seen in the untreated group. In the group stimulated with 100 ng/mL LPS, the NO level was 18.48 ± 1.06 μg/mL, while that in the experimental groups treated with liquiritin and 6-gingerol at 6.25 μM, 12.5 μM, and 25 μM were 14.52.81 ± 0.25 μg/mL, 12.24 ± 0.42 μg/mL, and 7.43 ± 0.44 μg/mL, respectively. In the group treated with 50 μM liquiritin and 6-gingerol, the NO level was 2.24 ± 0.19 μg/mL, which was lower (p < 0.001) than that in the LPS-stimulated group (Figure 4).

3.4. Effects of Liquiritin and 6-Gingerol on LPS-Induced Expression of Mitogen-Activated Protein Kinase (MAPK) Proteins in RAW 264.7 Mouse Macrophages

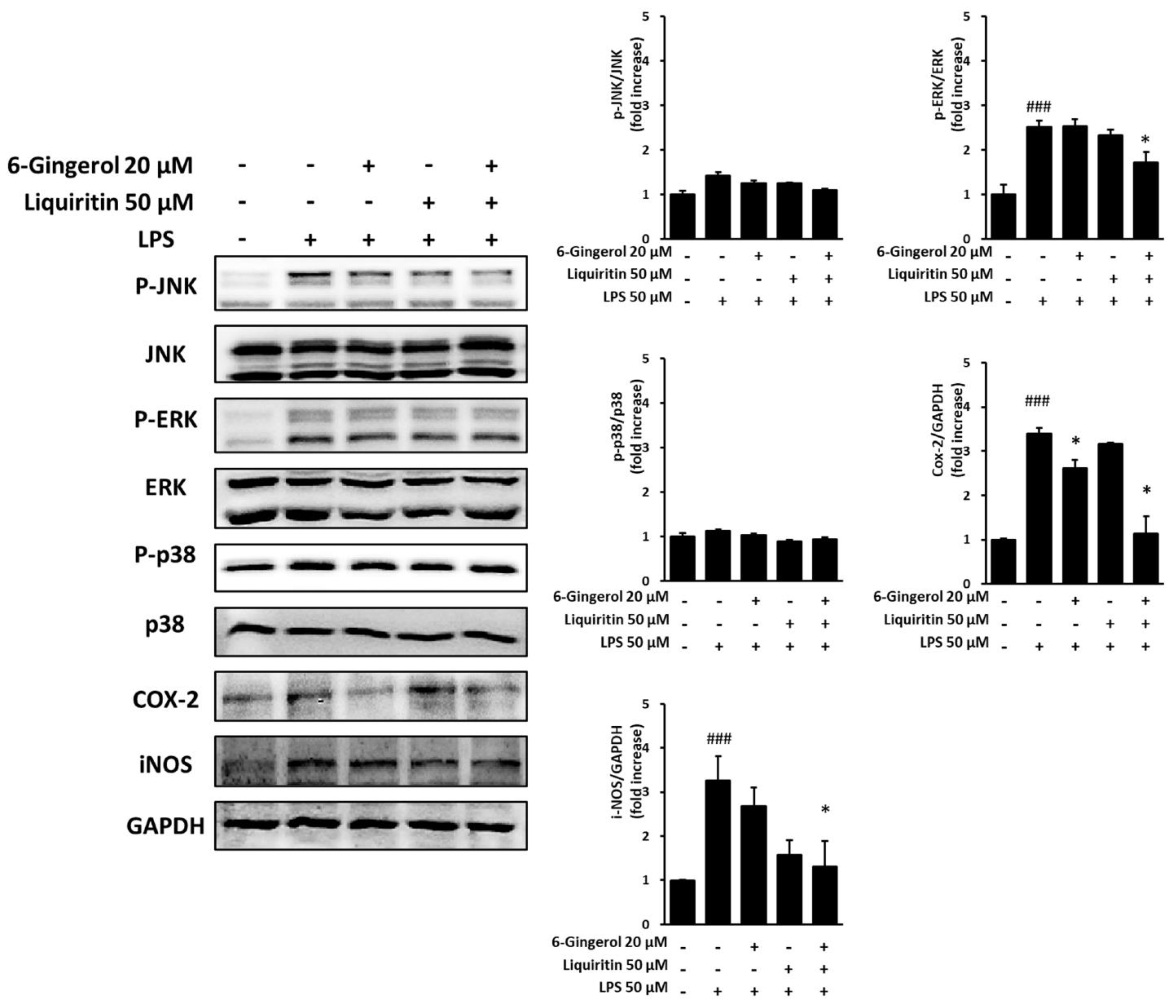

RAW 264.7 cells were stimulated with LPS and then treated with 50 µM liquiritin, 20 µM 6-gingerol, or a mixture of 50 µM liquiritin and 20 µM 6-gingerol, following which the expression levels of MAPK proteins were assessed in the cells. In the test on the inhibitory effect of a mixture of liquiritin and 6-gingerol on nitric oxide (NO) production, the most effective concentration of liquiritin was a 1:1 ratio of liquiritin and 6-gingerol, compared with double the concentration at the corresponding concentrations of liquiritin and 6-gingerol alone.

The NO concentration in the LPS group was 50 μM, which is approximately 60% of maximum. For Western blot analysis, 20 μM 6-gingerol, which resulted in NO levels that were approximately 60% of those in the LPS group, was selected, and a mixture of 50 μM liquiritin and 20 μM 6-gingerol was tested. The levels of phosphorylated c-Jun NH2-terminal kinase (p-JNK), phosphorylated extracellular signal-regulated kinase (p-ERK), p-p38, cyclooxygenase-2 (COX-2), and inducible nitric oxide synthase (iNOS) increased upon LPS treatment. There was a decrease in the protein expression levels of p-JNK, p-ERK, p-p38, COX-2, and iNOS in the groups treated with 50 μM liquiritin alone, as well as 50 μM liquiritin and 20 μM 6-gingerol together, post-LPS stimulation. The protein expression levels of p-JNK, p-p38, COX-2, and iNOS also decreased in the group treated with 20 μM 6-gingerol, post-LPS stimulation. In addition, the group treated with 50 μM liquiritin and 20 μM 6-gingerol together showed a significant decrease in protein expression, compared to that in the LPS-stimulated group (Figure 5).

3.5. Effect of Lizhong-Tang and M. officinalis Extracts on AAD Mice

After treating the animals with lincomycin hydrochloride, the rats showed diarrheal symptoms, including lower food consumption, increased water intake, and increased defecation frequency. By the end of the experiment, the animals displayed 100% diarrhea, thus suggesting the successful establishment of an AAD mouse model. After the end of the experiment, all the experimental animals survived. In the untreated group (normal), there was almost no change in body weight, with weight being 100%, 100.32%, 100.50%, and 100.86% on the 1st, 2nd, 3rd, and 4th day, respectively. In the control group taking antibiotics, the weight was 100%, 98.86%, 97.28%, and 95.70% on the 1st, 2nd, 3rd, and 4th day, respectively, that is, the weight gradually decreased over time. In the group administered with Lizhong-tang, the weight was 100%, 99.28%, 99.57%, and 100.52% on the 1st, 2nd, 3rd, and 4th day, respectively. The group administered with M. officinalis extract showed a tendency to lose weight, with the weight being 100%, 99.28%, 96.12%, and 97.38% on the 1st, 2nd, 3rd, and 4th day, respectively (

Table 2. Relative abundance of weight, fluid intake, and diarrhea level in each group.

Change of Body Weight (%)
Group	Normal	Control	Magnolia Officinalis	Lizhong-Tang
1 day	100 ± 2.31	100 ± 3.57	100 ± 3.31	100 ± 3.24
2 day	100.3 ± 2.46	98.86 ± 4.06	99.27 ± 3.4	98.79 ± 4.21
3 day	100.5 ± 2.4	97.28 ± 5.07	96.11 ± 4.29	99.56 ± 5.21
4 day	100.8 ± 3.26	95.7 ± 4.1	97.3 ± 3.52	100.5 ± 2.74
5 day	101 ± 3.3	95 ± 2.23	96.5 ± 4.0	100.2 ± 3.72
6 day	101.3 ± 3.54	92.9 ± 4.14	94.34 ± 4.14	100.5 ± 3.67
7 day	101.6 ± 2.75	91.45 ± 2.45	93.2 ± 4.3	100.7 ± 2.62
Water intake(mL)
group	Normal	Control	Magnolia officinalis	Lizhong-tang
1 day	22.2 ± 5.23	22.8 ± 2.54	22.2 ± 2.1	23.2 ± 2.14
2 day	22.3 ± 4.65	22.6 ± 3.24	22 ± 2.54	22.9 ± 3.71
3 day	22.3 ± 3.34	22.2 ± 4.27	21.3 ± 4.28	23.1 ± 4.32
4 day	22.4 ± 2.86	21.8 ± 3.13	21.6 ± 4.12	23.3 ± 3.6
5 day	22.5 ± 4.33	21.5 ± 4.53	21.2 ± 3.24	23.3 ± 2.37
6 day	22.5 ± 5.74	21.2 ± 5.21	20.9 ± 2.64	22.5 ± 4.19
7 day	22.6 ± 2.67	20.9 ± 4.16	20.7 ± 3.73	23.4 ± 3.46
Diarrhea status score
group	Normal	Control	Magnolia officinalis	Lizhong-tang
1 day	0	10.54 ± 1.2	9.81 ± 1.1	9.95 ± 1.2
2 day	0	7.84 ± 1.4	6.91 ± 1.2	5.6 ± 1.5
3 day	0	7.5 ± 1.5	6.51 ± 1.8	5.5 ± 1.2
4 day	0	6.84 ± 1.2	6.28 ± 1.5	5.24 ± 1.5
5 day	0	5.21 ± 2.2	5.2 ± 1.2	4.53 ± 1.2
6 day	0	5.2 ± 1.2	5.0 ± 1.2	4.12 ± 1.4
7 day	0	4.8 ± 2.2	4.5 ± 1.5	3.2 ± 1.2

Normal group—untreated group; control group—antibiotic-associated diarrhea (AAD) group; M. officinalis group—group orally administered with M. officinalis extract, post-AAD establishment; Lizhong-tang group—group orally administered with Lizhong-tang, post-AAD establishment. Values have been expressed as mean (n = 5). Statistically significant values were compared against the control by means of one-way ANOVA followed by Tukey’s post-hoc test, using the software R version 3.3.3.

).

The water intake of the untreated group (normal) was 24.9 mL, 20.5 mL, and 21.4 mL on the 2nd, 3rd, and 4th day, respectively. In the control group administered with antibiotics, the water intake increased, compared to that in the untreated group. Compared to that in the control group, the water intake in the group administered with Lizhong-tang was not significantly different, but showed a tendency to decrease. Water intake in the M. officinalis extract-treated group increased compared to that in the untreated group, but decreased compared to that in the control group; this difference, however, was not statistically significant (Table 2).

The degree of diarrhea in the control group taking antibiotics was 10, 7, and 6 points on the 2nd, 3rd, and 4th day, respectively. The group administered with Lizhong-tang had diarrhea scores of 9, 5, and 5 points on the 2nd, 3rd, and 4th day, respectively, which was not significantly different compared to those in the control group, but showed a lower tendency. The group administered with M. officinalis scored 9, 6, and 6 points on the 2nd, 3rd, and 4th day, respectively, which was lower than those in the control group, although not statistically significant, but higher than those in the group administered with Lizhong-tang (Table 2).

3.6. Effect of Lizhong-Tang on the T-RFLP Profiles of Small Intestinal Contents, Based on Operational Taxonomic Units (OTUs)

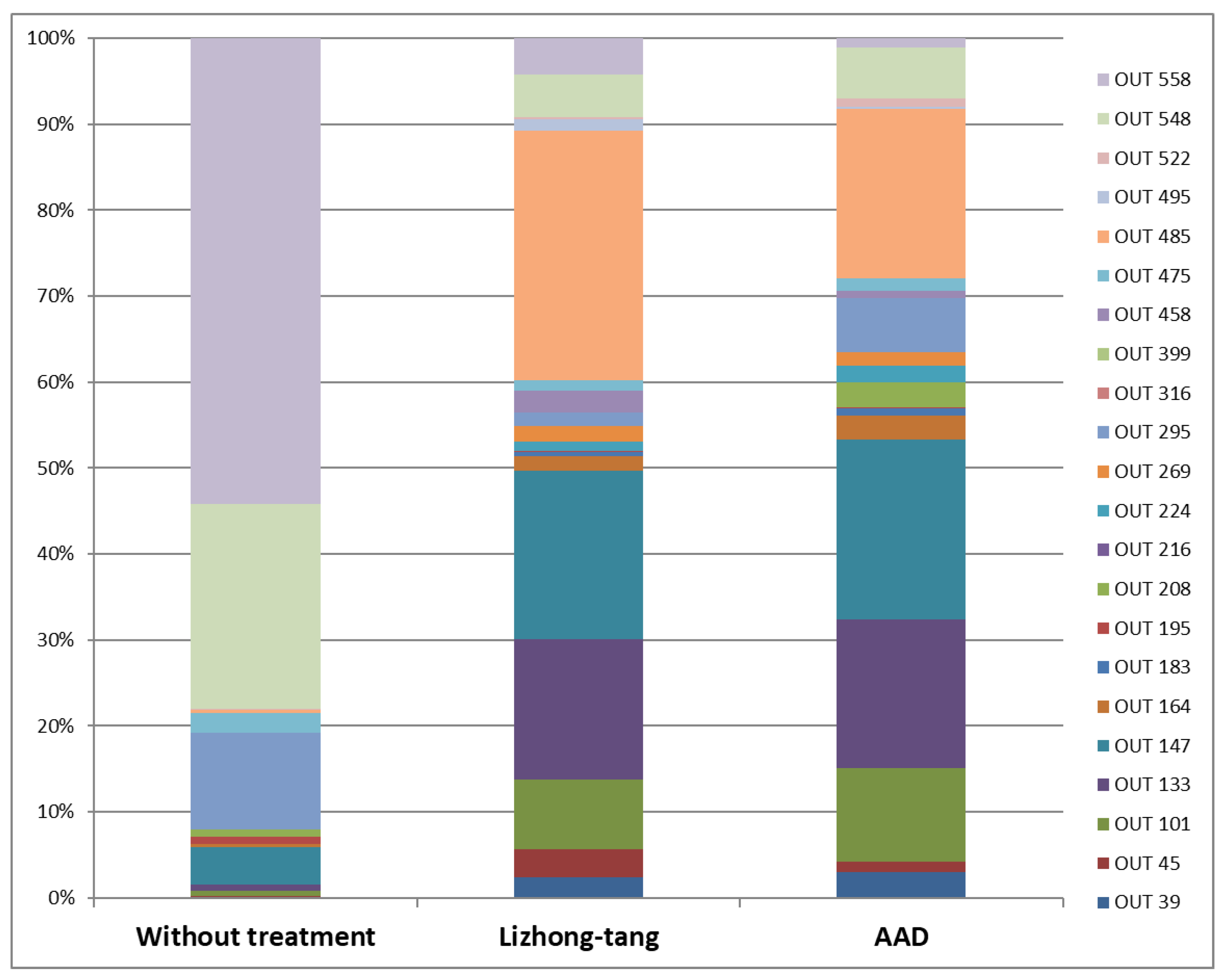

T-RFLP analysis was performed on the intestinal tissues containing fecal contents to determine the effect of Lizhong-tang on intestinal microflora control, using CNGB (mouse and human) and MICA3.0 (RDP 16S bacterial rRNA) databases. Table 2 shows a database-based list of the bacteria expected to be included in each OTU community (Table 2). By means of T-RFLP analysis, it was found that the intestinal microbial communities of the mice in the untreated (normal), control (control), and Lizhong-tang-administered groups were changed substantially. The antibiotics-administered group showed a change in the intestinal microbial community compared to that of the untreated group, while the Lizhong-tang-administered group showed a change in the intestinal microbial community compared to that of the control group. This indicated the similarity within each group and the independence between the three groups, indicating successful establishment of the AAD model (Figure 6). The untreated group had the highest contents of OTU548 and OTU558 (

Table 3. Correspondence of OTUs to the bacteria predicted by means of theoretical digestion with the restriction endonuclease, MspI.

OTU		Predicted Bacteria from T-RFLP
39	ND
45	ND
101	Prevotella ruminicola Alistipes finegoldii Bacteroides fragilis Bacteroides helcogenes Bacteroides salanitronis	Bacteroides thetaiotaomicron Bacteroides vulgatus Odoribacter splanchnicus Parabacteroides distasonis Prevotella ruminicola
133	Bifidobacterium bifidum Bifidobacterium longum Bacillus anthracis Bacillus cereus Bacillus thuringiensis	Bifidobacterium breve Bacillus subtilis Bifidobacterium bifidum Listeria innocua
147	Eubacterium eligen Staphylococcus aureus
164	Lactobacillus acidophilus Lactobacillus crispatus Finegoldia magna Lactobacillus amylovorus	Lactobacillus delbrueckii Lactobacillus acidophilus Lactobacillus crispatus Lactobacillus helveticus
183	ND
195	Ruminococcus obeum Atopobium parvulum	Atopobium parvulum
208	Clostridium saccharolyticum, Roseburia hominis	Clostridiales genomo sp. BVAB3 Clostridium saccharolyticum
216	Eubacterium eligen Butyrivibrio proteoclasticus Eubacterium eligens	Eubacterium limosum Eubacterium rectale
224	ND
269	Ruminococcus albus
295	Selenomonas ruminantium Megasphaera elsdenii Veillonella parvula	Acidaminococcus fermentans Acidaminococcus intestini
316	Oenococcus oeni
399	ND
458	ND
475	Lactobacillus casei
485	Prevotella buccalis
495	ND
522	ND
548	Lactococcus garvieae Lactococcus lactis Leuconostoc citreum Leuconostoc mesenteroides Streptococcus sanguinis Streptococcus oralis Streptococcus macedonicus	Streptococcus mitis Streptococcus parasanguinis Streptococcus salivarius Streptococcus agalactiae Streptococcus infantarius Streptococcus suis Streptococcus thermophilus
558	Enterococcus faecalis Lactobacillus salivarius Enterococcus casseliflavus	Enterococcus sp. 7L76

The bacterial list was selected from a study by Jin et al. (2014), and from the databases of CNGB (mouse and human) and MICA3.0 (RDP 16S Bacterial rRNA). The fragment pattern was simulated using the T-RFLP analysis program, MICA3.0 (http://mica.ibest.uidaho.edu, accessed on 1 March 2021), and a web-based simulation tool (http://insilico.ehu.eus/T-RFLP/info.html, accessed on 1 March 2021). ND indicates not detected. The bacterial list in this table is a prediction of possible species, but not the existence of bacteria in the sample.

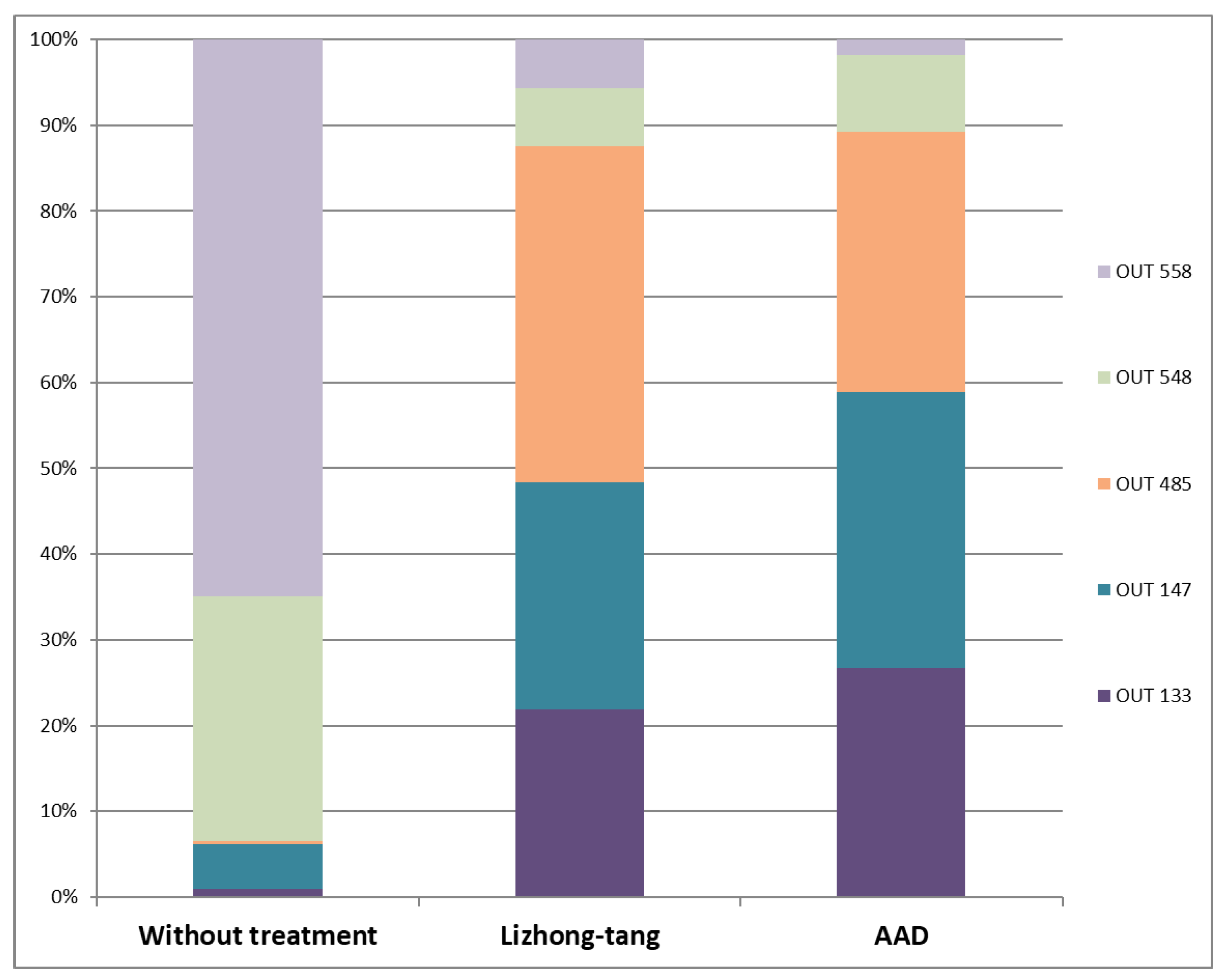

). The control group showed an increase in OTU485, but its content of OTU558 and OTU548 decreased, compared to that in the untreated group (normal). The Lizhong-tang-administered group showed an increase in the OTU147 and OTU133 content, compared to that in the control group (Figure 7 and Figure 8).

4. Discussion

In this study, we investigated whether antibiotic-induced changes in intestinal microflora could be readjusted using herbal medicines [23]. We reviewed 25 experimental studies related to intestinal microbes in Eastern medicine in terms of the effects of intestinal microbe-related diseases, research subjects used in experiments, methods of establishing experimental models for each disease, drugs used in the experiments, and herbal medicines [24]. Among the studies on the gut microbiome, Ryu et al. [25] reported the role and function of gut microbes from a pediatric point of view, with a focus on gut microbes and oriental medicine research. Experimental studies have analyzed the role of intestinal microbes in metabolic diseases, related to the intestine, such as diabetes [26,27,28,29], obesity [30,31,32,33], irritable bowel syndrome [34,35], and intestinal inflammatory diseases [36,37]. Several studies have also analyzed the effect of herbal medicines on the imbalance of intestinal microflora caused by antibiotics [16,17,18,19], but they are limited to some prescriptions and individual drugs and have not been reported in Korea.

Therefore, in this study, before examining the effects of herbal medicines on antibiotic-induced changes, we selected 10 herbal medicinal extracts with anti-inflammatory effects through an in vitro experiment. Since it is difficult to experimentally test diarrhea in vitro, we wanted to find a drug that can improve diarrhea from various herbal medicines with anti-inflammatory effects. Further experiments were performed to investigate their mechanism of action. In the in vivo experiment, we selected an herbal extract with an anti-inflammatory effect, and elucidated its anti-diarrheal effect on the AAD mouse model and analyzed its effect on the intestinal microflora. Three prescriptions (Lizhong-tang, Osuyu-tang, and Oryeong-san) and seven herbal medicines (Atractylodes japonica Koidz, Coix lacryma-jobi, Angelica dahurica, Cinamomum cassia, Aucklandiae radix, and Machilus thunbergii) were selected because they displayed anti-inflammatory, -digestive, and -diarrheal effects [20,21].

Antibiotics not only kill pathogenic bacteria, but also eliminate normal gut microbes, which allows harmful bacteria to multiply. In particular, Clostridium difficile proliferates excessively in the intestine, damages the intestinal wall, and produces chemicals that cause enteritis, abdominal pain, and diarrhea [38,39]. Diarrhea can be alleviated by inhibiting inflammation; thus, the inhibitory effect of 10 herbal medicines on NO production was first evaluated by means of an in vitro experiment. The results showed that M. thunbergii and Lizhong-tang exhibited no cytotoxicity and the best activity at 100 μg/mL concentration (Figure 2). Immune response occurs in macrophages and produces free radicals (such as NO) and cytokines (such as IL-6 and TNF-α). NO is a highly reactive oxygen species that mediates vasodilation and signal transduction in the human body [40,41]. Therefore, inhibition of NO production decreases the anti-inflammatory response.

Since Lizhong-tang displayed the highest anti-inflammatory effect among the 10 drugs, we investigated the inhibition of NO production by the different active compounds of Lizhong-tang further to determine the mechanism of inhibition of inflammation. Among the active compounds of Lizhong-tang, liquiritin and 6-gingerol had the highest NO inhibitory effect, and upon simultaneous treatment with liquiritin and 6-gingerol, they inhibited NO production as much as the sum of the NO inhibitory effects of each sample (Figure 3 and Figure 4). When an intracellular inflammatory response occurs, NF-κB is activated, which affects various cellular signaling molecules. Representative signals that affect its activation include JNK, ERK, and p38 MAPK [42]. They are unphosphorylated in the cytoplasm but are phosphorylated and translocated to the nucleus upon stimulation by LPS. In addition, NF-κB is known to be a transcriptional regulator that induces the expression of mediators related to inflammation. When activated by LPS, NF-κB is involved in the expression of genes such as iNOS, COX-2, and pro-inflammatory cytokines [43,44,45]. Therefore, to investigate whether liquiritin and 6-gingerol affected the activation of phosphorylated iNOS, COX-2 MAPKs, an increase in the phosphorylation of iNOS, COX-2MAPKs was confirmed by Western blotting following LPS stimulation. In addition, the effects of liquiritin and 6-gingerol treatment on the expression of iNOS and COX-2 in the cytoplasm of RAW 264.7 cells were also analyzed (Figure 5). The active compounds of Lizhong-tang, liquiritin and 6-gingerol, were found to inhibit LPS-activated JNK, ERK, and p38 MAPK expression, and inhibiting iNOS and COX-2 expression.

Mice are the most widely used animal species for the modeling of acute and chronic diseases. Additionally, as in humans, the mouse gut microbiome is stable and resilient. Therefore, mouse model studies are often used to investigate the relationship between gut microbiota and disease [40,41,46,47]. In the present study, animal experiments were performed to investigate the effects and control of intestinal microflora induced by Lizhong-tang and M. officinalis extracts in AAD. The effect of herbal medicines in a mouse model induced by antibiotic administration was investigated by measuring weight change, water intake, and diarrhea status score of the mice. In the control group, which was a model of AAD, sustained weight loss was observed while water intake increased. Similar to the untreated group (normal), the Lizhong-tang-treated group showed almost no weight change, with the greatest improvement in diarrheal symptoms (Table 2). Although Lizhong-tang relieved AAD symptoms through gastrointestinal function control, body weight initially reduced due to the decrease in diarrhea but recovered rapidly thereafter. Thus, it can be concluded that Lizhong-tang was effective in improving AAD.

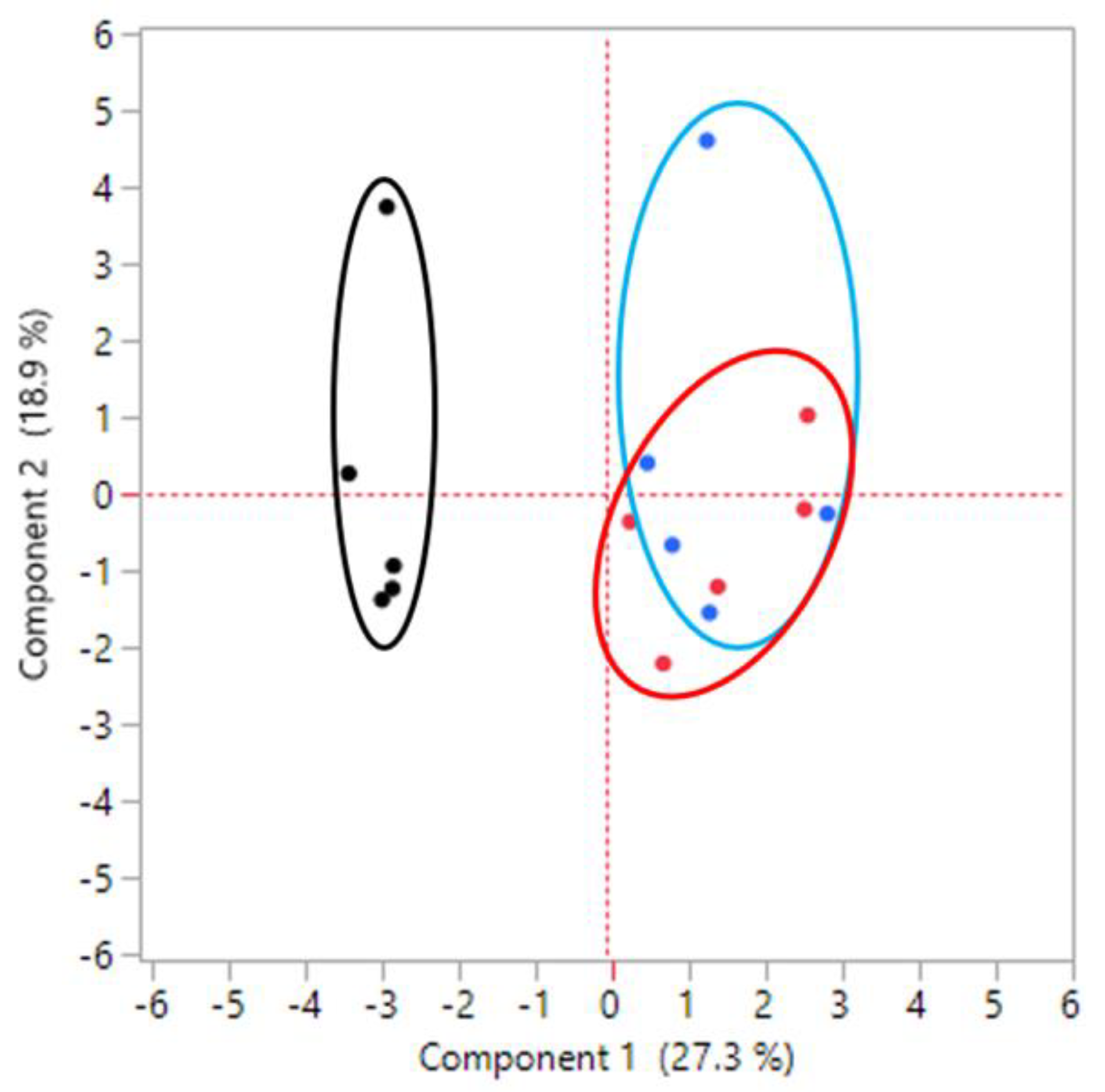

Microbial analysis generates OTU tables based on sequence groups through noise filtering, sorting, and bulk sequence classification, and then compares them with sample information to perform diversity and network analyses [48]. In this study, changes in the intestinal microflora were observed upon the administration of antibiotics and Lizhong-tang. Compared to the control group, in which only antibiotics were administered, there was a change in the intestinal microflora in the Lizhong-tang-administered group (Figure 7 and Figure 8). This suggests that Lizhong-tang can alleviate diarrheal symptoms by controlling the composition and diversity of intestinal microbes induced by antibiotics. The mammalian gut microbiota consists of a complex bacterial community of at least 1000 species, most of which belong to the phyla Bacteroidetes and Firmicutes. The phylum Bacteroidetes is Gram-negative and includes Bacteroides, Cytophaga, Flavobacterium, whereas the phylum Firmicutes has Gram-positive bacteria, which includes Enterococcaceae, Lactobacillaceae, and Clostridia [49,50]. Macrolides have been reported to decrease Actinobacteria and increase Bacteroides and Proteobacteria by altering intestinal microflora. In addition, vancomycin has been shown to decrease Firmicutes in feces, increase Proteobacteria, and decrease microbial diversity [51].

Although this study is aimed at screening the efficacy of herbal preparations, there are some limitations in animal experiments that need to be considered in the future studies. Adequate period of time was not selected to give effects to such bacteria colonize the gut and contribute to gut homeostasis. In addition, there was a lack of confirmation of changes in inflammation and intestinal structure. Finally, research on an appropriate positive control group, which is not yet available, should be conducted.

5. Conclusions

AAD is associated with intestinal microbiome imbalance, inflammation, and changes in intestinal structure. We screened herbal medicines showing anti-inflammatory effects and looked for materials that improved diarrhea among drugs with anti-inflammatory effects. The results of this study confirm that Lizhong-tang is effective against AAD and that both its active compounds (liquiritin and 6-gingerol) could have a beneficial effect on the intestinal environment by altering the intestinal microbial community. Lizhong-tang exhibits anti-inflammatory effects by inhibiting the expression of iNOS and COX-2, showing the potential to suppress inflammation caused by ADD. As research on the development of probiotics progresses, Eastern medicine could provide compounds that show potential as therapeutic agents to improve the intestinal environment.
