A Simple and Stable Atmospheric Pressure Electrodeless Water Vapor Microwave Plasma Torch

Abstract

An atmospheric pressure microwave plasma source operating on water vapor has many potential applications. To avoid the corrosion of metal electrodes in a traditional water vapor microwave plasma system, we propose a simple water vapor electrodeless microwave plasma device. By introducing a ceramic tube, the device can work directly with liquid water without complex evaporation equipment. This study examined the relationship between microwave power and water vapor torch plasma duration. When the microwave power is greater than 800 W, the plasma torch can be excited permanently and stably without the loss of ceramic. The excitation of the oxygen atom, hydroxyl radical, and hydrogen atom was found using optical spectroscopy, confirming the water vapor’s decomposition. In addition, it was also found that the crystallinity of the ceramic was improved after microwave discharge. This work enriches the microwave plasma techniques for water vapor for various applications, such as electric propulsion, hydrogen production, and surface treatment.

1. Introduction

Non-thermal plasma is a weakly ionized plasma that can work at room temperature and atmospheric pressure while still producing highly active species and electrons. The electronic energy works well to excite molecular and atomic species and destroy chemical bonds, so the non-thermal plasma is widely used in various applications, such as surface modification [1,2], air-cleaning [3] and assisted combustion [4], etc. When water vapor is used as the supporting gas of atmospheric pressure non-thermal plasma, it can produce reducing and oxidizing free radicals such as H, OH, and O so that the plasma can more effectively treat various hydrogen-rich compounds such as methane, natural gas, ethanol, and coal and use them as raw materials to produce hydrogen [5,6,7,8,9,10,11]. The commonly used atmospheric pressure non-thermal plasma sources include glow discharge, corona discharge, dielectric barrier discharge (DBD), radio frequency (RF) discharge, and microwave discharge [12,13,14]. Among these plasma sources, the microwave discharge is used to generate water vapor plasma, which has many advantages, because the strong interaction between 2.45 GHz microwave and water molecules can produce higher electron temperature and higher plasma density, realize high-level dissociation, and realize high-efficiency microwave power transmission from the microwave generator to the plasma [15,16,17,18]. For example, Canadian researchers have studied a method based on a microwave plasma source, which uses microwaves to generate plasma to decompose water vapor into hydrogen. The energy efficiency can reach 53% [15].

However, some issues still exist in producing continuous and lasting water vapor plasma with high microwave power. One of the problems is that the strong chemical reaction between the active atoms produced by microwave plasma and the surface of the metal electrodes will lead to electrode corrosion, which will limit the service life of plasma devices [18,19]. Therefore, many studies have proposed electrodeless discharge devices to overcome the problem of electrode poisoning caused by electrode discharge [20], such as surface-wave-sustained discharges [21,22,23], microwave plasma jets [24], plasma guns [25], etc. However, when we apply liquid water to these devices, many additional devices are often added to generate water vapor plasma, such as heating and evaporation equipment or vacuum sealing device. Which undoubtedly greatly aggravates the use restriction of the device itself, and there is also the risk of water vapor condensation [15,20,26].

Based on the above problems, a stable and simple water vapor electrodeless microwave plasma device is developed and designed in this paper. In this device, the ceramic tube can quickly absorb water after heating, and the water in the ceramic can soon evaporate and ionize on the ceramic tube top to form a water vapor plasma torch.

2. Experimental Setup

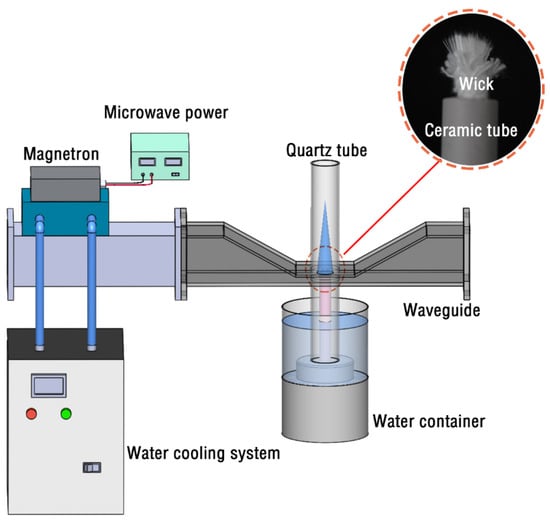

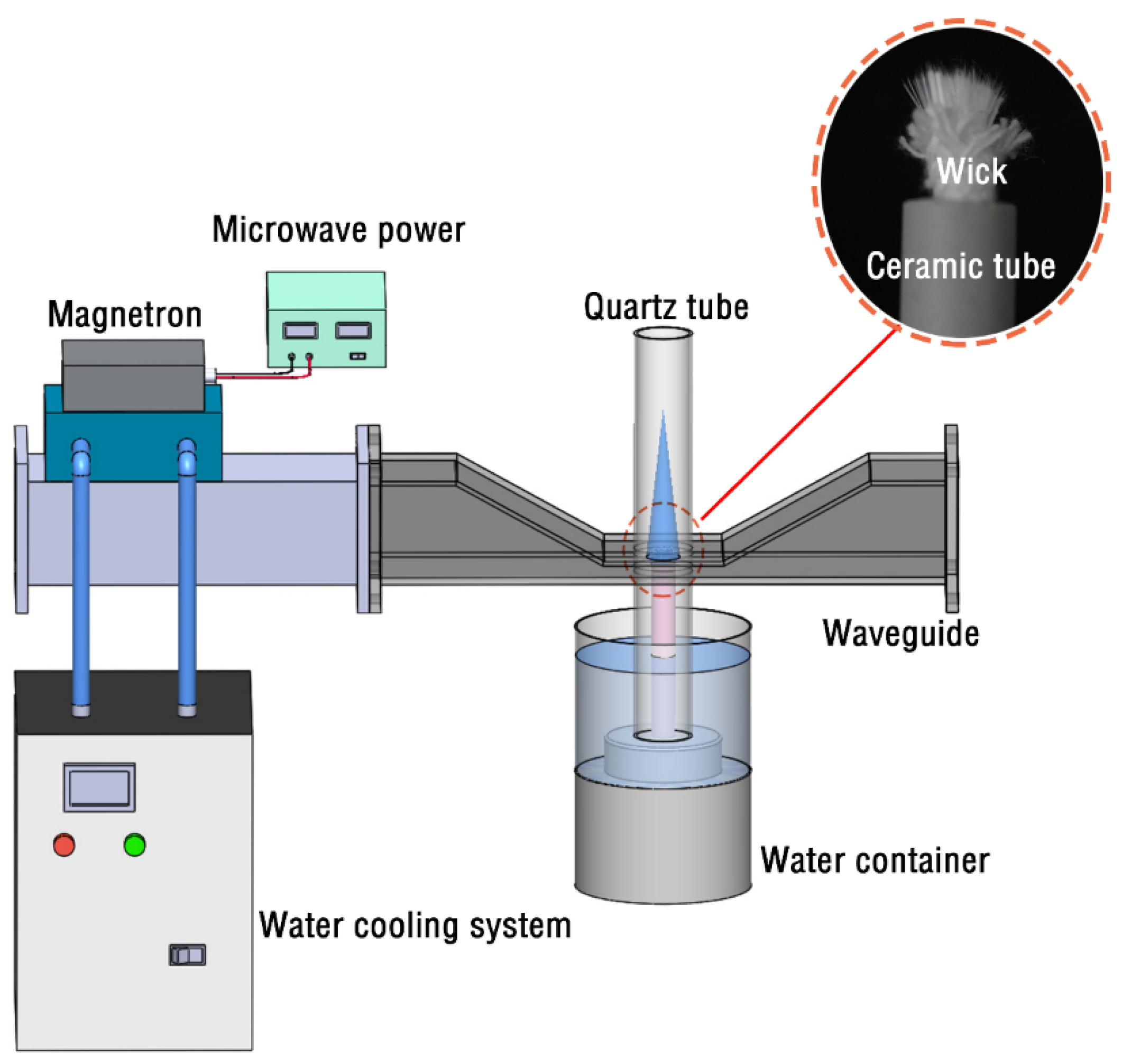

Figure 1 shows a schematic view of the water vapor microwave plasma system. It consists of the 2.45 GHz microwave generator, waveguide components, water container, ceramic tube, and wick. The microwave power supply provides a maximum power of 1000 W and is connected to a magnetron (LG, M246, Seoul, South Korea) to generate microwaves. The water-cooling system is a circulating water tank to prevent the microwave generator from overheating. The waveguide cavity is composed of a rectangular waveguide (WR340) and a dual-port tapered waveguide. The quartz tube is vertically inserted into the opening of the upper and lower surfaces of the dual-port conical waveguide. It is directly connected with the water container to guide and generate a plasma torch. The quartz tube has an inner diameter of 24 mm, an outer diameter of 28 mm, and a length of 600 mm. The ceramic tube is placed inside the quartz tube, its lower end is fixed at the bottom of the water container, and its upper end is in the center of the dual-port tapered waveguide. The main component of ceramics is silicon dioxide, which is produced from pressed powder material. The dielectric permittivity of the ceramic tube is 3.86, and its melting temperature is about 1200 °C. The wick is placed inside the ceramic tube, partially exposing the nozzle. The characteristics of water vapor microwave plasma are detected by the infrared thermometer (Guide infrared, PS400, Wuhan, China) with a high-temperature lens (GD-20), a high-speed camera (Phantom, V1612, Dallas, TX, USA) matching with a microscopic zoom lens (Navitar 12-X), a high-definition camera (Sony, A7M3, Tokyo, Japan), and optical emission spectroscopy (Ocean Optics, HR4000CG-UV-NIR spectrometer, Orlando, FL, USA).

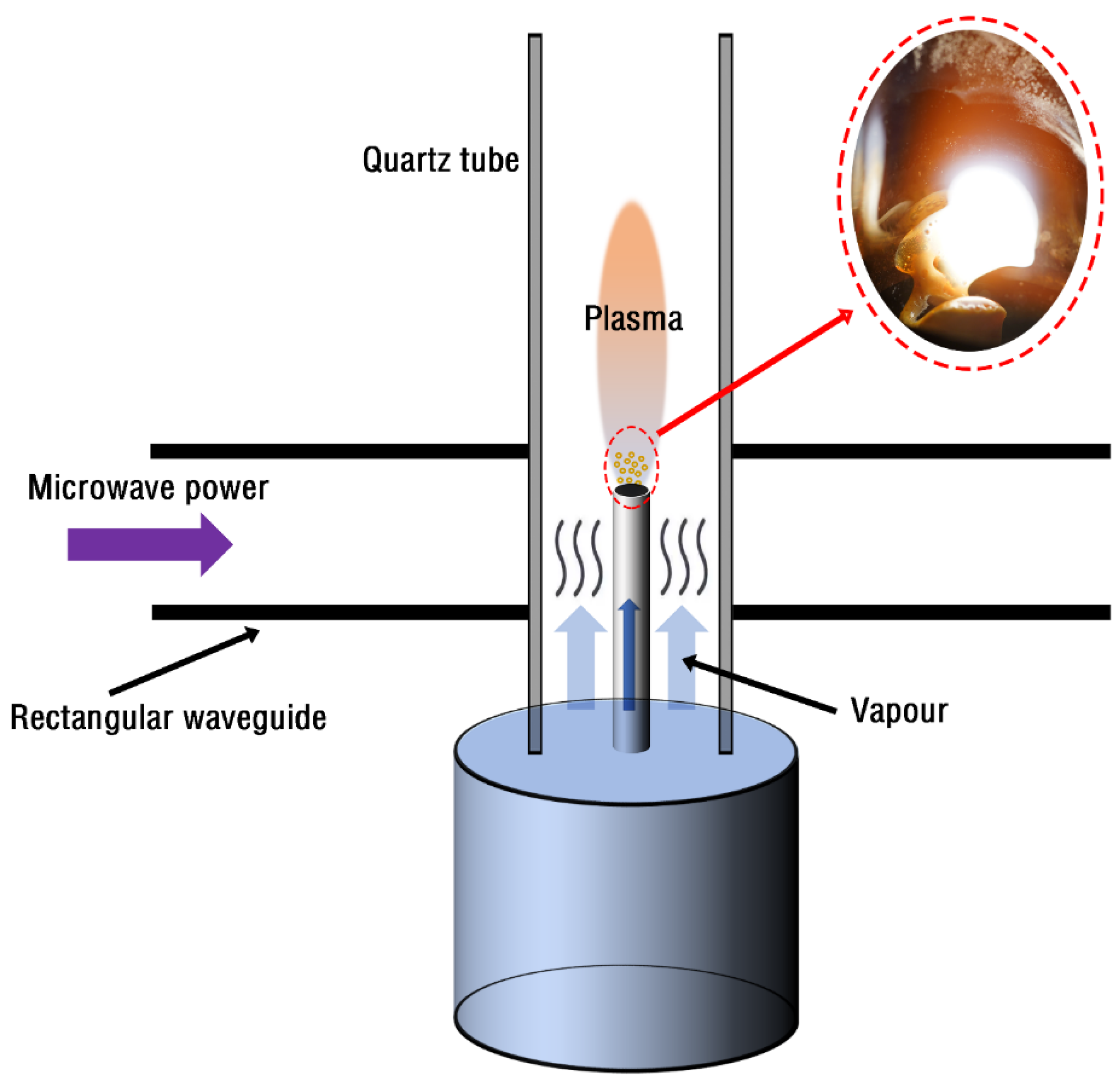

The dual-port tapered waveguide in the experiment can concentrate the microwave energy at its center, as shown in Figure 2. However, the microwave energy in the experiment is not enough to directly ionize water vapor to produce plasma. Therefore, we will ignite the wick in the ceramic tube and then excite the high-temperature flame through the microwave. Flames already contain a high concentration of plasma species, so they can easily produce plasma by focusing relatively low-power microwaves into a high-temperature flame. When the plasma generated by the flame is excited, it will have an extremely high temperature, which can heat the ceramic tube, evaporate the water at the bottom of the ceramic tube and fill the whole quartz tube. Subsequently, water vapor becomes the ion source of the latest plasma, forming a water vapor plasma torch. The inner diameter of the ceramic tube in the experiment is 0.8 cm and the outer diameter is 1 cm; the inner diameter of the quartz tube is 2.4 cm and the outer diameter is 3 cm; the main components of the wick are cotton yarn.

3. Results and Discussion

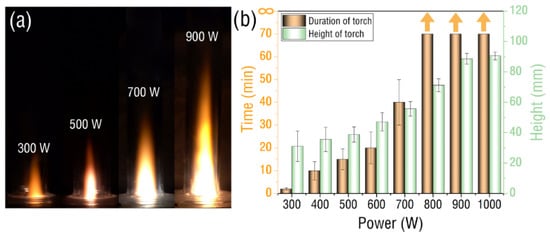

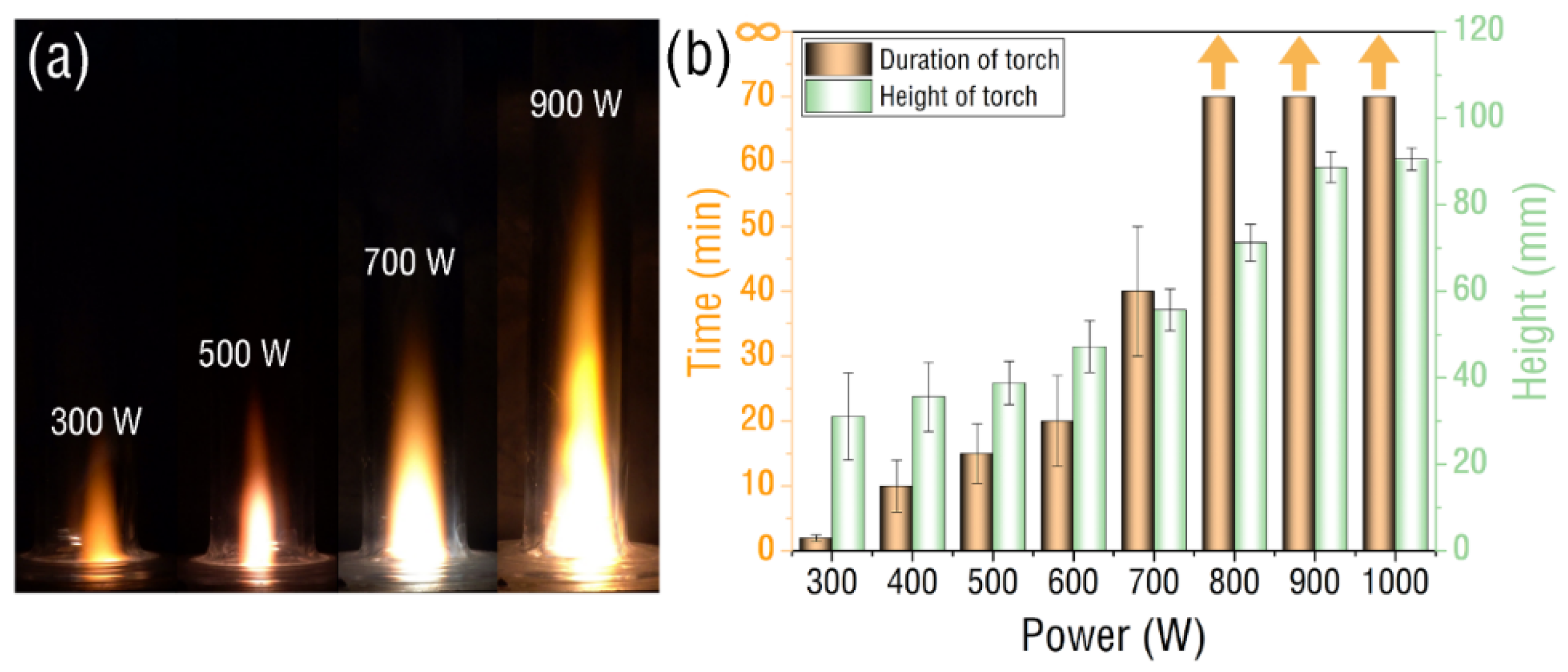

Images of the plasma torch are shown in Figure 3a for when the water vapor is heated and evaporated, reaches the center of the waveguide and is excited. The figure shows the torch images under 300, 500, 700, and 900 W microwave power, respectively. It can be seen that the brightness and height of the torch increase with the increase in power. Figure 3b shows in detail the variation of the height and duration of the plasma torch with power. It can be seen here that the minimum excitation power of the torch is 300 W, and its torch height is 25 mm. With the increase in power, its height can reach 90 mm at 1000 W. It can also be seen from the figure that the duration of the flare is different under different powers. When the power is 300 W, the duration is only 2 min. With the increase in power by 800 W, it can be continuously and stably excited and no longer extinguished. The reason is that when the microwave power is low, the evaporation of water is too small to provide enough free radicals to excite the plasma torch continuously and stably.

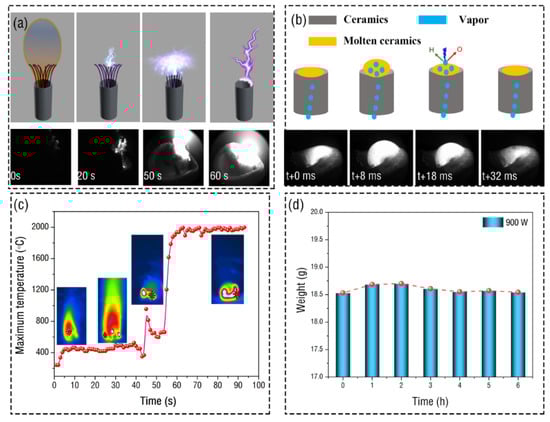

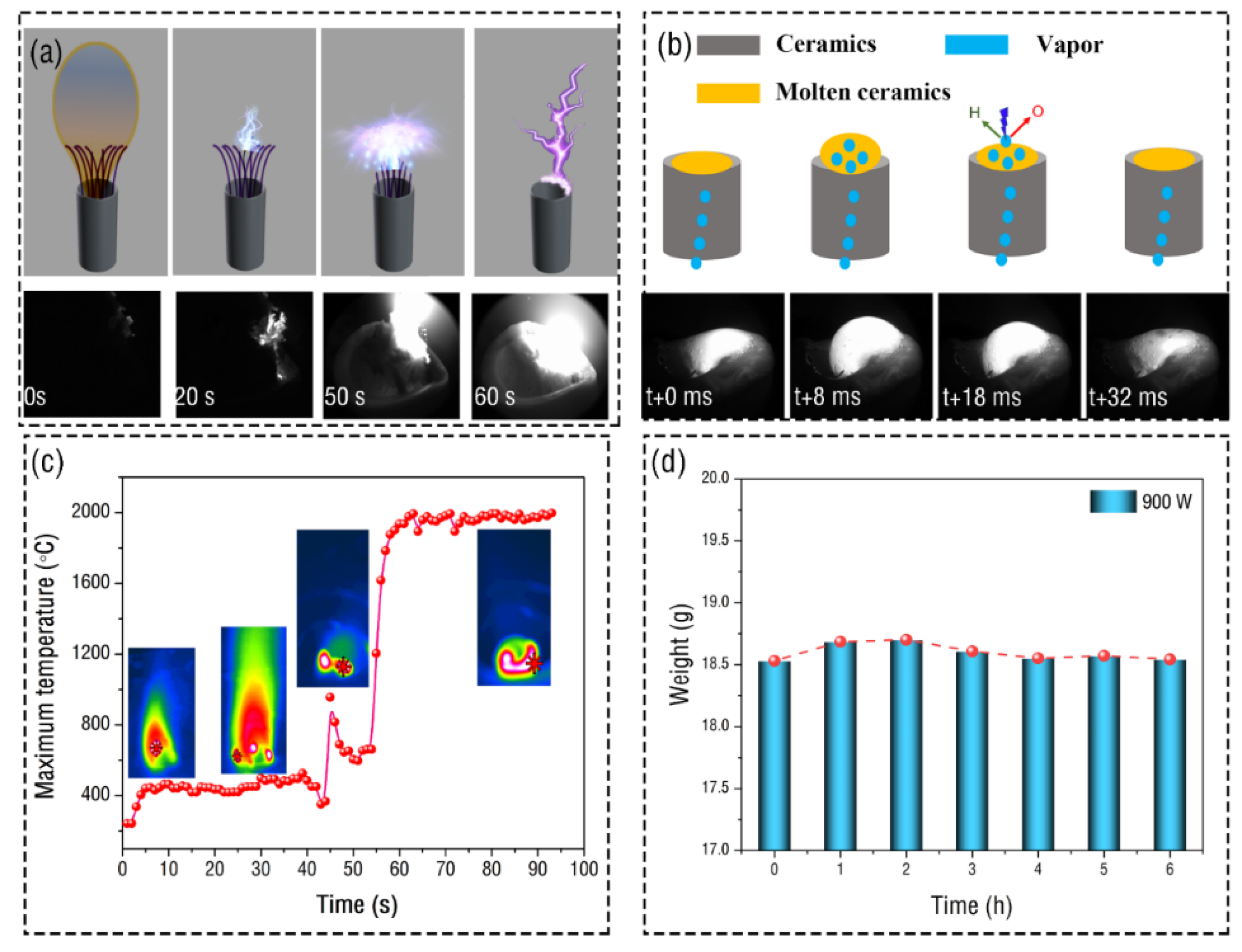

The process of exciting water vapor plasma in the experiment is as follows: first, add a little alcohol to the wick to burn it well, use the igniter to ignite the wick, and turn on the microwave power supply. At this time, the ignited wick burns rapidly under the action of the microwave and carbonizes, as shown in Figure 4a. In the figure, 0 s indicates that the microwave has just been turned on, and 20 s indicates that the wick is carbonizing. Then the carbonized wick begins to discharge, which makes the ceramic tube rapidly heated and absorbs the water in the container. Finally, the water at the top of the ceramic tube begins to evaporate and ionize, and the discharge position begins to transfer to the ceramic tube. After the water vapor plasma torch is formed on the top of the ceramic tube, the top of the ceramic is quickly heated to a molten state. The water vapor at the lower part continuously comes to the top of the ceramic tube. It is excited by microwaves, resulting in periodic expansion and contraction of the ceramic, as shown in Figure 4b. The above description can be confirmed by the temperature measurement of the infrared camera. Figure 4c shows the infrared image of the torch and the change of its maximum temperature with time. In the absence of microwaves, the maximum temperature of the flame is concentrated in the flame center, and the maximum temperature of the flame is 360 °C. As the microwave begins to act on the flame, the flame is enhanced, and its high-temperature increases to 420 °C. Then the wick began to discharge in a small range, the core temperature of the device was concentrated at the discharge of the wick, and the temperature changed significantly. At about 60 s, the discharge position is finally transferred to the ceramic tube. At this time, the maximum temperature in the device reaches the maximum temperature of 2000 ℃ that can be tested by the infrared camera, and a continuous plasma torch begins to appear. After each hour of operation, the weight of the ceramic tube is measured after drying. It is found that the weight of the whole ceramic remains about 18.5 g, with little change, as shown in Figure 4d, which shows that the water can be ionized on the top of the ceramic to form a plasma torch without losing the quality of the ceramic.

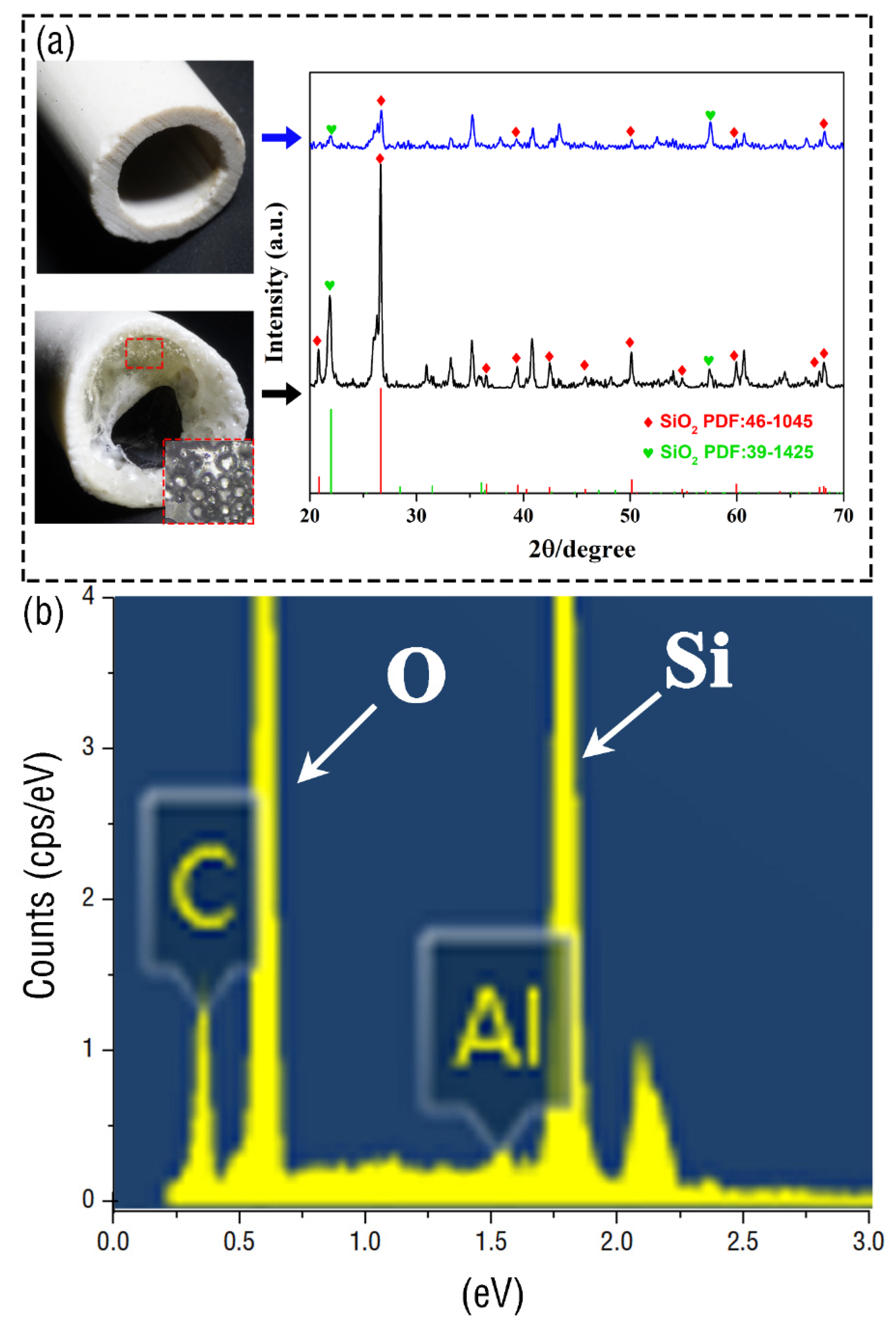

After the top of the ceramic tube is discharged, the image of the ceramic tube before and after discharge is compared and analyzed. It can be found that the molten part on the top becomes very transparent. An XRD analysis of the ceramics can be seen in Figure 5a. The results show that the ceramics have a similar structure before and after discharge. To further explore the composition of the ceramic, we analyzed the ceramic material by energy dispersive spectroscopy (EDS) and found that the main elements are Si and O. Therefore, it can be found that the peak intensity of SiO₂ after discharge is significantly stronger than that before discharge, which indicates that the high temperature generated by discharge can promote the crystallinity of the crystal. Finally, we also carried out experiments with alumina ceramic tubes and obtained similar results, which shows that this device can also be used for the crystal growth of non-metallic materials.

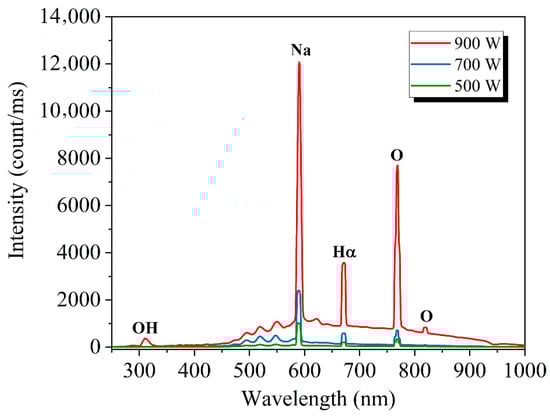

For different values of plasma input power, the emission spectrum of water vapor plasma of the device is obtained in the wavelength range of 250 to 1000 nm. The two-second integration time is applied, and the software PLASUA SpecLine (ver. 2.1, Plasus SpecLine, Kissing, Germany) is used to analyze and allocate the emission line. Shown in Figure 6 are the emission spectra of water vapor microwave plasma obtained by excitation at three different microwave powers of 900, 700, and 500 W, respectively. It illustrates that with the increase in power, the peak value of the spectrum is enhanced, and the emission line increases gradually. In this spectrum, the OH band is clearly identified with intense peaks in the range 302.1–308.9 nm [8]. Hα at 656.3 nm is also clearly identified [27]. In particular, the atomic oxygen line at 777 nm and 844 nm was remarkably enhanced. The strongest spectral line with a peak at 589.59 nm in the spectrum is most likely Na [28], which mainly comes from Na ions in water. In short, the emission spectrum confirms the dissociation of water molecules.

4. Conclusions

In conclusion, we experimentally demonstrate a simple and stable electrodeless microwave plasma device as an atmospheric pressure water vapor microwave plasma source. The water vapor microwave plasma torch combustion process is investigated systematically. The results show that the microwave plasma torch can excite lasting and stably when the microwave power is greater than 800 W, and the height of the plasma torch increases with the increase in power. At the same time, it is also found that the plasma torch will make the top of the ceramic in a molten state instead of corroding the electrode during the excitation process. The XRD test confirmed that the crystallinity of the ceramic was improved after discharge. In addition, the dissociation of water vapor by microwave was confirmed by an emission spectrum. With the introduced ceramic, it is possible to design an even simpler and smaller water vapor microwave plasma torch for special applications.
