Rolling Bearing Health Indicator Extraction and RUL Prediction Based on Multi-Scale Convolutional Autoencoder

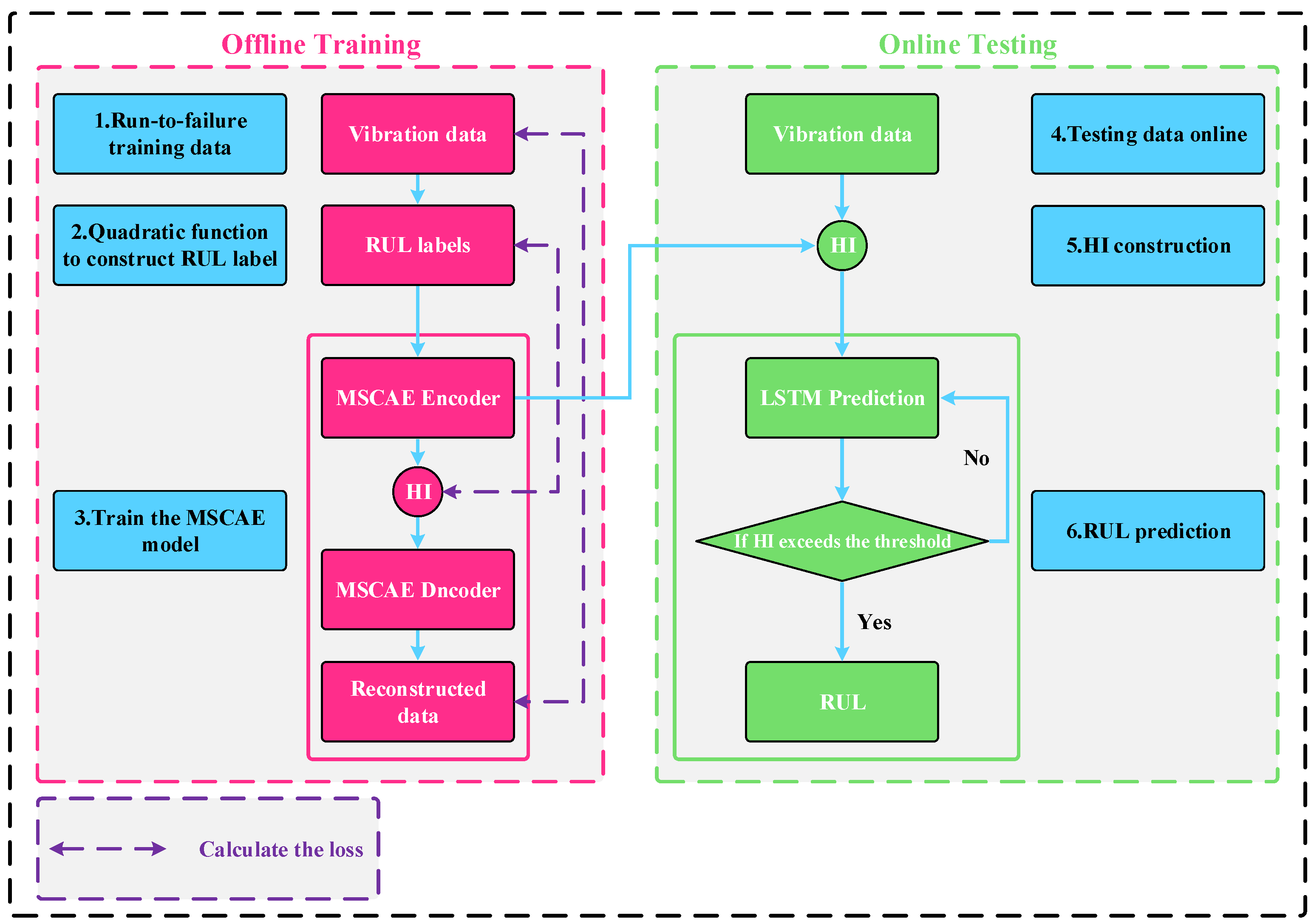

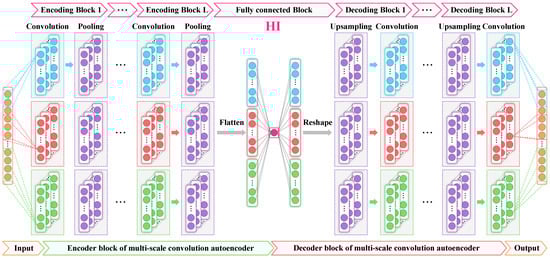

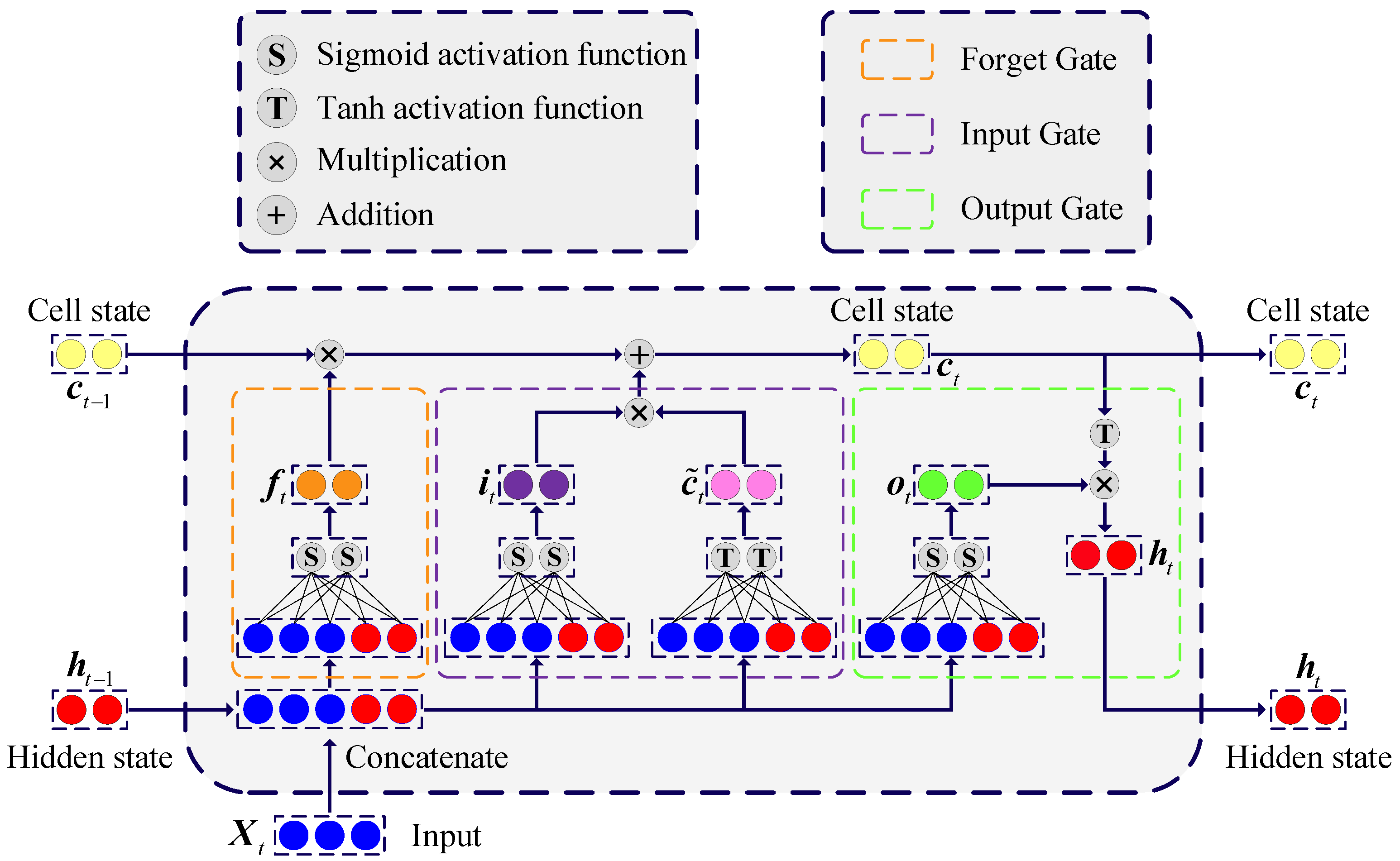

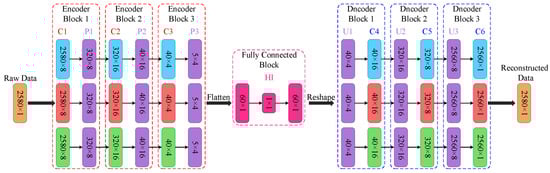

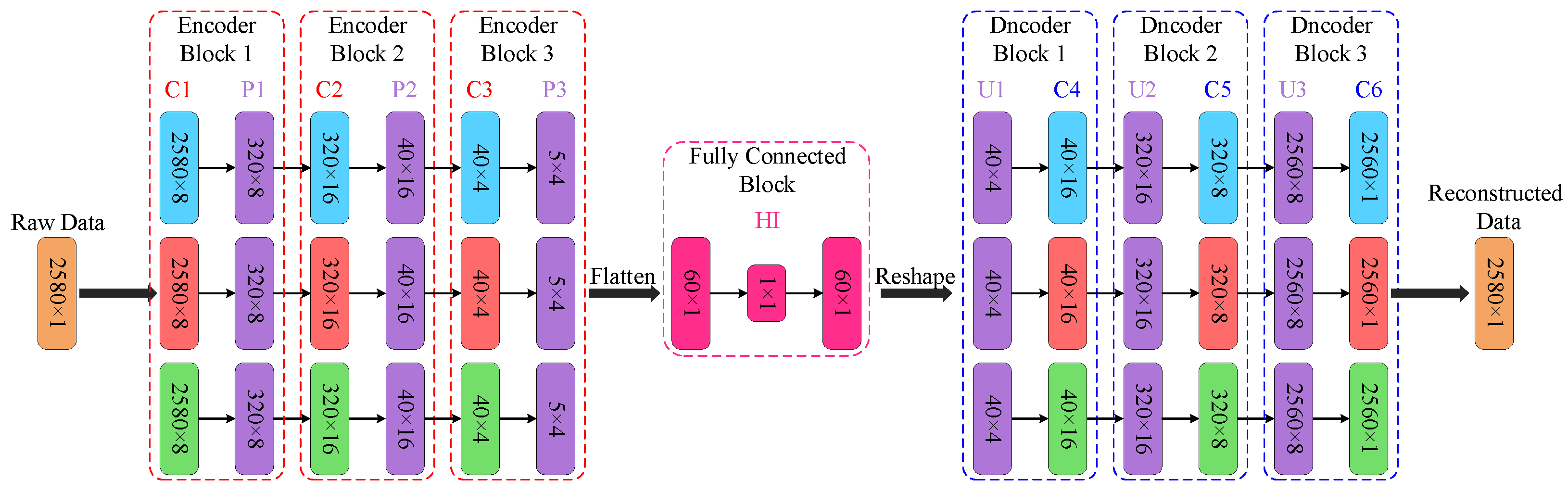

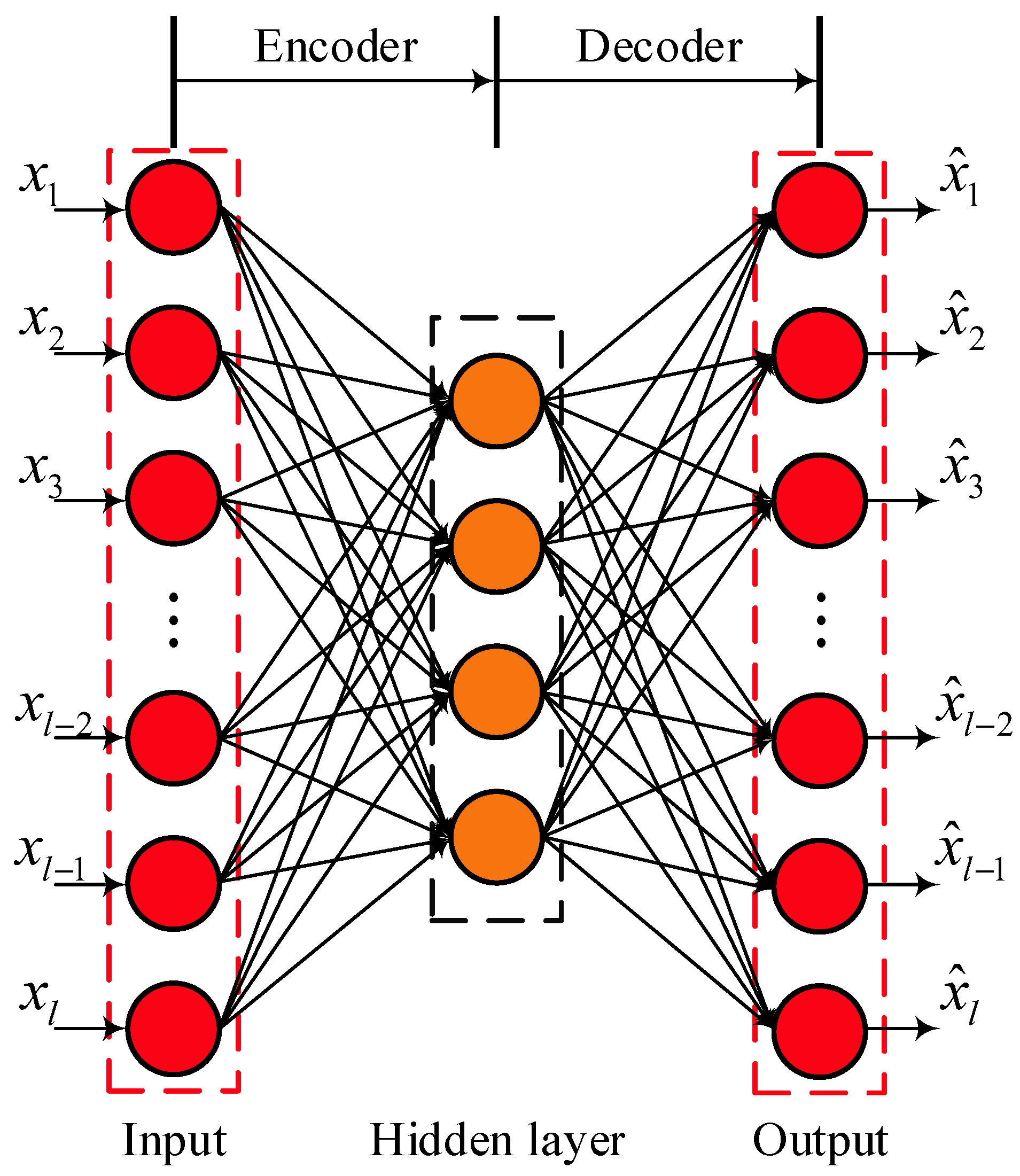

Rolling bearings are some of the most crucial components in rotating machinery systems. Rolling bearing failure may cause substantial economic losses and even endanger operator lives. Therefore, the accurate remaining useful life (RUL) prediction of rolling bearings is of tremendous research importance. Health indicator (HI) construction is the critical step in the data-driven RUL prediction approach. However, existing HI construction methods often require extraction of time-frequency domain features using prior knowledge while artificially determining the failure threshold and do not make full use of sensor information. To address the above issues, this paper proposes an end-to-end HI construction method called a multi-scale convolutional autoencoder (MSCAE) and uses LSTM neural networks for RUL prediction. MSCAE consists of three convolutional autoencoders with different convolutional kernel sizes in parallel, which can fully exploit the global and local information of the vibration signals. First, the raw vibration data and labels are input into MSCAE, and then, MSCAE is trained by minimizing the composite loss function. After that, the vibration data of the test bearings are fed into the trained MSCAE to extract HI. Finally, RUL prediction is performed using the LSTM neural network. The superiority of the HI extracted by MSCAE was verified using the PHM2012 challenge dataset. Compared to state-of-the-art HI construction methods, RUL prediction using MSCAE-extracted HI has the highest prediction accuracy.
