Reconfigurable Smart Contracts for Renewable Energy Exchange with Re-Use of Verification Rules
Abstract
:1. Introduction
- Smart Contract Design Pattern (SCDP)—the pattern for design and development of verification rules in smart contracts, which is blockchain platform independent.
- The UML profile—the new version of UML Profile for Smart Contracts that encompasses stereotypes for both smart contract’s abstraction levels: blockchain platform-independent and blockchain platform-specific. The latter level as for now encompasses stereotypes only for the R3 Corda permissioned distributed ledger.
- Pattern’s implementation—new, blockchain platform-independent implementation in Java language v. 18 that encompasses the smart contract reconfigurability option.
- Testing method—defined rules for unit tests with the formula that specifies the number of test cases, which hinges on the number of verification rules and the construction of evaluation expression and applied logical operators. Automated tests for a smart contract and verification rules were prepared in JUnit v. 5.7.0.
- Definitions of verification rule, evaluation expression, and smart contract configuration.
- Illustrative example of the design of a smart contract—the example uses new modeling means and design of the pattern.
2. Related Work

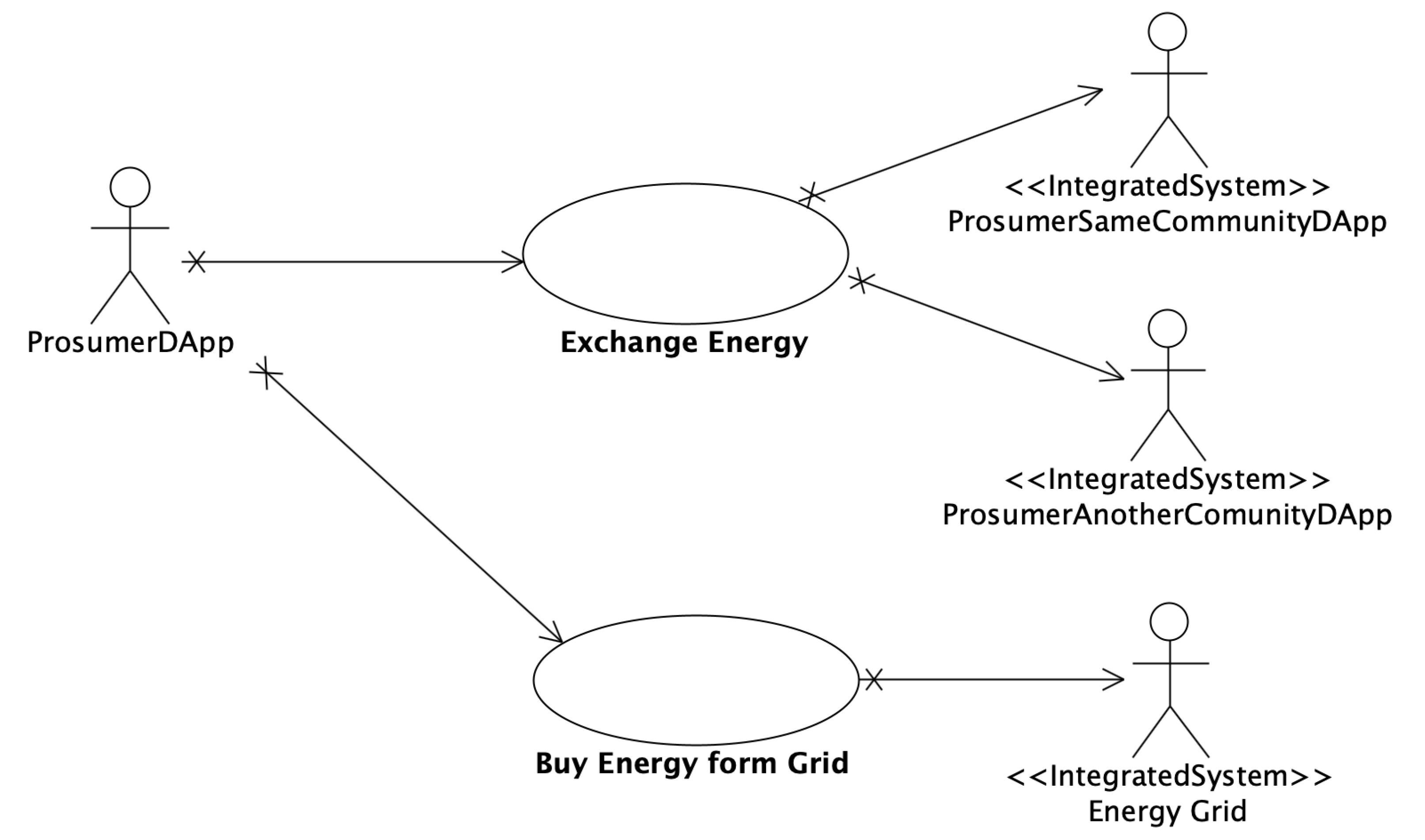

3. Renewable Energy Example
- TechnicalVR1—transaction can be executed within the same community;
- TechnicalVR2—transaction can be executed between different prosumers;
- BusinessVR1—quantity of energy to transfer must be greater than zero;
- BusinessVR2—source prosumer surplus of energy must be greater than or equal to the quantity of energy to transfer;
- BusinessVR3—the sum of renewable energy generation and battery energy surplus is smaller than the energy need;
- BusinessVR4—battery energy surplus is equal to zero;
- ExpandingVR1—always return true;
- TechnicalVR1Extended—transaction can be executed between various communities;
- ExpandingVR1Extended—target prosumer need for energy must be greater than or equal to the quantity of energy to transfer.
- C—number of configurations in a smart contract,
- —number of re-used verification rules in i-th configuration of the smart contract,
- —number of verification rules in i-th configuration of the smart contract.
4. UML Profile for Smart Contracts

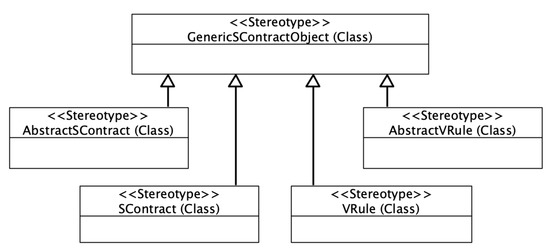

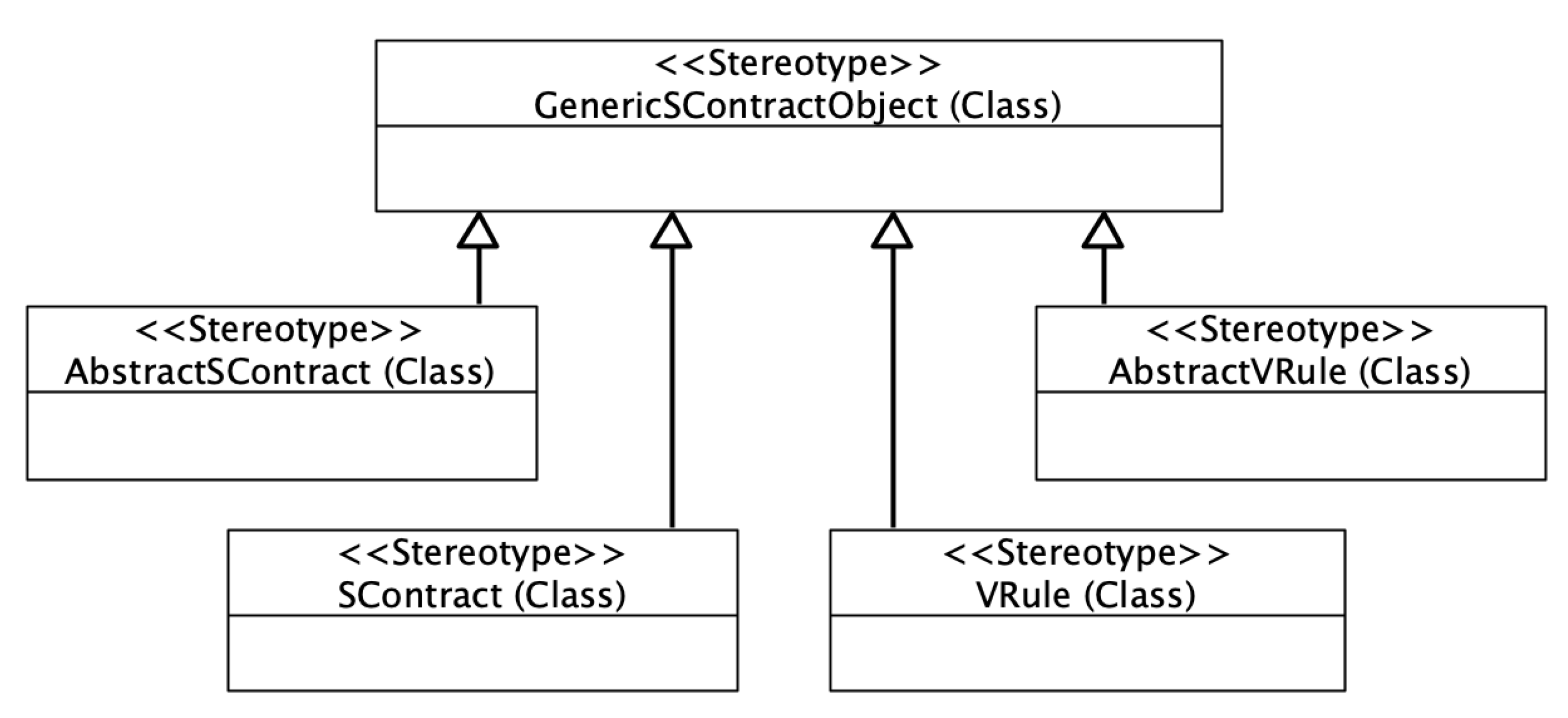

- ≪AbstractSContract≫—used for marking an abstract, generic class of smart contract. The class is a superclass for all types of concrete smart contracts;
- ≪AbstractVRule≫—used for marking an abstract, generic interface of verification rule. The interface must be implemented by concrete verification rules;
- ≪SContract≫—used for marking concrete smart contract classes. This means the agreement that regulates the cooperation of blockchain nodes;
- ≪VRule≫—used for marking concrete verification rules classes. This means a concrete condition that must be met in the smart contract.

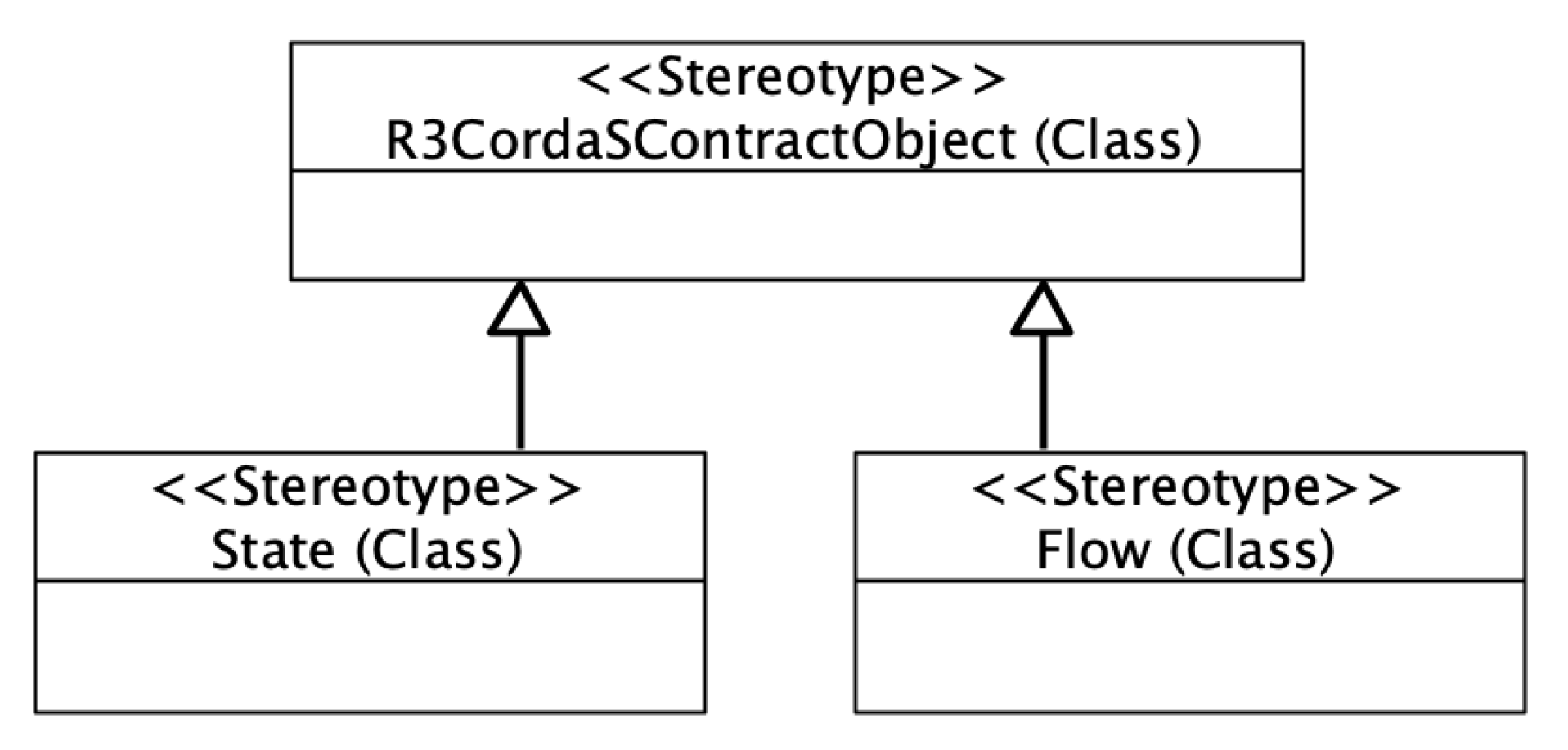

- ≪State≫—an object that is stored in blockchain nodes. Comprises the quantity exchanged and references to both parties: producer and buyer.
- ≪Flow≫—the procedure of reconciliation transactions and cooperation among nodes.
5. The Pattern Design
6. The Pattern Implementation

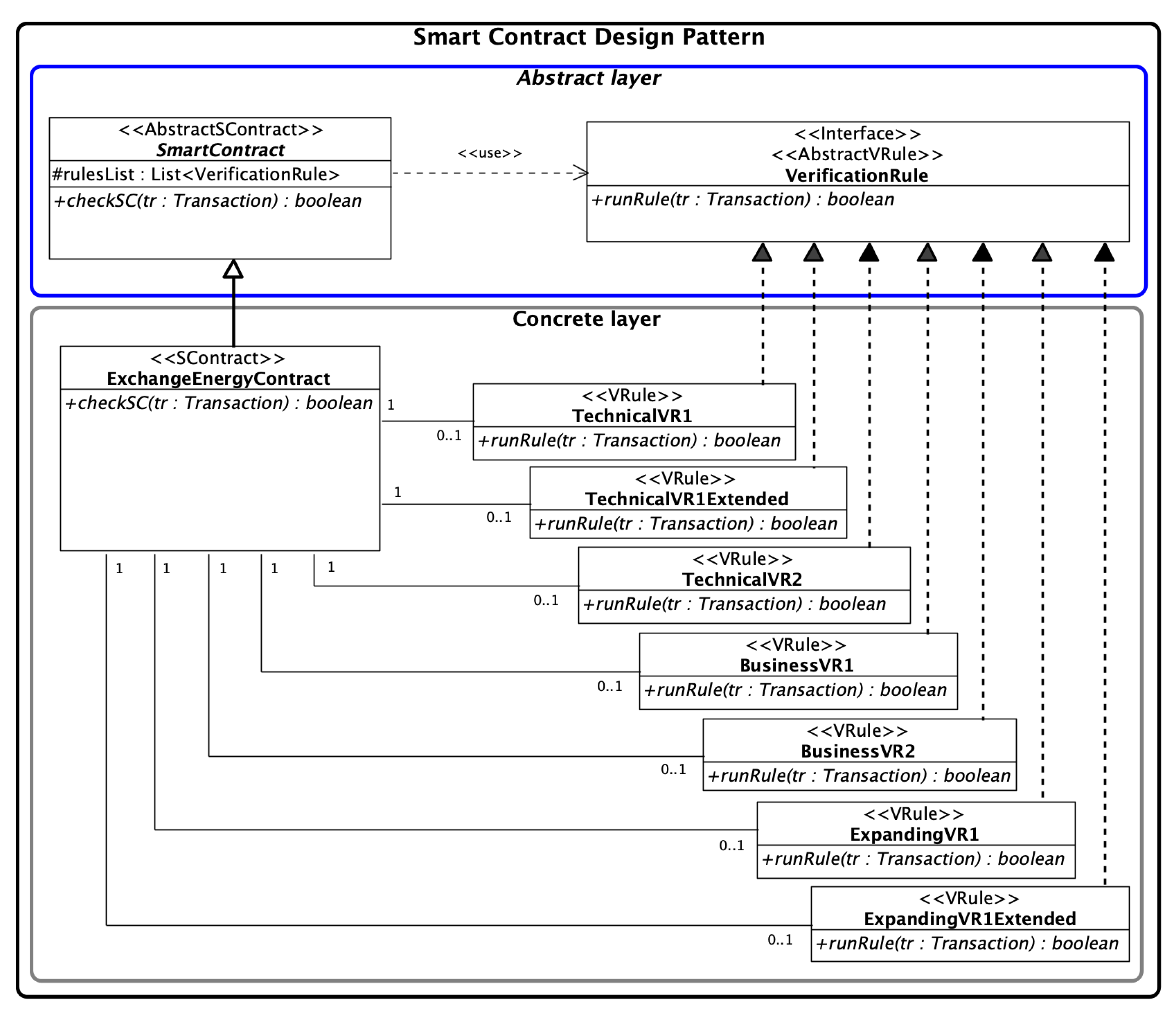

- Contracts—the package consists of the SmartContract abstract class and one the ExchangeEnergyContract class for concrete smart contract;
- Rules—the package encompasses the VerificationRule interface and subpackages:
- —
- exchangeEnergy—contains concrete verification rules classes, i.e.: TechnicalVR1, TechnicalVR2, BusinessVR1, BusinessVR2, and ExpandingVR1;
- —
- crossCommunity—contains concrete extended verification rules classes for cross community energy exchange, i.e., TechnicalVR1Extended; ExpandingVR1Extended.
6.1. Energy Exchange in the Same Community
6.2. Cross-Community Energy Exchange

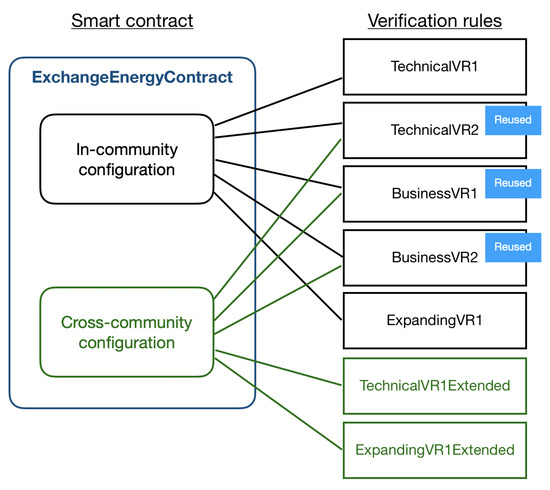

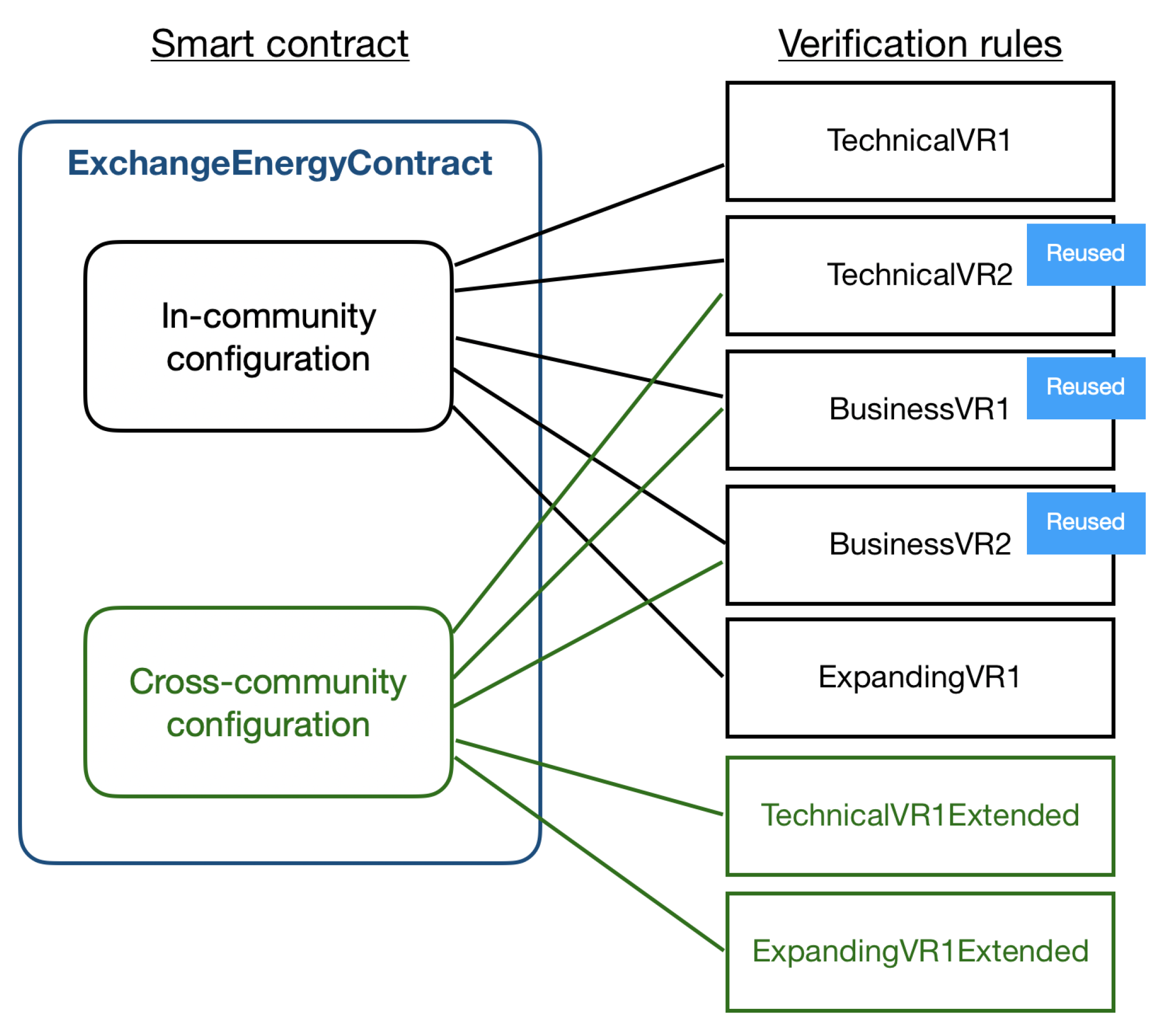

6.3. Smart Contract Reconfigurability
6.4. Transaction Types
6.5. Buying Energy from Energy Grid

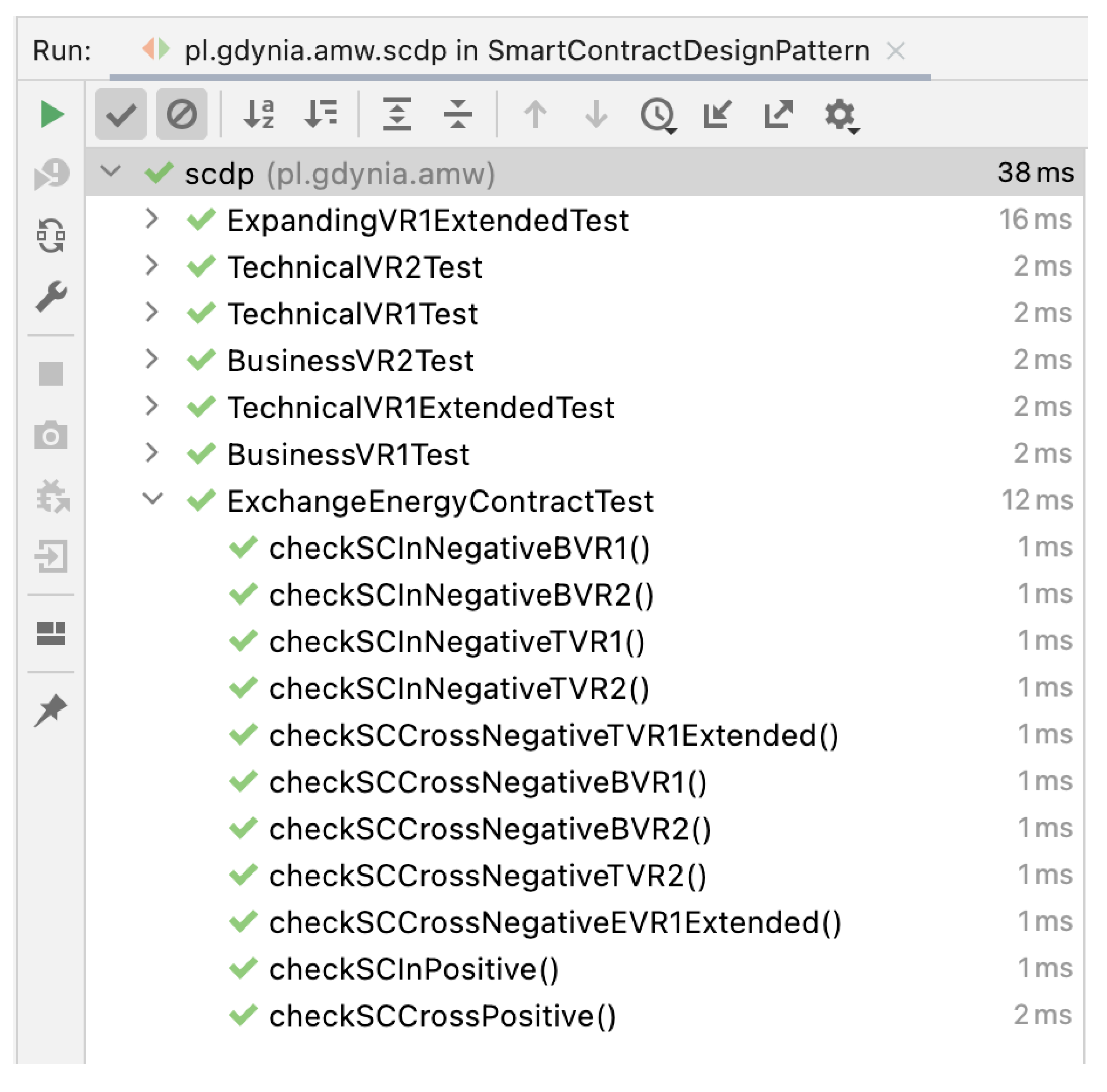

7. Tests
- S—number of smart contracts;
- V—number of active verification rules;
- —number of configurations in i-th smart contract;—number of active verification rules in j-th configuration of i-th smart contract.
8. Discussion and Limitations
9. Conclusions
