Benchmarking Numerical Methods for Impact and Cratering Applications

Abstract

Large scale computational models are important for studying impact cratering events that are prevalent both on Earth and, more broadly, in this solar system. To address these problems, models must reliably account for both large length scales (e.g., kilometers) and relatively long time scales (hundreds of seconds). This work benchmarks two such approaches, a more traditional hydrodynamics approach and a finite-discrete element method (FDEM), for impact cratering applications. Both 2D and 3D results are discussed for two different impact velocities, 5 km/s and 20 km/s, striking normal to the target and, for 3D simulations, 45° from vertical. In addition, comparisons to previously published data are presented. Finally, differences in how these methods model damage are discussed. Ultimately, both approaches show successful modeling of several different impact scenarios.

1. Introduction

Impact cratering is a phenomenon that happens across a wide range of spatial scales, from large geological scales which encompass examples such as asteroid impacts to very small scales such as microparticle impacts. Particularly on the largest scales, experimental data become limited as kilometer scales cannot be reached in the laboratory environment, and many impact craters of interest are extraterrestrial. Thus, models operative at larger spatial scales become critical for studying and understanding these impact craters. Consequently, validation and verification of these models is important for the generation of reliable results. In lieu of experimental data, code-to-code comparisons can be informative for understanding differences in modeling approaches and the overall effect on results.

Impact cratering is a complex process that can be divided into three stages: contact and compression; excavation; crater modification [1,2]. The initial stage, contact and compression, occurs as the impactor strikes the target, transferring momentum and resulting in a shock wave [1,2,3]. During this stage, target and impactor materials behave as fluids, with hydrodynamics governing the motion of material [1,2,3]. The second stage, excavation, occurs as material is ejected from the forming crater. This ejected material may be in the form of solid particles or in the form of vapor [1,2]. During the final stage, crater modification, strength and/or gravity dominate the crater formation, depending on the cratering regime of the impact [1,2]. As excavation ends and modification begins, material begins to settle into the crater floor, and other processes such as slumping and the overturned flap occur [1,2]. For this final stage especially, more accurate modeling of solid materials, including material strength and damage, is essential to better understanding impact crater formation through computational models.

This work presents a code-to-code comparison between a hydrodynamics code (hydrocode) and a finite-discrete element method (FDEM) code. The hydrocode approach is a more traditional approach for addressing impact cratering problems [4,5,6,7,8,9], while the FDEM approach has been traditionally used for brittle fracture in geomaterials [10,11,12]. These approaches are operative on similar spatial scales, but the underlying formulation, particularly in how each approach accounts for damage, is very different.

Hydrocodes solve the equations for conservation of mass, momentum, and energy, along with constitutive relations describing the response of different materials. Hydrocode approaches have been under development for decades [13,14,15] and thus have many attractive features for addressing impact cratering problems. One such feature is the ability of these models to employ Eulerian, Lagranian, or a combination of these two descriptions of the equations of motion [15,16]. In Eulerian codes, material is allowed to freely move or ‘flow’ through a spatially fixed mesh [15]. Such methods have advantages because simulations are not limited by the consequences of excessive grid or element deformation, though they are not without drawbacks. For example, tracking the interfaces between materials presents a challenge in the form of mixed material cells, in which multiple materials exist in a single cell. In this case, material properties are often averaged [15,16]. Conversely, in Lagrangian approaches, the mesh deforms with the material, making the tracking of interfaces between materials trivial. Thus, this approach has advantages particularly for problems considering solid materials. However, these formulations are subject to stability issues and/or inaccuracies when elements experience significant deformation, and mesh tangling can result [13,15]. In order to capitalize on the advantages of both Lagrangian and Eulerian approaches, hybrid methods, or arbitrary Lagrangian–Eulerian (ALE) methods, have emerged [16]. ALE methods use a mix of Lagrangian and Eulerian schemes in which the solution from a distorted Lagrangian mesh is remapped to a spatially fixed Eulerian mesh. In addition, adaptive mesh refinement (AMR) techniques have been developed to provide dynamic mesh resolution in regions where material interfaces or shock fronts exist [17].

While hydrocodes can capture a wide range of multiphysics, they typically do not discretely resolve many features important to material deformation. Examples include cracks, fragmentation, or grains/particles within polycrystalline or granular microstructures. While such limitations may seem like a disadvantage from a physical standpoint, from the computational standpoint, this type of homogenization often makes this formulation more computationally efficient than other approaches, which allows for the ability to study very large systems in reasonable amounts of times.

FDEMs operate on similar spatial scales as hydrocodes. FDEMs were introduced by Munjiza in the late 1980s/early 1990s for the simulation of “transient dynamics on fragmenting solids” [18,19]. As the name indicates, FDEM merges the advancements achieved by both the Finite-Element Method (FEM) and the Discrete-Element Method (DEM). From the start, FDEM’s FEM portion was designed to be able to handle finite displacements, finite rotations, and finite strain-based deformation of the solid [20,21]. The FEM approach was then combined with contact detection, contact interaction, and objective discrete crack initiation and crack propagation solutions that were inherited from the DEM [20,22]. FDEM provides a framework for representing the transition from continuum to discontinuum (i.e., fracture) of solid materials when they are subjected to loads that exceed the material’s strength. This transition is allowed to occur at the boundaries of the finite elements. The first implementations of FDEMs were mainly focused on the simulation of fracture and fragmentation processes for cementitious materials [23]. These models used assumptions that the material inside the finite elements behaves elastically and that the localization process (fractures) was limited to the boundaries of the finite elements. More recently, a growing need for the simulation of problems where the aforementioned assumptions were no longer valid because of the large extent of permanent deformation mechanisms has led to the incorporation of plasticity models inside of the finite elements [24]. Traditional FDEM-based simulations involve the resolution of fracture, fragmentation, and contact problems. A typical solution for contact is via the implementation of penalty methods [25], which are computationally robust but require the use of relatively high values of contact stiffness (i.e., penalty coefficients), which in turn require smaller time step sizes. Combined with the fact that contact problems also require a spatial search for contacts every certain number of time steps [26,27], the result is that FDEM is more computationally expensive than traditional continuum-based models. Another drawback of the FDEM, because it is a Lagrangian-based method, is the time-step size restrictions imposed by highly deformed elements [13,15]. This type of situation usually occurs in areas located close to impacts or around high strain sources, such as explosions.

As mentioned previously, this work is focused on a code-to-code comparison of a hydrocode and an FDEM code, with the goal of benchmarking both numerical methods for impact cratering simulations and also evaluating the effects that the different numerical methods have on the overall solutions. In this work, hydrocode simulations use the ALE code Free LAGrange (FLAG), and FDEM simulations use the Hybrid Optimization Software Suite (HOSS). Both codes are developed and maintained by Los Alamos National Laboratory [28,29,30,31,32,33]. The following section contains brief summaries of each approach. Section 3 describes the test problem and model setups for both FLAG and HOSS simulations. Section 4 presents the comparisons for both 2D and 3D simulation results between FLAG and HOSS. In addition, this section includes comparison with previously published results from a wide range of hydrocodes. Finally, Section 5 presents a final summary and key conclusions of this work.

2. Computational Methods

This section presents more specific details about the underlying formulations between the two codes studied in this work, FLAG and HOSS. A summary of each code focuses on key aspects of the approaches that are of relevance to this study.

2.1. FLAG—Hydrodynamics Approach

The FLAG hydrocode uses a second-order finite-volume approach [30,31,32] to solving the Euler equations for conservation laws:

$$\begin{array}{cc}\hfill \frac{\rho D\mathbf{u}}{Dt}& =-\nabla P\hfill \\ \hfill \frac{D\rho }{Dt}+\rho \nabla ·\mathbf{u}& =0\hfill \\ \hfill \frac{dE}{dt}+P\frac{dV}{dt}& =0,\hfill \end{array}$$

(1)

where $\rho$ is density, $\mathbf{u}$ is velocity, P is pressure, E is energy per unit mass, V is volume, and $\frac{D}{Dt}$ is the Lagrangian differential $\left(\frac{\partial }{\partial t}+\mathbf{u}·\nabla \right)$ [3]. FLAG is massively parallel and supports fully unstructured grids in 1–3 spatial dimensions [30,31,32,33].

FLAG has been used for a variety of physics applications at temporal and spatial scales that vary by several orders of magnitude [17,34,35,36]. It has the capability to run simulations in Eulerian, Lagrangian, and ALE frameworks [33]. FLAG has a variety of meshing tools for problem initialization as well as AMR capabilities [17,33].

In addition to a selection of computational approaches and meshing strategies, FLAG also offers a variety of options for equations of state (EOS) and material models, including failure and damage models [30,31,32,33]. These features are vital for modeling crater formation from high-velocity impacts into solid materials [1,2,3]. FLAG has been verified and validated for impact cratering simulations in both the strength-dominated and gravity-dominated cratering regimes [4] and has been used to study impact structures in the strength regime on extraterrestrial bodies [6].

2.2. HOSS—Finite-Discrete Element Method

FDEM combines aspects of both discrete- and finite-element methods. FDEM simulations consist of continuous, solid domains that are discretized into finite elements. Individual solid domains are allowed to interact with one another and, upon meeting some failure criterion, may develop new discontinuities or undergo fragmentation, resulting in the creation of new discrete domains. The governing equations for FDEM can be expressed as

$$\mathbf{M}\frac{d^2\mathbf{x}}{d{t}^2}+\mathbf{C}\frac{d\mathbf{x}}{dt}=\mathbf{f},$$

(2)

where $\mathbf{M}$ and $\mathbf{C}$ are the lumped mass and damping matrices, respectively, $\mathbf{x}$ is the displacement vector, and $\mathbf{f}$ is the equivalent nodal force load. Equation (2) is solved using a second-order central difference time integration scheme to obtain the temporal evolution of the system.

A formal introduction to the FDEM formulation and descriptions of the contact detection and interaction algorithms are presented in detail elsewhere [20,22]. The material behavior is represented through a large-strain adaptation of the continuum-based constitutive law [21], which includes material non-linearities such as plasticity. The material can deform elastically and/or inelastically until surpassing either its tensile or shear strengths (or some combination of the two), resulting in the onset of damage [37,38]. Once the strength of the material is surpassed, the strain-softening behavior of the material is governed by a stress-displacement formulation that is incorporated into the constitutive law [39].

HOSS has been used to simulate a diverse array of problems, ranging from lab-scale experiments [10,40,41] to earthquake rupture [42,43]. Although HOSS has been used to model small-scale, high strain-rate impact problems in the past [44,45,46], this is the first time it has been used in the context of large-scale impact modeling.

3. Code Verification Problem

The code verification simulations were based on the problem initially introduced by Pierazzo et al. in a multi-code benchmarking study [5]. The verification problem consists of a 1 km diameter sphere of aluminum (Al-6061) impacting an aluminum target at 5 km/s and 20 km/s [5]. A schematic of this test problem is shown in Figure 1. Most of the results do not consider material strength, as in the initially proposed test problem, which allows for focus on the early stages of crater formation as well as for direct comparison to previously published results. In addition to modeling the materials as strengthless, simulations of this same verification problem using models for both material strength and damage are discussed later in Section 4.4. Relevant material parameters are included in the problem setup discussions for each code.

Several simulations were completed using this test problem configuration, many of which are consistent with those performed by Pierrazzo et al. [5] so that comparisons between results could be made. These simulations included a mesh resolution study in 2D, which tested mesh resolutions in the range of 5–40 cells per projectile radius (cppr). For the mesh resolution study, shock pressure decay was recorded at tracer particles along the impactor trajectory from the point of impact to 10 km into the target, shown with a dashed line in Figure 1 (labeled as the vertical tracer). 3D simulations included both normal impacts and impacts 45° from vertical (also referred to as the oblique impact). Shock pressure decay was recorded in 3D simulations, but a mesh resolution study was not performed because of the significant computational cost of 3D simulations. Similar to the 2D case, the shock pressure decay was measured at different tracers from the impact point, including a vertical, horizontal, and 45° from vertical (i.e., diagonal) tracer line, all of which are indicated with dashed lines in Figure 1. Note that for the diagonal tracers, data were taken at approximately one projectile radius (∼0.5 km) downrange from the impact. This tracer placement is consistent with data presented previously by Pierazzo et al., which also reported diagonal tracer data originating from one projectile radius downrange [5].

Because the target and impactor had the same material composition, the theoretical maximum pressure can be calculated for a 1D impact:

$$P={\rho }_0\left(C_0+S{U}_P\right)U_p,$$

(3)

where P is the maximum pressure, ${\rho }_0$ is the initial density, $C_0$ is the reference sound velocity (at 0 pressure), S is the linear EOS coefficient, and $U_p$ is the particle velocity, equal to half of the impact velocity when target and impactor have the same material [3]. S can also be expressed in terms of shock velocity $U_s$ with the following relationship: $U_s=C_0+S{U}_p$ [3]. Substituting the values for the verification problem into Equation (3) yields a maximum pressure of 58.725 GPa for the 5 km/s impact and 506.25 GPa for the 20 km/s impact.

3.1. FLAG Setup

The 2D FLAG setup included a circular impactor with diameter 1 km, a 10 km × 25 km target block, and surrounding air with dimension 23.5 km × 25 km. The simulation ran until the shock wave reached the back of the target, 10 km from the point of impact. The mesh was uniform rectilinear with zone sizes corresponding to 5, 10, 20, and 40 cppr. The schematic shown in Figure 1 is representative of this setup.

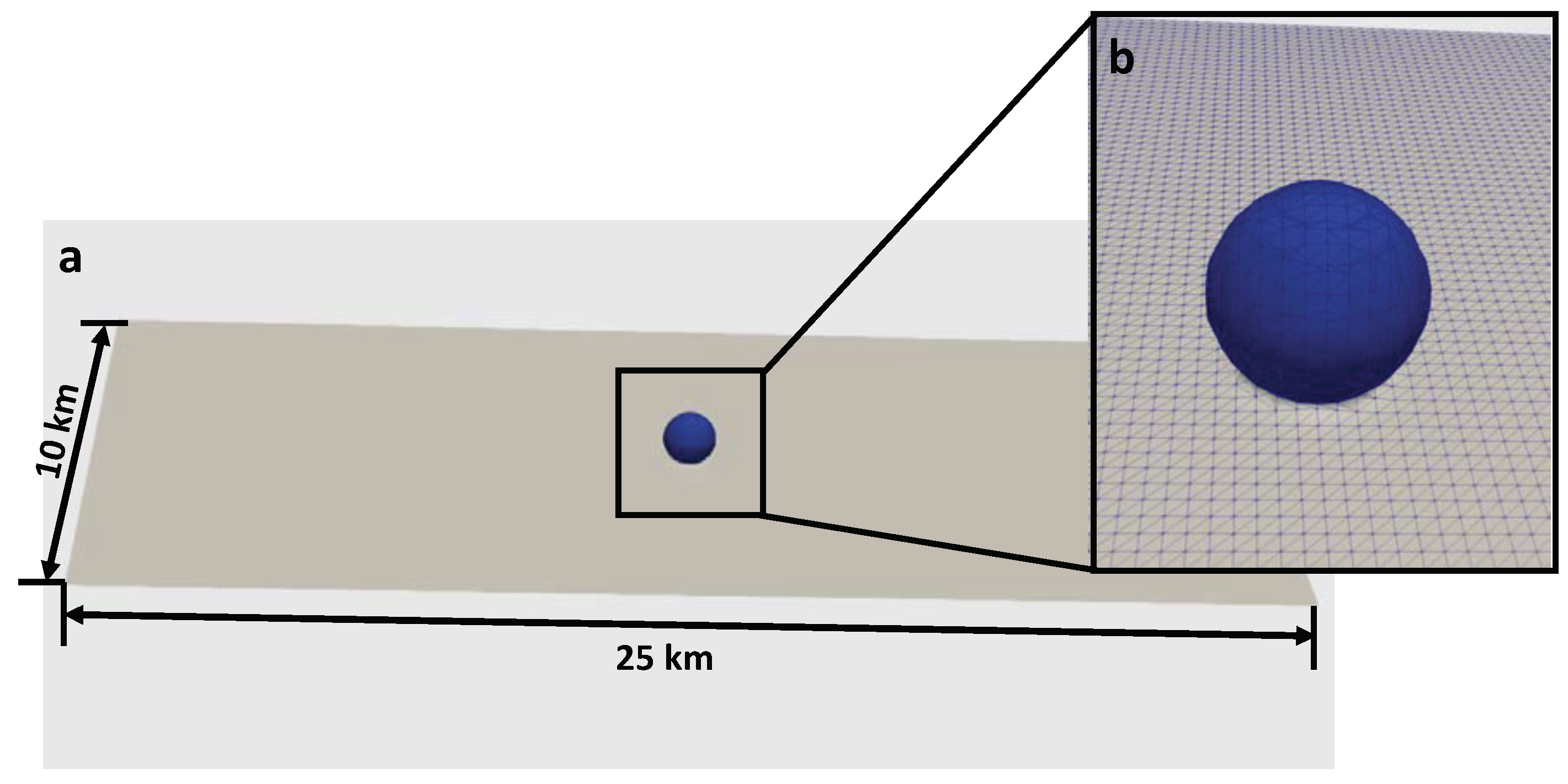

In 3D, the computational domain included an impactor sphere with diameter 1 km, a target box with dimension 10 km × 25 km × 10 km, and surrounding air with dimension 23.5 km × 25 km × 10 km. Figure 2 shows the initial 3D configuration used in FLAG.

FLAG simulations used a SESAME tabular EOS [47] and a Barton artificial viscosity model [48]. The Al-6061 in the problem was initialized with a density of 2700 kg/m³ and specific internal energy of 0 J. The air was modeled as a $\gamma$-law gas with $\gamma$ = 1.4 and was initialized at 273 K with density 1.2922 kg/m³. FLAG simulations had free boundary conditions. The ALE strategy was by geometry. Shock pressure decay data came from 20 ∼ equally spaced tracer particles along the line of impact. In the 3D oblique simulations, tracers were placed along the diagonal impact trajectory as well as the vertical and horizontal directions from the point of impact, illustrated in Figure 1. Although 2D simulations showed FLAG converged at resolutions between 10 cppr and 20 cppr depending on impact velocity, the computational cost of running such resolutions in 3D is prohibitively expensive. Thus, the resolution for 3D simulations was 5 cppr, consistent with the 3D resolution used by the codes in the Pierazzo et al. study [5]. The computational domain consisted of about 8.6 million zones, divided across 360 cores. For comparison, a resolution of 10 cppr in 3D would have 67.6 million zones and would require 2815 cores for comparable load sharing. 40 cppr would have more than 4.29 billion zones and would require nearly 179,000 cores for comparable load sharing. The 5 cppr resolution has the additional benefit of allowing for a fair comparison to results presented by Pierazzo et al. [5]. Simulations used Cartesian geometry.

3.2. HOSS Setup

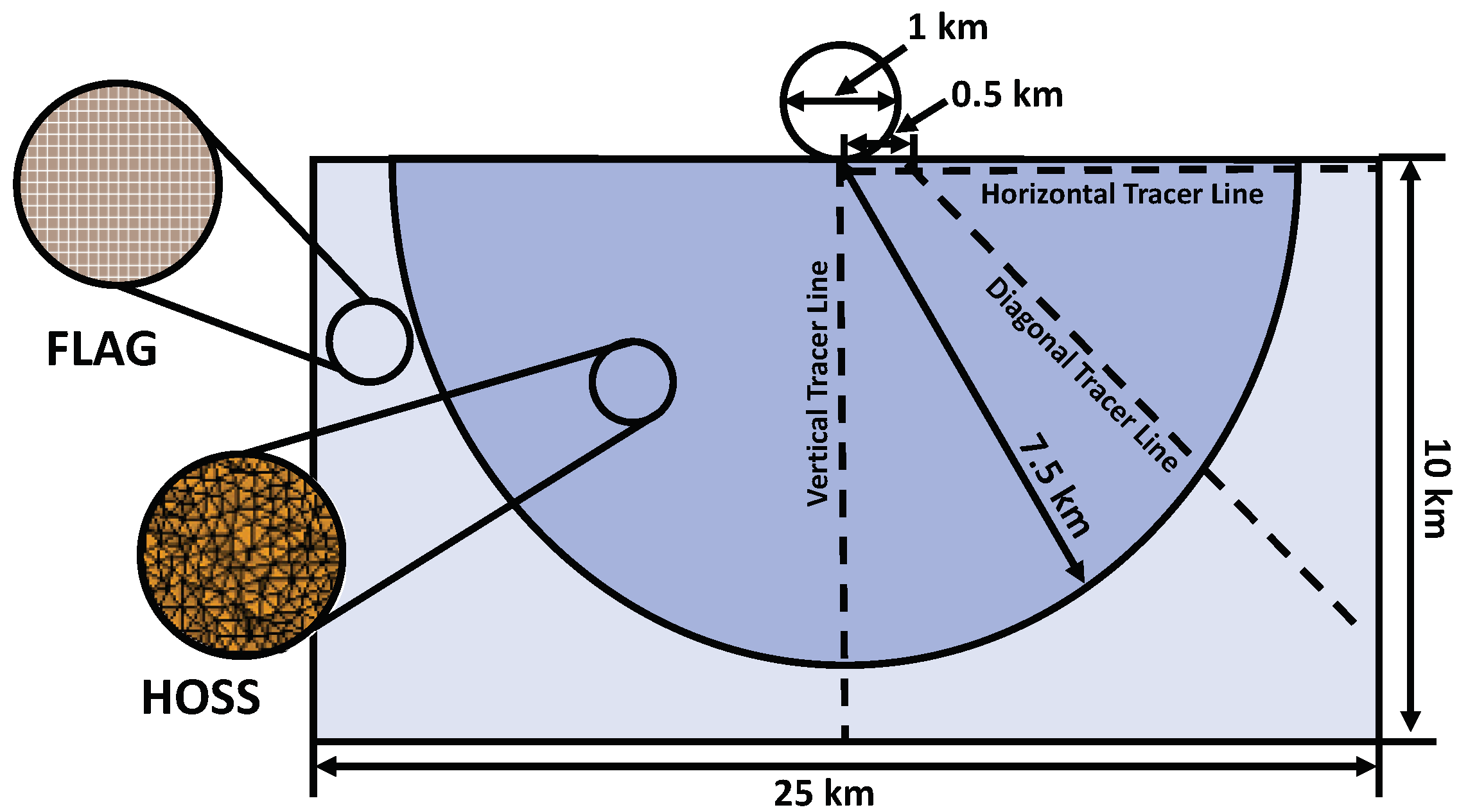

The 2D HOSS set up consisted of a circular impactor with diameter 1 km and a 7.5 km radius semicircular target (Figure 1). The simulations concluded shortly after the shock wave reflected off of the boundary of the target domain, 7.5 km from the point of impact. The mesh consisted of evenly sized triangular elements that varied with the cppr of interest (5, 10, 20).

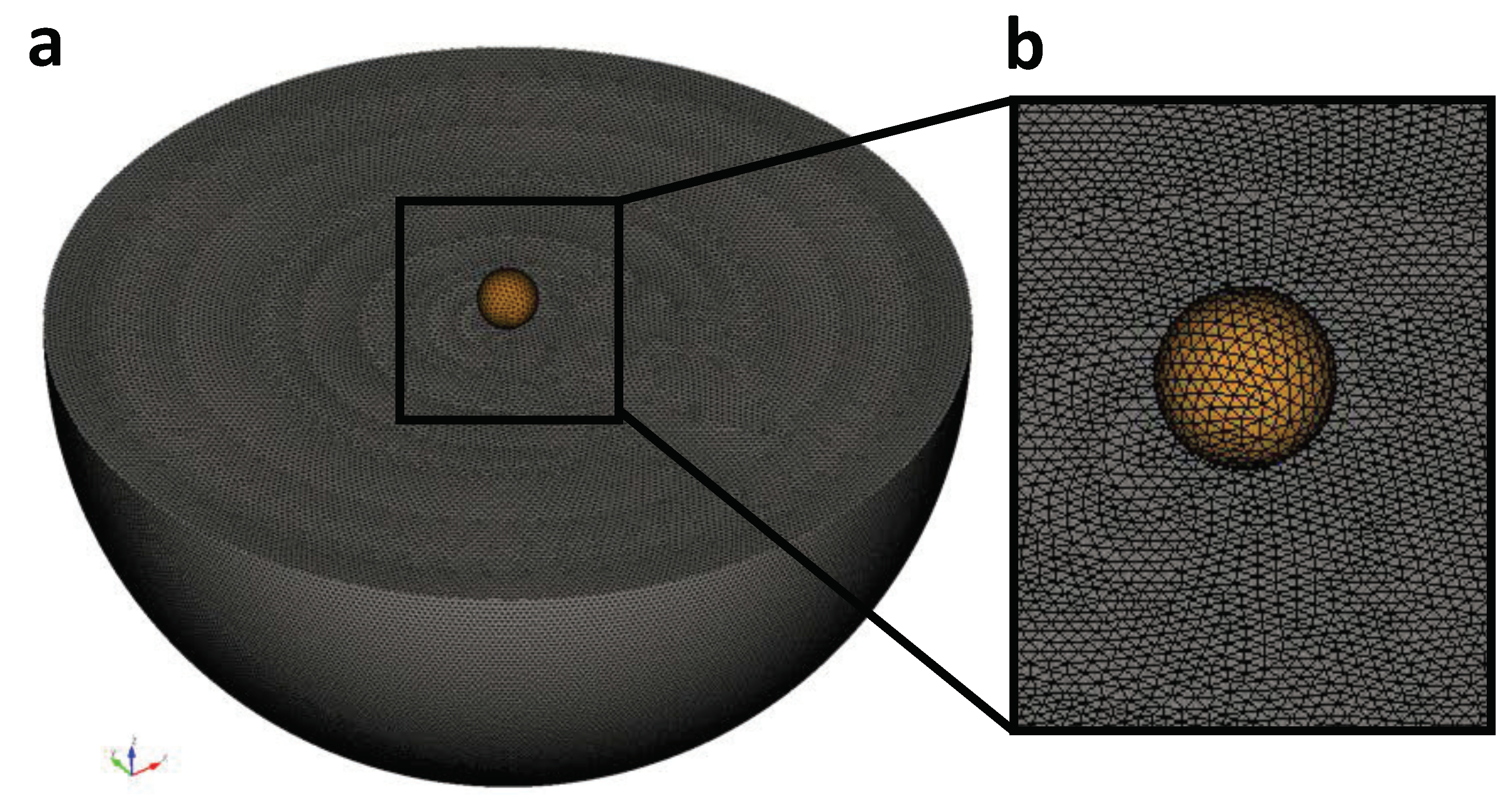

Figure 3 illustrates the 3D HOSS simulation domain that consisted of a spherical aluminum impactor with diameter 1 km and a 7.5 km radius hemispherical target. Both the aluminum impactor and target were considered to be strengthless, and a Tillotson EOS [49] was used to describe the aluminum’s bulk response. The HOSS implementation of the Tillotson EOS, which follows the procedure outlined by Melosh [2], is shown in Equation (4).

$$P=\left(a+\frac{b}{\left(E/E_0{\eta }^2\right)+1}\right)\rho E+A\mu +B{\mu }^2$$

(4)

where E is the energy density, $\rho$ is the density, $\eta =\rho /{\rho }_0$, and $\mu =\eta -1$. Relevant parameters for the EOS are included in

Table 1. Tillotson equation of state parameters for aluminum.

Parameter	Description [49,50]	Value	Units
${\rho }_0$	Density	2700	kg m−3
a	Tillotson parameter	0.5	–
b	Tillotson parameter	1.63	–
A	Bulk modulus	75.2	GPa
B	Tillotson parameter	65	GPa
$E_0$	Tillotson parameter	5	MJ kg−1
$\alpha$	Tillotson parameter	5	–
$\beta$	Tillotson parameter	5	–
$E_{\mathrm{iv}}$	Energy of incipient vaporization	3.0	MJ kg−1
$E_{\mathrm{cv}}$	Energy of complete vaporization	13.9	MJ kg−1

. Tracer points were equally spaced throughout the domain to record the temporal evolution of displacement, velocity, and pressure as functions of distance and time. A resolution of ∼5 cppr was selected for consistency in the code comparison. The computational cost for HOSS is also prohibitively expensive for high-resolution 3D simulations. For 5 cppr, the HOSS computational domain consisted of 2.8 million tetrahedral elements divided across 1961 cores. If the resolution were 40 cppr, the same computational domain would have roughly 4.5 billion tetrahedral elements and would require 3 million cores assuming the same load balancing.

4. Results and Discussion

4.1. 2D Mesh Resolution Study

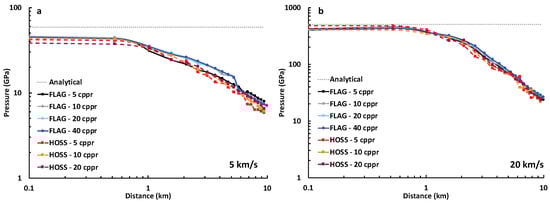

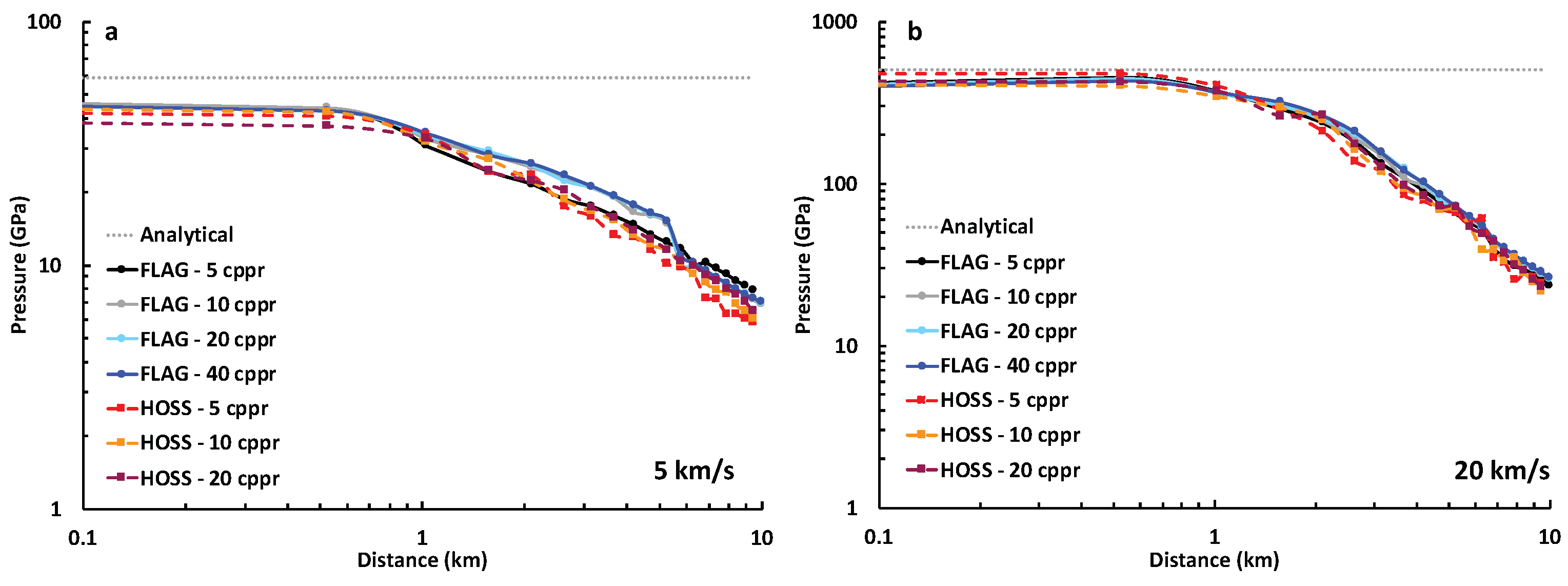

2D simulations are advantageous because the computation time is sufficiently reduced to accommodate studying the effects of mesh resolution on the results. Figure 4 shows the effect of mesh resolution on shock pressure decay, varying from 5–40 cppr, for normal impacts of 5 km/s and 20 km/s for both FLAG and HOSS. Overall, both codes showed similar shock pressure decay trends among the resolutions tested. For the lower velocity, the FLAG results show some dependence in the pressure decay regime, with a notable difference in decay from the 5 cppr resolution compared to the more aligned results from the 10, 20 and 40 cppr simulations. At the higher impact velocity, FLAG results were well matched and seemed to converge in the 10–20 cppr range. Conversely, HOSS results show the same dependence in the maximum pressure calculated at the point of impact, with the higher resolution showing a slightly lower maximum pressure.

4.2. 3D Impact Cratering Simulations

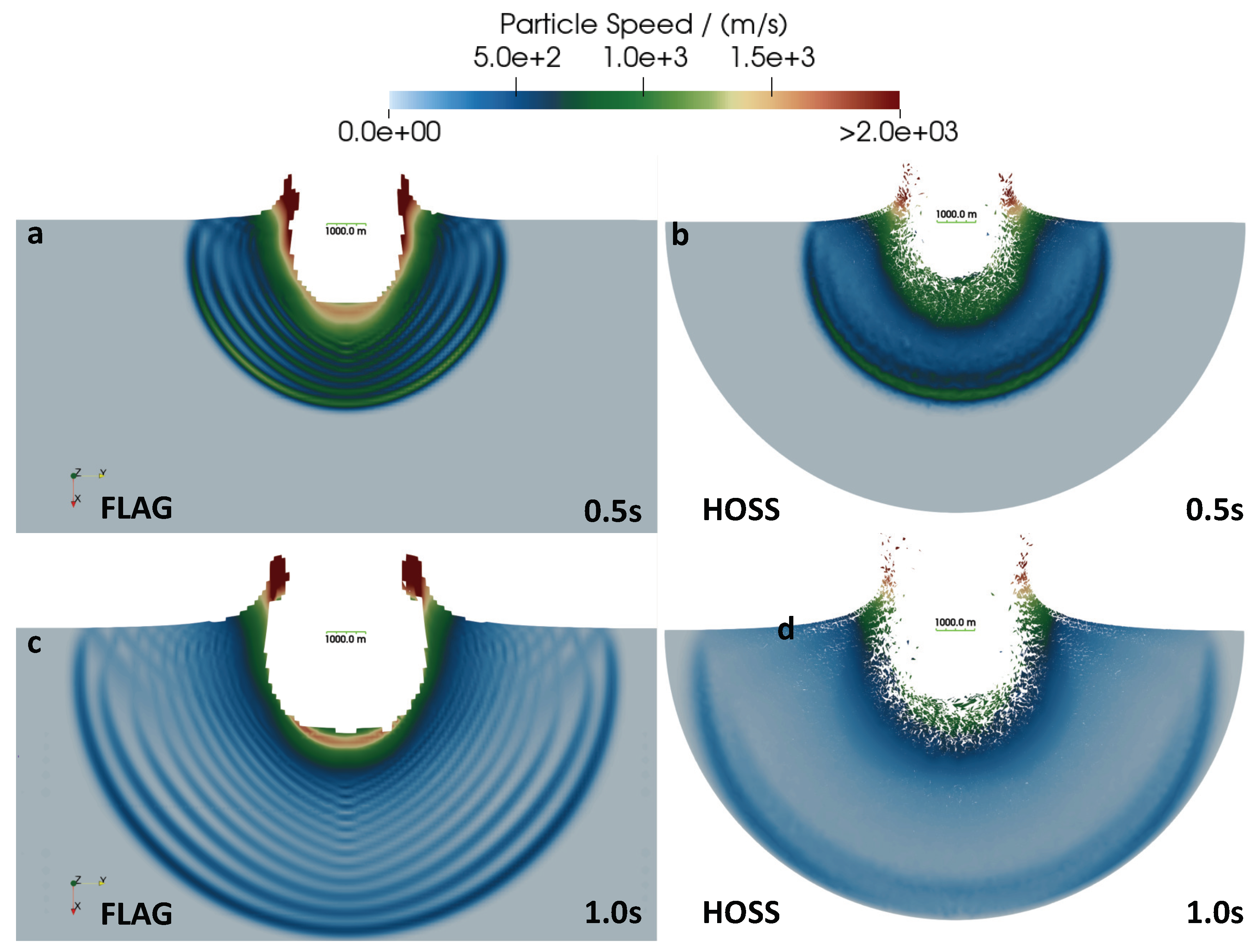

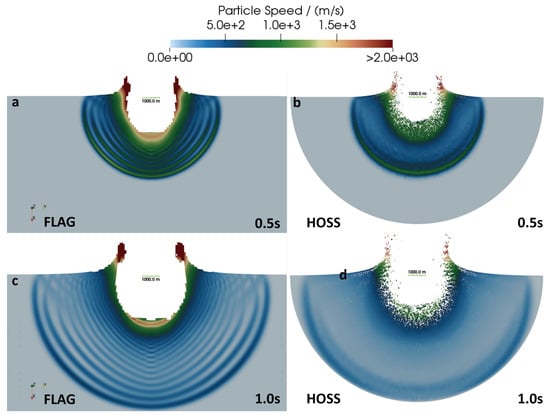

This section presents qualitative comparisons of the 3D simulations from both FLAG and HOSS. Figure 5 shows the particle velocity evolution in both codes at 0.5 s and 1.0 s after impact from a normal impact with a velocity of 20 km/s. Overall, the shock wave propagates similarly; however, there are some distinct differences. Within the target itself, both FLAG and HOSS simulations show the highest velocity occurs at the front of the shock, as expected. In both codes, the highest particle velocities in the entire system appear in the crater ejecta. While both codes capture the ejecta, the ability for discrete elements to break away from the mesh in the FDEM approach allows for much more ejecta to appear within the crater in the HOSS simulations. However, it is worth noting that a considerable part of the material located inside the crater, shown in Figure 5b,d, corresponds to the impactor material. Also for consideration, the SESAME EOS used in the FLAG simulations allows for material vaporization. The resulting vapor plume of ejected material is significantly underdense and thus not visible in these figures, which have been thresholded on density to remove the surrounding air. The FLAG simulations appear to show interactions between waves, resulting in some variations in the velocity profiles. This behavior can be attributed to the shock reflection, regions of compression and tension, and the pressure differential between the target and ambient air. These effects, while visible in the velocity plots, do not affect the crater formation in a significant way.

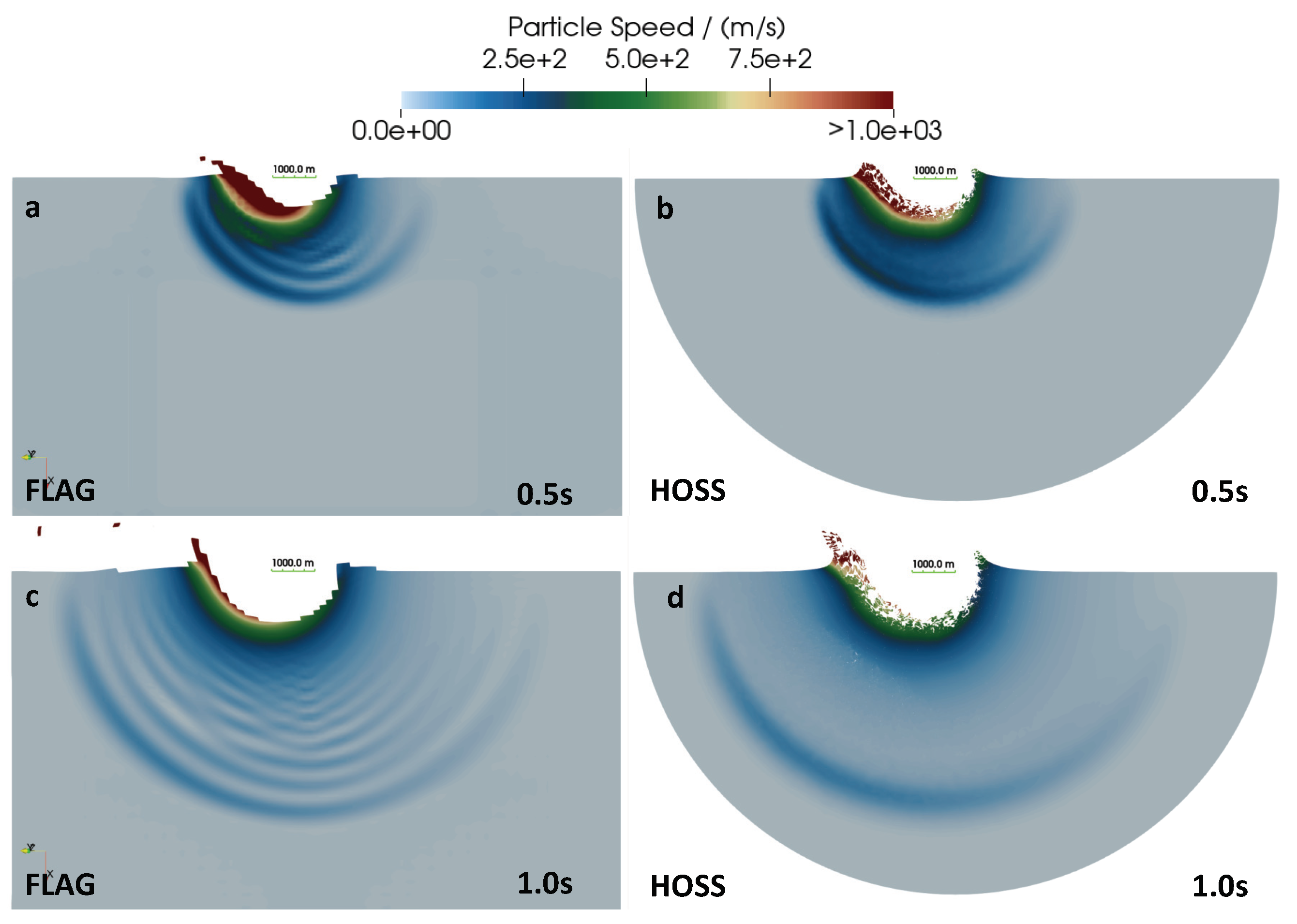

Figure 6 presents similar particle velocity plots for an oblique impact with a velocity of 5 km/s. Similar to the normal impact case, the highest velocities occur in the crater ejecta. Figure 7a,b and Figure 8a,b directly overlay the crater profiles for both the normal and oblique impacts just discussed. The HOSS target is shown in green, on top of the FLAG target, which is shown in orange. The impactors themselves are also distinguished, where red indicates the FLAG impactor and dark green indicates the HOSS impactor. Overall, the HOSS simulations tend to predict slightly deeper craters than FLAG. In general, this is a result of the higher amount of ejecta/fragmentation accounted for within the crater in HOSS. Some of this ejecta will not leave the crater, but rather settle into the bottom, producing a crater depth closer to what FLAG predicts. The predicted crater diameters are similar between FLAG and HOSS.

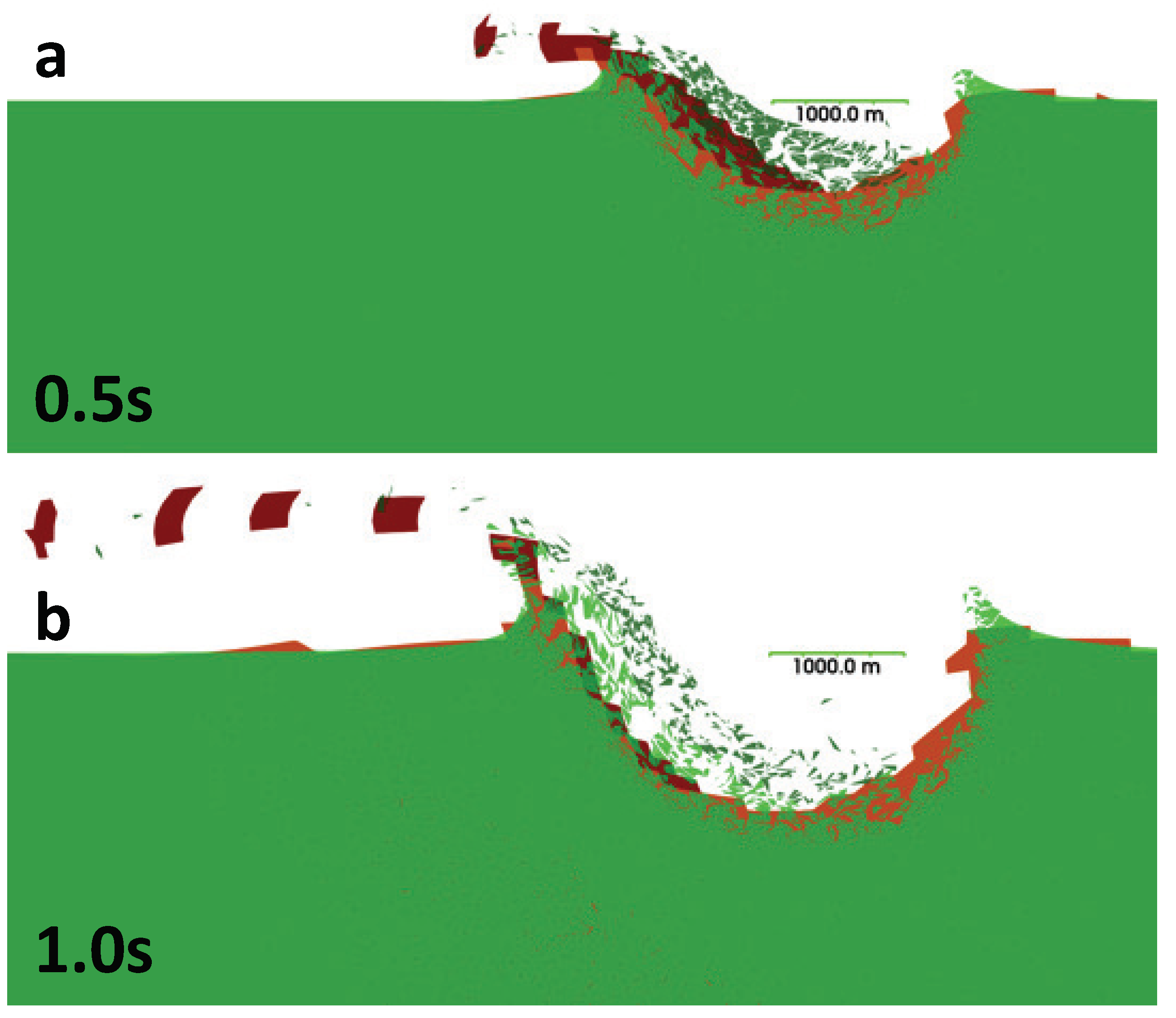

In the case of an oblique impact, as shown in Figure 8, both codes capture ejecta. In FLAG, the ejecta is predominately the impactor material, whereas the ejecta in HOSS is comprised of both impactor and target material. In both cases, material appears as though it is being ejected in discrete segments; however, it is important to consider the different meshing strategies. In FLAG, the ejected material moves through a deformed, but connected, mesh, while in HOSS, individual, and also deformed, elements can separate and move away from their original positions. Both approaches result in ejected material, but the manner in which the codes handle ejected material is quite different.

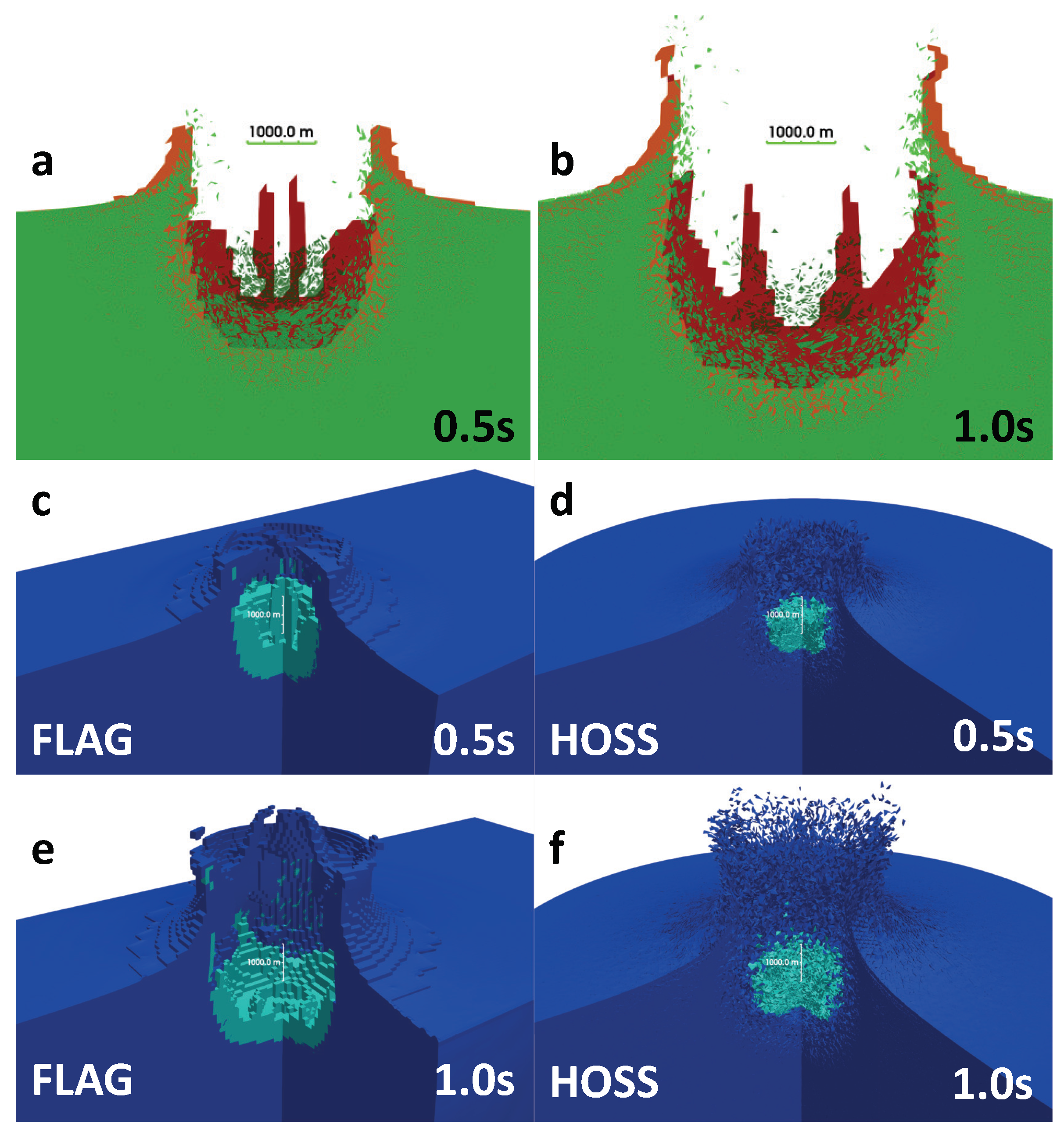

Figure 7c–f also shows 3D cross-sections of the impact event in both FLAG and HOSS. In these figures, the target is represented as dark blue, and the impactor is represented as cyan. In these figures, the effect that the different mesh strategies have on the shape of the ejected material can be clearly seen. It is more apparent that the material is moving through a connected mesh in FLAG, resulting in less distributed impact ejecta. Conversely, the ejected material in HOSS is more distributed, spraying outward because of the ability of discrete elements to move apart from the initial mesh.

As mentioned previously, the inclusion of discrete elements and the Lagrangian framework in HOSS often comes at a cost of increased run times in comparison to the more traditional hydrocodes such as FLAG.

Table 2. Computational resources required for the 3D impact simulations.

		Normal—5 km/s	45°—5 km/s	Normal—20 km/s	45°—20 km/s
	Number of cores	1961	1961	1961	1961
HOSS	Run time (hr:min)	32:00	32:00	32:00	32:00
	Simulated time (s)	1.07	1.07	1.07	1.07
	Number of cores	360	360	360	360
FLAG	Run time (hr:min)	02:27	03:34	01:48	01:58
	Simulated time (s)	3.00	1.10	2.06	0.29

compares the computational resources required for the 3D normal and oblique simulations completed. The HOSS simulations were all run for a specified number of time steps, resulting in uniform run times and simulated times. FLAG required fewer cores and ran for less time than HOSS to reach the same or longer simulated times. The one exception was the oblique 20 km/s simulation, which suffered from mesh tangling and did not fully complete in FLAG. However, even with this enhanced computational efficiency, FLAG still requires high performance computing capabilities to complete these 3D simulations.

4.3. Benchmarking against Other Hydrocodes

In this section, the FLAG and HOSS results are compared to those reported in the benchmarking study by Pierazzo et al. [5]. The study used multiple hydrodynamic/shock codes: ALE3D, AUTODYN, CTH, iSALE, RAGE, SOVA, SPH, and ZEUS-MP. These codes span a variety of approaches, including Eulerian, ALE, and smooth-particle hydrodynamics [5]. ALE3D is a hybrid (finite-element + finite-volume) multiphysics code developed at Lawrence Livermore National Laboratory and is based on ALE solutions. ALE3D has been used to simulate asteroid impacts, atmospheric entry, and breakup [51]. AUTODYN is part of the ANSYS Workbench package that was specifically designed to resolve the material response under high strain-rate loading conditions. For solid modeling, AUTODYN uses Lagrangian elements, while for fluid modeling, there is an option of using Eulerian formulations or smooth-particle hydrodynamics solvers. Researchers have used AUTODYN to simulate hypervelocity impacts of asteroids on the surface of the Earth [52]. CTH is a solid mechanics code that was developed at Sandia National Laboratories with a special focus on strong shock applications. CTH has been used to simulate many types of impact problems, such as those conducted for the Federal Emergency Management Agency [53] and for the National Aeronautics and Space Administration [54]. iSALE is an open-source hydrocode widely used by the planetary science community. It was developed for modeling fluid flows across a variety of speeds. However, it is largely serial and primarily used in 2D simulations [55,56]. The RAGE hydrodynamics code, developed and maintained by Los Alamos National Laboratory, is an Eulerian hydrocode with capabilities for radiation hydrodynamics and AMR [57]. SOVA uses an Eulerian approach and models multi-material problems and dusty flows [58]. SPH has no underlying grid and can model solid materials [59]. Finally, ZEUS-MP is an Eulerian code that can model radiative and magnetized materials [60]. These codes are discussed in more detail in the benchmarking paper by Pierazzo et al. [5], but clearly this collection of shock codes represents a wide range of model formulations that can be used for impact cratering studies.

Table 3. Maximum pressures from 2D simulations in FLAG and HOSS compared to the theoretical maximum. These values are also compared to the mean of the values reported in Pierazzo et al. [5] by various codes. The relative error is reported with respect to the 1D analytical solution.

Maximum Pressure	1D Analytic Solution	Pierazzo et al. [5] Mean *	FLAG	HOSS
5 km/s—point of impact	58.725 GPa	–	59.58 GPa	52.66 GPa
Relative Error	–	–	1.46 %	−10.33 %
5 km/s—200 m into target	58.725 GPa	40.4 GPa	55.77 GPa	54.85 GPa
Relative Error	–	−31.2 %	−5.03 %	−6.59 %
20 km/s—point of impact	506.25 GPa	–	492.63 GPa	438.96 GPa
Relative Error	–	–	−2.69 %	−13.29 %
20 km/s—685 m into target	506.25 GPa	379.0 GPa	407.99 GPa	393.24 GPa
Relative Error	–	−25.14 %	−19.41 %	−22.32 %

* Note that the relative errors shown for these data were calculated with respect to the analytical values shown in this table, which show slight variations to relative error presented in the original paper. This difference comes from the different reference densities of Al-6061 and Al-2024 [3].

first compares the results from FLAG and HOSS to the theoretical maximum pressures for normal 5 km/s and 20 km/s impact velocities for the most resolved simulations. Note that the theoretical maximum pressure is derived from impedance matching in 1D for strengthless materials [3]. This table also includes the mean value, determined from all codes tested by Pierazzo et al. and their corresponding relative errors for comparison [5]. Note that the theoretical value applies only to the maximum pressure and not the shock pressure decay throughout the target. In addition, because the original comparison of Pierazzo et al. was published more than a decade ago, it is also expected that FLAG and HOSS would both show improvements from advances in numerical methods, model development, etc., that were not present in the other codes during the original study but may have since been implemented.

Overall, the Pierazzo et al. results show relative errors of ∼25–30% [5]. Indeed, the FLAG and HOSS results both show improvement on these values, particularly in the 5 km/s case. In the 20 km/s case, the relative errors for FLAG and HOSS are somewhat larger than for the simulations with a 5 km/s impact velocity, consistent with the codes tested in the original study.

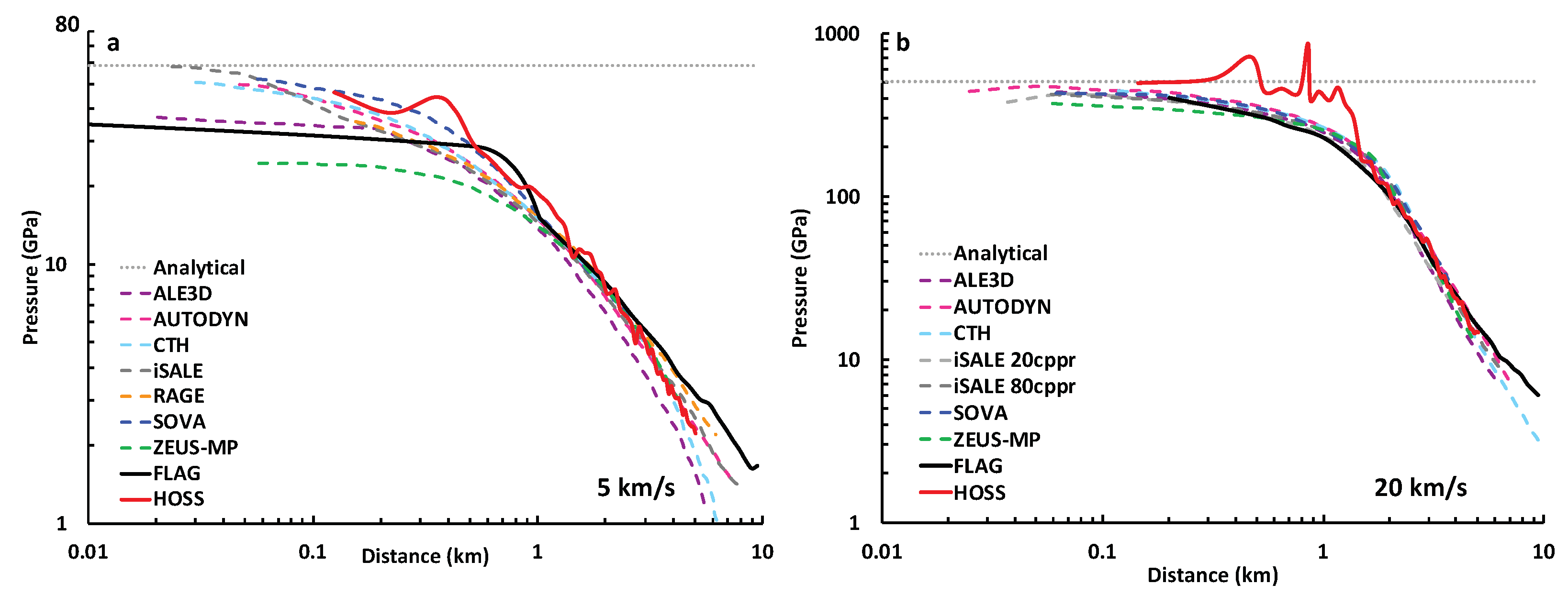

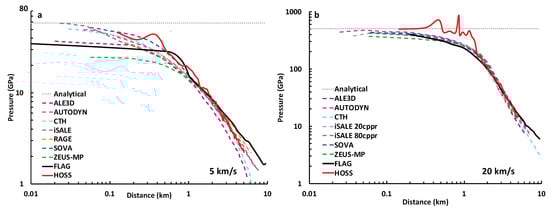

The pressure decay from FLAG and HOSS obtained for several impact cases, including 5 km/s normal and oblique impacts and 20 km/s normal and oblique impacts, are compared against other hydrocodes. Unless otherwise noted, all subsequent comparisons are for 3D simulations. To compare the pressure decay for 3D normal and oblique impact angles, pressure values are recorded along vertical, diagonal (45° from vertical), and horizontal lines extending outward from the impact point. These lines are shown schematically as dashed lines in Figure 1.

In the case of the normal impacts, the results can also be compared to the analytical solutions in Table 3, shown as a constant dotted line in Figure 9. This figure, which includes digitized results from Pierazzo et al. [5], shows that all of the codes tested produce pressure values at the impact point that underpredict the analytical solution. The degree to which the codes underpredict the analytical solution varies highly in the 5 km/s impact velocity case. In the 20 km/s impact velocity case, the codes in general come very close to the analytical prediction, although most predictions are just under the analytical value. In this case, HOSS shows the best match to the analytic value close to the point of impact. However, it also shows some subsequent oscillations before the shock decay regime, whereas hydrocode simulations resulted in a slightly lower maximum pressure but a smoother decay curve.

It is worth noting that for the 5 km/s normal impact case, the 2D FLAG simulations slightly overpredict the analytic value (see Table 3), while the 3D simulations underpredict the analytic value (see Figure 9a). This dimensional difference can be attributed to to the increased number of directions in which shocks can travel and dissipate in 2D versus 3D as well as the 1D calculation of the analytic solution.

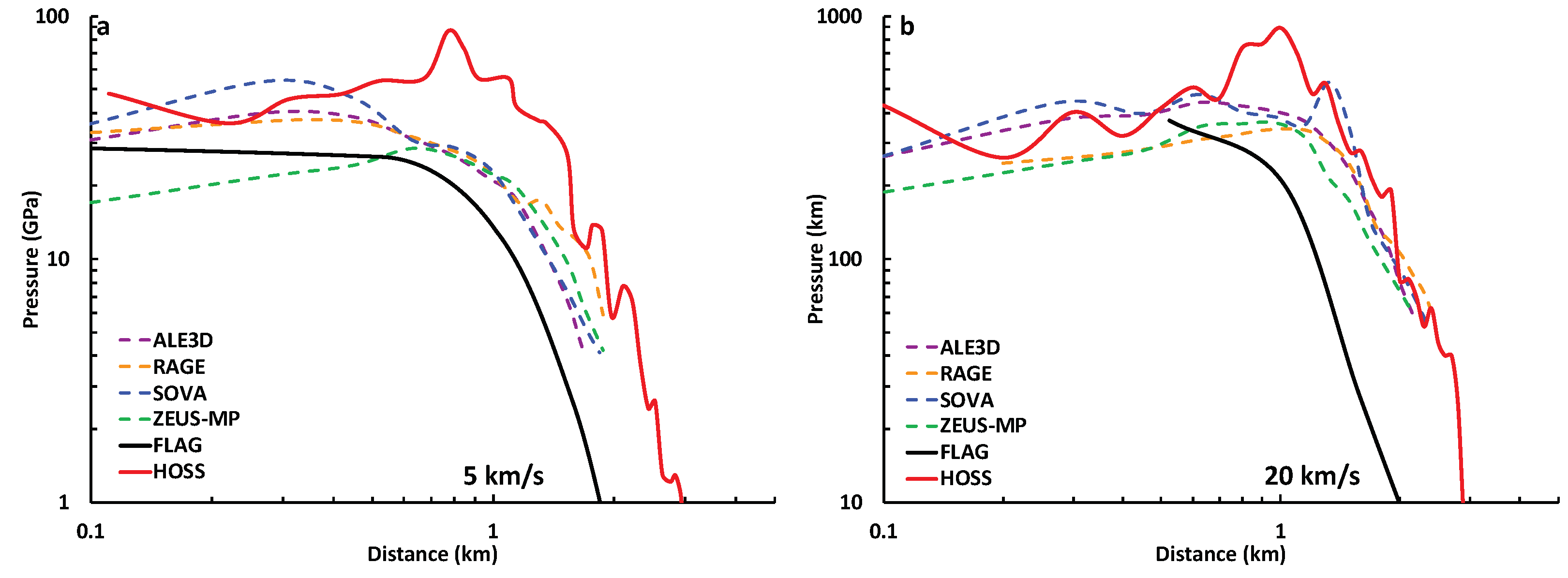

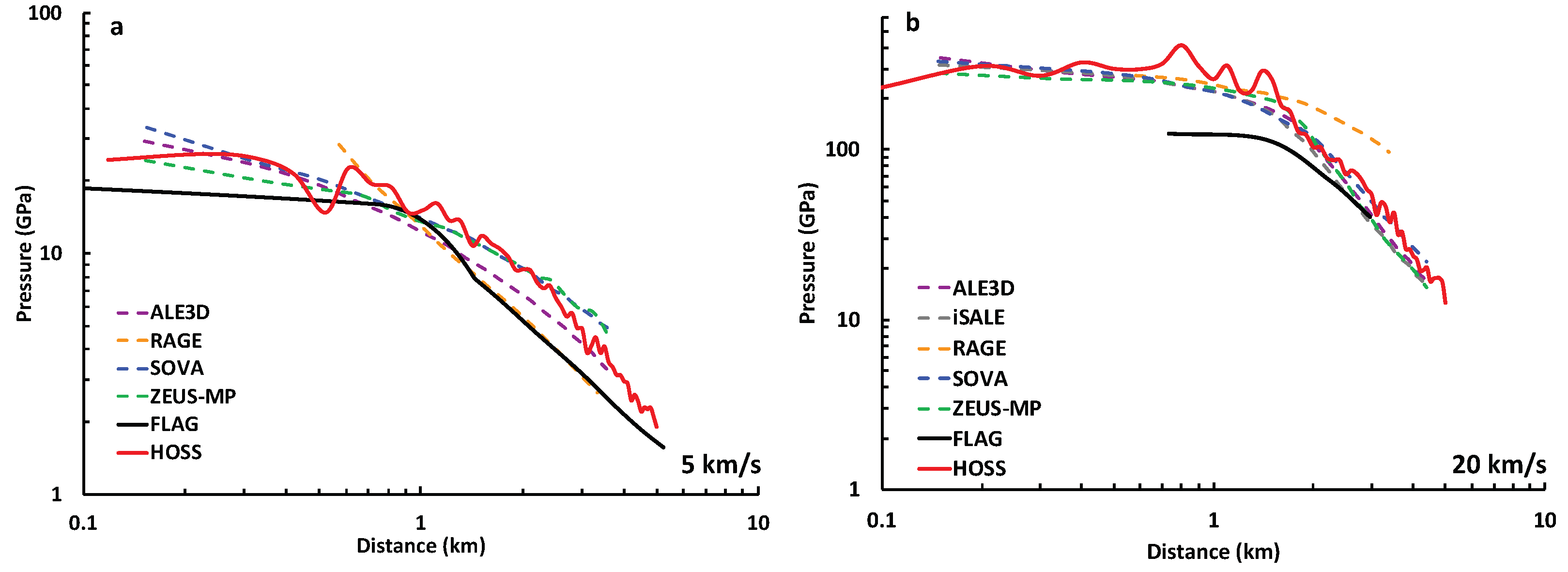

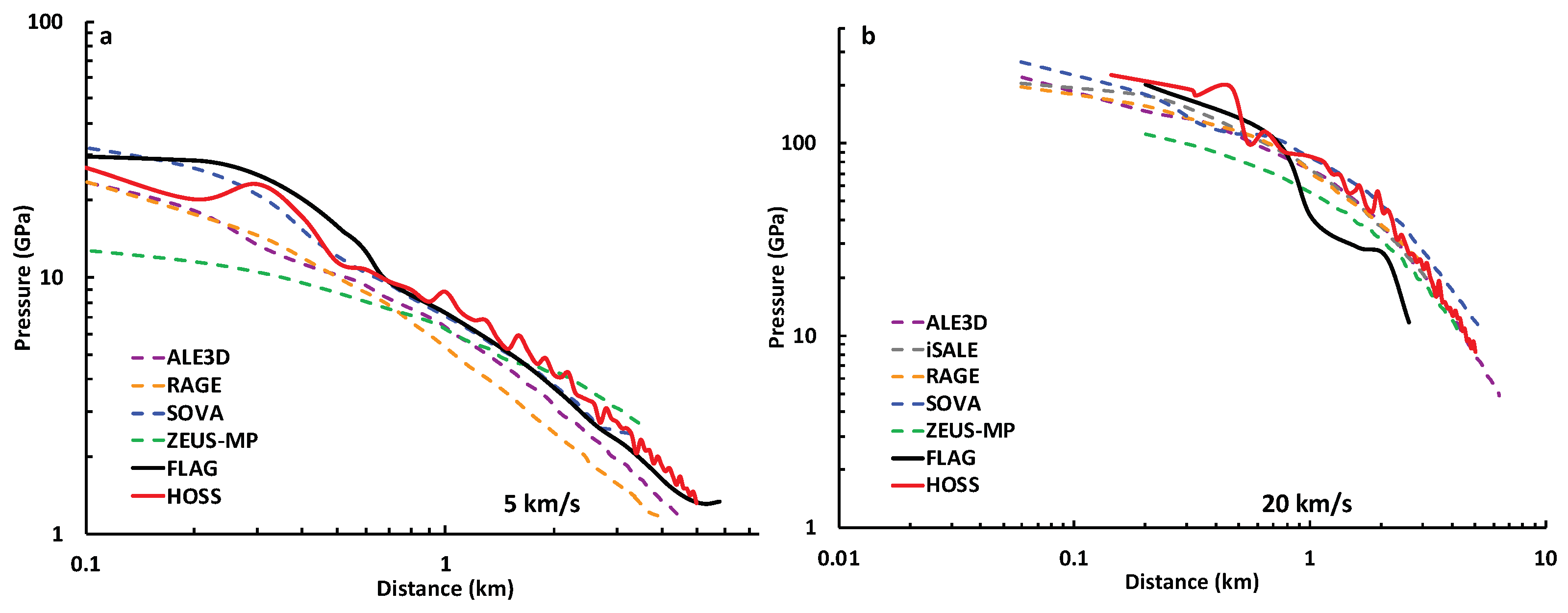

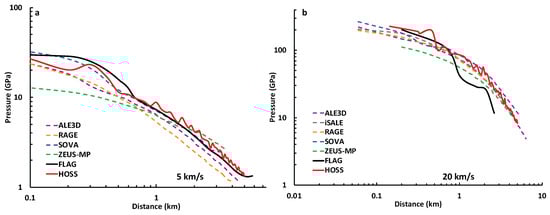

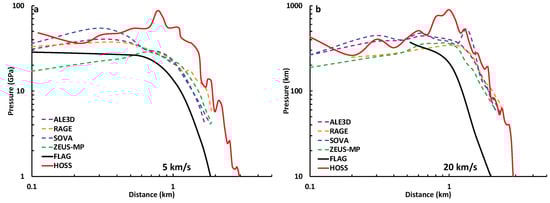

Figure 10, Figure 11 and Figure 12 show the shock decay computed with FLAG and HOSS for oblique impact scenarios in comparison to the data presented by Pierrazzo et al. [5]. Overall, the results from the HOSS and FLAG simulations have similar shock pressure decay to the codes tested by Pierrazo et al. [5]. The FDEM simulations exhibit a fair amount of variability in the region directly below the impact point. Farther from the impact point (roughly 1 km), the pressures calculated by both HOSS and FLAG exhibit stable, power-law decay with distance. Overall, the FLAG results are fairly smooth in the shock decay region, which is somewhat in contrast to the variations seen in the particle velocity profiles (see Figure 5a,c and Figure 6a,c). However, because the shock pressure decay is based on the maximum pressure at each point over all time, rather than the value at each point for one specific time, the smooth decay is expected. Plotting pressure rather than velocity does not show the same variations.

4.4. Implications for Modeling Fracture

For impact cratering cases in the strength-dominated regime, strength and damage also play a role in the crater formation process [1,2]. Thus, modeling the 5 km/s normal impact simulations, which lie in the strength regime, with the inclusion of strength and damage models can provide additional insight into simulating cratering processes.

The FLAG simulations used a constant yield stress with linear hardening behavior to model both target and impactor, and damage was modeled using the Johnson–Cook model [61]. The yield stress was 276 MPa, and the hardening parameter was 0.1 [62]. The HOSS simulations also used a constant yield stress with linear hardening. This simulation used a yield stress of 276 MPa and a linear hardening of 113.3 MPa. In addition, the properties of cohesive bonds between the elements were assigned such that fracture occurred once the stress in the material surpassed its ultimate tensile strength (310 MPa).

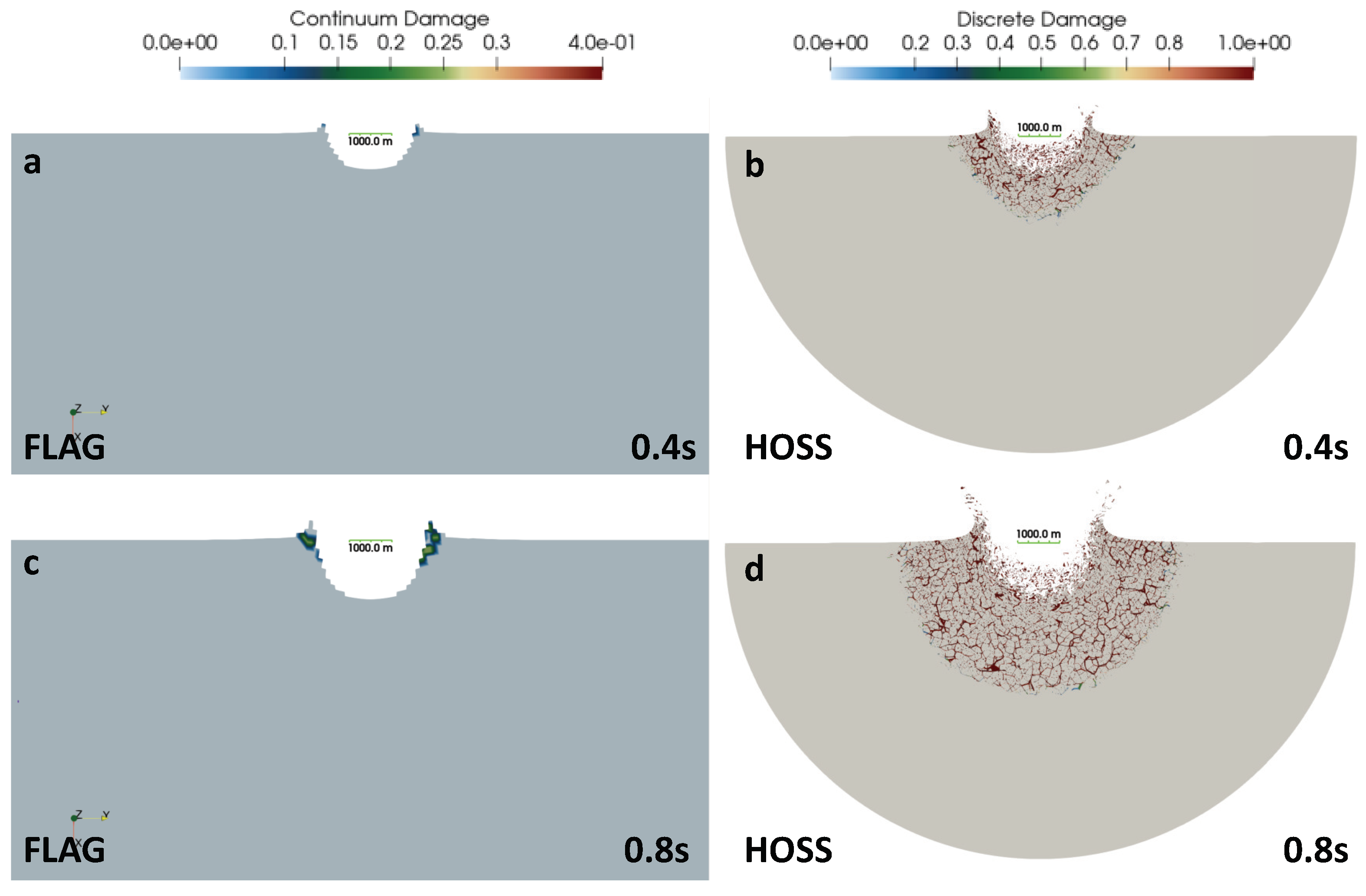

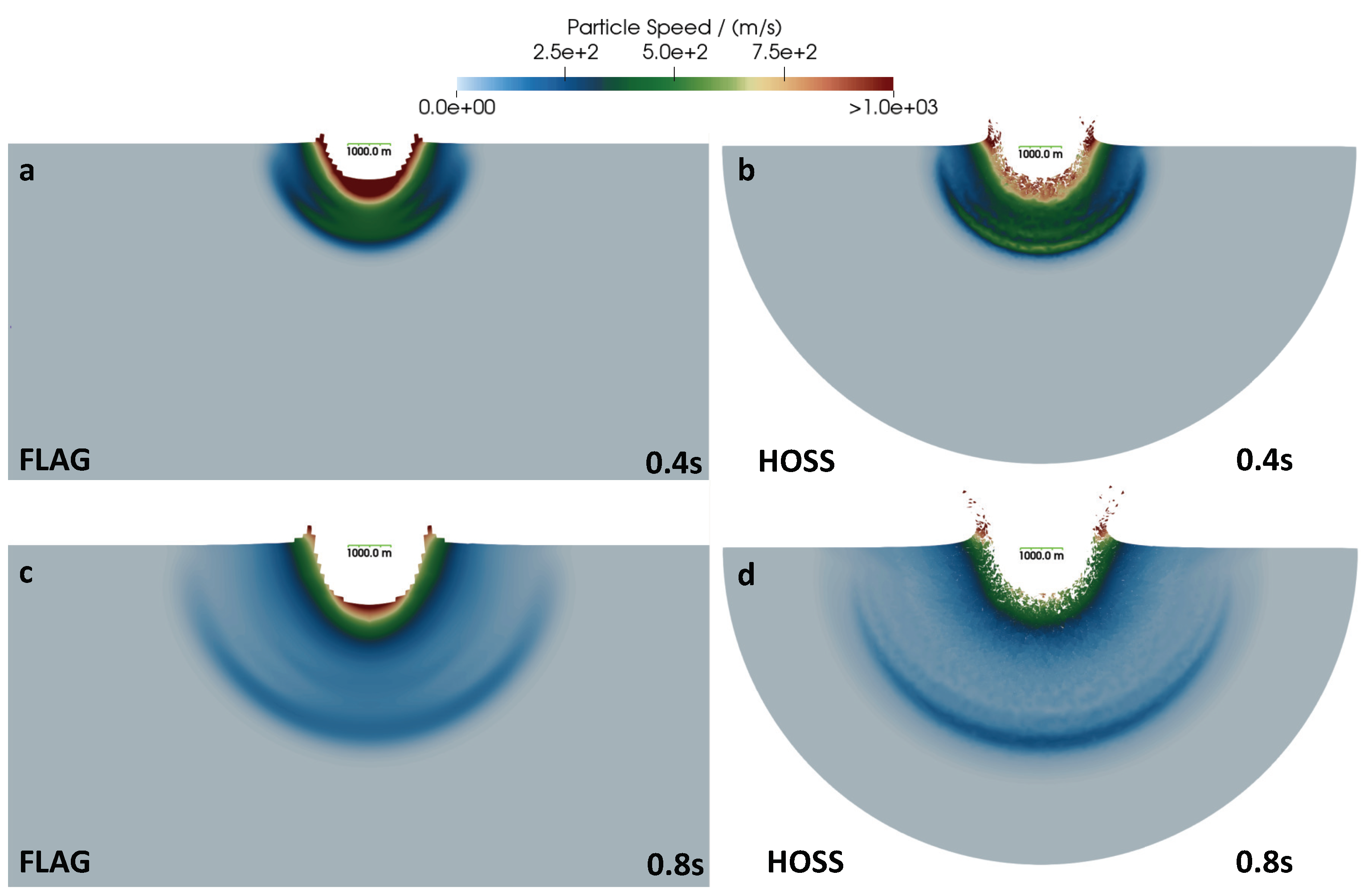

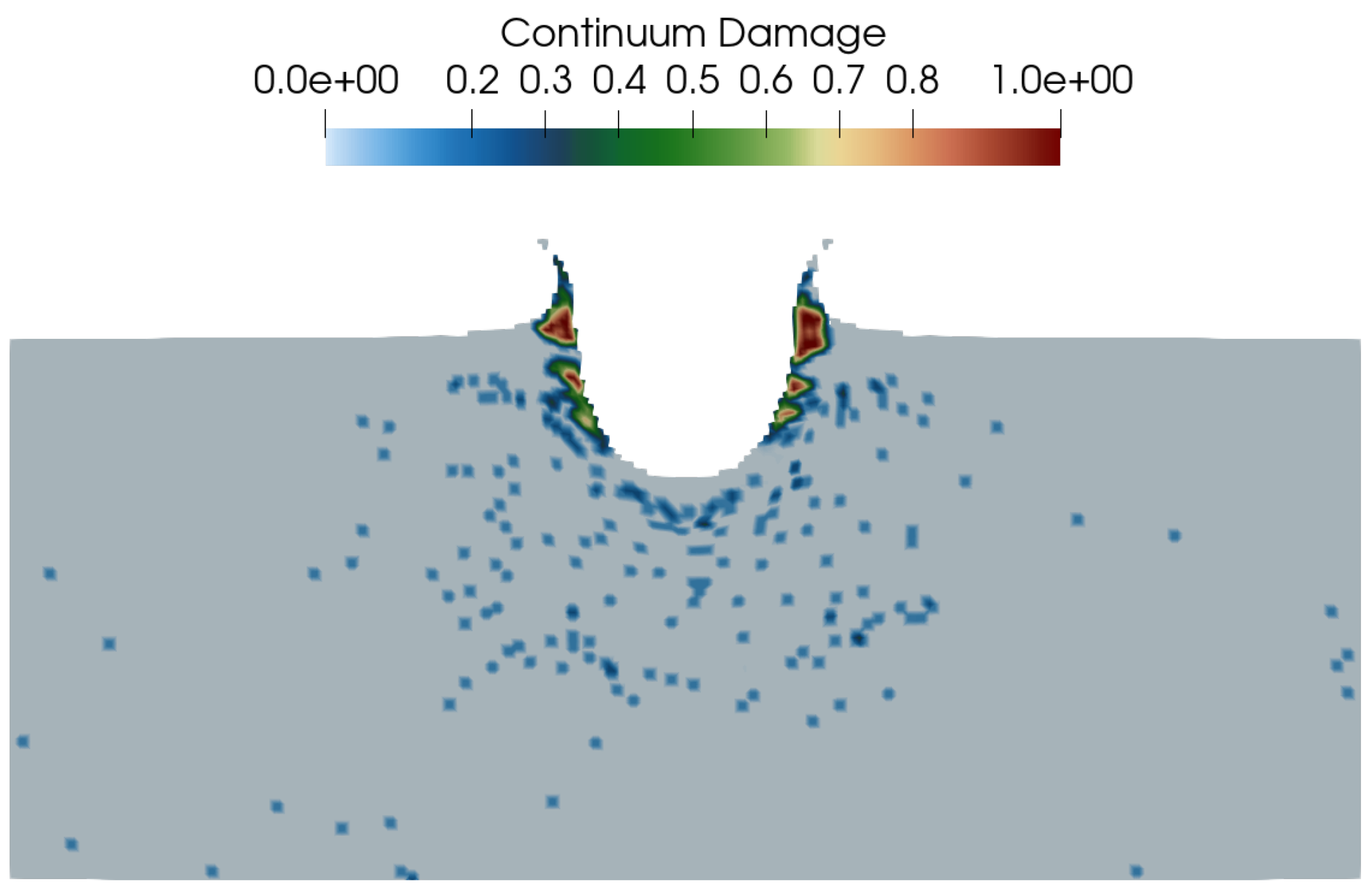

The particle velocity and damage metrics are presented in Figure 13 and Figure 14, respectively. Snapshots are shown at 0.4 s and 0.8 s. Because of the difference in damage formulations, it is difficult to directly compare across codes. Thus, the damage in FLAG is termed ‘continuum damage,’ as it indicates damage incurred within a cell/zone. Damage in HOSS is termed ‘discrete damage,’ as it indicates damage incurred between two cells/zones. In both cases, a damage value of 0 represents completely undamaged material while 1 represents a fully damaged region. In HOSS, fully damaged regions directly correspond to fractures or cracks evolving within the material. Damage in FLAG is more homogenized, so there is not a direct correlation with a discrete crack network.

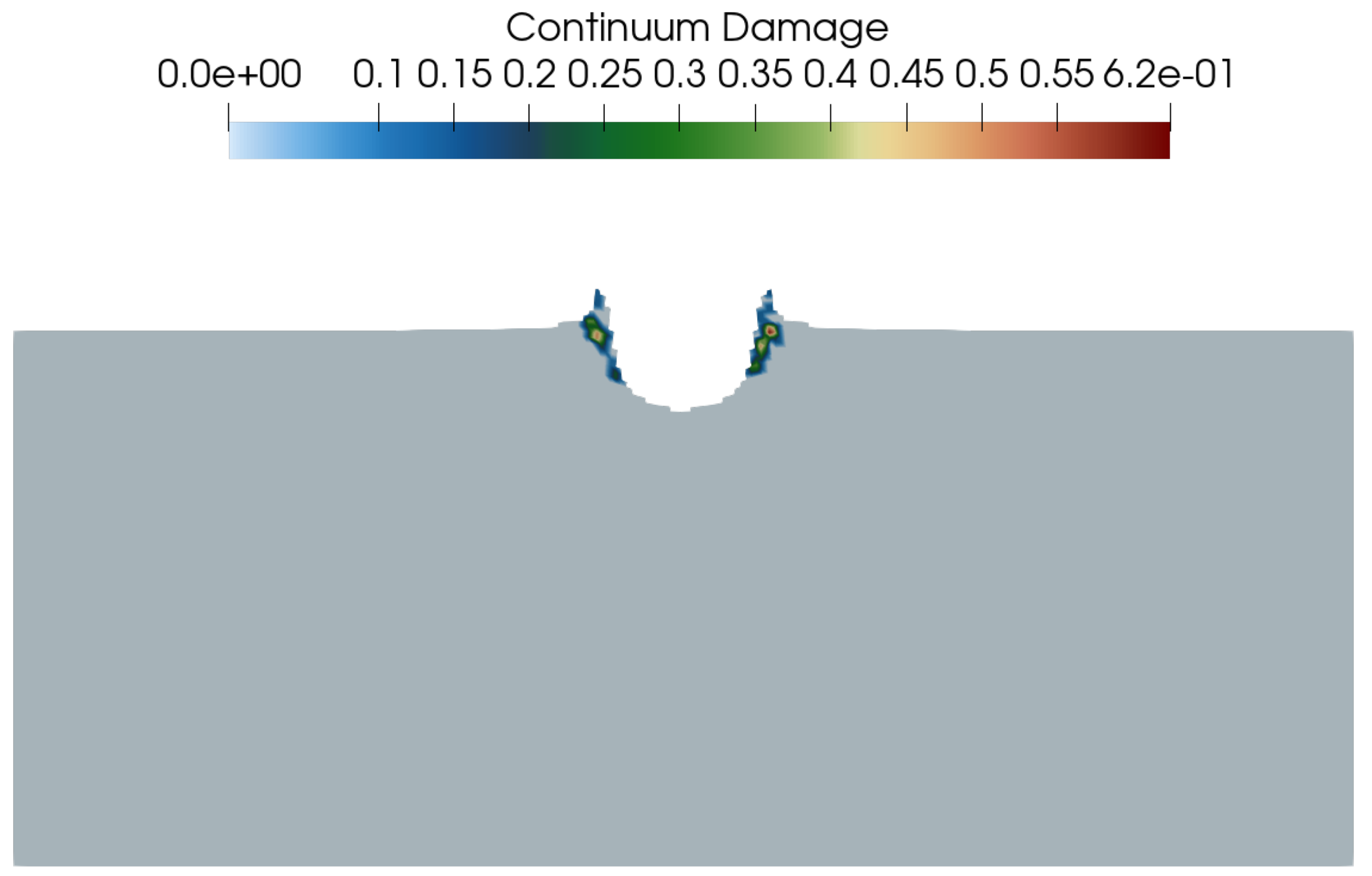

While the FLAG and HOSS particle velocities shown in Figure 13 are relatively similar, the damage from both codes, shown in Figure 14, is very different. HOSS shows a significant amount of damage developing and evolving in the wake of the shockwave as it travels through the medium. In FLAG, however, only highly damaged regions in the crater ejecta are visible at these early times. The FLAG simulation did continue to run to 3.0 s, and more damage is evident at later simulation times, below the crater floor and surrounding the crater walls, similar to the shape of the damaged region in HOSS at early times (see Appendix A).

5. Conclusions

This work presented a code-to-code comparison between a modern hydrodynamics code, FLAG, and an FDEM code, HOSS. This study successfully benchmarked both numerical methods for impact cratering simulations. This work explored multiple Al-Al impact scenarios, in both 2D and 3D, in order to evaluate the differences each numerical method had on the overall solution obtained. Both numerical methods produced qualitatively similar velocity contours and predicted similarly sized craters in the early stages of crater formation. From a quantitative point of view, both codes produced maximum pressures with lower relative errors than previously published results of the same simulations using different hydrocodes. In addition, both FLAG and HOSS demonstrated abilities to incorporate strength and damage processes into impact simulations, key components to modeling strength-dominated crater formation.

One notable difference in these two approaches is the meshing strategies used. FLAG employs an ALE strategy that allows for deformation of the mesh and also transport of material through the mesh, but ultimately the mesh remains connected and cannot break apart. Conversely, HOSS allows for elements in the mesh to both deform and break away from the initial configuration, disconnecting along element edges. Partially as a result of these mesh strategies, primary differences in results are apparent in damage evolution and computational expense. HOSS shows more damage evolution in the system, particularly at early times, resolved to a level in which individual cracks can form and evolve. This meshing strategy also allows for more distributed ejecta coming from the impact crater. While FLAG does not have the ability to resolve damage in the same way at early simulation times, it is more computationally efficient, requiring fewer cores and less computation time to achieve the similar if not longer simulation times. At later times, the extent of damage in FLAG simulations more closely resembles the extent of damage in HOSS simulations, as shown in Appendix A.

Overall, both approaches appropriately capture the impact cratering process at different impact velocities and impact trajectories. Major aspects of the cratering process, including shock wave propagation, shock pressure decay, and crater profiles, are captured with reasonable accuracy determined through comparison between the codes and to previous published simulated data.
