# Automated Diagnosis of Childhood Pneumonia in Chest Radiographs Using Modified Densely Residual Bottleneck-Layer Features

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Related Work

#### 1.2. Limitations and Proposed Work

## 2. Proposed Method

#### 2.1. Feature Extraction and Reduction

#### 2.2. Prediction Model

#### 2.3. Adaptive Score Fusion

Algorithm 1: Adaboost ensemble weights learning. |

initialize classifier weights as ${w}_{i}=\frac{1}{No.ofclassifiers}$; |

## 3. Results and Discussion

#### 3.1. SVM Optimization Using Bayesian Optimization

#### 3.2. Normal vs. Bacterial vs. Viral Pneumonia Infected Lungs

#### 3.3. Normal vs. Pneumonia Infected Lungs

#### 3.4. Discussion

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Viral vs. Bacterial Pneumonia: Understanding the Difference. 2020. Available online: https://www.pfizer.com/news/hot-topics/viral_vs_bacterial_pneumonia_understanding_the_difference (accessed on 28 April 2021).
- Popovsky, E.Y.; Florin, T.A. Community-Acquired Pneumonia in Childhood. Ref. Modul. Biomed. Sci.
**2020**. [Google Scholar] [CrossRef] - WHO Director Generals Opening Remarks at the Media Briefing on COVID-19 2020. 2020. Available online: https://www.who.int/director-general/speeches/detail/who-director-general-s-opening-remarks-at-the-media-briefing-on-covid-19—11-march-2020 (accessed on 28 April 2021).
- Chowdhury, M.E.; Rahman, T.; Khandakar, A.; Mazhar, R.; Kadir, M.A.; Mahbub, Z.B.; Islam, K.R.; Khan, M.S.; Iqbal, A.; Al-Emadi, N.; et al. Can AI help in screening viral and COVID-19 pneumonia? arXiv
**2020**, arXiv:2003.13145. [Google Scholar] [CrossRef] - Krizhevsky, A.; Sutskever, I.; Hinton, G.E. Imagenet classification with deep convolutional neural networks. Adv. Neural Inf. Process. Syst.
**2012**, 25, 1097–1105. [Google Scholar] [CrossRef] - He, K.; Zhang, X.; Ren, S.; Sun, J. Deep residual learning for image recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 27–30 June 2016; pp. 770–778. [Google Scholar]
- Saikia, P.; Baruah, R.D.; Singh, S.K.; Chaudhuri, P.K. Artificial Neural Networks in the domain of reservoir characterization: A review from shallow to deep models. Comput. Geosci.
**2020**, 135, 104357. [Google Scholar] [CrossRef] - Bengio, Y.; Courville, A.; Vincent, P. Representation learning: A review and new perspectives. IEEE Trans. Pattern Anal. Mach. Intell.
**2013**, 35, 1798–1828. [Google Scholar] [CrossRef] - Alkassar, S.; Jebur, B.A.; Abdullah, M.A.; Al-Khalidy, J.H.; Chambers, J. Going deeper: Magnification-invariant approach for breast cancer classification using histopathological images. IET Comput. Vis.
**2021**, 15, 151–164. [Google Scholar] [CrossRef] - Abdullah, M.A.; Alkassar, S.; Jebur, B.; Chambers, J. LBTS-Net: A fast and accurate CNN model for brain tumour segmentation. Healthc. Technol. Lett.
**2021**, 8, 31. [Google Scholar] [CrossRef] - Torrey, L.; Shavlik, J. Transfer learning. In Handbook of Research on Machine Learning Applications and Trends: Algorithms, Methods, and Techniques; IGI Global: Hershey, PA, USA, 2010; pp. 242–264. [Google Scholar]
- Fooladgar, F.; Kasaei, S. Lightweight residual densely connected convolutional neural network. Multimed. Tools Appl.
**2020**, 79, 25571–25588. [Google Scholar] [CrossRef] - Iandola, F.N.; Han, S.; Moskewicz, M.W.; Ashraf, K.; Dally, W.J.; Keutzer, K. SqueezeNet: AlexNet-level accuracy with 50x fewer parameters and < 0.5 MB model size. arXiv
**2016**, arXiv:1602.07360. [Google Scholar] - Asnaoui, K.E.; Chawki, Y.; Idri, A. Automated methods for detection and classification pneumonia based on X-ray images using deep learning. arXiv
**2020**, arXiv:2003.14363. [Google Scholar] - Saraiva, A.; Ferreira, N.; Sousa, L.; Carvalho da Costa, N.; Sousa, J.; Santos, D.; Soares, S. Classification of Images of Childhood Pneumonia using Convolutional Neural Networks. In Proceedings of the 6th International Conference on Bioimaging, Prague, Czech Republic, 22–24 February 2019; pp. 112–119. [Google Scholar]
- Apostolopoulos, I.D.; Mpesiana, T.A. COVID-19: Automatic detection from X-ray images utilizing transfer learning with convolutional neural networks. Phys. Eng. Sci. Med.
**2020**, 43, 635–640. [Google Scholar] [CrossRef] [Green Version] - Simonyan, K.; Zisserman, A. Very deep convolutional networks for large-scale image recognition. arXiv
**2014**, arXiv:1409.1556. [Google Scholar] - Huang, G.; Liu, Z.; Van Der Maaten, L.; Weinberger, K.Q. Densely connected convolutional networks. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 21–26 July 2017; pp. 4700–4708. [Google Scholar]
- Chollet, F. Xception: Deep learning with depthwise separable convolutions. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 21–26 July 2017; pp. 1251–1258. [Google Scholar]
- Szegedy, C.; Vanhoucke, V.; Ioffe, S.; Shlens, J.; Wojna, Z. Rethinking the inception architecture for computer vision. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 27–30 June 2016; pp. 2818–2826. [Google Scholar]
- Liang, G.; Zheng, L. A transfer learning method with deep residual network for pediatric pneumonia diagnosis. Comput. Methods Programs Biomed.
**2019**, 187, 104964. [Google Scholar] [CrossRef] [PubMed] - Kermany, D.S.; Goldbaum, M.; Cai, W.; Valentim, C.C.; Liang, H.; Baxter, S.L.; McKeown, A.; Yang, G.; Wu, X.; Yan, F.; et al. Identifying medical diagnoses and treatable diseases by image-based deep learning. Cell
**2018**, 172, 1122–1131. [Google Scholar] [CrossRef] - Toğaçar, M.; Ergen, B.; Cömert, Z. A deep feature learning model for pneumonia detection applying a combination of mRMR feature selection and machine learning models. IRBM
**2019**, 41, 212–222. [Google Scholar] [CrossRef] - Rajpurkar, P.; Irvin, J.; Zhu, K.; Yang, B.; Mehta, H.; Duan, T.; Ding, D.; Bagul, A.; Langlotz, C.; Shpanskaya, K.; et al. Chexnet: Radiologist-level pneumonia detection on chest x-rays with deep learning. arXiv
**2017**, arXiv:1711.05225. [Google Scholar] - Wang, X.; Peng, Y.; Lu, L.; Lu, Z.; Bagheri, M.; Summers, R.M. Chestx-ray8: Hospital-scale chest X-ray database and benchmarks on weakly-supervised classification and localization of common thorax diseases. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 21–26 July 2017; pp. 2097–2106. [Google Scholar]
- Han, Y.; Chen, C.; Tewfik, A.; Ding, Y.; Peng, Y. Pneumonia detection on chest X-ray using radiomic features and contrastive learning. In Proceedings of the 2021 IEEE 18th International Symposium on Biomedical Imaging (ISBI), Nice, France, 13–16 April 2021; IEEE: Piscataway, NJ, USA, 2021; pp. 247–251. [Google Scholar]
- Shih, G.; Wu, C.C.; Halabi, S.S.; Kohli, M.D.; Prevedello, L.M.; Cook, T.S.; Sharma, A.; Amorosa, J.K.; Arteaga, V.; Galperin-Aizenberg, M.; et al. Augmenting the National Institutes of Health chest radiograph dataset with expert annotations of possible pneumonia. Radiol. Artif. Intell.
**2019**, 1, e180041. [Google Scholar] [CrossRef] - Chouhan, V.; Singh, S.K.; Khamparia, A.; Gupta, D.; Tiwari, P.; Moreira, C.; Damaševičius, R.; De Albuquerque, V.H.C. A novel transfer learning based approach for pneumonia detection in chest X-ray images. Appl. Sci.
**2020**, 10, 559. [Google Scholar] [CrossRef] [Green Version] - Szegedy, C.; Liu, W.; Jia, Y.; Sermanet, P.; Reed, S.; Anguelov, D.; Erhan, D.; Vanhoucke, V.; Rabinovich, A. Going deeper with convolutions. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Boston, MA, USA, 7–12 June 2015; pp. 1–9. [Google Scholar]
- Rahman, T.; Chowdhury, M.E.; Khandakar, A.; Islam, K.R.; Islam, K.F.; Mahbub, Z.B.; Kadir, M.A.; Kashem, S. Transfer learning with deep convolutional neural network (CNN) for pneumonia detection using chest X-ray. Appl. Sci.
**2020**, 10, 3233. [Google Scholar] [CrossRef] - Zhang, J.; Xie, Y.; Pang, G.; Liao, Z.; Verjans, J.; Li, W.; Sun, Z.; He, J.; Li, Y.; Shen, C.; et al. Viral pneumonia screening on chest x-rays using Confidence-Aware anomaly detection. IEEE Trans. Med. Imaging
**2020**, 40, 879–890. [Google Scholar] [CrossRef] - Ayan, E.; Karabulut, B.; Ünver, H.M. Diagnosis of Pediatric Pneumonia with Ensemble of Deep Convolutional Neural Networks in Chest X-ray Images. Arab. J. Sci. Eng.
**2021**, 1–17. [Google Scholar] [CrossRef] [PubMed] - Nahiduzzaman, M.; Goni, M.O.F.; Anower, M.S.; Islam, M.R.; Ahsan, M.; Haider, J.; Gurusamy, S.; Hassan, R.; Islam, M.R. A Novel Method for Multivariant Pneumonia Classification based on Hybrid CNN-PCA Based Feature Extraction using Extreme Learning Machine with Chest X-ray Images. IEEE Access
**2021**, 9, 147512–147526. [Google Scholar] [CrossRef] - Gour, M.; Jain, S. Uncertainty-aware convolutional neural network for COVID-19 X-ray images classification. Comput. Biol. Med.
**2021**, 140, 105047. [Google Scholar] [CrossRef] - LeCun, Y.; Boser, B.; Denker, J.S.; Henderson, D.; Howard, R.E.; Hubbard, W.; Jackel, L.D. Backpropagation applied to handwritten zip code recognition. Neural Comput.
**1989**, 1, 541–551. [Google Scholar] [CrossRef] - Chen, M.; Shi, X.; Zhang, Y.; Wu, D.; Guizani, M. Deep features learning for medical image analysis with convolutional autoencoder neural network. IEEE Trans. Big Data
**2017**, 7, 750–758. [Google Scholar] [CrossRef] - Russakovsky, O.; Deng, J.; Su, H.; Krause, J.; Satheesh, S.; Ma, S.; Huang, Z.; Karpathy, A.; Khosla, A.; Bernstein, M.; et al. Imagenet large scale visual recognition challenge. Int. J. Comput. Vis.
**2015**, 115, 211–252. [Google Scholar] [CrossRef] [Green Version] - Czarnecki, W.M.; Podlewska, S.; Bojarski, A.J. Robust optimization of SVM hyperparameters in the classification of bioactive compounds. J. Cheminform.
**2015**, 7, 1–15. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Snoek, J.; Larochelle, H.; Adams, R.P. Practical bayesian optimization of machine learning algorithms. arXiv
**2012**, arXiv:1206.2944. [Google Scholar] - Wenzel, F.; Deutsch, M.; Galy-Fajou, T.; Kloft, M. Scalable Approximate Inference for the Bayesian Nonlinear Support Vector Machine. In Proceedings of the 30th Conference on Neural Information Processing Systems (NIPS 2016), Barcelona, Spain, 5–10 December 2016. [Google Scholar]
- Wenzel, F.; Galy-Fajou, T.; Deutsch, M.; Kloft, M. Bayesian nonlinear support vector machines for big data. In Joint European Conference on Machine Learning and Knowledge Discovery in Databases; Springer: Berlin/Heidelberg, Germany, 2017; pp. 307–322. [Google Scholar]
- Freund, Y.; Schapire, R.; Abe, N. A short introduction to boosting. J.-Jpn. Soc. Artif. Intell.
**1999**, 14, 1612. [Google Scholar] - Kermany, D.; Zhang, K.; Goldbaum, M. Labeled optical coherence tomography (oct) and chest X-ray images for classification. Mendeley Data
**2018**, 2. [Google Scholar] [CrossRef] - Swingler, G.H. Radiologic differentiation between bacterial and viral lower respiratory infection in children: A systematic literature review. Clin. Pediatr.
**2000**, 39, 627–633. [Google Scholar] [CrossRef] [PubMed] - Zhang, X.; Zhou, X.; Lin, M.; Sun, J. Shufflenet: An extremely efficient convolutional neural network for mobile devices. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Salt Lake City, UT, USA, 18–22 June 2018; pp. 6848–6856. [Google Scholar]
- Zoph, B.; Vasudevan, V.; Shlens, J.; Le, Q.V. Learning transferable architectures for scalable image recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Salt Lake City, UT, USA, 18–22 June 2018; pp. 8697–8710. [Google Scholar]

**Figure 1.**Examples of three CXR images of child human lungs. The left-hand image represents a healthy case, the middle image depicts a viral infection, while a lung with a bacterial infection is shown on the left.

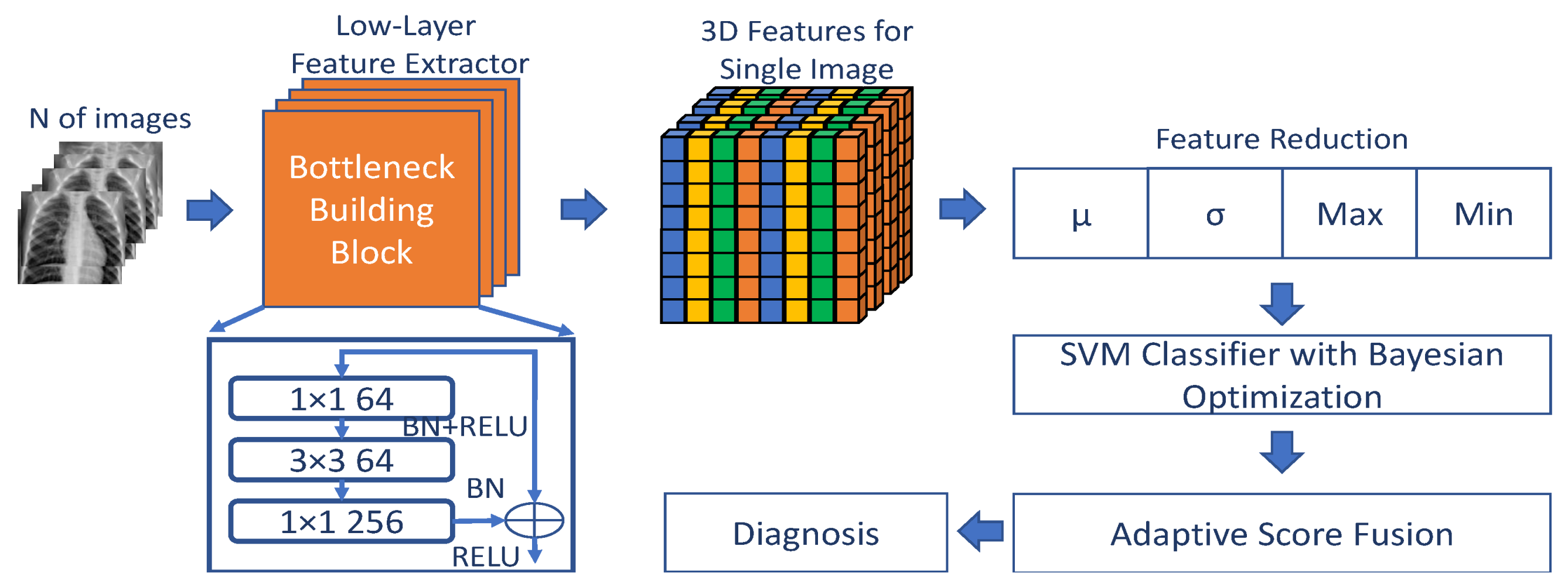

**Figure 2.**The proposed pneumonia diagnosis system depicting feature extraction via residual building blocks, feature reduction, SVM classifier training with Bayesian optimization, and score fusion.

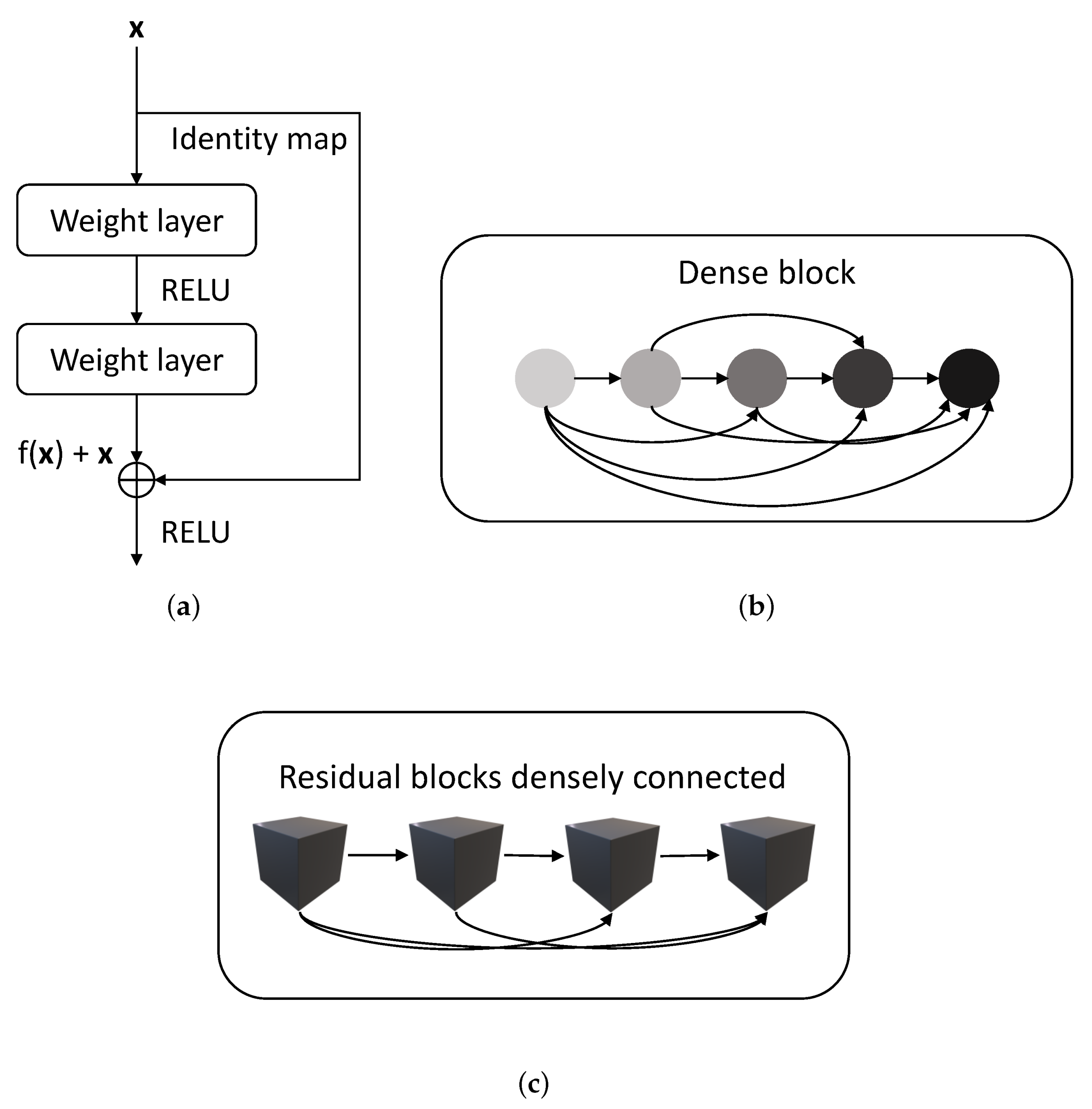

**Figure 3.**The modified connections of residual units showing each block are densely connected to previous blocks. (

**a**) Residual block, (

**b**) dense block, and (

**c**) the modified residual blocks densely connected.

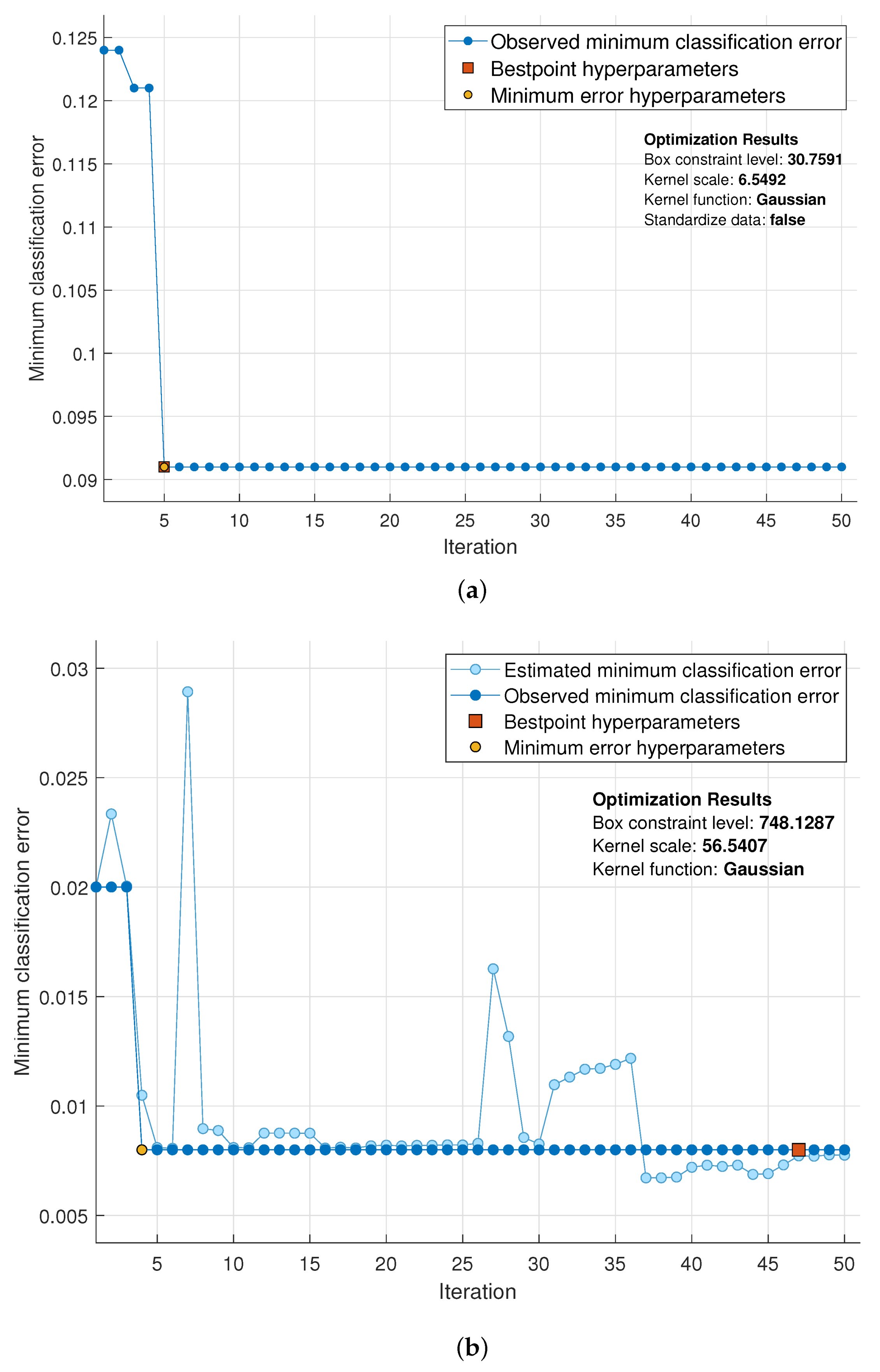

**Figure 4.**Minimum classification error plot of the optimized SVM classifier for the pneumonia diagnosis system using Bayesian optimization vs. random search optimization. (

**a**) Random search optimization, and (

**b**) Bayesian optimization.

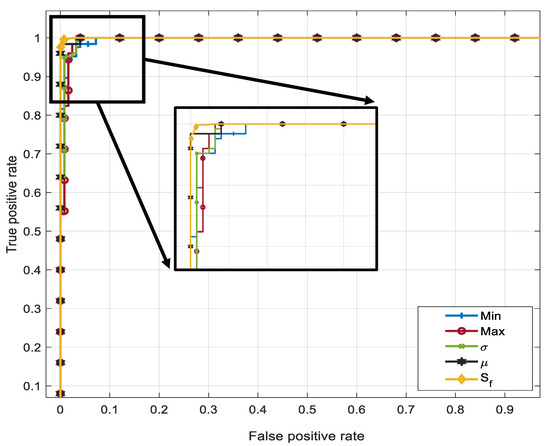

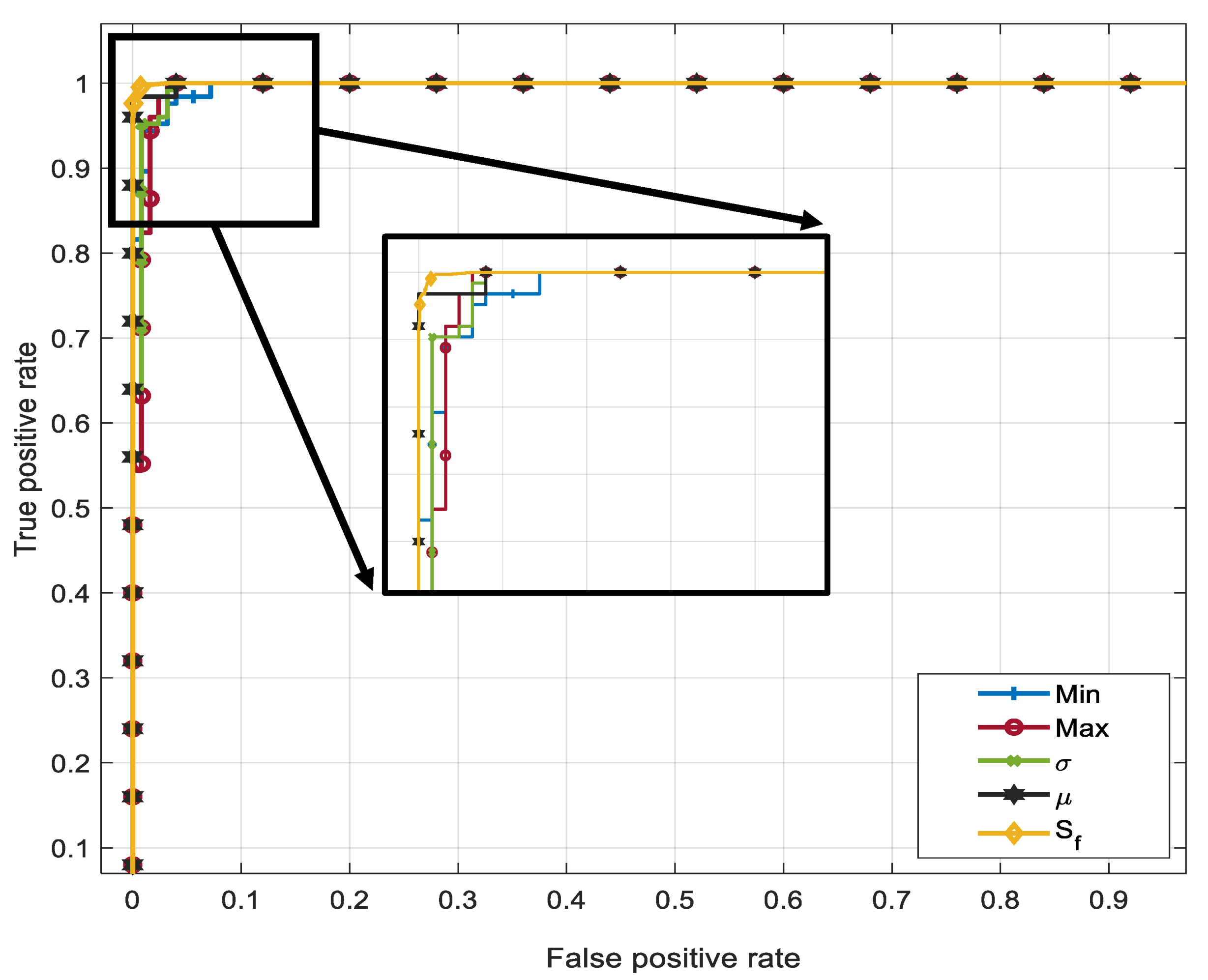

**Figure 5.**ROC curves of four sub-classifiers depicting ${S}_{i}\left(\mu \right),{S}_{i}\left(\sigma \right),{S}_{i}(max)$, and ${S}_{i}(min)$ scores compared to the accuracy of the proposed score fusion ${S}_{f}$.

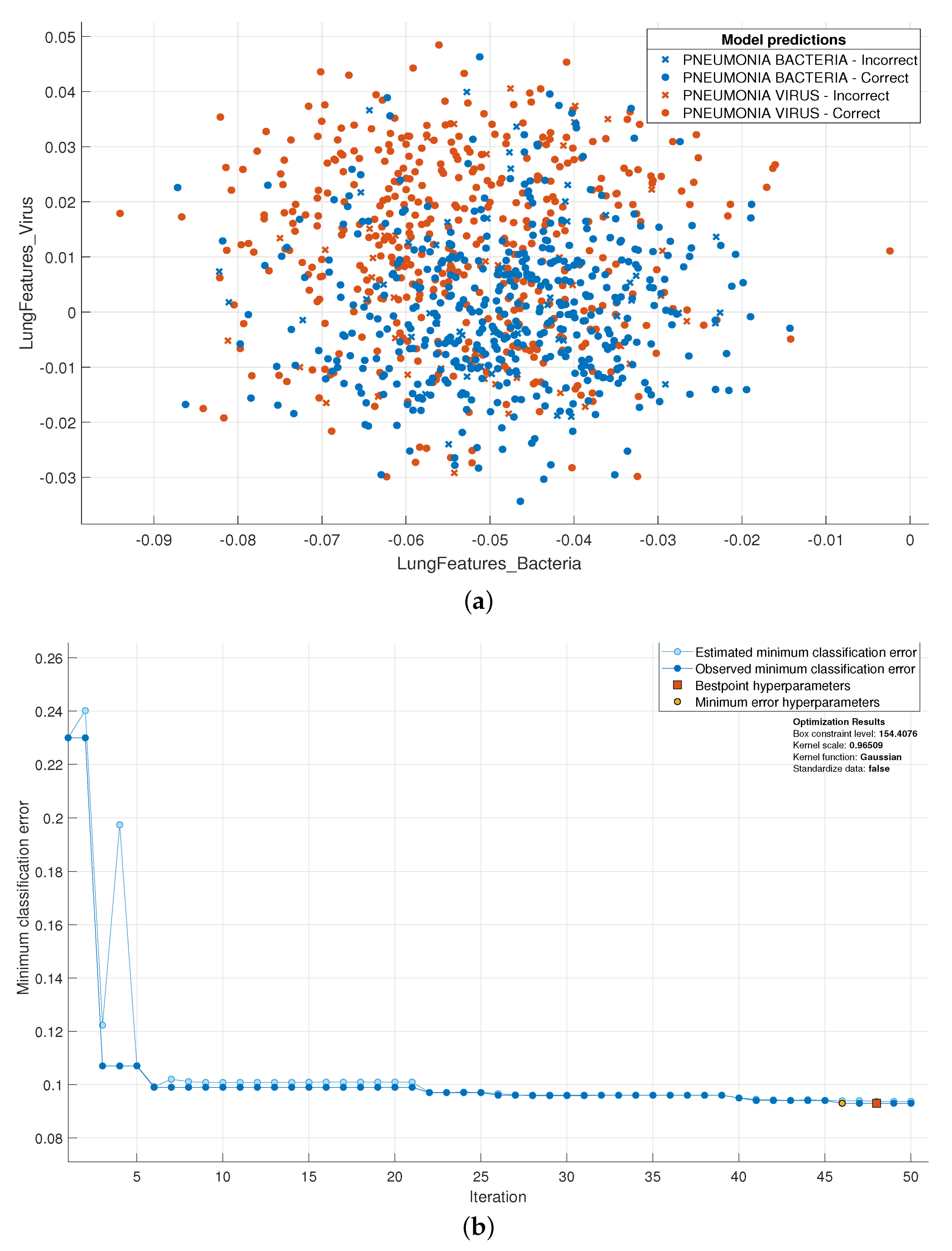

**Figure 6.**Performance of proposed model using bacterial vs. viral pneumonia scenario. (

**a**) is the feature space of bacterial vs. viral infected lung CXR images, and (

**b**) is the SVM with Bayesian optimization of the proposed scenario.

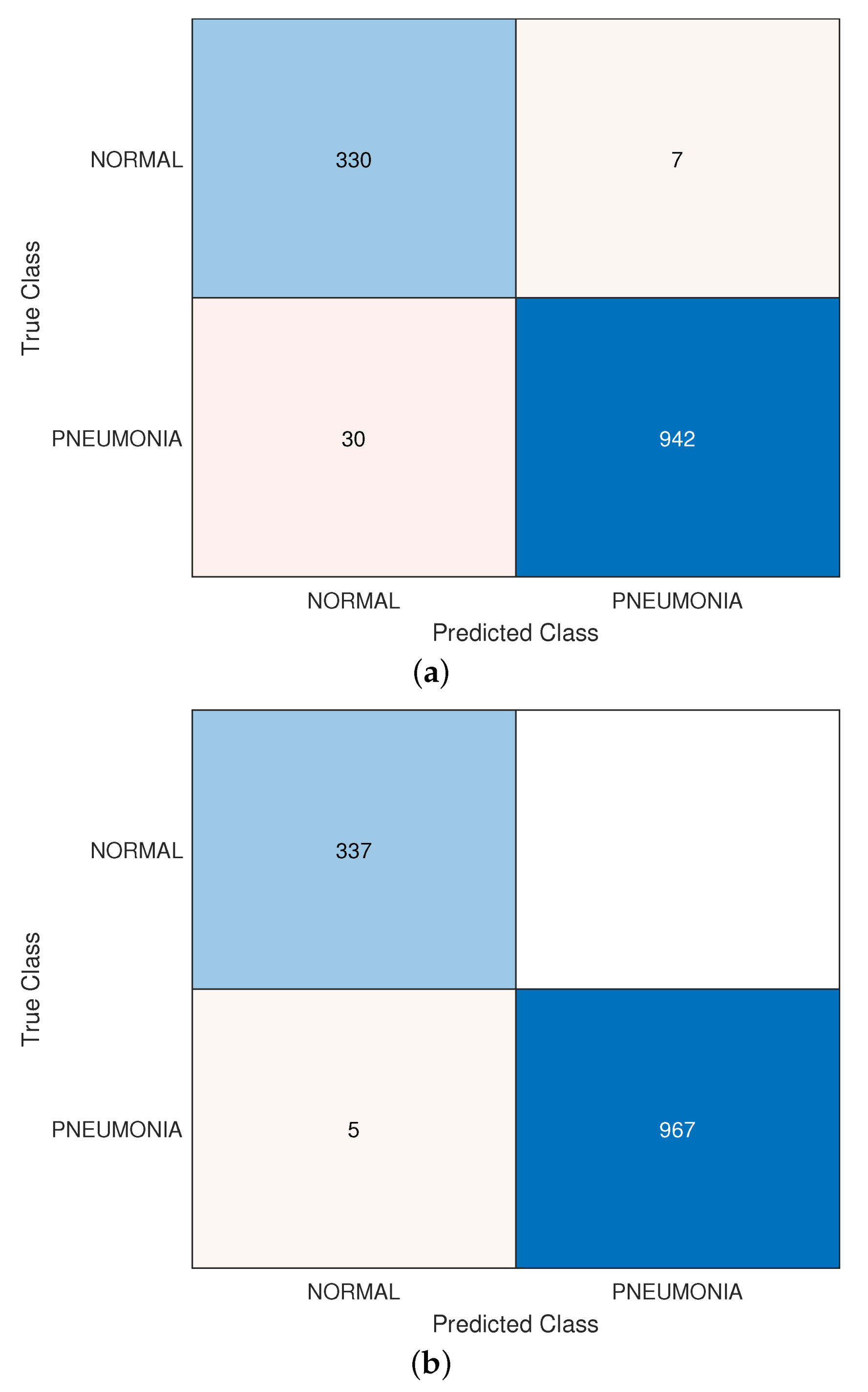

**Figure 7.**The confusion matrices showing a comparison between (

**a**) deep-layer features and (

**b**) features extracted using proposed method.

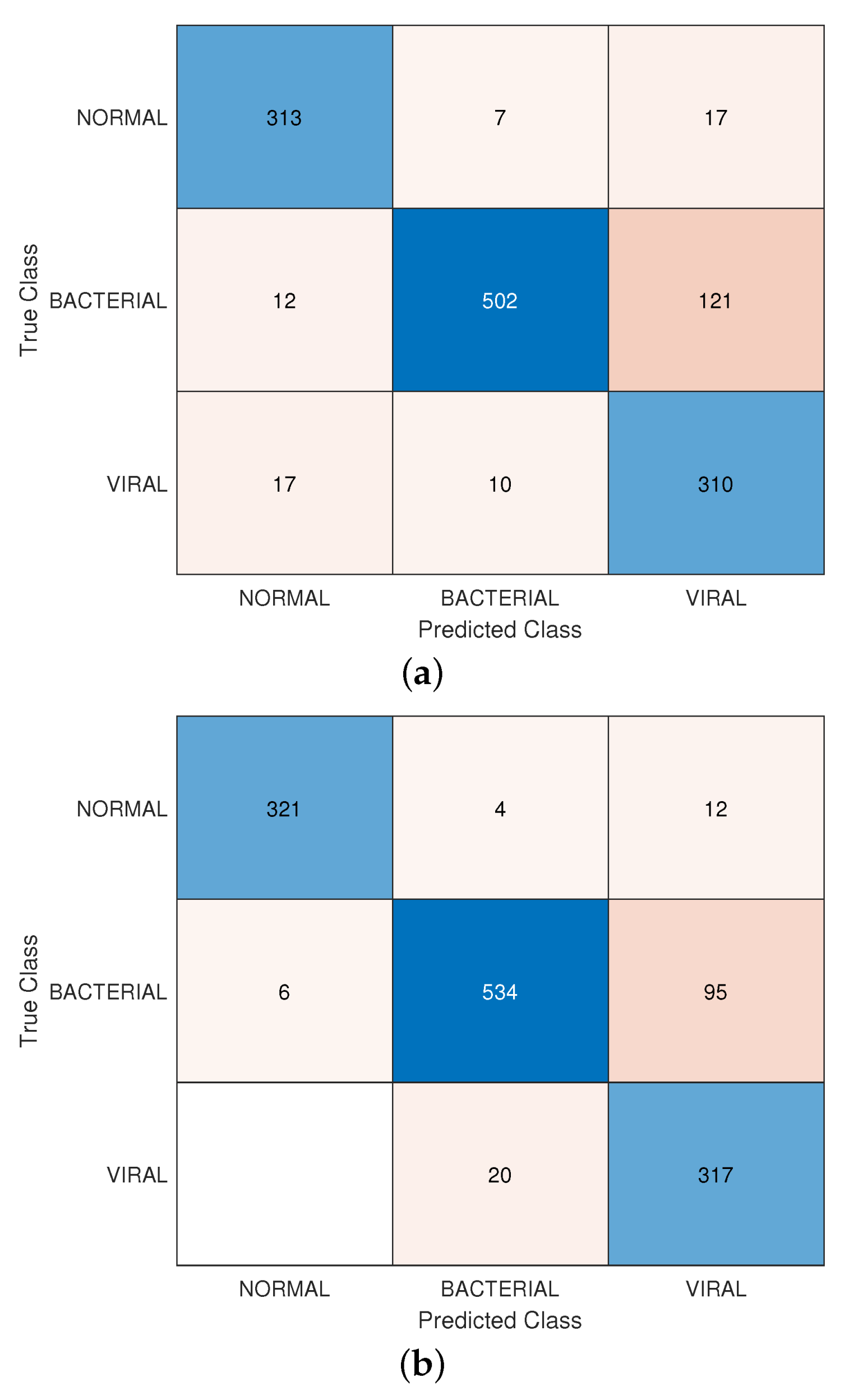

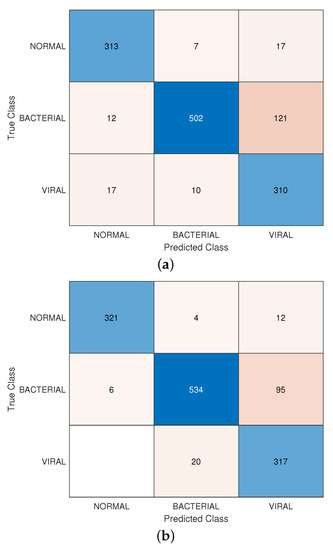

**Figure 8.**The confusion matrix of the proposed model in a normal vs. bacterial vs. viral CXR images classification fashion using (

**a**) deep features and (

**b**) proposed features.

Category | No. of Images | Training | Testing |
---|---|---|---|

Normal | 1349 | 1012 | 337 |

Bacterial | 2538 | 1903 | 635 |

Viral | 1345 | 1008 | 337 |

Total | 5232 | 3922 | 1309 |

Number of Bottleneck Blocks | Accuracy | Number of Features |
---|---|---|

1 | 95.6 | 1 × 256 |

2 | 96.2 | 1 × 256 |

3 | 96.8 | 1 × 256 |

4 | 96.8 | 1 × 512 |

5 | 99.6 | 1 × 512 |

6 | 97.6 | 1 × 512 |

7 | 97.2 | 1 × 512 |

**Table 3.**Comparison of early-layer and deep-layer accuracy for pneumonia diagnosis using most off-the-shelf deep networks vs. proposed densely-connected residual blocks.

Deep Network | Number of Layers | Accuracy (%) | |
---|---|---|---|

Deep Layer Features | Early Layer Features | ||

AlexNet [5] | 8 | 96.0 | 97.3 |

VGG [17] | 19 | 96.8 | 98.4 |

SqueezeNet [13] | 14 | 96.7 | 96.0 |

GoogleNet [29] | 27 | 96.2 | 97.7 |

ShuffleNet [45] | 20 | 96.5 | 96.8 |

NASNetMobile [46] | 913 | 95.8 | 96.9 |

DenseNet [18] | 201 | 98.0 | 98.4 |

Xception [19] | 36 | 96.4 | 98.4 |

ResNet [6] | 50 | 97.6 | 97.1 |

Proposed method | 35 | na | 99.6 |

Pneumonia Diagnosis Method | Deep Learning Technique | Accuracy (%) |
---|---|---|

Chowdhury et al. [4] | Transfer Learning with SqueezeNet | 99.00 |

Asnaoui et al. [14] | Transfer Learning with ResNet50 | 96.61 |

Saraiva et al. [15] | CNN 10 Layers | 95.30 |

Apostolopoulos et al. [16] | Transfer Learning with MobileNetv2 | 96.78 |

Liang and Zheng [21] | CNN with 49 Residual Blocks | 95.30 |

Kermany et al. [22] | Transfer Learning with AlexNet | 92.80 |

Toğaçar et al. [23] | Deep Features Fused from AlexNet, VGG16, and VGG19 | 99.41 |

Rajpurkar et al. [24] | Transfer Learning with ChexNet | 82.83 |

Han et al. [26] | Contrastive Learning with ResNetAttention | 88.00 |

Chouhan et al. [28] | Transfer Learning with 5 Deep Networks | 96.40 |

Rahman et al. [30] | Transfer Learning with DenseNet201 | 98.00 |

Zhang et al. [31] | One-Class Classification Based Anomaly Detection | 83.61 |

Ayan et al. [32] | Transfer Learning with Ensemble Voting | 95.21 |

Nahiduzzaman et al. [33] | CNN with EML and PCA | 99.83 |

Gour and Jain [34] | fine-tuned EfficientNet-B3 | 99.83 |

Proposed Method | Bottleneck Layer Features with 5 Densely-Connected Residual Building Blocks | 99.60 |
