Influence of Contacts and Applied Voltage on a Structure of a Single GaN Nanowire

Abstract

Semiconductor nanowires (NWs) have a broad range of applications for nano- and optoelectronics. The strain field of gallium nitride (GaN) NWs could be significantly changed when contacts are applied to them to form a final device, especially considering the piezoelectric properties of GaN. Investigation of influence of the metallic contacts on the structure of the NWs is of high importance for their applications in real devices. We have studied a series of different type of contacts and influence of the applied voltage bias on the contacted GaN NWs with the length of about 3 to 4 micrometers and with two different diameters of 200 nm and 350 nm. It was demonstrated that the NWs with the diameter of 200 nm are bend already by the interaction with the substrate. For all GaN NWs, significant structural changes were revealed after the contacts deposition. The results of our research may contribute to the future optoelectronic applications of the GaN nanowires.

1. Introduction

Low-dimensional semiconductor material structures, such as nanowires (NWs), have developed into one of the most intensely studied fields of science and technology. One reason for the very intense research in this field is motivated by what can be offered to main-stream semiconductor technology, by which ultrahigh performing electronics (for example, transistors) and photonics (for example, photovoltaics, photodetectors, or LEDs) technologies can be merged with silicon and complementary metal–oxide–semiconductor (CMOS) technology. Semiconductor gallium nitride (GaN) NWs are promising candidates for a number of applications, such as light emitting diodes (LED), transistors, single photon sources, low-cost solar cells, etc. (see for review [1,2,3,4,5,6,7,8,9]). Contacting process of the nanostructures in a final optoelectronic device may lead to significant strain that changes the band gap of the final device and hence its properties. In addition, small dimensions and high surface to volume ratio of the NWs result in higher piezoelectric effects, which influence the electron-hole recombination.

The nanostructures are commonly analyzed by the laboratory table-top equipment employing different techniques such as scanning electron microscopy (SEM), atomic force microscopy (AFM), transmission electron microscopy (TEM), laboratory X-ray diffraction (XRD), etc. In most of the cases, these methods have limitations, which do not allow investigation of the local structure of a single object along the whole NW with high resolution. Modern 3rd generation synchrotron facilities allow investigation of individual nanostructures with intense, highly-coherent, focused down to sub-micrometer scale X-ray beams. Various coherent X-ray diffraction techniques, such as coherent diffraction imaging (CDI), Bragg CDI, and ptychography may provide an important information about the three-dimensional (3D) strain field and deformation of a single nanostructure with a high spatial resolution [10,11,12,13,14].

The Bragg CDI is a lensless imaging technique that makes use of the coherence properties of the X-ray beam. When a finite object is illuminated by a coherent X-ray beam in Bragg geometry, interference between the incoming wavefront and the scattered beams generate a diffraction pattern, which can be recorded in the far-field by a 2D detector with proper sampling [15]. By rotating the sample in the vicinity of the Bragg angle and recording 2D diffraction patterns, one can measure a full 3D diffraction pattern and then use iterative algorithms [16,17] to determine the 3D shape and strain field in a sample. A complex amplitude object is reconstructed, whose modulus is directly related to the sample’s crystalline shape and its phase is given by the projection of the displacement field on the scattering vector [18]. This allows to determine unique information about the strain field in nanosamples under different external conditions [19,20,21].

In our previous study [22], we analyzed the NWs of the 350–400 nm diameter with one type of contacts. We have demonstrated that deposition of the Au contacts, as well as the applied voltage bias deform single GaN nanowires leading to their bending. It was also demonstrated that the arching of the nanostructures may reach the critical value, when the NW is broken. In our current study, we analyzed NWs of the two different diameters of 200 nm and 350 nm, as well as we investigated the influence of the various type of contacts and applied voltage on the strain field and structure of these NWs.

2. Experiment

2.1. Samples

The samples with GaN NWs were prepared at the NanoLund Laboratory at Lund University, Sweden. The GaN NWs with the lengths from 3 μm to 4 μm and two different diameters of 200 nm and 350 nm were grown by selective area metal-organic vapor phase epitaxy (MOVPE), equipped with a 3 × 2 close-coupled showerhead reactor [23]. First, a 1 μm thick [0001]-oriented GaN template layer was grown on top of a Si (111) substrate, on which a 30 nm thick SiN_x film was deposited as a growth mask by low-pressure chemical vapor deposition (CVD). Further, hexagonal arrays of openings were defined in the SiN_x mask by e-beam lithography and reactive ion etching with the opening diameter of about 100 nm and the pitch of 1 μm. The as-patterned templates were then loaded into the MOVPE reactor to grow the GaN nanowires. Due to the growth selectivity, the GaN growth only took place from the GaN surface exposed in the SiN_x openings. The continuously supplied flows of NH₃ and triethylgallium were used to synthesize GaN nanowires. A low V/III ratio had to be used in order to achieve the nanowire geometry with vertical m-plane side facets. The triethylgallium flow was 19 μmol/min and the growth temperature was 1042 °C. The as-grown GaN nanowires, having a hexagonal cross-section, were about 200 nm thick and about 3.5 μm long. In order to further increase the diameter of GaN nanowires, a GaN shell was grown around the GaN nanowires. This was achieved by increasing the V/III ratio, which enhanced the GaN growth on the m-plane side facets through forming low-growth-rate facets $10\overline{1}1$ at the nanowire tip. By controlling the shell growth time, GaN nanowires with a diameter of 350 nm were obtained. From our previous study [22], we know that the structure of GaN NWs is pure wurtzite almost without dislocations and stacking faults.

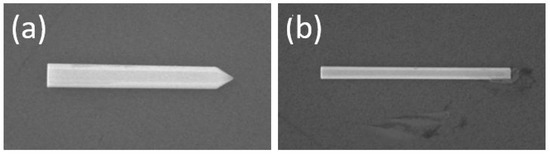

After the growth, GaN NWs were removed from the original substrate and deposited on a Si (111) chip with a 100 nm thermally grown SiO₂ layer on top, as an insulating layer. The SEM images of the free-lying NWs are presented in Figure 1. The SEM images of the NWs presented in this work were obtained in NanoLund and DESY NanoLab [24].

2.2. Contacts

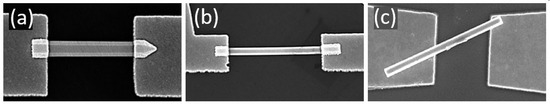

After the growth and deposition, Au contacts of two different types were used to connect the GaN NWs in order to study the influence of the applied voltage on their structure. The first contacting approach was similar to our previous work [22]. The position and orientation of the NWs were random with respect to the main contacts on the substrate after their deposition. We developed a sample holder, which provided the electrical connection to the selected single NWs. The free-lying GaN NWs were connected from two sides to the power supply via pads and solid wires using different contacting methods (see Supplementary Materials). The 220 nm thick metallic contacts were deposited by electron beam lithography and thermal evaporation of Ti and Au. First, a 20 nm thick layer of Ti was deposited on SiO₂ and GaN NW to provide good adhesion between Au and GaN, and then 200 nm thick layer of Au on top of Ti layer. The SEM images of the 350 nm and 200 nm NWs contacted using this method are shown in Figure 2a,b. In comparison to our previous experiment [22], these Au contacts had larger width and were thicker. The contacts were covering a larger part of the NWs at the bottom, while the tip of the NWs was covered less. These variations in contacting geometry define the possible difference in properties of the electronic system “GaN NW + Au contacts”.

The second type of contacts was manufactured differently. The Au contacts were deposited on the SiO₂ layer using the similar lithography technique from two sides leaving a gap between them. Further, GaN NWs were positioned on the top of these contacts and were slightly melted into the contacts by the increased temperature of 400 °C for 20 min. The SEM image of this type of contacts is shown in Figure 2c.

We performed electrical measurements before the experiment. The resistance of the system “GaN NW + Au contacts” was about 10¹² Ohm. Therefore, the current through the NWs was relatively low, and additional cooling of the sample was not necessary.

2.3. Experimental Setup

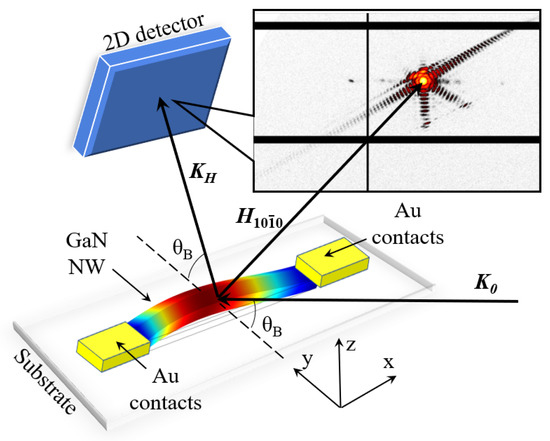

The nanostructures were investigated at the coherence applications beamline P10 at the PETRA III synchrotron facility (DESY, Hamburg, Germany). The geometry of the experiment is shown in Figure 3. The measurements were performed at the six-circle diffractometer equipped with a two-dimensional (2D) X-ray pixel detector EIGER X 4M positioned 1.74 m downstream from the sample in Bragg geometry. The detector had 2070 × 2167 pixels with the pixel size of 75 × 75 μm². To reduce air scattering, an evacuated flight tube was mounted between the sample and detector.

The X-ray beam with the photon energy of 9.04 keV and flux of about 10¹¹ ph/s was focused at the sample using compound refractive lenses (CRLs). Characterization of the focus was performed by the knife edge scan at the sample position. The X-ray beam was about 3 × 2 μm² (V × H) in size at full width at half maximum (FWHM). The sample with GaN NWs was mounted on the diffractometer by a specially manufactured adapter with wires connected to a voltage power supply (see for details Ref. [22]). During the experiment, $10\overline{1}0$ Bragg reflection of GaN was measured employing the incoming and diffracted X-ray beams with the wave vectors K₀ and K_H and a reciprocal lattice vector ${\mathit{H}}_{10\overline{1}0}$ of the GaN NW being normal to the substrate (see Figure 3). The sample was positioned at a Bragg angle ${\theta }_B$ of $10\overline{1}0$ GaN reflection and the detector was placed at $2{\theta }_B$ with respect to the incident X-ray beam. The rectangular coordinate system was chosen to have the z-axis perpendicular to the substrate, x-axis along, and y-axis perpendicular to the NW (see Figure 3). The 3D coherent intensity distribution around each diffraction peak was measured by recording the scattered X-rays from the specimen by the 2D detector at different incidence angles in a range of about ±0.4° around the Bragg angle with 160 angular steps and 5 s of exposure time.

3. Results

3.1. Free-Lying Nanowires

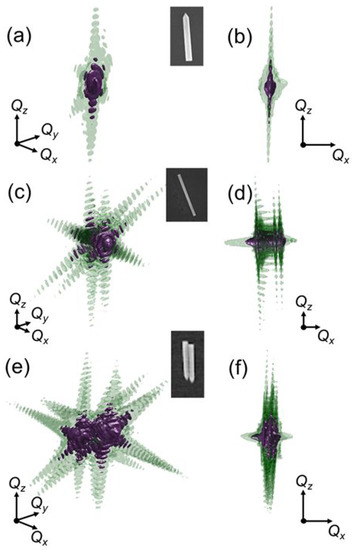

First, we have investigated a series of free-lying NWs without contacting electrodes. The 3D distribution of coherently scattered intensity in the vicinity of a $10\overline{1}0$ GaN Bragg peak of the free-lying NWs in the laboratory frame is shown in Figure 4. The intensity distribution of a free-lying NW of 350 nm in size is presented in Figure 4a,b and demonstrates well pronounced hexagonal symmetry with the fringes originating from the opposite facets of the NW. There is only a single star-shaped Bragg peak distribution in reciprocal space (see Figure 4b), which indicates that this NW does not have a significant structural change and may be considered as a deformation-free NW. Several other investigated free-lying NWs of the same size demonstrated similar structure of the Bragg peak distribution in reciprocal space (see Supplementary Materials).

Further, a single, free-lying GaN NW with a smaller diameter of 200 nm was studied. Its intensity distribution is shown from two different directions in Figure 4c,d. Interestingly, the diffraction pattern reveals the “double-star” structure of the Bragg peak distribution (see Figure 4d). Two additionally studied 200 nm free-lying GaN NWs demonstrated similar double structure of the Bragg peak intensity distribution (see Supplementary Materials), which is due to the bending of the NWs [22].

For comparison, a diffraction pattern of $10\overline{1}0$ GaN Bragg peak of two close lying NWs with diameters of 350 nm is presented in Figure 4e,f. In this case of 350 nm thick NWs, two well-separated hexagonal-star Bragg peaks are distinguishable in reciprocal space.

Therefore, it is possible to conclude that the free-lying GaN NWs with the diameter of 200 nm are already bent in contrast to 350 nm in diameter NWs. This effect makes investigation of the NWs with the diameters smaller than 350 nm more complicated.

3.2. Influence of Contacts on the NWs Structure

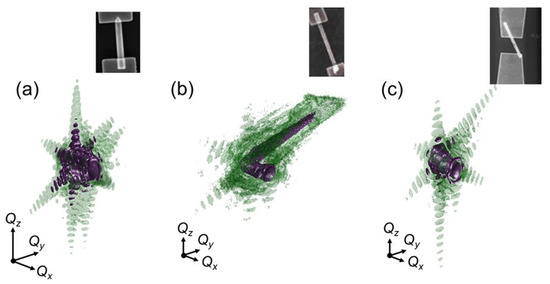

The 3D intensity distribution around $10\overline{1}0$ GaN Bragg peak for the contacted nanowires is shown in Figure 5. It is well seen in Figure 5a that the Bragg peak of the contacted 350 nm thick GaN NW has obtained an additional Bragg peak due to the induced strain from the deposited contacts.

The free-lying 200 nm thin GaN NWs were already bent before contacts deposition, but the bending angle was increased by 2 degrees after the contacts were applied (see Figure 5b). The nanowire fixation and bending mechanism were different for 350 nm and the 200 nm GaN NWs as can be seen from comparison of corresponding diffraction patterns (see Figure 5a,b).

Further, influence of the second type of Au contacts on the GaN NWs was studied (see Figure 2c). The corresponding distribution of intensity in reciprocal space around $10\overline{1}0$ GaN Bragg peak of a contacted 200 nm GaN NW is presented in Figure 5c, and shows the bending effect. Finally, we can conclude that all investigated types of contacts had a similar bending effect on the GaN NWs.

3.3. Operando Studies of GaN NWs

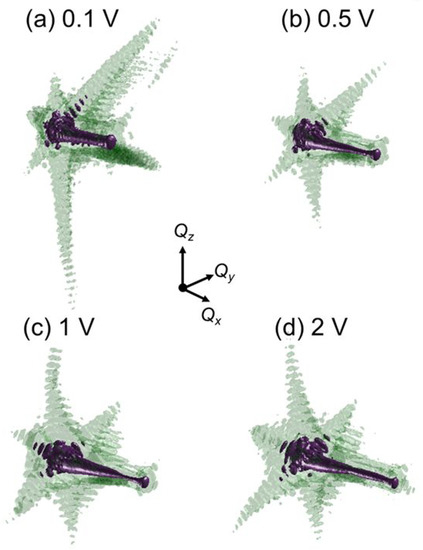

To study properties of the GaN NWs with the diameter of 350 nm, we have applied voltage bias to their ends and followed the evolution of the $10\overline{1}0$ GaN Bragg diffraction pattern. The Bragg peak intensity distribution as a function of applied voltage is shown in Figure 6. It is clearly visible in the figure that the distance between the Bragg peaks increases with the voltage causing an additional redistribution of the coherently scattered radiation around the Bragg peaks. As was already discussed above, this deformation of the Bragg peak is attributed to the GaN NW bending due to its expansion caused by the piezo effect under the applied voltage. The scheme of the bent NW and its intensity distribution in reciprocal space is shown in Figure 7a. The gap between two peaks increased with the applied voltage till the maximum elongation at two volts (see Figure 6d). After this critical value, the applied voltage bias was increased to five volts, and the NW was destroyed. Therefore, we assumed that the breakdown voltage of the system “GaN NW + Au contacts” was between two and five volts. The SEM images of the NWs after the breakdown voltage was applied are presented in the Supplementary Materials.

Investigation of the applied voltage to the GaN NWs with a diameter of 200 nm was not successful due to the unstable contacts between the NWs and the metallic contacts. The 200 nm GaN NW positioned on the top of the second type of Au contacts was lost after the first applied voltage bias of 0.5 volts. In this situation, one can only conclude that this type of NW fixation is much weaker than the variant with the Au contacts on the top of the NW.

4. Discussion

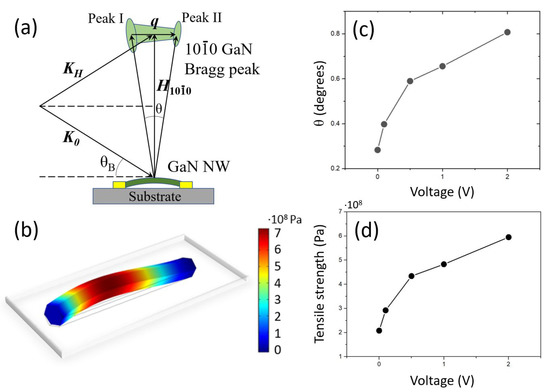

To analyze the bending effect of the GaN NWs, a model of such bending was developed based on our pervious results (see Ref. [22]). A scheme of the intensity distribution in reciprocal space is shown in Figure 7a. It explains relation between the bending angle $\theta =arctan(q/|{\mathbf{H}}_{10\overline{1}0}\left|\right)$ of the NW and the elongation q of the gap between two star-like Bragg peaks with the known length of the scattering vector ${\mathit{H}}_{10\overline{1}0}$.

To relate this bending angle with the split of the Bragg peak observed in the experiment and caused by this bending, we performed finite element method (FEM) simulations [25]. The lattice constants were considered to be $a_{GaN}$ = 3.189 Å, $c_{GaN}$ = 5.178 Å for the wurzite GaN crystal [26]. Since the GaN has a transversely isotropic structure of the unit cell, the full stiffness matrix is given by five independent components. The elasticity constants $C_{ij}$ of the GaN used in the model were the following: $C_{11}$ = 374 GPa, $C_{12}$ = 138 GPa, $C_{13}$ = 101 GPa, $C_{33}$ = 395 GPa, $C_{44}$ = 98 GPa [27]. The equilibrium shape of the NW used in FEM simulations is shown in Figure 7b. The incident Gaussian beam profile with one micrometer full width at half maximum (FWHM) and 3D displacement field from the FEM model were used to simulate the intensity distribution in reciprocal space, which was compared with the experimental one. Varying displacement field in the model, the best correspondence between the angular distance of the Bragg peaks in the model simulations and experimental data were determined.

For the free-lying NW with the diameter of 200 nm, an average bending angle of 0.45 degrees was calculated from the distance q between two peaks in reciprocal space (see Figure 4c,d) that, according to FEM modelling, corresponds to the maximum tensile strength in the NW of about 3.4 × 10⁸ Pa.

The bending angle of the contacted 350 nm GaN NWs was found to be 0.28 degrees and corresponds to 2 × 10⁸ Pa tensile strength obtained from the FEM model. In our previous experiment, the GaN NW was bent to 0.4 degrees after the Au contacts deposition with the tensile strength of 3 × 10⁸ Pa, which supports the current findings. For the second type of Au contacts shown in Figure 5c we determined the angle of 0.29 degrees that corresponds to the tensile strength of 2.1 × 10⁸ Pa.

Dependence of the bending angle $\theta$ between the two peaks of the $10\overline{1}0$ GaN Bragg reflection for the GaN NW under operando conditions is given in Figure 7c as a function of the voltage bias. From the FEM simulations, the maximum tensile strength value of the most top part of the nanowire was obtained for different bending angles measured in the experiment. Dependence of this tensile strength as a function of applied voltage bias is presented in Figure 7d. The strain in the GaN NW increased from 2 × 10⁸ Pa up to 6 × 10⁸ Pa, at which the nanostructure was broken. In general, the strain values are in a good agreement with the dependence observed in our previous study, but the voltage values corresponding to the same bending angles are five times smaller. We attribute this discrepancy to the different geometric parameters of the contacts, which were thicker this time and had different overlap with the NWs. The ultimate tensile strength at the breakdown voltage could be estimated with rather large error from the extrapolation of the obtained tensile strength dependence, but will be in a range of the previously obtained value of about 1 GPa.

5. Summary and Outlook

In our study, a strong influence of the different types of metallic contacts on the strain state of GaN NWs with diameters of 200 nm and 350 nm was demonstrated using coherent X-ray diffraction of the $10\overline{1}0$ GaN Bragg peak. Employing the developed FEM model, the maximum tensile strength in the nanowires was calculated for the different bending states induced due to the deposited Au contacts.

For the NWs with 350 nm in diameter, the maximum tensile strength raised to 2 × 10⁸ Pa after the contacts deposition. Further, the influence of the applied voltage bias on the strain field evolution until the breakdown of the nanostructures was investigated. The strain in the GaN NWs increased up to the ultimate tensile strength of 6 × 10⁸ Pa corresponding to two volts of applied bias, at which the nanowire was broken. This ultimate tensile strength was in a good agreement with out previous work, while the breakdown voltage deviation was explained by the different geometry of the contacts and their possibly different breakdown behavior.

In the case of the NWs with the diameter of 200 nm, it was demonstrated that they bend already by the interaction with the substrate. The applied Au contacts disturbed the scattered X-ray intensity distribution of the Bragg peak even more. Additionally, the contacts fixation of this type of NWs was less stable, which made their investigation with the current diameter to length ratio rather challenging. For our future experiments, the length of the NWs with diameters below 350 nm is planned to be shorter than 2 μm.

An additional type of fixation with the NWs positioned on the top of the Au contacts demonstrated for the GaN NWs with the diameter of 200 nm a much weaker “contact-nanostructure” fixation. The GaN NW was disconnected already after the first applied voltage bias of 0.5 volts. Due to these reasons, the operando study of the nanowires with this type contacts was not successful.

We expect that the results of our work will contribute to the development and manufacture of the devices based on the nanostructures and may help the high-technology industry development.
