Analysis of Multiresidue Pesticides in Agricultural Paddy Soils Near Industrial Areas in Korea by GC–MS/MS and LC–MS/MS Using QuEChERS Extraction with dSPE Clean-Up

by
Hyeong-Wook Jo
1,†,
Min-Goo Park
2,†,
Hwang-Ju Jeon
3,†,
Joon-Kwan Moon
4,‡ and
Sung-Eun Lee
3,5,*,‡
1
Hansalim Agro-Food Analysis Center, Hankyong National University Industry Academic Cooperation Foundation, Suwon 16500, Korea
2
Department of Plant Quarantine, Animal and Plant Quarantine Agency (APQA), Gimcheon-si 39660, Korea
3
Department of Applied Biosciences, Kyungpook National University, Daegu 41566, Korea
4
School of Plant Resourves and Landcape Architecture, Hankyong National University, Anseong 17579, Korea
5
Department of Integrative Biology, Kyungpook National University, Daegu 41566, Korea
*
Author to whom correspondence should be addressed.
†
These authors equally contributed to this paper as the first author.
‡
These authors equally contributed to this paper as the corresponding author.
Appl. Sci. 2021, 11(18), 8415; https://doi.org/10.3390/app11188415
Submission received: 7 August 2021 / Revised: 6 September 2021 / Accepted: 8 September 2021 / Published: 10 September 2021
(This article belongs to the Section Agricultural Science and Technology)
Browse Figure
Versions Notes

Abstract

:

Featured Application

Monitoring of residual pesticides in the environment is necessary to predict the impact of pesticide residue on ecosystems and human health.

Abstract

Pesticides have been used to control pests in agricultural fields and storage systems before circulating agricultural products to markets. A tandem mass spectrometry, equipped with gas chromatographic separation (GC–MS/MS) or ultra-performance liquid chromatographic separation (LC–MS/MS), was used to monitor residual pesticides in Korean rice paddy soils. Selective multiple reaction monitoring was employed during the analyses to achieve multiresidue pesticide analysis using GC–MS/MS and LC–MS/MS of 342 pesticides. In this study, QuEChERS extraction was employed with a dSPE clean-up to establish an effective pretreatment process. The limit of detection (LOD) and limit of quantification (LOQ) were set up for all pesticides, and method validation was performed for linearity and recovery at levels of 10 and 50 mg kg−1 in the untreated soil sample. All pesticides satisfied the acceptable recovery range of 70–120%, within less than 20% RSD values, except for ametoctradin and gibberellic acid. In the paddy soil analyses, tricyclazole was the most frequently detectable pesticide, followed by oxadiazon, endosulfan, and chlorantraniliprole. Continuous monitoring of residual pesticides in paddy soils should be conducted due to the translocation of some systemic pesticides from soils to crop plants, and the impact of residual pesticides on the environment.

1. Introduction

Pesticides are used to improve crop productivity and isolate agricultural products from various pests, including insects and fungi. Crop production and farm household income may decrease if they are not used [1,2]. They are used before planting seeds of crops or after germination. In addition, they are sprayed when diseases or pests spread. In addition, they are used before agricultural product shipment [3,4,5]. Currently, pesticides include herbicides, insecticides, fungicides, and other ingredients to enhance pesticide activity. Depending on the cultivation pattern and primary crops in each country, the types of pesticides in use may be different, as well as the amounts of them used in the fields [6,7]. In this respect, it has been reported that some countries, including Korea, use more pesticides than other countries to protect crops [8,9].
However, the use of these pesticides creates an indispensable situation that impacts the agricultural ecosystem; environmental destruction has been reported numerous times, and is recognized as a major cause of various human diseases [10]. Therefore, efforts to produce crops by limiting their use are of interest [11]. For example, the positive list system (PLS) collectively applies the level of 0.01 ppm for the maximum residue limit (MRL) to pesticides for which MRL is unset, and PLS has recently been passed in Korea [12]. Used pesticides evoke adverse effects on the ecosystem after spraying; they disrupt the terrestrial and aquatic ecosystems, and many of the endocrine-disrupting chemicals are from pesticides [13].
Therefore, it is inevitable to receive attention from the public regarding how high amounts of pesticides remain in cultivated crops, as well as agricultural soils and waterways, and monitoring of residual pesticides in agricultural products and environments contributes to the efficient safety management of pesticides [14,15]. However, in addition to this efficient management, it is necessary to maintain the agricultural environment safely when crops are not grown, because many pesticides remain in agricultural water and soil after cultivation, and the dynamics of these environments are not understood in some cases. For example, the kinetics and toxicity of the original pesticides and their metabolites are often not studied in detail [16].
Various kinds of pesticides may remain in agricultural soils for a long period, and studies have shown that they can be transferred to crops through roots when crops are growing [17,18]. The risk of migration of residual pesticides from the agricultural soil to crops can be prevented or predicted by monitoring residual pesticides in the agricultural soil.
Recently, monitoring of pesticide residues known as multiresidue pesticide analysis has been developed to analyze multiple pesticides simultaneously using GC–MS/MS and LC–MS/MS [19,20]. With this multiresidue pesticides analysis, the QuEChERS extraction method with the dSPE clean-up method also was introduced [19], and the analytical time should be shortened, with a reduction in the analysis cost. In this study, we developed a multiresidue pesticide analytical method using GC–MS/MS and LC–MS/MS with QuEChERS extraction and dSPE clean-up. We used the developed multiresidue analysis for monitoring 40 agricultural soils near the industrial areas in Pohang and Ulsan cities in Southern Korea. We analyzed 342 pesticides, including a pesticide banned by the Korean government due to its isomers and metabolites such as alpha-endosulfan, beta-endosulfan, and endosulfan sulfate. These chemicals are registered as persistent organic pollutants (POPs), and they also have been prohibited in Korean agriculture.

2. Materials and Methods

2.1. Chemicals

Acetonitrile, acetone, and methanol were purchased as HPLC grade from Burdick & Jackson Inc. (Muskegon, MI, USA). Formic acid (>98% purity) and ammonium formate (98% purity) were purchased from Sigma-Aldrich Co. (St. Louis, MO, USA). D-(+)-Gluconic acid-δ-lactone, (-)-shikimic acid, 3-ethoxy-1,2-propanediol, and D-sorbitol, as analyte protectants, were purchased from Sigma-Aldrich. The tertiary distilled water was produced using a Milli-Q system (Millipore Co., Bedford, MA, USA).

2.2. Rice Paddy Soil Samples

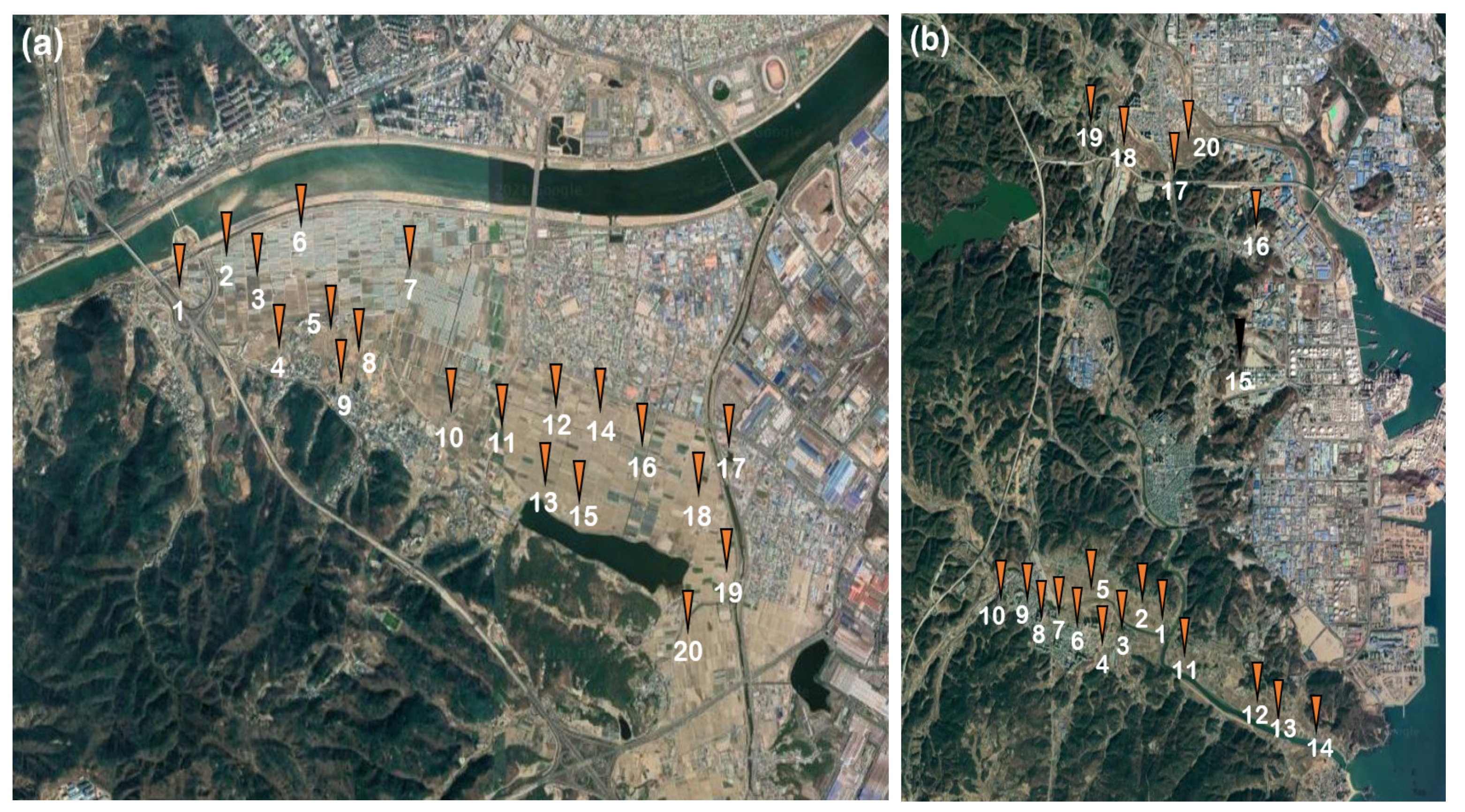

The agricultural soil samples used in this study were collected from 40 rice paddy soils located in Ulsan and Pohang cities. The grid reference of the sampling site in Korea can be found in a previous report (Figure 1) [21]. The collected soil samples were passed through a 2 mm sieve after drying in the shade, and then stored frozen at −20 °C until analysis was performed. Pesticide standard solutions were made for a mixture containing 123 and 219 pesticides for the GC–MS/MS and LC–MS/MS analyses, respectively (Table 1, Table S1, Table 2 and Table S2). Therefore, 342 pesticides were used to formulate a standard solution for the multiresidue pesticide analysis.

2.3. Preparation and Mixture of the Standard Solution

Standard pesticides used in this study were purchased from AccuStandard Inc. (New Haven, CT, USA) and were supplied as the liquid basis at concentrations of 1000, 500, and 100 mg kg−1. In a 20 mL volumetric flask, 1000, 500, and 100 mg kg−1 standard stock solutions were collected and combined. If the amount of solvent was large during pooling, it was left to dry using nitrogen. Finally, 20 mL of acetonitrile was added to resolve. A mixed standard solution for GC–MS/MS and LC–MS/MS was prepared. For the preparation of untreated samples, soil for the nondetection of 342 pesticides was selected after the first screening from among the analyzed samples. The untreated sample was prepared from the soil after grinding, and was stored frozen at −20 °C for validation analysis.

2.4. QuEChERS Sample Preparation

2.4.1. Extraction

For all tested samples, five grams (5.0 g ± 0.1 g) of the freeze-dried samples were weighed and transferred into 50 mL conical tubes. The weighed sample was activated in 2 mL of distilled water for 30 min and extracted in 2 mL of MeCN by shaking on a mechanical wrist shaker for 30 min. After extraction, samples were treated with 4 g anhydrous MgSO4, 1 g NaCl, 0.5 g Na3citrate dihydrate, and 0.5 g Na2Hcitrate sesquihydrate. Then, samples mixed with QuEChERS extraction salts were shaken for 1 min and centrifuged at 4000 rpm for 10 min. The supernatant after the centrifuge was reserved for further clean-up process.

2.4.2. Dilution for Clean-Up

Two mL of supernatant after centrifugation was dried under nitrogen gas and resolved in MeCN. Then, 300 μL aliquots of supernatant from resolved solvent were transferred to a microtube and mixed with 600 μL buffer solution (100 mM ammonium formate in distilled water, at pH 4.5) and 100 μL MeCN for the LC–MS/MS analysis. Then, 405 μL aliquots of supernatant from resolved solvent were transferred to a microtube and mixed with 20 uL AP and 75 uL MeCN for the GC–MS/MS. Sample solutions were passed through a 0.20 μm and 4 mm polytetrafluoroethylene (PTFE) syringe filter (Hyundai Micro, Seoul, Korea) before the GC–MS/MS and LC–MS/MS analyses.

2.4.3. GC–MS/MS Analysis

The GC–MS/MS analysis was conducted on a Shimadzu GCMS-TQ8040 triple quadrupole mass spectrometer coupled to a GC-2010 Plus equipped with an AOC-20S autoinjector and -20i autosampler (Shimadzu, Kyoto, Japan). For the mass spectrometer, the electron energy of the EI was 70 eV, and temperature values for the injection port and transfer line were 280 °C. Argon used with an AOC-20S in the collision inductive dissociation gas. For the gas chromatograph, a splitless GC glass liner with glass wool (Shimadzu, Kyoto, Japan) was inserted in the inlet.
The injection mode was splitless and the injection volume was 1 μL. The capillary column was an Rxi-5Sil MS (20 m × 0.18 mm i.d., 0.18 μm df, Restek, Bellefonte, PA, USA). The oven temperature program (25 min) was initialized at 50 °C (held for 1 min), ramped up to 200 °C at 25 °C/min, and then to 300 °C at 10 °C/min (held for 5 min). Helium (≥99.999%) was used as the carrier gas, and total column flow was 1.0 mL/min (constant). For the multiresidue MRM data processing, the GC-MS solution (version 4.30) was used (Table 1 and Table S1).

2.4.4. LC–MS/MS Analysis

A reverse-phase chromatographic separation and determination were used to analyze 231 pesticides using a Nexera X2 UHPLC system coupled with a Shimadzu LCMS-8050 triple quadrupole mass spectrometer (Kyoto, Japan). The UJPLC system consisted of a solvent delivery module (LC-30AD), a column oven (CTO-20A), an autosampler (SIL-30AC), and a Kinetex C18 column (150 mm × 2.1 mm (i.d.), 2.6 μm) (Phenomenex, Torrance, CA). The mobile phase employed a time-programmed gradient system using solvents A and B. Solvent A consisted of 0.1% formic acid and 5 mM ammonium formate in water, whereas solvent B was 0.1% formic acid and 5 mM ammonium formate in methanol.
Gradient elution was initiated with 95% A for 1.0 min. Solvent B was then increased to 15% after 1.5 min and 60% within 2.4 min. Solvent B was linearly increased to 90% within 10 min and maintained until 12 min without a change in solvent B. Afterwards, solvent B was increased to 98% within 12.1 min, then kept constant for 18 min. Finally, solvent B was decreased linearly to 5% over 6 min and equilibrated for 6 min. The total analytical time was 24 min, and the injection volume was 10 mL. The flow rate was 300 μL/min.
The ESI–MS/MS was conducted under dynamic multiple reaction monitoring. Labsolutions software (version 5.72) (Kyoto, Japan) was used to control the UPLC–MS/MS system. Interface temperature, heat block temperature, nebulizing gas flow, heating gas flow, and drying gas flow were set at 150 °C, 400 °C, 220 °C, 3 L/min, 10 L/min, and 10 L/min, respectively. Fragmentation and collision energy levels were optimized for each precursor and product ions. For each pesticide, at least one precursor ion with one product ion for setting identification (qualifier) and quantification (quantifier) purposes was determined, with a selection of the most abundant product ion for quantification, and the second one for confirmation. The precursor ion and optimized MS/MS parameters (fragment and collision energy) for each pesticide, using LC–MS/MS, are summarized in Table 2 and Table S2.

2.4.5. Validation of Method Performance

The method validation was carried out using no-treatment soil samples previously checked to be free of pesticides. The parameters evaluated were: limits of detection (LOD), limits of quantification (MLOQ), linearity, recovery, and precision. The LOD and LOQs were calculated using signal-to-noise ratio (S/N) criteria; in all cases: LOD = 3 S/N and LOQ 10 S/N. Linearity was evaluated by preparing a calibration curve with five concentrations. For GC–MS/MS analysis, the calibration curve was obtained using an internal standard TPP, and all the equations of the calibration curve are represented in Table 3, Table S3, Table 4 and Table S4. Matrix-matched calibration curves were prepared for soil matrices, and the evaluation of signal suppression/enhancement due to matrix effects was calculated with the equation from five-point calibration curves. Recovery was assessed with replicated spiking experiments (n = 3) with two levels (0.01 and 0.05 mg mL−1) for the pesticides. Average recovery values were calculated, and standard deviations for repeatability from three replicates were obtained as a measure of precision. Retention times of pesticides in sample extracts corresponded to the average of the calibration standards measured in the same analytical sequence, with a tolerance of ±0.1 min.

3. Results and Discussion

3.1. Establishment of GC–MS/MS MRM Conditions

Precursor ions were determined through scan analysis of each pesticide, and retention time (RT) was found under the provided GC analysis conditions. Product ion scan analysis was conducted at various CE voltages (0–50 eV) using the determined precursor ions, and the optimal MRM conditions were set by comparing the sensitivity of the product ions generated at each CE value. Qualitative and quantitative ions were determined considering the sensitivity and surrounding disturbance ions or baseline. If the baseline on the chromatogram was poor or there were several interfering ions around the RT, ions were excluded from the quantitative ions, even if the signal was high, and they were only considered only as qualitative ions. GC–MS/MS MRM conditions are listed in Table 1 and Table S1.
Table
Table 1. MRM conditions for the first 40 pesticides in the GC–MS/MS analysis. MRM conditions for the other 83 pesticides are listed in Table S1.
Table 1. MRM conditions for the first 40 pesticides in the GC–MS/MS analysis. MRM conditions for the other 83 pesticides are listed in Table S1.
PesticidesRT (min)Precursor > Product Ion (CE, eV)
Quantifier IonQualifier Ion
Acrinathrin13.525181.00 > 152.1024 208.00 > 181.109
Alachlor8.572188.00 > 160.109 188.00 > 131.1021
Aldrin9.143263.00 > 192.9030 263.00 > 190.9030
Ametoctradin13.88246.00 > 188.2027 246.00 > 174.1030
Anilofos12.748226.00 > 157.0015 184.00 > 157.009
Azaconazole10.647217.00 > 173.0015 173.00 > 109.1027
Benfuresate8.399163.00 > 121.109 256.00 > 163.109
BHC-alpha7.55181.00 > 145.0015 219.00 > 183.009
BHC-beta7.891181.00 > 145.0018 219.00 > 183.009
BHC-delta8.226181.00 > 145.0015 219.00 > 183.009
BHC-gamma7.891181.00 > 145.0015 219.00 > 183.0012
Bifenox12.784341.00 > 310.009 310.00 > 189.009
Bifenthrin12.448166.00 > 164.1030 181.00 > 141.1021
Bromobutide8.487232.00 > 176.209 232.00 > 114.109
Bromopropylate12.514341.00 > 183.0021 183.00 > 76.1027
Butachlor10.036176.00 > 147.1015 237.00 > 160.2015
Butafenacil14.426331.00 > 180.0021 331.00 > 152.1030
Carbophenothion11.51342.00 > 157.1015 342.00 > 199.106
Chlorantraniliprole12.676278.00 > 249.0020 280.00 > 251.0020
Chlordane-cis9.988377.00 > 267.9027 377.00 > 266.0024
Chlordane-trans10.168377.00 > 267.9027 377.00 > 266.0024
Chlorfenapyr10.699247.00 > 227.2015 247.00 > 200.0027
Chlorfenvinphos (E)9.472267.00 > 159.0018 323.00 > 266.9018
Chlorfenvinphos (Z)9.625267.00 > 159.0018 323.00 > 266.9018
Chlorfluazuron7.291213.00 > 171.109 171.00 > 127.0015
Chlorobenzilate and chloropropylate10.959251.00 > 111.1027 139.00 > 75.1027
Chlorpropham7.292127.00 > 65.1021 213.00 > 171.009
Chlorpyrifos-methyl8.492286.00 > 93.1024 286.00 > 270.9018
Cyfluthrin-114.632163.00 > 127.006 226.00 > 206.1015
Cyfluthrin-214.731163.00 > 127.006 226.00 > 206.0015
Cyfluthrin-314.786163.00 > 127.006 226.00 > 206.1015
Cyfluthrin-414.83163.00 > 127.006 226.00 > 206.1015
Cyhalothrin-113.196197.00 > 141.1012 197.00 > 161.106
Cyhalothrin-213.365197.00 > 141.1012 197.00 > 161.106
Cypermethrin-114.938163.00 > 127.109 163.00 > 109.0024
Cypermethrin-215.042163.00 > 127.109 163.00 > 109.0024
Cypermethrin-315.092163.00 > 127.109 163.00 > 109.0024
Cypermethrin-415.138163.00 > 127.109 163.00 > 109.0024
Cyprodinil9.527224.00 > 208.1021 225.00 > 210.1018
DDD-p,p′11.121235.00 > 165.1024 235.00 > 199.0018
DDE-p,p′10.466246.00 > 176.1027 318.00 > 246.0021
DDT-o,p′11.12235.00 > 165.1024 235.00 > 199.1018
DDT-p,p′11.702235.00 > 165.1024 235.00 > 199.0018
Deltamethrin16.511253.00 > 172.000 253.00 > 174.000
Diclofop-methyl11.925253.00 > 162.1021 340.00 > 253.0018
Dicloran7.704206.00 > 176.0012 206.00 > 124.1027
Dicofol9.289139.00 > 111.1015 250.00 > 139.1015
Dieldrin10.565279.00 > 206.9027 263.00 > 192.9030

3.2. Establishment of LC–MS/MS MRM Conditions

The precursor ion was determined using a full scan analysis of 0.1 mg mL−1 of each pesticide without an LC column. By comparing the ionization intensities in the positive and negative modes, at the same time, ions with optimal sensitivity, such as [M + H]+, [M − H]−, and [M + NH4]+ were set as precursor ions. Using the determined precursor ions, product ions at various CE voltages were searched using the MRM optimization tool, and ions suitable for double quantification/qualification were determined. Using the established MRM conditions, the RT of the pesticides was measured using an analysis method optimized in this study. LC–MS/MS MRM conditions are listed in Table 2 and Table S2.
Table
Table 2. MRM conditions for the first 40 pesticides in the LC–MS/MS analysis. MRM conditions for the other 179 pesticides are listed in Table S2.
Table 2. MRM conditions for the first 40 pesticides in the LC–MS/MS analysis. MRM conditions for the other 179 pesticides are listed in Table S2.
PesticidesRT (min)IonizationPrecursor > Product Ion (CE, eV)
Quantifier IonQualifier Ion
Abamectin B1 12.987M + NH4+890.6 > 305.25−29890.6 > 567.3−15
Acephate3.990M + H+184 > 143−10184 > 95.15−24
Acetamiprid4.636M + H+223.1 > 126.15−21223.1 > 99.05−38
Aldicarb5.143M + NH4+207.9 > 89.1−16207.9 > 70−15
Amisulbrom 9.993MCl35 + H+465.8 > 226.95−18467.8 > 228.85−21
Azimsulfuron6.131M + H+424.9 > 182.1−17424.9 > 156.05−34
Azinphos-methyl 6.592M + H+317.9 > 132−13317.9 > 159.9−7
Azoxystrobin6.840M + H+404.1 > 372.2−15404.1 > 344.2−25
Bendiocarb5.430M + H+224.1 > 109.15−16224.1 > 167.1−9
Bensulfuron-methyl6.644M + H+411 > 149.15−21411 > 119.1−39
Benthiavalicarb-isopropyl7.474M + H+382.2 > 180.1−30382.2 > 116.15−21
Benzobicyclon7.433M + H+446.9 > 257.2−25446.9 > 229.05−36
Benzoximate9.386M + H+364 > 199.1−9364 > 105.1−22
Bitertanol9.381M + H+338.1 > 70.1−9338.1 > 99.1−15
Boscalid7.198M + H+343 > 307.2−20343 > 140.1−21
Bromacil5.574M + H+261 > 205.05−14261 > 188−28
Buprofezin10.702M + H+306.2 > 201.2−12306.2 > 116.1−15
Cadusafos9.912M + H+271.1 > 159.05−12271.1 > 97.05−34
Cafenstrole7.699M + H+351.1 > 100.15−10351.1 > 72.2−28
Carbaryl5.677M + H+202.1 > 145.2−13202.1 > 127.15−25
Carbendazim4.484M + H+192.1 > 160.1−18192.1 > 132−29
Carbofuran5.519M + H+222 > 123.05−12222 > 165.2−22
Carboxin5.723M + H+236 > 143.05−14236 > 87.15−24
Carfentrazone-ethyl8.661M + H+411.9 > 346.05−23411.9 > 366.1−18
Carpropamide8.907M + H+334 > 138.95−21334 > 103.1−42
Chlorpyrifos11.021M + H+349.9 > 198.05−20349.9 > 97−33
Chlorsulfuron5.563M + H+357.9 > 141.2−17357.9 > 167.2−18
Chromafenozide7.974M + H+395.2 > 175.15−18395.2 > 147.1−44
Clethodim 10.174M + H+359.9 > 163.9−21359.9 > 77.1−55
Clofentezine9.297M + H+302.8 > 138.1−15302.8 > 102.05−36
Clomazone6.884M + H+240.1 > 125.15−21240.1 > 99.1−44
Clothianidin4.535M + H+250 > 169.1−13250 > 132.1−16
Cyazofamid8.076M + H+324.9 > 108.2−15324.9 > 261.3−11
Cyclosulfamuron7.780M + H+422 > 261.15−17422 > 218.15−27
Cyflufenamid 9.213M + H+413.1 > 202.8−38412.9 > 240.9−24
Cyhalofop-butyl9.940M + H+375.0 > 256.0−13375.0 > 120.1−25
Cymoxanil4.801M + H+198.9 > 128.2−10198.9 > 111.1−17
Cyproconazole(I)7.539M + H+292.1 > 70.2−18292.1 > 125.15−30
Cyproconazole(II)7.832M + H+292.1 > 70.2−18292.1 > 125.15−30
Daimuron7.559M + H+269.2 > 151.2−12269.2 > 119.2−21

3.3. Method Validations

3.3.1. LOD, LOQ, and Linearity of the Calibration Curve

The LODs were 3 μg kg−1 and LOQs were 10 μg kg−1 for each pesticide. Linearity refers to the ability of an experimental method to obtain a linear measurement value for the amount or concentration of an analyte in a sample within a certain range. The results of the GC–MS/MS (Table 3 and Table S3) and LC–MS/MS (Table 4 and Table S4) analyses of the soil samples were evaluated by calculating correlation coefficients, y-intercepts, and bracket calibration curves of matrix-matched standard solutions.
Table
Table 3. LOD, LOQ, and linearity of the first 40 pesticides using GC–MS/MS. LOD, LOQ, and linearity of the other 83 pesticides are listed in Table S3.
Table 3. LOD, LOQ, and linearity of the first 40 pesticides using GC–MS/MS. LOD, LOQ, and linearity of the other 83 pesticides are listed in Table S3.
No.PesticidesLimit of Detection
(μg kg−1)		Limit of Quantification (μg kg−1)Linearity (r2)
1Acrinathrin3100.9998
2Alachlor3100.9999
3Aldrin3100.9995
4Ametoctradin3100.9974
5Anilofos3100.9999
6Azaconazole3100.9999
7Benfuresate3100.9985
8BHC(Lindane)-gamma3100.9984
9BHC-alpha3100.9993
10BHC-beta3100.9994
11BHC-delta3100.9978
12Bifenox3100.9986
13Bifenthrin3100.9993
14Bromobutide3100.9973
15Bromopropylate3100.9999
16Butachlor3100.9999
17Butafenacil3100.9996
18Carbophenothion3100.9998
19Chlorantraniliprole3100.9991
20Chlordane-cis3100.9997
21Chlordane-trans3100.9999
22Chlorfenapyr3100.9993
23Chlorfenvinphos3100.9999
24Chlorfluazuron3100.9997
25Chlorobenzilate3100.9999
26Chlorpropham3100.9993
27Chlorpyrifos-methyl3100.9996
28Cyfluthrin3100.9999
29Cyhalothrin3100.9990
30Cypermethrin3100.9998
31Cyprodinil3100.9996
32DDD-p,p′3100.9764
33DDE-p,p′3100.9999
34DDT-o,p′3100.9904
35DDT-p,p′3100.9998
36Deltamethrin (Tralomethrin deg.)3100.9994
37Diclofop-methyl3100.9999
38Dicloran3100.9992
39Dicofol3100.9996
40Dieldrin3100.9995
Table
Table 4. LOD, LOQ, and linearity for the first 40 tested pesticides using LC–MS/MS. LOD, LOQ, and linearity for other 179 pesticides are listed in Table S4.
Table 4. LOD, LOQ, and linearity for the first 40 tested pesticides using LC–MS/MS. LOD, LOQ, and linearity for other 179 pesticides are listed in Table S4.
No.PesticidesLimit of Detection
(μg kg−1)		Limit of Quantification (μg kg−1)Linearity (r2)
1Abamectin B1 3100.9999
2Acephate3100.1000
3Acetamiprid3100.9933
4Aldicarb3100.9904
5Amisulbrom 3100.9979
6Azimsulfuron3100.9974
7Azinphos-methyl 3100.9985
8Azoxystrobin3100.9918
9Bendiocarb3100.9982
10Bensulfuron-methyl3100.9978
11Benthiavalicarb-isopropyl3100.9969
12Benzobicyclon3100.9932
13Benzoximate3100.9963
14Bitertanol3100.9995
15Boscalid3100.9971
16Bromacil3100.9965
17Buprofezin3100.9911
18Cadusafos3100.9974
19Cafenstrole3100.9904
20Carbaryl3100.9905
21Carbendazim3100.9977
22Carbofuran3100.9935
23Carboxin3100.9913
24Carfentrazone-ethyl3100.9901
25Carpropamide3100.9917
26Chlorpyrifos3100.9991
27Chlorsulfuron3100.9998
28Chromafenozide3100.9968
29Clethodim 3100.9989
30Clofentezine3100.9961
31Clomazone3100.9941
32Clothianidin3100.9999
33Cyazofamid3100.9938
34Cyclosulfamuron3100.9959
35Cyflufenamid 3100.9953
36Cyhalofop-butyl3100.9915
37Cymoxanil3100.9924
38Cyproconazole(I)3100.9937
39Cyproconazole(II)3100.9923
40Daimuron3100.9922

3.3.2. Recovery Rates

Analytical recovery is a test that measures an analysis error related to the analysis process within the preparation of a sample and extraction of an analyte from the sample before quantitation. The results of the GC–MS/MS and LC–MS/MS analyses of the soil are reported in Table 5, Table S5, Table 6 and Table S6, and the recovery rates had values ranging from 70 to 120% and <20% RSD, which are effective recovery rates.
In the recovery test in the soil using GC–MS/MS, all pesticides except ametoctradin out of 123 pesticides had three repeated tests at the two spiked levels of 10 and 50 μg kg−1, and all recovery rates for pesticides satisfied the effective recovery range of 70–120% (Table 5 and Table S5). In addition, the coefficient of variation (% RSD) was confirmed to be less than 20% for all pesticides (Table 5 and Table S5).
Table
Table 5. Recoveries of the first 40 pesticides in the untreated soil using GC–MS/MS (n = 3). Recoveries of the other 83 pesticides are listed in Table S5.
Table 5. Recoveries of the first 40 pesticides in the untreated soil using GC–MS/MS (n = 3). Recoveries of the other 83 pesticides are listed in Table S5.
No.PesticidesSoil
Low (10 μg kg−1)High (50 μg kg−1)
Rec.RSDRec.RSD
1Acrinathrin106.5810.994.653.7
2Alachlor113.999.896.301.9
3Aldrin97.532.299.014.3
4Ametoctradin----
5Anilofos105.352.996.052.5
6Azaconazole98.772.295.971.0
7Benfuresate98.776.695.147.0
8BHC(Lindane)-gamma89.309.299.925.6
9BHC-alpha93.008.0100.413.6
10BHC-beta104.126.198.603.0
11BHC-delta88.075.798.444.1
12Bifenox110.703.489.140.7
13Bifenthrin110.701.795.641.4
14Bromobutide100.824.395.892.6
15Bromopropylate108.641.195.311.2
16Butachlor104.947.3100.495.9
17Butafenacil111.112.295.721.4
18Carbophenothion104.944.196.133.4
19Chlorantraniliprole100.4116.097.453.9
20Chlordane-cis112.767.196.463.4
21Chlordane-trans102.4710.796.543.3
22Chlorfenapyr98.359.6101.482.1
23Chlorfenvinphos107.001.897.450.9
24Chlorfluazuron96.7111.898.192.3
25Chlorobenzilate106.172.095.971.3
26Chlorpropham98.776.696.713.9
27Chlorpyrifos-methyl97.535.898.774.3
28Cyfluthrin110.292.896.131.6
29Cyhalothrin112.761.792.680.6
30Cypermethrin106.581.893.912.4
31Cyprodinil101.245.693.663.2
32DDD-p,p′116.051.1105.761.2
33DDE-p,p′101.654.998.682.9
34DDT-o,p′113.172.7103.131.1
35DDT-p,p′106.173.194.901.0
36Deltamethrin (Tralomethrin deg.)109.471.390.784.1
37Diclofop-methyl102.471.295.722.3
38Dicloran112.354.093.758.2
39Dicofol114.822.899.181.6
40Dieldrin99.5910.596.308.1
In the recovery test of the soil using LC–MS/MS, all pesticides except for gibberellic acid out of 219 pesticides had three repeated tests at the two spiked levels of 10 and 50 μg kg−1, and all recovery rates for pesticides satisfied the effective recovery range of 70–120% (Table 6 and Table S6). In addition, the coefficient of variation (% RSD) was confirmed to be less than 20% for all pesticides (Table 6 and Table S6).
Table
Table 6. Recoveries of 40 pesticides in the untreated soil using LC–MS/MS (n = 3). Recoveries for the other 179 pesticides are listed in Table S6.
Table 6. Recoveries of 40 pesticides in the untreated soil using LC–MS/MS (n = 3). Recoveries for the other 179 pesticides are listed in Table S6.
No.PesticidesSoil
Low (10 μg kg−1)High (50 μg kg−1)
Rec.RSDRec.RSD
1Abamectin B1 82.54.482.34.3
2Acephate103.64.9101.69.5
3Acetamiprid82.34.699.91.3
4Aldicarb96.73.2101.32.3
5Amisulbrom 91.88.593.84.4
6Azimsulfuron76.52.391.85.0
7Azinphos-methyl 79.08.189.16.6
8Azoxystrobin96.14.0114.22.2
9Bendiocarb80.91.586.12.1
10Bensulfuron-methyl78.24.884.02.0
11Benthiavalicarb
-isopropyl		83.96.288.70.6
12Benzobicyclon86.14.791.92.9
13Benzoximate83.71.789.23.1
14Bitertanol77.53.483.32.4
15Boscalid75.69.685.85.9
16Bromacil84.45.689.92.0
17Buprofezin77.11.490.20.6
18Cadusafos81.52.085.80.9
19Cafenstrole86.08.8100.21.3
20Carbaryl77.21.892.10.5
21Carbendazim105.88.584.25.5
22Carbofuran90.06.891.21.8
23Carboxin80.34.594.81.3
24Carfentrazone-ethyl98.08.2103.212.2
25Carpropamide83.55.393.03.3
26Chlorpyrifos91.92.285.53.2
27Chlorsulfuron79.04.380.49.0
28Chromafenozide81.91.490.12.9
29Clethodim 76.64.780.67.4
30Clofentezine82.412.589.12.8
31Clomazone79.31.991.73.0
32Clothianidin87.35.381.83.6
33Cyazofamid80.24.599.62.8
34Cyclosulfamuron82.09.693.75.2
35Cyflufenamid 80.23.090.43.2
36Cyhalofop-butyl105.33.0103.77.7
37Cymoxanil90.42.992.813.1
38Cyproconazole(I)95.68.691.64.1
39Cyproconazole(II)91.313.889.26.9
40Daimuron82.72.798.31.1
MeCN was selected to use as the extraction solvent for residual pesticides in soil samples, as other studies used MeCN for soil extraction [22,23]. In our study, MeCN was properly used to extract multiresidue pesticides from soil samples. In addition, to obtain better efficiency in extraction and recoveries of multiresidue pesticides from soil samples, the QuEChERS procedure was employed in our study, as all recovery rates were in the range considered effective and promising. As a pressurized liquid extraction failed to obtain a satisfactory recovery rate within the range of 65.1% to 122.2% for 25 pesticides in the soil samples, the QuEChERS procedure provided better recoveries, with the extraction recovery in the range of 79.4 to 113.3% with RSDs of 1.0 to 12.2% [24]. On the other hand, the QuEChERS procedure may have caused strong salting-out effects, as the mean recoveries of paclobutrazol (125%) and fenvalerate (122%) treated at the level of 5 μg kg−1 were observed to be higher than for other pesticides [25]. However, such salting-out effects were not observed in our study. Therefore, the recoveries of multiresidue pesticides were generally between 70 and 120% with RSDs below 20%, indicating that the proposed method in this study was feasible to analyze 340 pesticides in soil samples.

3.4. Residual Pesticides in 40 Korean Agricultural Soils

Table 7 shows the results of the multiresidue pesticide analysis of each soil sample. Based on these results, the pesticide with the highest detection frequency in Korean paddy soils (40 sites) was tricyclazole, and the detection range was 0.003–0.034 mg kg−1. The pesticide was detected in 30 out of 40 soil samples, thus, the detection frequency reached 75% (Table 7). Tricyclazole [5-methyl-1,2,4-triazolo(3,4-b)(1,3)benzothiazole] is a triazole-typed systemic fungicide that is absorbed by foliage and roots, and is translocated to xylem and apoplasts in plants [26]. In Korea, it is only registered and used for controlling southern corn-leaf blight and rice blast diseases [27]; however, there is no domestic allowable standard for its residue in other crops. According to the risk assessment of pesticide residues in the soil, it has been reported that tricyclazole was mostly detected in soil samples in agricultural cultivated lands [28].
Tricyclazole in the residual pesticides was most frequently detected in Korean paddy soils because it is a fungicide that is used quite often, as 46,915 kg was released in 2017 in Korea, accounting for 5.6% of the fungicide used for paddy rice [29]. With this large consumption, tricyclazole has a long mean half-life (DT50) value of 305 days in surface soil, while the DT50 value of difenoconazole in paddy soil ranged from 2.82 days to 23.26 days [30,31]. These two factors can be attributed to extended tricyclazole presence in the paddy soil.
Table
Table 7. Residual amounts of pesticides in soils at 20 sites in Ulsan city and 20 sites in Pohang city as analyzed by GC–MS/MS and LC–MS/MS.
Table 7. Residual amounts of pesticides in soils at 20 sites in Ulsan city and 20 sites in Pohang city as analyzed by GC–MS/MS and LC–MS/MS.
Ulsan SoilsDetermined PesticidesDetermined Amounts (μg kg−1)Pohang SoilsDetermined PesticidesDetermined Amounts (μg kg−1)
Ulsan 1Tricyclazole0.013Pohang 1‒ **‒ **
Ulsan 2Tricyclazole0.001 *Pohang 2Dimethomorph0.005 *
Imidacloprid0.016
Mandipropamid0.003 *
Endosulfan0.040
Chlorantraniliprole0.038
Emamectin0.002
Ulsan 3Tricyclazole0.004 *Pohang 3Alachlor0.009
Procymidone0.004 *
Ulsan 4Carpropramide
Tricyclazole		0.003 *
0.003 *		Pohang 4Oxadiazon0.057
Tricyclazole0.005 *
Thifluzamide0.005 *
Ulsan 5Tricyclazole0.019Pohang 5Carbendarzim0.002 *
Oxadiazon0.016
Tiadinil0.004 *
Tricyclazole0.002 *
Procymidone0.003 *
Thifluzamide0.141
Ulsan 6Tricyclazole
Butachlor		0.020
0.039		Pohang 6‒ **‒ **
Ulsan 7Chlororantraniliprole
Methoxyfenozide
Endosulfan		0.008
0.003 *
0.004 *		Pohang 7‒ **‒ **
Ulsan 8Tricyclazole0.136Pohang 8Carbendarzim0.001 *
Oxadiazon0.029
Tricyclazole0.009
Thifluzamide0.014
Fenoxanil0.008
Ulsan 9Tricyclazole0.007 *Pohang 9Mandipropamid0.012
Procymidone0.004 *
Chlorfenapyr0.051
Endosulfan0.009
Bifenthrin0004 *
Ulsan 10Tricyclazole0.004 *Pohang 10Oxadiazon0.020
Tricyclazole0.010
Thifluzamide0.007 *
Ulsan 11Tricyclazole0.012Pohang 11Benzobicyclon0.052
Isoprothiolane0.005 *
Oxadiazon0.008
Tricyclazole0.016
Thifluzamide0.020
Fenoxanil0.024
Ulsan 12Tricyclazole
Butachlor		0.018
0.006 *		Pohang 12Flubendiamide0.010
Isoprothiolane0.002 *
Oxadiazon0.004 *
Tricyclazole0.011
Thifluzamide0.011
Fenoxanil0.032
Ulsan 13‒ **‒ **Pohang 13Carpropamide0.001 *
Flubendiamide0.003 *
Iprobenfos0.002 *
Isoprothiolane0.001 *
Oxadiazon0.004 *
Tricyclazole0.007 *
Fenoxanil0.009
Ulsan 14‒ **‒ **Pohang 14Carbendarzim0.002 *
Flubendiamide0.013
Iprobenfos0.001 *
Isoprothiolane0.002 *
Oxadiazon0.070
Tricyclazole0.020
Thifluzamide0.029
Fenoxanil0.057
Ulsan 15Tricyclazole0.032Pohang 15Flubendiamide0.002 *
Isoprothiolane0.004 *
Oxadiazon0.011
Tricyclazole0.004 *
Thifluzamide0.003 *
Fenoxanil0.022
Ulsan 16Carbendazim
Tricyclazole
Endosulfan		0.004 *
0.003 *
0.006 *		Pohang 16Carbendarzim0.003 *
Flubendiamide0.002 *
Isoprothiolane0.002 *
Oxadiazon0.022
Tricyclazole0.008
Thifluzamide0.006 *
Fenoxanil0.008
Ulsan 17Tricyclazole0.007 *Pohang 17Carbendarzim0.002 *
Carpropamide0.001 *
Flubendiamide0.005 *
Iprobenfos0.005 *
Isoprothiolane0.002 *
Oxadiazon0.034
Tricyclazole0.022
Thifluzamide0.020
Fenoxanil0.015
Ulsan 18Tricyclazole0.001 *Pohang 18Carbendarzim0.001 *
Carpropamide0.003 *
Flubendiamide0.005 *
Iprobenfos0.014
Isoprothiolane0.002 *
Oxadiazon0.002 *
Tricyclazole0.020
Butachlor0.006 *
Thifluzamide0.020
Fenoxanil0.034
Ulsan 19Tricyclazole0.004 *Pohang 19Carbendarzim0.001 *
Carpropamide0.002 *
Iprobenfos0.002 *
Isoprothiolane0.008
Oxadiazon0.013
Tricyclazole0.006 *
Fenoxanil0.010
Ulsan 20Tricyclazole
Mefenacet		0.034
0.002 *		Pohang 20Carpropamide0.003 *
Iprobenfos0.005 *
Oxadiazon0.006 *
* Indicates that the determined value was lower than the limit of quantification. ** Indicates that there were no pesticides determined by the analytical methods used in this study.
In addition, tricyclazole was detected in unregistered crops, which could result in the unintentional generation of unsuitable agricultural products. According to the PLA system, an MRL value of 0.01 mg kg−1 is applied to nonregistered crops. A factor for detecting unused tricyclazole is the possibility that pesticides remaining in the soil will be absorbed into the crops [18,32]. Recently, Hwang et al. [18] reported that up to 38.50% of tricyclazole used in the soil during lettuce cultivation remained in the lettuce, proving that tricyclazole is transferred to crops. Therefore, the residue of tricyclazole in paddy soil can be transferred to crops. Further research on this translocation using rice cultivation is needed.
Oxadiazon is used as an herbicide to control annual weeds in rice farming [27]. In this study, it was detected at a level of 0.002–0.070 mg kg−1. The detection frequency was at 15 points in 40 soil samples, reaching 38% (Table 7). This pesticide was detected in the range of 0.028–0.359 mg kg−1 in 8 samples out of 80 paddy soils, and the detection rate was 10% [14]. However, Noh et al. [14] did not report residual oxadiazon in soil samples from Gyengsang Province, located in Pohang and Ulsan. Our results were different from the results of Noh et al. [14]. Park et al. [33] found that oxadiazon was detected in the range of 0.001–0.836 mg kg−1 after residual pesticide analysis using 150 points in Korean paddy soil. The detection frequency reached 19.3%. The authors demonstrated that this higher detection frequency was related to the use of a larger amount of oxadiazon in 2006 than other pesticides, and the half-life of the pesticide in the soil was relatively long (31–91 days). Lee et al. [34] reported that oxadiazon had a high adsorption rate in soil with high organic matter content, and exhibited a lower desorption rate in comparison to the lower organic-matter-possessing soils.
In this study, we focused on the detection of endosulfan, which has been banned in Korea since 2012. Currently, endosulfan is registered as a POP, and most countries around the world have banned it. In our study, it was detected at a level of 0.006–0.040 ppm, and the detection frequency was 7.5% (Table 7). For endosulfan, a report on the translocation from soil to rice farming has been reported [35], and two concentrations, 3 and 10 mg kg−1, were found in paddy soils, showing 0.546 and 1.258 mg kg−1 of endosulfan in the rice straw, respectively. However, endosulfan was not found in brown rice. For cucumbers grown in endosulfan-treated soils with two levels, 20 and 40 mg kg−1, its residual amount reached 7.8 and 14.5 mg kg−1, respectively, after 15 days of growth [17]. Recently, Kim et al. [16] reported that they found the highest endosulfan residues near farmland, and an endosulfan metabolite, endosulfan sulfate, was dominant in most soil samples. Endosulfan and its sulfate were found in the soils at an average of 0.8 mg kg−1 [16]. Therefore, it is necessary to monitor endosulfan and its metabolites in agricultural soils on a regular periodic basis, even if banned in Korea.
Chlorantraniliprole is an anthranilic-acid-related insecticide that shows a selective activator on insect ryanodine receptors, interfering with muscle contraction [36]. This pesticide presents a half-life ranging from 12.6 to 23.1 days in soil [37]. In this study, chlorantraniliprole was detected at a concentration of 0.008–0.038 mg kg−1, and the detection frequency was 5% (Table 7). Although there have been no reports on the residual pattern of this pesticide in paddy soil in Korea, it was detected in perilla leaf, brassica leafy vegetables, and spinach from 2010 to 2012 at a level of 0.129–0.805 mg kg−1 [13]. In addition, carbendazim (8/40) and carpropamid (7/40) were found as pesticides detected below the LOQ, but with high detection frequency.

4. Conclusions

In this study, we developed a multiresidue pesticide analysis using GC–MS/MS and LC–MS/MS to monitor 342 pesticides in paddy soils. MRM values for each pesticide, LOD and LOQ, linearity of the calibration curve, and recoveries were validated for the instrumental analyses of the paddy soils. With this validated method, four pesticides, including tricyclazole, oxadiazon, endosulfan, and chlorantraniliprole, were detected among the 40 paddy soils near the industrial area in Pohang and Ulsan cities, Korea. Even with the ban of endosulfan use due to its classification as a POP, its detection in paddy soils might still be needed for continuous monitoring of paddy soils nationwide when considering the mapping of other banned pesticides.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/app11188415/s1, Table S1: MRM conditions for the other 83 pesticides in the GC–MS/MS analysis, Table S2: MRM conditions for the other 179 pesticides in the LC–MS/MS analysis, Table S3: LOD, LOQ, and linearity of the other 83 pesticides using GC–MS/MS, Table S4: LOD, LOQ, and linearity for the other 179 tested pesticides using LC–MS/MS, Table S5: Recoveries of the other 83 pesticides in the untreated soil using GC–MS/MS (n = 3), Table S6: Recoveries of the other 179 pesticides in the untreated soil using LC–MS/MS (n = 3).

Author Contributions

Conceptualization, J.-K.M. and S.-E.L.; methodology, H.-W.J., M.-G.P. and H.-J.J.; software, H.-W.J.; validation, H.-W.J., J.-K.M. and S.-E.L.; formal analysis, H.-W.J. and J.-K.M.; investigation, H.-W.J. and J.-K.M.; resources, H.-J.J. and S.-E.L.; data curation, H.-W.J., M.-G.P., H.-J.J., J.-K.M. and S.-E.L.; writing—original draft preparation, J.-K.M. and S.-E.L.; writing—review and editing, H.-W.J., M.-G.P., H.-J.J., J.-K.M. and S.-E.L.; visualization, J.-K.M. and S.-E.L.; supervision, S.-E.L.; project administration, S.-E.L.; funding acquisition, S.-E.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was carried out with the support of the “Cooperative Research Program for Agriculture Science & Technology Development (Project No. PJ014297022019)”, Rural Development Administration, Republic of Korea.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to this publication.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Aktar, M.W.; Senqupta, D.; Chowdhury, A. Impact of pesticides use in agriculture: Their benefits and hazards. Interdiscip. Toxicol. 2009, 2, 1–12. [Google Scholar] [CrossRef] [Green Version]
  2. Rahman, S.; Chima, C.D. Determinants of pesticide use in food crop production in Southern Nigeria. Agriculture 2018, 8, 35. [Google Scholar] [CrossRef] [Green Version]
  3. Ha, H.Y.; Ra, D.S.; Shin, W.C.; Im, G.J.; Park, J.E. Survey of pesticide use in fruit vegetables, fruits, and rice cultivation areas in Korea. Korean J. Pestic. Sci. 2012, 16, 395–400. [Google Scholar] [CrossRef] [Green Version]
  4. Jallow, M.F.A.; Awadh, D.G.; Albaho, M.S.; Devi, V.Y.; Ahmad, N. Monitoring of pesticide residues in commonly used fruits and vegetables in Kuwait. Int. J. Environ. Res. Public Health 2017, 14, 833. [Google Scholar] [CrossRef] [Green Version]
  5. Park, M.G.; Park, C.G.; Yang, J.O.; Kim, G.H.; Ren, Y.; Lee, B.H.; Cha, D.H. Ethyl formate as a methyl bromide alternative for phytosanitary disinfestation of imported banana in Korea with logistical considerations. J. Econ. Entomol. 2020, 113, 1711–1717. [Google Scholar] [CrossRef] [PubMed]
  6. Sharma, A.; Shukla, A.; Attri, K.; Kumar, M.; Kumar, P.; Suttee, A.; Singh, G.; Barnwal, R.P.; Singla, N. Global trends in pesticides: A looming threat and viable alternative. Ecotoxicol. Environ. Saf. 2020, 201, 110812. [Google Scholar] [CrossRef]
  7. Tudi, M.; Ruan, H.D.; Wang, L.; Lyu, J.; Sadler, R.; Connell, D.; Chu, C.; Phung, D.T. Agriculture Development, Pesticide Application and Its Impact on the Environment. Int. J. Environ. Res. Public Health 2021, 18, 1112. [Google Scholar] [CrossRef]
  8. Ha, H.-Y.; Park, S.-E.; You, A.-S.; Gil, G.-H.; Park, J.-E.; Lee, I.-Y.; Park, K.-W.; Ihm, Y.-B. Survey of pesticide use in leaf and fruit vegetables, fruits, and rice cultivation areas in Korea. Weed Turfgrass Sci. 2016, 5, 203–212. [Google Scholar] [CrossRef] [Green Version]
  9. Zhang, W. Global pesticide use: Profile, trend, cost/benefit and more. Proc. Int. Acad. Ecol. Environ. Sci. 2018, 8, 1–27. [Google Scholar]
  10. Sabarwal, A.; Kumar, K.; Singh, R.P. Hazardous effects of chemical pesticides on human health—cancer and other associated disorders. Environ. Toxicol. Pharmacol. 2018, 63, 103–114. [Google Scholar] [CrossRef]
  11. Nicolopoulou-Stamati, P.; Maipas, S.; Kotampasi, C.; Stamatis, P.; Hens, L. Chemical pesticides and human health: The urgent need for a new concept in agriculture. Front. Public Health 2016, 4, 148. [Google Scholar] [CrossRef] [Green Version]
  12. Lee, S.-Y.; Paik, M.-K.; Kim, N.-S.; Park, E.-S.; Son, E.-H.; Son, J.-G.; Hong, S.-M.; Jang, D.-H. A survey on pesticide use by farmers for Positive List System settlement. Korean J. Pestic. Sci. 2019, 23, 358–370. [Google Scholar] [CrossRef]
  13. Zhang, J.; Zhang, J.; Liu, R.; Gan, J.; Liu, J.; Liu, W. Endocrine-disrupting effects of pesticides through interference with human glucocorticoid receptor. Environ. Sci. Technol. 2016, 50, 435–443. [Google Scholar] [CrossRef]
  14. Noh, H.-H.; Lee, J.-Y.; Park, S.-H.; Jeong, O.-S.; Kim, S.-H.; Kyung, K.-S. Monitoring of pesticide residues in rice paddy soil and paddy water. Korean J. Pestic. Sci. 2012, 16, 137–144. [Google Scholar] [CrossRef] [Green Version]
  15. Woo, N.; Ko, S.H.; Park, Y.J. Monitoring of pesticide residues in vegetables collected in Chungbuk, Korea. Korean J. Food Nutr. 2013, 26, 865–878. [Google Scholar] [CrossRef] [Green Version]
  16. Kim, L.; Jeon, J.-W.; Son, J.-Y.; Kim, C.-S.; Ye, J.; Kim, H.-J.; Lee, C.-H.; Hwang, S.-M.; Choi, S.-D. Nationwide levels and distribution of endosulfan in air, soil, water, and sediment in South Korea. Environ. Pollut. 2020, 265, 115035. [Google Scholar] [CrossRef]
  17. Hwang, J.-I.; Lee, S.-E.; Kim, J.-E. Plant uptake and distribution of endosulfan and its sulfate metabolite persisted in soil. PLoS ONE 2015, 10, e0141728. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Hwang, K.-W.; Hwang, E.J.; Kim, M.K.; Yoo, S.C.; Moon, J.-K. Translocation of residual tricyclazole from soil to lettuce. Korean J. Pestic. Sci. 2017, 21, 254–260. [Google Scholar] [CrossRef]
  19. Dušek, M.; Jandovská, V.; Olšovská, J. Analysis of multiresidue pesticides in dried hops by LC-MS/MS using QuEChERS extraction together with dSPE clean-up. J. Ins. Brew. 2018, 124, 222–229. [Google Scholar] [CrossRef] [Green Version]
  20. Shin, Y.H.; Lee, J.; Kim, J.-H. A simultaneous multiresidue analysis for 203 pesticides in soybean using florisil solid-phase extraction and gas chromatography-tandem mass spectrometry. Appl. Biol. Chem. 2018, 61, 543–548. [Google Scholar] [CrossRef] [Green Version]
  21. Kim, L.; Jeon, H.-J.; Kim, Y.C.; Yang, S.-H.; Choi, H.; Kim, T.-O.; Lee, S.-E. Monitoring polycyclic aromatic hydrocarbon concentrations and distributions in rice paddy soils from Gyeonggi-do, Ulsan, and Pohang. Appl. Biol. Chem. 2019, 62, 18. [Google Scholar] [CrossRef] [Green Version]
  22. Arias, J.L.D.O.; Rombaldi, C.; Caldas, S.S.; Primel, E.G. Alternative sorbents for the dispersive solid-phase extraction step in quick, easy, cheap, effective, rugged and safe method for extraction of pesticides from rice paddy soils with determination by liquid chromatography tandem mass spectrometry. J. Chromatogr. A 2014, 1360, 66–75. [Google Scholar] [CrossRef] [PubMed]
  23. Bruzzoniti, M.C.; Checchini, L.; De Carlo, R.M.; Orlandini, S.; Rivoira, L.; Del Bubba, M. QuEChERS sample preparation for the determination of pesticides and other organic residues in environmental matrices: A critical review. Anal. Bioanal. Chem. 2014, 406, 4089–4116. [Google Scholar] [CrossRef] [PubMed]
  24. Homazava, N.; Aquillon, C.G.; Vermeirssen, E.; Werner, I. Simultaneous multi-residue pesticide analysis in soil samples with ultra-high-performance liquid chromatography–tandem mass spectrometry using QuEChERS and pressurised liquid extraction methods. Int. J. Environ. Anal. Chem. 2014, 94, 1085–1099. [Google Scholar] [CrossRef]
  25. Park, J.-H.; Mamun, I.R.; Choi, J.-H.; El-Aty, A.M.A.; Assayed, M.E.; Choi, W.J.; Yoon, K.S.; Han, S.S.; Kim, H.K.; Park, B.J.; et al. Development of a multiresidue method for the determination of multiclass pesticides in soil using GC. Biomed. Chromatogr. 2010, 24, 893–901. [Google Scholar] [CrossRef]
  26. Turner, J.A. Tricyclazole. In A World Compendium the Pesticide Manual, 17th ed; Turner, J.A., Ed.; British Crop Protection Council: Hampshire, UK, 2015; pp. 1146–1147. [Google Scholar]
  27. KCPA. Guideline of Crop Protection Agents; Korea Crop Protection Association, Samjung Inc.: Seoul, Korea, 2016. [Google Scholar]
  28. Hwang, E.-J.; Hwang, K.-W.; Kim, M.-G.; Jeon, C.-H.; Moon, J.-K. Translocation of residual tricyclazole from soil to Korean cabbage. J. Appl. Biol. Chem. 2017, 60, 301–306. [Google Scholar] [CrossRef] [Green Version]
  29. Hwang, I.-S.; Oh, Y.-J.; Kwon, H.-Y.; Ro, J.-H.; Kim, D.-B.; Moon, B.-C.; Oh, M.-S.; Noh, H.-H.; Park, S.-W.; Choi, G.-H.; et al. Monitoring of Pesticide Residues Concerned in Stream Water. Korean J. Environ. Agric. 2019, 38, 173–184. [Google Scholar] [CrossRef] [Green Version]
  30. Phong, T.K.; Nhung, D.T.T.; Motobayashi, T.; Thuyet, D.Q.; Watanabe, H. Fate and transport of nursery-box-applied tricyclazole and imidacloprid in paddy fields. Water Air Soil Pollut. 2009, 202, 3–12. [Google Scholar] [CrossRef]
  31. Wang, K.; Wu, J.X.; Zhang, H.Y. Dissipation of difenoconazole in rice, paddy soil, and paddy water under field conditions. Ecotoxicol. Environ. Saf. 2012, 86, 111–115. [Google Scholar] [CrossRef]
  32. Park, H.-J.; Choi, J.-H.; Park, B.-J.; Kim, C.-S.; Ihm, Y.-B.; Ryu, G.-H. Uptake of endosulfan and tricyclazole from arable soil by several vegetables I (green house study). Korean J. Pestic. Sci. 2004, 8, 280–287. [Google Scholar]
  33. Park, B.-J.; Lee, J.-H. Pesticide residue monitoring and environmental exposure in paddy field soils and greenhouse soils. Korean J. Pestic. Sci. 2011, 15, 134–139. [Google Scholar]
  34. Lee, W.-S.; Kim, J.-E. Effects of organic matter and oxidoreductase on adsorption and desorption of herbicide oxadiazon in soils. Korean J. Pestic. Sci. 1998, 2, 70–78. [Google Scholar]
  35. Choi, G.-H.; Lee, D.-Y.; Ryu, S.-H.; Park, B.-J.; Moon, B.-C.; Kim, J.-H. Investigation of the bioconcentration factor of endosulfan for rice from soil. Korean J. Pestic. Sci. 2018, 22, 25–28. [Google Scholar] [CrossRef]
  36. Lahm, G.P.; Cordova, D.; Barry, J.D. New and selective ryanodine receptor activators for insect control. Bioorganic Med. Chem. 2009, 17, 4127–4133. [Google Scholar] [CrossRef] [PubMed]
  37. Dong, F.; Xu, J.; Liu, X.; Li, J.; Li, Y.; Kong, Z.; Shan, W.; Zheng, Z.; Zheng, Y. Determination of chlorantraniliprole residues in corn sand soil by UPLC-ESI-MS/MS and its application to a pharmacokinetic study. Chromatographia 2011, 74, 399. [Google Scholar] [CrossRef]
Applsci 11 08415 g001 550
Figure 1. Sampling sites of Korean paddy soils: (a) 20 sites of Pohang city; (b) 20 sites of Ulsan city.
Figure 1. Sampling sites of Korean paddy soils: (a) 20 sites of Pohang city; (b) 20 sites of Ulsan city.
Applsci 11 08415 g001
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Jo, H.-W.; Park, M.-G.; Jeon, H.-J.; Moon, J.-K.; Lee, S.-E. Analysis of Multiresidue Pesticides in Agricultural Paddy Soils Near Industrial Areas in Korea by GC–MS/MS and LC–MS/MS Using QuEChERS Extraction with dSPE Clean-Up. Appl. Sci. 2021, 11, 8415. https://doi.org/10.3390/app11188415

AMA Style

Jo H-W, Park M-G, Jeon H-J, Moon J-K, Lee S-E. Analysis of Multiresidue Pesticides in Agricultural Paddy Soils Near Industrial Areas in Korea by GC–MS/MS and LC–MS/MS Using QuEChERS Extraction with dSPE Clean-Up. Applied Sciences. 2021; 11(18):8415. https://doi.org/10.3390/app11188415

Chicago/Turabian Style

Jo, Hyeong-Wook, Min-Goo Park, Hwang-Ju Jeon, Joon-Kwan Moon, and Sung-Eun Lee. 2021. "Analysis of Multiresidue Pesticides in Agricultural Paddy Soils Near Industrial Areas in Korea by GC–MS/MS and LC–MS/MS Using QuEChERS Extraction with dSPE Clean-Up" Applied Sciences 11, no. 18: 8415. https://doi.org/10.3390/app11188415

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
