Optoelectronic Instrumentation and Measurement Strategies for Optical Chemical (Bio)Sensing
Abstract
:1. Introduction
2. Optical Devices

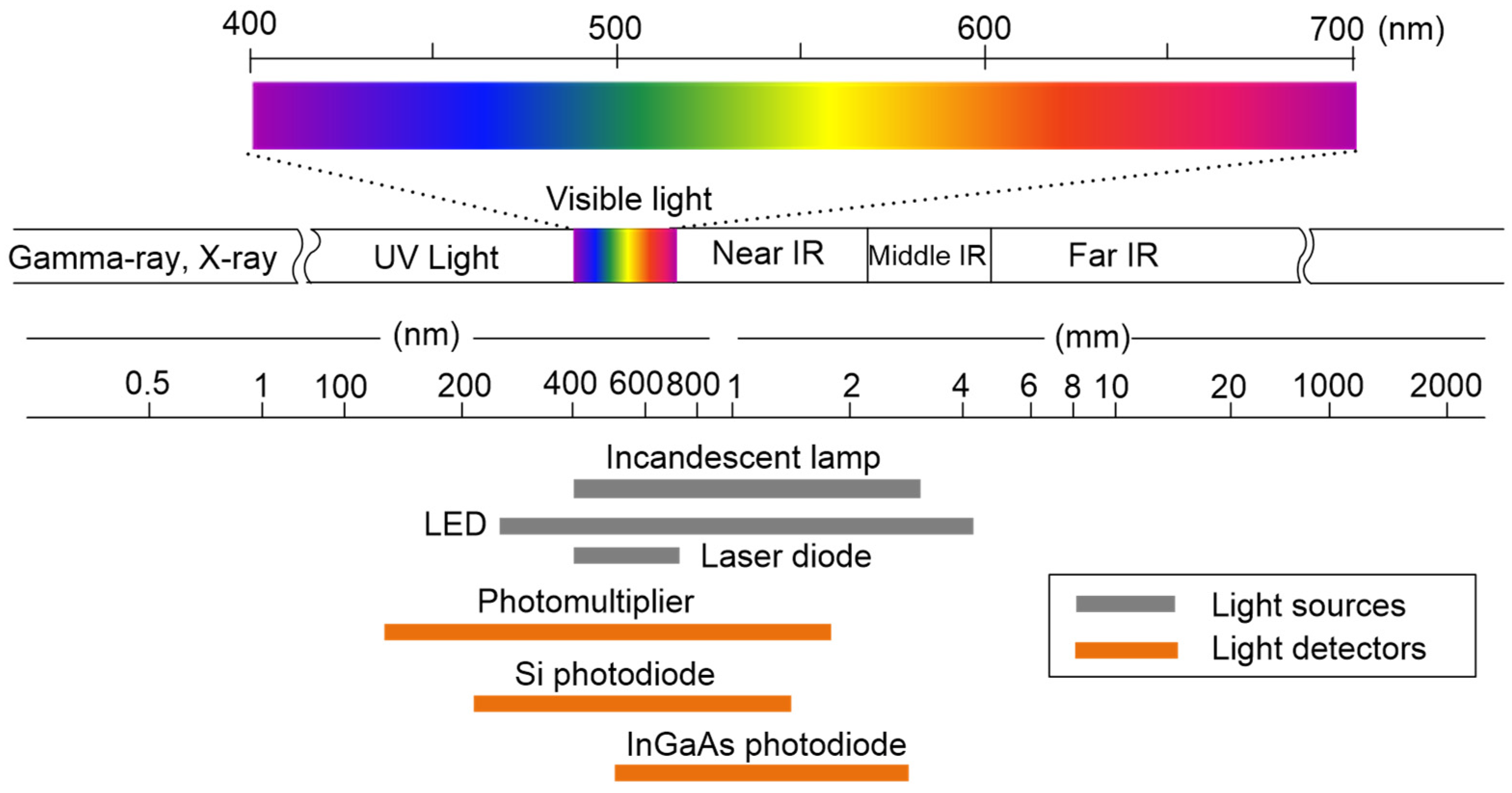

2.1. Light Sources

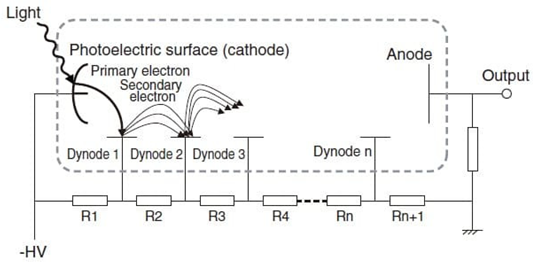

2.2. Light Detectors

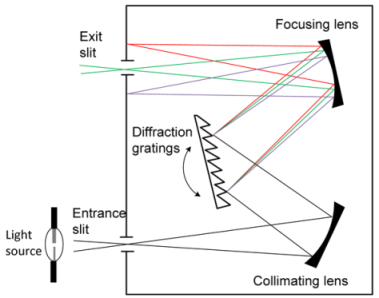

2.3. Wavelength Selector

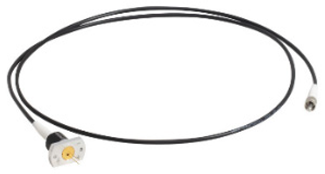

2.4. Optical Fibers

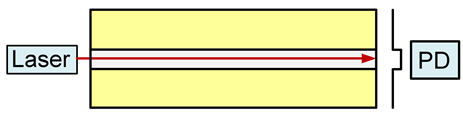

- Step-index multimode optical fibers, in which the refractive index is constant;

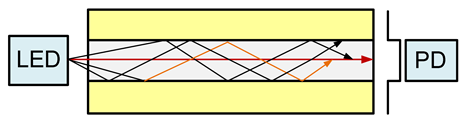

- Graded-index multimode optical fibers, in which the refractive index varies in parabolic shape from a maximum on the conductor axis to a minimum on the coating. The modal dispersion of this type of fiber is lower, although it is more expensive.

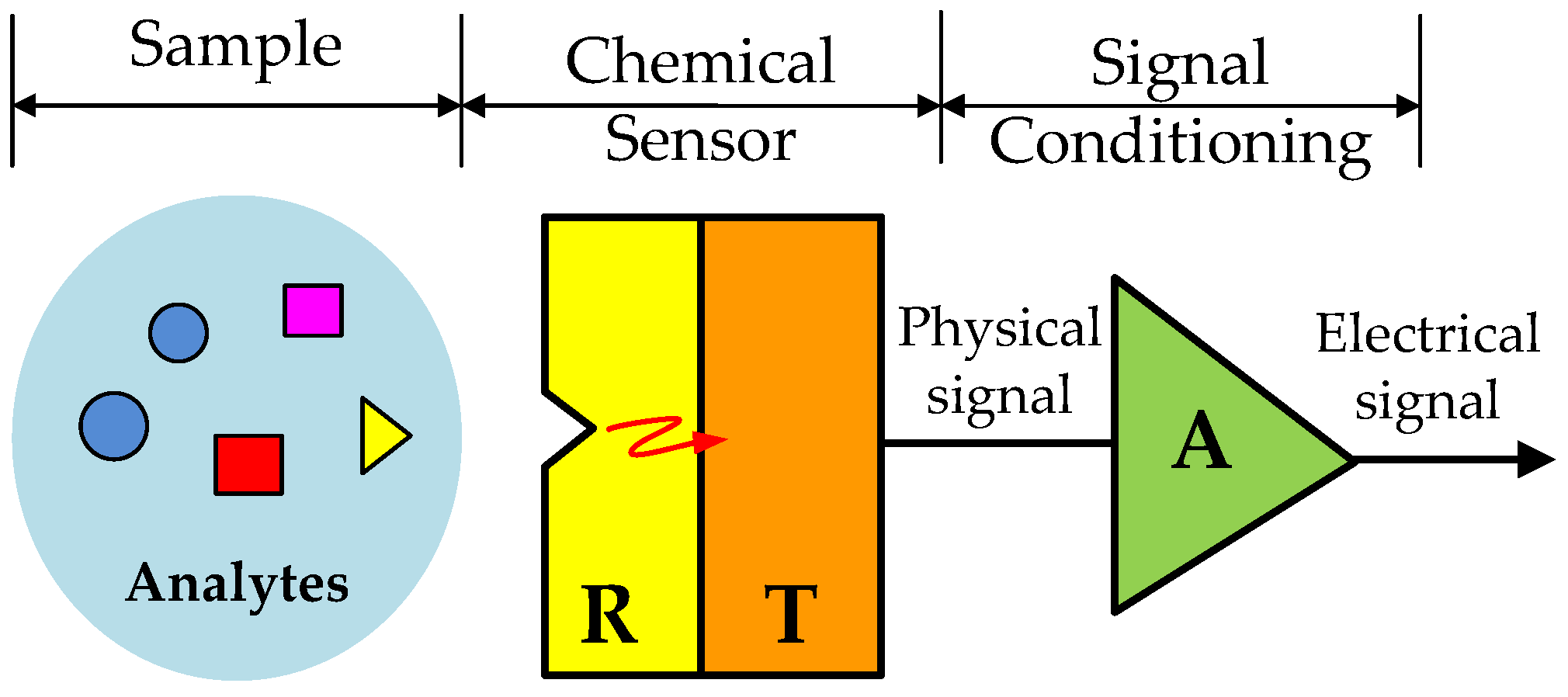

2.5. Optical Sensors
- (1)

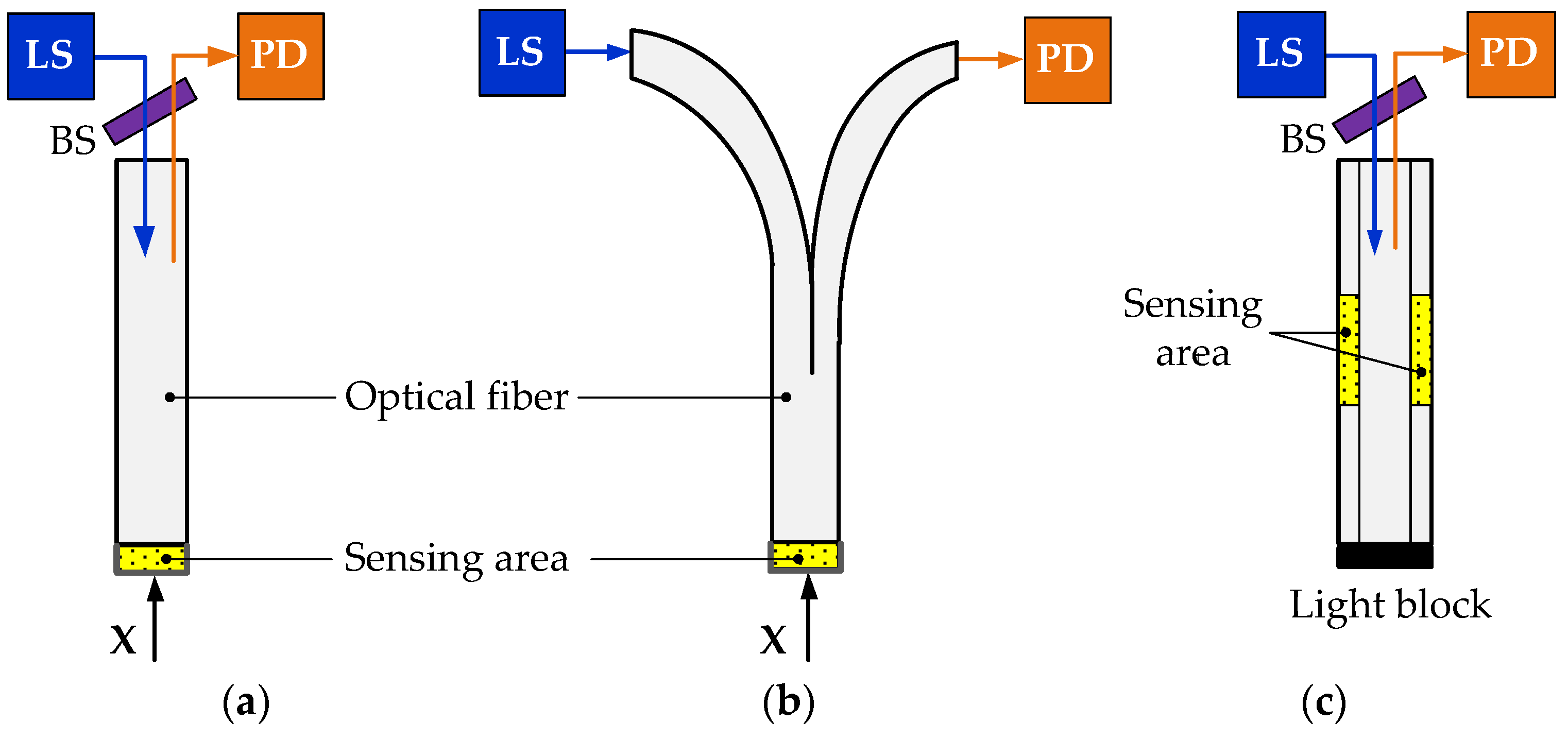

- Extrinsic sensors use fiber optics only as a means of transmitting light from the light source to the sensitive area and from this to the photodetector. We refer to this type of sensor in this article;
- (2)
- Intrinsic sensors use fiber optics as a light guide and as a transducer. The variable to be measured modifies certain properties of the fiber, such as the refractive index or the absorption coefficient. These sensors can use interferometric configurations, fiber Bragg grating (FBG), long-period fiber grating (LPFG), or special fibers (doped fibers) designed to be sensitive to specific perturbations. These types of sensors are commonly used as physical sensors (e.g., pressure and temperature gauges), although their applicability for biochemical species is restricted.
3. Spectroscopic Techniques
3.1. Absorbance, Reflectance, and Luminescence
3.2. Measurement of Luminescence Intensity
3.3. Measurement of Luminescence Lifetimes
3.3.1. Measurement of Lifetime in the Frequency Domain

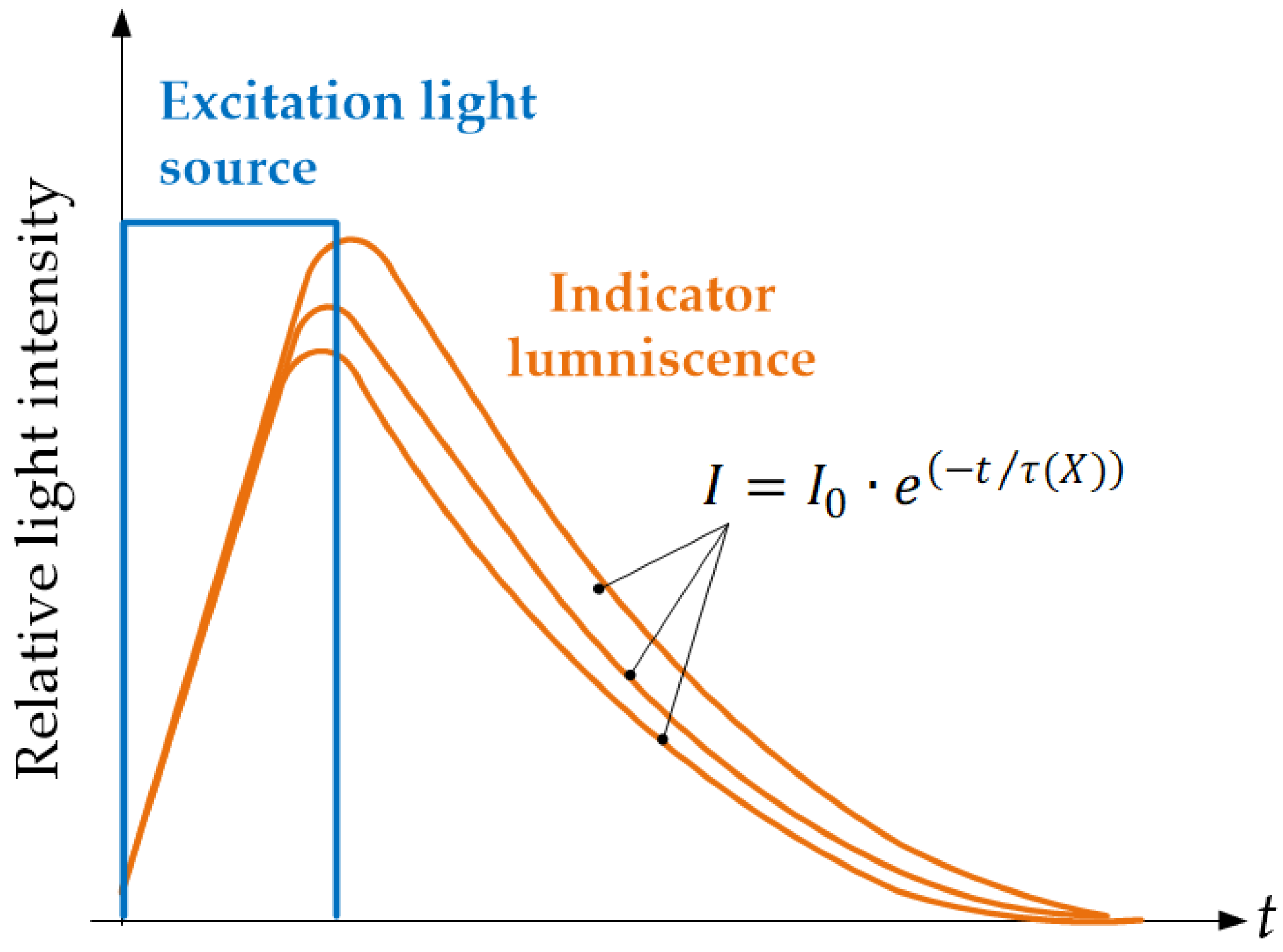

3.3.2. Measurement of Lifetime in the Time Domain

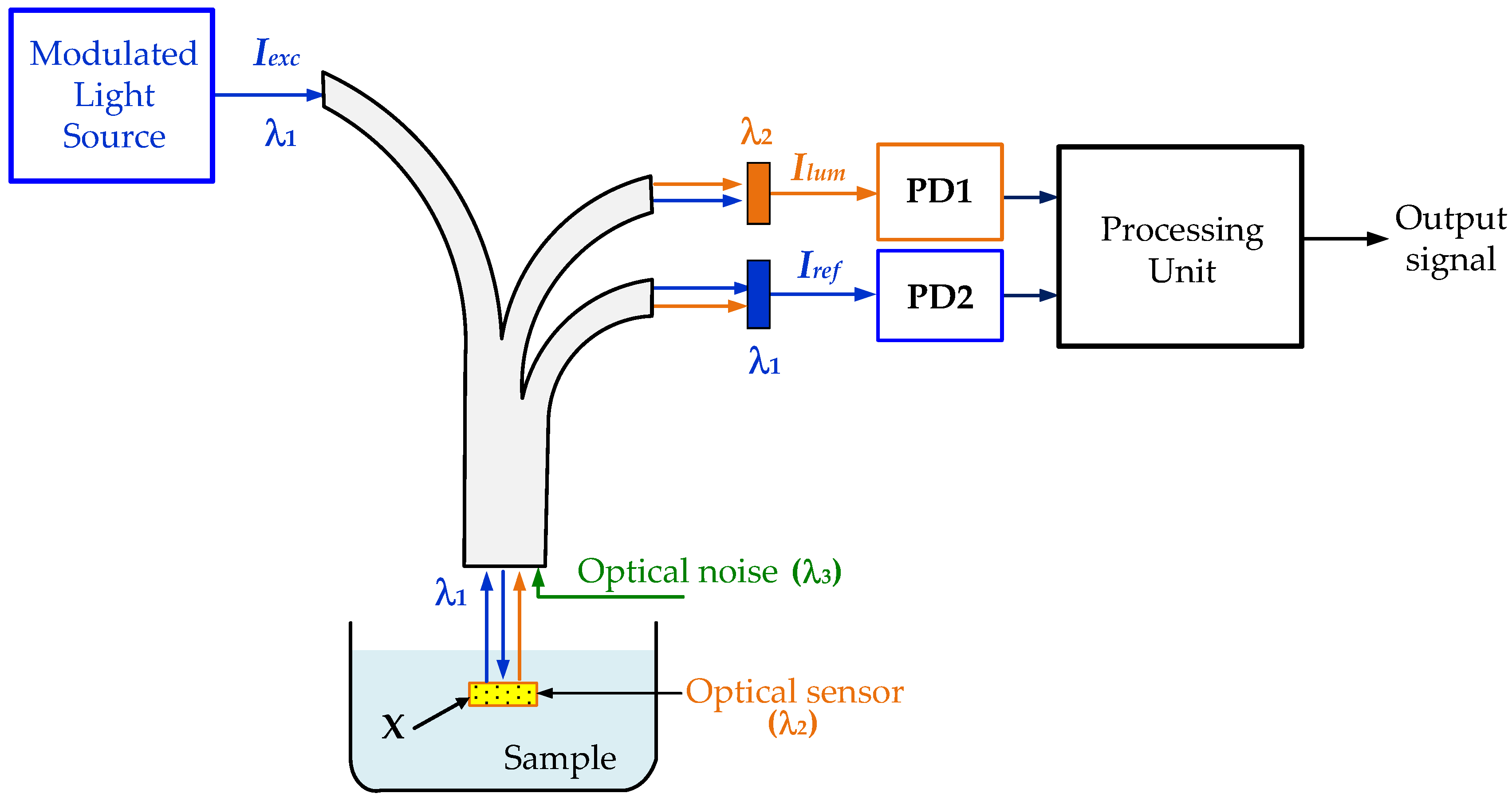

3.3.3. Ratiometric Techniques

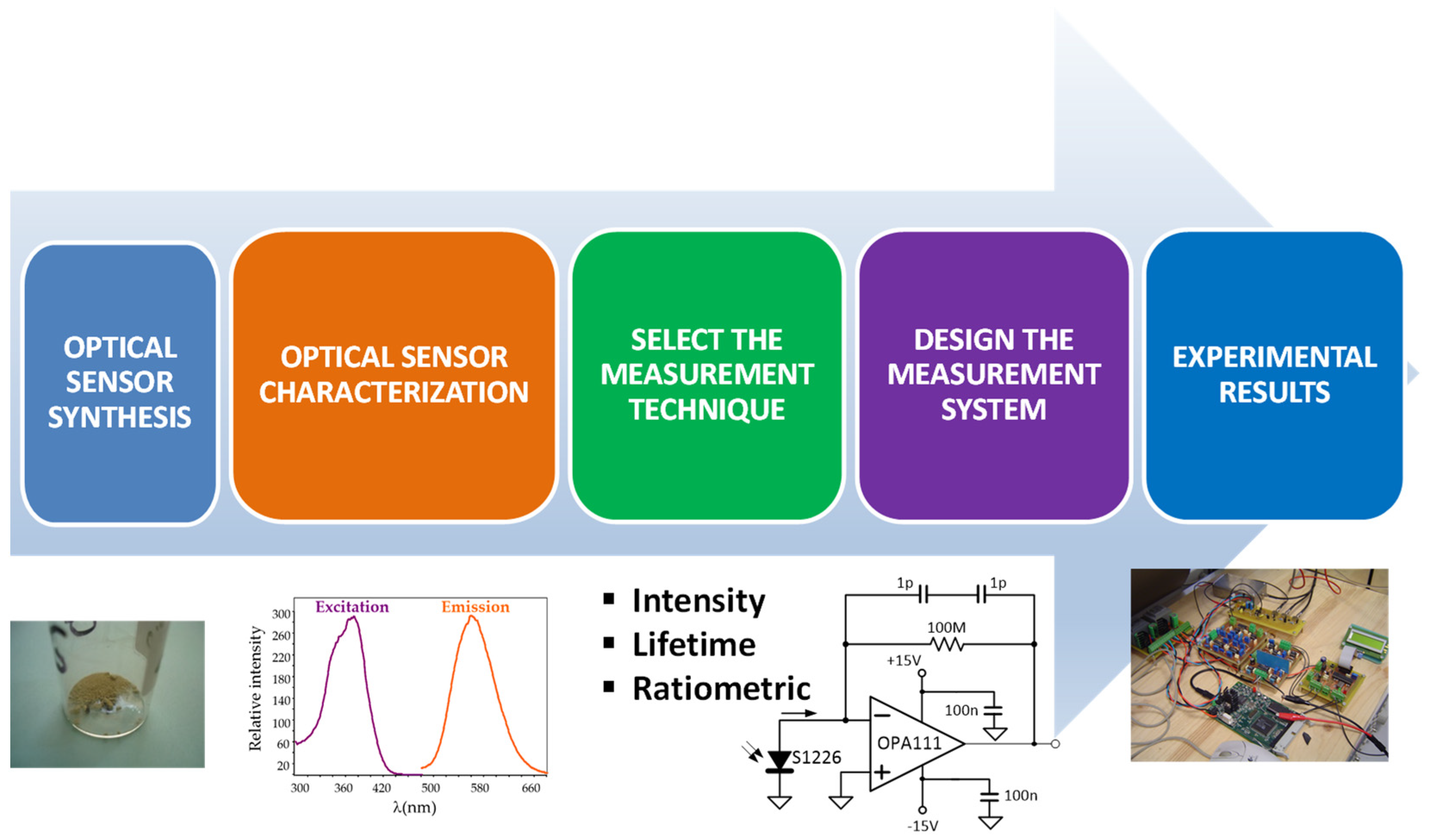

4. Design of Applications
4.1. Fiber Optic pH Sensor Based on Fluorescent Ratiometric Intensity Measurement
4.1.1. Optical Sensor Characterization
- (1)
- The pH value increases the emission of the fluorescent light in a quasilinear manner;
- (2)

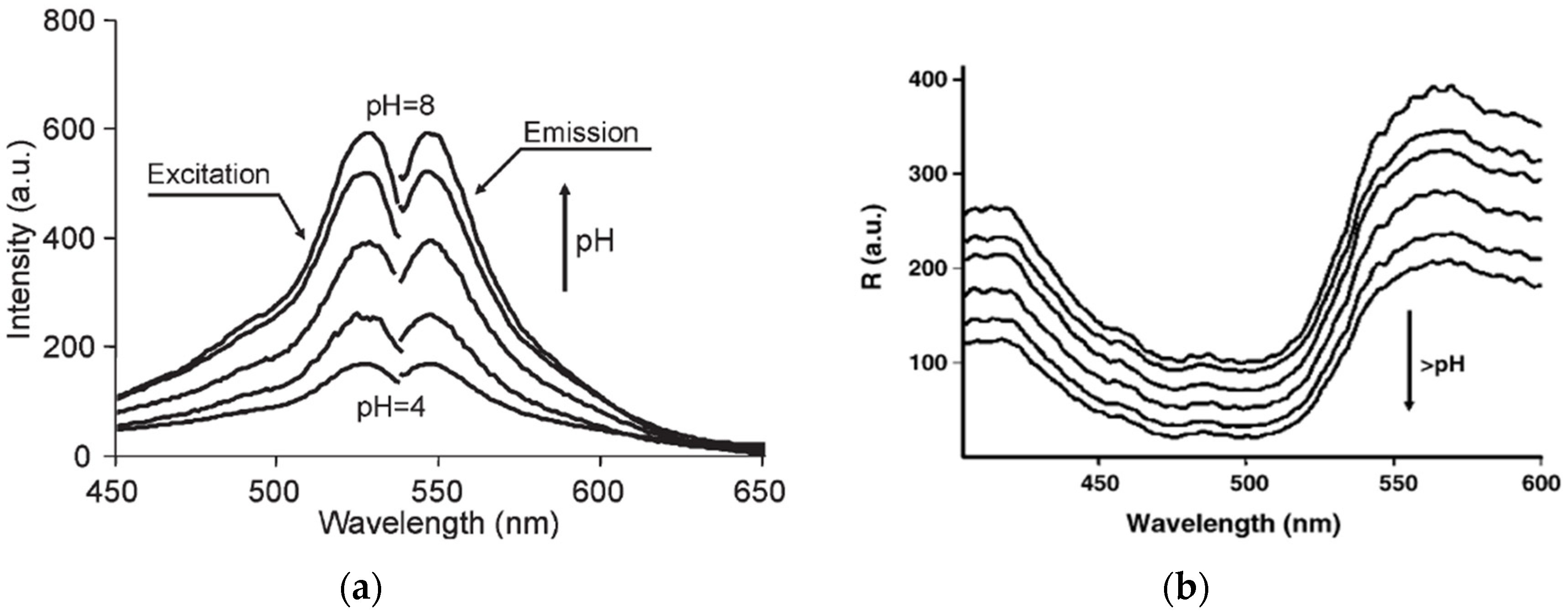

- The excitation and emission peaks of the sensor are close to each other (λexc = 528 nm, λemi = 549 nm). To avoid overlapping between both spectra, a light source with an emission peak below the sensing phase excitation maximum may be adequate;
- (3)
- The excitation spectra depend on the pH and their intensity change in the same way as the emission spectra.
4.1.2. Measurement Technique
4.1.3. Measurement System
4.2. Fiber Optic Oxygen Sensor Based on Phosphorescence Lifetime Measurement
4.2.1. Optical Sensor Characterization

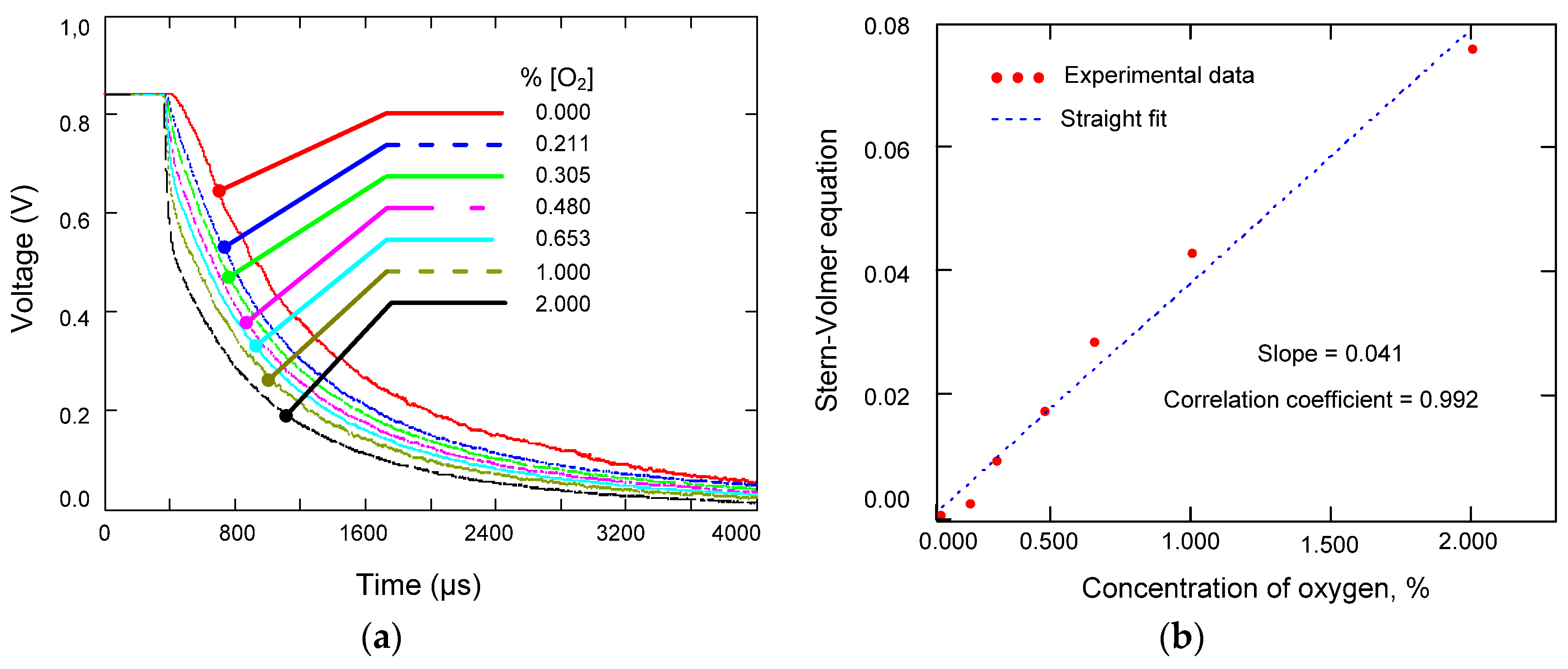

4.2.2. Measurement Method
4.2.3. Measurement System
5. Conclusions
