On the Control Strategy to Improve the Salt Rejection of a Thin-Film Composite Reverse Osmosis Membrane

Featured Application

This article presents a discussion on the gains from enhancing salt rejection from a broad perspective, which includes the specific energy consumption and some insights into a technical direction to improve salt rejection of TFC-RO membranes.

Abstract

Since the specific energy consumption (SEC) required for reverse osmosis (RO) desalination has been steeply reduced over the past few decades, there is an increasing demand for high-selectivity membranes. However, it is still hard to find research papers empirically dealing with increasing the salt rejection of RO membranes and addressing the SEC change possibly occurring while increasing salt rejection. Herein, we examined the feasibility of the process and material approaches to increase the salt rejection of RO membranes from the perspective of the SEC and weighed up a better approach to increase salt rejection between the two approaches. A process approach was confirmed to have some inherent limitations in terms of the trade-off between water permeability and salt rejection. Furthermore, a process approach is inappropriate to alter the intrinsic salt permeability of RO membranes, such that it should be far from a fundamental improvement in the selectivity of RO membranes. Thus, we could conclude that a material approach is necessary to make a fundamental improvement in the selectivity of RO membranes. This paper also provides discussion on the specific demands for RO membranes featuring superior mechanical properties and excellent water/salt permselectivity to minimize membrane compaction while maximizing the selectivity.

1. Introduction

The world has sought a sustainable and environmentally friendly society to overcome the crisis caused by climate change threatening food and water security as well as biodiversity [1,2,3,4]. For instance, many countries have been struggling to reduce carbon emissions to about 50% of 1990 levels by 2030 and reach carbon neutrality by 2050, since the European Green Deal was announced [5,6]. To achieve carbon neutrality, it is necessary for humankind to reduce the amount of carbon burned for energy generation in all areas. It is also the case for the industries related to water supply and water infrastructure. Many people have also made continuous efforts to reduce the carbon footprint in membrane-based water and wastewater treatment in various ways. For example, researchers have tried to improve the energy efficiency required for wastewater treatment using membrane bioreactors via the development of antifouling membranes or cleaning methods [7,8,9] while producing green energy such as biomethane generated from an anaerobic digestion process [10,11,12].

An attempt to enhance the energy efficiency in membrane desalination also has a long history. For example, the specific energy consumption (SEC) of a reverse osmosis (RO) process has continuously decreased (from 12 kWh m⁻³ in the 1970s to about 2 kWh m⁻³ in 2006) over the three decades thanks to the advances in membrane materials as well as module and process designs [13,14,15,16,17]. Consequently, new light was shed on the thought of having to improve the selectivity rather than permeability [18], leading to calls for greater focus on enhancing salt rejection of the membrane to guarantee higher retention of inadequate solutes (e.g., boron [19,20]), thereby improving treated water quality while reducing the costs imposed by pre- and post-treatment processes [21,22]. As if to reflect the new trend, research work to meet the demand for improved salt rejection has recently been published [2] in contrast with the existing mainstream to overcome the permeability-selectivity trade-off by enhancing water permeability while maintaining salt rejection [23,24,25]. However, it is still hard to find research papers empirically dealing with increasing the salt rejection of RO membranes. In particular, it is rare to find research papers in the literature addressing the SEC change caused by the trade-off between water permeability and salt rejection possibly occurring while increasing the selectivity of RO membranes.

If improving salt rejection causes the SEC to jump, we will no longer be able to claim that it would take precedence over enhancing water permeability. Note that improving water permeability also brings merits such as a small footprint, saving the membrane area, and cutting down on the cost of chemical cleaning agents and membrane replacement [26]. Accordingly, one should remember that the gains from increasing salt rejection could surpass the benefits resulting from higher water permeability on the condition that it would not be too costly to ameliorate salt rejection (i.e., without a jump in the SEC). With that in mind, this paper examined whether the SEC of an RO process can be significantly influenced by an increase in salt rejection at the expense of a decrease in water permeability. Furthermore, a qualitative assessment of the SEC was carried out to weigh up a better approach to increase salt rejection between material and process perspectives.

2. Materials and Methods

Polyamide thin-film composite membranes were prepared with lab-made support membranes via interfacial polymerization as described previously [26,27]. In detail, a 10 wt% polysulfone (PSf) polymer solution was prepared with the solvent mixture consisting of N-methyl-2-pyrrolidinone (NMP) and N, N-dimethylformamide (DMF) at a ratio of 1:7 to fabricate highly porous microstructured support (HPμS) membranes via non-solvent-induced phase separation (NIPS). The HPμS membrane was adopted as a support membrane due to its desired traits such as large surface pores and surface porosity leading to a short effective diffusion path length over an active layer [26], negligible sublayer resistance, which does not affect the overall water flux [28], and excellent mechanical properties enough to withstand high pressure even for seawater reverse osmosis (SWRO) desalination [29]. HPμS membranes possess extremely high porosity and comparable mechanical strength at the same time, such that they are suitable to prepare highly permeable TFC-RO membranes without compromising salt rejection. This point allowed us to determine how the SEC varies at high water permeability ranges while increasing salt rejection by adjusting an operating parameter.

A polyamide selective layer was prepared via interfacial polymerization on the top side of the HPμS support membrane using 2 wt% m-phenylenediamine (MPD) aqueous solutions without and with 1 wt% dimethyl sulfoxide (DMSO) and a trimesoyl chloride (TMC) solution (0.1 w/v%; solvent: n-hexane). The TFC membranes prepared without and with 1 wt% DMSO were marked as TFC-D0 and TFC-D1, respectively. 1 wt% DMSO can form a highly permeable polyamide active layer (5.14 L m⁻² h⁻¹ bar⁻¹; in brackish water reverse osmosis (BWRO)) with comparable salt rejection (98.3%; in BWRO) by inducing a smooth, thin, and slightly loose polyamide layer via the dipole-dipole interaction between DMSO and carbonyl oxygens of TMC [27].

Cross-sectional SEM images were taken to observe the morphologies of support membranes and measure a mean active layer thickness using FESEM (Field-emission scanning electron microscopy, JSM-7600F, JEOL, Japan). The average values of the active layer thickness were estimated using the thicknesses measured at five arbitrary positions, as described previously [30,31,32,33]. The active layer roughness was evaluated with an atomic force microscope (AFM; NX10, Park Systems, Suwon, Korea). A Fourier transform infrared (FTIR) spectrometer (IR Prestige-21, Shimadzu, Japan) equipped with attenuated total reflection (ATR) was used to observe the change in the peak intensity at 950 cm⁻¹, as described previously [27,34], in order to determine whether 1 wt% DMSO slightly decreased the crosslinking degree. The peak with a larger intensity at 950 cm⁻¹ indicates more unreacted acyl chloride groups on a polyamide active layer, implying a lower crosslinking degree.

The membrane filtration test was carried out without a spacer to obtain the water flux (L m⁻² h⁻¹ bar⁻¹; LMH) and salt rejection (R = C_p/C_f; %) under increasing applied pressure from 25 to 55 bar in a bid to explore the possibility of increasing salt rejection by adjusting operating pressures. In addition, this allows us to compare the benefits between a process approach and a material approach from the perspective of the SEC. C_f and C_p refer to the salt concentrations of the feed and permeate solutions, respectively. When C_f was used to calculate the R, the concentration polarization phenomenon, which is variable depending on the use of a spacer and spacers’ geometry [35], was excluded from consideration. A TFC membrane larger than 42 cm² was used to assess the water flux and salt rejection using a 2000 ppm NaCl solution at 25 °C.

A temperature influence on the SEC was excluded from consideration although the temperature could affect the SEC by decreasing the fluid viscosity or increasing the osmotic pressure of the feed solution [36], since the filtration test was performed at a constant temperature. Apart from concentration polarization and temperature influence, the other operating parameters affecting the RO water production cost (e.g., pretreatment and management costs, control schemes, and process configuration [18]) were also excluded from consideration under the assumption that there would be no difference between the tests of the control and experimental samples with regard to those operating parameters.

Membrane compaction was conducted for 30 min at 25 bar prior to collecting the permeate solutions used to evaluate the water flux and salt rejection. After membrane compaction, the permeate solutions were collected for 10 min at different operating pressures. The water permeability coefficient (A) and salt permeability coefficient (B) were obtained from the following relationship:

$$A=\frac{J_v}{\mathit{TMP} - \Delta \pi }$$

(1)

$$B=\frac{(1 - R) · A · (\mathit{TMP} - \Delta \pi )}{R}$$

(2)

where J_v is the volumetric water flux, TMP is the pressure difference across the membrane, and Δπ is the osmotic pressure difference across the membrane.

3. Results and Discussion

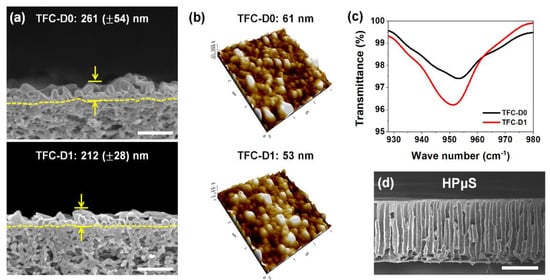

The HPμS membrane and TFC membrane were characterized in terms of support morphologies and active layer characteristics, respectively. When it comes to the active layer characteristics, the active layer thickness, roughness, and crosslinking degree were investigated to double-check whether 1 wt% DMSO worked properly to improve the water permeability without compromising salt rejection, as described previously [27]. According to our observations (Figure 1a–c), 1 wt% DMSO led to a thinner and smoother active layer with slightly more unreacted acyl chlorides (evidenced by the slightly larger intensity at 950 cm⁻¹). The thinner active layer with a slightly lower crosslinking degree at a moderate level was expected to increase water permeability without compromising salt rejection. The as-prepared HPμS membrane was confirmed to have narrow and regular columnar macrovoids (Figure 1d), as reported previously [26]. The phenomenon is attributable to the fact that the solvent mixture (NMP: DMF = 1:7) induces rapid desolvation by enhancing the thermodynamic instability of a PSf polymer solution. The HPμS membrane was expected to endure high pressure ranging from 25 to 55 bar owing to the unique structural characteristics.

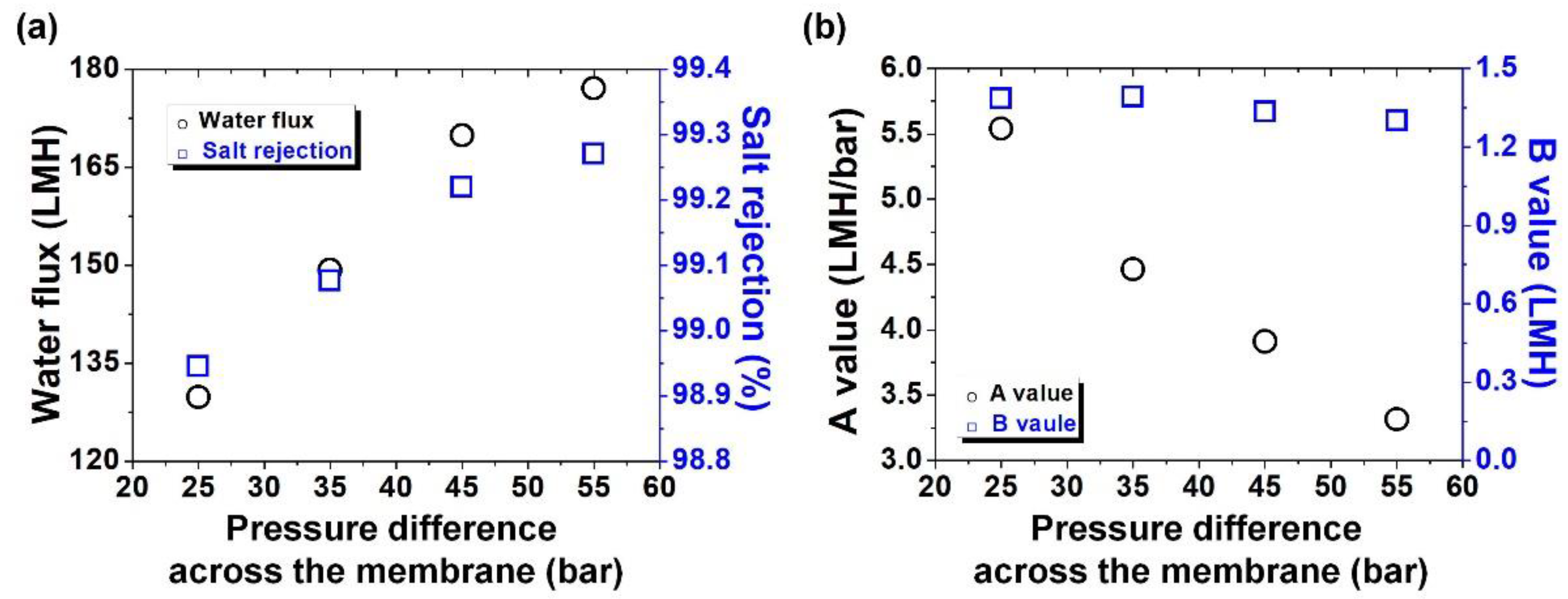

Figure 2a,b show the as-prepared TFC-D1 membrane’s water flux, salt rejection, A, and B values measured at different operating pressures, respectively. The water flux and salt rejection of the TFC-D1 membrane were 5.54 LMH/bar and 98.9% at 25 bar, which looks reasonable as compared to the previous result [27]. However, as the operating pressure increased from 25 to 55 bar, the A value was reduced from 5.54 to 3.31 LMH/bar while salt rejection increased from 98.9% to 99.3%. This phenomenon is likely to arise from membrane compaction as the pressure difference across the membrane increases. It seems understandable that membrane compaction was accompanied by a decreased A value and higher salt rejection, but two points caught our eye. First, a process approach to increase salt rejection (for example, by applying a higher pressure) will not allow us to overcome the trade-off between water permeability and salt rejection since the trade-off is intrinsically linked with the properties of the polyamide layer, according to empirical evidence [13,37]. Consequently, the process approach of increasing operating pressure will entail a higher energy consumption (i.e., SEC will increase). Second, unlike variable A value and salt rejection which change with applied pressure, B value was nearly constant throughout the entire operating pressure range. This phenomenon is ascribed to the fact that ion transport is mainly governed by the concentration gradient, which would be almost constant at the same recovery rate regardless of applied pressure. This result suggests that a process approach could not make a fundamental change in the improvement of the selectivity of RO membranes, although it could result in a bit higher salt rejection apparently at the expense of a lower A value.

Our observation implies that a material approach is required to achieve a fundamental improvement in the selectivity of RO membranes. For instance, the high-selectivity RO membrane was recently developed using porous nanomaterials called cucurbit[6]uril (CB[6]; it features 0.39 nm pores with a partially negative charge) and demonstrated that it could significantly reduce salt permeability to half of its original value (1.29 to 0.66 LMH) without significant flux decline (4.30 to 4.01 LMH/bar) owing to selective water transport over monovalent ions [2]. This result indicates that a CB[6] thin-film nanocomposite (TFN) membrane could achieve high salt rejection almost without paying the price for the increased SEC, unlike a process approach. To qualitatively weigh up the SEC change stemming from the process and material approaches to improve salt rejection, we roughly estimated the ideal SEC (SEC_i) obtainable under ideal operating conditions (i.e., no leakage of energy recovery devices (ERD), perfect pressure transfer efficiency of ERD, and perfect overall pump efficiency) without consideration of the salt concentration based on the following relationship [38]:

$${\mathrm{SEC}}_{\mathrm{i}}=\left(\frac{{1 - R}_w}{R_w}\right)\Delta P+(P_f-P_o)$$

(3)

where R_w is the desalinated water recovery, ΔP is the pressure difference across the membrane module, P_f is the feed pressure, and P_o is the permeate pressure. The unit of SEC_i can be converted from Pa to kWh/m³ with a conversion factor (3.6 × 10⁶ Pa ≈ 1.0 kWh/m³). If R_w is constant while ΔP and P_o are negligible for simplifications, the SEC_i has a nearly linear correlation with P_f. In this regard, a process approach such as increasing applied pressure should accept an additional concomitant SEC_i. In contrast, a material approach does not increase the SEC_i, since it does not require a change of applied pressure.

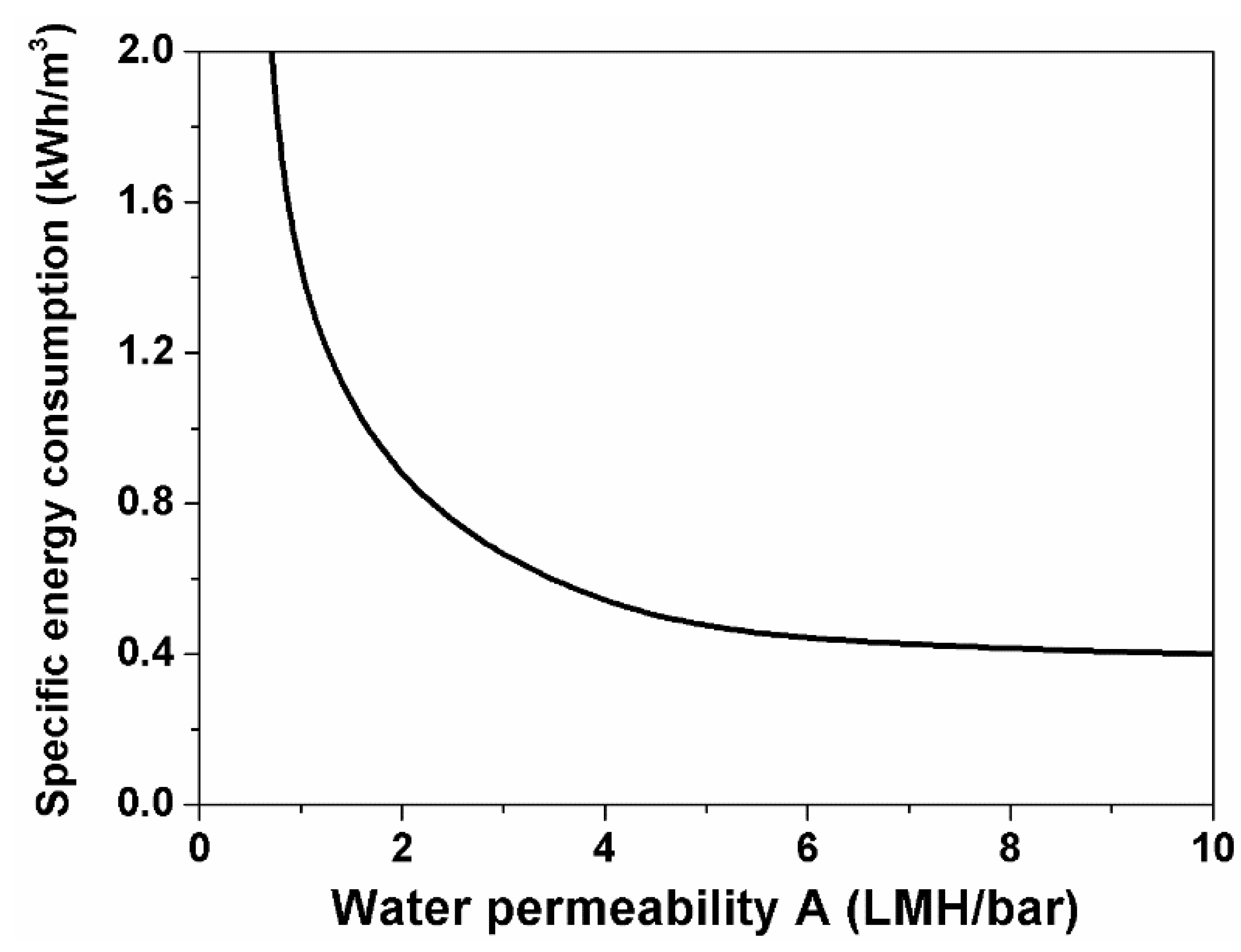

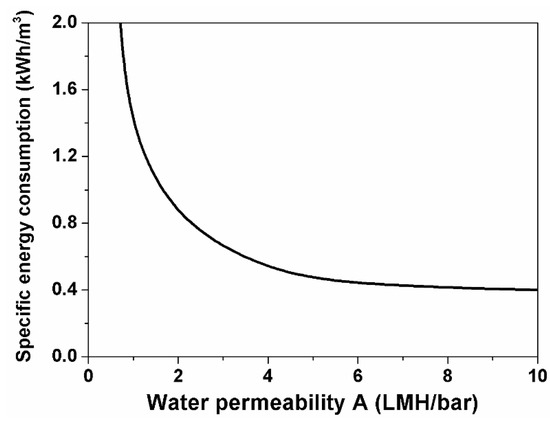

Furthermore, the correlation between water permeability and SEC also supports that a material approach is more beneficial than a process approach. Specifically, the SEC soars as water permeability drops (Figure 3) according to the correlation between water permeability and SEC obtainable from the data for BWRO in the previous study [39]. Given that a process approach entailed a significant loss of water permeability (5.54 to 3.31 LMH/bar; about a 40% reduction), it is not a surprise that a process approach may be accompanied by a substantial increase in the SEC. On the other hand, the SEC change by a material approach is likely to be negligible, as evidenced by the CB[6] TFN membrane exhibiting only a marginal reduction in water permeability (4.30 to 4.01 LMH/bar; about a 7% reduction). Although a quantitative assessment could not be made with regard to the SEC due to the lack of information required to model at different pressures with variable salt rejection, those qualitative comparisons showed which approach we need to pursue to improve the selectivity of RO membranes without a substantial increase in the SEC (i.e., a material approach is necessary to make a fundamental improvement in the selectivity of RO membranes).

Lastly, it is worth exploring which materials have the potential to increase the selectivity of the commonly used RO membranes (i.e., polyamide RO membranes) in the field and what conditions need to be satisfied to make high-performance RO membranes with high selectivity. As for the specific way to a valid material approach, fabricating thin-film nanocomposite (TFN) RO membranes using porous nanomaterials could be the most appropriate as of now in that the approach can make the existing manufacturing lines to produce conventional RO membranes readily available, facilitating the commercialization of newly developed membranes. When it comes to the potential nanomaterials, it would be desirable to possess pores with low tortuosity and adequate size falling between hydrated ions (Na⁺: 7.2 Å; Cl⁻: 6.6 Å) and water molecules (about 2.75 Å) to effectively inhibit the salt passage while allowing water passage, thereby increasing the selectivity without significant loss of water permeability. If one tries preparing highly selective RO membranes using porous nanomaterials with larger pores than hydrated ions, the interior surface functionalization of the nanomaterials will need to be carried out as demonstrated in the previous simulation [40]. A few porous nanomaterials are listed in

Table 1. Potential porous nanomaterials to prepare highly selective RO membranes.

Material	Pore Size	Other Features	Incorporation Type	Control Membrane’s Salt Rejection	Effect of Porous Nanomaterials	Ref.
CB[6]	3.9 Å	Negligible entry resistance for water molecules Hydrophilic and partially negative charged carbonyl-fringed portals Rigid	Individually incorporated in an active layer	97.8%	Improved selectivity	[2]
Peptide-appended pillar[5]arene	~5 Å	Synthetic nanochannel Macrocyclic structure resembling a carbon nanotube Peptide-appended arms governing the channel length	Incorporated in an active layer after embedded in liposomes (100–150 nm)	98.2%	Improved permeability	[34]
Aquaporin Z	2.8 Å [41]	Wild type Water permeability of 0.06 cm s−1 in case of the proteoliposomes with AqpZ wild type prepared based on the protein to lipid molar ratio of 1:200	Incorporated in an active layer after embedded in liposomes (100–150 nm)	96%	Improved permeability	[42]
Zeolite	4 Å	Inorganic porous nanomaterials NaA-type Small, super-hydrophilic, and negatively charged pores	Incorporated in an active layer in the form of aggregates (50–150 nm)	93.4%	Improved permeability	[43]

as potential candidates that could be used to prepare highly selective RO membranes without compromising water permeability.

However, this does not necessarily mean that porous nanomaterials with the pore size corresponding to the above ranges always meet the requirement to make highly selective RO membranes due to some performance influence factors. First, porous nanomaterials need to be individually incorporated in an active layer during interfacial polymerization to ensure their intrinsic properties, in terms of selective water transport, are clearly exhibited in an active layer during filtration. If porous nanomaterials were incorporated in an active layer in the form of aggregates (e.g., zeolite) or used after being embedded in much larger materials (e.g., aquaporin Z), it could be hard to demonstrate their intrinsic material effects regarding selective water transport due to the interstitial space between individual nanoparticles or the gap between the vesicle and the polymer matrix of an active layer. It is also essential that interfacial polymerization should not be significantly affected by nano-additives because there is concern that polyamide chains’ changes (e.g., variable crosslinking degree), possibly caused by the additives, may cancel out the addition effect of the porous nanomaterials. Lastly, the pore size of an active layer needs to be controlled as low as those of the used porous nanomaterials. If the polymer matrix in an active layer has even larger pores than the nano-additives, diffusion species will pass mainly through the pores of the loose polymer matrix instead of the pores of the nano-additives. This too will preclude us from observing the intrinsic characteristics regarding selective water transport of porous nanomaterials.

4. Conclusions

In this study, we explored which technical path would be more desirable to make a fundamental improvement in the selectivity of RO membranes without compromising the competitiveness from the perspective of energy consumption. We prepared a highly permeable TFC membrane with an HPμS membrane via interfacial polymerization using 1 wt% DMSO. Subsequently, we obtained its water permeability and salt rejection by adjusting an applied pressure from 25 to 55 bar as a process approach to estimate the SEC change occurring while varying a process parameter and qualitatively compare the degree of the SEC increase with that of the previous study via a material approach. The qualitative comparison revealed there could be quite a significant difference in the degree of the SEC increase between process and material approaches based on the difference in flux decline occurring during each approach. This difference is assumed to arise from a couple of inherent limitations of a process approach. First, a process approach could not overcome the trade-off between water permeability and salt rejection, inevitably making the SEC skyrocket while increasing salt rejection. Second, a process approach cannot alter the intrinsic selectivity of RO membranes, such that it is impossible to make a fundamental change in the permselectivity regardless of bringing benefits in energy consumption. In this regard, a material approach must be provided to enhance the salt rejection of RO membranes. There are two demands from the perspective of a material approach. The first demand is for superior mechanical properties endurable to membrane compaction, which causes severe flux decline and thereby increases energy burdens during a high-pressure desalination process. The second demand is for excellent water/salt permselectivity capable of significantly improving salt rejection of RO membranes with no substantial flux decline. Apart from the two demands on highly selective RO membranes, it is also necessary to have regard to the fouling effect, deteriorating the RO membrane performance by increasing solute permeability coefficient and/or decreasing the water permeability coefficient [18,20].
