Halloysite and Laponite Hybrid Pigments Synthesis with Copper Chlorophyll

by
Bàrbara Micó-Vicent
1,*,
Esther Perales Romero
2,
Jorge Jordán-Núñez
1 and
Valentín Viqueira
2
1
Departamento de Ingeniería Gráfica, Universitat Politècnica de València, Campus d’Alcoi, 03801 Alcoy, Alicante, Spain
2
Departamento de Óptica Farmacología y Anatomía, Universidad de Alicante, 03690 San Vicent del Raspeig, Alicante, Spain
*
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(12), 5568; https://doi.org/10.3390/app11125568
Submission received: 8 April 2021 / Revised: 6 June 2021 / Accepted: 10 June 2021 / Published: 16 June 2021
(This article belongs to the Special Issue Design and Characterization of Materials for Different Industrial Applications)
Browse Figures
Review Reports Versions Notes

Abstract

Sustainable and green materials have been studied in dye and pigment productions to reduce their environment impacts from being produced and applied. Although natural dyes are an excellent choice to move from agrowaste, some improvements must be made before they are applied given their poor fastness. One way of improving natural dye properties is their adsorption into nanoclay structures to give hybrid pigments. This work used tubular halloysite and laminar laponite to adsorb and stabilize natural copper chlorophyll. With a statistical design of experiments, we observed interactions between synthesis factors, such as pH, ionic strength, and surfactant or silane modification. Cool hybrid pigments with high TSR (%) values and a wide color range were obtained by using dispersions with only distilled water at room temperature. Successful chlorophyll adsorption on both nanoclay surfaces took place by XRD and DTA analyses. The maximum natural dye absorption for both nanoclay types took place under acid conditions, pH 3–4, and in the presence of mordant. The TSR (%) improved by the silane pH interaction, and halloysite hybrid pigments obtained higher TSR values than the laponite ones. Finally, a wide chromatic green color range was obtained with the surfactant modification in both nanoclays, and the color fastening was also improved in the hybrid pigments application. The samples generated with 10% of hybrid pigments from both nanoclays and an Epoxy bioresin, show higher colorfastness than the sample with the natural chlorophyll, due to the nanoclays–dye interaction and protection.

1. Introduction

Circular and sustainable economy is a trending topic in product and process design. Industries and researchers are working to develop green products, and natural dyes are an example of such [1]. Their production is growing in South America, and their extraction from agricultural waste is successfully achieved [2,3]. Some of the advantages of natural fibers are they are non-toxic, they possess antioxidant activity, their medical applications and biodegradation capability, and they pose no environmental issues [4,5,6]. Chlorophyll is one of the most abundant biological pigments, and it abounds in eubacteria and plants [7]. Due to their properties, chlorophyll dyes (CDs) have been used in biomedical applications [8], complex applications as solar cell dyes [9,10] and supramolecular structures [11]. However, CDs are unstable to retaining their antioxidant activity when exposed to oxygen, high temperature, or light environments [9,10].
One way of improving the stability of natural dyes like chlorophyll is their adsorption into inorganic structures like nanoclays. Laponite nanoclays have proven effectiveness in cationic dye adsorption. Laponite is a synthetic disk-shaped hectorite silicate of approximately 25 nm in diameter and 1 nm thickness. Particle aggregation and gel generation depend on dispersion conditions, such as concentration, pH, temperature, etc., [12]. Laponite can be used as a host for natural dyes to protect them. It has been demonstrated to adsorb up to 93% of anthocyanin from jambolan fruit extract. In addition, anthocyanin-laponite hybrid pigments have antioxidant properties and can be used as colorimetric indicator material at pH ≥ 7 [13]. The adsorption capacity of this nanoclay can change depending on the dispersion conditions, as observed in other nanoclays like montmorillonite. Solvent nature, pH [14], surface modification with surfactants [15], mordant salts or silane [16] can be used to modify the nanoclay adsorption behavior [17].
Other nanoclay structures have been studied to adsorb and stabilize organic compounds like dyes. Halloysite is a type of hollow tubular nanostructure mineral clay. This nanoclay chemical structure is similar to kaolin, but is rolled into tubes. Because of its tubule shape, halloysite does not stack together and can be easily exfoliated by steering. Halloysite clay is transparent and does not significantly change polymer composites’ transparency [18]. Halloysite nanotubes boost the properties of fluorescent dyes by their encapsulation [19]. Functionalized halloysite has been fabricated as a novel hybrid clay mineral for dye removal. This nanoclay can absorb cationic or anionic organic compounds owing to their surface properties, which make it an excellent adsorbent used for the removal of different dyes from wastewater [20].
With halloysite hybrid pigments, nanolevel dispersions of dyes provide polystyrene with enhanced luminescence [21]. The hybrid materials that result from the adsorption of dyes into modified nanoclays have been used to modify optical [22], mechanical, fire or barrier properties of different polymer matrices with successful results, depending on nanoclay particle exfoliation [23,24,25,26,27,28].
Total solar reflectance (TSR) is the method that measures a surface coating’s reflective capability. Urban areas show higher air temperatures than rural areas. The use of the so-called “cool paints” or “cool coating”, i.e., with high TSR (%) values on building surfaces, is a countermeasure to mitigate this urban heat island [29]. In addition, “cool coatings” can decrease the sensitive heat load to the atmosphere and thermal storage in building frames due to solar radiation [30]. TiO2 particles have been employed to increase the TSR of building coatings by functionalized anatase immobilization in an organosiloxane matrix. In addition, nanoclays have displayed protection against UV for coatings [31].
This work utilizes different nanoclay structures, laminar laponite and tubular halloysite, to protect natural chlorophyll. The aims are to: obtain natural sustainable hybrid pigments with improved properties; compare different synthesis conditions with surface modification and pH levels to improve synthesis performance, measured as natural dye adsorption, and hybrid pigment optical properties as TSR (%) values.

2. Materials and Methods

2.1. Materials

Copper chlorophyll (NG) CI.75810 (C34H31CuN4Na3O6), was supplied by Sensient® (Milwaukee, WI, USA). Nanoclays laponite and halloysite were supplied by Southern Clay Products (Gonzales, TX, USA) and Sigma-Aldrich (St. Louis, MO, USA), respectively. To modify nanoclay surfaces, surfactant (SURF) cetylpyridinium bromide C21H38BrN·6H2O, 384.44 g/mol, mordant salt (MORD) aluminum potassium sulfate dodecahydrate AlK(SO4)2·12H2O, 474.39 g/mol, and coupling agent (SIL) (3-Aminopropyl) triethoxysilane H2N(CH2)3Si(OCH3)3, 179.29 g/mol, were used. To record any changes in pH during the synthesis process, hydrochloric acid HCL-(37%) was purchased from Sigma-Aldrich. All these agents were supplied by Sigma-Aldrich. Lastly, for bio-nanocomposite generation, we used the bioresin whose trade name is GreenPoxy 55, which is an epoxy system with a single hardener where 55% of the molecular structure is of plant origin. Catalyst SD 505 came from SICOMIN Composites (Chateauneuf les Martigues, France).

2.2. Synthesis Process

The adsorption of chlorophyll dye into the laminar nanoclays was performed using water as the solvent and the stirring method. The times to incorporate each modifier were selected according to previous studies [32]. In this study, both nanoclays were dispersed at 1800 rpm for 20 h. Laponite dispersions were prepared at 18 g∙L−1 to avoid gel formation in distilled water. The halloysite nanoclay was heat-treated for 24 h at 220 °C [33,34] and dispersed in distilled water at 25∙L−1. In both nanoclay dispersions, pH was adjusted to −4 using 37% HCl [35,36]. The dye concentration in solutions was 2 × 10−3 M. The surface modifiers concentration fell within a range of 0–2% over the nanoclay mass. Dye exchange was performed by stirring at 1800 rpm and room temperature for 4 h, and then at 600 rpm for 20 h. Solvent separation was carried out by centrifuging to obtain the paste-nano-pigment (PNP). Then the PNP was washed by redispersing its paste at 400 rpm for 30 min until the supernatant was clear. The complete separated supernatant was collected from the beginning to the final washing step. Measurements were taken for each sample immediately before collecting supernatants to avoid dye degradation. To ensure that all the non-adsorbed dye was recovered, the water and solution from washing were protected from light and temperature in airtight containers covered with aluminum. Then the separated supernatants were made up to a known volume to continue with the spectrometer measurements. Thirteen chlorophyll dilutions from 1 × 10−6 [M] to 1 × 10−4 [M] were prepared to obtain the Lambert Beer line as the spectrophotometer calibration method. Lastly, the PNP was cool-dried by an ALPHA 1-2 LDplus lyophilizer (Martin Christ, Osterode am Harz, Germany) for 24 h providing the fine green powder that we used for the characterization and the application (Figure 1).

2.3. Biocomposite Generation

Bio-composite materials were handmade by mixing with the commercially recommended catalyst, and using silicon templates to obtain plain rectangular samples (Figure 2). We employed 10% over the bio-resin mass nano-pigment concentrations. The curing process was carried out at 90 °C for 3 h.

2.4. Characterization

The determination of the amount of dye adsorbed by the nano-clay system allowed us to define the synthesis performance of the process. For this purpose, a UV–Vis transmission spectrophotometer (JASCO V650, Easton, MD, USA) was utilized to measure the dye absorbance (%) in separate supernatants. Then the amount of dye adsorbed by nanoclays was calculated as a percentage of the initial concentration in the exchange step. This parameter was employed as a response to minimize in the DoE analysis.
XRD Bruker D8-Advance equipment (Bruker, Billerica, MA, USA), with a Göebel mirror (power: 3000 W, voltage: 20–60 kV and current: 5–80 mA), was used. Measurements were taken in an oxidant atmosphere at an angular speed of 1°/min, STEP 0.05°, and an angular scan of 2.7–70°. XRD patterns were obtained to observe variations in the basal space on the layers from the different nanoclays due to the interactions with the natural dye and modifiers.
For TSR (%), a double UV-Vis/NIR Jasco V-670 spectrometer was used, which works within the wavelength range from 190 to 2700 nm. The equipment has a double-grating monocromator, one for the UV-Vis region (1200 grids/mm) and the other for the NIR region (300 grids/mm). Detectors are a photomultiplier tube for the UV-Vis region and a PbS detector for the NIR region. Both the detector and grating changes are automated at a user-fixed wavelength between 750 and 900 nm. The light sources are a deuterium lamp (190 to 350 nm) and a halogen lamp (330 to 2700 nm). To calculate optical properties, reflectance factors ρ(λ) were applied for the hybrid pigments within the 370–740 nm range with the D65 illuminant and the CIE-1964 standard [11] observer.
A thermogravimetric analyzer TGA/SDTA 851 (Mettler-Toledo Inc., Columbus, OH, USA) was utilized to ensure that chlorophyll was successfully loaded on both nanoclays. The experimental conditions were a temperature ramp of 5 °C/min within the 20–900 °C range with oxidant medium N2:O2 (4:1).
Finally, a SOLARBOX 1500e RH climatic chamber (ERICHSEN, Hemer, Germany) was used to measure the color UV–Vis fastness. All samples were measured using a Konica Minolta sphere integrated spectrophotometer (CM-2600d) to obtain the reflectance factors ρ(λ)(370–740) nm range with the D65 illuminant and the CIE-1964 standard observer. The measurements were made at several exposure time intervals, and color differences were calculated by measuring samples before and after radiation exposure. Color differences ΔEab* were calculated with the colorimetric attributes of the CIELAB color space.

2.5. Statistical Design of Experiments

In order to perform the synthesis process by combining different parameters and to find their contribution to the variance in the results, a fractional design of experiments was followed 24−1 (Table 1) with factors: pH (3–4, or natural), nanoclay surface modifiers addition (0–2% over clay mass) surfactant, mordant or silane, and two experimental laminar (LAP) or tubular (HA) blocs for the nanoclay structure. This design allowed us to study all the simple effects of factors and the pH modifiers interactions. Synthesis performance, degradation temperature, and total solar reflectance were used as a response to analyze the synthesis factors effects.

3. Results and Discussion

Different characterization analyses were performed to know the structural and optical properties of the different hybrid pigments.

3.1. Chlorophyll Adsorption

All the supernatants separated after the centrifugation step were measured to find the presence of natural colorants to calculate synthesis performance as the percentage of dye adsorbed in both nanoclays (Ads(%)) (Table 2). Significant differences were found depending on the synthesis conditions. The analysis of variance revealed that the significant factors in the percentage of dye adsorbed in both nanoclays (Ads(%)) were the mordant and pH interactions (see Table 3). The p-values in both factors were lower than 0.05. According to Figure 3, when mordant salt was present (MORD = 1.0), no differences appeared due to the pH level (from −1.0 to 1.0), and the supernatant was clear and dye adsorption was maximum (≈99%) in both structures. However, when no mordant salt was present (MORD= −1.0), pH became a critical factor and had to be acidic (pH = −1.0 (3-4)) to maintain dye adsorption close to 99% in both nanoclay structures. The lowest adsorption percentage (≈84%) was found at a natural pH (pH = 1.0 (9-7)) with no mordant salt present (MORD= −1.0). Based on these results, the mordant-modified solvent ion strengthened and favored the chlorophyll–clay interaction similarly to the textile dying process. In the halloysite structures, the protonation constants increased accordingly to ionic strength, which favored the chlorophyll interactions. At a low pH, halloysite layers were protonated from pH 2 to pH 6.5, the silicic surface underwent deprotonation, and its lowest possible negative charge was reached at the highest point of the range. Depending on the nanoclay layer, both ionic strength and pH changed protonation and favored H-bonding. The aluminic layer was protonated up to pH 6 and then its deprotonation process was affected by ionic strength. The presence of H+ in the W-SiO-H system did not allow water molecules to interact with the inner halloysite layer. The preferred protonated site in the acidic chemical environment was the aluminic surface, which was slightly stabler than its silicic counterpart. In addition, the formation of H3O+ species on the positively charged silicic layer made the systems in which it was present much stabler than their analogous version on the aluminic layer [36].

3.2. UV-VIS-NIR

We represent the reflectance factors ρ(λ) for both nanoclays and hybrid pigments. We observed that both nanoclays reflected more than 60% NIR radiation from 700–1400 nm, with reflectance decay of 20%. As expected, significant differences appeared when chlorophyll dye (CP) was incorporated into both the nanoclays. In the halloysite hybrids (GHA), NIR reflectance lowered to negative values from 1600–2700 nm, which means radiation absorption. This phenomenon appeared in all the GHA samples, except for the two samples with no surfactant and mordant salt. Another remarkable phenomenon that affected the optical properties and the final TSR% from both hybrid pigments was VIS reflectance. The laponite hybrid pigments (GLAP) showed less reflectance in UV-VIS, and a close NIR from 700 to 1400 nm, than the GHA samples (Figure 4 and Figure 5).

3.2.1. Total Solar Reflectance %

The total solar reflectance calculation requires taking raw reflectance data and applying the solar weighting factors for each collected wavelength. These factors and calculations are included in the respective norms ASTM G173-03 [37]. The total solar reflectance coefficient TSR (%) calculation subtraction (1 – TSR) corresponds to the degree of total solar absorption of the nanoclay/hybrid pigment. Figure 6 depicts how there were no significant differences between the TSR of the original nanoclays. However, the hybrid pigments from halloysite had higher TSR values than the hybrid pigments from laponite.
In addition, differences appeared between the synthesis factors using TSR (%) as a response to maximize. According to the ANOVA analysis, to maximize the TSR values the optimal levels were obtained for the halloysite nanoclay with no surfactant and mordant, and neither pH nor the silane modifier factors had any influence (Figure 7). However, significant interactions took place. No influence was noted for the laponite clay in the presence of the surfactant, while halloysite obtained the highest results without this modifier.
At an acidic pH, the presence of silane had a significant influence because the TSR of the hybrid pigments abruptly lowered. However at a natural pH, the effect of silane-treated nanoclay was the exact opposite because the TSR values of the hybrid pigments increased (Figure 8). The functional role of the chemical silane treatment on the hydrophilic halloysite surface contributed with rearranged and delaminated HNT particles, which improved their exfoliation in the polymer matrix and could reflect solar radiation [38]. For instance, we found that this effect in the interaction analysis depended on the pH level, which also affected the nanoclay sheets arrangement.

3.2.2. Chromatic Diagrams

Once the spectral analysis of all samples was carried out, a direct comparison of all the hybrid pigments at the colorimetric level was made. For the colorimetric calculations of each hybrid pigment or clay, the main CIE 15:2004 standard [39] guidelines of the International Commission on Illumination and Color (CIE) were followed to make the absolute and relative colorimetric comparisons. The colorimetric CIELAB parameters codified by the CIE 1931 xyz patron and D65 standard illumination were used. The CIE a*b* and CIE-Cab*L* diagrams in Figure 9 showed significant differences according to the nanoclay and the synthesis process. The GHA pigments became greenish and yellowish samples. The chroma (Cab*) and lightness L* attributes were also higher in the GHA samples. The DoE analysis showed that more chromatic samples were found in the presence of the surfactant, but the main difference in that parameter was due to the nanoclay (Table 4) (Figure 10). Darker samples were obtained with the laponite nanoclays when the surfactant was present and at a natural pH (Table 5) (Figure 11).

3.3. XRD

The XRD pattern of the halloysite and GHA hybrids exhibited the characteristic peaks at 2θ = 8°, 13°, 22.8°, 28°, 31°, 58°, and 67° [40,41]. In these samples, the first halloysite peak appeared at 11.5°, with an increase to 12.3° in all the GHA samples. This increase corresponded to an effect on the displacement of the d001 peaks, which indicates a short distance from 0.756 nm in the original nanoclay to 0.730 nm (GHA samples). The organic load onto the nanoclay structure under all the synthesis conditions resulted in clay layer compression, with no significant differences in the selected factors (Figure 12).
Therefore, as previously mentioned before, it was clear that the surface modification of laponite with hydrophobic groups greatly enhanced the intercalation of bulky hydrophobic molecules in laponite [16]. In Figure 11, the XRD patterns show the displacement of the d001 peaks over a longer distance, from 1.41 nm in the original nanoclay to 1.46–1.54 nm, depending on the synthesis conditions. However, no significant statistical differences were found due to the factor level changes. The displacement of laponite sheets was due to the organic compounds adsorption between the laponite basal spaces (Figure 13).

3.4. Thermal Analysis DTA

The thermograms of the original nanoclays and the GHAL or GLAP hybrid pigments were performed. In the laponite hybrid pigments, it was difficult to find peaks for the temperature degradation of the chlorophyll dye due to noise and the strongest nanoclay effect. It was only possible to see the reduced H2O desorption in the hybrid pigments due to water substitution occurring during the synthesis process. The same occurred with the halloysite hybrids (Figure 14). According to the literature [42,43], the two weight losses observed for halloysite could be due to loss of H2O and halloysite matrix dehydroxylation. The first peak assigned to H2O loss before 100 °C significantly decreased for all GHA hybrid samples [1_8]. DTA showed a mild endothermic and marked exothermic behavior at 100 °C and 300 °C, respectively, which is consistent with the TGA data, and showed the physical desorption of the sample’s adsorbed water at 100 °C and the oxidative desorption of organic compounds (chlorophyll, surfactant and silane) between 300–400 °C [44]. Therefore, all the hybrid samples displayed good thermal stability up to 300 °C. This analysis confirmed the formation of one phase because only one exothermic step was shown for the GHA samples (Figure 15).

3.5. Colour Fastness

The aging test was controlled by taking color measurements from t0 (initial) using the samples with the 10% hybrid pigment or the original dyes, to 102 h, which corresponds to three months with real sun exposure. Previous works have checked organic dye stabilization in nanoclay structures by changes in absorption curves [45]. We calculated the color difference (ΔEab*), and standardized the calculated values by natural dye content (g) in each sample (ΔEab*/g.dye). Standard errors were also calculated and represented to make comparisons. Figure 16 shows, the color UV–Vis fastness of chlorophyll natural dye increased when used as hybrid pigment with both nano-clays. The color differences calculated as ΔEab* (g.col) were significantly bigger for the sample with the original natural dye. For 22 h, the color differences of the samples with the original dye was bigger than 4 ΔEab* units, which corresponds to a marked visible change for the human eye, meanwhile the hybrid samples keep the color differences under 1 ΔEab* units (Figure 16). It is also remarkable that the color differences that we could observe in the biocomposites with both nanoclays were yellowish due to the epoxy resin degradation. However, in the sample generated with the natural chlorophyll the color difference corresponds to a significant dye degradation with lighter appearance.

4. Conclusions

In the present study, the adsorption of copper chlorophyll in two types of nanoclay structures, halloysite nanotubes and laponite sheets, was successfully achieved, which was found in the XRD pattern modifications and the DTA thermal analysis. By using DoE, we found interactions in different synthesis factors, which affected the final hybrid pigments. First, adsorption behavior was affected by pH and ionic strength from adding mordant salt. Maximum dye adsorption took place at an acidic pH with or without mordant salt, or at a natural pH in water dispersion when mordant salt was added. Optical properties were also affected by the modifiers during synthesis. TST (%) improved without silane under acidic conditions or with silane at natural pH. The halloysite hybrid pigments obtained higher TSR(%) values with no surfactant.
Color perceptions were affected, and darker samples were obtained with the laponite sample, the surfactant and at a natural pH, while the Chroma Cab* value increased. The highest values were obtained with the surfactant and halloysite samples. These new hybrid halloysite/laponite pigments can be optimized following the results of the DoE analysis to be used for different industrial applications, such as thermoplastic polymers for 3D printing filaments, packaging, coatings, inks, etc., and by putting to good use a wide natural color range and improved TSR (%) properties.
The color fastens was also improved in the biocomposites application. The samples generated with 10% of hybrid pigments (from HA or LAP clay), show higher colorfastness than the sample with the natural chlorophyll, due to the nanoclays-dye interaction and protection.

Author Contributions

Writing—original draft preparation, B.M.-V.; methodology, J.J.-N. and B.M.-V.; software, J.J.-N. and B.M.-V.; validation, E.P.R. and V.V.; formal analysis, J.J.-N. and B.M.-V.; investigation, J.J.-N. and B.M.-V.; resources, E.P.R. and V.V.; data curation, B.M.-V. and J.J.-N.; writing—review and editing, E.P.R. and V.V.; supervision, E.P.R. and V.V.; project administration, V.V., funding acquisition, V.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Spanish Ministry of Economy and Competitiveness (project RTI2018-096000-B-100).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

To the Spanish Ministry of Economy and Competitiveness for funding the project entitled: “Diseño y caracterización de la apariencia visual de productos” (REF: RTI2018-096000-B-100).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kuo, L.; Chang, B.-G. The Affecting Factors of Circular Economy Information and Its Impact on Corporate Economic Sustainability-Evidence from China. Sustain. Prod. Consum. 2021, 27, 986–997. [Google Scholar] [CrossRef]
  2. Bechtold, T.; Mussak, R. Handbook of Natural Colorants; John Wiley & Sons: Hoboken, NJ, USA, 2009. [Google Scholar]
  3. Micó-Vicent, B.; Viqueira, V.; Ramos, M.; Luzi, F.; Dominici, F.; Torre, L.; Jiménez, A.; Puglia, D.; Garrigós, M.C. Effect of Lemon Waste Natural Dye and Essential Oil Loaded into Laminar Nanoclays on Thermomechanical and Color Properties of Polyester Based Bionanocomposites. Polymers 2020, 12, 1451. [Google Scholar] [CrossRef] [PubMed]
  4. Shalini, S.; Prasanna, S.; Mallick, T.K.; Senthilarasu, S. Review on Natural Dye Sensitized Solar Cells: Operation, Materials and Methods. Renew. Sustain. Energy Rev. 2015, 51, 1306–1325. [Google Scholar] [CrossRef]
  5. Heinonen, J.; Farahmandazad, H.; Vuorinen, A.; Kallio, H.; Yang, B.; Sainio, T. Extraction and Purification of Anthocyanins from Purple-Fleshed Potato. Food Bioprod. Process. 2016, 99, 136–146. [Google Scholar] [CrossRef]
  6. Keppler, K.; Humpf, H.-U. Metabolism of Anthocyanins and Their Phenolic Degradation Products by the Intestinal Microflora. Bioorg. Med. Chem. 2005, 13, 5195–5205. [Google Scholar] [CrossRef] [PubMed]
  7. Taniguchi, M.; Lindsey, J.S. Synthetic Chlorins, Possible Surrogates for Chlorophylls, Prepared by Derivatization of Porphyrins. Chem. Rev. 2017, 117, 344–535. [Google Scholar] [CrossRef]
  8. Mandal, R.; Dutta, G. From Photosynthesis to Biosensing: Chlorophyll Proves to Be a Versatile Molecule. Sens. Int. 2020, 1, 100058. [Google Scholar] [CrossRef]
  9. Dhafina, W.A.; Daud, M.Z.; Salleh, H. The Sensitization Effect of Anthocyanin and Chlorophyll Dyes on Optical and Photovoltaic Properties of Zinc Oxide Based Dye-Sensitized Solar Cells. Optik 2019, 207, 163808. [Google Scholar] [CrossRef]
  10. Nan, H.; Shen, H.-P.; Wang, G.; Xie, S.-D.; Yang, G.-J.; Lin, H. Studies on the Optical and Photoelectric Properties of Anthocyanin and Chlorophyll as Natural Co-Sensitizers in Dye Sensitized Solar Cell. Opt. Mater. 2017, 73, 172–178. [Google Scholar] [CrossRef]
  11. Di Natale, C.; Monti, D.; Paolesse, R. Chemical Sensitivity of Porphyrin Assemblies. Mater. Today 2010, 13, 46–52. [Google Scholar] [CrossRef]
  12. Au, P.-I.; Hassan, S.; Liu, J.; Leong, Y.-K. Behaviour of LAPONITE® Gels: Rheology, Ageing, PH Effect and Phase State in the Presence of Dispersant. Chem. Eng. Res. Des. 2015, 101, 65–73. [Google Scholar] [CrossRef]
  13. Coelho Leandro, G.; Capello, C.; Luiza Koop, B.; Garcez, J.; Rodrigues Monteiro, A.; Ayala Valencia, G. Adsorption-Desorption of Anthocyanins from Jambolan (Syzygium Cumini) Fruit in Laponite® Platelets: Kinetic Models, Physicochemical Characterization, and Functional Properties of Biohybrids. Food Res. Int. 2021, 140, 109903. [Google Scholar] [CrossRef] [PubMed]
  14. Charaabi, S.; Tchara, L.; Marminon, C.; Bouaziz, Z.; Holtzinger, G.; Pensé-Lhéritier, A.-M.; Le Borgne, M.; Issa, S. A Comparative Adsorption Study of Benzophenone-3 onto Synthesized Lipophilic Organosilicate, Laponite and Montmorillonite. Appl. Clay Sci. 2019, 170, 114–124. [Google Scholar] [CrossRef]
  15. Salleres, S.; López Arbeloa, F.; Martínez, V.; Corcóstegui, C.; López Arbeloa, I. Effect of Surfactant C12TMA Molecules on the Self-Association of R6G Dye in Thin Films of Laponite Clay. Mater. Chem. Phys. 2009, 116, 550–556. [Google Scholar] [CrossRef]
  16. Park, M.; Shim, I.-K.; Jung, E.-Y.; Choy, J.-H. Modification of External Surface of Laponite by Silane Grafting. J. Phys. Chem. Solids 2004, 65, 499–501. [Google Scholar] [CrossRef]
  17. Kausar, A.; Iqbal, M.; Javed, A.; Aftab, K.; Nazli, Z.-H.; Bhatti, H.N.; Nouren, S. Dyes Adsorption Using Clay and Modified Clay: A Review. J. Mol. Liq. 2018, 256, 395–407. [Google Scholar] [CrossRef]
  18. Micó-Vicent, B.; Martínez-Verdú, F.M.; Novikov, A.; Stavitskaya, A.; Vinokurov, V.; Rozhina, E.; Fakhrullin, R.; Yendluri, R.; Lvov, Y. Stabilized Dye–Pigment Formulations with Platy and Tubular Nanoclays. Adv. Funct. Mater. 2018, 28, 1703553. [Google Scholar] [CrossRef]
  19. Riela, S.; Barattucci, A.; Barreca, D.; Campagna, S.; Cavallaro, G.; Lazzara, G.; Massaro, M.; Pizzolanti, G.; Salerno, T.M.G.; Bonaccorsi, P.; et al. Boosting the Properties of a Fluorescent Dye by Encapsulation into Halloysite Nanotubes. Dyes Pigments 2021, 187, 109094. [Google Scholar] [CrossRef]
  20. Kanani-Jazi, M.H.; Akbari, S. Amino-Dendritic and Carboxyl Functionalized Halloysite Nanotubes for Highly Efficient Removal of Cationic and Anionic Dyes: Kinetic, Isotherm, and Thermodynamic Studies. J. Environ. Chem. Eng. 2021, 9, 105214. [Google Scholar] [CrossRef]
  21. Alam, Q.; Bartczak, P.; Paananen, H.; Suvanto, M.; Pakkanen, T.T. Modification of Halloysite Nanotubes with Xanthene Dyes and Their Application in Luminescent Polymer Nanocomposites. J. Lumin. 2020, 221, 117096. [Google Scholar] [CrossRef]
  22. Marchante Rodríguez, V.; Martínez-Verdú, F.M.; Beltrán Rico, M.I.; Marcilla Gomis, A. Mechanical, Thermal and Colorimetric Properties of LLDPE Coloured with a Blue Nanopigment and Conventional Blue Pigments. Pigment Resin Technol. 2012, 41, 263–269. [Google Scholar] [CrossRef]
  23. Raha, S.; Ivanov, I.; Quazi, N.H.; Bhattacharya, S.N. Photo-Stability of Rhodamine-B/Montmorillonite Nanopigments in Polypropylene Matrix. Appl. Clay Sci. 2009, 42, 661–666. [Google Scholar] [CrossRef]
  24. Bee, S.L.; Abdullah, M.A.A.; Bee, S.T.; Sin, L.T.; Rahmat, A.R. Polymer Nanocomposites Based on Silylated-Montmorillonite: A Review. Prog. Polym. Sci. 2018, 85, 57–82. [Google Scholar] [CrossRef]
  25. Tornuk, F.; Sagdic, O.; Hancer, M.; Yetim, H. Development of LLDPE Based Active Nanocomposite Films with Nanoclays Impregnated with Volatile Compounds. Food Res. Int. 2018, 107, 337–345. [Google Scholar] [CrossRef] [PubMed]
  26. Park, H.-M.; Lee, W.-K.; Park, C.-Y.; Cho, W.-J.; Ha, C.-S. Environmentally Friendly Polymer Hybrids Part I Mechanical, Thermal, and Barrier Properties of Thermoplastic Starch/Clay Nanocomposites. J. Mater. Sci. 2003, 38, 909–915. [Google Scholar] [CrossRef]
  27. Porter, D.; Metcalfe, E.; Thomas, M.J.K. Nanocomposite Fire Retardants—A Review. Fire Mater. 2000, 24, 45–52. [Google Scholar] [CrossRef]
  28. Acharya, H.; Srivastava, S.K.; Bhowmick, A.K. Synthesis of Partially Exfoliated EPDM/LDH Nanocomposites by Solution Intercalation: Structural Characterization and Properties. Compos. Sci. Technol. 2007, 67, 2807–2816. [Google Scholar] [CrossRef]
  29. Krarti, M. Integrated Design of Energy Efficient Cities. In Optimal Design and Retrofit of Energy Efficient Buildings, Communities, and Urban Centers; Butterworth-Heinemann: Oxford, UK, 2018. [Google Scholar] [CrossRef]
  30. Santamouris, M. Cooling the Cities—A Review of Reflective and Green Roof Mitigation Technologies to Fight Heat Island and Improve Comfort in Urban Environments. Sol. Energy 2014, 103, 682–703. [Google Scholar] [CrossRef]
  31. Maharjan, S.; Liao, K.S.; Wang, A.J.; Curran, S.A. Highly Effective Hydrophobic Solar Reflective Coating for Building Materials: Increasing Total Solar Reflectance via Functionalized Anatase Immobilization in an Organosiloxane Matrix. Constr. Build. Mater. 2020, 243, 118189. [Google Scholar] [CrossRef]
  32. Micó-Vicent, B.; Jordán, J.; Perales, E.; Martínez-Verdú, F.; Cases, F. Finding the Additives Incorporation Moment in Hybrid Natural Pigments Synthesis to Improve Bioresin Properties. Coatings 2019, 9, 34. [Google Scholar] [CrossRef]
  33. Asgar, H.; Jin, J.; Miller, J.; Kuzmenko, I.; Gadikota, G. Contrasting Thermally-Induced Structural and Microstructural Evolution of Alumino-Silicates with Tubular and Planar Arrangements: Case Study of Halloysite and Kaolinite. Colloids Surf. A Physicochem. Eng. Asp. 2021, 613, 126106. [Google Scholar] [CrossRef]
  34. Krasilin, A.A.; Danilovich, D.P.; Yudina, E.B.; Bruyere, S.; Ghanbaja, J.; Ivanov, V.K. Crystal Violet Adsorption by Oppositely Twisted Heat-Treated Halloysite and Pecoraite Nanoscrolls. Appl. Clay Sci. 2019, 173, 1–11. [Google Scholar] [CrossRef]
  35. Belkassa, K.; Khelifa, M.; Batonneau-Gener, I.; Marouf-Khelifa, K.; Khelifa, A. Understanding of the Mechanism of Crystal Violet Adsorption on Modified Halloysite: Hydrophobicity, Performance, and Interaction. J. Hazard. Mater. 2021, 415, 125656. [Google Scholar] [CrossRef]
  36. Rozza, R.; Ferrante, F. Computational Study of Water Adsorption on Halloysite Nanotube in Different PH Environments. Appl. Clay Sci. 2020, 190, 105589. [Google Scholar] [CrossRef]
  37. ASTM. Standard Tables for Reference Solar Spectral Irradiances: Direct Normal and Hemispherical on 37° Tilted Surface; ASTM International: West Conshohocken, PA, USA, 2013; pp. 1–21. [Google Scholar] [CrossRef]
  38. Albdiry, M.T.; Yousif, B.F. Morphological Structures and Tribological Performance of Unsaturated Polyester Based Untreated/Silane-Treated Halloysite Nanotubes. Mater. Des. 2013, 48, 68–76. [Google Scholar] [CrossRef]
  39. Grum, F.; Witzel, R.F.; Stensby, P. Evaluation of Whiteness. J. Opt. Soc. Am. 1974, 64, 210–215. [Google Scholar] [CrossRef] [PubMed]
  40. Zhu, H.; Du, M.; Zou, M.; Xu, C.; Fu, Y. Green Synthesis of Au Nanoparticles Immobilized on Halloysite Nanotubes for Surface-Enhanced Raman Scattering Substrates. Dalt. Trans. 2012, 41, 10465–10471. [Google Scholar] [CrossRef] [PubMed]
  41. Yuan, P.; Southon, P.D.; Liu, Z.; Green, M.E.R.; Hook, J.M.; Antill, S.J.; Kepert, C.J. Functionalization of Halloysite Clay Nanotubes by Grafting with γ-Aminopropyltriethoxysilane. J. Phys. Chem. C 2008, 112, 15742–15751. [Google Scholar] [CrossRef]
  42. Bordeepong, S.; Bhongsuwan, D.; Pungrassami, T.; Bhongsuwan, T. Characterization of Halloysite from Thung Yai District, Nakhon Si Thammarat Province, in Southern Thailand. Songklanakarin J. Sci. Technol. 2011, 33, 599–607. [Google Scholar]
  43. Zatta, L.; da Costa Gardolinski, J.E.F.; Wypych, F. Raw Halloysite as Reusable Heterogeneous Catalyst for Esterification of Lauric Acid. Appl. Clay Sci. 2011, 51, 165–169. [Google Scholar] [CrossRef]
  44. Mehraban, Z.; Farzaneh, F.; Shafiekhani, A. Synthesis and Characterization of a New Organic–Inorganic Hybrid NiO–Chlorophyll-a as Optical Material. Opt. Mater. 2007, 29, 927–931. [Google Scholar] [CrossRef]
  45. Kohno, Y.; Totsuka, K.; Ikoma, S.; Yoda, K.; Shibata, M.; Matsushima, R.; Tomita, Y.; Maeda, Y.; Kobayashi, K. Photostability Enhancement of Anionic Natural Dye by Intercalation into Hydrotalcite. J. Colloid Interface Sci. 2009, 337, 117–121. [Google Scholar] [CrossRef] [PubMed]
Applsci 11 05568 g001

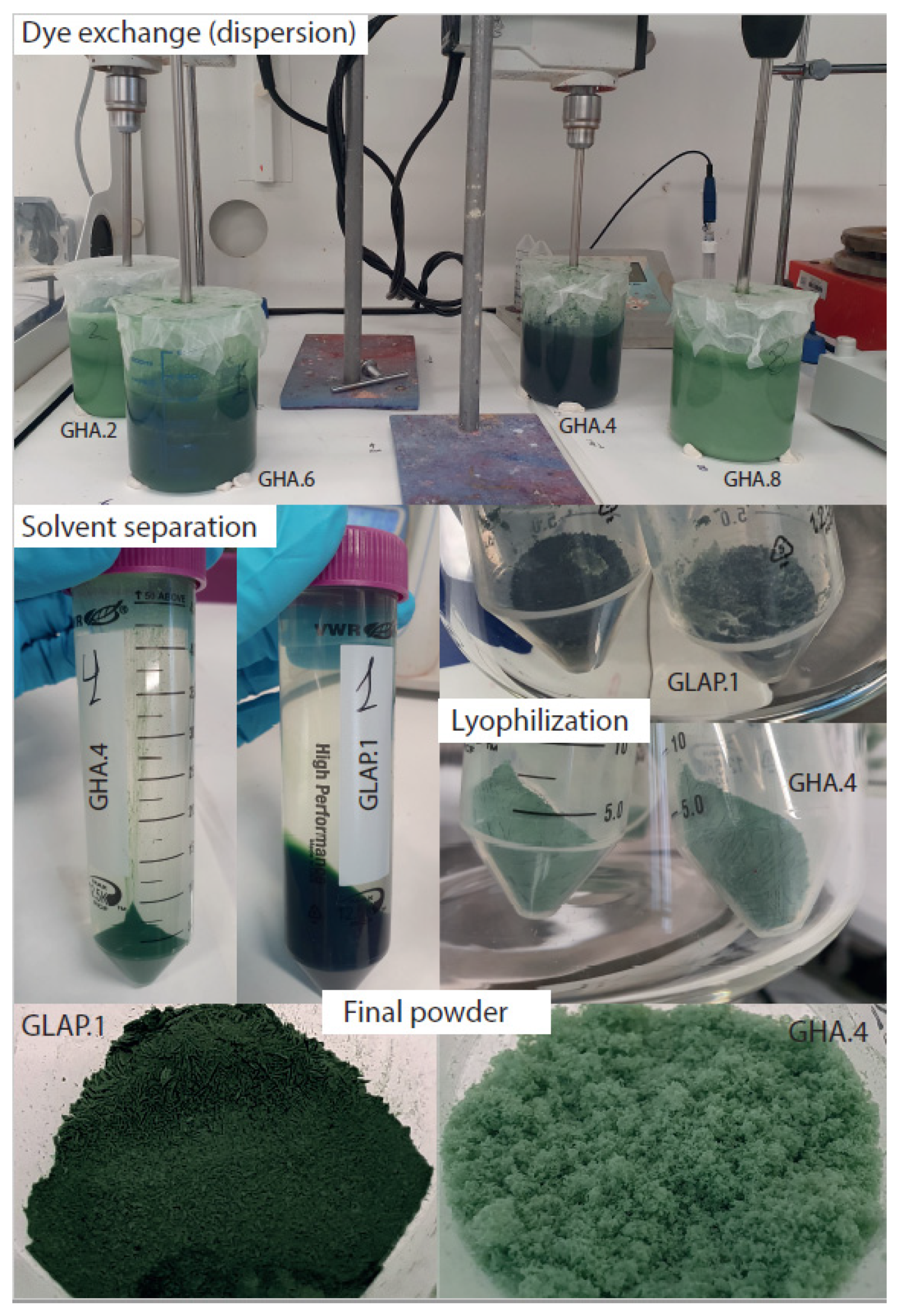

Figure 1. Synthesis steps pictures with halloysite (GHA) and laponite (GLAP) examples.
Figure 1. Synthesis steps pictures with halloysite (GHA) and laponite (GLAP) examples.
Applsci 11 05568 g001
Applsci 11 05568 g002

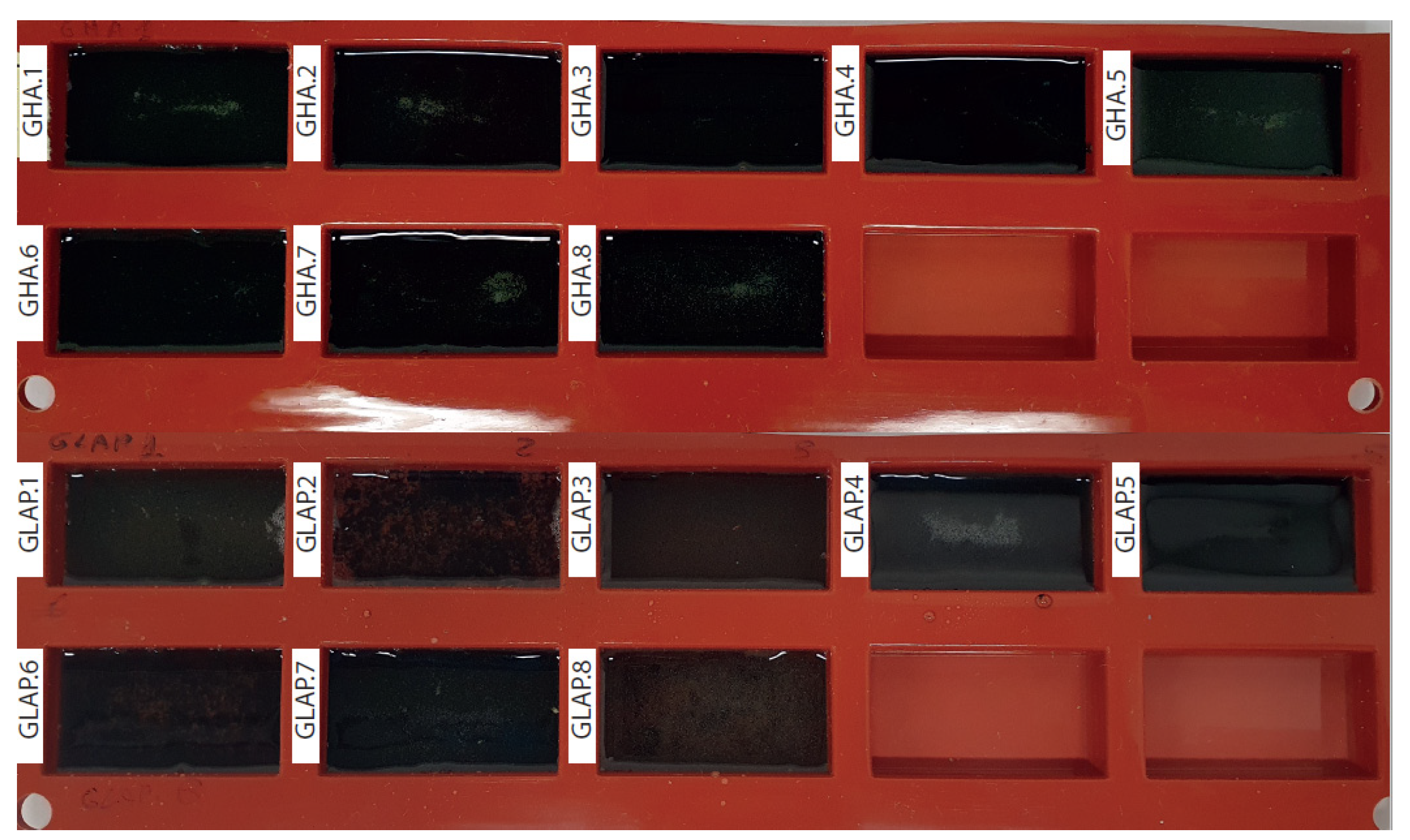

Figure 2. Biocomposite preparation after epoxy 55 curing step with GHA and GLAP hybrid pigment addition at different synthesis conditions.
Figure 2. Biocomposite preparation after epoxy 55 curing step with GHA and GLAP hybrid pigment addition at different synthesis conditions.
Applsci 11 05568 g002
Applsci 11 05568 g003

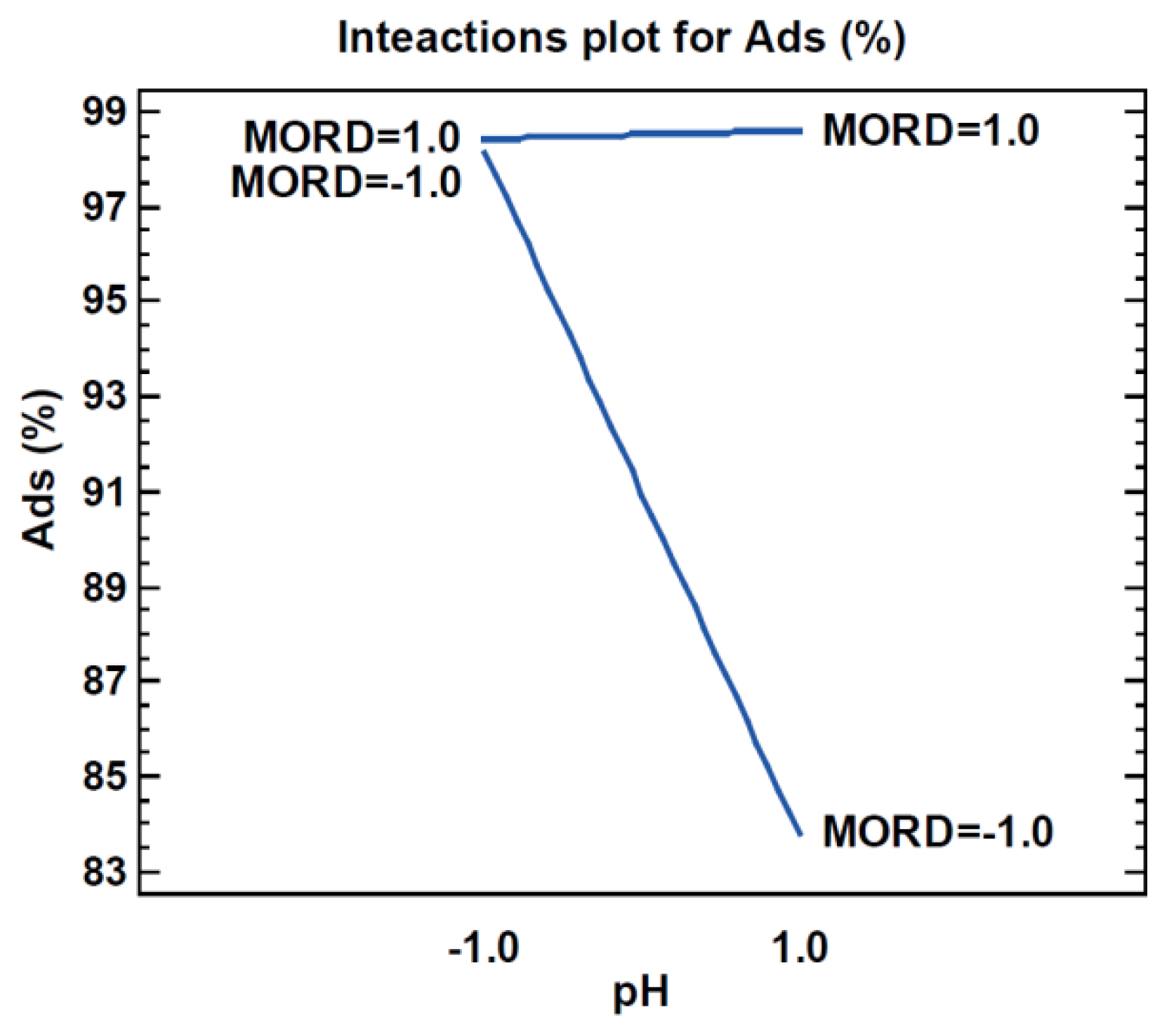

Figure 3. Interactions plot for the synthesis performance as the percentage of dye adsorbed (Ads (%)) under different conditions with pH and MORD levels.
Figure 3. Interactions plot for the synthesis performance as the percentage of dye adsorbed (Ads (%)) under different conditions with pH and MORD levels.
Applsci 11 05568 g003
Applsci 11 05568 g004

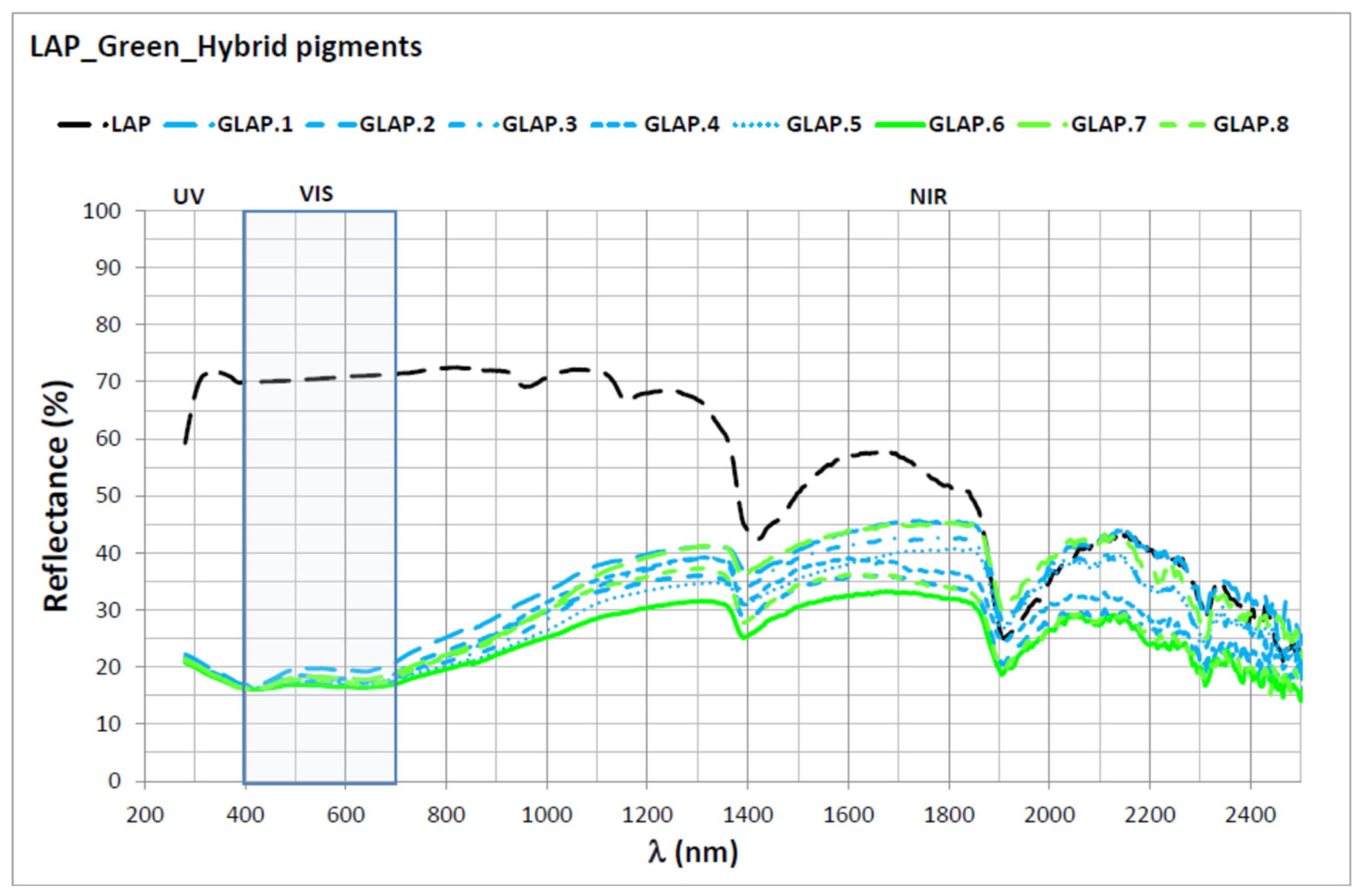

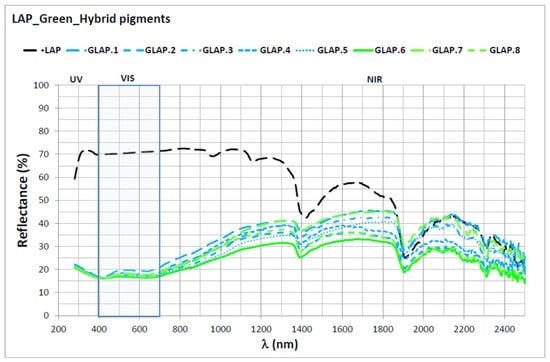

Figure 4. Spectral reflectance UV-VIS-NIR of laponite clay and chlorophyll hybrid pigments GLAP.
Figure 4. Spectral reflectance UV-VIS-NIR of laponite clay and chlorophyll hybrid pigments GLAP.
Applsci 11 05568 g004
Applsci 11 05568 g005

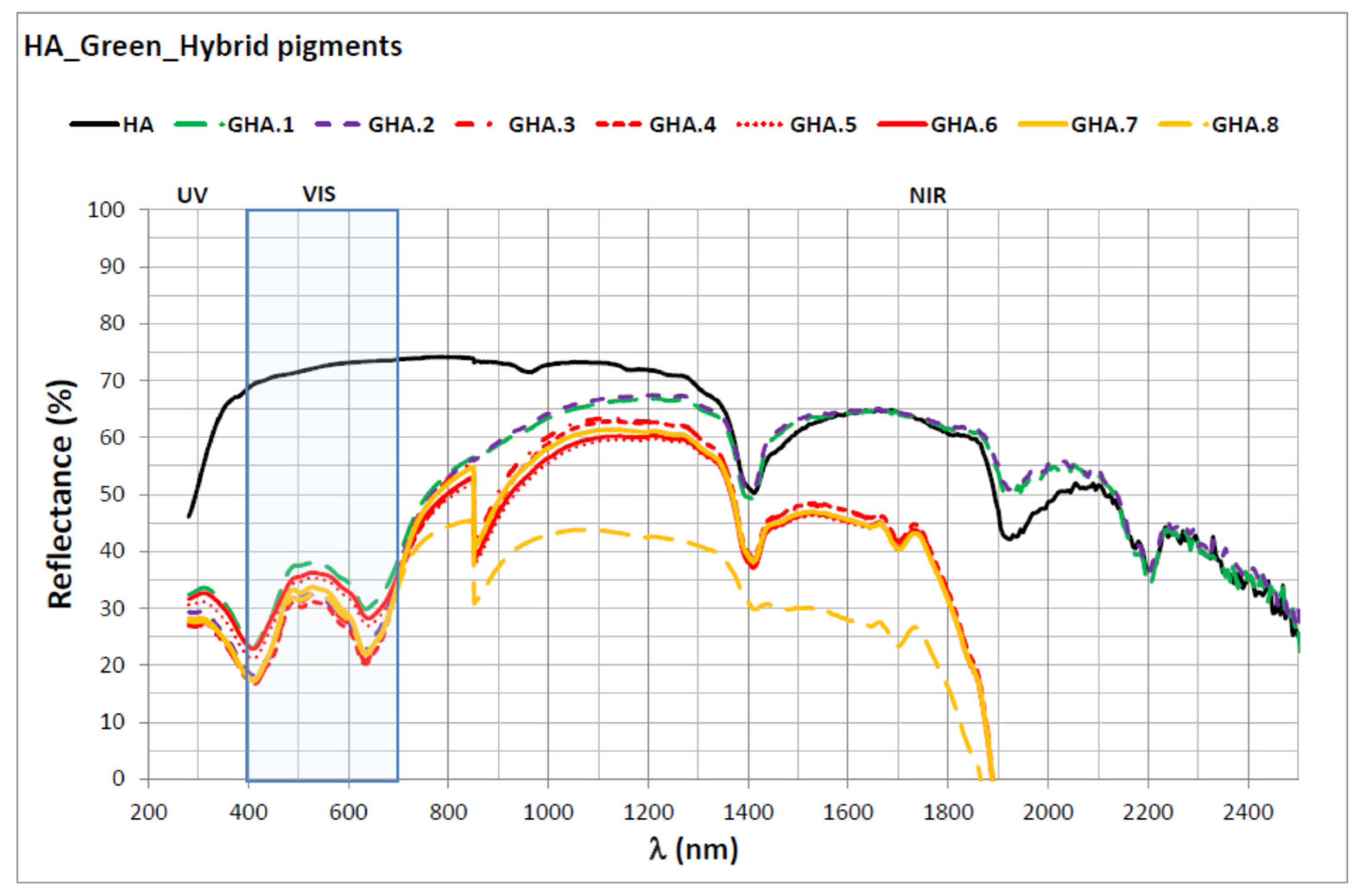

Figure 5. Spectral reflectance UV-VIS-NIR of halloysite clay and chlorophyll hybrid pigments GHA.
Figure 5. Spectral reflectance UV-VIS-NIR of halloysite clay and chlorophyll hybrid pigments GHA.
Applsci 11 05568 g005
Applsci 11 05568 g006

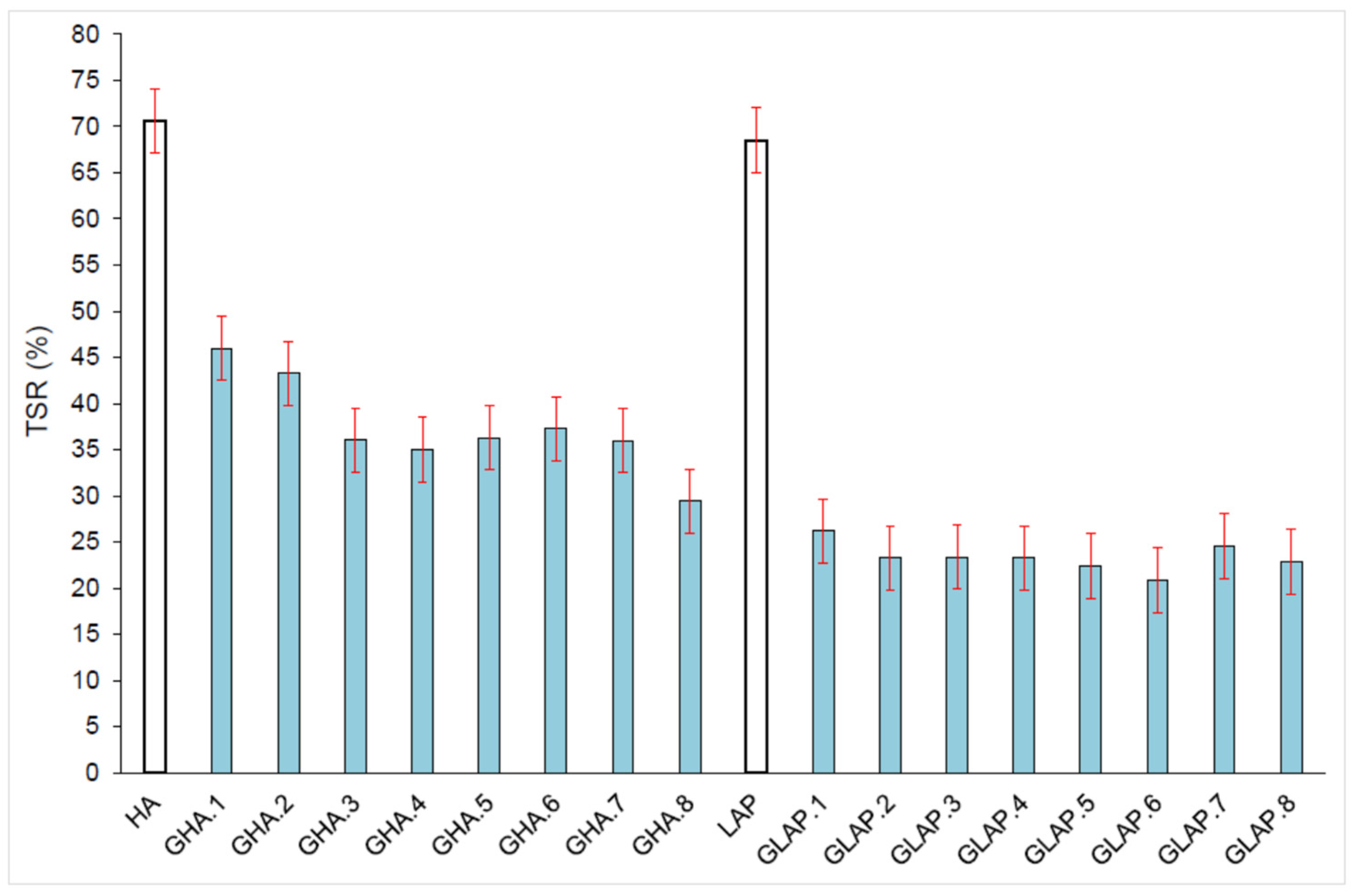

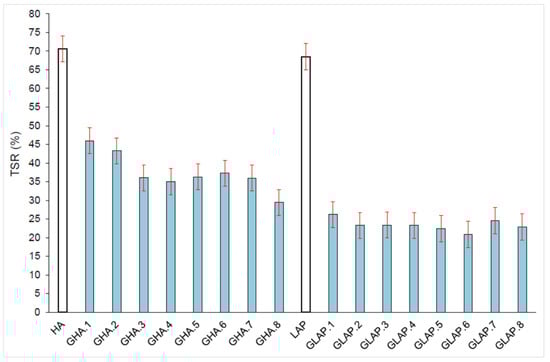

Figure 6. TSR (%) values from halloysite (HA), laponite (LAP), and chlorophyll hybrid pigments GLAP (1–8) and GHA (1–8).
Figure 6. TSR (%) values from halloysite (HA), laponite (LAP), and chlorophyll hybrid pigments GLAP (1–8) and GHA (1–8).
Applsci 11 05568 g006
Applsci 11 05568 g007

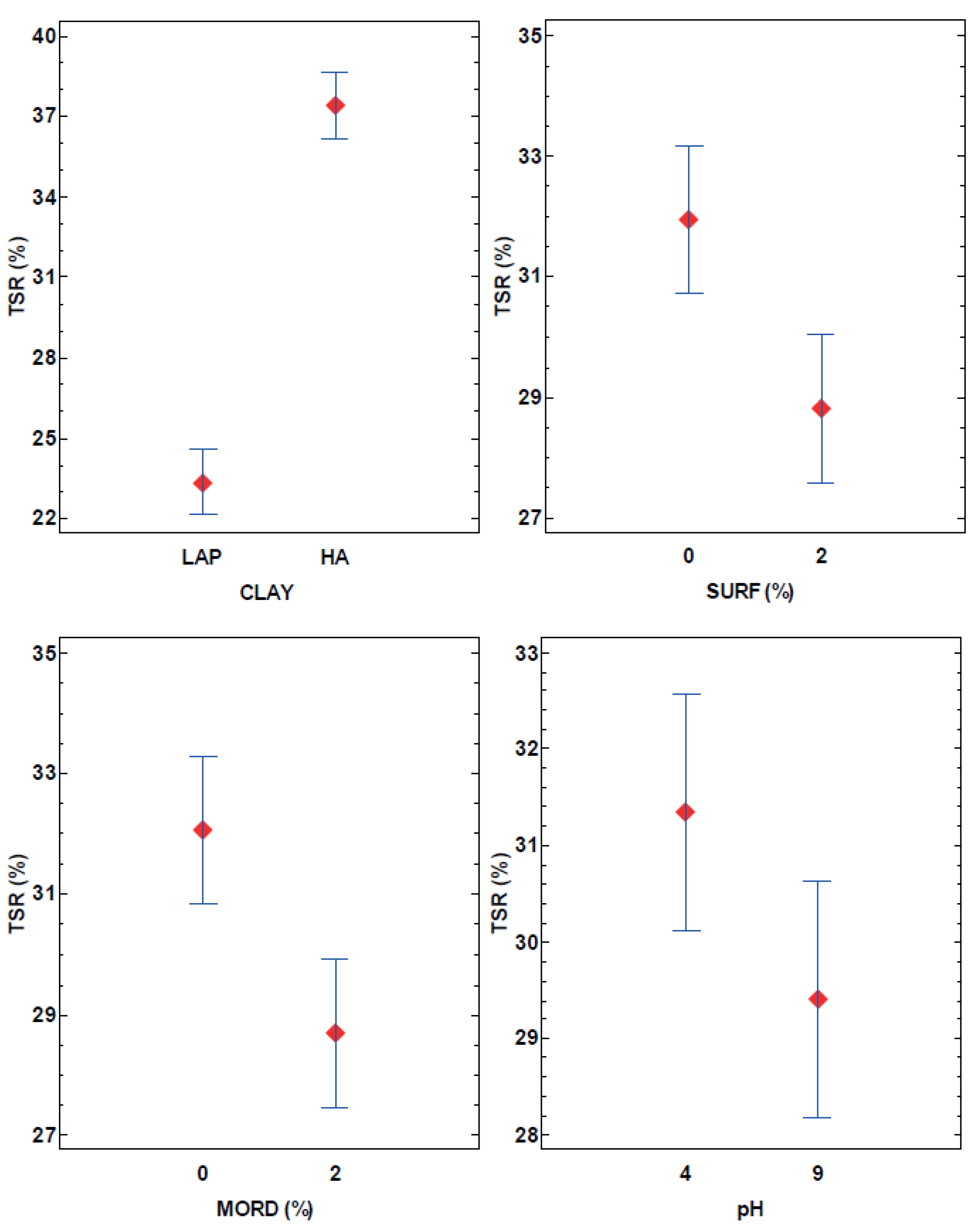

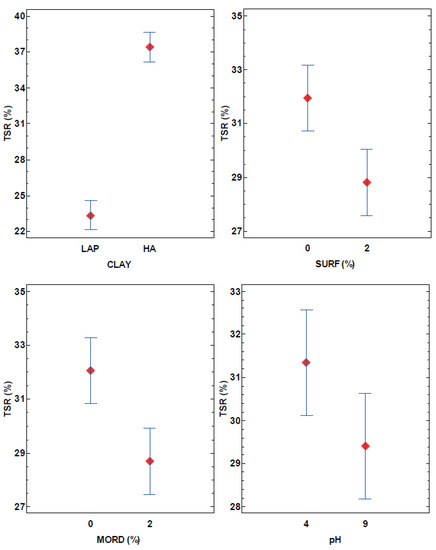

Figure 7. Mean plots of the LSD 95% confidence intervals from the TSR (%) response analysis.
Figure 7. Mean plots of the LSD 95% confidence intervals from the TSR (%) response analysis.
Applsci 11 05568 g007
Applsci 11 05568 g008

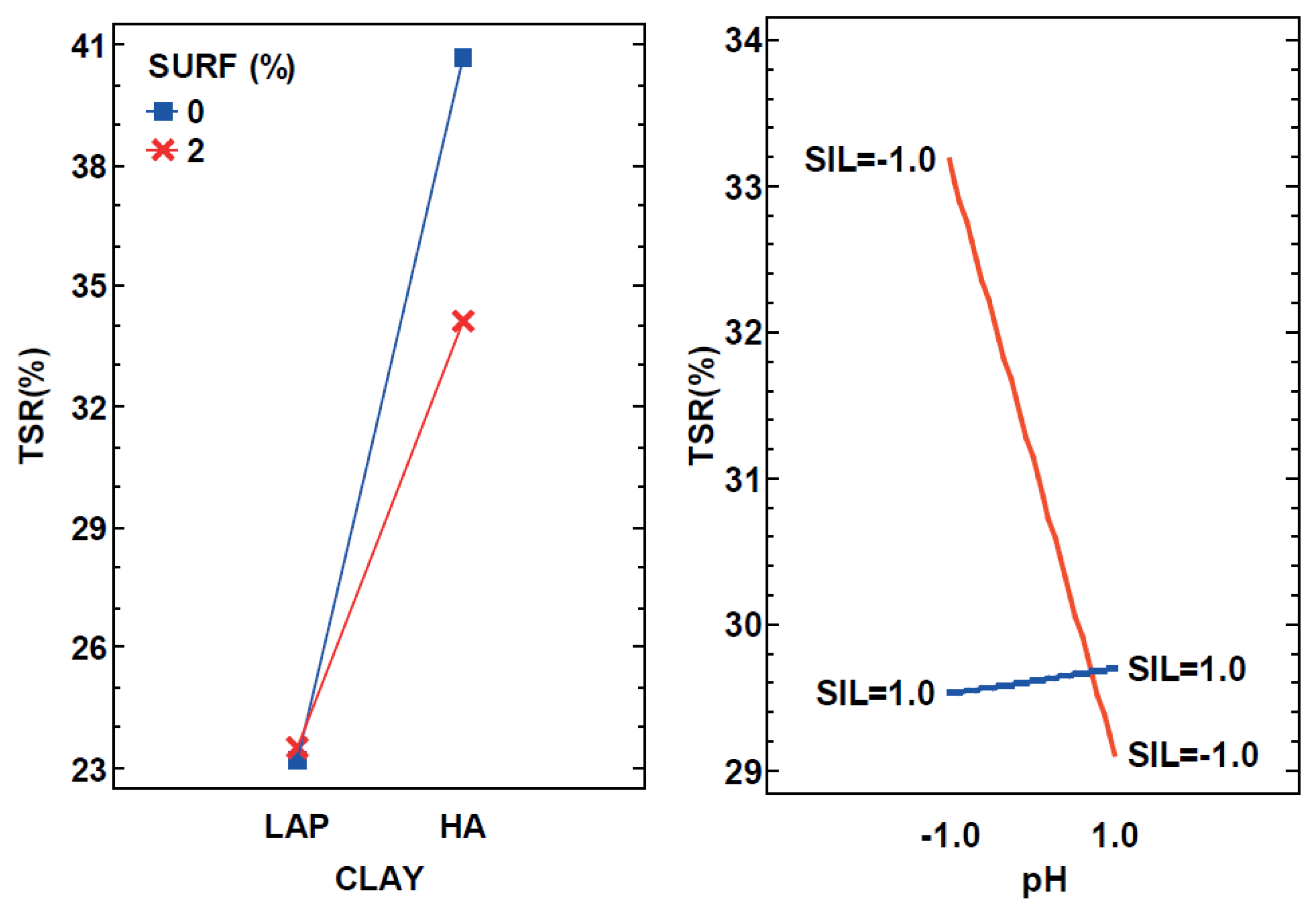

Figure 8. Interactions plot for TSR (%) with the pH and CLAY factors.
Figure 8. Interactions plot for TSR (%) with the pH and CLAY factors.
Applsci 11 05568 g008
Applsci 11 05568 g009

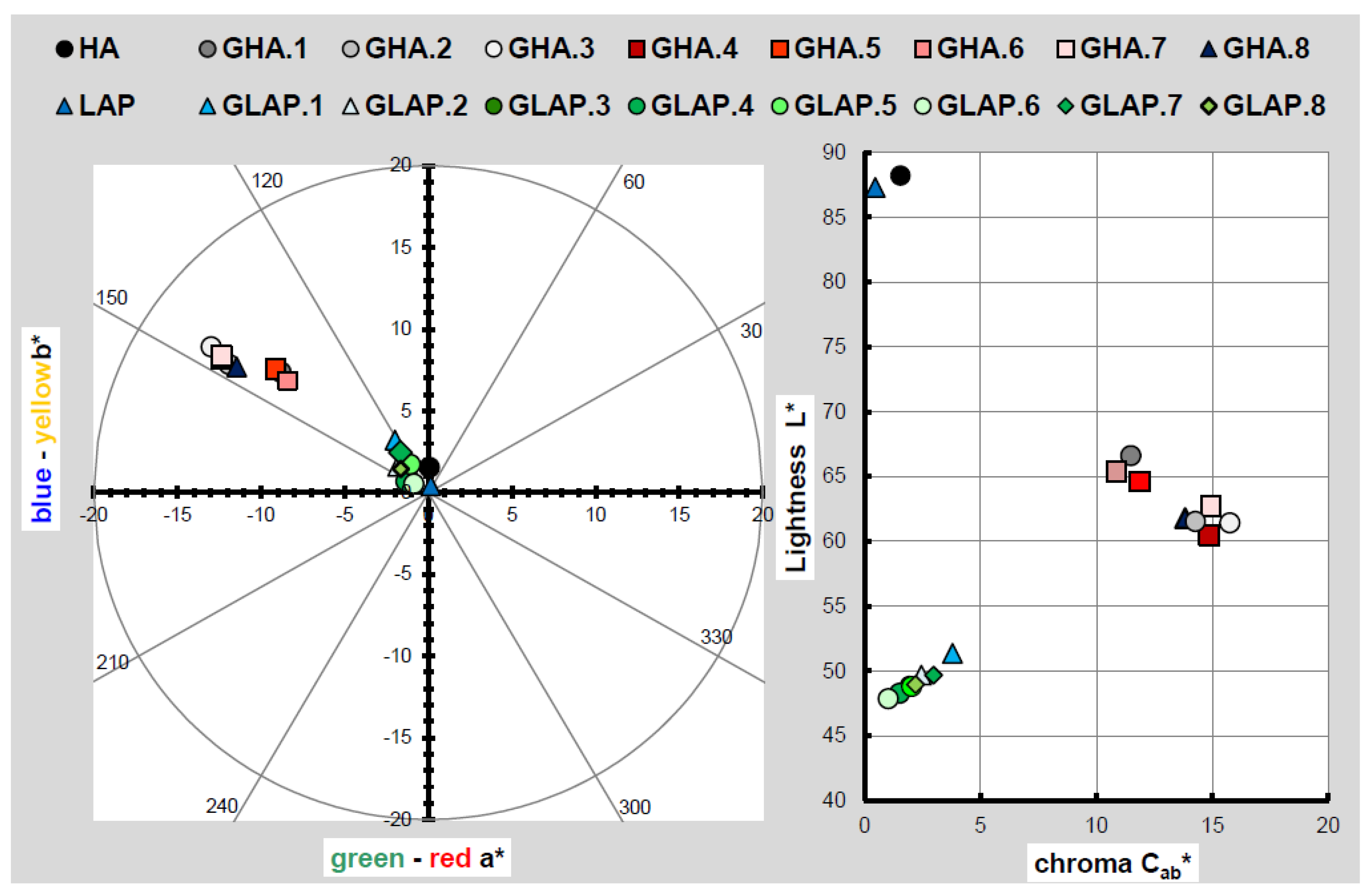

Figure 9. Graphic CIELAB plots for laponite (LAP), halloysite (HA) and the hybrid pigments with chlorophyll, GLAP and GHA using the D65 illuminant and the CIE-1931 XYZ standard observer. Left: CIE-a* b* color diagram; right: CIE-Cab* L* color chart.
Figure 9. Graphic CIELAB plots for laponite (LAP), halloysite (HA) and the hybrid pigments with chlorophyll, GLAP and GHA using the D65 illuminant and the CIE-1931 XYZ standard observer. Left: CIE-a* b* color diagram; right: CIE-Cab* L* color chart.
Applsci 11 05568 g009
Applsci 11 05568 g010

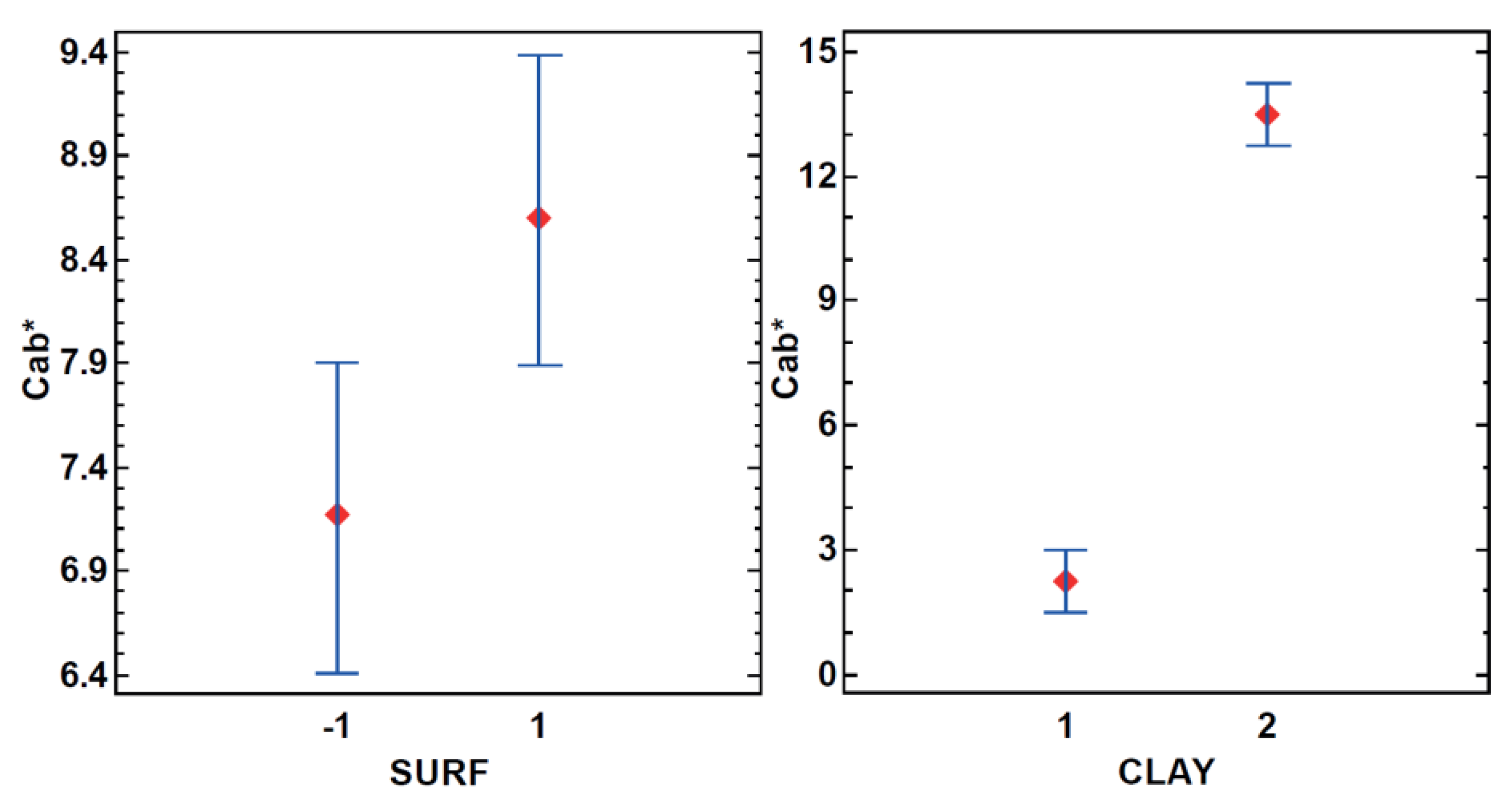

Figure 10. The LSD median plots for the SURF and CLAY factors with the Cab* response.
Figure 10. The LSD median plots for the SURF and CLAY factors with the Cab* response.
Applsci 11 05568 g010
Applsci 11 05568 g011

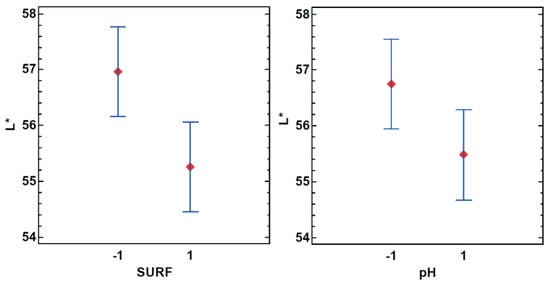

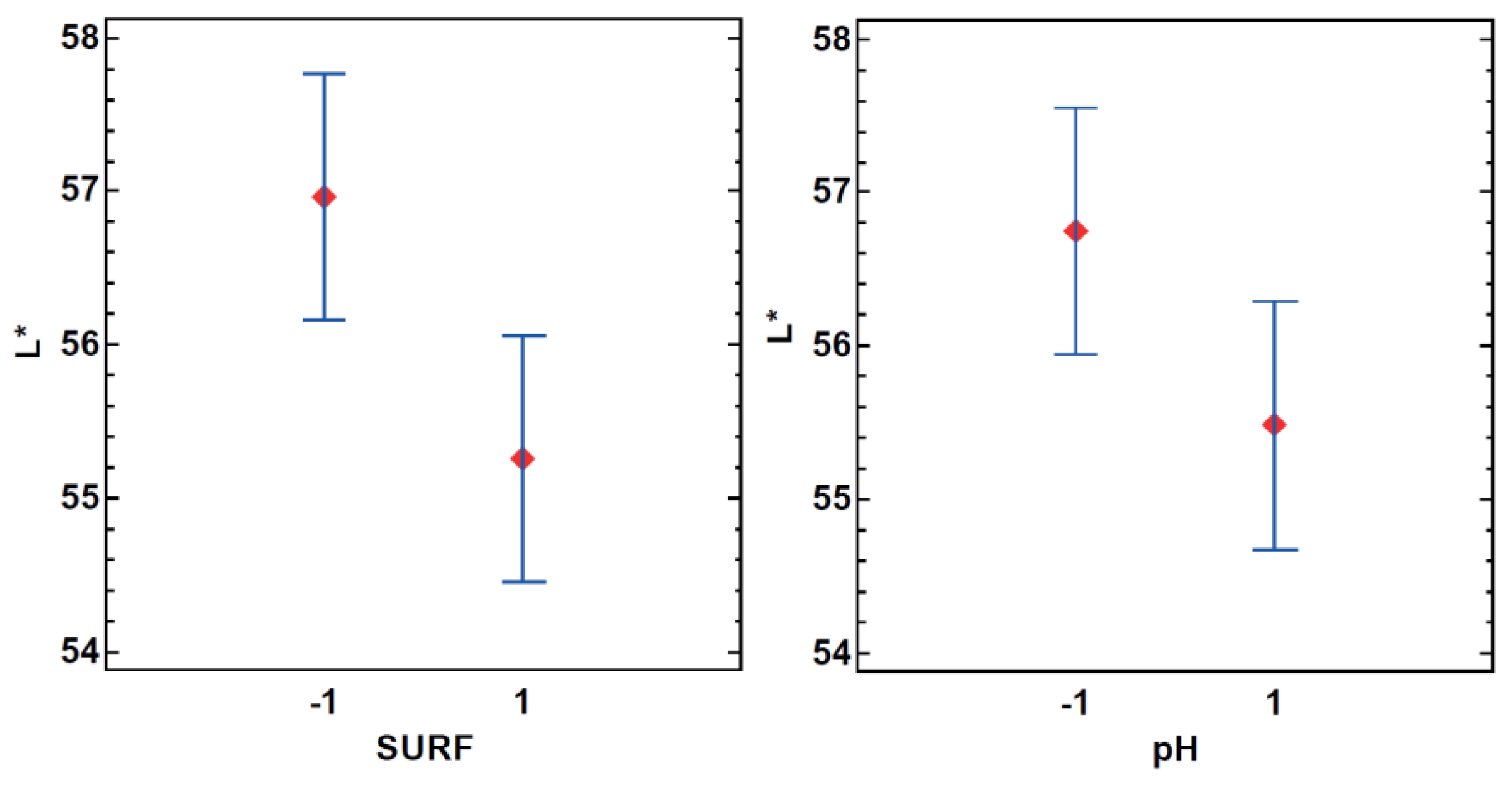

Figure 11. The LSD median plots for the SURF and CLAY factors with the L* response.
Figure 11. The LSD median plots for the SURF and CLAY factors with the L* response.
Applsci 11 05568 g011
Applsci 11 05568 g012

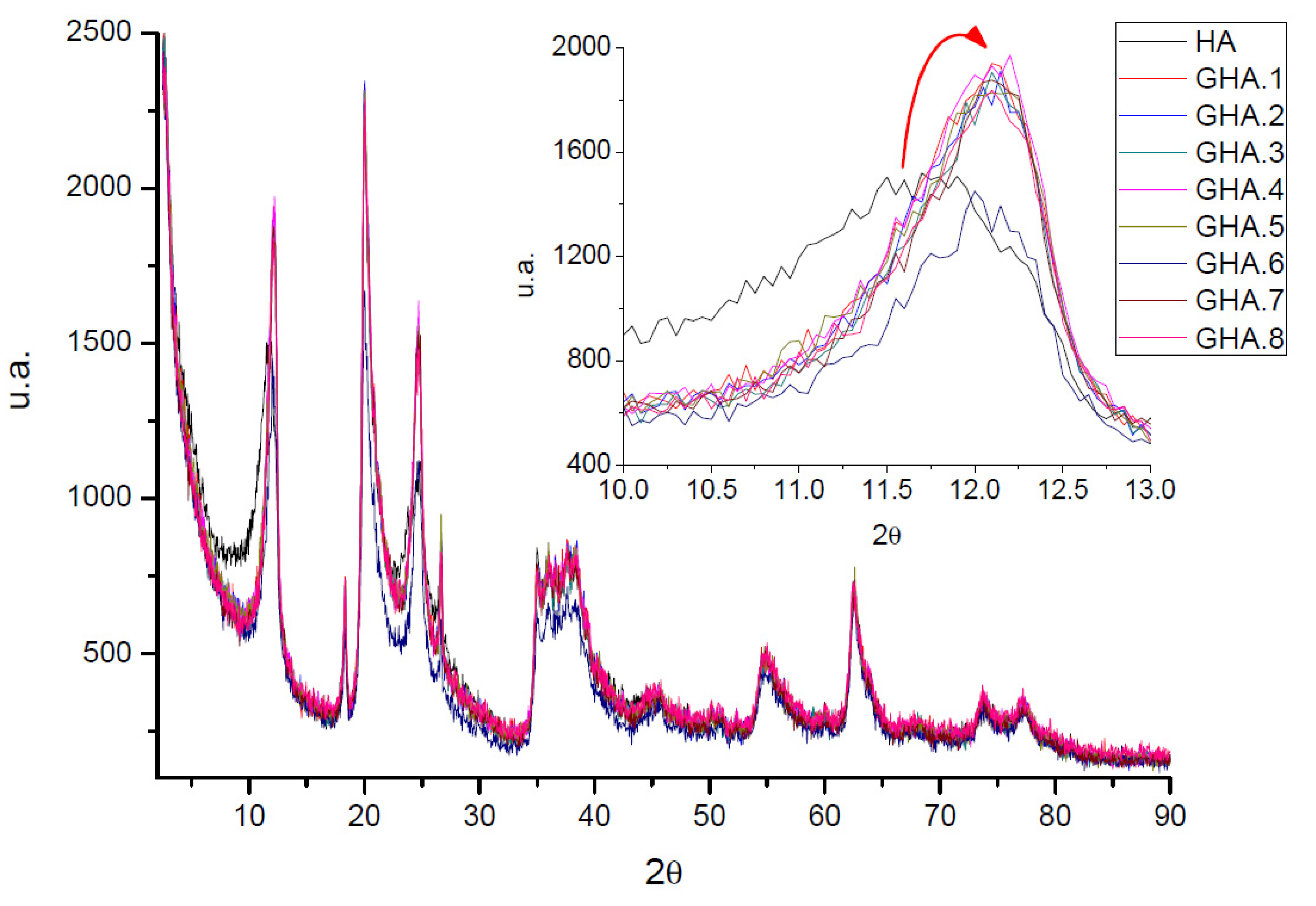

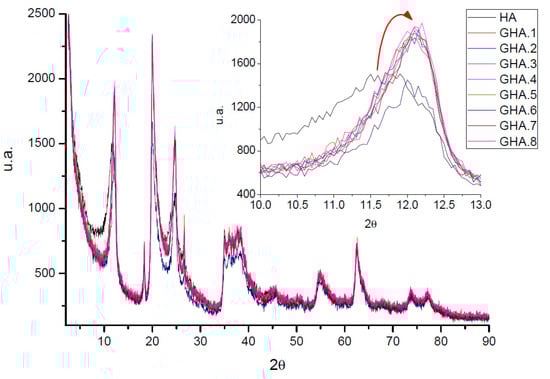

Figure 12. XRD patterns for the halloysite (HA), and the chlorophyll hybrid pigments [GHA.1_8].
Figure 12. XRD patterns for the halloysite (HA), and the chlorophyll hybrid pigments [GHA.1_8].
Applsci 11 05568 g012
Applsci 11 05568 g013

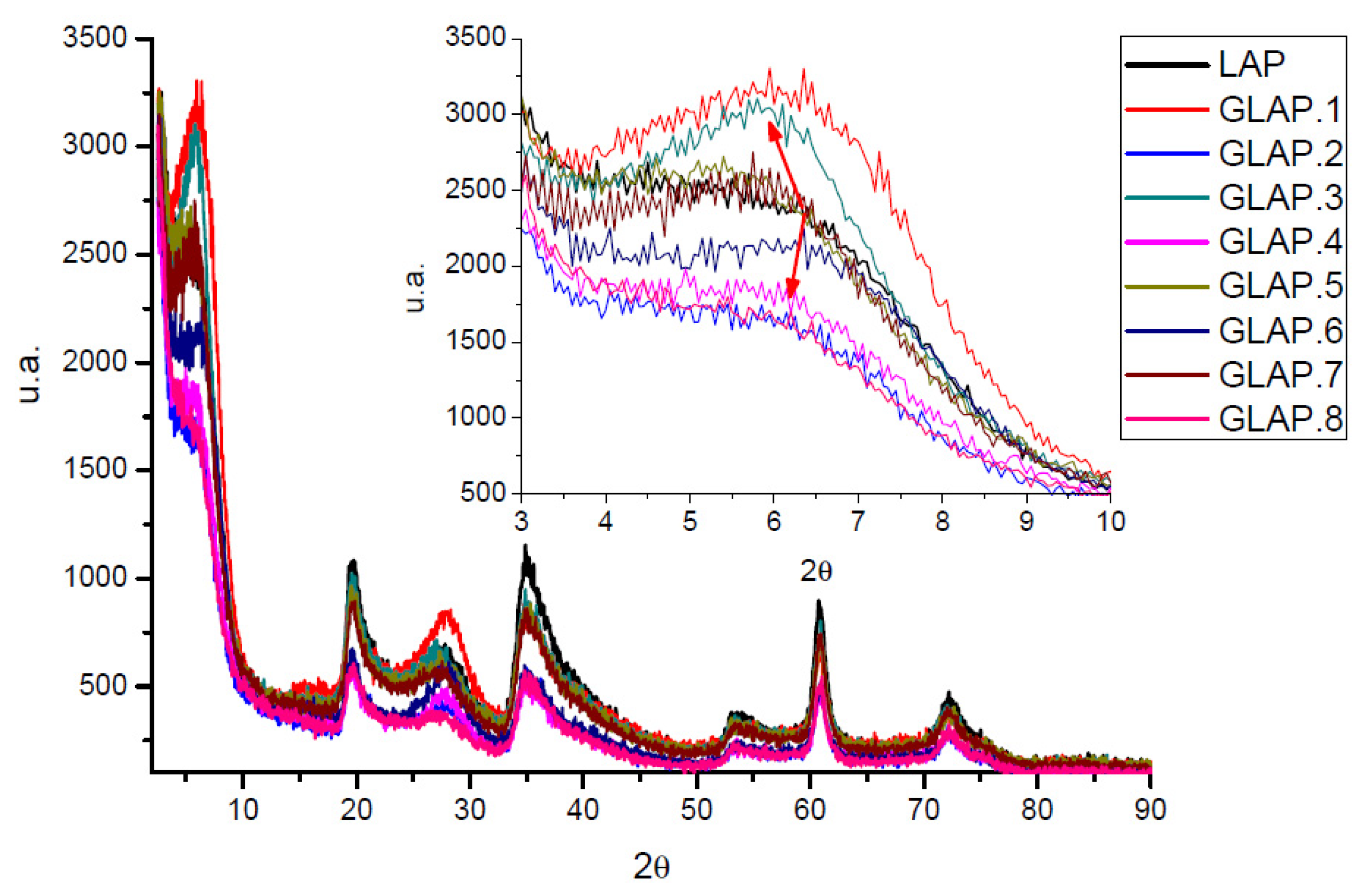

Figure 13. XRD patterns for the laponite (LAP), and the chlorophyll hybrid pigments [GLAP.1_8].
Figure 13. XRD patterns for the laponite (LAP), and the chlorophyll hybrid pigments [GLAP.1_8].
Applsci 11 05568 g013
Applsci 11 05568 g014

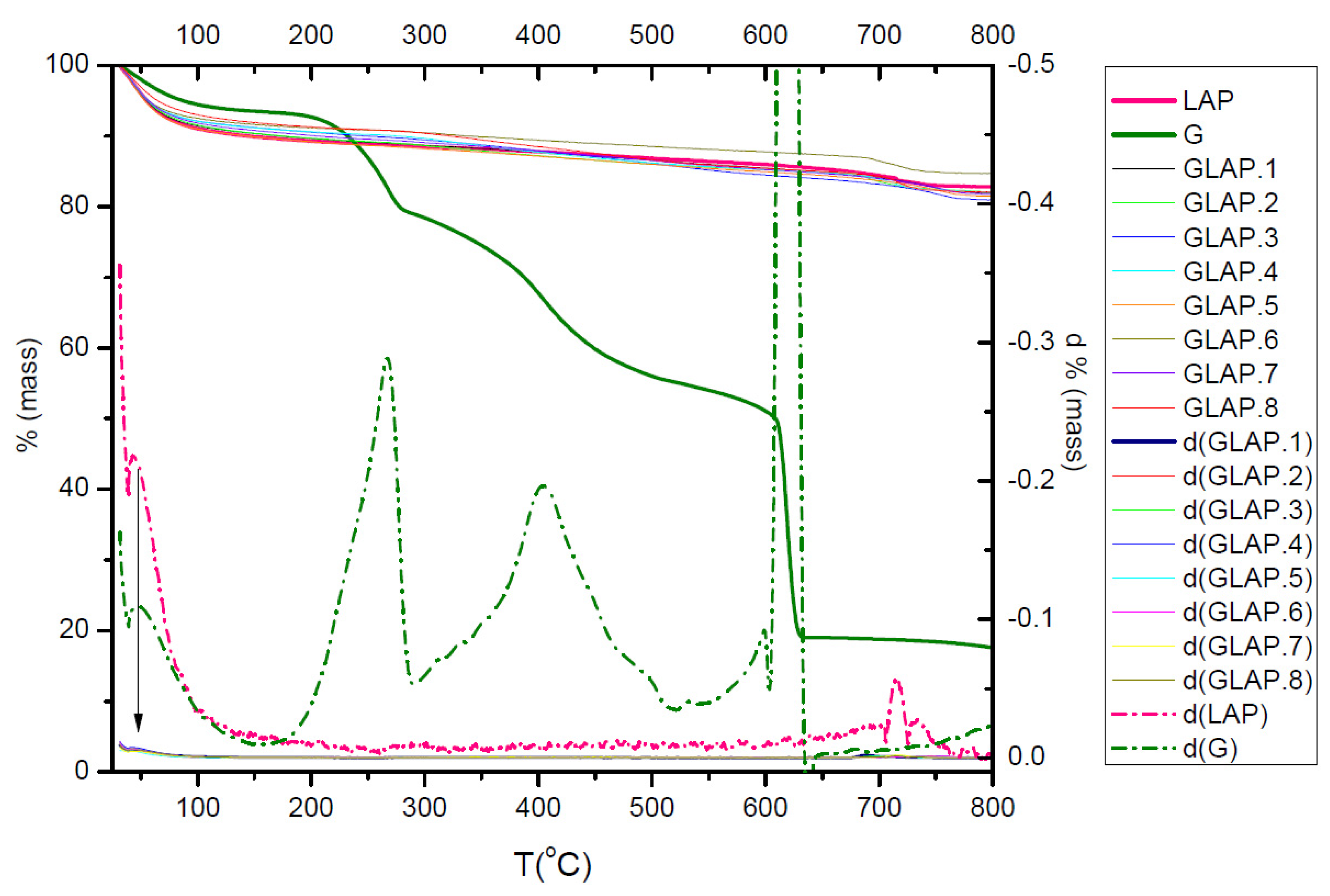

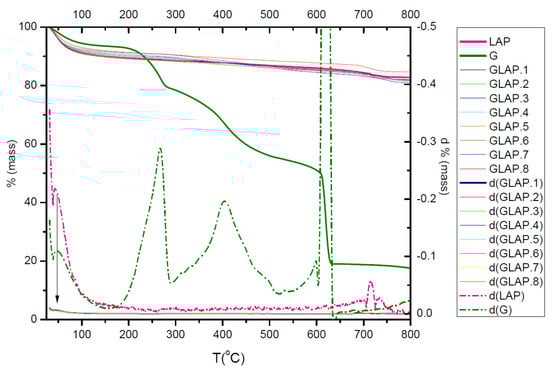

Figure 14. TGA–DTA diagram of laponite (LAP), chlorophyll (G) and the synthesized hybrid pigments GHA for the different conditions [1_8].
Figure 14. TGA–DTA diagram of laponite (LAP), chlorophyll (G) and the synthesized hybrid pigments GHA for the different conditions [1_8].
Applsci 11 05568 g014
Applsci 11 05568 g015

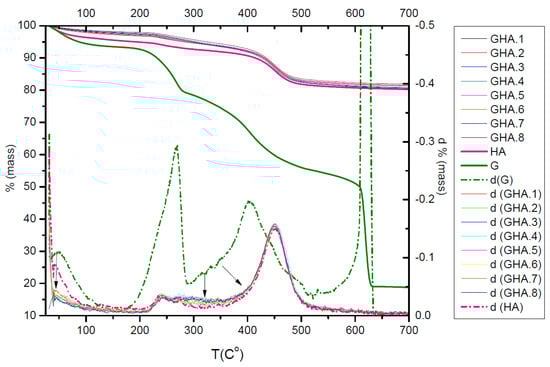

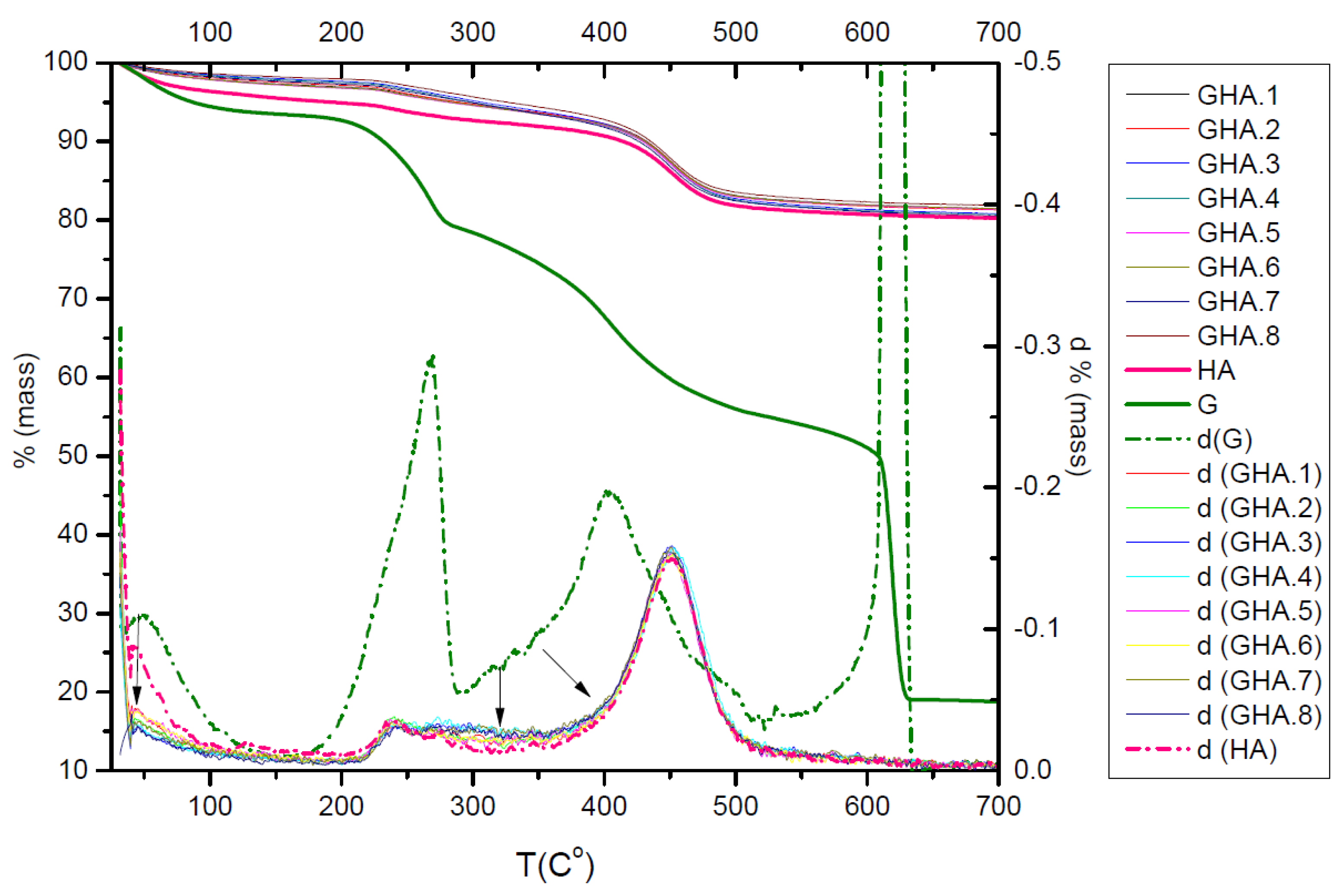

Figure 15. TGA–DTA diagram of halloysite (HA), chlorophyll (G) and the synthesized hybrid pigments GHA for the different conditions [1_8].
Figure 15. TGA–DTA diagram of halloysite (HA), chlorophyll (G) and the synthesized hybrid pigments GHA for the different conditions [1_8].
Applsci 11 05568 g015
Applsci 11 05568 g016
Figure 16. TGA–DTA diagram of halloysite (HA), chlorophyll (G) and the synthesized hybrid pigments GHA for the different conditions [1_8].
Figure 16. TGA–DTA diagram of halloysite (HA), chlorophyll (G) and the synthesized hybrid pigments GHA for the different conditions [1_8].
Applsci 11 05568 g016
Table 1. Synthesis condition analysis using the 24−1 DoE experiment and two experimental blocs; 1-laponite, 2-halloysite, and dispersion pH, surfactant (SURF), mordant (MORD), and/or silane (SIL) factors.
Table 1. Synthesis condition analysis using the 24−1 DoE experiment and two experimental blocs; 1-laponite, 2-halloysite, and dispersion pH, surfactant (SURF), mordant (MORD), and/or silane (SIL) factors.
Sample CodepH 1SURF 2MORD 2SIL 2
GLAP.14000
GLAP.29002
GLAP.34202
GLAP.49200
GLAP.54022
GLAP.69020
GLAP.74220
GLAP.89222
GHA.14000
GHA.29002
GHA.34202
GHA.49200
GHA.54022
GHA.39020
GHA.34220
GHA.89222
1 Nanoclay in water dispersion pH. 2 Modifier concentration % over nanoclay mass.
Table 2. The absorption (Ads (%)) results at λ 405.4 nm and the percentage of dye adsorbed under different synthesis conditions by the DoE 24−1, calculation.
Table 2. The absorption (Ads (%)) results at λ 405.4 nm and the percentage of dye adsorbed under different synthesis conditions by the DoE 24−1, calculation.
REFAbs λ (405.4 nm)Ads (%)
GLAP.10.126787697.91
GLAP.20.416645080.21
GLAP.30.116847198.51
GLAP.40.144531796.82
GLAP.50.122089998.19
GLAP.60.110121098.92
GLAP.70.119755598.34
GLAP.80.124231398.06
GHA.10.119762898.34
GHA.20.248629090.47
GHA.30.127923297.84
GHA.40.623708067.57
GHA.50.115375898.60
GHA.60.114012198.69
GHA.70.116073798.56
GHA.80.113649698.71
Table 3. Analysis of variance for the percentage of dye adsorbed under different synthesis conditions by DoE 24−1.
Table 3. Analysis of variance for the percentage of dye adsorbed under different synthesis conditions by DoE 24−1.
SourceSum of Squaresf.d.Medium SquareF-Ratiop-Value
A:pH201.8631201.8634.720.0526
C:MORD228.0841228.0845.330.0414
AC211.7651211.7654.950.0479
Block (nanoclay)20.7034120.70340.480.5010
Total Error470.5071142.7734
Total (corr.)1132.9215
Table 4. Analysis of variance for Cab* values for the different synthesis conditions by DoE 24−1.
Table 4. Analysis of variance for Cab* values for the different synthesis conditions by DoE 24−1.
SourceSum of Squaresf.d.Medium SquareF-Ratiop-Value
B:SURF6.5092216.509224.260.0562
C:MORD2.530212.53021.620.2297
AD2.3090412.309041.480.2499
Block (nanoclay)505.6541505.654323.140.0000
Total Error17.2128111.5648
Total (corr.)534.21515
Table 5. Analysis of variance for L* values for the different synthesis conditions by DoE 24−1.
Table 5. Analysis of variance for L* values for the different synthesis conditions by DoE 24−1.
SourceSum of Squaresf.d.Medium SquareF-Ratiop-Value
A:pH6.4062216.406223.340.0950
B:SURF11.6339111.63396.060.0316
D:SIL2.7459912.745991.430.2569
Block (nanoclay)769.5241769.524400.680.0000
Total Error21.1259111.92053
Total (corr.)811.43615
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Micó-Vicent, B.; Perales Romero, E.; Jordán-Núñez, J.; Viqueira, V. Halloysite and Laponite Hybrid Pigments Synthesis with Copper Chlorophyll. Appl. Sci. 2021, 11, 5568. https://doi.org/10.3390/app11125568

AMA Style

Micó-Vicent B, Perales Romero E, Jordán-Núñez J, Viqueira V. Halloysite and Laponite Hybrid Pigments Synthesis with Copper Chlorophyll. Applied Sciences. 2021; 11(12):5568. https://doi.org/10.3390/app11125568

Chicago/Turabian Style

Micó-Vicent, Bàrbara, Esther Perales Romero, Jorge Jordán-Núñez, and Valentín Viqueira. 2021. "Halloysite and Laponite Hybrid Pigments Synthesis with Copper Chlorophyll" Applied Sciences 11, no. 12: 5568. https://doi.org/10.3390/app11125568

APA Style

Micó-Vicent, B., Perales Romero, E., Jordán-Núñez, J., & Viqueira, V. (2021). Halloysite and Laponite Hybrid Pigments Synthesis with Copper Chlorophyll. Applied Sciences, 11(12), 5568. https://doi.org/10.3390/app11125568

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
