Room Temperature In-Situ Synthesis of Inorganic Lead Halide Perovskite Nanocrystals Sol Using Ultraviolet Polymerized Acrylic Monomers as Solvent and Their Composites with High Stability

by
Ludan Zhu
,
Shuanglong Yuan
*,
Jun Cheng
,
Long Chen
,
Chuanqi Liu
,
Hua Tong
,
Huidan Zeng
and
Qiling Cheng
Institute of Inorganic Materials, East China University of Science and Technology, Shanghai 200237, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(9), 3325; https://doi.org/10.3390/app10093325
Submission received: 26 March 2020 / Revised: 25 April 2020 / Accepted: 27 April 2020 / Published: 11 May 2020
(This article belongs to the Section Nanotechnology and Applied Nanosciences)
Browse Figures
Review Reports Versions Notes

Abstract

As a kind of promising optoelectrical material, all-inorganic perovskite nanocrystals CsPbX3 (X = Cl, Br, I) have attracted much attention, due to their excellent optoelectrical characteristics, in recent years. However, their synthesis approaches require rigorous conditions, including high temperature, eco-unfriendly solvent or complex post-synthesis process. Herein, to overcome these issues, we reported a novel facile room temperature in-situ strategy using ultraviolet polymerizable acrylic monomer as solvent to synthesis CsPbX3 nanocrystals without a complex post-synthesis process. In this strategy, adequate soluble precursors of Cs, Pb and Br and reaction terminating agent 3-aminopropyltriethoxysilane (APTES) were used. The obtained CsPbBr3 nanocrystals showed a high photoluminescence quantum yields (PLQY) of 87.5%. The corresponding polymer composites, by adding light initiator and oligomer under ultraviolet light radiation, performed excellent stability in light, air, moisture and high temperature. The reaction process and the effect of the reaction terminating agent have been investigated in detail. This strategy is a universal one for synthesizing CsPbX3 nanocrystals covering visible light range by introducing HCl and ZnI2.

1. Introduction

In recent years, inorganic lead halide perovskite CsPbX3 (X = Cl, Br, I) nanocrystals have drawn attention because of their potential applications in light emitting diodes (LEDs), solar cells, lasers, fluorescent probes, display backlights et al. [1,2,3,4,5,6,7,8,9,10,11,12,13], owing to their excellent optoelectrical properties [1,2,3], such as high photoluminescence quantum yield (PLQY), tunable emission spectra over the whole visible spectrum (400–700 nm), relatively narrow full width at half maximum (FWHM) (12–42 nm), facile solution synthetic process and low cost [4,14,15].
At present, many synthetic approaches have emerged to prepare the high performance of perovskite nanocrystals (PNCs) and their composites, including hot injection [4], supersaturated recrystallization [15], top-down [16], mechanochemistry [17], in-situ synthesis [18], microwave assistant [19], volatilization of solvent [20], etc. However, high temperature, gas protection, eco-unfriendly solvent and other conditions required by these methods lead to difficulty for mass production [4,12]. For instance, the employed solvents include N, N-dimethylformamide (DMF) [2], toluene [15], 1-Octadecene (ODE) [21] and dimethyl sulfoxide (DMSO) [22], because of the need to dissolve Cs, Pb and halogen precursors. To solve this problem, many researchers have devoted time to exploring an eco-friendly and cost-effective strategy, such as aqueous or alcohol synthesis [23,24,25,26,27]. Recently, Li et al. firstly achieved direct synthesis of CsPbBr3 nanorods via tip ultrasonication by using a series of short chain alcohols, except for ethanol [28], offering a novel synthetic strategy in polar solvent. Nevertheless, this strategy still needs post-synthesis treatment and redispersion in toluene.
Many efforts have been devoted into the color-conversion perovskite nanocrystals-polymer composite film applied in liquid crystal display backlight in recent years. One typical strategy is to blend perovskite nanocrystals sols synthesized via different approaches with polymer, then the composite film can be obtained by solvent volatilization. The mixing of perovskite nanocrystals with polymers often causes a predictable agglomeration of nanocrystals, due to the large difference in polarity between perovskite nanocrystals and polymers [29]. To avoid the aggregation of perovskite nanocrystals in polymers, an in-situ synthetic strategy, which firstly adopts an appropriate solvent to dissolve Cs, Pb, Br sources and polymer, and then follows a solvent volatilization process, has been reported [14,30]. For instance, Zhong et al. reported an in-situ synthesis of perovskite nanocrystals-polyvinylidene fluoride (PVDF) composite film by employing DMF as solvent of CsBr, PbBr2 and PVDF [14]. Chen et al. realized an in-situ large-scale continuous production of PNCs embedded in polymethyl methacrylate (PMMA) via microfluidic spinning microreactors, by using chloroform as solvent and Cs-oleate, Pb-oleate and tetraoctylammonium bromide as precursors [30]. Dong et al. developed an in situ polymer swelling/deswelling strategy to fabricate MAPbBr3/polystyrene and MAPbBr3/polycarbonate composite films [31]. Moreover, these hydrophobic polymers tend to form a coherent barrier layer around perovskite nanocrystals, remarkably enhancing the stability of perovskite nanocrystals against moisture and oxygen. However, these approaches still inevitably employ eco-unfriendly solvent. Recently, Tong et al. developed a modified hot-injection synthesis of CsPbBr3 nanocrystals by using ultraviolet (UV)-polymerizable lauryl methacrylate (LMA) as a solvent, which effectively diminished the use of consumptive solvent, opening a new window to synthesize CsPbX3 polymer composite films [29]. Regretfully, this strategy still needs high reaction temperature (180 °C) and an ice bath to terminate the reaction.
Herein, we developed a facile in-situ one-pot synthesis of CsPbX3 nanocrystals using acrylic monomer as solvent at room temperature. Unlike the high temperature hot-injection method in a kind of solvent [4] and the supersaturated recrystallization method using two kinds of solvent [15], two key points have to be considered before the synthesis of CsPbX3 nanocrystals in a kind of solvent at room temperature. On one hand, adequate soluble precursors of Cs, Pb and Br should be included in the solvent. On the other hand, the growth of perovskite crystals owing to the desorption of conventional ligands, such as oleylammonium and oleic acid, should be restricted [32]. Therefore, in this work, we employed Cs oleate, Pb oleate and tetraoctylammonium bromide as precursors, because of their high enough solubility in acrylic monomer. In addition, we introduced APTES as ligands to restrict the crystal growth of CsPbX3 nanocrystals, due to the strong chemical interaction between the -NH2 group and CsPbX3 [33,34,35,36]. APTES, which usually acts as the precursors of SiO2 coating [37,38], and also avoids the desorption of ligands, owing to the cross-linking Si-O-Si network around CsPbX3 by hydrolysis condensation. The synthesis of CsPbBr3 nanocrystals showed a high PLQY of 87.5%, as well as excellent stability for corresponding film in light, air, moisture and high temperature. The present strategy has the following advantages: (1) direct one-pot synthesis of CsPbX3 sol at room temperature without complex post-synthesis process, such as purification, centrifuge and redispersion; (2) easy for mass production even fabrication online for film by an ultraviolet (UV) curing technology; (3) uniformly distributed CsPbBr3 nanocrystals within the polymer matrix, compared to the inevitable aggregation in blending method. Moreover, this strategy can be expanded to the synthesis of red (CsPbI3) and blue (CsPbCl3) nanocrystals by introducing an appropriate amount of ZnI2 and HCl, respectively.

2. Experiment

2.1. Materials

All raw materials, including Cesium carbonate (Cs2CO3, 99.9%,), lead oxide (PbO, 99.0%), oleic acid (OA, 90%), ethanol (EtOH,), tetraoctylammonium bromide (TOAB, 98%), 2-hydroxy-2-methylpropiophenone (C10H12O2, 97%), isobornyl methacrylate (IBOMA, AR), isobornyl acrylate (IBOA, AR), lauryl methacrylate (LMA, AR), methyl mtethacrylate (MMA, AR), 3-aminopropyltriethoxysilane (APTES, 99.0%), hydrogen chloride (HCl, 99.0%) and zinc iodide (ZnI2, 99.0%), were purchased from Sigma-Aldrich (Sigma-Aldrich Company, Shanghai, China) and used directly without further purification.

2.2. Synthesis of CsPbBr3 Sol/Composites

Cs2CO3 (0.5 mmol, Aldrich, 99.9%), PbO (1 mmol, Aldrich, 99.0%), OA (2.5 mL, Sigma-Aldrich, 90%) and acrylic monomers (IBOMA/IBOA/LMA/MMA, 45 mL) were added into a 100 mL 3-neck flask and then heated to 75 °C. After fully reacting, the solution was cooled to room-temperature for preparing CsPbBr3 nanocrystals.
Acrylic monomers (IBOMA/IBOA/LMA/MMA, 20 mL), OA (1 mL) and TOAB (0.3 mmol) were added into a 100 mL beaker to obtain a TOAB solution. The TOAB solution was swiftly injected into above prepared Cs-oleate and Pb-oleate solution (5 mL) and 60 s later APTES (0.3 mmol) was injected. It was stirred for 4 h in air and then preserved in the reagent bottle for further use.
For the preparation of block, blended 25 mL CsPbBr3 solution (prepared in IBOMA) with light initiator 2-hydroxy-2-methyl-1-acetone (0.58 g) and then added them into a 50 mL beaker. After stirred for 5 min, the solution was poured into a template and then cured by a 395 nm UV lamp. The thickness of the block can be changed according to depth of the template. For the preparation of film, 25 mL CsPbBr3 solution (prepared in IBOMA), 0.58 g light initiator 2-hydroxy-2-methyl-1-acetone and 75 g oligomer have been used.

2.3. Anion-Exchange Process

Certain amounts of HCl or ZnI2 (Table 1) as the anion source were mixed with IBOMA (10 mL) in a beaker, and stirred until they were dissolved completely. When TOAB-IBOMA solution was injected into the Cs-oleate and Pb-oleate IBOMA solution, the CsPbBr3 nanocrystals were obtained, and the sol showed bright green under the ultraviolet light (395 nm). The HCl/ZnI2-IBOMA solution was added into CsPbBr3 sol, and 60 s later the APTES (0.3 mmol) was injected. After stirring for 4 h in air, the anion-exchanged samples were obtained.

2.4. Characterization Methods

UV-VIS absorption spectra were collected using a 950 UV-Visible Spectrophotometer (Shimadzu Corporation, Kyoto, Japan) with absorption mode. Photoluminescence (PL) spectra were measured by a Fluorolog-3-P UV-VIS-NIR fluorescence spectrophotometer (Jobin Yvon, Longjumeau, France) with a 450 W Xe lamp as the excitation source. PLQY was estimated according to standard procedure, using Rhodamine B (95% of the yield in ethanol) as reference. For samples and rhodamine ethanol solution, an excitation wavelength of 450 nm was used. Powder X-ray diffraction (XRD) patterns were collected using a Bruker AXS D8 Advance diffractometer (Bruker AXS Ltd., Karlsruhe, Germany) with a step width of 0.02° (Voltage 50 kV, current 40 mA, Cu-Ka). The CsPbBr3 acrylic sols (after adding APTES) were precipitated by adding 1-butyllactone, and then centrifuged in a centrifuge for 10 min (10,000 r/min). The precipitate was freeze-dried and ground to produce the yellow powder samples for XRD test. The morphology and particles size of the samples were examined by a JEM-2100 (JEOL Ltd.,Tokyo, Japan) transmission electron microscopy (TEM). High-resolution TEM (HRTEM) images were recorded using a JEOL JEM-2100 microscope (JEOL Ltd., Tokyo, Japan) operated at 200 kV. After adding 2-hydroxy-2-methylpropiophenone (0.58 g) as a photoinitiator, CsPbBr3 blocks were prepared via an ultraviaolet polymerization method. The CsPbBr3 composite sample for TEM measurement was obtained by means of ultrathin frozen section. Fourier transform infrared (FTIR) spectra in the region of 400~4000 cm−1 were recorded on a Thermo Fisher Scientific Nicolet 6700 Spectrometer (Thermo Nicolet Corporation, Basingstoke, United Kindom) by pressing the mixture of the powder sample (obtained after centrifugation and freeze-drying) and KBr to a sheet.

3. Results and Discussion

As schematically shown in Figure 1a, the synthetic process was performed in two steps: the formation of CsPbBr3 nanocrystals and size controlling by adding APTES. Details of the process have been described in the Experimental section. The sol sample showed bright green under the ultraviolet light (395 nm) (Figure 1c), and CsPbBr3 nanocrystals/polyarcylic composites can be prepared via an ultraviaolet polymerization method (Figure 1b,c).
Figure 2a shows the absorption and fluorescence spectra of CsPbBr3 nanocrystals prepared in IBOMA. An emission peak at 510 nm was observed, and the corresponding absorption peak located at 485 nm. According to the formula proposed by Tauc and Mott, the calculated bandgap of as-prepared CsPbBr3 nanocrystals is 2.25 eV [39,40]. However, red shift can be observed in the emission spectra of CsPbBr3 prepared in other three acrylic monomers, indicating the particle size increasing [41] (Figure S1 in Supplementary Materials). It was noted that the PLQY of CsPbBr3 nanocrystals prepared in IBOMA reached 87.5%, much higher than the samples prepared in other acrylic monomers (Table S1 in Supplementary Materials). In order to study the crystal structure of the samples, the XRD patterns of CsPbBr3 powder samples are shown in Figure 2b and Figure S1, and CsPbBr3 nanocrystals possessing a cubic structure (PDF # 54-0752) were synthesized in IBOMA. However, a small impurity peak (Figure S1) identified as PbBr2 existing in the pattern of CsPbBr3 nanocrystals synthesized in IBOA. The XRD results demonstrated that cubic CsPbBr3 nanocrystals can be synthesized at room temperature by this method.
TEM images of the as-synthesized CsPbBr3 nanocrystals are shown in Figure 3. Compared to other three samples (Figure S2 in Supplementary Materials), CsPbBr3 synthesized in IBOMA (Figure 3a) has a smaller particle size about 8.4 ± 1.3 nm (Figure 3b). The HRTEM image (Figure 3c) reveals high crystallinity with a lattice spacing of 0.295 nm, which fits well with the (200) plane of cubic CsPbBr3. According to the TEM results and the PLQY performance, CsPbBr3-IBOMA sol has been used for the subsequent studies and tests.
The CsPbBr3-IBOMA nanocrystals sol exhibited excellent stability. After being placed in air without any protection for 2 weeks, the particle size remained nearly unchanged (Figure 4a), which was attributed to the capping of hydrolyzed APTES ligand [32]. APTES hydrolyzes on the surface of nanocrystals, forming a network structure to prevent the desorption of ligands and to subsequently prohibit size increases, which enhanced the stability of nanocrystals [37,42]. To further prove the effect of APTES, CsPbBr3-IBOMA nanocrystals without APTES were synthesized, and their morphology and size were determined by TEM (Figure 4b). The size (45.7 ± 7.7 nm) was obviously larger than the sample using APTES (8.4 ± 1.3 nm). The reaction with and without APTES revealed a large difference (Video S1). Because of unrestricted increasing of particle size, the APTES-free sample rapidly turned to yellow after mixing two precursors, and finally the sample subsided [43]. Meanwhile, the sample with APTES remained unchanged and no aggregation was observed, suggesting that the addition of APTES effectively prevents the size increasing of CsPbBr3 nanocrystals. FTIR spectrum was used to demonstrate the capping of APTES, as shown in Figure 4c, in which it exists a N-H vibration absorption peak at 3448 cm−1, originating from the -NH2 group of APTES. The peak at 948 cm−1 was ascribed to the vibration absorption of the -Si-OH group of hydrolyzed APTES. The peak at 1125 cm−1 originated from the vibration absorption of the -Si-O-Si- group, owing to the hydrolysis condensation between the -Si-OH groups or the -Si-OH and -SiOC2H5 groups [37]. Therefore, the mechanism of CsPbBr3 nanocrystals with APTES can be summarized as follows: the polar -NH2 group of APTES closely connects to CsPbBr3 nanocrystals and three ethoxyl siloxane groups hydrolyze to form -Si-OH, following a dehydration process between the -SiOH groups or -SiOH and -SiOC2H5, resulting in the formation of an Si-O-Si cross-linking network structure (Figure 4d). In the whole process, a small amount of water in air and solvent advanced the hydrolysis reaction slowly [44].
The present strategy can be expanded to synthesize blue and red emission CsPbX3 by adding HCl or ZnI2 to adjust the ratio of halide ions. Details of the process have been described in the Experimental section. The XRD patterns of the CsPbBr3 nanocrystals and anion-exchanged samples showed the retention of cubic perovskite structure, and the shift of the XRD reflections was observed due to the difference of anion radius (Figure S3 in Supplementary Materials). Their PL spectra were adjustable from 430 to 620 nm (Figure S4 in Supplementary Materials) with narrow FWHM (10−40 nm), indicating this is a universal strategy.
It is well known that the high sensitivity to the oxygen, moisture, light and temperature etc. leads to the poor stability of perovskites nanocrystals [13,45,46]. In order to enhance the stability for further application, in previous work, CsPbBr3 nanocrystals were often combined with polymer by complicated processing [12]. Herein, by a facile UV curing process, CsPbBr3-IBOMA sol, can be cured directly into various shapes, because of the polymerization of the IBOMA monomer. The morphology of the CsPbBr3 nanocrystals block sample was studied by TEM. As shown in Figure 5a, the CsPbBr3 nanocrystals were uniformly distributed in the polymer matrix without phase separation or aggregation as expected, owing to the in-situ method. The particle size (11.6 ± 2.2 nm) showed a slight increase compared with the sample before curing, because of the UV irradiation [47]. Furthermore, the emission spectrum was also unchanged, and only the emission intensity slightly reduced (Figure 5b), suggesting that the polymerization process of IBOMA does not affect the performance of nanocrystals.
High stability is very crucial for the practical application of CsPbBr3 nanocrystals. Therefore, the light, air, moisture and thermal stability of as-synthesized nanocrystals were investigated. The PL spectra of the CsPbBr3-IBOMA block sample was measured at 5 h intervals under continuous irradiation with 395 nm UV LEDs (3W). As shown in Figure 6a, the shape and peak position of the emission spectra did not change significantly with the increase of irradiation time, indicating that the particle size of CsPbBr3 nanocrystals was not affected by UV irradiation. However, the luminous intensity of the sample showed a decreasing trend (Figure 6b). It increased in the initial 10 h, and then went through slight decreasing. Finally, it decreased only by 9.7%, to 0.903 after 70 h. The results exhibited the excellent light stability of CsPbBr3 nanocrystals, due to the encapsulation of IBOMA and the coating of APTES.
To explore the stability in air, the CsPbBr3-IBOMA nanocrystals block sample was placed in the air without any protection and the emission spectrum was measured every 4 days under laboratory conditions (K = 298 K, 57% RH). The emission peak of the CsPbBr3 sample kept at about 510 nm steadily without any shift (Figure 6c), indicating unchanged particle size. In addition, the fluorescence intensity maintained a high level of 89.5% at 30 days (Figure 6d), compared with the previous work [48].
To evaluate the water and thermal stability of CsPbBr3 nanocrystals, we kept the CsPbBr3-IBOMA nanocrystals block sample immersed in water and heated to 348.15 K. The fluorescence intensity of the emission spectrum was tested at 15 h intervals. As shown in Figure 6e, the emission spectra shape and peak position of the sample nearly did not change, while the luminous intensity decreased gradually (Figure 6f). Within the initial 15 h, it went through a slight rise and then decreased slowly. Finally, after 135 h, the luminous intensity reached 75.6%. The result is comparable with previous reported CsPbBr3 nanocrystals [29].

4. Conclusions

In summary, we have introduced a controllable one step in-situ preparation method at room temperature in acrylic monomer. The cubic phase CsPbBr3 nanocrystals with outstanding luminous performance have been successfully synthesized. The photoluminescence quantum yield is up to 87.5%. Isobornyl methacrylate as solvent can be cured directly by ultraviolet light to form transparent solid materials, such as block and film. In this way, not only can a large amount of organic waste liquid be avoided, but also the acrylic polymer encapsulates the nanocrystals and limits further growth. The CsPbBr3-IBOMA nanocrystals block showed great stability under the conditions of air, continuous irradiation and water. In addition, the ligands APTES adsorbing on the surface of CsPbBr3 nanocrystals effectively controlled its particle size at 8.4 ± 1.3 nm, which ensured its excellent luminous performance.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-3417/10/9/3325/s1, Figure S1. (a) PL and Abs spectra and (b) XRD patterns of CsPbBr3 nanocrystals synthesized in different acrylic monomers, Table S1. Photoluminescence quantum yield of CsPbBr3 in different acrylic monomers, Figure S2. TEM images of nanocrystals synthesized (a) in IBOA (61.5 ± 5.8 nm), (b) in MMA (40.5 ± 8.6 nm), (c) in LMA (15.2 ± 1.8 nm), Figure S3. XRD patterns of the CsPbBr3 nanocrystals and anion-exchanged samples, Figure S4. Emission spectra of CsPbX3 (X = Cl, Br, I) nanocrystals, Figure S5. Photograph of perovskite CsPbX3 (X = Cl, Br, I) nanocrystals. Video S1: comparison between samples with and without APTES.

Author Contributions

L.Z. prepared the samples and wrote this manuscript. J.C., C.L. and L.C. processed and analyzed the signal data. S.Y., H.T., H.Z., and Q.C. conceived the research and provided many suggestions for the research method and revised the article completely. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

There is no conflict to declare.

References

  1. Huang, H.; Zhao, F.; Liu, L.; Zhang, F.; Wu, X.-G.; Shi, L.; Zou, B.; Pei, Q.; Zhong, H. Emulsion Synthesis of Size-Tunable CH3NH3PbBr3 Quantum Dots: An Alternative Route toward Efficient Light-Emitting Diodes. ACS Appl. Mater. Interfaces 2015, 7, 28128–28133. [Google Scholar] [CrossRef] [PubMed]
  2. Zhang, F.; Zhong, H.-Z.; Chen, C.; Wu, X.-G.; Hu, X.; Huang, H.; Han, J.; Zou, B.; Dong, Y. Brightly Luminescent and Color-Tunable Colloidal CH3NH3PbX3 (X = Br, I, Cl) Quantum Dots: Potential Alternatives for Display Technology. ACS Nano 2015, 9, 4533–4542. [Google Scholar] [CrossRef] [PubMed]
  3. Swarnkar, A.; Chulliyil, R.; Ravi, V.K.; Irfanullah, M.; Chowdhury, A.; Nag, A. Colloidal CsPbBr 3 Perovskite Nanocrystals: Luminescence beyond Traditional Quantum Dots. Angew. Chem. Int. Ed. 2015, 54, 15424–15428. [Google Scholar] [CrossRef] [PubMed]
  4. Protesescu, L.; Yakunin, S.; Bodnarchuk, M.I.; Krieg, F.; Caputo, R.; Hendon, C.H.; Yang, R.X.; Walsh, A.; Kovalenko, M.V. Nanocrystals of Cesium Lead Halide Perovskites (CsPbX3, X = Cl, Br, and I): Novel Optoelectronic Materials Showing Bright Emission with Wide Color Gamut. Nano Lett. 2015, 15, 3692–3696. [Google Scholar] [CrossRef] [PubMed]
  5. Lin, C.C.; Meijerink, A.; Liu, R.-S. Critical Red Components for Next-Generation White LEDs. J. Phys. Chem. Lett. 2016, 7, 495–503. [Google Scholar] [CrossRef]
  6. Palazon, F.; Di Stasio, F.; Akkerman, Q.A.; Krahne, R.; Prato, M.; Manna, L. Polymer-Free Films of Inorganic Halide Perovskite Nanocrystals as UV-to-White Color-Conversion Layers in LEDs. Chem. Mater. 2016, 28, 2902–2906. [Google Scholar] [CrossRef]
  7. Beal, R.E.; Slotcavage, D.J.; Leijtens, T.; Bowring, A.R.; Belisle, R.A.; Nguyen, W.H.; Burkhard, G.F.; Hoke, E.T.; McGehee, M.D. Cesium Lead Halide Perovskites with Improved Stability for Tandem Solar Cells. J. Phys. Chem. Lett. 2016, 7, 746–751. [Google Scholar] [CrossRef]
  8. Song, J.; Li, J.; Li, X.; Xu, L.; Dong, Y.; Zeng, H. Quantum Dot Light-Emitting Diodes Based on Inorganic Perovskite Cesium Lead Halides (CsPbX3). Adv. Mater. 2015, 27, 7162–7167. [Google Scholar] [CrossRef]
  9. Wang, Y.; Li, X.; Song, J.; Xiaoming, L.; Zeng, H.; Sun, H. All-Inorganic Colloidal Perovskite Quantum Dots: A New Class of Lasing Materials with Favorable Characteristics. Adv. Mater. 2015, 27, 7101–7108. [Google Scholar] [CrossRef]
  10. Ramasamy, P.; Lim, D.-H.; Kim, B.; Lee, S.-H.; Lee, M.-S.; Lee, J.-S. All-inorganic cesium lead halide perovskite nanocrystals for photodetector applications. Chem. Commun. 2016, 52, 2067–2070. [Google Scholar] [CrossRef]
  11. Guhrenz, C.; Benad, A.; Ziegler, C.; Haubold, D.; Gaponik, N.; Eychmüller, A. Solid-State Anion Exchange Reactions for Color Tuning of CsPbX3 Perovskite Nanocrystals. Chem. Mater. 2016, 28, 9033–9040. [Google Scholar] [CrossRef]
  12. Zhang, H.; Wang, X.; Liao, Q.; Xu, Z.; Li, H.; Zheng, L.-M.; Fu, H. Embedding Perovskite Nanocrystals into a Polymer Matrix for Tunable Luminescence Probes in Cell Imaging. Adv. Funct. Mater. 2017, 27, 1604382. [Google Scholar] [CrossRef]
  13. Shi, Z.; Li, Y.; Zhang, Y.; Chen, Y.; Li, X.; Wu, D.; Xu, T.; Shan, C.; Du, G. High-Efficiency and Air-Stable Perovskite Quantum Dots Light-Emitting Diodes with an All-Inorganic Heterostructure. Nano Lett. 2016, 17, 313–321. [Google Scholar] [CrossRef] [PubMed]
  14. Zhou, Q.; Bai, Z.; Lu, W.-G.; Wang, Y.; Zou, B.; Zhong, H.-Z. In Situ Fabrication of Halide Perovskite Nanocrystal-Embedded Polymer Composite Films with Enhanced Photoluminescence for Display Backlights. Adv. Mater. 2016, 28, 9163–9168. [Google Scholar] [CrossRef] [PubMed]
  15. Li, X.; Wu, Y.; Zhang, S.; Cai, B.; Gu, Y.; Song, J.; Zeng, H. CsPbX3Quantum Dots for Lighting and Displays: Room-Temperature Synthesis, Photoluminescence Superiorities, Underlying Origins and White Light-Emitting Diodes. Adv. Funct. Mater. 2016, 26, 2435–2445. [Google Scholar] [CrossRef]
  16. Schlipf, J.; Askar, A.M.; Pantle, F.; Wiltshire, B.D.; Sura, A.; Schneider, P.; Huber, L.; Shankar, K.; Müller-Buschbaum, P. Top-Down Approaches Towards Single Crystal Perovskite Solar Cells. Sci. Rep. 2018, 8, 4906. [Google Scholar] [CrossRef]
  17. Protesescu, L.; Yakunin, S.; Nazarenko, O.; Dirin, D.N.; Kovalenko, M.V. Low-Cost Synthesis of Highly Luminescent Colloidal Lead Halide Perovskite Nanocrystals by Wet Ball Milling. ACS Appl. Nano Mater. 2018, 1, 1300–1308. [Google Scholar] [CrossRef]
  18. Han, D.; Imran, M.; Zhang, M.; Chang, S.; Wu, X.-G.; Zhang, X.; Tang, J.; Wang, M.; Ali, S.; Li, X.; et al. Efficient Light-Emitting Diodes Based on in Situ Fabricated FAPbBr3 Nanocrystals: The Enhancing Role of the Ligand-Assisted Reprecipitation Process. ACS Nano 2018, 12, 8808–8816. [Google Scholar] [CrossRef]
  19. Liu, H.W.; Wu, Z.N.; Gao, H.; Shao, J.R.; Zou, H.Y.; Yao, D.; Liu, Y.; Zhang, H.; Yang, B. One-Step Preparation of Cesium Lead Halide CsPbX3 (X = CI, Br, and I) Perovskite Nanocrystals by Microwave Irradiation. ACS Appl. Mater. Interfaces 2017, 9, 42919–42927. [Google Scholar] [CrossRef]
  20. Lin, K.; Xing, J.; Na Quan, L.; De Arquer, F.P.G.; Gong, X.; Lu, J.; Xie, L.; Zhao, W.; Zhang, D.; Yan, C.; et al. Perovskite light-emitting diodes with external quantum efficiency exceeding 20 per cent. Nature 2018, 562, 245–248. [Google Scholar] [CrossRef]
  21. Shamsi, J.; Urban, A.; Imran, M.; De Trizio, L.; Manna, L. Metal Halide Perovskite Nanocrystals: Synthesis, Post-Synthesis Modifications, and Their Optical Properties. Chem. Rev. 2019, 119, 3296–3348. [Google Scholar] [CrossRef]
  22. Fang, F.; Chen, W.; Li, Y.; Liu, H.; Mei, M.; Zhang, R.; Hao, J.; Mikita, M.; Cao, W.; Pan, R.; et al. Employing Polar Solvent Controlled Ionization in Precursors for Synthesis of High-Quality Inorganic Perovskite Nanocrystals at Room Temperature. Adv. Funct. Mater. 2018, 28, 1706000. [Google Scholar] [CrossRef]
  23. Wu, L.; Hu, H.; Xu, Y.; Jiang, S.; Chen, M.; Zhong, Q.; Yang, D.; Liu, Q.; Zhao, Y.; Sun, B.; et al. From Nonluminescent Cs4PbX6 (X = Cl, Br, I) Nanocrystals to Highly Luminescent CsPbX3 Nanocrystals: Water-Triggered Transformation through a CsX-Stripping Mechanism. Nano Lett. 2017, 17, 5799–5804. [Google Scholar] [CrossRef] [PubMed]
  24. Hu, H.C.; Wu, L.Z.; Tan, Y.S.; Zhong, Q.X.; Chen, M.; Qiu, Y.H.; Yang, D.; Sun, B.Q.; Zhang, Q.; Yin, Y.D. Interfacial Synthesis of Highly Stable CsPbX3/Oxide Janus Nanoparticles. J. Am. Chem. Soc. 2018, 140, 406–412. [Google Scholar] [CrossRef] [PubMed]
  25. Zhang, X.; Bai, X.; Wu, H.; Zhang, X.; Sun, C.; Zhang, C.; Zhang, W.; Zheng, W.T.; Yu, W.W.; Rogach, A.L. Water-Assisted Size and Shape Control of CsPbBr3 Perovskite Nanocrystals. Angew. Chem. Int. Ed. 2018, 57, 3337–3342. [Google Scholar] [CrossRef] [PubMed]
  26. Geng, C.; Xu, S.; Zhong, H.-Z.; Rogach, A.L.; Bi, W. Aqueous Synthesis of Methylammonium Lead Halide Perovskite Nanocrystals. Angew. Chem. Int. Ed. 2018, 57, 9650–9654. [Google Scholar] [CrossRef] [PubMed]
  27. Jana, A.; Ba, Q.; Kim, H.R. Compositional and Dimensional Control of 2D and Quasi-2D Lead Halide Perovskites in Water. Adv. Funct. Mater. 2019, 29, 1900966. [Google Scholar] [CrossRef]
  28. Li, Y.; Huang, H.; Xiong, Y.; Richter, A.F.; Kershaw, S.V.; Feldmann, J.; Rogach, A.L. Using Polar Alcohols for the Direct Synthesis of Cesium Lead Halide Perovskite Nanorods with Anisotropic Emission. ACS Nano 2019, 13, 8237–8245. [Google Scholar] [CrossRef]
  29. Tong, J.; Wu, J.; Shen, W.; Zhang, Y.; Liu, Y.; Zhang, T.; Nie, S.; Deng, Z. Direct Hot-Injection Synthesis of Lead Halide Perovskite Nanocubes in Acrylic Monomers for Ultrastable and Bright Nanocrystal–Polymer Composite Films. ACS Appl. Mater. Interfaces 2019, 11, 9317–9325. [Google Scholar] [CrossRef]
  30. Ma, K.; Du, X.-Y.; Zhang, Y.-W.; Chen, S. In situ fabrication of halide perovskite nanocrystals embedded in polymer composites via microfluidic spinning microreactors. J. Mater. Chem. C 2017, 5, 9398–9404. [Google Scholar] [CrossRef]
  31. Wang, Y.; He, J.; Chen, H.; Chen, J.; Zhu, R.; Ma, P.; Towers, A.; Lin, Y.; Gesquiere, A.J.; Wu, S.-T.; et al. Ultrastable, Highly Luminescent Organic-Inorganic Perovskite-Polymer Composite Films. Adv. Mater. 2016, 28, 10710–10717. [Google Scholar] [CrossRef] [PubMed]
  32. Heuer-Jungemann, A.; Feliu, N.; Bakaimi, I.; Hamaly, M.; Alkilany, A.; Chakraborty, I.; Masood, A.; Casula, M.F.; Kostopoulou, A.; Oh, E.; et al. The Role of Ligands in the Chemical Synthesis and Applications of Inorganic Nanoparticles. Chem. Rev. 2019, 119, 4819–4880. [Google Scholar] [CrossRef] [PubMed]
  33. Li, X.; Wang, Y.; Sun, H.; Zeng, H. Amino-Mediated Anchoring Perovskite Quantum Dots for Stable and Low-Threshold Random Lasing. Adv. Mater. 2017, 29, 1701185. [Google Scholar] [CrossRef] [PubMed]
  34. De Roo, J.; Ibáñez, M.; Geiregat, P.; Nedelcu, G.; Walravens, W.; Maes, J.; Martins, J.C.; Van Driessche, I.; Kovalenko, M.V.; Hens, Z. Highly Dynamic Ligand Binding and Light Absorption Coefficient of Cesium Lead Bromide Perovskite Nanocrystals. ACS Nano 2016, 10, 2071–2081. [Google Scholar] [CrossRef]
  35. Sarang, S.; Naghadeh, S.B.; Luo, B.; Kumar, P.; Betady, E.; Tung, V.; Scheibner, M.; Zhang, J.Z.; Ghosh, S. Stabilization of the Cubic Crystalline Phase in Organometal Halide Perovskite Quantum Dots via Surface Energy Manipulation. J. Phys. Chem. Lett. 2017, 8, 5378–5384. [Google Scholar] [CrossRef]
  36. González-Pedro, V.; Veldhuis, S.A.; Begum, R.; Bañuls, M.-J.; Bruno, A.; Mathews, N.; Mhaisalkar, S.G.; Maquieira, Á. Recovery of Shallow Charge-Trapping Defects in CsPbX3 Nanocrystals through Specific Binding and Encapsulation with Amino-Functionalized Silanes. ACS Energy Lett. 2018, 3, 1409–1414. [Google Scholar] [CrossRef]
  37. Liang, X.; Chen, M.; Wang, Q.; Guo, S.J.; Yang, H. Ethanol-Precipitable, Silica-Passivated Perovskite Nanocrystals Incorporated into Polystyrene Microspheres for Long-Term Storage and Reusage. Angew. Chem. Int. Ed. 2019, 58, 2799–2803. [Google Scholar] [CrossRef]
  38. Luo, B.; Pu, Y.-C.; Lindley, S.A.; Yang, Y.; Lu, L.; Li, Y.; Li, X.; Zhang, J.Z. Organolead Halide Perovskite Nanocrystals: Branched Capping Ligands Control Crystal Size and Stability. Angew. Chem. Int. Ed. 2016, 55, 8864–8868. [Google Scholar] [CrossRef]
  39. Tauc, J.; Grigorovici, R.; Vancu, A. Optical Properties and Electronic Structure of Amorphous Germanium. Phys. Status Solidi 1966, 15, 627–637. [Google Scholar] [CrossRef]
  40. Davis, E.A.; Mott, N.F. Conduction in non-crystalline systems V. Conductivity, optical absorption and photoconductivity in amorphous semiconductors. Philos. Mag. 1970, 22, 0903–0922. [Google Scholar] [CrossRef]
  41. Kim, Y.; Yassitepe, E.; Voznyy, O.; Comin, R.; Walters, G.; Gong, X.; Kanjanaboos, P.; Nogueira, A.F.; Sargent, E. Efficient Luminescence from Perovskite Quantum Dot Solids. ACS Appl. Mater. Interfaces 2015, 7, 25007–25013. [Google Scholar] [CrossRef] [PubMed]
  42. Sun, C.; Zhang, C.; Ruan, C.; Yin, C.; Wang, X.; Wang, Y.; Yu, W.W. Efficient and Stable White LEDs with Silica-Coated Inorganic Perovskite Quantum Dots. Adv. Mater. 2016, 28, 10088–10094. [Google Scholar] [CrossRef] [PubMed]
  43. Koolyk, M.; Amgar, D.; Aharon, S.; Etgar, L. Kinetics of cesium lead halide perovskite nanoparticle growth; focusing and de-focusing of size distribution. Nanoscale 2016, 8, 6403–6409. [Google Scholar] [CrossRef] [PubMed]
  44. Xu, W.; Cai, Z.; Li, F.; Dong, J.; Wang, Y.; Jiang, Y.; Chen, X. Embedding lead halide perovskite quantum dots in carboxybenzene microcrystals improves stability. Nano Res. 2017, 10, 2692–2698. [Google Scholar] [CrossRef]
  45. Huang, H.; Chen, B.; Wang, Z.; Hung, T.F.; Susha, A.S.; Zhong, H.; Rogach, A.L. Water resistant CsPbX3 nanocrystals coated with polyhedral oligomeric silsesquioxane and their use as solid state luminophores in all-perovskite white light-emitting devices. Chem. Sci. 2016, 7, 5699–5703. [Google Scholar] [CrossRef]
  46. Meyns, M.; Perálvarez, M.; Heuer-Jungemann, A.; Hertog, W.; Ibáñez, M.; Nafria, R.; Genç, A.; Arbiol, J.; Kovalenko, M.V.; Carreras, J.; et al. Polymer-Enhanced Stability of Inorganic Perovskite Nanocrystals and Their Application in Color Conversion LEDs. ACS Appl. Mater. Interfaces 2016, 8, 19579–19586. [Google Scholar] [CrossRef]
  47. Huang, S.; Li, Z.; Wang, B.; Zhu, N.; Zhang, C.; Kongb, L.; Zhang, Q.; Shan, A.; Li, L. Morphology Evolution and Degradation of CsPbBr3 Nanocrystals under Blue Light-Emitting Diode Illumination. ACS Appl. Mater. Interfaces 2017, 9, 7249–7258. [Google Scholar] [CrossRef]
  48. Wei, S.; Yang, Y.; Kang, X.; Huang, L.; Pan, D.; Wang, L. Room-temperature and gram-scale synthesis of CsPbX 3 (X = Cl, Br, I) perovskite nanocrystals with 50–85% photoluminescence quantum yields. Chem. Commun. 2016, 52, 7265–7268. [Google Scholar] [CrossRef]
Applsci 10 03325 g001

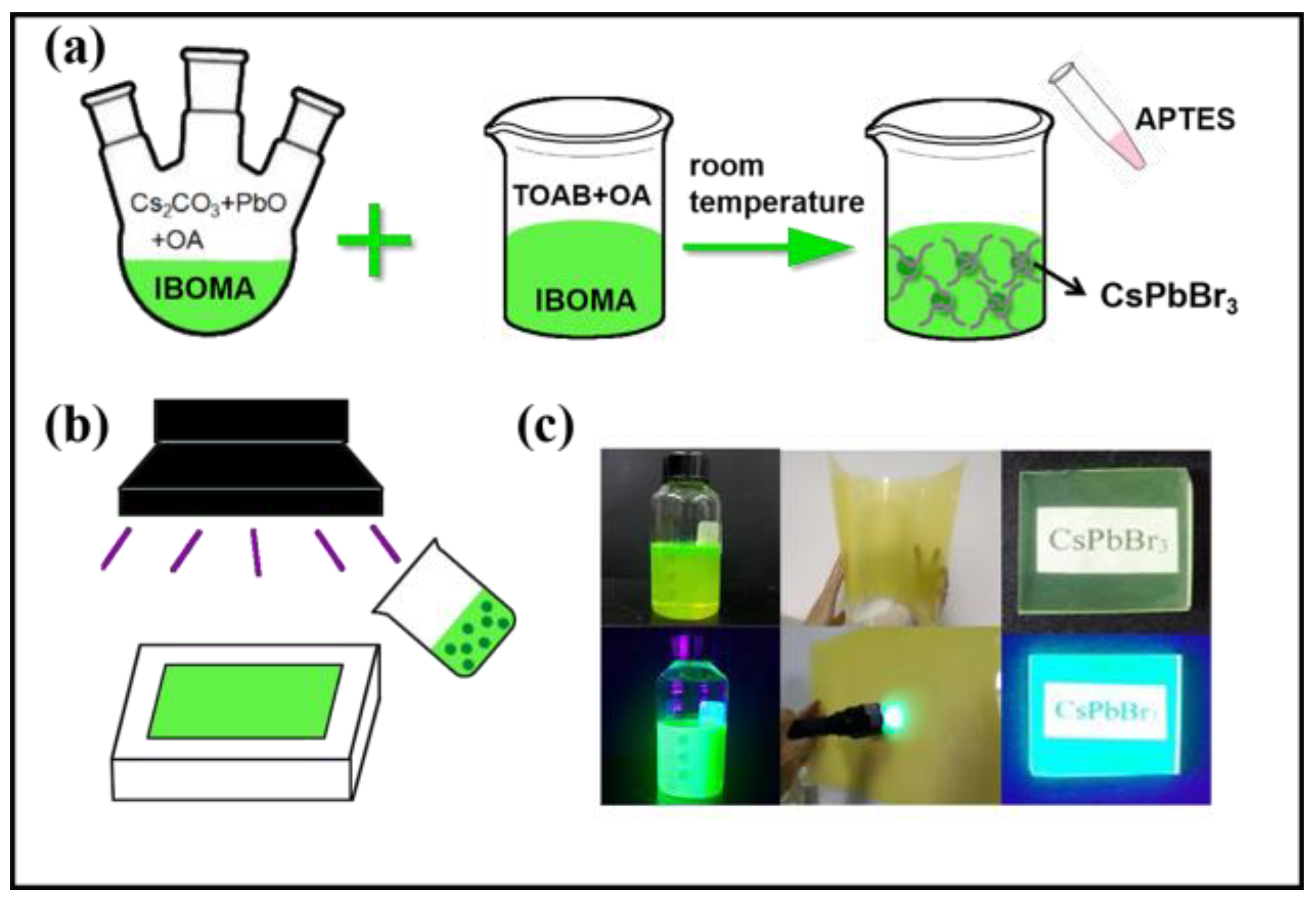

Figure 1. (a) In-situ one-step synthesis process of CsPbBr3 nanocrystals sol; (b) preparation of solid CsPbBr3 nanocrystals composites; (c) nanocrystals sol, blocks and films.
Figure 1. (a) In-situ one-step synthesis process of CsPbBr3 nanocrystals sol; (b) preparation of solid CsPbBr3 nanocrystals composites; (c) nanocrystals sol, blocks and films.
Applsci 10 03325 g001
Applsci 10 03325 g002

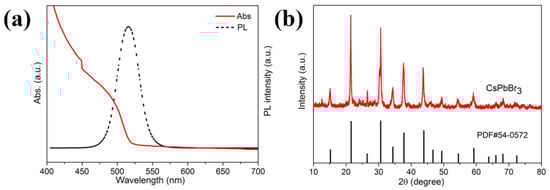

Figure 2. (a) Photoluminescence (PL) (dark dash) and absorption (red line) spectra, and; (b) X-ray diffraction (XRD) pattern of CsPbBr3 nanocrystals synthesized in isobornyl methacrylate (IBOMA).
Figure 2. (a) Photoluminescence (PL) (dark dash) and absorption (red line) spectra, and; (b) X-ray diffraction (XRD) pattern of CsPbBr3 nanocrystals synthesized in isobornyl methacrylate (IBOMA).
Applsci 10 03325 g002
Applsci 10 03325 g003

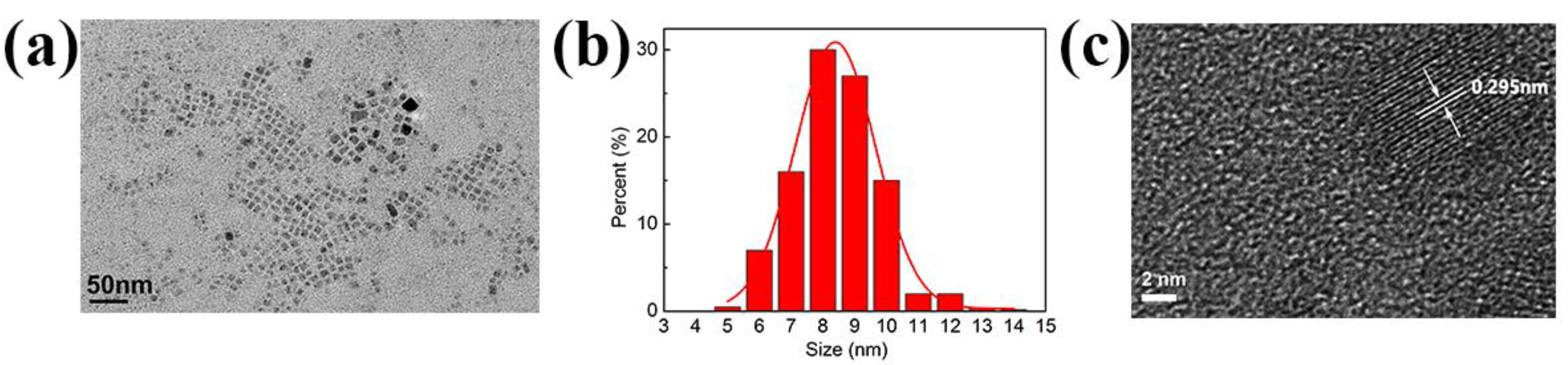

Figure 3. (a) Transmission electron microscopy (TEM) image; (b) size distribution, and; (c) high-resolution TEM (HRTEM) with crystalline interplanar spacing of CsPbBr3 nanocrystals in IBOMA.
Figure 3. (a) Transmission electron microscopy (TEM) image; (b) size distribution, and; (c) high-resolution TEM (HRTEM) with crystalline interplanar spacing of CsPbBr3 nanocrystals in IBOMA.
Applsci 10 03325 g003
Applsci 10 03325 g004

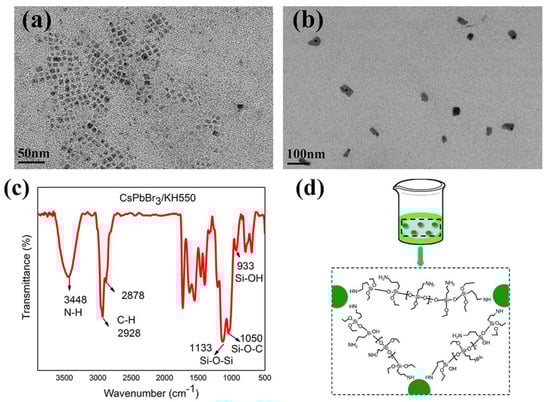

Figure 4. TEM images of CsPbBr3 nanocrystals in IBOMA (a) with 3-aminopropyltriethoxysilane (APTES) and (b) without APTES after 2 weeks; (c) Fourier transform infrared (FTIR) spectrum of CsPbBr3 nanocrystals in IBOMA; (d) illustration of formation of Si-O-Si cross-linking network.
Figure 4. TEM images of CsPbBr3 nanocrystals in IBOMA (a) with 3-aminopropyltriethoxysilane (APTES) and (b) without APTES after 2 weeks; (c) Fourier transform infrared (FTIR) spectrum of CsPbBr3 nanocrystals in IBOMA; (d) illustration of formation of Si-O-Si cross-linking network.
Applsci 10 03325 g004
Applsci 10 03325 g005

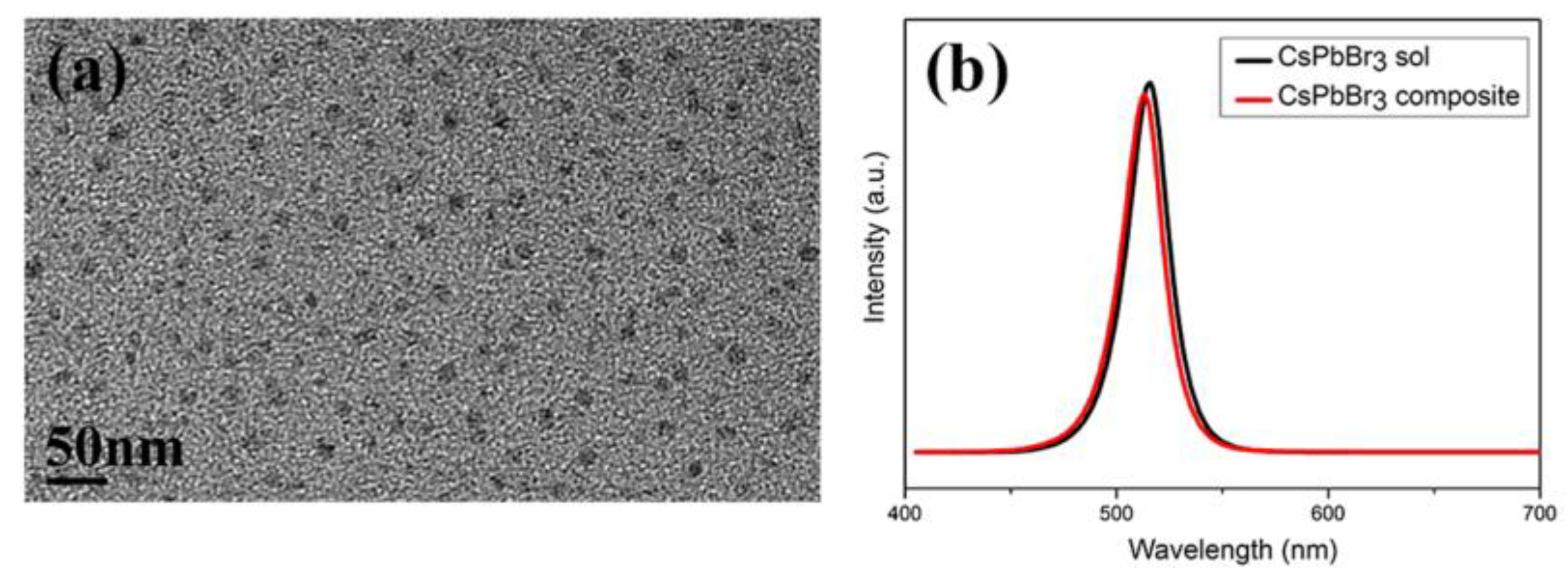

Figure 5. (a) TEM image of the CsPbBr3 nanocrystals block sample; (b) fluorescence spectra of samples before and after be cured.
Figure 5. (a) TEM image of the CsPbBr3 nanocrystals block sample; (b) fluorescence spectra of samples before and after be cured.
Applsci 10 03325 g005
Applsci 10 03325 g006
Figure 6. PL spectra and intensity attenuation of CsPbBr3-IBOMA block sample (a,b) at 5 h intervals under 395 nm UV LEDs; (c,d) in air at 4-day intervals; (e,f) in water at 15 h intervals. (All samples were excitated under 395 nm light).
Figure 6. PL spectra and intensity attenuation of CsPbBr3-IBOMA block sample (a,b) at 5 h intervals under 395 nm UV LEDs; (c,d) in air at 4-day intervals; (e,f) in water at 15 h intervals. (All samples were excitated under 395 nm light).
Applsci 10 03325 g006
Table 1. Preparation data of CsPbX3 (X = Cl, Br, I) nanocrystals samples.
Table 1. Preparation data of CsPbX3 (X = Cl, Br, I) nanocrystals samples.
Cl:Br
Ratio1.21.00.80.650.50.350
HCL (μL)31.52722.51813.590
I:Br
Ratio00.350.50.650.81.01.2
ZnI2 (g)00.0160.0240.0320.040.0480.056
