Synthesis and Characterization of Mechanically Alloyed, Nanostructured Cubic MoW Carbide
Abstract
:1. Introduction
2. Materials and Methods
2.1. Synthesis
2.2. Structural Analysis
2.3. Desulfurization Analysis
3. Results and Discussion
3.1. Structural and Morphological Properties of the Power Particles

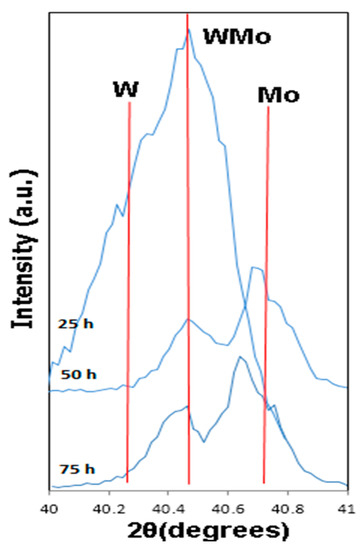

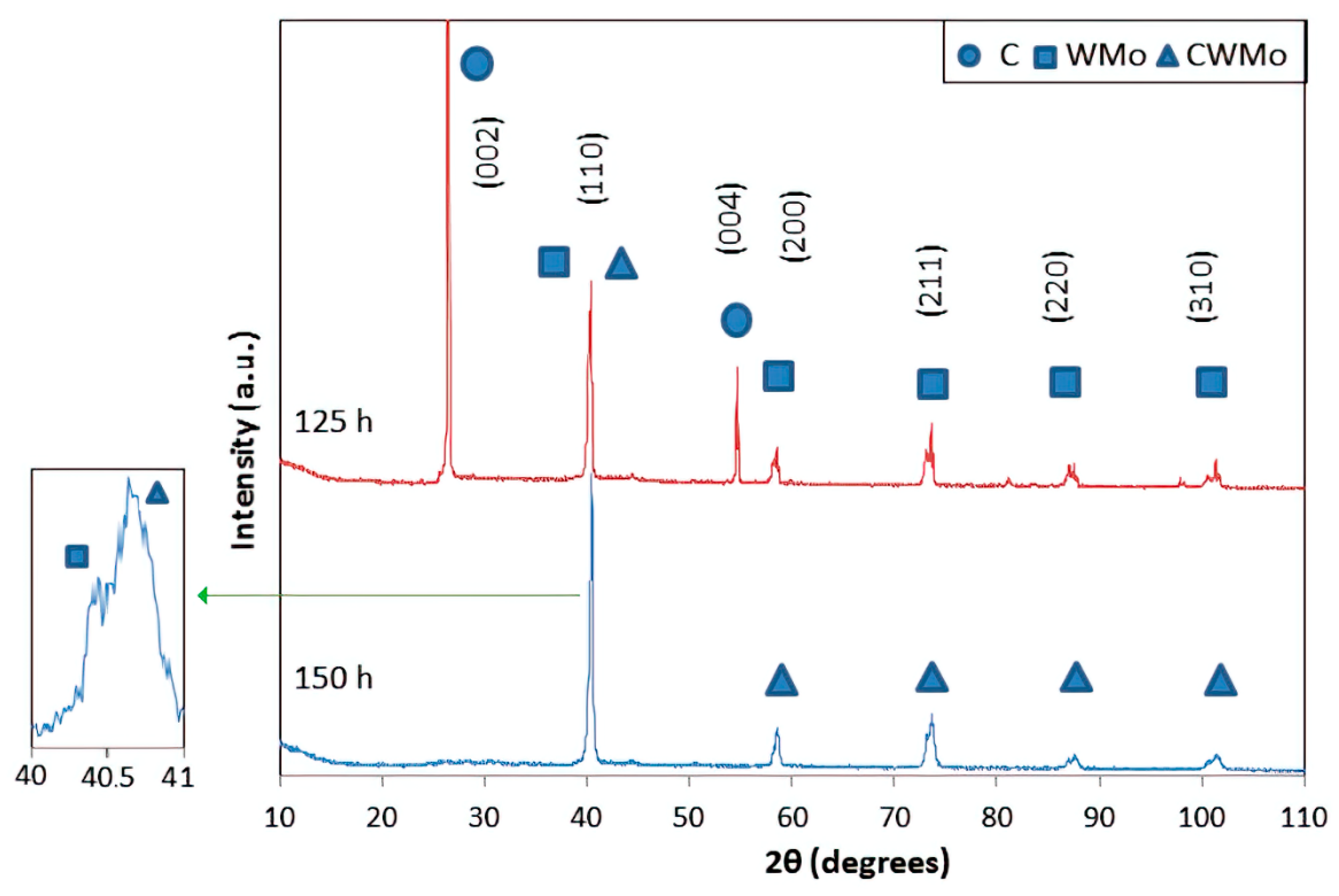

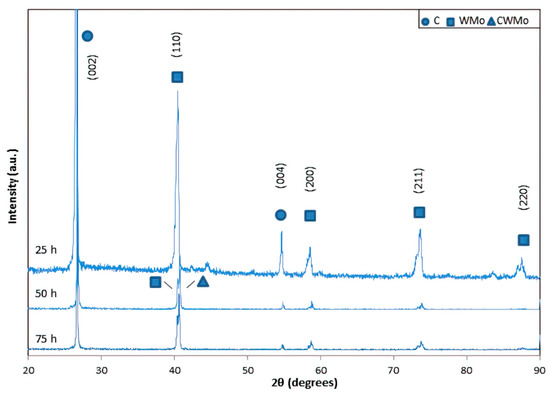

3.1.1. X-ray Diffraction

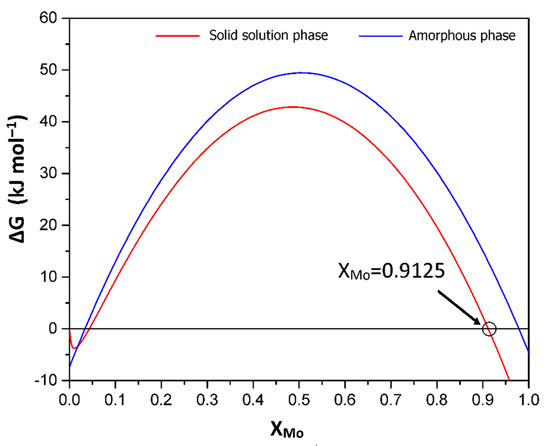

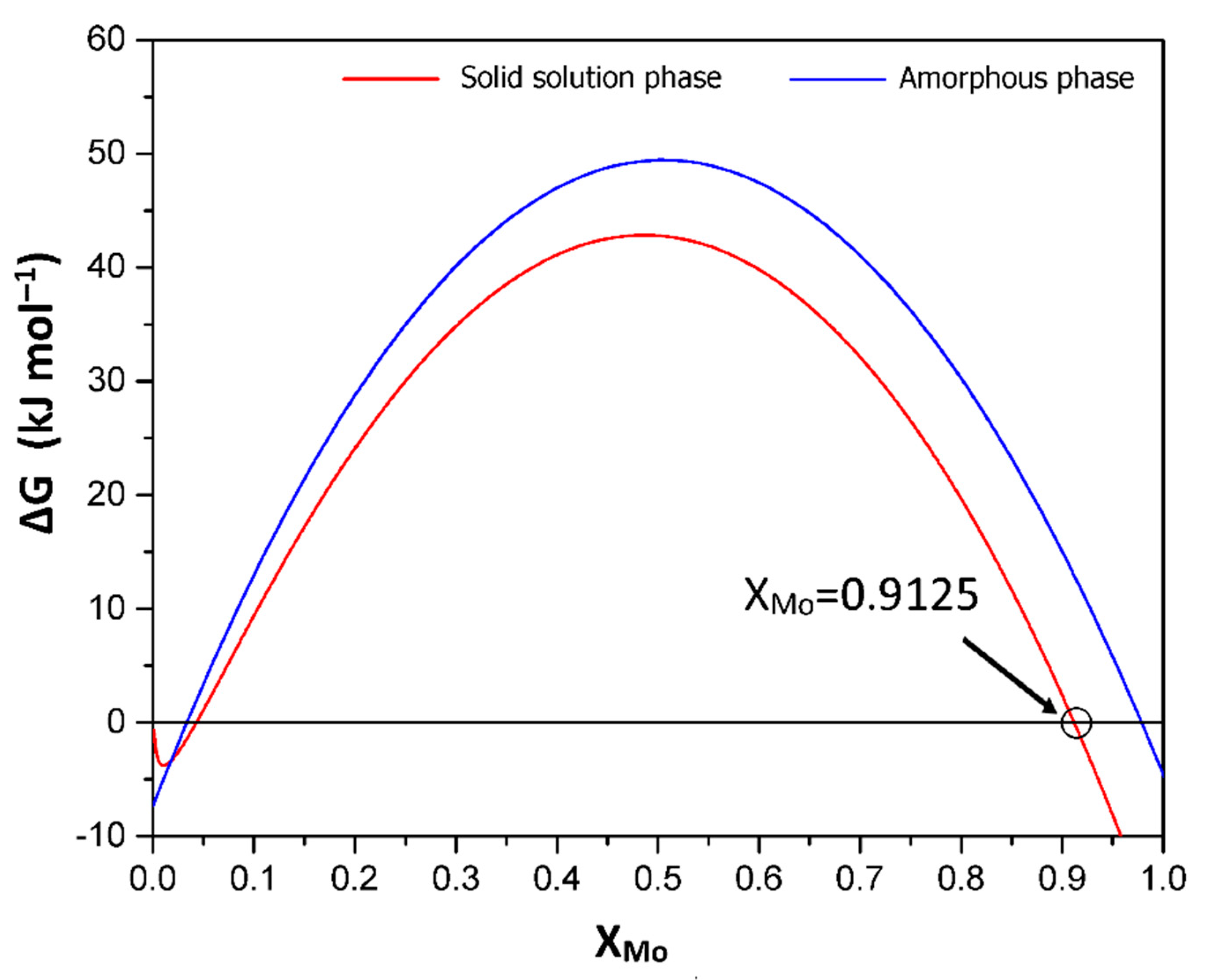

3.1.2. Thermodynamic Analysis for MoW Synthesis during Mechanical Alloying
3.1.3. Scanning Electron Microscopy

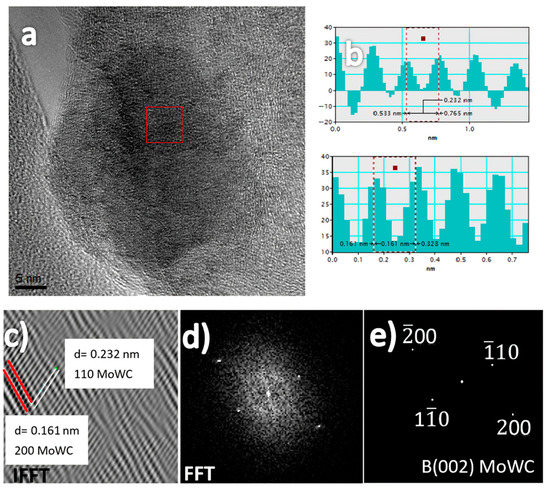

3.1.4. High-Resolution Electron Microscopy
3.2. Vickers Hardness
3.3. Desulfurization Properties

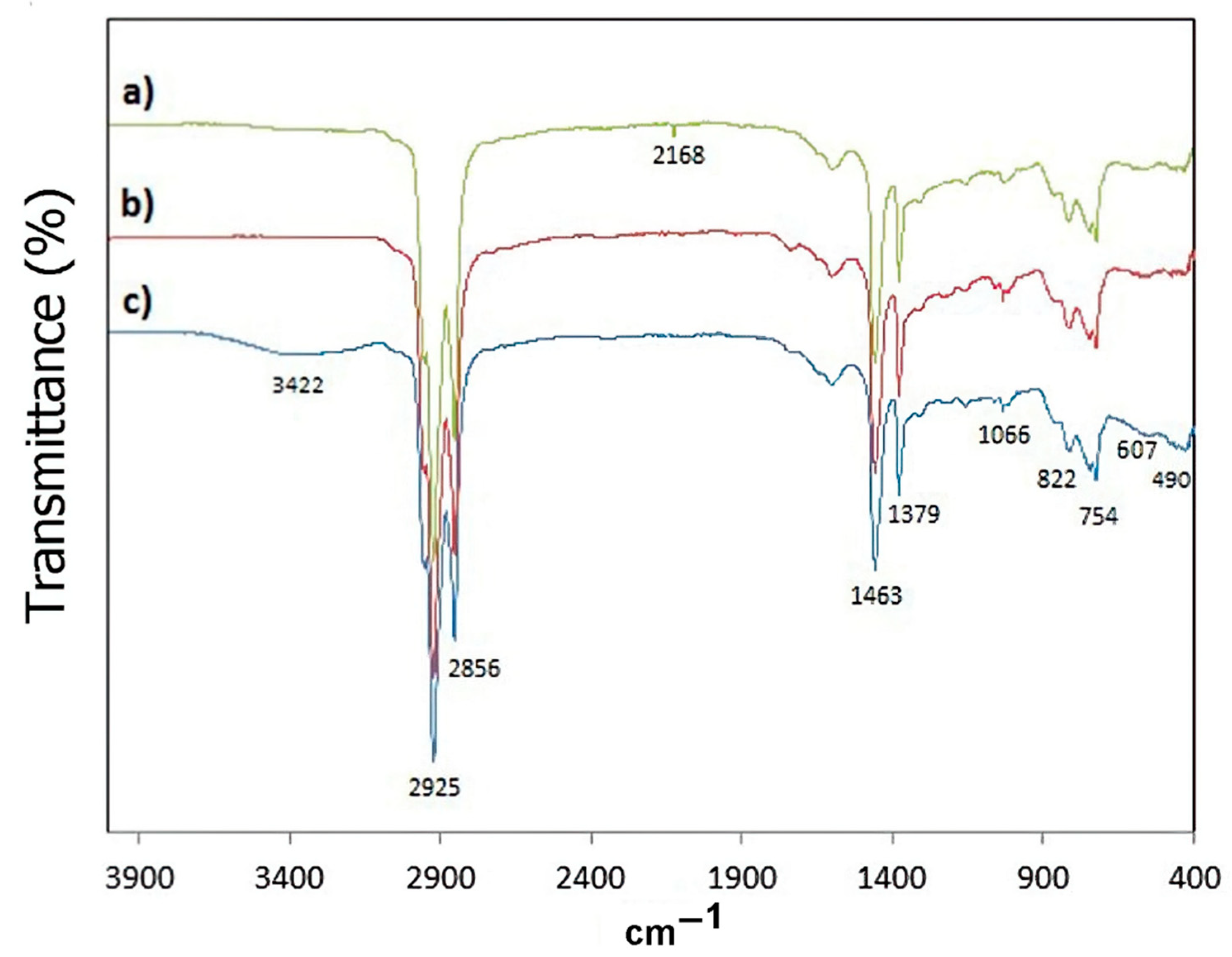

Fourier transform infrared (FTIR) Spectroscopy
4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Theofanidis, S.A.; Galvita, V.V.; Konstantopoulos, C.; Poelman, H.; Marin, G.B. Fe-based nano-materials in catalysis. Materials 2018, 11, 831. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Kalita, D.; Chetia, L.; Ahmed, G.A. Synthesis of MoW-Sulfide compound nanoparticles as a photocatalyst and comparison of its performance with MoS2 and WS2 nanoparticles. J. Environ. Chem. Eng. 2017, 5, 3161–3171. [Google Scholar] [CrossRef]
- Olvera, J.N.R.; Gutiérrez, G.J.; Serrano, J.A.R.; Ovando, A.M.; Febles, V.G.; Arceo, L.D.B. Use of unsupported, mechanically alloyed NiWMoC nanocatalyst to reduce the viscosity of aquathermolysis reaction of heavy oil. Catal. Commun. 2014, 43, 131–135. [Google Scholar] [CrossRef]
- Villasana, Y.; Méndez, F.J.; Luis-Luis, M.; Brito, J.L. Pollutant reduction and catalytic upgrading of a Venezuelan extra-heavy crude oil with Al2O3-supported NiW catalysts: Effect of carburization, nitridation and sulfurization. Fuel 2019, 235, 577–588. [Google Scholar] [CrossRef]
- Díaz de León, J.N.; Castañeda-García, A.L.; Soto-Arteaga, C.E.; Torres-Otañez, G.; Esqueda-Barrón, Y.; Guzmán-Cruz, M.A.; Alonso-Nuñez, G.; Fuentes-Moyado, S. Selective removal of sulfur from 3-methyl thiophene under mild conditions over NiW/Al2O3-TiO2 modified by surfactants. Catal. Today 2020. [Google Scholar] [CrossRef]
- Guo, T.; Huang, P.; Wang, F. Unusual high strain rate sensitivity of amorphous/crystalline NiW composites. Mater. Lett. 2019, 248, 189–192. [Google Scholar] [CrossRef]
- Rivera Olvera, J.N.; Gutiérrez Paredes, G.J.; Romero Serrano, A.; Rivera López, E.; Martínez Franco, E.; Tamayo Meza, P.; Díaz Barriga Arceo, L. Synthesis and characterization of a MoWC-WC-NiC nanocomposite via mechanical alloying and sintering. Powder Technol. 2015, 271, 292–300. [Google Scholar] [CrossRef]
- Li, B.; Zhang, W.; Li, D.; Wang, J. Electrodeposition of Ni[sbnd]W/ZrO2 nanocrystalline film reinforced by CeO2 nanoparticles: Structure, surface properties and corrosion resistance. Mater. Chem. Phys. 2019, 229, 495–507. [Google Scholar] [CrossRef]
- Ashenaeian, S.; Haghighi, M.; Rahemi, N. Hybrid plasma-sono-coprecipitation dispersion of NiMo nanocatalyst over functionalized multiwall carbon nanotube used in hydrodesulfurization of thiophene. Adv. Powder Technol. 2019, 30, 502–512. [Google Scholar] [CrossRef]
- Wu, Z.M.; Liang, Y.X.; Fu, E.G.; Du, J.L.; Wang, P.P. The process and mechanisms for the transformation of coarse grain to nanoscale grain in tungsten by ball milling. Powder Technol. 2018, 326, 222–227. [Google Scholar] [CrossRef]
- Chen, Q.; Liang, S.; Zhang, J.; Zhang, X.; Wang, C.; Song, X.; Zhuo, L. Preparation and characterization of WMo solid solution nanopowders with a wide composition range. J. Alloys Compd. 2020, 823, 153760. [Google Scholar] [CrossRef]
- González, G.; Sagarzazu, A.; Villalba, R.; Ochoa, J. Comparative study of NiW, NiMo and MoW prepared by mechanical alloying. J. Alloys Compd. 2007, 434–435, 525–529. [Google Scholar] [CrossRef]
- Gonzalez, G.; Sagarzazu, A.; Bonyuet, D.; D’Angelo, L.; Villalba, R. Solid state amorphisation in binary systems prepared by mechanical alloying. J. Alloys Compd. 2009, 483, 289–297. [Google Scholar] [CrossRef]
- Ren, C.; Fang, Z.Z.; Koopman, M.; Butler, B.; Paramore, J.; Middlemas, S. Methods for improving ductility of tungsten—A review. Int. J. Refract. Met. Hard Mater. 2018, 75, 170–183. [Google Scholar] [CrossRef]
- Ohser-Wiedemann, R.; Martin, U.; Müller, A.; Schreiber, G. Spark plasma sintering of Mo-W powders prepared by mechanical alloying. J. Alloys Compd. 2013, 560, 27–32. [Google Scholar] [CrossRef]
- Díaz Barriga, L.; González, L.; Rivera, O.J.N.; Medina, O.; Garibay, V. Intercalated intermetallic compounds AlTi3 and Fe2Ti in microrods and microtubes obtained by invariant reaction of mechanically milled system Al43Ti36Fe21. Materials 2019, 12, 3086. [Google Scholar] [CrossRef] [Green Version]
- Suryanarayana, C. Mechanical Alloying and Milling; CRC Press: NewYork, NY, USA, 2004; pp. 22–25. ISBN 9780203020647. [Google Scholar]
- Intrater, J. Mechanical Alloying and Milling: A book review. Mater. Manuf. Process. 2007, 22, 790–791. [Google Scholar] [CrossRef]
- Zaara, K.; Chemingui, M.; Gallet, S.L.; Gaillard, Y.; Escoda, L.; Saurina, J.; Suñol, J.J.; Bernard, F.; Khitouni, M.; Optasanu, V. High-entropy feconib0.5si0.5 alloy synthesized by mechanical alloying and spark plasma sintering. Crystals 2020, 10, 929. [Google Scholar] [CrossRef]
- Wang, Y.; Chen, Y.; He, J.; Li, P.; Yang, C. Mechanism of catalytic aquathermolysis: Influences on heavy oil by two types of efficient catalytic ions: Fe3+ and Mo6+. Energy Fuels 2010, 24, 1502–1510. [Google Scholar] [CrossRef]
- Hu, Y.; Jia, G.; Ma, S.; Hu, J.; Zhu, P.; Cui, T.; Li, Z.; Zou, Z. Hydrogen evolution reaction of γ-Mo0.5W0.5 C achieved by high pressure high temperature synthesis. Catalysts 2016, 6, 208. [Google Scholar] [CrossRef] [Green Version]
- Ma, S.; Bao, K.; Tao, Q.; Huang, X.; Zhu, P.; Cui, T. An ultra-incompressible ternary transition metal carbide. RSC Adv. 2014, 4, 63544–63548. [Google Scholar] [CrossRef]
- Toth, L. Transition Metal Carbides and Nitrides, 1st ed.; Academic Press, Inc.: Cambridge, MA, USA, 1971; ISBN 9780323157223. [Google Scholar]
- Mousavi, T.; Abbasi, M.H.; Karimzadeh, F. Thermodynamic analysis of NiTi formation by mechanical alloying. Mater. Lett. 2009, 63, 786–788. [Google Scholar] [CrossRef]
- Pierson, H.O. Handbook of Refractory Carbides and Nitrides: Properties, Characteristics, Processing, and Applications; Noyes Publication: Westwood, NJ, USA, 1996; ISBN 978 0 8155 1392 6. [Google Scholar]
- Suryanarayana, C.; Grant, N.M. X-rays and Diffraction: A Practical Approach; Springer: New York, NY, USA, 1998; ISBN 978 1 4899 0148 4. [Google Scholar]
- Askeland, D.; Fulay, P.; Wright, W. The Science & Engineering of Materials; Thomson: Stamford, CT, USA, 2010; ISBN 0 495 296 023. [Google Scholar]
- Nishizawa, T. Thermodyn. Microstruct; ASM International: Geauga, OH, USA, 2008; ISBN 1615031286. [Google Scholar]
- Cottrell, S.A. An Introduction to Metallurgy, 2nd ed.; Edward Arnold Publisher: London, UK, 1995; ISBN 0 901716 93 6. [Google Scholar]
- Torkan, S.; Ataie, A.; Abdizadeh, H.; Sheibani, S. Effect of milling energy on preparation of nano-structured Fe70Si30 alloys. Powder Technol. 2014, 267, 145–152. [Google Scholar] [CrossRef]
- Ray, P.K.; Akinc, M.; Kramer, M.J. Applications of an extended Miedema’s model for ternary alloys. J. Alloys Compd. 2010, 489, 357–361. [Google Scholar] [CrossRef]
- Rivera Olvera, J.N.; Acevedo Martínez, J.; Herrera Hernández, H.; García Orozco, I.; Díaz Barriga Arceo, L. Microstructural characterization and thermodynamic analysis of MoZn produced by mechanical alloying. J. Alloys Compd. 2017, 696, 329–337. [Google Scholar] [CrossRef]
- De Boer, F.R.; Boom, R.; Mattens, W.C.M.; Miedema, A.R.; Niessen, A.K. Cohesion in Metals: Transition Metal Alloys; North-Holland Editorial: Amsterdam, The Netherlands, 1989; ISBN 0 44 487098 9. [Google Scholar]
- Al-Joubori, A.A.; Suryanarayana, C. Synthesis of metastable NiGe2 by mechanical alloying. Mater. Des. 2015, 87, 520–526. [Google Scholar] [CrossRef]
- Bermudez-Polonio, J. Métodos de Difraccion de Rayos X: Principios y Aplicaciones; Piramide Editorial: Madrid, Spain, 1981; ISBN 9781624102141. [Google Scholar]
- Cullity, B.D.; Stock, S.R. Elements of X-ray Diffraction, 3rd ed.; Prentice Hall: New York, NY, USA, 2001; ISBN 0201610914. [Google Scholar]
- Martínez, C.; Aguilar, C.; Briones, F.; Guzmán, D.; Zelaya, E.; Troncoso, L.; Rojas, P.A. Effects of Zr on the amorphization of Cu-Ni-Zr alloys prepared by mechanical alloying. J. Alloys Compd. 2018, 765, 771–781. [Google Scholar] [CrossRef]
- Chen, C.L. Suprianto investigation of W-Ti ODS coating on SUS304 steel fabricated by mechanical alloying technique. Surf. Coatings Technol. 2018, 350, 1105–1111. [Google Scholar] [CrossRef]
- Dorfman, M.R. Thermal spray materials. Adv. Mater. Process. 2002, 160, 49–51. [Google Scholar]
- Li, C.; Huang, W.; Zhou, C.; Chen, Y. Advances on the transition-metal based catalysts for aquathermolysis upgrading of heavy crude oil. Fuel 2019, 257, 115779. [Google Scholar] [CrossRef]
- Wu, C.; Lei, G.L.; Yao, C.J.; Gai, P.Y.; Cao, Y.B.; Li, X.N. Mechanism for reducing the viscosity of extra-heavy oil by aquathermolysis with an amphiphilic catalyst. J. Fuel Chem. Technol. 2010, 38, 684–690. [Google Scholar] [CrossRef]
- Jung, Y.; Stevens, E.; Ding, B.; Kim, S.D.; Woo, S.K.; Lee, J.K. Microstructure and electrical conductivity in shape and size controlled molybdenum particle thick film. J. Mater. Sci. 2013, 48, 3760–3768. [Google Scholar] [CrossRef]
Line | h | k | l | h2 + k2 + l2 | a0 (nm) | dhkl (nm) |
---|---|---|---|---|---|---|
1 | 1 | 1 | 0 | 2 | 0.3149 | 0.2227 |
2 | 2 | 0 | 0 | 4 | 0.3149 | 0.1575 |
3 | 2 | 1 | 1 | 6 | 0.3149 | 0.1285 |
4 | 2 | 2 | 0 | 8 | 0.3147 | 0.1113 |
5 | 3 | 1 | 0 | 10 | 0.3146 | 0.0995 |
Element | a (V) | n1/3ws (d.u. **)1/3 | G (1010 N m−2) | K (1010 N m−2) | Vm (cm3 mol−1) | T (K) |
---|---|---|---|---|---|---|
Mo | 4.65 | 1.77 | 2 | 23 | 9.33 | 2896 |
W | 4.80 | 1.81 | 1.61 | 31 | 9.47 | 3695 |

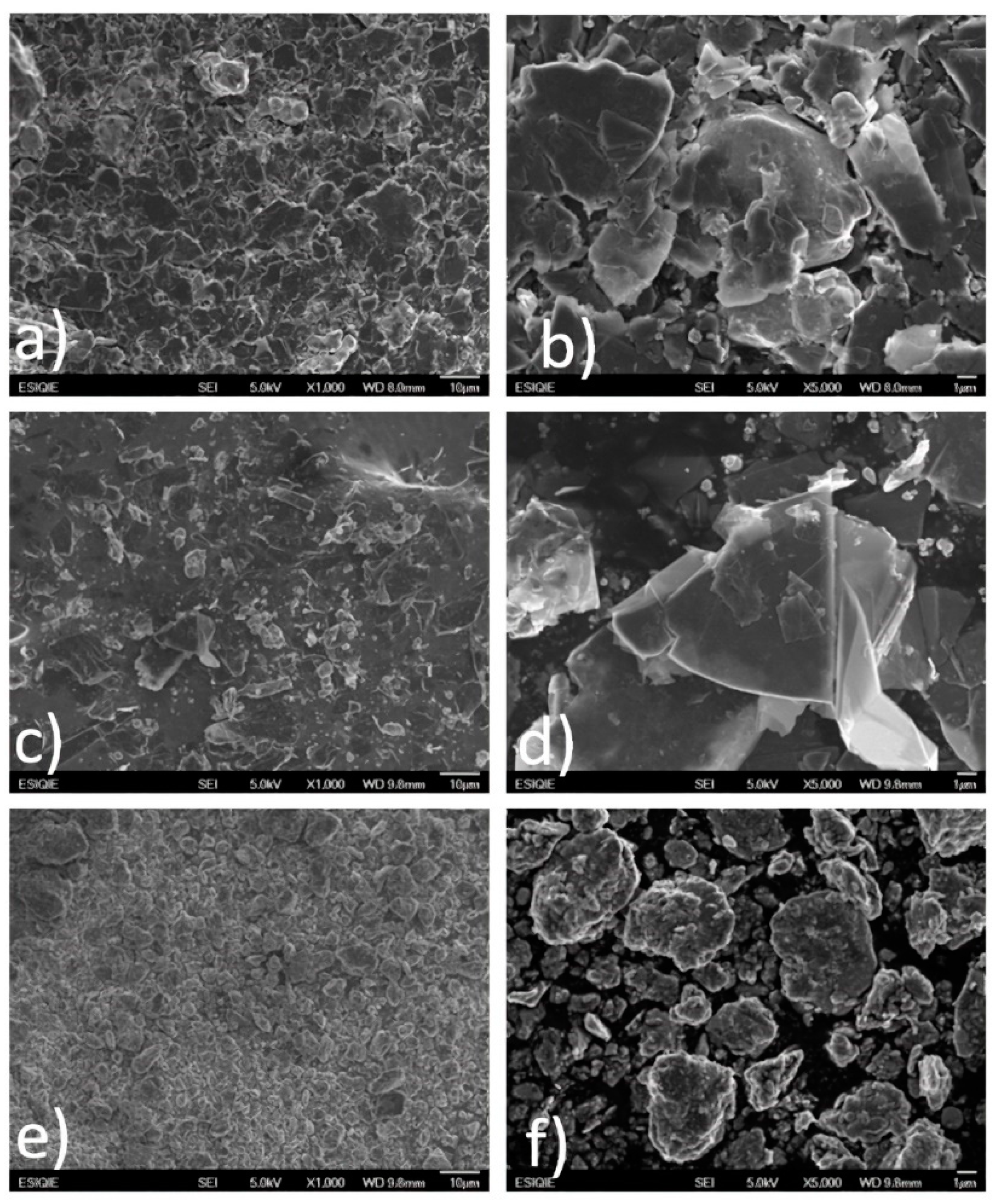

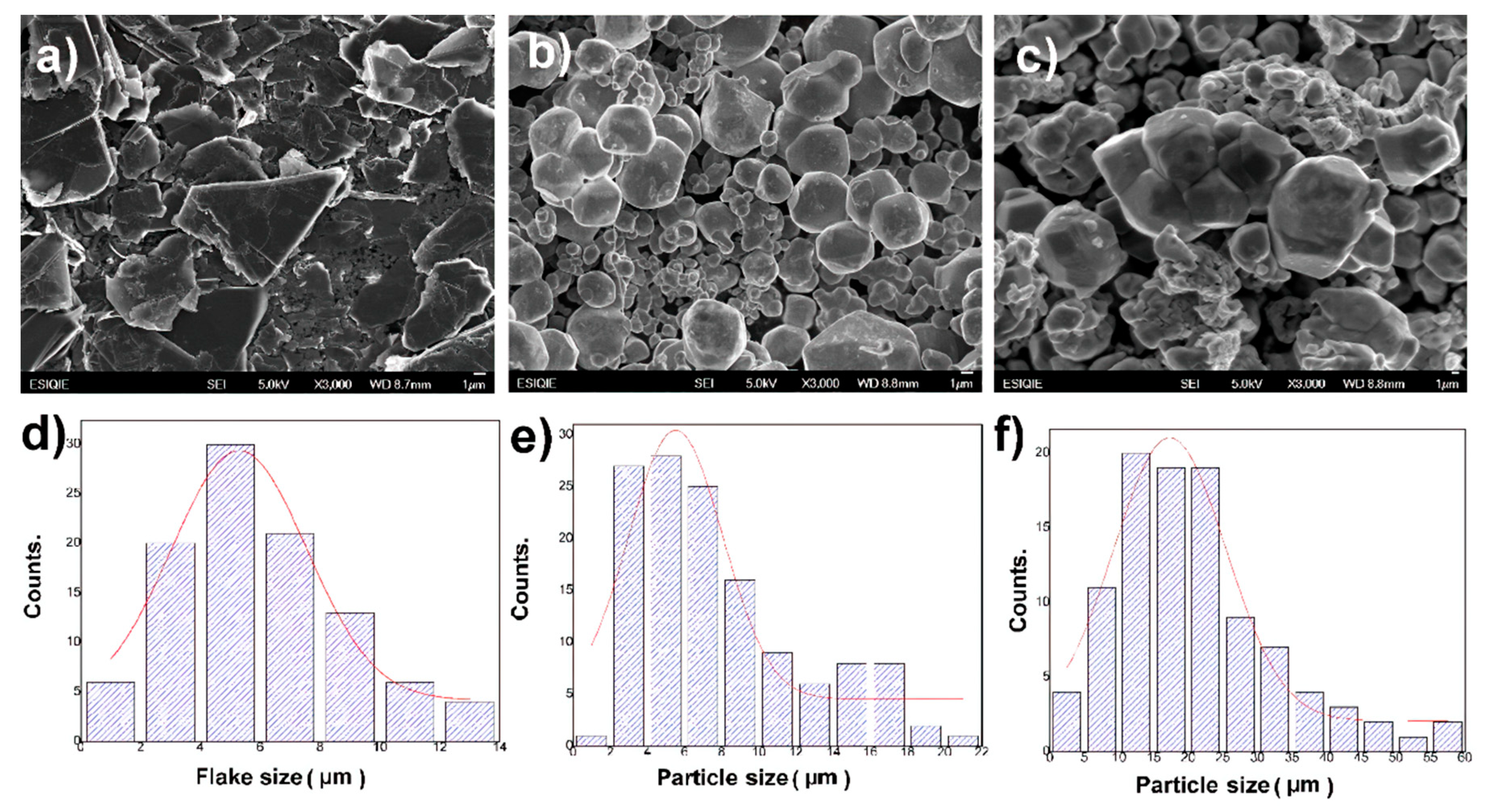

Milling Times (h) | Average Particle Size (μm) | Std. Dev. σ (μm) | SEM Micrograph Figure | % Reduction in Average Particle Size | Phases in XRD Patterns | Graphite Peak I/IO Counts (a.u.) of (002) | Ball Mill Energy |
---|---|---|---|---|---|---|---|
0 | 13.54 * | C = 2.8583 | 5a, b, and c | - | C + Mo + W | 150,000 | - |
Mo = 4.7581 | |||||||
W = 5.1682 | |||||||
75 | 9.32 | 2.6867 | 6a and b | 31.18 | C + MoW + MoWC | 1761 | Low |
125 | 5.18 | 2.3547 | 6c and d | 61.74 | C + MoW + MoWC | 3791 | High |
150 | 4.86 | 1.5124 | 6e and f | 64.10 | MoW + MoWC | 0 | High |

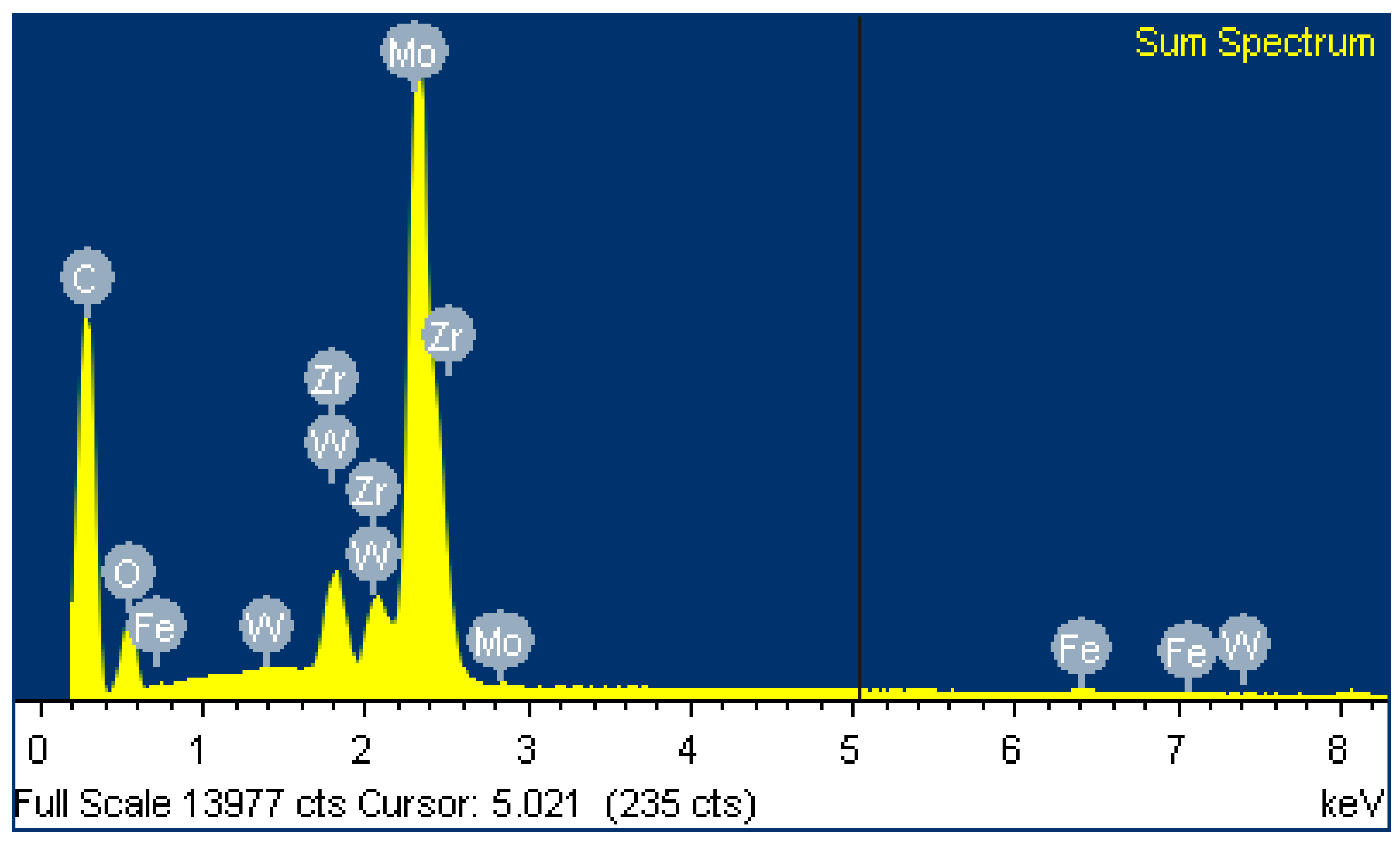

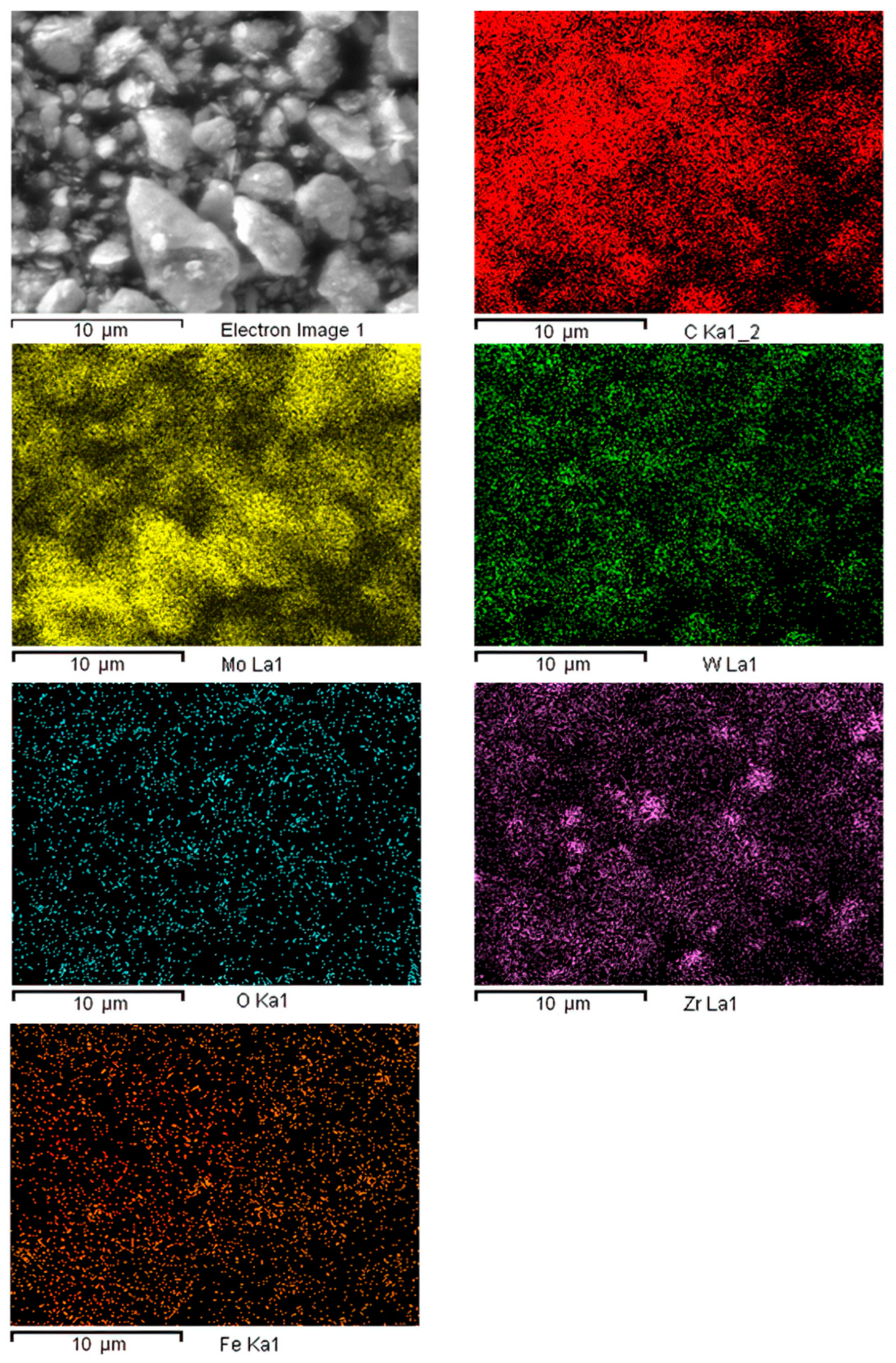

Element | %Weight | Element | %Atomic |
---|---|---|---|
C-K | 54.59 | C-K | 86.56 |
O-K | 5.18 | O-K | 6.16 |
Fe-K | 0.73 | Fe-K | 0.25 |
Zr-K | 4.32 | Zr-K | 0.90 |
Mo-K | 26.11 | Mo-K | 5.18 |
W-K | 9.09 | W-K | 0.94 |
Sample (h) | Speed (rpm) | Crystal Size (nm) | Vickers Hardness (GPa) | Vickers Std. Dev. (GPa) |
---|---|---|---|---|
25 | 500 | 118.3 | 10.5 | 1.1154 |
50 | 500 | 84.1 | 13.35 | 1.1542 |
75 | 500 | 58.7 | 24.97 | 2.0584 |
125 | 1500 | 45.6 | 27.48 | 2.0685 |
150 | 1500 | 40.8 | 31.48 | 2.1258 |
