3-D Modeling of Gas–Solid Two-Phase Flow in a π-Shaped Centripetal Radial Flow Adsorber

1
College of Biochemical Engineering, Beijing Union University, Beijing 100023, China
2
Department of Agricultural and Biological Engineering, University of Illinois at Urbana-Champaign, Urbana, IL 61801, USA
3
School of Energy and Environmental Engineering, University of Science and Technology Beijing, Beijing 100083, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Appl. Sci. 2020, 10(2), 614; https://doi.org/10.3390/app10020614
Received: 19 November 2019 / Revised: 23 December 2019 / Accepted: 10 January 2020 / Published: 15 January 2020
(This article belongs to the Special Issue Computational Fluid Mechanics and Heat Transfer)

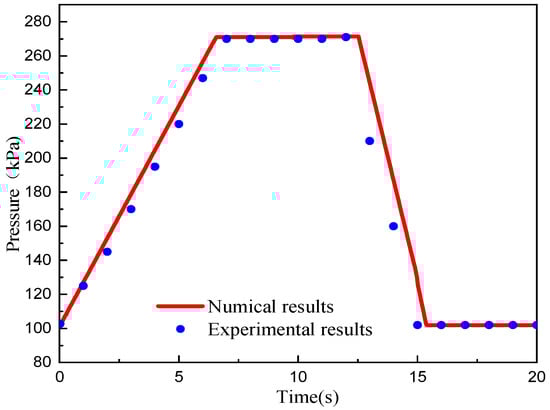

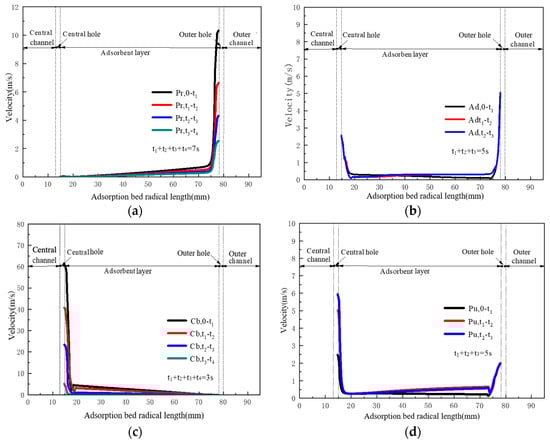

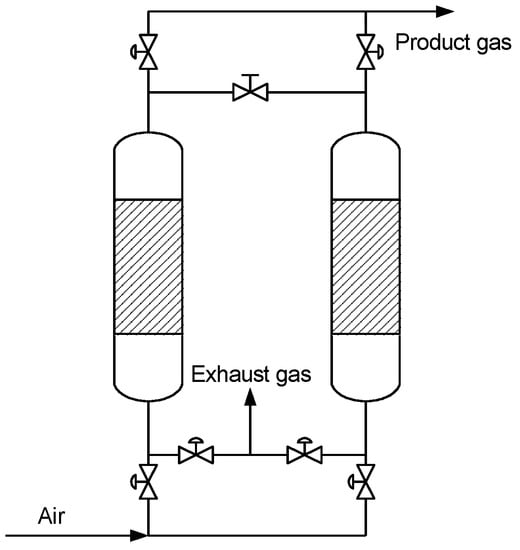

Radial flow adsorber (RFA) is widely used in large-scale pressure swing adsorption (PSA) oxygen production system because of high air separation. In this study, a 3-D modeling of gas–solid two-phase flow was established for the π-shaped centripetal RFA (CP-π RFA). The pressure difference, temperature changes, velocity profiles and oxygen distributions were comparatively studied using this model. Part of the results have been compared with the experiments results, which shows this model can give an accurately prediction. The results show that the pressure and velocity in the adsorber change greatly near the outer hole and central hole, but the overall pressure and velocity changes in the bed are stable. The oxygen product purity in the adsorbent filling area performed better on oxygen enrichment after eight cycles. The oxygen product flow rate will affect the oxygen production performance. The laws of the pressure, velocity, temperature and oxygen distributions can provide an important technical reference for CP-π RFA in the PSA for oxygen production.
Keywords: radial flow; π-shaped centripetal; adsorption; CFD modeling; two-phase flow radial flow; π-shaped centripetal; adsorption; CFD modeling; two-phase flow
Show Figures

Figure 1

MDPI and ACS Style

Wang, H.; Yang, X.; Li, Z.; Liu, Y.; Zhang, C.; Ma, X.; Li, C. 3-D Modeling of Gas–Solid Two-Phase Flow in a π-Shaped Centripetal Radial Flow Adsorber. Appl. Sci. 2020, 10, 614.
