# A Novel Cooperative Controller for Inverters of Smart Hybrid AC/DC Microgrids

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

- This work aims to formulate a model that can assess the behaviour of distributed energy resources in 14-node IEEE systems that stem from the change in the opening protocol of the disconnector, which establishes a power generating island. The stability analysis it exposes makes it possible to determine the performance of a radial distribution power system given various disturbances. Results have relevance in the operation and planning phases of a distributed generation system.
- As a renewable energy interface, numerous control technologies can be used to operate controlled inverters or rectifiers. In this study, some converters operated in an open-loop control strategy while others operated in a closed-loop control strategy. Furthermore, pulse width modulation techniques at varying carrier frequencies were utilised by these rectifiers or inverters.
- The main contribution of this paper the proposed method not only focused on the transient response but also improve the steady-state response which smooth the voltage, furthermore all inverters are effectively involved to increase capacity of the microgrid for better power management.
- The hybrid microgrid was equipped with nonlinear and linear loads, typical energy storage systems, and balanced and unbalanced loads. Moreover, this paper thoroughly describes the model with all the data needed to tackle the abovementioned studies.
- This paper offers a design process for the digital PR current controller implemented to a GCI. The procedure describes a step-by-step method for calculating the resonant and proportional gains, as well the resonant path’s coefficients. Its main contribution is helping facilitate and providing support to researchers who are tasked with designing GCI that incorporates present control strategies in a digital environment. The paper will also present an analysis of the frequency domain of a digital PR controller. This analysis utilised the fictitious w-domain. The case-study demonstrated the efficacy of GCI that uses a digital PR current controller, which was designed with the help of the proposed procedure. The paper also demonstrates how the proposed procedure has validity for a number of resonant path PR controllers.

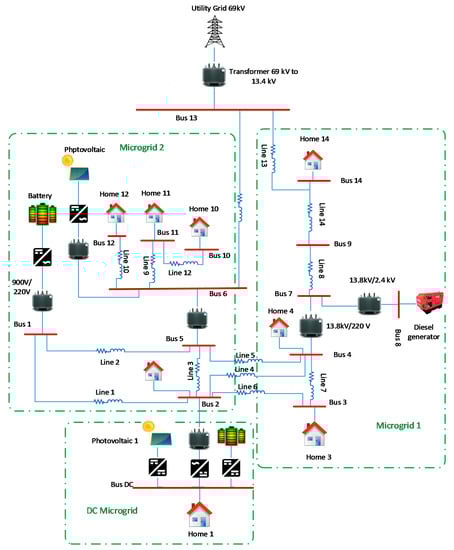

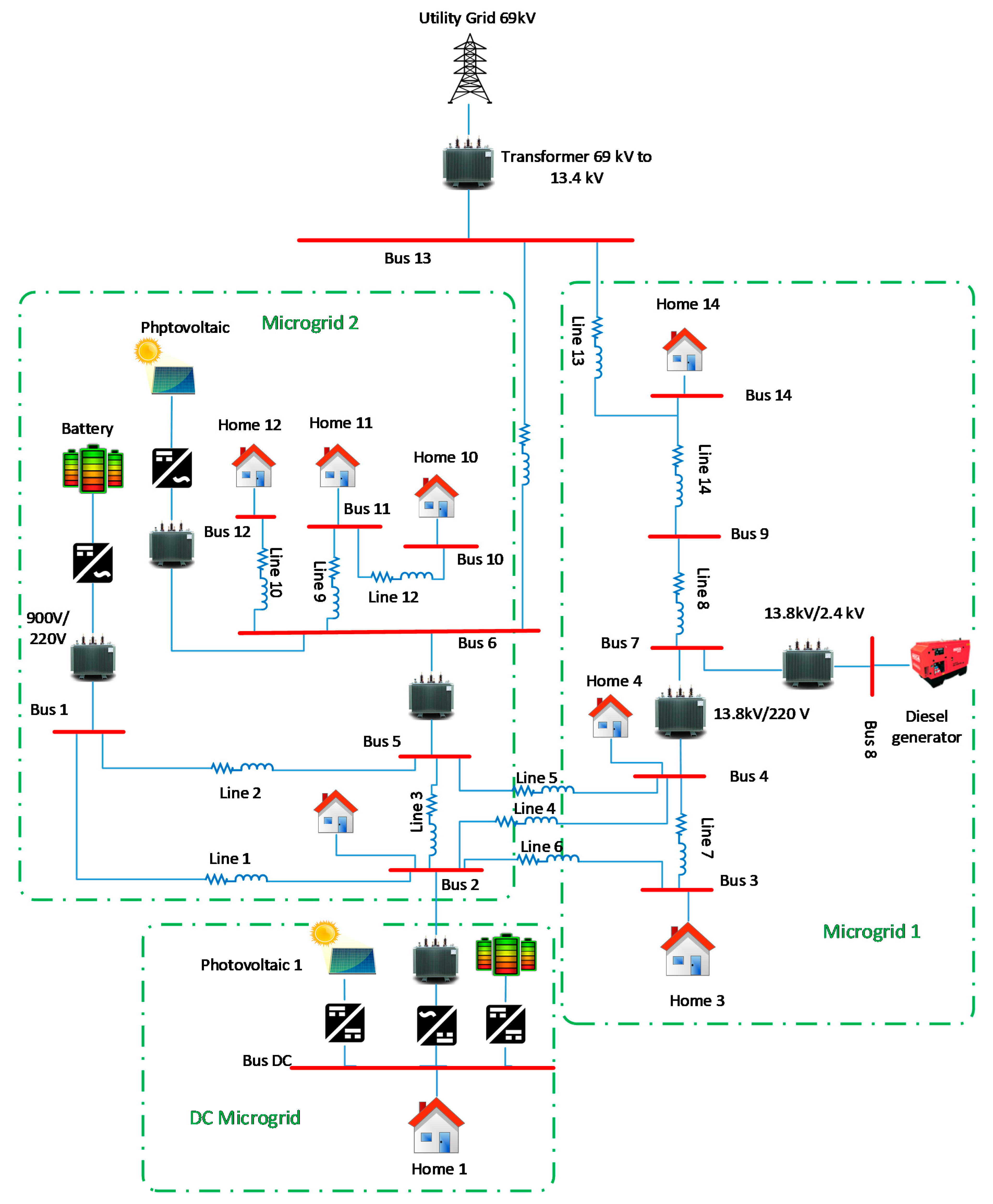

## 2. Proposed System Description

## 3. Distributed Hybrid Energy Generation System

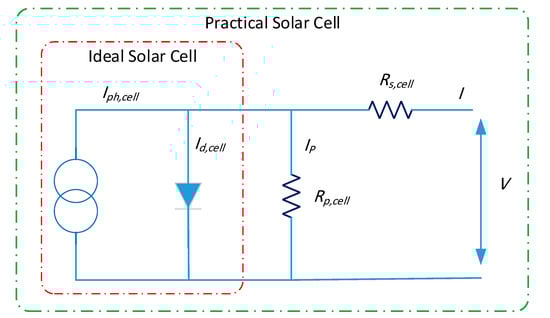

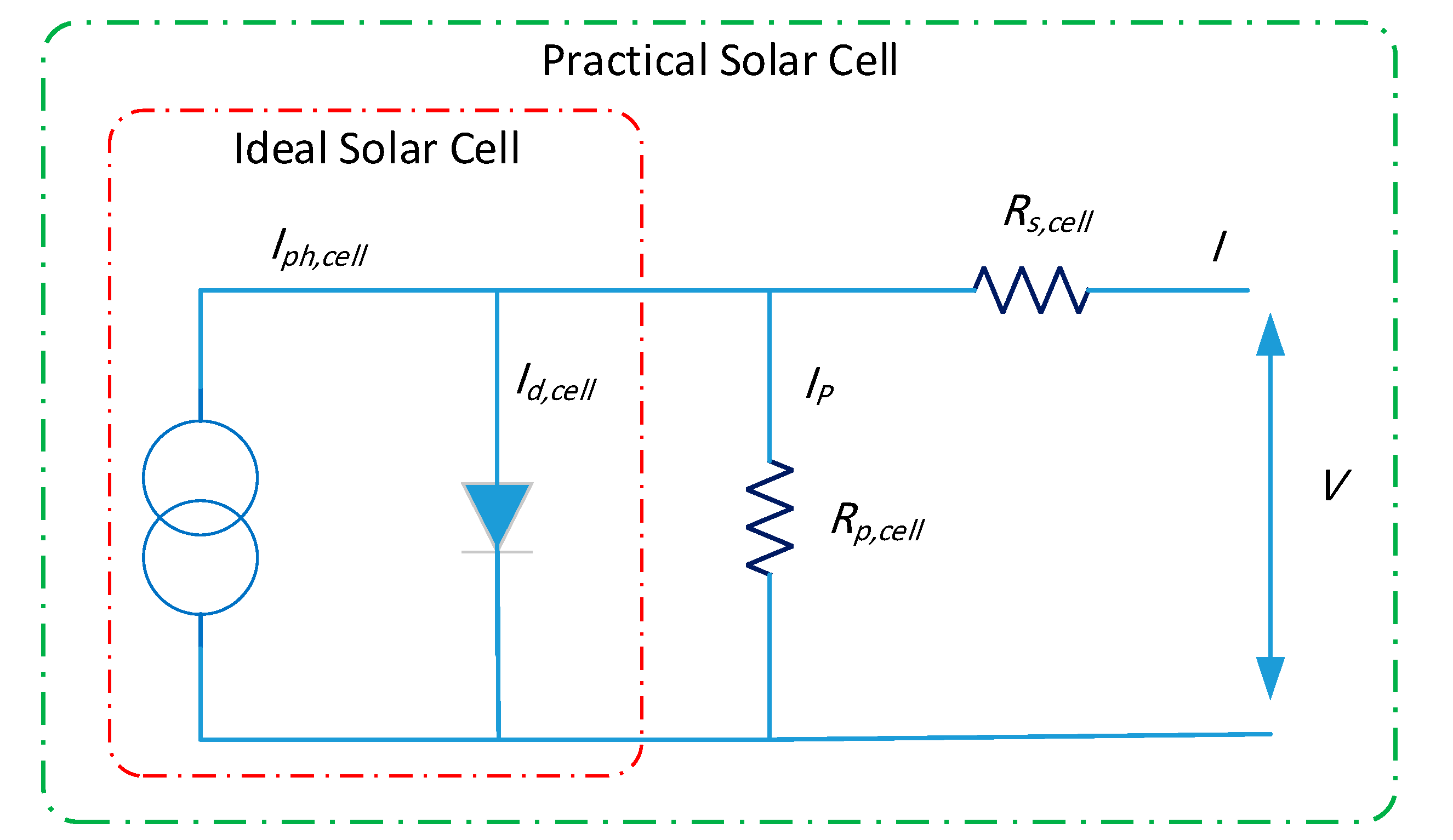

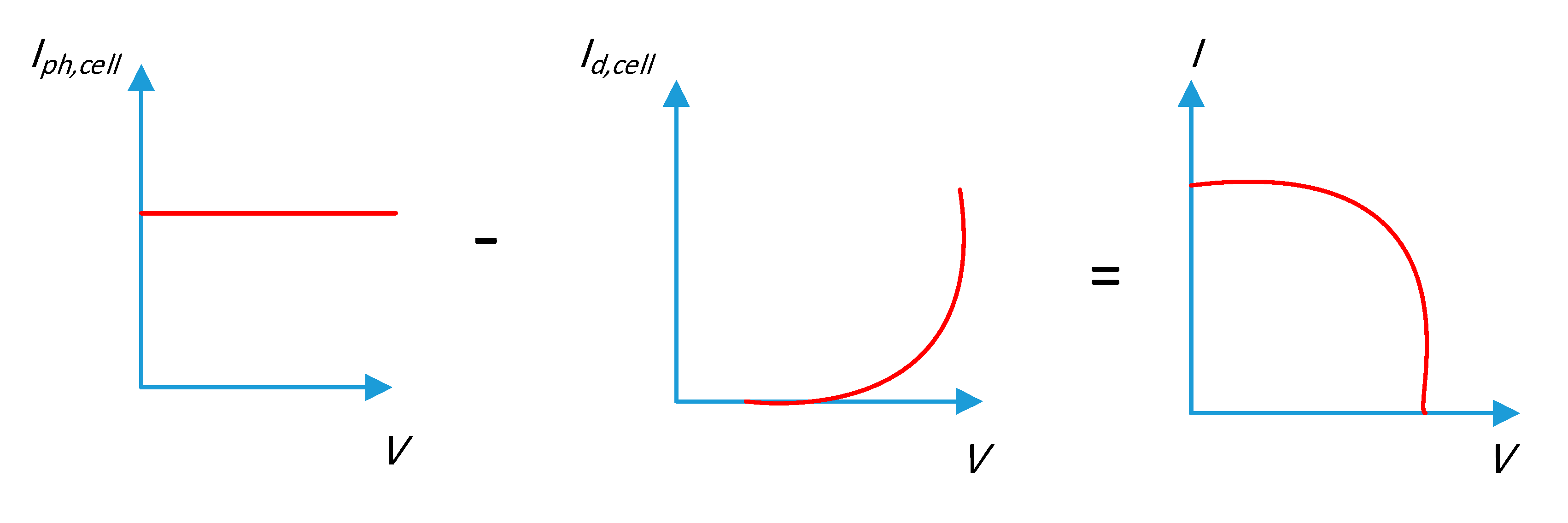

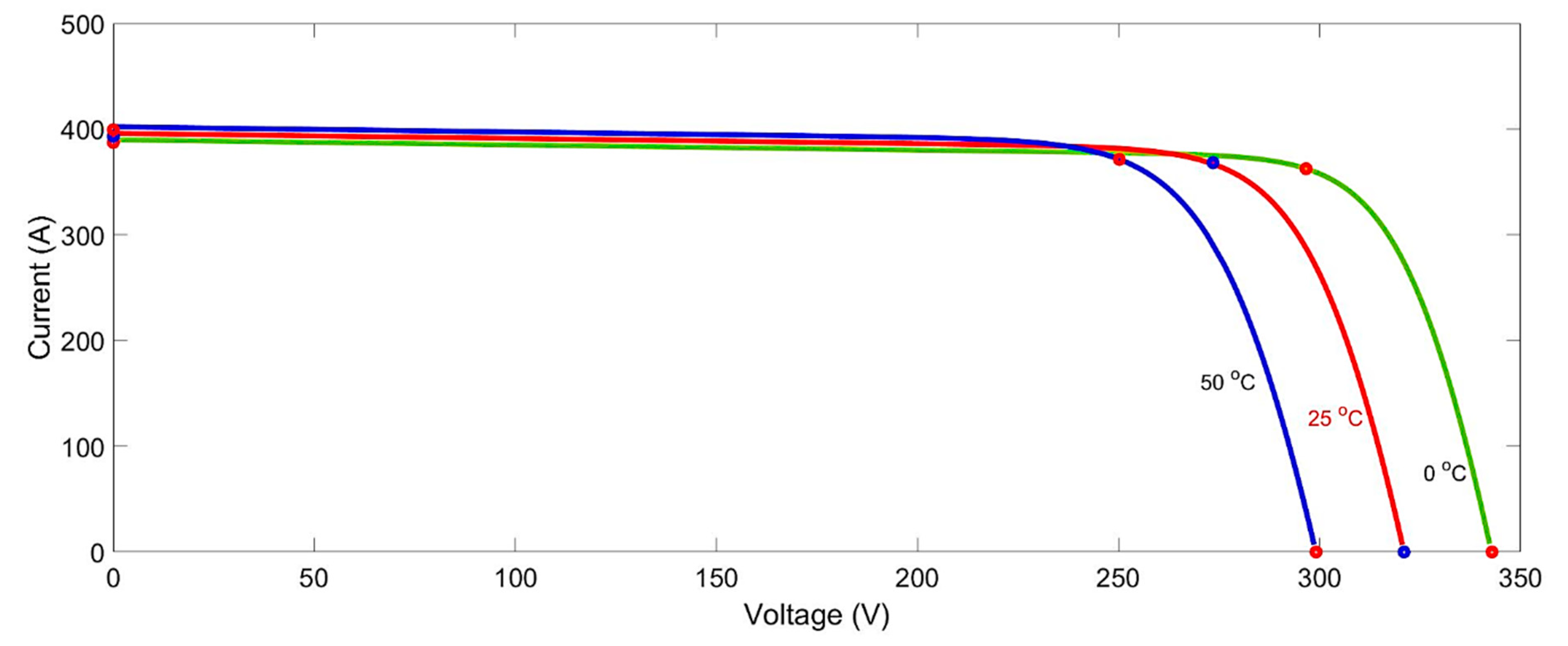

#### 3.1. Photovoltaic Modelling

^{−23}J/K q is the charge of the electron (1.602 × 10

^{−19}C), ${I}_{o,cell}$ is the saturation current or reversed leakage of the photovoltaic, ${I}_{ph,cell}$ is the photocurrent (A) of the photovoltaic, ${R}_{s,cell}$, is the series resistance of photovoltaic, ${R}_{p,cell}$ is parallel resistance of photovoltaic.

^{2}), ${I}_{ph;n}$ represents the photocurrent when it is under the nominal condition (typically a 1000 w/m

^{2}irradiance and 25 °C temperature), $G$ is a measured solar irradiance in w/m

^{2}${K}_{i}$ is the temperature coefficient [30]. In this paper, the electrical parameters of the SPR-305E-WHT-D solar is extracted and used to simulate this modular model. These parameters are listed in Table 1.

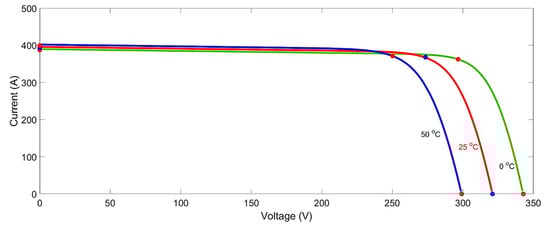

#### 3.2. Batteries

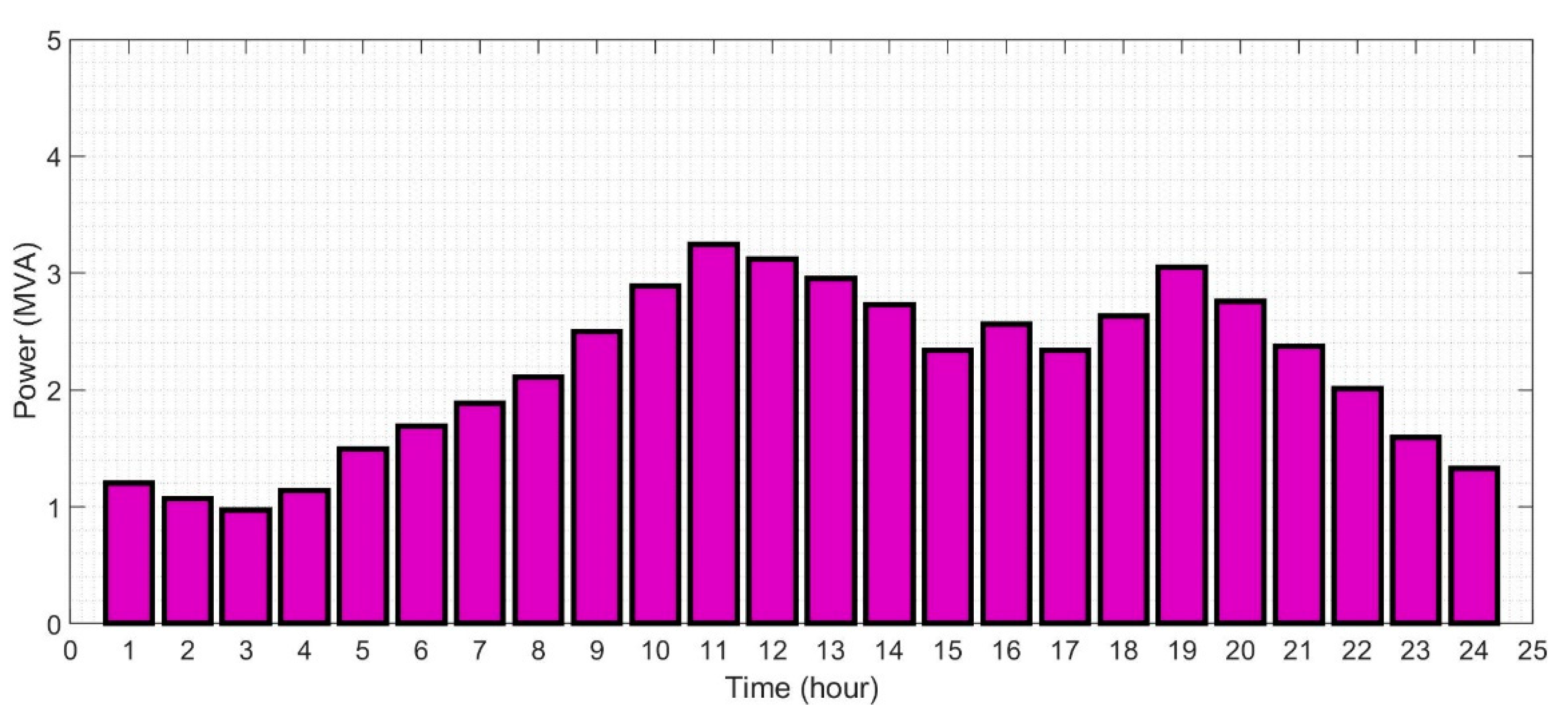

#### 3.3. Loads

#### 3.4. Diesel Generator

_{1}, T

_{2}and T

_{3}refer to time constants of the regulator (seconds). Below is the actuator transfer function:

#### 3.5. The Lines Data

## 4. Controller of the Inverters

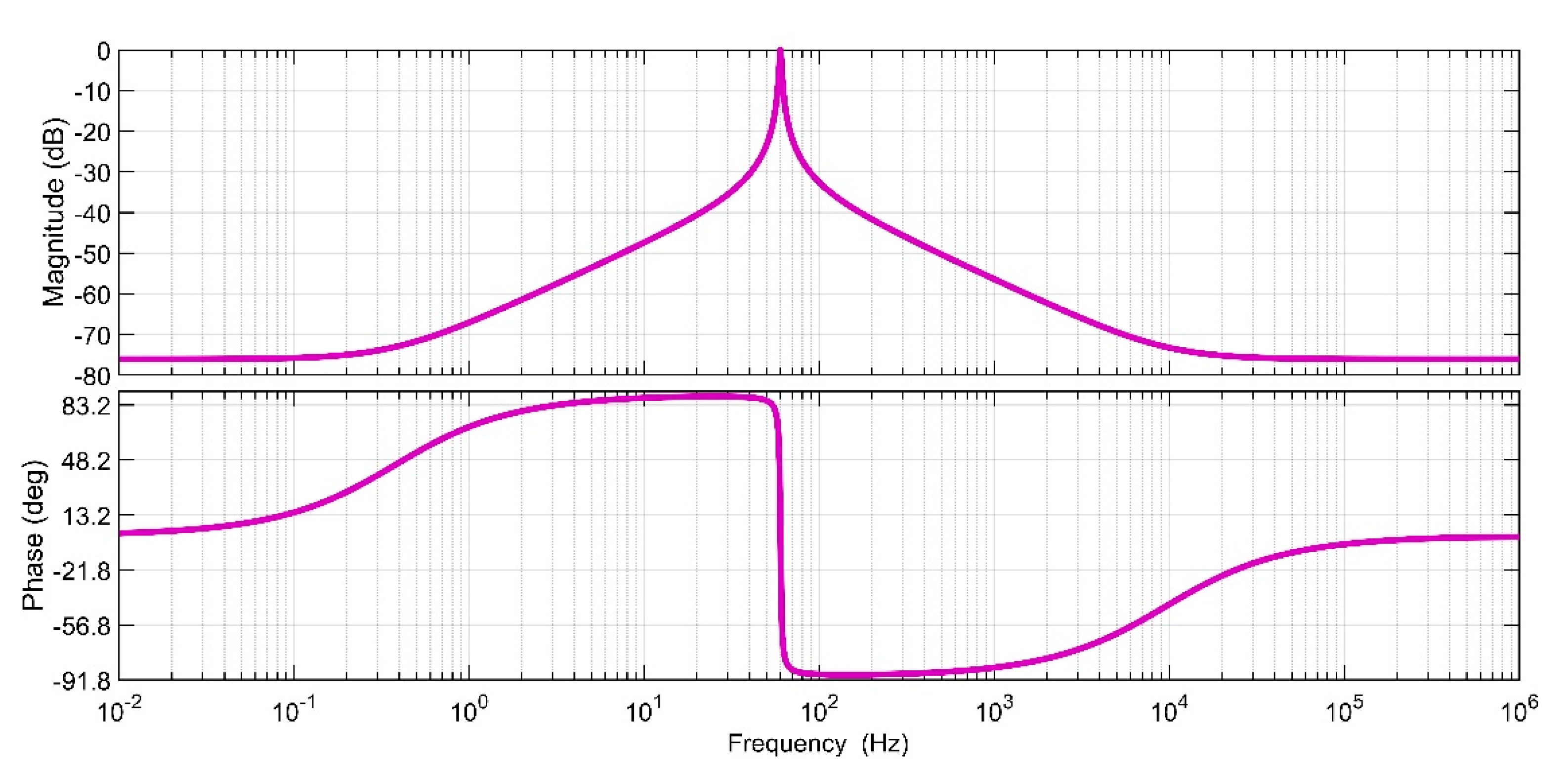

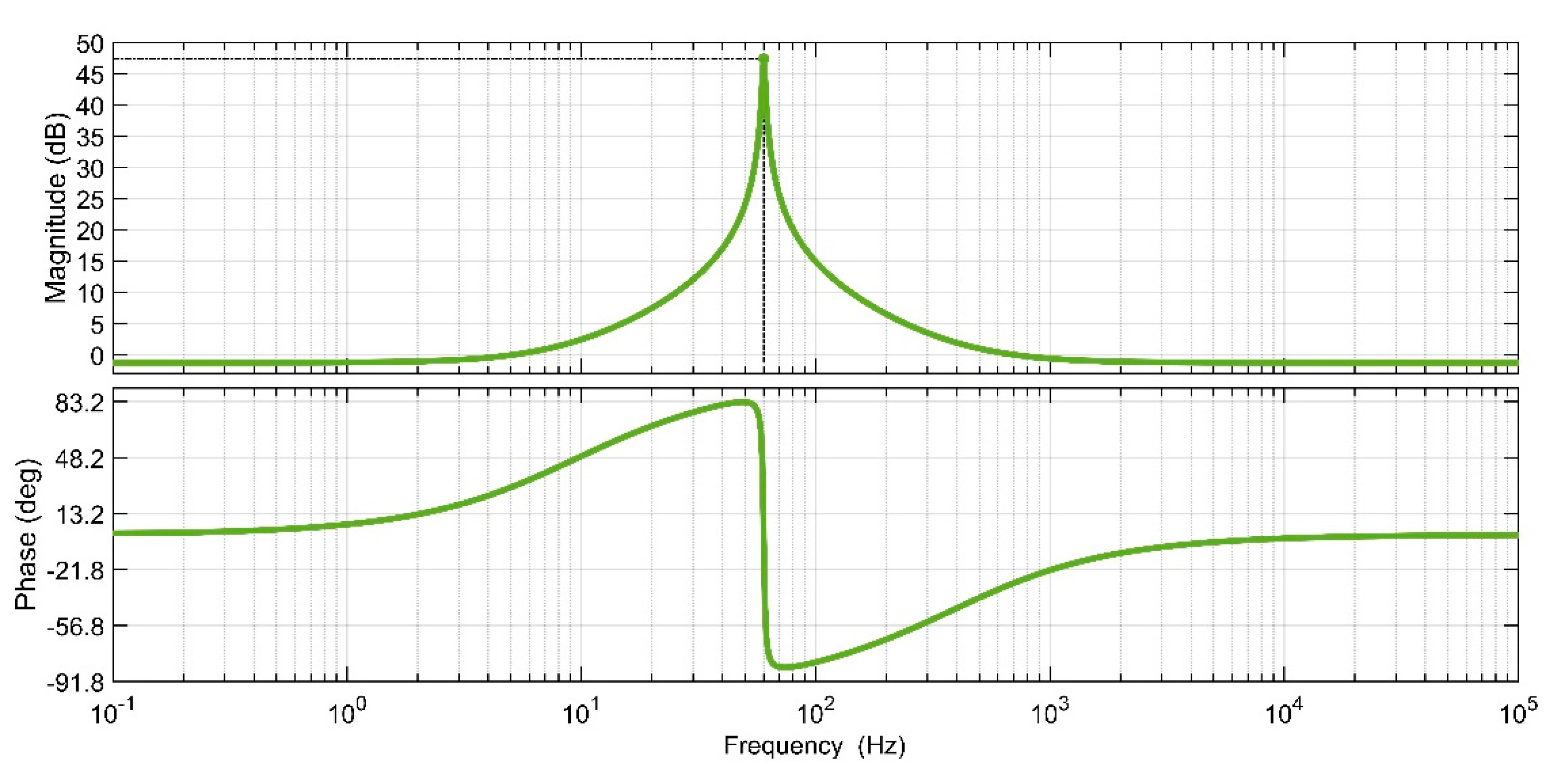

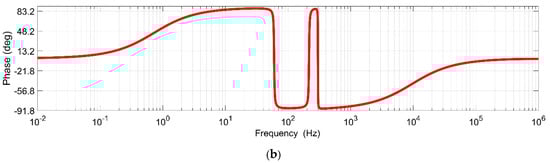

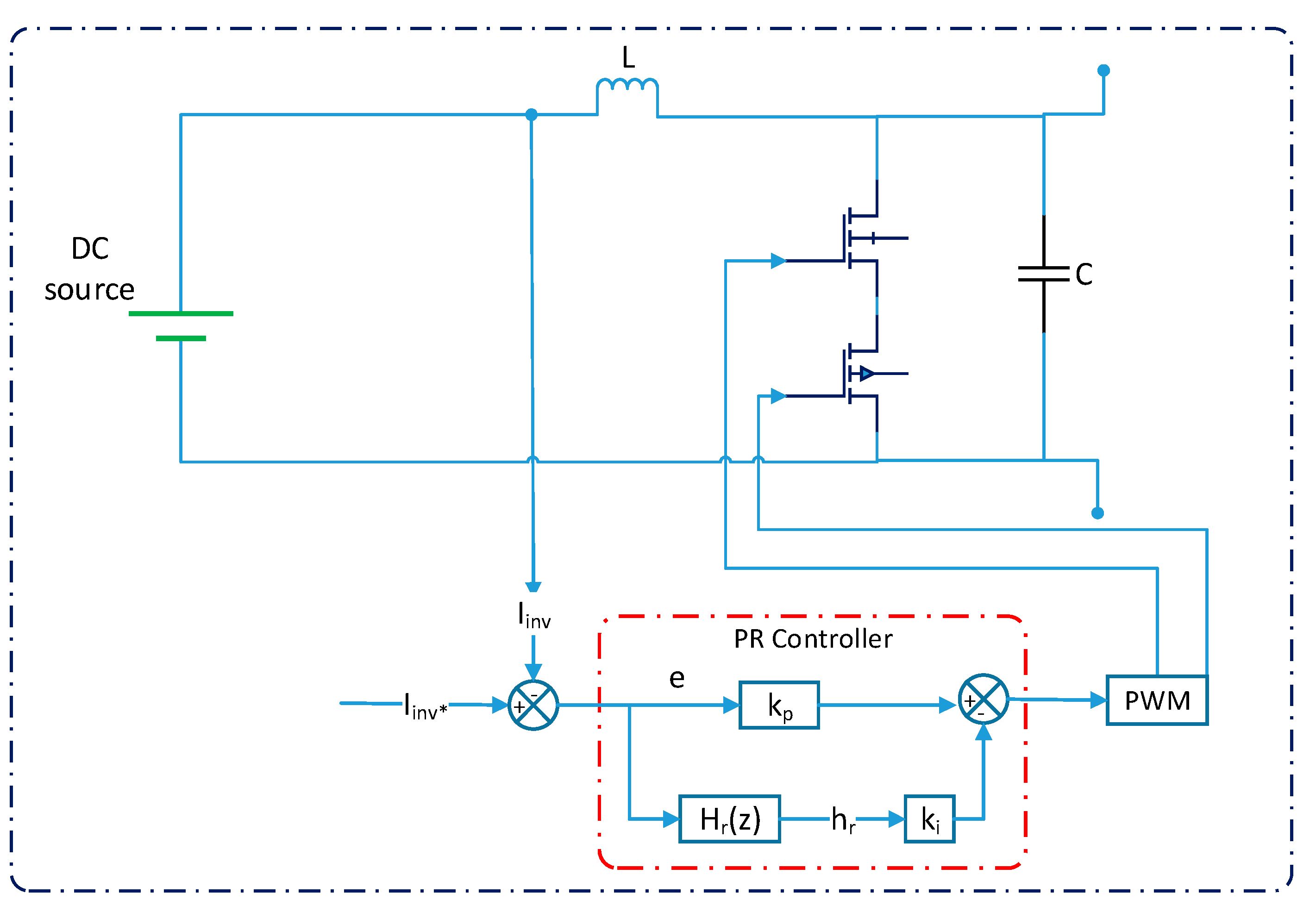

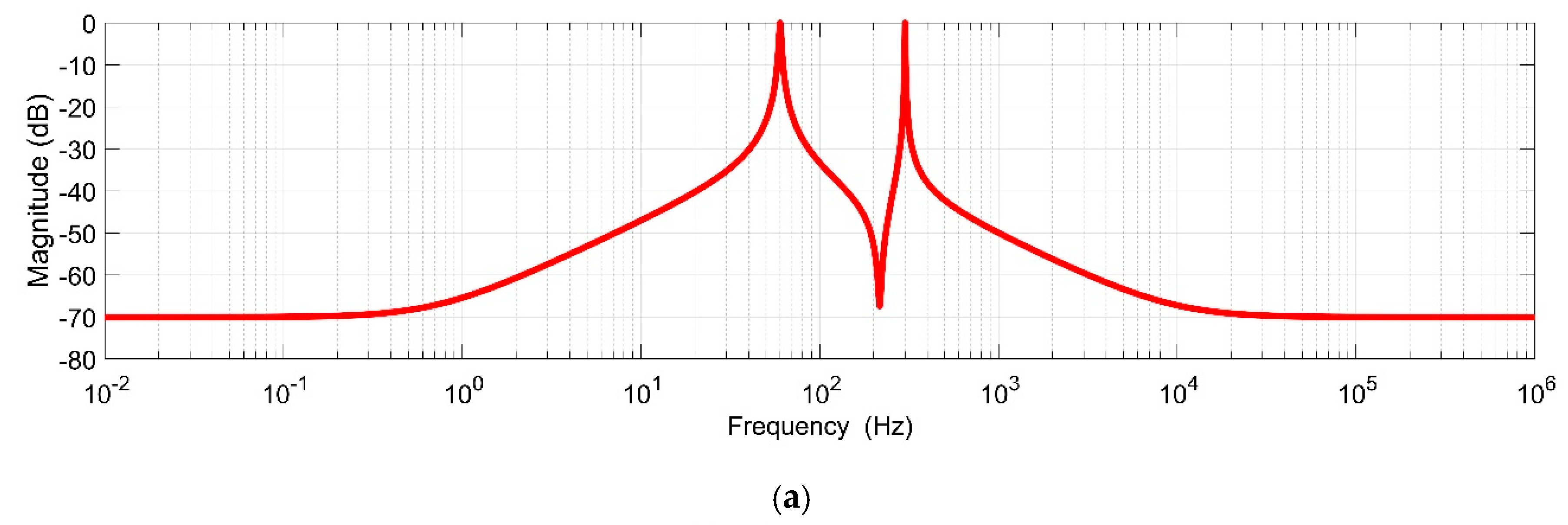

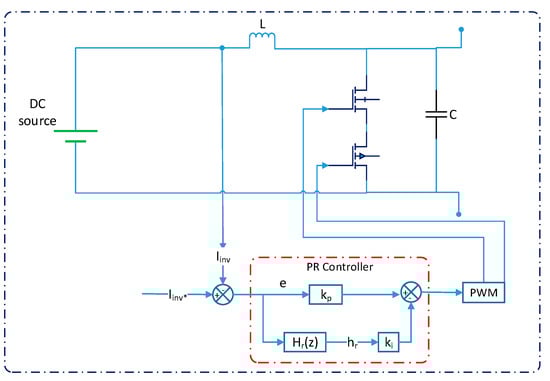

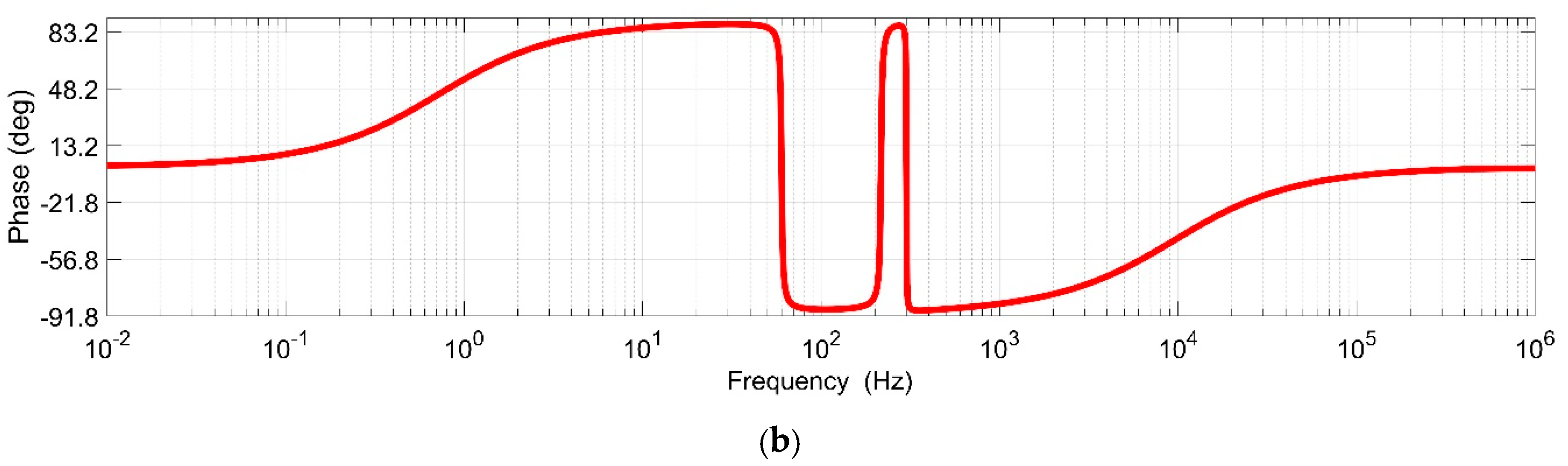

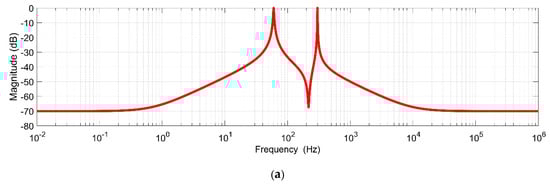

## 5. Controller of Proportional Resonant

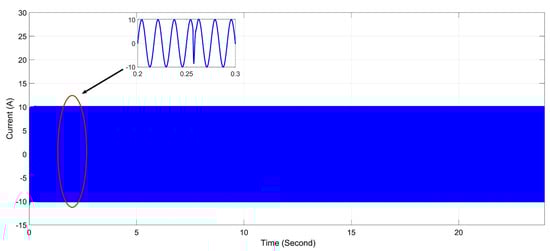

## 6. Case-Study

## 7. Proposed System Analysis

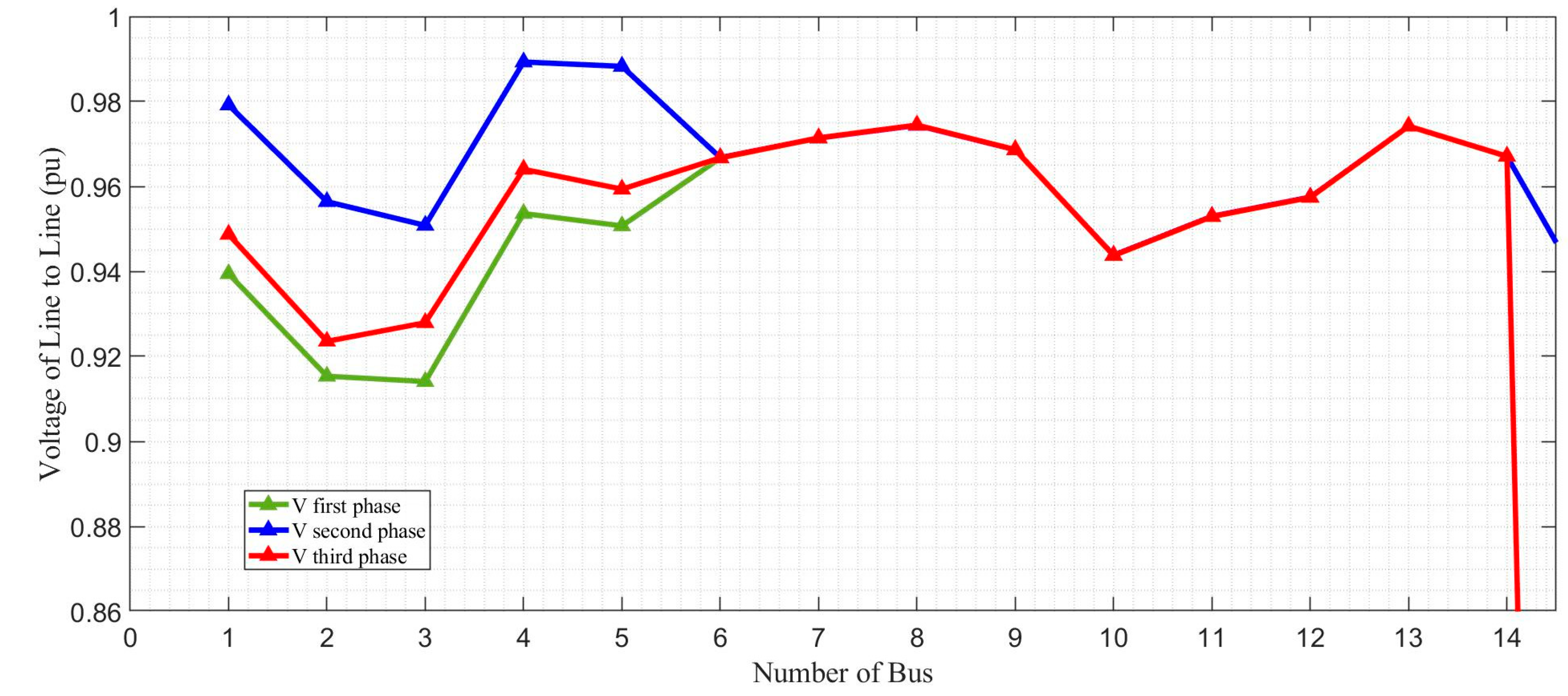

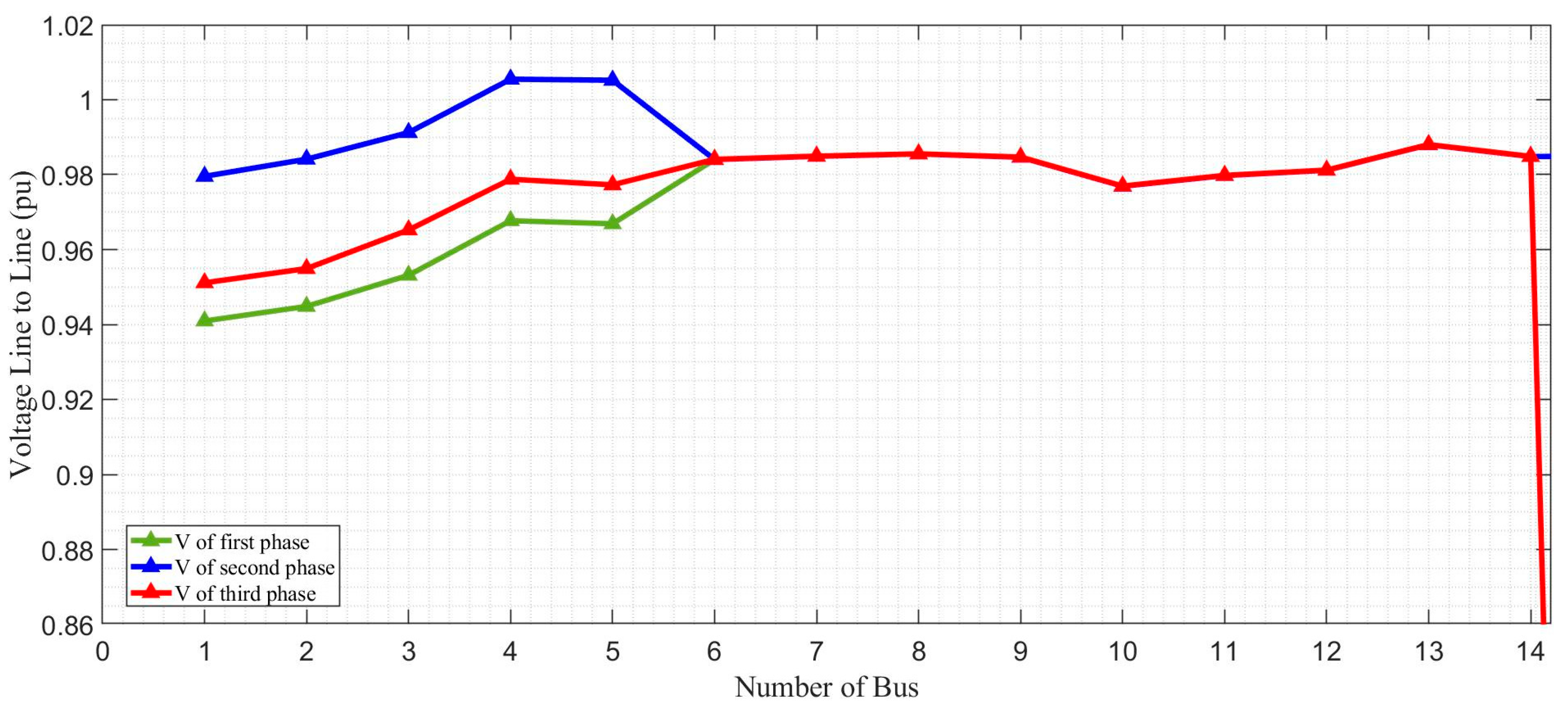

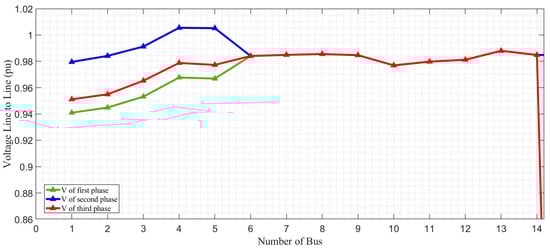

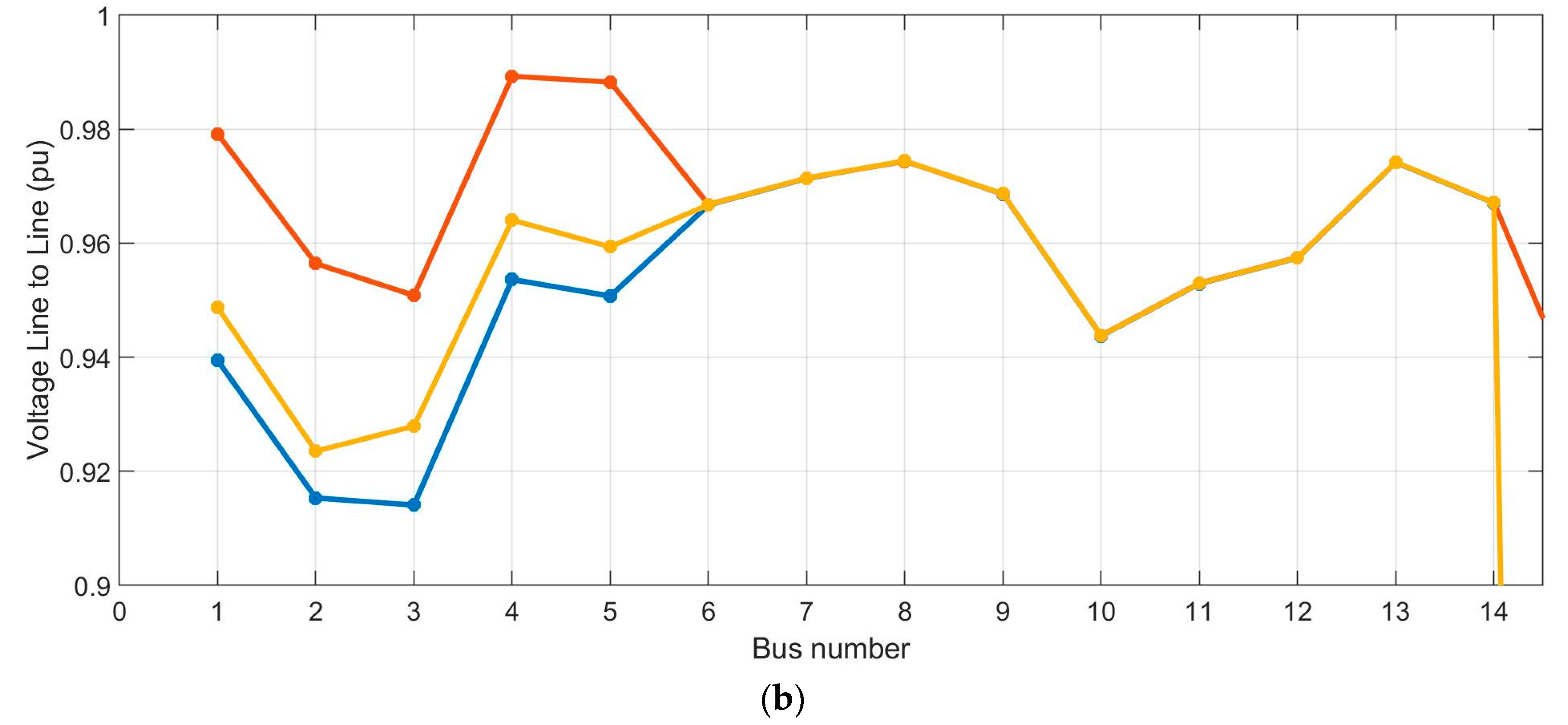

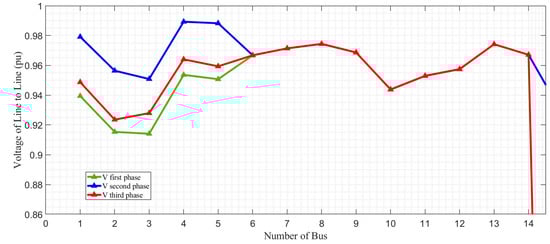

## 8. Voltage Analysis

## 9. Power Flow Result

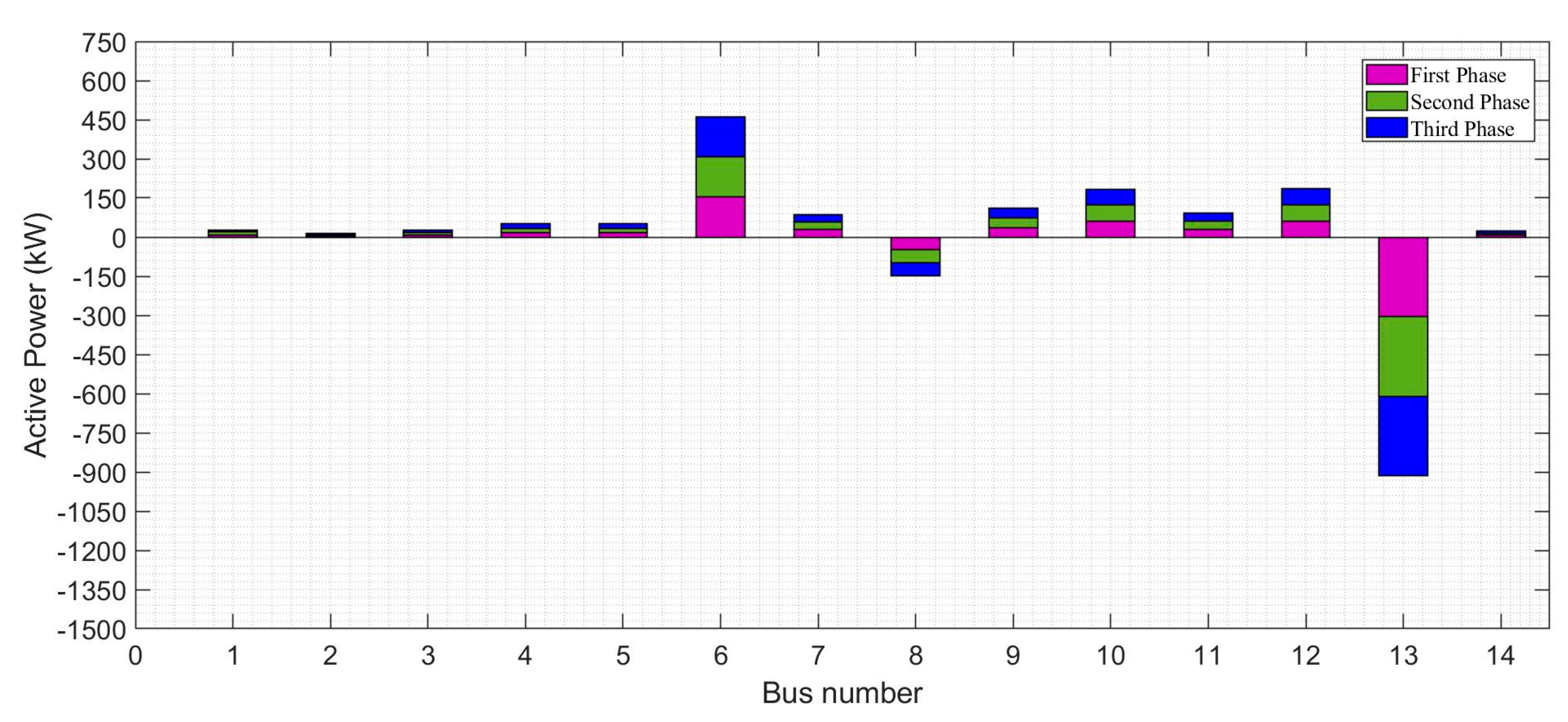

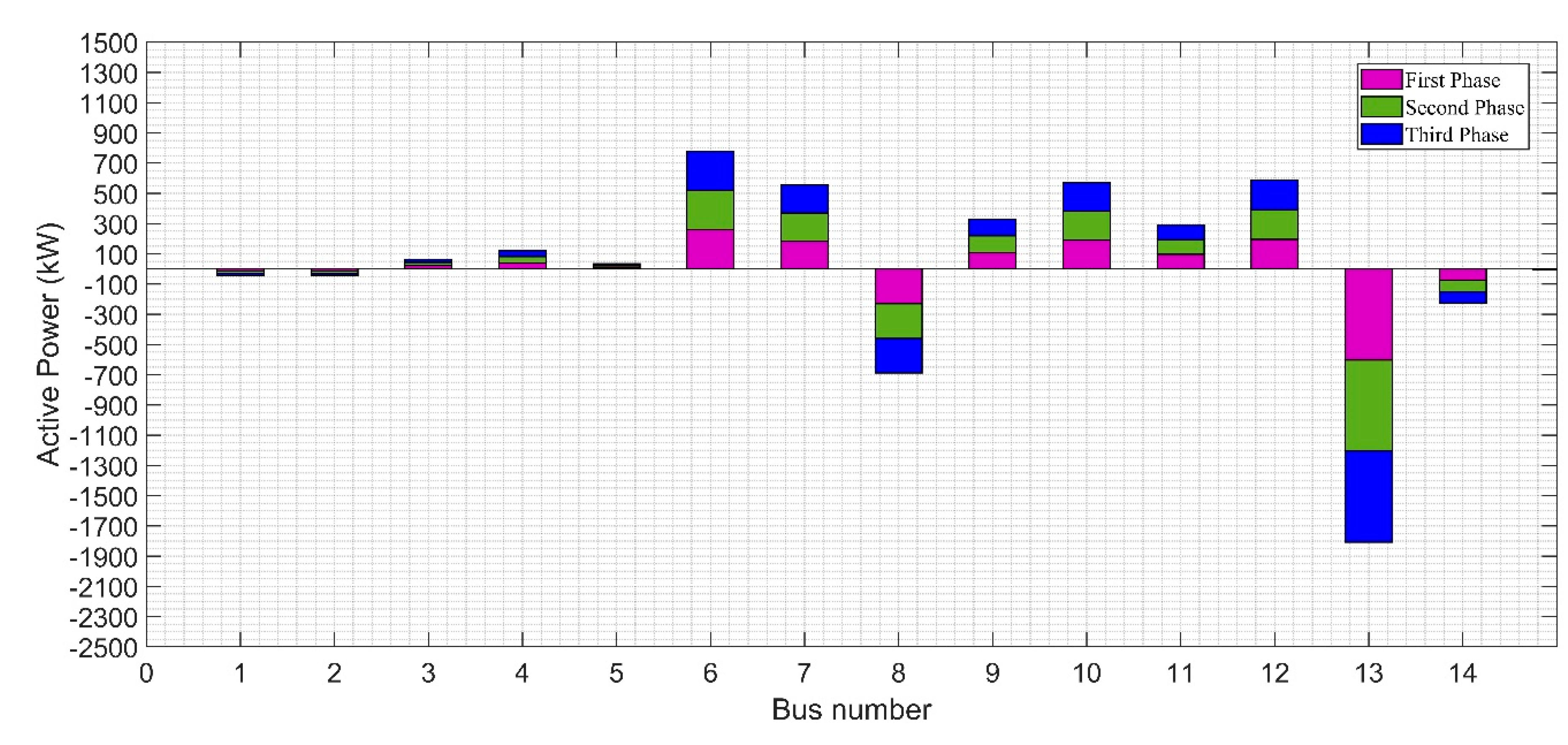

## 10. Active Power Balance per Bus

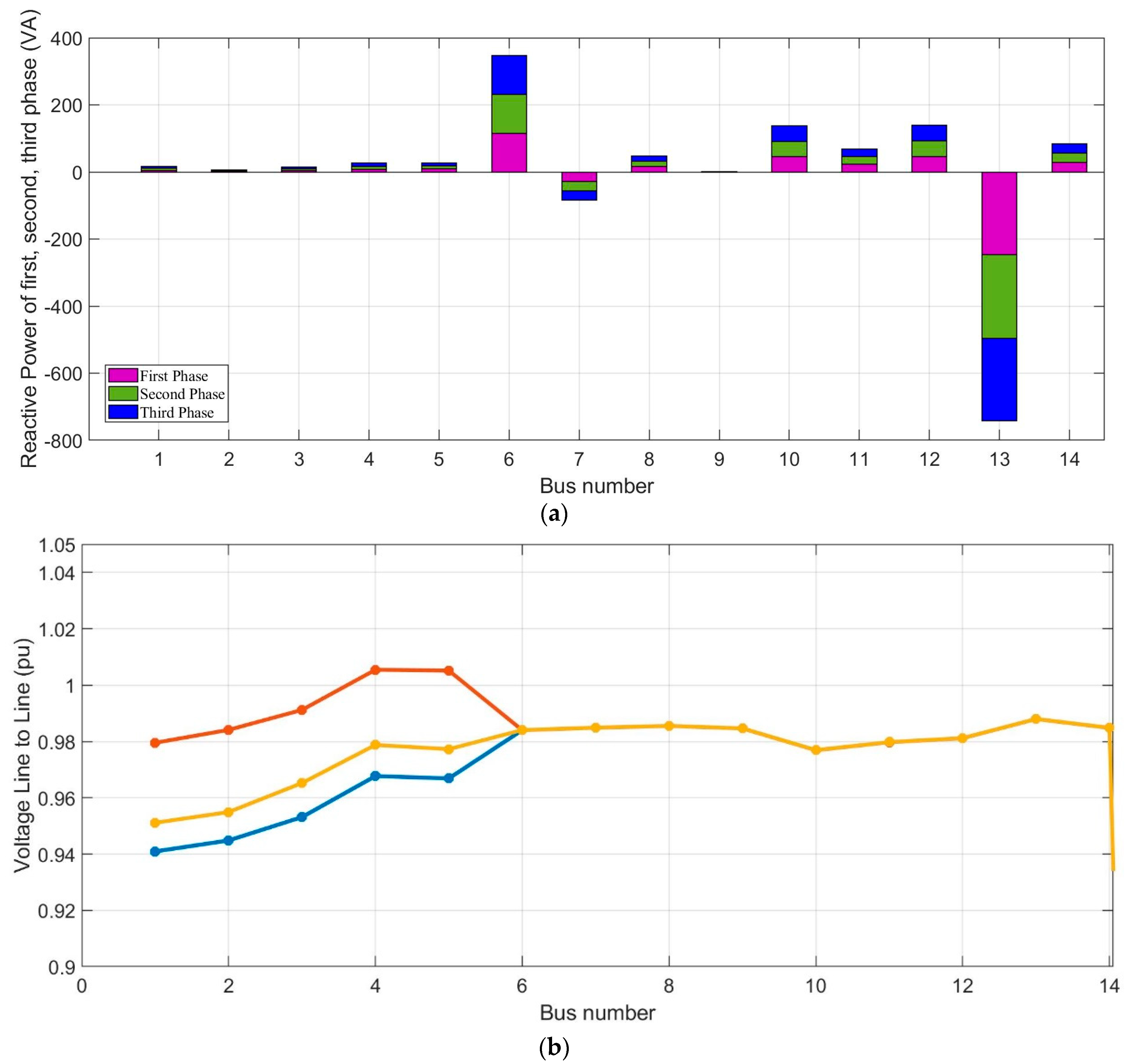

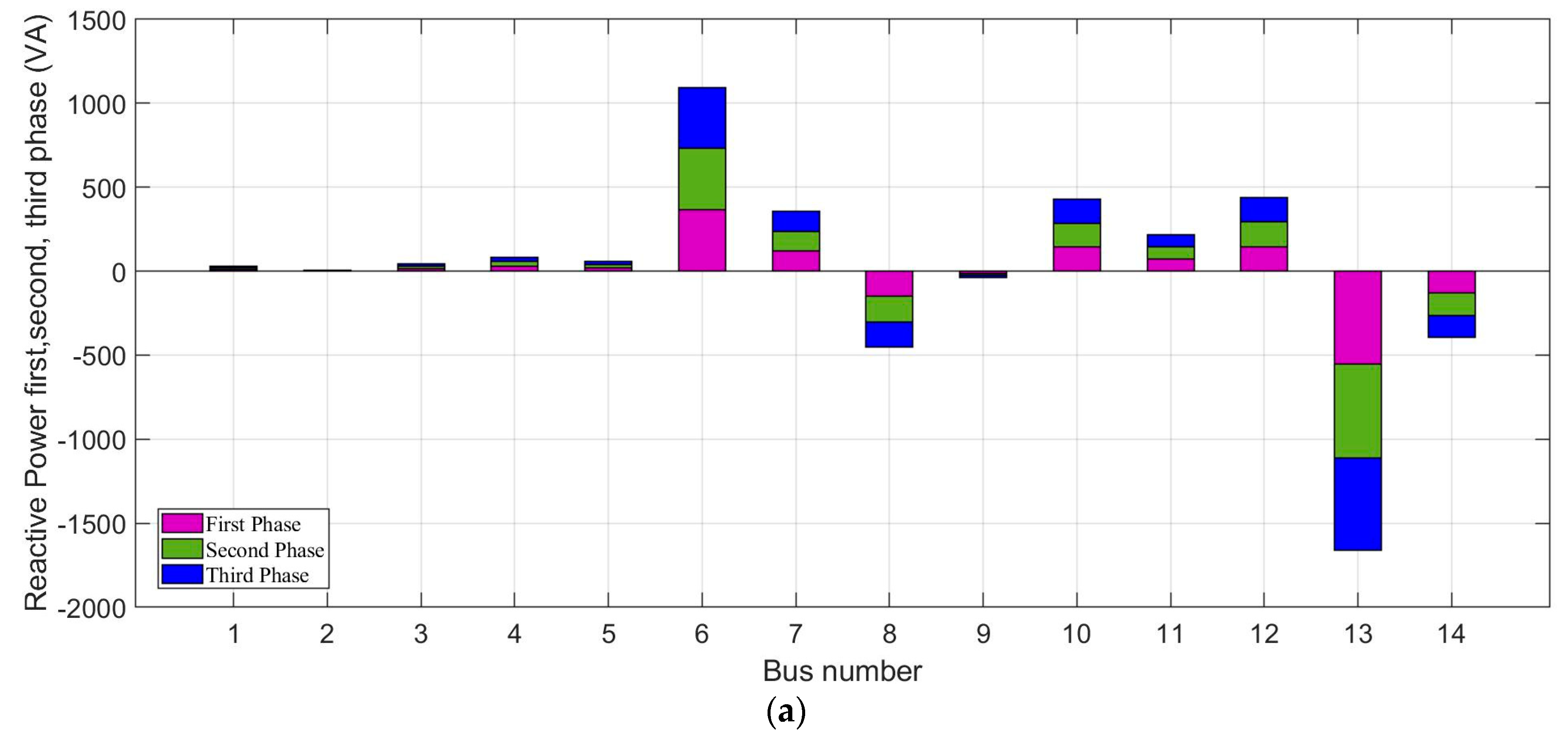

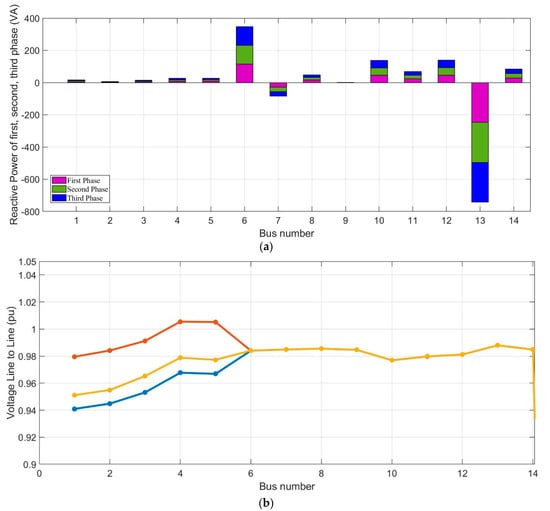

## 11. Analysis Reactive-Power Balance

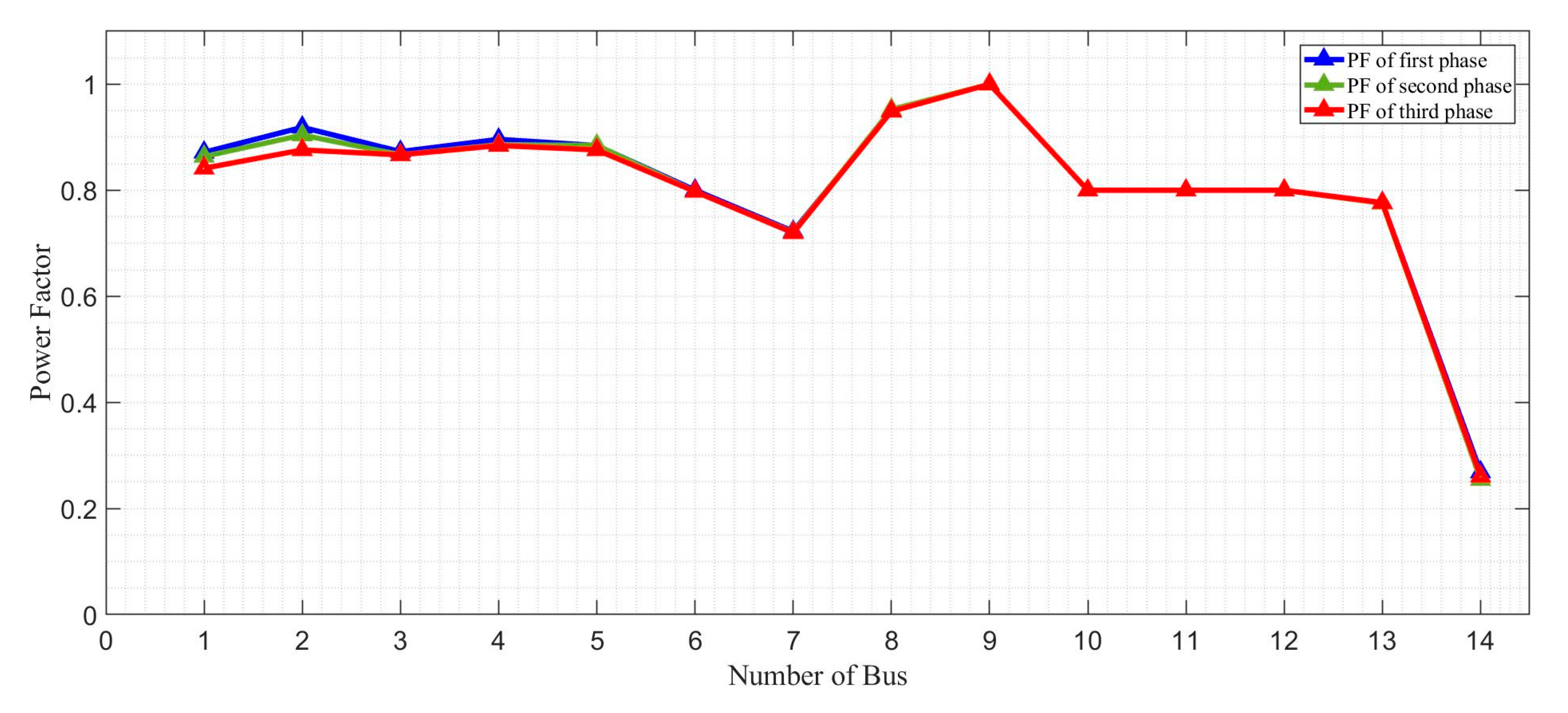

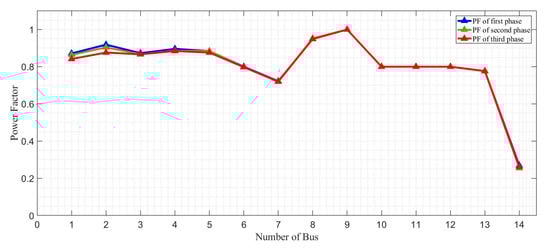

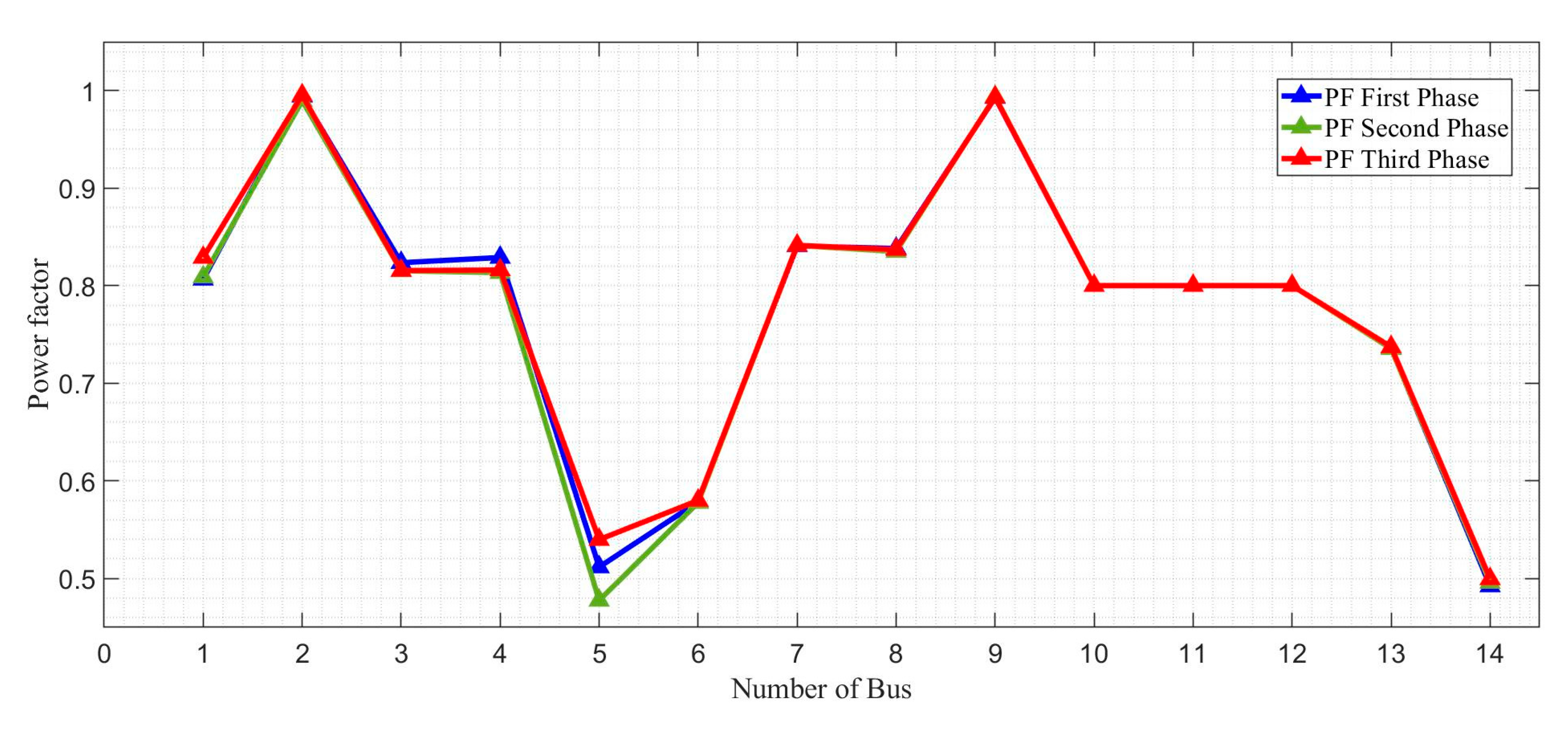

## 12. Buss Power Factor

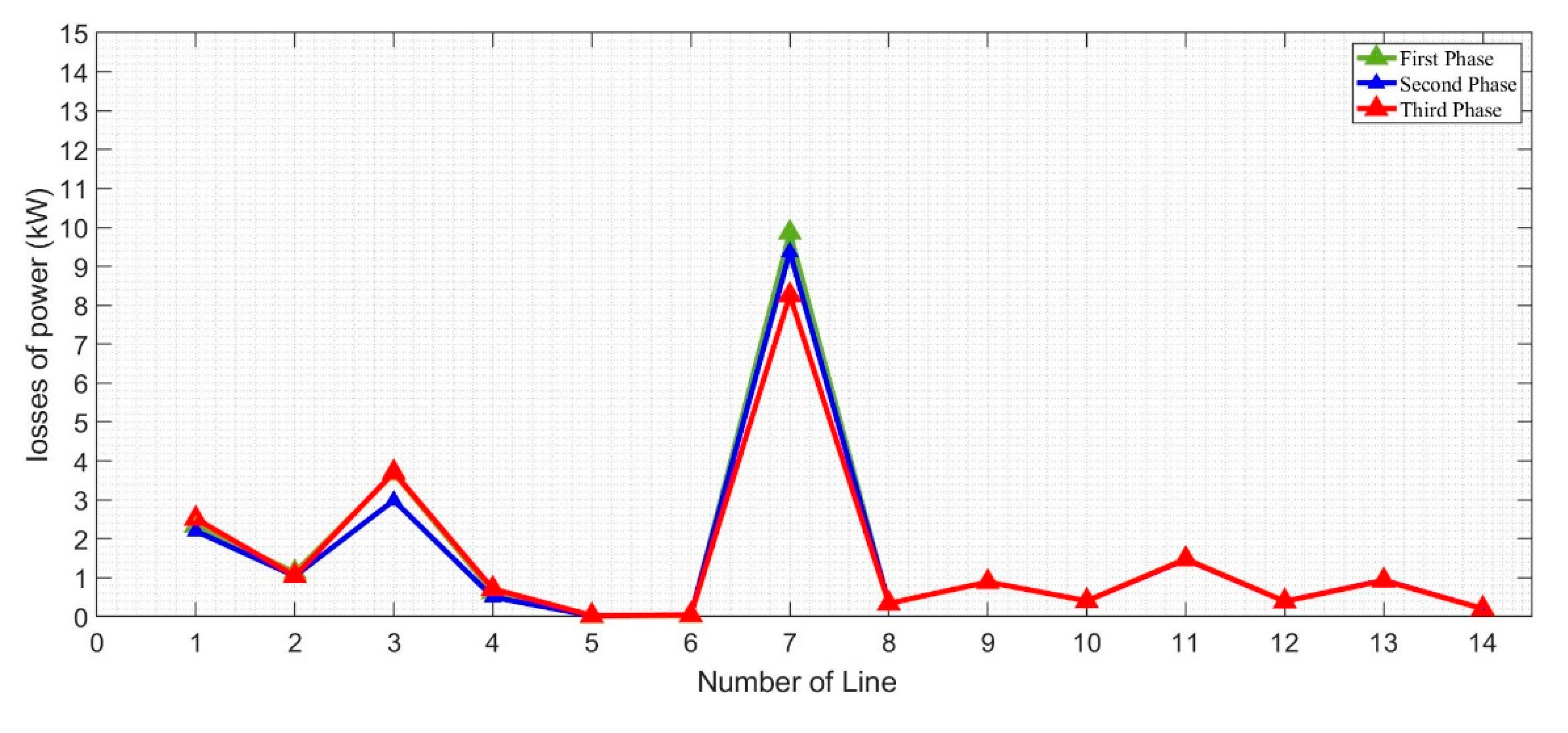

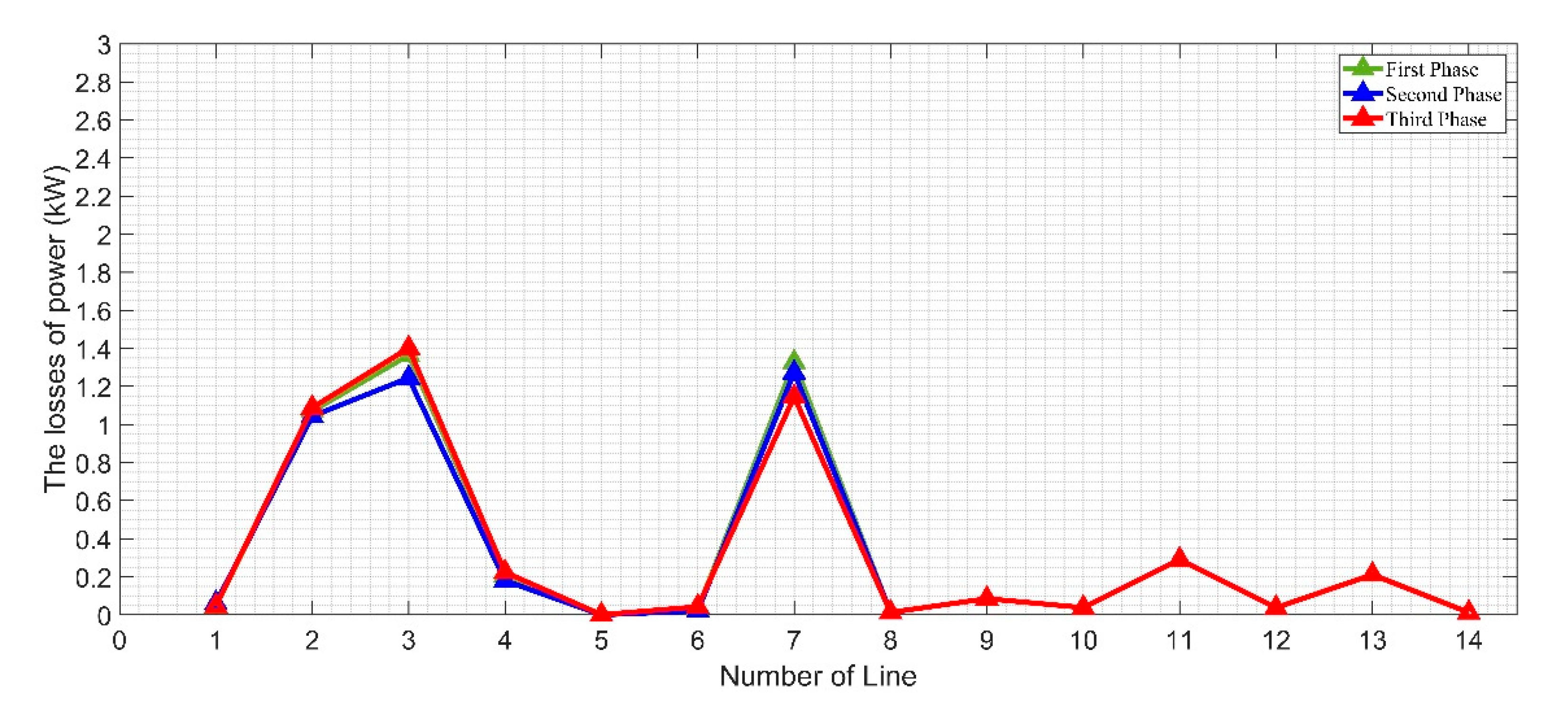

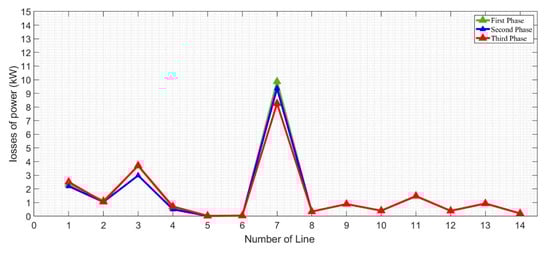

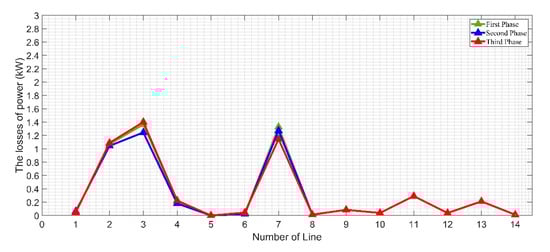

## 13. Power Loss to Lines

## 14. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Naji Alhasnawi, B.; Jasim, B.H.; Anvari-Moghaddam, A.; Blaabjerg, F. A New Robust Control Strategy for Parallel Operated Inverters in Green Energy Applications. Energies
**2020**, 13, 3480. [Google Scholar] [CrossRef] - Issa, W.; Sharkh, S.; Abusara, M. Hybrid Generators-based AC Microgrid Perfor-mance Assessment in Island Mode. IET Power Electron.
**2019**, 12, 1973–1980. [Google Scholar] [CrossRef] [Green Version] - Issa, W.R.M. Improved Control Strategies for Droop-Controlled Inverter-Based Microgrid, Doctor of Philosophy in Renewable Energy; University of Exeter: Exeter, UK, 2015. [Google Scholar]
- Issa, W.R.; El Khateb, A.H.; Abusara, M.A.; Mallick, T.K. Control Strategy for Uninterrupted Microgrid Mode Transfer during Unintentional Islanding Scenarios. IEEE Trans. Ind. Electron.
**2018**, 65, 4831–4839. [Google Scholar] [CrossRef] [Green Version] - Al Badwawi, R.; Issa, W.R.; Mallick, T.K.; Abusara, M. Supervisory Control for Power Management of an Islanded AC Microgrid Using a Frequency Signalling-Based Fuzzy Logic Controller. IEEE Trans. Sustain. Energy
**2019**, 10, 94–104. [Google Scholar] [CrossRef] - Al-naemi, F.; Issa, W.; Ramadan, A.; Hall, J. Design and Modelling of Permanent Magnet Fault Current Limiter for Electrical Power Applications. In Proceedings of the 2018 53rd International Universities Power Engineering Conference (UPEC), Glasgow, UK, 4–7 September 2018. [Google Scholar] [CrossRef]
- Issa, W.; Sharkh, S.M.; Albadwawi, R.; Abusara, M.; Mallick, T.K. DC link voltage control during sudden load changes in AC microgrid. In Proceedings of the 2017 IEEE 26th International Symposium on Industrial Electronics (ISIE), Edinburgh, UK, 19–21 June 2017. [Google Scholar] [CrossRef]
- Xu, Q.; Xiao, J.; Wang, P.; Wen, C. A Decentralized Control Strategy for Economic Operation of Autonomous AC, DC, and Hybrid AC/DC microgrids. IEEE Trans. Energy Convers.
**2017**, 32, 1345–1355. [Google Scholar] [CrossRef] - Espín-Sarzosa, D.; Palma-Behnke, R.; Núñez-Mata, O. Energy Management Systems for Microgrids: Main Existing Trends in Centralized Control Architectures. Energies
**2020**, 13, 547. [Google Scholar] [CrossRef] [Green Version] - Pourbehzadi, M.; Niknama, T.; Aghaei, J.; Mokryani, G.; Shafie-khahcd, M.; Catalão, J.P. Optimal operation of hybrid AC/DC microgrids under uncertainty of renewable energy resources: A comprehensive review. Int. J. Electr. Power Energy Syst.
**2019**, 109, 139–159. [Google Scholar] [CrossRef] - Martin-Martínez, F.; Sanchez-Miralles, A.; Rivier, M. A Literature Review of Microgrids: A Functional Layer Based Classification. Renew. Sustain. Energy Rev.
**2016**, 62, 1133–1153. [Google Scholar] [CrossRef] - Nasr-Azadani, E.; Su, P.; Zheng, W.; Rajda, J.; Cañizares, C.; Kazerani, M. The Canadian Renewable Energy Laboratory: A testbed for microgrid. IEEE Electrif. Mag.
**2020**, 8, 49–60. [Google Scholar] [CrossRef] - Alhasnawi, B.N.; Jasim, B.H. A New Coordinated Control of Hybrid Microgrids with Renewable Energy Resources under Variable Loads and Generation Conditions. Iraqi J. Electr. Electron. Eng.
**2020**, 9, 345–364. [Google Scholar] [CrossRef] - Andishgar, M.H.; Gholipour, E.; Hooshmand, R.A. An Overview of Control Approaches of Inverter Based Microgrids in Islanding Mode of Operation. Renew. Sustain. Energy Rev.
**2017**, 80, 1043–1060. [Google Scholar] [CrossRef] - Liu, B.; Wu, W.; Zhou, C.; Mao, C. An AC–DC Hybrid Multi-Port Energy Router with Coordinated Control and Energy Management Strategies. IEEE Access
**2019**, 57, 109069–109082. [Google Scholar] [CrossRef] - Bai, W.; Sechilariu, M.; Locment, F. DC Microgrid System Modeling and Simulation Based on a Specific Algorithm for Grid-Connected and Islanded Modes with Real-Time Demand-Side Management Optimization. Appl. Sci.
**2020**, 10, 2544. [Google Scholar] [CrossRef] [Green Version] - Shan, Y.; Hu, J.; Chan, K.; Fu, Q.; Guerrero, J.M. Model Predictive Control of Bidirectional DC–DC Converters and AC/DC Interlinking Converters—A New Control Method for PV-Wind-Battery Microgrids. IEEE Trans. Sustain. Energy
**2019**, 26, 2513–2522. [Google Scholar] [CrossRef] - Qiu, H.; Gu, W.; Xu, Y.; Zhao, B. Multi-Time-Scale Rolling Optimal Dispatch for AC/DC Hybrid Microgrids with Day-Ahead Distributionally Robust Scheduling. IEEE Trans. Sustain. Energy
**2018**, 10, 1653–1663. [Google Scholar] [CrossRef] - Bazmohammadi, N.; Tahsiri, A.; Guerrero, J.M. Stochastic Predictive of Multi-Microgrid Systems. IEEE Trans. Ind. Appl.
**2019**, 55, 5311–5319. [Google Scholar] [CrossRef] - Armghan, H.; Yang, M.; Armghan, A.; Alia, N.; Wang, M.Q. Design of integral terminal sliding mode controller for the hybrid AC/DC microgrids involving renewables and energy storage systems. Int. J. Electr. Power Energy Syst.
**2020**, 119, 105857. [Google Scholar] [CrossRef] - Yousefi, M.; Hajizadeh, A.; Soltani, M.N.; Hredzak, B. Predictive Home Energy Management System with Photovoltaic Array, Heat Pump and Plug-in Electric Vehicle. IEEE Trans. Ind. Inform.
**2020**, 34, 567–578. [Google Scholar] [CrossRef] - Zakzouk, N.E.; Abdelsalam, A.K.; Helal, A.A.; Williams, B.W. High Performance Single-Phase Single-Stage Grid-Tied PV Current Source Inverter Using Cascaded Harmonic Compensators. Energy
**2020**, 13, 380. [Google Scholar] [CrossRef] [Green Version] - Xie, B.; Guo, K.; Mao, M.; Zhou, L.; Liu, T.; Zhang, Q.; Hao, G. Analysis and Improved Design of Phase Compensated Proportional Resonant Controllers for Grid-Connected Inverters in Weak Grid. IEEE Trans. Energy Convers.
**2020**. [Google Scholar] [CrossRef] - Rasekh, N.; Hossein, M. LCL filter design and robust converter side current feedback control for grid-connected Proton Exchange Membrane Fuel Cell system. Int. J. Hydrogen Energy
**2020**, 45, 13055–13067. [Google Scholar] [CrossRef] - Basha, C.H.; Rani, C.; Brisilla, R.M.; Odofin, S. Mathematical Design and Analysis of Photovoltaic Cell Using MATLAB/Simulink. In Soft Computing for Problem Solving; Springer: Singapore, 2020; pp. 711–726. [Google Scholar] [CrossRef]
- Sangwongwanich, A.; Blaabjerg, F. Mitigation of Interharmonics in PV Systems with Maximum Power Point Tracking Modification. IEEE Trans. Power Electron.
**2019**, 34, 8279–8282. [Google Scholar] [CrossRef] [Green Version] - Rakhshan, M.; Vafamand, N.; Khooban, M.H.; Blaabjerg, F. Maximum Power Point Tracking Control of Photovoltaic Systems. A Polynomial Fuzzy Model-Based Approach. IEEE J. Emerg. Sec. Power Electron.
**2017**, 6, 292–299. [Google Scholar] [CrossRef] - Subramaniyan, A.B.; Pan, R.; Kuitche, J.; TamizhMani, G. Quantification of Environmental Effects on PV Module Degradation: A Physics-Based Data-Driven Modeling Method. IEEE J. Photovolt.
**2018**, 8, 1289–1296. [Google Scholar] [CrossRef] - Hong, Y.Y.; Buay, P.M.P. Robust design of type-2 fuzzy logic-based maximum power point tracking for photovoltaics. Sustain. Energy Technol. Assess.
**2020**, 38, 100669. [Google Scholar] [CrossRef] - Fathima, A.H.; Palanisamy, K. Optimization in Microgrids with Hybrid Energy Systems—A Review. Renew. Sustain. Energy Rev.
**2015**, 45, 431–446. [Google Scholar] [CrossRef] - Hong, Y.Y.; Lai, Y.Z.; Chang, Y.R.; Lee, Y.D.; Lin, C.H. Optimizing Energy Storage Capacity in Islanded Microgrids Using Immunity-Based Multi objective Planning. Energies
**2018**, 11, 585. [Google Scholar] [CrossRef] [Green Version] - Wu, K.; Zhou, H. A Multi-Agent-Based Energy-Coordination Control System for Grid-Connected Large-Scale Wind–Photovoltaic Energy Storage Power Generation Units. Sol. Energy
**2014**, 57, 107–245. [Google Scholar] [CrossRef] - Ortiz, L.; Orizondo, R.; Águila, A.; González, J.W.; López, G.J.; Isaac, I. Hybrd AC/DC microgrd test system simulaton: Grid-connected mode. Heliyon
**2019**, 5, e2865. [Google Scholar] [CrossRef] [Green Version] - Busarello, T.D.C.; Pomilio, J.A.; Simoes, M.G. Design Procedur for a Digtal Proportonal Resonant Curent Controller in a Grid Conected Inverters. In Proceedings of the 2018 IEEE 4th Southern Power Electronics Conference (SPEC), Singapore, Singapore, 10–13 December 2018. [Google Scholar] [CrossRef]
- Bacha, S.; Munteanu, I.; Bratcu, A.I. Power Electronic Converters Modeling and Control: With Case Studies. Springer Sci. Bus. Media
**2013**, 454, 454. [Google Scholar] [CrossRef] - Aguila, A.; Carrion, D.; Ortiz, L. Analysis of Power Losses in the Asymmetric Construction of Electric Distribution Systems. IEEE Lat. Am. Trans.
**2015**, 13, 2190–2194. [Google Scholar] [CrossRef] - Lam, C.-S.; Wang, L.; Ho, S.-I.; Wong, M.-C. Adaptive Thyristor-Controlled LC-hybrid Active Power Filter for Reactive Power and Current Harmonics Compensation with Switching Loss Reduction. IEEE Trans. Power Electron.
**2016**, 32, 7577–7590. [Google Scholar] [CrossRef]

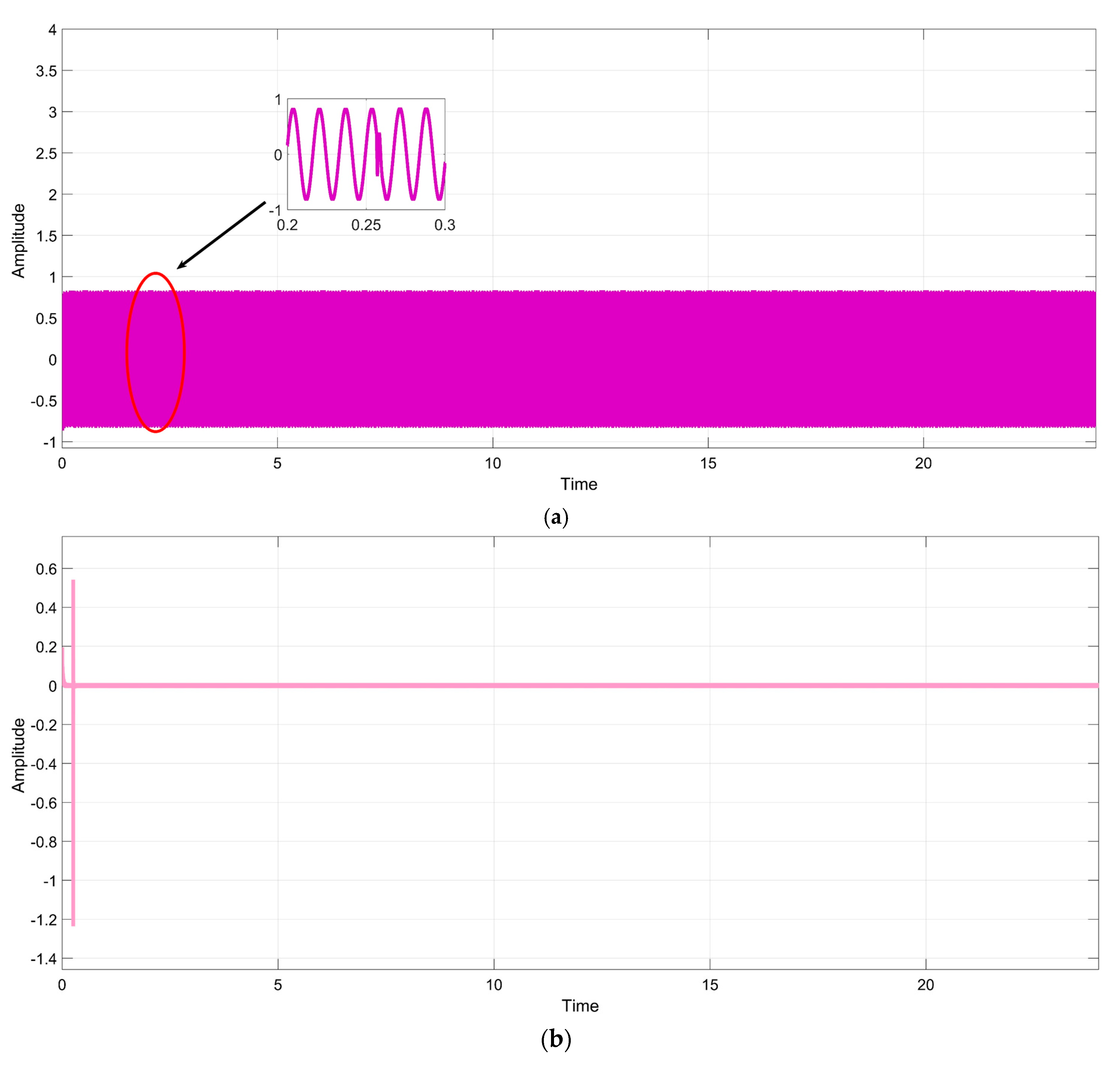

**Figure 14.**(

**a**) The output of the PR controller, (

**b**) error signal of the PR controller during the 180-degree reference change.

Parameters | Values |
---|---|

Series connected modules | $7$ |

Parallel string | $1$ |

Maximum current ${I}_{mp}$ | 5.58 (A) |

Maximum voltage $\left({V}_{mp}\right)$ | 54.7 (V) |

Short-circuit current $\left({I}_{sc}\right)$ | 5.96 (A) |

Voltage of open circuit $\left({V}_{oc}\right)$ | 6.42 (V) |

Temperature coefficient of $\left({I}_{sc}\right)$ | 0.061745 (%/°C) |

Temperature coefficient of $\left({V}_{oc}\right)$ | −0.27269 (%/°C) |

Shunt resistance $\left({R}_{sh}\right)$ | 269.5934 Ω |

Series resistance $\left({R}_{s}\right)$ | 0.37152 Ω |

Diode saturation curent ${I}_{o}$ | $6.3\times {10}^{-1}$(A) |

Number of cells | 96 |

Loads Name | Min-Loads (kVA) | Max-Loads (KVA) | Load Type | Power Factor |
---|---|---|---|---|

Home2 | 13 | 39 | AC | 0.89 |

Home3 | 10 | 29 | AC | 0.9 |

Home4 | 14 | 49 | AC | 0.89 |

Home9 | 100 | 319 | AC | 0.99 |

Home10 | 239 | 799 | AC | 0.9 |

Home11 | 119 | 399 | AC | 0.92 |

Home12 | 239 | 799 | AC | 0.93 |

Home14 | 479 | 1599 | AC | 0.85 |

Home1 | 0.7 | 3 | DC | 0.99 |

Lines | Resistors (ohm) | Inductance | Distances (km) |
---|---|---|---|

1 | 0.029 | 0.016 | 0.15 |

2 | 0.039 | 0.021 | 0.2 |

3 | 0.029 | 0.016 | 0.15 |

4 | 0.079 | 0.043 | 0.4 |

5 | 0.079 | 0.043 | 0.4 |

6 | 0.079 | 0.043 | 0.4 |

7 | 0.019 | 0.01 | 0.1 |

8 | 0.78 | 0.23 | 2 |

9 | 2.36 | 0.70 | 6 |

10 | 2.36 | 0.70 | 6 |

11 | 1.18 | 0.35 | 3 |

12 | 2.36 | 0.7 | 6 |

13 | 1.18 | 0.35 | 3 |

14 | 0.78 | 0.23 | 2 |

**Table 4.**Parameter of the system [34].

Parameters | Units | Symbols |
---|---|---|

Inductance of Inverters | H | ${L}_{inv}$ |

resistance of Inverter | Ω | ${R}_{inv}$ |

DC link Voltage | V | ${V}_{dc}$ |

Switch frequency | Hz | ${f}_{sw}$ |

Current sensor gain | A | ${H}_{i}$ |

Inverter power | W | ${P}_{inv}$ |

Sampling frequency | Hz | ${f}_{a}$ |

Sampling angle frequency | Rad/second | ${\omega}_{a}=2\pi {f}_{a}$ |

Sampling period | s | ${T}_{a}=1/{f}_{a}$ |

Grid peak voltage | V | ${V}_{p}$ |

Frequency of grid | Hz | ${f}_{g}$ |

Angle frequency of grid | Rad/s | ${\omega}_{g}=2\pi {f}_{g}$ |

Parameters | Units | Symbols |
---|---|---|

Inductance of Inverter | $10\mathrm{mH}$ | ${L}_{inv}$ |

Resistance of Inverter | $0.5\mathrm{m}\mathsf{\Omega}$ | ${R}_{inv}$ |

Voltage of DC link | $450\mathrm{V}$ | ${V}_{dc}$ |

Current sensor gain | 0.1 A | ${H}_{i}$ |

Power of inverter | 1500 W | ${P}_{inv}$ |

Sampling angle frequency | $1.88\times {10}^{5}$ Rad/s | ${\omega}_{a}=2\pi {f}_{a}$ |

Sampling period | $34\mu \mathrm{s}$ | ${T}_{a}=1/{f}_{a}$ |

Grid Peak voltage | $180\mathrm{V}$ | ${V}_{p}$ |

Angular frequency of grid | $377\mathrm{Rad}/\mathrm{s}$ | ${\omega}_{g}=2\pi {f}_{g}$ |

Inductance of grid | $100\mu \mathrm{H}$ | ${L}_{g}$ |

Resistor of grid | $0.1\mathrm{m}\mathsf{\Omega}$ | ${R}_{g}$ |

Resonant angle frequency | 377 Rad/s | ${\omega}_{r}=2\pi {f}_{r}$ |

Resonant bandwidth | $1.5\mathrm{Hz}$ | ${B}_{s}$ |

Bandwidth of Resonant angular | $10\mathrm{rad}/\mathrm{s}$ | ${B}_{s}=2\pi {B}_{s}$ |

Resonant gains | ${\U0001d4c0}_{\U0001d4c7}$ | 1 |

**Table 6.**Designed digital Proportional-Resonant (PR) controller [34].

Parameters | Variables | Values |
---|---|---|

Proportional gain | ${\U0001d4c0}_{\U0001d4c5}$ | 0.827 |

Resonant gain | ${\U0001d4c0}_{\U0001d4be}$ | 234.02 |

B0 coefficient | ${\U0001d4b7}_{0}$ | $3.14\times {10}^{-4}$ |

B1 coefficient | ${\U0001d4b7}_{1}$ | $-3.14\times {10}^{-4}$ |

B2 coefficient | ${\U0001d4b7}_{2}$ | 0 |

A0 coefficient | ${\U0001d4b6}_{0}$ | 1 |

A1 coefficient | ${\U0001d4b6}_{1}$ | −1.99 |

A2 coefficient | ${\U0001d4b6}_{2}$ | 0.99 |

Bus | Angle (Degree) | V | ${\mathcal{Q}}_{\mathit{\U0001d4f0}}$ | ${\mathcal{P}}_{\mathit{\U0001d4f0}}$ | ${\mathcal{Q}}_{1}$ | ${\mathcal{P}}_{1}$ | ${\mathcal{Q}}_{\mathbf{transfer}}$ | ${\mathcal{P}}_{\mathbf{transfer}}$ |
---|---|---|---|---|---|---|---|---|

1 | −29 | 0.91 | 14 | 30 | ||||

2 | −29.9 | 0.94 | 6 | 15 | ||||

3 | −32 | 0.92 | 12 | 19 | 15 | 21 | ||

4 | −30 | 0.93 | 26 | 49.9 | ||||

5 | −34 | 0.95 | 25 | 49 | ||||

6 | −32 | 0.94 | 350 | 480 | ||||

7 | −29 | 0.96 | 90 | 90 | ||||

8 | −65 | 0.96 | 50 | 140 | ||||

9 | −29 | 0.93 | 0.70 | 109 | ||||

10 | −29 | 0.93 | 140 | 190 | ||||

11 | −29 | 0.99 | 70 | 89 | ||||

12 | −29 | 0.89 | 140 | 190 | ||||

13 | −29 | 0.93 | 70 | 89 | ||||

14 | −29 | 0.91 | 280 | 380 | 79 | 19 |

Bus | Angle (Degree) | V | ${\mathcal{Q}}_{\mathit{\U0001d4f0}}$ | ${\mathcal{P}}_{\mathit{\U0001d4f0}}$ | ${\mathcal{Q}}_{1}$ | ${\mathcal{P}}_{1}$ | ${\mathcal{Q}}_{\mathbf{transfer}}$ | ${\mathcal{P}}_{\mathbf{transfer}}$ |
---|---|---|---|---|---|---|---|---|

1 | −30.1 | 0.89 | 29.99 | 45 | ||||

2 | −29.5 | 0.90 | 5 | 39 | ||||

3 | −30.3 | 0.91 | 41 | 65 | 42 | 59 | ||

4 | −32.4 | 0.92 | 90 | 125 | ||||

5 | −30.3 | 0.93 | 60 | 37 | ||||

6 | −32.2 | 0.94 | 1080 | 790 | ||||

7 | −31.1 | 0.90 | 350 | 560 | ||||

8 | −59.99 | 0.91 | 430 | 680 | ||||

9 | −29.9 | 0.93 | 37 | 330 | ||||

10 | −30.1 | 0.91 | 430 | 580 | ||||

11 | −29.99 | 0.92 | 220 | 280 | ||||

12 | −29.8 | 0.91 | 450 | 580 | ||||

13 | −29.7 | 0.89 | 1670 | 1820 | ||||

14 | −29.3 | 0.92 | 90 | 120 | 350 | 230 |
