# Key Factors of the Initiation and Development of Polygonal Wear in the Wheels of a High-Speed Train

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Characteristics of Polygonal Wear of High-Speed Wheels

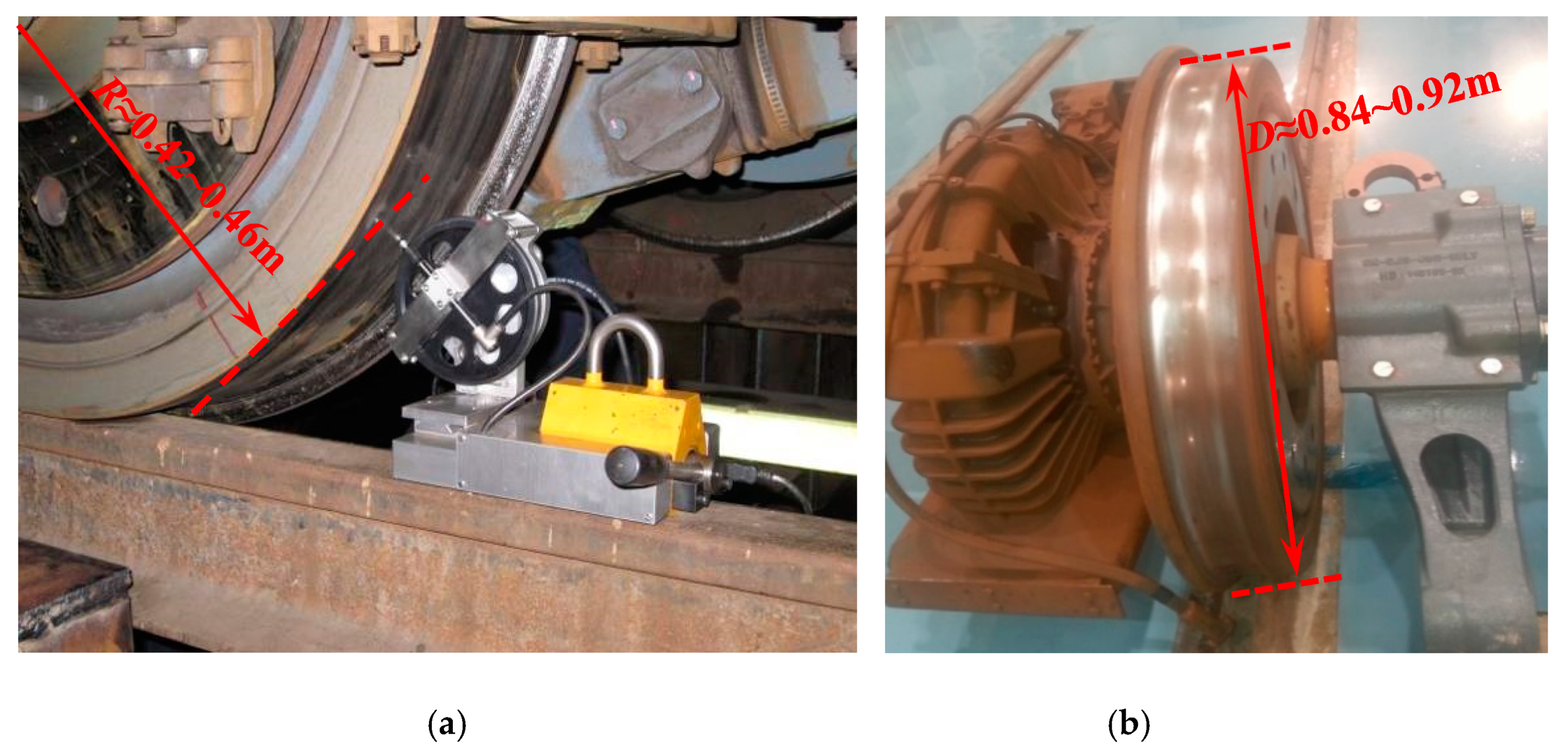

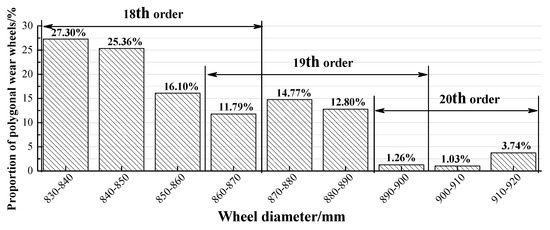

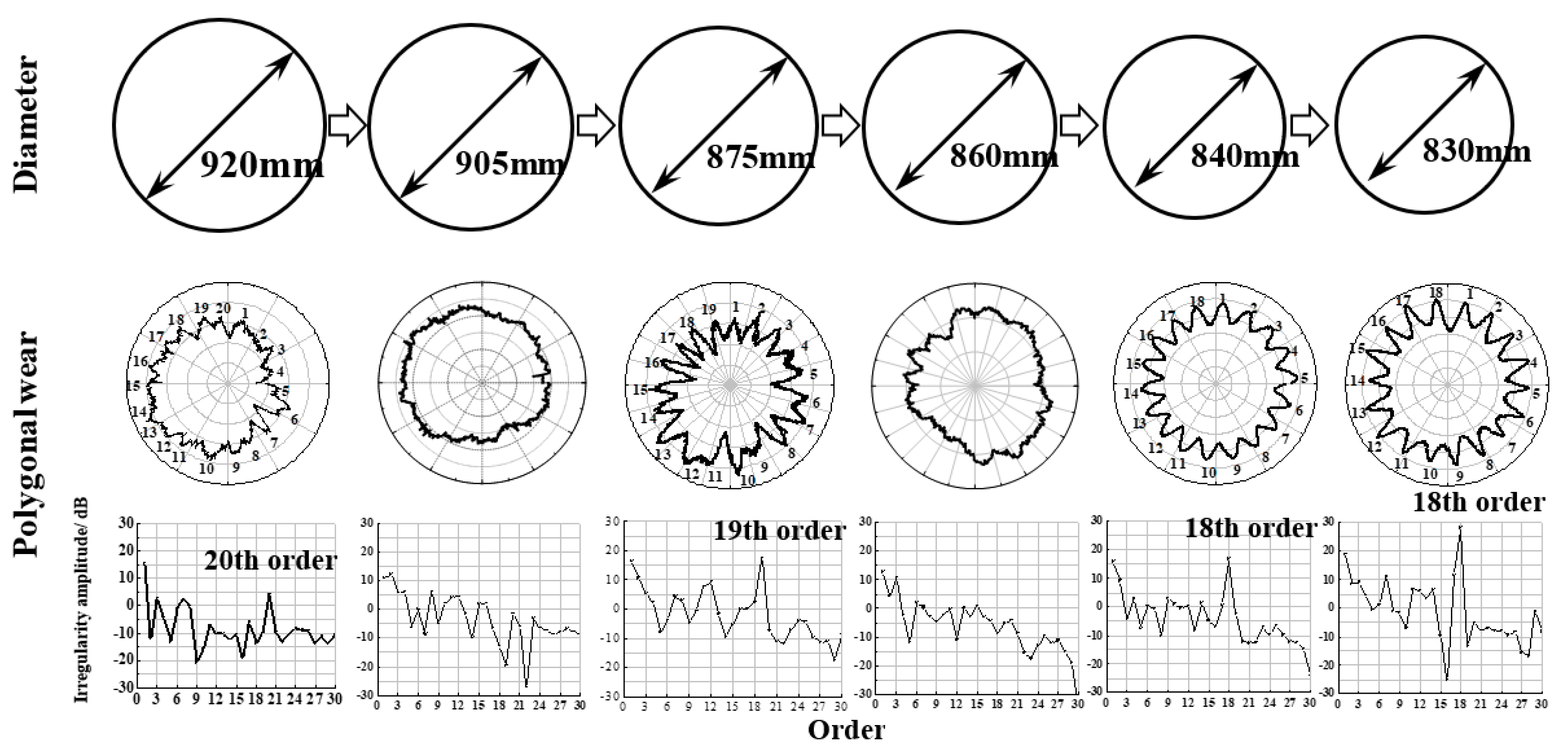

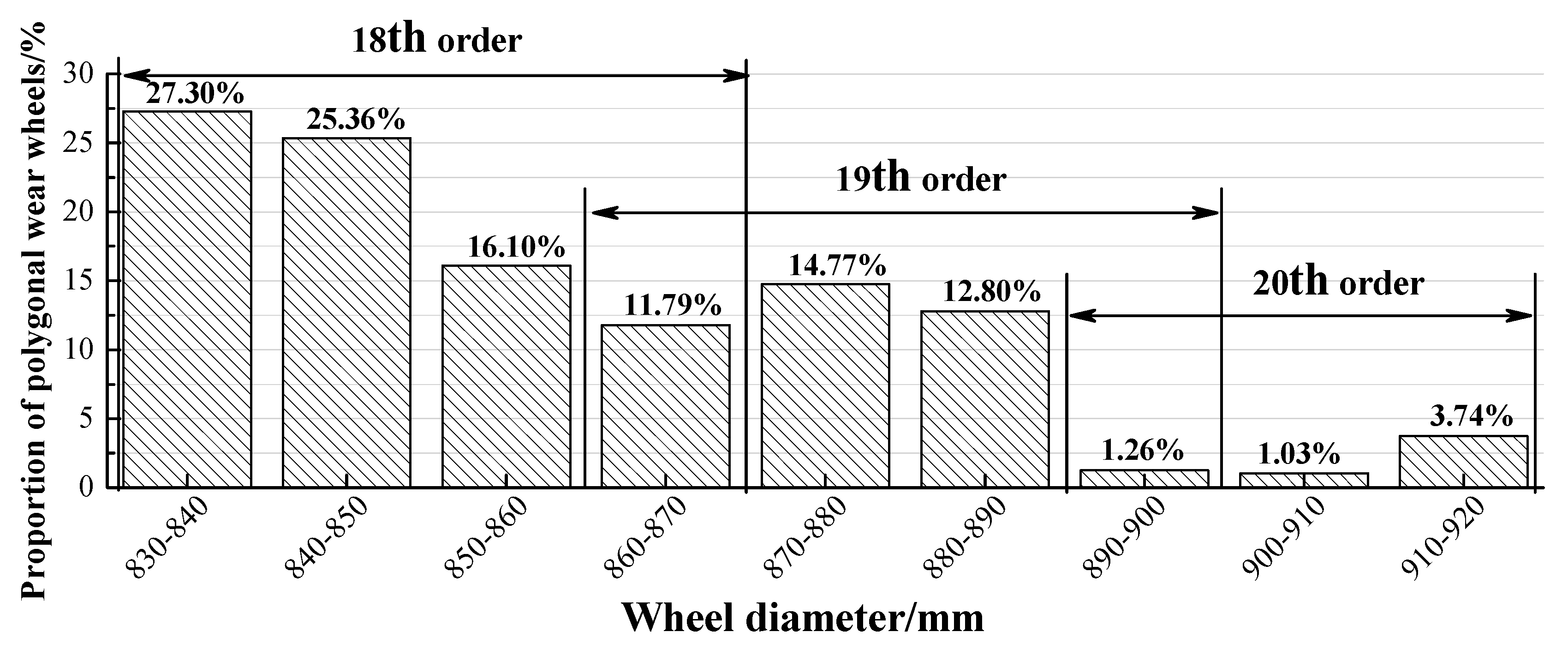

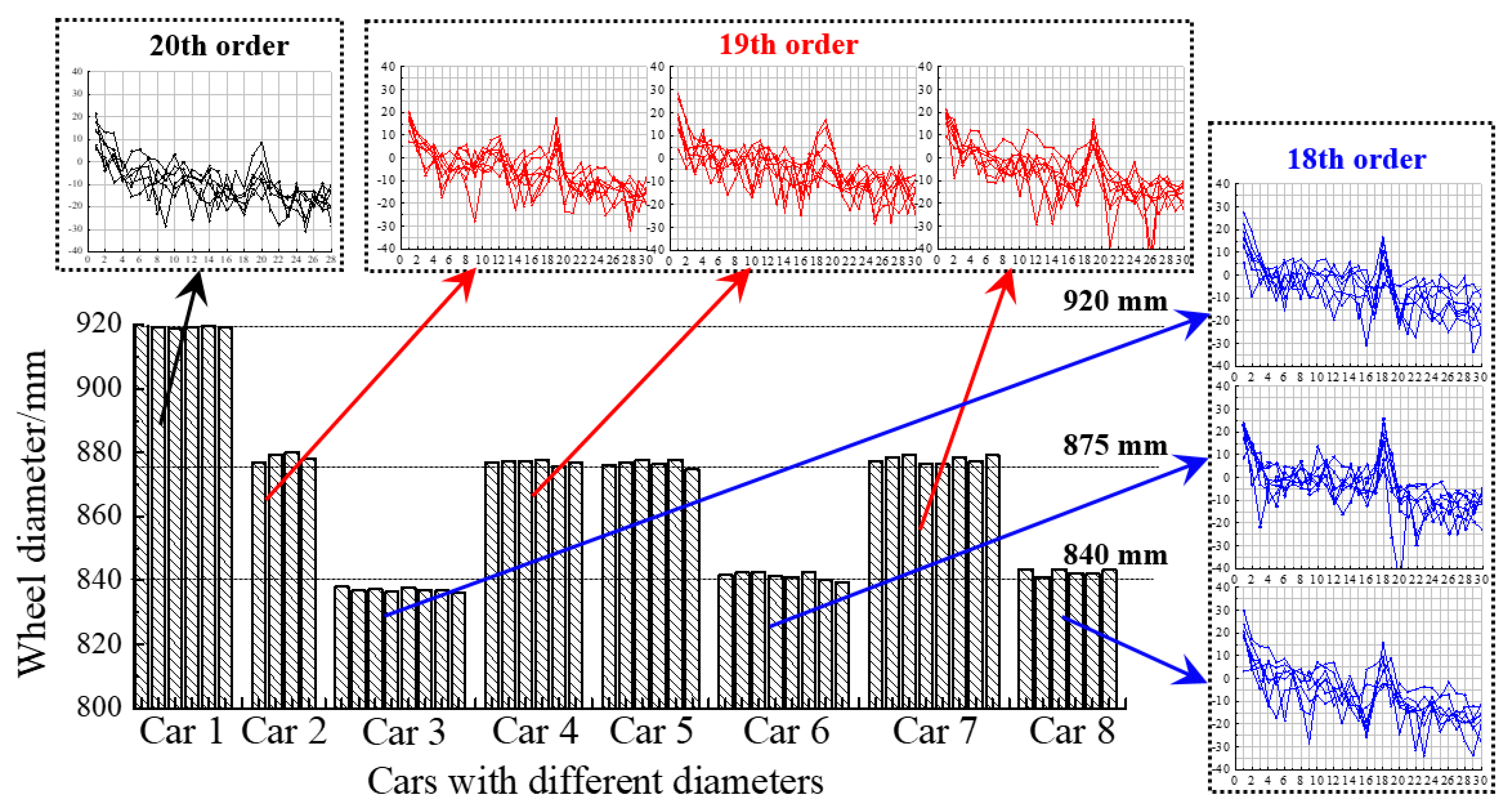

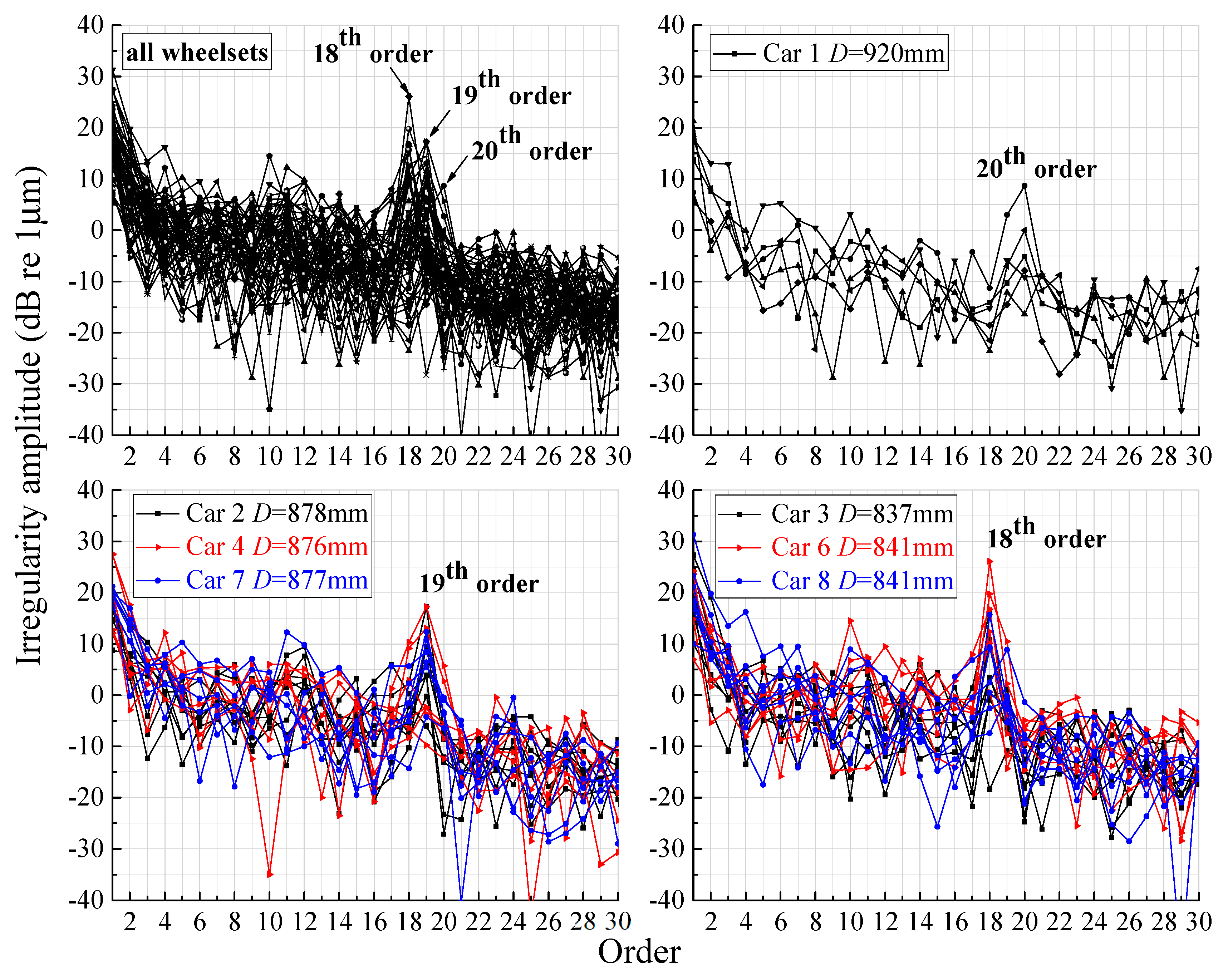

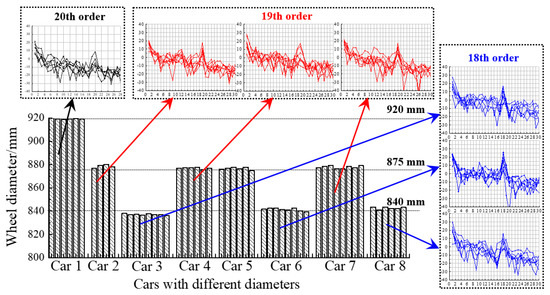

- Wheels with different diameters have different proportions of polygonal wheels and different dominant orders (main wavelength) of polygonal wear (Figure 2). Furthermore, it seems that the smaller the diameter, the higher the proportion of the polygonal wheels. This depends on the depth of the decarburised layer on the surface of the wheel.
- The proportion of polygonal wheels exhibits a non-monotonic variation as a function of the wheel diameter, including three local maxima around 830–840 mm, 870–880 mm, and 910–920 mm, corresponding to three periods of high-rate development.

## 3. Simulation Model

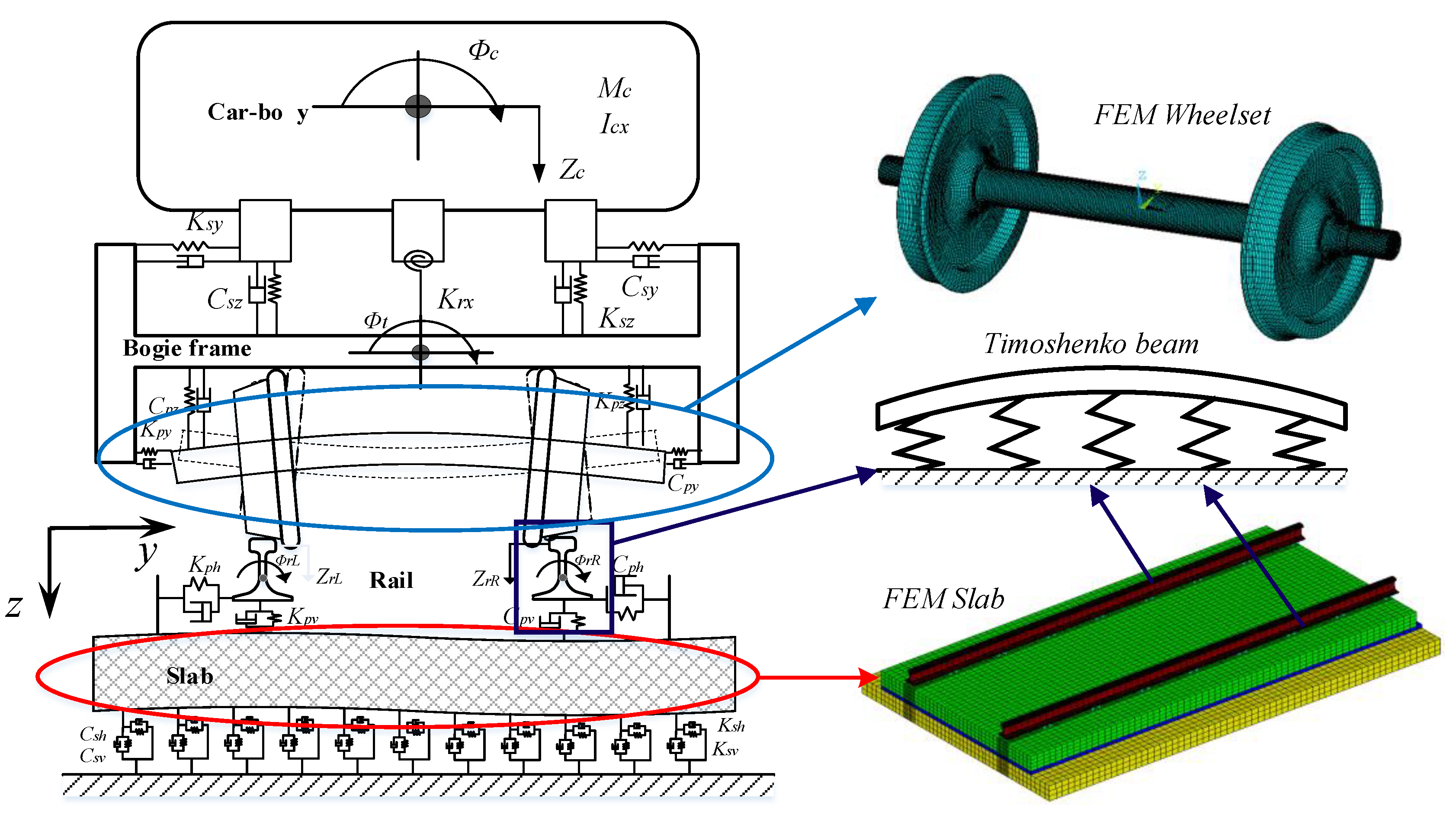

#### 3.1. Rigid–Flexible Coupling Dynamical Model of Vehicle–Track

#### 3.2. Method for Online Searching Wheel–Rail Contact Points

_{r}denotes the angle of roll after the wheelset generates rigid motion and ψ

_{r}indicates the angle of yaw. The two parameters can be solved using a dynamic explicit integral algorithm. In addition, the transformation matrix between the natural system of coordinates and the wheelset system of coordinates is built using ϕ

_{r}and ψ

_{r}.

_{DR1}indicates the angle included between the axis of the wheelset and the horizontal line after the wheelset generates rigid motion and flexible deformation. This is written as

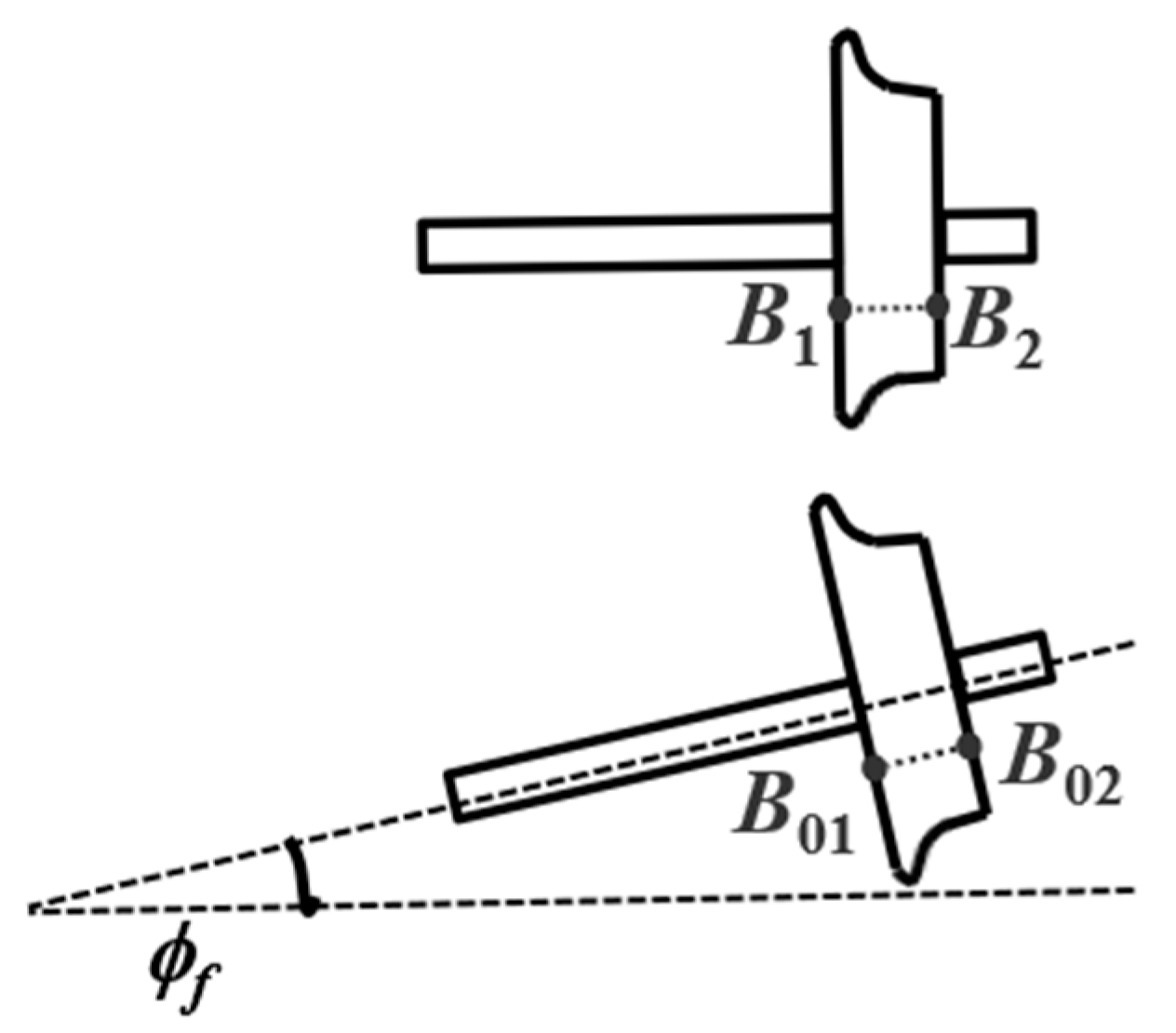

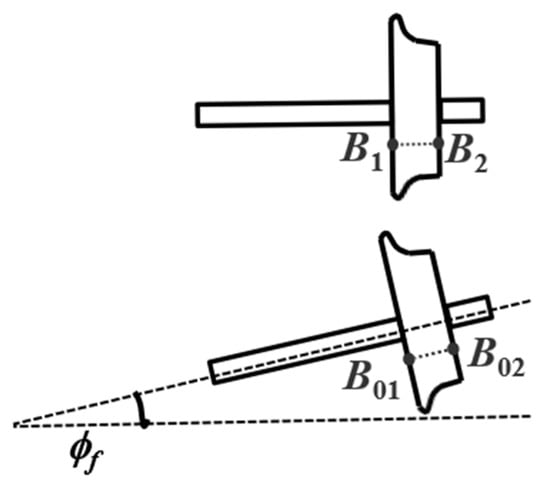

_{f}denotes the angle included between the axis of the wheelset and the horizontal line after the wheelset only produces flexible deformation. Figure 10 illustrates the solving method. First, two points (B

_{1}and B

_{2}) at both sides of the wheel are selected, and the connection line between the two points is drawn, and this line is parallel to the axis of the wheelset. Second, the wheelset generates flexible deformation, the two points move to the two new points B

_{01}and B

_{02}. Then, the positions of B

_{01}and B

_{02}are solved using the method described in Section 3.1. Finally, ϕ

_{f}can be solved.

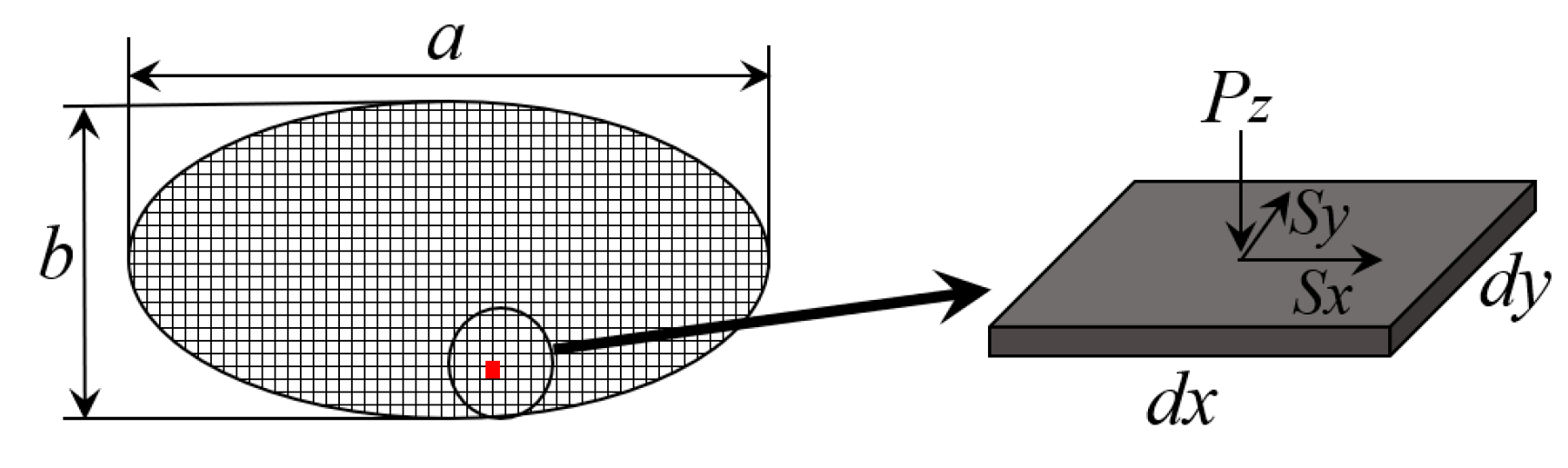

#### 3.3. Archard Wear Model

## 4. Discussion on the Calculated Results of High-Order Polygonal Wear

## 5. Key Conditions of Initiation and Development of Polygonal Wear

#### 5.1. Integral Multiple Condition

#### 5.2. Effect of Different Diameters and Different Speeds

## 6. Conclusions

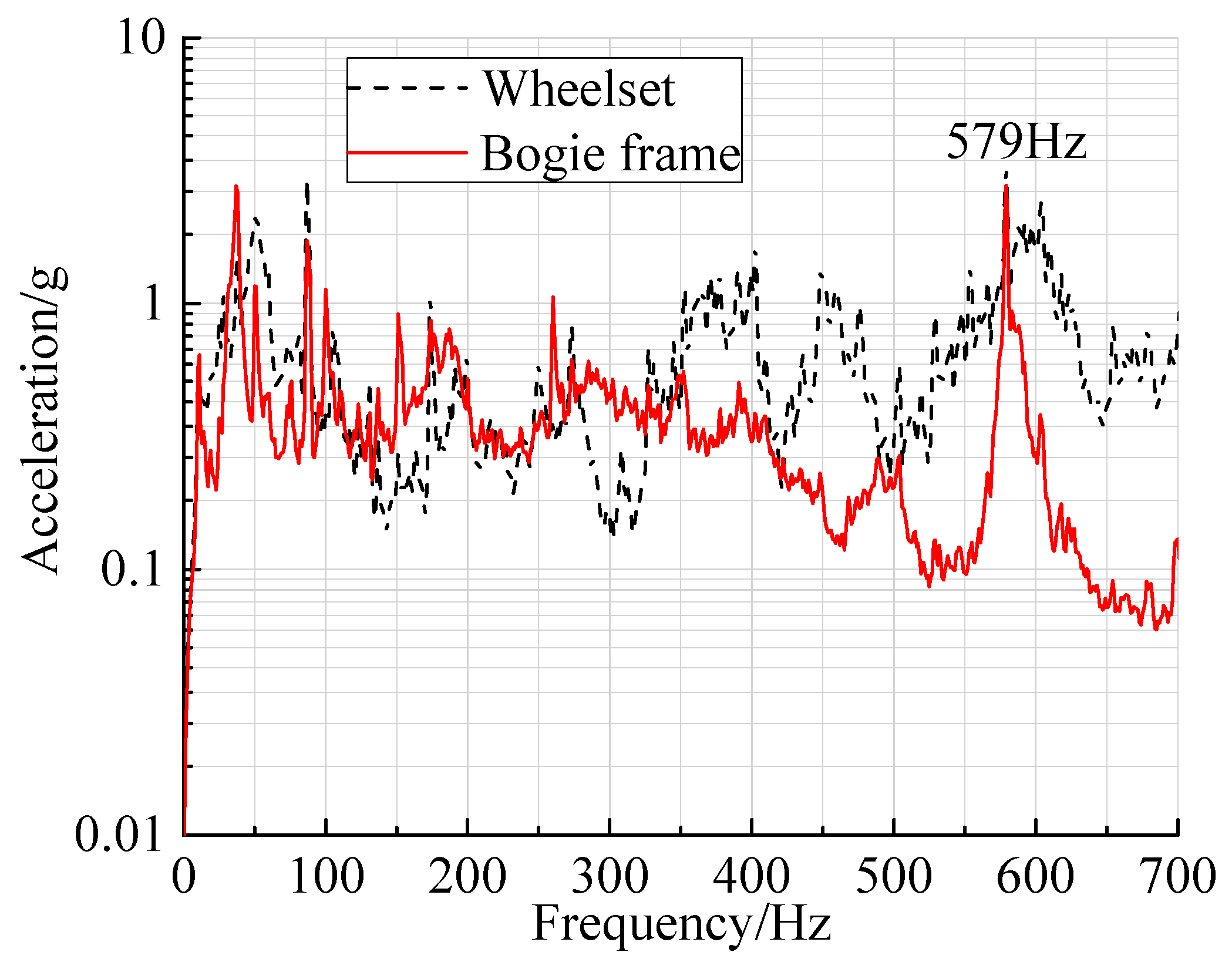

- The prominent feature of polygonal wear is that the dominant order and development rate of polygonal wear are very closely related to the wheel diameter, operation speed, and the resonance frequencies of the system, such as wheelsets.
- If the wheel circumference is nearly an integral multiple of the wavelength of the periodical wear along the rolling circle of the wheel, the polygonal wear initiates and develops very quickly. This is referred to as the integral multiple condition, which is a key or basic condition for polygonal wear. This “integral multiple” is on the order of the dominant polygonal wear.
- When the excited resonance frequency of the vehicle system is determined to be related to polygonal wear, the initiation and development of the polygonal wear depends on the operation speed and wheel diameter. Their relationship diagram is provided, and it can be used to predict polygonal wear development, modify the re-profiling schedule of polygonal wheels, and eliminate the polygonal wear on the wheels in time.
- The effect of flexibility of the wheelset is considered in the prediction model of the polygonal wear of high-speed wheels in this paper. Therefore, the high-frequency characteristics of the wheelset bending resonances can be more accurately expressed, and high-order polygonal wear related to the wheelset bending resonances at high frequencies can be numerically reproduced.

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Appendix A

Test Items | Number Tested | Warning Count | Error Count | Warn+Err (%) |
---|---|---|---|---|

Aspect Ratio | 255,360 | 5232 | 0 | 2.05% |

Parallel Deviation | 255,360 | 0 | 0 | 0 |

Maximum Angle | 255,360 | 0 | 0 | 0 |

Jacobian Ratio | 255,360 | 0 | 0 | 0 |

Warping Factor | 255,360 | 0 | 0 | 0 |

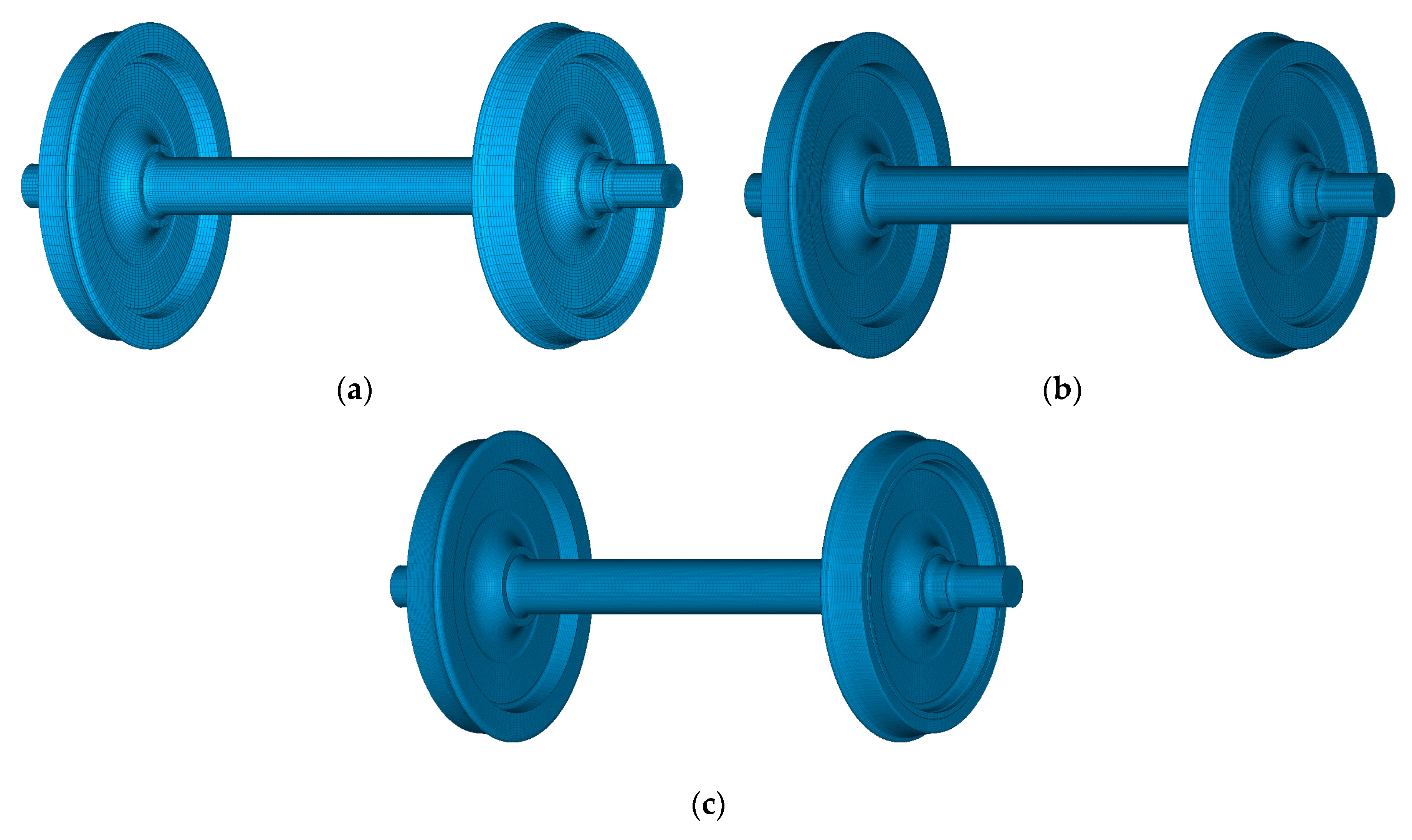

**Figure A1.**The finite element model: (

**a**) Model 1 (the model in the manuscript, element count: 255,360, node count: 267,771); (

**b**) Model 2 (element count: 556,800, node count: 573,673); (

**c**) Model 3 (element count: 834,860, node count: 856,285).

Model 1 (the Model in the Manuscript) | Model 2 | Model 3 | |||
---|---|---|---|---|---|

Element count | 255,360 | 556,800 | The errors refer to model 1 (%) | 834,860 | The errors refer to model 1 (%) |

Node count | 267,771 | 573,673 | 856,285 | ||

Order | Frequency | ||||

1 | 72.13 | 72.12 | 0.01% | 72.12 | 0.01% |

2 | 87.08 | 87.02 | 0.07% | 86.95 | 0.15% |

3 | 143.6 | 143.3 | 0.21% | 142.9 | 0.49% |

4 | 234.1 | 233.3 | 0.34% | 232.1 | 0.85% |

5 | 284.7 | 284.0 | 0.25% | 283.2 | 0.53% |

6 | 347.3 | 346.1 | 0.35% | 344.1 | 0.92% |

7 | 386.0 | 385.4 | 0.16% | 384.9 | 0.28% |

8 | 576.4 | 575.7 | 0.12% | 574.7 | 0.29% |

## References

- Johansson, A. Out-of-round Railway Wheels—Literature Survey, Field Tests and Numerical Simulations. Licentiate Thesis, Chalmers University of Technology, Göteborg, Sweden, 2003. [Google Scholar]
- Jin, X.S.; Wu, Y.; Liang, S.L.; Wen, Z.F. Advance in research on mechanism of out-of-roundness wear of railway vehicle wheels and its solution countermeasure. J. Southwest Jiaotong Univ.
**2018**, 53, 1–14. [Google Scholar] - Nielsen, J.C.O.; Johansson, A. Out-of-round railway wheels—A literature survey. Proc. Inst. Mech. Eng. F J. Rail Rapid Transit
**2000**, 214, 79–91. [Google Scholar] [CrossRef] - Kaper, H.P. Wheel corrugation on Netherlands railway (NS): Origin and effects of ‘polygonization’ in particular. J. Sound Vib.
**1998**, 120, 267–274. [Google Scholar] [CrossRef] - Morys, B.; Kuntze, H.B.; Hirsch, U. Investigation of origin and enlargement of out-of-round phenomena in high speed ICE-wheelsets. In Proceedings of the 10th European ADAMS Users’ Conference, Frankfurt, Germany, 14–15 November 1995; Volume 14, p. 1. [Google Scholar]
- Morys, B.; Kuntze, H.B. Simulation analysis and active compensation of the out-of-round phenomena at wheels of high speed trains. In Proceedings of the World Congress on Railway Research, Florence, Italy, 16–19 November 1997. [Google Scholar]
- Morys, B. Enlargement of out-of-round wheel profiles on high speed trains. J. Sound Vib.
**1999**, 227, 965–978. [Google Scholar] [CrossRef] - Meinke, P.; Meinke, S.; Szoc, T. On dynamics of rotating wheel/rail systems in a medium frequency range. In Proceedings of the 4th German-Polish Workshop Dynamical Problems in Mechanical Systems, Warszawa, Poland, 30 July–4 August 1996. [Google Scholar]
- Meywerk, M. Polygonalizaiton railway wheels. Arch. Appl. Mech.
**1999**, 69, 102–120. [Google Scholar] [CrossRef] - Chen, G.X.; Jin, X.S.; Wu, P.B.; Dai, H.Y.; Zhou, Z.R. Finite element study on the generation mechanism of polygonal wear of railway wheels. J. China Railw. Soc.
**2011**, 33, 14–18. [Google Scholar] - Tao, G.; Wang, L.; Wen, Z.; Guan, Q.; Jin, X. Measurement and assessment of out-of-round electric locomotive wheels. Proc. Inst. Mech. Eng. F
**2016**, 232, 275–287. [Google Scholar] [CrossRef] - Tao, G.; Wang, L.; Wen, Z.; Guan, Q.; Jin, X. Experimental investigation into the mechanism of the polygonal wear of electric locomotive wheels. Veh. Syst. Dyn.
**2018**, 56, 1–17. [Google Scholar] [CrossRef] - Jin, X.; Wu, L.; Fang, J.; Zhong, S.; Ling, L. An investigation into the mechanism of the polygonal wear of metro train wheels and its effect on the dynamic behaviour of a wheel/rail system. Veh. Syst. Dyn.
**2012**, 50, 1817–1834. [Google Scholar] [CrossRef] - Wu, Y.; Du, X.; Zhang, H.J.; Wen, Z.F.; Jin, X.S. Experimental analysis of the mechanism of high-order polygonal wear of wheels of a high-speed train. J. Zhejiang Univ. Sci. A
**2017**, 18, 579–592. [Google Scholar] [CrossRef] - Wu, X.; Rakheja, S.; Cai, W.; Chi, M.; Ahmed, A.; Qu, S. A study of formation of high order wheel polygonalization. Wear
**2019**, 424, 1–14. [Google Scholar] [CrossRef] - Cai, W.; Chi, M.; Tao, G.; Wu, X.; Wen, Z. Experimental and numerical investigation into formation of metro wheel polygonalization. Shock Vib.
**2019**, 2019, 1–18. [Google Scholar] [CrossRef] - Zhai, W.M. Vehicle-Track Coupled Dynamics, 4th ed.; Science Press: Beijing, China, 2007. [Google Scholar]
- Zhong, S.; Xiong, J.; Xiao, X.; Wen, Z. Effect of the first two wheelset bending modes on wheel-rail contact behavior. J. Zhejiang Univ. Sci. A
**2014**, 15, 984–1001. [Google Scholar] [CrossRef] - Xiao, X.B.; Ling, L.; Jin, X.S. A study of the derailment mechanism of a high-speed train due to an earthquake. Veh. Syst. Dyn.
**2012**, 50, 449–470. [Google Scholar] [CrossRef] - Han, J.; Zhong, S.Q.; Xiao, X.B.; Wen, Z.F.; Zhao, G.T.; Jin, X.S. High-speed wheel/rail contact determining method with rotating flexible wheelset and validation under wheel polygon excitation. Veh. Syst. Dyn.
**2018**, 56, 1233–1249. [Google Scholar] [CrossRef] - Li, L.; Xiao, X.B.; Jin, X.S. Interaction of subway LIM vehicle with ballasted track in polygonal wheel wear development. Acta Mech. Sin.
**2011**, 27, 297–307. [Google Scholar] [CrossRef] - Ling, L.; Xiao, X.B.; Xiong, J.Y.; Zhou, L.; Wen, Z.F.; Jin, X.S. Erratum to: A 3D model for coupling dynamics analysis of high-speed train/track system. J. Zhejiang Univ. Sci. A
**2015**, 15, 964–983. [Google Scholar] [CrossRef] [Green Version] - Han, J.; Zhong, S.Q.; Zhou, X.; Xiao, X.B.; Zhao, G.T.; Jin, X.S. Time-domain model for wheel-rail noise analysis at high operation speed. J. Zhejiang Univ. Sci. A
**2017**, 18, 593–602. [Google Scholar] [CrossRef] - Jendel, T. Prediction of Wheel Profile Wear-methodology and Verification. Licentiate Thesis, Department of Vehicle Engineering, KTH, Stockholm, Sweden, 2000. [Google Scholar]

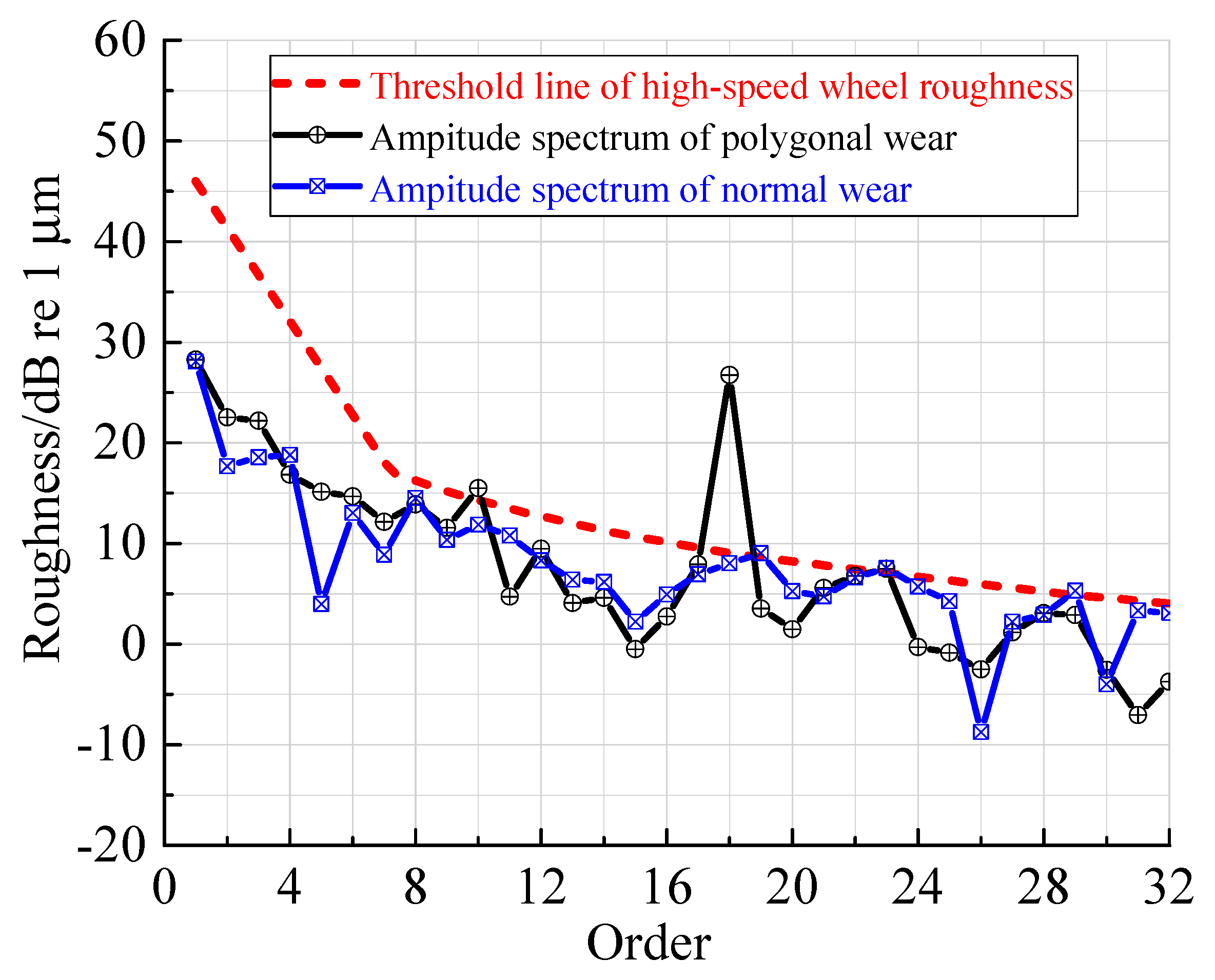

**Figure 3.**Sketch map: Amplitude spectrum of polygonal wear (site measurement) and threshold line of high-speed wheel roughness (referring to the ISO-3095).

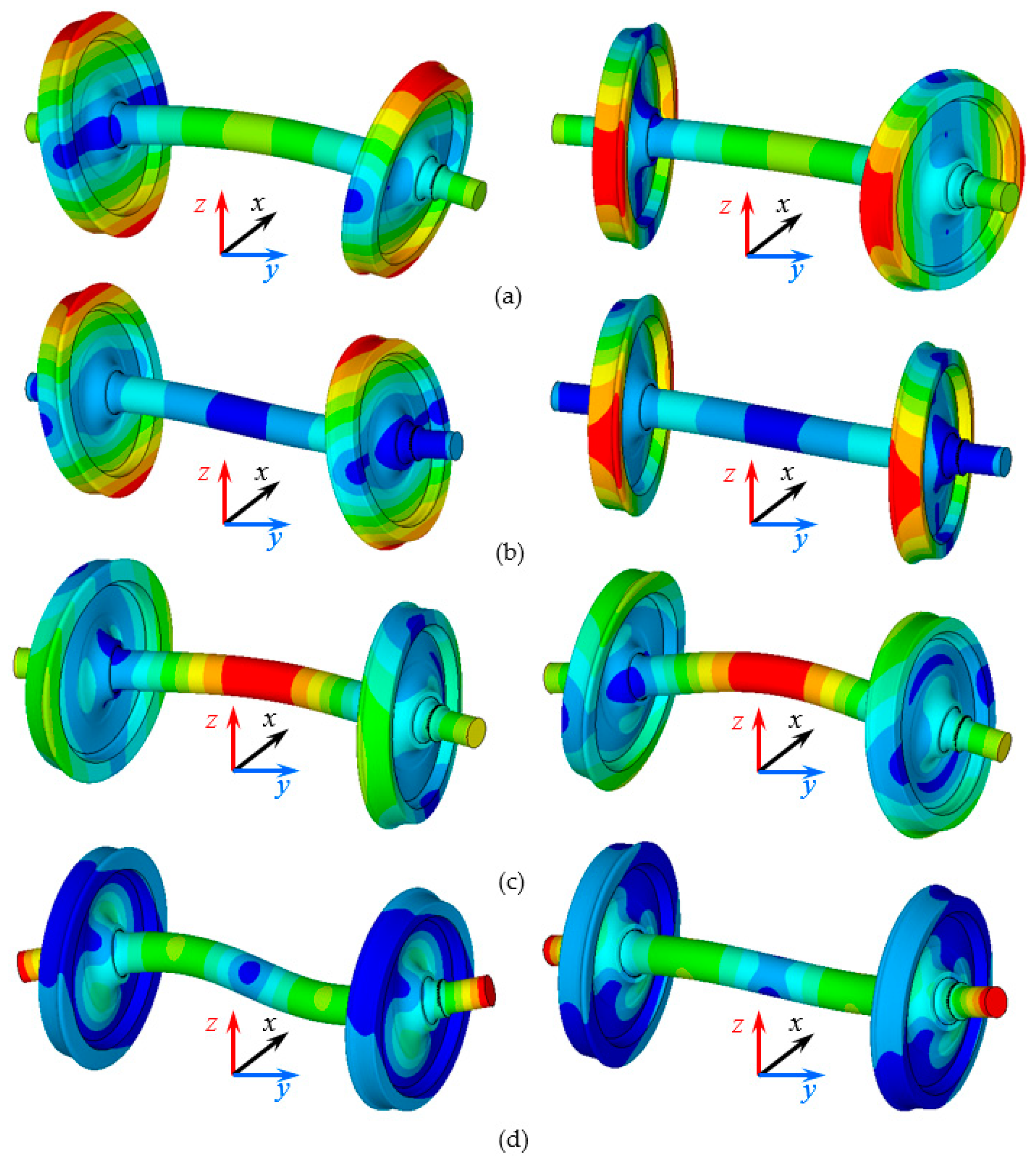

**Figure 8.**Bending modes of wheelset (0–800 Hz): (

**a**) First bending mode at 87 Hz; (

**b**) Second bending mode at 143 Hz; (

**c**) Third bending mode at 284 Hz; (

**d**) Fourth bending mode at 576 Hz.

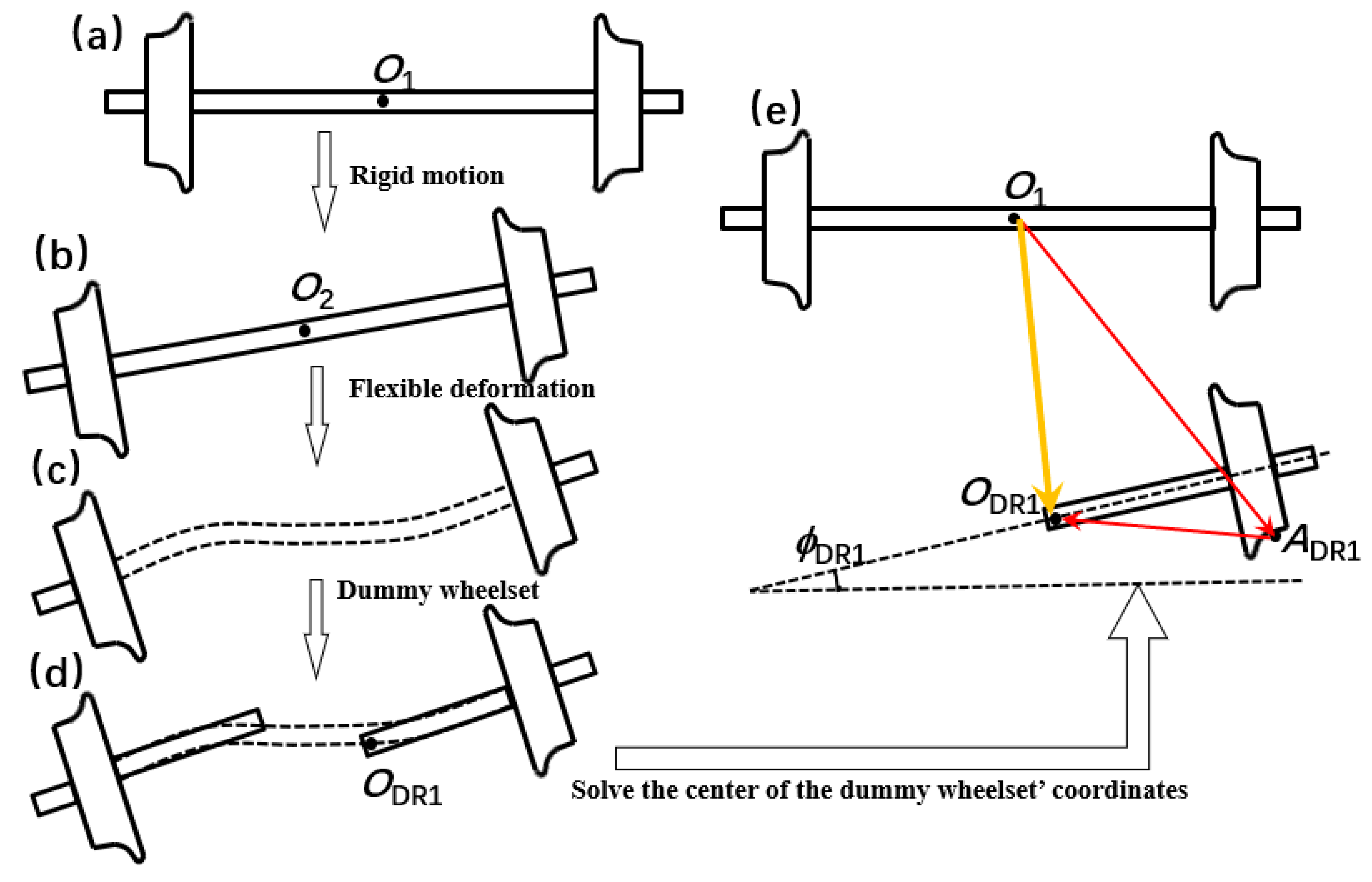

**Figure 9.**Modelling flexible wheelset: (

**a**) Static wheelset; (

**b**) The wheelset after rigid motion; (

**c**) The wheelset after flexible deformation; (

**d**) dummy wheelsets; (

**e**) the contact geometry relation between the dummy wheelset and the two rails.

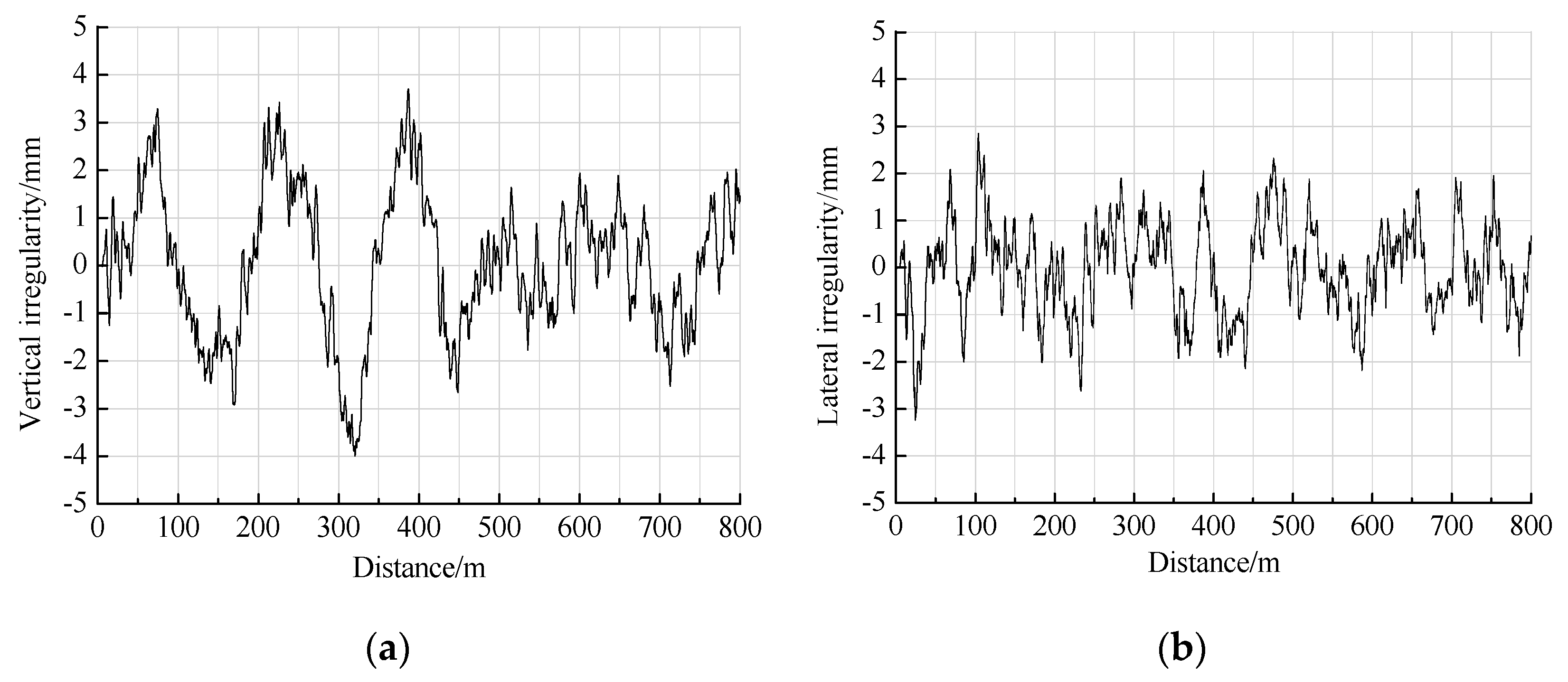

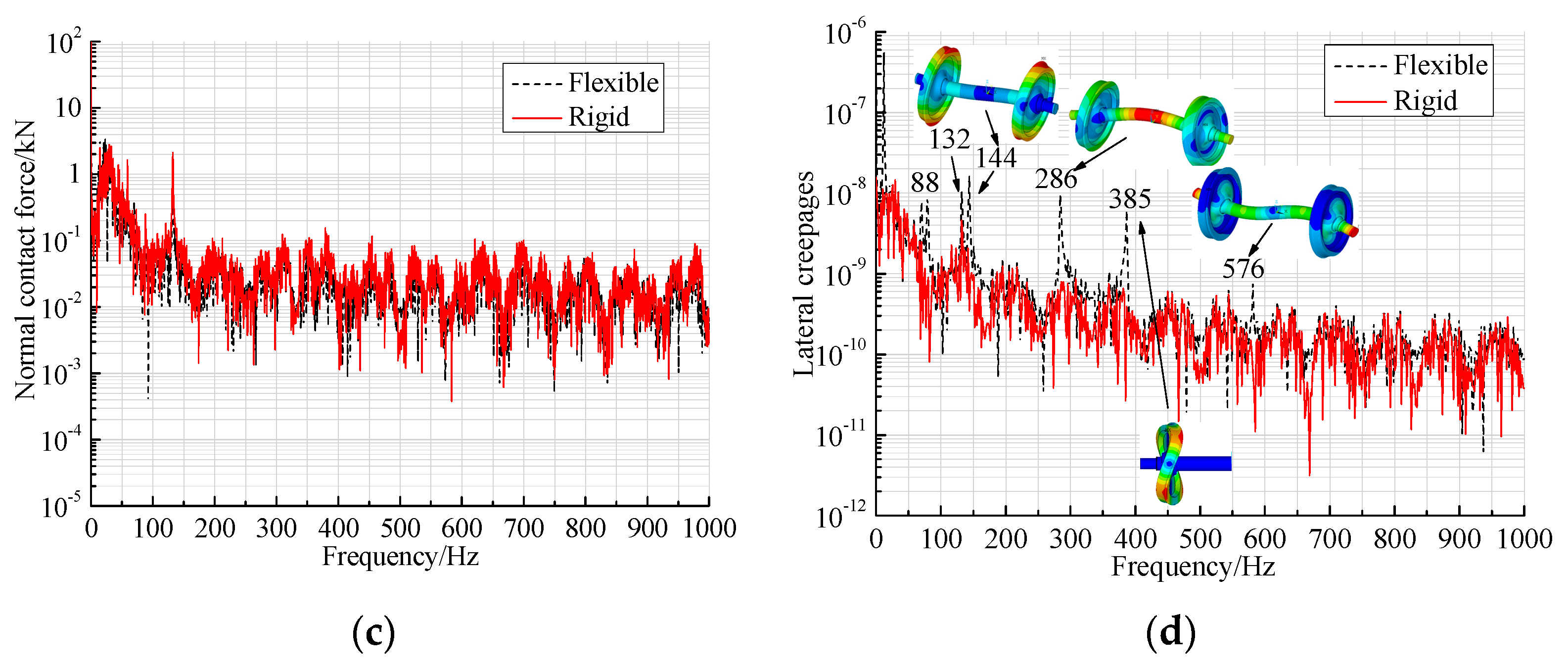

**Figure 12.**(

**a**) Vertical irregularity; (

**b**) Lateral irregularity; (

**c**) Normal contact forces; (

**d**) Lateral creepages.

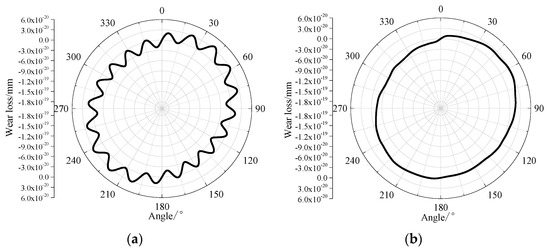

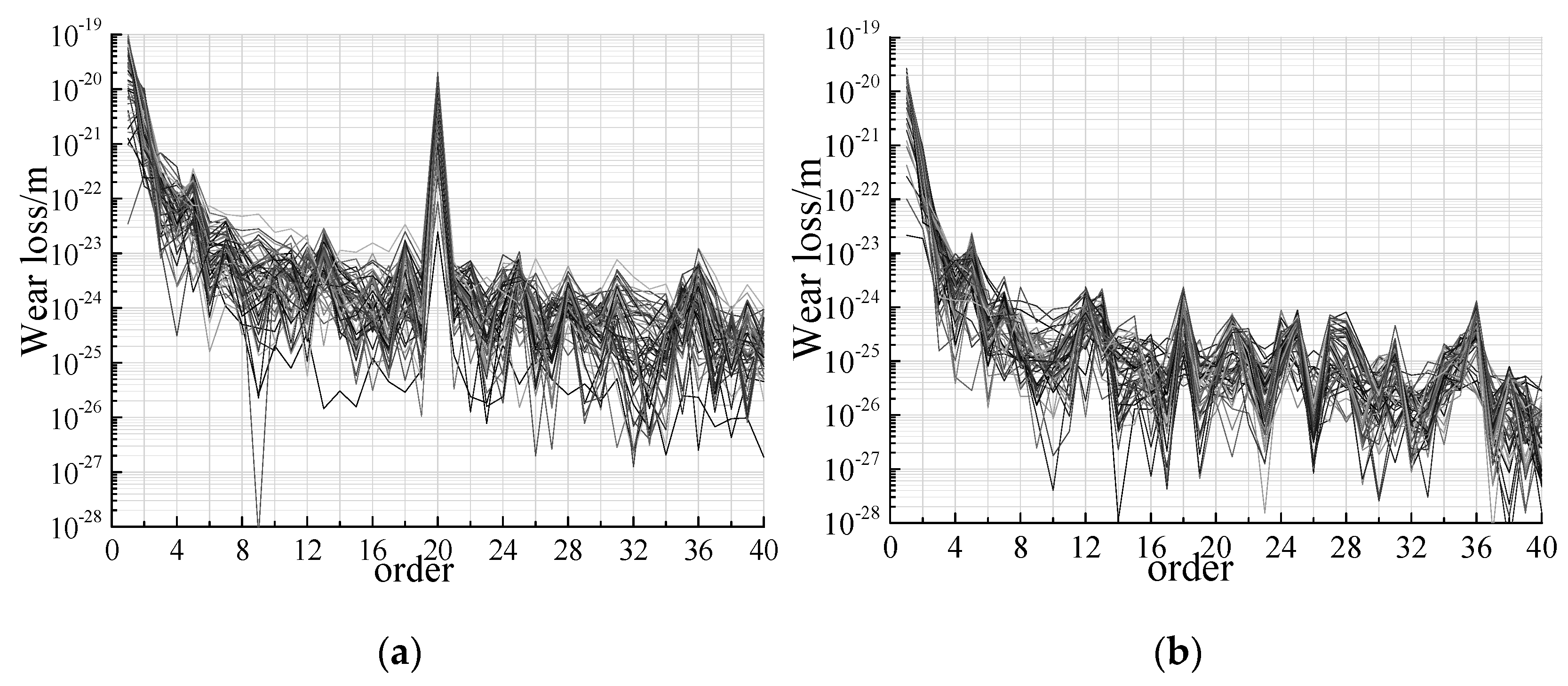

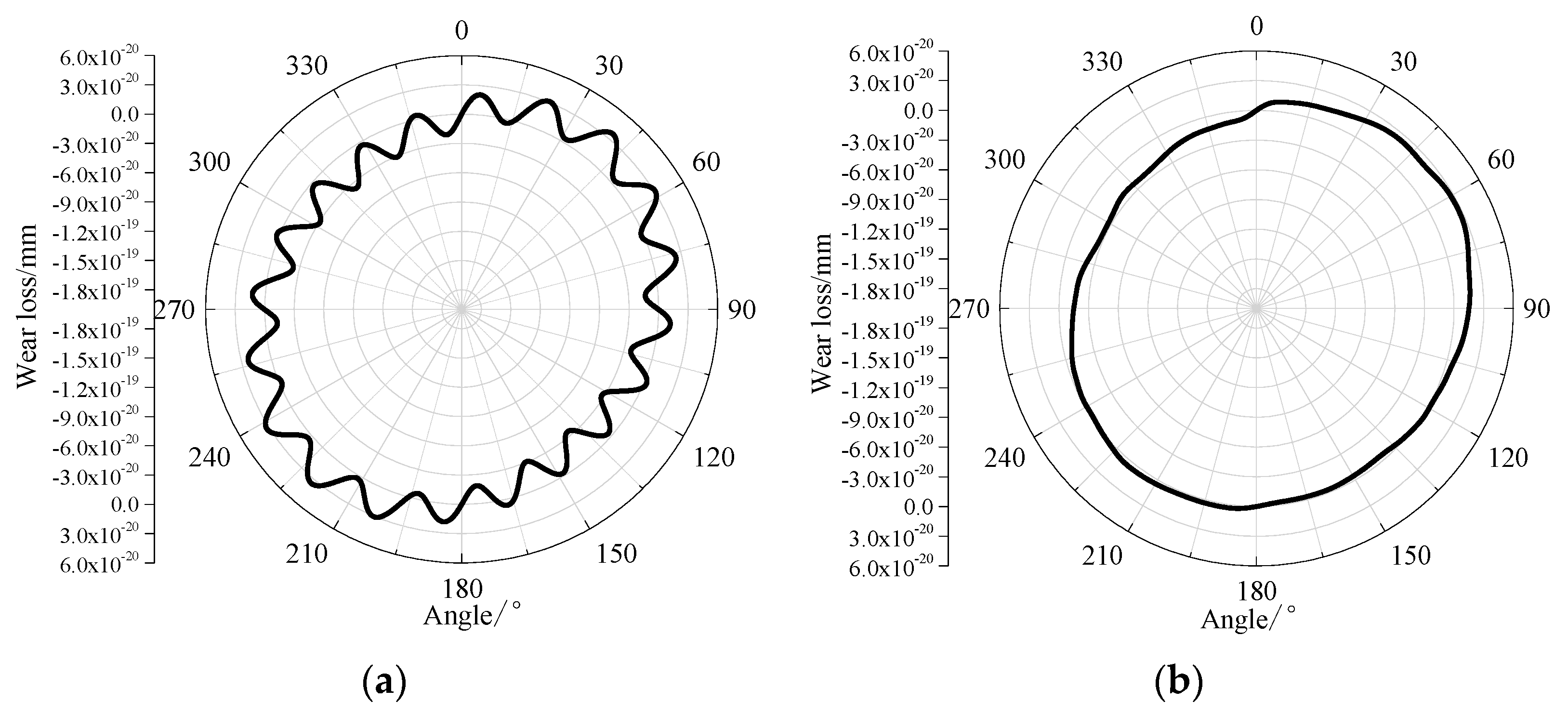

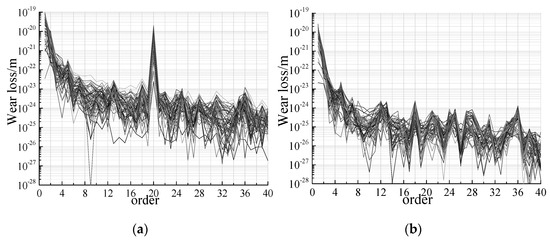

**Figure 13.**Results of wear loss along the circumferences of the two wheels with rolling of 50 circles. (

**a**) Flexible wheelset and (

**b**) Rigid wheelset.

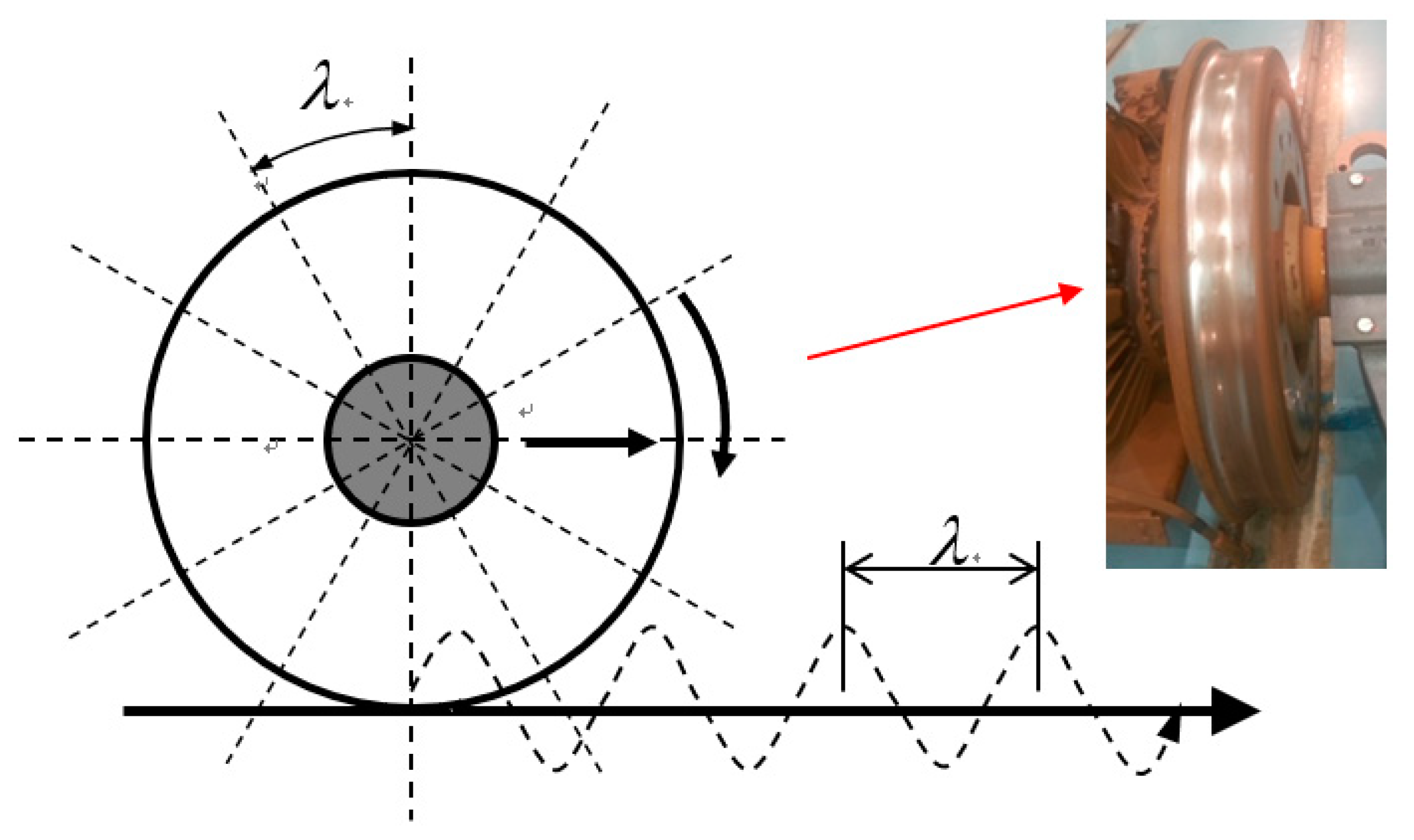

**Figure 16.**Description of basic condition for wheel OOR generation [12].

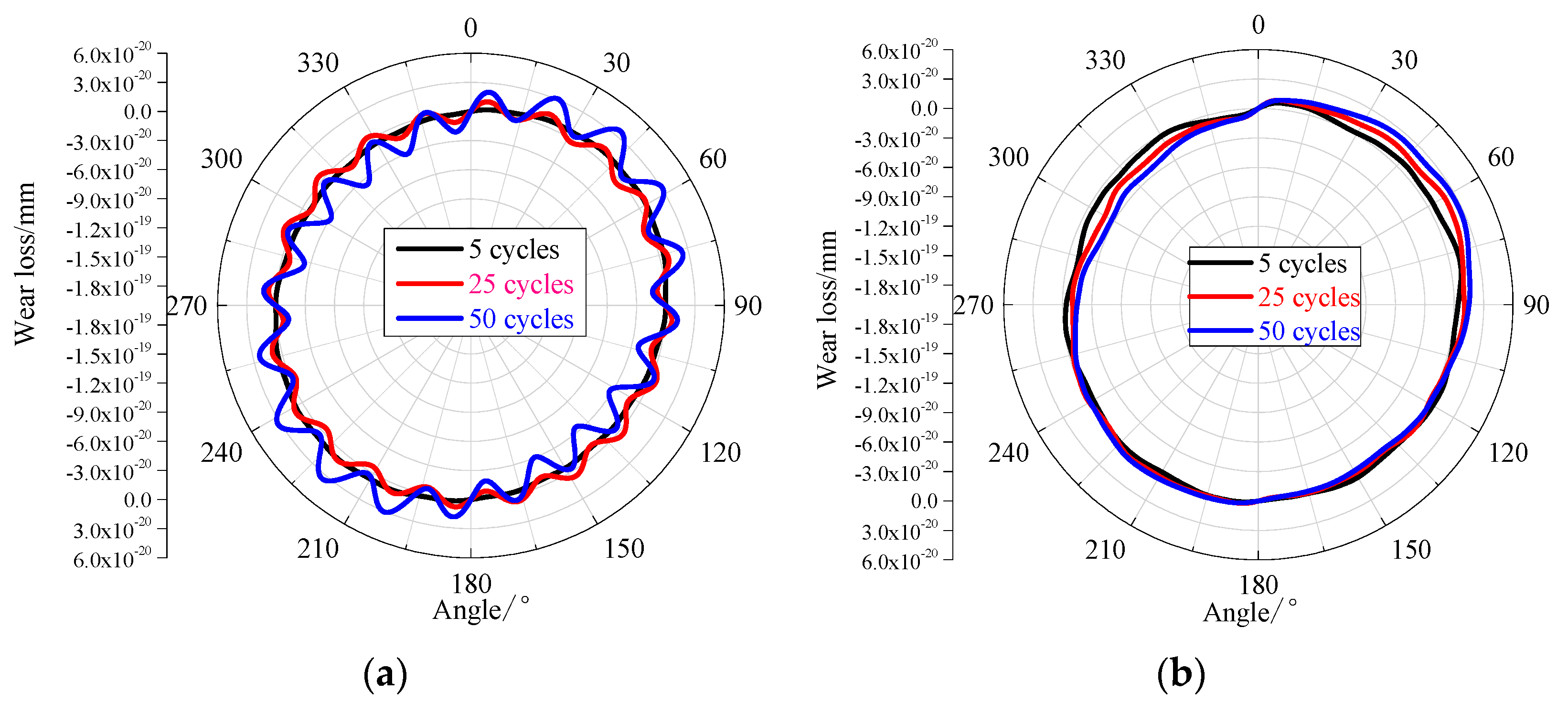

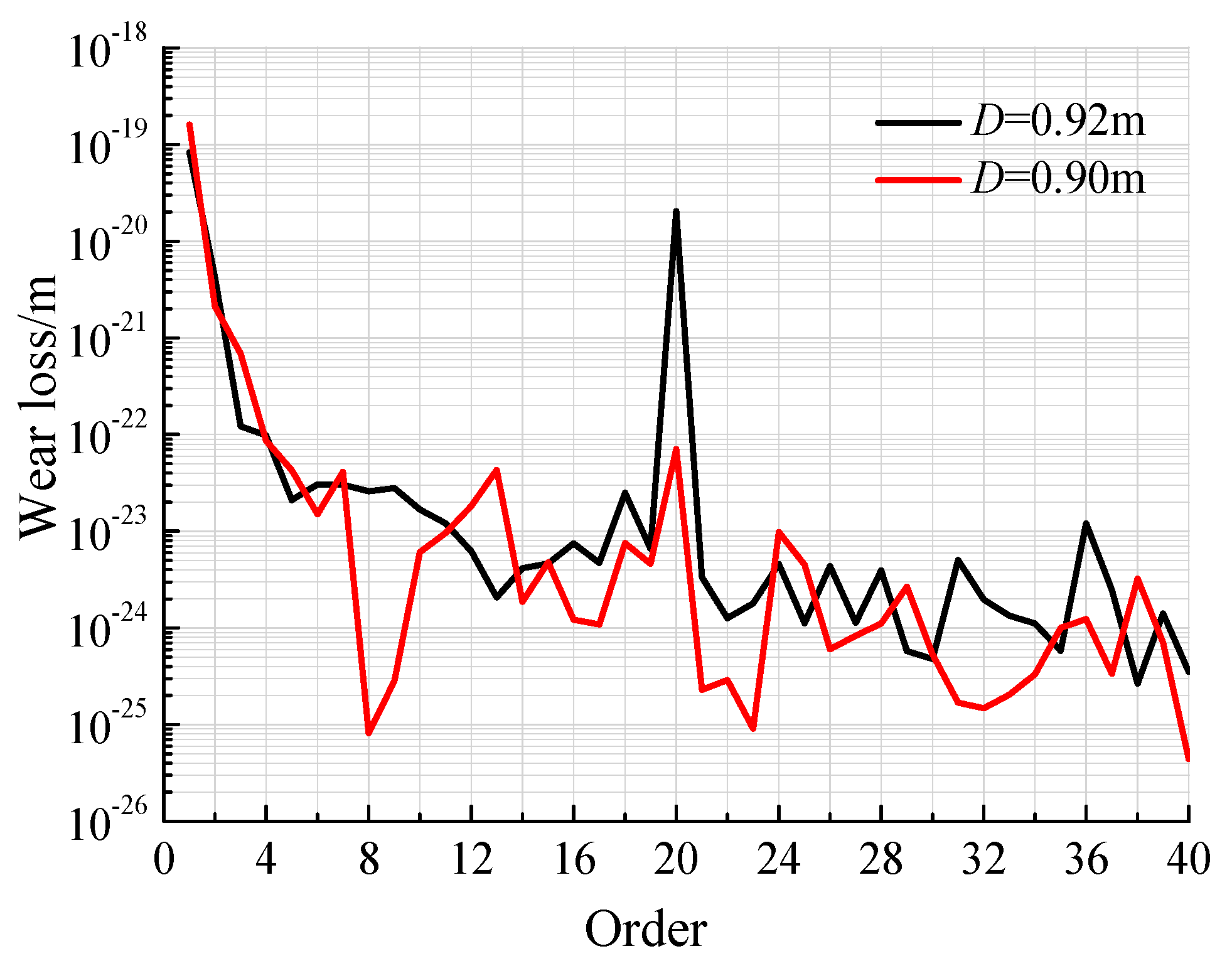

**Figure 18.**Polygonal wear results obtained by superposing the uneven wear of the wheels rolling with cycles, (

**a**) D = 920 mm, (

**b**) D = 900 mm.

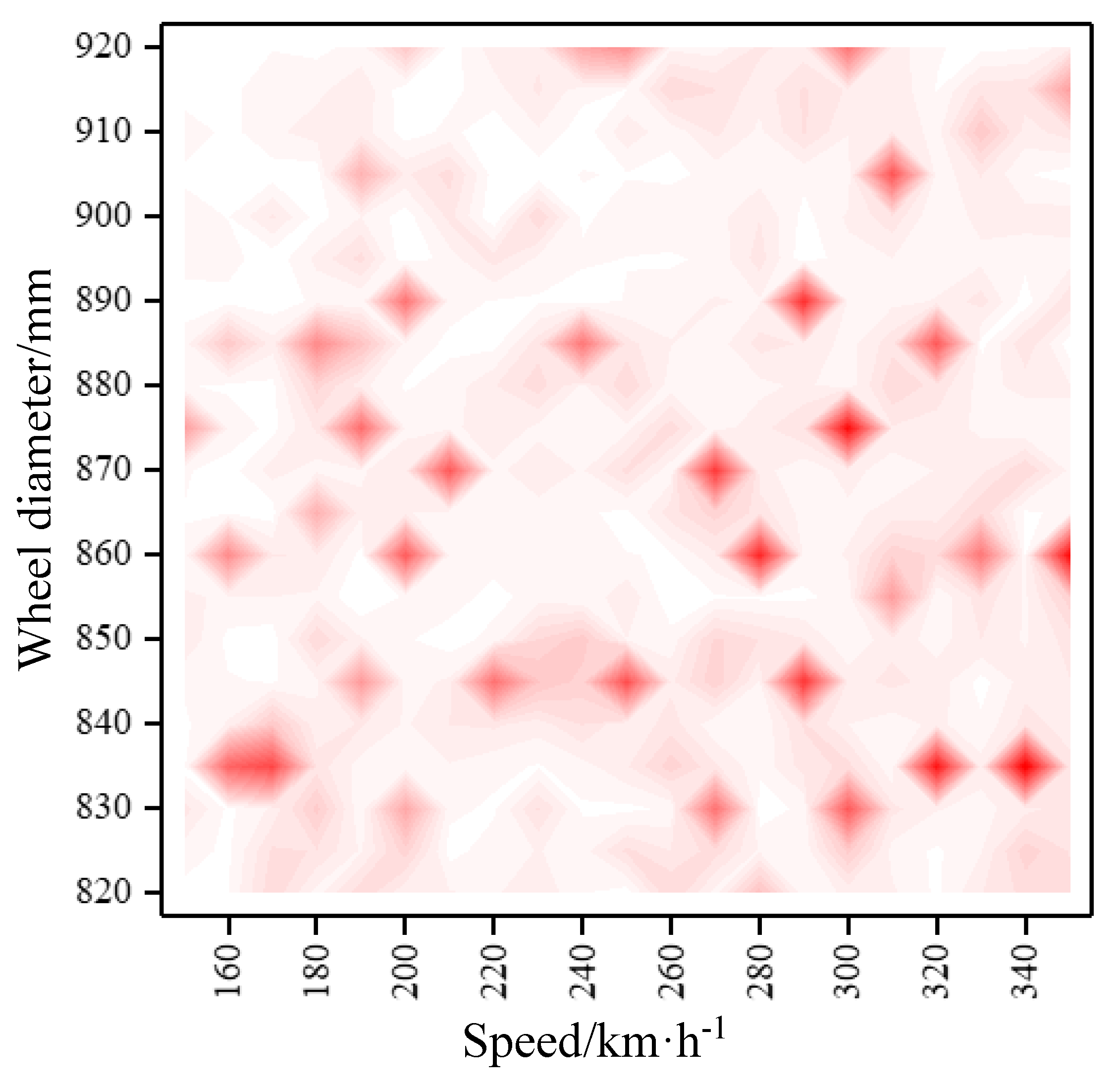

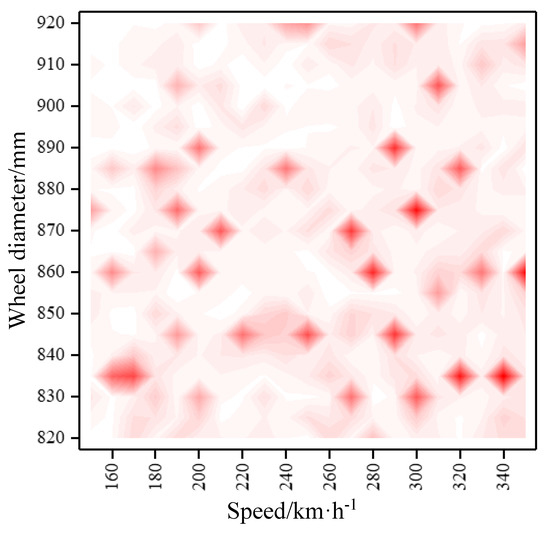

**Figure 19.**Polygonal wear development with different operation speeds and different wheel diameters.
