Identification of Genes Associated with Sensitivity to Ultraviolet A (UVA) Irradiation by Transposon Mutagenesis of Vibrio parahaemolyticus

by
Miki Maetani-Yasui
1,†,
Kazuaki Mawatari
1,*,†,
Airi Honjo
1,
Thi Kim Ngan Bui
1,
Takaaki Shimohata
1,
Takashi Uebanso
1,
Mutsumi Aihara
2,
Takahiro Emoto
2,
Masatake Akutagawa
2,
Yohsuke Kinouchi
2 and
Akira Takahashi
1
1
Department of Preventive Environment and Nutrition, Institute of Biomedical Sciences, Tokushima University Graduate School, Kuramoto-cho 3-18-15, Tokushima City, Tokushima 770-8503, Japan
2
Graduate School of Technology, Industrial and Social Sciences, Tokushima University, Minamijyousanjima-cho 2-1, Tokushima City, Tokushima 770-8506, Japan
*
Author to whom correspondence should be addressed.
†
Miki Maetani-Yasui and Kazuaki Mawatari contributed equally to this work.
Appl. Sci. 2020, 10(16), 5549; https://doi.org/10.3390/app10165549
Submission received: 16 July 2020 / Revised: 2 August 2020 / Accepted: 8 August 2020 / Published: 11 August 2020
(This article belongs to the Special Issue Innovative and Emerging Light-Based Technologies for Biomedicine, Food Safety and Agriculture)
Browse Figures
Review Reports Versions Notes

Abstract

:
Ultraviolet (UV) irradiation is used to disinfect water and food and can be classified as UVA (detected at wavelengths 320–400 nm), UVB (280–320 nm), and UVC (<280 nm). We developed a method for UVA sterilization of equipment with a UVA-light-emitting diode (LED); however, a high rate of fluence was needed to promote pathogen inactivation. The aim of this study was to identify genes associated with UVA sensitivity with the goal of improving UVA-LED-mediated bactericidal activity. We constructed a transposon-mutant library of Vibrio parahaemolyticus and selected six mutants with high sensitivity to UVA irradiation. Genes associated with this phenotype include F-type H+-transporting ATPases (atp), as well as those involved in general secretion (gsp), and ubiquinone and terpenoid-quinone biosynthesis (ubi). Gene complementation resulted in decreased sensitivity to UVA-LED. The atp mutants had lower intracellular adenosine triphosphate (ATP) concentrations than the wild-type treatment, with 20 mM L-serine resulting in elevated ATP concentrations and decreased sensitivity to UVA-LED. The gsp mutants exhibited high levels of extracellular protein transport and the ubi mutants exhibited significantly different intracellular concentrations of ubiquinone-8. Taken together, our results suggest that the protein products of the atp, gsp, and ubi genes may regulate sensitivity to UVA irradiation.

1. Introduction

Vibrio parahaemolyticus is a Gram-negative marine bacterial species that can cause acute gastroenteritis manifested by diarrhea, headache, vomiting, nausea, and abdominal pain; this is typically observed in individuals who have consumed raw or undercooked seafood [1,2,3,4]. V. parahaemolyticus-induced gastroenteritis is mediated by the type III secretion system and by enterotoxins, including thermostable direct hemolysin (TDH) and TDH-related hemolysin (TRH) [5,6,7]. Food poisoning associated with V. parahaemolyticus is a frequent occurrence worldwide [8,9].
Chlorination and ozonation have high efficiency against bacteria in general. However, some health problems have been observed. For instance, residual chlorine in drinking water can cause the formation of potentially carcinogenic halogenated by-products [10]. Likewise, ozonation can lead to the formation of high concentrations of undesired by-products, including bromates, which are also potential human carcinogens [11]. Other well-known disinfection methods include sunlight and ultraviolet (UV) irradiation; these modalities produce by-products, but those reported so far are below the level of health concerns [12]. UV rays are classified by wavelength into UVA (320–400 nm), UVB (280–320 nm), and UVC (<280 nm). Solar disinfection is an effective and inexpensive method of water treatment due to the fact that UVA and partial UVB in sunlight pass the ozonosphere and reach the surface of the Earth; this is not the case for UVC. UVC-based disinfection systems that utilize low-pressure mercury lamps are used widely as an effective sterilization method for both drinking and wastewater [13]. Because deoxyribonucleic acid (DNA) has a maximum absorption at approximately the same wavelength as UVC, irradiation can introduce photoproducts, including cyclo-butane pyrimidine dimers (CPDs) into the genomic DNA of target bacteria [14,15]. Some bacterial species have systems that repair thymine dimmers, including photolyases and the SOS response; these properties impart tolerance to the effects of UVC on bacterial DNA [16,17].
We originally developed a UVA irradiation disinfection system based on a light-emitting diode (UVA-LED) [14]. This system was capable of disinfection, and was specifically useful for the elimination of enteropathogenic bacteria, including Escherichia coli or Vibrio parahaemolyticus [18,19]. Our findings and those of other groups revealed that UVA irradiation induces cellular membrane damage and indirectly results in delayed growth by increasing intracellular levels of reactive oxygen species (ROS), including superoxide anion radicals (O2•−), hydroxyl radicals (OH•), hydrogen peroxide (H2O2), and singlet oxygen (1O2) [14,18,19]. Furthermore, we recently reported that bacterial systems that were effective for repairing DNA damage secondary to UVC irradiation were not effective against damage elicited by UVA-LED irradiation [18]. Unfortunately, we found that UVA-LED irradiation had lower bactericidal efficiency than UVC did against V. parahaemolyticus [18,19]. As such, we performed the current study in order to learn more about bacterial sensitivity to UVA-LED. We were particularly interested in exploring factors underlying the UVA sensitivity of V. parahaemolyticus. As such, the aim of this study was to identify genes encoded by V. parahaemolyticus that are associated with UVA sensitivity. Toward this end, we constructed a V. parahaemolyticus mutant library using a transposon mutagenesis method; we then identified mutant strains with increased sensitivity to UVA-LED irradiation. In this study, we isolated and characterized six bacterial strains that displayed increased sensitivity to UVA-LED irradiation; among these were strains with mutations in genes encoding the F0F1-type ATP synthase subunits (atp) as well as those involved in the biosynthesis of ubiquinone (ubi) and the general secretion pathway (gsp) genes. The goal of this study was to clarify how to modulate sensitivity to UVA-LED irradiation by the genes and gene products.

2. Materials and Methods

2.1. Microbial Strains and Cell Preparation

The wild-type (WT) strain of V. parahaemolyticus, RIMD2210633, was obtained from the Research Institute for Microbial Diseases (RIMD), Osaka University, Japan [20]. The bacteria and plasmids used in this study are listed in Table 1. Genetically modified organisms (GMOs) are regulated under the Cartagena Domestic Law. This study was conducted in conformity with the guidelines for the care and use of GMOs of the Institute of Biomedical Sciences, Tokushima University Graduate School (No. 27-375). Bacteria were cultured in Luria-Bertani (LB) broth or on LB agar plates, which contain 1% tryptone (BD, Franklin Lakes, NJ, USA), 0.5% yeast extract (BD), and 0.5 to 3% NaCl (Nacalai Tesque, Kyoto, Japan). WT and mutant strains were cultured at 37 °C for 18 h in order to reach stationary phase; antibiotics were added as appropriate.

2.2. Construction of the V. parahaemolyticus Mutant Library and Screening of the Mutants for High Sensitivity to UVA

A transposon mutation kit, Ez-Tn5™ DHFR-1 Tnp Transposome kit (Epicentre Biotechnologies, Madison, WI, USA), was used in this study. After an 18-h culture in LB broth at 37 °C, the WT strain was diluted 20 times in LB broth containing 0.5% NaCl and cultured at 37 °C for an additional 2.5 h. The cells were collected by centrifugation (7740× g for 2 min) and washed three times with 1 mL of ice-cold electroporation (EP) buffer, containing 272 mM sucrose, 1.12 mM NaH2PO4, 5.88 mM NaHPO4, 1 mM MgCl2, and 7% dimethyl sulfoxide (DMSO). The cells were then suspended in 100 µL of EP buffer containing 1% TransposomeTM solution and 1% TypeOne™ Restriction Inhibitor (Epicentre Biotechnologies) at 4 °C for 10 min and transformed by EP using a Gene Pulse apparatus (Bio-Rad Laboratories, Hercules, CA, USA), at 1000 Ohms, 25 µF, and 1300 V. Following EP, the cells were transferred into 500 µL of LB broth containing 1% NaCl and incubated for 1.5 h at 37 °C. To isolate the Ez-Tn5™ DHFR-1 transposon mutants, the cells were incubated on LB agar containing 1% NaCl and 15 µg/mL trimethoprim (TMP) at 37 °C for 18 h. The isolated colonies were cultured individually with LB containing 3% NaCl and 15 µg/mL TMP and stored frozen in 8% glycerol. Mutants with high sensitivity to UVA were identified using a two-step screening process, as indicated in Figure 1. To identify the mutation-inserted genes, genomic DNA of the high UVA-sensitive mutants was purified using a QIAamp DNA mini kit (Qiagen, Valencia, CA, USA); the DNA sequences flanking the Ez-Tn5™ DHFR-1 transposon were evaluated according to the manufacturer’s instructions.

2.3. Gene Complementation in the Mutants

Relevant genes were amplified by polymerase chain reaction using the primers listed in Table 2 and cloned into the pSA19CP vector [19,21]. Plasmids were introduced into the transposon mutants via EP using a Gene Pulse apparatus (Bio-Rad); transfected bacteria were selected on LB agar containing 10 µg/mL chloramphenicol (Cm). Gene expression in these plasmids was under the control of the thermostable direct hemolysin A (tdhA) gene promoter; this promoter is well-characterized and is highly active during stationary growth [7,21].

2.4. UV Irradiation

UVA light was emitted by a UVA-LED device developed as previously reported [18,19]. UVA-LED was pointed upward from the bottom of a 96-well plate; light intensity was maintained at 420 W/m2 at the bottom of the well with an average peak wavelength of 365 nm (Supplementary Material Figure S1a). UVB or UVC light was emitted downward and pointed at the surface of the solution in each well using a low-pressure UV lamp (3UV-38; UVP, Upland, CA, USA) at an intensity of 0.9 or 0.7 W/m2 and with average peak wavelengths of 302 and 254 nm, respectively (Supplementary Material Figure S1b,c). UV intensities were measured using a multiple wavelength photometer (MCPD 3700A; Otsuka Electronics, Osaka, Japan) and the handheld power meter NOVA II (Ophir Japan, Tokyo, Japan).

2.5. Measurement of Sensitivities to UV Irradiation

Sensitivities to UV irradiation were determined as bactericidal activity using a colony-forming assay. V. parahaemolyticus strains were collected by centrifugation (7740× g, 2 min, 25 °C) and washed three times with sterile phosphate-buffered saline (PBS). Then, 15 min before UV irradiation, the bacterial cells were treated with or without 20 mM L-serine (Supplementary Material Figure S2). The WT or the mutant strains were both adjusted to 109 CFU/mL in PBS. The irradiant fluences of UVA, UVB, and UVC were 126, 0.27, and 0.063 kJ/m2, respectively. After UV irradiation, bacterial suspensions were diluted appropriately, plated on LB agar plates with or without 20 mM L-serine, and incubated at 37 °C for 18 h. Following the incubation, the colonies were counted, and the log of the survival ratio was calculated as follows:
Log survival ratio = log10 (Nt/N0),
where Nt is the colony count of the UV-irradiated sample, and N0 is the colony count of the sample that had not undergone UV irradiation.

2.6. Intracellular ATP Concentration

Intracellular concentrations of ATP were measured for each of the V. parahaemolyticus mutants using a Kinsiro ATP Luminescence kit (TOYO B-Net, Tokyo, Japan) in accordance with the manufacturer’s instructions. After exposure to 20 mM L-serine or the diluent control, the mutant bacteria were collected by centrifugation (7740× g, 2 min, 25 °C), washed twice with PBS, resuspended in 1.2 mL of PBS, and stored at −80 °C until measurements could be performed. To measure intracellular ATP concentrations, samples were homogenized by ultrasound (Branson Ultrasonic, Danbury, CT, USA). After centrifugation (22,000× g, 10 min, 4 °C), the supernatants remaining were normalized for protein concentration using the bicinchoninate (BCA) method (Pierce, Rockford, IL, USA). Then, 20 µL of each sample that was normalized for total protein concentration was mixed with 180 µL luciferase/luciferin reaction solution; luminescence intensities were measured using a Varioskan Flash (Thermo Fisher Scientific, Waltham, MA, USA).

2.7. Sodium Dodecyl Sulfate-Polyacrylamide Gel Electrophoresis (SDS-PAGE) and Silver Staining

After bacteria reached the stationary phase (grown for 18 h in LB broth at 37 °C), the cultures were divided into pellets and supernatants by centrifugation (7740× g, 2 min, 25 °C) to facilitate the detection of both intracellular and extracellular protein, respectively. In order to remove any residual intact bacterial cells, the supernatants were filtered with 0.22-µm pore filters and mixed with 10% trichloro acetate, which resulted in the 10-fold concentration of extracellular protein. After centrifuging at 17,500× g for 10 min at 4 °C, pellets were washed twice with ice-cold acetone. The extracted extracellular or intracellular proteins were separated using SDS-PAGE and visualized by silver staining (ATTO, Tokyo, Japan).

2.8. Ubiquinone-8 Measurements

For quantitative determination of UQ-8, the lipid phase was extracted from WT and mutant strains and analyzed liquid chromatography-time of flight mass spectrometry (LC-TOFMS). After culturing to the stationary phase in LB broth for 18 h at 37 °C, WT or the mutants were collected by the centrifugation (7740× g, 2 min, 25 °C), and washed three times with sterile PBS; the lipid phase was then extracted as previously reported [22]. The samples were analyzed by an Agilent LC-TOFMS system 6200 with ZORBAX Eclipse Plus C18 column (Agilent Technologies, Santa Clara, CA, USA) at a flow rate of 1 mL/min using water-methanol (40:60) as the initial mobile phase. After sample injection, the percentage of methanol was increased to 100% over 10 to 30 min and then maintained for an additional 20 min. Agilent jet-stream electrospray ionization (Dual AJS ESI) was used as a source of ions. The ESI source was operated in positive mode, including spray voltages of 3500 V for the capillary entrance and 500 V for the nozzle, with a nitrogen sheath gas temperature at 250 °C and a flow rate of 12 L/min. Nitrogen drying gas was introduced at 150 °C at a flow rate of 10 L/min, with the nitrogen nebulizer at 45 psig. UQ-8 purified from E. coli (Avanti Polar Lipids, Alabaster, AL, USA) was used to generate a standard curve for determining UQ-8 concentrations. An extracted ion chromatogram (EIC, ± 1 ppm) of UQ-8 and integral analysis of peak areas were generated by Agilent MassHunter software (Agilent Technologies).

2.9. Statistical Analysis

Statistical analyses included ANOVA with Bonferroni’s multiple comparison tests using Statview 5.0 software (SAS Institute Inc., Cary, NC, USA). Student’s t-tests were used for paired data when appropriate. Values of p < 0.01 or p < 0.05 were considered to be statistically significant.

3. Results

3.1. Screening of the Mutants with High UVA Sensitivity

Highly UVA-sensitive mutants were identified in the mutant library using a two-step screening process (Figure 1). Fourteen mutants were selected as candidates for high sensitivity to UVA irradiation after the first round of screening. In the second round of screening, eight mutants were identified that exhibited similar or lower sensitivities to UVA irradiation that was exhibited by the WT (Supplementary Material Figure S3). The other six mutants were identified as highly sensitive to UVA irradiation; these mutants include those whose chromosomal DNA was modified by transposon insertion into VP0097 (#0002), VP0136 (#0521), VP0140 (#0358), VP0315 (#0092), VP3069 (#0078), or VP3075 (#0229; Figure 2 and Figure 3a). Information provided by the National Center for Biotechnology Information, Kyoto Encyclopedia of Genes and Genomes, and RIMD facilitated the classification of these six mutant strains into three functional/orthologous groups. Specifically, VP3069 and VP3075 were functionally classified as being associated with F0F1-type ATP synthase, VP0136 and VP0140 with general protein secretion pathways, and VP0097 and VP0315 with the biosynthesis of ubiquinone and/or other terpenoid-quinones (Table 3).

3.2. Sensitivities to Different UV Wavelengths

To investigate relative sensitivities to different wavelengths of UV irradiation, the six mutants selected were irradiated with UVA, UVB, or UVC, and the survival ratios were measured. All of the six mutants were more sensitive to the lethal impact of UVA irradiation than the WT; their sensitivities to UVB and UVC could not be distinguished from those of the WT (Figure 3). From these results, we conclude that the UV sensitivities of the mutants VP0097, VP3069, VP0136, VP0315, VP3075, and VP0140 might be restricted to UVA-associated wavelengths.

3.3. Evaluation of Intracellular ATP Concentration and Sensitivity to UVA Irradiation in Strains with Mutations in F0F1-Type ATP Synthase Genes

To investigate the relationship between sensitivity to UVA and mutations in genes encoding F0F1-type ATP synthase, we measured the intracellular ATP concentrations in the mutants VP3069 and VP3075. Intracellular ATP concentrations were significantly lower in both VP3069 and VP3075 mutants than in the WT (Figure 4a,b). The gene complementation of VP3069 (pVP3069/VP3069) or VP3075 (pVP3075/VP3075) restored the intracellular ATP concentrations and decreased UVA sensitivity, although not to the same extent as observed in the WT (Figure 4a). To determine the relationship between the intracellular ATP concentration and UVA sensitivity, both mutant strains were treated with L-serine (Supplementary Material Figure S2) [23]. The 20 mM L-serine treatment increased the intracellular ATP concentrations and decreased the UVA sensitivities in both VP3069 and VP3075 (Figure 4b,d). These results suggested that intracellular ATP concentrations regulated by F0F1-type ATP synthase might be associated with sensitivity to UVA.

3.4. Evaluation of Extracellular Protein Content and Sensitivity to UVA among Mutants of General Secretion Pathway Genes

To investigate the relationship between sensitivity to UVA and the mutation of the general secretion pathway gene, we measured the extracellular protein of the VP0136 and VP0140 mutants. The content of extracellular protein in the VP0136 and VP0140 mutants was significantly higher than that in WT (Figure 5a), but the intracellular proteins were not different among WT and the mutants (Figure 5b). The gene complementation of VP0136 (pVP0136/VP0136) or VP0140 (pVP0140/VP0140) significantly decreased the content of extracellular protein and increased UVA sensitivity (Figure 5a,c), whose levels were the same levels in WT (Figure 5a,c). From these results, membrane permeability controlled by the proteins of general secretion pathway might be associated with UVA sensitivity.

3.5. Intracellular Concentrations of Ubiquinone-8 and Sensitivity to UVA Irradiation among Strains with Mutations in Ubiquinone Biosynthesis Genes

In E. coli and Vibrio spp., the UQ tail includes eight isoprene groups and as such is designated UQ-8 [24]. Biosynthesis of UQ-8 in E. coli relies on ubi genes [25]. In order to explore the relationship between sensitivity to UVA and mutations in genes responsible for ubiquinone biosynthesis, we measured intracellular concentrations of UQ-8 (C51H72O2) in VP0097 and VP0315 by LC-TOFMS. The positive ions associated with UQ-8 (mass-to-charge ratio [m/z] = 727.5673 [M + H] and 749.5490 [M + Na]) were detected at a retention time = 44.8 min (Figure 6a). We detected a lower concentration of UQ-8 in the VP0315 mutant than in the WT; interestingly, the VP0097 mutant exhibited a higher UQ-8 concentration than the WT (Figure 6a,b). The gene-complemented strains, pVP0097/VP0097 and pVP0315/VP0315, maintained levels of both the intracellular UQ-8 concentration and UVA sensitivity that were similar to the WT (Figure 6b,c). From these results, we conclude that both VP0097 and VP0315 serve to regulate UQ-8 concentrations and also the sensitivity to UVA irradiation.

4. Discussion

To identify bacterial genes associated with UVA sensitivity, we constructed a transposon-mutant library and selected mutant strains of V. parahaemolyticus that exhibited high sensitivity to UVA irradiation. We selected six mutants that were highly sensitivity to UVA irradiation only, and did not exhibit increased sensitivity to either UVB or UVC. The six selected mutant strains included the mutations in genes encoding F-type H+-transporting ATPase (#78; VP3069, #229; VP3075), targets in the general secretion pathway (#521; VP0136, #358; VP0140), and those involved in ubiquinone and other terpenoid-quinone biosynthesis (#2; VP0097, #92; VP0315). Gene complementation studies performed with these mutant strains resulted in decreased sensitivity to UVA irradiation, approaching levels comparable to the WT. These results suggest that the products of these aforementioned genes serve to regulate sensitivity to UVA irradiation. We previously reported that UVA-LED irradiation increased levels of ROS in E. coli. and V. parahaemolyticus [14,19]. In addition, all of the six UVA-sensitive mutants had highly sensitivity to hydrogen peroxide (Supplementary Material Figure S4). These suggest that the genes are associated with the sensitivity to both UVA irradiation oxidative stresses.
The enzyme ATP synthase generates ATP from ADP and phosphoric acid via the rotation of the F0 motor on biological membranes with a hydrogen ion concentration gradient [26]. We detected remarkable decreases in intracellular ATP concentrations in the mutant strains VP3069 and VP3075 that involve the F0F1-type ATP synthase gene; ATP concentrations increased in response to gene complementation (Figure 4a). Although the resistance to UVA irradiation was restored by complementation, the intracellular ATP concentration in the mutants remained lower than that observed in WT cells. Franziska et al. [27] reported that intracellular ATP concentrations decreased in response to UVA irradiation and that the concentration was related to resistance against UVA in E. coli. Furthermore, Bosshard et al. [28] reported that the alpha-subunit of the F0F1-type ATP synthase underwent aggregation in response to UVA irradiation. From these results, we conclude that F0F1-type ATP synthase may play an important role in supporting the intracellular ATP concentration during periods of UVA irradiation/stress. However, the L-serine treatment increased the intracellular ATP concentration and decreased the sensitivity to UVA irradiation (Figure 4b,d). L-serine treatment increases the ATP concentration through one-carbon metabolism, which is independent of F0F1-type ATP synthase [23]. Akhova et al. [29] reported that the ATP/ADP ratio was changed by oxidative stress under antibiotic treatment in E. coli. From these results, the intracellular ATP concentration controlled by not only F0F1-type ATP synthase but also other pathways, including one-carbon metabolism, may be crucial factors for modulating UVA sensitivity.
General secretion is also known as the Sec-dependent or the type II secretion system (T2SS). Many Gram-negative bacteria utilize the T2SS to facilitate translocation of folded proteins from the periplasm through the outer membrane and likewise inwards from the extracellular environment [30]. Expression of outer membrane proteins (Omps), OmpU, OmpT, and OmpS, were all decreased and the outer membrane integrity was compromised in T2SS mutants of V. cholerae [31,32]. In this study, we observed a drastic increase in the extracellular content associated with mutations in general secretion pathway genes in V. parahaemolyticus (i.e., VP0136 and VP0140; Figure 5a); Sikora et al. [33] reported similar findings in V. cholerae. In addition, this group determined that V. cholerae T2SS mutants were more sensitive to hydrogen peroxide and endogenous ROS formation than the WT strain [33]. From these results, factors associated with T2SS-regulated outer membrane integrity are likely to be very important for sensitivity to UVA and oxidative stress. Apart from interactions within the outer membrane and T2SS proteins, these latter components may also interact with other constituents of the cell envelope. As but one example, alterations in the structure of lipopolysaccharide (LPS) have an immediate impact on the function of the T2SS system in Pseudomonas aeruginosa [34,35]. Recently, Johnson et al. [36] reported that T2SS from V. cholerae supported biofilm formation. Biofilms are microbial communities that are embedded in polysaccharides, nucleic acids, and associated extracellular protein matrix; they function to protect the resident bacteria from predators as well as from the effects of extracellular stress, the actions of antibiotics, and clearance by the immune system [37,38,39]. Pezzoni et al. [40] reported that biofilms containing P. aerginosa were more resistant to UVA irradiation than planktonic cells in culture. From these results, we conclude that biofilms controlled by the general secretion pathway of V. parahemolyticus may also be associated with sensitivity to UVA irradiation.
Ubiquinone (UQ), also known as coenzyme Q, is a lipophilic metabolite identified in organisms ranging from bacteria to mammals that includes a conserved quinone head group and an isoprenoid hydrophobic tail that varies in length among different species [41]. UQ-8 is located in the bacterial plasma membrane and has been described as an essential element underlying aerobic respiratory growth, gene regulation, and processes that rely on proton motive force [42,43,44]. Biosynthesis of UQ-8 takes place via a highly conserved pathway that involves a large number of genes (i.e., ubi) that have been identified by genetic studies [45]. The ubiCA mutants all had altered patterns of UQ-8 biosynthesis and were hypersensitive to H2O2; production of both O2 and H2O2 was significantly higher in the mutants than in the wild-type strain [46]. In our study, VP0097 (ubiB) and VP0315 (ubiX) mutants showed similar high sensitivities to UVA-LED that did not correlate with changes in UQ-8 concentrations (Figure 6). The ubiX gene product catalyzes decarboxylation as part of the biosynthesis of UQ-8; inactivation of the gene leads to diminished levels of UQ-8 in target E. coli cells [47]. By contrast, ubiB is believed to be required for the first monooxygenase step in UQ-8 biosynthesis, although the detailed roles played by each of the gene products remain unclear [48]. Taken together, the combined results suggest that functions of the ubi gene product may be related to the degree of UVA sensitivity.

5. Conclusions

In conclusion, genes associated with F0F1-type ATP synthase, the general secretion pathway, and ubiquinone synthesis were all identified as candidate genes that modulate sensitivity to UVA irradiation. A comprehensive review of the genes and gene products modulating these responses will provide a remarkably improved understanding of the efficiency of sterilization procedures and their application to resistant bacteria. For example, a combination of UVA-LED irradiation and treatment of inhibitors against the identified gene products, such as a bacterial F0F1-type ATP synthase inhibitor piceatannol, which inhibits growth of E. coli and other bacteria [49], may be a good strategy to increase the efficiency of the bactericidal effect. Further analysis of several of the critical features and functions of these target genes will be required.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-3417/10/16/5549/s1, Figure S1: Emission spectrum of various UV lamps, Figure S2: A flow chart of the experiment of L-serine treatment for UVA-sensitivity, Figure S3: Sensitivities of mutants from first-round selection to UVA-LED, and Figure S4: Sensitivities to hydrogen peroxide in highly UVA-sensitive V. parahaemolyticus mutants.

Author Contributions

Conceptualization, K.M., Y.K., and A.T.; methodology, M.M.-Y., K.M., M.A. (Mutsumi Aihara), T.S., and T.U.; software, T.E., and M.A. (Masatake Akutagawa); validation, M.M.-Y., K.M., and A.T.; formal analysis, M.M.-Y., K.M., A.H., and T.K.N.B.; investigation, M.M.-Y., K.M., and A.H.; resources, E.T., and M.A.; data curation, M.M.-Y., and K.M.; writing—original draft preparation, M.M.-Y., and K.M.; writing—review and editing, K.M., and A.T.; visualization, M.M.-Y., and K.M.; supervision, A.T.; project administration, A.T.; funding acquisition, A.T. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by JSPS KAKENHI Grant Numbers 20H01616.

Acknowledgments

The excellent technical assistance of Hideaki Maseda (National Institute of Advanced Industrial Science and Technology) is gratefully acknowledged. We thank Maki Uwate, Miyuki Edagawa, and Natsumi Iwamoto (Tokushima University) for technical assistance. This study was supported by Support Center for The Special Mission Center for Metabolome Analysis, School of Medical Nutrition, Faculty of Medicine of Tokushima University, and Support Center for Advanced Medical Sciences, Tokushima University Graduate School of Biomedical Sciences. This work was supported by the Research Clusters program of Tokushima University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. DePaola, A.; Kaysner, C.A.; Bowers, J.; Cook, D.W. Environmental investigations of Vibrio parahaemolyticus in oysters after outbreaks in Washington, Texas, and New York (1997 and 1998). Appl. Environ. Microbiol. 2000, 66, 4649–4654. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. McLaughlin, J.B.; DePaola, A.; Bopp, C.A.; Martinek, K.A.; Napolilli, N.P.; Allison, C.G.; Murray, S.L.; Thompson, E.C.; Bird, M.M.; Middaugh, J.P. Outbreak of Vibrio parahaemolyticus gastroenteritis associated with Alaskan oysters. N. Engl. J. Med. 2005, 353, 1463–1470. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Wong, H.C.; Chen, M.C.; Liu, S.H.; Liu, D.P. Incidence of highly genetically diversified Vibrio parahaemolyticus in seafood imported from Asian countries. Int. J. Food Microbiol. 1999, 52, 181–188. [Google Scholar] [CrossRef]
  4. Levine, W.C.; Griffin, P.M. Vibrio infections on the Gulf Coast: Results of first year of regional surveillance. Gulf Coast Vibrio Working Group. J. Infect. Dis. 1993, 167, 479–483. [Google Scholar] [CrossRef]
  5. Nishibuchi, M.; Kaper, J.B. Thermostable direct hemolysin gene of Vibrio parahaemolyticus: A virulence gene acquired by a marine bacterium. Infect. Immun. 1995, 63, 2093–2099. [Google Scholar] [CrossRef] [Green Version]
  6. Honda, T.; Ni, Y.X.; Miwatani, T. Purification and characterization of a hemolysin produced by a clinical isolate of Kanagawa phenomenon-negative Vibrio parahaemolyticus and related to the thermostable direct hemolysin. Infect. Immun. 1988, 56, 961–965. [Google Scholar] [CrossRef] [Green Version]
  7. Park, K.S.; Ono, T.; Rokuda, M.; Jang, M.H.; Okada, K.; Iida, T.; Honda, T. Functional characterization of two type III secretion systems of Vibrio parahaemolyticus. Infect. Immun. 2004, 72, 6659–6665. [Google Scholar] [CrossRef] [Green Version]
  8. Velazquez-Roman, J.; León-Sicairos, N.; de Jesus Hernández-Díaz, L.; Canizalez-Roman, A. Pandemic Vibrio parahaemolyticus O3:K6 on the American continent. Front. Cell Infect. Microbiol. 2014, 110, 1–14. [Google Scholar] [CrossRef] [Green Version]
  9. Tack, D.M.; Ray, L.; Griffin, P.M.; Cieslak, P.R.; Dunn, J.; Rissman, T.; Jervis, R.; Lathrop, S.; Muse, A.; Duwell, M.; et al. Preliminary incidence and trends of infections with pathogens transmitted commonly through food-foodborne diseases active surveillance network, 10 U.S. Sites, 2016–2019. MMWR Morb. Mortal Wkly. Rep. 2020, 69, 509–514. [Google Scholar] [CrossRef]
  10. Fawell, J.; Robinson, D.; Bull, R.; Birnbaum, L.; Butterworth, B.; Daniel, P.; Galal-Gorchev, H.; Hauchman, F.; Julkunen, P.; Klaassen, C.; et al. Disinfection byproducts in drinking water: Critical issues in health effects research. Environ. Health Perspect. 1997, 105, 108–109. [Google Scholar] [CrossRef]
  11. von Gunten, U. Ozonation of drinking water: Part I. Oxidation kinetics and product formation. Water Res. 2003, 37, 1443–1467. [Google Scholar] [CrossRef]
  12. Wang, D.; Bolton, J.R.; Andrews, S.A.; Hofmann, R. Formation of disinfection by-products in the ultraviolet/chlorine advanced oxidation process. Sci. Total Environ. 2015, 518–519, 49–57. [Google Scholar] [CrossRef] [PubMed]
  13. Hijnen, W.A.M.; Beerendonk, E.F.; Medema, G.J. Inactivation credit of UV radiation for viruses, bacteria and protozoan (oo)cysts in water: A review. Water Res. 2006, 40, 3–22. [Google Scholar] [CrossRef] [PubMed]
  14. Hamamoto, A.; Mori, M.; Takahashi, A.; Nakano, M.; Wakikawa, N.; Akutagawa, M.; Ikehara, T.; Nakaya, Y.; Kinouchi, Y. New water disinfection system using UVA light-emitting diodes. J. Appl. Microbiol. 2007, 103, 2291–2298. [Google Scholar] [CrossRef] [PubMed]
  15. Mori, M.; Hamamoto, A.; Takahashi, A.; Nakano, M.; Wakikawa, N.; Tachibana, S.; Ikehara, T.; Nakaya, Y.; Akutagawa, M.; Kinouchi, Y. Development of a new water sterilization device with a 365 nm UV-LED. Med. Biol. Eng. Comput. 2007, 45, 1237–1241. [Google Scholar] [CrossRef] [PubMed]
  16. Erill, I.; Campoy, S.; Barbe, J. Aeons of distress: An evolutionary perspective on the bacterial SOS response. FEMS Microbiol. Rev. 2007, 31, 637–656. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Selby, C.P.; Sancar, A. A cryptochrome/photolyase class of enzymes with single-stranded DNA-specific photolyase activity. Proc. Natl. Acad. Sci. USA 2006, 103, 17696–17700. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Hamamoto, A.; Bandou, C.; Nakano, M.; Mawatari, K.; Lian, X.; Yamato, M.; Harada, N.; Akutagawa, M.; Kinouchi, Y.; Nakaya, Y.; et al. Differences in stress response after UVC or UVA irradiation in Vibrio parahaemolyticus. Environ. Microbiol. Rep. 2010, 2, 660–666. [Google Scholar] [CrossRef]
  19. Nakahashi, M.; Mawatari, K.; Hirata, A.; Maetani, M.; Shimohata, T.; Uebanso, T.; Hamada, Y.; Akutagawa, M.; Kinouchi, Y.; Takahashi, A. Simultaneous irradiation with different wavelengths of ultraviolet light has synergistic bactericidal effect on Vibrio parahaemolyticus. Photochem. Photobiol. 2014, 90, 1397–1403. [Google Scholar] [CrossRef]
  20. Makino, K.; Oshima, K.; Kurokawa, K.; Yokoyama, K.; Uda, T.; Tagomori, K.; Iijima, Y.; Najima, M.; Nakano, M.; Yamashita, A.; et al. Genome sequence of Vibrio parahaemolyticus: A pathogenic mechanism distinct from that of V. cholerae. Lancet 2003, 361, 743–749. [Google Scholar] [CrossRef]
  21. Nakano, M.; Takahashi, A.; Su, Z.; Harada, N.; Mawatari, K.; Nakaya, Y. Hfq regulates the expression of the thermostable direct hemolysin gene in Vibrio parahaemolyticus. BMC Microbiol. 2008, 8, 155. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Aussel, L.; Loiseau, L.; Hajj Chehade, M.; Pocachard, B.; Fontecave, M.; Pierrel, F.; Barras, F. ubiJ, a new gene required for aerobic growth and proliferation in macrophage, is involved in coenzyme Q biosynthesis in Escherichia coli and Salmonella enterica serovar Typhimurium. J. Bacteriol. 2014, 196, 70–79. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Alexei, V.; Elke, K.M.; Zoltan, N. Serine biosynthesis with one carbon catabolism and the glycine cleavage system represents a novel pathway for ATP generation. PLoS ONE 2011, 6, e25881. [Google Scholar] [CrossRef] [Green Version]
  24. Lim, B.R.; Ahn, K.H.; Songprasert, P.; Cho, J.W.; Lee, S.H. Microbial community structure of membrane fouling film in an intermittently and continuously aerated submerged membrane bioreactor treating domestic wastewater. Water Sci. Technol. 2004, 49, 255–261. [Google Scholar] [CrossRef] [PubMed]
  25. Aussel, L.; Pierrel, F.; Loiseau, L.; Lombard, M.; Fontecave, M.; Barras, F. Biosynthesis and physiology of coenzyme Q in bacteria. Biochim. Biophys. Acta 2014, 1837, 1004–1011. [Google Scholar] [CrossRef] [PubMed]
  26. Usukura, E.; Suzuki, T.; Furuike, S.; Soga, N.; Saita, E.; Hisabori, T.; Kinosita, K., Jr.; Yoshida, M. Torque generation and utilization in motor enzyme F0F1-ATP synthase: Half-torque F1 with short-sized pushrod helix and reduced ATP Synthesis by half-torque F0F1. J. Biol. Chem. 2012, 287, 1884–1891. [Google Scholar] [CrossRef] [Green Version]
  27. Bosshard, M.; Bucheli, M.; Meur, Y.; Egli, T. The respiratory chain is the cell’s Achilles’ heel during UVA inactivation in Escherichia coli. Microbiology 2010, 150, 2006–2015. [Google Scholar] [CrossRef] [Green Version]
  28. Bosshard, F.; Riedel, K.; Schneider, T.; Geiser, C.; Bucheli, M.; Egli, T. Protein oxidation and aggregation in UVA-irradiated Escherichia coli cells as signs of accelerated cellular senescence. Environ. Microbiol. 2010, 12, 2931–2945. [Google Scholar] [CrossRef]
  29. Akhova, A.V.; Tkachenko, A.G. ATP/ADP alteration as a sign of the oxidative stress development in Escherichia coli cells under antibiotic treatment. FEMS. Microbiol. Lett. 2014, 353, 69–76. [Google Scholar] [CrossRef] [Green Version]
  30. Green, E.R.; Mecsas, J. Bacterial secretion systems: An overview. Microbiol. Spectr. 2016, 4. [Google Scholar] [CrossRef] [Green Version]
  31. Sikora, A.E.; Lybarger, S.R.; Sandkvist, M. Compromised outer membrane integrity in Vibrio cholerae Type II secretion mutants. J. Bacteriol. 2007, 189, 8484–8495. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Sandkvist, M.; Michel, L.O.; Hough, L.P.; Morales, V.M.; Bagdasarian, M.; Koomey, M.; DiRita, V.J.; Bagdasarian, M. General secretion pathway (eps) genes required for toxin secretion and outer membrane biogenesis in Vibrio cholerae. J. Bacteriol. 1997, 179, 6994–7003. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Sikora, A.E.; Beyhan, S.; Bagdasarian, M.; Yildiz, F.H.; Sandkvist, M. Cell envelope perturbation induces oxidative stress and changes in iron homeostasis in Vibrio cholerae. J. Bacteriol. 2009, 191, 5398–5408. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Bitter, W.; van Boxtel, R.; Groeneweg, M.; Carballo, P.S.; Zahringer, U.; Tommassen, J.; Koster, M. Species-specific functioning of the Pseudomonas XcpQ secretin: Role for the C-terminal homology domain and lipopolysaccharide. J. Bacteriol. 2007, 189, 2967–2975. [Google Scholar] [CrossRef] [Green Version]
  35. Michel, G.; Ball, G.; Goldberg, J.B.; Lazdunski, A. Alteration of the lipopolysaccharide structure affects the functioning of the Xcp secretory system in Pseudomonas aeruginosa. J. Bacteriol. 2000, 182, 696–703. [Google Scholar] [CrossRef] [Green Version]
  36. Johnson, T.L.; Fong, J.C.; Rule, C.; Rogers, A.; Yildiz, F.H.; Sandkvist, M. The Type II secretion system delivers matrix proteins for biofilm formation by Vibrio cholerae. J. Bacteriol. 2014, 196, 4245–4252. [Google Scholar] [CrossRef] [Green Version]
  37. Yildiz, F.H.; Visick, K.L. Vibrio biofilms: So much the same yet so different. Trends Microbiol. 2009, 17, 109–118. [Google Scholar] [CrossRef] [Green Version]
  38. Mann, E.E.; Wozniak, D.J. Pseudomonas biofilm matrix composition and niche biology. FEMS Microbiol. Rev. 2012, 36, 893–916. [Google Scholar] [CrossRef] [Green Version]
  39. Flemming, H.C.; Wingender, J. The biofilm matrix. Nat. Rev. Microbiol. 2010, 8, 623–633. [Google Scholar] [CrossRef]
  40. Pezzoni, M.; Pizarro, R.A.; Costa, C.S. Protective role of extracellular catalase (KatA) against UVA radiation in Pseudomonas aeruginosa biofilms. J. Photochem. Photobiol. B 2014, 131, 53–64. [Google Scholar] [CrossRef]
  41. Søballe, B.; Poole, R.K. Microbial ubiquinones: Multiple roles in respiration, gene regulation and oxidative stress management. Microbiology 1999, 145, 1817–1830. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Wallace, B.J.; Young, I.G. Role of quinones in electron transport to oxygen and nitrate in Escherichia coli. Studies with a ubiA- menA- double quinone mutant. Biochim. Biophys. Acta 1977, 461, 84–100. [Google Scholar] [CrossRef]
  43. Sharma, P.; Teixeira de Mattos, M.J.; Hellingwerf, K.J.; Bekker, M. On the function of the various quinone species in Escherichia coli. FEBS J. 2012, 279, 3364–3373. [Google Scholar] [CrossRef] [PubMed]
  44. Grimaldi, S.; Schoepp-Cothenet, B.; Ceccaldi, P.; Guigliarelli, B.; Magalon, A. The prokaryotic Mo/W-bisPGD enzymes family: A catalytic workhorse in bioenergetic. Biochim. Biophys. Acta 2013, 1827, 1048–1085. [Google Scholar] [CrossRef] [Green Version]
  45. Meganathan, R. Ubiquinone biosynthesis in microorganisms. FEMS Microbiol. Lett. 2001, 203, 131–139. [Google Scholar] [CrossRef]
  46. Søballe, B.; Poole, R.K. Ubiquinone limits oxidative stress in Escherichia coli. Microbiology 2000, 146, 787–796. [Google Scholar] [CrossRef] [Green Version]
  47. Gulmezian, M.; Hyman, K.R.; Marbois, B.N.; Clarke, C.F.; Javor, G.T. The role of UbiX in Escherichia coli coenzyme Q biosynthesis. Arch. Biochem. Biophys. 2007, 467, 144–153. [Google Scholar] [CrossRef] [Green Version]
  48. Poon, W.W.; Davis, D.E.; Ha, H.T.; Jonassen, T.; Rather, P.N.; Clarke, C.F. Identification of Escherichia coli ubiB, a gene required for the first monooxygenase step in ubiquinone biosynthesis. J. Bacteriol. 2000, 182, 5139–5146. [Google Scholar] [CrossRef] [Green Version]
  49. Sekiya, M.; Nakamoto, R.K.; Nakanishi-Matsui, M.; Futai, M. Binding of phytopolyphenol piceatannol disrupts β/γ subunit interactions and rate-limiting step of steady-state rotational catalysis in Escherichia coli F1-ATPase. J. Biol. Chem. 2012, 287, 22771–22780. [Google Scholar] [CrossRef] [Green Version]
Applsci 10 05549 g001 550

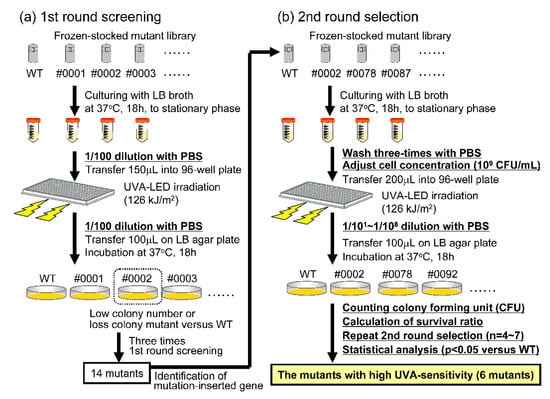

Figure 1. Selection of highly UVA-sensitive mutants from a V. parahaemolyticus transposon-mutant library. Highly UVA-sensitive mutants were separated from the mutant library by a two-step screening process. (a) First-round screening as shown. The bacterial cell numbers in each of the samples were not adjusted prior to UVA irradiation and the number of colony-forming units (CFUs) detected after culture of the UVA-irradiated samples was not determined. (b) Second-round screening. The bacterial cell concentrations were adjusted to 109 CFU/mL prior to UVA irradiation; CFUs in each sample both with or without UVA irradiation were counted.
Figure 1. Selection of highly UVA-sensitive mutants from a V. parahaemolyticus transposon-mutant library. Highly UVA-sensitive mutants were separated from the mutant library by a two-step screening process. (a) First-round screening as shown. The bacterial cell numbers in each of the samples were not adjusted prior to UVA irradiation and the number of colony-forming units (CFUs) detected after culture of the UVA-irradiated samples was not determined. (b) Second-round screening. The bacterial cell concentrations were adjusted to 109 CFU/mL prior to UVA irradiation; CFUs in each sample both with or without UVA irradiation were counted.
Applsci 10 05549 g001
Applsci 10 05549 g002 550

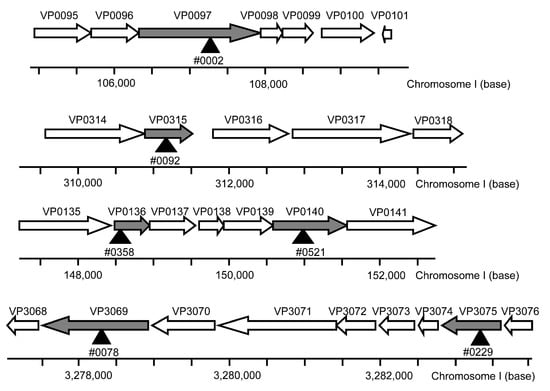

Figure 2. Map of Vibrio parahaemolyticus genes associated with the highly UVA-sensitive mutants. Arrows indicate open reading frames of V. parahaemolyticus genes. Arrow heads and gray arrows indicate mutant genes associated with high UVA sensitivity; the white arrows denote other genes with Ez-Tn5 DHFR-1-insertions.
Figure 2. Map of Vibrio parahaemolyticus genes associated with the highly UVA-sensitive mutants. Arrows indicate open reading frames of V. parahaemolyticus genes. Arrow heads and gray arrows indicate mutant genes associated with high UVA sensitivity; the white arrows denote other genes with Ez-Tn5 DHFR-1-insertions.
Applsci 10 05549 g002
Applsci 10 05549 g003 550

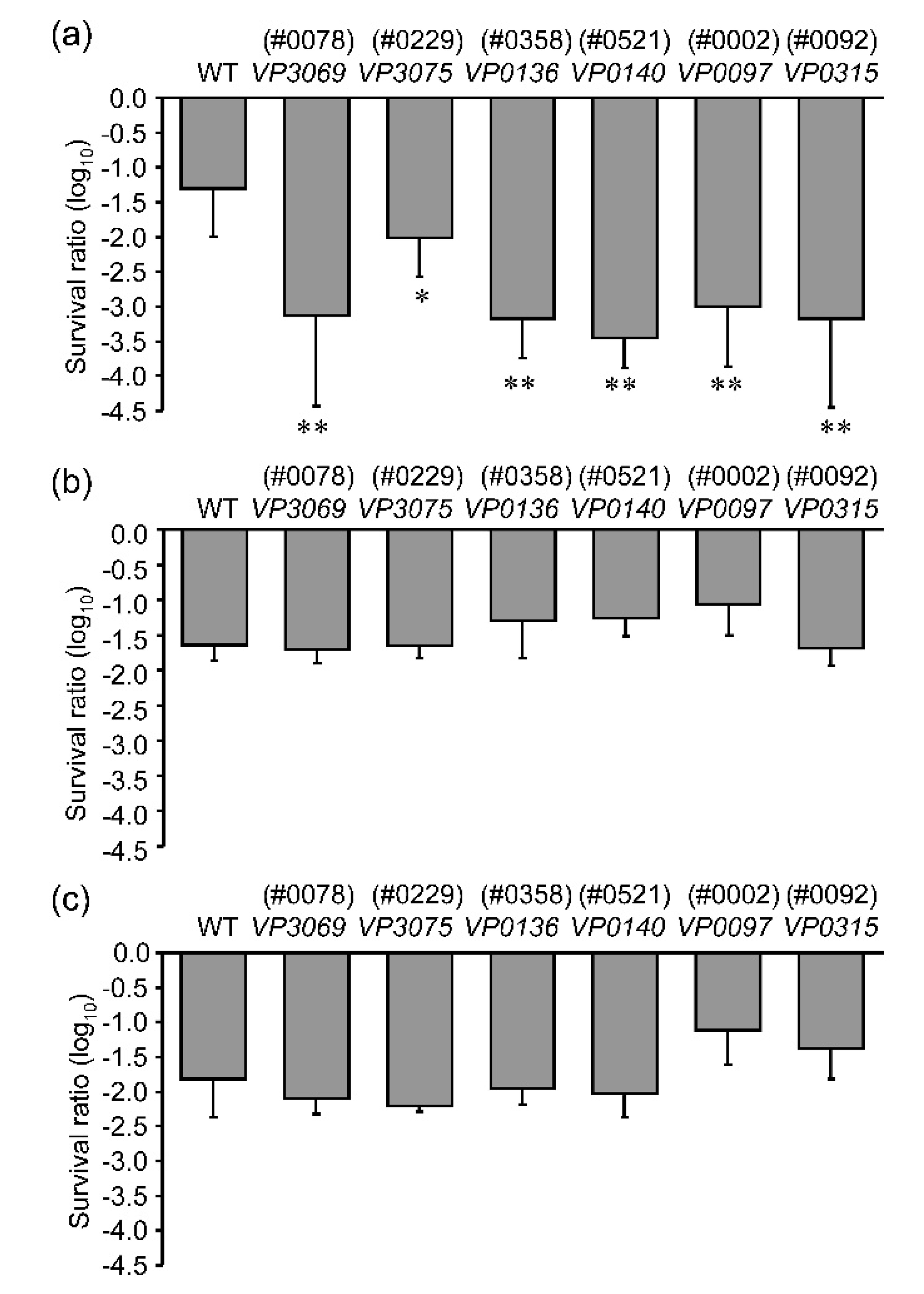

Figure 3. Sensitivities of six V. parahaemolyticus mutants to different wavelengths of UV light. (a) Responses to UVA-LED irradiation at 126 kJ/m2, (b) responses to UVB at 0.27 kJ/m2, (c) responses to UVC at 0.063 kJ/m2. The sensitivities to UV irradiation were presented as a logarithmic (log10) analysis of the survival ratio as described in the materials and methods. The detailed emission spectra of UVA-LED, UVB, and UVC are shown in Supplementary Material Figure S1. Values shown are means ± SD; n = 3–6, where n = number of independent replicates. * p < 0.05 or ** p < 0.01 versus WT.
Figure 3. Sensitivities of six V. parahaemolyticus mutants to different wavelengths of UV light. (a) Responses to UVA-LED irradiation at 126 kJ/m2, (b) responses to UVB at 0.27 kJ/m2, (c) responses to UVC at 0.063 kJ/m2. The sensitivities to UV irradiation were presented as a logarithmic (log10) analysis of the survival ratio as described in the materials and methods. The detailed emission spectra of UVA-LED, UVB, and UVC are shown in Supplementary Material Figure S1. Values shown are means ± SD; n = 3–6, where n = number of independent replicates. * p < 0.05 or ** p < 0.01 versus WT.
Applsci 10 05549 g003
Applsci 10 05549 g004 550
Figure 4. Intracellular ATP concentration and sensitivity to UVA irradiation in the mutants of F0F1-type ATP synthase genes. (a,b) ATP concentrations in response to gene complementation of F0F1-type ATP synthase gene mutations, pVP3069/VP3069 and pVP3075/VP3075. (c,d) WT and mutant strains in the absence (■) or presence of 20 mM L-serine (□). Intracellular ATP concentration was measured by a luciferase/luciferin reaction as described in the materials and methods section. (c,d) Sensitivity to UVA irradiation was measured as described in the materials and methods section. Values shown are means ± SD (n = 3–7, n = number of independent experimental replicates). * p < 0.05 or ** p < 0.01 versus WT.
Figure 4. Intracellular ATP concentration and sensitivity to UVA irradiation in the mutants of F0F1-type ATP synthase genes. (a,b) ATP concentrations in response to gene complementation of F0F1-type ATP synthase gene mutations, pVP3069/VP3069 and pVP3075/VP3075. (c,d) WT and mutant strains in the absence (■) or presence of 20 mM L-serine (□). Intracellular ATP concentration was measured by a luciferase/luciferin reaction as described in the materials and methods section. (c,d) Sensitivity to UVA irradiation was measured as described in the materials and methods section. Values shown are means ± SD (n = 3–7, n = number of independent experimental replicates). * p < 0.05 or ** p < 0.01 versus WT.
Applsci 10 05549 g004
Applsci 10 05549 g005 550

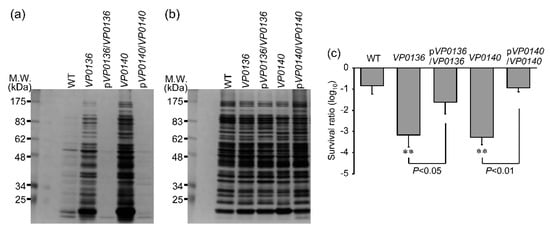

Figure 5. Extracellular and intracellular protein content and sensitivity to UVA irradiation among strains with mutations in genes association with general secretion pathways. (a,b) A typical image of protein content revealed by silver staining after SDS-PAGE. (a) Extracellular proteins and (b) intracellular proteins were separated as described in the materials and methods section. (c) Sensitivity to UVA irradiation, as shown in Figure 2a and Figure 3c. Sensitivities of gene-complemented strains of general secretion pathway genes, pVP0136/VP0136 and pVP0140//, were also evaluated. Values shown are means ± SD (n = 3–5, n = number of independent experimental replicates; ** p < 0.01 versus WT.
Figure 5. Extracellular and intracellular protein content and sensitivity to UVA irradiation among strains with mutations in genes association with general secretion pathways. (a,b) A typical image of protein content revealed by silver staining after SDS-PAGE. (a) Extracellular proteins and (b) intracellular proteins were separated as described in the materials and methods section. (c) Sensitivity to UVA irradiation, as shown in Figure 2a and Figure 3c. Sensitivities of gene-complemented strains of general secretion pathway genes, pVP0136/VP0136 and pVP0140//, were also evaluated. Values shown are means ± SD (n = 3–5, n = number of independent experimental replicates; ** p < 0.01 versus WT.
Applsci 10 05549 g005
Applsci 10 05549 g006 550

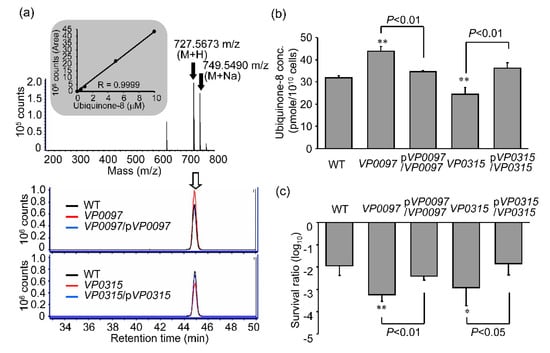

Figure 6. Intracellular ubiquinone-8 concentration and sensitivity to UVA irradiation associated with strains with mutations in ubiquinone biosynthesis genes. (a) Mass spectra in the target peak area (white arrow, retention time = 44.8 min) and extracted ion chromatograms (EICs) of ubiquinone-8 (UQ-8, C51H72O2, m/z = 727.5665 [M + H]). Gray panel documents the standard curve featuring UQ-8 purified from Escherichia. Coli. (b) Intracellular concentrations of ubiquinone-8. (c) Sensitivity to UVA irradiation. Intracellular UQ-8 was measured by liquid chromatography-time of flight mass spectrometry (LC-TOFMS) as described in the materials and methods section. Values shown are means ± SD (n = 3–5, n = number of independent replicates). * p < 0.05 or ** p < 0.01 versus WT.
Figure 6. Intracellular ubiquinone-8 concentration and sensitivity to UVA irradiation associated with strains with mutations in ubiquinone biosynthesis genes. (a) Mass spectra in the target peak area (white arrow, retention time = 44.8 min) and extracted ion chromatograms (EICs) of ubiquinone-8 (UQ-8, C51H72O2, m/z = 727.5665 [M + H]). Gray panel documents the standard curve featuring UQ-8 purified from Escherichia. Coli. (b) Intracellular concentrations of ubiquinone-8. (c) Sensitivity to UVA irradiation. Intracellular UQ-8 was measured by liquid chromatography-time of flight mass spectrometry (LC-TOFMS) as described in the materials and methods section. Values shown are means ± SD (n = 3–5, n = number of independent replicates). * p < 0.05 or ** p < 0.01 versus WT.
Applsci 10 05549 g006
Table
Table 1. Bacterial strains and plasmids used in this study.
Table 1. Bacterial strains and plasmids used in this study.
Strain and PlasmidDescriptionSource or Reference
Vibrio parahaemolyticus strains
RIMD2210633KP-positive, serotype O3:K6; clinical isolate; Wild-type strain in this studyMakino et al. [20]
VP0097RIMD2210633 mutant #0002,
Ez-Tn5 DHFR-1 insertion to VP0097, Tmpr		This study
VP0136RIMD2210633 mutant #0358,
Ez-Tn5 DHFR-1 insertion to VP0136, Tmpr		This study
VP0140RIMD2210633 mutant #0521,
Ez-Tn5 DHFR-1 insertion to VP0140, Tmpr		This study
VP0315RIMD2210633 mutant #0092,
Ez-Tn5 DHFR-1 insertion to VP0315, Tmpr		This study
VP3069RIMD2210633 mutant #0078,
Ez-Tn5 DHFR-1 insertion to VP3069, Tmpr		This study
VP3075RIMD2210633 mutant #0229,
Ez-Tn5 DHFR-1 insertion to VP3075, Tmpr		This study
Plasmids
pSA19CPExpression vector; CmrNakano et al. [21]
pVP0097pSA19CP expressing VP0097,
controlled by the tdhA promoter; Cmr		This study
pVP0136pSA19CP expressing VP0136,
controlled by the tdhA promoter; Cmr		This study
pVP0140pSA19CP expressing VP0140,
controlled by the tdhA promoter; Cmr		This study
pVP0315pSA19CP expressing VP0315,
controlled by the tdhA promoter; Cmr		This study
pVP3069pSA19CP expressing VP3069,
controlled by the tdhA promoter; Cmr		This study
Note: KP, Kawasaki phenomenon; Cmr, chloramphenicol resistant; Tmpr, trimethoprim resistant; tdhA, thermostable direct hemolysin A; DHFR-1, dihydrofolate reductase-1.
Table
Table 2. Oligonucleotide primers for gene complementation.
Table 2. Oligonucleotide primers for gene complementation.
GeneSequence (5′–3′)
ForwardReverse
VP00975′–TCTAGA ATGACGCCAGCAGAATTAAAGC–3′5′–GAATTC CTATTGACGATAAGCTCGCCAAC–3′
VP01365′–TCTAGA ATGAAATTTAAGCGTAGTAAGC–3′5′–GAATTC TTATTGGAAGTCTTGCATGTTCCA–3′
VP01405′–TCTAGA ATGGCTAATCGTCAGCGCGGT–3′5′–GAATTC CTACTCAGCCGAACGGTCAGAAA–3′
VP03155′–TCTAGA ATGCACAACAAAATACAACCC–3′5′–GGATCC TCACGAGCGCTGGTCATA–3′
VP30695′–GGATCC ATGGCTACAGGTAAGATCGTAC–3′5′–GAATTC TTATAGCTTCTTCGCATTCTCG–3′
VP30755′–TCTAGA ATGGCTGCGCCAGGTGAA–3′5′–GAATTC TTAATGATCAGAGTCTTCGTGTGC–3′
Note: Restriction sites are in bold type.
Table
Table 3. Putative product and functional classification of the Ez-Tn5 DHFR-1-inserted genes in highly UVA-sensitive mutants.
Table 3. Putative product and functional classification of the Ez-Tn5 DHFR-1-inserted genes in highly UVA-sensitive mutants.
GenesOrthologous GenesProductFunctional Classification
VP3075atpBATP synthase F0F1 subunit alphaOxidative phosphorylation
F-type H+-transporting ATPase
VP3069atpDATP synthase F0F1 subunit beta
VP0136gspGgeneral secretion pathway protein GBacterial secretion system
Type II secretion system
VP0140gspKgeneral secretion pathway protein K
VP0097ubiBubiquinone biosynthesis protein UbiBUbiquinone and other
Terpenoid-quinone biosynthesis
VP0315ubiX3-polyprenyl-4-hydroxybenzoate carboxy-lyase UbiX
Note: ATP, adenosine triphosphate.

Share and Cite

MDPI and ACS Style

Maetani-Yasui, M.; Mawatari, K.; Honjo, A.; Bui, T.K.N.; Shimohata, T.; Uebanso, T.; Aihara, M.; Emoto, T.; Akutagawa, M.; Kinouchi, Y.; et al. Identification of Genes Associated with Sensitivity to Ultraviolet A (UVA) Irradiation by Transposon Mutagenesis of Vibrio parahaemolyticus. Appl. Sci. 2020, 10, 5549. https://doi.org/10.3390/app10165549

AMA Style

Maetani-Yasui M, Mawatari K, Honjo A, Bui TKN, Shimohata T, Uebanso T, Aihara M, Emoto T, Akutagawa M, Kinouchi Y, et al. Identification of Genes Associated with Sensitivity to Ultraviolet A (UVA) Irradiation by Transposon Mutagenesis of Vibrio parahaemolyticus. Applied Sciences. 2020; 10(16):5549. https://doi.org/10.3390/app10165549

Chicago/Turabian Style

Maetani-Yasui, Miki, Kazuaki Mawatari, Airi Honjo, Thi Kim Ngan Bui, Takaaki Shimohata, Takashi Uebanso, Mutsumi Aihara, Takahiro Emoto, Masatake Akutagawa, Yohsuke Kinouchi, and et al. 2020. "Identification of Genes Associated with Sensitivity to Ultraviolet A (UVA) Irradiation by Transposon Mutagenesis of Vibrio parahaemolyticus" Applied Sciences 10, no. 16: 5549. https://doi.org/10.3390/app10165549

APA Style

Maetani-Yasui, M., Mawatari, K., Honjo, A., Bui, T. K. N., Shimohata, T., Uebanso, T., Aihara, M., Emoto, T., Akutagawa, M., Kinouchi, Y., & Takahashi, A. (2020). Identification of Genes Associated with Sensitivity to Ultraviolet A (UVA) Irradiation by Transposon Mutagenesis of Vibrio parahaemolyticus. Applied Sciences, 10(16), 5549. https://doi.org/10.3390/app10165549

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
