Revisiting the Sodiation Mechanism of TiO₂ via Operando X-ray Absorption Spectroscopy

Featured Application

Owing to the large availability of sodium, Na-ion batteries could be a viable and cheap alternative to Li-ion batteries, and the development of new electrode materials for this promising technology, such as TiO₂, is necessary to accelerate their adoption in large-scale applications.

Abstract

The sodiation mechanism of TiO₂ anatase was thoroughly investigated via X-ray absorption spectroscopy under operando conditions. The data set was analysed via an innovative and smart approach based on chemometric tools that allows the unbiased and reliable extraction of the maximum amount of meaningful information. The resulting data analysis reveals that the electrochemical sodiation mechanism is mainly based on the reduction of Ti${}^{4+}$ to Ti${}^{3+}$, going along with the irreversible amorphisation of the pristine anatase structure. At least one semi-amorphous intermediate is formed during the first discharge, whose local structure resembles those obtained at the end of the charge.

1. Introduction

TiO₂ has gained considerable interest as negative electrode material in lithium-ion batteries due to its stable cycling and inherently safe insertion potential [1,2]. While the latter is preserved for its reaction towards sodium, the underlying redox mechanism is clearly distinct from the lithium insertion reaction [3,4,5]. Nevertheless, stable electrochemical cycling with high reversibility has been obtained for the sodiation reaction of anatase, the most redox-active TiO₂ polymorph, which continues to nourish performance-orientated research interest [6,7,8,9,10,11].

At the same time, the precise reaction mechanism on which this remarkable performance is based is still not completely understood. In practice three different mechanisms have been proposed for the electrochemical sodiation of TiO₂ anatase: (i) the redox reaction based on the Ti${}^{4+}/$Ti${}^{3+}$ with no phase change, (ii) the redox reaction based on Ti${}^{4+}/$Ti${}^{3+}$ with the intermediate formation of an amorphous phase, and (iii) a complete conversion reaction mechanism implying the formation of metal Ti nanoparticles [5]. For instance, while Kim et al. [12] simply proposed the reversible intercalation of sodium ions in anatase, Passerini and coworkers suggested a much more complex mechanism implying the disproportionation of an intermediate sodium titanate phase into a mixture of new phases including Ti metal and amorphous titanate during the first discharge process, the latter phase being responsible for the further cycling activity of the material [4]. Their findings are largely supported by those of Ding et al., although differing sample and experimental conditions limit comparability [13]. To unveil the structural changes and phase transitions and propose such mechanisms, many different ex situ and in a few cases in situ techniques have been applied. Among them, the widely applied X-ray diffraction (XRD) has proven to be insufficient to closely follow the reaction mechanism, due to the loss of long-range order upon first sodiation. This has lead to ambiguous claims causing much debate. As a result short-range probing techniques such as Raman spectroscopy and synchrotron based pair distribution function were carried out under operando conditions to provide more reliable insights from a local structural perspective [14,15]. Based on these findings an amorphous Na_xTiO₂ phase appears to form in the initial sodiation reaction. Upon desodiation amorphisation aggravates and an “anatase-like” amorphous structure is recovered. These two phases build the foundation for the reversible redox mechanism.

X-ray absorption spectroscopy (XAS) has proven to be particularly useful for analysis of complex reaction mechanism which are accompanied by strong nanostructuring upon electrochemical cycling [16]. Thanks to its element specificity, the needlessness for long-range order and the high penetration of x-rays, it provides reliable bulk information on the electronic and local structure of the absorbing element. In the specific case of anatase vs. sodium, Kim et al. applied it ex situ to follow the evolution of the oxidation state of Ti [12]. In their case, the evolution of the X-ray Absorption Near Edge Structure (XANES) of the XAS and in particular the edge position proved the reversible reduction of part of the Ti${}^{4+}$ to Ti${}^{3+}$ during the discharge and its oxidation upon charging, thus excluding the occurrence of a conversion reaction which would have implied the formation of titanium metal nanoparticles [17]. More recently, ex situ XAS was applied by Passerini and coworkers to follow the sodiation of anatase nanoparticles [18]. By studying the Extended X-ray Absorption Fine Structure (EXAFS) of the XAS spectra, they propose a rearrangement of the coordination sphere of titanium leading to 5-coordinated Ti. However, their pristine material could not be simply interpreted by assuming only the presence of the anatase structure. Moreover, only a few spectra of the material at the end of the charge/discharge processes were collected, which therefore could not provide a comprehensive and complete picture of the reaction mechanism.

In this study, operando Ti K-edge XAS was applied to study the electrochemical sodiation/desodiation mechanism of TiO₂ anatase. The obtained results were processed and analysed via an innovative and reliable chemometric approach. In fact, XAS fulfils the bilinearity requirements needed for the application of chemometric tools such as Principal Component Analysis (PCA) and Multivariate Curve Resolution-Alternating Least Squares (MCR-ALS) for the data analysis. Such a method permits the fast and reliable extraction of maximum amount of meaningful data from a large data set, often allowing the detection of elusive intermediates and transient phases and their evolution through the whole reaction mechanism [19].

2. Results

TiO₂ anatase electrode was mounted in special electrochemical cell and cycled vs. Na while XAS spectra on Ti K-edge were acquired, as described in Section 5. The evolution of the XANES portion of the XAS dataset along with corresponding electrochemical cycling curve is shown in Figure 1. In particular, the inset in (a) depicts the evolution of the pre-edge features. In the spectrum of the pristine electrode, the pre-edge shows the typical features of anatase structure consisting of 4 peaks commonly labelled A1, A2, A3 and B, and resulting from the octahedral coordination geometry of titanium in the anatase structure [20].

During the sodiation, a shift of the Ti K-edge position to lower energies is observed, reflecting the reduction of Ti⁴+ to Ti³+ which demonstrates the redox activity of the Ti${}^{4+/3+}$ redox couple, in line with previous ex situ findings [12,18]. Simultaneously, a slight increase of the intensity of the A2 pre-edge peak and a general fading of the other features is observed, which has been attributed to the aggravating distortion of the coordination of the Ti centres with respect to crystalline TiO₂ [18,21]. A similar change in the shape of the pre-edge was already observed in the case of the lithiation of anatase [22,23]. It is noteworthy that, while the main edge position seems to be largely reversed upon desodiation, the changes in the pre-edge features are not, indicating, differently from the case of lithium, that non-reversible structural rearrangements have occurred upon initial sodiation.

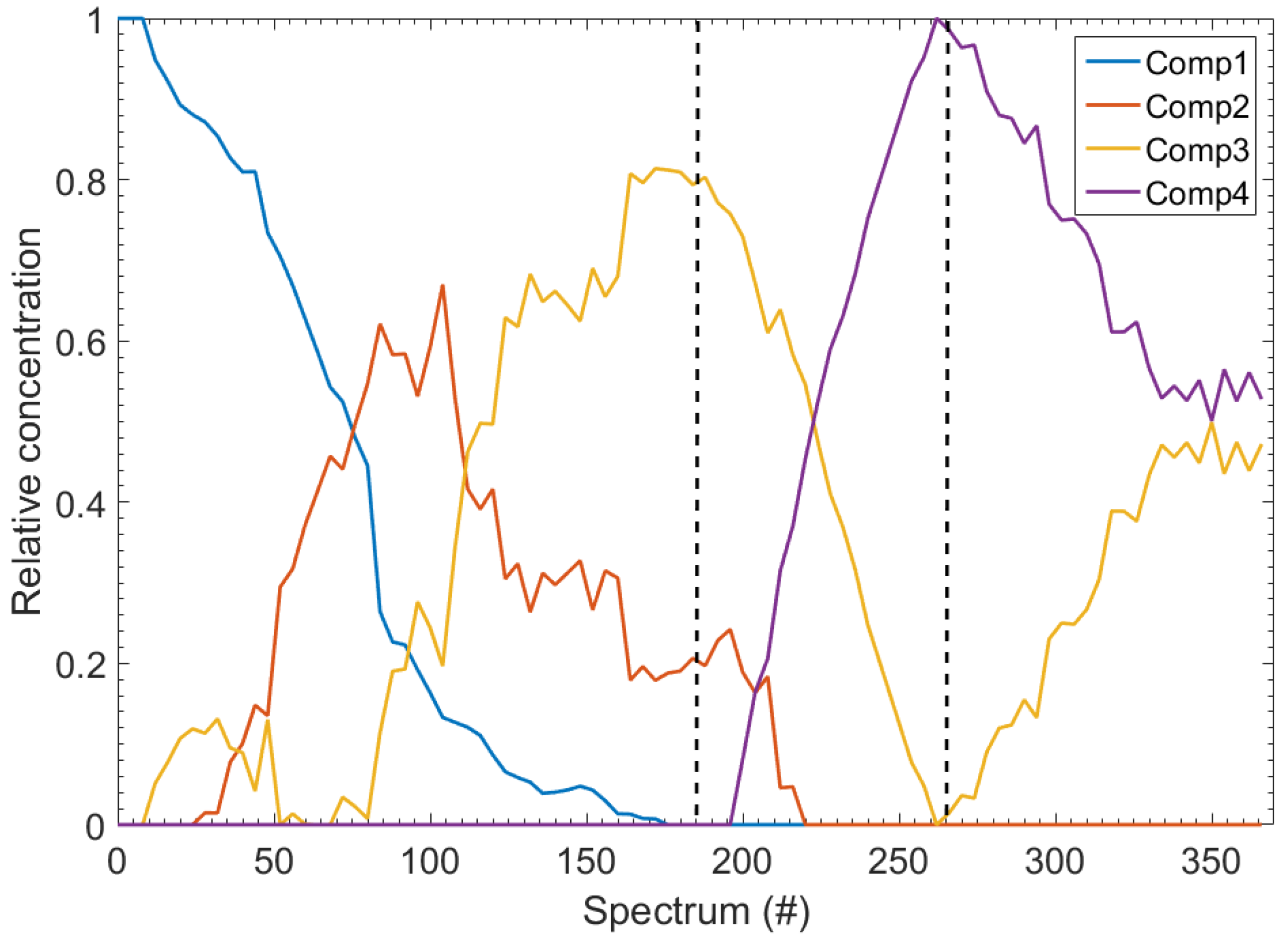

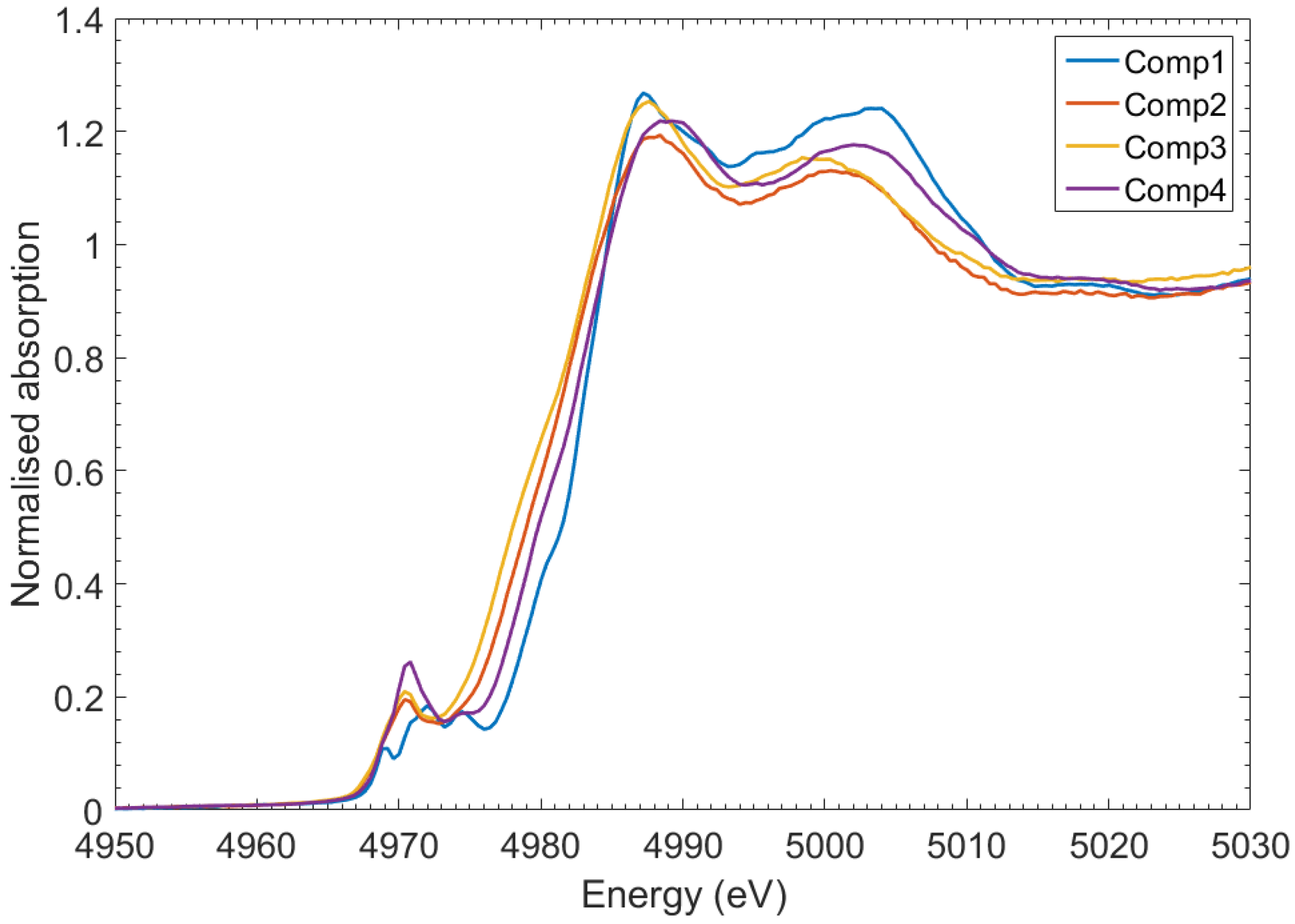

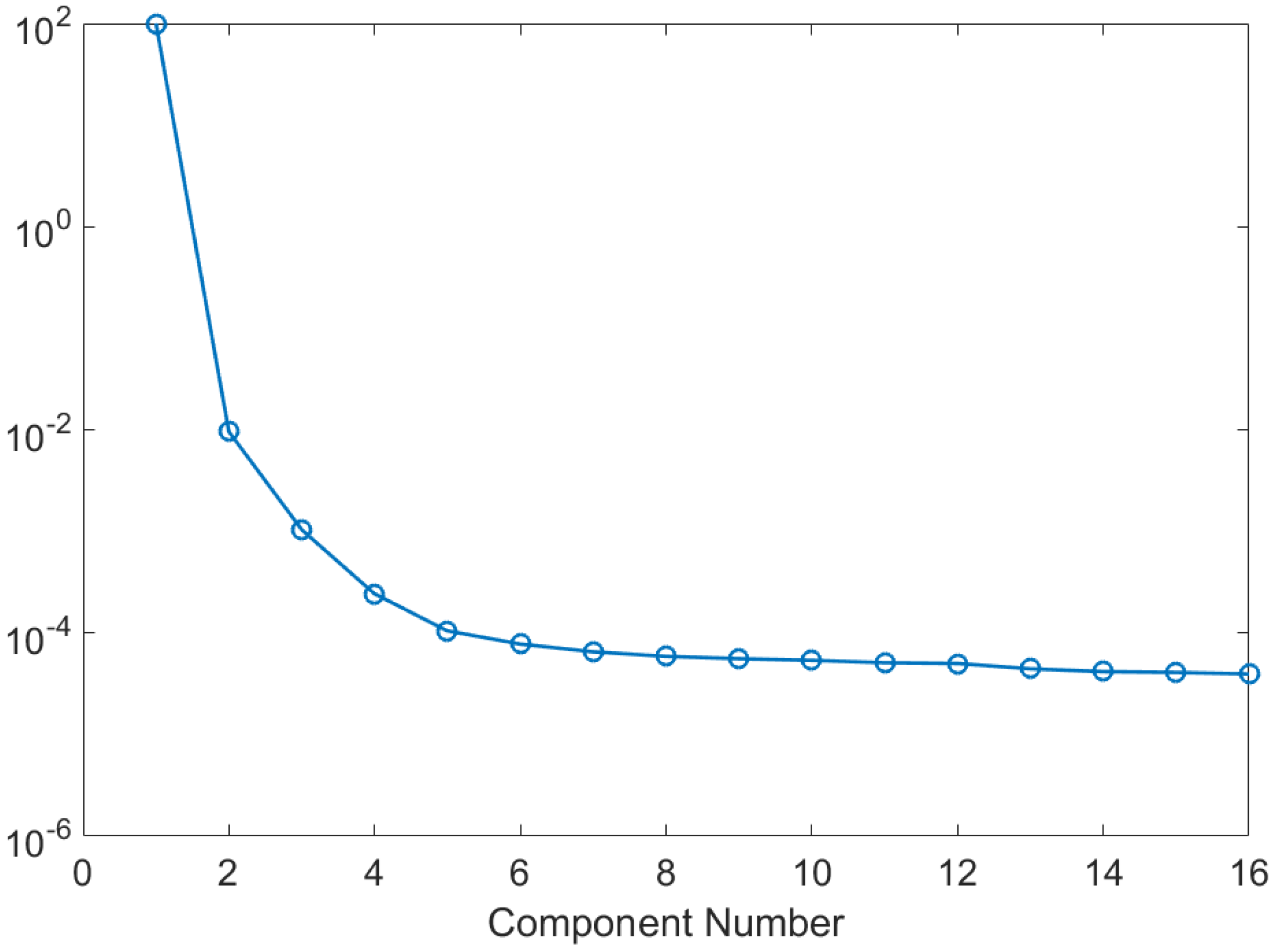

The complete dataset comprising more than 350 XAS spectra was analysed via Principal Component Analysis revealing the existence of four independent component (see Appendix A, Figure A1). This rank analysis results paired with additional chemical and physical constrains was used as input for MCR-ALS tool which resulted in pure components whose spectra and concentration profile are presented in Figure A2 (cf. Appendix A) and Figure 2, respectively.

From the evolution of the concentration of the four pure components, several perceptions can be made. Component #1 is the sole component at the onset of electrochemical cycling and therefore represents the pristine state. Its intensity quickly decreases upon sodiation and does not increase upon inversion of current (charge). This suggests that the pristine state is not recovered after the first complete electrochemical cycle, which reminds of conversion-type anode materials [24]. Instead of a reemerging component #1, a new component #4 is formed during desodiation and reaches its maximum at the end first charge corresponding to the completion of one full electrochemical cycle (spectrum #264). Even though component #3 is dominant at the end of first discharge (spectrum #184), a 20% contribution of component #2 is still present. The latter has a transient nature, as it reaches its maximum intensity about half-way through the discharge reaction and then fades gradually as sodiation continues.

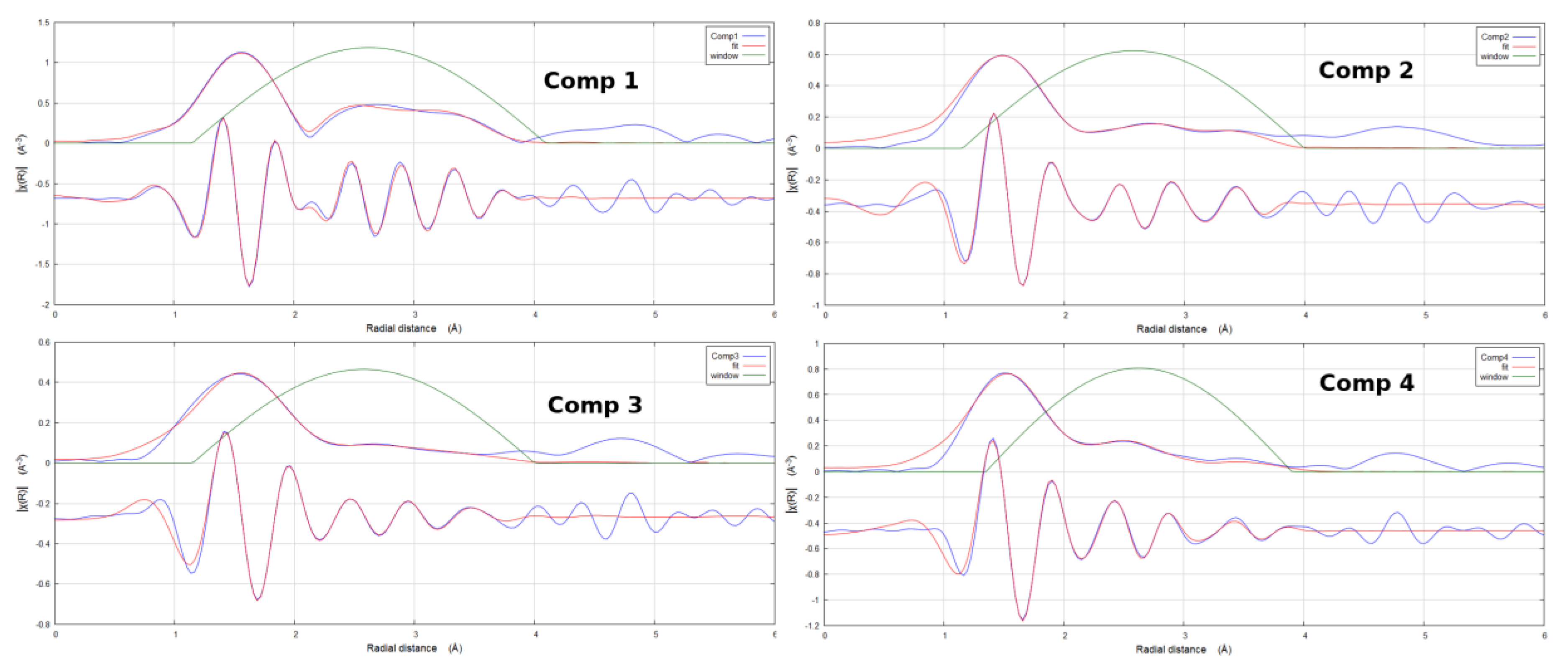

To gain insights on the local structure of the absorbing Ti at specific points of the electrochemical reaction, the EXAFS signal of the pure components was fitted and structural parameters about the nature of next neighbouring shells extracted (cf. Figure 3 and

Table 1. Ti K-edge EXAFS fitting parameters of MCR-ALS components.

Component	Shell	N *	R${}_{\mathit{fit}}$ [Å]	${\mathit{\sigma }}^2$ [Å]${}^2$
MCR #1	Ti-O${}_1$	4	1.91(1)	0.0014(6)
	Ti-O${}_2$	2	2.32(2)	0.0014(6)
	Ti-Ti${}_1$	4	3.02(8)	0.008(1)
	Ti-Ti${}_2$	4	3.87(8)	0.008(1)
	Ti-O${}_3$	8	3.79(3)	0.004(10)
MCR #2	Ti-O${}_1$	4	1.91(1)	0.008(1)
	Ti-O${}_2$	2	2.33(1)	0.008(1)
	Ti-Ti${}_1$	6	3.09(3)	0.022(3)
	Ti-Na	3	3.20(3)	0.005(2)
	Ti-Ti${}_2$	3	3.89(3)	0.012(2)
MCR #3	Ti-O${}_1$	4	2.00(2)	0.014(1)
	Ti-O${}_2$	2	2.47(2)	0.014(1)
	Ti-Ti${}_1$	4	3.18(3)	0.018(3)
	Ti-Na	3	3.34(4)	0.015(4)
	Ti-O${}_2$	6	3.98(5)	0.024(5)
MCR #4	Ti-O${}_1$	4	1.97(1)	0.007(1)
	Ti-O${}_2$	2	2.41(2)	0.007(1)
	Ti-Ti${}_1$	4	3.07(3)	0.013(2)
	Ti-Ti${}_2$	2	3.98(3)	0.013(2)
	Ti-Na (O${}_3$)	3	3.85(3)	0.023(3)

* Amplitude reduction factor was evaluated for pure anatase at the value of 0.8, and then kept fixed for all fits. Coordination numbers were evaluated and then kept fix for the presented fit.

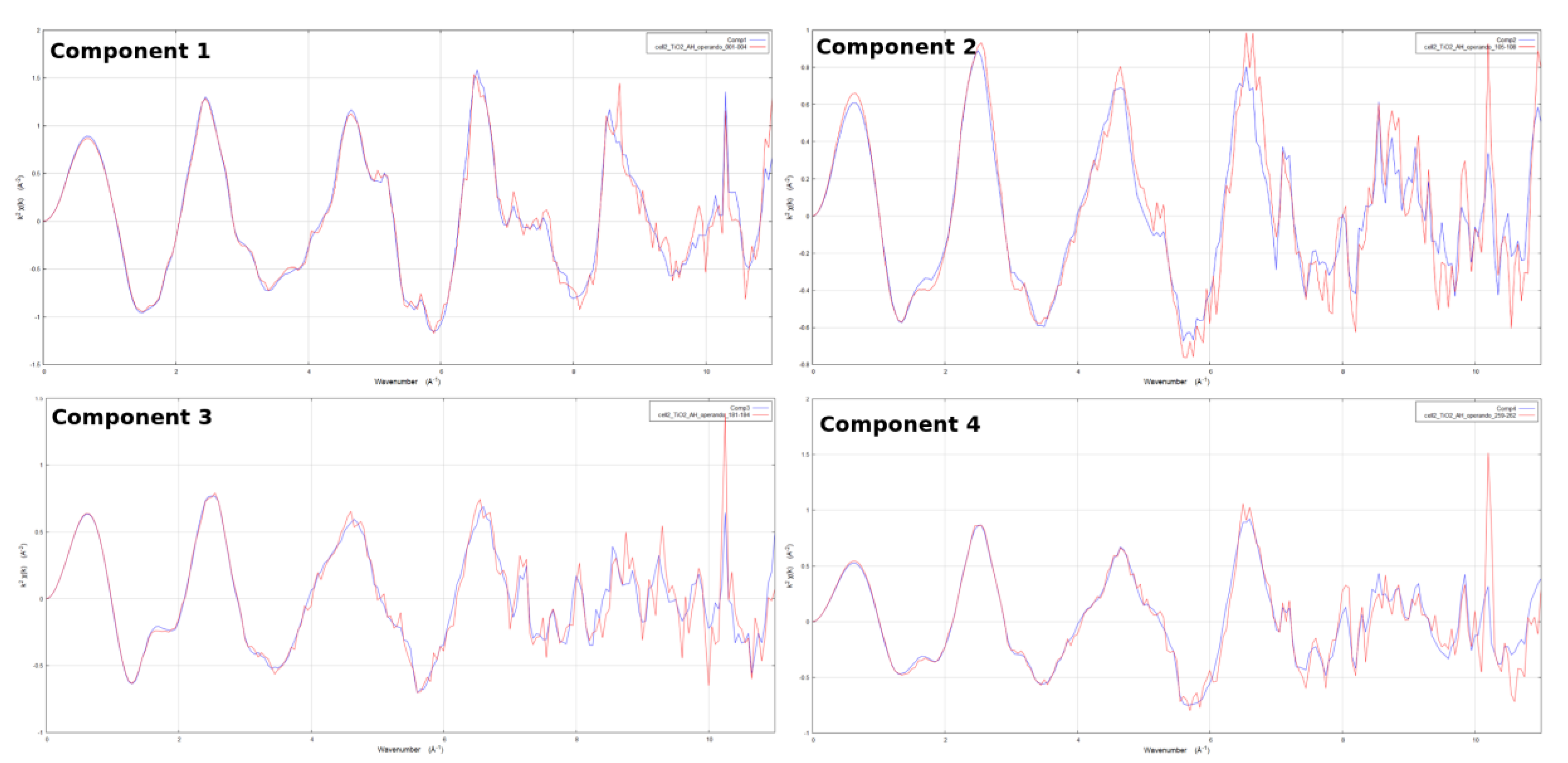

, respectively). A comparison of the EXAFS signal in k-space of the MCR-ALS pure spectral components with selected experimental spectra shows good agreement and reduced noise level for MCR-ALS which improves fitting accuracy, see Figure A3. Component #1 can be fitted in quite straightforward manner based on the published structure of TiO₂ anatase [25], using a simple single scattering approach. Best fitting agreement was achieved when including two elongated bonds in the first oxygen shell, in agreement with the typical axially elongated octahedral coordination of titanium in anatase [18,25].

Analogous to Component #1, a first coordination shell with similar configuration (two different bond lengths with respective populations of 4 + 2 neighbours) is also observed for the other three components. The bond lengths values of Components #2 are very similar to those of Component #1, but they become more elongated for component #3, corresponding to the completely reduced sample at the end of the first discharge (EOD). On the other hand, the bond distances decrease again for Component #4, which corresponds to the sample after one complete discharge/charge cycle (EOC), even though they do not reach the values of the initial state. Our findings suggest that the initial state is not recovered after one electrochemical cycle. This is in good agreement with the absence of anatase features reformation upon desodation and irreversible crystal structural rearrangements evinced in an in situ XRD study by Wu and coworkers [4]. Going from Component #1 to #3, a noticeable increase of the Debye-Waller factors is observed for both shells, in line with a gradual increase of the disorder and the presence of larger distributions of bond lengths for increasingly sodiated species. Comparing Component #3 and #4, the Debye-Waller factors of the first two shells decrease slightly, reaching values similar to those obtained for Component #2.

For the three outer shells, similar bond length as for pristine state are found, within the error range. A rise in bond length and of the Debye-Waller ${\sigma }^2$ factors is observed with increasing sodiation, reflecting the rise of disorder upon sodium uptake. It should be noted that due their practically identical electronic structure, sodium and oxygen neighbours are virtually impossible to distinguish by EXAFS. Therefore the outer shell of component 4 has been marked as “Ti-Na (O${}_3$)” to account for this ambiguity, see Table 1.

3. Discussion

These findings, and in particular the similarities between components #2 and #4, suggest that, in the first part of the discharge, the incipient sodiation induces the formation of a reaction intermediate via the amorphisation of the starting crystalline anatase structure. This partially sodiated species characterised by a local “TiO₂-like” structure, is recovered after one complete electrochemical cycle, in agreement with the findings of previous pair distribution function (PDF) analysis [15].

Component #3, which corresponds to the majority component present at EOD was fitted based on the structure of delafossite (NaTiO₂, ICSD 68872) taking into account a partial occupancy of the Na site of 0.5. In this way, it was possible to obtain an adequate fit, with bond distances very similar to those reported for this structure. Noteworthy are the elevated Debye-Waller factors which indicate a highly disordered semi-amorphous structure. This is well in line with previous findings of a disordered Na_xTiO₂ phase prevailing at complete sodiation state [14,15].

The intermediate Component #2 and #4, on the contrary, could be fitted with the structure derived from TiO₂ anatase. However, the introduction of a additional Na-O neighbours was necessary to achieve a satisfactory fit. This intermediate component can hence be understood as an amorphous anatase-like structure containing a non negligible fraction of sodium. Making such transient species visible is one of the assets of the chemometrics supported operando XAS analysis [19].

Our results also rebut the formation of metallic titanium upon conversion of the initial anatase, as previously proposed by Wu et al. [4] These authors could detect the formation of Ti metal by ex situ X-ray photoelectron spectroscopy (XPS). Considering that such measurements are obtained with the samples submitted to high vacuum conditions, it is conceivable that the slightly reducing conditions in the XPS analysis chamber have induced the further reduction of Ti${}^{3+}$ to titanium metal in the near surface region.

A simplified sum, without mass balance, of the reaction mechanism for the sodiation of TiO₂ anatase based on our and previous studies results can hence be written as follows:

$${\mathrm{TiO}}_2+x\mathrm{Na}\stackrel{1\mathrm{st}sodiation}{\to }“\mathrm{Na}{}_x{\mathrm{TiO}}_2”\stackrel{Subsequentcycle}{\leftrightarrow }“{\mathrm{TiO}}_2”+“\mathrm{Na}{}_x{\mathrm{TiO}}_2”+\mathrm{Na}$$

(1)

where as the quotation marks indicate highly disordered and or amorphous “TiO₂” and “Na_xTiO₂” phases whose local structure are anatase and delafossite-like.

4. Conclusions

The application of operando XAS to the study of the sodiation/desodiation mechanism of anatase confirmed, in line with previously published studies, that the electrochemical sodiation mechanism occurs via the reduction of Ti${}^{4+}$ to Ti${}^{3+}$. This reduction occurring with the insertion of sodium produces an amorphisation of the pristine anatase structure, which is not recovered upon charge. At least one intermediate semi-amorphous species is produced during the first discharge, which is not very different from the species obtained at the end of the charge. Based on the obtained operando results, the occurrence of a conversion reaction during the discharge leading to the formation of highly reactive titanium metal nanoparticles can be excluded.

5. Materials and Methods

5.1. Material Synthesis and Electrode Formulation

Mesoporous TiO₂ anatase was obtained as previously reported [14]. In short, titanium tetraisopropoxide (Sigma-Aldrich, 0.032 mol) and glacial acetic acid (VWR Chemicals, 0.016 mol) were dissolved in 20 mL absolute ethanol and stirred for 12 h. The solution was then added dropwise to 100 mL deionized water under vigorous stirring, and subsequently aged for 1 h. The powder was recovered by centrifugation and dried in vacuo overnight at 100 ${}^{\circ }$C and calcined in air at 400 ${}^{\circ }$C for 1 h to yield mesoporous TiO₂.

Self-supported electrodes were made from an aqueous slurry containing TiO₂ active material, carbon black and sodium carboxymethyl cellulose binder in the ratio 60:12:28 with a loading of ≈3 mg cm${}^{-2}$. Electrodes with such a specifically tailored loading were necessary for the operando XAS analysis, in order to obtain an optimised signal-to-noise ratio in the measured spectra. The mixture was thoroughly mixed in a planetary ball-mill for 1 h, tape-casted on a thin aluminium foil (thickness ≈ 10 $\mathsf{\mu }$m), dried at room temperature and subsequently at 100 ${}^{\circ }$C in vacuo.

5.2. Operando X-ray Absorption Spectroscopy

XAS measurements at the Ti K-edge was performed in the fluorescence mode at the SAMBA beamline of Synchrotron SOLEIL in Gif-sur-Yvette (France). A focusing double-crystal Si(220) monochromator was used. The operando electrochemical cell [26], was placed after a ionisation chamber needed to measure the intensity of the incident beam with an angle of 45 ${}^{\circ }$ with respect to the latter. XAS spectra were collected continuously for the first cycle and a half (discharge/charge/discharge) with a cycling rate of C/10, where 1 C corresponds to the reaction of 1 mol of Na with 1 mol of TiO₂.

In the XANES (X-ray absorption near-edge structure) region of Ti K-edges (4966 eV), equidistant energy steps of E = 0.4 eV were used. For all measured spectra, the exact energy calibration was established with simultaneous absorption measurements on a Ti reference pellet placed between the second and the third ionisation chamber. In the EXAFS (Extended X-ray Absorption Fine Structure) region, data were collected up to k = 12 Å${}^{-1}$.

The operando XAS spectra were first globally analysed by a statistical tool named Principal Component Analysis (PCA), employing the Singular Value Decomposition (SVD) algorithm with the computer program Matlab. The number of principal components determined in this way was used as the basis for Multivariate Curve Resolution-Alternating Least Squares (MCR-ALS) analysis, which allows the stepwise reconstruction of the spectral components which are necessary for interpreting the whole multiset of operando spectra. The whole procedure is described in detail in ref. [19]. The MCR-ALS analysis was performed with the following constraints: (i) 100 non-negativity of the intensity and of the concentration of the components, (ii) no unimodality and (iii) closure (sum of the components always equal to 100 % of the intensity). The reconstructed pure spectral components were extracted and fitted using the IFEFFIT software package [27]. Fourier transform of EXAFS oscillations with different k weights was carried out in k-range from 2.5 to 11.0 Å${}^{-1}$. Fitting was performed in R-range from 1.4 to 3.65 Å using $k^2$ and $k^3$ weights. EXAFS amplitudes and phase-shifts were calculated by FEFF starting from the calculated lattice parameters of TiO₂. Interatomic distances (R) and the Debye-Waller factors (${\sigma }^2$) were calculated for all paths included in the fits.
