Wear Properties of Sc-Bearing Zr-Based Composite BMG with Nano-CuZr₂ under Lubrication

Abstract

Lubricated sliding wear of amorphous (Zr₅₅Cu₃₀Ni₁₀Al₅)_99.98Sc_0.02/CuZr₂ nanocrystal composite bulk metallic glasses (BMG) under various sliding velocities with a load of 20 N was investigated using the pin-on-disk test. After the wear test involving oil lubrication was performed, there was no wear induced new-phase transformation in the sample surface. Friction coefficients were within the range from 0.22 to approximately 0.29 under a 20-N load at different sliding velocities. Therefore, the calculated friction coefficients clearly indicated that the adhesion wear dominated from the experimental results. This deformation behavior resulted in a higher wear rate and wear coefficient. In addition, worn surfaces were characterized and examined under a scanning electron microscope (SEM) and optical microscope. The mechanism of high wear rate was clarified.

1. Introduction

Because of BMGs’ (bulk metallic glasses) hardness and toughness both being high, they are expected to have superior properties of wear. Literature has pointed out that BMGs have a good wear resistance compared to nanocrystallized materials [1,2]. By contrast, reports have also indicated that the wear performance of BMGs is considerably inferior to that of the annealed materials [3]. For example, Zr-based BMGs were slid under lubricated and dry frictions for 100 m and 1000 m, respectively. The values of the friction coefficient for the amorphous alloy was slightly lower than that of stainless steel AISI 303 (American Iron and Steel Institute 303) and Ni-200 (commercial pure Ni) under the wear of dry environment. However, this trend was not the mode under lubricated conditions [3]. The Zr₄₁Ti₁₄Cu_12.5Ni₁₀Be_22.5 BMG-bearing gears have been tested in working life after high-speed rotation testing [4]. The results indicated that the BMG-bearing gear is superior to bearing steel GCr15(YB9-68) under the same conditions. Furthermore, the material was still observed to have a glassy amorphous structure after wear testing. Furthermore, a series of Zr₄₈Cu₄₅-xA_l7Ag_x (x = 0–8 at.%) BMG alloys have been investigated in terms of their dry sliding wear behaviors; the results of wear tests exhibited a significant increase in wear resistance with the addition of Ag in the ternary Zr–Cu–Al system [5]. A Zr_41.5Ti_13.8Cu_12.5Ni₁₀Be_22.5 BMG was tested under sliding experiments; an extensive material flow was determined occurring during dry sliding in the environment of either air or vacuum [6]. The friction coefficient in vacuum reduces with an increase in load compared with the environment in air. The sliding wear properties of Cu₆₀Zr₃₀Ti₁₀ in various annealing states were compared under dry condition [7]; the wear mechanism involves an easier initiation of crack and crack propagation through the relatively brittle nanocrystalline phases, leading to a nanocrystallized metallic glass exhibiting poor wear performance.

Nanocrystals dispersed in an amorphous matrix by partial nanocrystallization exhibits effective mechanical properties [8,9], favorable soft magnetism [10,11] and hard magnetism [12,13], and excellent properties of corrosion resistance [14]. Those have not been observed for pure amorphous or pure nanocrystalline alloys. Therefore, the novel structure and technological importance of the partially nanocrystallized intermetallic amorphous matrix materials have attracted considerable attention [15]. However, few research works have focused on the tribological properties of composite BMG or the amorphous matrix with nanocrystal CuZr₂. The intermetallic compound of nano-CuZr₂ is a thermodynamically stable phase. Meanwhile, CuZr₂ is harder than the Zr-based (Zr₅₅Cu₃₀Al₁₀Ni₅)_99.98Sc_0.02 bulk amorphous matrix. Therefore, it is an attractive bearing and shaft material for industrial application. The current study focused on the lubricated wear properties after a small amount of Sc (scandium) was added to the Zr-based composite BMG. The small amount of Sc addition can enhance the Zr-based (Zr₅₅Cu₃₀Al₁₀Ni₅)_99.98Sc_0.02 composite BMG glass-forming ability. There are few reports on Sc addition on BMGs. When BMG is used as bearings and shafts, the friction feature of BMG needs to be evaluated comprehensively. In this work, the friction and wear properties of Zr-based BMGs sliding against 440C steel lubricated with industrial oil lubrication was investigated.

2. Experimental Procedures

A bulk amorphous (Zr₅₅Cu₃₀Al₁₀Ni₅)_99.98Sc_0.02 matrix/CuZr₂ nanocrystal composite BMG (Sc-bearing Zr-based composite BMG) was prepared using a tilt-casting method to produce 3-mm-diameter samples. The advantage of this casting methodology can prevent the flow of molten alloy from cold shuts and suppressing the initiation of crack and crack propagation [16]. The size of composite BMG specimens were 3 mm in diameter and 5 mm long. The end of a pin was mounted this composite BMG. The dimension of 440C steel (0.95–1.20 wt.% C, 1.00 wt.% Mn, 1.00 wt.% Si, 16–18 wt.% Cr, 0.04 wt.% P, 0.03 wt.% S, and 0.75 wt.% Mo and Fe in balance) disk was 36 mm in diameter and 5 mm thick. Before testing, the disks were polished using 0.3 μm Al₂O₃ powders to reach the average surface roughness of approximately 0.02–0.015 μm. Wear tests of sliding were conducted using the apparatus of pin-on-disk (see Appendix A Figure A1) according to the American Society for Testing and Materials (ASTM) G99 [17] and International Organization for Standardization (ISO) VG68 oil lubrication (ISO viscosity classification ISO 3448, 1975). The load at 20 N was applied normally coupling diverse sliding velocities of 0.043–0.128 m/s. The average value and standard deviation of the wear rate and friction coefficient were evaluated based on five test results.

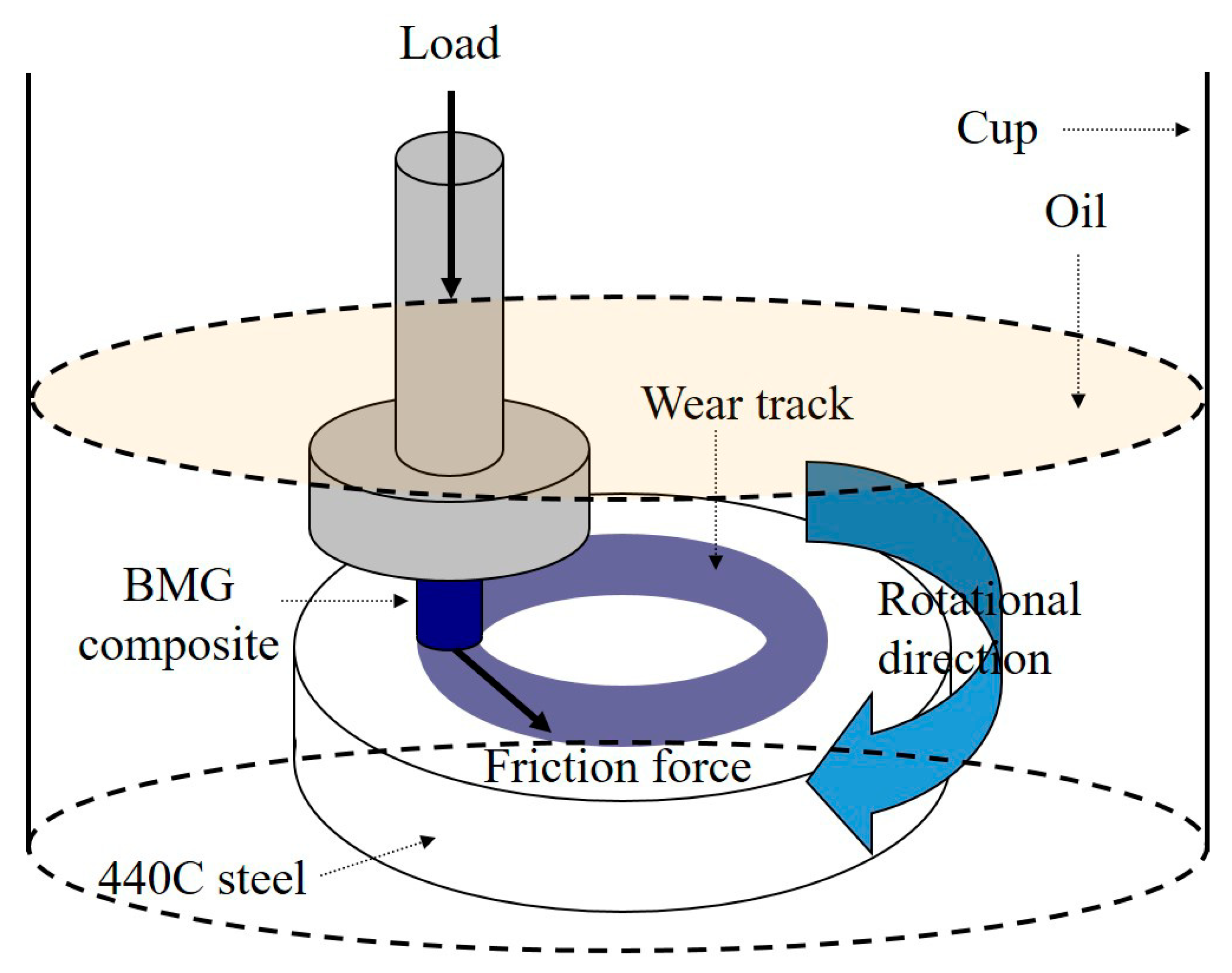

To investigate the microstructure of the (Zr₅₅Cu₃₀Al₁₀Ni₅)_99.98Sc_0.02 composite BMG before and after the wearing tests, X-ray diffraction (XRD) was conducted using a Bruker-D2-Phaser (Billerica, MA, USA) at 300 V with Cu Kα₁ (λ = 0.154 nm) and scanning from 20 degrees to 80 degrees. The thin foils of Zr-based composite BMG were examined by using a field-emission gun transmission electron microscope (FEI Tecnai G2 F30 TEM) operated at 300 kV for high-resolution microstructure observation. The test-specimen and disk both surfaces were ultrasonically cleaned by using acetone to remove the detrimental effect of residual debris from earlier experiments for each test. A load of dead weights pressed the stationary composite BMG sample onto the rotating disk. The frictional force, which was exerted on the test specimen during sliding, was measured by means of a force transducer placed on the pin-holder arm. Before the wear test, the hardness of 440C steel (a high hardenability martensitic stainless steel with high carbon and straight chromium) and composite BMG was measured under a 300 g load to compare the relative hardness. Before and after wear tests, the mass loss in each test was measured by weighing the tested samples by using an electronic balance with ±0.0001 g precision. The ratios called wear rates, which were defined as the mass loss to the total sliding distance were determined.

3. Results and Discussion

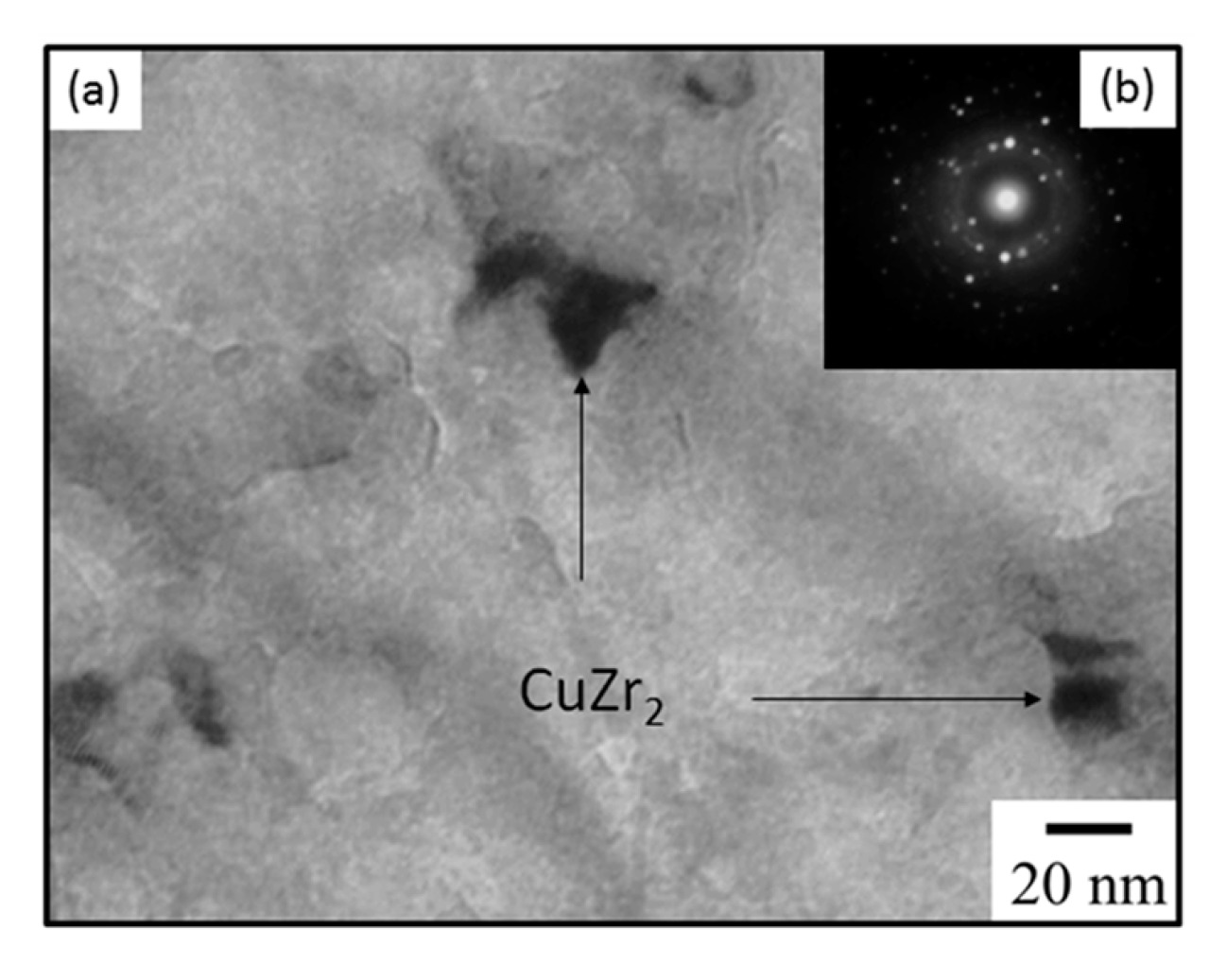

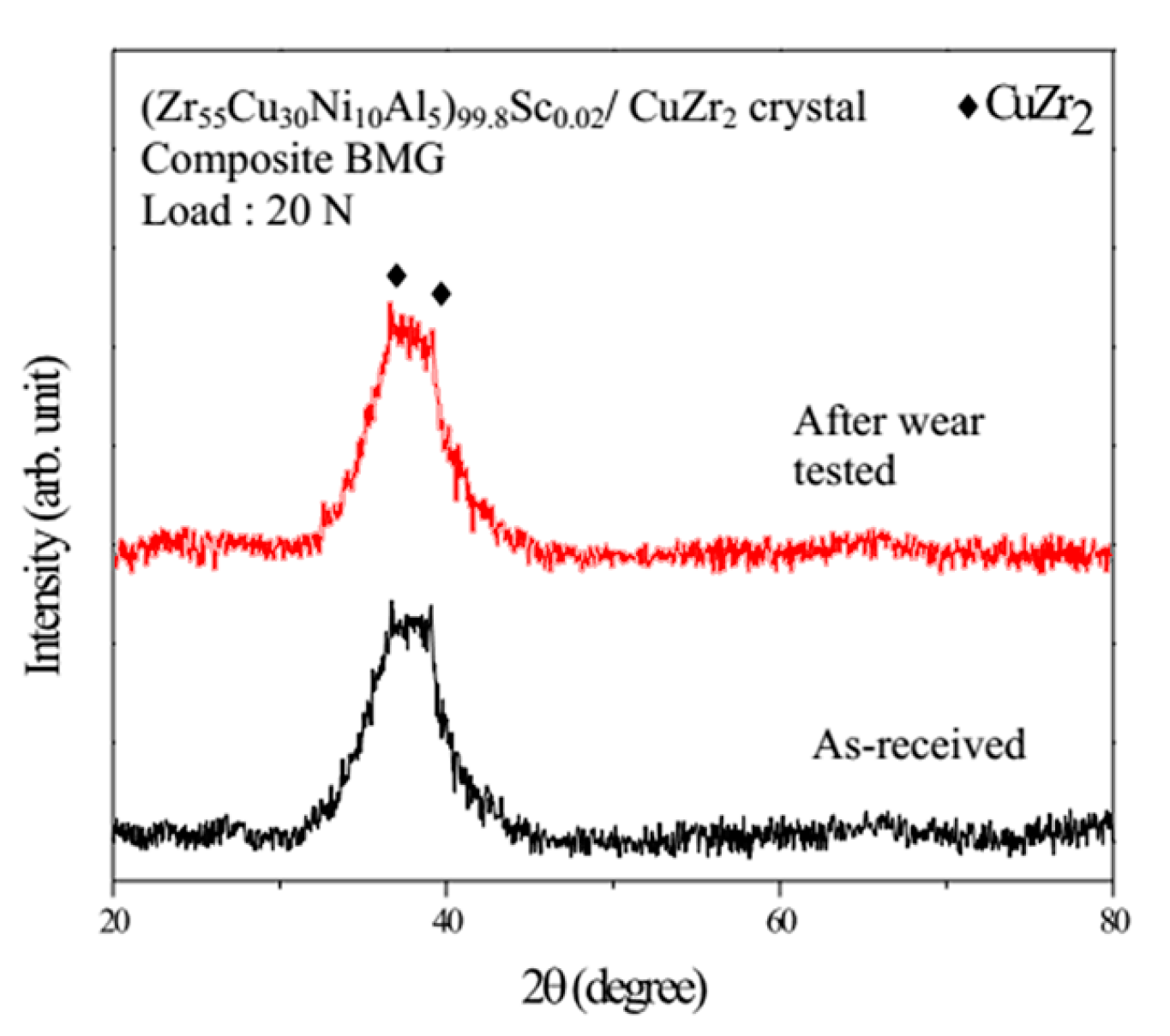

The microhardness values of the 440C steel and (Zr₅₅Cu₃₀Al₁₀Ni₅)_99.98Sc_0.02 composite BMG were 686 Hv and 519 Hv, respectively, indicating that the Zr-based composite BMG was softer than the 440C steel. In this material, the as-received glassy matrix, including the CuZr₂ nanocrystalline composite phases, was observed using bright-field transmission electron microscopy, and a composite diffraction halo with a spots pattern is displayed inset in Figure 1. A spot pattern indicating a nanocrystal is superimposed on a halo of the amorphous matrix (Figure 1). The wear-tested and as-received amorphous Sc-bearing Zr-based composite BMG mainly consisted of a diffused peak superimposed on nanocrystalline peaks of CuZr₂ (Figure 2). No wear induced any new phase formed in the crystalline structure analysis by XRD after the wear test in oil lubrication (Figure 2). The same crystalline structure remained after a wear test under a 20-N load (Figure 2). The reason could be attributed to the fact that the wear-making temperature increase was insufficient for the amorphous matrix at the contact interface to undergo nano-recrystallization under the oil lubrication and cooling effect. Similarly, no difference in hardness between the surface and the matrix was exhibited in Zr₄₁Ti_13.8Cu_12.5Ni₁₀Be_22.5 BMG-bearing rollers [4], during rotation test with the high-load and high-speed. In particular, a composite BMG was loaded with a relatively lighter load and had a lubricant with cooling effect. Consequently, the composite BMG still kept the original amorphous/nanocrystal composite structure after the wear test. In the test, an ISO VG68 oil stock was used as a lubricant and coolant that greatly contributed to preventing the formation of a new nano-recrystallized phase by stress- or strain-induced phase transformation.

3.1. Coefficient of Friction

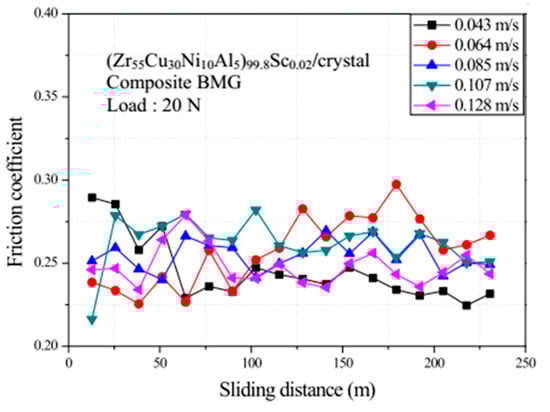

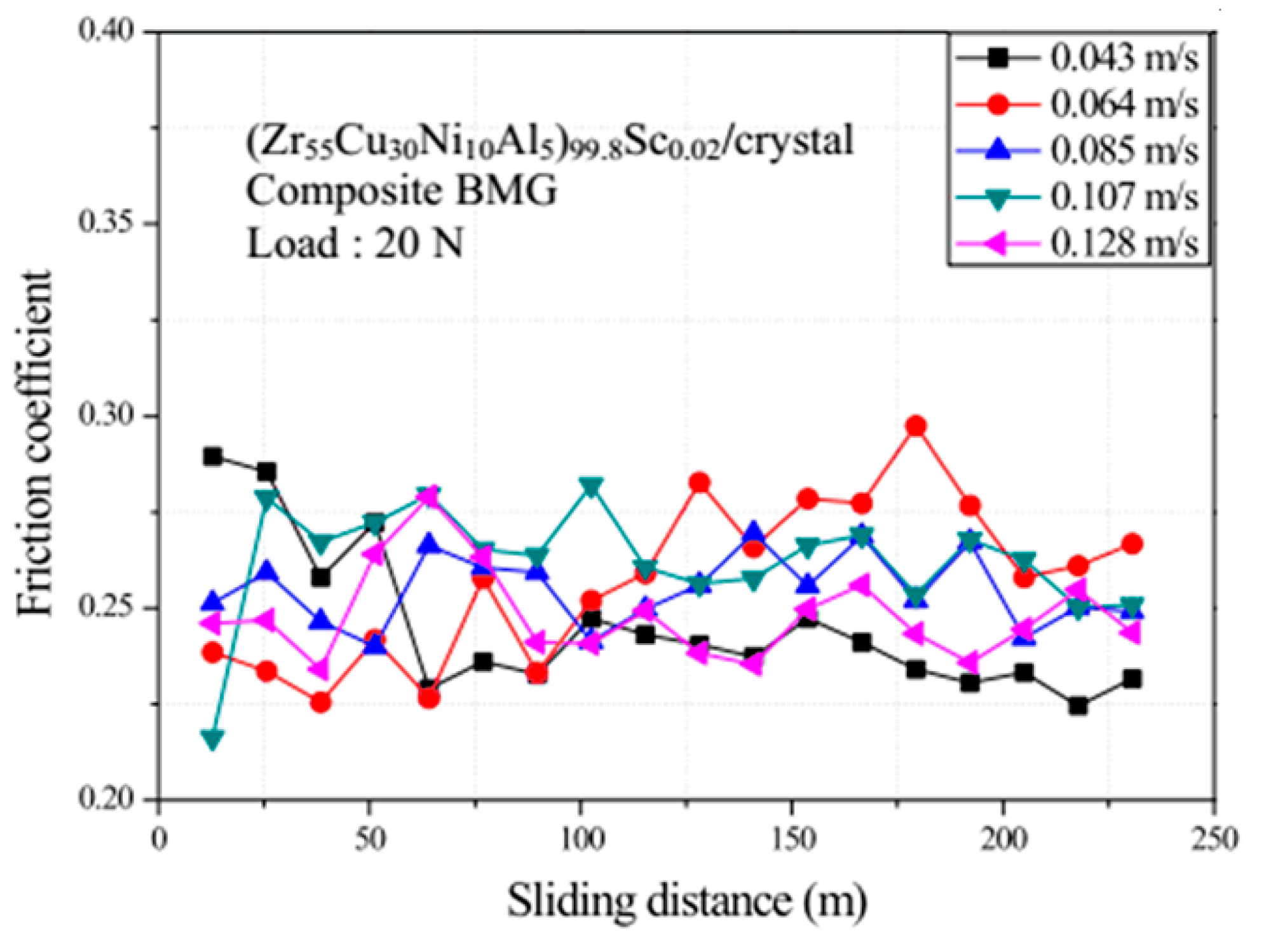

A critical form of wear is called adhesive wear characterized by the high wear rates and a high, unstable friction coefficient. Adhesive wear can rapidly destroy the sliding contacts; and sliding motion may be prevented by extremely high friction coefficients, leading to seizure [18]. The coefficient of friction appeared to be slightly unstable (Figure 3). The scattered data points of friction coefficient versus the sliding distance at different sliding velocities under 20 N were caused by the worn surface having scaled-off debris, patches adhered to the disk surface, and distinct grooves and craters. Also, the scale at Y-axis was enlarged in order to make the data points distinct. The values were within the range from 0.22 to approximately 0.29 under a 20-N load at different sliding velocities. When a softer stationary slider is slid against a moving harder disk, the steady-state coefficient of friction is approximately the same [19]. Therefore, the experimental results clearly indicated that the measured friction coefficients can be determined as the adhesion wear. The friction coefficients of the Sc-bearing Zr-based composite BMG were higher than those of the (Cu₅₅Zr₄₀Al₅)₉₈Er₂ composite BMG (0.13–0.22) [19], as shown in Figure 4.

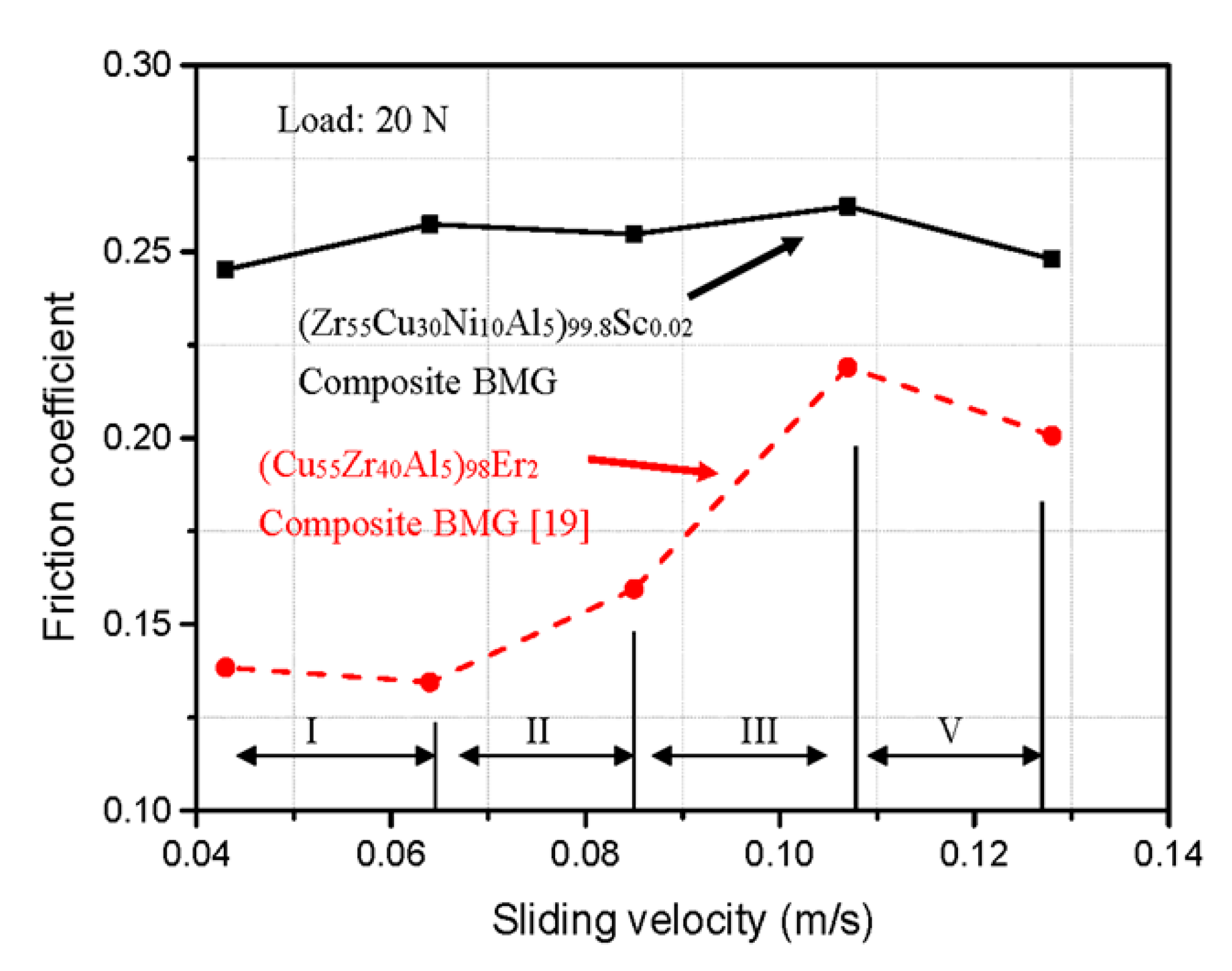

The distance-dependent nature of various friction coefficients can be classified into the following stages [20]. At stage I (early stage), the plowing of the surface controls the friction coefficient. In this state, no significant role is played by adhesion because of the surface-contaminated nature [20]. At stage II, because of an increase in adhesion the friction coefficient begins to rise slowly. At stage III, because of a higher wear rate a steep increase in slope is caused by the number of wear particles rapidly increasing and being entrapped between the sliding surfaces. At stage IV, the number of wear particles entrapped at the interface does not remain constant. At stage V, the frictional force decreases because the plowing and asperity deformation weaken. The plowing is reduced because the wear particles cannot anchor to a polished hard surface. The average friction coefficient of the Sc-bearing Zr-based composite BMG is almost constant at approximately 0.25 (Figure 3) and is independent of the sliding velocity. This fact indicates that the wear particles entrapped at the interface between the hard disk and the composite BMG remains constant [19]. This difference might be caused by the relatively softer microhardness of the (Zr₅₅Cu₃₀Ni₁₀Al₅)_99.98Sc_0.02 composite BMG at 519 Hv compared with the (Cu₅₅Zr₄₀A_l5)₉₈Er₂ composite BMG at 530 Hv. A friction coefficient of 0.25 appears reasonable because it is close to the value of 0.2 in the Zr_52.5Cu_17.9Ni_14.6Ti₅Al₁₀ composite BMG [3] in a pin-on-disk test under oil lubrication by using a high carbon and chromium-containing low alloy steel, AISI/ASTM 52100 bearing steel, as the counter surface under a load of 4.95 N at a velocity of 0.25 m/s.

3.2. Worn Surface Characteristic

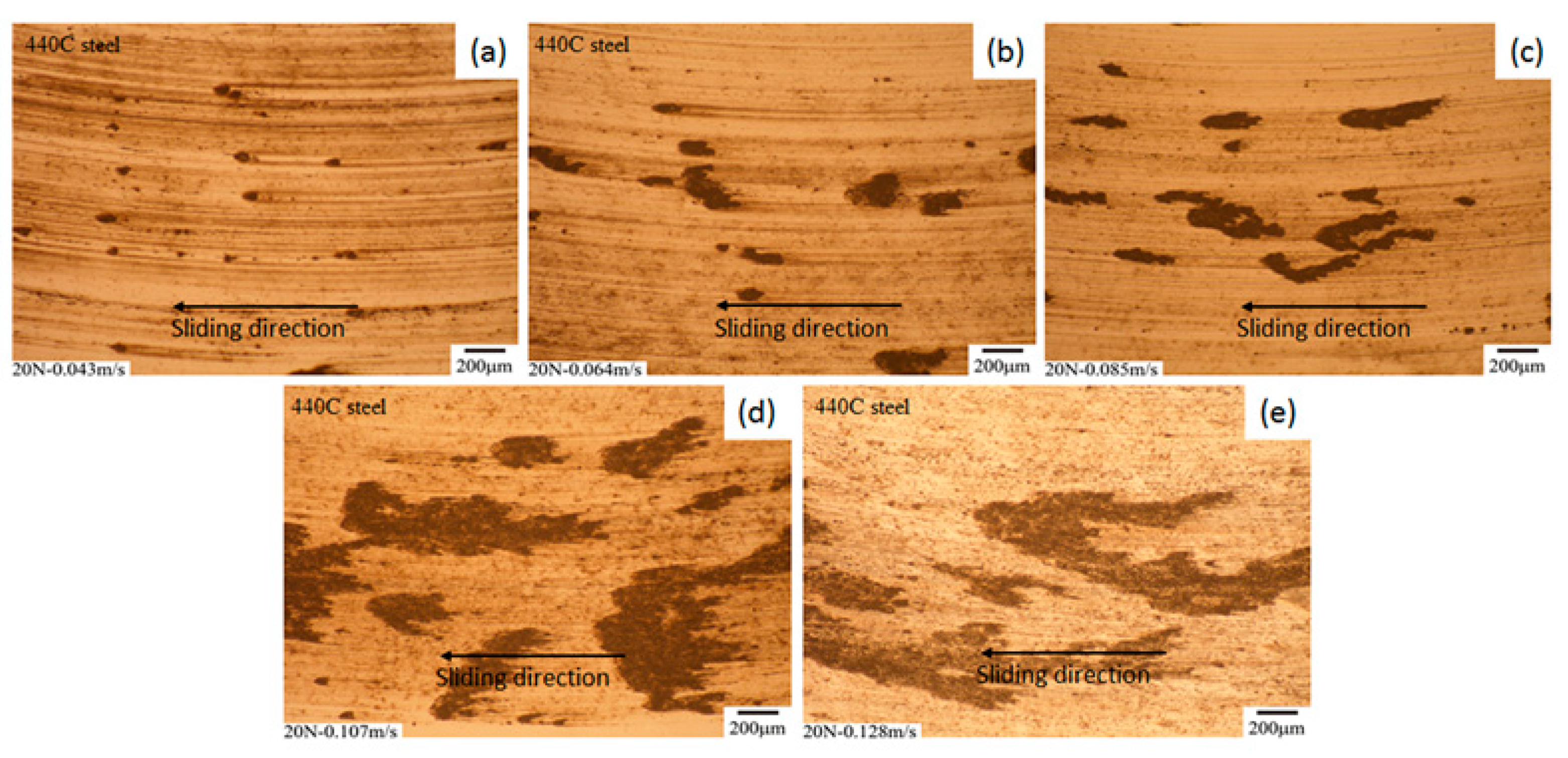

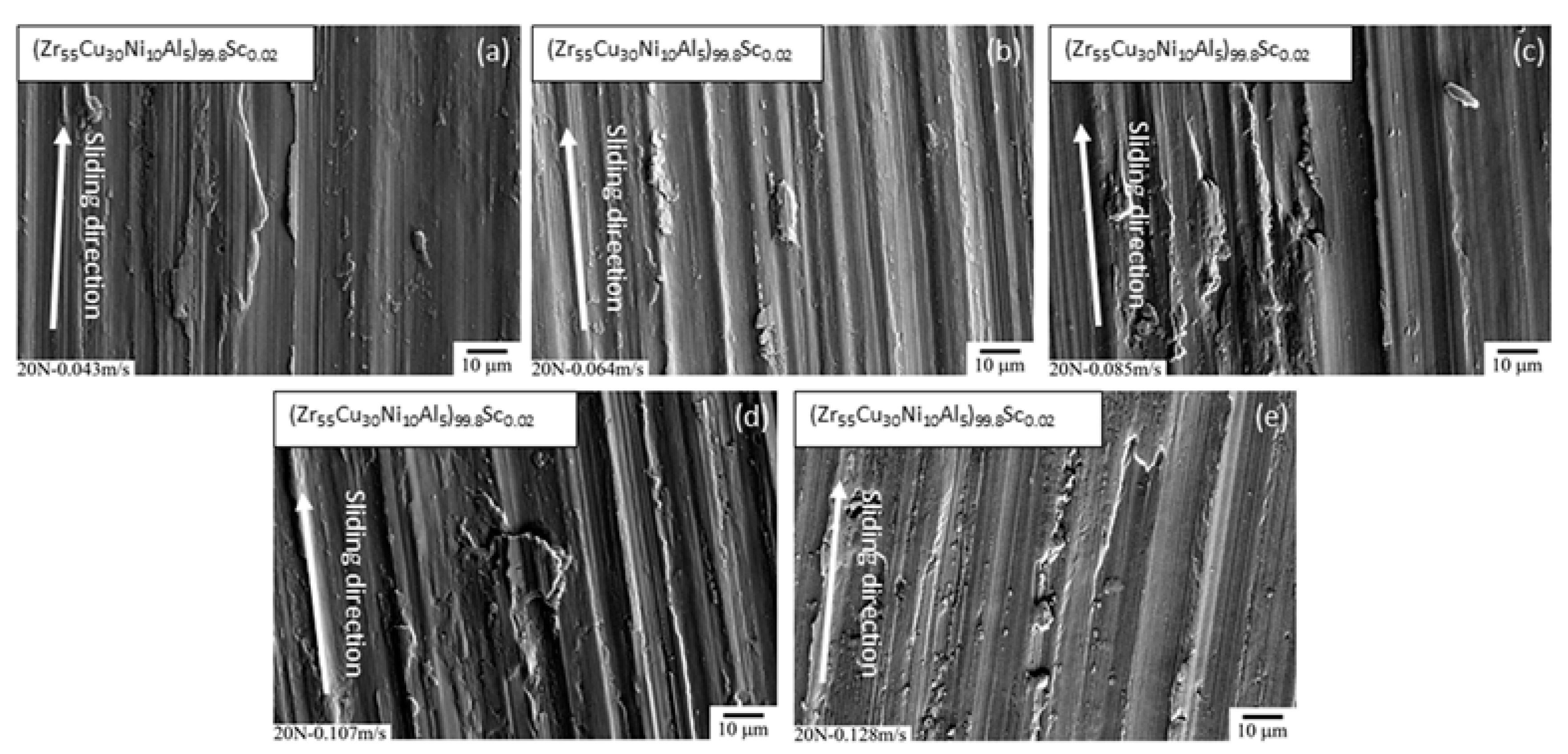

Figure 5 exhibits the images of wear tracks under different conditions after sliding wear tests on the surface of the 440C steel disk. The debris of (Zr₅₅Cu₃₀Ni₁₀Al₅)_99.98Sc_0.02 composite BMG scaled off from the pin with adhesive composite BMG, and patches adhered to the disk surface. The patches were plowed across the disk surface, formed cavities, and dragged traces along the wear track. More transferred materials were observed for the (Zr₅₅Cu₃₀Ni₁₀Al₅)_99.98Sc_0.02 composite BMG than for the (Cu₅₅Zr₄₀Al₅)₉₈Er₂ composite BMG [19,21], and the disk surface was ploughed severely. The SEM (scanning electron microscopy) images of the composite BMG are shown in Figure 6. The composite BMG has experienced severe plastic deformation evidenced by the morphology of the track in Figure 6. The worn surface of the (Zr₅₅Cu₃₀Ni₁₀Al₅)_99.98Sc_0.02 composite BMG exhibited distinct grooves and craters. In addition, a higher number of cracks appeared on the (Zr₅₅Cu₃₀Ni₁₀Al₅)_99.98Sc_0.02 composite BMG surface.

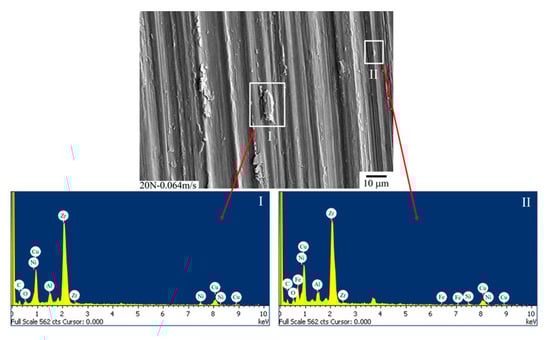

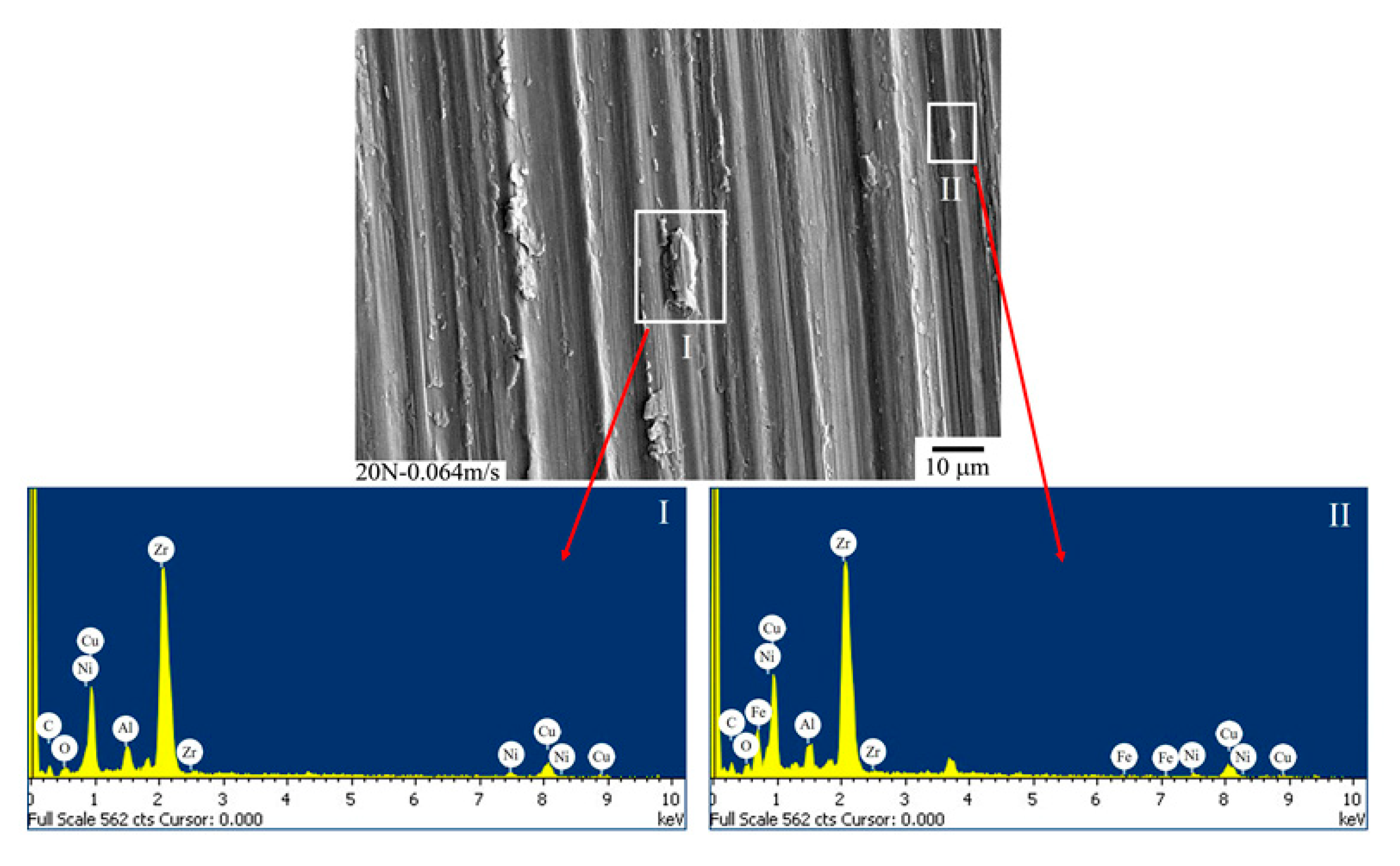

Because of the severe plastic deformation during the sliding test, the worn surface of the (Zr₅₅Cu₃₀Ni₁₀Al₅)_99.98Sc_0.02 composite BMG exhibited fine abrasion marks, tearing, and grooving [1]. Besides the plastic deformation, evidently distinct grooves and debris occurred on both sides of the grooves. Previous studies have reported these wear features [19,21]. The chemical analyses of the selected worn surfaces are depicted in Figure 7 for the (Zr₅₅Cu₃₀Ni₁₀Al₅)_99.98Sc_0.02 composite BMG. Most debris adhered to the (Zr₅₅Cu₃₀Ni₁₀Al₅)_99.98Sc_0.02 composite BMG surface, and least to the disk surface of 440C stainless steel. Debris I on the worn surface from the energy-dispersive X-ray spectroscopy (EDX) exhibited the same constituent elements as those exhibited by the (Zr₅₅Cu₃₀Ni₁₀Al₅)_99.98Sc_0.02 composite BMG (Figure 7). Debris II exhibited a strong iron peak in the EDX analysis that originated from the 440C steel disk (Figure 7).

The composition of EDX analysis in Figure 7 for debris I on the worn surface is as follows: Zr 54.98, Cu 29.96, Al 9.99, Ni 4.97, C 0.06, and O 0.04 in at%. That for debris II is Zr 53.83, Cu 28.15, Fe 7.81, Al 6.67, Ni 3.45, C 0.05, and O 0.04 in at%. Although a contamination of iron peak originating from the 440C steel disk, the compositional difference between these two sources of debris is not very significant at around 1 at%.

3.3. Wear Rate and Wear Coefficient

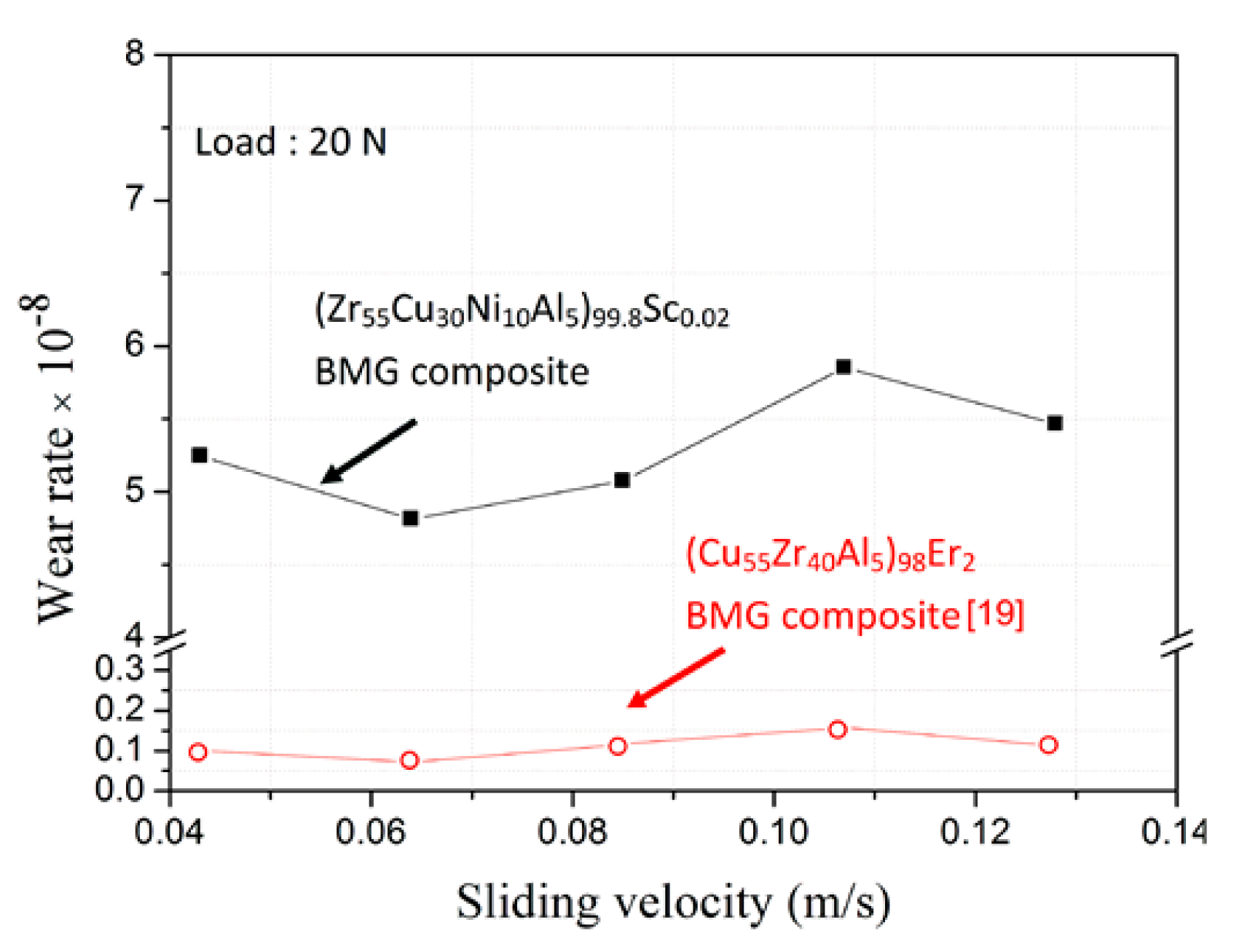

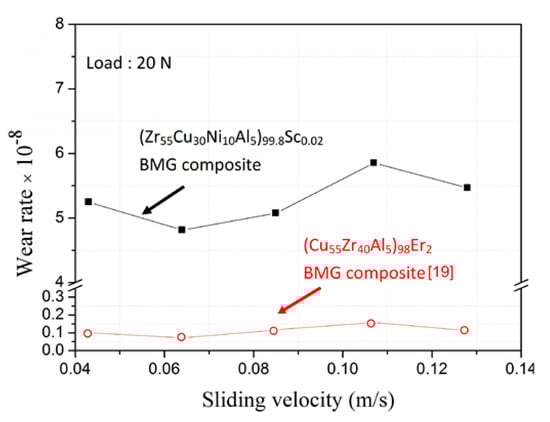

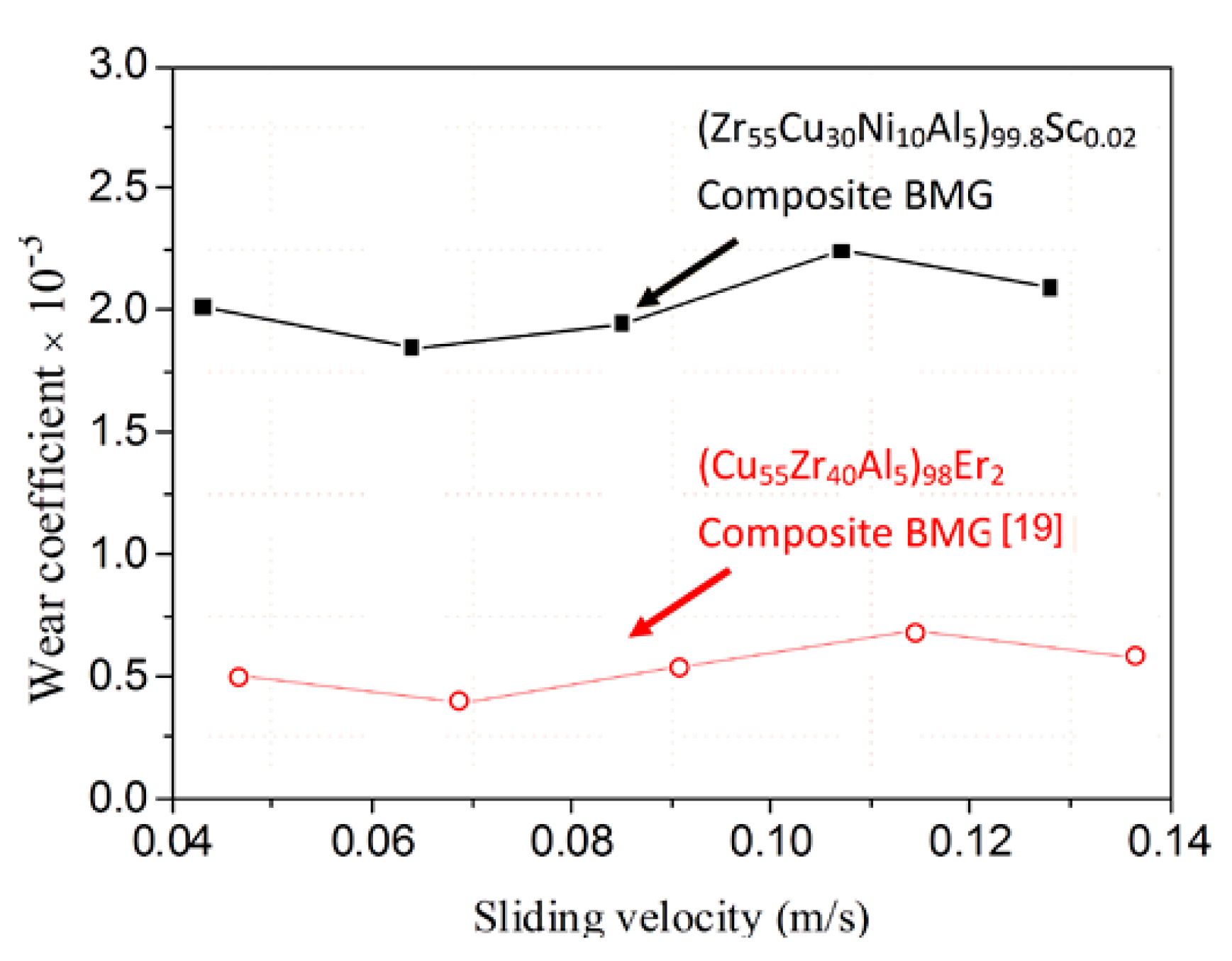

Wear rates of the Sc-bearing Zr-based composite BMG under a 20 N load at different sliding velocities are plotted in Figure 8. Wear rates of the (Zr₅₅Cu₃₀Ni₁₀Al₅)_99.98Sc_0.02 composite BMG ranged from 4.8 × 10⁻⁸ to 5.9 × 10⁻⁸ kg/m and the standard error was 3.8 × 10⁻⁹ kg/m, approximately 7.1% of the mean value. Thus, the wear rate of the (Zr₅₅Cu₃₀Ni₁₀Al₅)_99.98Sc_0.02 composite BMG was one order higher than that of (Cu₅₅Zr₄₀Al₅)₉₈Er₂, which ranged from 1.7 × 10⁻⁹ to 2.4 × 10⁻⁹ kg/m, both under the same loads. This trend is attributed to the higher hardness of the (Cu₅₅Zr₄₀Al₅)₉₈Er₂ composite BMG. The values of wear coefficient (k) was obtained by using the equation proposed by Rabinowicz [20]. The density of the (Zr₅₅Cu₃₀Ni₁₀Al₅)_99.98Sc_0.02 composite BMG was 6.77 g/cm³, as determined using the Archimedes method. The microhardness was 519 Hv, and the distance of sliding was 230.6 m during the wear test. The k values ranged from 1.8 × 10⁻³ to 2.4 × 10⁻³ (Figure 9) and were higher than those of the (Cu₅₅Zr₄₀Al₅)₉₈Er₂ composite BMG (from 5.8 × 10⁻⁴ to 8.3 × 10⁻⁴ [21]) and the Zr₄₈Cu_45-xAl₇Ag_x composite BMG (x = 0, 2, 5, and 8 at%; from 2.4 × 10⁻⁴ to 5.4 × 10⁻⁴ [5]). The wear behavior of the Sc-bearing Zr-based composite BMG was more critical than that of the Er-bearing Cu-based composite BMG.

4. Conclusions

The original glassy (Zr₅₅Cu₃₀Ni₁₀Al₅)_99.98Sc_0.02/CuZr₂ nanocrystal composite structure remained the same without phase transformation during the wear test under 440C disk with oil lubrication and 20 N loads. Because of the intrinsic softness of the Sc-bearing Zr-based composite BMG, (Zr₅₅Cu₃₀Ni₁₀Al₅)_99.98Sc_0.02/CuZr₂, its wear tracks and worn surface underwent severe deformation. This deformation behaviour resulted in a higher wear coefficient and wear rate than those of the (Cu₅₅Zr₄₀Al₅)₉₈Er₂ composite BMG. The worn composite BMG particles entrapped at the interface remained a constant number, leading to a constant friction coefficient of approximately 0.25 for the Sc-bearing Zr-based composite BMG; this friction coefficient was independent of the sliding velocity. CuZr₂ is harder than Zr-based (Zr₅₅Cu₃₀Al₁₀Ni₅)_99.98Sc_0.02 bulk amorphous matrix. Therefore, it is an attractive bearing and shaft material for industrial application.
