Article

Familiarization and Reliability of the Isometric Knee Extension Test for Rapid Force Production Assessment

Faculty of Sport Sciences, Human Performance and Sports Science Laboratory, University of Murcia, 30720 Murcia, Spain
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(13), 4499; https://doi.org/10.3390/app10134499
Received: 9 June 2020 / Revised: 25 June 2020 / Accepted: 25 June 2020 / Published: 29 June 2020
(This article belongs to the Special Issue New Trends in Design Engineering)

Abstract

Despite the rising interest in the use of portable force sensors during isometric exercises to inform on neuromuscular performance, the design of practical field-based methods to obtain reliable measures is an ongoing challenge. We aim at identifying the intra-session and test-retest reliability of a rapid, isometric knee extension test to evaluate the maximal voluntary concentric force (MVC), rate of force development (RFD) and impulse following a field-based approach. On two occasions, 14 athletes unfamiliar with the test completed three sets of 2 s ballistic contractions (as fast and hard as possible) with 30 s rest. Raw and filtered data were collected in real time using a portable force sensor. RFD and impulse were highly reliability during “late” phases of the contraction (0–250 ms) since the first session (coefficient of variation (CV) < 9.8%). Earlier phases (0–150 ms) achieved a moderate reliability after one familiarization session (CV < 7.1%). Measures at 0–50 ms did not reach sufficient reliability (CV~14%). MVC was accurately assessed. Dominant limbs were not importantly altered by the familiarization. In opposite, non-dominant limbs showed large variations. New evidence is provided about the positive effects of a single familiarization session to improve the reliability the isometric knee extension test for rapid force production assessment. Coaches and practitioners may benefit of from these findings to conduct practical and reliable assessments of the rapid force production using a portable force sensor and a field-based approach.
Keywords: biomechanics; strain gauge; strength; power; muscle activation; resistance training biomechanics; strain gauge; strength; power; muscle activation; resistance training

1. Introduction

Isometric strength of knee extensors has been widely assessed since decades due to its close relationship with functional performance [1,2,3] and as effective tool for monitoring injury rehabilitation success [4,5]. In recent years, the use of the isometric knee extension exercise during explosive or ballistic contractions has attracted increasing attention as an effective method to test and improve force production during rapid muscle activation, with positive transfers to sport-specific performance such as jumping or sprinting [6,7,8]. Despite its practical implications, however, the stable measurement of rapid force production remains of ongoing concern [9,10]. Hence, further understanding of best-practice and testing procedures that can aid the development of effective assessment continues to be of importance.
Current resistance training practices involve the use of technology to obtain real-time data about neural and muscular determinants of performance [11,12]. Muscular determinants during isometric exercises are conventionally assessed by the maximal voluntary concentric force (MVC), which refers to the highest force the individual is able to produce during the test [7,13]. The MVC is demonstrated as a reliable and easy-to-obtain variable during the isometric knee extension test with portable force sensors [14,15]. However, while most of sport-related movements (i.e., jumping, sprinting, kicking) involves rapid contraction times (50–250 ms), the MVC is typically reached at later phases ≥300 ms, which may limits its ability to explain performance for rapid actions [13,16].
In turn, the ability to produce force rapidly (<250 ms) mostly relies on neural determinants such as motor unit recruitment, discharge rates and force twitches [8,12]. Neural factors are commonly assessed during isometric tests by the rate of force development (RFD) exerted within the early phase of rising muscle force, and the contractile impulse that can be produced within a given contraction time [16,17]. Despite the rising interest in the use of isometric testing to determine improvements in ballistic sport-specific movements [6,7], the design of practical field-based methods to obtain reliable RFD and impulse measures at different phases of the contraction is an ongoing challenge [18,19,20,21]. This is further confounded by the fact that the measurement of both RFD and impulse is highly dependent to the testing procedures [9,10], the signal filtering [19] and the warm-up [22]. Hence, a further examination of the quality and consistency of the RFD and impulse measures is of critical importance.
To provide these insights would have practical implications for coaches and therapists, since nowadays one can easily collect automatically RFD and impulse data while providing real-time visual feedback using low cost, portable force sensors attached to a bench or table [9]. To the best of our knowledge, only one previous study has examined the reliability of rapid force production variables during the knee extension [21]. Albeit showing promising results, the fact that they conduced time-consuming testing procedures (separate tests for MVC and RFD which doubled the time required) makes difficult to transfer their results into the sport daily practice thus requires a field-based replication. Furthermore, despite side-to-side asymmetry in quadriceps RFD has gained interest as a screening tool for injury management [23], little is known about the differences between dominant and non-dominant limbs when testing the rapid force production during the knee extension test in athletes. Besides, there is no quantitative data describing the influence of a familiarization session to maximise the reliability of RFD during the knee extension strength test [9].
Therefore, the current study aimed to determine the intra-session and test-retest reliability of a rapid, isometric knee extension test to evaluate the MVC, RFD and impulse on both limbs in young athletes unfamiliar with the test, following a field-based approach. Based on the existing literature, we hypothesize that late contractions >250 ms would reach sufficient reliability since the first session, whilst earlier phases would require a previous familiarization.

2. Materials and Methods

2.1. Experimental Design

Participants completed the isometric knee extension test in two testing sessions (with 48 h rest) according to the evidence-based standards for RFD measurement [9]. Before each session, participants completed the same specific warm-up including rapid response neuromuscular activation to maximize the isometric knee extension performance [22]. Evaluations were performed under similar climatological conditions (21–24 °C and 45–55% relative humidity) at the same time of day (16:00–19:00 h). All participants were previously screened to ensure they were able to complete the tests safety. However, they were unfamiliar with the isometric knee extension test. After the initial screen and the warm-up, participants completed three trials per leg of the aforementioned test. Measures for the force-time curve were automatically obtained using a portable strain gauge.

2.2. Participants

Fourteen male athletes (Mean ± SD: age 22.4 ± 3.9 years, body mass 81.2 ± 6.9 kg, height: 179.9 ± 5.2 cm) volunteered to participate in this study. All participants were fit, uninjured and not taking medications that could alter performance. To ensure they initiated the study with a comparable training base, all participants completed a one-maximum repetition test (1RM) for the full-squat exercise the week before to the experiment (1RM = 121.2 ± 14.5 kg; relative strength ratio = 1.5 ± 0.2 kg/body mass). However, they were unfamiliar with the isometric knee extension test. Participants signed a written informed consent form. The study was conducted conform to the Code of Ethics of the World Medical Association (Declaration of Helsinki) and approved by the Bioethics Commission of the local university.

2.3. Rapid Isometric Contraction of the Knee Extensors

Participants performed a specific warm-up including 2 sets of 6 s of three rapid response neuromuscular activation exercises: base rotations, side to side over line and 2 inch runs [22]. After the warm-up, participants sat on a custom-built bench, 70 cm high (Figure 1). A portable strain gauge with incorporated software (Chronojump, Barcelona, Spain) sampling at 80 Hz was secured at one end to the bench at 45 cm from the floor, and attached at the other to a chain connected to a resistant padded anklet, specifically designed for maximal isometric testing, to guarantee the mechanical rigidity and minimize joint movement [9]. The chain length was adapted to each participant’s anthropometric characteristics to achieve the mechanical rigidity with a comfortable knee joint angle of 110°. Before each trial, knee flexion was measured using a handled goniometer (Nexgen Ergonomics, Point Claire, Quebec, Canada). The strain gauge was calibrated prior to each session using a 5 kg Eleiko disc (Eleiko, Halmstad, Sweden), according to the manufacturer’s specifications. Participants completed three rapid contractions with 30 s rest [24]. Baseline conditions were standardized and monitored using real-time visual feedback provided by the manufacturer’s software, to avoid alterations in the measure due to initial pre-tension and countermovement [9,10,25]. Participants were instructed to contract as “fast and hard” as possible with the emphasis on the explosive/ballistic phase of contraction during 2 s with strong verbal encouragement [9,26].

2.4. Force Variables

Measures for the force-time curve were automatically obtained using the manufacturer’s software for windows (Chronojump 1.9.0, Barcelona, Spain). Results from each of the three trials were used for the intra-session analysis, whereas the trial with the highest values was used for the test-retest reliability analysis [9]. This software provides values in raw (original signal) and fitted (inverse monoexponentially function that better fits the raw data). This fitting is made by adjusting the Fmax (maximum force, i.e., MVC) and tau (τ, the time necessary to reach the 63.2% of the Fmax), as follows:
F = Fmax × (1 − e^(1/τ))
The following variables were calculated (Figure 2):
  • Maximal voluntary contraction force (MVC): instantaneous maximal isometric muscle strength in Newtons (N).
  • Rate of force development (RFD): the contractile RFD was obtained from the slope of the force-time curve (ΔForce/Δtime) expressed in N·s−1; thus, the instantaneous RFD peak (RFDmax) was the highest slope of the curve [17]. Average RFD was calculated for three overlapping periods in milliseconds to collect measures in three different phases of the contraction: 0–50 ms (RFD050), 0–150 ms (RFD0150) and 0–250 ms (RFD0250) [9,27].
  • Impulse: the impulse was calculated through integration of force over time (i.e., cumulated area under the force-time curve) expressed in N·s [17]. Average impulse was calculated for the same three overlapping RFD periods in milliseconds (Impulse050, Impulse0150 and Impulse0250)

2.5. Statistical Analysis

Reliability and level of agreement between the force variables within (intra-session) and between (test-retest) sessions were determined by the intraclass correlation coefficient (ICC), standard error of the measurement (SEM) and coefficient of variation (CV). Two-way mixed-effects, absolute agreement model in ICC was conducted according to guidelines for test-retest and intrarater reliability [28]. The SEM was calculated from the square root of the mean square error term in a repeated-measures ANOVA to determine the measurement error and between-participant variability [29]. The CV was calculated relative to the SEM as a percentage (CV = 100 SEM/mean) [29]. Criteria for acceptable reliability were set for very high (CV ≤ 5%, ICC ≥ 0.90), high (CV ≤ 10%, ICC > 0.90) and moderate (CV ≤ 15%, ICC > 0.80) according to previous studies testing the reliability of RFD and impulse during isometric exercises [19,20,21]. Inter-limb asymmetries >15% were considered as high [30]. Normal distribution was verified by Kolmogorov–Smirnov tests. Student’s t-test for paired samples was performed to identify significant differences (p < 0.05) between the test and retest conditions. Effect size (ES) was calculated [31] to estimate the magnitude of the differences using the Hedges’ g and interpreted as low (0.20) medium (0.50) and high (0.80).

3. Results

3.1. Intra-Session Reliability

Table 1 and Table 2 show the intra-session reliability in raw (original data) and fitted (filtered data), respectively. MVC, RFD0150, RFD0250 and Impulse0–250 were moderate-to-high reliable since Session 1 in both raw (CV ranges: 7.0 to 13.3%, ICC ranges: 0.887 to 0.976) and fitted (CV ranges: 5.9 to 12.2%, ICC ranges: 0.921 to 0.958) data. These results improved in Session 2 up to showing a high reliability in both raw and fitted (CV ≤ 9.3% ICC ≥ 0.958). Additionally, Impulse0–150 reached an acceptable reliability in Session 2 (CV ≤ 11.9% ICC ≥ 0.954), with slightly better results in fitted data. RFD0–50 was readable with a moderate reliability (CV ≤ 13.6% ICC ≥ 0.941) in Session 2 with fitted signal. Impulse0–50 showed nearly reliable readings in Session 2 with fitted signal (CV ≤ 15.8% ICC ≥ 0.929). RFDmax achieved moderately reliable records in Session 2 but only in dominant leg raw data. Fitted data were equally reliable for dominant and non-dominant legs, whilst raw data showed particular differences. Asymmetries trended to diminish after the familiarization, especially during early phases of contraction (0–50 ms), with all the participants showing optimal values < 15% in the second session.

3.2. Test-Retest Reliability

Results from the test-retest reliability are shown in Table 3. MVC, RFD0250 and Impulse0250 maintained a high reliability among sessions for both raw and fitted data (CV ≤ 9.2% ICC ≥ 0.904). However, RFD0150 and Impulse0150 were highly reliable in fitted data (CV ≤ 10.8% ICC ≥ 0.879). Likewise, RFD050 and Impulse050 were only deemed reliable in fitted data and particularly in the dominant leg (CV ≤ 13.3% ICC ≥ 0.898). RFDmax was best in the dominant leg, with similar results in fitted and raw data (CV~17% ICC ≥ 0.799). Dominant limb records were not importantly altered by the familiarization (ES < 0.13) except for the RFD0250. In opposite, non-dominant limbs showed large variations in the majority of the variables but the RFD0–250.

4. Discussion

The main findings of this study indicate that: (i) RFD and impulse during the isometric knee extension tests can be assessed with high reliability during “late” phases of the contraction (0–250 ms) since the first session, following a field-based approach, in young athletes unfamiliar with the test; (ii) earlier phases of the contraction (0–150 ms) can be measured with moderate reliability after one familiarization session; (iii) in contrast, measures at 0–50 ms requires larger sampling rates and/or longer familiarization to reach sufficient reliability; (iv) the results confirm previous findings that knee extension MVC can be accurately assessed using portable force sensors [14,15].
The development of practical methods to obtain reliable RFD and impulse parameters from sport-related actions is an ongoing challenge in sport practice [9,10], since they may inform about the neural efficiency of motor skill performance [8]. According to our findings, RFD and impulse at 0–150 ms and 0–250 ms can be measured with sufficient reliability (CV < 10 %) after one familiarization session during the isometric knee extension tests, with better results if filtering the data. These good results were automatically obtained using a portable low-cost force sensor at 80 Hz which make possible to easily reproduce this assessment in both athletic and clinic (e.g., hospitals, rehabilitation centres or nursing homes) environments. In contrast, the lower reliability even with fitted data (CV~14%) found in earlier phases of contractions (0–50 ms) suggests the need of higher sampling rate equipment and/or experienced participants. This is in line with Buckthorpe et al. [21] who found good within-participants reliability from 100 ms onward but high variation up to CV = 19% at earlier phases (RFD050 and Impulse050) during a rapid, isometric knee extension test after familiarization. Since we used a much lower sampling rate (80 Hz vs. 2000 Hz), the current improvements could be attributable to methodological differences such as the inclusion of a rapid-response warm-up [22]. Further, in light of our findings, to collect MVC and RFD together from the same trial via evidence-based guidelines [9] seems advantageable as may increase performance and reduce fatigue as a result of performing less trials while saving time. Of interest, adopting an external focus of attention (e.g., “try to touch this target”) seems to be beneficial when testing rapid contractions of the knee extensors [32]. Future studies should examine whether the use of external attentional focus may have an acute impact on the reliability of rapid force production measures during the isometric knee extension tests, specially at early phases of the contraction (0–50 ms).
A main practical resource herein provided for a better understanding of the isometric knee extension test reliability is the reporting of intra-session and test-retest differences in absolute terms (i.e., SEM). This information assists in the interpretation of results from a practical viewpoint. A large SEM relative to the between-participant variance contributes to poor reliability. In other words, if we would like to compare the differences after a training program, changes greater that the SEM would be likely to be a result of the intervention rather than a measurement error [29]. Accordingly, taking the Session 2 fitted readings and the dominant leg reference (Table 2), the current field-based method would permit us to identify, at least, changes in MVC over 35.9 N or changes in RFD0250 and Impulse0250 from 126 N·s−1 and 7.4 N·s respectively. Hence, despite we cannot deny the existence of a high intra-individual variability during an isometric leg extension test [21], the use of evidence-based protocols, rapid-response warm-up and visual feedback make it possible to obtain a reliable RFD/Impulse measurement with field-based, portable and low-cost equipment. This is particularly relevant for coaches and sport clubs dealing with athletes with similar strength status than our sample (MVC from ~500 to ~850 N; 7- to 10-fold their body mass).
The implications of these findings are that using a portable force sensor under proper measurement guidelines allows to collect reliable RFD, Impulse and MVC data (altogether from the same trial) to evaluate the rapid isometric contraction of the knee extensors in young athletes. Such knowledge, along with the interpretation of the measurement errors, will aid both in the assessment of performance at a given time-point (e.g., pre-season, tapering, diagnostic analysis) and the identification of true changes due to training-induce adaptations (e.g., training program, injury rehabilitation). In addition, we provide new quantitative data describing the influence of familiarization during RFD assessment [9], with some variables reaching sufficient reliability since the first session and the others requiring just a single previous session (Table 2). Of final note is that important inter-limb asymmetries were identified, with non-dominant limbs describing lower records and larger variations during rapid force assessment. Although these differences could be anticipated [30], it seems to be the first time presenting data about asymmetries and RFD performance during a ballistic knee extension test in athletes. According to our findings, this test would allow to identify severe asymmetries >15% but requiring a previous familiarization. All in all, given that improvements in RFD can be expected within the first weeks of training [6], and the benefits of a previous familiarization, it is advisable to evaluate the rapid isometric contraction of the knee extensors since initial stages of the season and conducted frequent monitoring to verify short-term progresses.

5. Conclusions

New evidence and practical guidelines are provided to collect reliable RFD and Impulse measures of the knee extensors regarding the contraction time, the preferable signal and the influence of familiarization (Table 4). The use of a portable force sensor and a field-based approach may benefit coaches and practitioners from these findings by conducting practical and reliable methods for rapid force production assessment outside the laboratory. Under proper methods, coaches and clinicians dealing with rapid force production training and/or assessment might rely on both MVC and RFD/Impulse at 0–250 ms since the very first session if a familiarization is not possible. However, it seems necessary to complete at least one familiarization session to collect RFD and Impulse 0–150 with moderate reliability. In turn, very rapid contractions (0–50 ms and RFDmax) would require longer preparation. Frequent unilateral monitoring over time is advisable to determine side-to-side asymmetry in quadriceps RFD.

Author Contributions

Conceptualization, J.C.-I. and J.G.P.; methodology, J.C.-I., A.H.-B., A.C.-M., J.G.P.; investigation, J.C.-I., A.H.-B., A.C.-M., formal analysis, J.C.-I., A.H.-B.; writing—original draft preparation, J.C.-I., A.H.-B.; writing—review and editing, J.C.-I., A.H.-B., A.C.-M., J.G.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

The authors thank Paco and Pedro for their valuable technical contribution in the development of the custom-built bench, and thank the participants for their involvement in this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. De Ruiter, C.J.; Van Leeuwen, D.; Heijblom, A.; Bobbert, M.F.; De Haan, A. Fast unilateral isometric knee extension torque development and bilateral jump height. Med. Sci. Sports Exerc. 2006, 38, 1843–1852. [Google Scholar] [CrossRef]
  2. Requena, B.; González-Badillo, J.J.; Saez De Villareal, E.S.; Ereline, J.; García, I.; Gapeyeva, H.; Pääsuke, M. Functional performance, maximal strength, and power characteristics in isometric and dynamic actions of lower extremities in soccer players. J. Strength Cond. Res. 2009, 23, 1391–1401. [Google Scholar] [CrossRef]
  3. Bojsen-Møller, J.; Magnusson, S.P.; Rasmussen, L.R.; Kjaer, M.; Aagaard, P. Muscle performance during maximal isometric and dynamic contractions is influenced by the stiffness of the tendinous structures. J. Appl. Physiol. 2005, 99, 986–994. [Google Scholar] [CrossRef]
  4. Maffiuletti, N.A.; Bizzini, M.; Widler, K.; Munzinger, U. Asymmetry in quadriceps rate of force development as a functional outcome measure in TKA. Clin. Orthop. Relat. Res. 2010, 468, 191–198. [Google Scholar] [CrossRef]
  5. Gapeyeva, H.; Buht, N.; Peterson, K.; Ereline, J.; Haviko, T.; Pääsuke, M. Quadriceps femoris muscle voluntary isometric force production and relaxation characteristics before and 6 months after unilateral total knee arthroplasty in women. Knee Surg. Sports Traumatol. Arthrosc. 2007, 15, 202–211. [Google Scholar] [CrossRef]
  6. Blazevich, A.J.; Wilson, C.J.; Alcaraz, P.E.; Rubio, J.A. Effects of Resistance Training Movement Pattern and Velocity on Isometric Muscular Rate of Force Development: A Systematic Review with Meta-analysis and Meta-regression. Sports Med. 2020, 50, 943–963. [Google Scholar] [CrossRef]
  7. Oranchuk, D.J.; Storey, A.G.; Nelson, A.R.; Cronin, J.B. Isometric training and long-term adaptations: Effects of muscle length, intensity, and intent: A systematic review. Scand. J. Med. Sci. Sports 2019, 29, 484–503. [Google Scholar] [CrossRef]
  8. Folland, J.P.; Buckthorpe, M.W.; Hannah, R. Human capacity for explosive force production: Neural and contractile determinants. Scand. J. Med. Sci. Sports 2014, 24, 894–906. [Google Scholar] [CrossRef]
  9. Maffiuletti, N.A.; Aagaard, P.; Blazevich, A.J.; Folland, J.; Tillin, N.; Duchateau, J. Rate of force development: Physiological and methodological considerations. Eur. J. Appl. Physiol. 2016, 116, 1091–1116. [Google Scholar] [CrossRef]
  10. Rodríguez-Rosell, D.; Pareja-Blanco, F.; Aagaard, P.; González-Badillo, J.J. Physiological and methodological aspects of rate of force development assessment in human skeletal muscle. Clin. Physiol. Funct. Imaging 2018, 38, 743–762. [Google Scholar] [CrossRef]
  11. McGuigan, M. Testing and Evaluation of Strength and Power; Routledge: Abingdon, UK, 2019; ISBN 0429647956. [Google Scholar]
  12. Dideriksen, J.L.; Del Vecchio, A.; Farina, D. Neural and muscular determinants of maximal rate of force development. J. Neurophysiol. 2020, 123, 149–157. [Google Scholar] [CrossRef]
  13. Andersen, L.L.; Aagaard, P. Influence of maximal muscle strength and intrinsic muscle contractile properties on contractile rate of force development. Eur. J. Appl. Physiol. 2006, 96, 46–52. [Google Scholar] [CrossRef]
  14. Toonstra, J.; Mattacola, C.G. Test-retest reliability and validity of isometric knee-flexion and -extension measurement using 3 methods of assessing muscle strength. J. Sport Rehabil. 2013, 22, 1–5. [Google Scholar] [CrossRef]
  15. Ruschel, C.; Haupenthal, A.; Jacomel, G.F.; de Fontana, H.B.; dos Santos, D.P.; Scoz, R.D.; Roesler, H. Validity and reliability of an instrumented leg-extension machine for measuring isometric muscle strength of the knee extensors. J. Sport Rehabil. 2015, 24, 1–4. [Google Scholar] [CrossRef] [PubMed]
  16. Aagaard, P.; Simonsen, E.B.; Andersen, J.L.; Magnusson, P.; Dyhre-Poulsen, P. Increased rate of force development and neural drive of human skeletal muscle following resistance training. J. Appl. Physiol. 2002, 93, 1318–1326. [Google Scholar] [CrossRef] [PubMed]
  17. Aagaard, P.; Simonsen, E.B.; Andersen, J.L.; Magnusson, P.; Dyhre-Poulsen, P. Neural adaptation to resistance training: Changes in evoked V-wave and H-reflex responses. J. Appl. Physiol. 2002, 92, 2309–2318. [Google Scholar] [CrossRef] [PubMed]
  18. Dello Iacono, A.; Valentin, S.; Sanderson, M.; Halperin, I. The Isometric Horizontal Push Test: Test–Retest Reliability and Validation Study. Int. J. Sports Physiol. Perform. 2019, 15, 581–584. [Google Scholar] [CrossRef]
  19. Moir, G.L.; Getz, A.; Davis, S.E.; Marques, M.; Witmer, C.A. The Inter-Session Reliability of Isometric Force-Time Variables and the Effects of Filtering and Starting Force. J. Hum. Kinet. 2019, 66, 43–55. [Google Scholar] [CrossRef]
  20. Brady, C.J.; Harrison, A.J.; Flanagan, E.P.; Gregory Haff, G.; Comyns, T.M. A comparison of the isometric midthigh pull and isometric squat: Intraday reliability, usefulness, and the magnitude of difference between tests. Int. J. Sports Physiol. Perform. 2018, 13, 844–852. [Google Scholar] [CrossRef]
  21. Buckthorpe, M.W.; Hannah, R.; Pain, T.G.; Folland, J.P. Reliability of neuromuscular measurements during explosive isometric contractions, with special reference to electromyography normalization techniques. Muscle Nerve 2012, 46, 566–576. [Google Scholar] [CrossRef]
  22. Oranchuk, D.J.; Switaj, Z.J.; Zuleger, B.M. The Addition of a “Rapid Response” Neuromuscular Activation To a Standard Dynamic Warm-Up Improves Isometric Force and Rate of Force Development. J. Aust. Strength Cond. 2017, 25, 19–24. [Google Scholar]
  23. Buckthorpe, M.W.; Roi, G.S. The time has come to incorporate a greater focus on rate of force development training in the sports injury rehabilitation process. Muscles Ligaments Tendonsj. 2017, 7, 435. [Google Scholar] [CrossRef]
  24. Tillin, N.A.; Jimenez-Reyes, P.; Pain, M.T.G.; Folland, J.P. Neuromuscular performance of explosive power athletes versus untrained individuals. Med. Sci. Sports Exerc. 2010, 42, 781–790. [Google Scholar] [CrossRef] [PubMed]
  25. Stastny, P.; Tufano, J.; Kregl, J.; Petr, M.; Blazek, D.; Steffl, M.; Roczniok, R.; Fiala, M.; Golas, A.; Zmijewski, P. The Role of Visual Feedback on Power Output During Intermittent Wingate Testing in Ice Hockey Players. Sports 2018, 6, 32. [Google Scholar] [CrossRef] [PubMed]
  26. Duchateau, J.; Baudry, S. Maximal discharge rate of motor units determines the maximal rate of force development during ballistic contractions in human. Front. Hum. Neurosci. 2014, 8, 1–3. [Google Scholar] [CrossRef] [PubMed]
  27. Dirnberger, J.; Wiesinger, H.P.; Wiemer, N.; Kösters, A.; Müller, E. Explosive strength of the knee extensors: The influence of criterion trial detection methodology on measurement reproducibility. J. Hum. Kinet. 2016, 50, 15–25. [Google Scholar] [CrossRef]
  28. Koo, T.K.; Li, M.Y. A Guideline of selecting and reporting intraclasscorrelation coefficients for reliability research. J. Chiropr. Med. 2016, 15, 155–163. [Google Scholar] [CrossRef]
  29. Atkinson, G.; Nevill, A. Statistical methods for assssing measurement Error (reliability) in variables relevant to sports medicine. Sports Med. 1998, 26, 217–238. [Google Scholar] [CrossRef]
  30. Bishop, C.; Turner, A.; Read, P. Effects of inter-limb asymmetries on physical and sports performance: A systematic review. J. Sports Sci. 2018, 36, 1135–1144. [Google Scholar] [CrossRef]
  31. Lakens, D. Calculating and reporting effect sizes to facilitate cumulative science: A practical primer for t-tests and ANOVAs. Front. Psychol. 2013, 4, 863. [Google Scholar] [CrossRef]
  32. Kiff, A.B. Effect of Focus of Attention on Rate of Torque Development in the Knee Extensors; Oregon State University: Corvallis, OR, USA, 2017. [Google Scholar]

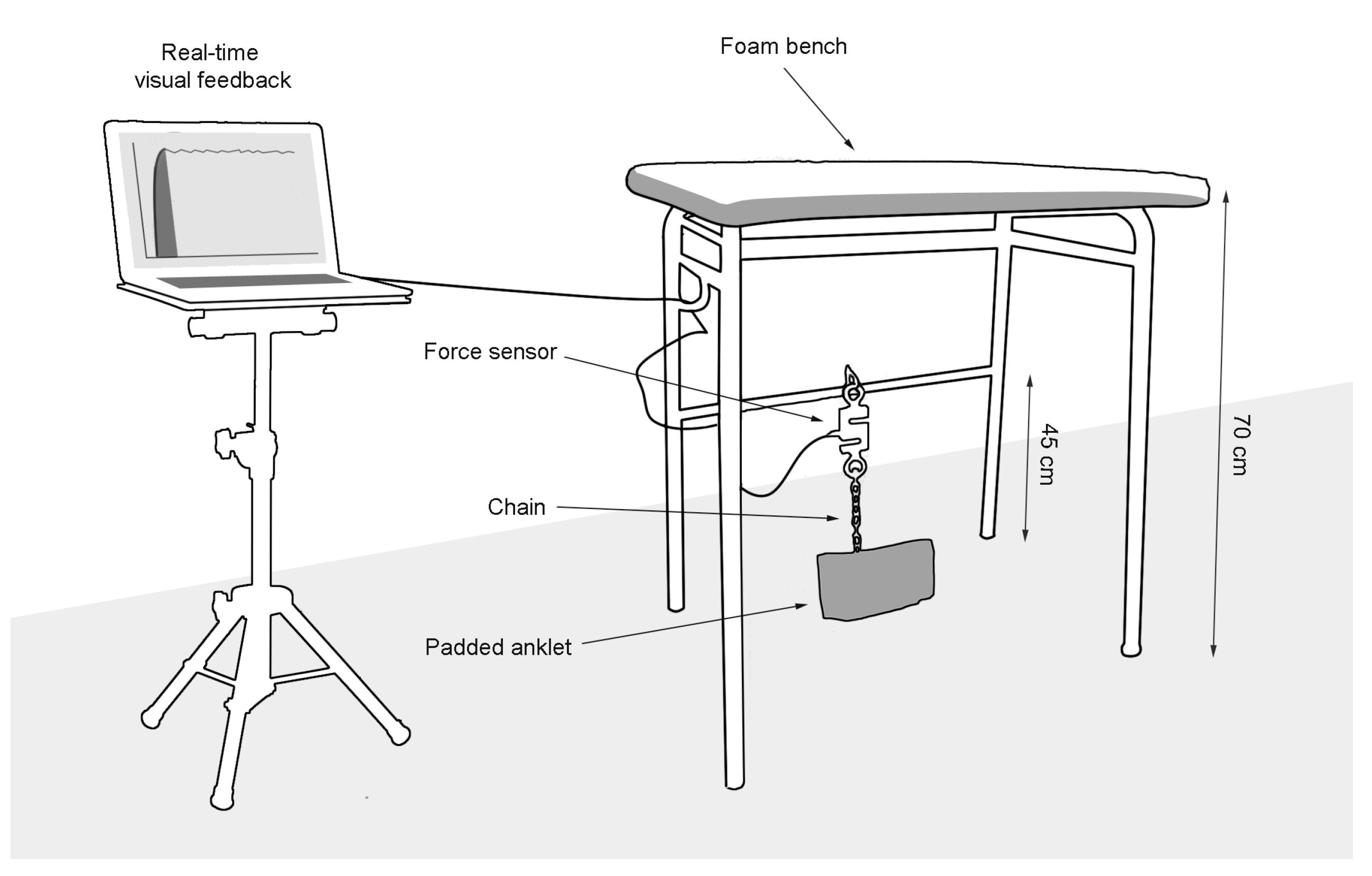

Figure 1. Isometric knee extension test set-up. The portable strain gauge secured at one end to the bench at 45 cm from the floor, and attached at the other to a chain connected to a resistant padded ankle. Visual feedback was given in real time using a computer software.
Figure 1. Isometric knee extension test set-up. The portable strain gauge secured at one end to the bench at 45 cm from the floor, and attached at the other to a chain connected to a resistant padded ankle. Visual feedback was given in real time using a computer software.
Applsci 10 04499 g001
Figure 2. Example (screen-capture obtained from the force sensor software) of some parameters for the force-time curve during the maximal isometric knee extension test. Raw data (original signal) are in black. Fitted data (inverse monoexponentially function that better fits the raw data) are in grey. Note: Fmax is named as maximal voluntary concentric force (MVC) in the present manuscript.
Figure 2. Example (screen-capture obtained from the force sensor software) of some parameters for the force-time curve during the maximal isometric knee extension test. Raw data (original signal) are in black. Fitted data (inverse monoexponentially function that better fits the raw data) are in grey. Note: Fmax is named as maximal voluntary concentric force (MVC) in the present manuscript.
Applsci 10 04499 g002
Table 1. Intra-session reliability in maximal voluntary contraction force (MVC), impulse, and rate of force development (RFD) variables for original data (raw).
Table 1. Intra-session reliability in maximal voluntary contraction force (MVC), impulse, and rate of force development (RFD) variables for original data (raw).
Raw DataDominant LegNon-Dominant LegDiff%
M (SD)CVSEMICCM (SD)CVSEMICC
 MVC (N)
  Session 1649 (115)9.1%59.90.887598 (91)5.8%34.00.869−8.9%
  Session 2676 (117)5.0%33.90.966618 (102)4.4%26.90.975−8.3%
Impulse050 (N·s)
  Session 17.1 (3.7)37.8%2.60.7886.2 (3.3)29.3%1.80.896−10.2%
  Session 27.6 (3.1)30.3%2.20.7987.3 (3.3)21.5%1.60.815−2.4%
Impulse0150 (N·s)
  Session 148.6 (15.1)16.0%7.80.91042.9 (14.0)11.9%5.10.956−13.1%
  Session 249.5 (14.0)10.7%5.30.95445.8 (13.5)16.6%7.60.909−8.0%
Impulse0250 (N·s)
  Session 1102.8 (26.2)11.7%12.00.92893.4 (24.8)8.2%7.70.969−10.0%
  Session 2105.1 (25.1)6.7%7.00.97696.6 (24.1)12.7%12.20.926−8.8%
RFD050 (N·s1)
  Session 14446 (2275)34.8%15480.8023959 (2209)26.9%10640.914−12.4%
  Session 24667 (1951)21.8%10160.9014256 (1989)32.1%13670.816−9.7%
RFD0150 (N·s1)
  Session 13074 (695)8.3%2540.9562771 (706)13.3%3690.934−10.9%
  Session 23087 (760)8.0%2470.9662881 (677)9.3%2680.959−7.2%
RFD0250 (N·s1)
  Session 12122 (426)7.0%1480.9591954 (430)9.6%1890.950−8.6%
  Session 22211 (491)7.7%1700.9582010 (393)6.0%1220.968−10.0%
RFDmax (N·s1)
  Session 16988 (2278)16.2%11350.9126118 (1933)21.3%13020.944−14.2%
  Session 27098 (2346)12.7%8990.9526800 (1858)24.4%16600.874−4.4%
SEM: standard error of measurement, CV: SEM expressed as a coefficient of variation, ICC: intraclass correlation coefficient. Diff %: percentage of difference between dominant and non-dominant leg.
Table 2. Intra-session reliability in maximal voluntary contraction force (MVC), rate of force development (RFD) and impulse variables for filtered data (fitted).
Table 2. Intra-session reliability in maximal voluntary contraction force (MVC), rate of force development (RFD) and impulse variables for filtered data (fitted).
Fitted DataDominant LegNon-Dominant Leg%Diff
M (SD)CVSEMICCM (SD)CVSEMICC
 MVC (N)
  Session 1628 (111)5.9%37.70.887568 (93)6.2%35.20.869−10.5%
  Session 2646 (117)5.6%35.90.969597 (96)4.7%27.90.975−8.2%
Impulse050 (N·s)
  Session 17.6 (2.9)22.6%1.70.7887.3 (2.6)25.8%1.90.815−15.9%
  Session 27.7 (2.8)15.8%1.20.7986.5 (2.6)15.1%1.00.896−5.3%
Impulse0150 (N·s)
  Session 148.4 (14.6)15.7%7.60.91043.1 (13.5)10.6%4.60.956−12.3%
  Session 249.3 (13.8)9.8%4.80.95446.1 (12.7)15.0%6.90.909−6.8%
Impulse0250 (N·s)
  Session 1102.8 (26.4)11.7%12.10.92896.4 (23.8)12.6%12.10.926−8.8%
  Session 2104.9 (25.3)7.1%7.40.97693.3 (25.0)8.4%7.80.969−10.2%
RFD050 (N·s1)
  Session 15465 (2000)21.2%11610.8024801 (1756)13.6%6510.914−13.8%
  Session 25589 (1840)13.6%7610.9015308 (1637)18.7%9910.816−5.3%
RFD0150 (N·s1)
  Session 13315 (850)12.2%4060.9563119 (766)11.5%358.20.934−6.3%
  Session 23411 (808)6.8%2320.9663042 (790)8.1%244.90.959−12.1%
RFD0250 (N·s1)
  Session 12318 (463)8.1%1880.9592120 (457)8.5%1810.950−9.3%
  Session 22365 (484)5.3%1260.9582142 (448)5.9%1260.968−10.4%
RFDmax (N·s1)
  Session 17561 (3447)28.8%21790.9126363 (2892)18.9%12020.874−21.3%
  Session 27721 (3340)21.3%16440.9527459 (2763)24.9%18560.944−1.4%
SEM: standard error of measurement, CV: SEM expressed as a coefficient of variation, ICC: intraclass correlation coefficient. Diff %: percentage of difference between dominant and non-dominant leg.
Table 3. Test-retest reliability (values of the highest trial conducted in Sessions 1 and 2) in maximal voluntary contraction force (MVC), rate of force development (RFD) and impulse variables for original (raw) and filtered (fitted) data.
Table 3. Test-retest reliability (values of the highest trial conducted in Sessions 1 and 2) in maximal voluntary contraction force (MVC), rate of force development (RFD) and impulse variables for original (raw) and filtered (fitted) data.
Test-RetestDominant LegNon-Dominant Leg
CVSEMICC%DiffpESCVSEMICC%DiffpES
Raw
MVC (N)5.7%38.00.948+2.5%0.2900.145.4%33.40.939+2.7%0.2480.17
Impulse050 (N·s)19.7%1.80.801+1.1%0.8820.0324.1%1.90.713−19.6%0.0750.50
Impulse0150 (N·s)10.0%5.40.908−0.6%0.8910.0211.4%5.60.955−6.5%0.1540.26
Impulse0250 (N·s)9.2%10.20.904<0.1%0.9940.017.4%7.50.929−3.5%0.2650.17
RFD050 (N·s1)15.6%8680.848−1.1%0.8700.0423.7%11840.742−7.6%0.4970.19
RFD0150 (N·s1)8.7%2830.914−0.1%0.9800.0110.4%3130.840+2.9%0.5300.14
RFD0250 (N·s1)7.3%1650.938+5.0%0.0810.245.7%1200.952−0.1%0.9820.01
RFDmax (N·s1)17.2%13490.799−0.8%0.9180.0322.0%16580.212+14.5%0.0950.67
Fitted
MVC (N)6.1%40.00.938+2.4%0.3060.135.0%30.20.947+2.5%0.2610.15
Impulse050 (N·s)13.3%1.20.901−0.5%0.9320.0217.1%1.40.810−16.4%0.0300.49
Impulse0150 (N·s)10.5%5.60.900−0.4%0.9370.0110.8%5.30.879−7.0%0.1460.28
Impulse0250 (N·s)9.1%10.10.904+0.3%0.9420.017.5%7.70.925−3.5%0.3110.16
RFD050 (N·s1)12.4%7780.898−0.6%0.9060.0214.8%8410.823−10.5%0.1150.38
RFD0150 (N·s1)8.9%3180.907+0.4%0.9230.026.5%2180.940−2.6%0.4110.21
RFD0250 (N·s1)7.1%1730.930+0.3%0.9250.014.6%1020.967−0.1%0.9580.01
RFDmax (N·s1)16.9%15480.891−0.2%0.9750.0122.9%18640.717−17.3%0.1060.45
SEM: standard error of measurement, CV: SEM expressed as a coefficient of variation, ICC: intraclass correlation coefficient, Diff: percentage of change between the average records of each session, p-value: t-test significance, ES: Hedge’s g effect size.
Table 4. Recommendations on maximal isometric knee extension force assessment based on reliability (intra-session level of agreement), preferable signal (raw: original; fitted: filtered) and the influence of a familiarization session (test-retest differences).
Table 4. Recommendations on maximal isometric knee extension force assessment based on reliability (intra-session level of agreement), preferable signal (raw: original; fitted: filtered) and the influence of a familiarization session (test-retest differences).
Isometric Knee Extension ForceReliabilityPreferable SignalInfluence of FamiliarizationInter-Limb Asymmetry
MVC(N)HighRaw/FittedLowLow
RFD0–250(N·s−1)HighFittedLowlow
Impulse0–250(N·s)HighRaw/FittedLowModerate
RFD0–150(N·s−1)ModerateRaw/FittedHighModerate
Impulse0–150(N·s)ModerateFittedHighHigh
RFD0–50(N·s−1)ModerateFittedVery highHigh
Impulse0–50(N·s)LowFittedVery highVery high
RFDmax(N·s−1)LowRawVery highVery high
