Review

Phytoremediation: The Sustainable Strategy for Improving Indoor and Outdoor Air Quality

1
Plamica Labs, Batten Hall, 125 Western Ave., Allston, Boston, MA 02163, USA
2
Department of Civil & Environmental Engineering, University of California-Irvine, Irvine, CA 92697, USA
*
Author to whom correspondence should be addressed.
Environments 2021, 8(11), 118; https://doi.org/10.3390/environments8110118
Submission received: 30 September 2021 / Accepted: 29 October 2021 / Published: 2 November 2021
(This article belongs to the Special Issue Feature Papers in Environments in 2021)

Abstract

:
Most of the world’s population is exposed to highly polluted air conditions exceeding the WHO limits, causing various human diseases that lead towards increased morbidity as well as mortality. Expenditures on air purification and costs spent on the related health issues are rapidly increasing. To overcome this burden, plants are potential candidates to remove pollutants through diverse biological mechanisms involving accumulation, immobilization, volatilization, and degradation. This eco-friendly, cost-effective, and non-invasive method is considered as a complementary or alternative tool compared to engineering-based remediation techniques. Various plant species remove indoor and outdoor air pollutants, depending on their morphology, growth condition, and microbial communities. Hence, appropriate plant selection with optimized growth conditions can enhance the remediation capacity significantly. Furthermore, suitable supplementary treatments, or finding the best combination junction with other methods, can optimize the phytoremediation process.

1. Introduction

Air is the most fundamental component for living organisms to survive, which is exceedingly polluted above the threshold limit due to the industrial revolution, global urbanization, burning fossil fuels, and other human activities [1]. In 2016, the World Health Organization (WHO) reported that more than 92% of the world’s population is exposed to air pollutants exceeding the WHO limits. According to this report, air pollution is the largest environmental risk factor, which leads to increased morbidity and mortality [2]. Moreover, the Center for Research on Energy and Clean Air (CREA) calculated that the economic loss and health costs caused by air pollution from burning of fossil fuels was $2.9 trillion in 2018, representing 3.3% of global GDP [3]. Thus, the development of technologies to remove/reduce air contaminants has emerged as a challenge of major importance for the global community.
Plants are autotrophic organisms that carry out intensive gas exchange for performing cellular activities, whereby air pollutants can be absorbed or accumulated internally [1]. Phytoremediation defines the bioremediation of contaminated air, soil, and water using plants [4]. It has been considered a widely applicable and sustainable technique because plants eliminate the environmental contaminants in an eco-friendly, cost-effective, and noninvasive manner. Plants reduce the mobility, toxicity, and volume of the contaminants through varied mechanisms, such as accumulation, immobilization, volatilization, and degradation. These biological processes ultimately need solar-based energy, and therefore phytoremediation is a cheaper method than engineering-based remediation methods. Thus, phytoremediation is seen as an alternative or complementary technology for air purifiers [5,6,7]. The present review summarized the types of air pollutants and their impact on human diseases, phytoremediation mechanisms, and the recent status of developments of phytoremediation in the field of air purification.

2. Air Pollutants

Any gaseous or particulate matter present in high concentration, and which is not usually part of the air, can be defined as atmospheric air pollution. Accompanying industrialization, urbanization, and other human activities have generated a large number of hazardous pollutants that ultimately threaten human health and environment [8]. Among the types of pollutants, primary pollutants are released directly into the atmosphere, and secondary pollutants are formed through diverse chemical reactions in the presence of solar radiation [9]. Figure 1 illustrates the key air pollutants affecting the environment and human health, and their sources.

2.1. Particulate Matter (PM)

PM can be defined as a mixture of solid particles and liquid droplets with varied sizes, shapes, origins, and chemical compositions [10]. Outdoor PM is generated by both natural (e.g., forest fires, sandstorm, and soil and rock erosion) and anthropogenic sources (e.g., industrial activities, energies and solid-fuel combustion, mining, cement manufacturing, and road dust) [11]. Indoor PM is produced by human activities such as cooking or cleaning; however, the most indoor PM come from outdoor sources [12]. Based on the aerodynamic diameter, PM is classified in four fractions: PM10 (<10 μm), PM2.5–10 (2.5 μm to 10 μm), PM2.5 (<2.5 μm), and PM0.1 (<0.1 μm) [13]. Depending on the time and regions, PM comprises varied chemical compositions, leading to different PM toxicity. Ions, organic compounds, reactive gas, minerals, transition metals, quinoid stable radicals of carbonaceous material, or materials of biological origin are the representative PM-containing components [2,14].

2.2. Volatile Organic Compounds (VOCs)

Volatile organic compounds (VOCs) define any compound of carbon, excluding carbon monoxide, carbon dioxide, carbonic acid, metallic carbides or carbonates, and ammonium carbonate, which participates in atmospheric photochemical reactions, except those designated by the EPA as having a negligible photochemical reactivity [15]. VOCs are emitted directly through transportation, industrial processes, and various outdoor sources. In an indoor environment, VOCs are emitted from almost every material, such as building materials, coated wood-based materials, coated different parts of the furniture, paper products, and carpets [16,17]. Among the hundreds of VOC species, benzene, toluene, ethylbenzene, and xylene (BTEX) and formaldehyde are most abundantly found in air [18]. Researchers have paid attention to VOCs because they are the significant contributors to the formation of ozone (O3) in ambient conditions [19]. More so, discharge of VOCs into the environment result in ozone layer depletion in the stratosphere, urban smog, and the greenhouse effect.

2.3. Inorganic Air Pollutants (IAC)

Inorganic air pollutants (IAC) predominantly comprise of carbon dioxide (CO2), carbon monoxide, O3, nitrogen oxides (NOx), and sulfur dioxide (SO2) [18]. While CO2 is naturally present as part of the Earth’s carbon cycle, it is more well known as the main greenhouse gas that is generated predominantly by the combustion of fossil fuels, construction of transport infrastructure, and energy production. The CO2 emission by human activities has significantly contributed to its excess in the atmosphere, resulting in various problems such as global climate change, which threatens human health [20,21]. SO2, a stinging gas, is well known as the main component of acid rain and is mainly generated by the combustion of coal or other fuels. Nowadays, low-sulfur-containing fuels and SO2 scrubbers have been developed to decrease the SO2 concentration [22,23]. Another major component of acid rain, NOx, is produced mainly by combustion processes, such as automobile traffic. NOx plays a critical role in the photochemical oxidant cycle, generating O3, which might impact human health [18]. O3 can be produced in the troposphere by complex photochemical reactions with VOCs, CO, or NOx [24].

2.4. Others

Other air pollutants showing a negative influence on human health include persistent organic pollutants (POPs), black carbon, and heavy metals. POPs including dioxins, furans, polyaromatic hydrocarbons (PAHs), and polychlorinated biphenyls (PCBs) that can be accumulated in the body through the food chain, known as biomagnification [25]. Although the amount of POPs emission is not considerable, they are resistant to degradation in the environment; this increased bioaccumulation, leading to adverse impacts on human health, have raised serious concerns [1]. Heavy metals, such as arsenic, chromium, lead, mercury, cadmium, copper, antimony, and zinc, can be combined with particulate matter, which are bioavailable and thus easily accumulate in human cells [9]. Black carbon is a climate-modifying pollutant and one of the major components of PM [2].

3. Air Pollution and Human Diseases

According to the WHO, one out of every nine deaths in 2012 was correlated to air pollution-related conditions [2]. Studies have emphasized the close link between air contaminants and human diseases involving the upper airway, pulmonary, cardiovascular, liver, respiratory, renal, autoimmune, skin, eye diseases, and diabetes. For example, data on VOCs was reported to be positively correlated with emergency hospital visits for chronic obstructive pulmonary diseases [26]. Another report also demonstrated that exposure to VOCs increased the pulmonary health risk through alteration of the gas-liquid interface properties of pulmonary surfactants [27]. Short-term exposure to VOCs emitted from building materials can cause relatively mild symptoms, such as headache, dizziness, or irritation of the eyes or skin, while long-term exposure may result in life-threatening diseases, such as reduced pulmonary function, leukemia, and tumors [19].
Other reports on short-term exposure to NO2 and SO2 also showed positive correlation with hospitalization and mortality caused by respiratory diseases [28,29]. In Iran, where the yearly average SO2 concentration was exceeded 8.62 times more than the WHO guidelines during the study period, a high hospitalization rate was observed for cases of acute respiratory diseases and asthmatic symptoms [30]. Compared to exposure to the first quartile of SO2 (<3.38 ppb) and NOx (<23.4 ppb), exposure to those from the fourth quartile (SO2 > 6.03 ppb, NOx > 38.6 ppb) increased the risk of chronic kidney diseases by 1.46- and 1.39-fold and end-stage renal diseases by 1.32- and 1.70-fold, respectively [31]. SO2 predominantly irritates the upper airway, in turn inducing bronchoconstriction and mucus. Asthmatics, hyper-reactive airways, and other SO2-related diseases are sensitive to acute exposure rather than chronic exposure because just a small amount of SO2 deposits in the upper respiratory tract and penetrates into the lung. However, inhalation of excessive SO2 can result in larynx, bronchi, trachea, and alveoli injury as SO2 dissolves in the fluid, subsequently generating sulfites and bisulfites that oxidize to hydrogen peroxide and superoxide ion [8]. Inhaled NOx is converted into nitric and nitrous acids in lung fluids, injuring cell structure and function. Additionally, NO2 with O3 generates free radicals, which induces lipid peroxidation, in turn damaging the cell membrane [32].
Recently, more studies have emphasized the association of PM exposure with a high risk of various human diseases. PM larger than 2.5 μm enters the nose, throat, larger upper branches, or bronchial tubes, depending on their size. From these locations, the particles can be eliminated by coughing, sitting, or swallowing. Whilst, particles smaller than 2.5 μm penetrate the deepest alveolar portions of the lung. Then, water-soluble particles pass directly into the blood in the alveolar capillaries, while water dissoluble particles remain in the lung causing inflammation, which releases bioactive substances into the bloodstream and lead to coagulation of the blood [8,14]. There is increasing evidence implying the association of PM2.5 with lung inflammation and fibrosis, as a result in a series of chronic obstructive pulmonary diseases or asthma [33]. PM2.5 could be internalized into cells through phagocytosis or pinocytosis, in turn activating the NLRP3 inflammasome, which led to lung fibrosis [34]. A recent study exposed PM2.5 to RAW254 cells and observed that macrophages played a critical role in PM2.5-induced respiratory inflammation by activating TLR4/NF-kB/COX signaling [35]. Meanwhile, acute exposure to PM10 and PM2.5 particularly increased cardiovascular disease-related deaths [14]. Another study reported that an increase of 10 μg/m3 PM2.5 resulted in a 16% increased mortality due to ischemic heart disease and 14% increased mortality due to stroke [36]. An investigation of 65,893 postmenopausal women without previous cardiovascular diseases was conducted; among them, 1816 women suffered fatal or nonfatal cardiovascular events in response to PM2.5 exposure. They demonstrated that an increase of 10 μg/m3 PM2.5 was associated with a 24% increase in the cardiovascular disease incident and a 76% increase in cardiovascular disease-related death [37]. Other studies that revealed a significant correlation between PM exposure and other human diseases are summarized in Table 1 [38,39,40,41].
Interestingly, the high spread of the newly emerged Severe Acute Respiratory Syndrome Coronavirus 2 (SARS-CoV-2) disease (COVID-19) may be also related to air pollution. According to a recent report, the air quality index and the levels of PM2.5 and PM1.0 are positively associated with COVID-19 infection [42]. As the atmospheric PM has a sub-layer, the virus could survive in airflows for hours or days [43]. In the northern regions of Italy, one of the most affected regions by COVID-19, showed a great amount of atmospheric particulate matter going above the legislative standards in February 2020. In response to exposure to air pollution, angiotensin-converting enzyme 2, the receptor for SARS-CoV-2, was upregulated, which might increase the efficiency of viral infection. Moreover, air pollution could accelerate SARS-CoV-2 spread and survival by facilitating their transmission and attachment to a pollutant [44].
Several potential mechanisms have been suggested that can be activated in the human body by air pollutants. There is an increasing scientific consensus that the inhaled air pollutants generate reactive oxygen species (ROS) that, in turn, induces a systemic inflammatory state and autonomic nervous system imbalance [8,45,46,47]. Meanwhile, air pollutants contain byproducts of oxidative stress that trigger or exacerbate the inflammatory reaction by damaging mitochondrial function [48,49,50]. The interaction between the byproducts and certain genes may also induce specific chronic diseases. The accumulated data indicate that inhaled PM can cause an increase in the white blood cell count, blood pressure, fibrinogen levels, plasma viscosity, inflammatory responses, insulin resistance, and endothelial dysfunction, as well as a decrease in NO excretion and impaired sodium excretion. All these alterations are correlated with vascular damage, intraglomerular hypertension, glomerulosclerosis, or tubulointerstitial damage, which cause various diseases [45,51].

4. Mechanisms of Phytoremediation

Understanding the basic phytoremediation processes is vital to advance the applicability of plants for air purification. The gas exchange to obtain CO2 is well known as a primary process of plants [1]. During this process, the phyllosphere of plants absorbs the air contaminants and transferred them into the soil and rhizosphere, consequently, metabolized, isolated, or excreted into the substances showing lower toxicity and promoting plant growth [18]. Figure 2 illustrates various phytoremediation processes.

4.1. Phytoextraction (Phytoaccumulation)

Phytoextraction or phytoaccumulation defines the uptake of contaminants, primarily metals, from the soil [52]. In general, the uptake of contaminants into plants is performed by the root via an aqueous phase. The soil contaminants resulting from air pollution penetrate through the plasma membrane into the cytoplasm of the root cells via transpiration, diffusive transport, and microbial-facilitated transport [53].

4.2. Phytostabilization (Phytoimmobilization)

Phytostabilization describes the immobilization of contaminants that occurs in the rhizosphere area. Lignin in the cell wall of plant roots or humus absorbs and converts contaminants into insoluble compounds, in turn accumulating them in the rhizosphere [25]. In general, this technique is useful for soil remediation to reduce metal contaminants such as arsenic, cadmium, chromium, copper, lead, and zinc. The phytostabilization process prevents the migration of contaminants into the groundwater by reducing their mobility, diminishing the bioavailability of metal into the food chain. Moreover, this process can reconstruct the vegetation cover where natural vegetation is difficult due to high metal concentrations in the soil or physical disturbances by surface materials [54].

4.3. Phytovolatilization

In phytovolatilization, the inorganic and organic contaminants captured by plants are degraded and subsequently volatilized into the atmosphere through stomata [55]. The transpired contaminants may be degraded by hydroxyl radicals into the atmosphere and can stay as air pollutants but with a lower toxicity than before [56].

4.4. Phytodegradation (Phytotransformation)

Phytodegradation describes the breakdown of complex organic pollutants to simple compounds or metabolization of pollutants in the phyllosphere and rhizosphere [57]. The transformation in the rhizosphere, also termed as rhizodegradation (or considered as phytostimulation), is carried out by soil organisms such as bacteria, fungi, or enzymes released from plants or microorganisms [56]. The contaminants are degraded in the rhizosphere, as well as within the plants by specific plant enzymes such as nitroreductases, dehalogenases, and laccases [25]. The compounds released from plants, such as sugars, amino acids, or enzymes, can stimulate bacterial growth in the soil and reversely stimulate microbial and fungal degradation by releasing exudates/enzymes into the rhizosphere. That is why rhizodegradation is also called plant-assisted bioremediation [54,58].

4.5. Phytofiltration

This technique is dominantly used for remediation of groundwater, wastewater, or surface water contaminated by metals or organic and inorganic compounds [59]. When plants exceed the saturation limit of contaminants, they act similarly to phytoextraction. The rhizosphere of plants ab/adsorb and precipitate contaminants into the biomass, which is why this process is generally called rhizofiltration. To use this technique effectively, tolerance for contaminants, high surface area, root biomass, and accumulation capacity are the most important criteria for selecting the appropriate plant species [25].

5. Phytoremediation Mechanisms of Main Air Pollutants

5.1. Removal of Gaseous Pollutants

During photosynthesis, plants absorb the VOCs through the stomata and cuticle wax, subsequently converting them into amino acids through the Calvin cycle [60,61]. In the intercellular spaces of plants, the absorbed pollutants are stored or react with the inner-leaf surfaces and water film, then are degraded or excreted into the atmosphere [18,25]. Other common gaseous air pollutants, such as SO2, CO2, NOx, and O3, are also accumulated in plant cells and tissues mainly through the stomata, wax, and cuticles. Photosynthesis is a basic plant mechanism in which plants absorb carbon dioxide (CO2) and changes it into oxygen. Stomata located on the epidermis of leaves and plant stems are the primary area where the gas exchange process occurred [62]. SO2 is predominantly accumulated through the stomata, then utilized in a reductive sulfur cycle. NO2 accumulates in plant cells directly through foliar deposition or indirectly through soil deposition or rainwater. The leaf penetration of NO2 occurs via stomata opening and is governed by various factors, including the plant species, plant age, and atmospheric concentration of NO2. NO2 may also be accumulated in plants in the form of nitrate and nitrite, subsequently being reduced by nitrate and nitrite reductases, generating NH4, which is then assimilated to glutamate through the GS-GOGAT pathway [63,64].

5.2. Removal of Aerosol Pollutants (Prticulate Matter)

PM removal depends on plant-morphology, climatic circumstances, such as rain and wind, and composition of PMs. Plants remove PM predominantly via two mechanisms. First, they adsorb PM through their shoots or foliage or shoots, in turn accumulating them in the phyllosphere [25]. The removal capacity via this mechanism is significantly correlated with the leaf structure, size, and surface roughness. Meanwhile, plants can stabilize PM in their wax layers, which is influenced by the wax thickness and composition [65].
Some plant-associated microbes play a role in pollutants removal by degrading organic pollutants or reducing the phytotoxicity of the contaminants [64]. In addition, they contribute to plant growth and development by producing plant growth hormones and organic acids to cope with biotic and abiotic stress, such as pollution. These released products lead to increased plants biomass, subsequently improving the PM removal capacity [66,67]. In general, PM toxicity is induced by ROS generation on its surface, which is related to surface-associated EPFRs (environmentally persistent free radicals). Some plant-associated microbes reduce the EPFR concentration on the PM surface, also neutralizing the ROS formed by the EPFRs. However, the detoxification mechanism of the contaminants on the surface of leaves by microorganisms has not been well determined [18].

6. Applications of the Phytoremediation for Improving Air Quality

6.1. Indoor Air Quality

The initial study that used the phytoremediation technique for air pollution mitigation was conducted by the National Aeronautics and Space Administration (NASA). This study achieved a reduction of more than 300 VOCs in the interior atmosphere of their station (Skylab), which triggered the investigation for improving indoor air quality using potted plants [68]. Ornamentally potted Chamaedorea elegans plants were used to remove formaldehyde in the experimental chamber; subsequently, C. elegans eliminated formaldehyde with a maximum capacity of 1.47 mg/m2 h at an inlet concentration of 14.6 mg/m3 [69]. A study revealed that Opuntia microdasys removed 2 ppm of BTEX in the experimental chambers completely after 47, 48, 55, and 57 h at the removal rates of 1.64, 1.18, 0.54, and 1.35 mg/m2d1, respectively. The study suggested that 2.5 ppm of BTEX in a 30 m3 room can be removed completely by ten O. microdasys pots after 36, 40, 30, and 39 h, respectively [70]. Another study demonstrated that potted Chlorophytum comosum L. accumulated indoor PM10, PM2.5, and PM0.2. in their wax to facilitate the attachment of PM to leaves tightly, and it was effectively stabilized [71]. Usage of microorganisms can improve the remediation capacity of potted plants. Addition of cultured microorganisms into the rhizosphere of plant species improved the formaldehyde removal efficiency: removal rates for fresh weight Aloe vera 23.1 ± 0.1 μg/h with microbes versus 18.5 ± 0.21 μg/h/g without microbes; Tradescantia zebrine 86.4 ± 0.7 with microbes versus 59.3 ± 0.2 μg/h/g without microbes; and Vigna radiata 97.6 ± 0.9 with microbes versus 25.1 ± 4.2 μg/h/g without microbes [72]. In addition, a hydroponic system was designed that was composed of Ophiopogon japonicus and phenol-degrading bacteria, Staphylococus epidermis and Pseudomonas spp., which was combined with an air compressor. This system showed the high phenol-degrading capacity of about 1000 g/L daily [73]. Although potted plants revealed the ability to reduce air contaminants, their capacity is deficient to control complex air pollutants or indoor air conditions. For example, indoor spaces have low light intensity conditions that lead plants to emit a significant amount of CO2 into the atmosphere during their respiration [74]. This problem was resolved using a botanical biofilter composed of CAM and C3 plant species [75,76]. CAM plant species are capable of fixing CO2 during the nighttime, and C3 plant species fix CO2 during the daytime and emit it during the night [77]. Hence, the mixture of CAM and C3 plants in a botanical biofilter can minimize the total CO2 emission accompanying high VOCs and PM2.5 removal efficiency, compared to the biofilter composed of individual plant species [76]. As mentioned above, the botanical biofilter (green wall) is gaining more attention because generally plants in green walls are vertically aligned, and this alignment can provide a space-efficient means of exposing greater plant biomass to the polluted air [68]. The authors in [78] emphasized the importance of plant selection on the plant wall, since the green walls composed of different plant species showed different PM single-pass removal efficiencies (SPRE). In this study, fern species removed all measured particle sizes with the highest removal efficiencies (PM0.3–0.5 = 45.78% and PM5–10 = 92.46%), and plants with fibrous roots revealed a higher removal efficiency than those having tap roots. Meanwhile, various studies demonstrated that the airflow through the plant wall and the optimization of the growing medium in the plant wall system can maximize the capacity of the biofiltration. A recent study suggested the prototype of a botanical biofilter, which comprises of a botanical biofilter containing the horizontally grown plants in growth media, an evaporative medium, and a mechanical ventilation system. This biofilter revealed PM2.5, PM10, and VOCs removal efficiencies of 54.5%, 65.42%, and 46%, respectively [79]. Another recent study reported that a botanical biofilter using a large-scale indoor species by connecting it to an air handling unit (AHU). Consequently, this system removed 3826.4 ppbv of isobutylene with an initial concentration of 5000 ppm, recording an average of 2% single-pass efficiency [80]. A study also suggested that a fan located at a central opening on the green wall’s back side can drive air through the plant medium, then onward to the plant’s canopy, which can increase the rate of air purification. Moreover, the wet plant wall modules led to much more air through the modules as the water coalesced the medium particles that generated larger pores for air to pass through [81]. For optimizing the biowall capacity, the selection of a plant medium was emphasized; the organic-rich growing medium of vermicompost along with perlite and cocopeat was suggested as an optimized internal green wall medium, especially when this is combined with Aptenia cordifolia [82]. By adding granular activated carbon into the differently sized coconut husk-based substrates could improve the VOC removal capacity of the biowall, and it was suggested that a 50:50 composite medium presented the best VOC deposition [83]. Plant walls containing a soil-less growing medium with activated carbon, which was connected to the forced-air system, reduced the VOCs significantly, recording a 57% single-pass removal efficiency [84].
To understand the plant wall mechanism compared to the plant in the soil, a study investigated the change in bacterial communities surrounding plant roots in the botanical biofilter in response to VOC exposure. Consequently, they observed differences in bacterial communities between the biowall-grown and soil-grown plants as well as between bacterial communities surrounding plant roots exposed to clean air and those from VOC-exposed plant roots. As an enriched level of Hyphomicrobium, well known as a degrader of halogenated and aromatic compounds, was observed from VOC-exposed and biowall-grown roots, this bacterial genus was suggested as the key microorganism in the plant wall mechanism [85]. Another study monitored the microbial dynamics in the plant walls, subsequently establishing that airborne VOCs formed microbial communities, enriching the VOCs utilizing bacteria species in the irrigation water, where most of the VOC degradation in the biowall occurs [86]. Though microbial communities surrounding the wall-grown plants play a critical role in phytoremediation, most studies have focused on VOC-related microorganisms. Therefore, future investigations of microbial communities in response to exposure to other pollutants is needed for understanding the biowall mechanism. Further investigation of the toxicity of the biodegradation products also is needed to develop an appropriate usage of microorganisms in the phytoremediation process. More details about the phytoremediation for improving indoor air quality are listed in Table 2.

6.2. Outdoor Air Quality

While most phytoremediation technologies have been developed at the lab-scale, the potential of various plant species to reduce outdoor air pollution has been well established. In 2015, shrubs and trees in Tabriz removed 238.4 t of air pollutants, and they are expecting an increase of the elimination level up to 814.46 t over the next 20 years [87]. In another study, vines, shrubs, and coniferous trees were demonstrated as suitable species for phytoremediation. Among them, Parthenocissus quiquefolia and Betula pendula ‘Youngii’ showed the highest capacity to remove PMs by collecting them on the wax [88]. By sampling leaves from in situ plant walls, the authors in [89] examined that Nematanthus glabra, Chlorophytum comosum variegatum, Philodendron Xanadu, and Spathiphyllum wallisii showed the highest PM accumulating capacity. They found no specific correlation between leaf traits and PM deposition, while other indoor-based studies have considered that leaf characteristics play a critical role in performing PM removal in green walls. In contrast to this study, most outdoor-based studies discovered a close correlation between remediation capacity and leaf characteristics. Wedelia trilobata, having wider leaves, have been reported to absorb more heavy metals than Syzigium oleina showing a smaller leaf surface area [90]. Moreover, plants presenting the acicular needle shape in their leaves accumulated PM2.5 more efficiently than plants having broad leaves [91]. Plant species with a low leaf area, hydrophilic leave traits, and a high abaxial stomatal density entrapped significantly more ambient PM; accordingly, Muntingia calabura removed the highest amount of PM among 49 screened plant species [92]. Hebe albicans Cockayne, Hebe x youngii Metcalf, Buxus sempervirens L., and Thymus vulgaris L., having smaller leaves, entrapped a significant amount of PM1, PM2.5, and PM10 [93]. In addition, the leaves with adaxial surfaces revealed significantly higher PM densities compared to the leaves with abaxial surfaces [93]. Meanwhile, the pollutant removal capacity varies from spaces having different degrees of pollution. For example, Cinnamomum japonicum, Loropetalum chinense, and Osmanthus fragrans possessed high efficiency for PM accumulation in traffic and university campus areas, also showing moderate removal efficacy in an industrial area [94]. A recent study evaluated Air Pollution Tolerance Indices (APTI) from sixty-seven plant species in terms of chlorophyll and ascorbic acid levels, leaf pH, and relative water content. They suggested that the plants with the highest APTI (greater than 10.83) for planting near areas showing heavy vehicular air pollution, and the species showing the next highest APTI (10.83 to 8.77) for greenbelts [95]. Although, the potential of plants to improve the outdoor air condition has been well established, while their functional value at the in situ scale is yet to be assessed adequately [96]. More details about the phytoremediation for improving outdoor air quality are listed in Table 3.

7. Conclusions

Phytoremediation is an emerging potential tool to improve in situ air conditions due to its significant advantages, such as being eco-friendly, cost-effective, and having publicly applicable methods. However, plant growth mainly depends on the growing conditions, while the remedy mechanisms are relatively slower than other mechanical air-purifying processes. The applicability of the phytoremediation technique in highly polluted air has not been clearly revealed. To become a complementary or alternative tool for engineering-based remediation methods, optimizing the remedy process by supplementary treatments or finding the best combination junction with other methods is necessary. Moreover, investigation of the toxicity of the biodegradation products is needed for high public acceptance.

Author Contributions

Conceptualization, H.L. and Z.J.; data curation, H.L.; writing—original draft preparation, H.L. and Z.J.; writing—review and editing, Z.Z.; visualization, H.L and Z.J.; supervision, Z.Z.; All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gawronski, S.W.; Gawronska, H.; Lomnicki, S.; Sæbo, A.; Vangronsveld, J. Plants in Air Phytoremediation. Adv. Bot. Res. 2017, 83, 319–346. [Google Scholar] [CrossRef]
  2. World Health Organization. Ambient Air Pollution: A Global Assessment of Exposure and Burden of Disease; World Health Organization: Geneva, Switzerland, 2016. [Google Scholar]
  3. Farrow, A.; Miller, K.A.; Myllyvirta, L.; Newport, E.; Son, M. Toxic Air: The Price of Fossil Fuels; Greenpeace Southeast Asia: Bangkok, Thailand, 2020. [Google Scholar]
  4. Truu, J.; Truu, M.; Espenberg, M.; Nõlvak, H.; Juhanson, J. Phytoremediation and Plant-Assisted Bioremediation in Soil and Treatment Wetlands: A Review. Open Biotechnol. J. 2015, 9, 85–92. [Google Scholar] [CrossRef]
  5. Boyajian, G.E.; Carreira, L.H. Phytoremediation: A Clean Transitionfrom Laboratory to Marketplace? Nat. Biotechnol. 1997, 15, 127–128. [Google Scholar] [CrossRef] [PubMed]
  6. Pilon-Smits, E. Phytoremediation. Annu. Rev. Plant Biol. 2005, 56, 15–39. [Google Scholar] [CrossRef]
  7. Singh, O.V.; Labana, S.; Pandey, G.; Budhiraja, R.; Jain, R.K. Phytoremediation: An Overview of Metallic Ion Decontamination from Soil. Appl. Microbiol. Biotechnol. 2003, 61, 405–412. [Google Scholar] [CrossRef]
  8. Yang, W.; Omaye, S.T. Air Pollutants, Oxidative Stress and Human Health. Mutat. Res. Genet. Toxicol. Environ. Mutagenesis 2009, 674, 45–54. [Google Scholar] [CrossRef]
  9. Agarwal, P.; Sarkar, M.; Chakraborty, B.; Banerjee, T. Phytoremediation of Air Pollutants: Prospects and Challenges. In Phytomanagement of Polluted Sites; Elsevier: Amsterdam, The Netherlands, 2019; pp. 221–241. ISBN 9780128139134. [Google Scholar]
  10. Davidson, C.I.; Phalen, R.F.; Solomon, P.A. Airborne Particulate Matter and Human Health: A Review. Aerosol Sci. Technol. 2005, 39, 737–749. [Google Scholar] [CrossRef]
  11. World Health Organization; Regional Office for Europe. Health Effects of Particulate Matter; World Health Organization: Geneva, Switzerland, 2013; ISBN 9789289000017. [Google Scholar]
  12. Lin, Y.; Zou, J.; Yang, W.; Li, C.Q. A Review of Recent Advances in Research on PM2.5 in China. Int. J. Environ. Res. Public Health 2018, 15, 438. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Araujo, J.A.; Nel, A.E. Particulate Matter and Atherosclerosis: Role of Particle Size, Composition and Oxidative Stress. Part. Fibre Toxicol. 2009, 6, 1–19. [Google Scholar] [CrossRef] [Green Version]
  14. Fiordelisi, A.; Piscitelli, P.; Trimarco, B.; Coscioni, E.; Iaccarino, G.; Sorriento, D. The Mechanisms of Air Pollution and Particulate Matter in Cardiovascular Diseases. Heart Fail. Rev. 2017, 22, 337–347. [Google Scholar] [CrossRef]
  15. U.S. Environmental Protection Agency. Code of Federal Regulations, 40: Chapter 1, Subchapter C, Part 51, Subpart F, 51100. Available online: https://www.epa.gov/indoor-air-quality-iaq/technical-overview-volatile-organic-compounds (accessed on 8 February 2009).
  16. Ulker, O.C.; Ulker, O.; Hiziroglu, S. Volatile Organic Compounds (VOCs) Emitted from Coated Furniture Units. Coatings 2021, 11, 806. [Google Scholar] [CrossRef]
  17. Deng, B.; Kim, C.N. An Analytical Model for VOCs Emission from Dry Building Materials. Atmos. Environ. 2004, 38, 1173–1180. [Google Scholar] [CrossRef]
  18. Weyens, N.; Thijs, S.; Popek, R.; Witters, N.; Przybysz, A.; Espenshade, J.; Gawronska, H.; Vangronsveld, J.; Gawronski, S.W. The Role of Plant–Microbe Interactions and Their Exploitation for Phytoremediation of Air Pollutants. Int. J. Mol. Sci. 2015, 16, 25576–25604. [Google Scholar] [CrossRef] [Green Version]
  19. Soni, V.; Singh, P.; Shree, V.; Goel, V. Effects of VOCs on Human Health. In Energy, Environment, and Sustainability; Springer Nature: Basingstoke, UK, 2018; pp. 119–142. [Google Scholar]
  20. Frumkin, H.; Hess, J.; Luber, G.; Malilay, J.; McGeehin, M. Climate Change: The Public Health Response. Am. J. Public Health 2008, 98, 435–445. [Google Scholar] [CrossRef] [PubMed]
  21. Sadatshojaie, A.; Rahimpour, M.R. CO2 emission and air pollution (volatile organic compounds, etc.)–related problems causing climate change. In Current Trends and Future Developments on (Bio-) Membranes; Elsevier: Amsterdam, The Netherlands, 2020; pp. 1–30. [Google Scholar]
  22. Florentina Gheorghe, I.; Ion, B. The Effects of Air Pollutants on Vegetation and the Role of Vegetation in Reducing Atmospheric Pollution. In The Impact of Air Pollution on Health, Economy, Encironment and Agricultural Sources; In Tech: Kwun Tong, Hong Kong, 2011; pp. 241–280. [Google Scholar]
  23. Srivastava, R.K.; Jozewicz, W.; Singer, C. SO2 Scrubbing Technologies: A Review. Environ. Prog. 2001, 20, 219–228. [Google Scholar] [CrossRef]
  24. Agudelo-Castaneda, D.M.; Teixeira, E.C. Time-Series Analysis of Surface Ozone and Nitrogen Oxides Concentrations in an Urban Area at Brazil. Atmos. Pollut. Res. 2014, 5, 411–420. [Google Scholar] [CrossRef] [Green Version]
  25. Lee, B.X.Y.; Hadibarata, T.; Yuniarto, A. Phytoremediation Mechanisms in Air Pollution Control: A Review. Water Air Soil Pollut. 2020, 231, 1–13. [Google Scholar] [CrossRef]
  26. Ran, J.; Kioumourtzoglou, M.A.; Sun, S.; Han, L.; Zhao, S.; Zhu, W.; Li, J.; Tian, L. Source-Specific Volatile Organic Compounds and Emergency Hospital Admissions for Cardiorespiratory Diseases. Int. J. Environ. Res. Public Health 2020, 17, 6210. [Google Scholar] [CrossRef]
  27. Zhao, Q.; Li, Y.; Chai, X.; Xu, L.; Zhang, L.; Ning, P.; Huang, J.; Tian, S. Interaction of Inhalable Volatile Organic Compounds and Pulmonary Surfactant: Potential Hazards of VOCs Exposure to Lung. J. Hazard. Mater. 2019, 369, 512–520. [Google Scholar] [CrossRef] [PubMed]
  28. Luo, L.; Zhang, Y.; Jiang, J.; Luan, H.; Yu, C.; Nan, P.; Luo, B.; You, M. Short-Term Effects of Ambient Air Pollution on Hospitalization for Respiratory Disease in Taiyuan, China: A Time-Series Analysis. Int. J. Environ. Res. Public Health 2018, 15, 2160. [Google Scholar] [CrossRef] [Green Version]
  29. Ren, M.; Li, N.; Wang, Z.; Liu, Y.; Chen, X.; Chu, Y.; Li, X.; Zhu, Z.; Tian, L.; Xiang, H. The Short-Term Effects of Air Pollutants on Respiratory Disease Mortality in Wuhan, China: Comparison of Time-Series and Case-Crossover Analyses. Sci. Rep. 2017, 7, 1–9. [Google Scholar] [CrossRef]
  30. Bonyadi, Z.; Arfaeinia, H.; Fouladvand, M.; Farjadfard, S.; Omidvar, M.; Ramavandi, B. Impact of Exposure to Ambient Air Pollutants on the Admission Rate of Hospitals for Asthma Disease in Shiraz, Southern Iran. Chemosphere 2021, 262, 128091. [Google Scholar] [CrossRef] [PubMed]
  31. Lin, S.Y.; Ju, S.W.; Lin, C.L.; Hsu, W.H.; Lin, C.C.; Ting, I.W.; Kao, C.H. Air Pollutants and Subsequent Risk of Chronic Kidney Disease and End-Stage Renal Disease: A Population-Based Cohort Study. Environ. Pollut. 2020, 261, 114154. [Google Scholar] [CrossRef]
  32. Gorguner, M.; Akgun, M. Acute Inhalation Injury. Eurasian J. Med. 2010, 42, 28–35. [Google Scholar] [CrossRef] [PubMed]
  33. Øvrevik, J.; Refsnes, M.; Låg, M.; Holme, J.A.; Schwarze, P.E. Activation of Proinflammatory Responses in Cells of the Airway Mucosa by Particulate Matter: Oxidant- and Non-Oxidant-Mediated Triggering Mechanisms. Biomolecules 2015, 5, 1399–1440. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Zheng, R.; Tao, L.; Jian, H.; Chang, Y.; Cheng, Y.; Feng, Y.; Zhang, H. NLRP3 Inflammasome Activation and Lung Fibrosis Caused by Airborne Fine Particulate Matter. Ecotoxicol. Environ. Saf. 2018, 163, 612–619. [Google Scholar] [CrossRef] [PubMed]
  35. Fu, H.; Liu, X.; Li, W.; Zu, Y.; Zhou, F.; Shou, Q.; Ding, Z. PM2.5 Exposure Induces Inflammatory Response in Macrophages via the TLR4/COX-2/NF-ΚB Pathway. Inflammation 2020, 43, 1948–1958. [Google Scholar] [CrossRef]
  36. Hayes, R.B.; Lim, C.; Zhang, Y.; Cromar, K.; Shao, Y.; Reynolds, H.R.; Silverman, D.T.; Jones, R.R.; Park, Y.; Jerrett, M.; et al. PM2.5 Air Pollution and Cause-Specific Cardiovascular Disease Mortality. Int. J. Epidemiol. 2020, 49, 25–35. [Google Scholar] [CrossRef]
  37. Miller, K.A.; Siscovick, D.S.; Sheppard, L.; Shepherd, K.; Sullivan, J.H.; Anderson, G.L.; Kaufman, J.D.; Dss, M.; Health Sci-ences, O.L. Long-Term Exposure to Air Pollution and Incidence of Cardiovascular Events in Women. N. Engl. J. Med. 2007, 356, 447–458. [Google Scholar] [CrossRef]
  38. Kim, Y.; Choi, Y.H.; Kim, M.K.; Paik, H.J.; Kim, D.H. Different Adverse Effects of Air Pollutants on Dry Eye Disease: Ozone, PM2.5, and PM210. Environ. Pollut. 2020, 265, 115039. [Google Scholar] [CrossRef] [PubMed]
  39. Weaver, A.M.; Wang, Y.; Wellenius, G.A.; Young, B.; Boyle, L.D.; Hickson, D.M.A.; Diamantidis, C.J. Long-Term Exposure to Ambient Air Pollution and Renal Function in African Americans: The Jackson Heart Study. J. Expo. Sci. Environ. Epidemiol. 2019, 29, 548–556. [Google Scholar] [CrossRef] [PubMed]
  40. Wang, C.; Zhu, G.; Zhang, L.; Chen, K. Particulate Matter Pollution and Hospital Outpatient Visits for Endocrine, Digestive, Urological, and Dermatological Diseases in Nanjing, China. Environ. Pollut. 2020, 261, 114205. [Google Scholar] [CrossRef] [PubMed]
  41. Wang, C.M.; Jung, C.R.; Chen, W.T.; Hwang, B.F. Exposure to Fine Particulate Matter (PM2.5) and Pediatric Rheumatic Diseases. Environ. Int. 2020, 138, 105602. [Google Scholar] [CrossRef] [PubMed]
  42. Pei, L.; Wang, X.; Guo, B.; Guo, H.; Yu, Y. Do Air Pollutants as Well as Meteorological Factors Impact Corona Virus Disease 2019 (COVID-19)? Evidence from China Based on the Geographical Perspective. Environ. Sci. Pollut. Res. 2021, 1–13. [Google Scholar] [CrossRef]
  43. Martelletti, L.; Martelletti, P. Air Pollution and the Novel Covid-19 Disease: A Putative Disease Risk Factor. SN Compr. Clin. Med. 2020, 2, 383–387. [Google Scholar] [CrossRef] [Green Version]
  44. Wang, B.; Chen, H.; Yik, X.; Chan, L.; Oliver, B.G. Is There an Association between the Level of Ambient Air Pollution and COVID-19? J. Physiol. Lung Cell Mol. Physiol. 2020, 319, 416–421. [Google Scholar] [CrossRef]
  45. Leni, Z.; Künzi, L.; Geiser, M. Air Pollution Causing Oxidative Stress. Curr. Opin. Toxicol. 2020, 20–21, 1–8. [Google Scholar] [CrossRef]
  46. Mudway, I.S.; Kelly, F.J.; Holgate, S.T. Oxidative Stress in Air Pollution Research. Free Radic. Biol. Med. 2020, 151, 2–6. [Google Scholar] [CrossRef]
  47. Suwa, T.; Hogg, J.C.; Quinlan, K.B.; Ohgami, A.; Vincent, R.; van Eeden, S.F. Particulate Air Pollution Induces Progression of Atherosclerosis. J. Am. Coll. Cardiol. 2002, 39, 935–942. [Google Scholar] [CrossRef] [Green Version]
  48. Salvi, A.; Liu, H.; Salim, S. Involvement of Oxidative Stress and Mitochondrial Mechanisms in Air Pollution-Related Neurobiological Impairments. Neurobiol. Stress 2020, 12, 100205. [Google Scholar] [CrossRef]
  49. Boovarahan, S.R.; Kurian, G.A. Mitochondrial Dysfunction: A Key Player in the Pathogenesis of Cardiovascular Diseases Linked to Air Pollution. Rev. Environ. Health 2018, 33, 111–122. [Google Scholar] [CrossRef]
  50. Daiber, A.; Kuntic, M.; Hahad, O.; Delogu, L.G.; Rohrbach, S.; di Lisa, F.; Schulz, R.; Münzel, T. Effects of Air Pollution Particles (Ultrafine and Fine Particulate Matter) on Mitochondrial Function and Oxidative Stress–Implications for Cardiovascular and Neurodegenerative Diseases. Arch. Biochem. Biophys. 2020, 696, 108662. [Google Scholar] [CrossRef]
  51. Afsar, B.; Elsurer Afsar, R.; Kanbay, A.; Covic, A.; Ortiz, A.; Kanbay, M. Air Pollution and Kidney Disease: Review of Current Evidence. Clin. Kidney J. 2019, 12, 19–32. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Arthur, E.L.; Rice, P.J.; Rice, P.J.; Anderson, T.A.; Baladi, S.M.; Henderson, K.L.D.; Coats, J.R. Phytoremediation—An Overview. Crit. Rev. Plant Sci. 2005, 24, 109–122. [Google Scholar] [CrossRef] [Green Version]
  53. Kapourchal, S.A.; Kapourchal, S.A.; Pazira, E.; Homaee, M. Assessing Radish (Raphanus sativus L.) Potential for Phytoremediation of Lead-Polluted Soils Resulting from Air Pollution. Plant Soil Environ. 2009, 55, 202–206. [Google Scholar] [CrossRef] [Green Version]
  54. Etim, E.E. Phytoremediation and Its Mechanisms: A Review. Int. J. Environ. Bioenergy 2012, 2012, 120–136. [Google Scholar]
  55. Padmavathiamma, P.K.; Li, L.Y. Phytoremediation Technology: Hyper-Accumulation Metals in Plants. Water Air Soil Pollut. 2007, 184, 105–126. [Google Scholar] [CrossRef]
  56. Morikawa, H.; Erkin, Ö.C. Basic Processes in Phytoremediation and Some Applications to Air Pollution Control. Chemosphere 2003, 52, 1553–1558. [Google Scholar] [CrossRef]
  57. Trapp, S.; Köhler, A.; Larsen, L.C.; Zambrano, K.C.; Karlson, U. Phytotoxicity of Fresh and Willow and Poplar Trees Weathered Diesel and Gasoline to Willow and Poplar Trees. J. Soils Sediments 2001, 1, 71–76. [Google Scholar] [CrossRef]
  58. Ma, Y.; Oliveira, R.S.; Freitas, H.; Zhang, C. Biochemical and Molecular Mechanisms of Plant-Microbe-Metal Interactions: Relevance for Phytoremediation. Front. Plant Sci. 2016, 7, 918. [Google Scholar] [CrossRef] [PubMed]
  59. Agbontalor, A. Phytoremediation: An Environmentally Sound Technology for Pollution Prevention, Control and Remediation in Developing Countries. Educ. Res. Rev. 2007, 2, 151–156. [Google Scholar]
  60. Wei, Z.; van Le, Q.; Peng, W.; Yang, Y.; Yang, H.; Gu, H.; Lam, S.S.; Sonne, C. A Review on Phytoremediation of Contaminants in Air, Water and Soil. J. Hazard. Mater. 2021, 403, 123658. [Google Scholar] [CrossRef] [PubMed]
  61. Verzera, A.; Ziino, M.; Condurso, C.; Romeo, V.; Zappalà, M. Solid-Phase Microextraction and Gas Chromatography-Mass Spectrometry for Rapid Characterisation of Semi-Hard Cheeses. Anal. Bioanal. Chem. 2004, 380, 930–936. [Google Scholar] [CrossRef]
  62. Omasa, K.; Tobe, K.; Kondo, T. Absorption of Organic and Inorganic Air Pollutants by Plants. In Air Pollution and Plant Biotechnology; Springer: Berlin/Heidelberg, Germany, 2002; pp. 155–178. [Google Scholar]
  63. Singh, S.N.; Verma, A. Phytoremediation of Air Pollutants: A Review. In Environmental Bioremediation Technology; Springer: Berlin/Heidelberg, Germany, 2007; pp. 293–314. [Google Scholar]
  64. Wei, X.; Lyu, S.; Yu, Y.; Wang, Z.; Liu, H.; Pan, D.; Chen, J. Phylloremediation of Air Pollutants: Exploiting the Potential of Plant Leaves and Leaf-Associated Microbes. Front. Plant Sci. 2017, 8, 1318. [Google Scholar] [CrossRef]
  65. Popek, R.; Gawrońska, H.; Wrochna, M.; Gawroński, S.W.; Sæbø, A. Particulate Matter on Foliage of 13 Woody Species: Deposition on Surfaces and Phytostabilisation in Waxes—A 3-Year Study. Int. J. Phytoremediation 2013, 15, 245–256. [Google Scholar] [CrossRef]
  66. Weyens, N.; van der Lelie, D.; Taghavi, S.; Newman, L.; Vangronsveld, J. Exploiting Plant–Microbe Partnerships to Improve Biomass Production and Remediation. Trends Biotechnol. 2009, 27, 591–598. [Google Scholar] [CrossRef] [PubMed]
  67. Weyens, N.; van der Lelie, D.; Taghavi, S.; Vangronsveld, J. Phytoremediation: Plant-Endophyte Partnerships Take the Challenge. Curr. Opin. Biotechnol. 2009, 20, 248–254. [Google Scholar] [CrossRef] [PubMed]
  68. Irga, P.J.; Pettit, T.J.; Torpy, F.R. The Phytoremediation of Indoor Air Pollution: A Review on the Technology Development from the Potted Plant through to Functional Green Wall Biofilters. Rev. Environ. Sci. Biotechnol. 2018, 17, 395–415. [Google Scholar] [CrossRef]
  69. Teiri, H.; Pourzamani, H.; Hajizadeh, Y. Phytoremediation of VOCs from Indoor Air by Ornamental Potted Plants: A Pilot Study Using a Palm Species under the Controlled Environment. Chemosphere 2018, 197, 375–381. [Google Scholar] [CrossRef]
  70. Hossein Mosaddegh, M.; Jafarian, A.; Ghasemi, A.; Mosaddegh, A. Phytoremediation of Benzene, Toluene, Ethylbenzene and Xylene Contaminated Air by D. Deremensis and O. Microdasys Plants. J. Environ. Health Sci. Eng. 2014, 12, 1–7. [Google Scholar] [CrossRef] [Green Version]
  71. Gawrońska, H.; Bakera, B. Phytoremediation of Particulate Matter from Indoor Air by Chlorophytum comosum L. Plants. Air Qual. Atmos. Health 2015, 8, 265–272. [Google Scholar] [CrossRef] [Green Version]
  72. Yang, Y.; Su, Y.; Zhao, S. An Efficient Plant–Microbe Phytoremediation Method to Remove Formaldehyde from Air. Environ. Chem. Lett. 2020, 18, 197–206. [Google Scholar] [CrossRef]
  73. Shahriari Moghadam, M.; Kool, F.; Nasrabadi, M. Phytoremediation of Air Organic Pollution (Phenol) Using Hydroponic System. J. Air Pollut. Health 2017, 2, 189–198. [Google Scholar]
  74. Torpy, F.R.; Irga, P.J.; Burchett, M.D. Profiling Indoor Plants for the Amelioration of High CO2 Concentrations. Urban For. Urban Green. 2014, 13, 227–233. [Google Scholar] [CrossRef]
  75. Treesubsuntorn, C.; Thiravetyan, P. Botanical Biofilter for Indoor Toluene Removal and Reduction of Carbon Dioxide Emission under Low Light Intensity by Using Mixed C3 and CAM Plants. J. Clean. Prod. 2018, 194, 94–100. [Google Scholar] [CrossRef]
  76. Siswanto, D.; Permana, B.H.; Treesubsuntorn, C.; Thiravetyan, P. Sansevieria Trifasciata and Chlorophytum Comosum Botanical Biofilter for Cigarette Smoke Phytoremediation in a Pilot-Scale Experiment—Evaluation of Multi-Pollutant Removal Efficiency and CO2 Emission. Air Qual. Atmos. Health 2020, 13, 109–117. [Google Scholar] [CrossRef]
  77. Rashmi, F.W.; Agarwal, A.; Hrdlicka, J.; Varjani, S. CO2 Separation, Purification and Conversion to Chemicals and Fuels; Springer: Berlin/Heidelberg, Germany, 2018. [Google Scholar]
  78. Pettit, T.; Irga, P.J.; Abdo, P.; Torpy, F.R. Do the Plants in Functional Green Walls Contribute to Their Ability to Filter Particulate Matter? Build. Environ. 2017, 125, 299–307. [Google Scholar] [CrossRef]
  79. Ibrahim, I.Z.; Chong, W.T.; Yusoff, S.; Wang, C.T.; Xiang, X.; Muzammil, W.K. Evaluation of Common Indoor Air Pollutant Reduction by a Botanical Indoor Air Biofilter System. Indoor Built Environ. 2021, 30, 7–21. [Google Scholar] [CrossRef]
  80. Kim, T.H.; An, B.R.; Clementi, M. Phytoremediation as Adaptive Design Strategy to Improve Indoor Air Quality. Experimental Results Relating to the Application of a Vertical Hydroponic Biofilter; Springer: Berlin/Heidelberg, Germany, 2021. [Google Scholar]
  81. Abdo, P.; Huynh, B.P.; Irga, P.J.; Torpy, F.R. Evaluation of Air Flow through an Active Green Wall Biofilter. Urban For. Urban Green. 2019, 41, 75–84. [Google Scholar] [CrossRef]
  82. Kazemi, F.; Rabbani, M.; Jozay, M. Investigating the Plant and Air-Quality Performances of an Internal Green Wall System under Hydroponic Conditions. J. Environ. Manag. 2020, 275, 111230. [Google Scholar] [CrossRef]
  83. Pettit, T.; Irga, P.J.; Torpy, F.R. Functional Green Wall Development for Increasing Air Pollutant Phytoremediation: Substrate Development with Coconut Coir and Activated Carbon. J. Hazard. Mater. 2018, 360, 594–603. [Google Scholar] [CrossRef] [PubMed]
  84. Torpy, F.; Clements, N.; Pollinger, M.; Dengel, A.; Mulvihill, I.; He, C.; Irga, P. Testing the Single-Pass VOC Removal Efficiency of an Active Green Wall Using Methyl Ethyl Ketone (MEK). Air Qual. Atmos. Health 2018, 11, 163–170. [Google Scholar] [CrossRef] [Green Version]
  85. Russell, J.A.; Hu, Y.; Chau, L.; Pauliushchyk, M.; Anastopoulos, I.; Anandan, S.; Waring, M.S. Indoor-Biofilter Growth and Exposure to Airborne Chemicals Drive Similar Changes in Plant Root Bacterial Communities. Appl. Environ. Microbiol. 2014, 80, 4805–4813. [Google Scholar] [CrossRef] [Green Version]
  86. Mikkonen, A.; Li, T.; Vesala, M.; Saarenheimo, J.; Ahonen, V.; Kärenlampi, S.; Blande, J.D.; Tiirola, M.; Tervahauta, A. Biofiltration of Airborne VOCs with Green Wall Systems—Microbial and Chemical Dynamics. Indoor Air 2018, 28, 697–707. [Google Scholar] [CrossRef] [Green Version]
  87. Amini Parsa, V.; Salehi, E.; Yavari, A.R.; van Bodegom, P.M. Analyzing Temporal Changes in Urban Forest Structure and the Effect on Air Quality Improvement. Sustain. Cities Soc. 2019, 48, 101548. [Google Scholar] [CrossRef]
  88. Kończak, B.; Cempa, M.; Deska, M. Assessment of the Ability of Roadside Vegetation to Remove Particulate Matter from the Urban Air. Environ. Pollut. 2021, 268, 115465. [Google Scholar] [CrossRef]
  89. Paull, N.J.; Krix, D.; Irga, P.J.; Torpy, F.R. Airborne Particulate Matter Accumulation on Common Green Wall Plants. Int. J. Phytoremediat. 2020, 22, 594–606. [Google Scholar] [CrossRef]
  90. Rachmadiarti, F.; Purnomo, T.; Azizah, D.N.; Fascavitri, A. Syzigium Oleina and Wedelia Trilobata for Phytoremediation of Lead Pollution in the Atmosphere. Nat. Environ. Pollut. Technol. 2019, 18, 157–162. [Google Scholar]
  91. Chen, L.; Liu, C.; Zhang, L.; Zou, R.; Zhang, Z. Variation in Tree Species Ability to Capture and Retain Airborne Fine Particulate Matter (PM2.5). Sci. Rep. 2017, 7, 1–11. [Google Scholar] [CrossRef]
  92. Bertold, M.; Joachim, M.; Hoa, N.X.; Cuong, N.T.; van Sinh, N.; Roeland, S. Particulate Matter Accumulation Capacity of Plants in Hanoi, Vietnam. Environ. Pollut. 2019, 253, 1079–1088. [Google Scholar] [CrossRef]
  93. Weerakkody, U.; Dover, J.W.; Mitchell, P.; Reiling, K. Particulate Matter Pollution Capture by Leaves of Seventeen Living Wall Species with Special Reference to Rail-Traffic at a Metropolitan Station. Urban For. Urban Green. 2017, 27, 173–186. [Google Scholar] [CrossRef]
  94. Li, Y.; Wang, S.; Chen, Q. Potential of Thirteen Urban Greening Plants to Capture Particulate Matter on Leaf Surfaces across Three Levels of Ambient Atmospheric Pollution. Int. J. Environ. Res. Public Health 2019, 16, 402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  95. Watson, A.S.; Bai, R.S. Phytoremediation for Urban Landscaping and Air Pollution Control—A Case Study in Trivandrum City, Kerala, India. Environ. Sci. Pollut. Res. 2021, 28, 9979–9990. [Google Scholar] [CrossRef] [PubMed]
  96. Pettit, T.; Irga, P.J.; Torpy, F.R. The in Situ Pilot-Scale Phytoremediation of Airborne VOCs and Particulate Matter with an Active Green Wall. Air Qual. Atmos. Health 2019, 12, 33–44. [Google Scholar] [CrossRef]

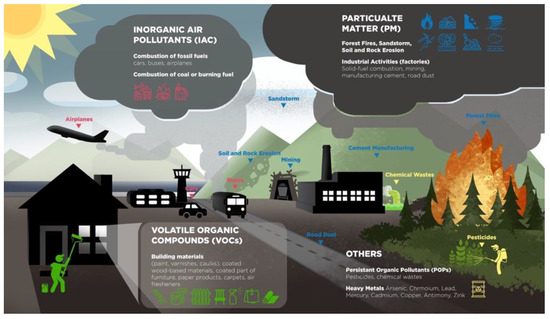

Figure 1. Schematic representation of air pollutants and their sources.
Figure 1. Schematic representation of air pollutants and their sources.
Environments 08 00118 g001

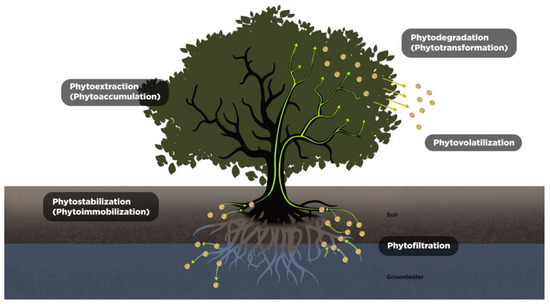

Figure 2. Schematic representation of phytoremediation processes.
Figure 2. Schematic representation of phytoremediation processes.
Environments 08 00118 g002
Table 1. Human diseases associated with air pollutants.
Table 1. Human diseases associated with air pollutants.
Air PollutantsHuman DiseasesObservations/Health ImpactsReferences
VOCsChronic obstructive pulmonary diseasesThe emergency hospital visits for chronic obstructive pulmonary diseases were positively linked to VOCs derived from household products, architectural paints, and gasoline emission showing excess risk (ER%) of 2.1%, 95% confidence interval (CI%): 0.9% to 3.4%; 1.5%, 95% CI: 0.2% to 2.9%; and 1.5%, 95% CI: 0.2% to 2.8%, respectively.[26]
BTEXLung diseasesExposure to BTEX may increase the risk of pulmonary diseases owing to the alteration of the gas-liquid interface properties of pulmonary surfactants.[27]
SO2, O3, NO2, PM10, and PM2.5Respiratory diseasesThe exposure to SO2 and NO2 were significantly linked to respiratory disease-related hospitalization. Females and the younger group were more vulnerable to air pollution than males and the older group. [28]
SO2 and NO2Respiratory diseasesAn increment of 10 μg/m3 in the SO2 concentration led to respiratory disease-related mortality of 1.9% and 2.9% in the time-series and the case-crossover analyses in single pollutant models, respectively.[29]
SO2, O3, and NO2Asthmatic diseasesThe yearly average SO2 concentration in the studied location was 8.62 times higher than the WHO guideline. Accordingly, the pollutants were closely linked to the high hospitalization rate by acute respiratory diseases and asthmatic symptoms.[30]
SO2, NOx, and PM2.5Chronic kidney disease and end-stage renal diseaseCompared to exposure to the first quartile of SO2, NO2, and PM2.5, exposure to the fourth quartile exhibited an increased risk of developing CKD and ESRD at 1.46-fold and 1.32-fold, 1.39-fold and 1.70-fold, and 1.74-fold and 1.69-fold, respectively.[31]
PM2.5Lung fibrosisPM2.5 could be internalized into cells and activate the NLRP3 inflammasome through multiple endocytosis processes involving phagocytosis and pinocytosis, leading to lung fibrosis.[34]
PM2.5Respiratory diseases related inflammationRespiratory disease-related inflammation might be induced by PM2.5 exposure via activation of TLR4/NF-kB/COX signaling[35]
PM2.5Cardiovascular diseasesBased on an average concentration of 13.5 μg/m3 of PM2.5, an increase of 10 μg/m3 led to a 24% increase in cardiovascular diseases incidence and 76% increase in death by cardiovascular diseases.[37]
PM10, PM2.5, and O3Dry eye diseasesIncreased O3 and PM2.5 results in aggravated ocular discomfort. Increased PM10 irritated tear film stability in the DED group. [38]
PM2.5, and O3Renal dysfunctionAfter 1-year and 3-year exposure to PM2.5 and O3, 6.5% and 12.7% of participants showed a reduced eGFR level and elevated UACR level, respectively. These results indicated impaired renal function.[39]
PM2.5Endocrine, digestive, urological, and dermatological diseasesA 10 μg/m3 increase in PM2.5 exhibited a significant connection with a 0.65%, 0.59%, 0.43%, and 0.36% increase in hospital visits for DERM, ENDO, DIGE, and UROL, respectively.[40]
PM2.5Pediatric rheumatic diseasesExposure to PM2.5 during 11–40 weeks of pregnancy and 1–14 weeks after birth showed a significant association with the incidence of PRDs.[41]
PM10 and PM2.5COVID-19Air quality index and PM2.5 and PM1.0 concentration exhibited a significant association with the risk of COVID-19.[42]
PM10 and PM2.5COVID-19Italian northern regions showing an excess of PM10 and PM2.5 levels from legislative standards (50 μg/m3) have been seriously affected by COVID-19.[43]
Note: BTEX, benzene, toluene, ethylbenzene, and xylene; ESRD, end-stage renal disease; DED, dry eye disease; AQI, air quality index; NO, nitrogen monoxide; NO2, nitrogen dioxide; NOx, nitrogen oxides; SO2, sulfur dioxide; PM; particulate matter; CB, carbon black; O3, ozone; CKD, chronic kidney disease; PRDs, pediatric rheumatic diseases; TLR4/NF-kB/COX, Toll-like receptor 4/Nuclear factor kappa-light-chain-enhancer of activated B cells/cyclooxygenase; eGFR, estimated glomerular filtration rate; UACR, urine albumin-to-creatinine ratio; ENDO, endocrine diseases; DIGE, digestive diseases; UROL, urological diseases; DERM, dermatological diseases; COVID-19, Severe Acute Respiratory Syndrome Coronavirus 2 (SARS-CoV-2) diseases.
Table 2. Phytoremediation for improving indoor air quality.
Table 2. Phytoremediation for improving indoor air quality.
LocationPollutantsObservations/Suggested MeasuresReferences
Chamaedorea elegansFormaldehydePotted C. elegans removed 65–100% of formaldehyde in the chamber. The removal capacity depends on the inlet concentration, and the light condition was more efficient than the dark condition.[69]
Opuntia microdasyBTEXO. microdays removed BTEX in the chambers with the removal rates 1.35, 1.18, 0.54, and 1.64 mg/m2 d1, respectively. For complete removing 2.5 ppm of BTEX in a 30 m3 room, ten pots of O. microdasys were suggested.[70]
Chlorophytum comosum L.PMC. comosum accumulated indoor PM10, PM2.5, and PM0.2 in their waxes. The accumulation occurred more in wax than on the surface to facilitate the attachment tightly to leaves and phytostabilize effectively. The accumulation amount depends on the kind of activity taking place in the room.[71]
Aloe vera (Haw.) Ber, Tradescantia zebrina Bosse, and Vigna radiata (Linn.) Wilczek (V. radiata)FormaldehydeAdding microbes to hydro-cultured plants system improved the formaldehyde removal efficiency by 6.7–90.5%. While the remediation process in plant-only systems occurred through redox and enzymatic reactions, that in the plant-microbe systems occurred mainly via microbial degradation mechanisms.[72]
Ophiopogon japonicusPhenol and PMA hydroponic system composed of Ophiopogon japonicus and phenol-degrading bacteria, Staphylococus epidermis and Pseudomonas spp., was combined with an air compressor that sucks air and injected it into the bioreactors to circulate in the plant pots. This system showed a high phenol-degrading capacity of about 1000 g/L daily. Additionally, this system absorbed PM and produced oxygen, improving air quality.[73]
Chlorophytum comosum and Sansevieria trifasciataCO2The biofilter containing a combination of C. comosum and S. trifasciata removed 3.9–4.7 mg/m3 toluene within 2–3 h, showing low CO2 emission under both light and dark conditions. [75]
Sansevieria trifasciata and Chlorophytum comosumPM2.5, VOCs, and CO2A biofilter composed of a CAM and C3 plants combination minimized the total CO2 emission accompanying high PM2.5 and COCs removal efficiency, compared to a biofilter composed of individual plant species.[76]
Ficus lyrate, Chlorophytum orchidastrum, Nephrolepis cordifolia duffii, Nephropelis exaltata bostoniensis, Nematanthus glabra, Schefflera amate, Schefflera arboricolaPMsPlants having fibrous roots revealed higher removal efficiency than those having tap roots, and fern species presented the highest single-pass removal efficiencies (PM03–0.5 = 45.78% and PM5–10 = 92.46%).[78]
Epipremnum aureumPM10, PM2.5, and VOCsA botanical biofilter comprising horizontally grown plants in growth media, an evaporative medium, and a mechanical ventilation system showed PM2.5, PM10, and VOCs removal efficiencies of 54.5%, 65.42%, and 46%, respectively.[79]
Schefflera arboricolaVOCsAn air handling unit connected to a biowall removed 3826.4 ppbv of isobutylene, recording an average of 20% single-pass efficiency.[80]
Schefflera arboricola and Chlorophytum comosum ‘variegatum’PM10, PM2.5, and VOCsA fan located at a central opening on the green wall’s back space can drive air through the medium-plant-roots mix, then onward to the plant’s canopy. This enabled more air to pass through the green wall substrate with greater remedy efficacy. Additionally, the wet plant wall modules led to much more air through the modules.[81]
Aptenia cordifolia, Carpobrotus edulis, Peperomia magnoliiaefolia, and Kalanchoe blossfeldiana1 n.g.The organic-rich growing medium of vermicompost along with perlite and cocopeat was suggested as an optimal medium for designing a sustainable internal green wall, especially when this is combined with Aptenia cordifolia.[82]
Nephrolepis exaltata bostoniensisPM, benzene, and VOCsAdding granular activated carbon (GAC) into the coconut husk-based substrates, improved the VOCs and benzene deposition rate, while PM removal rate was reduced.[83]
Asplenium antiquum, Philodendron scandens, Philodendron scandens ‘Brazil’, and Syngonium podophyllum.Methyl ethyl ketoneThe plant wall with a soil-less growing medium containing activated carbon was combined with a forced-air system, which draws the polluted air through the biowall and reduced the VOCs significantly, recording a 57% single-pass removal efficiency. [84]
Ficus elastica and Schefflera arboricola “Gold Capella” VOCsCompared to clean-air exposed and soil-grown plants, VOC-exposed and biowall-grown plants exhibited an enriched level of Hyphomicrobium, a degrader of halogenated and aromatic compounds, surrounding the roots area.[85]
Epipremnum pinnatum cv. Aureum and Davallia fejeensis HookVOCsVOCs formed the microbial communities, enriching the VOCs utilizing bacteria species in the irrigation water, where most of the VOC degradation in the biowall occurs.[86]
1 n.g., not given.
Table 3. Phytoremediation for improving outdoor air quality.
Table 3. Phytoremediation for improving outdoor air quality.
LocationPollutantsObservations/Suggested MeasuresReferences
Tabriz, IranO3, SO2, NO2, CO, PM2.5In 2015, shrubs and trees removed 238.4 t of air contaminants, and an increase of the elimination up to 814.46 t over the next 20 years is expected if appropriate, feasible urban forest management is performed.[87]
North Katowice,
Poland
PMAmong vines, shrubs, and coniferous trees, Parthenocissus quiquefolia and Betula pendula ‘Youngii’ accumulated the highest amounts of PM in their wax. The accumulated PM contained carbon, oxygen, silicon, iron, and heavy metals.[88]
Fifteen different
urbanized areas in Sydney, Australia
PMThe leaf traits were not the specific factor to determine the deposition capacities of plants. Among investigated plants, N. glabra, C. comosum variegatum, P. Xanadu, and S. wallisii entrapped the most amount of PM. [89]
Surabaya town,
Indonesia
Lead (Pb)Wedelia trilobata and Syzigium olein are grown on the main roads and exposed to heavy metals. Wedelia trilobata, having wider leaves, absorbed more heavy metals than Syzigium oleina showing a smaller leaf surface area.[90]
Beijing Forestry
University, Beijing, China
PM2.5Compared to broadleaved plant species, needle-leaved coniferous species accumulated higher amounts of PM2.5. The PM2.5 removal capacity of broadleaved species was correlated to the number of grooves and trichomes. [91]
Hanoi, VietnamPMLeaves with a lower area, hydrophilic traits, and a high abaxial stomatal density entrapped more PM; accordingly, Muntingia calabura showed the highest PM removal capacity among 49 screened plant species.[92]
Birmingham
New Street railway, United Kingdom
PM1, PM2.5, and PM10Hebe albicans Cockayne, Hebe x youngii Metcalf, Buxus sempervirens L., and Thymus vulgaris L., which have small leaves, revealed the highest PM removal capacity. Leaves with adaxial surfaces showed higher PM densities compared to those with abaxial surfaces.[93]
Kunming City, Southwest ChinaPMPlatanus acerifolia and Magnolia grandiflora showed the highest PM removal among deciduous and evergreen trees, respectively. PM entrap capacity depends not only on the leaf characteristics, but also on the pollution grade; Loropetalum chinense, Osmanthus fragrans, and Cinnamomum japonicum exhibited significant accumulation of PM in traffic and university campus areas, whereas showing moderate removal efficacy in an industrial area.[94]
Trivandrum City, Kerala, IndiaAir Pollution Tolerance Indices (APTI)Based on APTI, plants showing the highest APTI, Agave americana, Anacardium occidentale, Cassia fistula, Cassia roxburghii, Mangifera indica, and Saraca asoca, were suggested for near areas presenting heavy vehicular air pollution, and plants showing the next highest APTI for greenbelts.[95]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lee, H.; Jun, Z.; Zahra, Z. Phytoremediation: The Sustainable Strategy for Improving Indoor and Outdoor Air Quality. Environments 2021, 8, 118. https://doi.org/10.3390/environments8110118

AMA Style

Lee H, Jun Z, Zahra Z. Phytoremediation: The Sustainable Strategy for Improving Indoor and Outdoor Air Quality. Environments. 2021; 8(11):118. https://doi.org/10.3390/environments8110118

Chicago/Turabian Style

Lee, Heayyean, Ziwoo Jun, and Zahra Zahra. 2021. "Phytoremediation: The Sustainable Strategy for Improving Indoor and Outdoor Air Quality" Environments 8, no. 11: 118. https://doi.org/10.3390/environments8110118

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
