Performance of Reverse Osmosis Membranes in the Treatment of Flue-Gas Desulfurization (FGD) Wastewaters

Abstract

Reverse osmosis (RO) was studied to reduce salinity of flue gas desulfurization (FGD) wastewaters after softening with Na₂CO₃·H₂O and ultrafiltration (UF). Two commercial thin film composite polyamide RO membranes (SWC-2540 and ESPA-2540, from Hydranautics) in spiral-wound configuration were tested and their performance in terms of salinity reduction as well as permeate flux, fouling index and water recovery was evaluated. Experimental runs were performed according to the feed and bleed configuration in selected operating conditions. For the SWC-2540 membrane experiments were also performed in total recycle configuration in order to evaluate the effect of operating pressure on permeate flux and quality. Experimental results indicated that the SWC-2540 membrane showed a better performance in the rejection of ions: Mg²⁺ ions were completely rejected, while the rejection towards monovalent ions such as Na⁺ was of about 95.5%. The ESPA-2540 membrane showed rejections towards Ca²⁺ and Mg²⁺ higher than 86.5% whilst the observed rejection towards Na⁺ was of 80%. For the SWC-2540 membrane an increased rejection for Ca²⁺ and Na⁺ ions was observed by increasing the operating pressure in the range 16-50 bar. Mg²⁺ ions were totally rejected independently by the operating pressure.

1. Introduction

The combustion of coal in power generation facilities produces solid waste, such as bottom and fly ash, and flue gas that is emitted to the atmosphere. The sulfur dioxide reduction from the exhausted flue gas of fossil fuel thermoelectric power plants is accomplished through wet scrubber technologies according to a process known as flue gas desulfurization (FGD). Wet scrubbers typically remove more than 90% of sulfur dioxide, compared to dry scrubbers, which remove only 80%. These processes generate a polluted wastewater with an extremely complex composition depending on coal source, type of scrubber, makeup water quality, gypsum-dewatering system used and operational conditions.

Typically, FGD wastewaters contain significantly high concentration of chloride, sulfate, nitrate, calcium and magnesium and trace-levels of heavy metals, such as Hg(II), Pb(II), Cd(II), Mn(II) and Ni(II). Total dissolved solids (TDS) are in the range 4000–50,000 mg/L, while suspended solids range from 1.4% to 17% [1].

Discharge of FGD wastewaters without sufficient treatment pose serious environmental issues because of its detrimental impact on human health and ecological system. In this scenario, according to the European Directive 2000/60/CE, the use of regenerated water takes a key role in conferring utmost protection to water. In addition, the use of regenerated wastewater for irrigation purposes offer very interesting perspectives in terms of both environmental and economic impact.

Biological processes [2,3,4], flocculation [5], adsorption [6], constructed wetland [7], evaporation [8], chemical precipitation [9] and electrocoagulation [10] are typically used to remove heavy metal ions, nitrate or soluble organic contaminants from FGD wastewater. These methods do not meet standard regulations, especially for the high salinity of the FGD wastewaters. In addition, they are significantly constrained by process complexity, large investment, high maintenance cost, operating difficulties and other shortcomings and limitations. Therefore, advanced treatments based on the selective removal of various trace contaminants from such a complex matrix, are one of the biggest challenges for thermal power plants.

Membrane technologies are a high potential option in order to attempt the complete depuration of FGD wastewaters due to their advantages over conventional separations systems such as compact modular nature, high efficiency and moderate investment and maintenance costs. These processes are becoming increasingly used in the recent years in the purification of water and groundwater, in replacement of many conventional separation processes, as well as in the reclamation of several wastewater streams. In particular, pressure-driven membrane operations such as microfiltration (MF), ultrafiltration (UF), nanofiltration (NF) and reverse osmosis (RO) have been increasingly implemented in the recent years in the purification of groundwater and surface water as well as for decontamination of wastewater streams of very diverse sources [11,12]. Among pressure-driven membrane operations, RO represents a valid approach for treating wastewater with high conductivity. It is generally used to remove water pollutants, such as phosphorus, organic matter as well as in desalination processes, in order to remove, for example, Na⁺ and Cl⁻ [13].

Few studies have been reported until now on the use of membrane operations in the treatment of FGD wastewaters. For instance, polyvinylidene fluoride (PVDF) microfiltration (MF) membranes in hollow fiber configuration have been used to remove Hg after chemical precipitation from FGD wastewaters providing a simple, reliable, long-term and cost economic solution for the reduction of mercury compounds in these wastewaters [14]. An integrated process based on the use of nanofiltration (NF) and membrane distillation (MD) processes for practical application in FGD wastewater treatment has been also recently investigated by Jia and Wang [15]. The whole system exhibited nearly complete salt rejection and over 92% water reclamation ratio.

This work was aimed at evaluating the performance of commercial reverse osmosis (RO) membranes, in terms of salinity reduction as well as permeate flux, fouling index and water recovery, in the treatment of softened and ultrafiltered flue-gas desulfurization (FGD) wastewaters.

2. Materials and Methods

2.1. Softening and Pre-Treatment Processes of FGD Wastewaters

FGD wastewaters were provided by IER (Industrial Enel Research, Brindisi, Italy). Before use, they were submitted to a chemical pre-treatment in order to remove the amount of inorganic compounds (in particular calcium and magnesium) that can cause scaling issue during RO treatment, reducing membrane performance. In particular, FGD wastewaters were softened with Na₂CO₃·H₂O (>97%, Carlo Erba Reagenti, Milan, Italy) in order to reduce the quantity of calcium and magnesium. A preliminary set of experiments was performed to select the appropriate amount of alkalizing agents in order to achieve maximum removal efficiencies. At this purpose, the effect of Na₂CO₃·H₂O/Ca²⁺ molar ratio on the removal of calcium was studied in a fixed volume of FGD wastewaters at a temperature of 25 °C. The solutions were incubated for 1 h to let the majority of the solids particles settle out and then ultrafiltered before acidification with H₂SO₄ up to pH 6.5.

Ultrafiltration (UF) was performed by using a laboratory unit (Verind SpA, Milan, Italy) equipped with a polyethersulfone hollow fiber membrane module supplied by Microdyn-Nadir (Wiesbaden, Germany) having a nominal molecular weight cut-off (MWCO) of 500 kDa and an effective membrane area of 0.25 m². UF was operated according to a feed-and-bleed configuration (the permeate is removed from the system and replaced by an equal volume of feed solution while the retentate stream is recycled back to the feed reservoir) at a transmembrane pressure (TMP) of 0.5 bar, an axial feed flow rate (Q_f) of 500 L/h and a temperature (T) of 25 ± 2 °C, up to a recovery factor (RF) of 97.5%.

2.2. Treatment of Permeate UF by RO: Experimental Set-Up and Membranes

RO experimental runs were performed by using a laboratory plant supplied by Matrix Desalination Inc. (Fort Lauderdale, FL, USA). The equipment consists of a feed tank with a capacity of 10 L, a stainless steel housing for 2.4 × 21 inches spiral-wound membrane module, a high pressure pump, two pressure gauges (0–100 bar) for the control of the inlet and outlet pressures and a backpressure valve. A coiling cool, fed with tap water, was used to maintain the feed temperature constant.

Two commercial spiral wounds RO membranes in composite polyamide namely SWC-2540 and ESPA-2540 from Hydranautics (Hydranautics Corporation, Oceanside, CA, USA) were studied. Properties of the selected membranes, are summarized in

Table 1. Characteristics of spiral-wound membrane modules.

Membrane Type	SWC-2540	ESPA-2540
Manufacturer	Hydranautics	Hydranautics
Membrane material	Composite polyamide	Composite polyamide
Salt rejection (%)	99.4 (minimum 99)	99.4 (minimum 98)
pH operating range	2–11	2–10
Max. operating temperature (°C)	45	45
Max. operating pressure (bar)	69	21
Membrane surface area (m2)	2.34	2.34
Water permeability (kg/m2hbar)	1.77 a	5.90 a
Contact angle (°)	58.9 ± 1.2 b	34.0 ± 2.00 c
Zeta potential (mV)	−21.2 at pH 7 d	−26.0 at pH 7.0 e

^a our data; ^b data from [16]; ^c data from [17]; ^d data from [18]; ^e data from [19].

. Experimental runs were performed according to the feed and bleed configuration in selected operating conditions (TMP 26 bar, Q_f 204 L/h, T 20 °C for the SWC membrane and TMP 18 bar, Q_f 220 L/h, T 20 °C for the ESPA 2540 membrane) up to a RF of 50%, corresponding to a weight reduction factor (WRF) of 2. The ESPA-2540 membrane was tested at lower TMP values, according to the manufacturer’s data sheet.

For the SWC-2540 membrane experiments were also performed in total recycle configuration (in which concentrate and permeate streams were both recycled back to the feed tank) in order to evaluate the effect of TMP on the permeate flux and quality of the obtained permeate. Experiments were performed in the range of TMP values between 16 and 50 bar (at T of 25 °C and Q_f of 240 L/h), so as to generate a steady-state flux (about 40 min for each TMP value). When flux values were stable, permeate samples were collected to determine the rejection coefficients.

After each experiment, membranes were rinsed with water and then cleaned with an acid solution (Ultraclean WO 0.05%, pH 4) at 40 °C, for 60 min, in total recycle configuration. At the end of each cleaning procedure membrane modules were rinsed with distilled water for 20 min and the water permeability was measured again.

2.3. Permeate Fluxes, Hydraulic Permeability, Fouling Index and Cleaning Efficiency

During the filtration experiments the permeate flux was continuously monitored by measuring the permeate weight collected in a certain time according to the following equation:

$$J_p=\frac{W_p}{A t}$$

(1)

where J_p is the permeate flux (kg/m²h), W_p the permeate weight (kg) at time t (h) and A the membrane surface area (m²).

The hydraulic permeability (W_p) of each membrane was determined by the slope of the straight line obtained plotting the water flux values, measured in fixed conditions of temperature (25 °C), versus the applied TMP.

The fouling index (FI), expressed as a percentage drop in the water permeability, was estimated by measuring the water permeability before and after the treatment of FGD wastewaters, according to the following equation:

$$FI=\left(1-\frac{W_{p1}}{W_{p0}}\right)\times 100$$

(2)

where W_p0 and W_p1 are the pure water permeability before and after FGD wastewaters treatment.

The cleaning efficiency (CE) was evaluated according to the following equation:

$$CE=\left(\frac{W_{p2}}{W_{p0}}\right)\times 100$$

(3)

where W_p2 is the water permeability measured after the chemical cleaning.

2.4. Analytical Methods

pH was measured by an Orion Expandable ion analyzer EA 920 pH meter (Allometrics, Inc., Baton Rouge, LA, USA) with automatic temperature compensation. Electrical conductivity (ED) and total dissolved solids (TDS) were measured using a digital conductivity meter (HI 2300 Microprocessor Conductivity, Hanna Instruments, Woonsocket, RI, USA). Concentration of the main cations (Ca²⁺, Mg²⁺ and Na⁺) was determined by using a high-resolution continuum source atomic absorption spectrometer (HR-CSAAS, ContrAA700, Analytik Jena AG, Jena, Germany), with a high intensity Xe short arc lamp as continuum source. Samples and standards were fed to the flame by an Injection Module (SFS6), which allowed washing or continuous aspiration of the carrier solution. They were appropriately diluted (300 times for Mg and Ca, 3000 times for Na). Subsequently they were acidified with 1% HCl. Method parameters (i.e., fuel flow and burner height) obtained by the flame automatic optimization procedure for the determination of Ca²⁺ (N₂O/acetylene flame) and Na⁺ or Mg²⁺ (air-acetylene flame) were applied, the absorbance measurements being performed using the spectral lines for Ca at 422.67 nm, for Na at 588.99 and for Mg at 285.21 nm.

The removal efficiency for each analyzed component was determined during membrane processes and quantified as percentage rejection (R) of a particular component:

$$R=\left(1-\frac{Cp}{Cf}\right)·100$$

(4)

where c_f and c_p are the component concentrations in the feed and permeate, respectively.

3. Results and Discussion

3.1. Pre-Treatment Processes

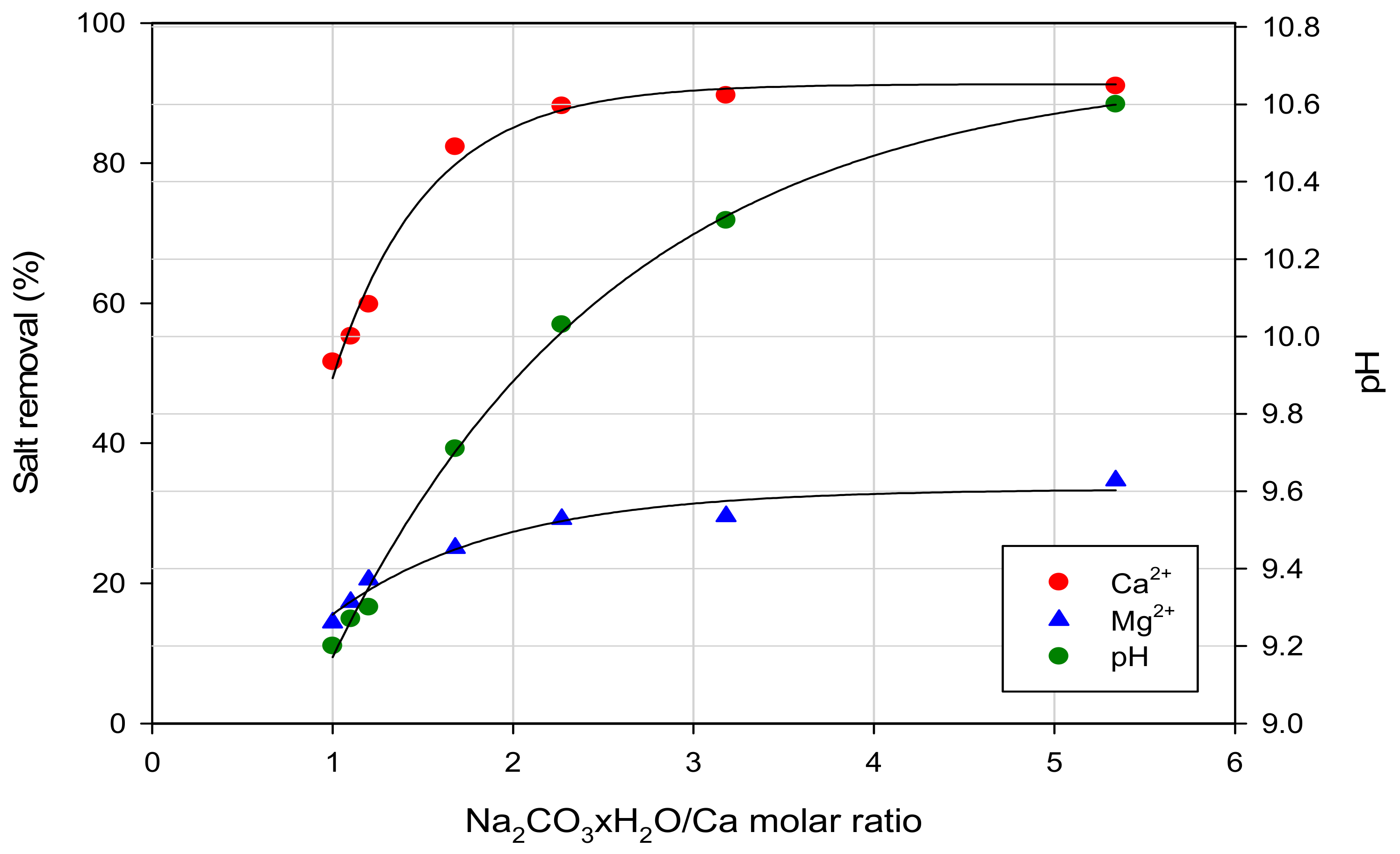

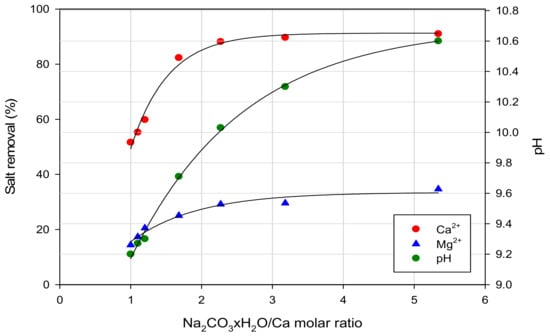

The appropriate dose of Na₂CO₃·H₂O for an efficient softening process was investigated experimentally. Sodium carbonate promotes the removal of Ca²⁺ ions through reactive precipitation as CaCO₃. Therefore, the proper Na₂CO₃ addition was determined with respect to the Ca²⁺ ion concentration in the FGD wastewaters to be treated. The obtained results (Figure 1) prove that Ca²⁺ and Mg²⁺ removal efficiency increased by growing the coagulant dosage until Na₂CO₃·H₂O/Ca²⁺ molar ratio between 2.27 and 3.18, then a plateau is reached. In particular, in this range the removal of Ca²⁺ achieved up to 90%, whilst the removal of Mg²⁺, at the same coagulant dosage, was of about 30%. The pH of the FGD wastewaters increased from 9.2 to 10.6 in the range of investigated Na₂CO₃·H₂O/Ca²⁺ molar ratio due to the increased release of OH⁻ ions in the solution.

Ayoub et al. [20] investigated the removal of inorganic compounds (including calcium and magnesium) in seawater using Na₂CO₃ as alkalizing agents and obtained similar results. In particular, the removal efficiencies recorded were of 90 ± 2.5% for Ca²⁺ and 15 ± 4.55% for Mg²⁺. A similar Ca²⁺ removal efficiency (higher than 90%) was observed also by Zheng et al. [21] during the treatment of textile and dyeing wastewaters using NaOH. Based on these experimental results, an average Na₂CO₃·H₂O/Ca²⁺ molar ratio of 2.6 was chosen for performing the softening.

Before RO, softened FGD wastewaters were preliminary submitted to a UF process. In the selected operating conditions steady-state UF permeate fluxes of about 480 kg/m²h were obtained. The composition of FGD wastewaters before and after the chemical and the UF treatments is reported in

Table 2. Composition of flue gas desulfurization (FGD) wastewaters before and after pre-treatment processes (EC, electrical conductivity; TDS, total dissolved solids; TC, total carbon; TOC, total organic carbon; IC, inorganic carbon).

Sample	Ca2+ (ppm)	Mg2+ (ppm)	Na+ (g/L)	EC (mS/cm)	TDS (g/L)	TC (mg/L)	TOC (mg/L)	IC (mg/L)
FGD wastewater	384.4 ± 4.8	289.4 ± 2.6	7.2 ± 0.6	33.6 ± 2.1	16.9 ± 0.6	-	-	-
After softening	83.8 ± 0.5	174.7 ± 1.2	6.4 ± 0.8	25.08 ± 1.6	12.46 ± 1.8	90.96 ± 0.91	90.12 ± 0.90	0.57 ± 0.05
After ultrafiltration	82.0 ± 1.6	171.8 ± 3.4	6.3 ± 0.12	25.8 ± 0.5	12.5 ± 0.2	82.98 ± 0.83	33.80 ± 0.34	49.18 ± 0.49

. As expected, in the optimized Na₂CO₃·H₂O/Ca²⁺ molar ratio conditions a higher removal of Mg²⁺ and Ca²⁺ was obtained whilst, the removal of other analyzed compounds was lower (in the range 11–27%). The UF process, allowed to remove more than 60% of TOC, while the content of inorganic compounds and TDS remained unchanged in agreement with the MWCO of the selected UF membrane.

3.2. RO of Pre-Treated FGD Wastewaters

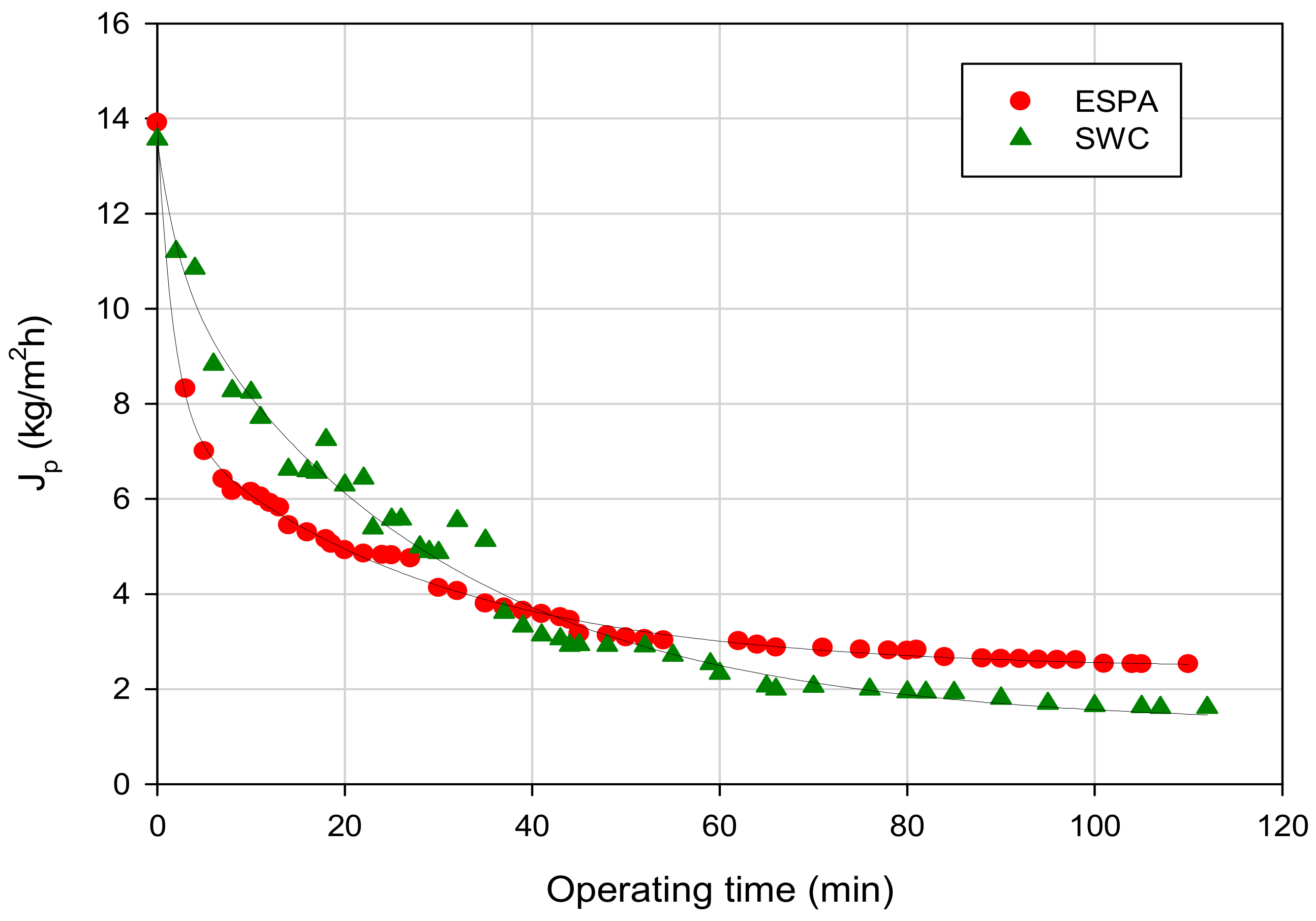

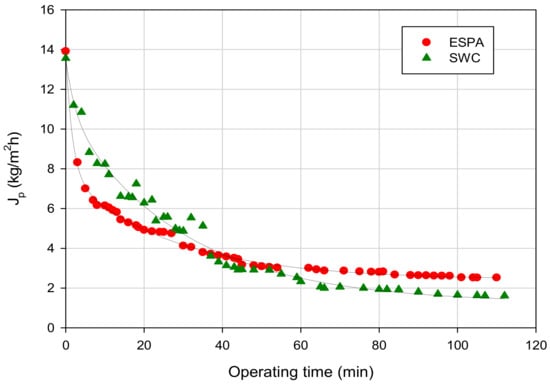

Figure 2 shows the time evolution of permeate flux for both RO membranes in the treatment of the softened and ultrafiltered FGD wastewater, in the selected operating conditions. Despite different operating TMP values, RO membranes showed similar initial permeate fluxes values (of about 14 kg/m²h). The permeate flux declined rapidly in the first 30 min; then the rate of flux decline became slower and a pseudo-steady state flux of 2.3 kg/m²h and 1.9 kg/m²h for the ESPA and SWC membranes respectively, was reached. This behavior has to be attributed to the increase of the osmotic pressure of feed solution due to the high salt rejection of the selected membranes, and to the concentration polarization and membrane fouling phenomena. This leads to a severe driving force decrease and, consequently, to a flux decline [22]. In particular, the observed flux decline of selected membranes was in the range of 84–86%.

A similar permeate flux decline was observed by Vourch et al. [23] in the treatment of dairy industry wastewaters for water reuse, with a RO spiral wound membrane (TFC HR SW 2540) in thin film composite, having a NaCl rejection of the same order (99.5%).

Dolar et al. [24] obtained a permeate flux decline of about 72% during processing of pre-treated landfill leachate with a RO (XLE) membrane from Dow/Filmtec (Midland, MI, USA).

A street correlation between the concentration of feed solution and permeate flux decline was reported by Tang et al. [25] in the processing of semiconductor wastewaters with a RO ESPA membrane. They obtained a reduction of permeate flux of 10% at a concentration of feed solution of 10 ppm of perfluorooctane sulphonate (PFOS) and of about 60% at 500 ppm of PFOS. Authors attributed the flux decline with the entrapment of PFOS molecules in the polyamide layer and their accumulation on the membrane surfaces.

Table 3. Hydraulic permeability measurement and fouling index of reverse osmosis (RO) membranes (W_p0, initial water permeability; W_p1, after the treatment with FGD wastewaters; W_p2, after cleaning with water at 30 °C; W_p3, after acid cleaning at pH 4).

Parameter	Membrane Type
	SWC-2540	ESPA-2540
Wp0 (kg/m2hbar)	1.7	5.9
Wp1 (kg/m2hbar)	1.1	4.2
Wp2 (kg/m2hbar)	1.6	5.2
Wp3 (kg/m2hbar)	1.7	5.4
Fouling index (FI) (%)	35.3	28.8
Cleaning efficiency (CE) (%)	100.0	92.0

shows the fouling index for the selected membranes based on their water permeability before and after the pre-treated FGD wastewaters filtration. According to the obtained values, the ESPA membrane showed a lower fouling index (FI, 28.8%) in comparison with the SWC membrane (FI, 35.3%). This behavior could be attributed to the different morphology (surface roughness) and contact angles of selected membranes (Table 1). As reported in literature, membranes with smooth and hydrophilic surfaces (as the ESPA) presented less fouling tendency than those with rough and hydrophobic surfaces (as the SWC) [26].

After cleaning with water, the water permeability of both membranes was lower than 10% when compared to the initial one. After chemical cleaning, a complete recovery of the initial water permeability was observed for the SWC-2540 membrane and of about 92% for the ESPA 2540 membrane. The low fouling index measured for both membranes and the almost complete recovery of RO membranes performance could be attributed to the pre-treatment processes (softening, precipitation and ultrafiltration) that limited inorganic scaling and the possible deposition of inorganic substances on membrane surface or inside the membrane pores [26].

The selected membranes were also compared in terms of permeate quality and removal of salt compounds. The chemical composition of permeate and retentate fractions produced with both RO membranes, at a WRF 2, is reported in

Table 4. Chemical composition of FGD wastewaters before and after RO treatment.

Membrane Type	Sample	Ca2+ (ppm)	Mg2+ (ppm)	Na+ (g/L)	EC (mS/cm)	TDS (g/L)
SWC-2540	Feed	83.5 ± 1.7	178.4 ± 3.5	6.4 ± 0.1	26.1 ± 0.52	12.6 ± 0.25
	Permeate	11.0 ± 0.2	n.d.	0.29 ± 0.01	1.76 ± 0.03	0.87 ± 0.01
	Retentate	159.2 ± 3.4	362.2 ± 7.8	12.52 ± 0.26	49.3 ± 1.0	24.6 ± 0.5
ESPA-2540	Feed	52.1 ± 1.03	196.2 ± 3.9	6.4 ± 0.1	25.1 ± 0.5	13.9 ± 0.3
	Permeate	6.75 ± 0.13	6.8 ± 0.13	1.25 ± 0.02	3.6 ± 0.2	1.8 ± 0.04
	Retentate	98.6 ± 2.2	383.6 ± 7.8	11.5 ± 0.25	45.6 ± 2.3	22.8 ± 0.7

.

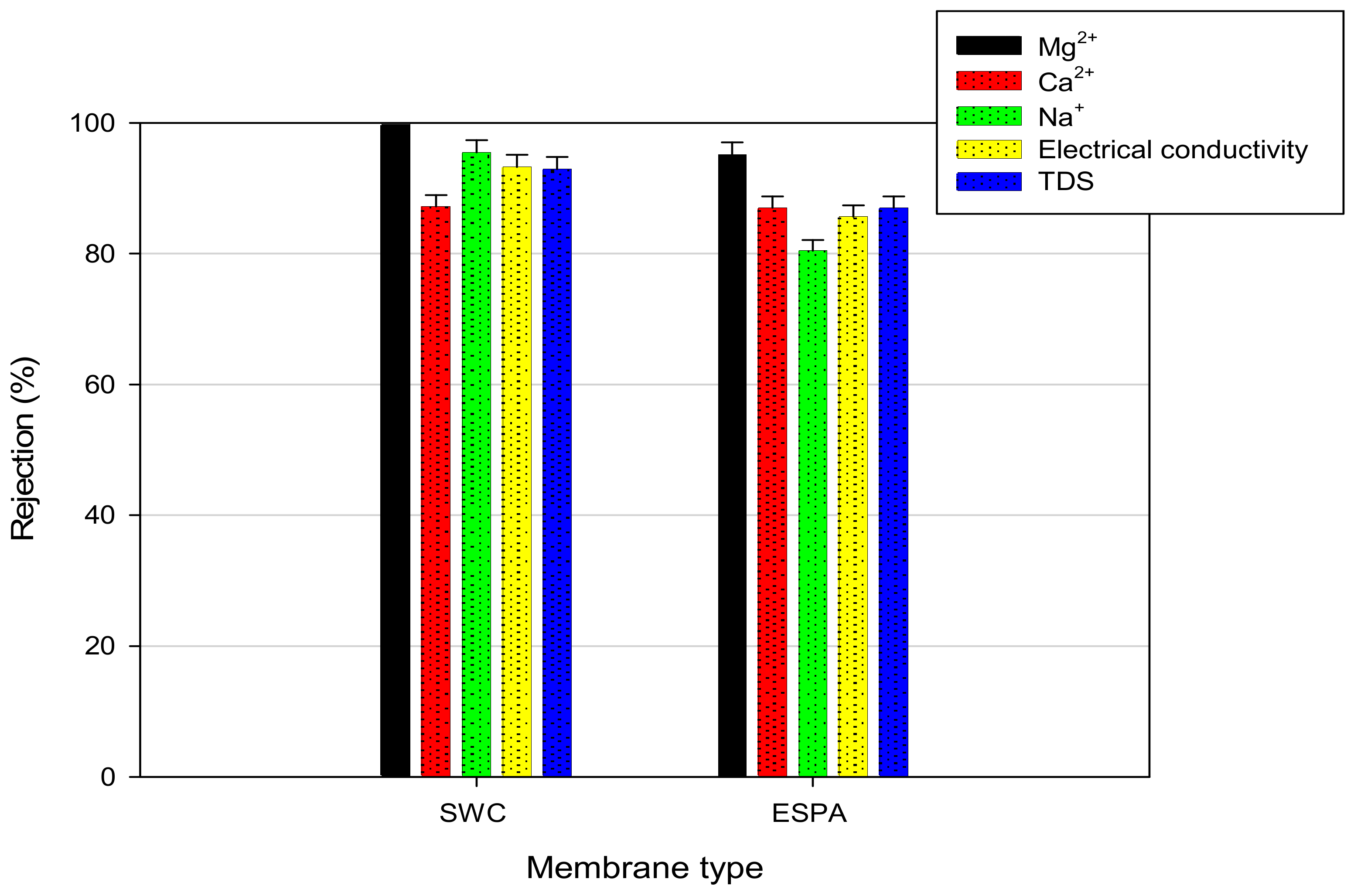

The electrical conductivity rejection for ESPA-2540 and SWC-2540 membranes, were of about 85.7% and 93.2%, respectively (Figure 3). The TDS rejection of the SWC-2540 membrane was relatively higher (93%) if compared with the ESPA-2540 membrane (87%). In addition, the SWC-2540 membrane showed a better performance in the rejection of ions. Mg²⁺ ions were completely rejected by the SWC-2540 membrane (R of 100%), while the rejection towards monovalent ions such as Na⁺ was lower (R of about 95.5%). The ESPA-2540 membrane showed rejections towards Ca²⁺ and Mg²⁺ higher than 86.5%; on the other hand, the observed rejection towards Na⁺ was of 80%. Considering that divalent ions are larger than monovalent ions, the main mechanism of ion rejection by RO membranes is size exclusion [27]. However, the charges of ions and membranes employed cannot be neglected since they also interact each other electrostatically. At the pH of FGD wastewaters (6.5) both membranes are negatively charged [18,19]. Therefore, electrostatic attraction forces between the negatively charged membrane surface and specific ions can contribute to the retention mechanism.

In

Table 5. Mass balance of the RO process for the SWC-2540 membrane.

Parameter	Feed	Permeate		Retentate		Balance
Volume	18 L	9 L	50.0%	9 L	50.0%	100.0%
Ca2+	1503 mg	99.0 mg	6.5%	1432.8 mg	95.3%	101.8%
Mg2+	3211.2 mg	0 mg	0.0%	3259.8 g	101.5%	101.5%
Na+	115.2 mg	2.6 mg	2.2%	112.7 g	97.8%	100.0%

and

Table 6. Mass balance of the RO process for the ESPA-2540 membrane.

Parameter	Feed	Permeate		Retentate		Balance
Volume	18 L	9 L	50.0%	9 L	50.0%	100.0%
Ca2+	937.8 mg	60.7 mg	6.5%	887.4 mg	94.6%	101.1%
Mg2+	3531.6 mg	61.2 mg	1.7%	3452.4 g	97.7%	99.4%
Na+	115.2 mg	11.2 mg	9.7%	103.5 g	89.9%	99.6%

the mass balance of the RO process for both investigated membranes is reported. The balance is referred to RO experimental runs in which starting from 18 L of pre-treated FGD wastewaters, 9 L of permeate and 9 L of retentate were obtained. It can be noted that for both RO membranes, the main ions are mainly concentrated in the retentate streams; on the other hand, the amount in the permeate is lower than 10%. The balance is complete, indicating that no interaction ions-membranes, or adsorption of ions on the membranes surface, occurs during the process.

According to the obtained results, the SWC-2540 membrane exhibited the highest removal efficiency for all measured parameters. Therefore, the quality of the produced permeate was higher if compared with the permeate produced by ESPA-2540 membrane. The SWC-2540 permeate presented an electrical conductivity lower than 2 mS/cm; it resulted completely depleted of bivalent ions such as Mg²⁺, with a low amount of total dissolved solids (TDS) (<1 g/L) and Ca²⁺.

3.3. Experiments in Total Recycle Mode

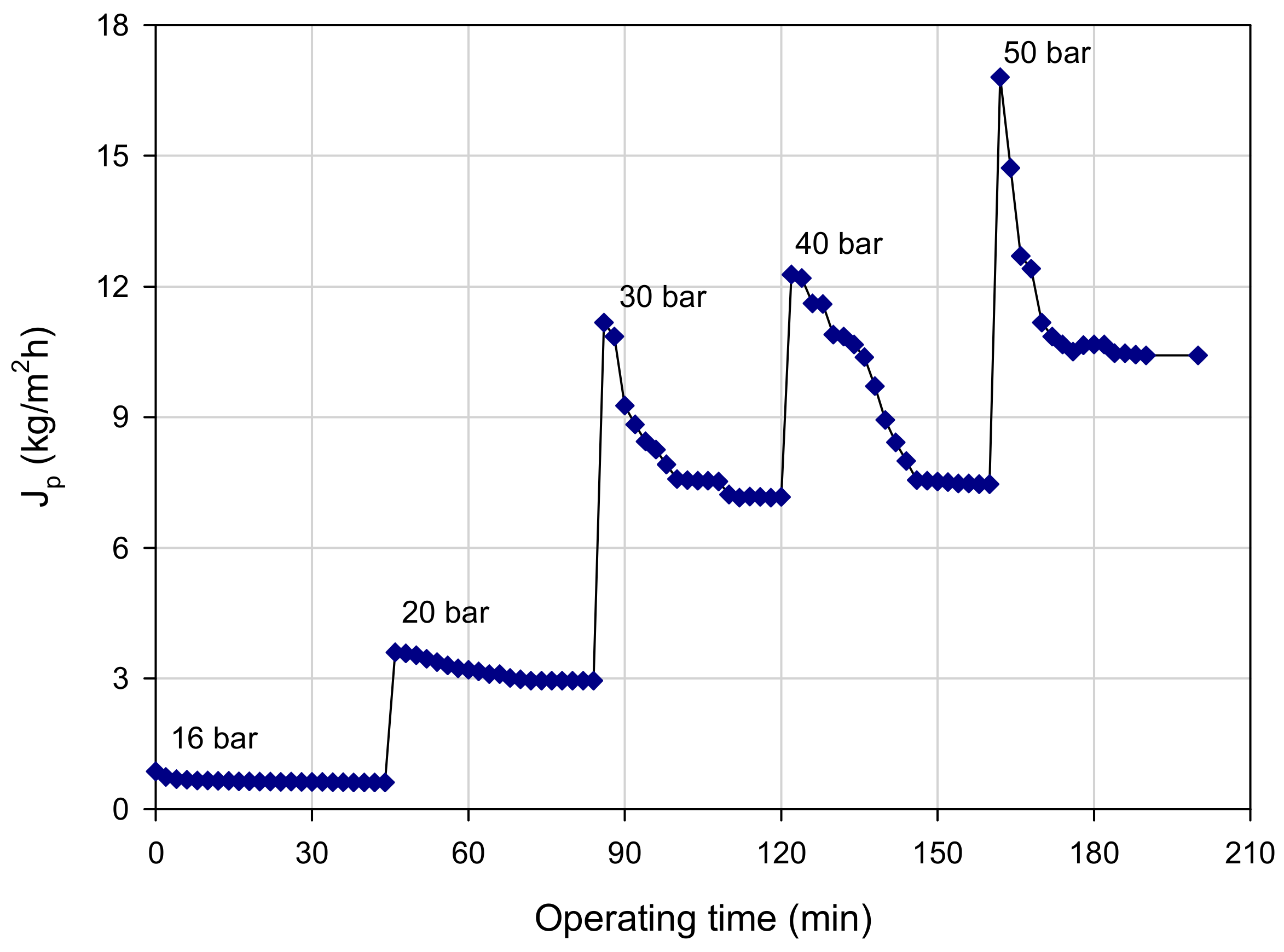

For the SWC-2540 membrane experiments were also performed according to the total recycle configuration in order to evaluate the effect of TMP on the permeate flux and the removal efficiency of salt compounds. Figure 4 shows the time evolution of the permeate flux at different TMP values (increased in the range 16–50 bar) and fixed values of temperature and feed flowrate (25 °C and 240 L/h, respectively). An increase of initial and steady-state permeate fluxes from 0.86 kg/m²h to 16.8 kg/m²h and from 0.61 kg/m²h to 10.4 kg/m²h, respectively, was observed by increasing the operating pressure in the range of investigated values.

Mohammadi et al. [28] reported a linear increase of permeate flux with pressure in the treatment of seawater with a polyamide FT30 RO membrane. A linear trend between permeate flux and pressure was also observed by Mondal and Wickramasinghe [29] in the treatment of oily wastewaters with a BW 30 membrane (FilmTec Corporation, Minneapolis, MN, USA) in aromatic polyamide with a NaCl rejection of 99.4%.

A different behavior was reported by Liu et al. [30] in the treatment of textile effluents for water reuse with the same membrane (BW30). In this case, a decrease of permeate fluxes by increasing the operating pressure, was observed.

From Figure 4 it is also possible to note that working at high pressure values (higher than 20 bar) there is an increase of the permeate flux decline by increasing the operating time. As previously discussed, this behavior could be attributed to membrane fouling and concentration polarization phenomena. Particularly, working at high pressure, concentration polarisation is known to be the main factor that contributes to the increasing salt concentration at the membrane surface hence leading to particle deposition and an increasing of scaling [31].

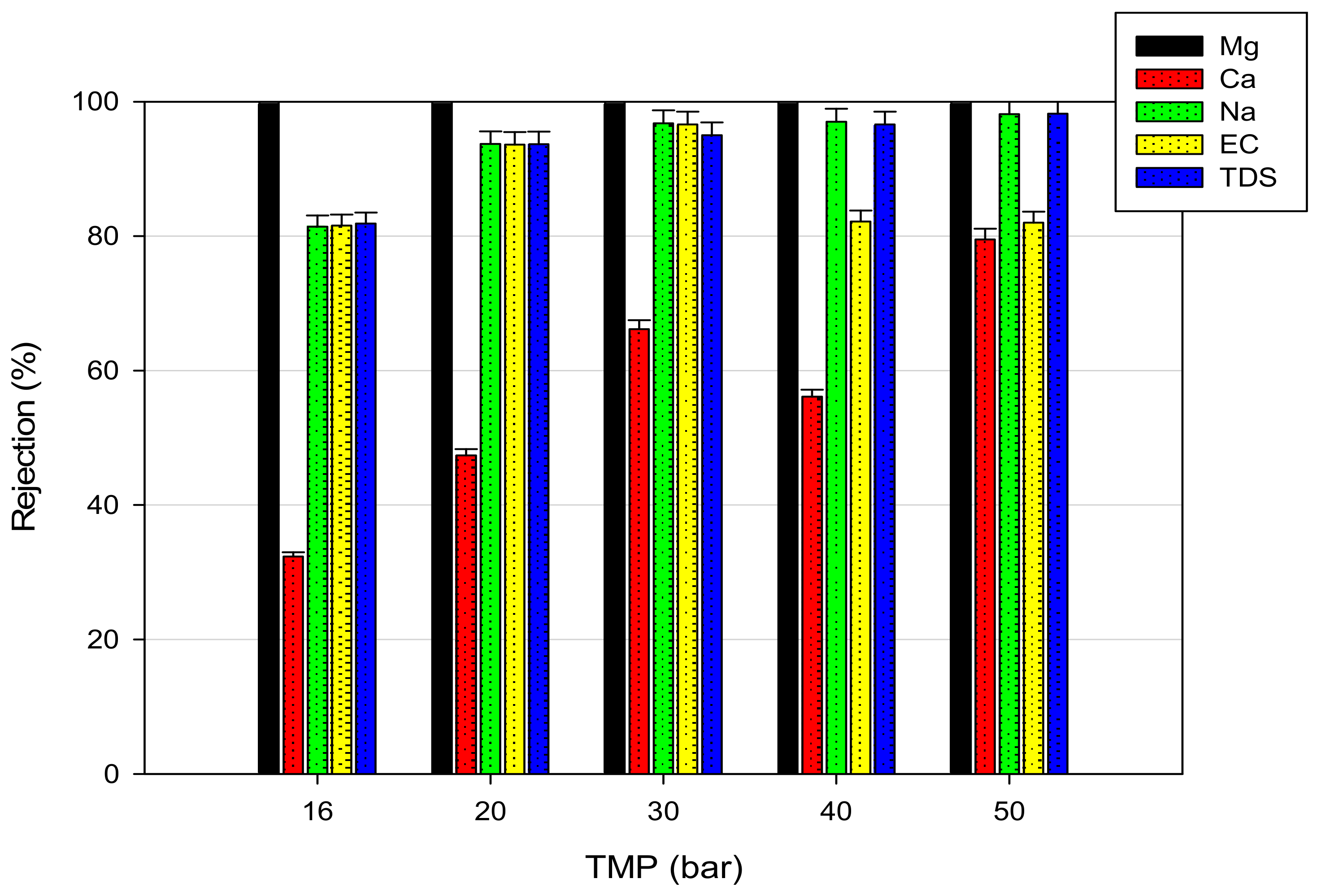

In Figure 5 the effect of TMP on the rejection towards main ions and other analyzed compounds, is showed. It can be noted that the rejection of Mg²⁺ was not affected by TMP: indeed, the rejection was of 100% independently by the applied pressure. Adversely, an increase of rejection by increasing the operating pressure was observed for Ca²⁺ and Na⁺. In particular, the rejection for Ca²⁺ and Na⁺ increased from 32.3% and 82.2% at TMP of 16 bar to 78% and 98% at TMP of 50 bar, respectively. A similar trend was observed for TDS rejection. Similar results, in terms of TDS rejection, were observed by Nataraj et al. [32] in the removal of dye and salts from simulated wastewaters with a TFC polyamide RO membrane in spiral-wound configuration.

The increase of the rejections by increasing the TMP could be attributed to the increase of solvent flux at higher pressure, resulting in the decreasing of salts concentration and ions in the permeate. On the other hand, during the RO treatment more components (ions and salts) are transported from the bulk solution towards the membrane surface as permeate flux increases, which enhance concentration polarization and consequently the faster flux decline (from the initial to the steady-state values) at the increasing of TMP.

4. Conclusions

Reverse osmosis (RO) was studied to reduce the saline content of softened and ultrafiltered flue gas desulfurization (FGD) wastewaters. Commercial spiral-wound RO membranes (named SWC and ESPA) were tested on laboratory scale and compared for their performance in terms of productivity, salt rejections, fouling index and cleaning efficiency.

The SWC membrane was effective in reducing more than 85% of Na⁺, Ca²⁺ and Mg²⁺ ions in selected operating conditions with low fouling index and higher cleaning efficiency in comparison to the ESPA membrane. Retention values for Na⁺ and Ca²⁺ ions increased by increasing the operating pressure, whilst Mg²⁺ ions were totally rejected independently by the transmembrane pressure.

Further investigations will be devoted to the combination of RO with membrane distillation in order to process the RO brine for the production of high purity water (which can be reused in thermal power plant) and salts (when membrane distillation is operated as membrane distillation/crystallization). The integrated system might allow exploiting the added value of RO brine, extracting water and crystals, thus approaching zero-liquid discharge strategy.
