Geosciences 2019, 9(4), 185; https://doi.org/10.3390/geosciences9040185

Article
Planning Landslide Countermeasure Works through Long Term Monitoring and Grey Box Modelling
Italian National Research Council (CNR), Research Institute for Geo-Hydrological Protection (IRPI), Corso Stati Uniti 4, 35127 Padova, Italy
*
Author to whom correspondence should be addressed.
Received: 5 April 2019 / Accepted: 19 April 2019 / Published: 22 April 2019

Abstract

:
The design of countermeasure works to mitigate landslide risk needs to deal with the multiple unknowns that are linked with soil properties, distribution and rheology. Most of the time, the degree of definition of all these elements is low. Through landslide monitoring, it is possible to acquire signals from the landslide that carry synthetic information about its dynamic. Thus, if it is possible to define a model that is able to link the landslide displacements with the triggering factors and to predict them consistently, that model may be used to evaluate the effect of a countermeasure work directly, bypassing the geomechanical uncertainty. In this paper, an example application of this approach is described. The displacements of a landslide located in North East Italy are connected with the water discharge of the small stream the crosses the landslide body. A countermeasure work that intercepts the discharge of the torrent is expected to reduce the landslide displacements of approximately 70%, with lower costs of construction and smaller impacts on the environment and landscape with respect of other types of structural mitigation works such as slope reprofiling and large retaining walls.
Keywords:
long term monitoring; landslide mitigation; countermeasure works; Passo della Morte

1. Introduction

Long monitoring datasets are crucial to understanding a specific landslide dynamic [1,2,3]. The necessity of a long-term dataset is due to the large number of unknowns present in a landslide system, such as soil/rock properties, distribution of the stratigraphic layers and geo-hydrological patterns, which make difficult to understand how a particular landslide moves under different triggering conditions without the actual registration of a long series of events [4,5,6]. Moreover, due to climate change effects, more intense precipitation events followed by long-term draughts that disrupt the usual season cycle are observed [7]. Thus, it is of little use considering just a year of continuative monitoring activity as able to capture a significant series of possible triggering events.
For most slow- or very slow-moving landslides [8], if a monitoring system is deployed, it commonly in function of the definition of a hazard map that describes the state of activity of the slope [9] or to design a mitigation strategy, rather than to identify prior-to-collapse precursors. The design of countermeasure works and the assessment of their efficiency needs to be supported by a reliable model that has been calibrated and validated on monitoring data [10]. The model does not need to reach a specific level of detail to be functional to the definition of a mitigation strategy (i.e., tri-dimensional geotechnical model), but needs to be able to predict the landslide movements under different level of stress and to identify the most important triggering factors. Additionally, a monitoring campaign should always be considered prior to the intervention, when possible, to allow a better targeting of the landslide mitigation strategy and eventually to reduce structural mitigation costs.
A grey box model is an algorithm that processes inputs to produce an output with limited knowledge of the intrinsic process that produces the relation. It is distinguished by having a black box model [11], where the model is completely independent and opaque with respect to the physical phenomena [12]. From a mechanical viewpoint, i.e, for the landslide dynamics, models sometimes do not account for hypotheses related to the rheology of the materials involved, but rather identify some triggering factors that influence the cinematic of the mass movement. Data are viewed as phenomenological entities, and the purpose of the model is to reproduce them as a function of selected inputs that are hypotized to have a causal relationship with the outputs. These types of models have been widely used for landslide mapping, such as for susceptibility mapping [13,14] and for hazard assessment [15], and to determine rainfall thresholds [16].
Grey box modelling also applies well to the study of time-series of landslide displacements. The model may be designed once the correlation of the two signals has been established and once a possible causal relation between the two variables has been hypotized [17]. In this case, the system identification process consists of the design of a predictive function, with linear-regression or more advanced machine learning techniques, using a portion of the data for calibration and a part for validation purposes [18,19]. Once the model has been validated, it may be used for prediction, functioning as the input [20]. This would support the definition of mitigation strategies acting directly on the reduction of the input forcing.

2. Study Area

The Italian region of Friuli Venezia Giulia, in North East Italy, is characterized by the presence of several geohazards, especially in mountain regions, such as landslides [21,22] and sinkholes [23]. Here, along the Tagliamento River valley, lies a narrow gorge called Passo della Morte (46°23′49″ N, 12°42′51″ E) located in the NW part of Friuli Venezia Giulia Region. The Tagliamento Valley is an important intramontane valley oriented E–W and following the Upper Tagliamento fault. In the Passo della Morte study area, the Sauris fault can also be recognized, and the presence of these tectonic stresses induces a general weakness of the rock bodies, therefore predisposing to slope instabilities.
The confined morphology embodies an area where there is high potential energy, inducing widespread landslides and snow-avalanches [24,25,26] (Figure 1). Unfortunately, the Tagliamento valley connects the upper plains of the Friuli Venezia Giulia Region with the industrial areas of the Cadore (Veneto Region), and thus a major national road needs to pass through the Passo della Morte. The road is therefore necessarily located in a very hazardous area and, over the years, several risk mitigation strategies have been adopted, both structural and non-structural. Tunnels and half tunnels were designed, retaining walls were constructed, and rockfall barriers deployed. Since 2002 a monitoring system has monitored the ground water level and the surface and deep displacements of the major landslides [27]. In Passo della Morte some structures, including a 43-million-euro tunnel, are showing signs of damage, and the residual risk is still high. The damage to the road tunnel is inflicted by a large 24 × 106 m3 block slide (“Frana 3”) [28] that cuts the tunnel at about 300 m from the eastern entrance [29]. Additionally, a heart-shaped secondary slope instability of 2.1 × 106 m3 (“Frana 1-2” landslide unit [30]) affected the tunnel portal and 200 m of National Road.
The Friuli Venezia Giulia Region is known to be one of the most rainy areas of Europe; the Passo della Morte area is characterized by a mean annual accumulated precipitation (calculated in the interval 1961–2000, Ampezzo station, located 6 km away from the study area)) of 1721 mm [31]. However, the yearly variability is high, with a minimum of 1229 and a maximum of 2370 mm. During the years characterized by intense rainfall and snowfall events, an increase in landslide activity was observed, especially for Frana 3.
The Frana 1-2 landslide unit is a complex slide with rotational movement at the crown and translational behavior at the toe. It consists of two distinct scarps with converging toes; the two scarps are divided by the Rio Verde torrent, a small stream that flows just before the eastern tunnel entrance. The tunnel and the old national road cross the Rio Verde above a concrete box culvert. The slow, unremitting movements of Frana 1-2 damage the culvert, the retaining walls along the road and the road pavement. During intense meteorological events, the displacement of Frana 1-2 shows a recrudescence with larger displacements and greater damage. The monitoring data that has been collected over the years in the area now support and guide a data-driven countermeasure works to mitigate the Frana 1-2 displacements.

3. Monitoring Network and Data

Data from a helicopter-borne laser scanner covering the area are available, allowing the definition of a 1 m cell Digital Terrain Model (DTM). The study area is in fact densely forested; therefore, to gain reliable topographic information, it was necessary to use LiDAR. The DTM was then used to support the geomorphological investigation and to perform some hydrological analysis.
Landslides in Passo della Morte have been monitored since 2002. Over the years, several instruments have been deployed, such as quasi-real time piezometers, inclinometers (periodic and in-place), GNSS surveys, a thin plate weir to measure continuously the discharge of the Rio Verde, a rain gauge and temperature sensors (meteo station). Along, some crackmeters and clinometers were deployed in the road tunnel to monitor crack displacements [29].
The monitoring network serves multiple purposes: it controls the movements of the landslides, and thus it supports the definition of numerical models that reconstruct the slope kinematics through back analysis. On the other hand, it provides data about how effective the implemented structural mitigation works are, based on which it is possible to design additional countermeasures if the already executed ones were not adequate.
The Periodical Global Navigation Satellite System (GNSS) survey provides information about surface displacements. These measurements are acquired yearly and show an average superficial displacement of Frana 1-2 of 4.2 cm/year in benchmark PM18, located in the upper part of the Frana 1 side of the landslide unit, of 3.7 cm/year in PM22 located at the toe of the landslide unit and 1.2 cm/year in PM21, deployed on Frana 2 (Figure 2).
Several inclinometers have been installed in the area to define the tri-dimensional shape of the slip surface [32]. The survey protocol adopted by CNR-IRPI called for the deployment of in-place inclinometers once the location of the slip surface was defined through periodic inclinometric surveys. Moreover, when a borehole reaches full scale, another one is drilled nearby to follow the evolution of the landslides for several years in order to obtain a large, continuous dataset. Presently, three in-place inclinometers monitor Frana 1-2 (Figure 2).
The inclinometer I21 series follows the eastern crown displacements along the slip surface at 23 m below ground surface since August 2010 with inclinometer I21bis; the associated in-place probe was deployed in December 2010. Inclinometer I21ter was installed just a few meters apart from I21bis in July 2015, and the deployment of the in-place inclinometer took place in January 2016. This sensor malfunctioned between 22 July 2017 and 15 August and between 24 December 2017 and 2 January 2018; it is still operating today. On the upper western side are inclinometers I15 and I15bis, both equipped with in-place probes, both acquiring data since 2012. The slip surface displacements at the toe of Frana 1-2 (−23 m below ground surface) are followed by the PC1 inclinometric series. Inclinometer PC1 was drilled in April 2003, the in-place probe was deployed in November 2003 and was broken in July 2007. PC1bis in-place inclinometer was installed in August 2007 in a borehole that was already prepared to replace PC1 in case of malfunctioning. PC1bis stopped acquiring data in August 2011. In June 2012, inclinometer PC1ter was deployed, and the in-place probe started acquiring in January 2013 and is still operating now.
Almost every borehole was also equipped with piezometers acquiring in quasi real time. The water table measured in the piezometers on Frana 1-2 has never reached the slip surface in all the monitoring years.
In 2012, a sharp crested thin plate weir was installed to assess the water discharge of the Rio Verde torrent (Figure 2). The weir is deployed in a regular 6 × 5 m concrete culvert that acts as a bridge for the National Road over the Rio Verde. The sensor malfunctioned between May and November 2016 and it is still acquiring and the time being.

4. Hydrological Analysis

4.1. Hydrogeological Setting

The Rio Verde stream, a tributary on the left bank of the Tagliamento river, cuts across the Frana 1-2 landslide unit. Near the crown of the landslide, on the hydrographical left side of the Rio Verde, a series of springs have been identified at about 800 m a.s.l.. Discharge from the springs is perennial; one of the springs is exploited for drinking purposes by the local municipality as an emergency source in dry years, since it is a small but reliable source of freshwater. Landslide movements also periodically damage the aqueduct, which in the last 10 years has been reconstructed twice.
The occurrence of the springs is induced by the presence of a conjugated structure of the Sauris fault, which makes a structural contact of dolostone (M. Tiarfin Formation—Ladinian) overlapping clay and silty shales (Raibl Formation—Carnian) [33]. This geological setting creates an impervious layer over which the carbonate aquifer flows. Thus, the water table is located near the contact between the clay and silty shales and the more pervious colluvium that covers the slope, originated by slope processes (Figure 3).
The recharge area of the abovementioned springs only partially corresponds with the surface watershed of the Rio Verde stream. Part of the groundwater arrives from the southern slope of Mt. Tinisia (Figure 3), on the eastern side of the Rio Verde stream, hosting an aquifer with travel times estimated in years [34] (Figure 3). Below the spring line, in correspondence with Frana 1-2, no groundwater was detected in all the boreholes that have been drilled over the years, nor was any detected in the equipped real-time piezometers that have been deployed for several years.
From the surface hydrology perspective, the tract of the Rio Verde upstream of the springs (dashed line in Figure 2) is always dry, and discharge is present only during intense (<150 mm/day) rainfall events (few days over the year). Thus, the discharge that flows in the Rio Verde downstream of the springs is almost exclusively given by the spring’s outflow.

4.2. Surface Hydrology

The surface hydrology of the run-off basin has been analyzed with GIS tools on the available LiDAR DTM. In particular, the basin extraction was performed using ArcGIS® Hydrology toolbox. The Rio Verde basin covers an area of 1.68 km2, comprising a difference in height between the 735 m a.s.l. of the closing section placed, for this analysis, under the road crossing where the hydrometer is deployed and the 2122 m of the summit of Mt. Tinisa.
From the rock lithotypes and deposits viewpoint the upper basin’s area (about 1.52 km2) is characterized by the presence of tectonized dolomitic limestone of Monte Tiarfin Formation affected by karst phenomena. Downstream, the Frana 3 landslide back scarp deposit consisting of dolomitic boulders follows along with colluvium on the other side of the stream, on the hydrographic left (Figure 3). These two lithologies cover an extension of 0.096 and 0.065 km2 respectively. The three domains show different soil permeability: high for the landslide deposit, intermediate for the colluvium and low for the dolomitic limestone that is nevertheless highly fractured. The portion of the basin set on dolomitic limestone constitutes 95% of the total area, and it is separated from the lower portion of debris and colluvial deposits from a vertical rocky threshold that generates a 50 m high fall during rainfall events. The water coming from the upper part of the basin after the fall enters the large landslide boulders and is thereby dispersed, feeding the underground circulation of the right bank of the Rio Verde, into Frana 3, and almost not participating to the streamflow of the lower tract of the Rio Verde [35].

4.3. Springs Discharge

For the study of the spring flow characteristics, the few peaks linked to surface run-off during very intense rainfall events were removed to obtain a significant hydrograph, representing only the flow rate of the springs.
The flow pouring from the springs may be divided in two components: (i) “quickflow” [36] responding to rainfall events linked to infiltration in the high-permeability debris at the base of the of the Tinisa massif; (ii) “dry baseflow” connected to deep circulations with long residence time set in the dolomitic limestones, coming from the massif itself [34].
From the analysis of the discharge dataset since 2012, it was possible to establish an average annual flow rate of about 40 l/s, so according to Meinzer classification [37] is a spring of class III (28.3–283 l/s). This means that even in dry periods, there is a constant and reliable baseflow coming from the springs. Along the spring, the recession curve for the spring discharge was analyzed. The exponential term αi of the quickflow recession curve [38,39] calculated for several events occurred in the monitoring period is equal to 0.014 [day−1].

5. Modelling and Results

5.1. Correlations between Velocities of the Landslide and Discharge in the Rio Verde

The quasi real-time inclinometric measurements showed periods of acceleration and decelleration. To assess whether there was correlation between displacements and triggering factors of Frana 1-2, such as precipitations or discharge in the Rio Verde, initially, data of inclinometer I21bis were analyzed. The displacements recorded by the I21bis inclinometer are continuous, with no quiescent phases, but only with decreases or increments of speed.
Correlation between the velocities of the landslides (calculated on windows of 1, 2, 3, 5 and 10 days) and rainfall, including hourly rainfall and accumulated rainfall (12 h, 24 h, 2 days 3 days, 5 days, 10 days), was tested with Pearson Product-Moment Correlation Coefficient (PPMCC); no significant correlation was found. On the other hand, a correlation between velocities of displacement of the landslide along the slip surface and discharge in the Rio Verde stream was found (Figure 4).
The PPMCC shows a correlation with high values (0.85) between velocity in a 10-day time-lag and discharge. The PPMCC fell in the range between −1 and 1, where values close to | 1 | are maximum correlation and values close to 0 indicate no correlation. Considering the chaotic nature of the process observed, values of correlation above 0.8 are very significant. Moreover, it has to be noted that data were not filtered and outliers were not removed, so as to test the robustness of the assumption and to not hinder the reliability of the analysis.
Data collected in the I21ter inclinometer were analyzed to confirm the correlation. In fact, checking that results are consistent with those collected in another time period by a different instrument makes it possible to test the robustness of the analysis and to confirm the hypothesis of correlation.
The PPMCC between velocities measured on a 10-day time-lag in the I21ter and the flow of the Rio Verde was 0.81 for the first 4 months of 2016. In the following months of 2016, some problems in the discharge sensor generated unreliable measurements. For the time period 2017–2018, the PPMCC value between discharge in the Rio Verde stream and velocity in a 10-day time-lag in inclinometer I21ter was 0.82.
The fact that two instruments, inclinometers I21bis and I21ter, in two different time windows, show high correlations between two signals (discharge and velocity) is evidence of strong influence between the two quantities. The underlying mechanism that links the two variables may be the imbibition of the argillitic foot of the landslide by the water flowing in the Rio Verde.

5.2. Modelling Displacements in Function of the Rio Verde Discharge

To design the model, the I21ter inclinometer measurements were divided into two separate datasets. One was used for calibration (from August 15th 2017 to July 15th 2018, 11 months) and one for validation (from 1 January 2017 to 22 June 2017, almost 6 months). The fact that a calibration dataset was preserved and that the calibration datasets fall in a period of lower discharge is a guarantee of the model’s reliability, and that there is no numerical overfitting on the validation dataset.
The coefficient of determination R2 of the linear regression between discharge and velocities is only 0.68; therefore, a different equation considering time-lags was needed to link the two quantities. It was observed that there was a very elastic system response in the area of flow rates of 100 l/s, while for larger or smaller values the effects were slightly dissipated. Therefore, the following equation is obtained:
0.0004 ( 100 + 0.75 ( Q 5 g ¯ 100 ) ) 0.0007 =   V ¯ 10 g
where ( Q 5 g ¯ ) is the average flow calculated over the previous 5 days, V ¯ 10 g is the average velocity calculated over 10 days, 0.75 represents a dumping factor, and 0.0004 and −0.0007 are linear coefficients. The relationship is linear, derived by simple linear regression; it has been expressed in Equation (1) in that form to make it more readable. The equation is not congruent dimension-wise as it is a gray-box model and not a rheological law. The graphic results of the fitting can be seen in Figure 5; the general trend of speed is well reconstructed.
To confirm the reliability of the equation obtained, we used the validation dataset. The fitting is still very good. The R2 obtained by comparing modeled velocities and measured velocities is equal to 0.77, the mean absolute percentage error (MAPE) is 14% and the root-mean-square error (RMSE) is equal to 0.00043. There is, therefore, a good performance of the model, considering also its straightforwardness. Moreover, the distribution of the errors between modeled and measured velocities was tested (Figure 6), and their distribution is normal, meaning that the model is able to reproduce the full range of the variable. Additionally, the average of the residuals is almost equal to zero, thus the systematic error is negligible, and the standard deviation of the fitting normal is low (0.0004), with 73.4% of the residuals falling into the 1σ range. Thus, the model is adequately reliable for assessing and quantifying the efficacy of mitigation measures.

6. The Mitigation Strategy

On the basis of the strong evidence of relation between velocities of the landslide and discharge in the Rio Verde stream, a mitigation measure that acts on the sequestration of the flowing water to reduce displacements has been proposed. In this working hypothesis, the water discharge would be intercepted at the section where the hydrometer is located and channeled into a pipeline outside the landslide body, on the hydrographic left.
The intercepting structure would be placed next to the existing check dam, under the Rio Verde road bridge. This design solution entails the installation of a concrete tank with an overflow spillway in the section of the artificial riverbed. The function of the tank is to adjust the hydraulic load, avoid cavitation, and allow the settlement of medium-coarse particles.
It is possible to calculate the expected deformations using Equation (1), supposing the total interception of the discharge for values lower than 100 l/s. The equation provides a minimum velocity even with flow rates equal to 0 l/s. The result of the simulation according to the flood for the years 2017/2018 compared with the measured displacement is shown in Figure 7.
The expected improvement has been assessed considering two periods of actual recordings, one between January 2017 and June 2017, in which the flow never exceeded 100 l/s, and a second from August 2017 to July 2018, in which there where periods of discharge exceeding the 100 l/s threshold. The reduction of displacements induced by the presence of the interception mitigation measure is equal to 61% in the first period of analysis and 68% in the second period. Assuming a linear trend of the movements in the interval of the I21ter malfunction, the overall improvement increases to 79%.
The proposed mitigation strategy is low-impact and low-cost compared with other structural countermeasure works such as re-profiling with the deployment of infill at the foot of the landslide [40]. In any case, the sequestration of most of the discharge from the Rio Verde would be needed to allow the deployment of earth embankment at the toe of the landslide, since the area is at the moment crossed by the stream. Furthermore, downstream of the weir, the Rio Verde riverbed is spotted with local erosion and small instabilities due to the presence of the clayey landslide material. The construction of stable earthworks would be possible once the movements of the landslide were reduced with water sequestration.

7. Conclusions

This work describes how long-term monitoring of a landslide may highlight specific dynamic patterns of a slope instability phenomenon and point to new, “tailor made” mitigation strategies. It may also induce other researchers to evaluate the feasibility of the installation of weirs to measure river discharges in unstable slopes with similar morphology. Our experience shows that it is possible to produce a data-driven landslide structural mitigation strategy even if no formal characterization of the governing rheology has been identified. At the moment, in fact, we do not have geotechnical laboratory tests that unequivocally link the landslide mechanism with the soil properties. In this framework, gathering several years of monitoring data is fundamental to untangle and properly characterize the interaction between the landslide and the potential triggering factors.
The prosecution of the monitoring activity in Frana 1-2 after the construction of the water intercepting structure will allow to control if the expected mitigation of the displacement is validated. In fact, through discharge control, there will be an active feedback in the landslide cinematic and a feed-forward response. In this case, the site will become an experiment where, through the control of the input (water discharge), the hypothesis regarding the causal effect can be re-tested.

Author Contributions

G.M. is the PI of the monitoring project. G.B. and G.M. analyzed data. G.B. produced the statistics and the gray box model. G.M. conceived the mitigation strategy. G.B. wrote the paper and designed the figures. G.M. revised the paper.

Funding

This research received no external funding.

Acknowledgments

We thank Protezione Civile della Regione Autonoma Friuli Venezia Giulia and in particular Gianni Burba and Gabriele Peressi. Protezione Civile della Regione Autonoma Friuli Venezia Giulia funded the deployment of the monitoring system. Other resources already available at CNR-IRPI provided the funds for the research activity. Protezione Civile della Regione Autonoma Friuli Venezia Giulia was not involved in the manuscript design and production.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Angeli, M.-G.; Pasuto, A.; Silvano, S. A critical review of landslide monitoring experiences. Eng. Geol. 2000, 55, 133–147. [Google Scholar] [CrossRef]
  2. Cola, S.; Gabrieli, F.; Marcato, G.; Pasuto, A.; Simonini, P. Evolutionary behaviour of the Tessina landslide. Riv. Ital. di Geotec. 2016, 50, 51–70. [Google Scholar]
  3. Corominas, J.; Moya, J.; Ledesma, A.; Lloret, A.; Gili, J.A. Prediction of ground displacements and velocities from groundwater level changes at the Vallcebre landslide (Eastern Pyrenees, Spain). Landslides 2005, 2, 83–96. [Google Scholar] [CrossRef]
  4. Cappa, F.; Guglielmi, Y.; Soukatchoff, V.; Mudry, J.; Bertrand, C.; Charmoille, A. Hydromechanical modeling of a large moving rock slope inferred from slope levelling coupled to spring long-term hydrochemical monitoring: example of the La Clapière landslide (Southern Alps, France). J. Hydrol. 2004, 291, 67–90. [Google Scholar] [CrossRef]
  5. Springman, S.M.; Thielen, A.; Kienzler, P.; Friedel, S. A long-term field study for the investigation of rainfall-induced landslides. Geotechnique 2013, 63, 1177. [Google Scholar] [CrossRef]
  6. Palis, E.; Lebourg, T.; Tric, E.; Malet, J.-P.; Vidal, M. Long-term monitoring of a large deep-seated landslide (La Clapiere, South-East French Alps): initial study. Landslides 2017, 14, 155–170. [Google Scholar] [CrossRef]
  7. Borgatti, L.; Soldati, M. Hillslope Processes and Climate Change. Treatise Geomorphology 2013, 7, 306–319. [Google Scholar]
  8. Hungr, O.; Leroueil, S.; Picarelli, L. The Varnes classification of landslide types, an update. Landslides 2014, 11, 167–194. [Google Scholar] [CrossRef]
  9. Bossi, G.; Mantovani, M.; Frigerio, S.; Schenato, L.; Marcato, G.; Pasuto, A. A Monitoring Network to Map and Assess Landslide Activity in a Highly Anthropized Area. Geosciences 2016, 6, 40. [Google Scholar] [CrossRef]
  10. Corsini, A.; Borgatti, L.; Caputo, G.; De Simone, N.; Sartini, G.; Truffelli, G. Investigation and monitoring in support of the structural mitigation of large slow moving landslides: an example from Ca’Lita (Northern Apennines, Reggio Emilia, Italy). Nat. Hazards Earth Syst. Sci. 2006, 6, 55–61. [Google Scholar] [CrossRef]
  11. Bunge, M. A General Black Box Theory. Philos. Sci. 1963, 30, 346–358. [Google Scholar] [CrossRef]
  12. Zhou, C.; Yin, K.; Cao, Y.; Ahmed, B.; Fu, X. A novel method for landslide displacement prediction by integrating advanced computational intelligence algorithms. Sci. Rep. 2018, 8, 7287. [Google Scholar] [CrossRef][Green Version]
  13. Rossi, M.; Guzzetti, F.; Reichenbach, P.; Mondini, A.C.; Peruccacci, S. Optimal landslide susceptibility zonation based on multiple forecasts. Geomorphology 2010, 114, 129–142. [Google Scholar] [CrossRef]
  14. Kanungo, D.P.; Arora, M.K.; Sarkar, S.; Gupta, R.P. A comparative study of conventional, ANN black box, fuzzy and combined neural and fuzzy weighting procedures for landslide susceptibility zonation in Darjeeling Himalayas. Eng. Geol. 2006, 85, 347–366. [Google Scholar] [CrossRef]
  15. Carrara, A.; Cardinali, M.; Detti, R.; Guzzetti, F.; Pasqui, V.; Reichenbach, P. GIS techniques and statistical models in evaluating landslide hazard. Earth Surf. Process. Landforms 1991, 16, 427–445. [Google Scholar] [CrossRef]
  16. Martelloni, G.; Segoni, S.; Fanti, R.; Catani, F. Rainfall thresholds for the forecasting of landslide occurrence at regional scale. Landslides 2012, 9, 485–495. [Google Scholar] [CrossRef]
  17. Du, J.; Yin, K.; Lacasse, S. Displacement prediction in colluvial landslides, Three Gorges Reservoir, China. Landslides 2013, 10, 203–218. [Google Scholar] [CrossRef]
  18. Zhou, C.; Yin, K.; Cao, Y.; Ahmed, B. Application of time series analysis and PSO–SVM model in predicting the Bazimen landslide in the Three Gorges Reservoir, China. Eng. Geol. 2016, 204, 108–120. [Google Scholar] [CrossRef]
  19. Krkač, M.; Špoljarić, D.; Bernat, S.; Arbanas, S.M. Method for prediction of landslide movements based on random forests. Landslides 2017, 14, 947–960. [Google Scholar] [CrossRef]
  20. Huang, F.; Huang, J.; Jiang, S.; Zhou, C. Landslide displacement prediction based on multivariate chaotic model and extreme learning machine. Eng. Geol. 2017, 218, 173–186. [Google Scholar] [CrossRef]
  21. Pasuto, A. The Vajont Valley (eastern alps): A complex landscape deeply marked by landsliding. In Landscapes and Landforms of Italy; Springer: Cham, Switzerland, 2017; pp. 135–145. [Google Scholar]
  22. Schopper, N.; Mergili, M.; Frigerio, S.; Cavalli, M.; Poeppl, R. Analysis of lateral sediment connectivity and its connection to debris flow intensity patterns at different return periods in the Fella River system in northeastern Italy. Sci. Total Environ. 2019, 658, 1586–1600. [Google Scholar] [CrossRef]
  23. Calligaris, C.; Devoto, S.; Zini, L. Evaporite sinkholes of the Friuli Venezia Giulia region (NE Italy). J. Maps 2017, 13, 406–414. [Google Scholar] [CrossRef][Green Version]
  24. Marcato, G. Valutazione della pericolosità da frana in località Passo della Morte. Ph.D. Thesis, Università degli Studi di Modena e Reggio Emilia, Modena, Italy, 2007. [Google Scholar]
  25. Codeglia, D.; Dixon, N.; Bossi, G.; Marcato, G. Alpine landslide risk scenario: Run-out modelling using a 3D approach. Rend. Online Soc. Geol. Ital. 2017, 42, 14–17. [Google Scholar] [CrossRef]
  26. Bossi, G.; Zabuski, L.; Pasuto, A.; Marcato, G. Capabilities of Continuous and Discontinuous Modelling of a Complex, Structurally Controlled Landslide. Geotech. Geol. Eng. 2016, 34, 1677–1686. [Google Scholar] [CrossRef]
  27. Bossi, G.; Marcato, G. Landslide risk assessment: the Passo della Morte case study (Eastern Italian Alps). In Proceedings of the International Conference on Disaster Prevention and Mitigation Technology for Large-scale Landslides, Taichung, Taiwan, 1 November 2017. [Google Scholar]
  28. Noferini, L.; Pieraccini, M.; Mecatti, D.; Macaluso, G.; Atzeni, C.; Mantovani, M.; Marcato, G.; Pasuto, A.; Silvano, S.; Tagliavini, F. Using GB-SAR technique to monitor slow moving landslide. Eng. Geol. 2007, 95, 88–98. [Google Scholar] [CrossRef]
  29. Bossi, G.; Schenato, L.; Marcato, G. Structural Health Monitoring of a Road Tunnel Intersecting a Large and Active Landslide. Appl. Sci. 2017, 7, 1271. [Google Scholar] [CrossRef]
  30. Pasuto, A.; Soldati, M. The use of landslide units in geomorphological mapping: An example in the Italian Dolomites. Geomorphology 1999, 30, 53–64. [Google Scholar] [CrossRef]
  31. ARPA; OSMER. Direzione Centrale Ambiente e Lavori Pubblici Schede climatiche del Friuli Venezia Giulia. Available online: http://www.meteo.fvg.it/clima/clima_fvg/01_elaborazioni_(grafici_e_tabelle)/01_precipitazioni/dati_elaborati/dati_idrografico_1961-2000/tabelle_e_grafici_stazioni/mensili/01_piogge_cumulate/tabella/AMPEZZOpiogge_tab.pdf (accessed on 5 April 2008).
  32. Sinigardi, G.; Bossi, G.; Scuri, A.; Marcato, G.; Borgatti, L. Geological and numerical models as a tool to manage landslide risk: The Passo della Morte case study (UD, Italy). Rend. Online Soc. Geol. Ital. 2015, 34, 46–53. [Google Scholar] [CrossRef]
  33. Carulli, G.B. Carta Geologica del Friuli Venezia Giulia alla scala 1: 150.000; SELCA: Firenze, Italy, 2006. [Google Scholar]
  34. Cervi, F.; Borgatti, L.; Dreossi, G.; Marcato, G.; Michelini, M.; Stenni, B. Isotopic features of precipitation and groundwater from the Eastern Alps of Italy: Results from the Mt. Tinisa hydrogeological system. Environ. Earth Sci. 2017, 76, 410. [Google Scholar] [CrossRef]
  35. Petronici, F.; Borgatti, L.; Cervi, F.; Piccinini, L.; Bonaga, G.; Marcato, G. Hydrogeological monitoring and modelling in the S. Lorenzo road tunnel area (Passo della Morte, Udine) for the design of countermeasure works. Rend. Online della Soc. Geol. Ital. 2016, 39, 93–96. [Google Scholar] [CrossRef]
  36. Amit, H.; Lyakhovsky, V.; Katz, A.; Starinsky, A.; Burg, A. Interpretation of Spring Recession Curves. Ground Water 2002, 40, 543–551. [Google Scholar] [CrossRef] [PubMed]
  37. Meinzer, O.E. Outline of Ground-Water Hydrology, with Definitions; USA Government Printing Office: Washington, DC, USA, 1923.
  38. Boussinesq, J. Recherches théoriques sur l’écoulement des nappes d’eau infiltrées dans le sol et sur le débit des sources. J. Math. Pures Appl. 1904, 10, 5–78. [Google Scholar]
  39. Tallaksen, L.M. A review of baseflow recession analysis. J. Hydrol. 1995, 165, 349–370. [Google Scholar] [CrossRef]
  40. Zabuski, L.; Bossi, G.; Marcato, G. Influence of the Geometry Alteration of the Landslide Slope on its Stability: A Case Study in the Carnian Alps (Italy). Arch. Hydro-Eng. Environ. Mech. 2017, 64, 101–114. [Google Scholar] [CrossRef][Green Version]

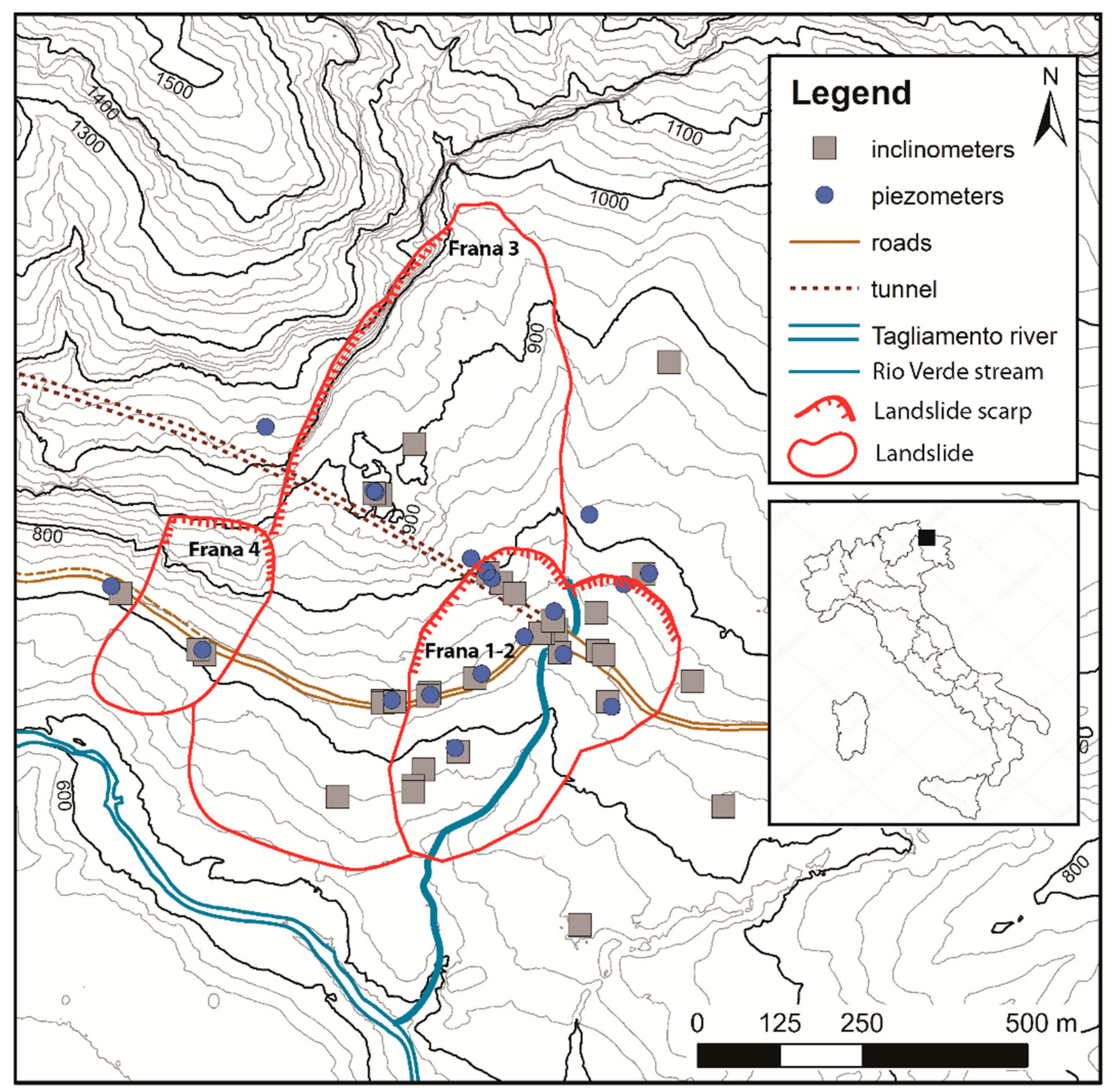

Figure 1. Study area with all the piezometers and inclinometers that have been deployed in the area since 2002 pointed out.
Figure 1. Study area with all the piezometers and inclinometers that have been deployed in the area since 2002 pointed out.
Geosciences 09 00185 g001
Figure 2. Frana 1-2 with active monitoring devices at the time of writing, location of the springs and location of the thin plate weir that measures the discharge of the Rio Verde stream. The I21 and PC1 superscriptions represent, respectively, the location for inclinometers I21, I21bis and I21ter, and of PC1, PC1bis and PC1ter.
Figure 2. Frana 1-2 with active monitoring devices at the time of writing, location of the springs and location of the thin plate weir that measures the discharge of the Rio Verde stream. The I21 and PC1 superscriptions represent, respectively, the location for inclinometers I21, I21bis and I21ter, and of PC1, PC1bis and PC1ter.
Geosciences 09 00185 g002

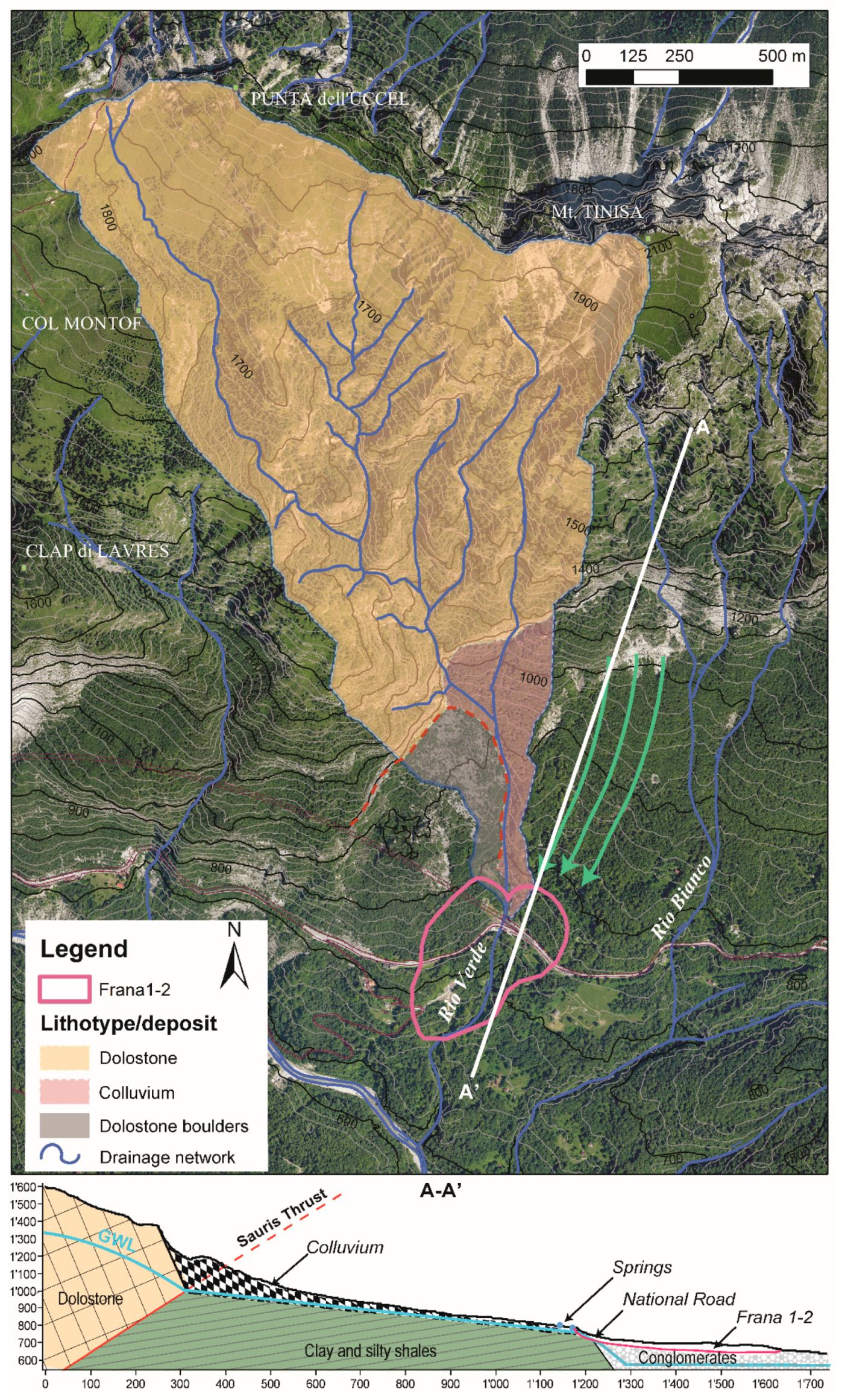

Figure 3. Lithotypes and deposits in the surface hydrological basin of the Rio Verde. The green arrows represent the groundwater flow feeding the springs. Below is a schematic hydrogeological section of the study area.
Figure 3. Lithotypes and deposits in the surface hydrological basin of the Rio Verde. The green arrows represent the groundwater flow feeding the springs. Below is a schematic hydrogeological section of the study area.
Geosciences 09 00185 g003

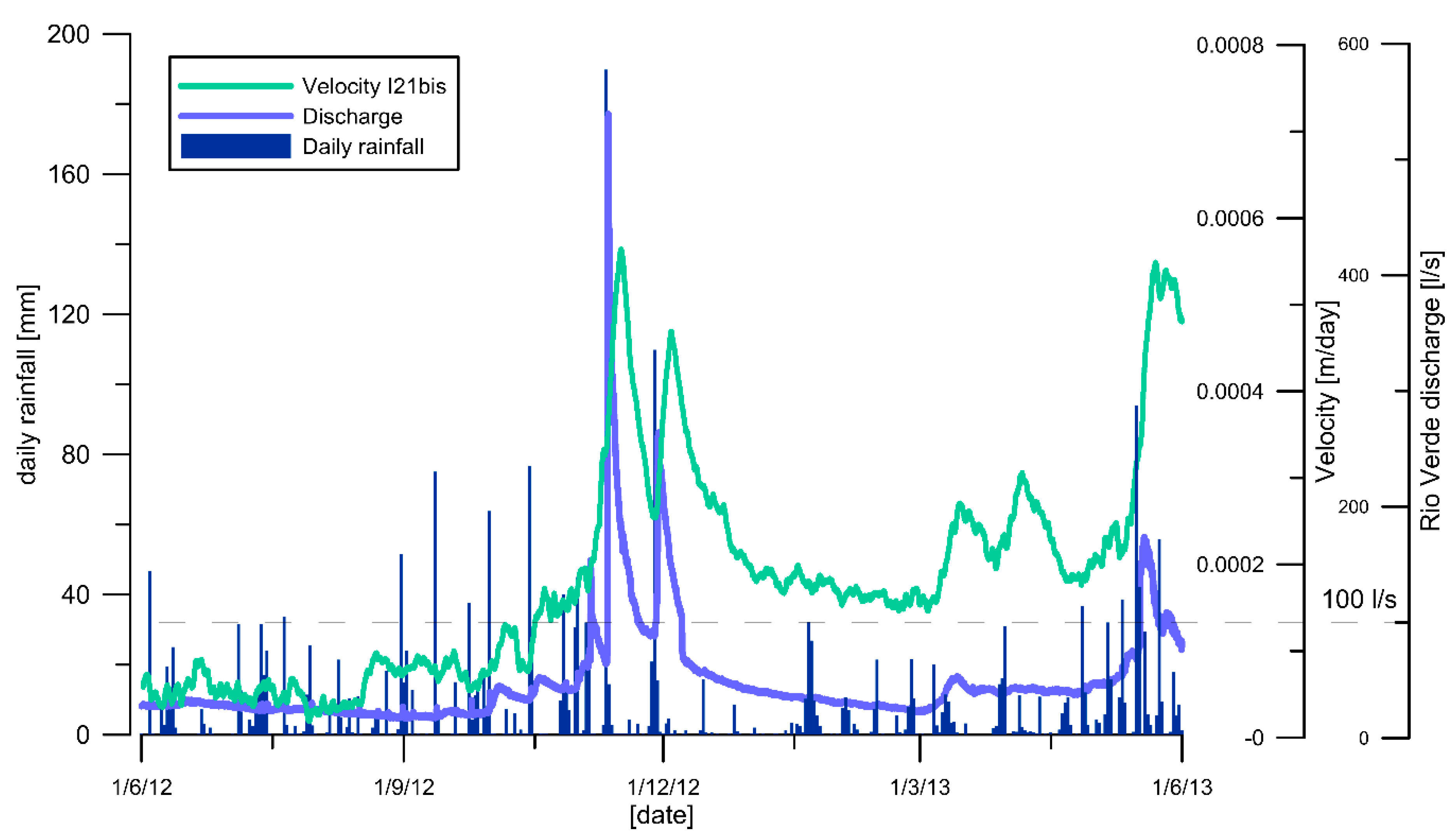

Figure 4. Velocity recorded in inclinometer I21bis compared with precipitations and daily rainfall.
Figure 4. Velocity recorded in inclinometer I21bis compared with precipitations and daily rainfall.
Geosciences 09 00185 g004

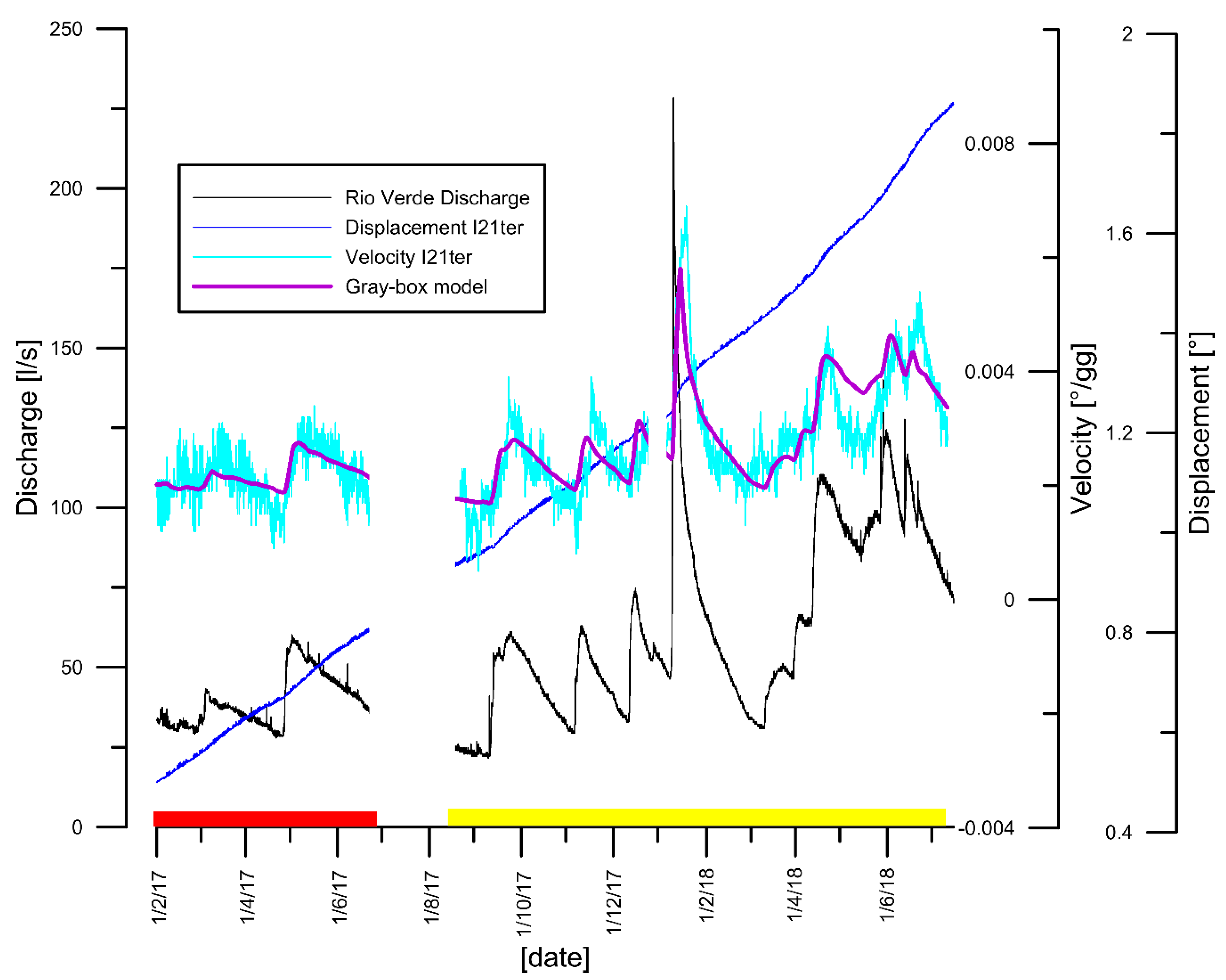

Figure 5. Discharge in the Rio Verde and velocities recorded in I21ter. The fitting of Equation (1) is shown in purple; the yellow period was used for calibration, and the red one is the validation dataset.
Figure 5. Discharge in the Rio Verde and velocities recorded in I21ter. The fitting of Equation (1) is shown in purple; the yellow period was used for calibration, and the red one is the validation dataset.
Geosciences 09 00185 g005

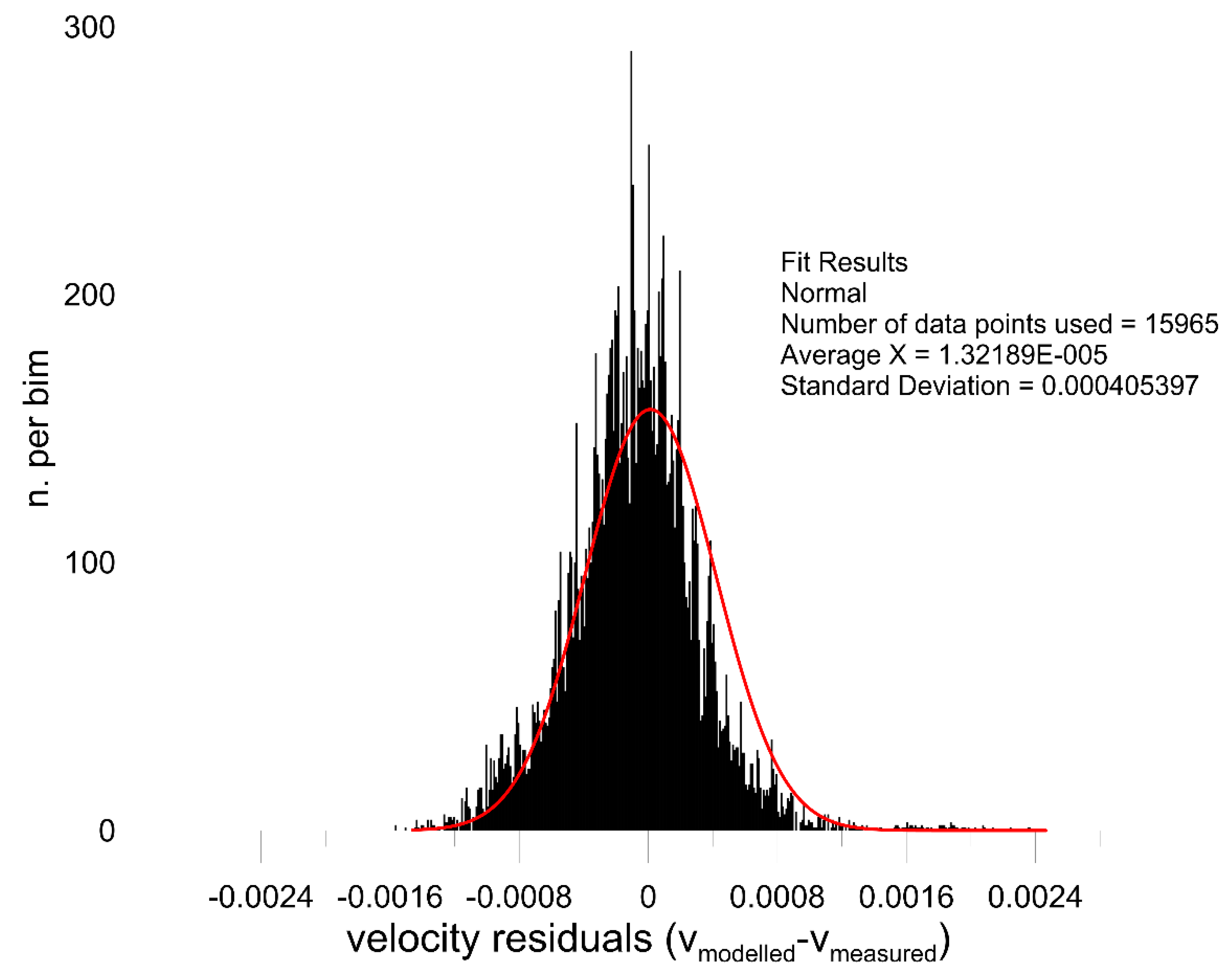

Figure 6. Histograms of the residuals between modelled velocities and actual velocities.
Figure 6. Histograms of the residuals between modelled velocities and actual velocities.
Geosciences 09 00185 g006

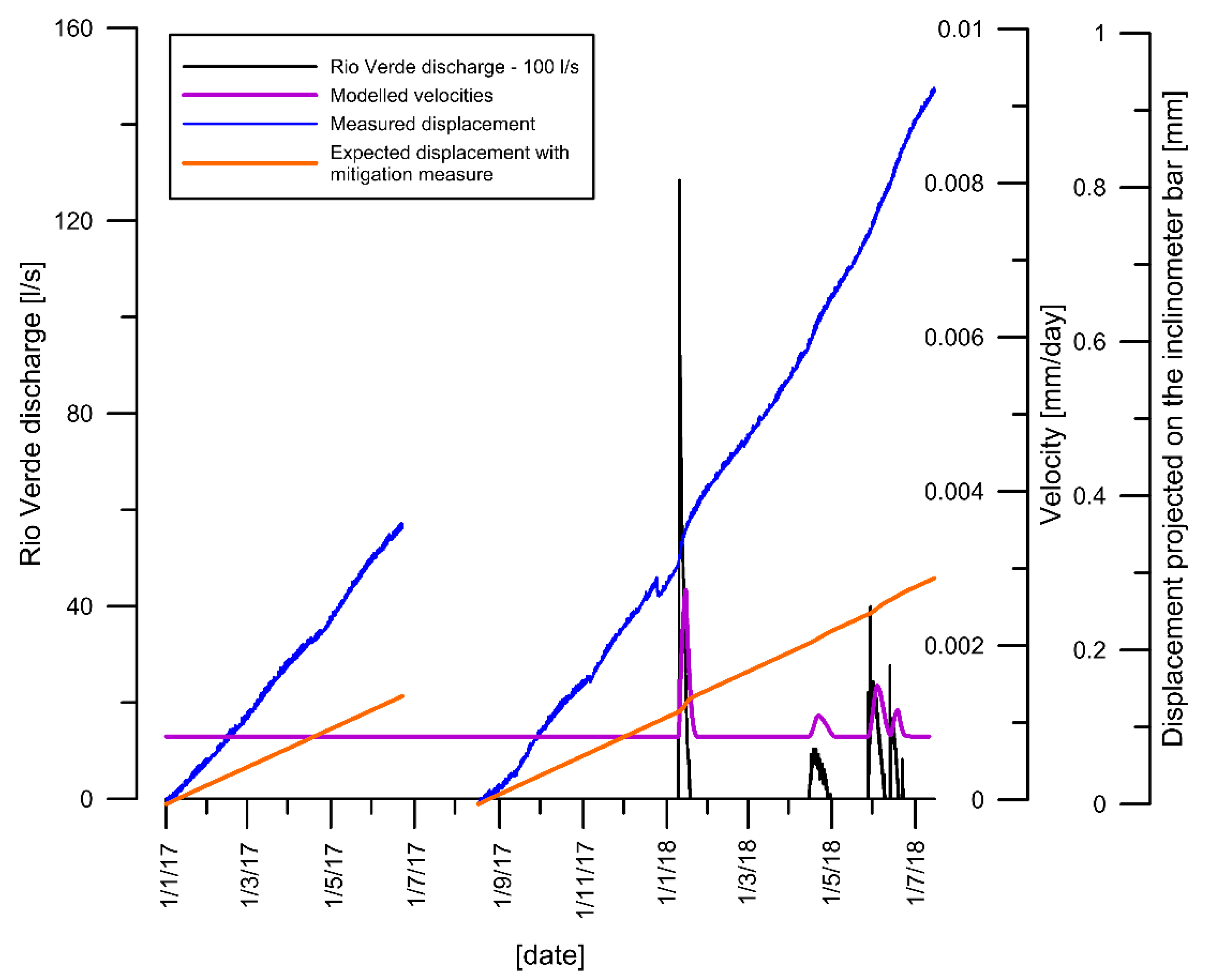

Figure 7. Estimated displacement that would have accumulated if the mitigation strategy consisting of the capitation of the Rio Verde discharge had been deployed in 2017–2018.
Figure 7. Estimated displacement that would have accumulated if the mitigation strategy consisting of the capitation of the Rio Verde discharge had been deployed in 2017–2018.
Geosciences 09 00185 g007
