Mud Spectral Characteristics from the Lusi Eruption, East Java, Indonesia Using Satellite Hyperspectral Data

Abstract

Imaging spectroscopy allows us to identify surface materials by analyzing the spectra resulting from the light–material interaction. In this preliminary study, we analyze a pair of hyperspectral cubes acquired by PRISMA (on 20 April 2021) and EO1- Hyperion (on 4 July 2015) over the Indonesian Lusi mud eruption. We show the potential suitability of using the two sensors for characterizing the mineralogical features in demanding “wet and muddy” environments such as Lusi. We use spectral library reflectance spectra like Illite Chlorite from the USGS spectral library, which are known to be associated with Lusi volcanic products, to identify minerals. In addition, we have measured the reflectance spectra and composition of Lusi sampled mud collected in November 2014. Finally, we compare them with reflectance spectra from EO1-Hyperion and PRISMA. The use of hyperspectral sensors at improved SNR, such as PRISMA, has shown the potential to determine the mineral composition of Lusi PRISMA data, which allowed the distinction of areas with different turbidities as well. Artifacts in the VNIR spectral region of the L2 PRISMA reflectance product were found, suggesting that future work needs to take into account an independent atmospheric correction rather than using the L2D PRISMA product.

1. Introduction

Imaging spectroscopy allows us to characterize materials by measuring unique spectra (reflectance, absorption, and transmission) that result from the interaction of light with the surface. More specifically, hyperspectral sensors operating in the VNIR (Visible Near Infrared) and SWIR (Short Wave Infrared) allow us to derive reflectance spectra. These spectra can provide indications about composition by identifying unique features known as “fingerprint” or spectral indicators [1]. Imaging spectroscopy from space is used in many applications, including (but not limited to) vegetation [2], agriculture, [2] food security [2], hydrology cryosphere [2,3], environment degradation, [2] natural hazards [2], raw materials and geological studies [2,3,4,5].

Regarding the mineral and geological characterization of Earth’s surface, over the past 35+ years, hyperspectral data have mainly been used to identify surface materials covering diverse areas. Several airborne sensors have been used, including the pioneering Australian HyMap [6], Airborne Visible and Infrared Imaging Spectrometer (AVIRIS) [7,8], Airborne Imaging Spectrometer (AIS) [8], Airborne Hyperspectral Scanner (AHS) [8], Airborne Imaging Spectrometer for different Applications (AISA) [8], Airborne Prism Experiment (APEX) [8], Airborne Reflective Emissive Spectrometer (ARES), Digital Airborne Imaging Spectrometer (DAIS-7915) [8], Hyperspectral Mapper (HyMap) [8], Hyperspectral Digital Imagery Collection Experiment (HYDICE) [8], Multispectral Infrared and Visible Imaging Spectrometer (MIVIS) [8], and the Operational Modular Imaging Spectrometer (OMIS) [8].

To note that AVIRIS, a NASA-research system, is mainly used within USA due to severe restrictions to its use outside. Since 1995, the above-mentioned systems have been used to collect hyperspectral VNIR-SWIR data for mineral and geological characterization for “small” and/or “large areas” surveys (including surveys on the scale of countries and continents).

The use of hyperspectral sensors from space [9,10] has been limited by the availability of the sensors (i.e., EO1-Hyperion operating between 2000–2017). The advent of new imaging spectrometers onboard satellites such as PRISMA (launched in 2019), EnMap (launched in 2022), and on the International Space Station as HSUI (2019) and EMIT (2022), are offering opportunities to study surface composition and gas emissions from point sources. For example, PRISMA has successfully characterized minerals in semi-arid environments [11,12].

Here, we describe the potential use of space imaging spectroscopy to characterize the composition of mud expelled from the Lusi eruption site in Indonesia. Lusi (contraction of LUmpur SIdoarjo) is a sediment-hosted geothermal system that appeared in the Sidoarjo village (Northeast Java, Indonesia) [13,14,15,16,17,18]. The eruption occurs along the Watukosek fault system, which also hosts other mud volcanoes further to the NE of the Island [19,20,21,22,23,24]. The Lusi inception occurred on 29 May 2006 and continues today with the eruption of copious (up to 180,000 m³/day) amounts of mud, clasts, water, oil, and gas [18]. The analysis of the mud and clasts reveals the presence of Smectite, Kaolinite, Illite, and minor Chlorite [14,22,25,26]. Geochemical analyses reveal that the main sources of the erupted Lusi water are a mixture of hydrothermal and meteoric fluids trapped with seawater and fluids released from clay illitization [16,17,18,24,26]. In this study, we combine spectral library and reflectance spectra measured in the laboratory of Lusi mud samples as references to analyze the hyperspectral cubes acquired by EO-1 Hyperion (2015) and PRISMA (2021) over Lusi and show the evolution of the Lusi mud emissions. We describe the method used to select reference spectra and compare laboratory vs. EO1_Hyeperion and PRISMA spectra to identify minerals present in their images. We discuss the results in terms of the suitability of PRISMA to identify the mineral composition of the Lusi mud.

2. Materials and Methods

2.1. Study Area: Geological Setting

Lusi is situated in the NE Java backarc basin and is located ~13 km to the NE of the Penanggungan volcano [15,27]. The local stratigraphy has been constrained from borehole data complemented by regional studies, seismic data interpretations, and analysis of erupted clasts [14,22,26,27,28]. The main identified units (top to bottom) include altered sand, shale, and clay recent sediments and the Pucangan Formation (Pleistocene), Bluish Grey clay from the Upper Kalibeng Formation (Pleistocene), volcanoclastics from the Upper Kalibeng Formation (Pleistocene), marls from the Tuban Formation (Miocene), carbonates from the Kujung-Prupuh Formation (Oligocene-Miocene) and shales from the Ngimgbang Formation (Eocene-Oligocene). The sediments that erupted from Lusi contain a mixture of all these Formations.

2.2. Hyperspectral Satellite Data

2.2.1. EO1-Hyperion

EO1-Hyperion: the instrument was launched on 21 November 2000 on board the Earth Observing-1 (EO-1) satellite as NASA’s New Millennium Program Earth Observing. It was meant to be a one-year technology demonstration/validation mission [29,30]. However, the mission was extended several times and finally decommissioned in March 2017.

The instrument acquires 220 contiguous spectral bands, covering the range from 400 nm to 2500 nm at a ground resolution of 30 m. It is a push broom instrument with a spatial resolution of 30 m for all bands with a scene width of 7.7 km, a standard scene length of 42 km, and an optional increased scene length of 185 km (

Table 1. EO1-Hyperion and PRSIMA sensors characteristics.

Specification	EO1-Hyperion	PRISMA
Swath with	7.75 km	30 km
Spectral channels	VNIR (70 channels, 356–1058 nm), SWIR (172 channels, 852–2577 nm)	VNIR (66 channels, (400–1010 nm) SWIR (174 channels, 920–2505 nm) PAN 1 channel
Spectral bandwidth	10 nm	VNIR (9–13 nm) SWIR (9–14.5 nm)
Signal-to-Noise Ratio (SNR)	161 (550 nm); 147 (700 nm); 110 (1125 nm); 40 (2125 nm)	>160 (>450 at 650 nm) >100 (>360 at 1550 nm; >240 (PAN)
Altitude	705 km	615 km
Revisit time	16 days	29 days (nadir) and 7 days (off nadir)
Absolute radiometric accuracy	N/A	Better than 5%,

). It has a single telescope and two spectrometers, one visible/near-infrared (VNIR) (with CCD detector array) and one short-wave infrared (SWIR) (HgCdTe detector array) [31] EROS Archive—Earth Observing One (EO-1)-Hyperion. The image used for this study was acquired on 4 July 2015 (Figure 1a). The L1 was atmospherically corrected using the QUAC [32] available in ENVI 5.5 [33], which provides good performances in cloud-free and no cloud-shadowed scenes, with images that contain diverse materials such as soil, vegetation, and manmade structures, as in our case [34]. The QUAC returns apparent reflectance integer data, with pixel values ranging from 0 to 10,000 (representing 0 to 100% reflectance) [33,35]. Empirical Flat Field Optimal Reflectance Transformation (EFFORT) correction tool available under ENVI was used to remove most of the systematic noise.

2.2.2. PRISMA

PRecursore IperSpettrale della Missione operativA (PRISMA) is a hyperspectral mission by the Italian Space Agency (ASI). PRISMA is a push broom instrument with a 30 km wide imaging swath composed of two cameras: (1) the imaging spectrometer (hyperspectral camera) that operates in the spectral range spanning between 400–2500 nm with a spectral resolution ≤ 12 nm and at Ground Sampling Distance (GSD) of 30 m/pixel and (2) a Panchromatic camera that acquires the same area at 5 m/pixel [36,37]. In Table 1 are reported PRISMA characteristics.

The Italian Space Agency releases PRISMA data at different levels of processing. In this work, we used the L2D level, atmospherically corrected at-surface reflectance product [36]. The image acquired on 20 April 2021 (Figure 1b) has very limited cloud cover and a maximum temperature of 30 °C in a day. The VIS (66 channels) and SWIR (174 channels) cubes have been combined by using the stack layer option in the ENVI 5.6 software, which also allows the removal of the overlapping wavelength.

2.3. Reference Reflectance Spectra

2.3.1. Spectral Library Data

Spectral libraries result from collected reflectance spectra of minerals measured in laboratory under controlled environment and following specific protocols with associated information (i.e., composition, sample picture, etc.). These libraries represent the reference (truth) used to compare measurements realized in situ for geological validation of satellite data. We have been exploring the literature to find mineral types that match those identified at Lusi or in other similar settings that have been found on Lusi.

Hydrothermal water chemistry and bedrock lithology can be inferred from the types of minerals on the land surface [38]. The observed altered rock identified from imaging spectroscopy data can be linked with the underlying geological process and its associated mineral trends with fracture systems [38]. The mud erupted at Lusi, which emerges from deep, contains various types of clay minerals, including Smectite, Kaolinite, Illite, and minor Chlorite [25]. Illite is a secondary mineral precipitate that belongs to a group of mica-type clay minerals characterized by a micalike sheet structure and is poorly crystallized. The space between its sequence of layers is occupied by poorly hydrated potassium cations, which are responsible for the absence of and/or poor swelling ability, especially compared to Smectites.

The presence of Illite is typical of sedimentary basins where Smectite to Illite conversion occurs. Analyses on side well cores from the BJP1 borehole (close to Lusi) revealed that Illite-Smectite conversion (a dehydration reaction) occurs in the sediments of the Bluish Grey clays from the Upper Kalibeng Formation [14].

Clay minerals are characterized by diagnostic absorption features near 1400 nm (caused by OH overtones), and 1900 nm (overtones caused by water molecules) due to Al-OH combination tones at 2120, 2209, 2133, 2225 nm, 2250 nm) [39]; some weaker absorptions are present in the 2300–2500 nm range due to presence of Fe- or Mg-OH and Iron at 477 nm, 556, 693, [40,41]. We have explored USGS spectral library version 7 (available at https://www.usgs.gov/data/usgs-spectral-library-version-7-data (accesed on 24 april 2024) for full compositional description) and accessed within ENVI 6.6.1 as USGSV6mineralbeckman 430 and USGS V6 mixtureV6 and USGSV7liquidsASDfr. The spectra used in the study were measured by using the Analytical Spectral Device spectrometer at full range standard resolution in the spectral range 350 to 2500 nm (old code W1R1F, recently re-coded as ASDF) and the Beckman spectrophotometer 200 to 3000 nm (old code W1R1B recently re-coded as BECK) [42,43].

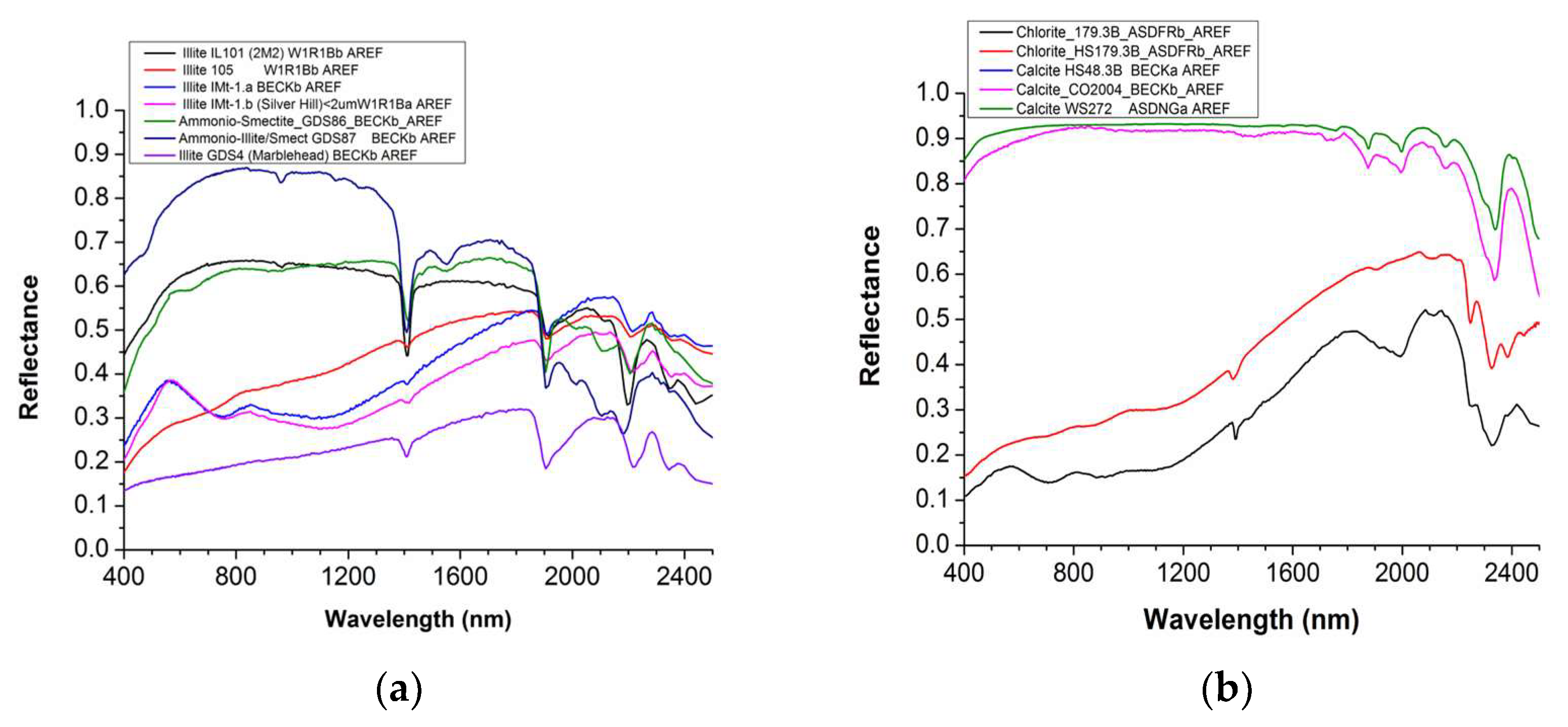

The specific reflectance spectra of five Illite, three Calcite, and two Chlorite spectra have been found in the USGS V6mineralbeckman 430 spectral library, and their reflectance spectra are plotted in Figure 2.

To compare the spectra from both satellites vs. the in situ spectra, we first applied the Empirical Flat Field Optimal Reflectance Transformation (EFFORT) tool of ENVI 5.7 to reduce systematic noise. For EO1-Hyperion we selected five segments to avoid the following wavelength intervals, 922–962 nm, 1104–1154 nm, 1326–1487 nm, 1790–1991 nm, characterized by O₂, CO₂, and water vapor absorptions. For PRISMA data, we also selected five segments avoiding the four wavelength intervals: 912–978 nm, 1131–1152 nm, 1328–1492 nm, and 1784–1967 nm. The polynomial order was set to 10 for all the segments.

Secondly, we applied the continuum removal to identify minerals, and finally, a Spectral Angle Mapping (SAM) supervised classification was implemented in ENVI Software 5.6software to create a map.

2.3.2. Lusi Mud Spectra

Two samples were collected from the Lusi site (Lat 7.52953 Lon 112.71012) during fieldwork on 30 November 2014. One mud sample mud from the stream was collected from one of the crater outflow streams and represented freshly discharged sediments. The second sample is surface dry mud characterized by some superficial alterations, such as white drying marks. Figure 3 shows the location where the samples were taken.

The samples were split into two parts: one used to measure the reflectance spectra and the other for chemical analysis (see Section 2.4).

The laboratory reflectance measurements were conducted using an ASD Fieldspec by Analytical Spectral Device, (ASD) operating between 350–2500 nm using the contact probe. The mud from the stream was dried before measuring the reflectance (Figure 4). The measurements were repeated three times at different points of the sample. Reflectance was measured in five different points in the dry mud sample (Figure 3) due to the larger size of the sample (about 5 cm diameter).

2.4. Chemical Analysis

The remaining part of the two mud samples are untreated sediments manually sieved through a 2 mm mesh. To remove interstitial water, the samplers were dried in a stove at 60 °C for 24 h and successively powdered using an Agata mortar. The mineralogical analyses were carried out by means of XRPD Analyses with a Philips PW1860/00 diffractometer. An open-source software (Qualx 2.0) was used for the qualitative and semi-quantitative identification of the minerals. Main cations and trace elements were measured using an X-Series Thermo-Scientific spectrometer (ICP-MS) [44]. Analyses were executed with a Thermo Electron Corporation Xeries spectrometer and a collision/reaction cell (CCTED) for the reduction/exclusion of main polyatomic and isobaric interferences.

2.5. Examination of Hyperspectral Sensors Reflectance Spectra

The spectral analysis was conducted for both EO1-Hyperion and PRISMA using the following workflow:

• Visual inspection of the volcanic area as mapped by the two hyperspectral sensors was used to explore spectra in both walkable and not walkable areas;
• Spectra comparison between satellite and library/in situ.

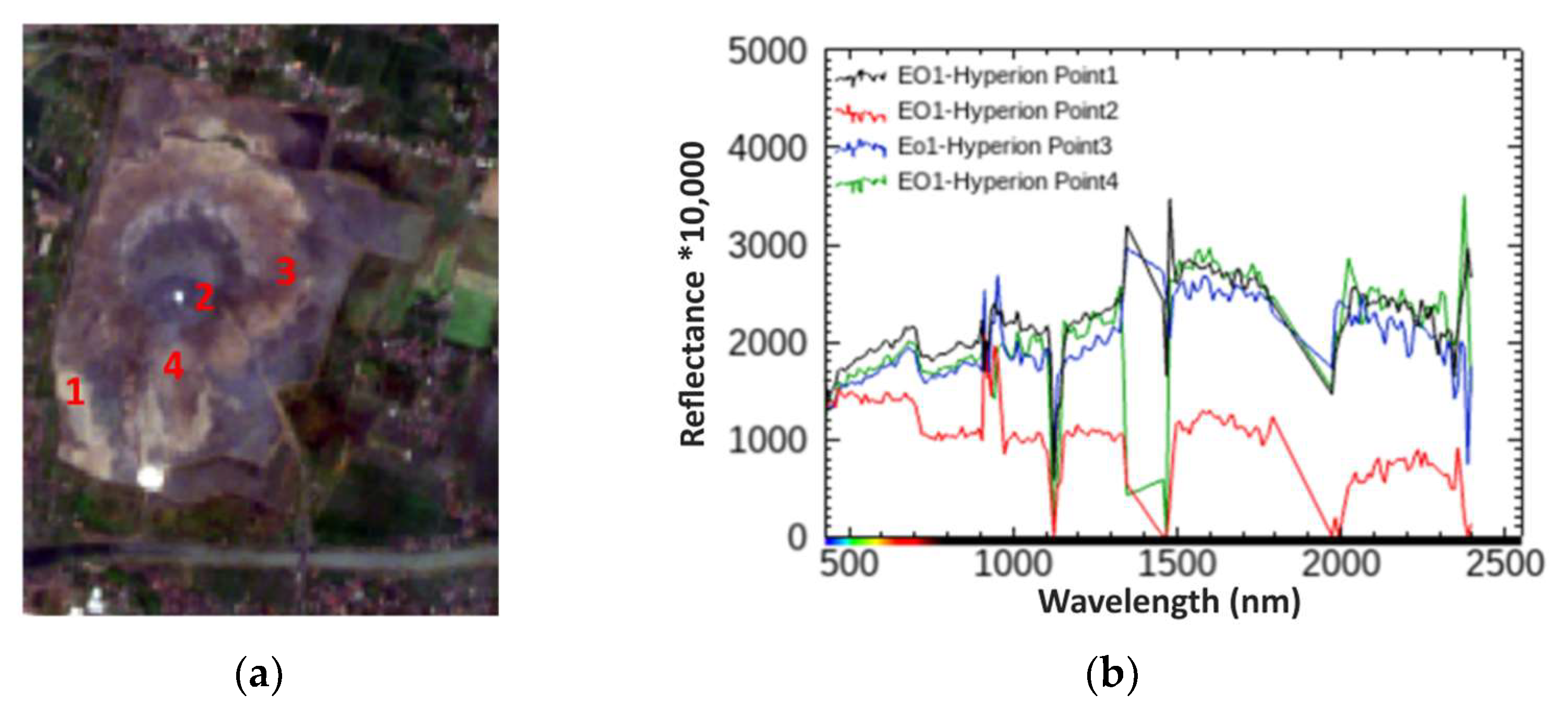

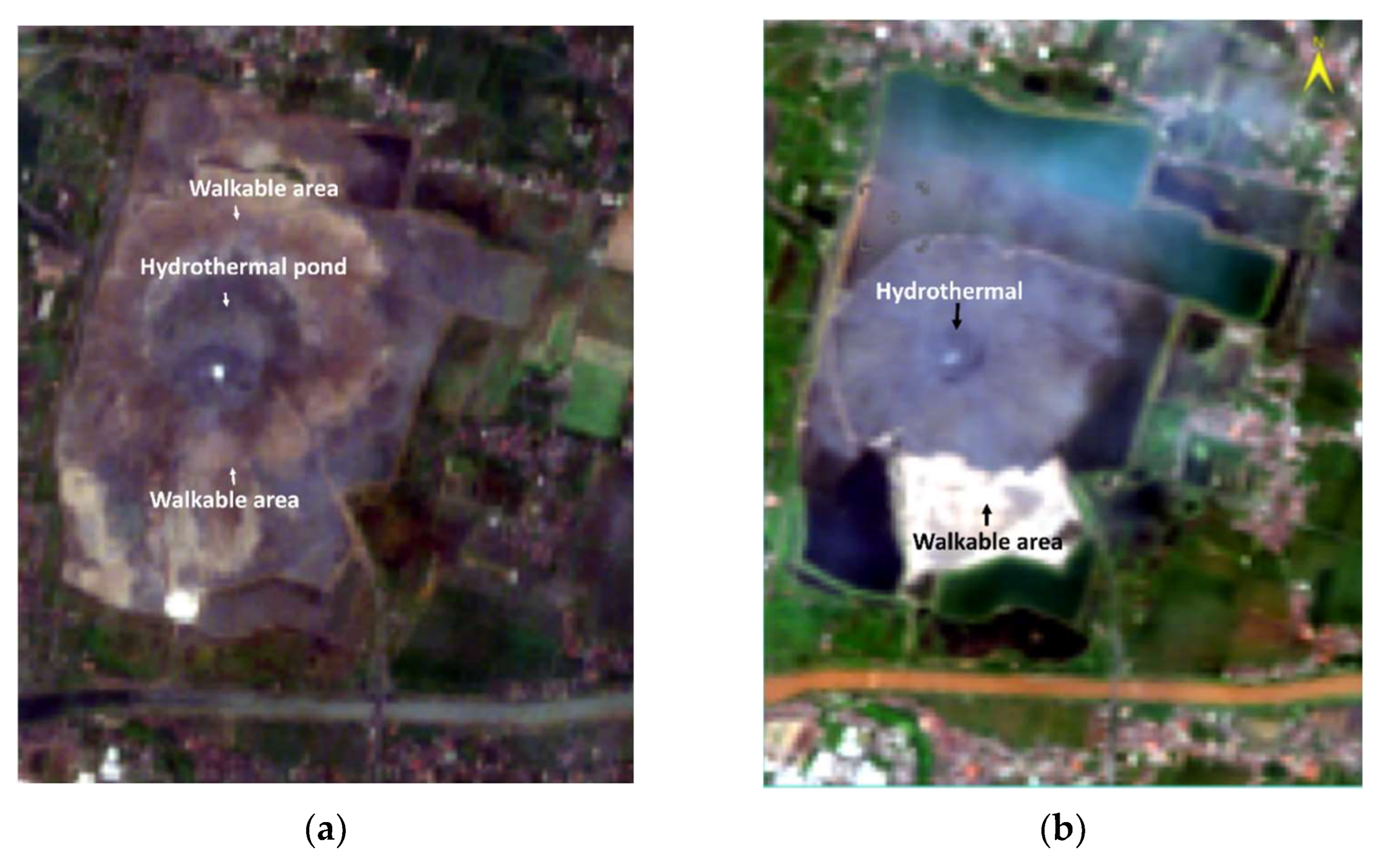

We found three different kinds of spectral behavior in the EO1-Hyperion scene. Figure 5 shows an example of a single spectrum acquired in four different areas of the eruption site.

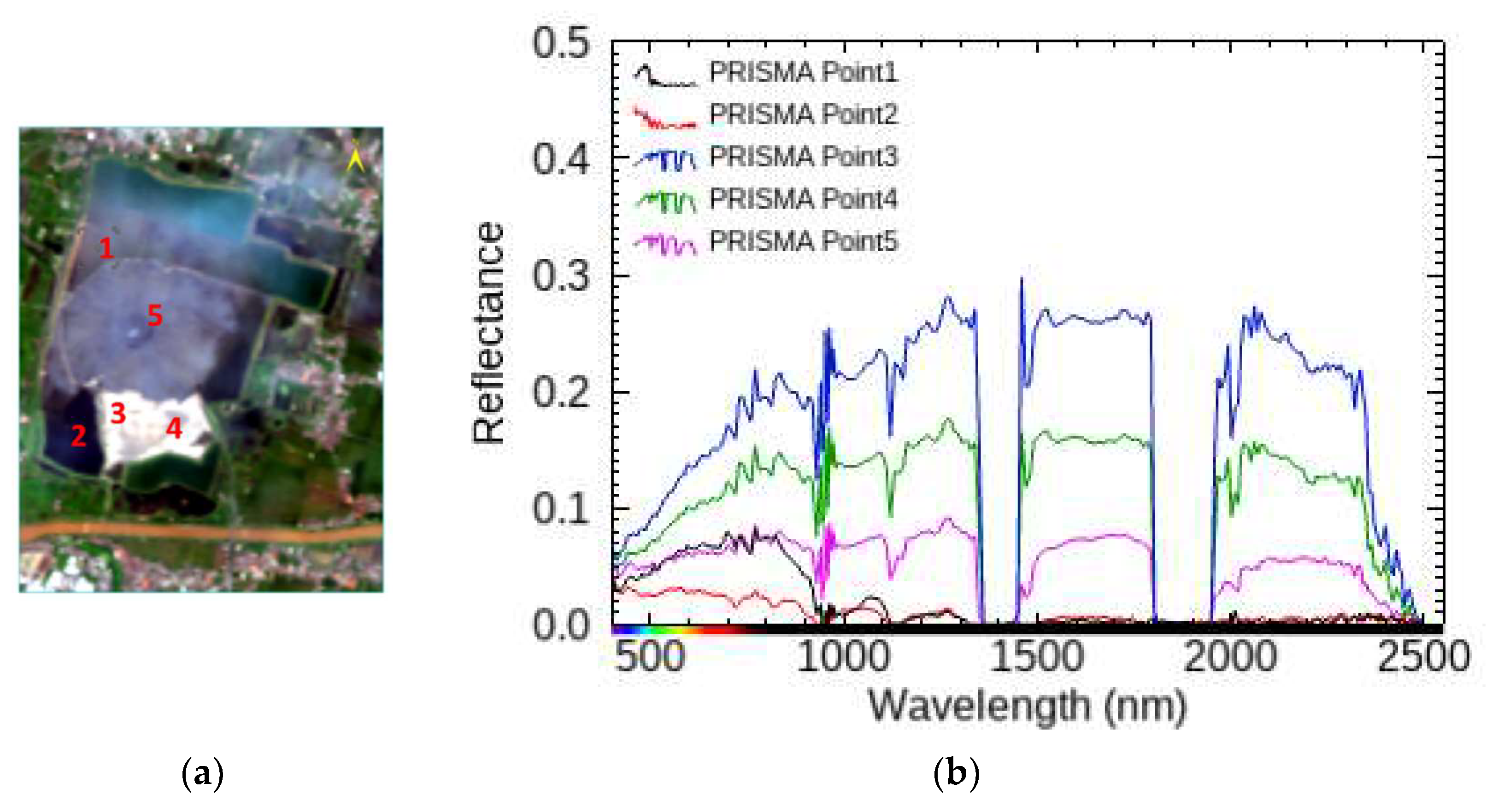

By exploring the PRISMA imagery acquired six years later, we have found five distinct types of reflectance spectra corresponding to different locations in the volcanic area (Figure 6).

3. Results

In this session, we discuss the results of the multiple-scale approach spectra, comparing the spectral library against the spectra of the two samples and the satellite-derived ones.

3.1. Comparison Lusi Samples vs. Spectral Library

The characteristic spectral profiles allow mineral identification by simple feature recognition against reference spectra [4,44,45]. The best fit to a library spectrum usually corresponds to the spectrally dominant material. The reflectance spectra from the reference library have been compared with the reflectance spectra of the mud from the stream sample and the dry mud measured in the laboratory.

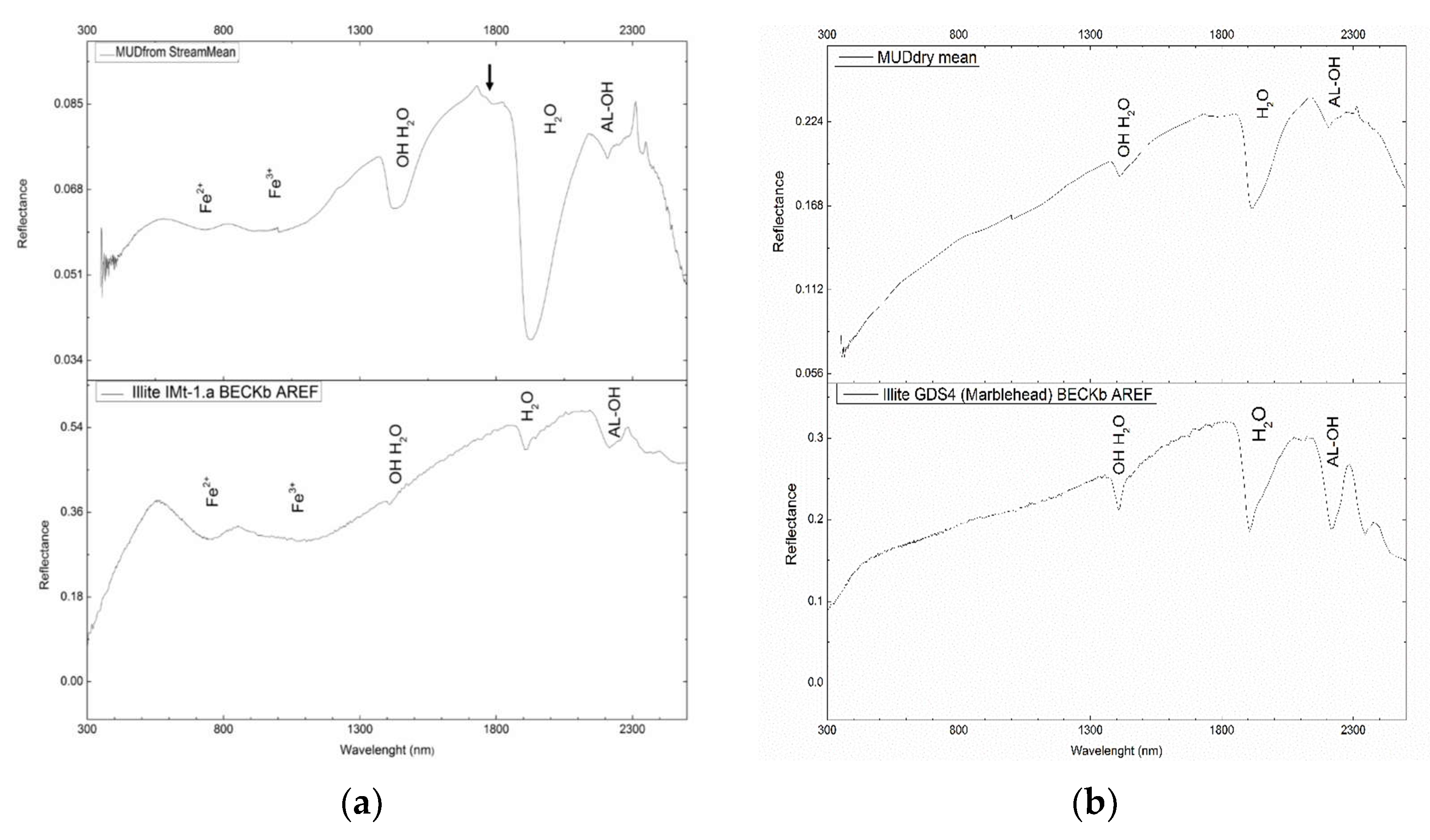

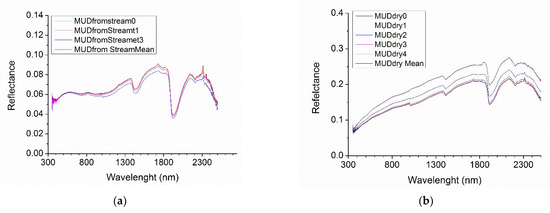

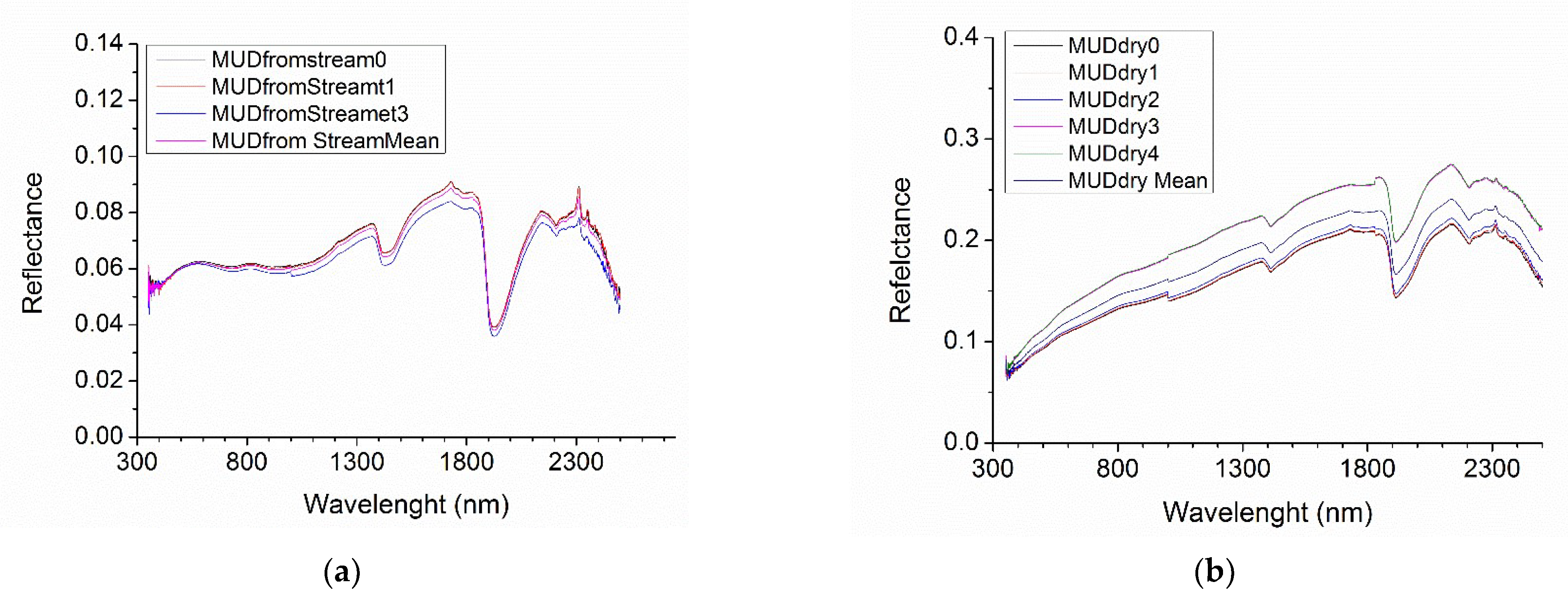

The spectra of the mud from the stream (Figure 7a) are in good agreement with that from IMt-1a reflectance (Figure 5a). Although the reference spectrum and the measured ones have diverse scales, the identification of minerals uses spectral shape and features rather than reflectivity values to retrieve the minerals. In addition to the overall agreement in the shape of the curves, a correspondence between distinctive features, such as the electronic Fe²⁺ (620–650 nm), Fe³⁺ (830–970 nm), and Illite the vibrational 2.215 nm and 2.345 nm can be seen (Figure 7a). The feature observed between 1725–1760 nm in the mud from the stream sample is typical of hydrocarbons. ICP-MS analyses can detect most elements from Li to U, except C, N, O, Cl, Br, I, and S. For these reasons, the analyses cannot be compared with those from the library regarding the presence of hydrocarbons. Indeed, the presence of hydrocarbons is directly visible in the streams since copious amounts of oil are discharged from the crater, as highlighted by aerial images and organic geochemistry analyses [15,22,46] Illite IMt-1.a sample belongs to the phyllosilicate mineral type and the hydrated mica clay minerals group. It was collected in Silver Hill, Montana, and its spectrum was initially published by [47], followed by the EM analysis by Gregg A. Swayze, Branch of Geophysics, USGS, Denver.

The dry mud spectra matched very well with the reference Illite Marblehead Figure 7b.

In

Table 2. Chemical composition of the “mud wet” sample and the Illite IMt-1.a W1R1Bb AREF.

Oxide ASCII	Amount MUD from Stream	Amount Illite IMt-1.a	Weight Percent, %	Oxide Html
SiO2	52.60	52.10	wt%	SiO2
TiO2	0.81	0.79	wt%	TiO2
Al2O3	18.28	21.90	wt%	Al2O3
Fe2O3	7.71	6.44	wt%	Fe2O3
MnO	0.14	Less than 0.02	wt%	MnO
MgO	2.82	2.39	wt%	MgO
CaO	3.73	1.07	wt%	CaO
Na2O	3.65	0.30	wt%	Na2O
K2O	1.50	7.84	wt%	K2O
P2O5	0.11	0.10	wt%	P2O5
LOI	8.64	6.91	wt%	LOI
Total	99.99	99.56	wt%	Total

and

Table 3. Chemical composition of the “mud dry” sample and the Illite GDS4 Marblehead.

Oxide ASCII	Amount MUD Dry	Amount Illite GDS4 Marblehead	Weight Percent, %	Oxide Html
SiO2	53.71	51.62	wt%	SiO2
TiO2	0.81	0.92	wt%	TiO2
Al2O3	18.60	23.96	wt%	Al2O3
Fe2O3	7.95	1.63	wt%	Fe2O3
FeO	-	0.29		FeO
MnO	0.13	0.01	wt%	MnO
MgO	2.91	3.83	wt%	MgO
CaO	3.30	0.74	wt%	CaO
Na2O	3.07	0.47	wt%	Na2O
K2O	1.57	8.12	wt%	K2O
P2O5	0.12	0.09	wt%	P2O5
H2O+	-	5.00	wt%	H2O+
H2O−		2.9	wt%	H2O−
LOI	7.83	6.91	wt%	LOI
Total	100.00	99.41	wt%	Total

are reported the chemical measurements.

The geochemistry of the clay fraction of the sampled mud is dominated by SiO₂ and Al₂O₃, with an average weight of 53% and 18%, respectively. Some other major oxides are also relatively high, including Fe₂O₃, Na₂O, and K₂O, with a ratio of Na₂O/K₂O of greater than 1.9. As shown in Table 2, the oxide contents of the Lusi mud indicate Illite and Smectite-rich Clay.

In particular, the Smectite group of clays has a structure that is similar to that of Illite but can also have significant amounts of Mg and Fe, which replace each other in the octahedral layers. In fact, Smectites can be both dioctahedral and trioctahedral, and one species differs from another precisely due to variations in the chemical composition, which involve the replacement of Al with Si in the tetrahedral cationic sites and Al, Fe, Mg, and Li in the octahedral cationic sites. Moreover, the Smectite group has the ability for H₂O molecules to be absorbed between its strata, causing the volume of the minerals to increase when they come in contact with water. In terms of composition, the mud from the stream sample has SiO₂ (52.60), TiO₂ (0.81), Al₂O₃ (18.20), and Fe₂O₃ (7.71) values comparable to the Illite IMt-1a BECKb AREF composition (SiO₂ = 52.10, TiO₂ = 0.79, Al₂O₃ = 21.90, Fe₂O₃ = 6.44). In terms of composition, the mud dry sample SiO₂ (53.71), TiO₂ (0.81), and Al₂O₃ (18.60) values are comparable to the Illite GDS4 Marblehead composition (SiO₂ = 51.62, TiO₂ = 0.92, Al₂O₃ = 23.96). The spectra from the sample are consistent with minerals associated with Lusi extruded materials.

3.2. Comparison Satellite vs. Spectral Library

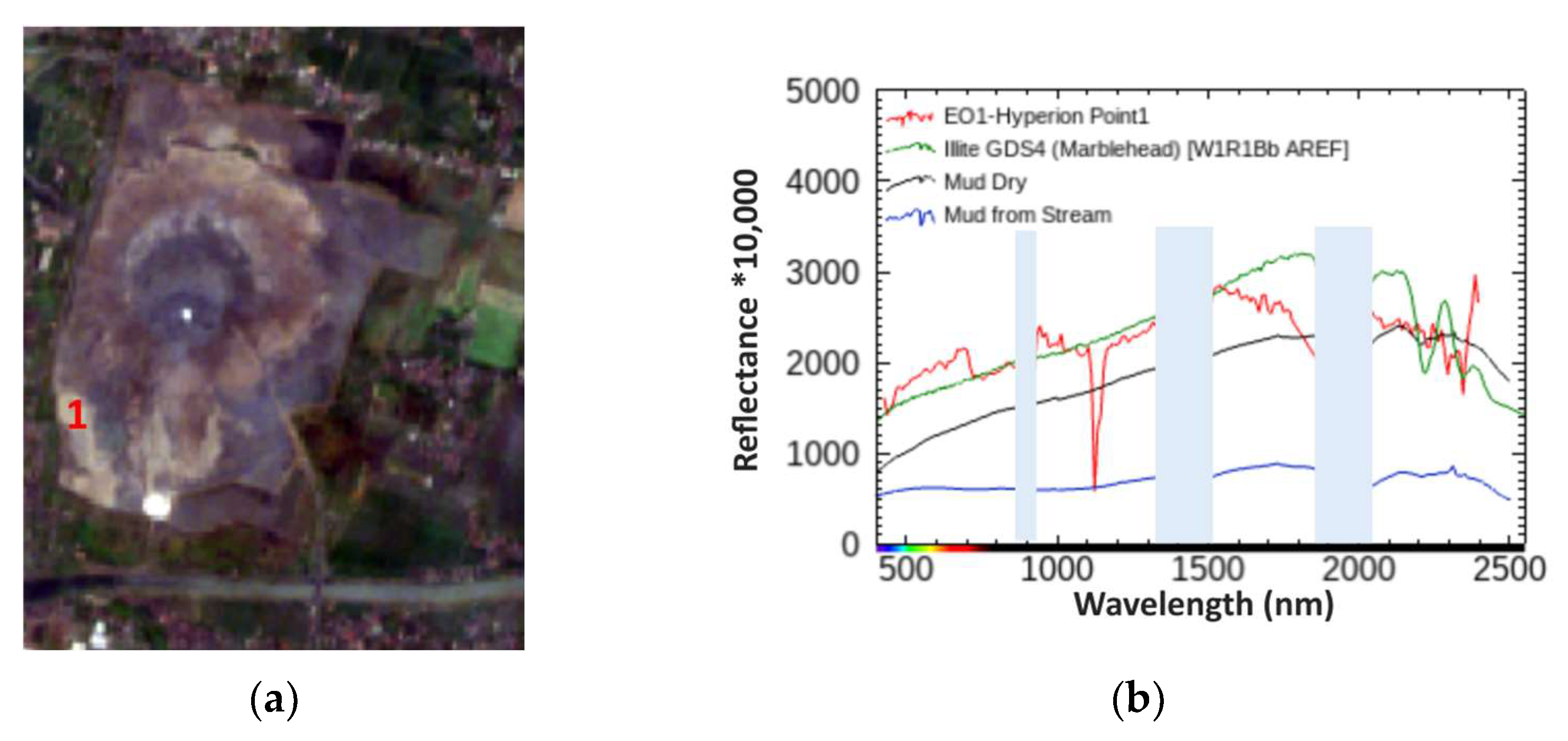

In Figure 8b, the EO1-Hyperion spectrum in point 1 (magenta), which appears to be a walkable area from the satellite, is compared against the Illite spectrum. The Calcite spectra completely mismatched the EO1-Hyperion spectra and have not been plotted. The in situ spectra have been plotted as well. The EO1-Hyperion data are very noisy (many positive and negative spikes) due to the low Signal to Noise Ratio (SNR) with a better performance in the spectral window between 450–900 nm. In this spectral window, the Fe²⁺ can be noticed. A position that is aligned with the Illite Mt1a and Mt1-b and with Illite GDS between 1600 and 2400 nm is shown.

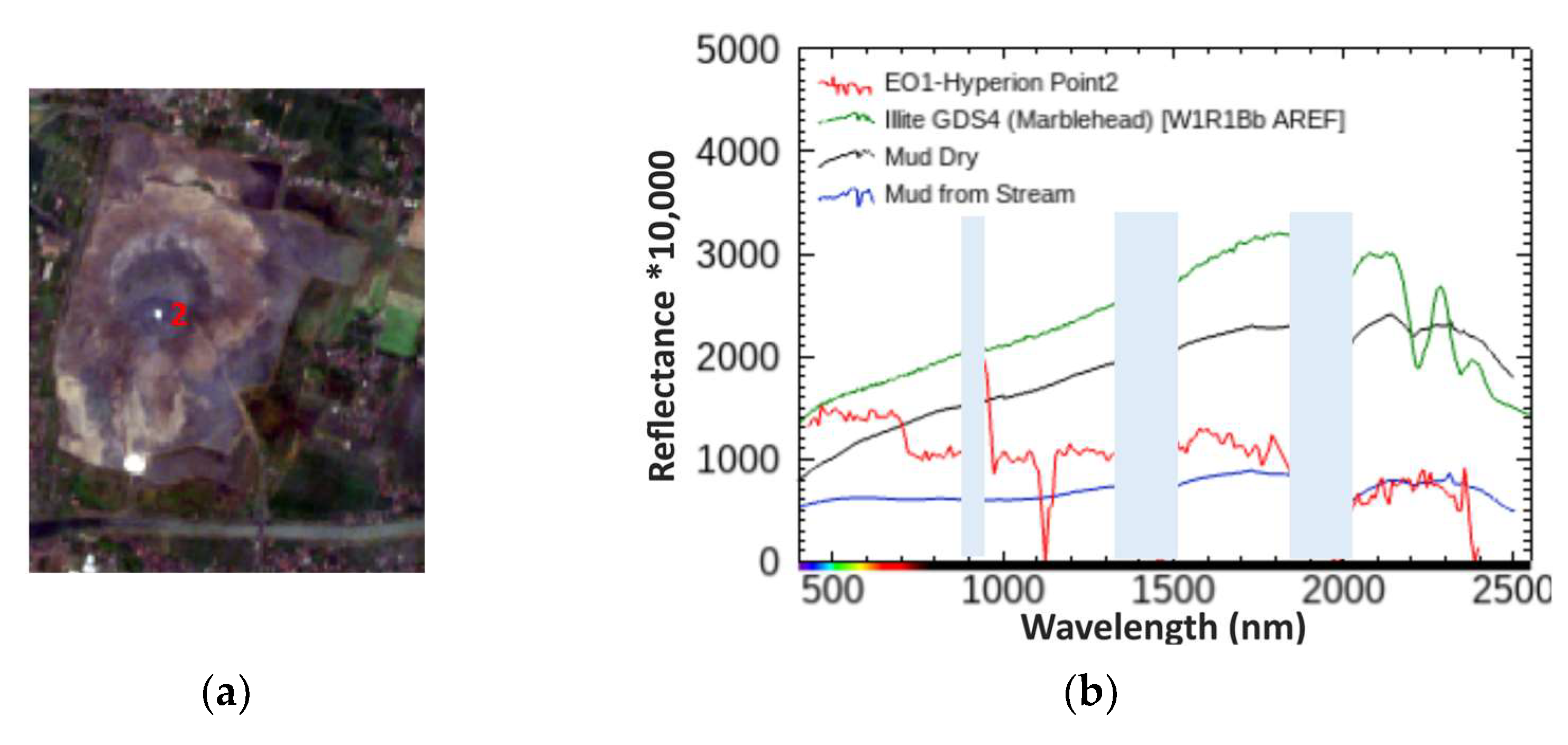

Figure 9 shows the EO1-Hyperion spectrum acquired close to the Lusi crater (point 2 in red) compared against the Illite spectrum and the spectra from the samples.

Although the EO1-Hyperion shows few positive and negative spikes due to the noise associated with the data, no good agreement in terms of reflectance shape is visible throughout the spectrum, which appears to be similar to that observed in water-dominated spectra such as in the Lusi eruption site.

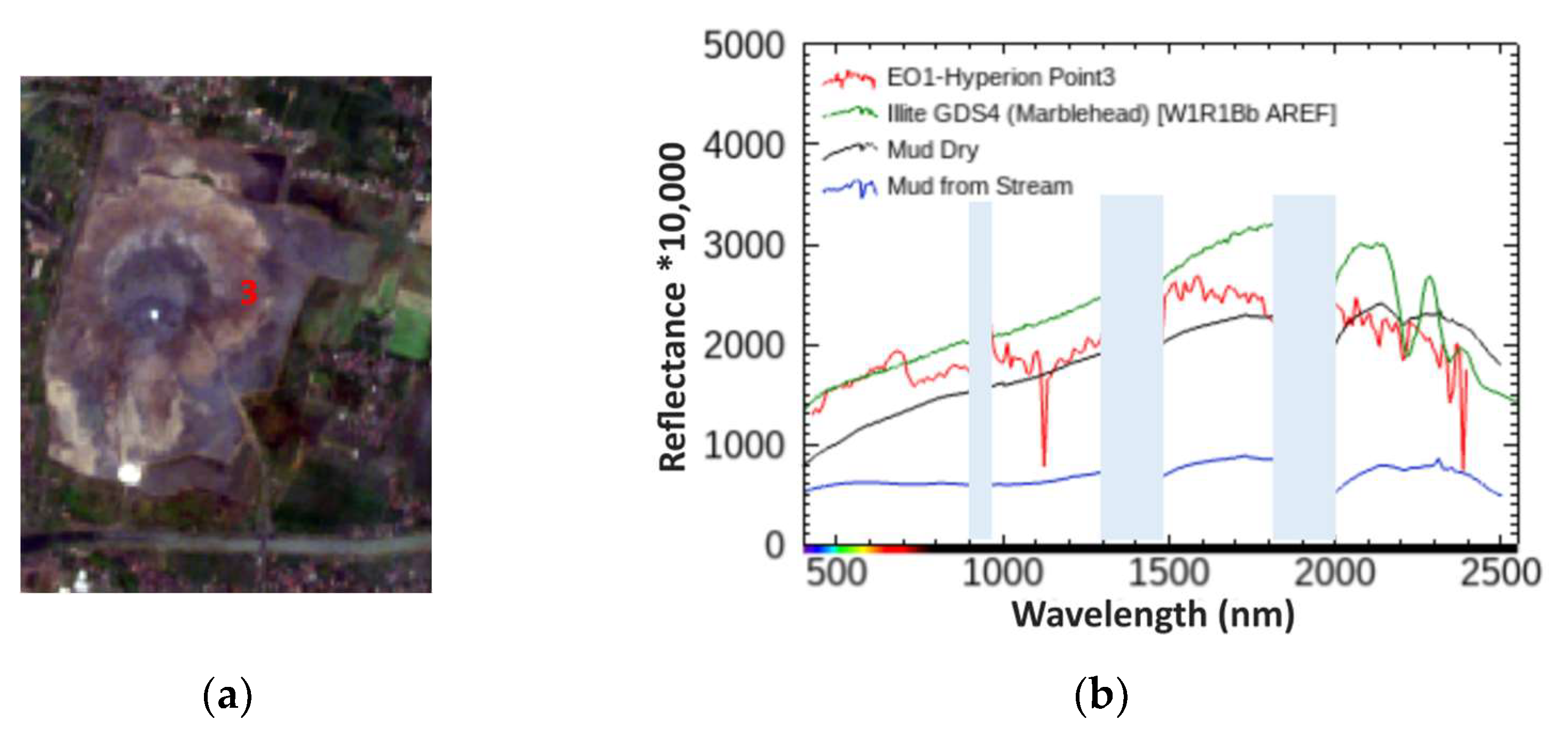

Figure 10 shows the comparison of the spectral library spectra vs. the EO1-Hyperion spectrum in point 3 (red). The spectral shape is close to the Marblehead spectrum. However, despite the spikes, a weak Fe²⁺ absorption band is distinguishable (about 700 nm). The lower reflectance values are nevertheless comparable, and a resulting flattened spectrum is expected due to a mixing effect of Illite and fluids.

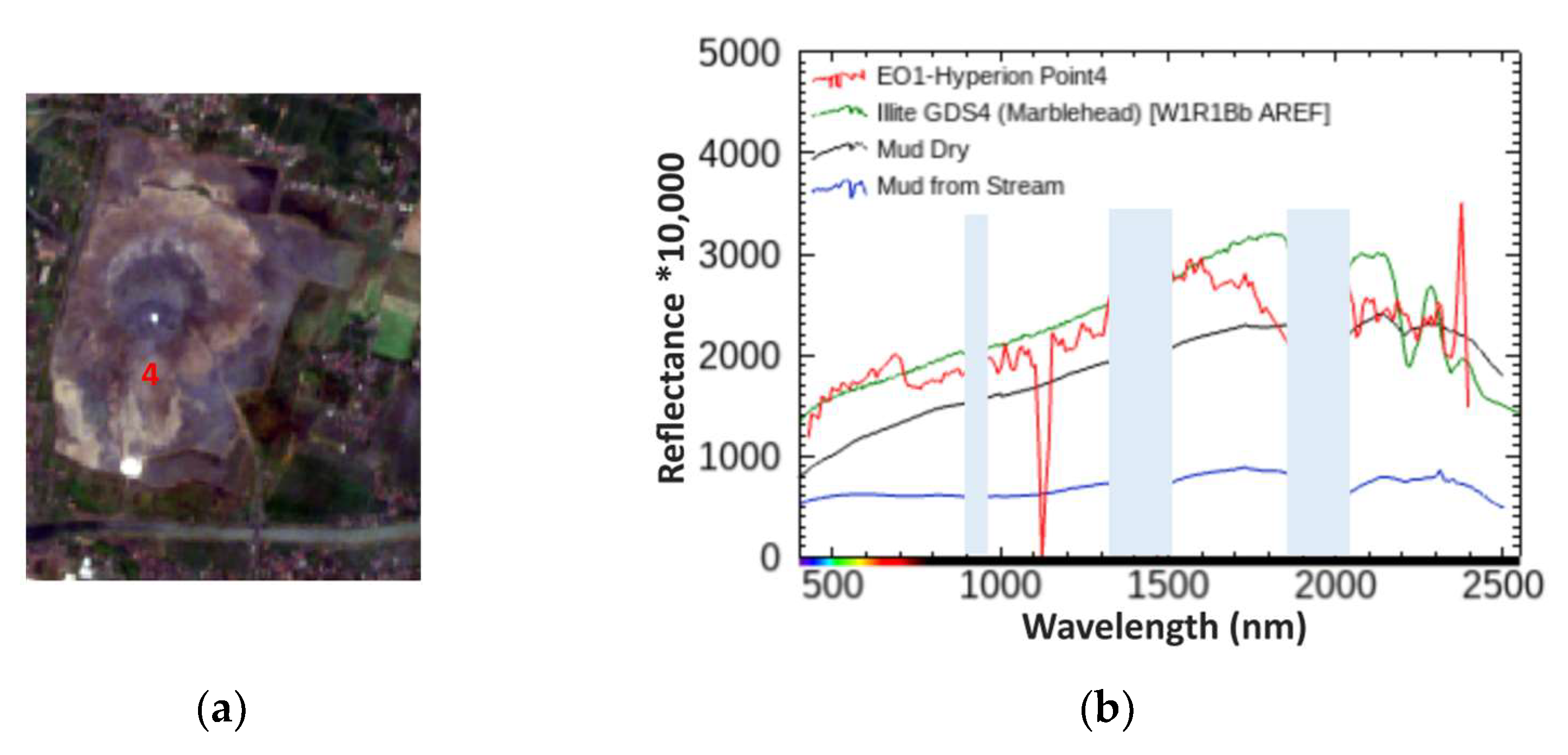

Figure 11 shows the spectrum acquired in point 4. The Fe⁺ absorption.

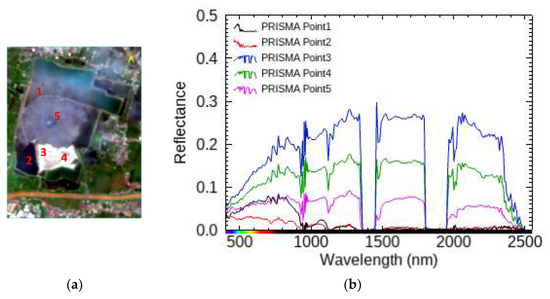

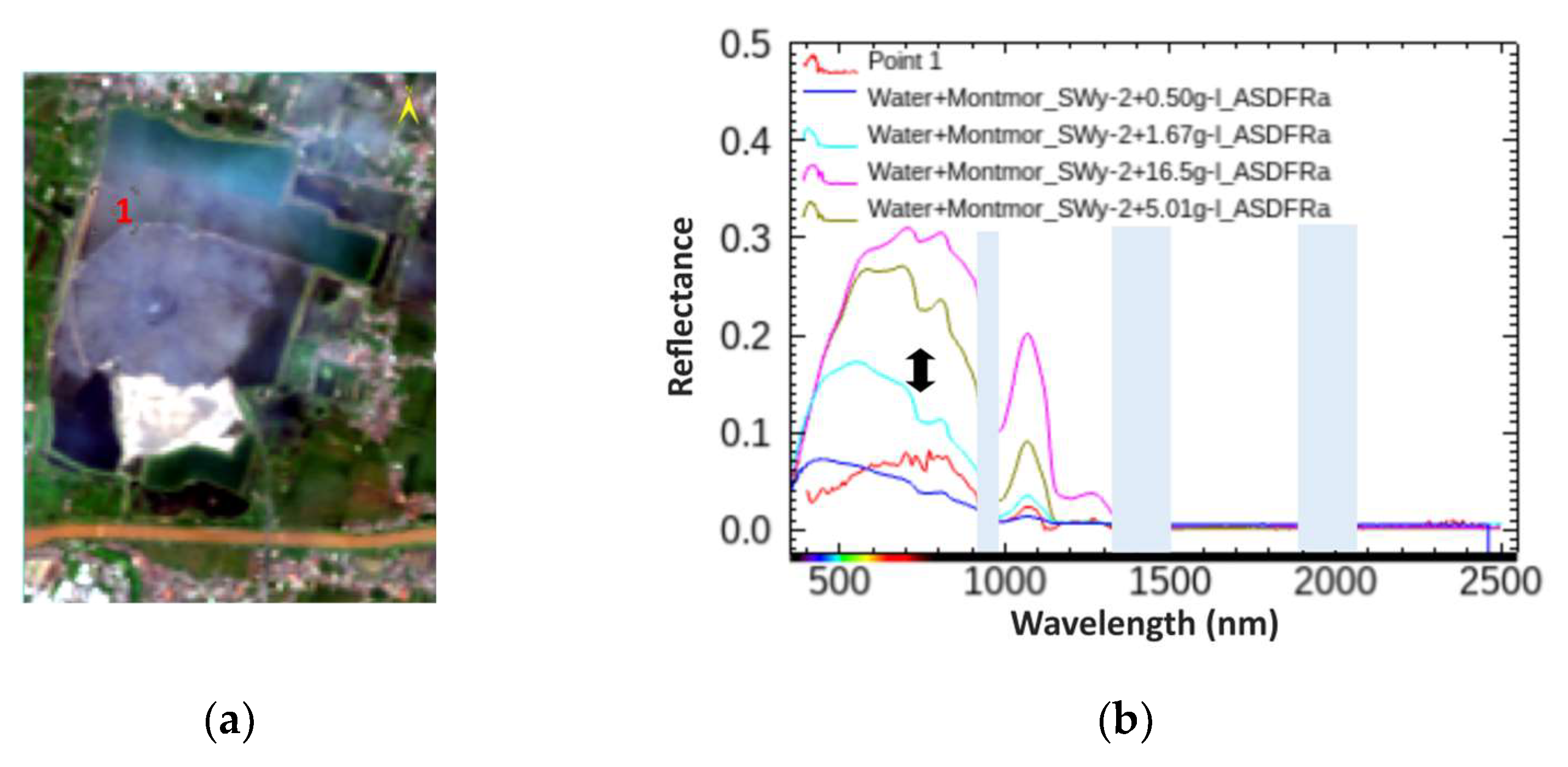

The PRISMA spectrum extracted in point 1 in the image was compared with Calcite, Chlorite, and Illite and did not show any matching; therefore, these curves have not been plotted in the comparative graph (Figure 12b). Point 1 is located in the north-west of Lusi, and in the image, it appears to correspond to a fluid-rich surface. The spectral library was visually explored, and the Water—Montmorillonite spectrum was selected since it shows similar spectral features. A good spectral agreement between the two spectra was found when overlapped, as shown in Figure 12b.

In the USGS spectral library v7, four spectra of Water—Montmorillonite SWy-2 belong to the mineral type Montmorillonite (Smectite). The SWy-2 is a Source Clay Minerals purchased sample from Crook, Wyoming. The Montmorillonite SWy-2, as described by [41], was mixed with distilled water in the proportions of 0.5, 1.67, 5.01, and 16.7 g of montmorillonite per liter of water, and the spectrum measured while the mix was still moving to minimize settling effects. The increase in the Montmorillonite proportion can be seen as an increase in the reflectance values in the 500–1000 nm spectral range. For example, the reflectance maximum value for the SWy-2 0.5 g/L is about 0.07, while it is 0.16 for the Swy-2 1.67 g/L. PRISMA’s maximum reflectance value in the same spectral range (Figure 12b) is about 0.008, suggesting a composition of the Water—Montmorillonite between 0.5 g/L and 1.67 g/L.

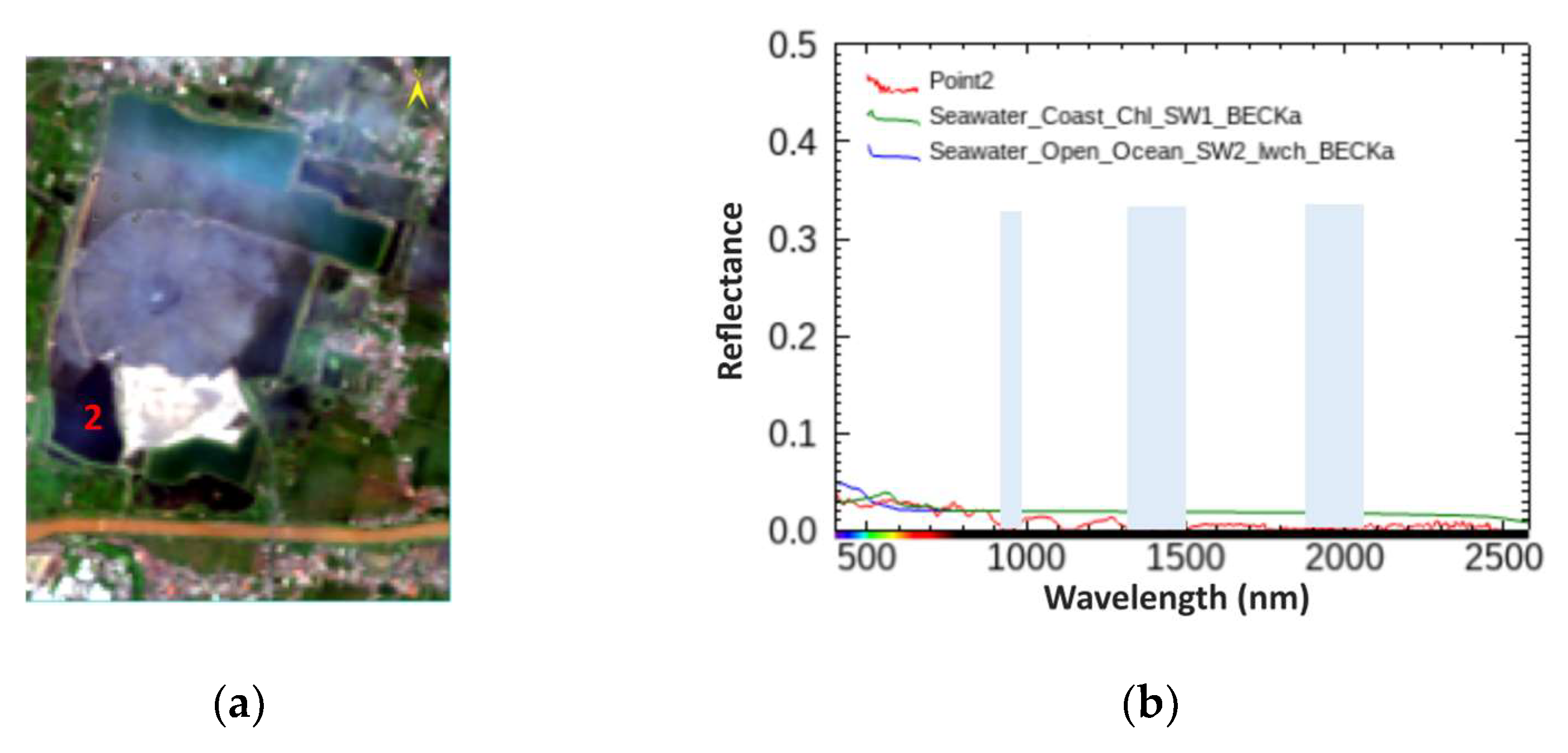

The PRISMA spectrum extracted from point 2 was compared with Calcite, Chlorite, and Illite without revealing and matching and, therefore, has not been plotted in the comparative graph (Figure 13b). Point 2 is located in the Southwest part of the Lusi embankment and appears to be water-rich. The spectral library was visually explored, and the seawater spectrum was selected because it showed similar spectral features. A good spectral agreement is shown in Figure 13b. Future work will be carried out to apply techniques that better constrain the composition. In terms of reflectance trend, spectra acquired in point 2 show a good agreement with the seawater spectra. However, at a closer look, the reflectance spectrum shows some spectral features that suggest a mixing composition with a predominant water component.

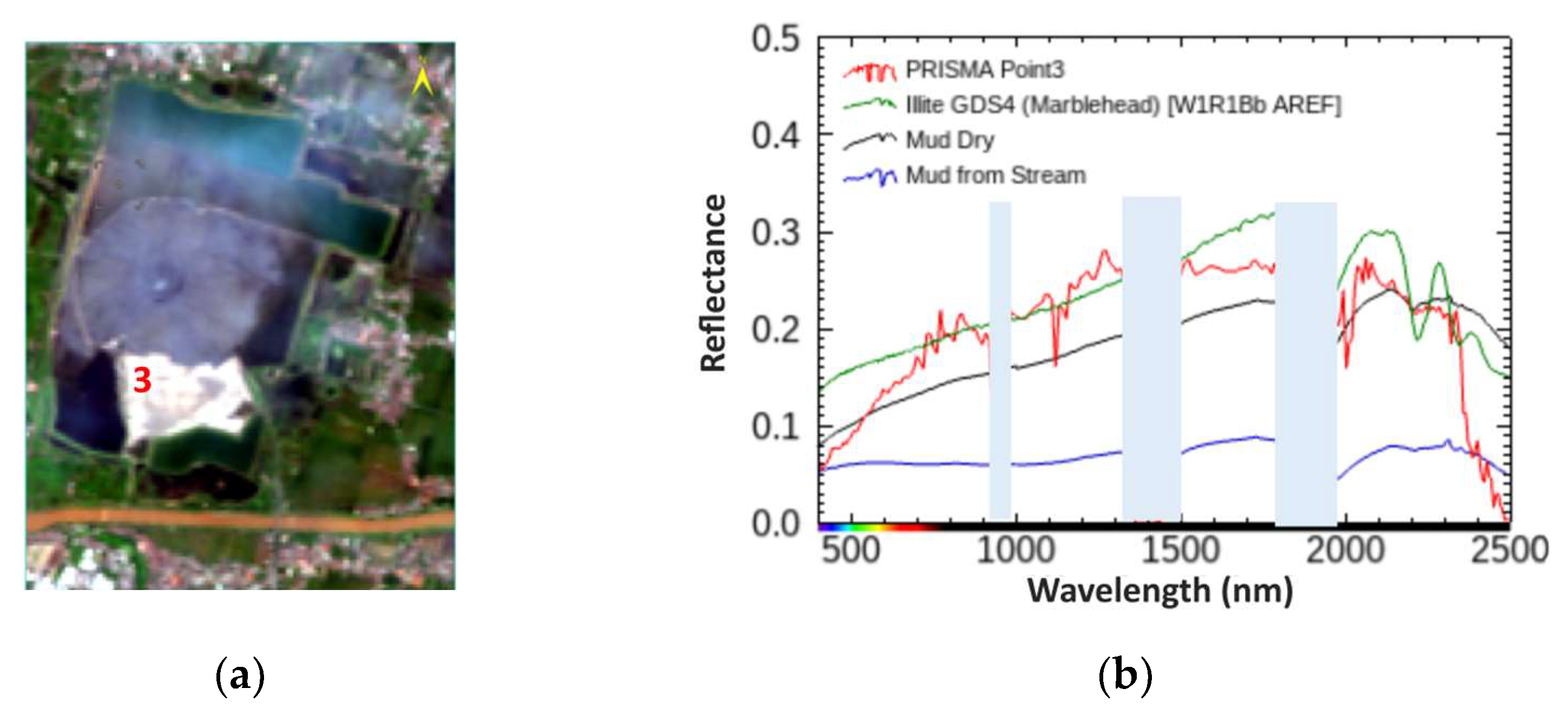

Spectra acquired in the very bright white area in the southeast of the Lusi embankment area (point 3) have been compared against the spectra from the spectral library (Figure 14). Calcite appeared to completely mismatch the PRISMA spectrum and was not plotted. The first part of the spectrum acquired in point 3 results in good agreement with Illite Marblehead, while the behavior between 1500 nm and 2500 suggests some mixing effect. Specifically, in the spectral range between 1000 and 1800 nm, the shape of the spectrum is flattened compared with the Illite spectrum in the same spectral range, which reminds the Ammonium–Smectite shape in Figure 3a. The reflectance between 700 and 800 nm appears to be noisy, suggesting that atmospheric effects are still present in the spectrum.

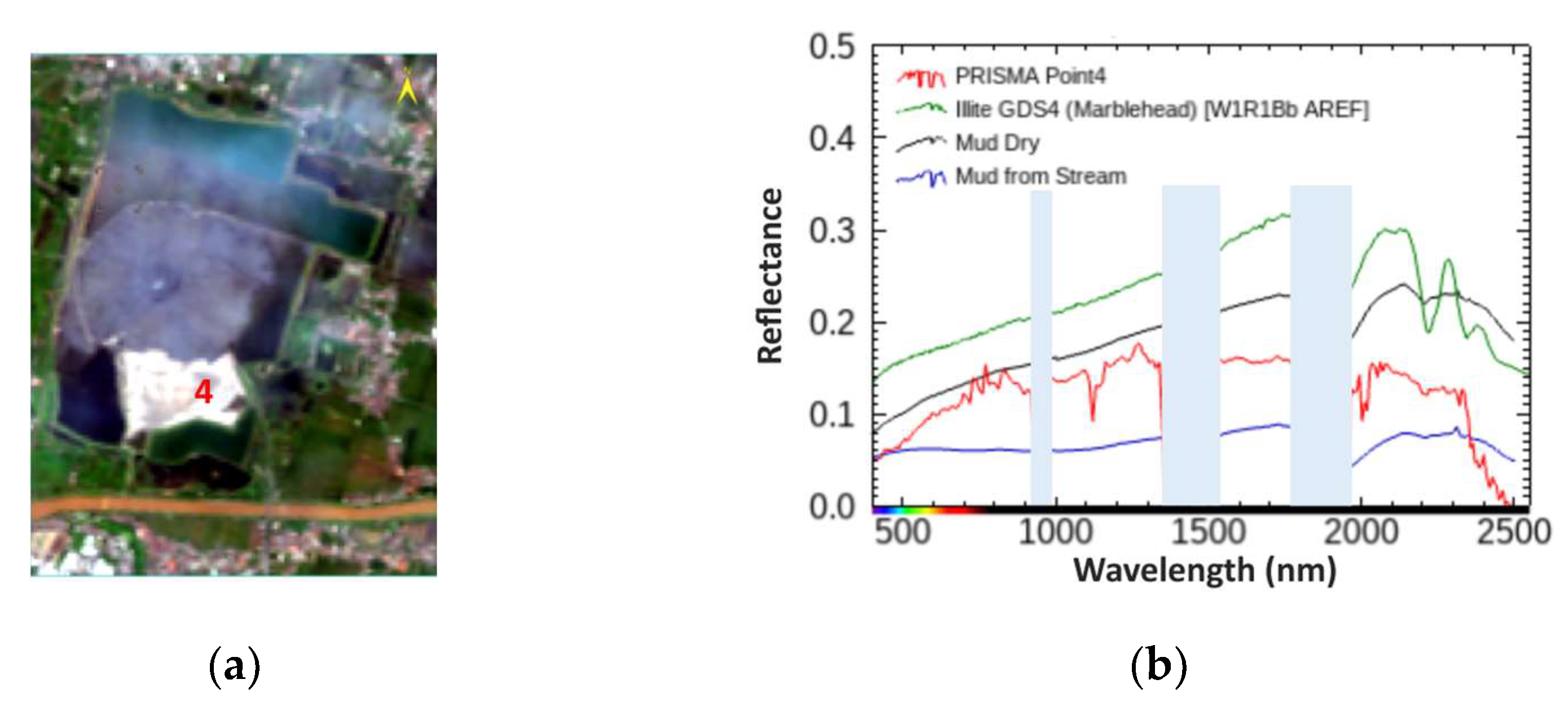

The spectra acquired in point 4 (Figure 15b) show a flattening effect between 1500–1800 nm and 2000–2300 nm. Absorption features of OH, H₂O, and AL-OH can be distinguished in the PRISMA spectrum. However, the reflectance between 700 and 800 nm appears to be noisy, suggesting that atmospheric effects are still present in the spectrum.

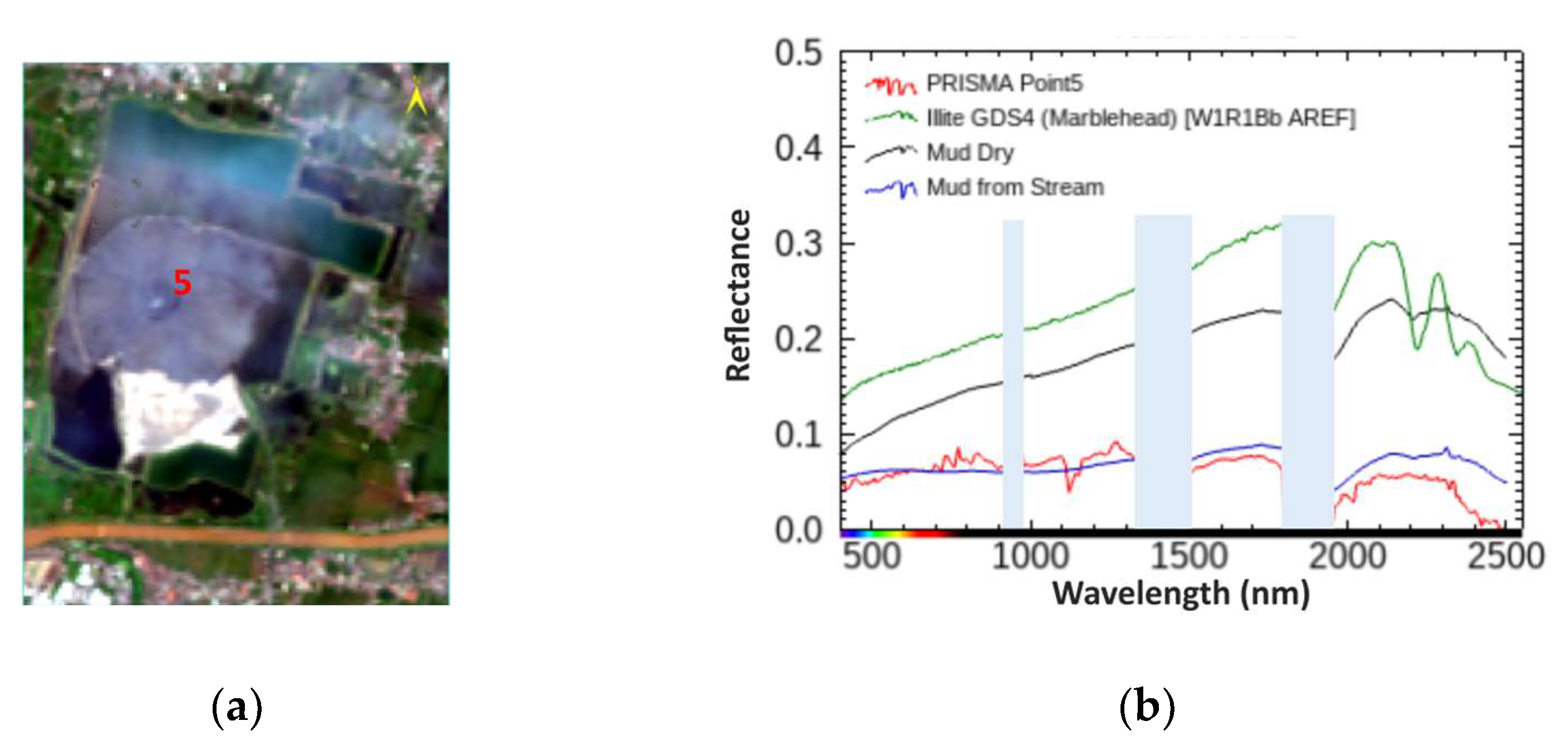

The PRISMA reflectance (in red) acquired close to the main crater (point 5) has been compared versus the spectral library (Figure 16b). Note that the reflectance values are lower than the previously acquired spectra, and the overall shape suggests the presence of fluids that are in agreement with the visual inspection of the true color. We can notice that the PRISMA reflectance between 700 and 800 nm appears to be noisy, suggesting that atmospheric effects are still present in the spectrum.

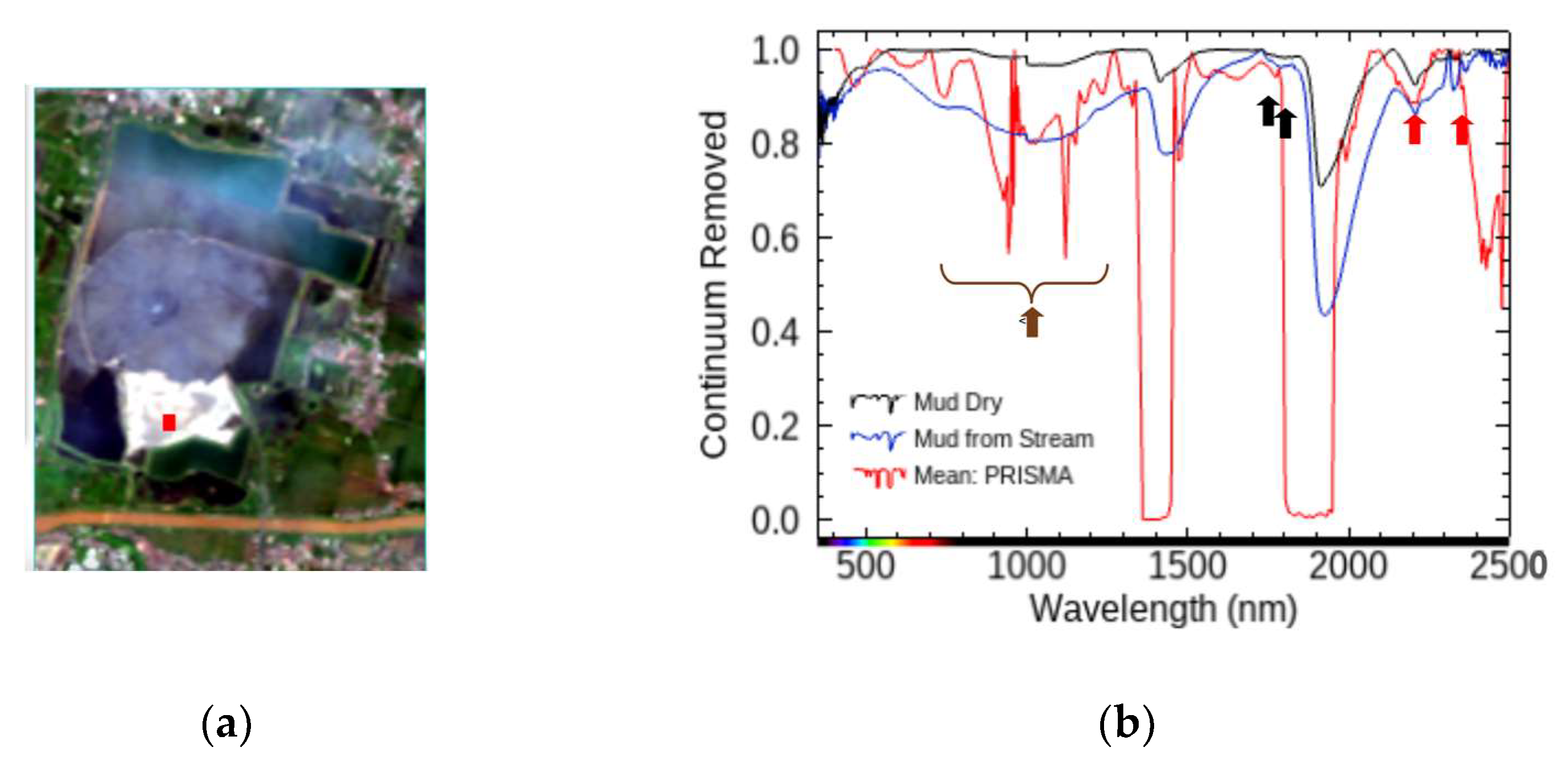

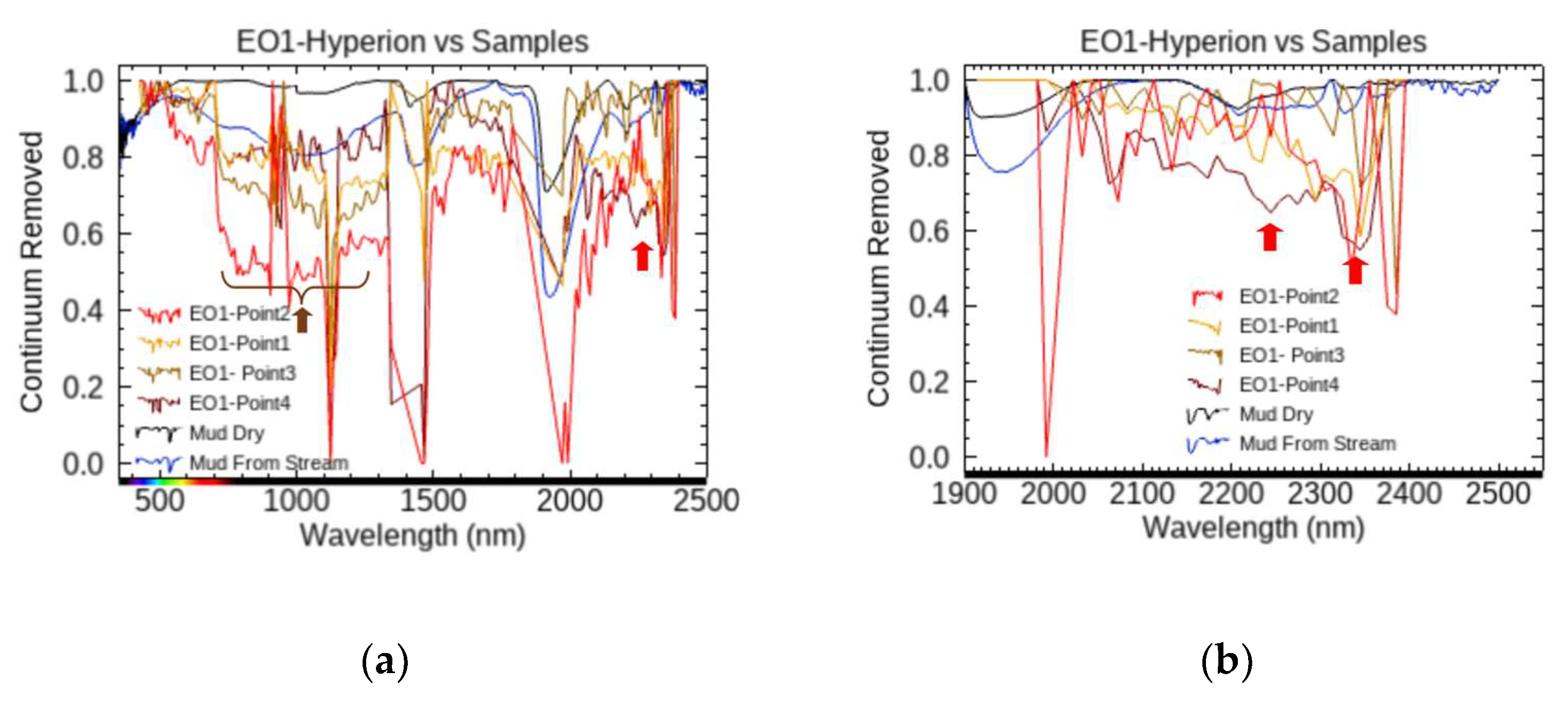

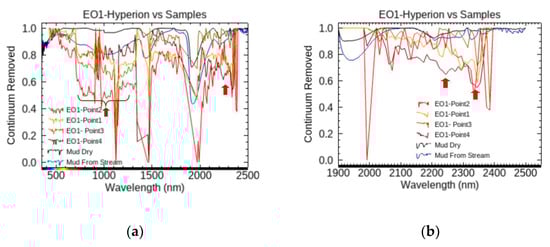

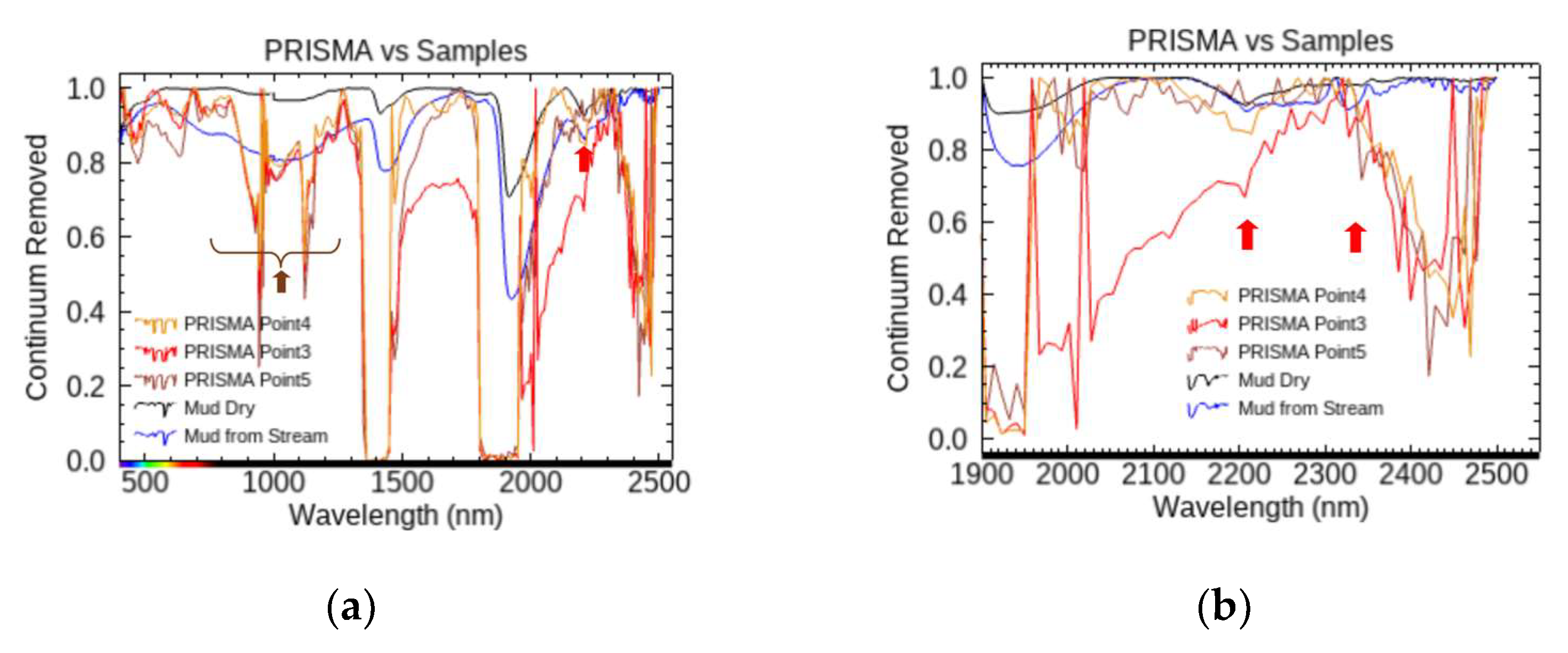

Figure 17a and Figure 18a show EO1-Hyperion and PRISMA after applying the EFFORT tool and the continuum removal. The spectra are compared to the continuum-removed reflectance spectra of the samples. Figure 17b and Figure 18b show the spectra in the SWIR spectral range.

3.3. Comparison EO1-Hyperion-PRISMA

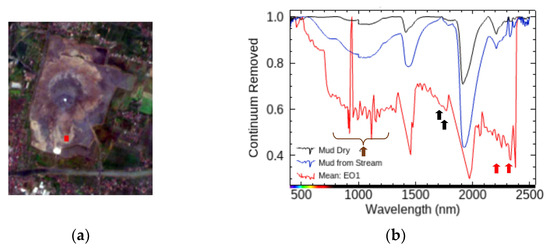

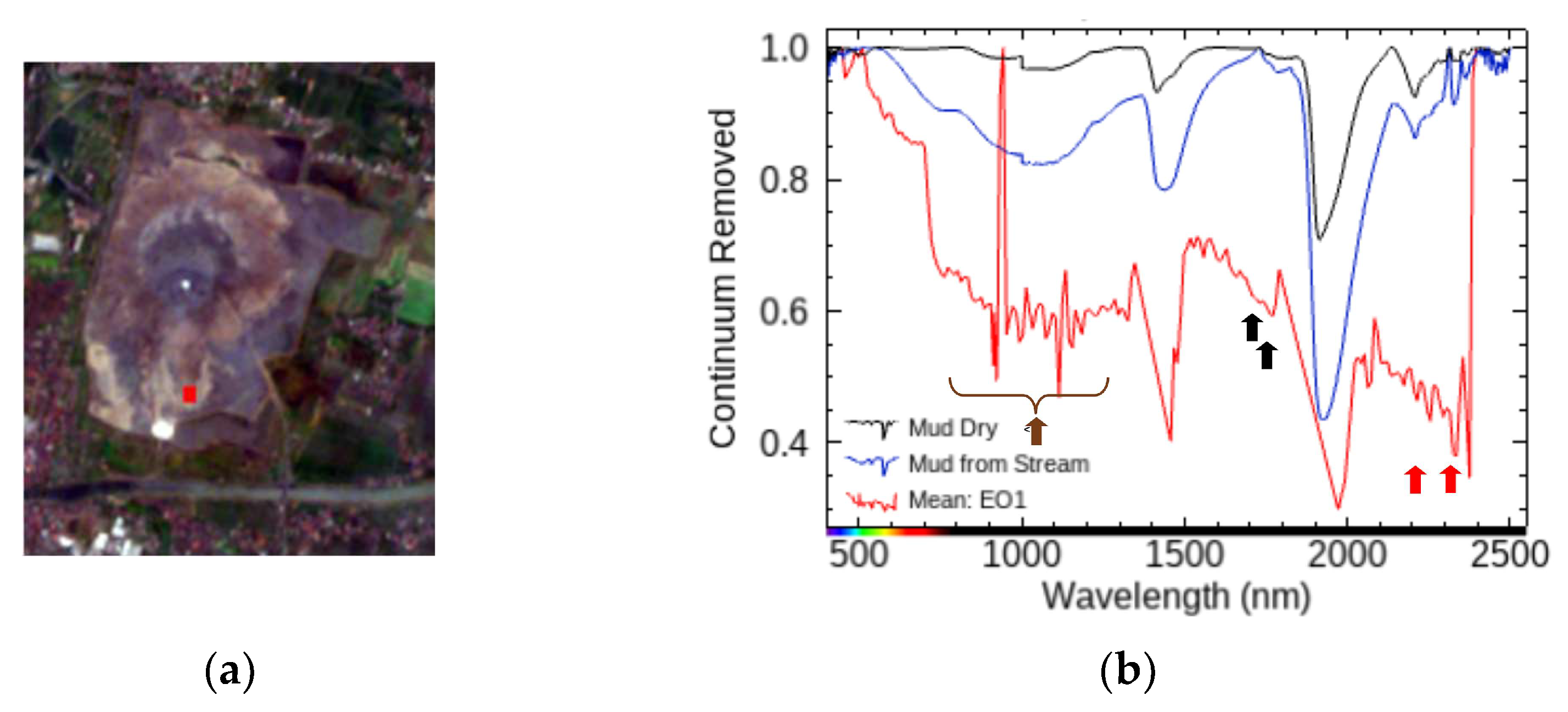

A walkable area present in both EO1-Hyperion and PRISMA has been identified (ROI) and the mean spectrum has been compared with the samples (Figure 19 and Figure 20).

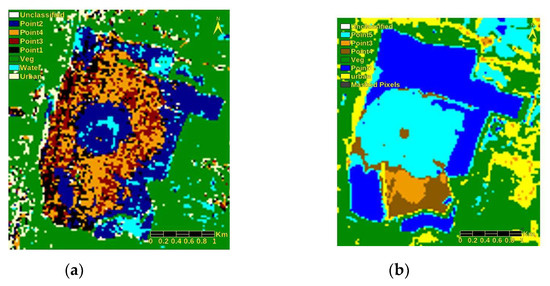

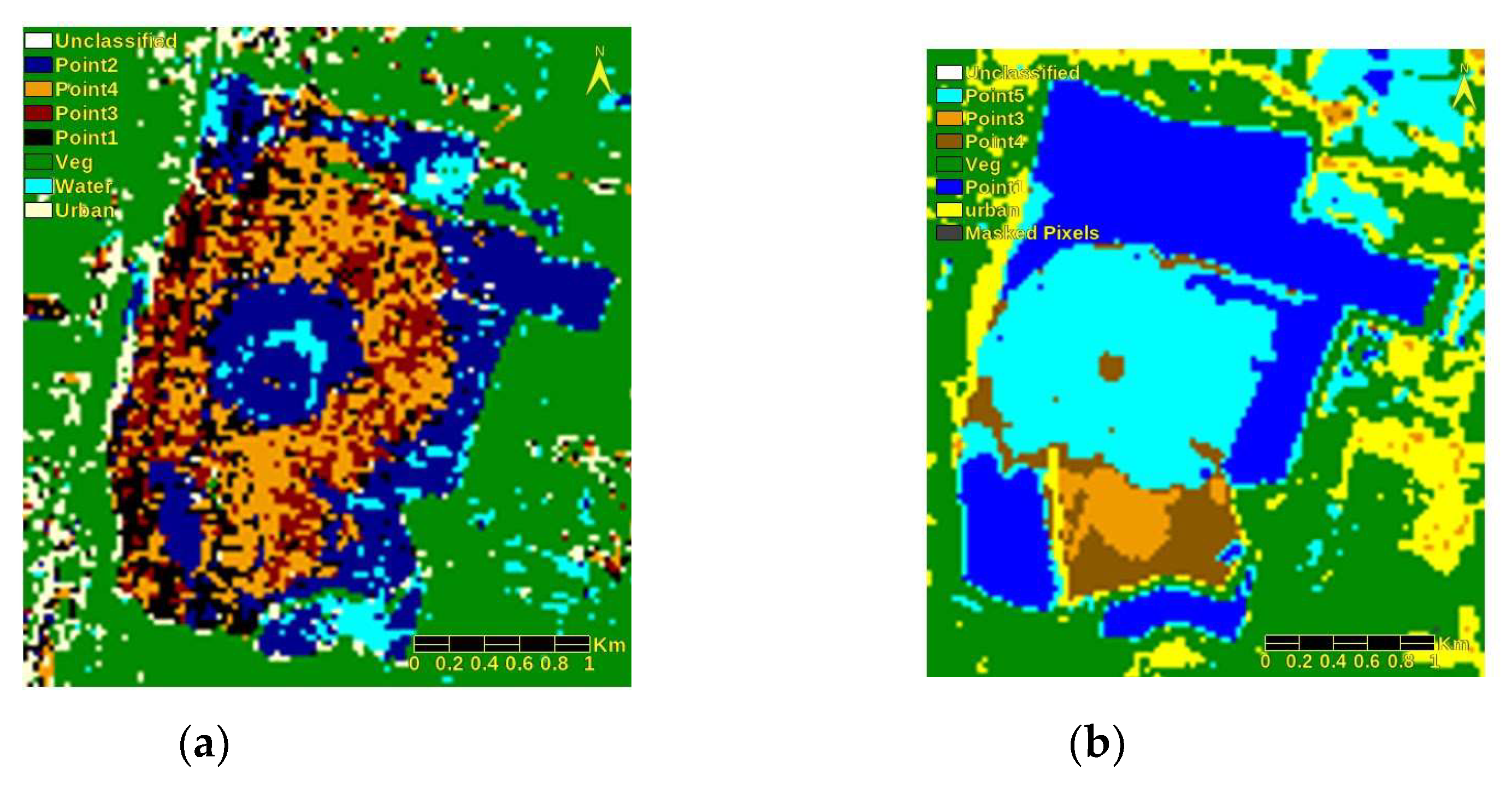

Figure 21 shows the result for the Spectral Angle Mapper classification applied at EO1-Hyperion and PRISMA by using the selected spectra and adding the vegetation and urban area reflectance spectra.

4. Discussion

This study explores the surface properties of reflectance data from samples collected at the Lusi eruption site and compares them with satellite images acquired from the same locality. The Lusi surface has been explored at both laboratory and space scales. The spectra from satellite EO1-Hyperion and PRISMA have been analyzed in order to identify minerals from space. The comparison between the spectral library reflectance and the reflectance of the two Lusi mud samples resulted in the match of the mud dry spectra with the Illite GDS4 Marblehead and the spectra of the mud from the stream consistent with Illite IMt-1.a W1R1Bb AREF. By comparing the composition of the samples with the spectral library, we found them to be very similar, confirming the ability to derive material composition by using reflectance. The absorption features related to Al-OH, H₂O, and OH were distinctive in both samples. The analyzed clayey fraction of the mud samples is dominated by SiO₂ and Al₂O₃ and has a high content of other major oxides, such as Fe₂O₃, Na₂O, and K₂O, indicating an Illite/Smectite-rich clay. This is also confirmed by the XRD analysis conducted by the USGS [48], which shows that the clayey fraction of the Lusi mud is dominated by Smectite, Illite, and mixed Smectite and Illite over Kaolinite and Chlorite minerals [13,49]. Sampled mud could come from the volcano-clastic layer or mixed with material from the Smectite-rich stratum between 1341 and 1432 m during the uprising towards the surface. Although the mud analyzed during the initial phases of the eruption revealed strong components originating from the illitized Bluish Grey clay from the Upper Kalibeng Formation [13], more recent analyses also revealed the input of the ~4 km deep shales from the Ngimgbang Formation that are strongly illitized [21,46,50].

EO1-Hyperion satellite versus spectral library shows the ability to pick up overall shapes of the spectrum, as shown in Figure 8 and Figure 10, allowing the identification of the mineral and water (Figure 8). The overall spectra were found to be similar to Illite GDS Marblehead. However, low reflectance surfaces and low SNR can challenge the ability to derive the composition without some additional processing. An improvement was achieved by applying the noise-removing EFFORT technique. The continuum removal (Figure 17 and Figure 19) allowed a better characterization of the Fe⁺ absorption broadband and the doublet associated with Hydrocarbon. The Illite bands appear weak and in a noisy part of the spectrum.

The better SNR of PRISMA can be seen in a reflectance spectrum that appears to have limited noise. The overall spectral shape of the PRISMA reflectance allows it to identify main components and some distinctive absorption bands. However, systematic higher reflectance values in the spectral range (700–800 nm) have been noticed in our L2D data, suggesting that they are linked to atmospheric correction. The overall spectral shape of the PRISMA reflectance allows us to identify its distinctive absorption band at 2200 n). The continuum removal allowed a clear identification of the Fe⁺ broadband components and to better distinguish the bands in the SWIR range (Figure 18 and Figure 20). A good agreement was found between PRISMA reflectance and spectral features in correspondence of the walkable area (Figure 20b) vs. dry mud sample. The absorption band at 2350 nm was not evident in both spectra.

A preliminary classification using Spectral Angle Mapper (SAM) was realized using the selected spectra with the addition of the class vegetation and urban. Figure 21a,b show the distribution of the different classes. Although the PRISMA data were acquired in the “dry season” (March–September), walkable areas are limited in the PRISMA image. The spectrum acquired by both EO1-Hyperion and PRISMA satellites has a spatial resolution of 30 m (i.e., covers an area of 900 m²). If the surface is not homogenous, the measured spectrum is a mix of different materials, which can influence the composition retrieval. In those cases, some alternative techniques (i.e., unmixing) would be considered. This study demonstrates the potential of the PRISMA sensor to identify spectral features and mineral components of clastic eruptive features such as Lusi. Furthermore, the use of hyperspectral sensor at improved SNR, SWATH dimension, and GSD improvement using pan sharpening techniques like PRISMA has the potential to help provide useful information to determine the mineral composition and may provide insights regarding the system evolution and changes in mineralogical composition through time. Additional processing of the PRISMA data, unmixing techniques, and machine learning will be used to evaluate the potential of composition mapping in such a challenging environment. New hyperspectral space sensors, such as PRISMA and the recently launched EnMap and EMIT, offer the opportunity to investigate and monitor surface composition in remote areas at increased repetition time, allowing the evolution of the observed area to be mapped in time. Furthermore, the data acquired by EO1-Hyperion and PRISMA can provide a synoptic view augmented by their unique spectral ability, which allows for a map of areas of Lusi that are difficult to reach during fieldwork, promising to be of great support and complementarity. Finally, the spectral characterization from satellite systems relies on the sensor’s good performance (i.e., SNR, spectral resolution, and calibration) and reliable atmospheric correction. Although the applied EFFORT technique reduced the noise, the L2 PRISMA product still shows some systematic noise in the VNIR (750–850 nm) where some mineral diagnostic features occur, potentially leading to misinterpretation. For future mineral mapping applications, we suggest retrieving the reflectance starting from the PRISMA L1 radiance and applying a more specific atmospheric correction. Although running systematic spectroscopic field campaigns would be ideal for validating the satellite data, laboratory measurements on samples acquired near the satellite passage are a viable compromise to consider due to the high cost and difficulties of carrying out such fieldwork.

5. Conclusions

This study describes a multidisciplinary approach to investigate the reflectance spectra of mud erupted at the Lusi vent (east Java, Indonesia) and compare them with data acquired from satellites EO1-Hyperion and PRISMA imaging the same site and ultimately with those available from the spectral library databases (USGS spectral library version 7).

The comparison between the spectral library and the Lusi samples shows a good agreement with the oxides represented in high percentages (i.e., SiO₂, Al₂O_3, and Fe₂O₃). Some low percentages of oxides (i.e., MnO and K₂O) show differing amounts when comparing the Lusi mud collected from the stream and the Illite IMt-1.a from the spectral library sample. Similar behavior is detected in the dry mud sample (i.e., SiO₂, Al₂O₃, MnO, and K₂O) compared to the Illite GDS4 Marblehead, except for Fe₂O₃ present in a higher percentage.

PRISMA spectra acquired 7 years later; the samples show features typical of Illite VNIR Fe-electronic feature and absorption in the SWIR (2200 nm) comparable with the dry mud reflectance of the sample measured in the laboratory.

The measurements completed by Hyperion and PRISMA L2D show the ability of the sensors to characterize spectra associated with specific minerals that can be related to the Lusi mud composition. Overall, better atmospheric correction is needed to remove artificial features that could negatively influence the identification of spectra. It also allows for reliable retrospective analysis and the derived material compositions.

The main Illite absorption bands were identified by using PRISMA reflectance. The continuum removal showed the Fe+ broad absorption and AL-OH at 2200 nm.

Overall, this study reveals the potential of hyperspectral technology from space to identify materials in challenging environments that are also influenced by large variability in terms of compositions, water content, and gas emissions. Identifying weak absorption features is possibly challenged by the Atmospheric correction implemented in the PRISMA L2 product. The increasing availability of hyperspectral image archives and time series in synergy with airborne acquired data will improve (by using deep learning will greatly improve the analysis of surface mineral compositions from space and their evolution in the presence of geophysical phenomena and manmade activities.
