Technogenic Magnetic Particles in Soils and Ecological–Geochemical Assessment of the Soil Cover of an Industrial City in the Ural, Russia

Abstract

The work is devoted to the study of pollution by technogenic magnetic particles and heavy metals of soils in the city of Gubakha, Middle Ural (Russia). The aim of the work is the ecological and geochemical assessment of the elemental chemical composition of the soils of the city of Gubakha, and the establishment of the geochemical role of technogenic magnetic particles (TMPs). For the first time, the regularities of the spatial distribution of magnetic susceptibility in the soils of the city of Gubakha were revealed, and the morphology, elemental and mineralogical compositions of magnetic particles in the soils of an industrial city in the Middle Urals were characterized using the methods of the chemical extraction of iron compounds, magnetic separation, ESEM/EDS, and Mössbauer spectroscopy. The magnetic phase of soils contains magnetite/maghemite, hematite, pyrrhotite, intermetallic alloys and chromite. Spherical magnetic particles are hollow, and have a magnetite shell and a varied surface texture. The crystal lattice of magnetite is characterized by low stoichiometry. The heavy metals Zn, Cu, Ni and Cr are concentrated in magnetic particles and have a high correlation coefficient with magnetic susceptibility. The level of contamination of Cu, Ni, Zn, Cr and Mn in the soils of a residential zone of Gubakha, estimated by the value of the pollution load index (PLI), was high. The Igeo index for Fe ranges from 6.2 to 12.2, for Cu–1.1 and Ni–1.1. The combination of methods for measuring magnetic susceptibility, determining the mineralogical composition of iron compounds, and determining the elemental chemical composition by X-ray fluorescence, has shown the effectiveness of an integrated approach for carrying out an ecological–geochemical assessment of the soil cover of Gubakha.

1. Introduction

One of the main scientific approaches to solving the problem of soil pollution with heavy metals (HM) is the ecological–geochemical analysis of quantitative and qualitative indicators of the elemental chemical composition of soils, and the identification of pollution sources and carrier phases of heavy metals.

HM pollution of the soil cover of urbanized areas occurs as a result of the impact of industrial enterprises (Ni [1,2,3,4,5,6,7,8], Cu [1,2,4,5,9,10,11,12,13,14,15], Zn [1,5,8,9,11,12,13,14,15,16,17,18,19,20], Mn [1,2,3,9,18,21], Cr [9,11,18,22,23,24,25] etc.), fossil fuel combustion products (Ni [3,11,21,26,27,28], Mn [3,21,27,29,30], Zn [10,26,28,31], Cu [10,11,19,26,31], Cr [26,28,30,31,32] and Zn [27,32]) and road-traffic pollution (Cu [6,9,11,12,16,18,21,23,25,33,34,35,36,37,38,39,40,41,42,43,44], Zn [6,10,11,16,23,25,33,34,35,36,37,39,41,42,43,44,45,46,47], Cr [9,11,21,34,37,40,44,46], Mn [9,43,45] and Ni [37,40,44,45]).

It has been established that in urban soils, the phases-carriers of heavy metals are organic matter, clay minerals [48], as well as natural iron (hydr)oxides (goethite [49], lepidocrocite [50]), and technogenic magnetic particles (TMPs) (magnetite [49,50,51,52,53,54,55,56,57,58,59], maghemite [49,50,52,55,59], magnesioferrite [49,52], hematite [49,50,52,53,55,57], pyrrhotite [49], ferrites [49,52], wustite [55], metallic iron [53,60], ferroalloy [60]). Anthropogenic pollution of soils with HM occurs in the composition of TMPs from fly ash of power plants [26,28], exhaust gases, the wear of tires, brakes and road surfaces, the corrosion of car bodies, oil leakage [42], and dust from wheels and the rails of the railway transport [39].

In areas with a developed industrial infrastructure for coal processing and thermal power enterprises using coal, there is a connection between HM and the magnetic phase of fly ash from coal-fired power plants [49,61,62,63,64]. In magnetic concentrates of coal dust, the dominant magnetic phase is 50% magnetite with a predominance of spherical particles [49,65].

Based on the relationship between iron compounds and the ecological state of the soil cover, the methods of ecological magnetism are used in soil cover monitoring for magnetic susceptibility (K), remanent magnetization, saturation magnetization, coercive force, thermomagnetic analysis, electron paramagnetic resonance, nuclear magnetic resonance, and nuclear gamma resonance [57,66,67,68].

A positive correlation was found between the content of HM and the K value in the upper layer of soils in cities and industrial regions [1,69,70,71,72,73,74,75,76]. However, despite the long history of studying the relationship between the concentration of HM in soils and the value of K, a number of issues remain controversial and require clarification. In particular, the question of the unconditional effectiveness of measuring the K for diagnosing the technogenic pollution of soils with HM remains controversial [77]. Parent rocks can be sources of HM in soils [12,78,79,80,81,82,83]. The carriers of HM in soils are not only iron compounds [12,54,84,85], but organic matter [44,54,85,86] and clay minerals [54,84,85], which do not have high K. In addition, anthropogenic impacts in cities lead to a change in the physicochemical properties of soils, which leads to the formation of geochemical barriers, on which many HMs accumulate, for example, on the territory of the largest Russian city, Moscow [87].

The soil cover of industrial cities of the Urals is subject to anthropogenic pollution by HM [88,89,90,91,92,93,94]. The population of industrial cities of the Perm region is negatively affected by high concentrations of HM in the environment [88,93,95,96,97,98,99,100].

The products of the chemical processing of coal and its combustion in the territory of the cities of the Urals often lead to soil pollution with HM, which are part of the group of magnetic particles [101,102].

Until now, information on the elemental chemical composition of soils in Gubakha has been fragmentary. M.A. Shishkin and A.K Lapteva [94] analyzed the soil cover of the Kizelovsko-Gubakhinsky industrial district. They found that the soils of the city of Kizel accumulate Cu, Zn and other metals. Abnormally high concentrations of Cu, Ni and Zn were detected in the snow cover in the territory of Gubakha. I.S. Kopylov et al. [103] identified the Kosva hydrogeochemical anomalous zone located in the Kosva river basin. Anomalies for Mn, Be, Cd, Ni, Cr and Pb have been identified. There is a large geochemical anomalous zone in the basin of the middle reaches of the Kosva river. The genesis of the zone is natural and technogenic. There are areal anomalies of Cu, Pb, Zn, Mn, Cr, Ni, etc. E.A. Menshikova and B.M. Osovetsky [59] found that technogenic–alluvial deposits (near-channel shallow water of the Kosva river in Gubakha) contain up to 3% of the magnetic fraction. The chemical composition of the magnetic fraction was 94–97% FeO + F₂O₃, 0.1–0.3% TiO₂, 0.06–0.13% Cr₂O₃, 0.3–0.5 MnO and 0.07–0.14% Ni.

The city Gubakha is part of the Kizelovsko-Gubakhinsky industrial district [94]. The leading industries in the city are chemical, fuel and energy, and metallurgy [104]. During 2014–2019, the average concentrations of suspended solids, Mn, Ni, Fe and Zn increased in Gubakha’s atmospheric air [105,106,107,108,109,110]. Industrial enterprises OAO “Gubakhinsky coke” and the Kizelovskaya storage power station use coal from the Kuzbass deposit as raw material [104]. Coal of the Kuzbass deposit contains impurities of Cr, Mn, Fe, Co, Ni, Cu, Zn, etc. [111]. The coke industry is considered the least known source of magnetic particles [49,55]. In connection with the above materials, the study of the elemental chemical composition of the soils of Gubakha using the methods of ecological magnetism is an urgent objective.

The aim of this work was the ecological–geochemical assessment of the elemental chemical composition of the soils of Gubakha, and the establishment of the geochemical role of technogenic magnetic particles (TMPs).

2. Materials and Methods

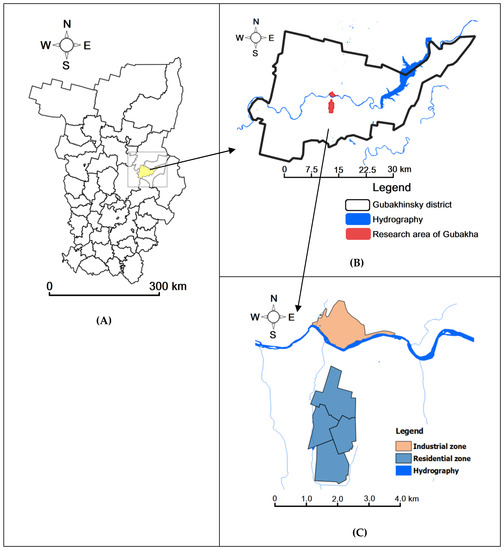

Research area. The city of Gubakha is located in the eastern part of the Perm region, Russia. The city location coordinates are 58°52′00″ N, 57°35′00″ E (Figure 1). The relief of the area is hilly-ridged foothills, crossed by valleys of rivers and streams. The climate of the territory is moderately continental. In retrospective natural landscapes of the city, the parent rocks were eluvial and deluvial deposits formed from the weathering products of bedrock. The study area is located within the zone of the West-Ural fold, adjacent to the Cis-Ural trough. The territory is composed of Paleozoic rocks (from the Mid Devonian to the Cisuralian inclusive) and these overlap with Quaternary deposits [112].

The vegetation on the natural landscapes is represented mainly by dark coniferous middle taiga and southern taiga foothill forests. Under natural conditions, the leading process of soil formation is the podzolic process. The predominant soils in the Gubakhinsky district are mountain Retisols [113,114]. On the territory of the city, anthropogenic soil formation is manifested and Urbic Technosol has been formed.

More than 33 thousand people live in Gubakha [115]. A distinctive feature of Gubakha is the fairly high concentration of industrial enterprises and population in a relatively small area. Industrial and residential areas alternate almost continuously for more than 25 km. The residential area of the city is represented by 63.5% detached houses with personal plots, on the soils of which agricultural products are grown [116,117]. Railways, highways and six main gas pipelines pass through the district [118,119].

2.1. Site Description and Sampling Strategy

The objects of research were the Urbic Technosol Loamic, Eutric and Urbic Technosol Loamic, Skeletic [120] of the city of Gubakha, Perm region, Russia. Soil samples were taken out within the residential zone of the city inside residential areas and on roadside areas, as well as within the industrial zone in the area of operation of the production workshops of OAO “Gubakhinsky coke” (Figure 2). In total, 117 mixed samples from the 0–10 cm layer and 11 individual samples from two soil profiles (Urbic Technosol Loamic, Eutric and Urbic Technosol Loamic, Skeletic) were taken by the envelope method. Each mixed sample was taken from an area of 10 m².

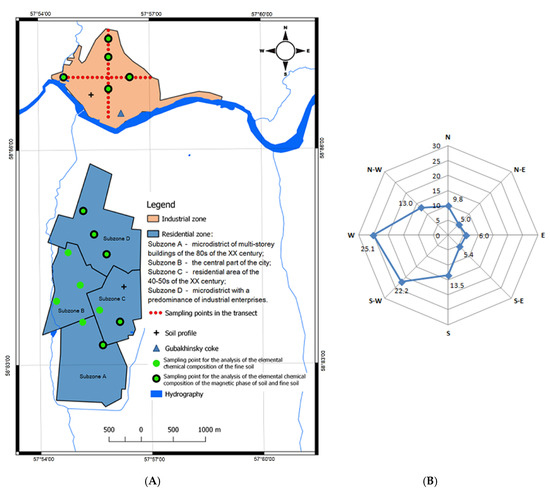

The residential zone of the city was divided into four subzones: subzone A—microdistrict of multi-story buildings of the 1980s (16 samples); subzone B—the central part of the city (15 samples); subzone C—residential area of the 1940–1950s (17 samples); subzone D—microdistrict with a predominance of industrial enterprises (12 samples) (Figure 2).

In the industrial zone of the city adjacent to the workshops of OAO “Gubakhinsky coke”, 57 samples were taken in four transects with a length of 750 m. The transects were laid along four cardinal points, and the sampling step was 50 m (Figure 2A). The winds throughout the year are southwest and west, with a prevailing speed 4–6 m/s (Figure 2B) [119].

Quantities of 1.2–1.5 kg of wet mixed (combined) soil samples were taken for research. The samples were homogenized, had roots removed, air dried, crushed and sieved through a 1.0 mm sieve. Granulometric composition, physicochemical properties, elemental chemical composition and magnetic susceptibility were determined for soil samples with particle size <1.0 mm.

A quantity of 300 g of soil sample with particle size <1.0 mm was used to isolate the magnetic phase (MF). A hand-held permanent magnet “NdFeB” was applied for the “dry” separation method. The distance between the soil sample and the magnet surface was 5–10 mm. The mineralogical, elemental chemical composition and magnetic susceptibility were studied for the magnetic phase.

Soil samples with particle sizes >1.0 mm and the diamagnetic phase of the soil (“tail”) were not used for detailed studies.

To carry out Mössbauer spectroscopy, we used a sample of the magnetic phase of the Urbic Technosol Loamic, Eutric in the residential zone of the city (subzone D), characterized by anomalously high K. The coordinates of the sampling site are 58°84′53″ N, 57°55′80″ E.

2.2. Analytical Methods

The determination of physicochemical properties, the measurement of volumetric magnetic susceptibility (Κ), and the magnetic separation of soil were carried out at the Department of Soil Science of the Perm State Agro-Technological University. The content organic carbon was determined using the Turin method. The sum of exchange bases was determined by the Kappen–Hillkowitz method. The hydrolytic acidity of the soil was determined by the Kappen method. The exchange acidity of the soil was determined by the method of TsINAO. The degree of soil saturation with bases and cation exchange capacity was determined according to Kappen–Hillkowitz [122]. The granulometric composition of the soil was determined by the Kachinsky pyrophosphate method. The boundaries between the six particle size classes were determined in accordance with Russian generally accepted fractional groups [123]. The coarse and medium sand fraction (1–0.25 mm) and the fine sand fraction (0.25–0.05 mm) were separated by sieving while more fine-grained fractions of the coarse, medium and fine silt (0.05–0.01 mm; 0.01–0.005 mm and 0.005–0.001 mm, respectively) as well as the clay fraction (<0.001 mm) were determined by the pipette method after sample pretreatment with sodium pyrophosphate.

The choice of research HM was due to the earlier assessment by M.A. Shishkin and A.K Lapteva [94] of the geochemical state of the soil and snow cover of the Kizelovsko-Gubakhinsky industrial district. It was found that the priority environmental pollutants in this region of the Perm region were Cu, Zn, Ni, Zn and Mn.

The elemental chemical composition of soil (15 samples) and magnetic phase (10 samples) was determined by X-ray fluorescence at the Vernadsky Institute of Geochemistry and Analytical Chemistry of the Russian Academy of Sciences on an AXIOS Advanced spectrometer (PANalytical B.V., Holland). The X-ray tube of spectrometer had a Rh anode as the excitation source for characteristic radiation. The spectrometer was calibrated against 36 certified standard samples of bottom sediments, soils and rocks, including those of the SDO, SGKhM, SGKh, SKR, SDPS, and other sets, for which the calibration curves and concentrations of 25 elements were determined (ten major elements: Na, Mg, Al, Si, P, K, Ca, Ti, Mn, and Fe; and fifteen minor and trace elements: S, V, Cr, Co, Ni, Cu, Zn, As, Rb, Sr, Y, Zr, Nb, Ba, and Pb). The standards were selected based on the tentative semiquantitative XRF analysis of four samples randomly selected from among those chosen for this research. The samples to be analyzed and the standards were prepared from 0.3 g portions of material mixed with 0.06 g of polystyrene C₉H₈, in the form of pellets 20 mm in diameter. The reproducibility and accuracy of the analyses were controlled by analyzing the standard sample SGKhM2. The comparison of our analyses and attested tabulated values testifies that the relative standard deviations do not exceed the values permissible for the analysis of ordinary samples in compliance with the accuracy standards stipulated in OST 41-08-205-99 [124].

Κ was determined using a KT-6 kappameter (Czech Republic). The sensitivity of the equipment was 1 × 10⁻⁵ SI units, and the measuring ranges varied from −9.99 to 99.99 10⁻⁵ SI units.

The forms of iron were determined in the laboratory of soil reclamation of the Institute of Soil Science and Agrochemistry of the Siberian Branch of the Russian Academy of Sciences. Iron was subdivided into forms and fractions, according to the classification of S.V. Zonn [125]. Silicate and non-silicate iron and amorphous forms of iron were identified. The total iron content (Fe_total), non-silicate or free iron was extracted from the soil by the Mehr and Jackson method, modified according to Coffin [126]. The iron in the Mera–Jackson and Tamm extracts was determined in the presence of sulfosalicylic acid by the colorimetric method on a photocolorimeter KFK-2MP (Russia). The light transmission coefficient of the device was from 100 to 1%, and the measurement error was 1%.

The above research methods were carried out 3 times.

The analysis of the particles of the magnetic phase was carried out by microprobe and X-ray phase methods at the Borok Geophysical Observatory of the Institute of Physics of the Earth, O.Yu. Schmidt Russian Academy of Sciences. The particles selected for study on a microprobe were applied onto a double-sided conductive carbon tape and rolled with a glass rod so that the surface of the particles was oriented parallel to the surface of the stage. The composition of the particles was determined by the method of local X-ray spectral microanalysis. We used a Tescan Vega II XMU scanning electron microscope (Tescan, Czech Republic) equipped with an INCA Energy 450 X-ray spectral microanalysis system with an INCAx-sight X-ray spectrometer (Oxford Instruments, England) and the INCA Energy + software platform. The range of elements to be determined was from Be to U. The conditions of analysis performed only on an energy dispersive spectrometer were as follows: accelerating voltage 20 kV, current of absorbed electrons on Co 0.3 nA, analysis time at a point of 70 s. When a crystal diffraction spectrometer was used together with an energy-dispersive spectrometer, the analysis conditions were different—an accelerating voltage of 20 kV, a current of absorbed electrons on Co of 20 nA, and the total analysis time at a point was 170 s. The detection limit for the elements to be determined was in the range of 0.1–1.0 mass%. The determination accuracy was 0.2 mass% of the element. A total of 83 energy dispersive spectra were obtained and analyzed at different points of the soil magnetic phase samples.

In the laboratory of Mössbauer spectroscopy of the Department of Technology of Materials for Electronics of National Research Technological University “Moscow Institute of Steel and Alloys” (MISiS, Moscow, Russia), a sample of the magnetic phase, extracted from the soil of the village part of the city, was studied. For the analysis, we used a Mössbauer spectrometer Ms-1104 Em operating in a constant acceleration mode with a Co57 g-radiation source. The measurements were carried out at room temperature. Mössbauer spectra were recorded in 512 computer channels and processed using the Univem Ms program. The criterion for the best decomposition of the Mössbauer spectrum into components was minχ², which estimates the approximation of the calculated spectrum to the experimental one. The isomeric shift was calculated relative to α-Fe. Samples weighing 100–200 mg were ground in an agate mortar to a particle size of 0.05 mm.

2.3. Ecological–Geochemical Assessment

For the geochemical assessment of the state of soils, the following formulas were used:

• Coefficient of enrichment–impoverishment of the magnetic phase in heavy metals (KK_m.f.):

$${\mathrm{KK}}_{\mathrm{m}.\mathrm{f}.}=\frac{{\mathrm{C}}_{\mathrm{m}.\mathrm{f}.}}{{\mathrm{C}}_{\mathrm{s}}}$$

(1)

C_m.f.—concentration of the i-th chemical element in the magnetic phase of the soil, ppm;

C_s—concentration of the i-th chemical element in the soil, ppm.

If KK_m.f. is ≥1 then the magnetic phase is enriched with THE i-th chemical element. When KK_m.f. is <1 then the magnetic phase is impoverishment with THE i-th chemical element.

• Geo-accumulation Index (I_geo) [127]:

$${\mathrm{I}}_{\mathrm{geo}}={\log }_2\frac{{\mathrm{C}}_1}{1.5{\mathrm{C}}_2}$$

(2)

C₁—concentration of the i-th chemical element in the soil component (soil, magnetic phase), ppm;

C₂—concentration of the i-th chemical element in the background soil, ppm;

1.5—the constant is used as a factor to minimize possible variations in the background values due to lithogenic effects.

The contamination categories based on the I_geo are classified as below: uncontaminated (I_geo ≤ 0); uncontaminated to moderately contaminated (0 < I_geo ≤ 1); moderately contaminated (1 < I_geo ≤ 2); moderately to heavily contaminated (2 < I_geo ≤ 3); heavily contaminated (3 < I_geo ≤ 4); heavily to extremely contaminated (4 < I_geo ≤ 5); and extremely contaminated (I_geo > 5).

• Coefficient of concentration relative to the background (KK_B) [128]:

$${\mathrm{KK}}_{\mathrm{B}}=\frac{{\mathrm{C}}_1}{{\mathrm{C}}_2}$$

(3)

• Coefficient of concentration relative to the clarke of soils of residential landscapes according to V.A. Alekseenko (KK_A) [129]:

$${\mathrm{KK}}_{\mathrm{A}}=\frac{{\mathrm{C}}_{\mathrm{s}}}{{\mathrm{C}}_3}$$

(4)

C₃—clarke of the i-th chemical element of the soil of residential landscapes in Russia according to V.A. Alekseenko, ppm [129].

When using KK_B and KK_A, the pollution is classified as follows: ≤1 unpolluted soil, >1 polluted soil.

• Pollution load index (PLI) [130]:

$$\mathrm{PLI}=\sqrt[\mathrm{i}]{{\mathrm{CF}}_1\times {\mathrm{CF}}_1\times \dots \times {\mathrm{CF}}_{\mathrm{i}}}$$

(5)

CF_i—concentration factor of the i-th chemical element of sample in the soil component (soil, magnetic phase).

i—the number of metals studied (six in this study).

When using PLI, the pollution is classified as follows: PLI ≤ 1 low level of pollution; 1 < PLI ≤ 2 moderate level of pollution; 2 < PLI ≤ 5 high level of pollution; PLI > 5 extremely high level of pollution.

The forms of iron compounds in the soil were calculated using the following formulas [126]:

• Silicate iron (Fe_s):

$${\mathrm{Fe}}_{\mathrm{s}}={\mathrm{Fe}}_{\mathrm{total}}-{\mathrm{Fe}}_{\mathrm{ns}}$$

(6)

Fe_total—total iron content in the test sample, %;

Fe_ns—iron of non-silicate compounds were determined by the Mehr and Jackson method, %.

• Crystallized iron compounds (Fe_c) [126]:

$${\mathrm{Fe}}_{\mathrm{c}}={\mathrm{Fe}}_{\mathrm{ns}}-{\mathrm{Fe}}_{\mathrm{am}}$$

(7)

Fe_am—contents of iron amorphous compounds were determined by Tamm method, %.

• Schwertman’s criterion (SC) [131]:

$$\mathrm{SC}=\frac{{\mathrm{Fe}}_{\mathrm{am}}}{{\mathrm{Fe}}_{\mathrm{ns}}}$$

(8)

• The degree of development of oxidogenesis (DO) [132]:

$$\mathrm{DO}=\frac{{\mathrm{Fe}}_{\mathrm{ns}}}{{\mathrm{Fe}}_{\mathrm{total}}}$$

(9)

Statistical processing of the research results was carried out in the MS Office 2010 software package according to E. A. Dmitriev [133].

3. Results

3.1. Soil Morphology

Soil profile 1. Urbic Technosol Loamic, Eutric (58°84′08″ N, 57°56′24″ E). Territory—a courtyard square in the residential zone of Gubakha. The total depth of profile is 102 cm. Profile structure: O–AYur,lo–Eur,lo–EBTur,ce–Btur,ce–BTCurcesk–Cce,sk.

Soil profile 2. Urbic Technosol Loamic, Skeletic formed on mixed soils underlain by eluvium of Permian clays (58°86′77″ N, 57°55′44″ E). The section was laid 385 m west of the Gubakha railway station, and 220 m northeast of the river Kosva. Profile structure: O–AYur,lo–Eur,lo–EBTur,ce,sk–BTur,ce,sk–Cce,sk. In the AYur,lo horizon for both soils there are inclusions of construction waste and angular coal particles with a diameter of up to 10–20 mm.

3.2. Soil Granulometry

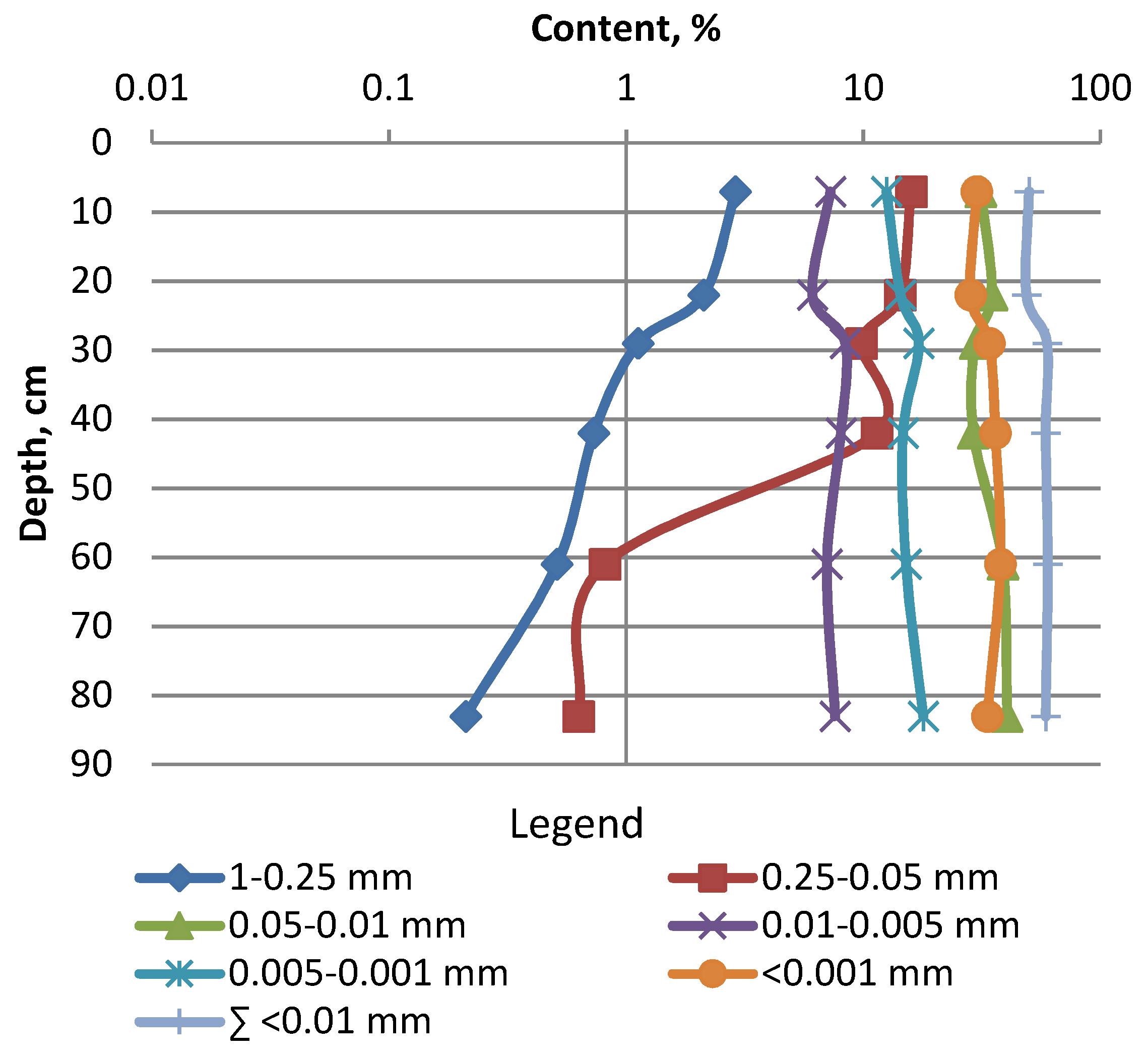

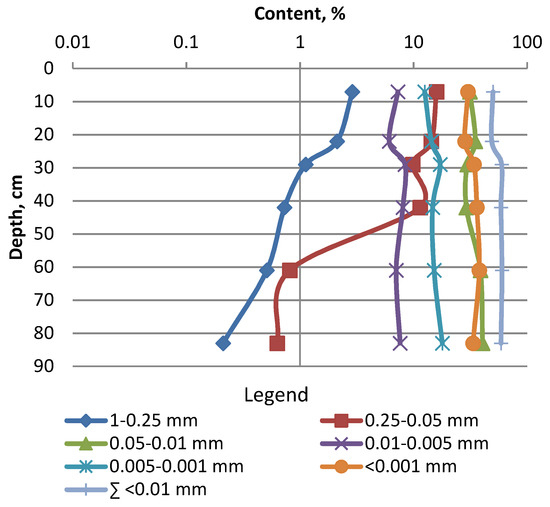

The content of physical clay is 49.92% in the Urbic Technosol Loamic, Eutric, and in the Urbic Technosol Loamic, Skeletic, it is 45.44%. Thus, the studied soils belong to heavy, loamy varieties [123]. In both soils, coarse dust predominates among mechanical fractions, constituting 31.32 and 32.52%, respectively, and medium sand presents in a minimum amount (

Table 1. Granulometry of the upper soil horizons of soils of Gubakha.

Horizon, Depth, cm	Particle Size, mm; Content, %							Granulometry
	1–0.25	0.25–0.05	0.05–0.01	0.01–0.005	0.005–0.001	<0.001	∑<0.01
Profile 1. Urbic Technosol Loamic, Eutric
AYur,lo (7–22)	2.89	15.87	31.32	7.27	12.53	30.12	49.92	heavy loamy
Profile 2. Urbic Technosol Loamic, Skeletic
AYur,lo (5–12)	1.66	20.38	32.52	22.64	19.84	2.96	45.44	heavy loamy

).

The horizons AYur,lo and Eur,lo are depleted in silt, fine dust and coarse dust, and are enriched with medium dust and medium sand compared to the underlying horizons (Figure 3).

3.3. Selected Chemical Data

The contents of organic carbon (C_org), mobile aluminum and hydrogen are higher in the surface horizons of the profiles than in the parent rock. The degree of soil saturation with bases increases with depth (

Table 2. Physicochemical properties of soil of Gubakha.

Horizon, Depth, cm	Corg, %	S	Hh	Hex	Al	CEC	Degree of Base Saturation, %	pHKCl	pHH2O
		cmolc/kg
Profile 1. Urbic Technosol Loamic, Eutric
AYur,lo (7–22)	2.7	11.5	6.8	2.7	1.4	18.3	63	3.6	4.7
Eur,lo (22–29)	-	8.3	7.5	2.2	0.3	15.8	52	3.7	4.8
EBTur,ce (29–42)	-	12.8	9.1	2.0	0.3	21.9	58	4.1	5.1
BTur,ce (42–61)	-	14.5	7.2	1.7	0.3	21.7	67	4.5	5.6
BTCur,ce,sk (61–83)	-	15.8	6	1.3	0.2	21.8	73	4.8	5.8
Cce,sk (83–102)	0.2	12.3	4.9	0.7	0.1	17.2	71	4.9	5.9
Profile 2. Urbic Technosol Loamic, Skeletic
AYur,lo (5–12)	2.0	15.8	7.5	3.2	0.4	23.3	68	5.6	4.5
Eur,lo (12–30)	-	12.5	6.7	2.7	0.3	19.2	65	5.1	4.1
EBTur,ce,sk (30–50)	-	16.3	8.2	2.5	0.4	24.5	66	3.8	2.8
BTur,ce,sk (50–70)	-	15.8	8.9	2.1	0.1	24.7	64	3.8	2.8
Cce,sk (70–90)	0.2	14.5	5.6	0.9	0.1	20.1	72	3.5	2.6

Note: “-”—the indicator was not determined.

).

In the residential zone of the city, the physicochemical properties of the surface soil horizons in the territory of the courtyards of residential buildings and squares are heterogeneous, and vary within the following limits: exchangeable soil acidity (pH_KCl) 3.3–8.0; organic carbon 1.0–3.9%; sum of exchange bases (S) 8.7–13.2 cmol_c/kg; hydrolytic acidity (H_h) 0.8–6.0 cmol_c/kg; cation exchange capacity (CEC) 1.6–15.9 cmol_c/kg. For roadside territories of the residential zone, the indicators changed in the following ranges: exchangeable soil acidity 3.2–7.8; organic carbon 0.8–3.9%; sum of exchange bases 8.9–11.9 cmol_c/kg; hydrolytic soil acidity 6.3–9.1 cmol_c/kg; cation exchange capacity 15.8–20.2 cmol_c/kg. The highest variability was found for the organic carbon content and exchangeable acidity of the soil, and the indicators of the absorption capacity of the soil vary to a lesser extent (

Table 3. Statistical parameters of the physical and chemical properties of the upper soil horizons (0–10 cm) of the residential zone of Gubakha (p = 0.05).

Sampling Location	Parameters	N	M	±m	Min	Max	V, %
Territories within residential areas	pHKCl	33	5.2	2.3	3.3	8.0	29
	Corg	33	2.1	0.6	1.0	3.9	28
	S	33	10.7	1.0	8.7	13.2	9
	Hh	33	7.4	0.8	6.0	9.5	12
	CEC	33	18.1	1.6	15.9	20.6	7
Roadside areas	pHKCl	27	5.1	2.5	3.2	7.8	31
	Corg	27	2.3	1.0	0.9	3.9	34
	S	27	10.4	0.7	8.9	11.9	8
	Hh	27	7.4	0.6	6.3	9.1	11
	CEC	27	17.9	1.2	15.8	20.2	6

).

In the surface soil horizons in the industrial zone, the organic carbon content is 1.2–3.4%, and the exchangeable soil acidity (pH_KCl) is 3.1–7.6 (

Table 4. Statistical parameters of the physical and chemical properties of the upper soil horizons (0–10 cm) of the industrial zone in the area of OAO “Gubakhinsky coke” (p = 0.05).

Direction from the Factory	Parameters	N	M	±m	Min	Max	V,%
1 transect (North)	Corg	15	2.5	0.1	1.8	3.4	11
	pHKCl	15	5.1	0.4	3.3	7.6	13
2 transect (East)	Corg	15	2.3	0.2	1.5	3.2	12
	pHKCl	15	4.6	0.2	3.2	6.1	11
3 transect (South)	Corg	15	2.4	0.1	1.7	3.2	10
	pHKCl	15	4.6	0.2	3.3	6.1	11
4 transect (West)	Corg	15	2.0	0.1	1.2	2.8	9
	pHKCl	15	4.4	0.2	3.1	6.2	10

).

3.4. Mineralogical Composition

3.4.1. Forms of Iron Compounds in Soil

Iron in the soil forms its own minerals, and is also a part of silicates. The total iron content in the soil in the microdistrict of high-rise buildings of the 1980s is within 5.28–6.34%, in the central part of the city 5.58–15.59%, in the residential area of the 1940–1950s 5.73–7.17%, and in the microdistrict with a predominance of industrial enterprises it is 4.72–6.79%. The content of silicate iron in the studied soil samples varies from 0.23 to 13.13%, and is on average 4.23%. This is slightly more than half of the gross iron content—on average 53.16%, and in some cases reaching 84.22%. The degree of development of oxidogenesis (DO) varies from 0.16 to 0.95. The average content of crystallized iron compounds (Fe_c) is 3.67%, and the maximum is 4.56%. The Schwertman’s criterion (SC) is less than 1.0 in all studied samples (

Table 5. Forms of iron compounds in soil of surface horizons (0–10 cm) of Gubakha.

Sampling Location	№ samples	Fetotal, % *	Fens, %			Fes, %	DO	SC
			Feam	Fec	∑
Microdistrict of multi-storey buildings of the 1980s	2	5.28 100	0.04 0.83	3.49 66.14	3.54 66.97	1.74 33.03	0.67	0.01
	7	6.34 100	0.04 0.68	3.58 56.48	3.62 57.16	2.72 42.84	0.57	0.01
The central part of the city	15	15.59 100	0.07 0.45	2.39 15.33	2.46 15.78	13.13 84.22	0.16	0.03
	20	5.58 100	0.05 0.97	4.56 81.76	4.62 82.72	0.96 17.28	0.83	0.01
	21	16.15 100	0.14 0.84	3.36 20.81	3.50 21.65	12.65 78.35	0.22	0.04
Residential area of the 1940–1950s	22	5.73 100	0.04 0.63	3.24 56.61	3.28 57.24	2.45 42.76	0.57	0.01
	30	7.17 100	0.04 0.56	4.14 57.8	4.18 58.35	2.99 41.65	0.58	0.01
Microdistrict with a predominance of industrial enterprises	37	6.16 100	0.03 0.54	4.19 68.1	4.23 68.64	1.93 31.36	0.69	0.01
	38	4.72 100	0.04 0.95	4.44 94.13	4.49 95.08	0.23 4.92	0.95	0.01
	42	6.79 100	0.05 0.72	3.27 48.23	3.32 48.95	3.47 51.05	0.49	0.02

Note: *—The numerator contains % of the soil mass, and the denominator contains % of the gross iron content in soils.

).

The Schwertmann’s criterion in all the studied samples was less than one unit (Table 5).

3.4.2. Magnetic Susceptibility

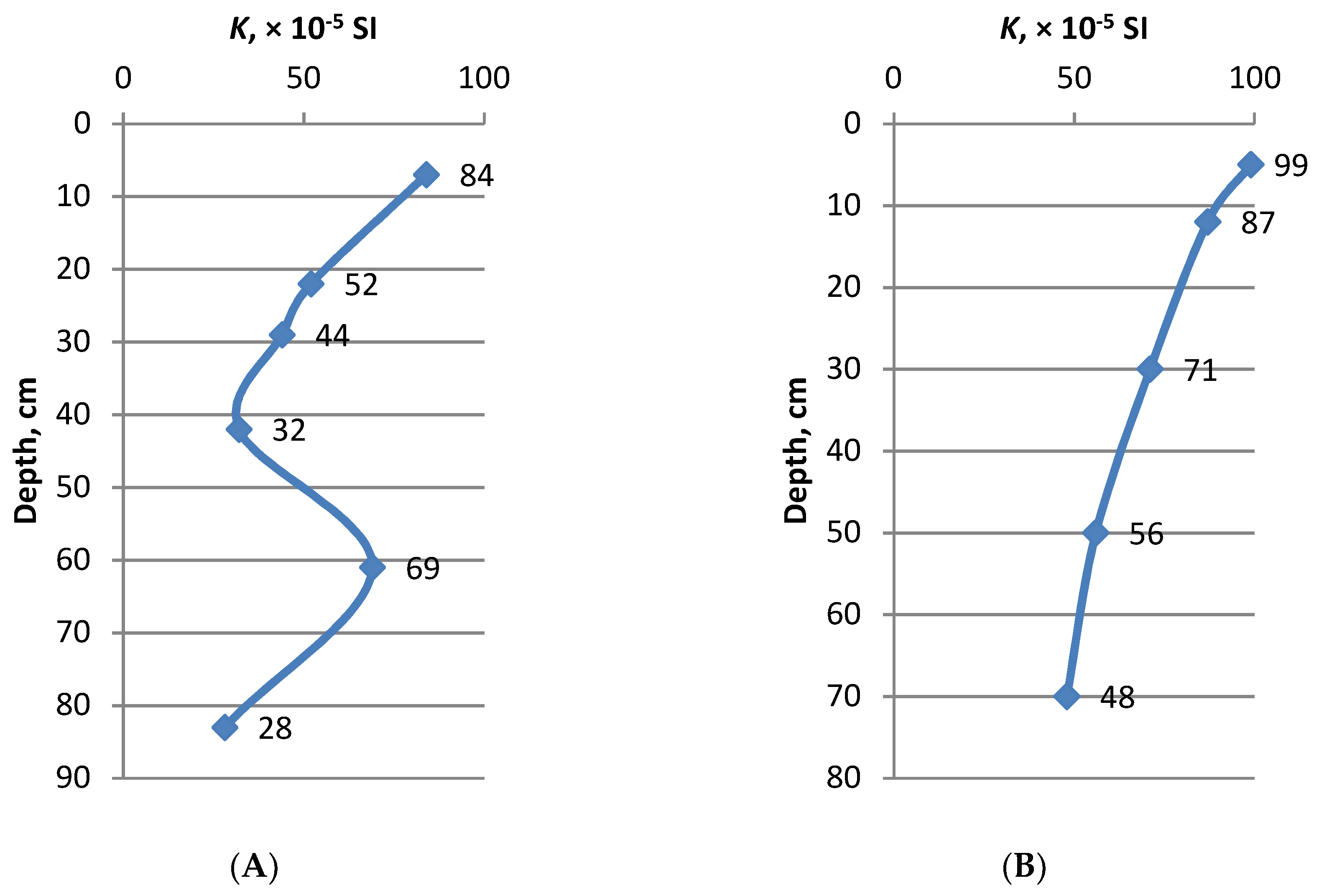

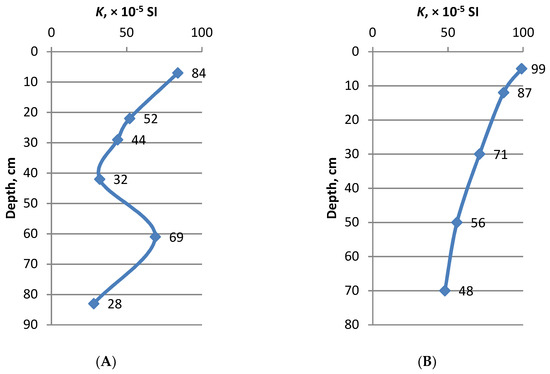

The maximum values of Κ, 84 and 99 × 10⁻⁵ SI, were revealed in the AYur,lo horizons of soils (Figure 4). The Κ values decrease two to three times with depth. The minimum Κ values are typical for parent rocks—28 and 48 × 10⁻⁵ SI. A slight increase in Κ was noted at a depth of 60 cm, which is associated with variations in Κ in the parent rock. The skeletal part of the soil consists of construction waste—limestone crushed stone and wood inclusions, which have a low Κ. The geogenic factor is of secondary importance in the formation of the susceptibility of the surface soil horizons of Gubakha.

The average Κ value is 169 × 10⁻⁵ SI for the soils of the roadside territories of the residential zone, and for the territory within the residential areas it is 120 × 10⁻⁵ SI (

Table 6. Statistical parameters of the magnetic susceptibility of the upper soil horizons (0–10 cm) of the residential zone of Gubakha, ×10⁻⁵ SI (p = 0.05).

Sampling Location	n	M	±m	min	Max	V, %
Territories within residential areas	33	120	127	1	416	94
Roadside areas	27	169	273	70	627	98

).

In the soils of the industrial zone of the city, the individual single values of Κ are relatively high and amount to 462–544 × 10⁻⁵ SI.

On the territory adjacent to the workshops of OAO “Gubakhinsky coke”, the highest Κ was found in soils within a radius of up to 500 m from the production workshops of the plant. The average Κ of soils in these sections of the transects is 267 × 10⁻⁵ SI. The Κ of soil decreases with distance from the production workshops of OAO “Gubakhinsky coke”. The Κ of soils is 120 × 10⁻⁵ SI in the interval from 500 to 1000 m. The Κ values are ≤57 × 10⁻⁵ SI in the range from 1000 to 1500 m.

The Κ is more varied in the north and east of the sources of magnetic particle emissions than in the south and east. The Κ ranges from 126 ± 15 × 10⁻⁵ SI in the westerly direction to 186 ± 61 × 10⁻⁵ SI in the north (

Table 7. Statistical parameters of the magnetic susceptibility of the upper soil horizons (0–10 cm) of the industrial zone in the area of OAO “Gubakhinsky coke”, × 10^-5 SI (p = 0.05).

Direction from the Factory	n	M	±m	Min	Max	V,%
1 transect (North)	15	186	61	27	544	42
2 transect (East)	15	137	32	23	464	41
3 transect (South)	15	142	22	30	401	33
4 transect (West)	15	126	15	27	330	31

).

The Κ values of the soil and magnetic phases are significantly different from each other (

Table 8. Statistical indicators of the magnetic susceptibility of soil and magnetic phase of the upper soil horizons (0–10 cm) of Gubakha (p = 0.05).

Sampling Location	Soil Component	n	M	±m	Min	Max	V, %
Residential zone	Soil before magnetic separation	5	328	88	90	627	60
	magnetic phase	5	10,816	2291	2862	16,470	47
Industrial zone	Soil before magnetic separation	5	148	31	42	216	46
	magnetic phase	5	6440	286	5600	7300	10

). The Κ of the magnetic phase varies within 2862–16,470 × 10⁻⁵ SI in the residential zone of city, and in the industrial zone it is 5600–7300 × 10⁻⁵ SI.

3.4.3. Morphology, Mineralogical and Elemental Chemical Composition of Magnetic Phase Particles according to ESEM/EDS Results

In the magnetic phase of the soil of the Urbic Technosol Loamic, Eutric and the Urbic Technosol Loamic, Skeletic of Gubakha, microparticles of various shapes and mineralogical compositions were revealed (Figure 5). The magnetic phase contains particles of spherical, rounded, detrital, and irregular shapes. Spherical particles prevail in the industrial zone of the city (Figure 5B).

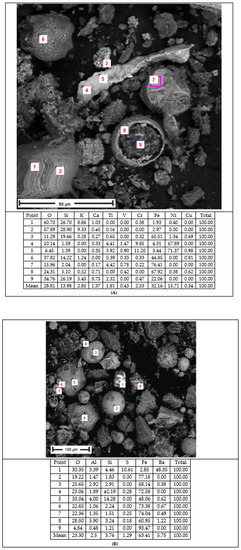

The magnetic phase from the 0–10 cm layer of the Urbic Technosol Loamic, Eutric was composed of the follows minerals: iron-containing silicate (Figure 5A points 1, 2, 6, 9), intermetallic alloy of iron (Figure 5A points 4, 5), magnetite (Figure 5A point 8), and titanomagnetite (Figure 5A points 3, 7). Among the particles of the magnetic phase of the Urbic Technosol Loamic, Skeletic, the following minerals were identified: barite (Figure 5B point 1), magnetite (Figure 5B points 2–4 and 6–8), wustite (Figure 5B point 9), and iron-containing silicate (Figure 5B point 5).

Spherical magnetic particles contain magnetite, which predominates in the shell of the spherule (Figure 5B point 8). The inner part of some destroyed spherules is filled with particles of iron-containing aluminosilicates (Figure 5A, Figure 6B,E).

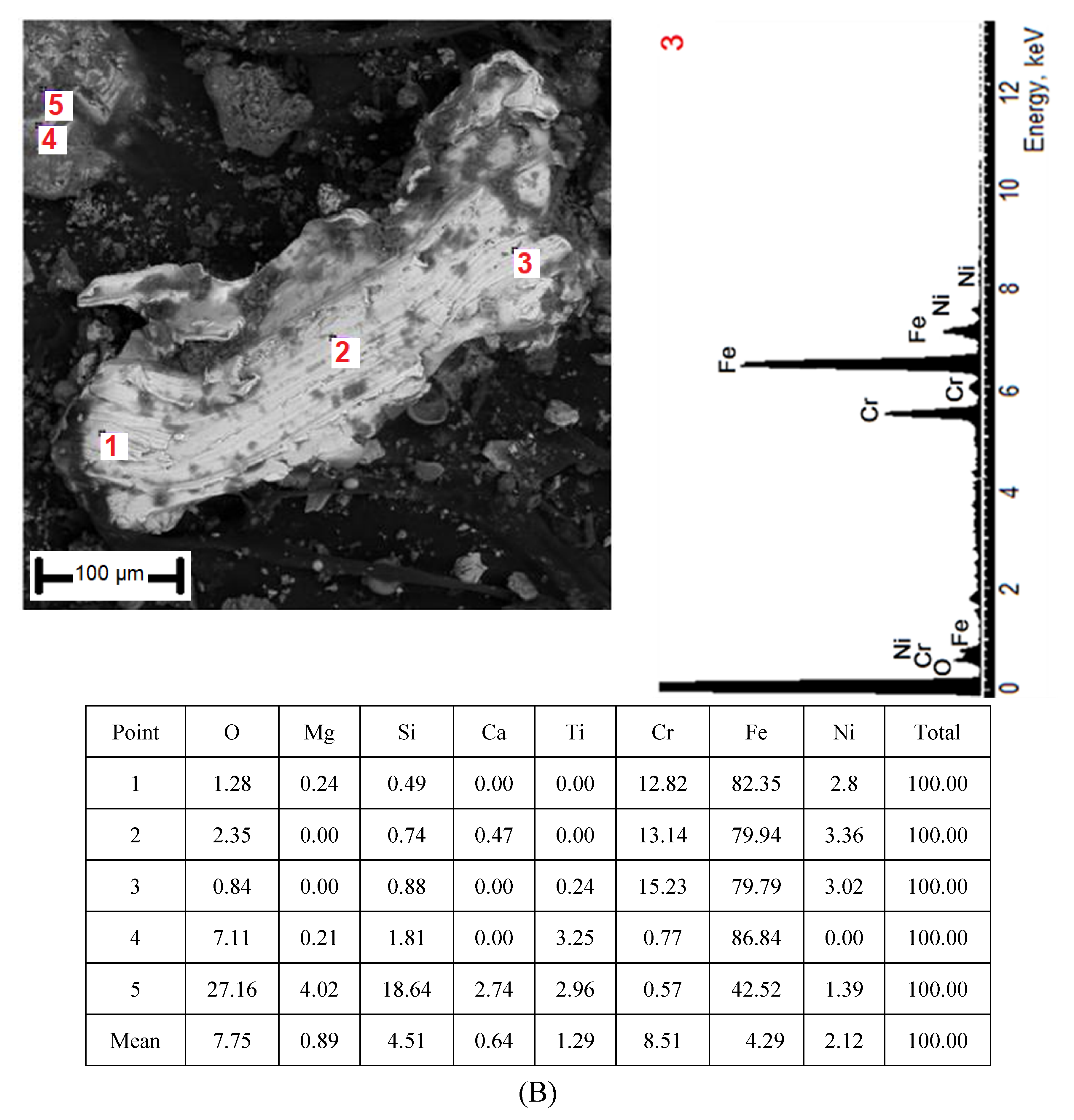

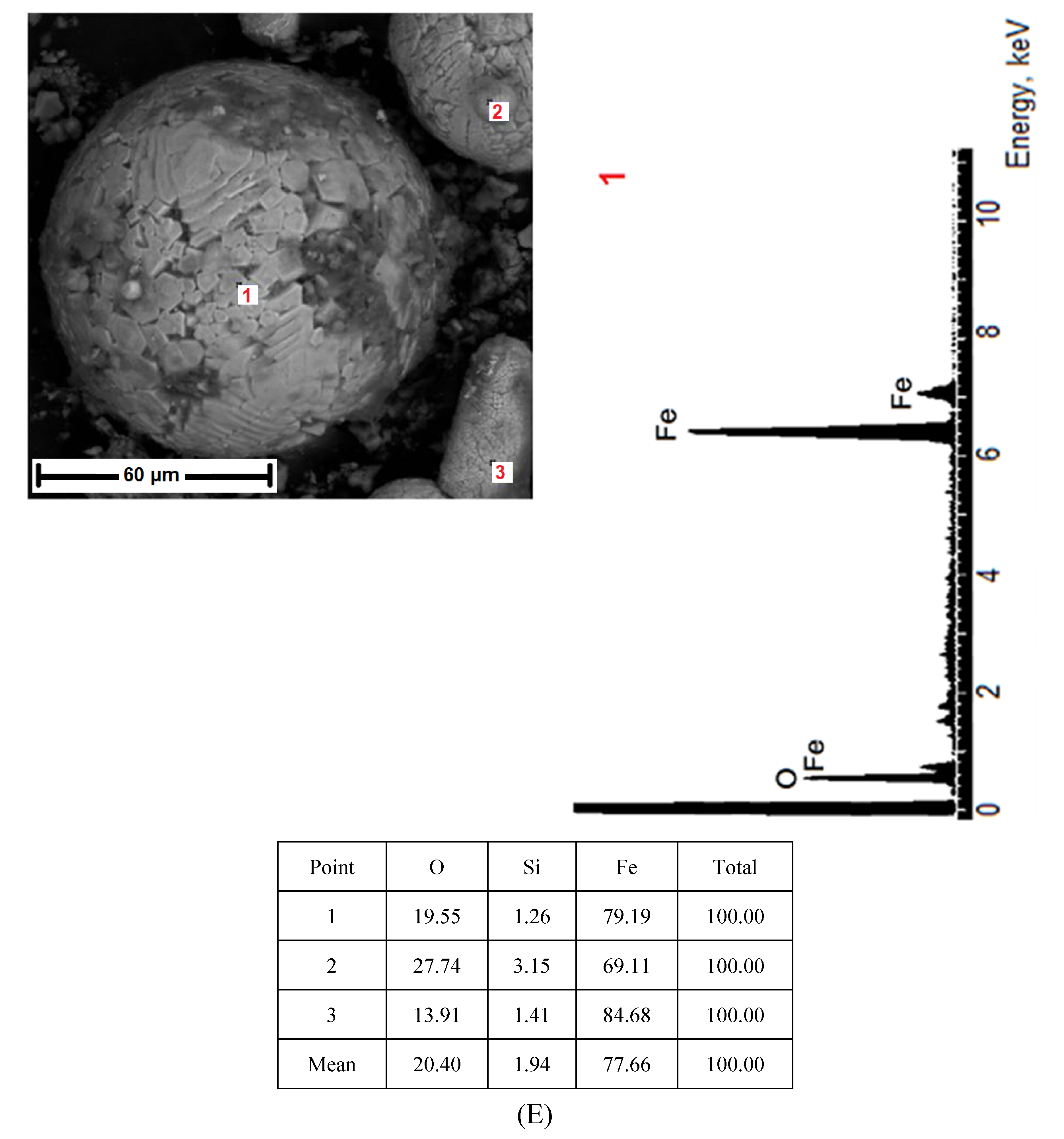

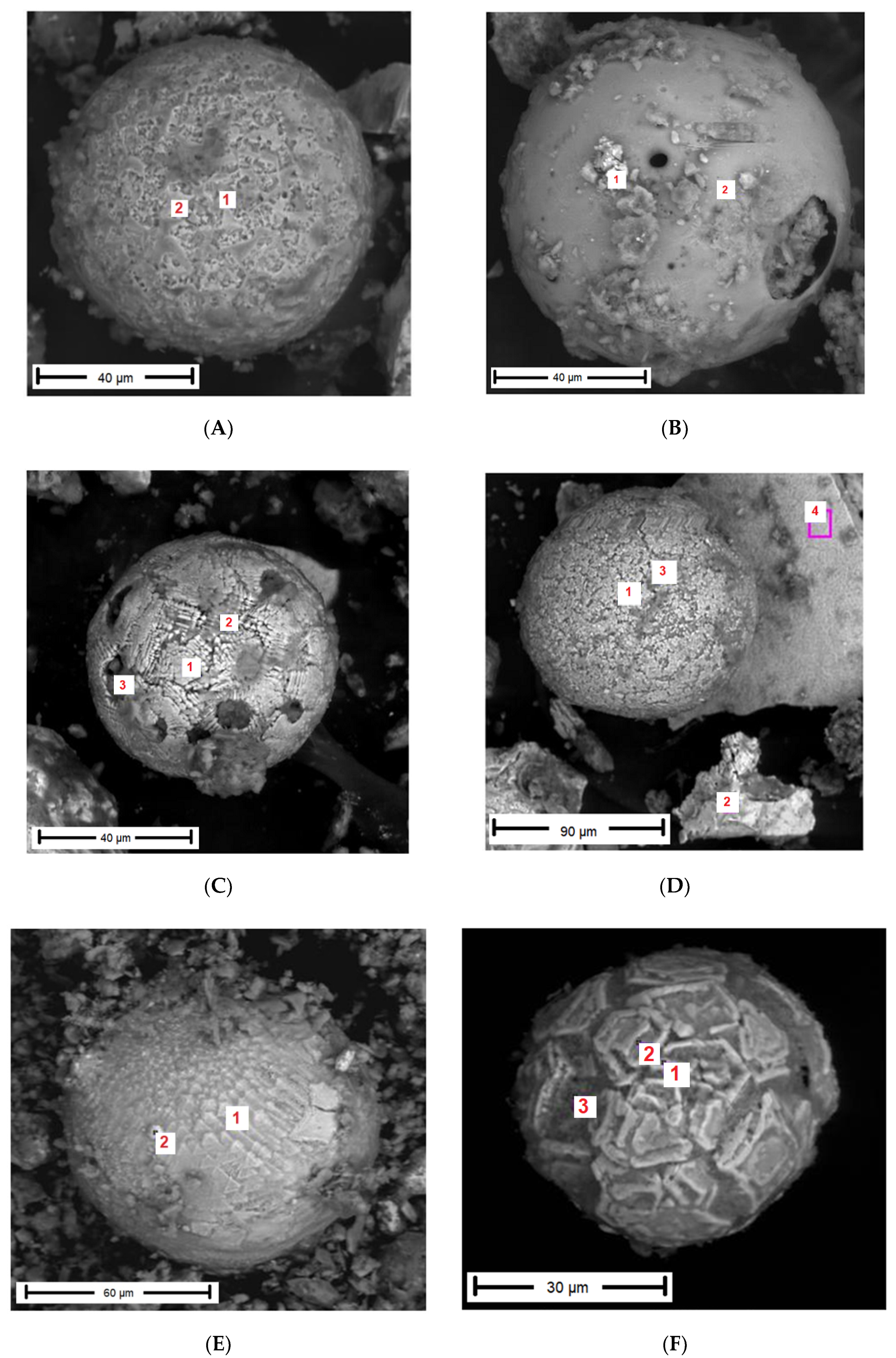

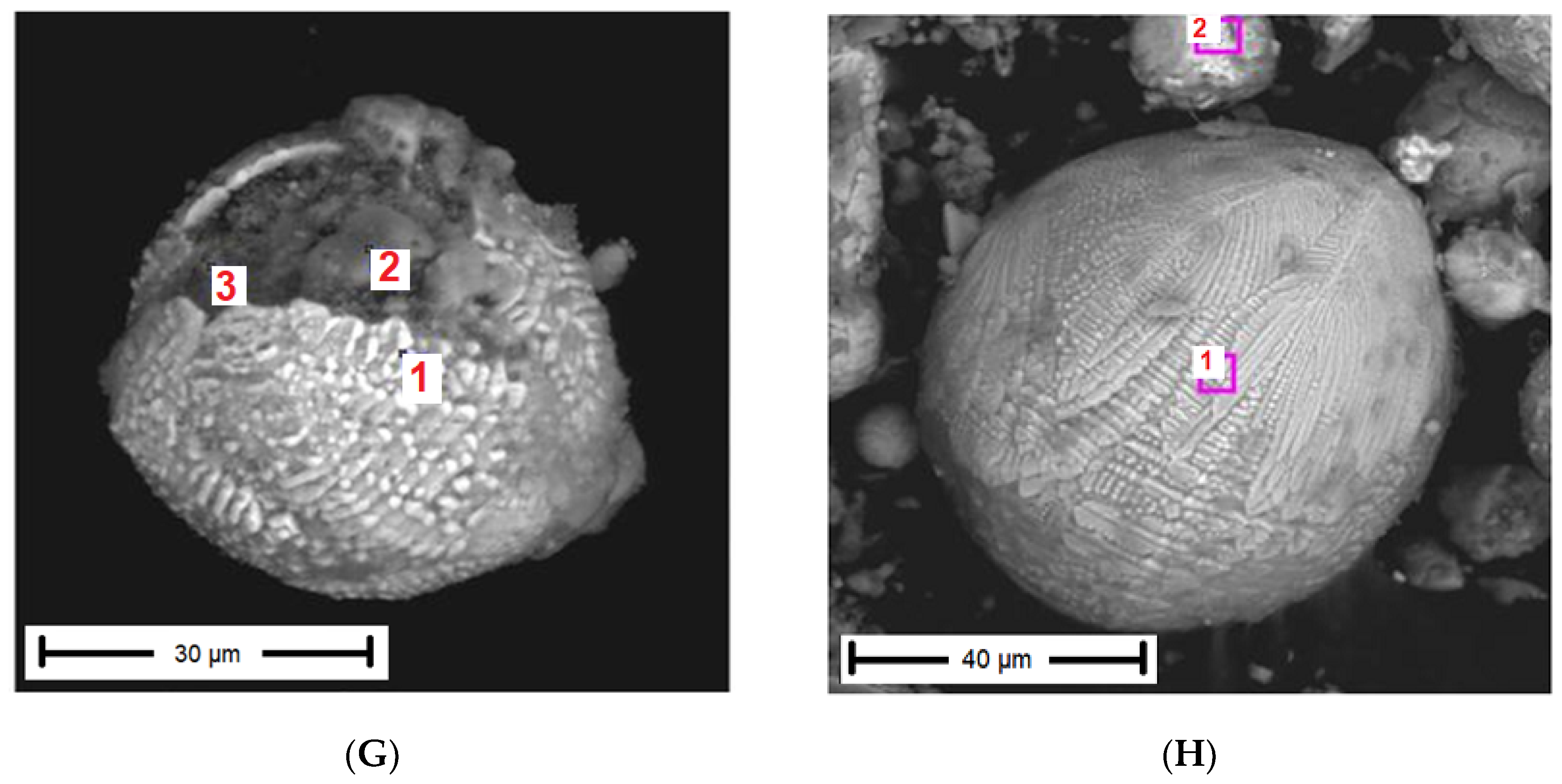

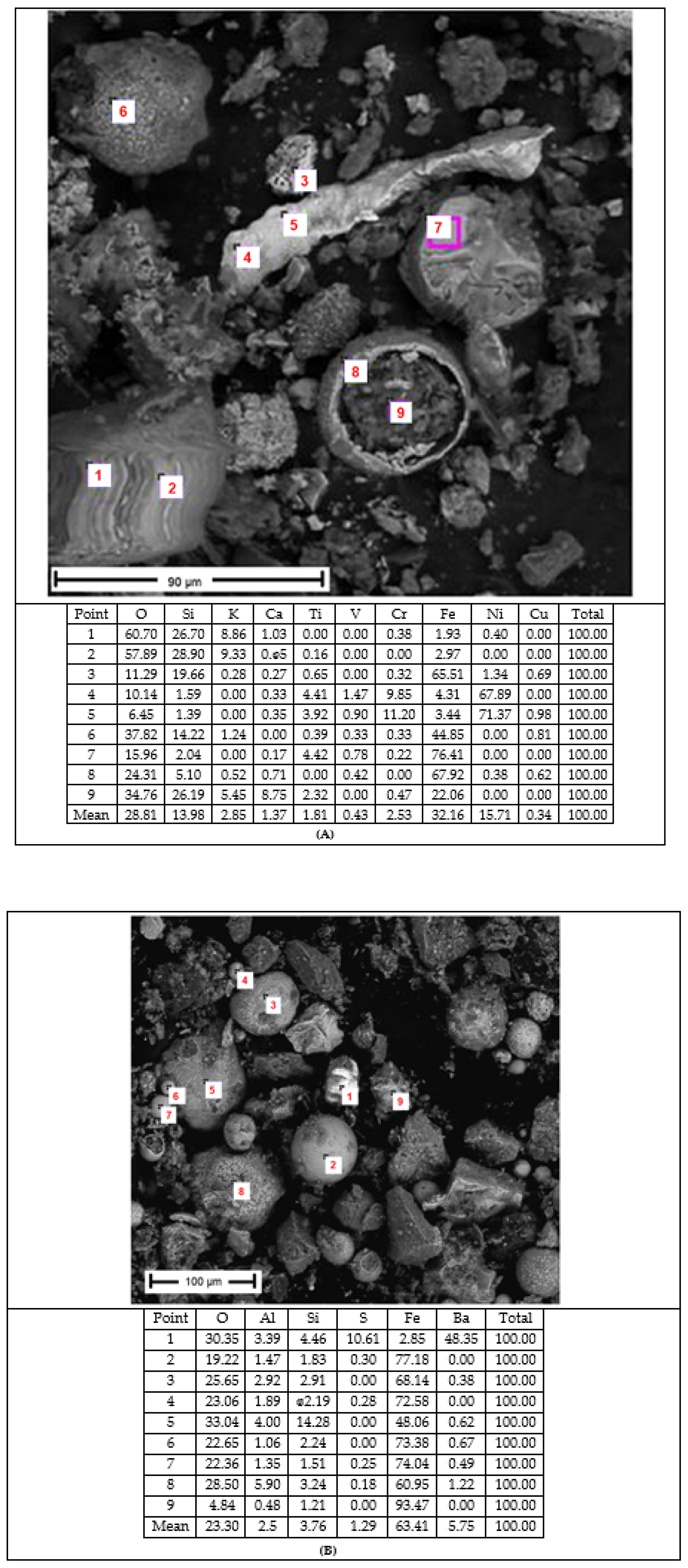

Spherules with a rough (Figure 6A) and smooth surface structure (Figure 6B) were encountered in the soils of the residential zone. A particle with a complex surface was revealed (Figure 6C). Some magnetite particles have a detrital shape (Figure 6D point 4). Spherules with an octahedral surface structure (Figure 6D), polygonal with signs of corrosion (Figure 6E) or “astrakhan coating” (Figure 6F) are common in the industrial zone of OAO “Gubakhinsky coke“. A magnetite particle with a filamentary surface structure was also identified, on which a new crystal was growing (Figure 6G). Technogenic magnetic spherules with various surface textures have been diagnosed previously by a number of other researchers [59,134,135,136,137,138].

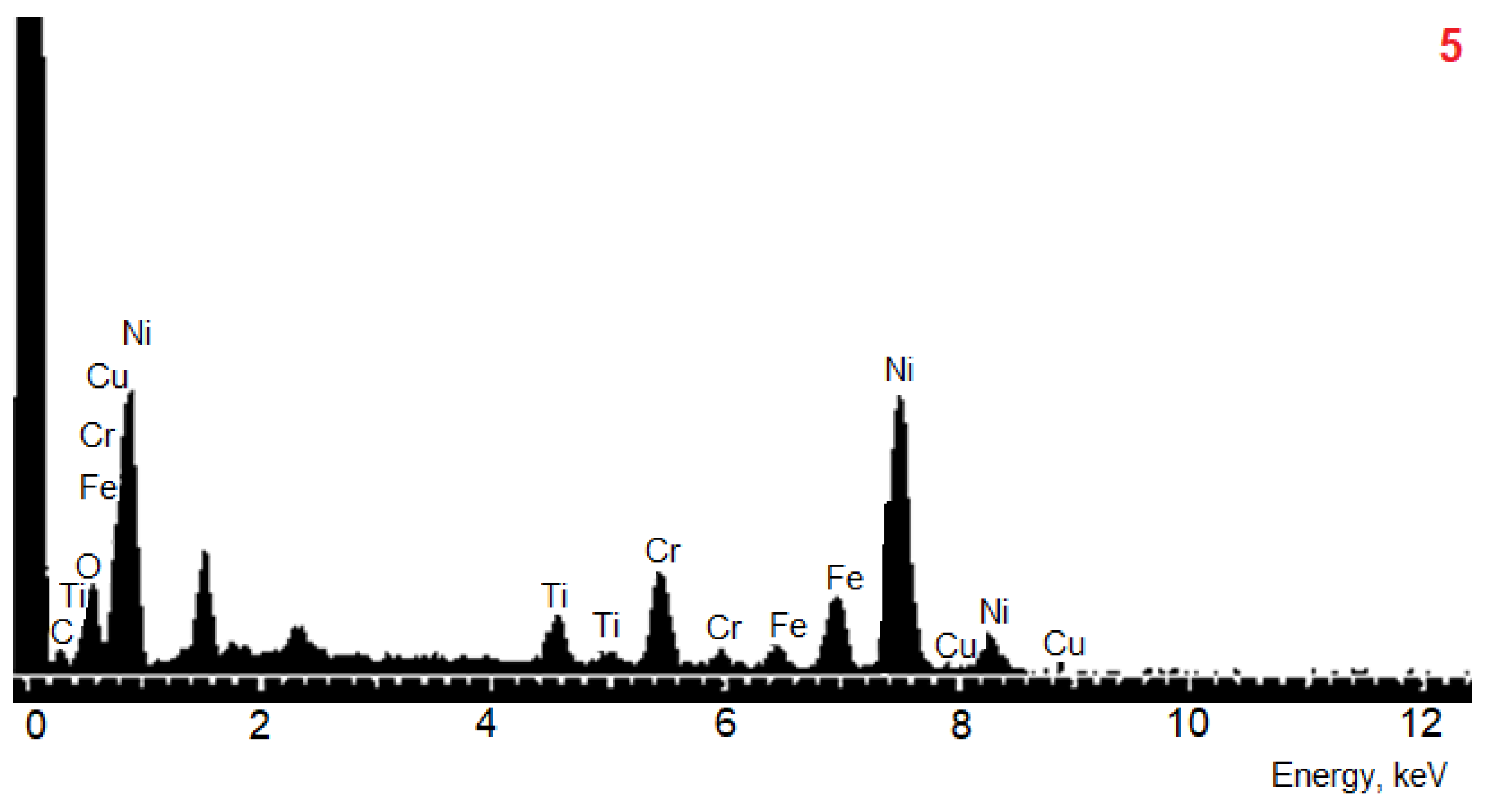

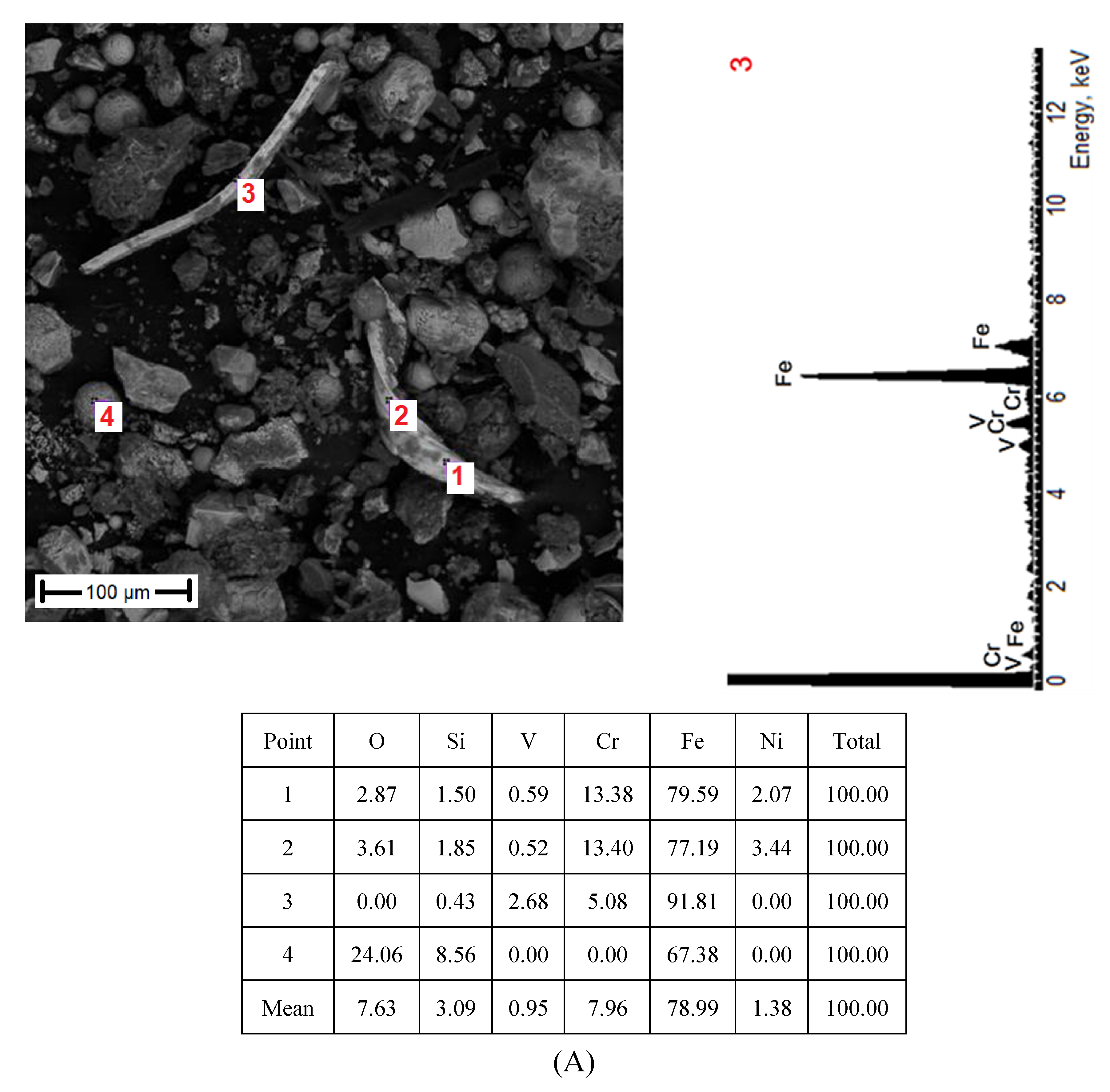

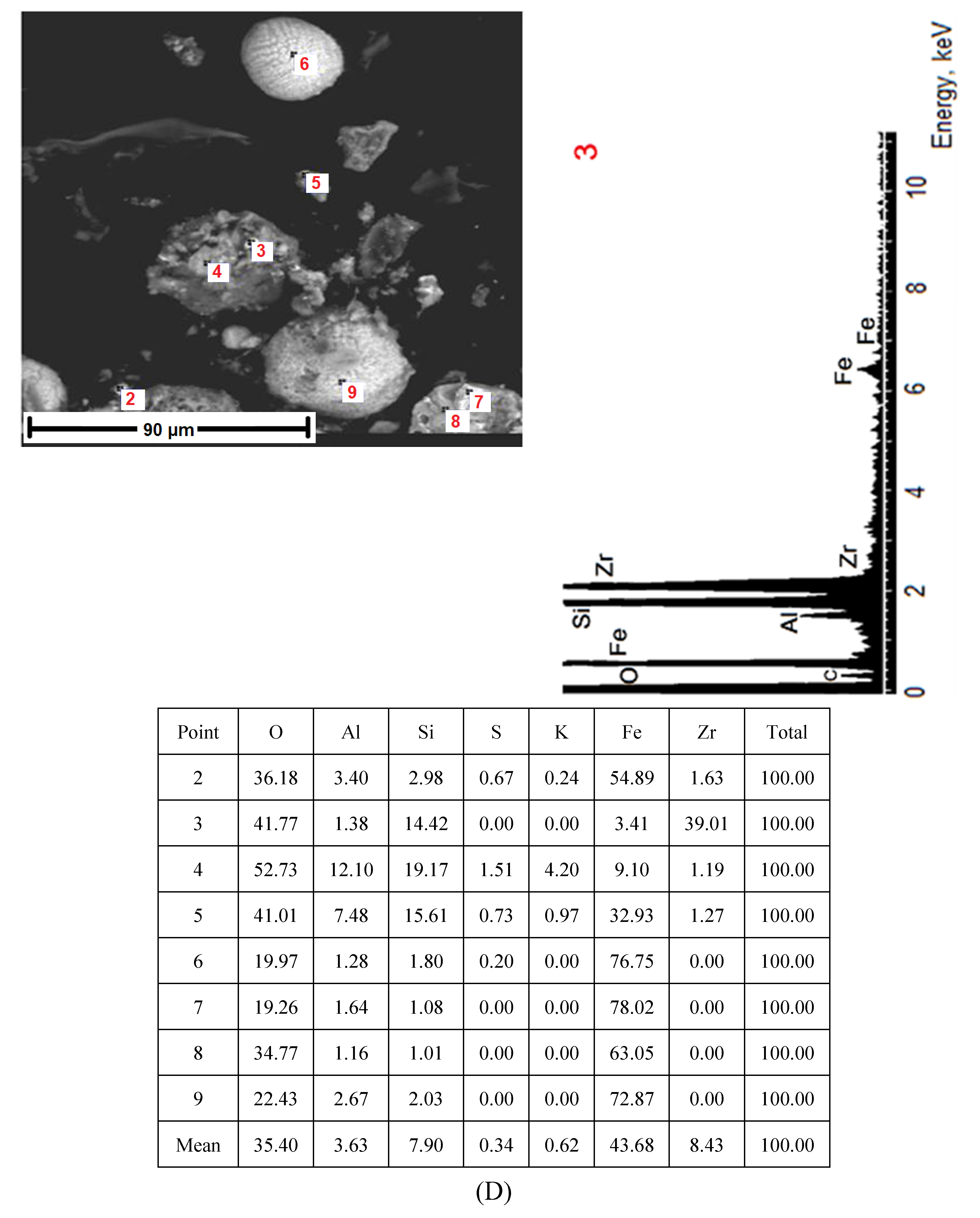

In addition to magnetite spherules, the composition of the magnetic phase of the Urbic Technosol Loamic, Eutric included intermetallic iron alloy (Figure 7A, points 1–2; Figure 7B, points 1–3), wustite (Figure 7A, point 3), titanomagnetite (Figure 7B, point 4), and iron-containing silicate (Figure 7B, point 5).

In the magnetic phase of the Urbic Technosol Loamic, Skeletic, the following were identified: titanomagnetite (Figure 7C, point 1), rutile (Figure 7C, point 3), iron-containing silicate (Figure 7C, point 4), zircon (Figure 7D, points 1, 3), wustite (Figure 7E, point 3) and barite (Figure 7B, point 1).

3.4.4. Mineralogical Composition of the Magnetic Phase according to the Data of Mössbauer Spectroscopy

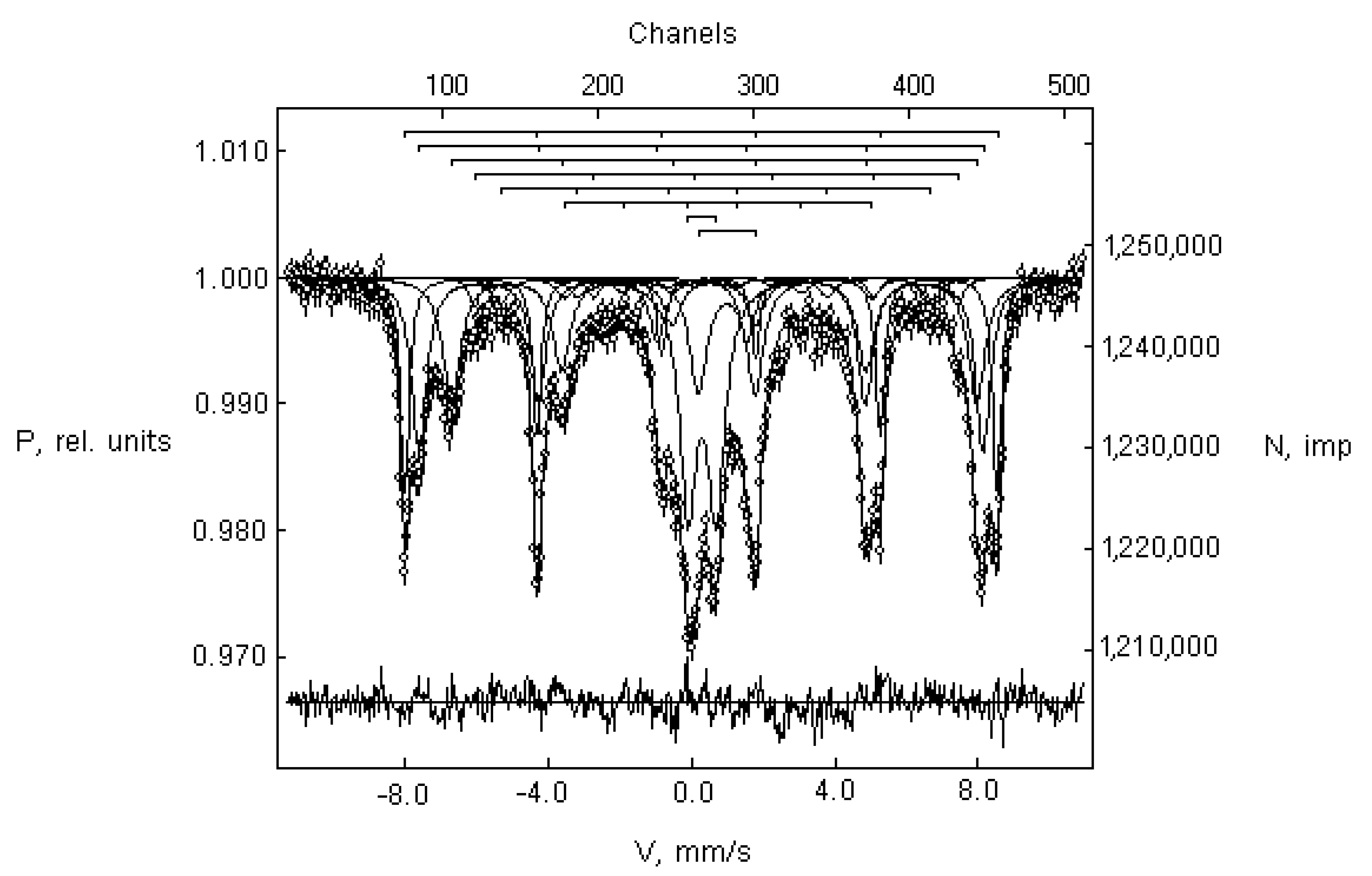

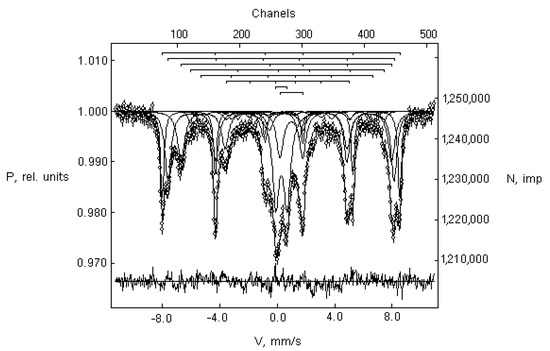

Figure 8 shows the Mössbauer spectrum of the magnetic phase, with the anomalously high magnetic susceptibility of the soil in the residential zone (subzone D).

Table 9. Mössbauer parameters of the sample of the magnetic phase of the upper soil horizon of the Urbic Technosol Loamic, Eutric (subzone D).

Spectrum Component	Isomeric Shift ″ δ, mm/s	Quadrupole Splitting Δ, mm/sec	Magnetic Fields on Nuclei Fe57 H, kOe	Component Areas S, %.	Fe Content in Samples, Mass. %	Fe Distribution by Phases, Mass. %	Interpretation
C1(Fe3+)	0.37	−0.20	513.8	17.9	25.97	4.6	Hematite
C2(Fe3+)	0.29	−0.02	489.0	24.9		13.6	Magnetite, SA/SB = 0.91
C3(Fe2+, Fe3+)	0.63	0.01	455.0	20.7
C4(Fe2+, Fe3+)	0.93	−0.49	419.0	3.0
C5(Fe2+, Fe3+)	0.49	0.37	373.0	3.6
C6(Fe2+)	0.66	0.16	266.0	3.1		0.8	Pyrrhotine
D1(Fe3+)	0.30	0.78	0	17.8		4.6	Chromite
D2(Fe2+)	0.99	1.58	0	9.0		2.3	Chromite

shows its parameters and interpretation. Based on the data on the total iron content and the distribution of iron in individual mineral phases in relative percentage, the quantitative distribution of iron by phases in percentage by weight was also determined. Along with the study of the features of the structure of minerals, Mössbauer spectroscopy makes it possible to judge the features of their elemental chemical composition, and isomorphic substitutions in the lattice.

The Mössbauer spectrum consists of two doublets (D1, D2) and six sextets (S1–S6). Thus, the sample has paramagnetic and magnetic fractions. As follows from Table 9, the magnetic phase is distinguished by a varied composition of minerals.

Thus, the Mössbauer spectroscopic observations are in complete agreement with the observations obtained by the ESEM and EDS methods.

3.4.5. Elemental Chemical Composition of Soil and Magnetic Phases of Soil

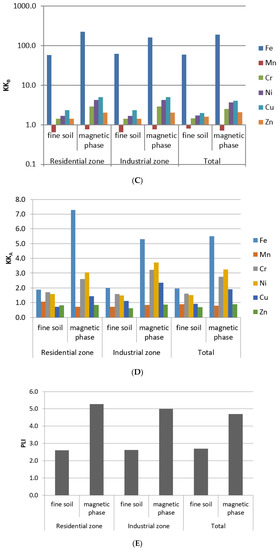

The contents of chemical elements in the soil of the city of Gubakha vary in wide ranges—Fe 32434–60673 ppm, Mn 32–944 ppm, Cr 90–190 ppm, Ni 35–70 ppm, Cu 14–59 ppm and Zn 70–270 ppm.

In the soil, the maximum values of the total content of Fe 60673, Mn 944 and Cu 59 ppm were noted in the industrial zone of Gubakha (

Table 10. Statistical indicators of the content of chemical elements of the upper soil horizons (0–10 cm) of Gubakha (p = 0.05), ppm.

Sampling Location	Soil Component	n	M	±m	Min	Max	V, %
Fe
Residential zone	soil before magnetic separation	5	42,108	3193	32,993	50,118	17
	magnetic phase	5	162,489	35,023	78,288	259,748	48
Industrial zone	soil before magnetic separation	5	45,002	6292	32,434	60,673	31
	magnetic phase	5	118,369	14,153	82,482	157,555	27
Mn
Residential zone	soil before magnetic separation	5	779	32	681	867	9
	magnetic phase	5	526	75	310	774	32
Industrial zone	soil before magnetic separation	5	522	166	132	944	71
	magnetic phase	5	619	133	240	998	48
Cr
Residential zone	soil before magnetic separation	5	136	14	120	190	22
	magnetic phase	5	207	25	145	282	27
Industrial zone	soil before magnetic separation	5	126	12	90	160	21
	magnetic phase	5	257	38	160	348	33
Ni
Residential zone	soil before magnetic separation	5	52	6	40	70	25
	magnetic phase	5	100	11	79	138	25
Industrial zone	soil before magnetic separation	5	49	5	35	57	21
	magnetic phase	5	123	26	67	193	47
Cu
Residential zone	soil before magnetic separation	5	28	6	14	47	50
	magnetic phase	5	56	6	43	74	25
Industrial zone	soil before magnetic separation	5	43	7	25	59	36
	magnetic phase	5	92	13	59	127	32
Zn
Residential zone	soil before magnetic separation	5	130	38	70	270	65
	magnetic phase	5	135	16	99	192	27
Industrial zone	soil before magnetic separation	5	98	7	80	119	15
	magnetic phase	5	138	8	121	167	13

).

The highest Cr 190, Ni 70 and Zn 270 ppm were found in the residential zone (Table 10).

4. Discussion

Soil profiles in Gubakha have an eluvial–illuvial type of structure, and a distribution of fine particles with depth. This testifies to the processes of destruction of the mineral part and the movement of silty weathering products (diameter of particles is <0.001 mm) into the underlying horizons under the conditions of the leaching water regime of the foothills of the Middle Urals. The surface AYur,lo horizons contain weakly magnetic anthropogenic inclusions of coal particles and construction waste.

The acidic reaction of the environment contributes to the weathering of TMPs in the soils of the city. The low exchangeable absorption capacity of soils determines the poor resistance of the soils to metal pollution.

The state of the iron-containing phase in the soils of the city of Gubakha, estimated from the analysis of the gross composition and from the data of chemical extraction, is extremely heterogeneous, since the sources of anthropogenic iron in the city are very diverse. The share of non-silicate iron in soils is high (Table 5). Crystallized forms predominate among non-silicate iron minerals. In terms of phase compositions, these are mainly iron oxides, which is also indicated by the high values of the degree of development of oxidogenesis (DO). The accumulation of technogenic iron oxides in the surface horizons of the city soils is confirmed by their abnormally high values of magnetic susceptibility.

The soils of Gubakha are subject to urban ferruginization. The total iron content changes, according to the Yu. N. Vodyanitskiy [132], from medium (4.72%) to moderately high (16.15%) (Table 5). Some of the iron compounds have a high K.

The contamination with TMPs of the surface soil horizons of Gubakha is diagnosed based on the results of the measurements of the K of soils within different functional zones and subzones of the city. The local background Κ for the soils of the residential part of the territory of Gubakha is 15 × 10⁻⁵ SI [139], and for the mountainous territory of the Perm region is 16 × 10⁻⁵ SI [140]. The average Κ value of the AYur,lo horizon of the soils of the residential zone exceeds the background values 22 times. The background Κ is exceeded only nine times in the industrial zone.

The higher Κ of the soils of the residential zone is associated with their contamination with magnetic particles in the composition of cement dust and vehicle emissions, and the aerial intake of particulate emissions from the Kizelovskaya storage power station, OAO “Gubakhinsky coke”. The residential quarters of the city alternate with the territories of industrial enterprises.

The value of Κ for the soils in the territory adjacent to OAO “Gubakhinsky coke” is non-uniform and varies depending on the geographical location in relation to the source of emissions. The Κ of soil is slightly higher in the eastward direction from the coke plant than in the southward direction (

Table 11. Evaluation of differences in the magnetic susceptibility of soils in transects in the industrial zone in the area of OAO “Gubakhinsky coke” according to Student’s criterion (t theory = 2.16).

Direction from the Factory	n	Comparison Options
		1–2	1–3	1–4	2–3	2–4	3–4
1 transect (North)	15	1.55	1.3	1.46
2 transect (East)	15	1.55			2.21	1.71
3 transect (South)	15		1.3		2.21		1.71
4 transect (West)	15			1.46		1.71	1.71

), which corresponds to the wind direction in the city (Figure 2B).

The Κ of soils of the residential zone is also characterized by high variability, which indicates the effects of several anthropogenic sources of magnets on the soil at once (Table 8). Industrial emissions can have a technogenic impact. The variation of Κ within the industrial zone of Gubakha is insignificant (9.9%), since magnetic particles enter the soil from one source—OAO “Gubakhinsky coke”.

The values for K in the magnetic phase are determined by the amount of ferrimagnetic magnetite/maghemite, and they are significantly higher than the susceptibility of soil.

In the magnetic phase of the Urbic Technosol Loamic, Eutric and the Urbic Technosol Loamic, Skeletic of the city of Gubakha, microparticles of various shapes and mineralogical compositions were revealed (Figure 5, Figure 6 and Figure 7).

Microparticles of various shapes and mineralogical composition were revealed in the magnetic phase of the Urbic Technosol Loamic, Eutric soil and the Urbic Technosol Loamic, Skeletic of the city of Gubakha (Figure 5, Figure 6 and Figure 7). The magnetic microparticles of soils mainly belong to the minerals of the iron group—magnetite spherules, detrital magnetite, intermetallic iron alloys, titanomagnetite and wustite. Microparticles of rutile, zircon, barite and ferruginous silicates, etc., were also identified in the magnetic phase.

TMPs accumulated in the upper horizons of the urban soils. Magnetic spherules in the soils of Gubakha can accumulate from atmospheric precipitation, which is enriched in magnetite as a result of the high-temperature technological processes of coke production. Thus, in the composition of the magnetic phase of soils of Gubakha, magnetic spherules are widely represented. Previously, E.A. Menshikova and B.M. Osovetsky [59] found that spheres are present in the alluvial sediments in the Kizelovsko-Gubakhinsky industrial district. These spheres are silica–iron, and have a gray or brownish color, a matte sheen, a rough surface, and a relatively large size. They have a lower magnetic susceptibility compared to the group of black spherules. The contents of iron oxides in their chemical composition decrease from 78 to 55 mass%, respectively, as the contents of Si, Al, Ti, Ca, Mg, Na, K and Mn increase.

The maximum concentration of spherules was found in the bottom sediments of the Kosva river at a distance of 22 km downstream of the river from the city of Gubakha, where the coke production is located. According to E.A. Menshikova and B.M. Osovetsky [59], it is the main source of TMPs entering the environment.

Mössbauer analysis of the magnetic phase showed the presence of doublets, which can belong to both finely dispersed Fe oxides and technogenic superparamagnetic hematite. Magnetite has an inverted spinel structure, in which Fe³⁺ ions are localized in tetrahedral positions at room temperature, and Fe³⁺ and Fe²⁺ ions in the octahedral position are bound by electron exchange. The crystallochemical formula of stoichiometric magnetite has the form Fe³⁺[Fe³⁺, Fe²⁺]O₄. The areas in the spectrum of iron ions in the A and B sublattices have a ratio (S_A/S_B) of 1:2 or 0.5.

In the studied sample of the magnetic phase of the Urbic Technosol Loamic, Eutric from Gubakha, the S_A/S_B ratio in magnetite deviates from 0.5 to a larger disparity, which indicates the presence of isomorphic impurities in the magnetite lattice. The magnetite in the composition of soils in Gubakha is nonstoichiometric. In the studied sample, two additional sextets of Fe ions in the octahedral position are observed. This can be explained by the fact that the particles contain chemical elements from the iron group (chromium, nickel, cobalt, copper, etc.), due to which nonequivalent positions of iron are formed.

A feature of the nonstoichiometric spectra of magnetite is the fact that, in the presence of vacancies, the electronic exchange between Fe³⁺and Fe²⁺ in the octahedral position is disturbed, in which the fraction of Fe³⁺ not participating in the electronic exchange due to the deficiency of Fe²⁺ ions contributes to the tetrahedral peak of the Mössbauer spectrum. The reason for the change in the S_A/S_B ratio in magnetite (isomorphic impurities, or maghemitization) may be the substitution of heavy metal cations for iron cations. It is known that various metals are included in the structure of magnetite/maghemite (ferrite) or hematite by replacing Fe²⁺ and (or) Fe³⁺ ions in the crystal lattice [141].

Deciphering the Mössbauer spectrum of the magnetic phase of the Urbic Technosol Loamic, Eutric from Gubakha showed the presence of chromites. Natural Cr-spinels belong to the group of complex oxides AB₂O₄, the composition of which is expressed by the formula (Mg, Fe²⁺) (Cr, Al, Fe³⁺)₂O₄. Chromspilenides are widespread in many types of soils and rocks, with complex chemical compositions and high isomorphic capacity.

A. Hunt et al. [142] and T. Magiera et al. [49] stated that the high concentration of toxic heavy metals in technogenic magnetic particles (TMPs) is explained by the fact that these particles have a low stoichiometry and many defects in their crystal lattice, as well as a high isomorphic capacity and a well-developed active surface area.

The pyrrhotite in the magnetic phase was of technogenic origin. T. Magiera [49] pointed out the presence of pyrrhotite in emissions from the by-product coke industry. He found that the magnetic fraction in the composition of the emissions has the form of densely packed aggregates with well-formed crystal structures, a characteristic feature of which was ferromagnetic pyrrhotite.

Soil contamination with HM in the composition of TMPs was revealed by the results of microprobe and energy dispersive analyses of the elemental chemical composition of individual magnetic particles (Figure 5 and Figure 7;

Table 12. Chemical composition of magnetic soil particles and phase composition of minerals of magnetic soil particles of the upper soil horizons (0–10 cm) of Gubakha.

The Position of the Energy Dispersive Analysis Point in the Figure	Sampling Location	Analysis Point Number to Which the Spectrum Corresponds	O	Si	Al	Fe	Ca	K	Mg	Co	S	Mineral
Figure 6A	Residential zone of Gubakha; Urbic Technosol Loamic, Eutric	1	6.60	2.80	13.60	77.00	0.00	0.00	0.00	0.00	0.00	magnetite
		2	26.90	10.30	0.00	62.80	0.00	0.00	0.00	0.00	0.00	magnetite
Figure 6B		1	31.10	4.10	0.00	63.80	1.00	0.00	0.00	0.00	0.00	silicate-magnetite alloy
		2	54.70	23.40	0.00	13.80	8.10	0.00	0.00	0.00	0.00	silicate-magnetite alloy
Figure 6C		1	33.40	3.00	0.00	61.20	0.60	0.00	1.90	0.00	0.00	magnetite
		2	40.80	16.70	0.00	35.50	2.00	0.30	4.70	0.00	0.00	iron-containing silicate
		3	60.20	25.50	0.00	6.30	0.70	3.00	3.40	0.00	0.00	iron-containing silicate
Figure 6D		1	35.90	5.80	0.00	58.10	0.30	0.00	0.00	0.00	0.00	magnetite
		2	0.60	5.20	0.00	94.30	0.00	0.00	0.00	0.00	0.00	wustite
		3	44.00	18.50	0.00	34.40	2.20	0.00	0.00	1.00	0.00	iron-containing silicate
		4	25.50	1.10	0.00	73.40	0.00	0.00	0.00	0.00	0.00	magnetite
Figure 6E	Industrial zone in the area of operation of OAO “Gubakhinsky coke”; Urbic Technosol Loamic, Skeletic	1	27.50	14.10	2.70	55.90	0.00	0.00	0.00	0.00	0.00	magnetite
		2	30.00	5.00	2.40	62.70	0.00	0.00	0.00	0.00	0.00	magnetite
Figure 6F		1	35.20	1.00	1.60	61.80	0.00	0.00	0.00	0.00	0.40	magnetite
		2	39.10	4.50	5.10	50.60	0.00	0.00	0.00	0.00	0.70	magnetite
		3	46.30	11.30	4.60	34.70	0.00	0.00	0.00	0.00	3.10	iron-containing silicate
Figure 6G		1	21.30	1.80	1.80	74.70	0.00	0.00	0.00	0.00	0.40	magnetite
		2	58.20	36.60	2.50	1.50	1.00	0.00	0.00	0.00	0.20	iron-containing silicate
		3	50.50	13.30	7.50	22.70	1.80	0.00	0.00	0.00	4.10	iron-containing silicate
Figure 6H		1	28.60	7.60	5.30	58.50	0.00	0.00	0.00	0.00	0.00	magnetite
		2	24.80	4.00	2.10	69.10	0.00	0.00	0.00	0.00	0.00	magnetite

). The concentrations of chemical elements in the soil and in the magnetic phase of the soil differ significantly from each other (Table 10). The magnetic phase of soils is enriched in iron, chromium, nickel, copper and zinc, and contains manganese in smaller quantities. The lower content of manganese in the composition of magnetic particles is explained by the fact that this chemical element is accumulated to a greater extent by the humic substances of the soil, which belong to the diamagnetic part of the soil.

The soils of Gubakha are characterized by an excess of background concentrations and a high variation in the content of Mn, Cu and Zn, which indicates the presence of several sources of technogenic pollution containing these elements.

Deciphering the energy dispersive spectra of the particles of the magnetic phase made it possible to establish the features of their elemental chemical composition, and to clarify the mineral phases. The energy dispersive spectrum of the magnetic phase of Urbic Technosol Loamic, Eutric is shown in Figure 9. At some points in the analysis, the iron content varied in the range from 1.5 to 94.3%, and the contents of certain heavy metals reached high values—Co 1.0%; Ti 31.4; Ti 31.4; V 2.7; Cr 15.2; Ni 71.4; Cu 1; Ba 48.3; Zr 39.0% (Table 12).

The geochemical series of HM accumulation and dispersion in the surface soil horizons show that heavy metals of the first hazard class (zinc) and the second hazard class (nickel, chromium, copper) [143] have concentration factors (KK_B, KK_A) of more than 1.00 (Figure 10).

In the industrial zone, the magnetic phase of the soil is enriched in Fe, Ni, Cu, Cr, Zn and Mn, and in the magnetic particles of the soils of the residential zone, the accumulation of Fe, Cu, Ni and Cr is observed (Figure 10A).

The geochemical series of the accumulation–dispersion of chemical elements in the soil of Gubakha are shown in the Figure 10B–D:

I_geo Fe 6.3 < Cu 1.1 = Ni 1.1 < Zn 1.0 = Cr 1.0 < Mn 0.7;

KK_B (background) Fe 59.7 < Cu 2.0 < Ni 1.7 < Zn 1.6 < Cr 1.5 < Mn 0.8;

KK_A (by V.A. Alekseenko) Fe 2.0 < Cr 1.6 < Ni 1.5 < Cu 0.9 = Mn 0.9 < Zn 0.7.

The soil is moderately contaminated with Fe, Cu and Ni by I_geo. The soils of Gubakha are contaminated with Fe, Cu, Ni, Zn and Cr relative to the background soil (KK_B), and with Fe, Cr, and Ni relative to the clarke of the soils of residential landscapes, according to V.A. Alekseenko (KK_A).

The PLIs of the soils in the residential and industrial zones are 2.6, and the total for Gubakha is 2.7. The PLI indicates the high contamination level of the soils of Gubakha (Figure 10E).

Paired correlation analyses of Κ and the contents of chemical elements in the soils of the city of Gubakha showed the strong relationship of Κ with Fe, Cr and Ni (

Table 13. Correlation matrix of magnetic susceptibility and the contents of chemical elements in the soils of the residential zone of Gubakha, n = 10, p = 0.05.

	Κ	Fe	Mn	Cr	Ni	Cu
Fe	0.71
Mn	−0.33	−0.62
Cr	0.70	0.78	−0.39
Ni	0.71	0.91	−0.71	0.67
Cu	0.51	0.63	−0.76	0.30	0.81
Zn	−0.15	−0.02	−0.40	−0.24	0.22	0.47

and

Table 14. Correlation matrix of magnetic susceptibility and the content of chemical elements in the soils of the industrial zone in the area of OAO “Gubakhinsky coke”, n = 10, p = 0.05.

	Κ	Fe	Mn	Cr	Ni	Cu
Fe	0.85
Mn	0.23	−0.09
Cr	0.81	0.75	0.46
Ni	0.69	0.94	−0.11	0.73
Cu	0.75	0.97	−0.12	0.69	0.95
Zn	0.77	0.89	−0.35	0.50	0.81	0.82

). An association of Fe with Cr, as well as with Ni, was found. These connections are due to the fact that Fe, Cr and Ni are part of the highly magnetic minerals of the spinel group. A strong bond has been established between Ni and Cu.

The sources of HM in the composition of TMPs in the soils of Gubakha can be coke production, the operation of a thermal power plant, transport emissions, and construction waste. It is not possible to distinguish the individual impacts of individual sources on the chemical composition of the soils of the city.

The analysis of the composition of iron compounds in soils is most often used to characterize the processes of soil formation and soil fertility [131,144]. The average iron content in the world’s soils is 3.8% [136]. It was also found that iron compounds, along with organic matter, affect the soil’s ability to absorb HM [85]. Depending on acid-base and redox conditions, iron can be present in the soil in oxidation states Fe³⁺ and Fe²⁺.

In the magnetic phase of the soil of the Urbic Technosol Loamic, Eutric and the Urbic Technosol Loamic, Skeletic of Gubakha, microparticles of various shapes and mineralogical composition were revealed (Figure 5). The magnetic microparticles of soils mainly belong to the minerals of the iron group—intermetallic iron alloys, detrital magnetite, magnetite spherules, titanomagnetite and wustite. Microparticles of rutile, zircon, barite and iron-containing silicates, etc., were also identified in the magnetic phase.

The studied particles of the magnetic phase are dominated by iron oxides and iron-containing silicates (Figure 6). The iron content in the composition of magnetic inclusions is more than 60%, i.e., exceeds the clarke value by almost 16-fold.

The contamination of soils with HM, confirmed by the high values of the volumetric magnetic susceptibility, was also revealed by a microprobe study of the elemental chemical compositions of some magnetic particles (Figure 6 and Figure 7).

Spherical magnetite particles accumulate in the upper soil horizons as a result of their aerial pollution. Magnetic spherules in the soils of Gubakha can accumulate from atmospheric precipitation, which is enriched in spherical magnetite as a result of the high-temperature technological processes of coke production (Figure 5).

Microprobe and energy dispersive analyses revealed the accumulation of iron, barium, zircon, manganese and titanium in the magnetic phase isolated from the Urbic Technosol Loamic, Skeletic of the industrial zone. The amount of other chemical elements considered in the work, with a high atomic mass (chromium, copper, nickel, zinc) in the magnetic phase, is less than 0.1%, which does not allow them to be reliably diagnosed by the method of energy dispersive analysis.

Thus, the microprobe diagnostics of the magnetic phase of the Urbic Technosol Loamic, Eutric of the residential zone of Gubakha reflect the technogenic origin of the minerals that enter the soils of the city by air. The composition of magnetic particles in soils is diverse—intermetallic iron alloys, detrital magnetite, magnetite spherules, titanomagnetite, and wustite. Magnetic iron-bearing minerals of technogenic origin contain nickel, chromium, cobalt, manganese and other HM as impurities.

5. Conclusions

The soils of the city Gubakha are subject to urban ferruginization. The total iron content in the soils of the city reaches 16.15%. For the first time, the features of the manifestation of technogenic oxidogenesis and the accumulation of TMPs in soils in the urban area of the Middle Urals have been characterized. The mineralogical and elemental chemical composition of the highly magnetic soils of the city Gubakha has been determined and characterized.

It has been established that the magnetic susceptibility of the surface soil horizons exceeds the background values 22-fold for the territory of the residential zone, and 9-fold for the industrial zone of Gubakha. The composition of the magnetic particles in the soils is diverse—magnetite spherules, detrital magnetite, intermetallic iron alloys, titanomagnetite and wustite. TMPs accumulate in the upper soil horizons. Magnetic spherules in the soils of Gubakha can accumulate as a result of atmospheric precipitation, which is enriched in magnetite as a result of the high-temperature technological processes of coke-chemical production. The physicochemical properties of the soils of the city determine the resistance to the weathering of magnetite. The acidic reaction of the environment contributes to the weathering of TMPs in the soils of the city. The low exchangeable absorption capacity of soils determines the poor resistance of soils to metal pollution. The soil profiles have an eluvial–illuvial structure, and conditions are created for the influx of metals into groundwater.

Mössbauer spectroscopy showed that the magnetite in the magnetic phase is nonstoichiometric. Magnetic iron-containing minerals contain nickel, chromium, cobalt, manganese and other heavy metals as impurities. The soil is moderately contaminated with Fe 6–12, Cu 1.1, and Ni 1.1, as determined by I_geo. The pollution load index (PLI) values of soils in the residential and industrial zones were both 2.6, which indicates the high contamination level of the soils of Gubakha.

The combination of methods for measuring magnetic susceptibility, and determining the mineralogical composition of iron compounds and elemental chemical composition, has shown the effectiveness of this approach when conducting an ecological–geochemical assessment of the soil cover of the city of Gubakha. The administration of Gubakha should pay attention to the advisability of monitoring the elemental chemical composition of the city’s soils, including using the methods of ecological magnetism, to identify the areas of soils contaminated with nickel and chromium and make environmental decisions.

The surface soil horizons of the city of Gubakha are enriched in Zn, Cu, Ni and Cr, as well as in magnetic iron compounds. The magnetic susceptibility of the surface soil horizons in the residential and industrial zones of the city exceeds the background values, by 22- and 9-fold, respectively. The magnetic phase of the soils is diverse in morphology and mineralogical and elemental chemical composition, consisting of spherical, acute-angled particles of magnetite, maghemite, hematite, pyrrhotite, intermetallic alloys, chrome-spelinide, and others. The sources of man-made magnetic particles in soils in the territory of Gubakha could be coke production, thermal power plants, motor vehicles and construction materials (cement). The magnetic phase of the city’s soils is enriched with Cr, Ni, Co, Ti, V, Cu, Zr and Ba, which pose a potential threat to the life and health of the population. The soil is moderately contaminated Fe 6–12, Cu 1.1 and Ni 1.1, as determined by I_geo. The pollution load index (PLI) values of the soils in the residential and industrial zones were both 2.6, which indicated the high contamination level of the soils of Gubakha. The complex use of the methods of magnetism and elemental chemical composition has shown the effectiveness of this approach in carrying out the ecological–geochemical assessment of the soils of the city of Gubakha.
