Transcriptome Sequencing Reveals That Intact Expression of the Chicken Endogenous Retrovirus chERV3 In Vitro Can Possibly Block the Key Innate Immune Pathway

by
Xi Zhang
1,2,
Tingting Xie
1,2,
Xiaoqi Li
1,2,
Min Feng
1,2,
Guodong Mo
1,2,
Qihong Zhang
1,2 and
Xiquan Zhang
1,2,*
1
Guangdong Provincial Key Laboratory of Agro-Animal Genomics and Molecular Breeding, College of Animal Science, South China Agricultural University, Guangzhou 510642, China
2
Key Laboratory of Chicken Genetics, Breeding and Reproduction, Ministry of Agriculture, Guangzhou 510642, China
*
Author to whom correspondence should be addressed.
Animals 2023, 13(17), 2720; https://doi.org/10.3390/ani13172720
Submission received: 17 July 2023 / Revised: 22 August 2023 / Accepted: 24 August 2023 / Published: 26 August 2023
(This article belongs to the Special Issue Immunogenetics for Livestock Husbandry and Breeding)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Endogenous retroviruses (ERVs) are ancient viral sequences that have integrated into the genomes of vertebrates. In order to evaluate the function of chERV3 on the host innate immune response, a full-length (10,218 bp) reverse cloning plasmid (puc57-chERV3) was constructed and transfected into primary chicken embryo fibroblasts (CEFs) for transcriptome sequencing. We then performed transcriptome sequencing to analyze the gene expression changes induced by chERV3. We found that chERV3 down-regulated many genes involved in immune-related processes, such as the inflammatory response, innate immune response, and the Toll-like receptor signaling pathway. These processes are involved in detecting and responding to viral infection. Our study systematically identified the effect of chERV3 prokaryotic expression on the innate immune response in chickens. ERVs are a rich source of genetic diversity and innovation in vertebrates, and understanding their roles and mechanisms may have implications for susceptibility to animal diseases.

Abstract

Endogenous retroviruses (ERVs) are viral sequences that have integrated into the genomes of vertebrates. Our preliminary transcriptome sequencing analysis revealed that chERV3 is active and is located on chromosome 1:32602284–32615631. We hypothesized that chERV3 may have a role in the host innate immune response to viral infection. In this study, using reverse genetics, we constructed the puc57-chERV3 full-length reverse cloning plasmid in vitro. We measured the p27 content in culture supernatant by enzyme-linked immunosorbent assay (ELISA). Finally, transcriptome analysis was performed to analyze the function of chERV3 in innate immunity. The results showed that chERV3 may generate p27 viral particles. We found that compared to the negative control (NC) group (transfected with pMD18T-EGFP), the chERV3 group exhibited 2538 up-regulated differentially expressed genes (DEGs) and 1828 down-regulated DEGs at 24 hours (h) and 1752 up-regulated DEGs and 1282 down-regulated DEGs at 48 h. Based on Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analyses, the down-regulated DEGs were enriched mainly in immune-related processes such as the inflammatory response, innate immune response, and Toll-like receptor signaling pathway. GSEA showed that the Toll-like receptor signaling pathway was suppressed by chERV3 at both time points. We hypothesized that chERV3 can influence the activation of the innate immune pathway by blocking the Toll-like receptor signaling pathway to achieve immune evasion.

1. Introduction

Retroviruses are viruses that can insert their genetic material into the genomes of their hosts. Sometimes, this happens in germ cells. When this happens, the retroviral sequences become part of the host’s hereditary DNA and are passed on to future generations; these sequences are called endogenous retroviruses (ERVs) [1]. ERVs accumulate many mutations as the host develops, and many ERVs are inactivated as a way to prevent ERVs from assembling viral particles that can cause harm to the host. However, as modern sequencing technologies continue to mature, an increasing number of ERVs are found to still have intact sequences and the ability to function; one study identified 974 different ERVs by whole-genome sequencing of 407 local breeds of chickens with obERVer [2]. In chickens, there are four main groups of ERVs: ALVE, ERV, CR1, and ART-CH [3].
ERVs can affect various aspects pertaining to host physiology and disease, such as placental development [4], cancer [5], reproduction [6], and autoimmune diseases [7]. ERVs can interact with the host’s innate immune system, which is the first line of defense against viral infection [8]. The innate immune system can recognize ERVs as foreign invaders by detecting their double-stranded RNA (dsRNA) molecules. These molecules activate receptors such as Toll-like receptors (TLRs) and RIG-I-like receptors (RLRs), triggering the production of type I interferon and other antiviral factors [9,10]. However, the expression of ERVs can be suppressed by immune factors such as interferon regulation factor (IRF) [11] and lysine acetyltransferase TP60 [12]. When these factors are removed, ERVs can reactivate and induce inflammatory responses mediated by STING and IRF7 [12]. These interactions between ERVs and the innate immune system may have implications for the host’s susceptibility or resistance to viral infection.
We preliminarily identified ERVs genome-wide in chicken (Gallus_gallus 5.0) and then named the 436 newly identified ERVs according to their positions on chromosomes. The qPCR results showed that chERV3, located at chromosome 1 position 32603303–32610827, was able to affect the expression of some interferon-stimulated genes (ISGs) [13]. We hypothesized that chERV3 is able to affect the immune response, but few genes were detected in our preliminary analysis, and the effect of chERV3 prokaryotic expression on the activation of the innate immune response in chickens is still unclear. In this study, we used RNA-seq to study the changes in the innate immune response in chickens after prokaryotic expression of chERV3 preliminarily assess the effect of ERVs on the innate immune responses of birds and to accumulate data to support breeding for resistance to avian leukemia.

2. Materials and Methods

2.1. Construction of the chERV3 Full-Length Reverse Cloning Vector

To synthesize full-length chERV3 (7524 bp), we used a fragment assembly strategy. We first split the full-length sequence into six large fragments and then further divided each large fragment into 5–7 small fragments. We designed primers for each small fragment and synthesized them. Then, we assembled the small fragments into the corresponding large fragments. Finally, we joined the six large fragments together to obtain the full-length chERV3 sequence and cloned the full-length sequence into the puc57 prokaryotic expression vector. The primer information is provided in Supplementary File S1.

2.2. Cells and Transfection

Chicken embryo fibroblast (CEF) cells were isolated from trunk tissues of 9- to 11-day-old SPF eggs (Xinxing Dahuanong Poultry Egg, Guangzhou, China). The CEFs were cultured in Dulbecco’s modified Eagle’s medium (DMEM) (Gibco, Grand Island, NY, USA) supplemented with 5% FBS and incubated at 37 °C with 5% CO2. CEFs were transfected with the puc57-chERV3 plasmid using Lipofectamine 3000 reagent (Thermo Fisher, Waltham, MA, USA) following the manufacturer’s protocol.

2.3. ELISA

An ELISA was used for the detection of p27 levels in the supernatant and pellet of puc57-chERV3 plasmid-transfected CEFs. The transfected CEFs were subjected to three cycles of freeze-thaw. The supernatant and the cell pellet were collected separately. The supernatant was assayed for p27 using the avian leucosis virus antigen test kit (IDEXX, Westbrook, ME, USA). The viremia results were expressed as S/P ratios (relative antigen content). An S/P ratio higher than 0.2 indicated a positive result, and an S/P ratio lower than 0.2 indicated a negative result.

2.4. Sample Collection

Total RNA for RNA-seq was isolated from CEFs transfected with the puc57-chERV3 plasmid at 24 and 48 h using TRIzol reagent (Invitrogen, Carlsbad, CA, USA). Samples were collected from three independent experiments. CEFs transfected with the puc57-EGFP plasmid were used as the control group. The purity and quantity of the total RNA were assessed using a NanoPhotometer spectrophotometer (Implen, Westlake Village, CA, USA) and an Agilent 2000 (Agilent, Santa Clara, CA, USA). RNA degradation and contamination were further monitored using agarose gel electrophoresis.

2.5. Library Preparation for Transcriptome Sequencing

Total RNA was used as input material for the RNA sample preparations. Briefly, mRNA was purified from total RNA using poly-T oligo-attached magnetic beads. Fragmentation was carried out using divalent cations under elevated temperature in First-Strand Synthesis Reaction Buffer (5×). First-strand cDNA was synthesized using a random hexamer primer and M-MuLV Reverse Transcriptase (RNase H−). Second-strand cDNA synthesis was subsequently performed using DNA Polymerase I and RNase H. Remaining overhangs were converted into blunt ends via exonuclease/polymerase activities. After the adenylation of 3′ ends of DNA fragments, an adaptor with hairpin loop structure was ligated to prepare for hybridization. In order to select cDNA fragments of preferentially 370~420 bp in length, the library fragments were purified with AMPure XP system (Beckman Coulter, Brea, CA, USA). At last, PCR products were purified (AMPure XP system), and library quality was assessed on the Agilent Bioanalyzer 2100 system. At last, the library preparations were sequenced on an Illumina Novaseq platform 6000.

2.6. Quality Control and Mapping

Raw data (raw reads) of fastq format were firstly processed through fastp software (CASAVA 1.8.2). In this step, clean data (clean reads) were obtained by removing reads containing the adapter, reads containing 1 ploy-N, and low-quality reads from raw data. At the same time, Q20, Q30, and GC content and the clean data were calculated. All the downstream analyses were based on the clean data with high quality. Index of the reference genome (Gallus_gallus 6.0) was built using Hisat2 v2.0.5, and paired-end clean reads were aligned to the reference genome using Hisat2 v2.0.5.

2.7. Quantification of Gene Expression Level

Feature Counts (v1.5.0) was used to count the reads numbers mapped to each gene. And then, the FPKM of each gene was calculated based on the length of the gene and reads count mapped to this gene.

2.8. Differential Expression Analysis

Differential expression analysis of two conditions/groups (two biological replicates per condition) was performed using the DESeq2 R package (1.20.0). The resulting p-value were adjusted using the Benjamini and Hochberg’s approach for controlling the false discovery rate. Genes with an adjusted p value < 0.05 found by DESeq2 were assigned as differentially expressed.

2.9. GO and KEGG Enrichment Analysis of Differentially Expressed Genes

GO enrichment analysis and KEGG analysis of differentially expressed genes were implemented by the clusterProfiler R package (3.8.1). GO terms and KEGG pathway with corrected p-value < 0.05 were considered significantly enriched by differential expressed genes.

2.10. Gene Set Enrichment Analysis (GSEA)

We use the local version of the GSEA analysis tool (http://www.gsea-msigdb.org/gsea, accessed on 13 January 2023), GO and KEGG dataset were used for GSEA independently.

2.11. Validation of DEGs Using qPCR

For gene expression analysis, cDNA synthesis was performed using an All-in-one RT SuperMix Perfect for qPCR kit (Vazyme, NanKing, China) according to the manufacturer’s instructions. qPCR was used to verify the levels of expressed genes, with glyceraldehyde-3-phosphate (GAPDH) used as the internal reference gene. Vazyme ChamQ Universal SYBR qPCR Master Mix Q711-02 (Vazyme, NanKing, China) and Bio-Rad CFX96 (Bio-Rad, Hercules, CA, USA) were used for qPCR. Information on the qPCR primers is shown in Supplementary File S2.

2.12. Statistical Analysis

Statistical comparisons were performed using GraphPad Prism 9 (GraphPad Software Inc., San Diego, CA, USA). All statistical data are presented as the mean ± SEM. Gene expression was calculated using the relative quantification (2−ΔΔct) method. Statistical significance is indicated by the p-value: >0.05 (nonsignificant, ns), <0.05 (*), 0.01 (**), or 0.001 (***).

2.13. Raw Data Information

The data obtained via RNA-seq were deposited into the NCBI database under accession number PRJNA967101.

3. Results

3.1. Construction of the chERV3 Full-Length Reverse Cloning Vector

We constructed the puc57-chERV3 full-length reverse cloning plasmid in vitro and then validated the plasmid by digestion with the EcoRV enzyme. The results showed that we obtained the correct fragment (Figure 1A). The plasmid structure is shown in Figure 1B.

3.2. chERV3 Is Able to Release p27 Antigen

We transfected CEFs with the puc57-chERV3 plasmid and collected supernatant with cell freeze–thaw samples 6 h, 12 h, and 1–7 d after chERV3 transfection. We performed an ELISA assay to detect the p27 level in CEFs and expressed it as the S/P ratio. The results revealed that no p27 antigen was detected at 6 h or 12 h post transfection, but p27 antigen was detected after 24 h, and the level increased gradually until 72 h, when it peaked. The p27 level then declined slightly from 96 h to 168 h (Figure 2). The results imply that chERV3 is a functionally normal ERV. The SP value data are shown in Supplementary File S3.

3.3. Sequence Data Quality Statistic

We sequenced the transcriptomes of CEFs transfected with puc57-chERV3 or pMD18T-EGFP (NC) at 24 h and 48 h after transfection. As Table 1 demonstrates, we performed quality control on the sample sequencing data. The integrity of each RNA sample surpassed QC standards. Each sample had clean bases totaling over 5.9 G data, resulting in a total data volume of over 70 G from 12 samples. We aligned the sequencing data with the whole chicken genome (Gallus_gallus 6.0). The base identification correct rate was above 96%, and the comparison rate for each sample surpassed 85%. Thus, the sequencing data were of high quality and suitable for bioinformatics analysis. We also calculated the FPKM value of chERV3 (including a part of the sequence around chERV3) in each sample and found that it was higher in the puc57-chERV3 group than in the NC group (Supplementary File S4).

3.4. Differential Gene Expression Identification after puc57-chERV3 Transfection in CEFs

We identified the differentially expressed genes (DEGs) between the puc57-chERV3 group and the NC group at 24 and 48 h after transfection. We used a cutoff of |log2FC| > 1 and FDR < 0.05 to define significant DEGs. We found that at 24 h, there were 2538 up-regulated DEGs and 1828 down-regulated DEGs in the puc57-chERV3 group compared to the NC group (Figure 3A). At 48 h, there were 1752 up-regulated DEGs and 1282 down-regulated DEGs in the puc57-chERV3 group compared to the NC group (Figure 3B). We screened some immune-related genes, as shown in Figure 3A,B.
We also compared the DEGs at the two time points and found that there were some unique DEGs at each time point. At 24 h, there were 1461 up-regulated DEGs and 1082 down-regulated DEGs that were not present at 48 h. At 48 h, there were 674 up-regulated DEGs and 537 down-regulated DEGs that were not present at 24 h. There were 1069 up-regulated and 737 down-regulated DEGs in common at each of the two time points (Figure 3C).
We also screened some of the innate immune-related genes among the DEGs. These genes included pattern recognition receptors (TLR1, TLR4, and TLR7), interferon genes (IFN-α, IFN-β), interferon regulatory factor (IRF7), interferon-stimulated genes (CH25H and STAT4), and inflammatory factors (IL-1, IL-6, and IL-12). Most of these genes were down-regulated by chERV3 at both time points.
In addition, we identified some DEGs that had opposite expression patterns at 24 and 48 h. There were eight DEGs (SCEL, MYCBP2, LMO7, PCDH9, and two new transcripts) that were up-regulated at 24 h but down-regulated at 48 h. There were nine DEGs (PIK3C2G, SFRP4, NDST4, P3H2, MXD3, SLC25A48, APOA1, DIXDC1, and a new transcript) that were down-regulated at 24 h but up-regulated at 48 h. Information on the DEGs is shown in Supplementary File S5.

3.5. GO Annotation of DEGs after puc57-chERV3 Transfection in CEFs

We performed GO biological process analysis to annotate the functions of the DEGs. We found that the up-regulated DEGs were mainly enriched for the Wnt signaling term (Figure 4A,C), which is involved in cell proliferation and differentiation. The down-regulated DEGs induced by chERV3 at 24 h were enriched for processes such as the inflammatory response, innate immune response, T-cell activation, Toll-like receptor signaling pathway, NF-κB signaling pathway, and JAK-STAT signaling pathway (Figure 4B). The down-regulated DEGs induced by chERV3 at 48 h were enriched for processes such as biotic stimulus response, innate immune response, inflammatory response, MAPK pathway, T-cell activation, Toll-like receptor signaling pathway, and NF-κB signaling pathway (Figure 4D). At both time points, chERV3-induced downregulation of DEGs was significantly enriched in the inflammatory response, innate immune response, and TLR signaling terms. Some of the immune-related genes were IL-6, IL-1, IFN-β, IFN-α, TNF-α, TRAF3, NF-κB, IRF1, IRF7, PI3KCA, and others. More details of the DEGs involved in GO enrichment analysis can be found in Supplementary File S6.

3.6. RNA-seq Data Matched the qPCR Data

Using gene function annotation, we screened 10 genes related to innate immunity, including some interferon-stimulated genes (ISGs) such as GAS6, TLR3, TNFRSF19, TLR7, CD36, MAP2K3, MAP3K8, SOCS3, PIK3AP1, and CH25H (Table 2). To validate the RNA-seq results, we performed qPCR to verify the expression of the 10 DEGs in Table 2 The P values of each gene are listed in the Supplementary Table S1. The qPCR results were consistent with the sequencing results. GAS6 expression was significantly up-regulated at 24 and 48 h after chERV3 transfection in CEFs (Figure 5A,B), while SOCS3, CH25H, and PIK3AP1 were significantly down-regulated at 24 and 48 h after chERV3 transfection (Figure 5A,B).

3.7. Pathway Analysis of DEGs after puc57-chERV3 Transfected in CEF Cells

We performed KEGG pathway analysis to annotate the functions of the DEGs. We found that the DEGs were involved in 156 KEGG pathways at 24 h and 153 KEGG pathways at 48 h. The up-regulated DEGs were mainly enriched for pathways related to cell proliferation and differentiation, such as ECM receptor interaction, MAPK signaling pathway, Wnt signaling pathway, and PPAR signaling pathway (Figure 6A,C). The down-regulated DEGs were mainly enriched for pathways related to the immune response and inflammation, such as cytokine-cytokine receptor interaction, Toll-like receptor signaling pathway, and RIG-I-like receptor signaling pathway (Figure 6B,D). We observed that the DEGs that were up-regulated by chERV3 were mainly involved in ECM receptor interactions. However, the DEGs that were down-regulated by chERV3 were mostly related to the Toll-like receptor signaling pathway. More details of the KEGG pathway analysis can be found in Supplementary File S7.

3.8. chERV3 Is Able to Induce Downregulation of the Toll-like Receptor Signaling Pathway

In GO and KEGG enrichment analysis, we found that chERV3 induced the downregulation of DEGs significantly enriched in immune-related processes, for which the Toll-like receptor signaling pathway was screened at 24 and 48 h. GSEA illustrated that chERV3 significantly down-regulated Toll-like receptor signaling pathway gene expression at 24 and 48 h (Figure 7A,B). We identified seven immune-related DEGs from the Toll-like receptor signaling pathway (KEGG ID: gga04620), including IL-6, IL-1β, IRF7, IFN-α, IFN-β, NF-κB, and upstream genes related to NF-κB: TRF6 and IKKα (Figure 8A,B). The P values of each gene are listed in the Supplementary Table S1. The qPCR results were consistent with the RNA-seq results (Figure 8C,D). chERV3 induced significant downregulation (p < 0.05) of IL-6 (24 h, 48 h), IL-1β (24 h, 48 h), IRF7 (24, 48 h), IFN-β (24, 48 h), IFN-α (24, 48 h), NF-κB (24 h), and TRF6 (24 h) expression; at the 48 h time point, chERV3 induced downregulation of NF-κB and TRF6 expression, albeit not significantly (p > 0.05). We speculate that the expression of the Toll-like receptor signaling pathway can be down-regulated by chERV3.

4. Discussion

Accumulating studies are showing that ERVs can influence host physiological processes, especially the immune response. The expression of TLR3 is dramatically increased following transfection of lnc-ALVE1-AS1 in MDMs, and it has been demonstrated that lnc-ALVE1-AS1 may directly generate a dsRNA structure that TLR3 can recognize [14,15]. One-third of the binding sites for the tumor suppressor p53 are adjacent to ERV sequences [16]. Comparatively few investigations have been conducted on the transcriptional expression functions of chicken ERVs themselves. And in our previous study, we found that chERV3 has a complete structure with long terminal repeats (LTR) on both ends. Generally, LTR consists of 3′ unique region U3, short repeat region R, and 5′ unique region U5, which are mainly responsible for viral replication, translation, RNA processing, and viral integration into the host genome. The 5′LTR contains the promoter and enhancer signals initiating transcription, while the 3′LTR contains the polyadenylation signal terminating transcription [17]. For example, as an exogenous retrovirus, HIV 5′LTR contains both enhancer and promoter elements. In HIV infection, the dual LTR is capable of breaching the genome’s immunity to replicate HIV within intestinal macrophages and CD4 T cells [18]. However, endogenous retroviruses have a functionally weaker LTR region than exogenous retroviruses, but some endogenous LTRs still have strong RNA Polymerase II regulatory sequences [19,20], and contain a plethora of transcription factor binding sites [21]. Endogenous retroviruses’ LTR region can also function as a promoter to control the expression of ERVs [22]. During the long evolutionary process, many endogenous retroviruses excise their internal coding regions by homologous recombination of the LTRs on both sides, becoming a single LTR region [23,24], but can nevertheless still regulate nearby gene expression. It has been shown that the LTR of endogenous retroviruses is able to act as a promoter to regulate the ectopic expression of CYP19A1 encoding an aromatase in the skin [25]. Additionally, it was discovered in research on human endogenous retroviruses that the ERV9-LTR was subsequently found to control the expression of several genes, many of which are involved in immunity or apoptosis [26]. Therefore, we hypothesized that the LTR region of chERV3 can regulate chERV3 transcriptional expression; however, there is still much to learn about how chERV3-LTR works. Especially, further research is needed to determine whether the LTR of chERV3 can independently exert immunological functions. Actually, exploring the natural functions of LTR beyond the full-length ERV is a challenge. Comparatively few investigations have been conducted on the transcriptional expression functions of chicken ERVs themselves, however, because of the high homology of ERVs and their unknown genomic locations, time dependency, and methods of expression. In this study, we constructed a full-length reverse cloning plasmid of puc57-chERV3 in vitro. The ELISA results revealed that p27 antigen was not detected at 6 h and 12 h post transfection but was detected after 24 h, and its level increased gradually until peaking at 72 h. These results implied that chERV3 is a functionally normal ERV.
Then, we used RNA-seq analysis to verify the effect of chERV3 on the host innate immune response. In CEFs, chERV3 prokaryotic expression induced the expression of several immune response-related DEGs. Toll-like receptors were screened in this analysis: At 24 h post transfection, chERV3 prokaryotic expression induced significant upregulation of TLR3, TLR5, and TLR7; and at 48 h, chERV3 prokaryotic expression induced significant downregulation of TLR1 and TLR4 expression. TLR1, TLR3, TLR4, TLR5, and TLR7 all belong to the TLR family, and TLRs are the most typical family of PRRs that recognize PAMPs [27]. In addition, during the analysis of the DEGs induced by chERV3 prokaryotic expression, we found that chERV3 induced a significant downregulation of PIK3C2G at 24 h and an upregulation of PIK3C2G at 48 h. PIK3C2G belongs to class II phosphoinositide 3-kinases (PI3Ks) [28]. PI3Ks have been shown to play critical roles in signaling pathways that regulate proliferation, oncogenic transformation, cell survival, cell migration, and intracellular protein trafficking. PIK3CG is currently considered a class of tumor suppressor genes [29]. We hypothesized that chERV3 is recognized by TLRs after prokaryotic expression but is likely to suppress the natural host immune response as the time of chERV3 prokaryotic expression increases.
Other studies have also shown that ERVs can affect the innate immune response of the host. For instance, some ERVs can block the receptors for exogenous retroviruses or induce immune tolerance to prevent excessive inflammation [30]. Some human ERVs can also produce immunosuppressive RNA, DNA, or proteins that dampen the immune response [31]. Moreover, some chicken breeds that carry ERVs have weaker cellular and humoral immunity and are more prone to viral infection than other breeds that do not carry ERVs [32]. We performed GO enrichment analysis on the DEGs induced by chERV3. GO enrichment analysis showed that the DEGs with chERV3-induced downregulation were significantly enriched in immune-related processes such as the inflammatory response, immune response, and Toll-like receptor signaling pathway. These processes were suppressed at both 24 and 48 h after chERV3 prokaryotic expression. Subsequently, we performed clustering analysis of the genes enriched in the immune-related GO process and found that chERV3-induced immune-associated DEGs with similar expression patterns were clustered together and that most DEGs showed fluctuations in expression at both time points. We selected 10 of these DEGs (GAS6, TLR3, TNFRSF19, TLR7, CD36, MAP2K3, MAP3K8, SOCS3, PIK3AP1, and CH25H) for qPCR validation, and the results were consistent with the RNA-seq results. Among these genes, GAS6 was significantly up-regulated in response to chERV3. GAS6 interacts with Tyro3, Axl, and Mer (TAM) receptors through its sex-hormone-binding globulin (SHBG) domain and activates downstream signaling, such as the phosphatidylinositol 3-kinase (PI3K), extracellular signal-regulated kinase (ERK), and nuclear factor kappa-light-chain-enhancer of activated B-cells (NF-κB) pathways, to regulate cellular proliferation, migration, differentiation, adhesion, and apoptosis [33,34]. Moreover, chERV3 induced significant downregulation of SOCS3 and CH25H; SOCS3 belongs to the suppressor of cytokine signaling (SOCS) family of proteins and binds to Jak-proximal sites on cytokine receptors to inhibit Jak activity [35]. CH25H is a classical ISG and can broadly inhibit membrane fusion of enveloped viruses by converting cholesterol to 25-hydroxycholesterol (25HC) [36]. We hypothesized that chERV3 induces downregulation of DEGs significantly enriched in immune-related pathways; however, the effect of chERV3 on immune-related DEGs is not singular, and the exact mechanism remains unclear.
Subsequently, we performed KEGG enrichment analysis of chERV3-induced DEGs and found that at both 24 and 48 h, chERV3 prokaryotic expression induced downregulation of DEGs significantly enriched in the Toll-like signaling pathway, NOD-I-like receptor signaling pathway and RIG-I-like receptor signaling pathway. Further, immune-related down-regulated DEGs, including IL-6, IL-1β, IFN-β, IFN-α, TNF-α, TRAF3, NF-κB, IRF1, IRF7 and others, were enriched in the Toll-like signaling pathway. Therefore, we analyzed the Toll-like signaling pathway, one of the main pathways of the host innate immune system [37], by GSEA and found that the Toll-like signaling pathway was significantly down-regulated overall at 24 h and 48 h. We verified the immune gene expression levels of this pathway by qPCR and found that chERV3 induced significant (p < 0.05) downregulation of IL-6 (24 h, 48 h), IL-1β (24 h, 48 h), IRF7 (24 h, 48 h), IFN-β (24, 48 h), IFN-α (24, 48 h), NF-κB (24 h), and TRF6 (24 h) expression; at 48 h, chERV3 induced downregulation of NF-κB and TRF6 expression, albeit not significantly (p > 0.05). The Toll-like receptor signaling pathway detects viral dsRNA molecules and activates two types of responses: the MyD88-dependent pathway, which induces inflammatory cytokine production, and the MyD88-independent pathway, which induces type I interferon (IFN-α and IFN-β) production [38]. Both pathways involve the activation of NF-κB and IRF factors, which regulate the expression of immune genes.
Key genes in the Toll-like signaling pathway, such as NF-κB, IRF7, and interferon genes, were down-regulated by chERV3. The inflammatory factors IL-6 and IL-1β were also down-regulated by chERV3. We speculate that chERV3 may inhibit the host immune response by blocking the Toll-like receptor signaling pathway and reducing the expression of inflammatory and antiviral factors. Nearly every cell in an organism needs NF-κB to operate, and NF-κB primarily interacts with TLRs, TRAF6, and IL-1 genes [39]. Each member of the NF-κB family, including p65 (RelA), p50 (NF-κB1), p52 (NF-κB2), RelB, and c-Rel, can combine with another member to form a dimer, which is the main component of the NF-κB pathway. Foreign pathogen invasion is recognized by cellular receptors after a series of signal transduction events, activating the IκB kinase complex (IKK), in turn inducing release of NF-κB dimers, and finally activating the NF-κB pathway [40], which induces inflammatory responses and tumor formation and promotes the release of inflammatory factors and tumor necrosis factors [41,42]. In chickens, eight IRF genes have been discovered, among which IRF3/IRF7 are linked to innate immunity against viruses [43], and IRF2, 4, and 7 promote both upregulation and downregulation of IFN expression [44]. IRF7 is a protein that is only weakly phosphorylated under physiological conditions, but when a foreign pathogen invades the cell, IRF7 is phosphorylated and translocated to the nucleus, where it binds to interferon-stimulated response elements to stimulate type I interferon pathway activation [45,46,47]. The results of GO enrichment analysis also showed that chERV3 induced significant downregulation of DEGs enriched in NF-κB and type I interferon response processes. We hypothesized that chERV3 may inhibit the type I interferon pathway and the NF-κB pathway by downregulating the Toll-like receptor signaling pathway, which may allow chERV3 to evade the host innate immune response and persist in the genome. However, the mechanism by which chERV3 affects the expression of Toll-like signaling pathway components is still unknown.
We also found that chERV3 up-regulated many genes involved in the ECM receptor integration pathway. This pathway mediates the interactions between cells and the extracellular matrix (ECM), which is a network of proteins and carbohydrates that surrounds cells. One of the proteins in this pathway is THBS1, which can bind to MMPs, CD36, and CD47 [48]. These interactions can affect various signaling pathways, such as TGF-β signaling pathway and NF-κB signaling pathway [49,50,51]. CD36 is a membrane glycoprotein that is involved in lipid metabolism and immune tolerance. CD36 expression is increased in many types of cancer, such as acute myeloid leukemia, breast cancer, colorectal cancer, and gastric cancer [52,53]. Our analysis revealed significant upregulation of THBS1 and CD36 expression in the ECM receptor integration pathway. We hypothesized that chERV3 may downregulate the host innate immune response and inhibit the NF-κB pathway by inducing CD36 expression, which may also allow chERV3 to evade phagocytosis by macrophages. It is likely that chERV3 inhibits the NF-κB pathway by inducing CD36 expression to suppress the innate immune response in chickens.
In summary, chERV3 is able to suppress components of the host innate immune response, and we hypothesized that to achieve immune escape, chERV3 may disrupt critical immune pathways such as the NF-κB and type I interferon pathways by blocking the Toll-like receptor signaling pathway. However, the mechanism by which chERV3 affects the Toll-like receptor signaling pathway remains unclear.

5. Conclusions

In this study, we constructed a full-length reverse cloning plasmid (puc57-chERV3) in vitro. We used RNA-seq analysis to investigate how chERV3 influences the host immune system 24 h and 48 h post transfection. The results showed that at 24 h and 48 h, chERV3 prokaryotic expression induced significant downregulation of overall expression of Toll-like receptor signaling pathway components; in addition, GO enrichment analysis showed that chERV3 induced downregulation of DEGs significantly enriched in NF-κB and type I interferon processes. We further screened for downregulation of NF-κB, IRF7, and other key components of the type I interferon pathway. The aim of this study was to preliminarily determine the effect of chERV3 on the host innate immune response and to provide a theoretical basis for breeding disease-resistant chickens.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ani13172720/s1, Supplementary File S1:The primer information of full length chERV3, File S2:The primer information of qPCR, File S3: The SP value statistics, File S4: The FPKM value of chERV3, File S5: The information of DEGs induced by chERV3, File S6: GO terms and the information of DEGs involved in these GO terms, File S7:KEGG pathways and the information of DEGs involved in these pathways, Table S1: Analysis results of qPCR.

Author Contributions

X.Z. (Xi Zhang) participated in the design of the study, performed the experiments, collected and analyzed data, and drafted the manuscript; T.X. and X.L. performed qPCR; G.M. and Q.Z. helped with the data analysis; M.F., X.Z. (Xi Zhang) and X.Z. (Xiquan Zhang) participated in the design and coordination of the study. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Natural Science Foundation of China (31970540) and the China Agriculture Research System (CARS-41-G22).

Institutional Review Board Statement

The license for the experimental use of chicken SPF embryo has been approved by the Department of Science and Technology of Guangdong Province (approval number SYXK 2022-0136).

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare that they have no known competing financial interest or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Johnson, W.E. Origins and evolutionary consequences of ancient endogenous retroviruses. Nat. Rev. Microbiol. 2019, 17, 355–370. [Google Scholar] [CrossRef] [PubMed]
  2. Mason, A.S.; Miedzinska, K.; Kebede, A.; Bamidele, O.; Al-Jumaili, A.S.; Dessie, T.; Hanotte, O.; Smith, J. Diversity of endogenous avian leukosis virus subgroup E (ALVE) insertions in indigenous chickens. Genet. Sel. Evol. 2020, 52, 29. [Google Scholar] [CrossRef] [PubMed]
  3. Sacco, M.A.; Flannery, D.M.; Howes, K.; Venugopal, K. Avian endogenous retrovirus EAV-HP shares regions of identity with avian leukosis virus subgroup J and the avian retrotransposon ART-CH. J. Virol. 2000, 74, 1296–1306. [Google Scholar] [CrossRef] [PubMed]
  4. Imakawa, K.; Kusama, K.; Kaneko-Ishino, T.; Nakagawa, S.; Kitao, K.; Miyazawa, T.; Ishino, F. Endogenous Retroviruses and Placental Evolution, Development, and Diversity. Cells 2022, 11, 2458. [Google Scholar] [CrossRef] [PubMed]
  5. Alcazer, V.; Bonaventura, P.; Depil, S. Human Endogenous Retroviruses (HERVs): Shaping the Innate Immune Response in Cancers. Cancers 2020, 12, 610. [Google Scholar] [CrossRef]
  6. Prudhomme, S.; Bonnaud, B.; Mallet, F. Endogenous retroviruses and animal reproduction. Cytogenet. Genome Res. 2005, 110, 353–364. [Google Scholar] [CrossRef]
  7. Colmegna, I.; Garry, R.F. Role of endogenous retroviruses in autoimmune diseases. Infect. Dis. Clin. North Am. 2006, 20, 913–929. [Google Scholar] [CrossRef]
  8. Katzourakis, A.; Aswad, A. Evolution: Endogenous Viruses Provide Shortcuts in Antiviral Immunity. Curr. Biol. 2016, 26, R427–R429. [Google Scholar] [CrossRef]
  9. Leroy, V.; Kihara, M.; Baudino, L.; Brighouse, G.; Evans, L.H.; Izui, S. Sgp3 and TLR7 stimulation differentially alter the expression profile of modified polytropic retroviruses implicated in murine systemic lupus. J. Autoimmun. 2012, 38, 361–368. [Google Scholar] [CrossRef]
  10. Roulois, D.; Loo, Y.H.; Singhania, R.; Wang, Y.; Danesh, A.; Shen, S.Y.; Han, H.; Liang, G.; Jones, P.A.; Pugh, T.J.; et al. DNA-Demethylating Agents Target Colorectal Cancer Cells by Inducing Viral Mimicry by Endogenous Transcripts. Cell 2015, 162, 961–973. [Google Scholar] [CrossRef]
  11. Stoltz, K.P.; Jondle, C.N.; Pulakanti, K.; Sylvester, P.A.; Urrutia, R.; Rao, S.; Tarakanova, V.L. Tumor suppressor Interferon Regulatory Factor 1 selectively blocks expression of endogenous retrovirus. Virology 2019, 526, 52–60. [Google Scholar] [CrossRef] [PubMed]
  12. Rajagopalan, D.; Tirado-Magallanes, R.; Bhatia, S.S.; Teo, W.S.; Sian, S.; Hora, S.; Lee, K.K.; Zhang, Y.; Jadhav, S.P.; Wu, Y.; et al. TIP60 represses activation of endogenous retroviral elements. Nucleic Acids Res. 2018, 46, 9456–9470. [Google Scholar] [CrossRef] [PubMed]
  13. Dai, M.; Xie, T.; Feng, M.; Zhang, X. Endogenous retroviruses transcriptomes in response to four avian pathogenic microorgaisms infection in chicken. Genomics 2022, 114, 110371. [Google Scholar] [CrossRef]
  14. Chen, S.; Hu, X.; Cui, I.H.; Wu, S.; Dou, C.; Liu, Y.; Sun, Z.; Xue, S.; Geng, T.; Liu, Z.; et al. An endogenous retroviral element exerts an antiviral innate immune function via the derived lncRNA lnc-ALVE1-AS1. Antivir. Res. 2019, 170, 104571. [Google Scholar] [CrossRef]
  15. Luo, H.; Hu, X.; Wu, H.; Zaib, G.; Chai, W.; Cui, H. Activation of lnc-ALVE1-AS1 inhibited ALV-J replication through triggering the TLR3 pathway in chicken macrophage like cell line. Vet. Res. Commun. 2022, 47, 431–433. [Google Scholar] [CrossRef]
  16. Wang, T.; Zeng, J.; Lowe, C.B.; Sellers, R.G.; Salama, S.R.; Yang, M.; Burgess, S.M.; Brachmann, R.K.; Haussler, D. Species-specific endogenous retroviruses shape the transcriptional network of the human tumor suppressor protein p53. Proc. Natl. Acad. Sci. USA 2007, 104, 18613–18618. [Google Scholar] [CrossRef]
  17. Mommert, M.; Tabone, O.; Oriol, G.; Cerrato, E.; Guichard, A.; Naville, M.; Fournier, P.; Volff, J.-N.; Pachot, A.; Monneret, G.; et al. LTR-retrotransposon transcriptome modulation in response to endotoxin-induced stress in PBMCs. Bmc Genomics 2018, 19, 522. [Google Scholar] [CrossRef]
  18. Zhang, J.; Crumpacker, C. HIV UTR, LTR, and Epigenetic Immunity. Viruses 2022, 14, 1084. [Google Scholar] [CrossRef]
  19. Criscione, S.W.; Zhang, Y.; Thompson, W.; Sedivy, J.M.; Neretti, N. Transcriptional landscape of repetitive elements in normal and cancer human cells. Bmc Genomics 2014, 15, 583. [Google Scholar] [CrossRef]
  20. Thompson, P.J.; Macfarlan, T.S.; Lorincz, M.C. Long Terminal Repeats: From Parasitic Elements to Building Blocks of the Transcriptional Regulatory Repertoire. Mol. Cell 2016, 62, 766–776. [Google Scholar] [CrossRef]
  21. Manghera, M.; Douville, R.N. Endogenous retrovirus-K promoter: A landing strip for inflammatory transcription factors? Retrovirology 2013, 10, 16. [Google Scholar] [CrossRef] [PubMed]
  22. Kovalskaya, E.; Buzdin, A.; Gogvadze, E.; Vinogradova, T.; Sverdlov, E. Functional human endogenous retroviral LTR transcription start sites are located between the R and U5 regions. Virology 2006, 346, 373–378. [Google Scholar] [CrossRef] [PubMed]
  23. Stoye, J.P. Studies of endogenous retroviruses reveal a continuing evolutionary saga. Nat. Rev. Microbiol. 2012, 10, 395–406. [Google Scholar] [CrossRef] [PubMed]
  24. Vargiu, L.; Rodriguez-Tome, P.; Sperber, G.O.; Cadeddu, M.; Grandi, N.; Blikstad, V.; Tramontano, E.; Blomberg, J. Classification and characterization of human endogenous retroviruses; mosaic forms are common. Retrovirology 2016, 13, 7. [Google Scholar] [CrossRef] [PubMed]
  25. Li, J.; Davis, B.W.; Jern, P.; Dorshorst, B.J.; Siegel, P.B.; Andersson, L. Characterization of the endogenous retrovirus insertion in CYP19A1 associated with henny feathering in chicken. Mob. DNA 2019, 10, 38. [Google Scholar] [CrossRef] [PubMed]
  26. Beyer, U.; Kronung, S.K.; Leha, A.; Walter, L.; Dobbelstein, M. Comprehensive identification of genes driven by ERV9-LTRs reveals TNFRSF10B as a re-activatable mediator of testicular cancer cell death. Cell Death Differ. 2016, 23, 64–75. [Google Scholar] [CrossRef]
  27. Chen, J.Q.; Szodoray, P.; Zeher, M. Toll-Like Receptor Pathways in Autoimmune Diseases. Clin. Rev. Allergy Immunol. 2016, 50, 1–17. [Google Scholar] [CrossRef]
  28. Li, A.; Chen, H.; Lin, M.; Zhang, C.; Tang, E.; Peng, J.; Wei, Q.; Li, H.; Yin, L. PIK3C2G copy number is associated with clinical outcomes of colorectal cancer patients treated with oxaliplatin. Int. J. Clin. Exp. Med. 2015, 8, 1137–1143. [Google Scholar]
  29. Semba, S.; Itoh, N.; Ito, M.; Youssef, E.M.; Harada, M.; Moriya, T.; Kimura, W.; Yamakawa, M. Down-regulation of PIK3CG, a catalytic subunit of phosphatidylinositol 3-OH kinase, by CpG hypermethylation in human colorectal carcinoma. Clin. Cancer Res. 2002, 8, 3824–3831. [Google Scholar]
  30. Chiu, E.S.; VandeWoude, S. Endogenous Retroviruses Drive Resistance and Promotion of Exogenous Retroviral Homologs. Annu. Rev. Anim. Biosci. 2021, 9, 225–248. [Google Scholar] [CrossRef]
  31. Grandi, N.; Tramontano, E. Human Endogenous Retroviruses Are Ancient Acquired Elements Still Shaping Innate Immune Responses. Front. Immunol. 2018, 9, 2039. [Google Scholar] [CrossRef] [PubMed]
  32. Yang, L.K.; Guo, M.; Du, W.L.; Yin, Y.J.; Wang, L.; Lu, H.Z.; Zhang, T.; Diao, L. Identification and expression analysis of endogenous retroviruses in Lioyang black chicken. Genom. Appl. Biol. 2018, 37, 3371–3377. [Google Scholar]
  33. Sasaki, T.; Knyazev, P.G.; Clout, N.J.; Cheburkin, Y.; Gohring, W.; Ullrich, A.; Timpl, R.; Hohenester, E. Structural basis for Gas6-Axl signalling. EMBO J. 2006, 25, 80–87. [Google Scholar] [CrossRef] [PubMed]
  34. Axelrod, H.; Pienta, K.J. Axl as a mediator of cellular growth and survival. Oncotarget 2014, 5, 8818–8852. [Google Scholar] [CrossRef]
  35. Mo, G.; Fu, H.; Hu, B.; Zhang, Q.; Xian, M.; Zhang, Z.; Lin, L.; Shi, M.; Nie, Q.; Zhang, X. SOCS3 Promotes ALV-J Virus Replication via Inhibiting JAK2/STAT3 Phosphorylation During Infection. Front. Cell Infect. Microbiol. 2021, 11, 748795. [Google Scholar] [CrossRef]
  36. Xie, T.; Feng, M.; Zhang, X.; Li, X.; Mo, G.; Shi, M.; Zhang, X. Chicken CH25H inhibits ALV-J replication by promoting cellular autophagy. Front. Immunol. 2023, 14, 1093289. [Google Scholar] [CrossRef]
  37. Thaiss, C.A.; Levy, M.; Itav, S.; Elinav, E. Integration of Innate Immune Signaling. Trends Immunol. 2016, 37, 84–101. [Google Scholar] [CrossRef]
  38. Honda, K.; Ohba, Y.; Yanai, H.; Negishi, H.; Mizutani, T.; Takaoka, A.; Taya, C.; Taniguchi, T. Spatiotemporal regulation of MyD88-IRF-7 signalling for robust type-I interferon induction. Nature 2005, 434, 1035–1040. [Google Scholar] [CrossRef]
  39. Ghosh, S.; Dass, J. Study of pathway cross-talk interactions with NF-kappaB leading to its activation via ubiquitination or phosphorylation: A brief review. Gene 2016, 584, 97–109. [Google Scholar] [CrossRef]
  40. Jin, B.; Sun, T.; Yu, X.H.; Yang, Y.X.; Yeo, A.E. The effects of TLR activation on T-cell development and differentiation. Clin. Dev. Immunol. 2012, 2012, 836485. [Google Scholar] [CrossRef]
  41. Liongue, C.; O’Sullivan, L.A.; Trengove, M.C.; Ward, A.C. Evolution of JAK-STAT pathway components: Mechanisms and role in immune system development. PLoS ONE 2012, 7, e32777. [Google Scholar] [CrossRef]
  42. Park, H.J.; Kim, J.E.; Lee, J.Y.; Cho, B.K.; Lee, W.J.; Kim, T.; Yoon, D.; Cho, D. Increased expression of IL-18 in cutaneous graft-versus-host disease. Immunol. Lett. 2004, 95, 57–61. [Google Scholar] [CrossRef]
  43. de Oliveira, R.; Cordeiro, J.; Vitoriano, B.F.; de Lima, M.M.; Sampaio, L.R.; de Paula, B.D.; Magalhaes, S.; Pinheiro, R.F. ERVs-TLR3-IRF axis is linked to myelodysplastic syndrome pathogenesis. Med. Oncol. 2021, 38, 27. [Google Scholar] [CrossRef]
  44. Taniguchi, T.; Ogasawara, K.; Takaoka, A.; Tanaka, N. IRF family of transcription factors as regulators of host defense. Annu. Rev. Immunol. 2001, 19, 623–655. [Google Scholar] [CrossRef]
  45. Ning, S.; Pagano, J.S.; Barber, G.N. IRF7: Activation, regulation, modification and function. Genes. Immun. 2011, 12, 399–414. [Google Scholar] [CrossRef]
  46. Liu, Y.; Zhang, Y.B.; Liu, T.K.; Gui, J.F. Lineage-specific expansion of IFIT gene family: An insight into coevolution with IFN gene family. PLoS ONE 2013, 8, e66859. [Google Scholar] [CrossRef]
  47. Zhang, L.; Pagano, J.S. Interferon regulatory factor 7 is induced by Epstein-Barr virus latent membrane protein 1. J. Virol. 2000, 74, 1061–1068. [Google Scholar] [CrossRef]
  48. Resovi, A.; Pinessi, D.; Chiorino, G.; Taraboletti, G. Current understanding of the thrombospondin-1 interactome. Matrix Biol. 2014, 37, 83–91. [Google Scholar] [CrossRef]
  49. Lawler, P.R.; Lawler, J. Molecular basis for the regulation of angiogenesis by thrombospondin-1 and -2. Cold Spring Harb. Perspect. Med. 2012, 2, a6627. [Google Scholar] [CrossRef]
  50. Lopez-Dee, Z.; Pidcock, K.; Gutierrez, L.S. Thrombospondin-1: Multiple paths to inflammation. Mediat. Inflamm. 2011, 2011, 296069. [Google Scholar] [CrossRef]
  51. Roberts, D.D.; Miller, T.W.; Rogers, N.M.; Yao, M.; Isenberg, J.S. The matricellular protein thrombospondin-1 globally regulates cardiovascular function and responses to stress via CD47. Matrix Biol. 2012, 31, 162–169. [Google Scholar] [CrossRef]
  52. Wang, J.; Li, Y. CD36 tango in cancer: Signaling pathways and functions. Theranostics 2019, 9, 4893–4908. [Google Scholar] [CrossRef]
  53. Ruan, C.; Meng, Y.; Song, H. CD36: An emerging therapeutic target for cancer and its molecular mechanisms. J. Cancer Res. Clin. Oncol. 2022, 148, 1551–1558. [Google Scholar] [CrossRef]
Animals 13 02720 g001

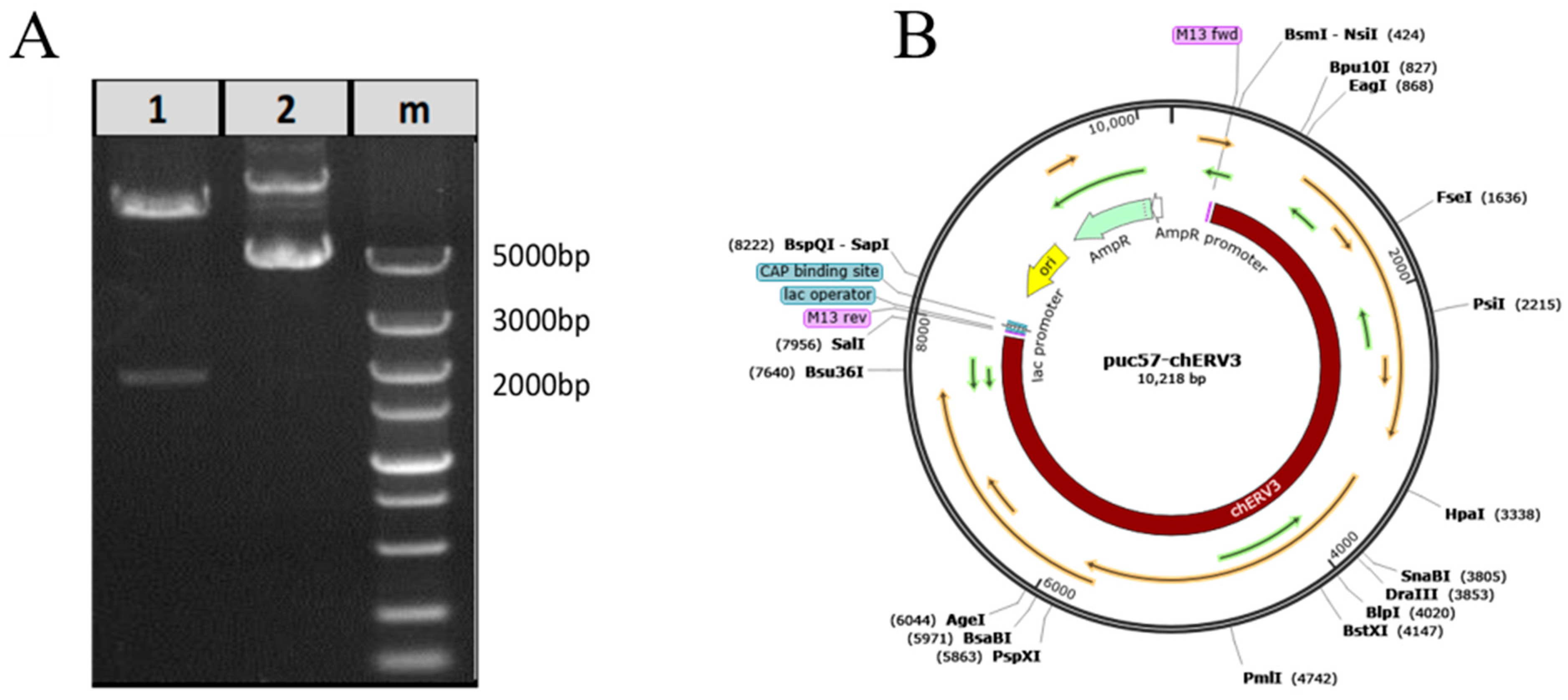

Figure 1. Construction of the full-length reverse cloning plasmid of puc57-chERV3. Note: (A) digestion analysis of the puc57-chERV3 plasmid by EcoRV (lane 1); (B) full-length sequence of the puc57-chERV3 plasmid.
Figure 1. Construction of the full-length reverse cloning plasmid of puc57-chERV3. Note: (A) digestion analysis of the puc57-chERV3 plasmid by EcoRV (lane 1); (B) full-length sequence of the puc57-chERV3 plasmid.
Animals 13 02720 g001
Animals 13 02720 g002

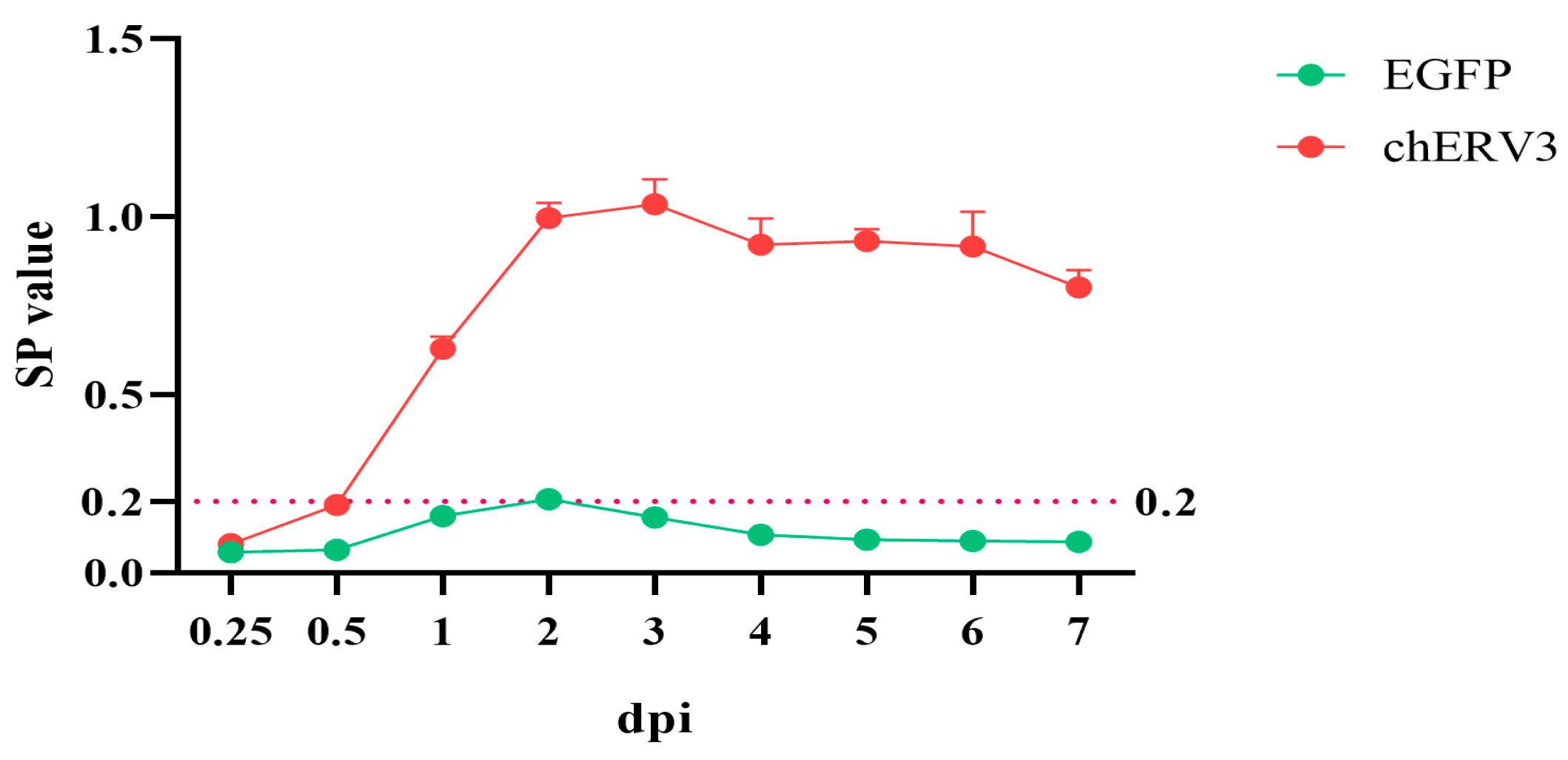

Figure 2. The chERV3 viral capsid protein (p27) level was measured by ELISA. The Y-axis is the value of SP, and the X-axis is the time of chERV3 transfection in CEFs.
Figure 2. The chERV3 viral capsid protein (p27) level was measured by ELISA. The Y-axis is the value of SP, and the X-axis is the time of chERV3 transfection in CEFs.
Animals 13 02720 g002
Animals 13 02720 g003
Figure 3. DEGs in CEFs transfected with chERV3 at 24 and 48 h. Note: (A) statistical chart of all DEGs in CEFs transfected with chERV3 at 24 h; (B) statistical chart of all DEGs in CEFs transfected with chERV3 at 48 h. The Y-axis is the value of −log10 (p value), and the X-axis is the value of log2 (Fold Change); (C) Venn diagrams of up-regulated and down-regulated DEGs in CEFs transfected with chERV3 at 24 and 48 h.
Figure 3. DEGs in CEFs transfected with chERV3 at 24 and 48 h. Note: (A) statistical chart of all DEGs in CEFs transfected with chERV3 at 24 h; (B) statistical chart of all DEGs in CEFs transfected with chERV3 at 48 h. The Y-axis is the value of −log10 (p value), and the X-axis is the value of log2 (Fold Change); (C) Venn diagrams of up-regulated and down-regulated DEGs in CEFs transfected with chERV3 at 24 and 48 h.
Animals 13 02720 g003
Animals 13 02720 g004

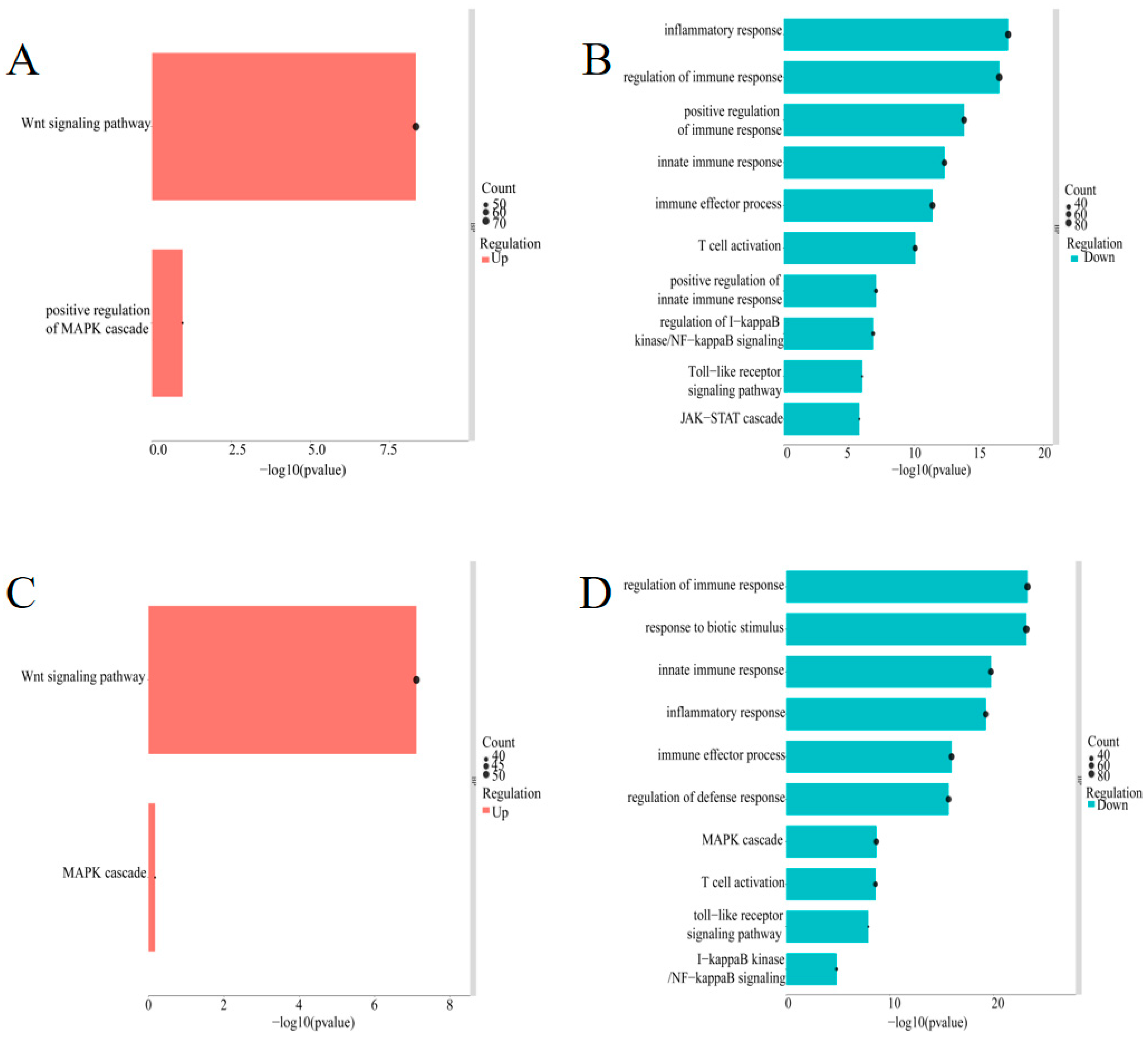

Figure 4. GO term analysis of down-regulated DEGs in CEFs transfected with chERV3 at 24 and 48 h; (A) up-regulated DEGs at 24 h; (B) down-regulated DEGs at 24 h; (C) up-regulated DEGs at 48 h; and (D) down-regulated DEGs at 48 h.
Figure 4. GO term analysis of down-regulated DEGs in CEFs transfected with chERV3 at 24 and 48 h; (A) up-regulated DEGs at 24 h; (B) down-regulated DEGs at 24 h; (C) up-regulated DEGs at 48 h; and (D) down-regulated DEGs at 48 h.
Animals 13 02720 g004
Animals 13 02720 g005

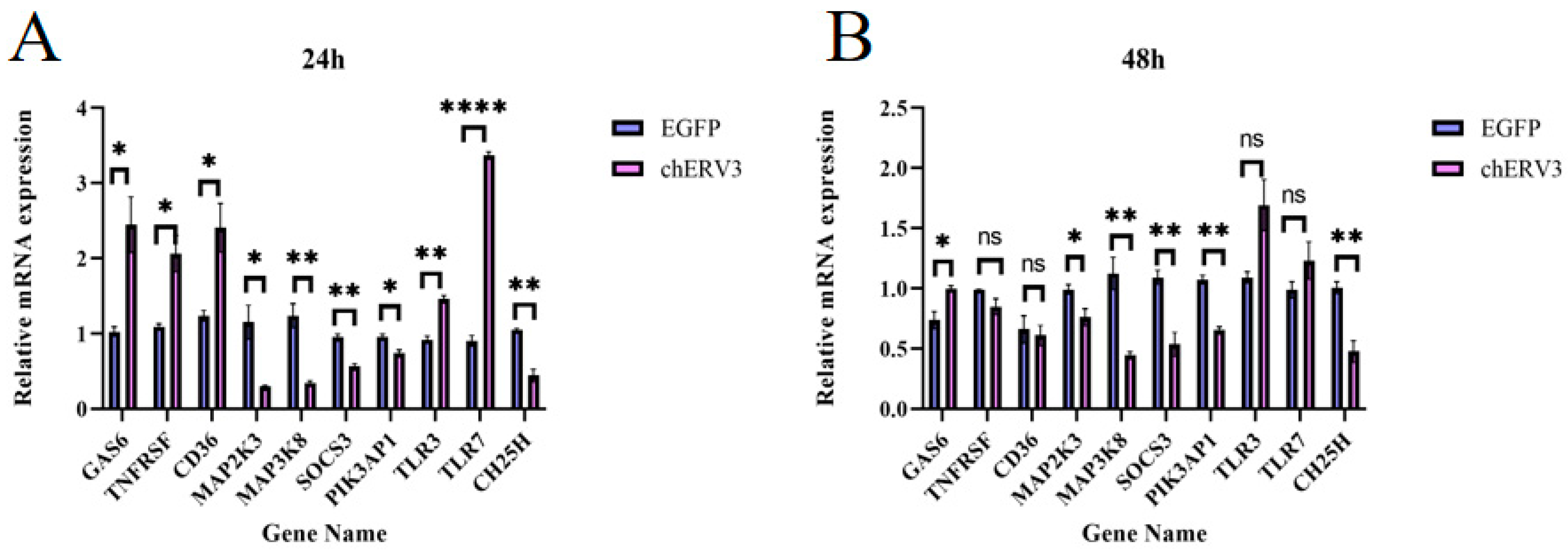

Figure 5. Validation of RNA-seq data by qPCR. (A) chERV3 transfected in CEFs at 24 h, (B) chERV3 transfected in CEFs at 48 h. Blue represents NC, and purple represents chERV3 (* p < 0.05; ** p < 0.01; **** p < 0.0001; ns: Non-significant).
Figure 5. Validation of RNA-seq data by qPCR. (A) chERV3 transfected in CEFs at 24 h, (B) chERV3 transfected in CEFs at 48 h. Blue represents NC, and purple represents chERV3 (* p < 0.05; ** p < 0.01; **** p < 0.0001; ns: Non-significant).
Animals 13 02720 g005
Animals 13 02720 g006

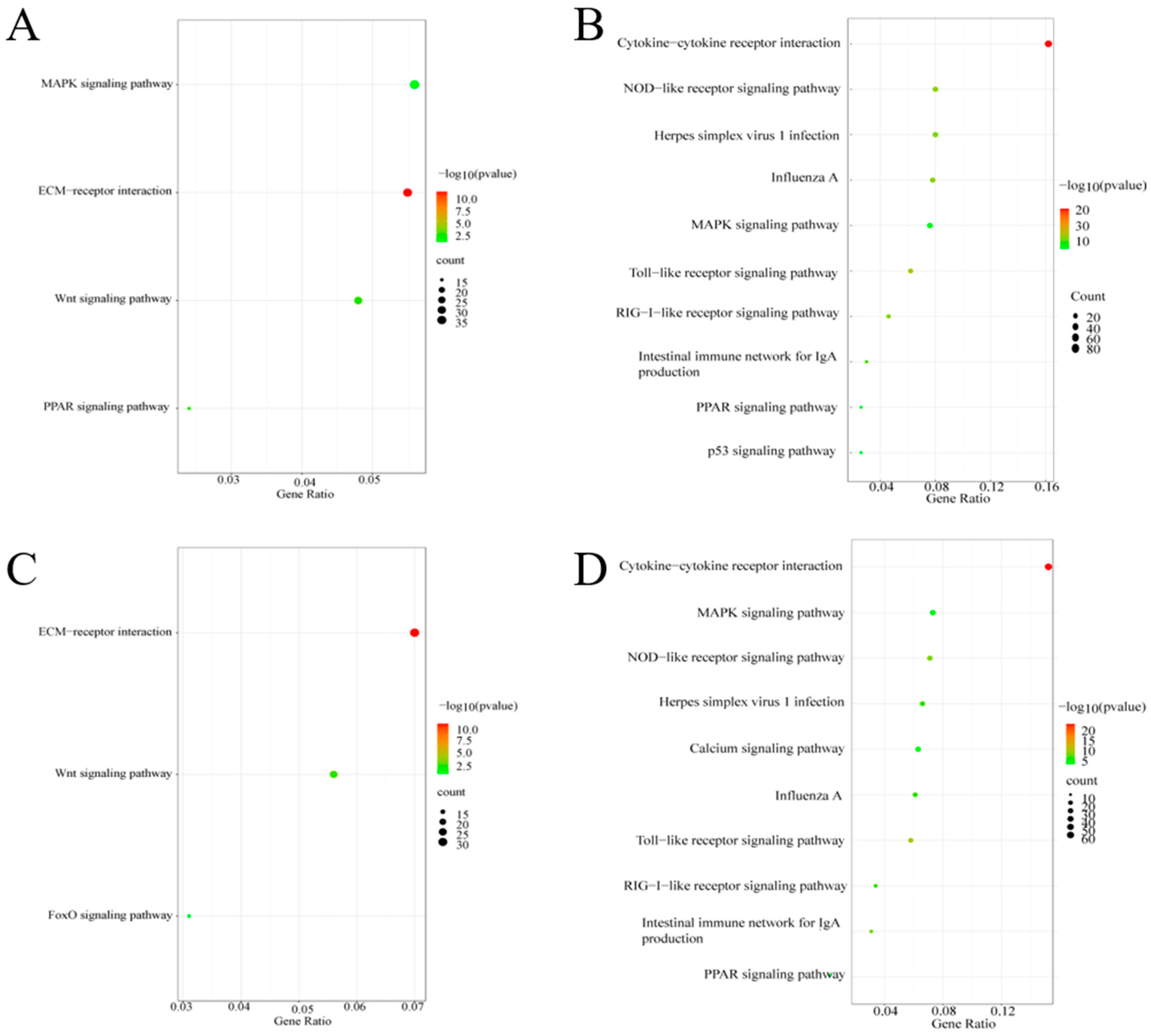

Figure 6. KEGG pathways of up-regulated and down-regulated DEGs expressed in CEFs transfected with chERV3 at 24 and 48 h; (A) up-regulated DEGs at 24 h; (B) down-regulated DEGS at 24 h; (C) up-regulated DEGS at 48 h; and (D) down-regulated DEGs at 48 h.
Figure 6. KEGG pathways of up-regulated and down-regulated DEGs expressed in CEFs transfected with chERV3 at 24 and 48 h; (A) up-regulated DEGs at 24 h; (B) down-regulated DEGS at 24 h; (C) up-regulated DEGS at 48 h; and (D) down-regulated DEGs at 48 h.
Animals 13 02720 g006
Animals 13 02720 g007
Figure 7. Expression validation of the Toll-like receptor signaling pathway. (A,B) Gene set enrichment analysis of the Toll-like receptor signaling pathway in CEFs transfected with chERV3 at 24 h and 48 h.
Figure 7. Expression validation of the Toll-like receptor signaling pathway. (A,B) Gene set enrichment analysis of the Toll-like receptor signaling pathway in CEFs transfected with chERV3 at 24 h and 48 h.
Animals 13 02720 g007
Animals 13 02720 g008
Figure 8. Identification of the expression of key genes of the TLR signaling pathway. Note: (A,B) Toll-like receptor signaling pathway (24 and 48 h), we have circled seven immune-related genes in red; (C,D) qPCR verification of DEGs at 24 and 48 h. Blue represents NC and purple represents chERV3 (* p < 0.05; ** p < 0.01; *** p < 0.001).
Figure 8. Identification of the expression of key genes of the TLR signaling pathway. Note: (A,B) Toll-like receptor signaling pathway (24 and 48 h), we have circled seven immune-related genes in red; (C,D) qPCR verification of DEGs at 24 and 48 h. Blue represents NC and purple represents chERV3 (* p < 0.05; ** p < 0.01; *** p < 0.001).
Animals 13 02720 g008
Table 1. Comparison of gene statistics.
Table 1. Comparison of gene statistics.
Sample NameIntegrityRaw ReadsClean ReadsClean BasesQ20Total Mapped
NC 24 h18.243,381,88641,480,7726.22 G96.337,555,122 (90.54%)
NC 24 h28.041,475,10639,662,5165.95 G96.3735,908,741 (90.54%)
NC 24 h38.542,085,43240,226,6406.03 G96.5236,489,585 (90.71%)
chERV3 24 h18.839,783,05438,171,2825.73 G96.4534,848,123 (91.29%)
chERV3 24 h28.942,270,74840,115,0886.02 G96.5536,638,260 (91.33%)
chERV3 24 h38.842,704,80841,109,9406.17 G96.5337,783,087 (91.91%)
NC 48 h16.341,127,20639,467,1285.92 G96.0135,673,640 (90.39%)
NC 48 h26.339,345,03437,659,0025.65 G96.5634,450,841 (91.48%)
NC 48 h35.841,363,84239,521,7865.93 G96.3635,821,588 (90.64%)
chERV3 48 h16.344,852,15642,866,4046.43 G96.0337,141,238 (86.64%)
chERV3 48 h28.039,628,68837,820,3745.67 G96.4634,638,935 (91.59%)
chERV3 48 h37.843,693,87242,250,5266.34 G96.6538,766,627 (91.75%)
Table 2. Information on immune-related DEGs.
Table 2. Information on immune-related DEGs.
Gene IDGene Name24 h FPKMlog2(Foldchange)48 h FPKMlog2(Foldchange)
ENSGALG00010006602GAS61369.68/80.274.101286.21/210.062.61
ENSGALG00010017131TLR31901.21/822.771.21
ENSGALG00010006155TNFRSF19279.56/106.451.39
ENSGALG00010001897TLR7112.44/42.961.39
ENSGALG00010008392CD3641.77/5.972.81
ENSGALG00010021550MAP2K31603.22/6419.37−2.001526.74/3871.01−1.34
ENSGALG00010004987MAP3K8147.50/1357.06−3.2079.68/358.75−2.16
ENSGALG00010029295SOCS3722.92/2295.62−1.67535.77/1592.99−1.57
ENSGALG00010023847PIK3AP1182.21/834.92−2.19139.13/1993.38−3.84
ENSGALG00010022134CH25H130.51/1500.54−3.5280.69/489.64−2.61
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, X.; Xie, T.; Li, X.; Feng, M.; Mo, G.; Zhang, Q.; Zhang, X. Transcriptome Sequencing Reveals That Intact Expression of the Chicken Endogenous Retrovirus chERV3 In Vitro Can Possibly Block the Key Innate Immune Pathway. Animals 2023, 13, 2720. https://doi.org/10.3390/ani13172720

AMA Style

Zhang X, Xie T, Li X, Feng M, Mo G, Zhang Q, Zhang X. Transcriptome Sequencing Reveals That Intact Expression of the Chicken Endogenous Retrovirus chERV3 In Vitro Can Possibly Block the Key Innate Immune Pathway. Animals. 2023; 13(17):2720. https://doi.org/10.3390/ani13172720

Chicago/Turabian Style

Zhang, Xi, Tingting Xie, Xiaoqi Li, Min Feng, Guodong Mo, Qihong Zhang, and Xiquan Zhang. 2023. "Transcriptome Sequencing Reveals That Intact Expression of the Chicken Endogenous Retrovirus chERV3 In Vitro Can Possibly Block the Key Innate Immune Pathway" Animals 13, no. 17: 2720. https://doi.org/10.3390/ani13172720

APA Style

Zhang, X., Xie, T., Li, X., Feng, M., Mo, G., Zhang, Q., & Zhang, X. (2023). Transcriptome Sequencing Reveals That Intact Expression of the Chicken Endogenous Retrovirus chERV3 In Vitro Can Possibly Block the Key Innate Immune Pathway. Animals, 13(17), 2720. https://doi.org/10.3390/ani13172720

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
