Pediococcus Pentosaceus from the Sweet Potato Fermented Ger-Minated Brown Rice Can Inhibit Type I Hypersensitivity in RBL-2H3 Cell and BALB/c Mice Models

by
Kyu-Ree Dhong
1 and
Hye-Jin Park
2,*
1
Department of Life Science, College of BioNano, Gachon University, 1342 Seongnam-daero, Sujeong-gu, Seongnam-si 13120, Korea
2
Department of Food Science and Biotechnology, College of BioNano Technology, Gachon University, 1342 Seongnam-daero, Sujeong-gu, Seongnam-si 13120, Korea
*
Author to whom correspondence should be addressed.
Microorganisms 2021, 9(9), 1855; https://doi.org/10.3390/microorganisms9091855
Submission received: 23 July 2021 / Revised: 26 August 2021 / Accepted: 29 August 2021 / Published: 31 August 2021
(This article belongs to the Special Issue Food Fermented with Lactic Acid Bacteria and Its Immune-Related Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this study, the effect of GBR fermented with the Pediococcus pentosaceus SP024 strain on IgE/Ag mediated passive cutaneous anaphylaxis (PCA) was investigated. Protocatechuic acid and trans-ferulic acid levels in GBR-SP024 increased more than those in unfermented GBR, respec-tively. The inhibitory activity of GBR-SP024 on β-hexosaminidase release and the level of proin-flammatory cytokine mRNA expression (tumor necrosis factor-α (TNF-α) and interleukin 4 (IL-4)) was observed in IgE/Ag-stimulated RBL-2H3 cells. Western blot analysis showed that GBR-SP024 significantly inhibited the phosphorylation of the linker for activation of T cell (LAT) and nuclear factor-κB (NF-κB) in IgE/Ag-stimulated RBL-2H3 cells. Further, we investigated the anti-allergic effect of GBR-SP024 using PCA murine model. The number of infiltrated immune cells and degranulated mast cells in GBR-SP024 treated dermis was lower than that in the GBR-treated mice. In addition, mRNA expression of 5-lipoxygenase (5-LOX) in the dermis of ear tissue declined in the GBR-SP024–treated group, compared to that in the GBR group. GBR-SP024 was also more effective than GBR at reducing the levels of IL-33 protein expression in IgE/Ag-stimulated BALB/c mice. Our study suggests the potential usage of GBR-SP024 as a dietary supplement or an adjuvant for treating IgE-dependent-allergic diseases.

1. Introduction

Allergic asthma, allergic rhinitis, urticaria, anaphylaxis, and atopic dermatitis are known to be caused by allergic inflammation following IgE-dependent mast cell activation. Since the year 2000, the prevalence of allergic inflammatory diseases has rapidly increased. Approximately 20% or more of the US population currently suffers from allergic rhinitis and atopic dermatitis. Between 2007 and 2009, the mortality rate of asthma per 1000 persons in the US was 0.15, and more than 500 people die from anaphylaxis annually in the United States [1]. Upon IgE activation, mast cells immediately secrete preformed and newly synthesized mediators such as histamine, leukotrienes, prostaglandins, proteases, and cytokines, giving rise to acute reactions, such as vasodilation and bronchoconstriction [2]. In addition, allergic responses also trigger the activation and infiltration of various inflammatory cells, including mast cells and lymphocytes. The rapid release of mediators and cytokines by mast cells is considered to induce and prolong these responses, leading to chronic inflammation [3]. In atopic dermatitis, chronic disease is aggravated by repeated acute responses to ambient factors. Therefore, inhibition of the immediate phase reaction is the most important challenge in the treatment of allergic inflammatory diseases [4].
Oryza sativa L. (common name: rice) is a staple food mostly consumed in East, South, and Southeast Asia. Notably, unpolished (brown) rice is thought to have more nutritional value due to the enrichment of fiber, iron, vitamins, and minerals in the outer bran layer of the rice grain [5]. Furthermore, the consumption of germinated brown rice (GBR) with the outer bran layer intact can promote health and quality of life [6]. GBR is considered a functional food because it is easy to digest and absorb and contains many nutrients, including γ-aminobutyric acid (GABA) and ferulic acid. GBR has been reported to possess anti-inflammatory and immune regulatory properties, enhance brain functions, and diminish blood lipid levels [5,7]. During germination, the bioavailability of nutrients is enhanced by the neutralization of phytic acid. The nutrients in unsprouted grains are poorly absorbed by the body, and incompletely digested proteins can irritate the intestines, resulting in inflammation and allergic reactions. Germination of rice promotes the absorption of proteins, vitamins, and enzymes during digestion by neutralizing phytic acid [5]. Although rice bran is known to contain polyphenolic compounds with strong antioxidative activities, people with rice allergies are unable to consume whole rice. This problem can be solved by fermenting rice [8].
The process of fermenting rice with bacteria or fungi can enhance its bioactivity. Indeed, Han et al. reported that fermenting rice bran can suppress allergic reactions [8]. Additionally, rice bran fermented with Saccharomyces cerevisiae possesses anti-stress and anti-fatigue effects [9]. Furthermore, fermented rice bran extracts suppress melanogenesis by downregulating microphthalmia-associated transcription factor (MITF) and reducing cytotoxicity [10]. In this study, we fermented germinated Oryza sativa L. (GBR) with several LAB strains to enhance the nutritional value and biological activity of GBR. We investigated the anti-allergic activity of LAB-fermented germinated brown rice against type I hypersensitivity in vitro and in vivo.

2. Materials and Methods

2.1. Preparation and Extraction of GBR Fermented with Different LAB Strains

GBR and fermented GBR (Lactobacillus paraplantarum SC61 and Pediococcus pentosaceus SP024) were provided by the Cell Activation Research Institute (Seoul, Korea). To prepare GBR extracts for liquid fermentation, 20 times the volume of distilled H2O was added to the GBR and heated at 121 °C for 15 min. GBR was fermented with LAB (L. paraplantarum SC61 and P. pentosaceus SP024) as described in a previous study [11]. The GBR extracts were centrifuged at 13,100× g for 10 min to obtain the supernatant, which was then fermented with each LAB strain. Inoculated GBRs were heat-killed at 100 °C for 10 min and sonicated for 3 min (Sonics & Materials, Inc., Newtown, CT, USA).
Solid-phase fermentation of GBR with LAB (L. paraplantarum SC61 and P. pentosaceus SP024) was performed as described previously [11,12]. GBR-SC61 and GBR-SP024 (100 g) were extracted with 70% EtOH for 2 h at 50 °C. The ethanol extract was then concentrated using a rotary evaporator. 40g of the extractions were dissolved in 70% ethanol.

2.2. 2,2-Diphenyl-1-Picrylhydrazyl (DPPH) Radical Scavenging Activity

The free radical scavenging activity of the samples was evaluated as described in a previous study [11]. DPPH solution (100 μL, 100 μM) was added to 100 μL of 10 mg/mL fermented solution and 1 mM ascorbic acid solution, which was used as a positive control. After 30 min of incubation at 37 °C, the absorbance was measured at 517 nm using a microplate reader (Epoch, BioTek Instruments, Winooski, VT, USA). Radical scavenging activity was calculated as DPPH radical scavenging activity (%) = 100 − [(Abs sample − Abs blank) × 100]/Abs control, where Abs sample is the absorbance value of the sample plus DPPH solution, Abs blank is the absorbance value of the blank (sample plus methanol), and Abs control is the absorbance value of the control (DPPH solution plus methanol).

2.3. Total Phenol Content

The total phenolic content in the samples was measured by the Folin-Ciocalteu colorimetric method as described in a previous study [13]. Each sample (50 μL) was blended with 0.2 N Folin-Ciocalteu phenol reagent (100 μL) for 5 min, and then 750 μL of sodium carbonate solution was added. After 1 h incubation at room temperature, the absorbance was measured at 750 nm using a microplate reader (Epoch). Data are expressed as mg of gallic acid equivalents (GAE) per gram of GBR, GBR-SC61, and GBR-SP024.

2.4. HPLC

The contents of trans-ferulic acid and protocatechuic acid in GBR and GBR-SP024 were evaluated by HPLC according to Lee’s and Mitani’s groups [14,15]. The sample solutions were separated using a Hydrosphere C18 column (250 × 4.6 mm, 5 μm; YMC). The column temperature was set to 30 °C. The mobile phase consisted of acetonitrile (A) and water with 0.1% formic acid (B) at a flow rate of 0.7 mL/min. Gradient elution was performed as follows: from 0 to 5 min, linear gradient from 5 to 9% solvent A; from 15 to 22 min, 11% solvent A; from 22 to 38 min, linear gradient from 11 to 18% solvent A; from 38 to 88 min, linear gradient from 18 to 80% solvent A. Phenolic compounds were detected at 280 nm by UV spectroscopy.

2.5. Cell Culture and Viability Assay

Rat basophilic leukemia cells (RBL-2H3, catalog number KCLB no. 22256, American Type Culture Collection, Manassas, VA, USA) were grown in Eagle’s Minimum Essential Medium (EMEM) (Welgene, Daegue, Korea) supplemented with 15% heat-inactivated FBS (Welgene) and 1% penicillin streptomycin (Welgene). Cells were grown in 75 cm2 culture flasks at 37 °C with 5% CO2 in a humidified incubator (Forma 3111, Thermo Fisher Scientific, Waltham, MA, USA). Cell viability was evaluated using the Cell Counting Kit-8 assay (Dokindo Laboratories, Kumamoto, Japan) [16]. The absorbance was measured at 450 nm using a microplate reader (Epoch). Cell viability was calculated as a percentage relative to that of the untreated RBL-2H3 cells.

2.6. β-Hexosaminidase Release Assay

RBL-2H3 cells (1 × 106 cells/well) were seeded in 24-well plates and treated with 200 ng/mL of DNP-specific IgE (Sigma-Aldrich, St. Louis, MO, USA). Cells were treated with or without GBR, GBR-SC61, GBR-SP024 (200 μg/mL), or PP2 (Calbiochem, La Jolla, CA, USA) which is an Src tyrosine kinase inhibitor. After incubation for 30 min at 37 °C, the cells were exposed to 200 ng/mL of DNP-BSA antigen (Sigma-Aldrich) for 15 min at 37 °C. The degree of degranulation was determined by measuring the amount of β-hexosaminidase released, as previously described [13]. The absorbance at 405 nm was measured using a microplate reader (Epoch).

2.7. Experimental Murine Model

BALB/c mice (aged 6–8 weeks) were purchased from Orient Bio (Seongnam, Korea). Mice were raised in cages at 23 ± 2 °C and 55% humidity. Six mice were used for animal experiment at each group. The animal experiments were performed under the institutional guidelines of the Institutional Animal Care and Use Committee at Gachon University.

2.8. Passive Cutaneous Anaphylaxis (PCA)

PCA was induced in mice as previously described [13,16]. DNP-specific IgE (0.5 μg; Sigma-Aldrich) was intradermally injected into mouse ears. After 24 h, GBR, GBR-SC61, and GBR-SP024 (200 mg/kg) were orally administered to mice 1 h before stimulation with 1 mg/mL of DNP-BSA containing 1% Evans blue dye. Each side of whole ear was cut to measure the amount of extravasated dye. To extract the dye, whole ears were immersed in 700 μL of formamide at 63 °C. Absorbance was read using a microplate reader (Epoch) at 620 nm.

2.9. Hematoxylin and Eosin (H&E) Staining

Formalin-fixed whole ear tissues were fixed in paraffin blocks and cut into 5 μm sections. Each section was stained with hematoxylin (Polysciences, Inc., Warminster, PA, USA) and eosin (Shimakyu Pure Chemicals, Osaka, Japan). Images were taken using a light microscope (Nikon Instruments Inc., Melville, NY, USA) to measure ear thickness. Digital micrographs were taken from representative areas at 200× fixed magnification. Ear thickness was determined using Axiovision 4.7 image analysis software (Carl Zeiss Vision GmbH, Munich, Germany).

2.10. Toluidine Blue Staining

Mast cells in each side of whole ear tissue was stained with toluidine blue (Sigma-Aldrich), as previously described [16]. The total number of mast cells and degranulated mast cells were counted from the images taken under a light microscope (Nikon Instruments Inc., Melville, NY, USA) at 200× magnification.

2.11. Immunohistochemistry

Immunohistochemical staining was performed as previously described [17]. Tissue sections of whole ear were deparaffinized and rehydrated with xylene and graded ethanol solutions. The sections were incubated with anti-IL-33 (Abcam, Cambridge, MA, USA) for 1 h in PBS and anti-NF-κB p65 (Cell Signaling Technology, Beverly, MA, USA) in PBS. After washing, the sections were incubated with anti-rabbit antibodies (Dako, Santa Clara, CA, USA) for 30 min and counterstained with Mayer’s hematoxylin. Images were taken using a light microscope at 200× (Nikon Instruments Inc.). Stained cells were counted using ImageJ.

2.12. Reverse Transcriptase Polymerase Chain Reaction (RT-PCR)

Total RNA was extracted from the RBL-2H3 cells and the whole ear tissue from BALB/c using TRIzol reagent (Invitrogen, Carlsbad, CA, USA) and reverse transcribed using a Revertra Ace qPCR RT kit (Toyobo Biologics Inc., Osaka, Japan) as described previously [16]. Polymerase chain reaction was performed at 94 °C for 2 min, 94 °C for 30 s, 55 °C for 30 s, and 68 °C for 1 min for 30 cycles. The following primers were used: rat TNF forward 5′-CAC CAC GCT CTT CTG TCT ACT GAA C-3′, reverse 5′-CCG GAC TCC GTG ATG TCT AAG TAC T-3′; rat IL-4 forward 5′-ACC TTG CTG TCA CCC TGT TC-3-3′, reverse 5′-TTG TGA GCG TGG ACT CAT TC-3-3′; rat GAPDH forward 5′-CTT CAC CAC CAT GGA GAA GGC TG-3-3′, reverse 5′-GAC CAC AGT CCA TGC CAT CAC TG-3-3′; mouse COX-2 forward 5′-AAC CGT GGG GAA TGT ATG AGC A-3′, reverse 5′-AAC TCT CTC CGT AGA AGA ACC TTT TCC A-3′; mouse 5-LOX forward 5′-GAC TTC CAC GTC CAT CAA A-3′, reverse 5′-GGA AAC ACA GGG AGG AAT AG-3′ (Bioneer, Daejeon, Korea). The levels of TNF-α, IL-4, COX-2, and 5-LOX mRNAs were normalized to GAPDH mRNA levels.

2.13. Western Blot Analysis

Protein analysis was performed as previously described [13,18]. Proteins (80 µg) from each sample were electrophoresed on 7–10% gradient polyacrylamide gels and then transferred to nitrocellulose membranes. The membranes were blocked in 5% BSA for 1 h and incubated with primary antibodies against phosphorylated Syk (Cell Signaling Technology), phosphorylated LAT (Cell Signaling Technology), phosphorylated ERK (Cell Signaling Technology), phosphorylated NF-κB (Cell Signaling Technology), phosphorylated ERK1/2 (Cell Signaling Technology), and β-actin (Cell Signaling Technology). After washing with Tris-buffered saline with Tween 20 (TBST) buffer (Bio-Rad Laboratories, Hercules, CA, USA), the membranes were incubated with horseradish peroxidase-labeled secondary antibody (Cell Signaling Technology). The bands were detected using LI-COR Odyssey (LI-COR Biosciences).

2.14. Statistical Analysis

The results were obtained from at least three independent experiments and shown as means± standard error of means (SEM). All data were checked for normality distribution by Shapiro-wilk test using SPSS. One-way analyses of variance (ANOVA) followed by Dunnett’s t-tests or Duncan’s t-tests were used to analyze significant differences between the treatment groups. Data were analyzed using the Statistical Package for the Social Sciences software (SPSS 12; SPSS Inc., Chicago, IL, USA).

3. Results

3.1. Screening of LAB for Fermenting Germinated Brown Rice

To select the best LAB strain for fermenting GBR, we compared the DPPH activity and total polyphenol content (TPC) of each sample. A total of 55 strains were tested for GBR fermentation (data not shown). Among them, P. pentosaceus SC61 and L. paraplantarum SC024 both exerted high DPPH radical scavenging activity (67.6% ± 3.2 and 86.7% ± 2.7, respectively) and titratable acidity (0.1%, 0.1%, respectively, data not shown, Table 1) and were chosen for fermenting GBR. After solid fermentation at 37 °C for 24 h, the TPC of GBR-SC61 and GBR-SP024 was 1.1 ± 0.0 and 1.2 ± 0.0 times higher than that of GBR, respectively (p < 0.05 vs. GBR, Figure 1). Ferulic acid, a phenolic compound in brown rice, is known for its anti-inflammatory activity. The ferulic acid content of GBR-SP024 was 1.2 ± 0.0 times higher than that of GBR (p < 0.01 and p < 0.001, Table 2). Our data indicated that the SP024 LAB strain was more effective at increasing the TPC and antioxidant activity of GBR than the SC61 LAB strain.

3.2. Fermented GBR Decreased the Release of β-Hexosaminidase in IgE/Ag-Stimulated RBL-2H3

To determine whether the anti-allergic activity of GBR was enhanced after LAB fermentation, we investigated the amount of β-hexosaminidase released in IgE/Ag-stimulated RBL-2H3 cells after sample treatment. The amount of released β-hexosaminidase is often used as a degranulation indicator, as it is discharged along with histamine upon mast cell degranulation [19]. We treated the IgE-primed RBL-2H3 cells with 200 µg/mL of GBR, GBR-SC61, and GBR-SP024 prior to Ag stimulation. RBL-2H3 cells treated with GBR-SC61 and GBR-SP024 released 5.47 ± 1.4 and 4.5 ± 0.56 times less β-hexosaminidase than IgE/Ag-treated RBL-2H3 cells (p < 0.001 vs. IgE/Ag-stimulated control). The inhibitory activities of GBR-SC61 and GBR-SP024 were 1.9 ± 0.6 and 1.6 ± 0.7 times higher than those of GBR, respectively (p < 0.001 vs. IgE/Ag-stimulated control, Figure 2A). Cytotoxicity was observed in cells treated with 200 μg/mL of GBR but not in cells treated with LAB-fermented GBR (Figure 2B).

3.3. GBR-SP024 Decreased TNF-α and IL-4 mRNA Expression in IgE/Ag-Stimulated RBL-2H3 Cells

Next, we assessed whether GBR-SC61 and GBR-SP024 suppressed the mRNA expression of TNF-α and IL-4 in IgE/Ag-treated RBL-2H3 cells. TNF-α and IL-4 play critical roles in activating immune cells to produce other cytokines and IgE antibodies that aggravate allergic reactions [8,20]. GBR-SC61 treatment reduced TNF-α and IL-4 mRNA expression in a dose-dependent manner (58.3% ± 3.3, 44.9% ± 5.45), compared with IgE/Ag stimulation (p < 0.05, p < 0.01 vs. IgE/Ag-treated cells) (Figure 3). Similarly, GBR-SP024 treatment significantly inhibited TNF-α and IL-4 mRNA expression in RBL-2H3 cells (60.3% ± 10.9, 65.2% ± 10.6), compared with IgE/Ag stimulation (p < 0.01). GBR-SP024 significantly suppressed the levels of IL-4 mRNAs in IgE/Ag-treated cells, compared with GBR-SC61. While GBR-SP024 significantly decreased the levels of TNF-α mRNA in IgE/Ag-treated cell, compared with GBR, but not with GRC-SC61 (p < 0.01). Therefore, we chose GBR-SP024 as the primary LAB strain for further experiment.

3.4. GBR-SP024 Inhibited the Activation of FcεRI and NF-kB Signaling Pathway Molecules in IgE/Ag-Stimulated RBL-2H3 Cells

When Ag is crosslinked with IgE-sensitized FcεRI in mast cells, various intracellular signaling pathways are activated, leading to the secretion of granules and production of proinflammatory cytokines [21]. In the FcεRI and nuclear factor-κB (NF-κB) signaling pathways, stimulated Src family kinases (Lyn and Syk) activate downstream molecules (LAT and ERK). To determine whether GBR-SP024 affected the activation of the FcεRI and NF-κB signaling pathways, we examined whether GBR-SP024 reduced the levels of phosphorylated Syk, LAT, ERK, and NF-κB proteins. GBR-SP024 significantly decreased the level of phosphorylated Syk, LAT, ERK and NF-κB proteins, compared to IgE/Ag-stimulated controls (Figure 4B, p < 0.05). In addition, GBR-SP024 significantly suppressed the level of phosphorylated LAT and NF-κB proteins, compared to GBR (p < 0.05). These results suggested that GBR-SP024 showed anti-allergic properties in IgE/Ag-stimulated RBL-2H3 cells by suppressing the activation of signaling molecules in the FcεRI and NF-κB pathways.

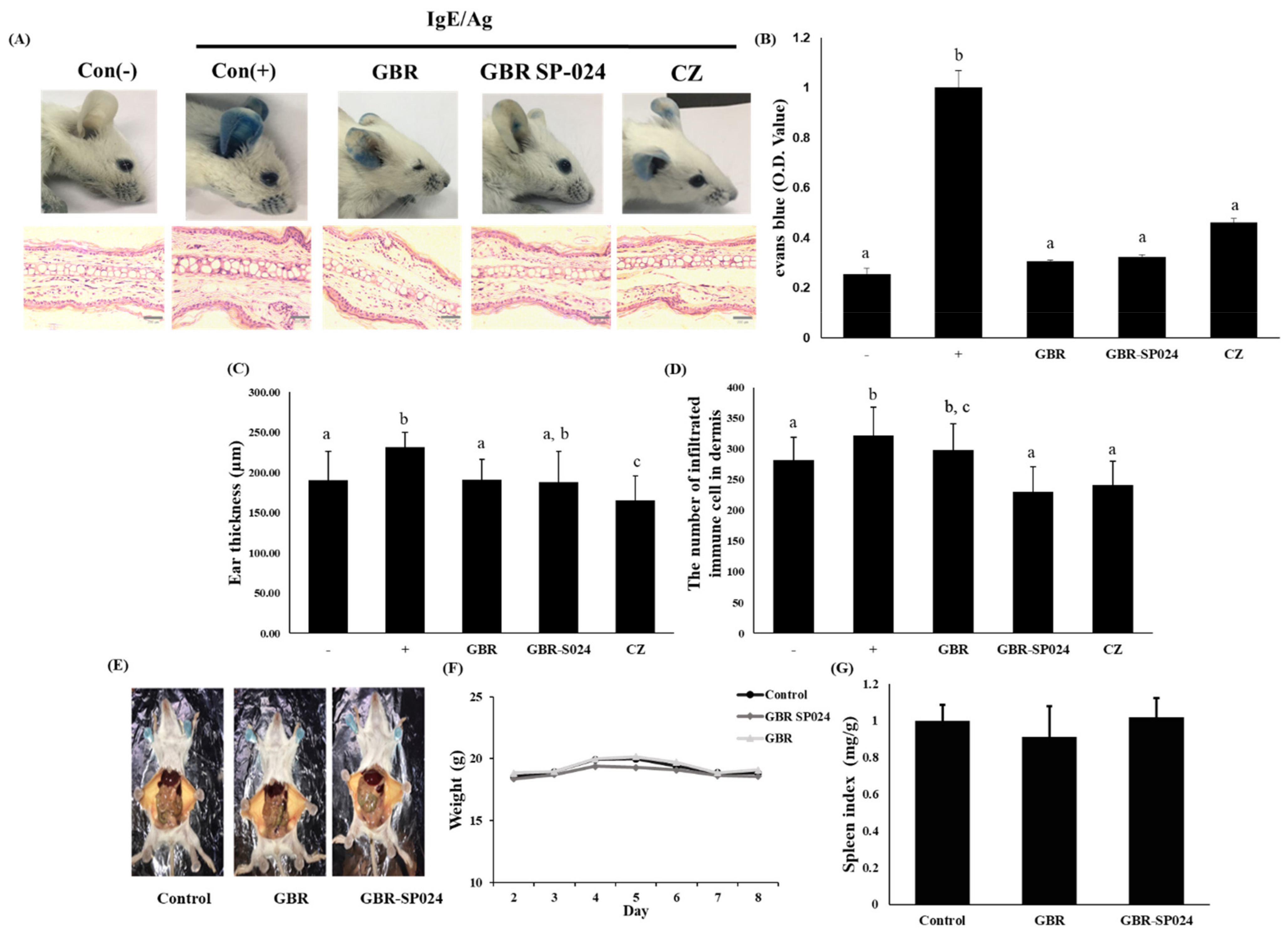

3.5. GBR-SP024 Reduced IgE/Ag-Mediated PCA and Inflammatory Cell Infiltration in BALB/c Mice

Mast cells and basophils are the major effector cells in allergic responses and anaphylaxis reactions. To assess the anti-allergic effect of GBR-SP024, we used a murine model for PCA, which is an IgE-dependent allergic response. Furthermore, we employed a mast cell-dependent PCA model to assess whether GBR-SP024 could repress mast cell activation in vivo. IgE was injected intradermally into the ear, and then DNP-BSA containing 1% Evans blue dye was injected into the tail. GBR-SP024 treatment (200 mg/kg) significantly suppressed extravasation of Evans blue dye in the IgE/Ag-stimulated ear (p < 0.01, Figure 5A,B).
To ensure that GBR and GBR-SP024 were not toxic to mice, we considered lethality rates and changes in body and spleen weights. There was no change in body weight and spleen index over 8 days of treatment, suggesting that these samples were not toxic to mice (Figure 5D,E).
We further performed histopathological examination by analyzing the H&E-stained ear tissues of IgE/Ag-stimulated mice after GBR and GBR-SP024 treatment. Notable infiltration of inflammatory cells was observed in the ear epidermis and dermis of the PCA mice (Figure 5A). The number of infiltrated inflammatory cells in GBR-SP024 was 1.17 ± 0.18 times fewer than that in the IgE/Ag-stimulated control (p < 0.01, Figure 5D). GBR-SP024 treatment was more effective in decreasing the number of infiltrated inflammatory cells than GBR treatment (72.0% ± 7.0 vs. 92.0% ± 8, p < 0.01). The ear thickness in the GBR-SP024 group was 1.4 ± 0.2 times thinner than that in the PCA group (p < 0.01, Figure 5C).

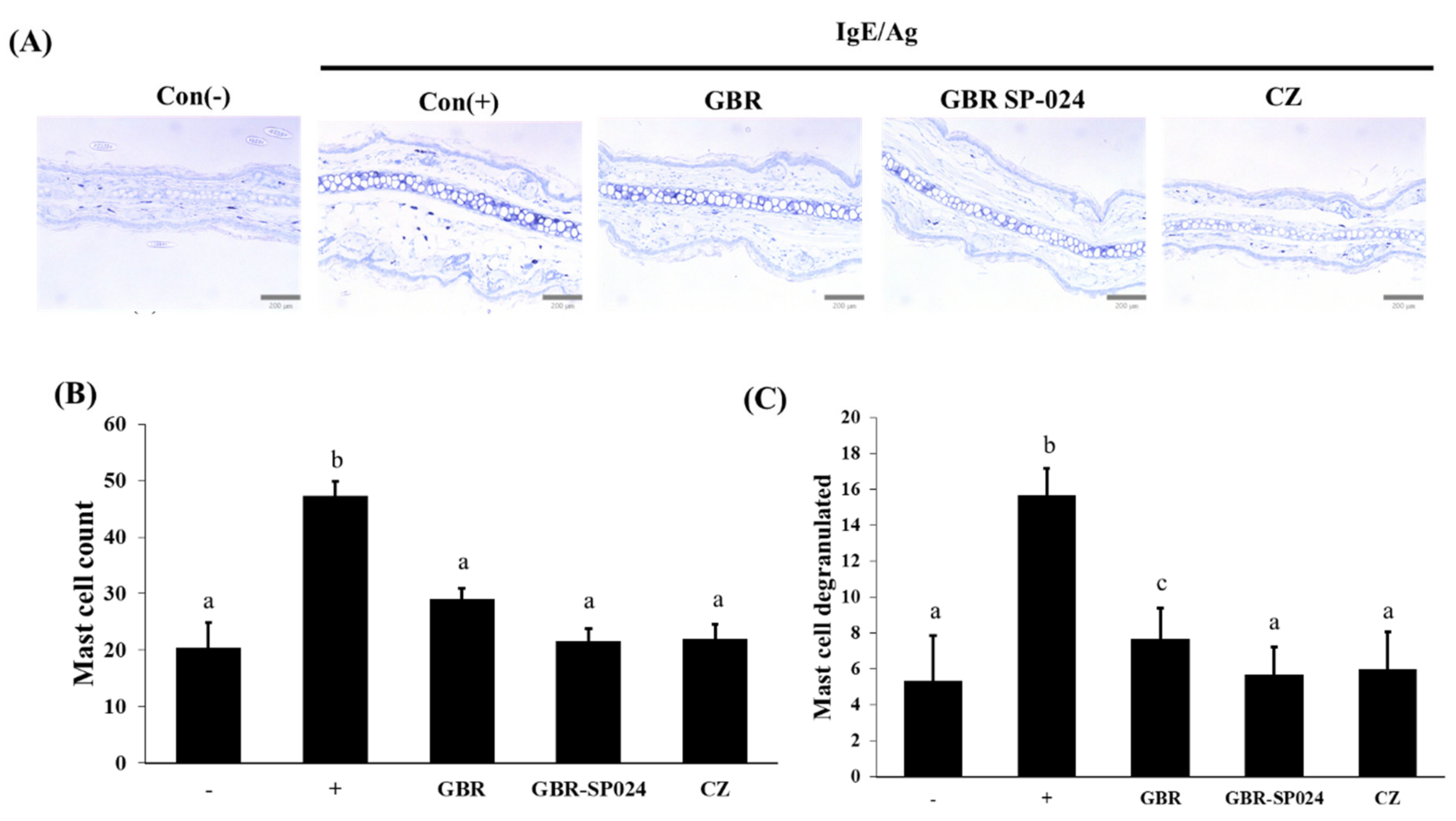

3.6. Fermented GBR Suppressed Mast Cell Degranulation in the Ears of IgE/Ag-Stimulated BALB/c Mice

Mast cells play a key role in allergic responses, secreting various mediators, including histamine, prostaglandins, leukotrienes, and cytokines [22]. We checked whether GBR-SP024 could attenuate the infiltration and mast cells in the ear tissues (Figure 6A). The number of granulated (54.2% ± 8.7) and degranulated (66.0% ± 2.0) mast cells in the ear tissues of GBR-SP024-treated mice was significantly lower than that in IgE/Ag-stimulated mice (p < 0.01, Figure 6B,C). Furthermore, GBR-SP024 treatment significantly decreased the number of degranulated mast cells (45.8% ± 2.5), compared to GBR treatment (p < 0.01).

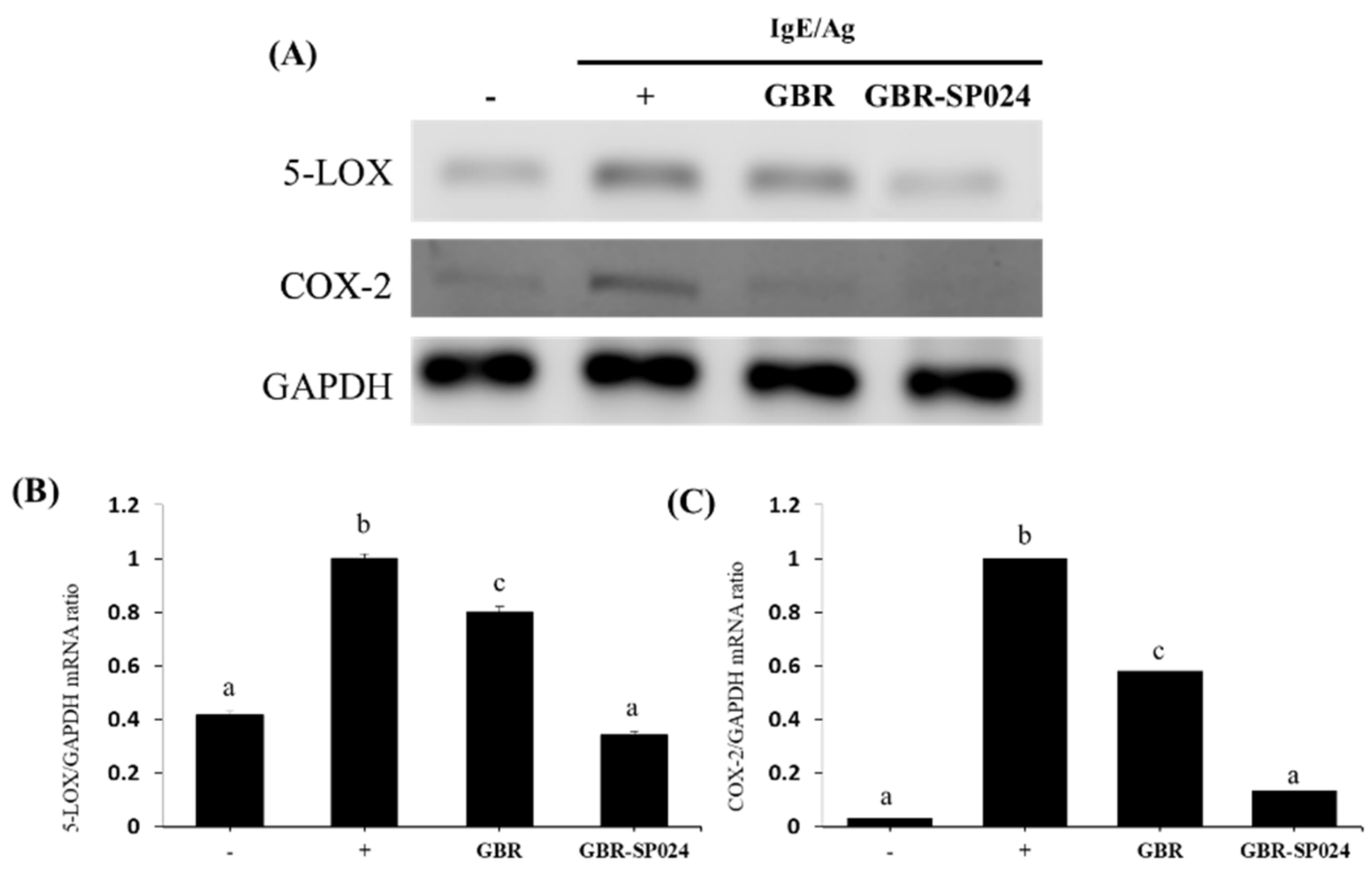

3.7. GBR-SP024 Decreased COX-2 and 5-LOX mRNA Expression in the Ear Tissues of IgE/Ag-Stimulated BALB/c Mice

Allergic responses are exacerbated by pro-inflammatory mediators, including prostaglandins and leukotrienes [23,24]. COX-2 converts arachidonic acid to prostaglandin in IgE-mediated mast cells. Arachidonic acids are also converted into leukotrienes by 5-LOX in IgE-mediated mast cells [25]. To determine whether GBR-SP024 affected COX-2 and 5-LOX mRNA expression, we analyzed COX-2 and 5-LOX mRNA expression in the ear tissues of IgE/Ag-stimulated mice using RT-PCR. As shown in Figure 7, GBR-SP024 significantly inhibited the mRNA expression of 5-LOX and COX-2 (63.8% ± 3.2, 87.8% ± 2.0, p < 0.05). Furthermore, the mRNA levels of 5-LOX and COX-2 in IgE/Ag-stimulated mice treated with GBR-SP024 (63.8% ± 3.2 and 79.9% ± 2.2) were significantly decreased compared to those in mice treated with GBR (20.1% ± 3.6 and 42.0% ± 3.3, p < 0.05).

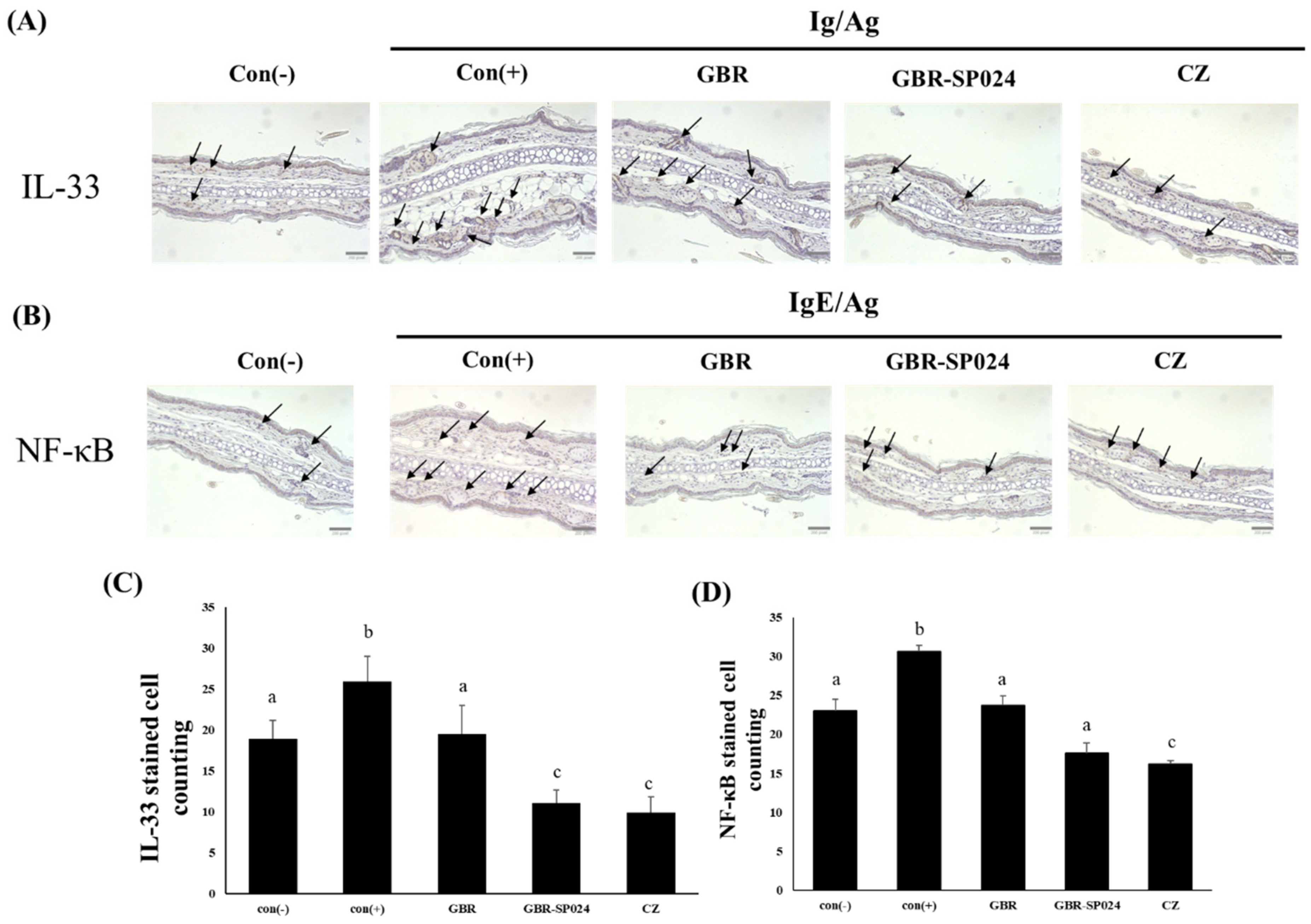

3.8. Fermented GBR Decreased IL-33 and NF-κB Protein Expression in IgE/Ag-Stimulated BALB/c Mice

IL-33 belongs to the IL-1 cytokine family and induces allergic responses, such as asthma, allergic rhinitis, and atopic dermatitis [26]. IL-33 protein levels are upregulated in atopic dermatitis patients and in IgE/Ag-stimulated mice [27,28]. To assess the effect of GBR-SP024 on the expression of IL-33 in the ears of IgE/Ag-stimulated mice, we performed immunohistochemical staining to determine the number of IL-33-positive cells in the dermis area. IL-33 protein levels (56.7% ± 8.8) were significantly decreased in the GBR-SP024-treated mice, compared to those in the PCA model mice (p < 0.01, Figure 8A,C). GBR-SP024 treatment also significantly suppressed IL-33 protein expression in IgE/Ag-stimulated mice, compared with GBR treatment (p < 0.01).
To assess the effect of GBR-SP024 on NF-κB expression, we assessed the number of NF-κB-positive cells using immunohistochemical staining. NF-κB is activated by IgE-mediated allergic reactions through the IL-33/ST2 signaling pathway [29]. NF-κB induces the expression of many pro-inflammatory and lipid mediator genes in activated mast cells and basophils [30]. The number of NF-κB-positive cells (42.7% ± 1.5) was significantly reduced in GBR-SP024-treated IgE/Ag-stimulated BALB/c mice (p < 0.01, Figure 8B,D).

4. Discussion

Significant efforts have been made to develop novel active agents for alleviating type I hypersensitivity reactions with no side effects. In this study, we demonstrated that GBR fermented with P. pentosaceus SP024 suppressed type I hypersensitive reactions.
Previously, it was reported that GBR fermented with Lactobacillus acidophilus exerts anti-cancer activity [31]. However, there have been no studies on the anti-allergic activity of GBR fermented with LAB. Here, we fermented GBR with various lactic acid bacterial strains to enhance the bioactivity of GBR components. GBR, unpolished germinated brown rice with an intact outer bran layer, was selected as the substrate for LAB fermentation because it is rich in nutrients, such as minerals, vitamins, GABA, and polyphenolic acids (e.g., ferulic acid), compared to ordinary brown rice [5]. The concentration of phenolic compounds, such as p-coumaric acid, protocatechuic acid, and ferulic acid, increased in brown rice after germination [32]. Notably, these compounds are known to possess antioxidant, anti-inflammatory, and anti-allergic activities.
Interestingly, the content of phenolic compounds in GBR increased after LAB fermentation [33]. We found that fermentation with P. pentosaceus SP024 increased protocatechuic acid and ferulic acid levels in GBR. Ferulic acid is known to possess anti-allergic activity by suppressing Th2 immune response and IgE level as well as antioxidant activity by scavenging of free radicals [34,35]. Oka et al. reported that cycloartenyl ferulate suppressed mast cell degranulation in IgE-sensitized RBL-2H3 cells [36]. In addition, γ-oryzanol, a mixture of steryl ferulates, produces anti-allergic effects by inhibiting IL-4 and IgE gene expression [37]. Moreover, protocatechuic acid inhibited NF-κB signaling and inflammatory cytokine release in an asthma model [38]. We reported that P. pentosaceus SP024 and L. paraplantarum SC61-fermented GBR demonstrated increased DPPH radical scavenging activity. The increased antioxidant activity of GBR-SP024 may be due to the increased ferulic acid and protocatechuic acid content in GBR following P. pentosaceus fermentation. However, other bioactive compounds might also enhance the antioxidant activity of GBR. In particular, Lee et al. reported that 3-methyl-1-butanol, which possesses antioxidant properties, was found in rice following P. pentosaceus fermentation [39]. Moreover, phenolic esterase, found in LAB, has been reported to increase the level of polyphenol compounds in rice brans [40,41]. GBR-SP024 holds promise for the treatment of IgE-dependent allergic reactions, as both ferulic acid and protocatechuic acid are known to possess anti-allergic activities. However, the specific anti-allergic effects of GBR-SP024 and its mechanism of action have not yet been investigated in in vitro and in vivo experimental allergy models.
Mast cells and basophils are key cells in IgE-mediated hypersensitivity reactions. Ag binding to the IgE-primed FcεRI receptor leads to the activation of immunoreceptor tyrosine-based activation motifs (ITAMs), serving as a platform for spleen tyrosine kinase (Syk) to be activated. Syk, a key intracellular molecule in early FcεRI-mediated signaling, activates Gab2 and LAT. Phosphorylated LAT then recruits SLP-76, Grb2/Sos, and phospholipase Cγ (PLCγ), which induce degranulation, cytokine production, and the activation of downstream molecules such as extracellular signal-regulated protein kinases (ERK) and c-Jun N-terminal kinases (JNK) [42,43]. Indeed, a previous study reported that phosphorylated Syk induces NF-κB and NFAT activation [44].
NF-κB is a transcription factor that regulates pro-inflammatory cytokines such as TNF-α and enzymes such as COX-2 [43]. Additionally, the NF-κB signaling pathway can induce allergic reactions such as PCA [45]. Protocatechuic acid inhibits the phosphorylation of NF-κB in IgE/Ag-stimulated RBL-2H3 cells [46,47]. Therefore, it is possible that the increased protocatechuic acid levels in GBR due to SP024 fermentation were responsible for suppressing the phosphorylation of NF-κB. In IgE-dependent responses, NF-κB signaling induces the expression of pro-inflammatory cytokines [48]. In our in vitro experiments, RBL-2H3 basophils were used to investigate the anti-allergic effects of GBR-SP024 [13,49,50]. IgE/Ag binds to FcεRI in basophils, initiating degranulation and leading to the release of histamine, β-hexosaminidase, and pro-inflammatory cytokines such as TNF-α and IL-4 [45,51]. Fan et al. reported that fermented rice bran inhibited β-hexosaminidase release and pro-inflammatory cytokine production (TNF-α and IL-4) [8]. Consistent with this result, we found that GBR-SP024 notably suppressed the release of β-hexosaminidase and the production of TNF-α and IL-4.
TNF-α and IL-4 are known to be responsible for aggravating allergic responses. Several studies have demonstrated that these cytokines are associated with pathogenic features of IgE-dependent allergic diseases, such as IgE synthesis, Th2-type cytokine production, and chemokine overproduction. TNF-α is necessary for the recruitment of inflammatory cells, induction of Th2-type cytokines, and the expression of adhesion molecules [52,53,54]. IL-4 induces the Th2 response by activating naïve T cells to differentiate into allergen-specific Th2 cells and switching B cells into IgE-producing plasma cells [55,56,57]. Furthermore, ferulic acid inhibits TNF-α and IL-4 cytokine levels in IgE-dependent allergic disease experimental models [58]. In addition, ferulic acid might suppress the reactive oxygen species (ROS)/NF-κB pathway by scavenging ROS, leading to a reduction in proinflammatory cytokine production [59]. Therefore, the inhibition of IgE/Ag-induced TNF-𝛼 and IL-4 production by GBR-SP024 could have been due to increased ferulic acid levels in GBR following SP024 fermentation.
The PCA reaction is an IgE-mediated type 1 hypersensitivity in the dermis. The most common and important features of PCA include the release of active materials, such as histamine, which induce vascular permeability and the extravasation of Evans blue dye. We found that orally administered GBR-SP024 inhibited the increase in vascular permeability and the extravasation of Evans blue dye in mice with PCA and IgE-mediated type 1 hypersensitivity in the dermis. Additionally, the number of degranulated mast cells could be quantified by excising skin tissue from the reaction site and staining with toluidine blue. Consistent with the in vitro result, GBR-SP024 decreased the number of degranulated cells in the dermis of PCA mice. Treatment with GBR-SP024 was as effective as cetirizine (CZ), an established drug for type I hypersensitivity treatment. Therefore, GBR-SP024 may suppress IgE-dependent mast cell activation or protect against the initial surge in inflammatory cell infiltration.
As COX-2 and 5-LOX were both highly expressed in IgE/Ag-stimulated mice, the downregulation of either COX-2 or 5-LOX might inhibit the development of PCA [25]. COX-2 and 5-LOX are key enzymes that convert arachidonic acid into lipid mediators such as PGE2 and LTE4 [23]. Lipid mediators increased vascular permeability and recruited immune cells during IgE-dependent anaphylaxis [24,60]. Therefore, the decreased vascular permeability and suppressed immune cell infiltration observed in the GBR-SP024 treated group might be due to the inhibition of COX-2 and 5-LOX mRNA expression.
Recent studies have suggested that IL-33 is mainly involved in the development of allergic diseases [61]. IL-33 is a member of the IL-1 cytokine family and is expressed in endothelial cells, epithelial cells, and fibroblasts. Additionally, IgE/Ag-activated mast cells also release IL-33 [28]. During allergic inflammation, IL-33 promotes the production of Th2 cytokines such as IL-4 and IL-13 in basophils and mast cells by binding to suppressor of tumorigenicity 2 (ST2) receptors. Moreover, IL-33/ST2 signaling recruits MyD88 and activates MAPK and NF-κB signaling (p50 and p65) in immune cells [27,29,62]. These signaling pathways also promote IL-4 and IL-5 cytokine expression in mast cells and basophils. Here, we demonstrated that GBR-SP024 treatment was more effective than GBR treatment at suppressing IL-33 expression in PCA mice. According to Brugiolo et al., ferulic acid inhibits IL-33 cytokine levels in IgE-dependent allergic reactions in mice [35]. These studies suggest that GBR-SP024 might inhibit IL-33 expression in mast cells and endothelial cells with IgE-dependent anaphylaxis by increasing ferulic acid levels.
NF-κB is known to play key roles in asthma and anaphylaxis. As described previously, NF-κB is activated by IL-33/ST2 signaling in IgE/Ag-stimulated mast cells and basophils. Previous studies have reported that protocatechuic acid blocks the activation of the p38 MAPK and NF-kB signaling pathways and the subsequent expression of pro-inflammatory cytokines in asthmatic allergic model mice [47,63]. Therefore, GBR-SP024 might increase protocatechuic acid levels to inhibit pro-inflammatory cytokine mRNA expression (TNF-α and IL-4) in RBL-2H3 cell IgE-mediated allergic responses by suppressing activated NF-κB protein levels. Therefore, the enhanced anti-allergic activity of GBR-SP024 was most likely the result of increased levels of ferulic acid and protocatechuic acid. In this study, we assessed the anti-allergic activity of GBR-SP024. However, further study of the anti-allergic compounds presents in GBR-SP024, including ferulic acid and protocatechuic acid, is clearly necessary.

5. Conclusions

In this study, we found that the levels of ferulic acid and protocatechuic acid were increased in GBR after fermentation with P. pentosaceus SP024. GBR-SP024 showed enhanced anti-allergic activity against IgE/Ag-mediated type I hypersensitivity reactions. Furthermore, GBR-SP024 inhibited degranulation, proinflammatory cytokine expression, and the phosphorylation of Syk, ERK, and NF-κB in the FcεRI-mediated signaling pathway in IgE/Ag-stimulated RBL-2H3 cells. Additionally, GBR-SP024 inhibited the PCA reaction and the levels of IL-33 and NF-κB in IgE/Ag-stimulated BALB/c mice. These findings suggest that GBR-SP024 is a potential therapeutic agent for the treatment of IgE-dependent type I allergic diseases.

Author Contributions

Conceptualization, H.-J.P.; methodology, K.-R.D. and H.-J.P.; validation, K.-R.D. and H.-J.P.; formal analysis, K.-R.D. and H.-J.P.; investigation, K.-R.D. and H.-J.P.; resources, K.-R.D. and H.-J.P.; data curation, K.-R.D. and H.-J.P.; writing of original draft, K.-R.D. and H.-J.P.; writing review and editing, K.-R.D. and H.-J.P.; visualization, K.-R.D.; supervision, H.-J.P.; project administration, K.-R.D. and H.-J.P.; funding acquisition, H.-J.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIT, NO. NRF-2021R1F1A1048156). This work was supported by the research fund of Gachon University (GCU-202110520001).

Institutional Review Board Statement

The experiments were approved by the Institutional Animal Care and Use Committee at Gachon University (Gyeonggi-do, Republic of Korea, approval number: GIACUC-R2018001, approval date: 29 January 2018).

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to thank Dong Ki Park from the Cell Activation Research Institute (Seoul, Korea) for sample preparation and technical support.

Conflicts of Interest

The authors declare no conflict of interest. The funding providers had no role in the study design, collection, analyses, or interpretation of data, in the writing of the manuscript, or in the decision to publish the results.

Correction Statement

This article has been republished with a minor correction to the Funding statement. This change does not affect the scientific content of the article.

References

  1. De Korte-de Boer, D.; Mommers, M.; Gielkens-Sijstermans, C.M.L.; Creemers, H.M.H.; Mujakovic, S.; Feron, F.J.M.; van Schayck, O.C.P. Stabilizing prevalence trends of eczema, asthma and rhinoconjunctivitis in Dutch schoolchildren (2001-2010). Allergy 2015, 70, 1669–1673. [Google Scholar] [CrossRef]
  2. Gould, H.J.; Sutton, B.J. IgE in allergy and asthma today. Nat. Rev. Immunol. 2008, 8, 205–217. [Google Scholar] [CrossRef]
  3. Zand, L.; Monaghan, M.; Griffin, B.R.; Wagner, S.J.; Criaci, I.M.; Kamal, A.; Garovic, V.D. The role of type I hypersensitivity reaction and IgE-mediated mast cell activation in acute interstitial nephritis. Clin. Nephrol. 2015, 84, 138–144. [Google Scholar] [CrossRef]
  4. DuBuske, L.M. Review of desloratadine for the treatment of allergic rhinitis, chronic idiopathic urticaria and allergic inflammatory disorders. Expert Opin. Pharmacother. 2005, 6, 2511–2523. [Google Scholar] [CrossRef] [PubMed]
  5. Patil, S.B.; Khan, M.K. Germinated brown rice as a value added rice product: A review. J. Food Sci. Technol. 2011, 48, 661–667. [Google Scholar] [CrossRef] [PubMed]
  6. Hiroshi, C. Attraction of germinated brown rice and contribution to rice consumption expansion. In Proceedings of the Workshop and Conf on Rice in the World at Stake, Tokyo, Japan, 21–28 August 2005. [Google Scholar]
  7. Driscoll, K.; Deshpande, A.; Chapp, A.; Li, K.; Datta, R.; Ramakrishna, W. Anti-inflammatory and immune-modulating effects of rice callus suspension culture (RCSC) and bioactive fractions in an in vitro inflammatory bowel disease model. Phytomedicine 2018, 57, 364–376. [Google Scholar] [CrossRef]
  8. Fan, J.P.; Choi, K.M.; Han, G.D. Inhibitory effects of water extracts of fermented rice bran on allergic response. Food Sci. Biotechnol. 2010, 19, 1573–1578. [Google Scholar] [CrossRef]
  9. Kim, K.M.; Yu, K.W.; Kang, D.H.; Suh, H.J. Anti-stress and anti-fatigue effect of fermented rice bran. Phytother. Res. 2002, 16, 700–702. [Google Scholar] [CrossRef] [PubMed]
  10. Chung, S.-Y.; Seo, Y.-K.; Park, J.-K.; Seo, M.-J.; Kim, J.-W.; Park, C.-S. Fermented Rice Bran Downregulates MITF Expression and Leads to Inhibition of α-MSH-Induced Melanogenesis in B16F1 Melanoma. Biosci. Biotechnol. Biochem. 2009, 73, 1704–1710. [Google Scholar] [CrossRef] [PubMed]
  11. Lee, S.; Kwon, H.-K.; Park, H.; Park, Y. Solid–state fermentation of germinated black bean (Rhynchosia nulubilis) using Lactobacillus pentosus SC65 and its immunostimulatory effect. Food Biosci. 2018, 26, 57–64. [Google Scholar] [CrossRef]
  12. Kwon, H.-K.; Song, M.-J.; Lee, H.-J.; Park, T.-S.; Kim, M.I.; Park, H.-J. Pediococcus pentosaceus-Fermented Cordyceps militaris Inhibits Inflammatory Reactions and Alleviates Contact Dermatitis. Int. J. Mol. Sci. 2018, 19, 3504. [Google Scholar] [CrossRef]
  13. Kwon, H.-K.; Park, H.-J. Phellinus linteus Grown on Germinated Brown Rice Inhibits IgE-Mediated Allergic Activity through the Suppression of FcεRI-Dependent Signaling Pathway In Vitro and In Vivo. Evid.-Based Complementary Altern. Med. 2019, 2019, 1485015. [Google Scholar] [CrossRef]
  14. Mitani, T.; Horinishi, A.; Kishida, K.; Kawabata, T.; Yano, F.; Mimura, H.; Ozaki, Y. Phenolics profile of mume, Japanese apricot (Prunus mume Sieb. et Zucc.) fruit. Biosci. Biotechnol. Biochem. 2013, 77, 1623–1627. [Google Scholar] [CrossRef]
  15. Lee, S.S.; Kim, T.H.; Lee, E.M.; Lee, M.H.; Lee, H.Y.; Chung, B.Y. Degradation of cyanidin-3-rutinoside and formation of protocatechuic acid methyl ester in methanol solution by gamma irradiation. Food Chem. 2014, 156, 312–318. [Google Scholar] [CrossRef]
  16. Jo, W.R.; Park, H.J. Antiallergic effect of fisetin on IgE-mediated mast cell activation in vitro and on passive cutaneous anaphylaxis (PCA). J. Nutr. Biochem. 2017, 48, 103–111. [Google Scholar] [CrossRef] [PubMed]
  17. Song, M.; Park, H.-J. Anti-inflammatory effect of Phellinus linteus grown on germinated brown rice on dextran sodium sulfate-induced acute colitis in mice and LPS-activated macrophages. J. Ethnopharmacol. 2014, 154, 311–318. [Google Scholar] [CrossRef] [PubMed]
  18. Park, N.K.; Choi, W.S.; Park, H.-J. Antiallergic Activity of Novel Isoflavone Methyl-glycosides from Cordyceps militaris Grown on Germinated Soybeans in Antigen-Stimulated Mast Cells. J. Agric. Food Chem. 2012, 60, 2309–2315. [Google Scholar] [CrossRef]
  19. Do, H.J.; Hwang, Y.J.; Yang, H.J.; Park, K.I. Effect of Rhus verniciflua extract on IgE-antigen-mediated allergic reaction in rat basophilic leukemic RBL-2H3 mast cells and passive cutaneous anaphylaxis in mice. Evid.-Based Complementary Altern. Med. 2019, 2019, 6497691. [Google Scholar] [CrossRef]
  20. Zhang, T.; Yang, C.; Rupa, P.; Jiang, B.; Mine, Y. Inhibitory effects of Quillaja saponin on IgE-mediated degranulation of rat basophilic leukemia RBL-2H3 Cells. J. Funct. Foods 2012, 4, 864–871. [Google Scholar] [CrossRef]
  21. Qiao, H.; Andrade, M.V.; Lisboa, F.A.; Morgan, K.; Beaven, M.A. FcϵR1 and toll-like receptors mediate synergistic signals to markedly augment production of inflammatory cytokines in murine mast cells. Blood 2006, 107, 610–618. [Google Scholar] [CrossRef] [PubMed]
  22. Galli, S.J.; Gordon, J.; Wershil, B.K. Cytokine production by mast cells and basophils. Curr. Opin. Immunol. 1991, 3, 865–873. [Google Scholar] [CrossRef]
  23. Yanes, D.A.; Mosser-Goldfarb, J.L. Emerging therapies for atopic dermatitis: The prostaglandin/leukotriene pathway. J. Am. Acad. Dermatol. 2018, 78, S71–S75. [Google Scholar] [CrossRef]
  24. Jo-Watanabe, A.; Okuno, T.; Yokomizo, T. The Role of Leukotrienes as Potential Therapeutic Targets in Allergic Disorders. Int. J. Mol. Sci. 2019, 20, 3580. [Google Scholar] [CrossRef]
  25. Li, X.; Lu, Y.; Yang, J.H.; Jin, Y.; Hwang, S.-L.; Chang, H.W. Natural Vanadium-Containing Jeju Groundwater Inhibits Immunoglobulin E-Mediated Anaphylactic Reaction and Suppresses Eicosanoid Generation and Degranulation in Bone Marrow Derived-Mast Cells. Biol. Pharm. Bull. 2012, 35, 216–222. [Google Scholar] [CrossRef]
  26. Paranjape, A.; Chernushevich, O.; Qayum, A.A.; Spence, A.J.; Taruselli, M.; Abebayehu, D.; Barnstein, B.O.; McLeod, J.J.A.; Baker, B.; Bajaj, G.S.; et al. Dexamethasone rapidly suppresses IL-33-stimulated mast cell function by blocking transcription factor activity. J. Leukoc. Biol. 2016, 100, 1395–1404. [Google Scholar] [CrossRef]
  27. Pushparaj, P.N.; Tay, H.K.; H’Ng, S.C.; Pitman, N.; Xu, D.; McKenzie, A.; Liew, F.Y.; Melendez, A.J. The cytokine interleukin-33 mediates anaphylactic shock. Proc. Natl. Acad. Sci. USA 2009, 106, 9773–9778. [Google Scholar] [CrossRef]
  28. Hsu, L.C.; Neilsen, C.V.; Bryce, P.J. IL-33 is produced by mast cells and regulates IgE-dependent inflammation. PLoS ONE 2010, 5, e11944. [Google Scholar] [CrossRef]
  29. Chan, B.C.L.; Lam, C.W.K.; Tam, L.-S.; Wong, C.K. IL33: Roles in Allergic Inflammation and Therapeutic Perspectives. Front. Immunol. 2019, 10, 364. [Google Scholar] [CrossRef]
  30. Min, Y.D.; Choi, C.H.; Bark, H.; Son, H.Y.; Park, H.H.; Lee, S.; Kim, S.H. Quercetin inhibits expression of inflammatory cytokines through attenuation of NF-κB and p38 MAPK in HMC-1 human mast cell line. Inflamm. Res. 2007, 56, 210–215. [Google Scholar] [CrossRef]
  31. Li, S.-C.; Lin, H.-P.; Chang, J.-S.; Shih, C.-K. Lactobacillus acidophilus-Fermented Germinated Brown Rice Suppresses Preneoplastic Lesions of the Colon in Rats. Nutrients 2019, 11, 2718. [Google Scholar] [CrossRef]
  32. Tian, S.; Nakamura, K.; Kayahara, H. Analysis of Phenolic Compounds in White Rice, Brown Rice, and Germinated Brown Rice. J. Agric. Food Chem. 2004, 52, 4808–4813. [Google Scholar] [CrossRef]
  33. Nisa, K.; Rosyida, V.T.; Nurhayati, S.; Indrianingsih, A.W.; Darsih, C.; Apriyana, W. Total phenolic contents and antioxidant activity of rice bran fermented with lactic acid bacteria. IOP Conf. Ser. Earth Environ. Sci. 2019, 251. [Google Scholar] [CrossRef]
  34. Srinivasan, M.; Sudheer, A.R.; Menon, V.P. Ferulic Acid: Therapeutic Potential Through Its Antioxidant Property. J. Clin. Biochem. Nutr. 2007, 40, 92–100. [Google Scholar] [CrossRef]
  35. Brugiolo, A.S.S.; Gouveia, A.C.C.; Alves, C.C.D.S.; Silva, F.M.D.C.E.; De Oliveira, E.; Ferreira, A.P. Ferulic acid supresses Th2 immune response and prevents remodeling in ovalbumin-induced pulmonary allergy associated with inhibition of epithelial-derived cytokines. Pulm. Pharmacol. Ther. 2017, 45, 202–209. [Google Scholar] [CrossRef]
  36. Oka, T.; Fujimoto, M.; Nagasaka, R.; Ushio, H.; Hori, M.; Ozaki, H. Cycloartenyl ferulate, a component of rice bran oil-derived γ-oryzanol, attenuates mast cell degranulation. Phytomedicine 2010, 17, 152–156. [Google Scholar] [CrossRef]
  37. Sierra, S.; Lara-Villoslada, F.; Olivares, M.; Jimenez, J.C.; Boza, J.; Xaus, J. Increased immune response in mice consuming rice bran oil. Eur. J. Nutr. 2005, 44, 509–516. [Google Scholar] [CrossRef] [PubMed]
  38. Wei, M.; Chu, X.; Jiang, L.; Yang, X.; Cai, Q.; Zheng, C.; Ci, X.; Guan, M.; Liu, J.; Deng, X. Protocatechuic Acid Attenuates Lipolysaccharide-Induced Acute Lung Injury. Inflammation 2012, 35, 1169–1178. [Google Scholar] [CrossRef] [PubMed]
  39. Lee, S.M.; Hwang, Y.R.; Kim, M.S.; Chung, M.S.; Kim, Y.-S. Comparison of Volatile and Nonvolatile Compounds in Rice Fermented by Different Lactic Acid Bacteria. Molecules 2019, 24, 1183. [Google Scholar] [CrossRef] [PubMed]
  40. Ashina, K.; Tsubosaka, Y.; Nakamura, T.; Omori, K.; Kobayashi, K.; Hori, M.; Ozaki, H.; Murata, T. Histamine Induces Vascular Hyperpermeability by Increasing Blood Flow and Endothelial Barrier Disruption In Vivo. PLoS ONE 2015, 10, e0132367. [Google Scholar] [CrossRef] [PubMed]
  41. Donaghy, J.; Kelly, P.F.; McKay, A.M. Detection of ferulic acid esterase production by Bacillus spp. and lactobacilli. Appl. Microbiol. Biotechnol. 1998, 50, 257–260. [Google Scholar] [CrossRef] [PubMed]
  42. Kalesnikoff, J.; Galli, S.J. New developments in mast cell biology. Nat. Immunol. 2008, 9, 1215–1223. [Google Scholar] [CrossRef]
  43. Roth, K.; Chen, W.-M.; Lin, T.-J. Positive and negative regulatory mechanisms in high-affinity IgE receptor-mediated mast cell activation. Arch. Immunol. et Ther. Exp. 2008, 56, 385–399. [Google Scholar] [CrossRef]
  44. Barbu, E.A.; Zhang, J.; Siraganian, R.P. The Limited Contribution of Fyn and Gab2 to the High Affinity IgE Receptor Signaling in Mast Cells. J. Biol. Chem. 2010, 285, 15761–15768. [Google Scholar] [CrossRef]
  45. Patil, S.U.; Shreffler, W.G. Immunology in the Clinic Review Series; focus on allergies: Basophils as biomarkers for assessing immune modulation. Clin. Exp. Immunol. 2011, 167, 59–66. [Google Scholar] [CrossRef] [PubMed]
  46. Wei, M.; Chu, X.; Guan, M.; Yang, X.; Xie, X.; Liu, F.; Chen, C.; Deng, X. Protocatechuic acid suppresses ovalbumin-induced airway inflammation in a mouse allergic asthma model. Int. Immunopharmacol. 2013, 15, 780–788. [Google Scholar] [CrossRef]
  47. Zhang, X.; Li, C.; Li, J.; Xu, Y.; Guan, S.; Zhao, M. Protective effects of protocatechuic acid on acute lung injury induced by lipopolysaccharide in mice via p38MAPK and NF-κB signal pathways. Int. Immunopharmacol. 2015, 26, 229–236. [Google Scholar] [CrossRef] [PubMed]
  48. Jeong, H.J.; Koo, H.N.; Na, H.J.; Kim, M.S.; Hong, S.H.; Eom, J.W.; Kim, H.M. Inhibition of TNF-α and IL-6 production by aucubin through blockade of NF-κB activation in RBL-2H3 mast cells. Cytokine 2002, 18, 252–259. [Google Scholar] [CrossRef]
  49. Passante, E.; Ehrhardt, C.; Sheridan, H.; Frankish, N. RBL-2H3 cells are an imprecise model for mast cell mediator release. Inflamm. Res. 2009, 58, 611–618. [Google Scholar] [CrossRef]
  50. Nishi, K.; Kanayama, Y.; Kim, I.H.; Nakata, A.; Nishiwaki, H.; Sugahara, T. Docosahexaenoyl ethanolamide mitigates IgE-mediated allergic reactions by inhibiting mast cell degranulation and regulating allergy-related immune cells. Sci. Rep. 2019, 9, 1–11. [Google Scholar] [CrossRef]
  51. Stone, D.K.; Prussin, C.; Metcalfe, D.D. IgE, mast cells, basophils, and eosinophils. J. Allergy Clin. Immunol. 2010, 125, S73–S80. [Google Scholar] [CrossRef]
  52. Mekori, Y.A.; Metcalfe, D.D. Mast cells in innate immunity. Immunol. Rev. 2000, 173, 131–140. [Google Scholar] [CrossRef]
  53. Iwasaki, M.; Saito, K.; Takemura, M.; Sekikawa, K.; Fujii, H.; Yamada, Y.; Wada, H.; Mizuta, K.; Seishima, M.; Ito, Y. TNF-α contributes to the development of allergic rhinitis in mice. J. Allergy Clin. Immunol. 2003, 112, 134–140. [Google Scholar] [CrossRef] [PubMed]
  54. Wedemeyer, J.; Tsai, M.; Galli, S.J. Roles of mast cells and basophils in innate and acquired immunity. Curr. Opin. Immunol. 2000, 12, 624–631. [Google Scholar] [CrossRef]
  55. Coffman, R.L.; Carty, J. A T cell activity that enhances polyclonal IgE production and its inhibition by interferon-gamma. J. Immunol. 1986, 136, 949–954. [Google Scholar]
  56. Burton, O.T.; Oettgen, H.C. Beyond immediate hypersensitivity: Evolving roles for IgE antibodies in immune homeostasis and allergic diseases. Immunol. Rev. 2011, 242, 128–143. [Google Scholar] [CrossRef]
  57. Gibbs, B.F. Human basophils as effectors and immunomodulators of allergic inflammation and innate immunity. Clin. Exp. Med. 2005, 5, 43–49. [Google Scholar] [CrossRef] [PubMed]
  58. Lee, C.C.; Wang, C.C.; Huang, H.M.; Lin, C.L.; Leu, S.J.; Lee, Y.L. Ferulic acid induces Th1 responses by modulating the function of dendritic cells and ameliorates Th2-mediated allergic airway inflammation in mice. Evid.-Based Complementary Altern. Med. 2015, 2015, 678487. [Google Scholar] [CrossRef]
  59. Zhang, J.; Wang, X.; Vikash, V.; Ye, Q.; Wu, D.; Liu, Y.; Dong, W. ROS and ROS-mediated cellular signaling. Oxidative Med. Cell. Longev. 2016, 2016, 4350965. [Google Scholar] [CrossRef]
  60. Claar, D.; Hartert, T.V.; Peebles, R.S. The role of prostaglandins in allergic lung inflammation and asthma. Expert Rev. Respir. Med. 2014, 9, 55–72. [Google Scholar] [CrossRef]
  61. Nakajima, S. Resveratrol inhibits IL-33–mediated mast cell activation by targeting the MK2/3–PI3K/Akt axis. Sci. Rep. 2019, 9, 1–11. [Google Scholar] [CrossRef]
  62. Ding, W.; Zou, G.-L.; Zhang, W.; Lai, X.-N.; Chen, H.-W.; Xiong, L.-X. Interleukin-33: Its Emerging Role in Allergic Diseases. Molecules 2018, 23, 1665. [Google Scholar] [CrossRef] [PubMed]
  63. Min, S.-W.; Ryu, S.-N.; Kim, D.-H. Anti-inflammatory effects of black rice, cyanidin-3-O-β-d-glycoside, and its metabolites, cyanidin and protocatechuic acid. Int. Immunopharmacol. 2010, 10, 959–966. [Google Scholar] [CrossRef] [PubMed]
Microorganisms 09 01855 g001

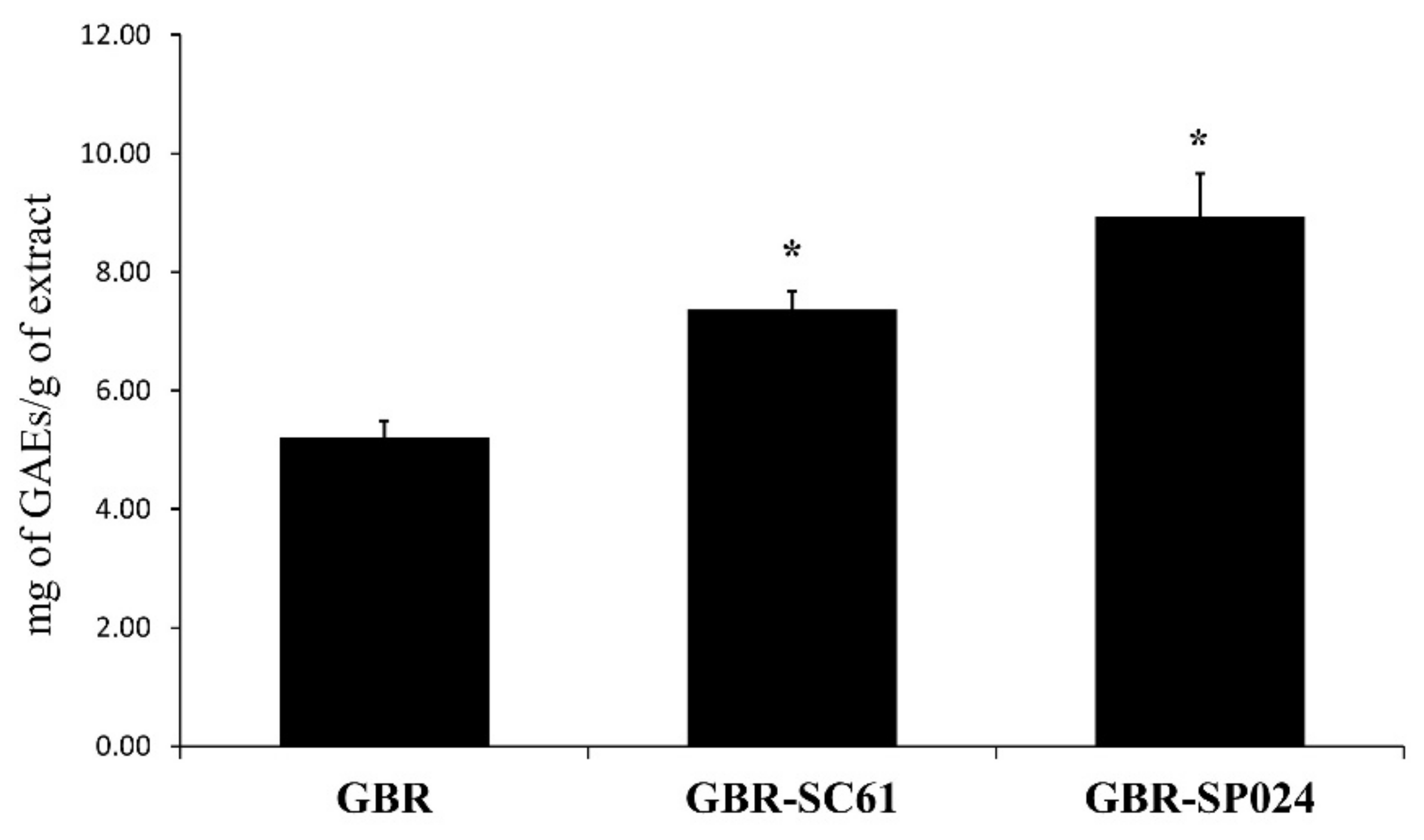

Figure 1. Total polyphenol content in GBR and GBR fermented with Lactobacillus paraplantarum SC61 and Pediococcus pentosaceus SP024. GBR, unfermented germinated brown rice; GBR-SC61, L. paraplantarum fermented GBR at 37 °C for 24 h; GBR-SP024, P. pentosaceus fermented GBR at 37 °C for 24 h. One-way ANOVA was used to compare group means, followed by Dunnett’s t-test (* p < 0.05 vs. GBR). Data are expressed as means ± standard error of means (SEM) from three independent experiments (n ≥ 3).
Figure 1. Total polyphenol content in GBR and GBR fermented with Lactobacillus paraplantarum SC61 and Pediococcus pentosaceus SP024. GBR, unfermented germinated brown rice; GBR-SC61, L. paraplantarum fermented GBR at 37 °C for 24 h; GBR-SP024, P. pentosaceus fermented GBR at 37 °C for 24 h. One-way ANOVA was used to compare group means, followed by Dunnett’s t-test (* p < 0.05 vs. GBR). Data are expressed as means ± standard error of means (SEM) from three independent experiments (n ≥ 3).
Microorganisms 09 01855 g001
Microorganisms 09 01855 g002

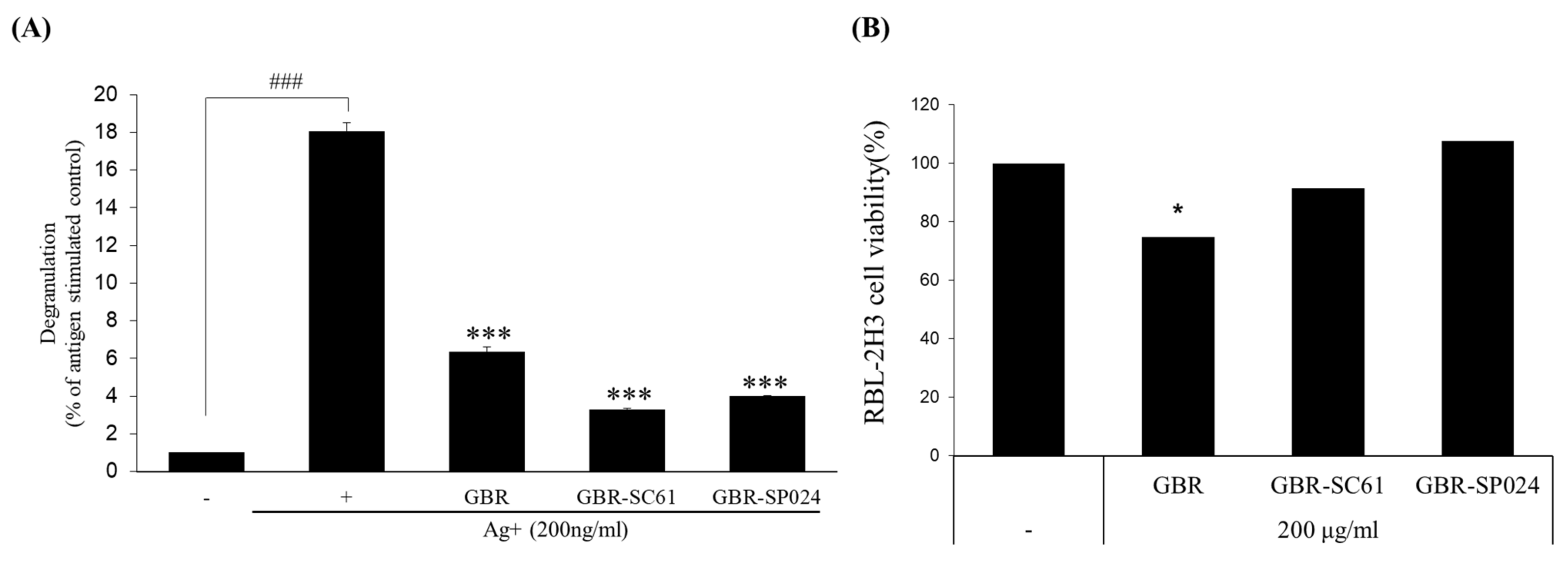

Figure 2. Effect of GBR-SC61 and GBR-SP024 on the degranulation of IgE/Ag-stimulated RBL-2H3 cells. − is untreated control, + is treated with anti-DNP IgE and stimulated with DNP-BSA. PP2 is an Src tyrosine kinase inhibitor. (A) Degranula-tion of RBL-2H3 cells was measured by the β-hexoaminidase assay (*** p < 0.001 vs. IgE/Ag-stimulated control and ### p < 0.001 vs. nontreated control). (B) Cell viability of RBL-2H3 was measured by the Cell Counting Kit-8 assay. ANOVA was used to compare group means, followed by Dunnett’s t-test (* p < 0.05 vs. nontreated control). Data are expressed as means ± standard error of means (SEM) of three independent experiments (n ≥ 3).
Figure 2. Effect of GBR-SC61 and GBR-SP024 on the degranulation of IgE/Ag-stimulated RBL-2H3 cells. − is untreated control, + is treated with anti-DNP IgE and stimulated with DNP-BSA. PP2 is an Src tyrosine kinase inhibitor. (A) Degranula-tion of RBL-2H3 cells was measured by the β-hexoaminidase assay (*** p < 0.001 vs. IgE/Ag-stimulated control and ### p < 0.001 vs. nontreated control). (B) Cell viability of RBL-2H3 was measured by the Cell Counting Kit-8 assay. ANOVA was used to compare group means, followed by Dunnett’s t-test (* p < 0.05 vs. nontreated control). Data are expressed as means ± standard error of means (SEM) of three independent experiments (n ≥ 3).
Microorganisms 09 01855 g002
Microorganisms 09 01855 g003

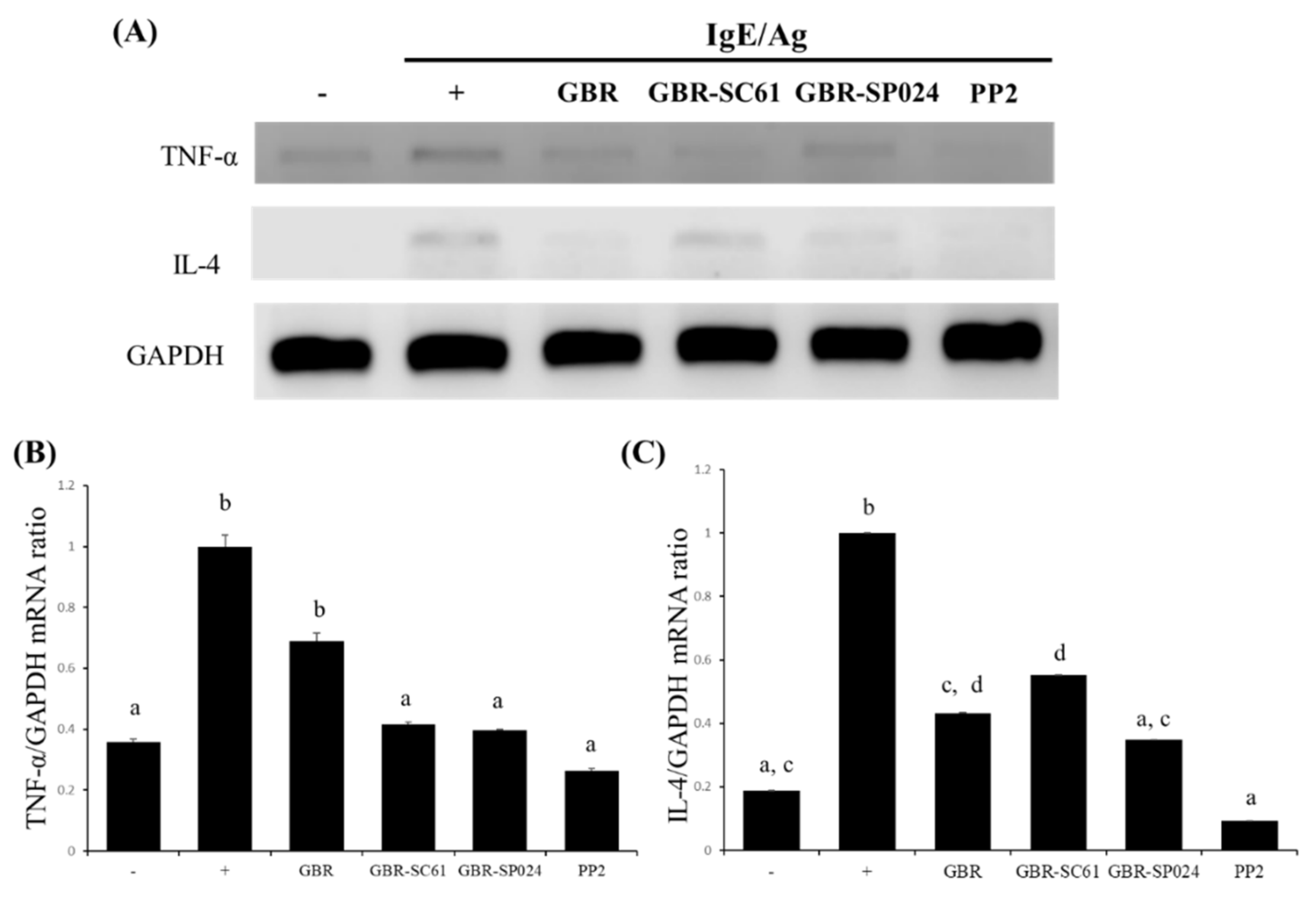

Figure 3. Effect of GBR, GBR-SC61, and GBR-SP024 on IgE/Ag-induced pro-inflammatory cytokine mRNA levels. (A) TNF-α and IL-4 mRNA expression was determined by reverse transcription-polymerase chain reaction (RT-PCR). GAPDH was used as the internal control. (B,C) TNF-α and IL-4 mRNA expression was normalized to GAPDH mRNA expression in each sample. Data are expressed as means ± standard error of means (SEM) of three independent experiments (n ≥ 3). Images were analyzed by one-way ANOVA and Duncan’s t-test (p < 0.01). Different letters indicate significant differences between groups.
Figure 3. Effect of GBR, GBR-SC61, and GBR-SP024 on IgE/Ag-induced pro-inflammatory cytokine mRNA levels. (A) TNF-α and IL-4 mRNA expression was determined by reverse transcription-polymerase chain reaction (RT-PCR). GAPDH was used as the internal control. (B,C) TNF-α and IL-4 mRNA expression was normalized to GAPDH mRNA expression in each sample. Data are expressed as means ± standard error of means (SEM) of three independent experiments (n ≥ 3). Images were analyzed by one-way ANOVA and Duncan’s t-test (p < 0.01). Different letters indicate significant differences between groups.
Microorganisms 09 01855 g003
Microorganisms 09 01855 g004

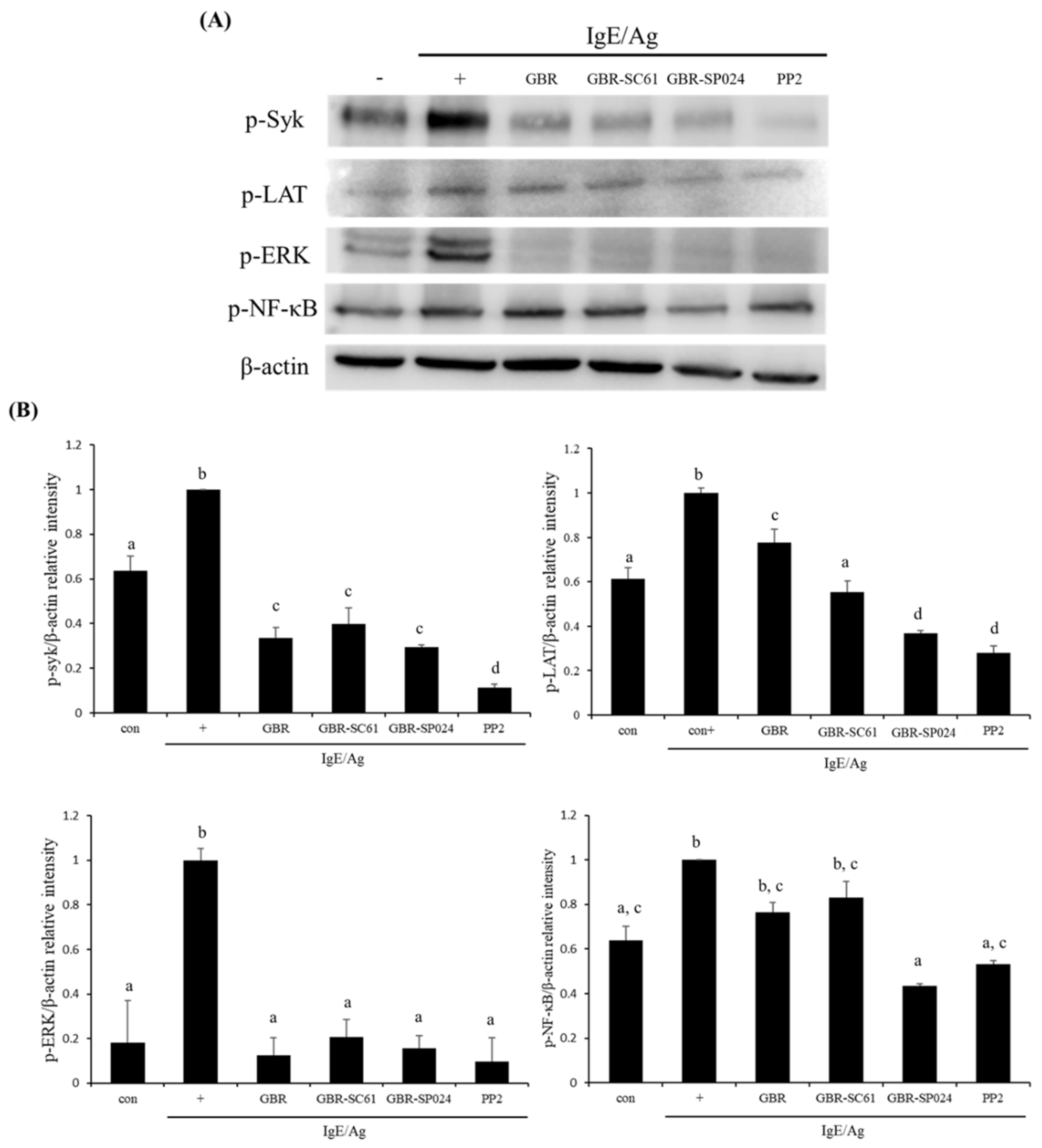

Figure 4. Effect of GBR-SP024 on the levels of phosphorylated proteins in IgE/Ag-stimulated RBL-2H3 cells. The levels of p-Syk, p-LAT, p-ERK, and p-NF-κB proteins were measured by immunoblotting. PP2 is a general Src family kinase inhibitor. (A) Western blot assay of p-Syk, p-LAT, p-ERK and p-NF-κB. (B) Expression level of GBR, GBR-SC61 and PP2. The levels were normalized to β-actin level. Representative images from three independent experiments are shown. Data are expressed as means ± standard error of means (SEM). Images were analyzed by one-way ANOVA and Duncan’s t-test (p < 0.05). Different letters indicate significant differences between groups.
Figure 4. Effect of GBR-SP024 on the levels of phosphorylated proteins in IgE/Ag-stimulated RBL-2H3 cells. The levels of p-Syk, p-LAT, p-ERK, and p-NF-κB proteins were measured by immunoblotting. PP2 is a general Src family kinase inhibitor. (A) Western blot assay of p-Syk, p-LAT, p-ERK and p-NF-κB. (B) Expression level of GBR, GBR-SC61 and PP2. The levels were normalized to β-actin level. Representative images from three independent experiments are shown. Data are expressed as means ± standard error of means (SEM). Images were analyzed by one-way ANOVA and Duncan’s t-test (p < 0.05). Different letters indicate significant differences between groups.
Microorganisms 09 01855 g004
Microorganisms 09 01855 g005
Figure 5. Inhibitory effect of GBR and GBR-SP024 on the IgE/Ag-mediated PCA reaction in BALB/c mice. GBR, GBR-SC61, and GBR-SP024 were orally administered to mice (200 mg/kg) after sensitization with DNP-IgE (0.5 μg). H&E staining was performed on BALB/c mouse ears in IgE/Ag-mediated PCA. Body and spleen weight changes in BALB/c mice after oral administration of GBR and GBR-SP024 were measured. Control (−) is untreated control, control (+) is treated with IgE and antigen, and cetirizine (CZ) is an established drug for type I hypersensitivity treatment. (A) Representative pictures of ears are shown after the PCA reaction. (B) Amount of extravasated dye from mouse ears. (C) Ear thickness measurement. (D) The number of infiltrated immune cells in dermis. (E) Mice were analyzed macroscopically after sacrifice on day 7. Representative pictures of mice are shown. (F) Changes in body weights. (G) Changes in spleen weights. One-way ANOVA was used to compare group means, followed by Duncan’s t-test (p < 0.01). Different letters indicate significant differences between groups. Data are expressed as means ± standard error of means (SEM) from total 6 mice/group representative of three independent experiments.
Figure 5. Inhibitory effect of GBR and GBR-SP024 on the IgE/Ag-mediated PCA reaction in BALB/c mice. GBR, GBR-SC61, and GBR-SP024 were orally administered to mice (200 mg/kg) after sensitization with DNP-IgE (0.5 μg). H&E staining was performed on BALB/c mouse ears in IgE/Ag-mediated PCA. Body and spleen weight changes in BALB/c mice after oral administration of GBR and GBR-SP024 were measured. Control (−) is untreated control, control (+) is treated with IgE and antigen, and cetirizine (CZ) is an established drug for type I hypersensitivity treatment. (A) Representative pictures of ears are shown after the PCA reaction. (B) Amount of extravasated dye from mouse ears. (C) Ear thickness measurement. (D) The number of infiltrated immune cells in dermis. (E) Mice were analyzed macroscopically after sacrifice on day 7. Representative pictures of mice are shown. (F) Changes in body weights. (G) Changes in spleen weights. One-way ANOVA was used to compare group means, followed by Duncan’s t-test (p < 0.01). Different letters indicate significant differences between groups. Data are expressed as means ± standard error of means (SEM) from total 6 mice/group representative of three independent experiments.
Microorganisms 09 01855 g005
Microorganisms 09 01855 g006
Figure 6. Histological examination of BALB/c mouse ears with toluidine blue stained on IgE/Ag-mediated PCA reaction in BALB/c. (A) Inflammatory edema image of ear tissue (B) The number of degranulated mast cells and (C) The number of mast cells in ear tissue. ANOVA was used to compare group means, followed by Duncan’s t-test (p < 0.01). Different letters indicate significant differences between groups. Data are expressed as means ± standard error of means (SEM) from total 6 mice/group representative of three independent experiments.
Figure 6. Histological examination of BALB/c mouse ears with toluidine blue stained on IgE/Ag-mediated PCA reaction in BALB/c. (A) Inflammatory edema image of ear tissue (B) The number of degranulated mast cells and (C) The number of mast cells in ear tissue. ANOVA was used to compare group means, followed by Duncan’s t-test (p < 0.01). Different letters indicate significant differences between groups. Data are expressed as means ± standard error of means (SEM) from total 6 mice/group representative of three independent experiments.
Microorganisms 09 01855 g006
Microorganisms 09 01855 g007
Figure 7. Effect of GBR and GBR-SP024 on 5-LOX and COX-2 mRNA expression in IgE/Ag-mediated PCA in BALB/c mouse ear tissues. (A) mRNA expression of 5-LOX and COX-2 was determined by RT-PCR. GAPDH was used as the control. (B,C) The results of the densitometric analyses of gel images are shown. The ratio of the mRNA densitometric signal relative to that of the internal control (GAPDH) was calculated. One-way ANOVA was used to compare group means, followed by Duncan’s t-test (p < 0.05). Different letters indicate significant differences between groups. Data are expressed as means ± standard error of means (SEM) from total 6 mice/group representative of three independent experiments.
Figure 7. Effect of GBR and GBR-SP024 on 5-LOX and COX-2 mRNA expression in IgE/Ag-mediated PCA in BALB/c mouse ear tissues. (A) mRNA expression of 5-LOX and COX-2 was determined by RT-PCR. GAPDH was used as the control. (B,C) The results of the densitometric analyses of gel images are shown. The ratio of the mRNA densitometric signal relative to that of the internal control (GAPDH) was calculated. One-way ANOVA was used to compare group means, followed by Duncan’s t-test (p < 0.05). Different letters indicate significant differences between groups. Data are expressed as means ± standard error of means (SEM) from total 6 mice/group representative of three independent experiments.
Microorganisms 09 01855 g007
Microorganisms 09 01855 g008
Figure 8. Immunohistochemical staining for IL-33 and NF-кB in BALB/c murine ears in IgE/Ag-mediated PCA. (A,B) Representative images of immunohistochemical staining for IL-33 and NF-κB expression (black arrow: stained cell). (C,D) IHC stained cell counting of IL-33 and NF-κB. ANOVA was used to compare group means, followed by Duncan’s t-test (p < 0.01). Different letters indicate significant differences between groups. Data are expressed as means ± standard error of means (SEM) from total 6 mice/group representative of three independent experiments.
Figure 8. Immunohistochemical staining for IL-33 and NF-кB in BALB/c murine ears in IgE/Ag-mediated PCA. (A,B) Representative images of immunohistochemical staining for IL-33 and NF-κB expression (black arrow: stained cell). (C,D) IHC stained cell counting of IL-33 and NF-κB. ANOVA was used to compare group means, followed by Duncan’s t-test (p < 0.01). Different letters indicate significant differences between groups. Data are expressed as means ± standard error of means (SEM) from total 6 mice/group representative of three independent experiments.
Microorganisms 09 01855 g008
Table 1. DPPH radical scavenging activity of GBR fermented with different lactic acid bacteria strains. Ascorbic acid was used as positive control. One-way ANOVA was used to compare group means, followed by Dunnett’s t-test ($$ p < 0.01, $$$ p < 0.001 vs. ascorbic acid) Data are expressed as means ± standard error of means (SEM) from three independent experiments (n ≥ 3).
Table 1. DPPH radical scavenging activity of GBR fermented with different lactic acid bacteria strains. Ascorbic acid was used as positive control. One-way ANOVA was used to compare group means, followed by Dunnett’s t-test ($$ p < 0.01, $$$ p < 0.001 vs. ascorbic acid) Data are expressed as means ± standard error of means (SEM) from three independent experiments (n ≥ 3).
NoStrainDPPH Activity (%)
1Leuconostoc lactis S-Per.s1264.0 ± 2.9 $$$
2Pediococcus pentosaceus SC778.0 ± 1.5
3Lactobacillus paraplantarum SC6167.6 ± 3.2 $$$
4Weisella kimchii Bro1473.9 ± 13.3
5Leuconostoc lactis S.Pum2162.4 ± 4.0 $$
6Pediococcus pentosaceus ON-30A53.8 ± 2.3 $$$
7Pediococcus pentosaceus GO00882.0 ± 2.8 $$$
8Pediococcus pentosaceus SP-02486.7 ± 2.7
Positive controlDPPH activity (%)
Ascorbic acid81.1 ± 2.1
Table 2. Quantitative analysis of the trans-ferulic acid and protocatechuic acid content in GBR and GBR-SP024. One-way ANOVA was used to compare group means, followed by Dunnett’s t-test (* p < 0.05, ** p < 0.01, *** p < 0.001 vs. GBR). Data are expressed as means ± standard error of means (SEM) from three independent experiments (n ≥ 3).
Table 2. Quantitative analysis of the trans-ferulic acid and protocatechuic acid content in GBR and GBR-SP024. One-way ANOVA was used to compare group means, followed by Dunnett’s t-test (* p < 0.05, ** p < 0.01, *** p < 0.001 vs. GBR). Data are expressed as means ± standard error of means (SEM) from three independent experiments (n ≥ 3).
CompoundLiquid CultureSolid Culture
GBRGBR-SP024GBRGBR-SP024
protocatechuic acid (mg/100 g)0.1 ± 0.000.3 ± 0.0 **not detecablenot detecable
trans-ferulic acid (mg/100 g)23.2 ± 0.728.75 ± 0.8 ***20.4 ± 0.722.9 ± 0.2 *
Data are expressed as mean ± standard error of means (SEM).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Dhong, K.-R.; Park, H.-J. Pediococcus Pentosaceus from the Sweet Potato Fermented Ger-Minated Brown Rice Can Inhibit Type I Hypersensitivity in RBL-2H3 Cell and BALB/c Mice Models. Microorganisms 2021, 9, 1855. https://doi.org/10.3390/microorganisms9091855

AMA Style

Dhong K-R, Park H-J. Pediococcus Pentosaceus from the Sweet Potato Fermented Ger-Minated Brown Rice Can Inhibit Type I Hypersensitivity in RBL-2H3 Cell and BALB/c Mice Models. Microorganisms. 2021; 9(9):1855. https://doi.org/10.3390/microorganisms9091855

Chicago/Turabian Style

Dhong, Kyu-Ree, and Hye-Jin Park. 2021. "Pediococcus Pentosaceus from the Sweet Potato Fermented Ger-Minated Brown Rice Can Inhibit Type I Hypersensitivity in RBL-2H3 Cell and BALB/c Mice Models" Microorganisms 9, no. 9: 1855. https://doi.org/10.3390/microorganisms9091855

APA Style

Dhong, K.-R., & Park, H.-J. (2021). Pediococcus Pentosaceus from the Sweet Potato Fermented Ger-Minated Brown Rice Can Inhibit Type I Hypersensitivity in RBL-2H3 Cell and BALB/c Mice Models. Microorganisms, 9(9), 1855. https://doi.org/10.3390/microorganisms9091855

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
