Molecular Variability and Host Distribution of ‘Candidatus Phytoplasma solani’ Strains from Different Geographic Origins
by
and
Nicoletta Contaldo
1,*,
Jelena Stepanović
2,
Francesco Pacini
1,
Assunta Bertaccini
1
and
Bojan Duduk
2 1
Department of Agricultural and Food Sciences, Alma Mater Studiorum-University of Bologna, 40127 Bologna, Italy
2
Institute of Pesticides and Environmental Protection, 11080 Belgrade, Serbia
*
Author to whom correspondence should be addressed.
Microorganisms 2021, 9(12), 2530; https://doi.org/10.3390/microorganisms9122530
Submission received: 14 November 2021
/
Revised: 29 November 2021
/
Accepted: 1 December 2021
/
Published: 7 December 2021
(This article belongs to the Section Plant Microbe Interactions)
Abstract
:The knowledge of phytoplasma genetic variability is a tool to study their epidemiology and to implement an effective monitoring and management of their associated diseases. ‘Candidatus Phytoplasma solani’ is associated with “bois noir” disease in grapevines, and yellowing and decline symptoms in many plant species, causing serious damages during the epidemic outbreaks. The epidemiology of the diseases associated with this phytoplasma is complex and related to numerous factors, such as interactions of the host plant and insect vectors and spreading through infected plant propagation material. The genetic variability of ‘Ca. P. solani’ strains in different host species and in different geographic areas during the last two decades was studied by RFLP analyses coupled with sequencing on vmp1, stamp, and tuf genes. A total of 119 strains were examined, 25 molecular variants were identified, and the variability of the studied genes was linked to both geographic distribution and year of infection. The crucial question in ‘Ca. P. solani’ epidemiology is to trace back the epidemic cycle of the infections. This study presents some relevant features about differential strain distribution useful for disease monitoring and forecasting, illustrating and comparing the phytoplasma molecular variants identified in various regions, host species, and time periods.
1. Introduction
“Bois noir” (BN), the most widespread grapevine yellows disease, represents a worldwide threat to viticulture. It is associated with the presence of ‘Candidatus Phytoplasma solani’ [1], an obligate cell-wall-lacking bacterium that belongs to the class Mollicutes and is transmitted by polyphagous phloem-feeding insects [2,3]. It is enclosed in the 16SrXII-A ribosomal subgroup and associated also with the “stolbur” disease in vegetable crop species, mostly belonging to the Solanaceae (tomato, potato, and pepper) and Apiaceae (carrot, celery, and parsley) families [4,5]. Due to its complex ecology comprising diverse insect vectors and a broad range of host plant species, it is difficult to design effective strategies for the management of both “bois noir” and “stolbur” diseases. Insect vectors represent one of the critical points in the spread of this phytoplasma. The polyphagous cixiid Hyalesthes obsoletus Signoret transmitting the phytoplasma is ubiquitous in Europe to a wide range of wild and cultivated plants [6,7,8,9,10], which in return represent a reservoir of the pathogen in and outside the cultivated fields. Reptalus panzeri and R. quinquecostatus have been reported as vectors of BN in Serbian and French vineyards, respectively [11,12], while Anaceratagallia ribauti was reported as vector of “stolbur” to broad bean plants [13]. Other studies described the ability of R. panzeri collected in maize fields with a reddening disease to transmit ‘Ca. P. solani’ to grapevine plants [11]. Recent transmission trials conducted with insects collected in a Northern Italy vineyard showed that at least eight insect species (Aphrodes makarovi, Dicranotropis hamata, Dictyophara europaea, Euscelis incisus, Euscelidius variegatus, Laodelphax striatellus, Philaenus spumarius, and Psammotettix alienus/confinis) are vectoring BN [14], therefore confirming the complex epidemiology of ‘Ca. P. solani’-associated diseases [1]. Moreover, a large genetic diversity was described for this phytoplasma after grapevine-infecting strain molecular characterization on multiple genes (i.e., tuf, secY, vmp1, and stamp), highlighting the presence of many genetic lineages or variants [15,16,17], and of a positive selective pressure determining the strain population complexity in different vineyard agroecosystems [18]. One of the first genes used for epidemiological studies is the housekeeping gene tuf (elongation factor Tu), of which four variants and several subvariants (tuf types) were described in Europe [19,20,21,22,23]. ‘Ca. P. solani’ tuf type b1 was mainly identified in Hyalesthes obsoletus and Convolvulus arvensis, Vitex agnus-castus and Crepis foetida, and Reptalus panzeri [20,21,22]. Tuf types a and b2, harbored by Urtica dioica, are reported to be only transmitted by H. obsoletus. A tuf type c was erratically detected in hedge bindweed (Calystegia sepium) in a restricted area of Germany [19,24]; a tuf type b3 variant was reported in vineyards in the Republic of Azerbaijan [25]; and a tuf type d was very recently described in Serbia, in a few crop species (sugar beet, parsnip, and parsley) [23].
Molecular epidemiological studies focused on the distribution of BN and “stolbur” strains in their hosts (plants and insects) increased the knowledge about their transmission in vineyard agroecosystems and natural environments. Recently, the use of several molecular markers suggest a possibility to differentiate BN strains for their differential virulence in grapevine plants [17,26]. However, in most cases molecular markers are mainly used in combination to resolve epidemic cycles at a regional level [11,20,21,24,27,28,29,30].
Multilocus sequence typing (MLST), based on molecular characterization of more variable genes such as vmp1 and stamp, evidenced a large variability among ‘Ca. P. solani’ strains within the tuf types [17,31]. Molecular approaches, using vmp1- and stamp-based molecular markers, allowed the increase of the knowledge of these phytoplasma population structures and dynamics [17,32] and their transmission routes throughout vineyards and their surroundings [21,33].
In the present study, a characterization of ‘Ca. P. solani’ strains collected in the last two decades in different European regions and from different host species was carried out by RFLP analyses and sequencing of tuf, stamp, and vmp1 genes to verify possible correlation between the variants and the disease outbreaks towards designing focused monitoring and control strategies.
2. Materials and Methods
2.1. Sources of Nucleic Acid
In this study, 119 ‘Ca. P. solani’ strains identified on the 16S ribosomal gene (data not shown) collected during 20 years from nine European countries (Serbia-46, Italy-47, Hungary-10, Portugal-7, Bulgaria-4, France-2, Montenegro-1, Spain-1, and Slovenia-1) from 15 naturally infected plant species (grapevine-54, tomato-13, periwinkle-9, corn-6, parsley-5, parsnip-4, potato-4, bindweed-4, celery-3, pepper-3, tobacco-3, valerian-3, carrot-2, Parthenocissus quinquefolia-2, and P. tricuspidata-1) and the insect vector H. obsoletus (3) collected in or near vineyards were employed. Total nucleic acids were extracted using a phenol/chloroform (C/P) [34] or a CTAB [35] protocol. The extracted DNAs were diluted to 20 ng/μL (C/P) and 1 to 100 (CTAB) with sterile deionized water (SDW) for direct PCR assays, and subsequently the amplicons were diluted 1:30 for nested PCRs; 1 μL was used as a template for the PCR and nested PCR procedures. The phytoplasma strains MOL and STOF (from France), STOL (from Serbia), ASLO (from Slovenia), and P-TV (from Italy), all from the periwinkle (Catharanthus roseus (L.) G. Don) collection maintained at the University of Bologna [36], were used as positive controls.
2.2. Amplification of ‘Ca. P. solani’ Strains
The genes tuf, stamp, and vmp1 were studied for molecular differentiation of the ‘Ca. P. solani’ strains used. All the PCRs were performed in a final volume of 25 μL containing 12.5 μL of PCR Master Mix (2X) (Fermentas, Lithuania, 0.05 U/μL Taq DNA polymerase, reaction buffer, 4 mM MgCl2, and 0.4 mM of each dNTP), 10.5 μL of SDW, 0.5 μL of each primer at 20 pmol/μL (final concentration 0.4 μM), and 1 μL DNA template (20 ng). Positive controls were used in all PCR amplifications. Samples containing SDW as a template were used as negative control in both the PCR and nested PCR assays.
The tuf gene was amplified using the primer pairs fTuf1/rTuf1 and fTufAy/rTufAy in nested PCR [37]. The stamp gene was amplified with primers StampF and StampR0 and the nested primers StampF1 and StampR1 following described reaction conditions [15]. The vmp1 gene was amplified with H10F1/R1 [38], followed by nested PCR with the TYPH10F/R primer pair [39]. A 6 μL aliquot of PCR products was separated by electrophoresis through 1% agarose gel, stained with ethidium bromide, and visualized with UV transilluminator with a 1 kb DNA ladder (Bioline, England) as marker.
2.3. Restriction Fragment Length Polymorphism (RFLP) Analyses
RFLP analyses of the tuf, stamp, and vmp1 gene amplicons were performed using HpaII, Tru1I, and RsaI restriction enzymes, respectively. All the enzymes were from Thermo Fisher, Lithuania, and were used according to the manufacturer’s instructions. Obtained restriction products were separated by electrophoresis in 6.7% or 8% polyacrylamide gel, stained, and visualized as described above, using the ΦX174/HaeIII DNA ladder (Fermentas, Lithuania) as a marker. To verify the accuracy in the determination and recognition of the different RFLP patterns obtained in the PCR⁄RFLP analysis, the pDRAW32 software (AcaClone software, http://www.acaclone.com (accessed on 15 September 2021)) was used for virtual digestion of the vmp1 and stamp sequenced amplicons with the Tru1I and RsaI endonuclease, respectively. Tuf amplicons showed RFLP profiles less variable, therefore the attribution to tuf variants was made based on RFLP and sequences similarity.
2.4. Sequencing and Phylogenetic Analyses
Direct sequencing of 88 amplicons from the different genes (9 tuf, 47 stamp, and 32 vmp1) selected considering the RFLP profiles, the host species, and the quality of the amplicons bands in the agarose gel, was performed by Macrogen Inc. (Netherlands) on both strands, using the same primers employed for the amplification. Raw sequences were assembled and edited using Pregap4 and Gap4 software from the Staden package [40], and the representative ones were deposited in GenBank database. Nucleotide sequences were compiled in FASTA format, and multiple alignments were performed with ClustalW [41]. The vmp1 gene sequences were trimmed to approximately 1,300 nt and the stamp gene sequences to approximately 500 nt, and phylogenetic analyses were carried out with MEGA X [42] using the neighbor-joining method [43], with 1000 bootstrap replicates to estimate the solidity of the analysis. Phylogenetic trees were constructed based on nucleotide sequences of vmp1 and stamp genes produced in this work, strain’s sequences from previous studies [17,26,44,45] and retrieved from the NCBI GenBank (Table 1). Stamp gene nucleotide sequences were analyzed by sequence identity matrix to calculate their genetic diversity and aligned with 70 sequences of previously defined stamp sequence variants [26,44,45]. A nucleotide sequence identity of 100% was employed for the sequence variant attribution.
3. Results
The 119 ‘Ca. P. solani’ strains tested provided amplification on the stamp and vmp1 genes in 111 samples, while the tuf gene was positive in 108 samples. Readable RFLP profiles for all three genes were obtained for 94 strains (Table 2), while for 25 samples, one or two genes did not give amplification or the RFLP profile was inconclusive. Twenty samples gave amplification on two genes, while five grapevine samples were amplified only on one gene, indicating a different rate of amplification according with the gene employed.
RFLP and sequencing analysis on the tuf gene showed the prevalence of the tuf type b1 profile [19,20] identified in samples from Serbia, Italy, Spain, Portugal, Montenegro, and Bulgaria, while tuf type b2 was only found in two grapevine samples from Hungary. Additionally, 15 grapevine samples from Italy, mainly collected in 2010 and 2020 and one sample collected in 2019, showed a tuf type a profile, which was also identified in Parthenocissus spp. from Italy in 2005, 2018, and 2020 (Table 2).
A phylogenetic tree was constructed with 26 vmp1 gene sequences representing the different RFLP profiles observed, and 18 strains retrieved from NCBI GenBank database representing the vmp1 gene profiles according to the literature [11,28]. The sequences generally clustered according to the RFLP profiles (Figure 1). Only the two samples (strain P-TV from Italy and pepper 223-17 from Serbia) that exhibited a 1,200 bp fragment after nested TYPH10F/R PCR on vmp1 gene showed an identical RsaI restriction profile (Figure 2); while in the phylogenetic tree, they appeared to cluster separately (Figure 1). These two strains were differentiated by AluI virtual digestion (data not shown) and resulted in the V7-A and V7 profiles, respectively [11]. The enzymatic digestion with RsaI on vmp1 gene amplicons allowed the identification of 14 RFLP profiles (Table 2), according to 23 V-types reported in previous studies [11,28,31]. Furthermore, three vmp1 gene amplicon sizes were obtained, approximately 1,700, 1,450, and 1,200 bp long. The largest polymorphism was found in the 1,450 bp amplicons, for which 10 RFLP profiles were differentiated (V2-TA, V3, V4, V11, V14, V15, V18, V17, und1, und2, and und3); on the other hand, only the profiles V7 and V7-A from the shortest amplicon and V11 and V12 from the longest were detected (Figure 2).
The RFLP analysis conducted on stamp gene amplicons revealed the presence of five profiles (Table 2). A phylogenetic tree was constructed using representative nucleotide sequences of the stamp gene obtained in this study and 70 stamp sequences retrieved from previous studies [19,27,44,46]. The phylogenetic analysis showed the presence of 11 stamp variants (St1-3, St2-11, St3-2, St4-3, St5-8, St8-4, St9-1, St10-2, St11-2, St18-2, and St19-6) determined by comparison with the available stamp gene dataset [44,46]. Two variants identified in tomato from Portugal and grapevine from Spain were found for the first time in the present study and were deposited at NCBI GenBank with the accession numbers MW759855 (tomato P3) and MW759856 (grapevine 3S) (Table 3).
The phylogenetic tree constructed using the stamp representative sequences showed the presence of two main stamp clusters, a and b, enclosing tuf type a (nettle-related) and tuf type b (bindweed-related) samples, respectively (Figure 3). The subcluster a-II enclosed stamp variants St8, St9, and St19 related to tuf type a sample (grapevine PM1, grapevine TB3, Parthenocissus 1). The subcluster a-I encompasses St11 stamp sequences enclosed in the tuf type b2 (grapevine 10). Moreover, grapevine TB11, tuf type b1, was enclosed within the subcluster a-I, while all the other stamp variants were enclosed in stamp b-I (St10), stamp b-II (St1, St2, St5), and stamp b-III (St3, St4) subclusters. The 25 lineages obtained by the combination of the restriction profiles of the tested genes were mainly discriminated by the vmp1 gene that allowed differentiation of 15 variants (Table 2). V2-TA, V4, and V3 were the prevalent profiles, detected in 19.8%, 19.8%, and 25.5% of the samples, respectively (Figure 4). Furthermore, V2-TA, V3, V4, V12, and V14 profiles were detected in both grapevines and other species, whereas und1, und3, V11, and V18 were only detected in grapevines. Profiles und1 (Serbia), und2 (Slovenia), and und3 (Spain), detected only in grapevines, were unique, and differed from the already-described profiles.
Moreover, one sample from tobacco from Serbia (strain 150/10) and one sample from grapevine from Italy (strain RA 9827) showed mixed profiles (Table 2). Most of the samples tested originated from Serbia and Italy, and the distribution of the different vmp1 RFLP profiles showed that only the V14 profile was detected in both countries. Considering all the samples tested, five vmp1 profiles could be detected both in grapevines and in other host species (profiles V2-TA, V3, V4, V12, and V14) (Figure 5).
4. Discussion
The genetic variability of the ‘Ca. P. solani’ strains and the broad range of different plant host species infected are the key points in the study of population genetic and ecology of this phytoplasma. To provide an overall insight into its genetic variability and host distribution, two membrane protein coding genes (vmp1 and stamp) involved in the recognition and interaction with its hosts [15,38] were studied. They showed a high sequence variability that make them useful to study the phytoplasma population dynamics. Moreover, the study of the elongation factor Tu (tuf) gene allowed the distinction of three variants (tuf type a, tuf type b2 and tuf type b1) involved in two BN disease cycles [19,20], while no other tuf variants were found [23,25,46]. Additionally, the first identification of a tuf type a (nettle-associated type) in naturally infected P. quinquefolia and P. tricuspidata added new host plant species to this ‘Ca. P. solani’ tuf type and indicated its possible involvement in alternative epidemiological cycles with different and previously undescribed, host species.
The polymorphisms detected in the stamp gene improved the knowledge of the phytoplasma strain population structure and dynamics. Currently, 70 nucleotide sequence variants have been described [19,26,31,32,44,45], and the two new variants detected in this work, together with the 11 already published, confirmed the large genetic variability of this gene. The definition of the stamp variants showed that the genetic variability of this gene could be underestimated and not fully exploited by the RFLP analysis alone, since variants are often characterized by small inserts or deletions, not detected by the restriction analysis. Considering the vmp1 gene, the host species distribution of V2-TA and V4 profiles was quite wide, since the first was detected in corn, grapevine, potato, tomato, parsley, and parsnip; while the latter was identified in bindweed, carrot, grapevine, potato, tomato, parsley, periwinkle, parsnip, tobacco, and valerian. The vmp1 V4 profile was detected in grapevine samples from Italy, Croatia, Serbia, and Bosnia and Herzegovina [11,27,29,47,48,49]. On the contrary, the V3 profile showed a host species distribution limited to grapevine, H. obsoletus, P. quinquefolia, and P. tricuspidata from Italy, and it was detected in all the strains tuf type a, only in Italian samples. The presence of V14 profile in potato, grapevine, bindweed, celery, parsley, periwinkle, pepper, and valerian was confirmed mainly in Eastern European countries, confirming previous reports [17,31]. Out of the 17 samples in which it was identified (from Italy, Serbia, Montenegro, and Hungary), it was detected only in one grapevine sample from Central Italy (strain J1 from the Marche region).
This study indicated that the variability and, in some cases, the unique combination of the environmental and agroecological conditions, play an important role in the strain selection, making them prevalent and/or endemic in a specific geographic area. The presence of previously unreported vmp1 RFLP patterns (und1, und2, and und3) demonstrated the high degree of plasticity of this gene, which suggests further studies to fully understand its complexity and variability in this phytoplasma. However, studies focusing on correlation between different symptomatology and strain variability are still necessary to confirm the presence of virulent or mild strains in the diverse host species.
While the high variability of the vmp1 gene has proven to be useful for discriminating ‘Ca. P. solani’ lineages, the results of this study indicated that the epidemiology of this phytoplasma is more complex than already shown, since strains connected to nettle and grapevine cycle [26] have been identified in new host species. Despite that the strains analyzed in this work were collected in different years and countries, the variability detected showed incomplete consistency with the year or the country of collection. However, the lineage I was detected from 2005 to 2020 only in grapevines and Parthenocissus spp. and in Italian cultivations, while the lineage III was only identified in Serbia and Hungary from 2009 to 2018 in diverse plant host species. The lineage IV was identified in diverse host species only in Serbia until 2013, but in 2016 and 2017, it was also identified in Italy and Montenegro, and the lineage IX was only retrieved in 2009–2013 in a few host species in Serbia and Bulgaria. This survey’s results confirmed that the plasticity of these genes can be connected to both year and location of collection; however, comparable analyses of more ‘Ca. P. solani’ strains should be done to confirm the epidemiological trends indicated by the identified lineage diversity.
Asymptomatic, infected propagation material trade, due to the lack of screening and certification protocols, and the ability of diverse insect vectors to transmit ‘Ca. P. solani’ in the different geographical regions, are jeopardizing molecular-based epidemiological studies. It is nevertheless very important to continue the molecular monitoring of the ‘Ca. P. solani’ populations to verify the possible emergence or re-emergence and spread of epidemic strains of the pathogen also identified for their genetic homogeneity in the studied genes.
Author Contributions
Conceptualization, N.C., F.P., J.S., A.B. and B.D.; methodology, N.C.; software, F.P., J.S. and B.D; validation, N.C., F.P., J.S., A.B. and B.D.; formal analysis, N.C., F.P., J.S. and B.D.; writing—original draft preparation, N.C., F.P., J.S., A.B. and B.D.; writing—review and editing, N.C., F.P. and A.B. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external founding.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The archived datasets analyzed or generated during this study were deposited in the NCBI GenBank.
Acknowledgments
F.P. thanks the Department of Agricultural and Food Sciences of Bologna University for the support of his stage at the Institute of Pesticides and Environmental Protection, Belgrade (Serbia).
Conflicts of Interest
The authors declare no conflict of interest.
References
- Quaglino, F.; Zhao, Y.; Casati, P.; Bulgari, D.; Bianco, P.A.; Wei, W.; Davis, R.E. ‘Candidatus Phytoplasma solani’, a novel taxon associated with “stolbur” and “bois noir”-related diseases of plants. Int. J. Syst. Evol. Microbiol. 2013, 63, 2879–2894. [Google Scholar] [CrossRef] [Green Version]
- Lee, I.-M.; Gundersen-Rindal, D.E.; Bertaccini, A. Phytoplasma: Ecology and Genomic Diversity. Phytopathology 1998, 88, 1359–1366. [Google Scholar] [CrossRef] [Green Version]
- Weintraub, P.G.; Beanland, L. Insect vectors of phytoplasmas. Annu. Rev. Èntomol. 2006, 51, 91–111. [Google Scholar] [CrossRef]
- Carraro, L.; Ferrini, F.; Martini, M.; Ermacora, P.; Loi, N. A serious epidemic of “stolbur” on celery. J. Plant Pathol. 2008, 90, 131–135. [Google Scholar]
- Navrátil, M.; Válová, P.; Fialová, R.; Lauterer, P.; Šafářová, D.; Starý, M. The incidence of stolbur disease and associated yield losses in vegetable crops in South Moravia (Czech Republic). Crop. Sci. 2009, 28, 898–904. [Google Scholar] [CrossRef]
- Suchov, K.C.; Vovk, A.M. Biology of the leafhopper Hyalesthes obsoletus Signoret, vector of the “stolbur” virus. Trudy Inst. Gen. 1948, 15, 193–202. [Google Scholar]
- Fos, A.; Danet, J.-L.; Zreik, L.; Garnier, M.; Bové, J.-M. Use of a monoclonal antibody to detect the “stolbur” mycoplasma-like organism in plants and insects and to identify a vector in France. Plant Dis. 1992, 76, 1092–1096. [Google Scholar] [CrossRef]
- Maixner, M. Transmission of German grapevine yellows (“Vergilbungskrankheit”) by the planthopper Hyalesthes obsoletus (Auchenorrhyncha: Cixiidae). Vitis 1994, 33, 103–104. [Google Scholar]
- Sforza, R.; Clair, D.; Daire, X.; Larrue, J.; Boudon-Padieu, E. The role of Hyalesthes obsoletus (Hemiptera: Cixiidae) in the oc-currence of “bois noir” of grapevines in France. J. Phytopath. 1998, 146, 549–556. [Google Scholar] [CrossRef]
- Mori, N.; Mitrović, J.; Smiljković, M.; Duduk, N.; Paltrinieri, S.; Bertaccini, A.; Duduk, B. Hyalesthes obsoletus in Serbia and its role in the epidemiology of corn reddening. Bull. Insectol. 2013, 66, 245–250. [Google Scholar]
- Cvrković, T.; Jović, J.; Mitrović, M.; Krstić, O.; Toševski, I. Experimental and molecular evidence of Reptalus panzeri as a nat-ural vector of “bois noir”. Plant Pathol. 2014, 63, 42–53. [Google Scholar] [CrossRef] [Green Version]
- Chuche, J.; Danet, J.-L.; Salar, P.; Thiery, D. Transmission of ‘Candidatus Phytoplasma solani’ by Reptalus quinquecostatus (Hemiptera: Cixiidae). Ann. Appl. Biol. 2016, 169, 214–223. [Google Scholar] [CrossRef]
- Riedle-Bauer, M.; Sára, A.; Regner, F. Transmission of a Stolbur Phytoplasma by the Agalliinae Leafhopper Anaceratagallia ribauti(Hemiptera, Auchenorrhyncha, Cicadellidae). J. Phytopathol. 2008, 156, 687–690. [Google Scholar] [CrossRef]
- Quaglino, F.; Sanna, F.; Moussa, A.; Faccincani, M.; Passera, A.; Casati, P.; Bianco, P.A.; Mori, N. Identification and ecology of alternative insect vectors of ’Candidatus Phytoplasma solani’ to grapevine. Sci. Rep. 2019, 9, 19522. [Google Scholar] [CrossRef]
- Fabre, A.; Danet, J.-L.; Foissac, X. The “stolbur” phytoplasma antigenic membrane protein gene stamp is submitted to diversifying positive selection. Gene 2011, 472, 37–41. [Google Scholar] [CrossRef]
- Murolo, S.; Marcone, C.; Prota, V.; Garau, R.; Foissac, X.; Romanazzi, G. Genetic variability of the “stolbur” phytoplasma vmp1 gene in grapevines, bindweeds and vegetables. J. Appl. Microbiol. 2010, 109, 2049–2059. [Google Scholar] [CrossRef]
- Quaglino, F.; Maghradze, D.; Casati, P.; Chkhaidze, N.; Lobjanidze, M.; Ravasio, A.; Passera, A.; Venturini, G.; Failla, O.; Bianco, P.A. Identification and Characterization of New ‘Candidatus Phytoplasma solani’ Strains Associated with Bois Noir Disease in Vitis vinifera L. Cultivars Showing a Range of Symptom Severity in Georgia, the Caucasus Region. Plant Dis. 2016, 100, 904–915. [Google Scholar] [CrossRef] [Green Version]
- Murolo, S.; Mancini, V.; Romanazzi, G. Spatial and temporal “stolbur” population structure in a cv. Chardonnay vineyard according to vmp1 gene characterisation. Plant Pathol. 2014, 63, 700–707. [Google Scholar] [CrossRef]
- Langer, M.; Maixner, M. Molecular characterisation of grapevine yellows associated phytoplasmas of the “stolbur”-group based on RFLP-analysis of non-ribosomal DNA. Vitis 2004, 43, 191–199. [Google Scholar]
- Aryan, A.; Brader, G.; Mörtel, J.; Pastar, M.; Riedle-Bauer, M. An abundant ‘Candidatus Phytoplasma solani’ tuf b strain is associated with grapevine, stinging nettle and Hyalesthes obsoletus. Eur. J. Plant Pathol. 2014, 140, 213–227. [Google Scholar] [CrossRef] [Green Version]
- Kosovac, A.; Radonjić, S.; Hrnčić, S.; Krstić, O.; Toševski, I.; Jović, J. Molecular tracing of the transmission routes of “bois noir” in Mediterranean vineyards of Montenegro and experimental evidence for the epidemiological role of Vitex agnuscastus (Lamiaceae) and associated Hyalesthes obsoletus (Cixiidae). Plant Pathol. 2016, 65, 285–298. [Google Scholar] [CrossRef] [Green Version]
- Kosovac, A.; Jakovljević, M.; Krstić, O.; Cvrković, T.; Mitrović, M.; Toševski, I.; Jović, J. Role of plant-specialized Hyalesthes obsoletus associated with Convolvulus arvensis and Crepis foetida in the transmission of ‘Candidatus Phytoplasma solani’-inflicted “bois noir” disease of grapevine in Serbia. Eur. J. Plant Pathol. 2019, 153, 183–195. [Google Scholar] [CrossRef]
- Ćurčić, Ž.; Stepanović, J.; Zübert, C.; Taški-Ajduković, K.; Kosovac, M.A.; Rekanović, E.; Kube, M.; Duduk, B. Rubbery Taproot Disease of Sugar Beet in Serbia Associated with ‘Candidatus Phytoplasma solani’. Plant Dis. 2021, 105, 255–263. [Google Scholar] [CrossRef]
- Johannesen, J.; Foissac, X.; Kehrli, P.; Maixner, M. Impact of Vector Dispersal and Host-Plant Fidelity on the Dissemination of an Emerging Plant Pathogen. PLoS ONE 2012, 7, e51809. [Google Scholar] [CrossRef] [Green Version]
- Balakishiyeva, G.; Bayramova, J.; Mammadov, A.; Salar, P.; Danet, J.-L.; Ember, I.; Verdin, E.; Foissac, X.; Huseynova, I. Im-portant genetic diversity of ‘Candidatus Phytoplasma solani’ related strains associated with “bois noir” grapevine yellows and planthoppers in Azerbaijan. Eur. J. Plant Pathol. 2018, 151, 937–946. [Google Scholar] [CrossRef]
- Pierro, R.; Panattoni, A.; Passera, A.; Materazzi, A.; Luvisi, A.; Loni, A.; Ginanni, M.; Lucchi, A.; Bianco, P.A.; Quaglino, F. Proposal of A New Bois Noir Epidemiological Pattern Related to ‘Candidatus Phytoplasma Solani’ Strains Characterized by A Possible Moderate Virulence in Tuscany. Pathogens 2020, 9, 268. [Google Scholar] [CrossRef] [Green Version]
- Kostadinovska, E.; Quaglino, F.; Mitrev, S.; Casati, P.; Bulgari, D.; Bianco, P.A. Multiple gene analyses identify distinct “bois noir” phytoplasma genotypes in the Republic of Macedonia. Phytopath. Medit 2014, 53, 300–310. [Google Scholar]
- Atanasova, B.; Jakovljevic, M.; Spasov, D.; Jovic, J.; Mitrović, M.; Tosevski, I.; Cvrkovic, T. The molecular epidemiology of bois noir grapevine yellows caused by ‘Candidatus Phytoplasma solani’ in the Republic of Macedonia. Eur. J. Plant Pathol. 2015, 142, 759–770. [Google Scholar] [CrossRef] [Green Version]
- Delić, D.; Balech, B.; Radulović, M.; Lolić, B.; Karačić, A.; Vukosavljević, V.; Cvetković, T.J. Vmp1 and stamp genes variability of ‘Candidatus Phytoplasma solani’ in Bosnian and Herzegovinian grapevine. Eur. J. Plant Pathol. 2016, 145, 221–225. [Google Scholar] [CrossRef]
- Plavec, J.; Križanac, I.; Budinšćak, Ž.; Škorić, D.; Seruga-Musić, M. A case study of FD and BN phytoplasma variability in Croatia: Multigene sequence analysis approach. Eur. J. Plant Pathol. 2015, 142, 591–601. [Google Scholar] [CrossRef]
- Foissac, X.; Carle, P.; Fabre, A.; Salar, P.; Danet, J.-L. ‘Candidatus Phytoplasma solani’ genome project and genetic diversity in the Euro-Mediterranean basin Invited conference. In Proceedings of the Third European Bois Noir Workshop, Barcelona, Spain, 20–21 March 2013. [Google Scholar]
- Murolo, S.; Romanazzi, G. In-vineyard population structure of ‘Candidatus Phytoplasma solani’ using multilocus sequence typing analysis. Infect. Genet. Evol. 2015, 31, 221–230. [Google Scholar] [CrossRef]
- Mori, N.; Quaglino, F.; Tessari, F.; Pozzebon, A.; Bulgari, D.; Casati, P.; Bianco, P.A. Investigation on ‘Bois Noir’ epidemiology in north-eastern Italian vineyards through a multidisciplinary approach. Ann. Appl. Biol. 2015, 166, 75–89. [Google Scholar] [CrossRef]
- Prince, J.P.; Davis, R.E.; Wolf, T.K.; Lee, I.-M.; Mogen, B.D.; Dally, E.L.; Bertaccini, A.; Credi, R.; Barba, M. Molecular detection of diverse mycoplasma-like organisms (MLOs) associated with grapevine yellows and their classification with aster yellows, X- disease and elm yellows MLOs. Phytopathology 1993, 83, 1130–1137. [Google Scholar] [CrossRef]
- Angelini, E.; Clair, D.; Borgo, M.; Bertaccini, A.; Boudon-Padieu, E. “Flavescence dorée” in France and Italy—occurrence of closely related phytoplasma isolates and their near relationships to Palatinate grapevine yellows and an alder yellows phyto-plasma. Vitis 2001, 40, 79–86. [Google Scholar]
- Bertaccini, A. International Phytoplasmologist Working Group Web. 2014. Available online: http://www.ipwgnet.org/collection (accessed on 15 September 2021).
- Schneider, B.; Gibbs, K.S.; Seemüller, E. Sequence and RFLP analysis of the elongation factor Tu gene used in differentiation and classification of phytoplasmas. Microbiology 1997, 143, 3381–3389. [Google Scholar] [CrossRef] [Green Version]
- Cimerman, A.; Pacifico, D.; Salar, P.; Marzachì, C.; Foissac, X. Striking diversity of vmp1, a variable gene encoding a putative membrane protein of the “stolbur” phytoplasma. Appl. Environ. Microbiol. 2009, 75, 2951–2957. [Google Scholar] [CrossRef] [Green Version]
- Fialová, R.; Válová, P.; Balakishiyeva, G.; Danet, J.-L.; Šafárová, D.; Foissac, X.; Navratil, M. Genetic variability of “stolbur” phytoplasma in annual crop and wild plant species in South Moravia (Czech Republic). J. Plant Pathol. 2009, 91, 411–416. [Google Scholar]
- Staden, R.; Beal, K.F.; Bonfield, J.K. The Staden Package, 1998. In Bioinformatics Methods and Protocols; Springer: Berlin/Heidelberg, Germany, 2000; Volume 132, pp. 115–130. [Google Scholar] [CrossRef]
- Thompson, J.D.; Higgins, D.G.; Gibson, T.J. CLUSTAL W: Improving the sensitivity of progressive multiple sequence align-ment through sequence weighting, position-specific gap penalties and weight matrix choice. Nucleic Acids Res. 1994, 22, 4673–4680. [Google Scholar] [CrossRef] [Green Version]
- Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across Computing Platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
- Saitou, N.; Nei, M. The neighbor-joining method: A new method for reconstructing phylogenetic trees. Mol. Biol. Evol. 1987, 4, 406–425. [Google Scholar] [CrossRef]
- Quaglino, F.; Passera, A.; Faccincani, M.; Moussa, A.; Pozzebon, A.; Sanna, F.; Casati, P.; Bianco, P.A.; Mori, N. Molecular and spatial analyses reveal new insights on Bois noir epidemiology in Franciacorta vineyards. Ann. Appl. Biol. 2021, 179, 151–168. [Google Scholar] [CrossRef]
- Pierro, R.; Passera, A.; Panattoni, A.; Casati, P.; Luvisi, A.; Rizzo, D.; Bianco, P.A.; Quaglino, F.; Materazzi, A. Molecular Typing of Bois Noir Phytoplasma Strains in the Chianti Classico Area (Tuscany, Central Italy) and Their Association with Symptom Severity in Vitis vinifera ‘Sangiovese’. Phytopathology 2018, 108, 362–373. [Google Scholar] [CrossRef] [Green Version]
- Jamshidi, E.; Murolo, S.; Salehi, M.; Romanazzi, G. Sequence analysis of new tuf molecular types of ’Candidatus Phytoplasma solani’ in Iranian vineyards. Pathogens 2020, 9, 508. [Google Scholar] [CrossRef]
- Oliveri, C.; Pacifico, D.; D’Urso, V.; La Rosa, R.; Marzachì, C.; Tessitori, M. “Bois noir” phytoplasma variability in a Mediter-ranean vineyard system: New plant host and putative vectors. Austral. Plant Pathol. 2015, 44, 235–244. [Google Scholar] [CrossRef]
- Pacifico, D.; Alma, A.; Bagnoli, B.; Foissac, X.; Pasquini, G.; Tessitori, M.; Marzachì, C. Characterization of “bois noir” isolates by restriction fragment length polymorphism of a “stolbur”-specific putative membrane protein gene. Phytopathology 2009, 99, 711–715. [Google Scholar] [CrossRef] [Green Version]
- Seruga-Music, M.; Pusic, P.; Fabre, A.; Skoric, D.; Foissac, X. Variability of “stolbur” phytoplasma strains infecting Croatian grapevine by multilocus sequence typing. Bull. Insectol. 2011, 64, S39–S40. [Google Scholar]

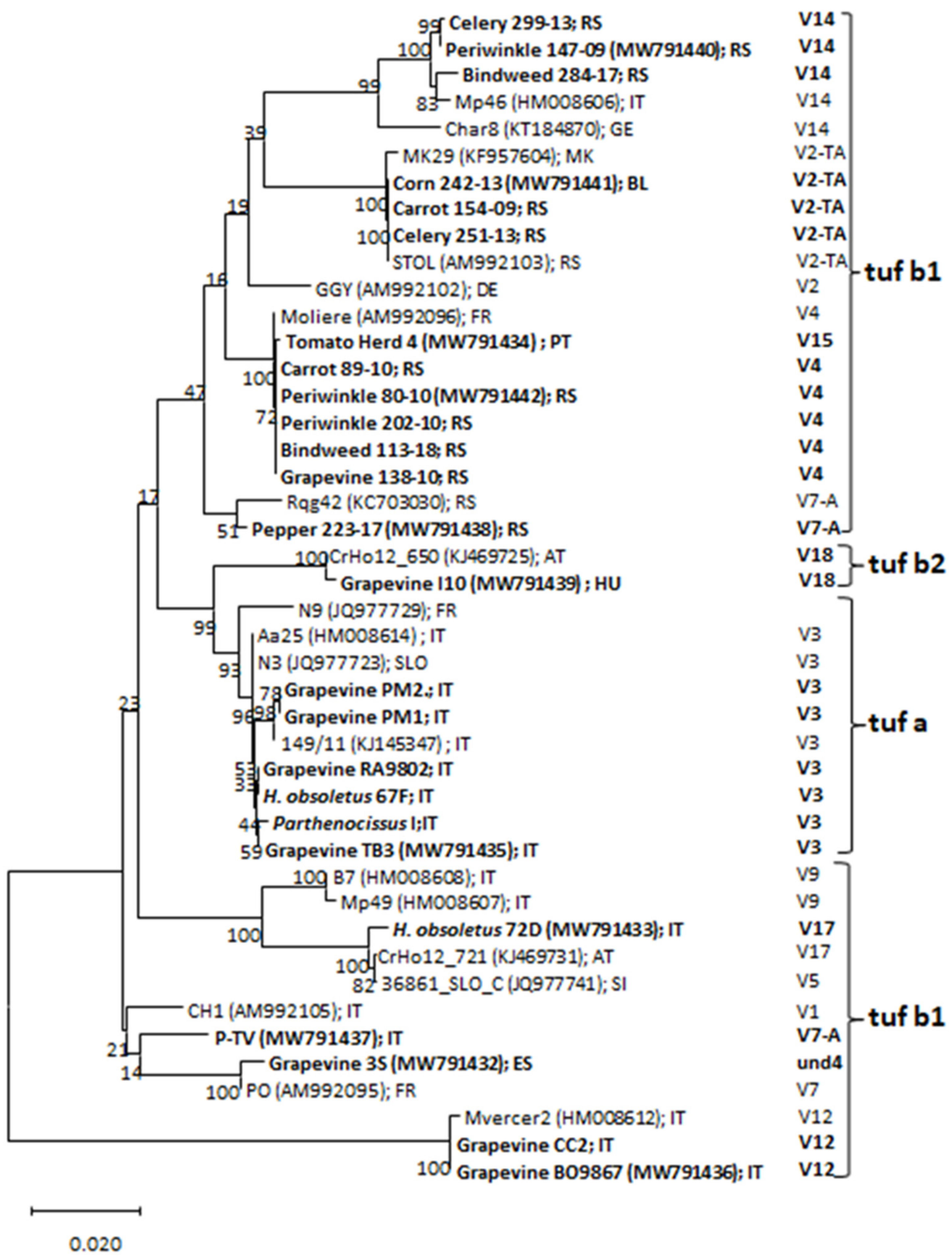

Figure 1.
Unrooted phylogenetic tree inferred from the ‘Ca. P. solani’ strain nucleotide sequences of the vmp1 gene. The phylogenetic analysis was carried out using the neighbor-joining method and bootstrap-replicated 1000 times. The phytoplasma strain acronyms are given in the tree. The GenBank accession number of each sequence is given in parentheses; gene sequences obtained in the present study are indicated in bold. RsaI-V vmp1 gene profiles are reported next to the tree. Clusters according to tuf types are also shown on the right. AT, Austria; BL, Bulgaria; DE, Germany; ES, Spain; FR, France; GE, Georgia; HU, Hungary; IT, Italy; MK, Macedonia; PT, Portugal; RS, Serbia; SLO, Slovenia.
Figure 1.
Unrooted phylogenetic tree inferred from the ‘Ca. P. solani’ strain nucleotide sequences of the vmp1 gene. The phylogenetic analysis was carried out using the neighbor-joining method and bootstrap-replicated 1000 times. The phytoplasma strain acronyms are given in the tree. The GenBank accession number of each sequence is given in parentheses; gene sequences obtained in the present study are indicated in bold. RsaI-V vmp1 gene profiles are reported next to the tree. Clusters according to tuf types are also shown on the right. AT, Austria; BL, Bulgaria; DE, Germany; ES, Spain; FR, France; GE, Georgia; HU, Hungary; IT, Italy; MK, Macedonia; PT, Portugal; RS, Serbia; SLO, Slovenia.
Figure 2.
(a) Agarose gel (1%) showing representative amplicon sizes of the vmp1 gene obtained with the nested primer pair TYPH10F/R. In lanes V2-TA, V4, V14, and V3: amplicons of about 1450 bp; in lanes V7-A: amplicons of about 1200 bp; in lane V12: an amplicon of about 1700 bp. M: Ladder, 1 kb DNA; (b) Polyacrylamide gel (6.7%) showing representative RsaI RFLP patterns of digested vmp1 gene amplicons obtained with the primer pair TYPH10F/R. M: Ladder, ΦX174 HaeIII digested with fragment sizes in base pairs from top to bottom of 1353, 1078, 872, 603, 310, 281, 271, 234, 194, 118, and 72.
Figure 2.
(a) Agarose gel (1%) showing representative amplicon sizes of the vmp1 gene obtained with the nested primer pair TYPH10F/R. In lanes V2-TA, V4, V14, and V3: amplicons of about 1450 bp; in lanes V7-A: amplicons of about 1200 bp; in lane V12: an amplicon of about 1700 bp. M: Ladder, 1 kb DNA; (b) Polyacrylamide gel (6.7%) showing representative RsaI RFLP patterns of digested vmp1 gene amplicons obtained with the primer pair TYPH10F/R. M: Ladder, ΦX174 HaeIII digested with fragment sizes in base pairs from top to bottom of 1353, 1078, 872, 603, 310, 281, 271, 234, 194, 118, and 72.

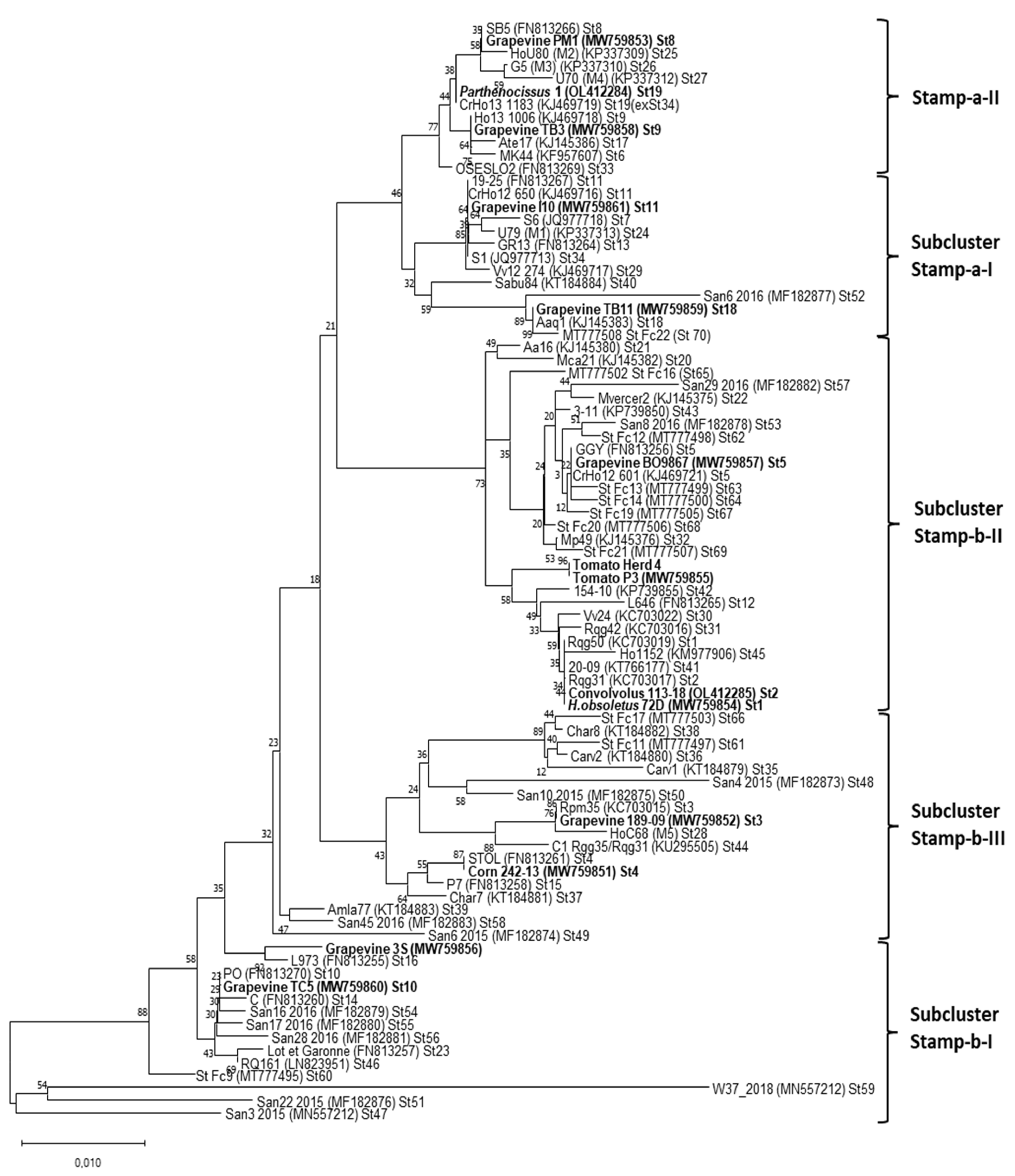

Figure 3.
Unrooted phylogenetic tree inferred from stamp gene nucleotide sequences of ‘Ca. P. solani’ strain representative of stamp sequence variants previously described [17,26,41,42] and identified in this work (Table 3). Phylogenetic analysis was carried out using the neighbor-joining method and bootstrap-replicated 1000 times. Phytoplasma strains included in the phylogenetic analysis are given in the tree image. The GenBank accession number of each sequence is given in parentheses; gene sequences obtained in the present study are indicated in bold. Clusters are shown on the right.
Figure 3.
Unrooted phylogenetic tree inferred from stamp gene nucleotide sequences of ‘Ca. P. solani’ strain representative of stamp sequence variants previously described [17,26,41,42] and identified in this work (Table 3). Phylogenetic analysis was carried out using the neighbor-joining method and bootstrap-replicated 1000 times. Phytoplasma strains included in the phylogenetic analysis are given in the tree image. The GenBank accession number of each sequence is given in parentheses; gene sequences obtained in the present study are indicated in bold. Clusters are shown on the right.

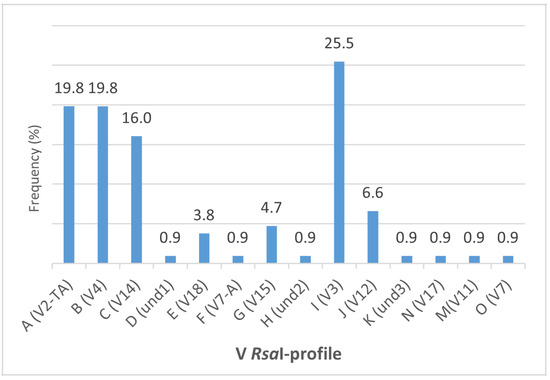

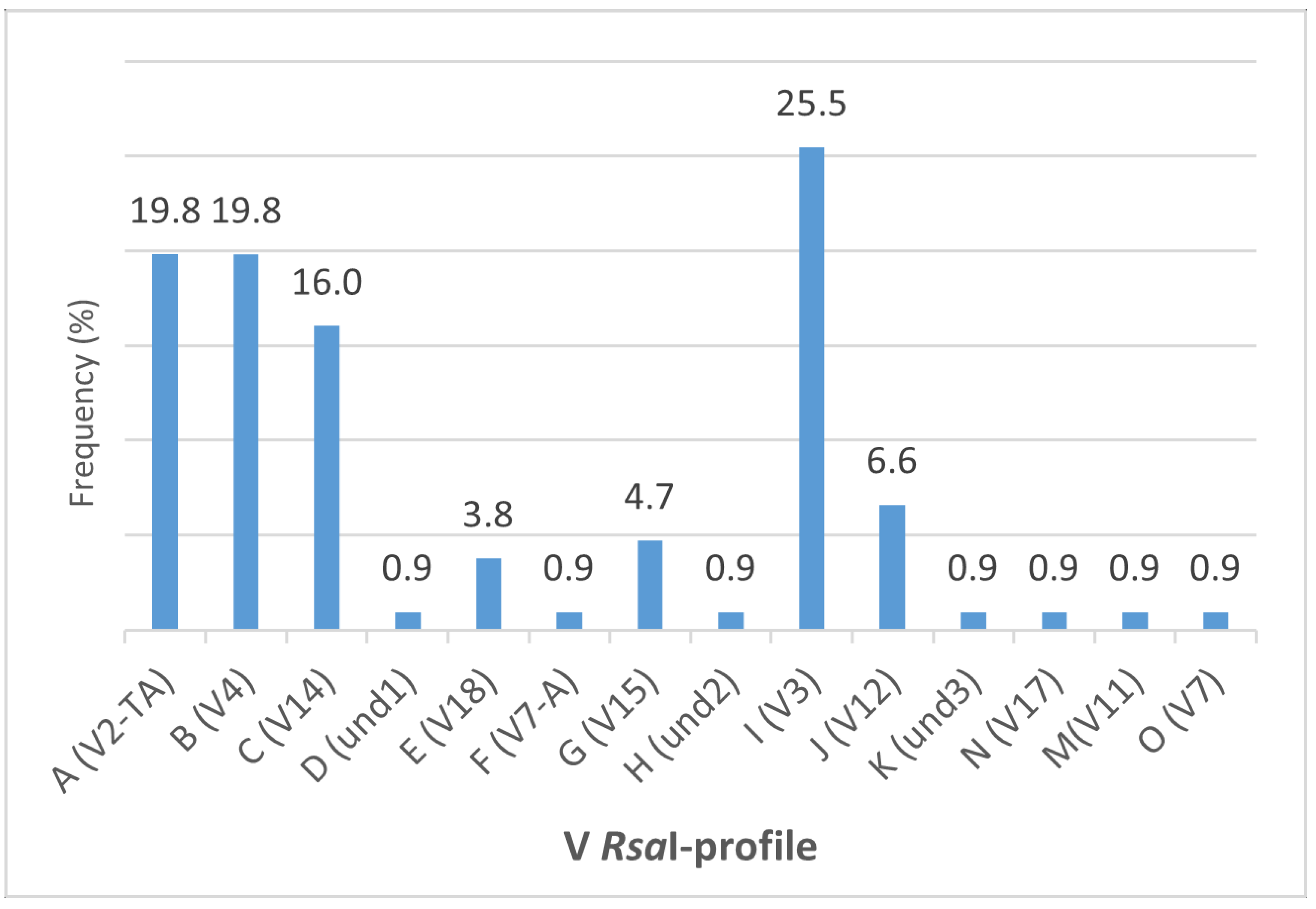

Figure 4.
Distribution of the RsaI-V vmp1 profiles determined by restriction fragment length polymorphism (RFLP) analysis of vmp1 amplicons in the 111 samples amplified.
Figure 4.
Distribution of the RsaI-V vmp1 profiles determined by restriction fragment length polymorphism (RFLP) analysis of vmp1 amplicons in the 111 samples amplified.

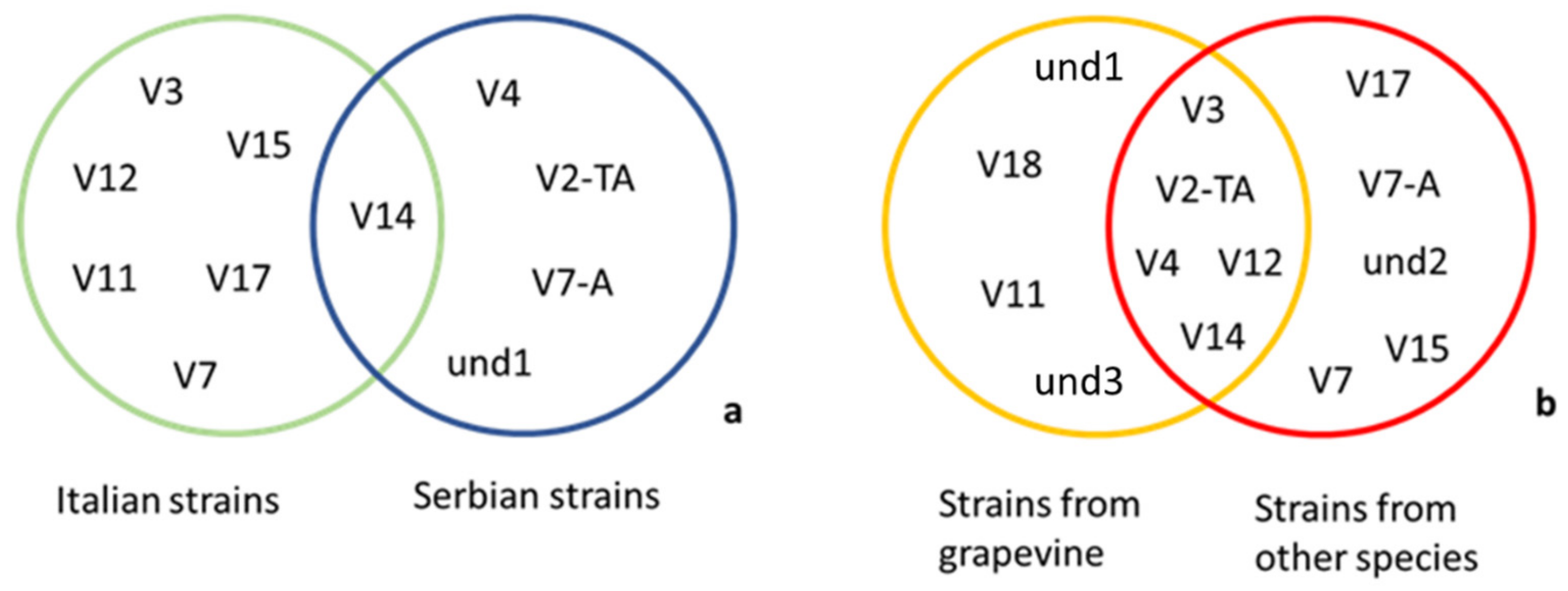

Figure 5.
(a) Vmp1-sharing RsaI-V profiles between Italian and Serbian strains; (b) Vmp1-sharing RsaI-V profiles between ‘Ca. P. solani’ strains from grapevine and from other host species.
Figure 5.
(a) Vmp1-sharing RsaI-V profiles between Italian and Serbian strains; (b) Vmp1-sharing RsaI-V profiles between ‘Ca. P. solani’ strains from grapevine and from other host species.
Table 1.
Sequences retrieved from the GenBank of vmp1 gene variants used in the phylogenetic analysis.
Table 1.
Sequences retrieved from the GenBank of vmp1 gene variants used in the phylogenetic analysis.
| Strain | Host | Country | GenBank Acc. No. |
|---|---|---|---|
| Mp46 | Grapevine | Italy | HM008606 |
| Char8 | Grapevine | Georgia | KT184870 |
| MK29 | Grapevine | Macedonia | KF957604 |
| STOL | Pepper | Serbia | AM992103 |
| GGY | Grapevine | Germany | AM992102 |
| Moliere | Prunus avium | France | AM992096 |
| Rqg42 | R. quinquecostatus | Serbia | KC703030 |
| CrHo12_650 | H. obsoletus | Austria | KJ469725 |
| N9 | Nettle | France | JQ977729 |
| Aa25 | Grapevine | Italy | HM008614 |
| N3 | Nettle | Slovenia | JQ977723 |
| 149/11 | Grapevine | Italy | KJ145347 |
| B7 | Grapevine | Italy | HM008608 |
| Mp49 | Grapevine | Italy | HM008607 |
| CrH12_721 | H. obsoletus | Austria | KJ469731 |
| 36861_SLO_C | Bindweed | Slovenia | JQ977741 |
| CH1 | Grapevine | Italy | AM992105 |
| PO | H. obsoletus | France | AM992095 |
| Mvercer2 | Grapevine | Italy | HM008612 |
Table 2.
RFLP profiles and lineages obtained on the genes of ‘Ca. P. solani’-infected samples analyzed. Identical background color means identical or possibly identical genotype.
Table 2.
RFLP profiles and lineages obtained on the genes of ‘Ca. P. solani’-infected samples analyzed. Identical background color means identical or possibly identical genotype.
| Samples | Host | Location | Year | Tuf | Stamp | Vmp1 | Lineage |
|---|---|---|---|---|---|---|---|
| Parthenocissus C | Virginia creeper | Italy | 2005 | A | E | I(V3) | I |
| Grapevine FC 10044 | Grapevine | Italy | 2010 | A | E(St19) | I(V3) | I |
| Grapevine BO 9866 | Grapevine | Italy | 2010 | A | E(St19) | I(V3) | I |
| Grapevine FE 9805 | Grapevine | Italy | 2010 | A | E(St8) | I(V3) | I |
| Grapevine RA 9802 | Grapevine | Italy | 2010 | A | E(St19) | I(V3) | I |
| Parthenocissus 1 | Virginia creeper | Italy | 2018 | A | E(st19) | I(V3) | I |
| Grapevine PM1 | Grapevine | Italy | 2019 | A | E(st8) | I(V3) | I |
| Grapevine TB1 | Grapevine | Italy | 2020 | A | E | I(V3) | I |
| Grapevine TB10 | Grapevine | Italy | 2020 | A | E | I(V3) | I |
| Grapevine TB2 | Grapevine | Italy | 2020 | A | E | I(V3) | I |
| Grapevine TB4 | Grapevine | Italy | 2020 | A | E | I(V3) | I |
| Grapevine TB7 | Grapevine | Italy | 2020 | A | E | I(V3) | I |
| Grapevine TC4 | Grapevine | Italy | 2020 | A | E | I(V3) | I |
| Grapevine TC6 | Grapevine | Italy | 2020 | A | E | I(V3) | I |
| Grapevine TB3 | Grapevine | Italy | 2020 | A | E(St9) | I(V3) | I |
| P. tricuspidata S | Boston Ivy | Italy | 2020 | A(mix) | E | I(V3) | I |
| Grapevine I6 | Grapevine | Hungary | 2008 | B | A(St5) | A(V2-TA) | II |
| Tomato 127 | Tomato | Hungary | 2008 | B | A | A(V2-TA) | II |
| Parsley 228/09 | Parsley | Serbia | 2009 | B | A | A(V2-TA) | II |
| Parsley 231/09 | Parsley | Serbia | 2009 | B | A | A(V2-TA) | II |
| Pepper 101/10 | Pepper | Serbia | 2010 | B | A | A(V2-TA) | II |
| Parsnip 153/16 | Parsnip | Serbia | 2016 | B | A | A(V2-TA) | II |
| MOL | Periwinkle | France | * | B | A | B(V4) | III |
| Potato N126a | Potato | Hungary | 2008 | B | A(St5) | B(V4) | III |
| Grapevine 190/09 | Grapevine | Serbia | 2009 | B | A | B(V4) | III |
| Parsley 226/09 | Parsley | Serbia | 2009 | B | A | B(V4) | III |
| Valeriana 262/09 | Valerian | Serbia | 2009 | B | A | B(V4) | III |
| Carrot 89/10 | Carrot | Serbia | 2010 | B | A(St1) | B(V4) | III |
| Grapevine 138/10 | Grapevine | Serbia | 2010 | B | A | B(V4) | III |
| Periwinkle 202/10 | Periwinkle | Serbia | 2010 | B | A(St1) | B(V4) | III |
| Periwinkle 80/10 | Periwinkle | Serbia | 2010 | B | A(St1) | B(V4) | III |
| Tobacco 111/10 | Tobacco | Serbia | 2010 | B | A | B(V4) | III |
| Tobacco 159/10 | Tobacco | Serbia | 2010 | B | A | B(V4) | III |
| Bindweed 79/11 | Bindweed | Serbia | 2011 | B | A | B(V4) | III |
| Grapevine 69/11 | Grapevine | Serbia | 2011 | B | A(St1) | B(V4) | III |
| Periwinkle 97/11 | Periwinkle | Serbia | 2011 | B | A(St1) | B(V4) | III |
| Parsnip 161/16 | Parsnip | Serbia | 2016 | B | A | B(V4) | III |
| Bindweed 113/18 | Bindweed | Serbia | 2018 | B | A(St2) | B(V4) | III |
| Potato N126b | Potato | Hungary | 2008 | B | A(St5) | C(V14) | IV |
| Periwinkle 147/09 | Periwinkle | Serbia | 2009 | B | A(St2) | C(V14) | IV |
| Valeriana 224/09 | Valerian | Serbia | 2009 | B | A | C(V14) | IV |
| Grapevine 122/10 | Grapevine | Serbia | 2010 | B | A | C(V14) | IV |
| Grapevine 124/10 | Grapevine | Serbia | 2010 | B | A | C(V14) | IV |
| Grapevine 134/10 | Grapevine | Serbia | 2010 | B | A | C(V14) | IV |
| Parsnip 162/16 | Parsnip | Serbia | 2010 | B | A | C(V14) | IV |
| Pepper 100/10 | Pepper | Serbia | 2010 | B | A | C(V14) | IV |
| Bindweed 81/11 | Bindweed | Serbia | 2011 | B | A | C(V14) | IV |
| Grapevine 66/11 | Grapevine | Serbia | 2011 | B | A(St1) | C(V14) | IV |
| Grapevine 113/12 | Grapevine | Serbia | 2012 | B | A | C(V14) | IV |
| Celery 252/13 | Celery | Serbia | 2013 | B | A | C(V14) | IV |
| Celery 299/13 | Celery | Serbia | 2013 | B | A(St2) | C(V14) | IV |
| Grapevine J1 | Grapevine | Italy | 2016 | B | A(St1) | C(V14) | IV |
| Bindweed 284/17 | Bindweed | Montenegro | 2017 | B | A(St1) | C(V14) | IV |
| Pepper 223/17 | Pepper | Serbia | 2017 | B | A | F(V7-A) | V |
| Tomato Ca a | Tomato | Italy | 2017 | B | A(St5) | G(V15) | VI |
| Tomato Ca 1a | Tomato | Italy | 2017 | B | A | G(V15) | VI |
| Tomato Ca b | Tomato | Italy | 2017 | B | A(St5) | G(V15) | VI |
| Grapevine BO 9867 | Grapevine | Italy | 2010 | B | A(St5) | J(V12) | VII |
| Grapevine TC7 | Grapevine | Italy | 2020 | B | A | J(V12) | VII |
| Grapevine TC1 | Grapevine | Italy | 2020 | B | A(St5) | J(V12) | VII |
| Tomato ORII | Tomato | Italy | 2021 | B | A(St5) | J(V12) | VII |
| H. obsoletus 72D | H. obsoletus | Italy | 2019 | B | A(St1) | N(V17) | VIII |
| Carrot 154/09 | Carrot | Serbia | 2009 | B | B(St4) | A(V2-TA) | IX |
| Corn 121/09 | Corn | Serbia | 2009 | B | B | A(V2-TA) | IX |
| Corn 107/09 | Corn | Serbia | 2009 | B | B(St4) | A(V2-TA) | IX |
| Parsley 149/09 | Parsley | Serbia | 2009 | B | B | A(V2-TA) | IX |
| Grapevine 123/10 | Grapevine | Serbia | 2010 | B | B | A(V2-TA) | IX |
| Grapevine 120/12 | Grapevine | Serbia | 2012 | B | B | A(V2-TA) | IX |
| Celery 251/13 | Celery | Serbia | 2013 | B | B | A(V2-TA) | IX |
| Corn 241/13 | Corn | Bulgaria | 2013 | B | B | A(V2-TA) | IX |
| Corn 244/13 | Corn | Bulgaria | 2013 | B | B | A(V2-TA) | IX |
| Corn 263/13 | Corn | Serbia | 2013 | B | B | A(V2-TA) | IX |
| Corn 242/13 | Corn | Bulgaria | 2013 | B | B(St4) | A(V2-TA) | IX |
| Grapevine 189/09 | Grapevine | Serbia | 2009 | B | B(St3) | C(V14) | X |
| Parsley 150/09 | Parsley | Serbia | 2009 | B | B | C(V14) | X |
| Grapevine 144/10 | Grapevine | Serbia | 2010 | B | B | D(b und1) | XI |
| Grapevine 165/12 | Grapevine | Bulgaria | 2012 | B | B | E(V18) | XII |
| Tomato P2 | Tomato | Portugal | 1998 | B | B | G(V15) | XIII |
| Grapevine 3S | Grapevine | Spain | 2018 | B | B | K(b und3) | XIV |
| Parsnip 152/16 | Parsnip | Serbia | 2016 | B | D | A(V2-TA) | XIX |
| Grapevine TC5 | Grapevine | Italy | 2020 | B | B(St10) | M(V11) | XV |
| STOL | Periwinkle | Serbia | * | B | B(St4) | A(V2-TA) | XVI |
| Tomato Herd | Tomato | Portugal | 1998 | B | C | B(V4) | XVII |
| Tomato P3 | Tomato | Portugal | 1998 | B | C | B(V4) | XVII |
| Tomato Herd 4 | Tomato | Portugal | 1998 | B | C | G(V15) | XVIII |
| Grapevine TB11 | Grapevine | Italy | 2020 | B | D | J(V12) | XX |
| Grapevine CC2 | Grapevine | Italy | 2019 | B | D(St18) | J(V12) | XX |
| Tomato P | Tomato | Portugal | 1998 | B | E | B(V4) | XXI |
| Grapevine I9 | Grapevine | Hungary | 2008 | B | E | E(V18) | XXII |
| Grapevine I10 | Grapevine | Hungary | 2008 | B | E(St11) | E(V18) | XXII |
| Grapevine I8 | Grapevine | Hungary | 2008 | B | E(St11) | E(V18) | XXII |
| ASLO | Periwinkle | Slovenia | * | B | E | H(bund2) | XXIII |
| Grapevine FE 9806 | Grapevine | Italy | 2010 | B | E | I(V3) | XXIV |
| P-TV | Periwinkle | Italy | * | B | A | O(V7) | XXV |
| STOF | Periwinkle | France | * | B | A | - | n.d. |
| Tomato P3 | Tomato | Portugal | 1997 | B | B | - | n.d. |
| Tomato P4 | Tomato | Portugal | 1997 | B | B(St10) | - | n.d. |
| Grapevine CHCA1 | Grapevine | Italy | 2015 | - | E(St8) | - | n.d. |
| Grapevine J2 | Grapevine | Italy | 2016 | - | A(St1) | - | n.d. |
| Grapevine C1 | Grapevine | Italy | 2016 | B | A(St1) | - | n.d. |
| Grapevine GY5 | Grapevine | Italy | 2018 | B | A(St1) | - | n.d. |
| Grapevine TC3 | Grapevine | Italy | 2020 | B | - | - | n.d. |
| Potato N128a | Potato | Hungary | 2008 | B | - | A(V2-TA) | n.d. |
| Potato N128b | Potato | Hungary | 2008 | B | - | A(V2-TA) | n.d. |
| Grapevine RA 9827 | Grapevine | Italy | 2010 | B | A | a mix | n.d. |
| Tobacco 150/10 | Tobacco | Serbia | 2010 | B | B(St3) | a mix | n.d. |
| Tomato N130 | Tomato | Hungary | 2008 | B | - | B(V4) | n.d. |
| Valeriana 222/09 | Valerian | Serbia | 2009 | - | A | B(V4) | n.d. |
| Grapevine RA 9709 | Grapevine | Italy | 2010 | A | - | I(V3) | n.d. |
| Grapevine CHSM2 | Grapevine | Italy | 2015 | - | E(St19) | I(V3) | n.d. |
| Grapevine CS2 | Grapevine | Italy | 2019 | - | - | I(V3) | n.d. |
| Grapevine GM3 | Grapevine | Italy | 2019 | - | - | I(V3) | n.d. |
| H. obsoletus 67C | H. obsoletus | Italy | 2019 | - | E | I(V3) | n.d. |
| H. obsoletus 67F | H. obsoletus | Italy | 2019 | - | E(St19) | I(V3) | n.d. |
| Grapevine PM2 | Grapevine | Italy | 2019 | - | E(St8) | I(V3) | n.d. |
| Grapevine TB12 | Grapevine | Italy | 2020 | - | E | I(V3) | n.d. |
| Grapevine TB5 | Grapevine | Italy | 2020 | - | E | I(V3) | n.d. |
| Grapevine TC2 | Grapevine | Italy | 2020 | A | - | I(V3) | n.d. |
| Grapevine TB8 | Grapevine | Italy | 2020 | - | B | J(V12) | n.d. |
Note: -, negative to PCR amplification; n.d., not done: lineage not determined for lack of all genes amplification; a mix, mixed RsaI-RFLP profile; b und, undescribed RsaI restriction profile; *, strain from collection.
Table 3.
Samples sequenced and used for the phylogenetic analyses.
| Samples | Origin | Tuf Variant | GenBank Acc. No | Stamp Profile | Stamp Variant | GenBank Acc. No. | Vmp1 Profile | GenBank Acc. No. |
|---|---|---|---|---|---|---|---|---|
| Grapevine 138/10 | Serbia | b1 | / | A | / | / | B(V4) | + |
| Pepper 223/17 | Serbia | b1 | / | A | / | / | F(V7-A) | MW791438 |
| P-TV | Italy | b1 | / | A | / | / | O(V7) | MW791437 |
| Grapevine 3S | Spain | b1 | MZ970611 | B | / | MW759856 | K(und3) | MW791432 |
| Celery 251/13 | Serbia | b1 | / | B | / | / | A(V2-TA) | + |
| Tomato Herd 4 | Portugal | b1 | / | C | / | + | G(V15) | MW791434 |
| Tomato P3 | Portugal | b1 | / | C | / | MW759855 | B(V4) | / |
| Grapevine J2 | Italy | - | - | A | St1 | + | - | - |
| Bindweed 284/17 | Montenegro | b1 | / | A | St1 | + | C(V14) | + |
| Carrot 89/10 | Serbia | b1 | / | A | St1 | + | B(V4) | + |
| H. obsoletus 72D | Italy | b1 | / | A | St1 | MW759854 | N(V17) | MW791433 |
| Periwinkle 202/10 | Serbia | b1 | / | A | St1 | + | B(V4) | + |
| Periwinkle 80/10 | Serbia | b1 | / | A | St1 | + | B(V4) | MW791442 |
| Grapevine C1 | Italy | b1 | / | A | St1 | + | - | - |
| Grapevine GY5 | Italy | b1 | MZ970610 | A | St1 | + | - | - |
| Grapevine J1 | Italy | b1 | / | A | St1 | + | C(V14) | / |
| Grapevine 69/11 | Serbia | b1 | / | A | St1 | + | B(V4) | / |
| Grapevine 66/11 | Serbia | b1 | / | A | St1 | + | C(V14) | / |
| Grapevine TC5 | Italy | b1 | / | B | St10 | MW759860 | M(V11) | / |
| Tomato P4 | Portugal | b1 | / | B | St10 | + | - | - |
| Grapevine I10 | Hungary | b2 | MZ970609 | E | St11 | MW759861 | E(V18) | MW791439 |
| Grapevine I8 | Hungary | b2 | MZ970607 | E | St11 | + | E(V18) | + |
| Grapevine CC2 | Italy | b1 | MZ970606 | D | St18 | + | J(V12) | + |
| Grapevine TB11 | Italy | b1 | MW755980 | D | St18 | MW759859 | J(V12) | + |
| H. obsoletus 67F | Italy | - | - | E | St19 | + | I(V3) | + |
| Grapevine CHSM2 | Italy | - | - | E | St19 | + | I(V3) | + |
| Grapevine RA 9802 | Italy | a | / | E | St19 | + | I(V3) | + |
| Grapevine BO 9866 | Italy | a | / | E | St19 | + | I(V3) | + |
| Grapevine FC 10044 | Italy | a | / | E | St19 | + | I(V3) | + |
| Parthenocissus 1 | Italy | a | MZ970608 | E | St19 | OL412284 | I(V3) | + |
| Bindweed 113/18 | Serbia | b1 | / | A | St2 | OL412285 | B(V4) | + |
| Celery 299/13 | Serbia | b1 | / | A | St2 | + | C(V14) | + |
| Periwinkle 147/09 | Serbia | b1 | / | A | St2 | + | C(V14) | MW791440 |
| Grapevine 189/09 | Serbia | b1 | / | B | St3 | MW759852 | C(V14) | / |
| Tobacco 150/10 | Serbia | b1 | / | B | St3 | + | mix | / |
| Carrot 154/09 | Serbia | b1 | / | B | St4 | + | A(V2-TA) | + |
| Corn 242/13 | Bulgaria | b1 | / | B | St4 | MW759851 | A(V2-TA) | MW791441 |
| Corn 107/09 | Serbia | b1 | / | B | St4 | + | A(V2-TA) | / |
| Grapevine BO 9867 | Italy | b1 | / | A | St5 | MW759857 | J(V12) | MW791436 |
| Tomato ORII | Italy | b1 | + | A | St5 | + | J(V12) | + |
| Grapevine I6 | Hungary | b1 | / | A | St5 | + | A(V2-TA) | / |
| Grapevine TC1 | Italy | b1 | / | A | St5 | + | J(V12) | / |
| Potato N126a | Hungary | b1 | / | A | St5 | + | B(V4) | / |
| Potato N126b | Hungary | b1 | / | A | St5 | + | C(V14) | / |
| Tomato Ca a | Italy | b1 | / | A | St5 | + | G(V15) | / |
| Tomato Ca b | Italy | b1 | / | A | St5 | + | G(V15) | / |
| Grapevine PM2 | Italy | - | - | E | St8 | + | I(V3) | + |
| Grapevine CHCA1 | Italy | - | - | E | St8 | + | - | - |
| Grapevine PM1 | Italy | a | / | E | St8 | MW759853 | I(V3) | + |
| Grapevine FE 9805 | Italy | a | / | E | St8 | + | I(V3) | + |
| Grapevine TB3 | Italy | a | MW755979 | E | St9 | MW759858 | I(V3) | MW791435 |
Note: -, negative samples; /, samples not sequenced, and variants not determined; +, samples sequenced.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Contaldo, N.; Stepanović, J.; Pacini, F.; Bertaccini, A.; Duduk, B. Molecular Variability and Host Distribution of ‘Candidatus Phytoplasma solani’ Strains from Different Geographic Origins. Microorganisms 2021, 9, 2530. https://doi.org/10.3390/microorganisms9122530
AMA Style
Contaldo N, Stepanović J, Pacini F, Bertaccini A, Duduk B. Molecular Variability and Host Distribution of ‘Candidatus Phytoplasma solani’ Strains from Different Geographic Origins. Microorganisms. 2021; 9(12):2530. https://doi.org/10.3390/microorganisms9122530
Chicago/Turabian StyleContaldo, Nicoletta, Jelena Stepanović, Francesco Pacini, Assunta Bertaccini, and Bojan Duduk. 2021. "Molecular Variability and Host Distribution of ‘Candidatus Phytoplasma solani’ Strains from Different Geographic Origins" Microorganisms 9, no. 12: 2530. https://doi.org/10.3390/microorganisms9122530
APA StyleContaldo, N., Stepanović, J., Pacini, F., Bertaccini, A., & Duduk, B. (2021). Molecular Variability and Host Distribution of ‘Candidatus Phytoplasma solani’ Strains from Different Geographic Origins. Microorganisms, 9(12), 2530. https://doi.org/10.3390/microorganisms9122530
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
