Effects of Lentil Genotype on the Colonization of Beneficial Trichoderma Species and Biocontrol of Aphanomyces Root Rot

by
Navid Bazghaleh
1,*,
Pratibha Prashar
1,
Sheridan Woo
2,3 and
Albert Vandenberg
1,*
1
Department of Plant Sciences, University of Saskatchewan, Saskatoon, SK S7N5A8, Canada
2
Department of Pharmacy, University of Naples Federico II, 80131 Naples, Italy
3
National Research Council, Institute for Sustainable Plant Protection, 80055 Portici, Italy
*
Authors to whom correspondence should be addressed.
Microorganisms 2020, 8(9), 1290; https://doi.org/10.3390/microorganisms8091290
Submission received: 15 June 2020 / Revised: 17 August 2020 / Accepted: 19 August 2020 / Published: 24 August 2020
(This article belongs to the Special Issue Fungal Endophytes and Their Interactions with Plants)
Browse Figures
Versions Notes

Abstract

:
Trichoderma species are opportunistic plant symbionts that are common in the root and rhizosphere ecosystems. Many Trichoderma species may enhance plant growth, nutrient acquisition, and disease resistance, and for these reasons, they are widely used in agriculture as biofertilizers or biocontrol agents. Host plant genotype and other microorganisms, such as root pathogens, may influence the efficacy of Trichoderma inoculants. Aphanomyces euteiches is an important soil-borne oomycete in western Canada that causes root rot in legume crops such as lentil and pea, and there is not yet any significantly resistant varieties or effective treatments available to control the disease. In this study, the composition of root-associated fungal communities and the abundance of Trichoderma species, T. harzianum strain T-22 and T. virens strain G41, was determined in the roots of eight Lens genotypes based on internal transcribed spacer (ITS) Illumina MiSeq paired-end sequencing, both in the presence and the absence of the root rot pathogen Aphanomyces euteiches. Biocontrol effects of T. harzianum on A. euteiches was also examined. Significant genotypic variations were observed in the composition of root-associated fungal communities and the abundance of the different Trichoderma species in the lentil roots. The presence of A. euteiches altered the composition of Trichoderma found associated to the lentil genotypes. Biocontrol of A. euteiches by T. harzianum T22 species was observed in vitro and positive correlations between the abundance of Trichoderma and plant root and shoot biomass were observed in vivo. These findings revealed that lentil genotype and infection by the phytopathogen A. euteiches greatly influenced the colonization of root-associated fungi and the abundance of the Trichoderma species, as well as the effect on plant growth promotion. The multipartite interactions observed among lentil genotypes, Trichoderma species and A. euteiches suggest possibilities to select compatible host-beneficial microbe combinations in lentil breeding programs and to develop application strategies to harness the beneficial effects of Trichoderma inoculants in sustainable crop production systems.

1. Introduction

The role of beneficial microorganisms in plant growth and development has been confirmed and reasonable commercial success achieved for given crop-microbe combinations [1,2]. These microbes may facilitate nutrient acquisition, modulate hormone signaling, diminish the adverse effects of biotic and abiotic stresses, and have great potential to reduce the inputs of chemical fertilizers and pesticides [3,4,5,6,7]. However, a major constraint to the efficiency of these biological products is their variable performance under different field conditions or on diverse crops. In addition, the microorganisms do not perform individually, in isolated conditions within the plant microbiome, but form multipartite networks with other microbes including mutualists, antagonists and pathogens [8,9,10]. Understanding the extreme complexity of the multipartite interactions is important for exploiting these associations and improving plant health and sustainable crop production [11]. Genotypic compatibility between the host plant and the microbial strain is a key element towards establishing an efficient symbiotic association [12,13], which has been reported for both bacterial and fungal endophytes [14,15,16,17]. Plant roots exude a wide array of bioactive metabolites and nutrients that may recruit specific microorganisms from the diversity of species present in the soil [18,19,20,21]. Furthermore, the composition and patterns of the metabolites released in the root exudates can change under different biotic and abiotic stress conditions, and may function to attract specific plant beneficial species, including Trichoderma [22].
Plant diseases are a main factor responsible for crop losses, accounting for up to 40% reduction in global agricultural production [23]. The management of diseases has become even more challenging in recent times because of the increasingly unpredictable climatic conditions [24], the emergence of new pathogens [25], and a depletion in biodiversity and agro-ecosystem quality [26]. To develop sustainable strategies for disease management and utilize the services provided by agro-ecosystems, plant breeding programs must consider incorporating the potential of the root-associated microorganisms of the plant root microbiome, the so-called ‘extended plant phenotype’, in order to select the efficient crop genotypes that can be cultivated in these conditions.
Lens species represent a reservoir of diverse plant phenotypes and genotypes. Lentil (Lens culinaris) is a cool season legume and is an expanding food source globally due to its rich protein and mineral content [27]. As a legume, lentil incorporates atmospheric nitrogen into the soil mainly through biological fixation with its associated root symbiotic bacteria, thus influencing and promoting the diversity of soil microbial communities [28]. Canada is the largest producer of lentils contributing 41% of the total global production (FAO, 2017).
Aphanomyces euteiches has recently emerged as a challenging root pathogen in western Canada, that is not limited to specific soil or land use types [29]. Root rot diseases caused by this soil-borne oomycete fungus results in substantial losses in pulse crop production, especially under environmental conditions that promote the pathogen growth and development [30,31,32]. Infection results in symptoms of brown-stained roots, generally similar among all infected legumes, leading to poor growth and death of plants. The fungus is adapted to wet soil conditions, and persistent cycles of wet weather in recent years have caused changes in field conditions that have resulted in significant problems with Aphanomyces root rot (ARR) in western Canada, particularly affecting lentil- and pea-growing regions. To date there are no effective control measures for ARR [31,33]. The best approach for the control of ARR could be prevention, sanitation (removal of infected plant material), use of resistant varieties, and improved management practices including crop rotation, promotion of healthy plant growth, and better soil drainage.
Fungicides were not shown to be effective for the control of ARR, however, a recent study has suggested that a combination of partial host resistance and fungicidal treatment may be provide an opportunity to manage ARR [34]. Without effective chemicals to reduce inoculum levels, and without the availability of resistant varieties, it is recommended that the length of time between the rotations of susceptible legumes should be extended to greater than 4 years [33,35]. A major problem for the disease control of ARR is the persistence of up to 10 years of oospores that infest the soil, therefore the 4 year time frame may not be sufficiently long enough to reduce the pathogen populations in the soil. Alternative methods to control ARR in pulse crop production include the use of biological control agents (BCAs). These have a natural arsenal of compounds that are potentially useful for reducing pathogen populations and/or enhancing plant growth. A consideration for augmenting disease resistance could be the use of a combination of treatments, by using BCAs with crop genotypes exhibiting varying levels of pathogen susceptibility–tolerance.
Many Trichoderma species have long been recognized as bio-fertilizers, bio-pesticides, plant growth enhancers and stimulants of natural resistance, and there are more than 250 commercial agricultural products containing Trichoderma [36]. Depending upon the strain, Trichoderma can provide advantages for plant health improvement using various mechanisms such as facilitating nutrient and water acquisition, antagonizing microbial pathogens, and stimulating root growth [37,38,39]. These products are used in greenhouses, nurseries, fields, orchards, and hydroponic systems for nursery, horticultural, fruit-forestry trees and ornamental crops. Biological products containing the active ingredients T. harzianum strain T22 and T. virens strain G41 are registered for commercial use in Canada. However, there is limited evidence on how this pathogen may alter the composition of the root-associated fungi and the efficacy of potentially beneficial microorganisms Trichoderma species. This study hypothesized that lentil genotypes may modify the composition of fungal communities associated with roots. Furthermore, biotic stress, such as the presence of the oomycete pathogen A. euteiches, may also influence the abundance of Trichoderma spp. in the rhizosphere. To confirm the potential inhibition of A. euteiches by Trichoderma spp., biocontrol tests were conducted in vitro and in vivo.

2. Materials and Methods

2.1. Microbial Isolates and Culture Conditions

The oomycete pathogen Aphanomyces euteiches used in this study was isolated from lentil plants grown in Saskatchewan (isolate AE1), and obtained from the Pulse Pathology Laboratory, University of Saskatchewan, Canada. Two commercial Trichoderma inoculants RootShield® (RS) and RootShield® Plus (RSP) were provided in powder formulations (BioWorks Inc., Victor, NY, USA). RootShield® included spores of Trichoderma harzianum strain T22 with the minimum concentration of 1.0 × 107 cfu/g dry weight. RootShield® Plus (RSP) included both the spores of Trichoderma harzianum strain strain T-22 as in RS, plus Trichoderma virens strain G41 with the minimum concentration of 5.3 × 106 cfu/g dry weight. These biological products for agriculture are currently used for crop protection and the enhancement of productivity in commercial fields.

2.2. Plant Material and Experiment Design

Eight lentil genotypes representing wild and cultivated species belonging to three gene pools were used in this study (Table 1). Seed was obtained from the working collection of Crop Development Centre (CDC), University of Saskatchewan, Canada. The seeds were scarified using a blade, surface sterilized by immersion in 1% (v/v) sodium hypochlorite solution, followed by repeated rinsing in sterile distilled water. Sterilized seeds were pre-germinated under dark conditions at 22 °C until the radicle germinated to a length of 1 cm. To reduce the mesophilic microbial population, the substrate (Sunshine Mix #3® peat- and vermiculite-based media, Sun Gro Horticulture Canada Ltd., Vilna, AB, Canada) was heat treated at 70 °C for 3 d. Once cooled to 25 °C (room temperature), the substrate was inoculated with one of the two Trichoderma formulations, either RS or RSP, by adding it following the manufacturer’s recommended rates, then thoroughly mixed to uniformly distribute the inoculum in the substrate. The Trichoderma-treated medium was incubated for 48 h before filling the pots. One set of pots containing the Trichoderma-treated substrate was infected with A. euteiches while the other set remained untreated (control). Pre-germinated seeds were planted in 10 × 10 cm plastic pots filled with the treated substrate. Plants were grown in the Controlled Environment Facility at the University of Saskatchewan, College of Agriculture and Bioresources building for a period of 4 weeks under controlled conditions in a growth chamber maintained at 22 °C day/16 °C night temperature and 16 h daylight length. Pots were re-randomized every alternate day throughout the experiment to minimize environmental variation. Water was provided as required, and fertilization was carried out weekly with half-strength Hoagland’s nutrient solution (Hoagland and Arnon 1950). The experiment was organized in randomized complete block design with eight lentil genotypes, two Trichoderma treatments, two A. euteiches infection levels, and four treatment replicates, making a total of 128 pots, each containing three plants per pot.

2.3. Aphanomyces euteiches Root Infection

Zoospores of Aphanomyces euteiches were produced following a protocol developed in the Plant Pathology Laboratory, University of Saskatchewan, Canada (S. Banniza, pers. comm.). Plants were inoculated with a 5 mL zoospore suspension (concentration 5 × 103 zoospores per mL sterile deionized water) of the root rot pathogen 10 d after transplanting by watering at the base of the plants.

2.4. Assessment of Plant Growth

Plants were uprooted 4 weeks after transplanting and the media adhering to roots was removed by vigorous shaking and the roots were rinsed in tap water. Plants were cut at the soil level to separate the shoot from the roots, then the root and shoot lengths were measured for every plant. The root material of single individual plants from each pot was collected and stored at −80 °C until the DNA was extracted. Above- and below-ground plant material of the two other plants in each pot were collected, oven dried at 65 °C for 72 h, and weighed to record the dry weight.

2.5. Molecular Identification of Trichoderma Species by Barcoding

Root material from each plant sample was lyophilized in a microcentrifuge tube, then finely powdered by vigorous shaking using a tungsten bead for 2–3 min. Total DNA was extracted from 50 mg of this powdered root material for each sample using Qiagen plant DNeasy® kit following the manufacturer’s instructions. A two-step PCR amplification approach was used to generate ready-to-pool amplicon libraries. In the first PCR, the internal transcribed spacer (ITS) region of the template DNA was amplified using ITS1F (CTTGGTCATTTAGAGGAAGTAA) and ITS2 GCTGCGTTCTTCATCGATGC) primer sets (White et al., 1990; Gardes and Bruns, 1993).
The PCR mixture contained 2.5 µL of 1× Qiagen PCR buffer, 0.5 µL of 25 mM MgCl2, 0.25 µL of 10 mM dNTP, 0.2 µL of 5 U/µL Qiagen Taq, 10.55 µL of ultrapure H2O, 5 µL ITS1F, 5 µL ITS2 (3 µM solutions), and 1 µL of 1:100 dilution template DNA. The PCR conditions were 96 °C for 10 min; 35 cycles of 1 min at 95 °C (denaturation), 52 °C for 1 min (annealing), and 72 °C for 1 min (elongation); followed by 10 min at 72 °C. The second PCR amplification was used to incorporate the Illumina barcodes. Barcode primers included PE1_CS1 (AATGATACGGCGACCACCGAGATCT ACACTGACGACATGGTTCTACA) and FLD CAAGCAGAAGACGGCATACGAGAT-10 bases barcode sequence—TACGGTAGCAGAGACTTGGTCT. The PCR mixture contained 2 µL of 10× buffer, 3.6 µL of 25 mM MgCl2, 1 µL of dimethyl sulfoxide, 0.4 µL of 10 mM dNTP, 0.1 µL of 5 U/µL Qiagen Taq, 9.9 µL of ultrapure H2O, 2 µL of 2 µM Illumina barcode, and 1 µL of the first PCR products. The PCR conditions were 95 °C for 10 min; 15 cycles for 15 s at 95 °C (denaturation), 60 °C for 30 s (annealing), and 72 °C for 1 min (elongation); followed by 3 min at 72 °C. The amplification products were purified using the AMPure PCR purification kit (Agencourt Bioscience, Beverly, MA, USA). The Illumina MiSeq (San Francisco, CA, USA) paired-end sequencing was performed by Génome Québec according to the manufacturer’s instructions (McGill University, Innovation Centre, Montreal, QC, Canada).

2.6. Bioinformatic Analysis

In total, 10,160,550 ITS sequence reads (NCBI accession = SRR7149016 − SRR7149127) were obtained (average quality = 33). The raw sequences were processed using DADA2 ITS Pipeline Workflow (1.8) (https://benjjneb.github.io/dada2/ITS_workflow.html) in R (v.3.5.0). Sequences containing ambiguous base pairs, long homopolymers (8 bp), low-quality reads (average score < 30), short reads (less than 100 bp), chimeric sequences, singletons and doubletons were excluded. Single nucleotide variants (SNVs) were classified using UNITE fungal database (v. 01.12.2017). The number of reads for each SNV was obtained for each sample. The relative abundance of each SNV was calculated in each sample based on a 0 to 100 scale. SNVs classified as T. harzianum and T. virens were used to evaluate these two strains in each sample. The relative abundance of genus Trichoderma in RS and RSP treatments, and the proportion of T. harzianum and T. virens in Aphanomyces infected and non-infected plants were calculated for each genotype.

2.7. In Vitro Biocontrol Assay

In vitro antagonistic activity of Trichoderma harzianum strain T-22 was tested against Aphanomyces euteiches (AE1) using a plate culture assay adopted from Gupta et al., 2001. A 5 mm agar disc of five-day old culture of A. euteiches and T. harzianum were placed opposite to one another on water agar plates, 2 cm from the border. Control plates received an agar plug in place of Trichoderma strain. Plates were incubated at 25 ± 2 °C for five days and the inhibition of the radial growth of the pathogen was measured. Each treatment was replicated three times and the experiment was repeated twice. The colony diameter of AE1 was measured in the test plates with Trichoderma as well as in the control plates and the percentage inhibition of A. euteiches by T. harzianum over the control was calculated by using the formula given by Vincent (1947) as follows: I = (C − T) × 100/C, where I = percent inhibition of mycelium; C = growth of mycelium in the control, T = growth of mycelium in the treatment [41].

2.8. Statistical Analysis

Zeros in the SNV dataset were replaced using a Bayes–Laplace approach using the zCompositions v. 1.2.0 R package and then the data was a centered-log ratio transformed using the CoDaSeq v. 0.99.3 package. Permutation-based multivariate analysis of variance (PERMANOVA) was used to test the significance of the effect of genotype and infection on the relative abundance of fungal communities and Trichoderma species in the roots of lentil in R v. 3.5.1 (package vegan). A p-value of 0.05 was used as the threshold below which the null hypothesis was rejected. Spearman correlations between the abundance of Trichoderma and both the above- and below-ground biomass were made in R v. 3.5.1. A t-test was used to compare the ratios of the abundance of Trichoderma species in infected/uninfected plants. An analysis of variance was used to test the effect of the plant genotype, infection by Aphanomyces euteiches, and inoculation by Trichoderma sp. on root length in lentil.

3. Results

In total, 2441 unique fungal SNVs were detected representing a diversity of fungal taxonomic groups. The four most abundant taxa at the genus level included Clonostachys, Olpidium, Pseudogymnoascus, and Trichoderma. Composition of the fungal genera isolated from the roots of lentil genotypes treated with the two Trichoderma formulations, T. harzianum and T. virens, and A. euteiches infection at genus level is shown in Figure 1. Furthermore, eight SNVs were classified as T. harzianum and four SNVs as T. virens, which were used to evaluate these two strains in each sample. Dynamics of the Trichoderma SNVs was assessed in different genotypes, treatments, and infection conditions.

3.1. Composition of Fungal Communites and Trichoderma Abundance in the Roots

The lentil genotype (p < 0.05) and inoculation with the different Trichoderma products (p < 0.001) significantly influenced the composition of the fungal communities found in the roots (Table 2). The effect of infection of the roots with A. euteiches on the composition of the root fungal communities was not significant (p = 0.09) (Table 2). Both the lentil genotype (p < 0.05) and the Trichoderma treatments had significant effects on the composition of Trichoderma species in lentil roots (p < 0.01) (Table 2). The relative abundance of Trichoderma significantly varied between species (p < 0.05) (Figure 2).
The relative abundance of Trichoderma, at the taxonomic level of the genus, was determined in the root samples collected from all eight lentil genotypes, and accounted for both the endogenous populations of the fungi as well as the inoculation with the Trichoderma commercial product strains. In the Aphanomyces non-infected plants, the product (RSP) containing both T. harzianum T-22 and T. virens G41 was the only formulation found to colonize genotype L. ervoides L01-827A (100%) (Figure 2). L. culinaris genotypes Eston and ZT6 were prevalently colonized by the RSP formulation with both Trichoderma spp. In L. orientalis and L. odemensis the abundance of these two Trichoderma from the RSP product was minimal, whereas the RS formulation, containing only T. harzianum T-22, highly colonized these two genotypes (Figure 2). When the lentil plants were infected with the ARR pathogen, the abundance of the Trichoderma from the single strain RS formulation was greatly modified in all genotypes. In particular, a notable increase in strain T22 was found in Eston and L01-827A in the presence of ARR in comparison to the untreated condition. In contrast, the abundance of Trichoderma with the dual strains (RSP) was increased only in the pathogen-infected roots of IG72623 and IG72643 (Figure 2).
Single nucleotide variants, using the selected fungal ITS primers, were able to distinguish and classify the RS and RSP components of T. harzianum and T. virens. T. harzianum was always more abundant than T. virens in both the healthy and infected roots of all Lens genotypes (Figure 3). In the absence of disease, T. virens was more abundant in the ZT6 than in the other genotypes. Interestingly, when the plant was infected by A. euteiches, Lens ervoides L01-827A showed a unique and significant increase in the abundance of both Trichoderma species, but in particular, there was a greater increase in T. virens with the pathogen. The abundance of T. harzianum was similar in uninfected and A. euteiches infected roots in L. culinaris genotypes ZT4, ZT6, CDC Maxim and L. odemensis IG72623. T. harzianum T22 was less abundant in the infected roots of Lens culinaris genotypes Eston and L. orientalis IG72643, whereas T. virens was much less abundant in the infected plants of L. culinaris ZT6 than in any of the other infected genotypes. The presence of T. virens was the least in L. odemensis IG 72623 and L. tomentosus IG 70805 of all eight lentil genotypes (Figure 3).

3.2. Relationship between Relative Abundance of Trichoderma spp. and Plant Growth

Highly significant effects of lentil genotype and Trichoderma treatments on root length (p < 0.001) were observed (Table 3). Significantly positive correlations (p < 0.05) were observed between the abundance of the Trichoderma spp. and the plant growth, both in the above and below-ground vegetative biomass (Table 4).
A greater increase in root length was observed in the plants treated with RS in comparison to those treated with RSP (p < 0.05), for example, as noted in genotypes CDC Maxim (L. culinaris), IG 7263 (L. orientalis) and IG 72 805 (L. tomentosus) (Table 4 and Figure 4). There was not a strong correlation observed between the growth of the lentil plants’ above- and below-ground parts, and the treatments with the different commercial product tested in the study (Table 4).

3.3. In Vitro Biocontrol Plate Assay

The average radial diameter of mycelial growth of A. euteiches (AE1) alone in control plates was 4.40 ± 0.1 cm while it was only 2.29 ± 0.13 cm in the confrontation bioassays with T. harzianum T-22, resulting in a 48% inhibition of the pathogen under in vitro test conditions (Figure 5).

4. Discussion

Trichoderma species are widely used in agriculture as biopesticides and plant growth stimulants [36,42,43,44,45,46,47,48]. However, the effectiveness of Trichoderma products can be inconsistent under variable field conditions [49]. Here, we demonstrated that T. harzianum T-22 was capable of inhibiting A. euteiches in vitro. The inoculation of Trichoderma species, T. harzianum and T. virens, improved the biomass and root length of A. euteiches-infected plants in controlled environmental conditions. However, it did not reduce ARR infection in all eight lentil genotypes tested. The results of many years of research have revealed that not all Trichoderma strains exhibiting biocontrol activity in vitro will have the key characteristics required for adaptation to specific environmental conditions, or they may not function well in the conditions in which the plant pathogens flourish [50,51]. Competition between microorganisms for nutrients and space in the rhizosphere, and the possible degradation of useful enzymatic or antibiotic products by other soil microorganisms, may affect the establishment of both Trichoderma and A. euteiches [52].
The variation in biocontrol efficacy due to substrate properties was shown in pea, whereby A. euteiches root rot was significantly reduced by T. harzianum alone, however, upon the addition of a soil amendment the biocontrol efficacy was reduced. In fact, physiochemical properties of the substrate can be more favorable to A. euteiches growth and development instead of to Trichoderma species, thereby reducing the biocontrol efficacy of the Trichoderma products [49].
The principal mechanisms employed by Trichoderma for biological control include parasitism, the production of secondary metabolites with antibiosis properties, and the induction of plant defense, which can occur singly, simultaneously, or sequentially. However, not all Trichoderma strains use all of the abovementioned mechanisms [53]. Trichoderma can efficiently induce systemic and localized resistance in plants, trigger a range of responses, including the production of antimicrobial compounds, the deposition of callose on the inner surface of cell walls, and increase chitinase and peroxidase activities. In addition, other plant-beneficial effects by Trichoderma also include plant growth promotion. In fact, the secondary metabolites produced by Trichoderma have the ability to stimulate plant tissue growth as well as directly act against a range of pathogens [38]. The function of these mechanisms can be influenced by various conditions: soil type, temperature, pH, and moisture of the plant and soil environment and other microorganisms [51]. Therefore, the efficacy of the inoculants is the effect of the multipartite interactions among host plant, Trichoderma strains, pathogens and environment [11,52]. As a legume, lentil establishes a symbiosis with N2-fixing rhizobia [54]. The synergistic effects of Trichoderma and rhizobial species on disease control have been reported [55]. T. harzianum and T. virens are both aggressive parasites of various pathogenic fungi, and are effective in the stimulation of plant defense responses [56]. In order to minimize the effect of other microorganisms on Trichoderma activity, the plants were not inoculated with rhizobia in our experiment, also since two different species of Trichoderma were used, and varying, contrasting effects could be potentially expected.
This study investigated and documented plant genotype influence on the specific composition of the fungal community and Trichoderma strains colonizing the lentil roots, which was further influenced by the presence or absence of ARR. A previous study reported a genotype-specific influence of the same two Trichoderma strains on the agronomic performance of lentil genotypes under A. euteiches-infected and uninfected conditions [57]. Results indicated that despite the root colonization of all treated plants, the effect of Trichoderma treatments varied significantly, ranging from positive to negative, favorable to unfavorable, differentially effecting above and below-ground plant growth parameters of the lentil genotypes [57]. This suggested that there may be differences in the Trichoderma root population structure among the various lentil genotypes, as well as diverse responses in the presence or absence of A. euteiches. In our present study, the results clearly indicated that the root colonization affinity by the Trichoderma strains varies according to the association with the different lentil genotypes. Moreover, the infection of the A. euteiches pathogen is not only influenced by both the lentil genotype and Trichoderma species applied, but it subsequently affected the composition of the Trichoderma root population. Therefore, the multipartite interactions among the lentil, Trichoderma and the A. euteiches produces a microbiome that is unique for each lentil genotype and the Trichoderma species applied. Furthermore, it was observed that there was an effect on the diversity of root-associated fungi other than the Trichoderma inoculated onto the plants, even when the soil/growth media was pasteurized. This suggests that it was probable that the root-associated microbiome could be inherited from the seed microbiome. According to recent reports, the seed microbiome may vary by plant genotype and environmental conditions [58]. The effect of the inherited plant microbiome with treatments of commercial inoculants is yet to be explored. Trichoderma is a very common soil fungus and Trichoderma endophytes can be inherited from the indigenous pool. However, this study did not identify the indigenous taxa in the root endosphere since the substrate was pasteurized and could not reflect the true indigenous community.
The greater abundance of the Trichoderma species in A. euteiches-infected conditions in some Trichoderma-lentil genotype combinations might be due to increased nutrient and carbon availability, from the release of compounds as a result of root tissue damaged by the pathogen attack [44] or due to the mechanisms that may be selective for beneficial endophytes in the presence of root pathogens [22]. On the other hand, reduced Trichoderma populations under pathogen-infected conditions might be attributed to competition between the pathogen and Trichoderma for soil nutrients, growth factors, and space [37]. However, the different trends recorded for the same Trichoderma strain but in different lentil genotypes, as well as for two different Trichoderma strains on the same lentil genotype, indicate that other factors, in addition to nutrient availability and competition, govern the multipartite relationship established between the plant, pathogen, and Trichoderma. In particular, plant roots have the ability to modulate the microbial community in the rhizosphere, primarily through the release of root exudates, comprised of sugars, amino acids, proteins, secondary metabolites, and hormones [18], that account for the nutrient availability for the plant and microbiota [59] which mediate the chemical communication between the roots and root-colonizing microbes [60]. For example, phenolic compounds are identified as a major secondary metabolites released by plants [61], which also influence the soil microbiome [62,63]. We recently investigated the root polyphenol composition of four lentil genotypes that were a subset of the eight genotypes used in this study, and observed the genotypic variations in the qualitative and quantitative aspects of root polyphenols, and the influence of A. euteiches infection on their composition [64]. Lentil roots release polyphenols in their root exudates at a very early stage of growth, i.e., immediately after planting in soil [65], indicating a selective force with respect to the interaction of rhizosphere microbes and the root environment that plays a role in the establishment of the association between roots and microbes.
Recent reports have revealed that the plant genotype is a key determinant of root microbiota composition for fungi [14,66] as well as bacteria [15,67]. The root colonization by Trichoderma, as observed with two other fungal endophytes, involves complex chemical communication and exhibits host-genotype preferences [39]. Furthermore, variations have also been reported among different Trichoderma strains [39] utilized, in addition to the host genotypes of the crops to which they are applied, such as maize [53] and tomato [68], in terms of the plant beneficial effects observed from the treatment with Trichoderma. The results of this study clearly indicated that each lentil genotype offers a unique environment for the establishment of diverse Trichoderma strains, leading to variations in the interactions to each other, as well as with the pathogen. This partially explains the variable effects of Trichoderma treatments in different lentil genotypes noted in a previous study [57]. Our results suggested that the colonization abilities of lentil by Trichoderma is not only Lens species-specific, but also intraspecific to the varietal genetic lines of the species, however, the greatest differences in the fungal colonization were noted between the wild and cultivated lines. In terms of the symbiosis potential of Trichoderma spp.-Lens genotypes, the modern lentil varieties appeared less promising than the wild varieties. Many components that contribute to the plant host-microbe compatibility, such as the production of various phytochemicals, could be inadvertently removed or enhanced through breeding programs, since the genetic lines have been selected for improved yield and resistance to multiple diseases [69], thus this inadvertently has had a negative affect on the Trichoderma–plant interaction. All four L. culinaris lines responded similarly to Trichoderma inoculation in healthy and infected root conditions, whereas other genotypes showed a wider range of responses (Figure 2). Lens ervoides, which represented the tertiary gene pool of lentil [40], showed the highest abundance of both T. harzianum and T. virens, suggesting that other genotypes may lack the specific genes that regulate the compatible associations with Trichoderma. Interspecific hybridization between Lens ervoides genotype L01-827A and other Lens species may provide opportunities for the introgression of genes that are involved in the recruitment of diverse Trichoderma species. In this case, the detection, and the incorporation of those genes in the breeding program may enhance the ability of lentil to better utilize the potentials of Trichoderma inoculant when conditions are conducive to Aphanomyces infection in the field.
We observed a positive correlation between relative Trichoderma abundance and above- and below-ground dry biomass for all genotypes. A significant correlation was also observed between root and shoot ratio biomass, indicating that healthy roots promote above-ground plant growth, as would be expected. Furthermore, significant variations were recorded among the lentil genotypes for all plant growth parameters. Moreover, the Trichoderma formulations tested had varied effects on root length, with longer root lengths in RS-treated plants than RSP-treated plants. This confirmed that all Trichoderma strains were not equally beneficial for promoting plant growth at least at certain conditions [39], and may even neutralize the positive effect of each other or have negative effects on plant performance [37].
Modern agriculture is highly dependent on the use of chemicals such as pesticides to control plant diseases and fertilizers to enhance production. Trichoderma-based products could be an alternative to minimize the negative effects of plant pathogens, however, their performance is largely dependent on the crop plants selected and field conditions. It is notable that A. euteiches is presently a ubiquitous pathogen in western Canada, causing extensive root rot disease in legumes. Our results demonstrated that the presence of this pathogen in the rhizosphere influenced the composition of Trichoderma species, and consequently, the performance of this beneficial fungus on susceptible crop plants such as lentil. While still significant damage from the pathogen was observed, the application of Trichoderma still improved plant performance and diminished the overall negative effects of A. euteiches. The genotype-specific plant growth provides a rationale for formulating and developing application strategies to harness the maximum benefits of plant-beneficial fungi and highlights the importance of selecting the compatible host-fungus combination under existing field conditions.

Author Contributions

P.P. grew plants and collected the root materials. N.B. and P.P. contributed to collection and analysis of sequence data. All authors (N.B., P.P., S.W., A.V.) contributed to the experimental design and to the preparation of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by a grant from the NSERC Industrial Research Chair program, and Saskatchewan Pulse Growers.

Acknowledgments

The authors acknowledge supports and technical assistance provided by the Pulse Research Crew at the Crop Development Centre, University of Saskatchewan. We also acknowledge the funding received for MIDAS “Enhancing Nitrogen Management Through Genetics in Cereal-Legume Crop Rotations“(2009–2012) from Ministry of Agriculture of the Province of Saskatchewan (Canada), Agricultural Development Fund, in collaboration with the University of Saskatchewan and the Crop Development Centre, Canada, and the University of Naples Federico II, Naples Italy.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Barrow, J.R.; Lucero, M.E.; Reyes-Vera, I.; Havstad, K.M. Do symbiotic microbes have a role in regulating plant performance and response to stress? Commun. Integr. Biol. 2008, 1, 69–73. [Google Scholar] [CrossRef]
  2. Vacheron, J.; Desbrosses, G.; Bouffaud, M.L.; Touraine, B.; Moënne-Loccoz, Y.; Muller, D.; Legendre, L.; Wisniewski-Dyé, F.; Prigent-Combaret, C. Plant growth-promoting rhizobacteria and root system functioning. Front. Plant Sci. 2013, 4, 1–19. [Google Scholar] [CrossRef] [Green Version]
  3. Pieterse, C.M.J.; Van der Does, D.; Zamioudis, C.; Leon-Reyes, A.; Van Wees, S.C.M. Hormonal Modulation of Plant Immunity. Annu. Rev. Cell Dev. Biol. 2012, 28, 489–521. [Google Scholar] [CrossRef] [Green Version]
  4. Berendsen, R.L.; Pieterse, C.M.J.; Bakker, P.A.H.M. The rhizosphere microbiome and plant health. Trends Plant Sci. 2012, 17, 478–486. [Google Scholar] [CrossRef]
  5. Vorholt, J.A. Microbial life in the phyllosphere. Nat. Rev. Microbiol. 2012, 10, 828–840. [Google Scholar] [CrossRef]
  6. Cordovez, V.; Dini-Andreote, F.; Carrión, V.R.J. Ecology and evolution of plant mating. Trends Ecol. Evol. 1996, 11, 73–79. [Google Scholar]
  7. Compant, S.; Samad, A.; Faist, H.; Sessitsch, A. A review on the plant microbiome: Ecology, functions, and emerging trends in microbial application. J. Adv. Res. 2019, 19, 29–37. [Google Scholar] [CrossRef]
  8. Kemen, E. Microbe-microbe interactions determine oomycete and fungal host colonization. Curr. Opin. Plant Biol. 2014, 20, 75–81. [Google Scholar] [CrossRef]
  9. Hardoim, P.R.; van Overbeek, L.S.; Berg, G.; Pirttilä, A.M.; Compant, S.; Campisano, A.; Döring, M.; Sessitsch, A. The Hidden World within Plants: Ecological and Evolutionary Considerations for Defining Functioning of Microbial Endophytes. Microbiol. Mol. Biol. Rev. 2015, 79, 293–320. [Google Scholar] [CrossRef] [Green Version]
  10. van der Heijden, M.G.A.; Hartmann, M. Networking in the Plant Microbiome. PLoS Biol. 2016, 14, e1002378. [Google Scholar] [CrossRef]
  11. Sessitsch, A.; Pfaffenbichler, N.; Mitter, B. Microbiome Applications from Lab to Field: Facing Complexity. Trends Plant Sci. 2019, 24, 194–198. [Google Scholar] [CrossRef]
  12. Clúa, J.; Roda, C.; Zanetti, M.E.; Blanco, F.A. Compatibility between legumes and rhizobia for the establishment of a successful nitrogen-fixing symbiosis. Genes 2018, 9, 125. [Google Scholar]
  13. Granada, C.E.; Strochein, M.; Vargas, L.K.; Bruxel, M.; Saccol de Sá, E.L.; Passaglia, L.M.P. Genetic diversity and symbiotic compatibility among rhizobial strains and Desmodium incanumand Lotus spp. plants. Genet. Mol. Biol. 2014, 37, 396–405. [Google Scholar] [CrossRef] [Green Version]
  14. Bazghaleh, N.; Hamel, C.; Gan, Y.; Tar’an, B.; Knight, J.D. Genotype-specific variation in the structure of root fungal communities is related to chickpea plant productivity. Appl. Environ. Microbiol. 2015, 81, 2368–2377. [Google Scholar] [CrossRef] [Green Version]
  15. Bulgarelli, D.; Garrido-Oter, R.; Münch, P.C.; Weiman, A.; Dröge, J.; Pan, Y.; McHardy, A.C.; Schulze-Lefert, P. Structure and function of the bacterial root microbiota in wild and domesticated barley. Cell Host Microbe 2015, 17, 392–403. [Google Scholar] [CrossRef] [Green Version]
  16. Wagner, M.R.; Lundberg, D.S.; Del Rio, T.G.; Tringe, S.G.; Dangl, J.L.; Mitchell-Olds, T. Host genotype and age shape the leaf and root microbiomes of a wild perennial plant. Nat. Commun. 2016, 7, 1–15. [Google Scholar] [CrossRef]
  17. Inceoǧlu, Ö.; Salles, J.F.; Van Overbeek, L.; Van Elsas, J.D. Effects of plant genotype and growth stage on the betaproteobacterial communities associated with different potato cultivars in two fields. Appl. Environ. Microbiol. 2010, 76, 3675–3684. [Google Scholar] [CrossRef] [Green Version]
  18. Baetz, U.; Martinoia, E. Root exudates: The hidden part of plant defense. Trends Plant Sci. 2014, 19, 90–98. [Google Scholar] [CrossRef] [Green Version]
  19. Lareen, A.; Burton, F.; Schäfer, P. Plant root-microbe communication in shaping root microbiomes. Plant Mol. Biol. 2016, 90, 575–587. [Google Scholar] [CrossRef] [Green Version]
  20. Bazghaleh, N.; Hamel, C.; Gan, Y.; Knight, J.D.D.; Vujanovic, V.; Cruz, A.F.A.F.; Ishii, T. Phytochemicals induced in chickpea roots selectively and non-selectively stimulate and suppress fungal endophytes and pathogens. Plant Soil 2016, 409, 479–493. [Google Scholar] [CrossRef]
  21. de Werra, P.; Huser, A.; Tabacchi, R.; Keel, C.; Maurhofer, M. Plant-and microbe-derived compounds affect the expression of genes encoding antifungal compounds in a pseudomonad with biocontrol activity. Appl. Environ. Microbiol. 2011, 77, 2807–2812. [Google Scholar] [CrossRef] [Green Version]
  22. Lombardi, N.; Vitale, S.; Turr, À.D.; Reverberi, M.; Fanelli, C.; Vinale, F.; Marra, R.; Ruocco, M.; Pascale, A.; D’Errico, G.; et al. Root exudates of stressed plants stimulate and attract Trichoderma soil fungi. Mol. Plant-Microbe Interact. 2018, 31, 982–994. [Google Scholar] [CrossRef] [Green Version]
  23. Savary, S.; Ficke, A.; Aubertot, J.N.; Hollier, C. Crop losses due to diseases and their implications for global food production losses and food security. Food Secur. 2012, 4, 519–537. [Google Scholar] [CrossRef]
  24. Lobell, D.B.; Field, C.B. Global scale climate-crop yield relationships and the impacts of recent warming. Environ. Res. Lett. 2007, 2, 014002. [Google Scholar] [CrossRef]
  25. Stukenbrock, E.H.; Bataillon, T. A Population Genomics Perspective on the Emergence and Adaptation of New Plant Pathogens in Agro-Ecosystems. PLoS Pathog. 2012, 8, e1002893. [Google Scholar] [CrossRef] [Green Version]
  26. Fox, C.A.; MacDonald, K.B. Challenges related to soil biodiversity research in agroecosystems - Issues within the context of scale of observation. Can. J. Soil Sci. 2003, 83, 231–244. [Google Scholar] [CrossRef]
  27. Roy, F.; Boye, J.I.; Simpson, B.K. Bioactive proteins and peptides in pulse crops: Pea, chickpea and lentil. Food Res. Int. 2010, 43, 432–442. [Google Scholar] [CrossRef]
  28. Borrell, A.N.; Shi, Y.; Gan, Y.; Bainard, L.D.; Germida, J.J.; Hamel, C. Fungal diversity associated with pulses and its influence on the subsequent wheat crop in the Canadian prairies. Plant Soil 2017, 414, 13–31. [Google Scholar] [CrossRef]
  29. Karppinen, E.M.; Payment, J.; Chatterton, S.; Bainard, J.D.; Hubbard, M.; Gan, Y.; Bainard, L.D. Distribution and abundance of Aphanomyces euteiches in agricultural soils: Effect of land use type, soil properties, and crop management practices. Appl. Soil Ecol. 2020, 150, 103470. [Google Scholar] [CrossRef]
  30. Chatterton, S.; Harding, M.W.; Bowness, R.; Mclaren, D.L.; Banniza, S.; Gossen, B.D. Importance and causal agents of root rot on field pea and lentil on the Canadian prairies, 2014–2017. Can. J. Plant Pathol. 2019, 41, 98–114. [Google Scholar] [CrossRef]
  31. Wu, L.; Chang, K.F.; Conner, R.L.; Strelkov, S.; Fredua-Agyeman, R.; Hwang, S.F.; Feindel, D. Aphanomyces euteiches: A Threat to Canadian Field Pea Production. Engineering 2018, 4, 542–551. [Google Scholar] [CrossRef]
  32. Conner, R.L.; Chang, K.F.; Hwang, S.F.; Warkentin, T.D.; McRae, K.B. Assessment of tolerance for reducing yield losses in field pea caused by Aphanomyces root rot. Can. J. Plant Sci. 2013, 93, 473–482. [Google Scholar] [CrossRef]
  33. Wicker, E.; Hullé, M.; Rouxel, F. Pathogenic characteristics of isolates of Aphanomyces euteiches from pea in France. Plant Pathol. 2001, 50, 433–442. [Google Scholar] [CrossRef]
  34. Wu, L.; Chang, K.F.; Hwang, S.F.; Conner, R.; Fredua-Agyeman, R.; Feindel, D.; Strelkov, S.E. Evaluation of host resistance and fungicide application as tools for the management of root rot of field pea caused by Aphanomyces euteiches. Crop J. 2019, 7, 38–48. [Google Scholar] [CrossRef]
  35. Moussart, A.; Even, M.N.; Lesné, A.; Tivoli, B. Successive legumes tested in a greenhouse crop rotation experiment modify the inoculum potential of soils naturally infested by Aphanomyces euteiches. Plant Pathol. 2013, 62, 545–551. [Google Scholar] [CrossRef]
  36. Woo, S.L.; Ruocco, M.; Vinale, F.; Nigro, M.; Marra, R.; Lombardi, N.; Pascale, A.; Lanzuise, S.; Manganiello, G.; Lorito, M. Trichoderma-based Products and their Widespread Use in Agriculture. Open Mycol. J. 2014, 8, 71–126. [Google Scholar] [CrossRef] [Green Version]
  37. Vinale, F.; Sivasithamparam, K.; Ghisalberti, E.L.; Marra, R.; Woo, S.L.; Lorito, M. Trichoderma-plant-pathogen interactions. Soil Biol. Biochem. 2008, 40, 1–10. [Google Scholar] [CrossRef]
  38. Harman, G.E.; Howell, C.R.; Viterbo, A.; Chet, I.; Lorito, M. Trichoderma species—Opportunistic, avirulent plant symbionts. Nat. Rev. Microbiol. 2004, 2, 43–56. [Google Scholar] [CrossRef]
  39. Harman, G.E. Trichoderma-not just for biocontrol anymore. Phytoparasitica 2011, 39, 103–108. [Google Scholar] [CrossRef] [Green Version]
  40. Wong, M.M.L.; Gujaria-Verma, N.; Ramsay, L.; Yuan, H.Y.; Caron, C.; Diapari, M.; Vandenberg, A.; Bett, K.E. Classification and characterization of species within the genus Lens using genotyping-by-sequencing (GBS). PLoS ONE 2015, 10, e0122025. [Google Scholar] [CrossRef] [Green Version]
  41. Gupta, C.D.; Dubey, R.C.; Kang, S.C.; Maheshwari, D.K. Antibiotic Mediated Necrotrophic Effect of Pseudomonas GRC2 against Two Fungal Plant Pathogens. Curr. Sci. 2001, 81, 91–94. [Google Scholar]
  42. Baker, R. Trzchoderma SPP. as plant-growth stimulants. Crit. Rev. Biotechnol. 1988, 7, 97–106. [Google Scholar] [CrossRef]
  43. Mukherjee, M.; Mukherjee, P.K.; Horwitz, B.A.; Zachow, C.; Berg, G.; Zeilinger, S. Trichoderma-Plant-Pathogen Interactions: Advances in Genetics of Biological Control. Indian J. Microbiol. 2012, 52, 522–529. [Google Scholar] [CrossRef] [Green Version]
  44. Naseby, D.C.; Pascual, J.A.; Lynch, J.M. Effect of biocontrol strains of Trichoderma on plant growth, Pythium ultimum populations, soil microbial communities and soil enzyme activities. J. Appl. Microbiol. 2000, 88, 161–169. [Google Scholar] [CrossRef] [Green Version]
  45. Li, M.F.; Li, G.H.; Zhang, K.Q. Non-volatile metabolites from Trichoderma spp. Metabolites 2019, 9, 58. [Google Scholar] [CrossRef] [Green Version]
  46. Adams, P.; De-Leij, F.A.A.M.; Lynch, J.M. Trichoderma harzianum Rifai 1295-22 mediates growth promotion of crack willow (Salix fragilis) saplings in both clean and metal-contaminated soil. Microb. Ecol. 2007, 54, 306–313. [Google Scholar] [CrossRef]
  47. Hermosa, R.; Viterbo, A.; Chet, I.; Monte, E. Plant-beneficial effects of Trichoderma and of its genes. Microbiology 2012, 158, 17–25. [Google Scholar] [CrossRef] [Green Version]
  48. Altomare, C.; Norvell, W.A.; Björkman, T.; Harman, G.E. Solubilization of phosphates and micronutrients by the plant-growth- promoting and biocontrol fungus Trichoderma harzianum Rifai 1295-22. Appl. Environ. Microbiol. 1999, 65, 2926–2933. [Google Scholar] [CrossRef] [Green Version]
  49. Dandurand, L.M.; Mosher, R.D.; Knudsen, G.R. Combined effects of Brassica napus seed meal and Trichoderma harzianum on two soilborne plant pathogens. Can. J. Microbiol. 2000, 46, 1051–1057. [Google Scholar] [CrossRef]
  50. Parnell, J.J.; Berka, R.; Young, H.A.; Sturino, J.M.; Kang, Y.; Barnhart, D.M.; Dileo, M.V. From the lab to the farm: An industrial perspective of plant beneficial microorganisms. Front. Plant Sci. 2016, 7, 1–12. [Google Scholar] [CrossRef]
  51. Howell, C.R. Mechanisms employed by Trichoderma species in the biological control of plant diseases: The history and evolution of current concepts. Plant Dis. 2003, 87, 4–10. [Google Scholar] [CrossRef] [Green Version]
  52. Hagn, A.; Pritsch, K.; Schloter, M.; Munch, J.C. Fungal diversity in agricultural soil under different farming management systems, with special reference to biocontrol strains of Trichoderma spp. Biol. Fertil. Soils 2003, 38, 236–244. [Google Scholar] [CrossRef]
  53. Harman, G.E. Overview of mechanisms and uses of Trichoderma spp. Phytopathology 2006, 96, 190–194. [Google Scholar] [CrossRef] [Green Version]
  54. Bremer, E.; Van Kessel, C.; Nelson, L.; Rennie, R.J.; Rennie, D.A. Selection of Rhizobium leguminosarum strains for lentil (Lens culinaris) under growth room and field conditions. Plant Soil 1990, 121, 47–56. [Google Scholar] [CrossRef]
  55. Saber, W.I.A.; Abd El-Hai, K.M.; Ghoneem, K.M. Synergistic effect of Trichoderma and Rhizobium on both biocontrol of chocolate spot disease and induction of nodulation, physiological activities and productivity of Vicia faba. Res. J. Microbiol. 2009, 4, 286–300. [Google Scholar] [CrossRef] [Green Version]
  56. Druzhinina, I.S.; Seidl-Seiboth, V.; Herrera-Estrella, A.; Horwitz, B.A.; Kenerley, C.M.; Monte, E.; Mukherjee, P.K.; Zeilinger, S.; Grigoriev, I.V.; Kubicek, C.P. Trichoderma: The genomics of opportunistic success. Nat. Rev. Microbiol. 2011, 9, 749–759. [Google Scholar] [CrossRef]
  57. Prashar, P.; Vandenberg, A. Genotype-specific responses to the effects of commercial Trichoderma formulations in lentil (Lens culinaris ssp. culinaris) in the presence and absence of the oomycete pathogen Aphanomyces euteiches. Biocontrol Sci. Technol. 2017, 27, 1123–1144. [Google Scholar] [CrossRef]
  58. Adam, E.; Bernhart, M.; Müller, H.; Winkler, J.; Berg, G. The Cucurbita pepo seed microbiome: Genotype-specific composition and implications for breeding. Plant Soil 2018, 422, 35–49. [Google Scholar] [CrossRef]
  59. Dakora, F.D.; Phillips, D.A. Root exudates as mediators of mineral acquisition in low-nutrient environments. In Food Security in Nutrient-Stressed Environments: Exploiting Plants’ Genetic Capabilities; Springer: Dordrecht, The Netherlands, 2002; pp. 201–213. [Google Scholar]
  60. Badri, D.V.; Vivanco, J.M. Regulation and function of root exudates. Plant Cell Environ. 2009, 32, 666–681. [Google Scholar] [CrossRef]
  61. Tiago, O.; Maicon, N.; Ivan, R.C.; Diego, N.F.; Vinícius, J.S.; Mauricio, F.; Alan, J.d.P.; Velci, Q.d.S. Plant secondary metabolites and its dynamical systems of induction in response to environmental factors: A review. Afr. J. Agric. Res. 2017, 12, 71–84. [Google Scholar] [CrossRef] [Green Version]
  62. Badri, D.V.; Chaparro, J.M.; Zhang, R.; Shen, Q.; Vivanco, J.M. Application of natural blends of phytochemicals derived from the root exudates of arabidopsis to the soil reveal that phenolic-related compounds predominantly modulate the soil microbiome. J. Biol. Chem. 2013, 288, 4502–4512. [Google Scholar] [CrossRef] [Green Version]
  63. Chaparro, J.M.; Badri, D.V.; Bakker, M.G.; Sugiyama, A.; Manter, D.K.; Vivanco, J.M. Root Exudation of Phytochemicals in Arabidopsis Follows Specific Patterns That Are Developmentally Programmed and Correlate with Soil Microbial Functions. PLoS ONE 2013, 8, e55731. [Google Scholar] [CrossRef]
  64. Bazghaleh, N.; Prashar, P.; Purves, R.W.; Vandenberg, A. Polyphenolic composition of lentil roots in response to infection by Aphanomyces euteiches. Front. Plant Sci. 2018, 9, 1131. [Google Scholar] [CrossRef]
  65. d’Arcy-Lameta, A. Study of soybean and lentil root exudates II. Identification of some polyphenolic compounds, relation with plantlet physiology In the framework of Leguminosae-Rhizobium symbiosis study, we were interested in determining the exact nature of root exud. Plant Soil 1986, 123, 113–123. [Google Scholar]
  66. Bazghaleh, N.; Hamel, C.; Gan, Y.; Tar’an, B.; Knight, J.D. Genotypic variation in the response of chickpea to arbuscular mycorrhizal fungi and non-mycorrhizal fungal endophytes. Can. J. Microbiol. 2018, 64, 265–275. [Google Scholar] [CrossRef]
  67. Peiffer, J.A.; Spor, A.; Koren, O.; Jin, Z.; Tringe, S.G.; Dangl, J.L.; Buckler, E.S.; Ley, R.E. Diversity and heritability of the maize rhizosphere microbiome under field conditions. Proc. Natl. Acad. Sci. USA 2013, 110, 6548–6553. [Google Scholar] [CrossRef] [Green Version]
  68. Tucci, M.; Ruocco, M.; De Masi, L.; De Palma, M.; Lorito, M. The beneficial effect of Trichoderma spp. on tomato is modulated by the plant genotype. Mol. Plant Pathol. 2011, 12, 341–354. [Google Scholar] [CrossRef]
  69. Abi-Ghanem, R.; Carpenter-Boggs, L.; Smith, J.L. Cultivar effects on nitrogen fixation in peas and lentils. Biol. Fertil. Soils 2011, 47, 115–120. [Google Scholar] [CrossRef]
Microorganisms 08 01290 g001 550

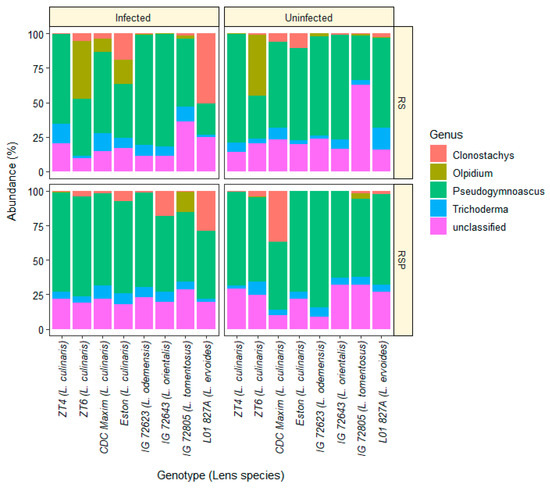

Figure 1. Relative abundance of fungal genera in the roots of diverse lentil genotypes in uninfected conditions (control) or when infected with the pathogen Aphanomyces euteiches, four weeks after seeding. The RootShield (RS) product contains T. harzianum T-22 and RootShield Plus (RSP) includes T. harzianum T-22 and T. virens strain G41.
Figure 1. Relative abundance of fungal genera in the roots of diverse lentil genotypes in uninfected conditions (control) or when infected with the pathogen Aphanomyces euteiches, four weeks after seeding. The RootShield (RS) product contains T. harzianum T-22 and RootShield Plus (RSP) includes T. harzianum T-22 and T. virens strain G41.
Microorganisms 08 01290 g001
Microorganisms 08 01290 g002 550

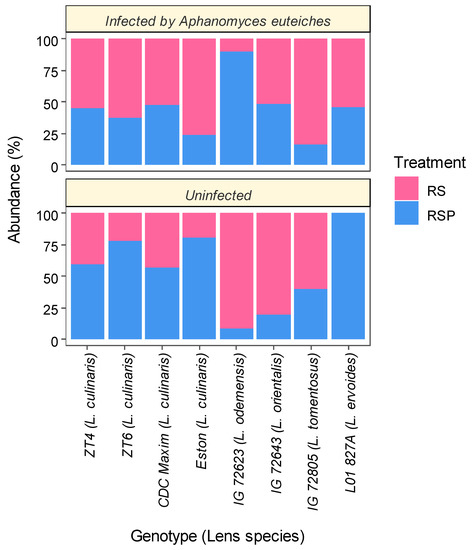

Figure 2. Relative abundance of Trichoderma at the genus level in the roots of diverse lentil genotypes treated with one of the two commercial biological products, in uninfected conditions (control) or when infected with the pathogen Aphanomyces euteiches, four weeks after seeding. The RootShield (RS) product contains T. harzianum T-22 and RootShield Plus (RSP) includes T. harzianum T-22 and T. virens strain G41. Significant effect of treatment on the abundance of Trichoderma was observed for both uninfected and infected plants with A. euteiches (p < 0.05).
Figure 2. Relative abundance of Trichoderma at the genus level in the roots of diverse lentil genotypes treated with one of the two commercial biological products, in uninfected conditions (control) or when infected with the pathogen Aphanomyces euteiches, four weeks after seeding. The RootShield (RS) product contains T. harzianum T-22 and RootShield Plus (RSP) includes T. harzianum T-22 and T. virens strain G41. Significant effect of treatment on the abundance of Trichoderma was observed for both uninfected and infected plants with A. euteiches (p < 0.05).
Microorganisms 08 01290 g002
Microorganisms 08 01290 g003 550

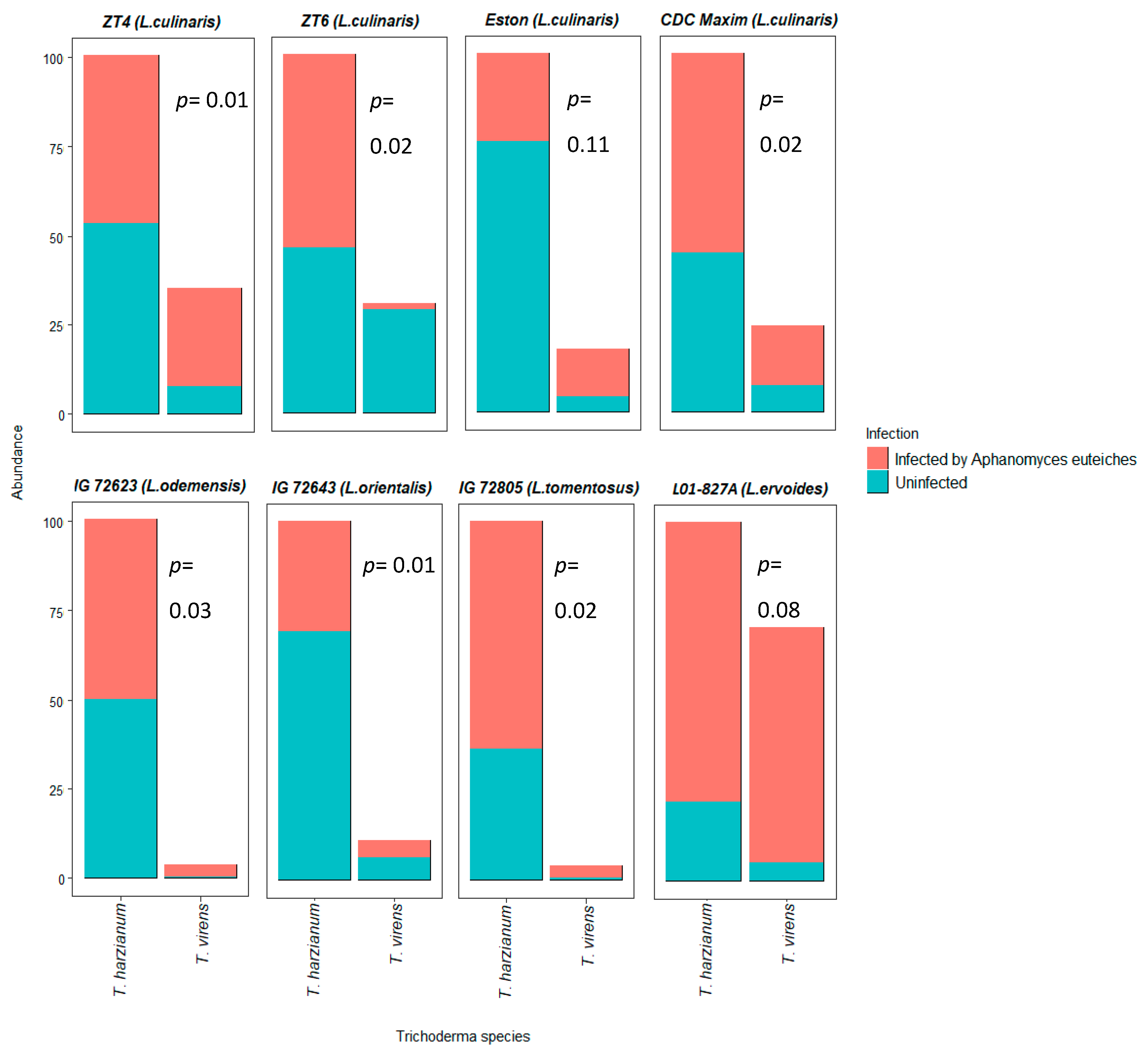

Figure 3. The relative abundance of T. harzianum and T. virens, as determined by the identification of Trichoderma species found in the roots after inoculation with commercial RS or RSP products to each of the eight different lentil genotypes, when grown in uninfected conditions (control) or infected with the pathogen Aphanomyces euteiches (AE), four weeks after seeding. Relative abundance of Trichoderma significantly varied between species (p < 0.05). Statistics presented are the comparison of the uninfected/infected ratios between Trichoderma species for each genotype.
Figure 3. The relative abundance of T. harzianum and T. virens, as determined by the identification of Trichoderma species found in the roots after inoculation with commercial RS or RSP products to each of the eight different lentil genotypes, when grown in uninfected conditions (control) or infected with the pathogen Aphanomyces euteiches (AE), four weeks after seeding. Relative abundance of Trichoderma significantly varied between species (p < 0.05). Statistics presented are the comparison of the uninfected/infected ratios between Trichoderma species for each genotype.
Microorganisms 08 01290 g003
Microorganisms 08 01290 g004 550

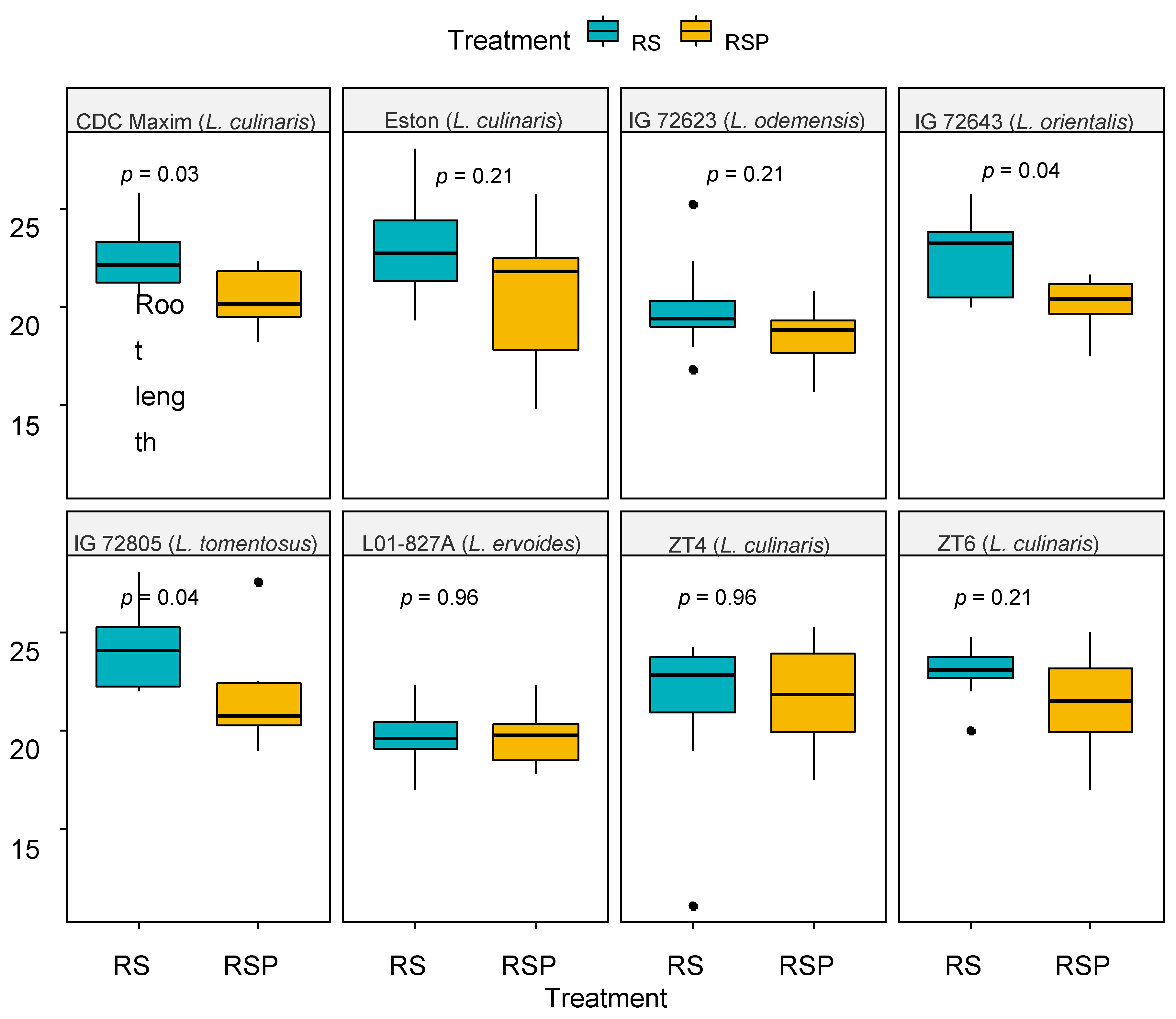

Figure 4. Effect of treatments with two Trichoderma products on the root development of lentil genotypes 4 weeks after seeding. RootShield (RS; green boxes) product contains T. harzianum T22 and RootShield Plus (RSP; yellow boxes) includes T. harzianum T22 and T. virens strain G41; the presence of the A. euteiches (A) pathogen. The boxes contain the values for all eight genotypes, and the line represents the mean root length value (n = 32). The p-values compare the root length effects by RS and RSP in each genotype.
Figure 4. Effect of treatments with two Trichoderma products on the root development of lentil genotypes 4 weeks after seeding. RootShield (RS; green boxes) product contains T. harzianum T22 and RootShield Plus (RSP; yellow boxes) includes T. harzianum T22 and T. virens strain G41; the presence of the A. euteiches (A) pathogen. The boxes contain the values for all eight genotypes, and the line represents the mean root length value (n = 32). The p-values compare the root length effects by RS and RSP in each genotype.
Microorganisms 08 01290 g004
Microorganisms 08 01290 g005 550
Figure 5. In vitro cultures of: left—Aphanomyces euteiches alone; right—bioassay of Aphanomyces euteiches and Trichoderma harzianum strain T-22 co-cultures. Five day old culture of A. euteiches and T. harzianum were used for the assay on water agar plates. Microbial growth showed is after 5 days of incubation.
Figure 5. In vitro cultures of: left—Aphanomyces euteiches alone; right—bioassay of Aphanomyces euteiches and Trichoderma harzianum strain T-22 co-cultures. Five day old culture of A. euteiches and T. harzianum were used for the assay on water agar plates. Microbial growth showed is after 5 days of incubation.
Microorganisms 08 01290 g005
Table
Table 1. Lentil genotypes tested in the study.
Table 1. Lentil genotypes tested in the study.
GenotypeSpeciesGene Pool *Type
CDC MaximL. culinarisPrimaryCultivated
EstonL. culinarisPrimaryCultivated
ZT-4L. culinarisPrimaryCultivated
ZT-6L. culinarisPrimaryCultivated
IG 72643L. orientalisPrimaryWild
IG 72805L. tomentosusPrimaryWild
IG 72623L. odemensisSecondaryWild
L01-827AL. ervoidesTertiaryWild
* According to Wong et al. (2015) [40].
Table
Table 2. Effect of the lentil genotype, infection by Aphanomyces euteiches, and inoculation by Trichoderma sp. on the composition of the fungal community and Trichoderma community (species) in the lentil roots, determined by a permutation-based multivariate analysis of variance.
Table 2. Effect of the lentil genotype, infection by Aphanomyces euteiches, and inoculation by Trichoderma sp. on the composition of the fungal community and Trichoderma community (species) in the lentil roots, determined by a permutation-based multivariate analysis of variance.
DFp
Fungal CommunityTrichoderma Community
Genotype70.03 *0.02 *
Infection (A.s euteiches)10.090.79
Treatment (Trichoderma)10.001 ***0.002 **
Infection × Genotype × Treatment70.01 *0.35
Residuals96
* p < 0.05, ** p < 0.01, *** p < 0.001.
Table
Table 3. Effect of the lentil genotype, infection by Aphanomyces euteiches, and inoculation by Trichoderma sp. on root length in lentils determined by the analysis of variance.
Table 3. Effect of the lentil genotype, infection by Aphanomyces euteiches, and inoculation by Trichoderma sp. on root length in lentils determined by the analysis of variance.
DFSum SqMean SqFp
Genotype7167.223.893.660.001 **
Infection (A. euteiches)10.10.070.010.91
Treatment (Trichoderma)172.172.111.070.001 **
Infection × Genotype × Treatment726.53.790.580.76
Residuals96
** p < 0.01.
Table
Table 4. Relationship between the lentil root biomass or shoot biomass to the relative abundance of Trichoderma spp. and between the vegetative below- and above-ground biomass, as indicated by Spearman’s correlation.
Table 4. Relationship between the lentil root biomass or shoot biomass to the relative abundance of Trichoderma spp. and between the vegetative below- and above-ground biomass, as indicated by Spearman’s correlation.
Factorsp Valuer
Root biomass: Trichoderma spp.<0.050.2
Shoot biomass: Trichoderma spp.<0.050.19
Root biomass: shoot biomass<0.00010.51

Share and Cite

MDPI and ACS Style

Bazghaleh, N.; Prashar, P.; Woo, S.; Vandenberg, A. Effects of Lentil Genotype on the Colonization of Beneficial Trichoderma Species and Biocontrol of Aphanomyces Root Rot. Microorganisms 2020, 8, 1290. https://doi.org/10.3390/microorganisms8091290

AMA Style

Bazghaleh N, Prashar P, Woo S, Vandenberg A. Effects of Lentil Genotype on the Colonization of Beneficial Trichoderma Species and Biocontrol of Aphanomyces Root Rot. Microorganisms. 2020; 8(9):1290. https://doi.org/10.3390/microorganisms8091290

Chicago/Turabian Style

Bazghaleh, Navid, Pratibha Prashar, Sheridan Woo, and Albert Vandenberg. 2020. "Effects of Lentil Genotype on the Colonization of Beneficial Trichoderma Species and Biocontrol of Aphanomyces Root Rot" Microorganisms 8, no. 9: 1290. https://doi.org/10.3390/microorganisms8091290

APA Style

Bazghaleh, N., Prashar, P., Woo, S., & Vandenberg, A. (2020). Effects of Lentil Genotype on the Colonization of Beneficial Trichoderma Species and Biocontrol of Aphanomyces Root Rot. Microorganisms, 8(9), 1290. https://doi.org/10.3390/microorganisms8091290

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
