Article

Diversity, Phylogeny and Plant Growth Promotion Traits of Nodule Associated Bacteria Isolated from Lotus parviflorus

by
Ricardo Soares
1,2,
Jesús Trejo
1,
Maria J. Lorite
3,
Etelvina Figueira
4,
Juan Sanjuán
3 and
Isabel Videira e Castro
1,*
1
Laboratório de Microbiologia do Solo, UEISSAFSV, Instituto Nacional de Investigação Agrária e Veterinária, I.P. (INIAV, I.P.), 2780-159 Oeiras, Portugal
2
Laboratório de Bioquímica Inorgânica e RMN, Instituto de Tecnologia Química e Biológica António Xavier, Universidade Nova de Lisboa, 2780-157 Oeiras, Portugal
3
Departamento de Microbiología del Suelo y Sistemas Simbióticos, Estación Experimental del Zaidín, CSIC, E-18160 Granada, Spain
4
Departamento de Biologia & CESAM, Universidade de Aveiro, 3810-193 Aveiro, Portugal
*
Author to whom correspondence should be addressed.
Microorganisms 2020, 8(4), 499; https://doi.org/10.3390/microorganisms8040499
Submission received: 26 February 2020 / Revised: 18 March 2020 / Accepted: 30 March 2020 / Published: 31 March 2020
(This article belongs to the Special Issue Plant Microbial Interactions)
Browse Figures
Versions Notes

Abstract

:
Lotus spp. are widely used as a forage to improve pastures, and inoculation with elite rhizobial strains is a common practice in many countries. However, only a few Lotus species have been studied in the context of plant-rhizobia interactions. In this study, forty highly diverse bacterial strains were isolated from root nodules of wild Lotus parviflorus plants growing in two field locations in Portugal. However, only 10% of these isolates could nodulate one or more legume hosts tested, whereas 90% were thought to be opportunistic nodule associated bacteria. Phylogenetic studies place the nodulating isolates within the Bradyrhizobium genus, which is closely related to B. canariense and other Bradyrhizobium sp. strains isolated from genistoid legumes and Ornithopus spp. Symbiotic nodC and nifH gene phylogenies were fully consistent with the taxonomic assignment and host range. The non-nodulating bacteria isolated were alpha- (Rhizobium/Agrobacterium), beta- (Massilia) and gamma-proteobacteria (Pseudomonas, Lysobacter, Luteibacter, Stenotrophomonas and Rahnella), as well as some bacteroidetes from genera Sphingobacterium and Mucilaginibacter. Some of these nodule-associated bacteria expressed plant growth promotion (PGP) traits, such as production of lytic enzymes, antagonistic activity against phytopathogens, phosphate solubilization, or siderophore production. This argues for a potential beneficial role of these L. parviflorus nodule-associated bacteria.

Graphical Abstract

1. Introduction

Lotus is the largest genus of the Loteae tribe, which includes more than 180 species of perennial and annual herbs and small shrubs distributed in the Mediterranean region and in the Western USA [1,2]. Several Lotus spp. (Lotus uliginosus, Lotus corniculatus, Lotus tenuis, and Lotus subbiflorus) have forage value and are widely used to improve pastures [2]. Moreover, L. japonicus has been chosen as a model legume for genetic studies [3,4]. Like most legumes, Lotus spp. can establish nitrogen-fixing symbioses with certain soil bacteria collectively known as rhizobia. Typically, Lotus can either form specific interactions with the intermediate growing Mesorhizobium genus (group I: L. corniculatus and L. tenuis, e.g., [5,6,7]) or with the slow growing, Bradyrhizobium genus (group II: L. uliginosus (Lotus pedunculatus), Lotus angustissimus and L. subbiflorus, e.g., [8,9,10]). Nevertheless, Lotus-rhizobia interactions seem to be more complex, as Lotus from group I have been reported to interact with rhizobia belonging to the Rhizobium or Aminobacter genera [11]. Additionally, it has been found that certain non-cultivated Lotus species interact with rhizobia of the genus Ensifer [12,13,14]. Therefore, it seems that a lot is to be discovered about Lotus root nodule microsymbionts, especially regarding uncultivated species [15].
Genistoid legumes (e.g., Lupinus spp., Cytisus spp, Adenocarpus spp., Genista spp., Spartium ssp, etc.), Serradella (Ornithopus spp.), and L. uliginosus have been shown to be nodulated by closely related bradyrhizobia that are in the same cross-inoculation group [9,16,17]. The genus Bradyrhizobium comprises highly diversified bacteria, with 39 described species thus far [18,19,20], including some photosynthetic strains [21,22,23]. The 16S rRNA gene is very conserved within this genus and, like the symbiotic genes, has been shown to be laterally transmitted [24,25]. Thus, for a better phylogenetic prediction, multilocus sequence analysis (MLSA) of protein encoding housekeeping genes, such as recA, atpD and glnII, is more suitable [16,24,25,26].
The legume root nodules have been traditionally considered to be exclusively colonized by rhizobial bacteria, but this view has rapidly changed over the past several years. In addition to rhizobia, other bacteria can frequently inhabit the interior of nodules, e.g., Bacillus, Pseudomonas, Agrobacterium, and others [27,28,29,30,31,32,33], without causing any damage or disease, and are thus considered nodule endophytic bacteria. These nodule inhabitants are not able to nodulate by themselves and therefore could be viewed as opportunistic colonizers [34]. Recently, it has been reported that L. japonicus can control infection of nodules by both the symbiotic and other endophytic bacteria [34]. These findings have given a new perspective for these endophytic bacteria, originally treated as “contaminants”. The role of these non-rhizobia nodule bacteria is still unclear, but some studies point out a possible beneficial role, e.g., enhancing nodulation and nitrogen fixation [35,36,37]. Moreover, besides nitrogen fixation, plant growth can be enhanced through other mechanisms by rhizobia and non-rhizobial bacteria, generally known as plant growth promoting rhizobacteria (PGPR) [38] or plant probiotic bacteria (PPB). Among these other mechanisms are solubilization of mineral nutrients [39,40,41], production of phytohormones [42,43,44], or the expression of antagonistic activities against phytopathogens [45,46,47].
The aim of this work was to identify and characterize bacteria inhabiting the interior of root nodules of field-grown Lotus parviflorus plants. To our knowledge, this is the first report on bacteria isolated from root nodules from this legume.

2. Materials and Methods

2.1. Isolation of Bacterial Strains and Growth Conditions

Bacteria were isolated from effective root nodules of wild L. parviflorus plants growing in two field sites in Portugal: Beduído, which belongs to Estarreja city (site A; 40°46′0.064″ N 8° 35′12.035″ W); and fields of the “Companhia das Lezírias” farming exploration company, located in Samora Correia, which belongs to Benavente city (site B; 38° 49′24.7″ N 8°50′36.8″ W; Figure 1). Nodules were surface sterilized [9] then individually crushed before a droplet was spread on a plate with yeast-mannitol agar (YMA) supplemented with congo red dye according to [48,49]. Plates were incubated at 28 °C in the dark for 1 week. The isolate’s purity was checked by examining colony morphology and congo red absorption. Sub-culturing was conducted when more than one type of colony was present. Each pure isolate was stored at 4 °C and at −80 °C with 20% of glycerol.
Absorption of congo red was visualized by growing bacteria in YMA supplemented with 0.25 mg L−1 congo red. Congo red dye is often used to distinguish rhizobia from non-rhizobial strains. Rhizobium colonies typically do not absorb congo red [48,49], while other bacteria absorb it.

2.2. Repetitive Extragenic Palindromic (REP)-PCR Amplification and Fingerprint Analysis

Genomic DNA extractions were done following the procedure by Estrella et al. [11] or using “Aqua pure Genomic DNA extraction” kit from Bio-Rad, following the kit protocol specifications. After DNA extraction, genomic repetitive extragenic palindromic (REP) fingerprints were generated using REP1R and REP2I primers, as previously described by Versalovic, Koeuth, and Lupski [50]. Computer-assisted analysis of the REP fingerprints was performed using GelJ v2.0 software [51]. A dendrogram was constructed using dice coefficient and the unweighted pair group method with arithmetic mean method (UPGMA) clustering method [52] at a 1% band-position tolerance level.

2.3. PCR Gene Amplification and Sequencing

16S rRNA gene amplification was performed using 41F and 1488R primers as described by [53] or with primers rD1 and fD1 as described by Herrera-Cervera et al. [54]. recA and atpD gene fragments were amplified following Gaunt et al.’s methods [55]. For recA gene amplification, recA6, recA63, recA504, and recA555 primers were used; for atpD gene amplification, atpD273, atpD294 and atpD771 primers were used. glnII gene was amplified using glnR and glnF primers [56]. nodC and nifH genes were amplified following Laguerre et al.’s methods [57], using primers nodCFn, nodCF2, nodCF4, and nodCFu, nodCI, nifHF, and nifHR primers, respectively. Newly designed primers (Table 1) were used when amplification with the previous primers was not possible. For these PCR reactions primers were used at a concentration of 5 μM, together with 15.8 μL of Qiagen kit Taq mix solution (2.5 U of taq polymerase, 1.5 mM of MgCl2, 200 μM of the different dNTP), and approximately 20 ng of genomic DNA, in a final volume of 20 μL. Amplifications were performed using Eppendorf Mastercyler Gradient thermocycler. For recA amplification, samples were incubated for 5 min at 95 °C followed by 35 rounds of thermocycling conditions (95 °C for 45 s, 59 °C for 1 min, and 72 °C for 1 min 30 s) and a final extension phase (72 °C, 7 min). For atpD, samples were incubated for 5 min at 95 °C followed by 35 rounds of thermocycling conditions (95 °C for 45 s, 53 °C for 1 min and 72 °C for 2 min, using atpD183/atpD872 primers, or 95 °C for 45 s, 58 °C for 1 min, and 72 °C for 2 min, using atpD133/atpD762 primers) and a final extension phase (72 °C for 7 min). Primer 16SIR was only used for fully sequencing the 16S amplicon from some strains. The amplified DNA fragments were electrophoresed and extracted from agarose with the QIAEXII kit (Qiagen; Venlo, Netherlands) and sequenced with an ABI373 automated sequencer in the sequencing service of the “Instituto de Parasitología y Biomedicina, Lopez Neyra” CSIC, Spain. Alternatively, PCR products were sequenced using an ABI 3730 XL automated sequencer, by Stabvida, Caparica, Portugal.

2.4. NCBI Accession Numbers

Sequences obtained previously were deposited in the NCBI database. Below a list of all accession codes is presented next to the correspondent strain, for each gene.
  • 16S rRNA
    LpA5a: MK611706; LpA5b: MK611741; LpA6: MK611742; LpA7b: MK611744; LpA8: MK611745; LpA9: MK611746; LpA10: MK611747; LpA11: MK611748; LpA12: MK611749; LpA13a: MK611750; LpB5b: MT071928; LpB5d: MT071934; LpB9a: MT071930; LpB10a: MT071937; LpB10b: MT071935; LpB10c: MT071938; LpB10d: MT071936; LpB12a: MT071929; LpB12b: MT071924; LpB13: MT071932; LpB14a: MT071927; LpB14b: MT071931; LpB15b: MT071926; LpB16c: MT071939; LpB16d: MT071925; LpB17b: MT071933; LpB19a: MK611753; LpB23b: MK611754; LpB26: MK611755.
  • RecA
    LpA5a: MK671539; LpA5b: MK690337; LpA6: MK671540; LpA7b: MK671541; LpA8: MK690338; LpA9: MK671542; LpA11: MK671543; LpA13a: MK690339; LpB19a: MK671547; LpB23b: MK671548; LpB26: MK671549.
  • AtpD
    LpA5a: MK671550; LpA5b: MK690340; LpA6: MK671551; LpA7b: MK671553; LpA8: MK690341; LpA9: MK671554; LpA10: MK690342; LpA11: MK671555; LpA13a: MK671557; LpB19a: MK671560; LpB23b: MK671561; LpB26: MK671562.
  • GlnII
    LpA8: MK690343; LpA9: MK690344; LpA11: MK671563; LpA13b: MK690346; LpA14: MK690347; LpB19a: MK671564; LpB23b: MK671565; LpB26: MK671566.
  • NodC
    LpA11: MK671567; LpB19a: MK671568; LpB23b: MK671569; LpB26: MK671570.
  • NifH
    LpA11: MK690348; LpB19a: MK671571; LpB23b: MK671572; LpB26: MK671573.

2.5. Phylogenetic Analysis

Nucleotide sequences were visualized in a chromatogram and edited manually, as necessary, with Chromas lite program (version 2.1.1). Homologous sequences in NCBI Genebank database were identified using BLASTn tool. Alignments were performed using ClustalW and phylogenetic reconstruction was performed using IQ-tree [58] on XSEDE [59] and CIPRES platforms [60], with the Maximum Likelihood (ML), ModelFinder [61], and Ultra-Fast bootstrap [62] methods. An appropriate outgroup was selected to perform the ML method. The bootstrap confidence values were based on 1000 replications. Tree visualization was performed using the Interactive Tree Of Life tool [63].

2.6. Nodulation Tests

The nodulation ability of isolates was tested in the original host L. parviflorus (seeds collected from location B), as well as in related legumes: L. uliginosus cv. Sunrise; L. tenuis cv. Pampa INTA; L. tenuis cv. Esmeralda; L. corniculatus cv. San Gabriel; Lupinus luteus cv. Nacional; and Glycine max 104904B-Próvida. Seeds were surface sterilized according to Hahn and Somasegaran and Hoben [48,49]. After 1–2 h in sterilized water, seeds were transferred to 0.8% w v−1 agar-water plates for 1–2 (Lotus seeds) or 2–4 days (Lupinus and Glycine seeds). After germination, seedlings were transferred to slants (Lotus spp.) or to Leonard-type jars (Lupinus and Glycine) containing N-free Jensen plant nutrient medium [64]. Each isolate was inoculated by applying a 1 mL bacterial suspension (approximately 109 bacterial cells in ¼ Jensen medium), on the roots of each seedling (3 replicates per each bacteria–host combination). Additionally, controls (TN) fertilized with 1 mL (Lotus spp.) or 2 mL (Lupinus and Glycine) of 4.45 mM KNO3− (final concentration), and non-inoculated (T0) supplemented with 1 mL of N-free liquid Jensen medium (¼ diluted), were also prepared. Plants were grown in environmental chambers under controlled conditions (16/8 h photoperiod and 23/18 °C). Lupinus and Glycine plants were transferred to the greenhouse after 4 weeks of growth in the environmental chambers. After 8 weeks of growth, the ability to nodulate and fix nitrogen was evaluated by visual inspection of the nodules, and by comparison of plant sizes and aspect with T0 and TN controls. In addition, dry weights of aerial biomass were measured, after drying at 80 °C for 2 days, to determine the relative symbiotic effectiveness, as described by Ferreira and Marques [65].

2.7. Tests for Plant-Growth-Promotion (PGP) Traits

Qualitative tests for classical PGP activities, such as phosphate (P) solubilization, siderophore production, antagonism against phytopathogens, and production of lytic enzymes (pectinases and celullases) were carried out. Solubilization of tricalcium phosphate was tested in YED-agar plates supplemented with 0.2% of Ca3PO4 [66]. Isolates with halos around the colonies were considered as P solubilizers. The presence of siderophores was tested in TY media [67] using a CAS solution, which contains iron conjugated with a dye as a color indicator, as described by Pérez-Miranda et al. [68]. Isolates that formed orange halos were considered siderophore producers. For the antagonistic activity against phytopathogens, a portion of Phytophthora cinnamomi or Botryosphaeria cortícola mycelium was inoculated in the center of YMA plates. After 2 days of incubation at 27 °C in the dark, the bacterial isolates were inoculated in the periphery of the plate and incubated for 10 days at 27 °C in the dark. The antagonistic activity was considered when inhibition of the phytopathogens growth was visualized. Production of cellulases or pectinases were tested in TY media supplemented with 0.2% w v−1 of carboxymethylcellulose (CMC) or 0.5% w v−1 of Pectin, following procedures by Verma, Ladha, and Tripathi [69]. The appearance of halos around the colonies was accounted for the presence of the respective lytic enzymes (cellulases or pectinases).

3. Results

3.1. Bacterial Diversity

A total of 13 isolates from site A (named LpA) and 27 from site B (named LpB) were obtained from the root nodules of L. parviflorus plants. In some instances, more than one colony type (colony morphology, distinct congo red absorption, etc.) coming from a single nodule were visualized, (named types a, b, c, etc.; e.g., LpA5a and LpA5b). A broad range of congo red staining levels and growing velocity were observed among the isolated colonies (Table 2).
The majority of the isolates were fast or very fast growers and did not absorb the congo red stain. The only isolates that were slow growers and did not absorb congo red were LpA11 from site A and LpB19a, LpB23b, and LpB26 from site B. The appearance of visible colonies within 24 h that also absorbed congo red (Table 2) was an indication that some bacteria might not be rhizobia [49].
REP fingerprints were obtained for all isolates except for four (LpB5c, LpB5e, LpB9b, and LpB23a). Fingerprints were composed of 2–18 bands with sizes between 200–8.000 bp (Figure S1). Considering a similarity index of 80% for strain differentiation [16], the analysis revealed 29 different clusters among the 36 isolates tested. In several instances, isolates obtained from the same nodule that had been considered visually different still displayed identical fingerprints (e.g., LpA7a and LpA7b; LpB5b, LpB5g, and LpB5f; LpB16a, LpB16b, and LpB16d). In other instances, identical fingerprints were shown by isolates originating from different nodules (LpA12, LpA13b, and LpA14; Figure S1).

3.2. Phylogenetic Analyses

3.2.1. 16S rRNA Gene

A single 1500 bp fragment, corresponding to almost full-length 16S rRNA gene, was PCR amplified of one isolate from each cluster (29 in Total; Figure S1) and further sequenced.

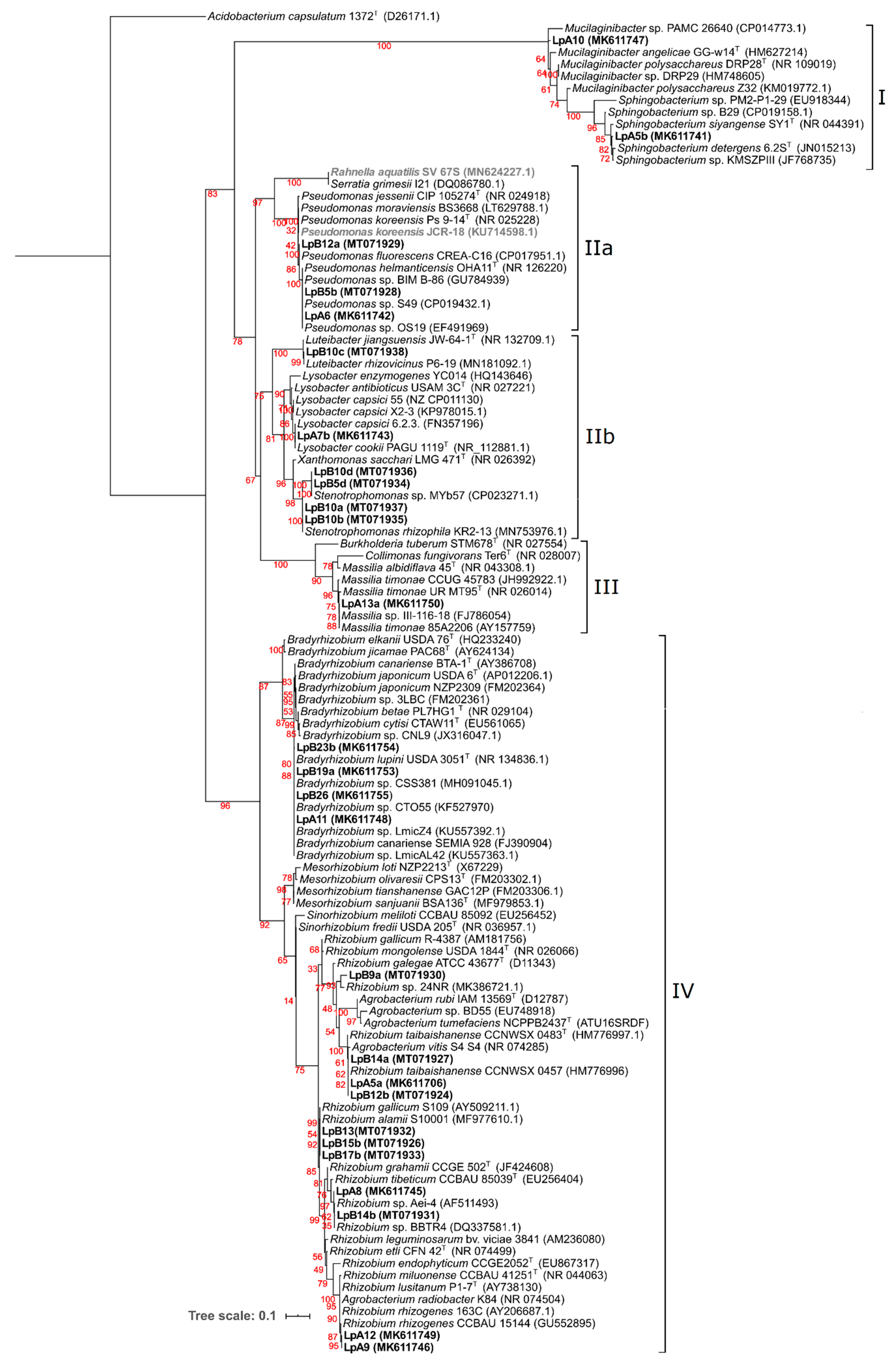

Aligned sequences of 920 nt positions were used to construct the phylogenetic ML tree shown in Figure 2, where four major clades can be observed. Isolates LpB16c and LpB16d were not included in this tree because only small sequence stretches from the 16S rRNA gene could be obtained. Nonetheless, highest sequence identities obtained were still included in the tree and are represented in bold and grey.
Clade I included bacteria belonging to the Bacteroidetes phylum (Sphingobacteriaceae) family. Isolates LpA5b and LpA10 were placed in this clade, and their closest relatives were Sphingobacterium sp. KMSZPIII and Mucilaginibacter sp. PAMC 26640, respectively. Clade II contained bacteria from the gamma-proteobacteria class. Pseudomonadaceae and Enterobacteriaceae families comprised subclade IIa, where LpA6, LpB5b, and LpB12a were included. Isolates LpA6 and LpB5b were grouped with Pseudomonas helmanticensis OHA11 and other unclassified Pseudomonas spp. The closest relative of LpB12a was Pseudomonas fluorescens CREA-C16. LpB16d and LpB16c (not included in this tree) would have the highest identity with Pseudomonas koreensis JCR-18 (100% identity) and Rahnella aquatilis SV_67S (100% identity), respectively. Subclade IIb was composed by Rhodanobacteraceae and Xanthomonadaceae families. Isolate LpB10c was grouped with Luteibacter rhizovicinus P6-19. Isolates LpB5d and LpB10d were clustered together and with Stenotrophomonas sp. MYb57. Isolates LpB10a and LpB10b were clustered together and with Stenotrophomonas rhizophila KR2-13. Isolate LpA7b was clustered with Lysobacter cookii PAGU 1119 and L. capsici 6.2.3. Clade III included bacteria from the beta-proteobacteria class (Oxalobacteraceae family). LpA13a was the only isolate placed in this clade and was grouped with Massilia timonae 85A2206 and Massilia sp. II-116-18. Clade IV comprised of bacteria belonging to the alpha-proteobacteria class (Bradyrhizobiaceae Rhizobiaceae and Phyllobacteriaceae families). Isolates LpA11, LpB19a, LpB23b, and LpB26 were clustered with Bradyrhizobium canariense SEMIA 928, Bradyrhizobium lupini USDA 3051, and other Bradyrhizobium strains isolated from genistoid legumes. Isolate LpB9a was clustered with Rhizobium sp. 24NR. Isolates LpA5a, LpB14a, and LpB12b were clustered in a group with Rhizobium taibaishanense CCNWSX 0457. LpB13, LpB15b, and LpB17b were clustered together and with Rhizobium gallicum S109 and Rhizobium alamii S10001. Isolate LpB14b was grouped with Rhizobium sp. BBTR4, while LpA8 was grouped isolated in a sister cluster. Isolates LpA9 and LpA12 were clustered in a separated group close to Rhizobium rhizogenes CCBAU 15144

3.2.2. Protein-Encoding Housekeeping Genes

Since 16S rRNA gene cannot provide the best phylogenetic resolution for some bacteria, like in the case of Bradyrhizobia, MLSA of several protein-encoding housekeeping genes was performed. Only site B strains that nodulated (LpB19a, LpB23b, and LpB26; Table 3) were considered for further phylogenetic analysis, while all distinctive isolates by REP-PCR (80% similarity) and 16S rRNA gene sequence from site A (LpA5a, LpA5b, LpA6, LpA7b, LpA8, LpA9, LpA10, LpA11, and LpA13a) were considered. From these, only LpA8, LpA9, LpA11, LpB19a, LpB23b, and LpB26 genomic DNAs produced amplicons for all housekeeping genes tested, with sizes of approximately 500 bp for recA and atpD, and 700bp for glnII. The rest of the isolates failed mainly to produce amplicons for glnII gene, which unlike glnA is not ubiquitous in bacteria [70]. For isolates LpA5b, LpA6, LpA10, and LpA13a we could obtain an atpD amplicon of approximately 700 bp only after using the newly designed primers (atpD183 and atpD872 for LpA5b and LpA10, and atpD133 and atpD762 for LpA6 and LpA13a; see Table 1). Also, the newly designed recA primers allowed us to obtain a recA amplicon of almost 600 bp from isolate LpA5b.

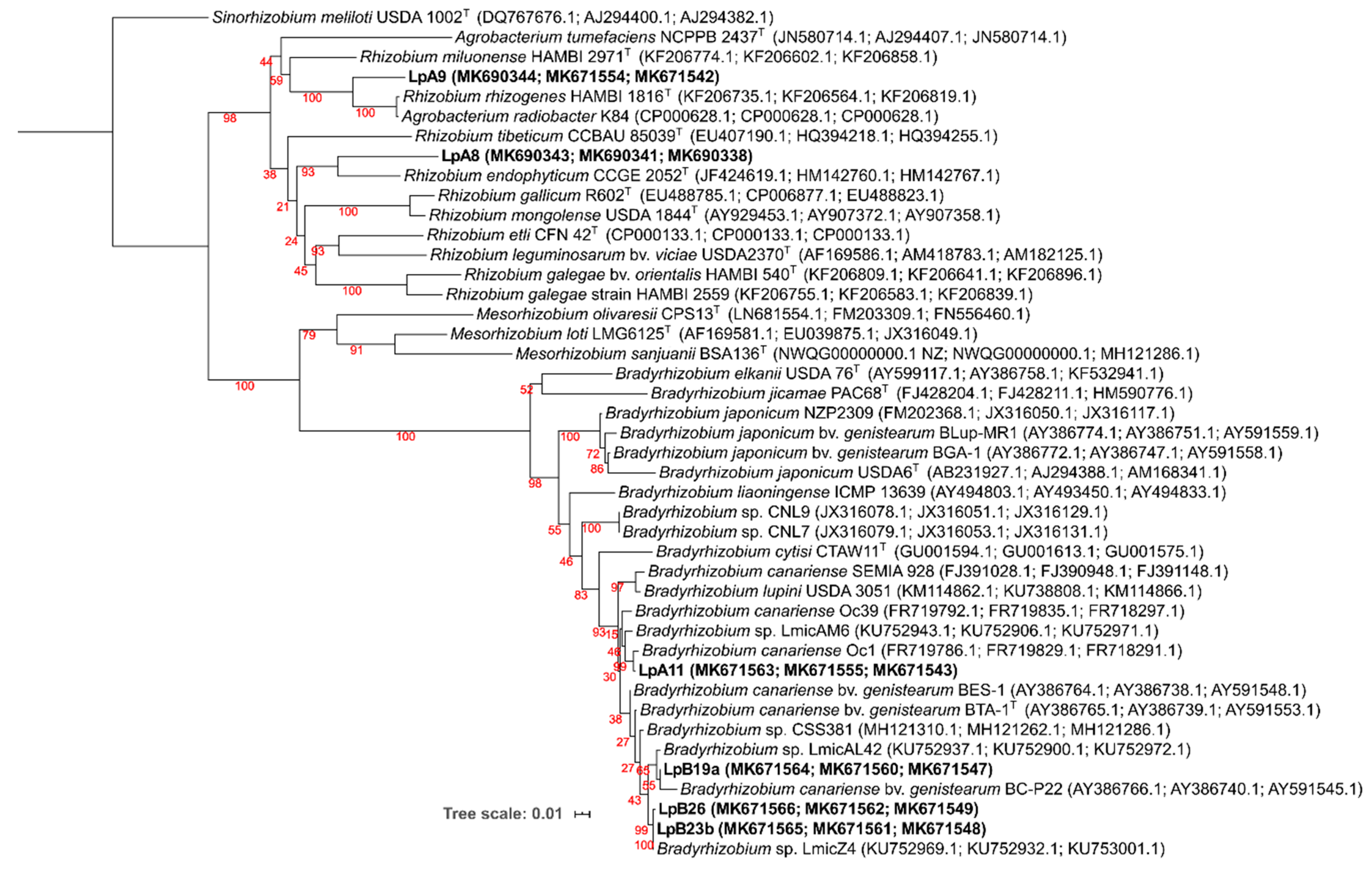

The protein encoding housekeeping genes phylogeny was congruent with the 16S rRNA phylogeny at the genus and also very often at the species level. As there are few sequences available in the NCBI Genebank database for genera Sphingobacterium, Lysobacter, Mucilaginibacter, and Massilia, most of the sequences for these genera were gathered from genome sequencing projects. For the isolates from which all three housekeeping genes could be amplified, a ML phylogenetic tree was generated using concatenated sequences of glnII, atpD, and recA genes (Figure 3). The clustering of isolates LpA11, LpB19a, LpB23b, and LpB26 within Bradyrhizobium was confirmed to be closely related to B. canariense. The closest relative of LpA11 was B. canariense Oc1 (99.6% sequence identity), a strain isolated from Ornithopus compressus in Sardinia, Italy [71]. LpB19a phylogenetic position was less resolved. It was grouped in a low confidence cluster with Bradyrhizobium canariense BC-P22 (98.3% identity), a strain isolated from Chamaecytisus proliferus in the Canary Islands [72], while sharing a higher identity with Bradyrhizobium sp. LmicAL42 (99.6% identity), a strain isolated from Lupinus micranthus nodules in Spain [73]. LpB23b and LpB26 were clustered together in a highly supported cluster with Bradyrhizobium sp. LmicZ4 (100% similarity for LpB23b and 99.9% of similarity for LpB26), a strain isolated from Lupinus micranthus nodules in Algeria [73]. On the other hand, isolates LpA8 and LpA9 were again clustered within the Rhizobium/Agrobacterium group, albeit not matching any previously described species.
For those isolates that were negative for glnII amplification, ML phylogenetic trees of recA and atpD genes were constructed (Figure S2). Isolate LpA5a was clustered with Rhizobium taibaishanense HAMBI 3414T (now Allorhizobium taibaishanense, in accordance with Bourebaba et al. [74]), having a similarity of 98.2% in recA and 98.6% atpD gene, respectively. LpA5b was placed in a clade of Sphingobacterium spp., having Sphingobacterium sp. B29 as the closest relative (98.5% identity in the atpD gene and 92.1% identity in the recA gene). LpA6 was clustered with Pseudomonas spp., having Pseudomonas koriensis DSM 11610T (99.7% identity) and Pseudomonas jessenii DSM 17150T (96.1% identity) as the closest relatives in the atpD and recA gene trees, respectively. Isolate LpA7b was placed in the Lysobacter genus, sharing the highest identities with L. capsici 55 (99.2% in the atpD gene and 99.3% in recA gene). Isolate LpA10 was clustered in a single branch within the Mucilaginibacter clade, sharing only 85.4% and 84.8% with Mucilaginibacter mallensis MP1X4 and Mucilaginibacter sp. PAMC 26640, respectively, in the atpD gene. Lp13a was grouped with Massilia spp., sharing 100% of similarity, in both genes, with M. timonae CCUG 45783.

3.2.3. Symbiotic Genes: nodC and nifH

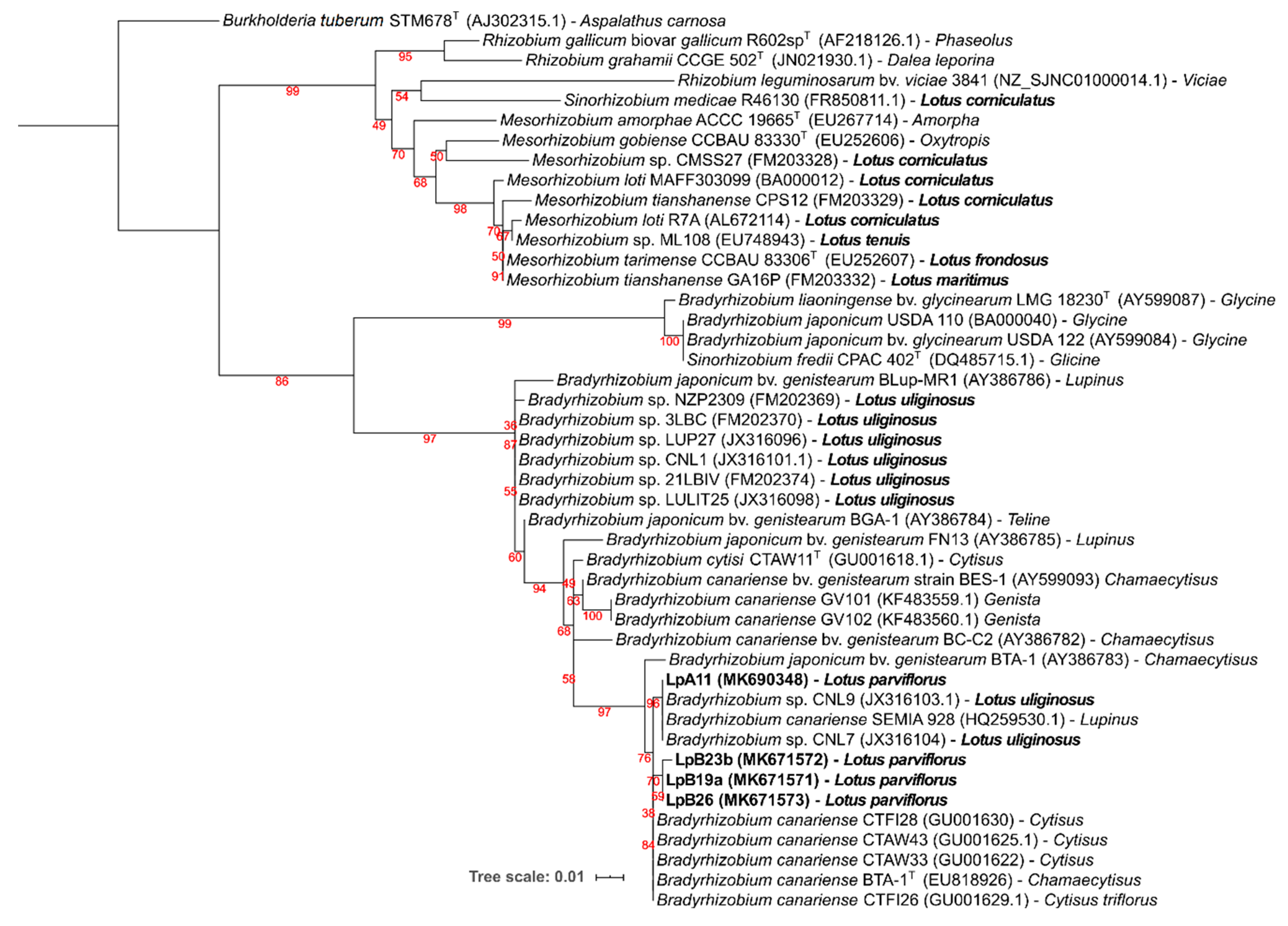

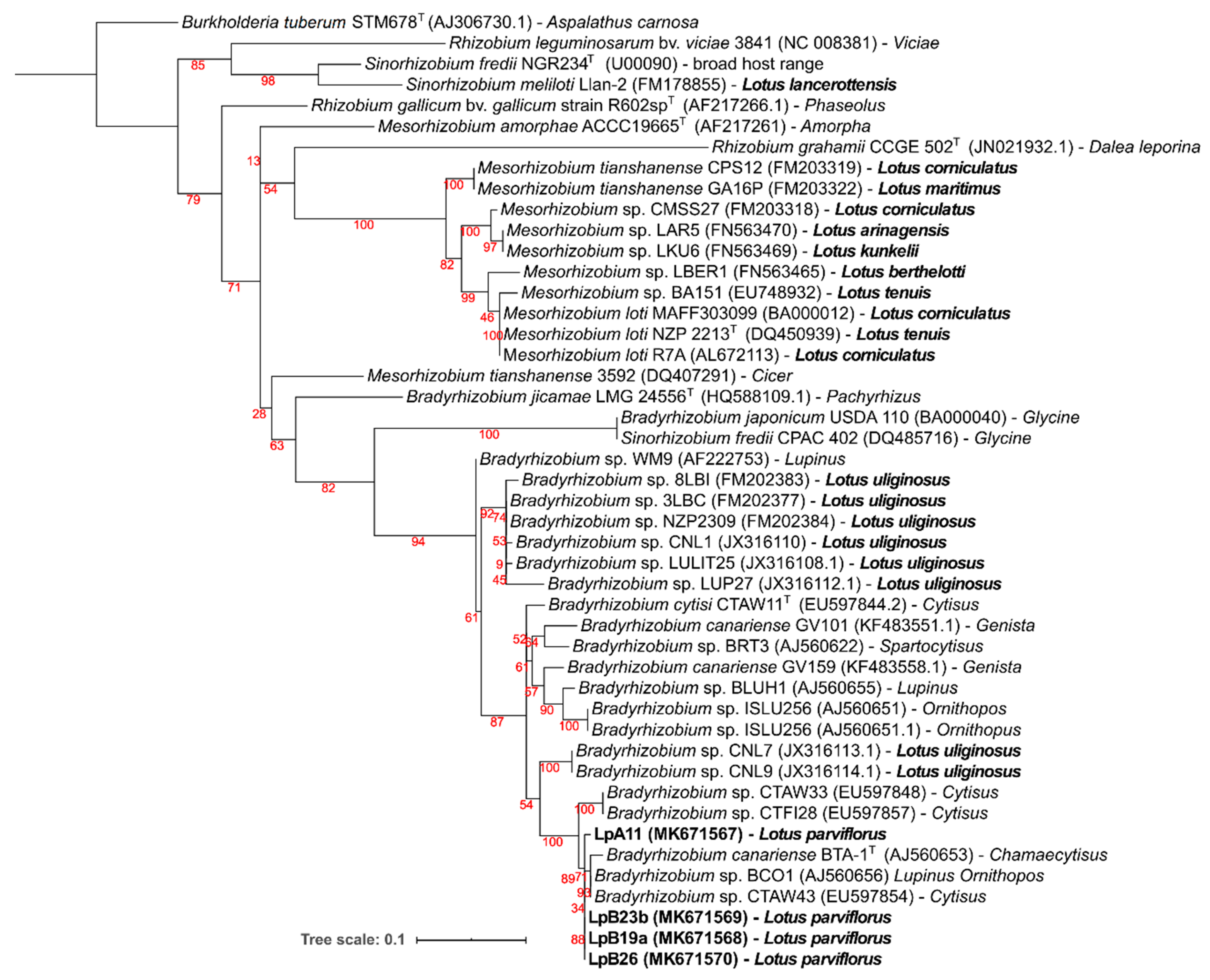

Symbiotic nodC and nifH gene amplicons were obtained only from strains LpA11, LpB19a, LpB23b, and LpB26, which matched their nodulation ability (Table 3). For both gene phylogenies (Figure 4 and Figure 5), these isolates were clustered in a well-supported clade, comprising of B. canariense and other Bradyrhizobium sp. strains isolated from genistoid legumes. The closest Lotus rhizobia were isolates from L. uliginosus, which is in line with the results of the nodulation tests (Table 3).

3.3. Nodulation Tests

Symbiotic ability (nodulation and effectiveness) was tested for all isolates in various Lotus species. Isolates that nodulated Lotus plants were additionally tested in Lupinus luteus and Glycine max plants (Table 3). Only isolates LpA11 from sampling site A, and LpB19a, LpB23b, and LpB26 from site B were able to nodulate any of the Lotus spp. tested. LpA11 could nodulate and fix nitrogen in L. uliginosus, L. parviflorus, and L. luteus. It also formed non-fixing nodules in L. corniculatus and L. tenuis cv. Esmeralda, as judged from nodule appearance (white color) and plants dry weight. No nodulation was observed in L. tenuis cv. INTA PAMPA, and G. max. LpB19a, LpB23b, and LpB26 isolates displayed a Nod+ Fix+ phenotype in L. uliginosus, L. parviflorus, and L. luteus, as well as a Nod+Fix− phenotype in L. corniculatus and L. tenuis cv. INTA PAMPA. Similar to LpA11, none of them formed nodules in G. max. The results of the symbiotic tests are in accordance with the symbiotic genes phylogenies, that placed the L. parviflorus symbionts close to rhizobia from genistoid legumes and L. uliginosus, but distant from other Lotus spp. and Glycine rhizobia (see Figure 4 and Figure 5).

3.4. PGP Traits

Nearly 40% of the non-nodulating isolates displayed one or more activities related with plant growth promotion or protection (Table 4; Figures S3 and S4). Particularly abundant was the production of cellulases, often by strains that also showed antagonistic activity against fungal phytopathogens (isolates LpA7a, LpA7b, LpB16a, LpB16b, LpB16d, and LpB23a). In contrast, only one isolate (LpB16d) showed significant P solubilization capacity, whereas 4 isolates (LpA6, LpB12a, LpB5b, and LpB5c) showed siderophore production under our experimental conditions (Table 4). These results, together with the phylogenetic analyses described above, indicate that the non-nodulating bacteria isolated from L. parviflorus nodules are common soil and rhizosphere inhabitants, which can eventually exhibit plant beneficial traits. For instance, isolates LpA7a and LpB16d, which showed antagonistic activity against phytopathogens and lytic enzyme production (Table 4), are closely related to Lysobacter capsici and Pseudomonas koreensis, respectively. These species are well known for a suppressive activity on several plant pathogens [46,75,76,77,78]. Moreover, isolates LpA6, LpB5b, LpB12a, and LpB16d, which showed siderophore production, are closely related to Pseudomonas spp. (Pseudomonas koreensis and Pseudomonas fluorescens) that are commonly reported to show this trait [77,79,80,81]. Similarly, phosphate solubilization was shown by the pseudomonad isolate LpB16d that is related to P. koreensis, which has also been shown previously to solubilize phosphate [82,83,84].

4. Discussion

We found a great diversity of bacteria inside nodules of wild L. parviflorus plants growing in two different locations in Portugal. Intriguingly, only four of these isolates (10%) were able to nodulate the original host L. parviflorus. These four isolates are slow growers, and phylogenetically related to B. canariense and other Bradyrhizobium strains isolated from legumes, such as L. uliginosus, Ornithopus and other genistoid legumes (e.g., Lupinus) root nodules. Indeed, L. parviflorus bradyrhizobia were also able to effectively nodulate L. uliginosus and L. luteus. The other 30 isolates were not able to nodulate any of the legume hosts tested. Often, the symbiotic bradyrhizobia and the non-nodulating bacteria were isolated from the same nodule, suggesting that the later could be opportunistic nodule inhabitants. Almost all these non-nodulating bacteria displayed faster growth rates than the nodulating bradyhrizobia, which would explain why they were much more frequently isolated than the actual symbiotic bradyrhizobia. However, we have isolated slow-growing bradyrhizobia from other related legumes, such as L. uliginosus [9,16], following similar procedures, without observing such an abundance of fast-growing bacteria inside the nodules. Thus, for some unknown reason the nodules of L. parviflorus seem more frequently invaded by non-nodulating opportunistic bacteria than other Lotus spp. Alternatively, other legume nodule endophytes may be unculturable or unable to grow in the YMA medium generally used for rhizobial isolation. Nevertheless, the high abundance of fast-growing nodule endophytes has seriously hindered our goal of describing the genetic diversity among L. parviflorus rhizobia. The presence of these fast-growing strains when cultivated could inhibit the growth of the bradyrhizobia that are able to nodulate L. parviflorus. Fast growers are able to spread on the agar growth media, likely disturbing or even inhibiting the growth of bradyrhizobia. In addition, some of the isolated strains could display active motility in solid surfaces (swarming, gliding, sliding), e.g., Lysobacter spp. possess gliding motility [46], that can further facilitate their spreading on the agar surface. For future studies, approaches to favor either the selective isolation of the bradyrhizobia or the counterselection of other nodule bacteria, should be implemented.
Besides nitrogen fixation, some authors also show other PGP activities from rhizobia, such as phosphate solubilization, siderophore production, and biocontrol activity [40,85,86,87]. However, we did not find any PGP activity (besides nitrogen fixation) from the nodulating bradyrhizobia, and only one non-nodulating Rhizobium spp. strain (LpB12b) showed lytic enzyme production. Indeed, the use of co-inoculations of rhizobia and other bacteria more specialized for other PGP traits is a common practice in biotechnological applications in agriculture [88,89,90,91]. All L. parviflorus nodule bacteria were related to previously described soil or plant-associated taxa. We observed that many of these nodule inhabitants could exhibit activities potentially beneficial for plant growth and health, including phosphate solubilization, production of siderophores and lytic enzymes, as well as antagonism against two well-known phytopathogens, Phytophthora cinnamomi and Botryosphaeria cortícola. Endophytic bacteria with these beneficial activities are frequently found in legume tissue, including nodules [92,93,94]. The isolation of bacteria other than rhizobia from the interior of the legume nodules has been increasingly reported in precious years [28,30,31,32,33,95]. Some plant species seem more prone to harbor a high amounts and diversity of non-rhizobia inside their nodules, as reported by De Meyer et al. [28], who studied 654 isolates from the nodules of 30 different plant species. Moreover, there are certain endophytic bacteria that have been frequently isolated from legume root nodules, e.g., Micromonospora sp. [33], Bacillus sp., and Pseudomonas sp. [28]. Remarkably, [34] have shed some light in the understanding of this phenomenon. By following the progression of L. japonicus nodule infection and colonization by M. japonicum R7A and endophytic strains, these authors found that the endophyte’s ability to infect and colonize nodules was discriminated and controlled by the plant. Exopolysaccharides produced by endophytic bacteria and early symbiotic plant genes play a vital role to enable and favor their nodule invasion and colonization through infection threats initiated by M. japonicum R7A. This determinant molecular crosstalk between endophytes and plants could explain why some legume plants are more prone to be colonized by certain endophytes. The fact that we isolated closely related bacteria from two different locations separated by nearly 200 Km (see Figure 2, isolates LpA5a, LpB12b, and LpB14a; LpA6 and LpB5b; LpA8 and LpB14b) argues for a potential selectivity by the host plant. In our hands, L. parviflorus nodules seem more predisposed to be colonized by non-rhizobial bacteria than other related species such as L. uliginosus [9,15,28]. Likewise, L. corniculatus has also been reported to have nodules frequently colonized by endophytic bacteria [17,96,97], albeit not to the extent we have found for L. parviflorus in this study.
It would be interesting to know if any of L. parviflorus nodule bacteria can also be found inside other plant organs, and whether there is some type of selectivity or favoritism towards certain taxa. In contrast with legume–rhizobia symbiosis, interactions of legumes with other endophytes are just starting to be unraveled. Our results reinforce the notion that legume root nodules can host complex bacterial communities that could express nitrogen fixation and additional plant growth promoting activities.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-2607/8/4/499/s1, Figure S1: UPGMA dendrogram, Figure S2: Phylogeny of atpD and recA genes, Figure S3: Inhibition of P. cinnamomi and B. corticola, Figure S4: In vitro plant growth promoting rhizobacteria (PGPR) activities.

Author Contributions

Conceptualization, I.V.eC., J.S., M.J.L., and R.S; Methodology, I.V.eC., J.S., M.J.L., and R.S; Investigation, R.S., J.T., and M.J.L.; Resources, I.V.eC., J.S., and E.F.; Data Curation, R.S. and M.J.L.; Writing—Original Draft Preparation, R.S.; Writing—Review and Editing, I.V.eC., J.S., and M.J.L.; Supervision, I.V.eC., J.S, M.J.L., and E.F.; Project administration, I.V.eC. and J.S. All authors have read and agreed to the published version of the manuscript.

Funding

Financial support was given by the projects PRODER, PA 54970 and ALT20-45-2015-08.

Acknowledgments

This work was supported by an Erasmus grant (2012-1-PT1-ERA02-12581), and a BIOFAG (CYTED) grant to Ricardo Soares. We thank Jorge Capelo for the identification of Lotus parviflorus plants and Helena Machado and Helena Bragança for the Phytophthora cinnamomi and Botryosphaeria corticola, strains, respectively.

Conflicts of Interest

The authors declare no conflict of interest that could potentially influence the outcome of the study.
