Project Report

Cryptosporidium Prevalence in Calves and Geese Co-Grazing on Four Livestock Farms Surrounding Two Reservoirs Supplying Public Water to Mainland Orkney, Scotland

Moredun Research Institute, Pentlands Science Park, Penicuik, Midlothian EH26 0PZ, UK
Scottish Natural Heritage, 54-56 Junction Road, Kirkwall, Orkney KW15 1AG, UK
Author to whom correspondence should be addressed.
Microorganisms 2019, 7(11), 513;
Submission received: 4 October 2019 / Revised: 28 October 2019 / Accepted: 29 October 2019 / Published: 30 October 2019


The parasite Cryptosporidium parvum represents a threat to livestock health and production, water quality and public health. Cattle are known to be significant reservoirs of C. parvum, but transmission routes are complex and recent studies have implicated the potential role of wildlife in parasite transmission to cattle and water sources. On the Orkney Isles, high densities of Greylag geese (Anser anser) cause widespread faecal contamination of cattle pastures, where cryptosporidiosis is known to be the main cause of neonatal calf diarrhoea and Cryptosporidium contamination frequently occurs in two reservoirs supplying Mainland Orkney’s public water. This study aimed to determine the Cryptosporidium species and subtypes present in geese and calves co-grazing on four farms surrounding two reservoirs on Mainland Orkney. Results indicated a high level of C. parvum prevalence in calves, geese and water samples. gp60 analysis illustrated that higher genotypic diversity was present in the goose population compared with calves, but did not yield sequence results for any of the water samples. It can be concluded that the high levels of C. parvum evident in calves, geese and water samples tested represents a significant risk to water quality and public health.

1. Introduction

Cryptosporidium parvum is an environmentally ubiquitous parasite, responsible for causing the disease cryptosporidiosis in neonatal calves, as well as lambs, deer calves and humans, where it can cause particular problems in the young, elderly or immuno-compromised. Cryptosporidiosis is a gastro-intestinal disease for which profuse diarrhoea is the main clinical symptom, leading to rapid dehydration and potentially death in susceptible hosts [1]. Livestock, in particular, calves, are known to be the main reservoirs of Cryptosporidium parvum, a zoonotic species known to be responsible for 40% of human cryptosporidiosis cases in the UK [2]. Infected calves can shed billions of infective oocysts into the environment [3,4] but it has previously been shown that wildlife and other livestock, such as lambs, can contribute to environmental parasite loading. However, reports to date have been highly variable regarding prevalence and relative contribution of C. parvum from wildlife species [4,5,6,7,8,9,10].
The environmental stage of the parasite, the oocyst, is extremely tough and can survive for prolonged periods in favourable climatic conditions, such as damp and humid climates [11]. For these reasons, water is considered an important mechanism in the transmission of Cryptosporidium [12]. In addition, livestock pasture frequently surrounds catchment areas collecting water ultimately destined for human drinking water, which frequently causes problems for water providers relating to contamination with zoonotic pathogens. It is, therefore, critical to have accurate information on the prevalence of Cryptosporidium species present in catchments to assess the risk to public health from zoonotic transmission of Cryptosporidium through drinking water, and to understand parasite transmission dynamics more thoroughly. A better understanding of how the parasite behaves at a whole catchment level is critical [13].
Due to increasing contamination events of public water supplies with Cryptosporidium, the Scottish Water Directive (2003) was introduced to legislate for routine sampling of all public water supplies depending on Cryptosporidium risk. Risk assessments are calculated using weightings for parameters which affect Cryptosporidium levels for individual catchments or water supplies. One of the highest weightings is given to the presence of livestock in the catchment, where weighting score doubles if calves or lambs are present, or if grazing densities are high [14]. The risk weighting is increased if livestock have direct access to the water course and reduced if the livestock are fenced off from the water body. Wildlife are also considered to represent a zoonotic risk to water supplies but have a lower weighting than livestock, reflecting the generally lower grazing densities. This is not always the case, however, as wildlife populations in specific catchment areas can outnumber that of livestock (Orkney Goose Management Group; Pers. Comm.). In Mainland Orkney, through regulatory testing of reservoirs which are the source of the public water supplies, it is known that there is a high environmental loading of Cryptosporidium (Scottish Water; Pers. Comm.). This island is renowned for its high-quality beef production, which is the main livestock industry on Orkney, with spring calving being commonly carried out indoors during March, April and May with calves being turned out on to pasture as soon as weather permits, but generally, during May. Reports from local veterinary surgeons have confirmed that cryptosporidiosis is one of the commonest causes of neonatal calf scour in Orkney, which is reflected in the statistics for the UK (Veterinary Investigation Diagnostic Analysis (VIDA) Reports 2016–2018). Cryptosporidiosis, caused by infection with C. parvum, is a serious issue for livestock farmers as it significantly affects calf growth, production and suckler herd efficiency (H. Shaw; manuscript in preparation) and is proving very difficult to control on Orkney beef farms, despite rigorous management efforts from the farmers and vets concerned (NorthVets, Kirkwall, Orkney; Pers. Comm.).
Resident and migratory geese, which co-graze in high numbers with young calves on pasture and move freely from field to field, farm to farm, and in the case of migratory geese, between countries, have been suggested as a possible transmission vehicle for C. parvum (Orkney Goose Management Group; Pers. Comm.). There is very little published information on the role of geese in the transmission of zoonotic pathogens to livestock or humans, but some previous catchment studies have indicated that geese may act as potential vectors for C. parvum [15,16,17]. It has also been suggested that the high faecal loading of pathogens in geese may contribute to a significant risk of infection to other susceptible hosts [17]. In contrast, a recent comprehensive review focusing on a One Health perspective concluded that, based on present knowledge, there was not enough information to say whether geese played a role in the transmission of Cryptosporidium, but that previous research had potentially overrated the role of geese as disease vectors [18]. It should be noted that goose grazing densities were not included in any of the studies quoted in this review and it is accepted that the recorded numbers of both migratory and resident Greylag geese on Orkney are extremely high (Table 1 and Table 2) and that faecal contamination by the geese is widespread and occurs throughout the year (Orkney Goose Management Group; Pers. Comm.). Average counts for Greylag geese on Orkney are 22,025 (resident population over five years (2012–2016)) and 61,685 (resident and migratory populations over seven years (2012–2018)), reflecting the extremely high grazing densities of geese over an average land area of 101,735 hectares.
The high densities of geese have become a serious issue for farmers due to over-grazing of pastures and destruction of cereal crops, as well as large-scale faecal contamination of pasture. Greylag geese are a protected species, but as their numbers have increased to such an extent that they have become a problem for farmers, a goose management group has been established on Orkney, comprising representatives from Scottish Natural Heritage, the National Farmers Union of Scotland, local farmers, RSPB and Orkney Islands Council, to implement control strategies, including controlled culls of adult birds and oiling of eggs to prevent hatching. Despite this, although winter counts decreased over the time period 2012–2016, they have increased in the 2017 and 2018 winter counts, and summer counts have increased from 2013 to 2016 (Table 1 and Table 2) indicating the scale of the problem.
The aim of this pilot study was to determine the Cryptosporidium species and subtypes present in geese and calves co-grazing on four farms on Mainland Orkney surrounding two reservoirs supplying Mainland Orkney with water, and to analyse water samples, collected by Scottish Water for routine sampling, to establish potential transmission routes on and between farms and to assess water contamination levels and thereby risk to public health.

2. Materials and Methods

2.1. Sample Collection

Farms were selected on the basis of grazing proximity to Kirbister and Boardhouse reservoirs, which comprise Mainland Orkney’s public water sources, and where young calves were co-grazing with high densities of Greylag geese. Ethical approval was not required for this study and farmer permissions were obtained for each farm. Farm 1 grazed cattle with young calves in fields surrounding Kirbister reservoir where livestock had access to the reservoir in some unfenced areas and Farm 2 grazed cows and calves surrounding Boardhouse Loch. Farms 3 and 4 grazed cows and calves in fields surrounding Loch of Hundland, which drains directly into Boardhouse Loch. Freshly voided samples from calves and geese were collected from the ground in fields surrounding Kirbister, Boardhouse and Hundland lochs on mainland Orkney, on four farms identified by farmers as co-grazing young calves and Greylag geese during the period 15th May 2017 to 6th June 2017. Samples were stored in airtight containers with available quantities ranging from 50 g to 72 g for geese and 12 g to 36 g for calves. Calf ages ranged from one week old to six weeks old and all goose samples were collected from adult geese. Sampling was carried out with due care to avoid cross-contamination between geese and cattle samples, avoiding samples where they were within one metre of each other. Sample numbers collected from each farm are shown in Table 3. Collection of water from Kirbister (n = 26) and Boardhouse (n =20) reservoirs was performed by Scottish Water as part of regulatory sampling and according to Scottish Water’s standard operating protocols between the period March 2016 to February 2017 (

2.2. Sample Processing and Analysis

2.2.1. Processing Faecal Samples

  • Calf faecal samples: 250 μg of sample was added to 200 µL lysis buffer (T1 buffer, Macherey-Nagel, Duren, Germany. NZ740952250).
  • Goose faecal samples: Salt flotation, using approximately 3 g of faecal sample, was performed [2], following which the final pellet was re-suspended in 200 µL lysis buffer. The extra salt flotation step was performed on goose samples due to the higher fibre content of these samples, which requires a further processing step prior to DNA extraction.

2.2.2. DNA Extraction

All samples underwent 10 freeze–thaw cycles in liquid nitrogen and a water bath at 56 °C. DNA was extracted using NucleoSpin Tissue DNA, RNA and Protein Purification Kits (Macherey-Nagel, Duren, Germany. NZ740952250) following the manufacturer’s protocol with the following modifications: The samples were incubated with Proteinase K at 56 °C overnight, following which the samples were vortexed vigorously. Prior to the addition of ethanol, the samples were centrifuged at 11,000 × g for 5 min to remove insoluble particles and the supernatant was retained. Ultrapure water (100 μL) was used to elute DNA.

2.2.3. PCR Sequencing and Analysis

Amplification of DNA was by nested PCR targeting the 18S gene [19]. Briefly, each 25 μL reaction contained 10 × PCR buffer (45 mM Tris–HCl pH 8.8, 11 mM (NH4)2SO4, 4.5 mM MgCl2, 4.4 μM EDTA, 113 μg mL−1 BSA, 1 mM each of four deoxyribonucleotide triphosphates), 0.5 units BioTaq (BIO-21040, Bioline, London, UK) and 10 μM of each primer. DNA (3 μL) was added in the primary round and 1 μL primary PCR product in the secondary round, after a 1:50 dilution with dH2O. The total volume was made up to 25 μL with dH2O. All reactions were carried out in triplicate and a positive DNA extraction and negative control (dH2O) were included on each plate. Cycling conditions were 3 min at 94 °C, followed by 35 cycles of 45 s at 94 °C, 45 s at 55 °C and 1 min at 72 °C. The final extension was 7 min at 72°C. Secondary amplification products (3 μL) were visualised on an AlphaImager 2000, following electrophoresis on a 1.5% Agarose gel stained with GelRedTM (41002, Biotium, Fremont, CA, US).
All Cryptosporidium-positive samples were sent for Sanger sequencing (MWG Operon). The sequence results were aligned with reference 18S rRNA sequences (GenBank, NCBI) for each possible Cryptosporidium species using BioEdit software (Version 7.1, Informer Technologies Inc.) [20].

2.2.4. Subtyping C. parvum-Positive Samples

For all C. parvum-positive samples, a region of the 60-KDaglycoprotein (gp60) gene was amplified and sequenced to assign gp60 subtype following a previously published protocol [21]. Briefly, a nested protocol was followed, amplifying a 450 bp region of the gene spanning the hypervariable polyserine tract in two rounds of PCR. Following this, PCR products were sequenced and aligned [21] and sub types named [22].

2.2.5. Processing and Analysis of Water Samples

For water analysis, processing of filters, immunomagnetic separation (IMS) and microscopy were performed according to standard operating protocols (SOPs) by the Microbiology Laboratory, Scottish Water [23] Oocysts were identified microscopically using fluorescein isothiocyanate (FITC)–anti-Cryptosporidium monoclonal antibody (MAb) (FITC–C-MAb) and the nuclear fluorogen 4, 6-diamidino-2-phe-nylindole (DAPI) according to the Drinking Water Quality Regulator for Scotland (DWQRS) Standard Operating Protocol for Monitoring of Cryptosporidium Oocysts in Treated Water Supplies ( For each water sample collected and analysed by Scottish Water, one slide was produced. Slides with identified Cryptosporidium oocysts were collected from Scottish Water and the oocysts removed by adding 12 μL lysis buffer into the slide well and scraping the well with a loop. The liquid was then aspirated from the well into a tube containing 200 μL lysis buffer and the method followed as described for DNA extraction from calf and goose faecal samples with the additional step of two elutions using 50 μL ultrapure (UP) H2O followed by 25 μL UP H2O to maximise DNA yield. DNA amplification and subtyping of C. parvum-positive samples were as described for calf and goose samples.

3. Results

As a mean of all four farms, 48.7% (38/78) of calf samples and 26.0% (26/100) of geese samples were positive for Cryptosporidium, where 32.1% of the calf samples (25/78) and 24.0% of the goose samples (24/100) analysed were C. parvum-positive (Table 4). In calves, the majority of Cryptosporidium-positive samples were C. parvum (65.8%) and 40.0% of the C. parvum-infected animals had mixed infections with other Cryptosporidium species, whereas mixed infections were not detected in any of the geese. Of the geese samples positive for Cryptosporidium, the majority were C. parvum (92.3%) with only 3.8% C. andersoni and Goose subtypes. Results for the raw water samples from the two reservoirs (n = 46) showed that 73.9% of the total number analysed were Cryptosporidium-positive, with 44.1% of these positive samples being C. parvum, 52.9% C. andersoni and 2.9% C. ubiquitum. Therefore, a total of 47.0% of the Cryptosporidium-positive samples comprised zoonotic Cryptosporidium species or 34.8% of the total water samples analysed.
On the basis of individual farms, it is evident that there was variation between the prevalence and species of Cryptosporidium found in calf and goose samples (Figure 1 and Figure 2). For example, Farm 1 was the only farm where C. andersoni was isolated in both calves and geese, whereas calves on Farm 4 had a higher prevalence of C. parvum and C. parvum mixed infection.
The Cryptosporidium species prevalence found in water samples from the two reservoirs (Figure 2) showed a predominance of C. parvum and C. andersoni, reflecting the predominant species in calves and geese in these catchments.
On an individual catchment level, Farm 1 calves and geese were grazing the Kirbister catchment, and Farms 2, 3 and 4, the Boardhouse catchment. The relative prevalence of C. parvum in both catchments was very similar (Figure 2) and this is reflected by the C. parvum prevalence found in the geese and calves across the two catchments. Farm 1 had the highest prevalence of C. andersoni in calves particularly (Figure 1), which was also evident in the water samples from Kirbister catchment (Figure 2).
The C. parvum-positive samples from calves, geese and water underwent further analysis to determine gp60 subtypes to investigate C. parvum transmission. The predominant subtype found in calves on all four farms was IIaA15G2R1, with only one further subtype, IIaA15R1, detected. Figure 3 illustrates that geese showed more C. parvum genotypic diversity when compared with calves, which is evident on all four farms, with calves on both Farms 1 and 2 showing only one subtype, whereas there were three subtypes present in geese on Farm 1 and two on Farm 2. The calves on Farms 3 and 4 both had two subtypes present, whereas the geese on Farm 3 had four subtypes and two on Farm 4.
Unfortunately, despite repeated attempts to subtype the C. parvum-positive water samples, including concentrating the DNA and adapting the PCR protocol, no gp60 sequences were obtained.

4. Discussion

The prevalence of Cryptosporidium, and in particular, C. parvum, in calves was high (48.7% Cryptosporidium-positive with the majority being C.-parvum positive (65.8%)) and although comparable studies show a wide range in C. parvum infection rates, it is accepted that cryptosporidiosis is endemic in cattle worldwide [10,24,25,26]. Cryptosporidium prevalence figures are dependent on many factors, including the age of the calves at date of sampling, so even in studies using similar detection methods, high variation can be evident. Cryptosporidium prevalence in the geese samples analysed was lower compared to the calves, with 26.0% Cryptosporidium-positive samples and 24.0% C. parvum-positive samples. However, C. parvum was detected in 92.3% of the Cryptosporidium-positive samples from geese, suggesting either that geese are more susceptible to this species, or that this is a reflection of high C. parvum environmental contamination. It is interesting to note that the water samples over the two reservoirs showed a higher prevalence of C. andersoni when compared to C. parvum, suggesting environmental contamination was high for both Cryptosporidium species and, therefore, that geese are more susceptible to C. parvum. This is a very important finding when considering the epidemiology of C. parvum, an environmentally ubiquitous, zoonotic species of Cryptosporidium. Geese are highly mobile birds with the ability to move freely between farms, regions and, sometimes, countries and as this study suggests, they are susceptible to C. parvum, and they may be considered as important vectors and a risk to calves, humans and water contamination.
The Cryptosporidium species present, particularly in calves, varied across the farms and reflected the different age groups of the calves at the time of sampling. For example, the calves on Farm 1, where C. andersoni was prevalent, were older (4–6 weeks old at time of sampling) than on any of the other farms sampled, which is consistent with C. andersoni being more frequently detected in adult cattle and older calves [4]. In contrast, Farm 4 was calving later and had only 12 very young calves available at time of sampling, which had recently been turned out. This may be a reason why there was a lower prevalence of C. parvum found in the geese samples on Farm 4 (see Figure 1).
There is little published information on the prevalence of Cryptosporidium in wild geese, but from the available studies involving wild birds, a Cryptosporidium prevalence of 5.8% in wild aquatic birds including Greylag geese [27]; 2.4% in wild birds [28] and 5% in wild gulls [29] has been reported. The geese sampled in the present study were all wild birds and, as the sampling period was in the summer, comprised resident geese only. This could explain the high prevalence of Cryptosporidium in the current study, as resident geese would be grazing throughout the seasons with neonatal livestock, as well as juvenile and adult animals. Some research has suggested that the role of geese in the transmission of C. parvum appears to be limited to the geese acting as vectors without showing clinical signs of infection [30,31,32]. However, it has been shown that C. parvum oocysts retain their infectivity and viability after intestinal passage in Canada geese (Branta canadensis), with serious epidemiological implications [33]. Water-fowl can serve as mechanical vectors for water-borne oocysts and can contaminate surface waters with C. parvum; therefore, it is likely that even if C. parvum transmission is solely by mechanical transfer in geese, they are capable of transmitting viable C. parvum oocysts on to pasture, as well as water sources, and should, therefore, be considered as a risk to livestock, water quality and public health. The latter point being particularly important if grazings are near public water supply sources, such as reservoirs. This agrees with the findings of a US-based study investigating the role of geese and deer in a suburban/urban watershed, which detected C. parvum as well as C. hominis-like subtypes in geese and in the local watercourses. The authors concluded that these animals should be considered as vectors of human infectious Cryptosporidium species and, as such, should be targets for source water protection [15]. In the current study, as there was no opportunity to perform histopathology on any of the geese, it cannot be concluded if the geese were acting as Cryptosporidium vectors or were infected with the parasite. This information would be very valuable to obtain in a future study.
The results of the water sample analysis in the current study illustrated very high environmental Cryptosporidium contamination in both reservoirs (73.9% of water samples (n = 46) were Cryptosporidium positive) with zoonotic species being detected in 47.0% of these positive samples. Interestingly, C. andersoni was detected in higher prevalence in the samples from Kirbister reservoir and also, in Farm 1 calves (and one goose) grazing the surrounding fields, providing further evidence of Cryptosporidium transmission from grazing animals to water. The species of Cryptosporidium isolated from water sampling sites has previously been found to reflect the predominant species found in the livestock and wild deer at that particular time [10], providing further evidence for direct transfer of oocysts from grazing animals into the catchment water systems. This has also previously been recorded in surface water contamination with C. parvum, which was linked to calves grazing near the water course [34], a finding also confirmed by Robinson et al. [13] in a similar catchment-based study.
In a previous catchment study [10], gp60 subtyping of C. parvum-positive samples from livestock, deer and water suggested that transmission was occurring from both livestock species and deer into the water courses. Unfortunately, in the current study, no amplification at the gp60 locus was obtained from DNA extracted from water samples. This is likely to have been due to low parasite DNA concentrations and as gp60 is a single copy gene, this represents a disadvantage to current protocols, which have been optimised for animal samples, when applied to environmental samples with anticipated lower parasite numbers.
Subtypes of C. parvum were obtained for calf and goose samples using gp60 marker (Figure 3). The predominant subtype found in calves from all four farms was IIaA15G2R1, a subtype commonly found in calves [21] and often responsible for serious disease outbreaks on farms. The increased subtype diversity evident in the geese samples was interesting and potentially reflected the ability of the geese to move between farms and regions. In this respect, geese are likely to be important vectors of C. parvum strains, potentially moving these strains over long distances during migration, where they may be a source of infection for susceptible livestock and humans. The amount of time geese spend on water varies throughout the year, increasing when they have young and during the moult, and decreasing during the breeding season and for the rest of the year. At these peak times, the transmission of C. parvum and unusual strains, in particular, to public water supplies may be important for public health. The reservoirs on Orkney are shallow in depth, high in sediment loading and subject periodically to high wind turbulence. This results in high turbidity in the water and pressure on the filtration membranes in the treatment plant, causing breakthrough into the drinking water, which is a concern for the water industry (Scottish Water; Pers. Comm.). It has been suggested that much of the sediment is derived from goose faeces, as it is high in urea, and this will be investigated in a future study.

5. Conclusions

In Orkney, very high densities of resident and migrant Greylag geese co-graze with cattle in pastures surrounding Kirbister and Boardhouse reservoirs, which are the sources of Mainland Orkney’s public water supply. The extremely high goose numbers involved and unexpectedly high prevalence of C. parvum found in these geese may be a risk factor in the transmission of C. parvum to the water courses, where faecal pollution and Cryptosporidium contamination is an on-going issue. The results of the raw water analysis from both reservoirs emphasised the extent of the contamination in these water bodies. As part of water quality management strategies, fencing livestock off from the reservoir edges is ongoing and will be an important strategy for Cryptosporidium reduction in reservoirs. However, the results from this pilot study have suggested that management strategies designed to improve water quality will need to take the potential contamination from geese in such high densities into account. As this study sampled a relatively small number of animals, further research is planned in these catchments to improve the sample size of geese in particular, but also to sample water and sediment in the same time frame to ascertain if contamination hot-spots occur in areas of the reservoirs and if goose faeces is involved in sediment overloading.

Author Contributions

Conceptualization, B.W., E.A.I., J.P. and W.S.; Methodology, B.W., F.K., H.S., C.P. and R.B.; Validation, H.S., C.P., R.B. and B.W.; Formal Analysis, B.W.; Investigation, B.W., W.S., E.A.I, and J.P.; Resources, F.K.; Data Curation, B.W.; Writing—Original Draft Preparation, ALL; Writing—Review & Editing, ALL; Project Administration, B.W.; Funding Acquisition, B.W., F.K., E.A.I. and J.P.


The authors thank the Moredun Foundation and Scottish Government for funding and supporting this project.


Thanks also to Scottish Water, and in particular Jennifer Greenhorn and Sarah Doherty, for their help with the provision of water samples, to Willie Stewart for sample collection and to all the farmers involved for continued support and access to their fields and cattle.

Conflicts of Interest

The authors declare no conflicts of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.


  1. Santin, M. Clinical and subclinical infections with Cryptosporidium in animals. N Z Vet. J. 2013, 61, 1–10. [Google Scholar] [CrossRef] [PubMed]
  2. Chalmers, R.M.; Elwin, K.; Thomas, A.L.; Guy, E.C.; Mason, B. Long-term Cryptosporidium typing reveals the aetiology and species-specific epidemiology of human cryptosporidiosis in England and Wales, 2000 to 2003. Euro. Surveillance: Bulletin Europeen Sur Les Maladies Transmissibles = European Communicable Disease Bulletin 2009, 14. [Google Scholar] [CrossRef] [PubMed]
  3. Ryan, U.; Fayer, R.; Xiao, L. Cryptosporidium species in humans and animals: Current understanding and research needs. Parasitology 2014, 141, 1667–1685. [Google Scholar] [CrossRef] [PubMed]
  4. Smith, R.P.; Clifton-Hadley, F.A.; Cheney, T.; Giles, M. Prevalence and molecular typing of Cryptosporidium in dairy cattle in England and Wales and examination of potential on-farm transmission routes. Vet. Parasitol. 2014, 204, 111–119. [Google Scholar] [CrossRef] [PubMed]
  5. Atwill, E.; Johnson, E.; Klingborg, D.; Veserat, G.; Markegard, G.; Jensen, W.; Pratt, D.; Delmas, R.; George, H.; Forero, L.; et al. Age, geographic and temporal distribution of fecal shedding of Cryptosporidium parvum oocysts in cow-calf herds. Am. J. Vet. Res. 1999, 60, 420–425. [Google Scholar] [PubMed]
  6. De Waele, V.; Berzano, M.; Speybroeck, N.; Berkvens, D.; Mulcahy, G.M.; Murphy, T.M. Peri-parturient rise of Cryptosporidium oocysts in cows: New insights provided by duplex quantitative real-time PCR. Vet. Parasitol. 2012, 189, 366–368. [Google Scholar] [CrossRef] [PubMed]
  7. Sturdee, A.P.; Bodley-Tickell, A.T.; Archer, A.; Chalmers, R.M. Long-term study of Cryptosporidium prevalence on a lowland farm in the United Kingdom. Vet. Parasitol. 2003, 116, 97–113. [Google Scholar] [CrossRef]
  8. Zahedi, A.; Paparini, A.; Jian, F.; Robertson, I.; Ryan, U. Public health significance of zoonotic Cryptosporidium species in wildlife: Critical insights into better drinking water management. Int. J. Parasitol. Parasites. Wildl. 2016, 5, 88–109. [Google Scholar] [CrossRef]
  9. Zahedi, A.; Monis, P.; Gofton, A.W.; Oskam, C.L.; Ball, A.; Bath, A.; Bartkow, M.; Robertson, I.; Ryan, U. Cryptosporidium species and subtypes in animals inhabiting drinking water catchments in three states across Australia. Water Res. 2018, 134, 327–340. [Google Scholar] [CrossRef]
  10. Wells, B.; Shaw, H.; Hotchkiss, E.; Gilray, J.; Ayton, R.; Green, J.; Katzer, F.; Wells, A.; Innes, E. Prevalence, species identification and genotyping Cryptosporidium from livestock and deer in a catchment in the Cairngorms with a history of a contaminated public water supply. Parasit. Vectors. 2015, 8, 66. [Google Scholar] [CrossRef]
  11. Thomson, S.; Hamilton, C.A.; Hope, J.C.; Katzer, F.; Mabbott, N.A.; Morrison, L.J.; Innes, E.A. Bovine cryptosporidiosis: Impact, host-parasite interaction and control strategies. Vet. Res. 2017, 48, 42. [Google Scholar] [CrossRef] [PubMed]
  12. Meinhardt, P.L.; Casemore, D.P.; Miller, K.B. Epidemiologic aspects of human cryptosporidiosis and the role of waterborne transmission. Epidemiol. Rev. 1996, 18, 118–136. [Google Scholar] [CrossRef] [PubMed]
  13. Robinson, G.; Chalmers, R.M.; Stapleton, C.; Palmer, S.R.; Watkins, J.; Francis, C.; Kay, D. A whole water catchment approach to investigating the origin and distribution of Cryptosporidium species. J. Appl. Microbiol. 2011, 111, 717–730. [Google Scholar] [CrossRef] [PubMed]
  14. Government, S. The Cryptosporidium (Scottish Water) Directions; Scottish Government: Edinburgh, UK, 2003.
  15. Jellison, K.L.; Lynch, A.E.; Ziemann, J.M. Source tracking identifies deer and geese as vectors of human-infectious Cryptosporidium genotypes in an urban/suburban watershed. Environ. Sci. Technol. 2009, 43, 4267–4272. [Google Scholar] [CrossRef] [PubMed]
  16. Kassa, H.; Harrington, B.J.; Bisesi, M.S. Cryptosporidiosis: A brief literature review and update regarding Cryptosporidium in feces of Canada geese (Branta canadensis). J. Environ. Health 2004, 66, 34–40. [Google Scholar]
  17. Gorham, T.J.; Lee, J. Pathogen loading from canada geese faeces in freshwater: potential risks to human health through recreational water exposure. Zoonoses Public Health 2016, 63, 177–190. [Google Scholar] [CrossRef]
  18. Elmberg, J.; Berg, C.; Lerner, H.; Waldenstrom, J.; Hessel, R. Potential disease transmission from wild geese and swans to livestock, poultry and humans: A review of the scientific literature from a One Health perspective. Infect Ecol. Epidemiol. 2017, 7, 1300450. [Google Scholar] [CrossRef]
  19. Thomson, S.; Jonsson, N.; Innes, E.A.; Katzer, F. A multiplex PCR test to identify four common cattle adapted Cryptosporidium species. Parasitol. Open 2016. In Press. [Google Scholar] [CrossRef]
  20. Hall, T. BioEdit: A user-friendly biological sequence alignment editor and analysis programme for Windows 95/98/NT. Nucl. Acids Symp. Ser. 1999, 41, 95–98. [Google Scholar]
  21. Brook, E.J.; Anthony Hart, C.; French, N.P.; Christley, R.M. Molecular epidemiology of Cryptosporidium subtypes in cattle in England. Vet. J. 2009, 179, 378–382. [Google Scholar] [CrossRef]
  22. Sulaiman, I.M.; Hira, P.R.; Zhou, L.; Al-Ali, F.M.; Al-Shelahi, F.A.; Shweiki, H.M.; Iqbal, J.; Khalid, N.; Xiao, L. Unique endemicity of cryptosporidiosis in children in Kuwait. J. Clin. Microbiol. 2005, 43, 2805–2809. [Google Scholar] [CrossRef] [PubMed]
  23. Environment Agency. The Microbiology of Drinking Water (2010)—Part 14—Methods for the Isolation, Identification and Enumeration of Cryptosporidium Oocysts and Giardia Cysts; Environment Agency: Bristol, UK, 2010. [Google Scholar]
  24. Mosier, D.A.; Oberst, R.D. Cryptosporidiosis. A global challenge. Ann. N Y Acad. Sci. 2000, 916, 102–111. [Google Scholar] [CrossRef] [PubMed]
  25. Blanchard, P.C. Diagnostics of Dairy and Beef Cattle Diarrhea. Vet. Clin. N. Am. Food A 2012, 28, 443–464. [Google Scholar] [CrossRef] [PubMed]
  26. Cho, Y.I.; Yoon, K.J. An overview of calf diarrhea – infectious etiology, diagnosis, and intervention. J. Vet. Sci. 2014, 15, 1–17. [Google Scholar] [CrossRef] [PubMed]
  27. Plutzer, J.; Tomor, B. The role of aquatic birds in the environmental dissemination of human pathogenic Giardia duodenalis cysts and Cryptosporidium oocysts in Hungary. Parasitol. Int. 2009, 58, 227–231. [Google Scholar] [CrossRef]
  28. Grimason, A.M.; Smith, H.V.; Parker, J.F.; Jackson, M.H.; Smith, P.G.; Girdwood, R.W. Occurrence of Giardia sp. cysts and Cryptosporidium sp. oocysts in faeces from public parks in the west of Scotland. Epidemiol. Infect 1993, 110, 641–645. [Google Scholar]
  29. Smith, H.V.; Brown, J.; Coulson, J.C.; Morris, G.P.; Girdwood, R.W. Occurrence of oocysts of Cryptosporidium sp. in Larus spp. gulls. Epidemiol. Infect. 1993, 110, 135–143. [Google Scholar] [CrossRef]
  30. Xiao, L.; Feng, Y. Zoonotic cryptosporidiosis. FEMS Immunol. Med. Microbiol. 2008, 52, 309–323. [Google Scholar] [CrossRef]
  31. Feng, Y.; Alderisio, K.A.; Yang, W.; Blancero, L.A.; Kuhne, W.G.; Nadareski, C.A.; Reid, M.; Xiao, L. Cryptosporidium genotypes in wildlife from a new york watershed. Appl. Environ. Microbiol. 2007, 73, 6475–6483. [Google Scholar] [CrossRef]
  32. Zhou, L.; Kassa, H.; Tischler, M.L.; Xiao, L. Host-adapted Cryptosporidium spp. in Canada geese (Branta canadensis). Appl. Environ. Microbiol. 2004, 70, 4211–4215. [Google Scholar] [CrossRef]
  33. Graczyk, T.K.; Cranfield, M.R.; Fayer, R.; Trout, J.; Goodale, H.J. Infectivity of Cryptosporidium parvum oocysts is retained upon intestinal passage through a migratory water-fowl species (Canada goose, Branta canadensis). Trop. Med. Int. Health 1997, 2, 341–347. [Google Scholar] [CrossRef] [PubMed]
  34. McDonald, S.; Berzano, M.; Ziegler, P.; Murphy, T.M.; Holden, N.M. Qualitative risk assessment of surface water contamination with Cryptosporidium Sp Oocysts: A case study of three agricultural catchments. Hum Ecol. Risk Assess. 2011, 17, 813–825. [Google Scholar] [CrossRef]

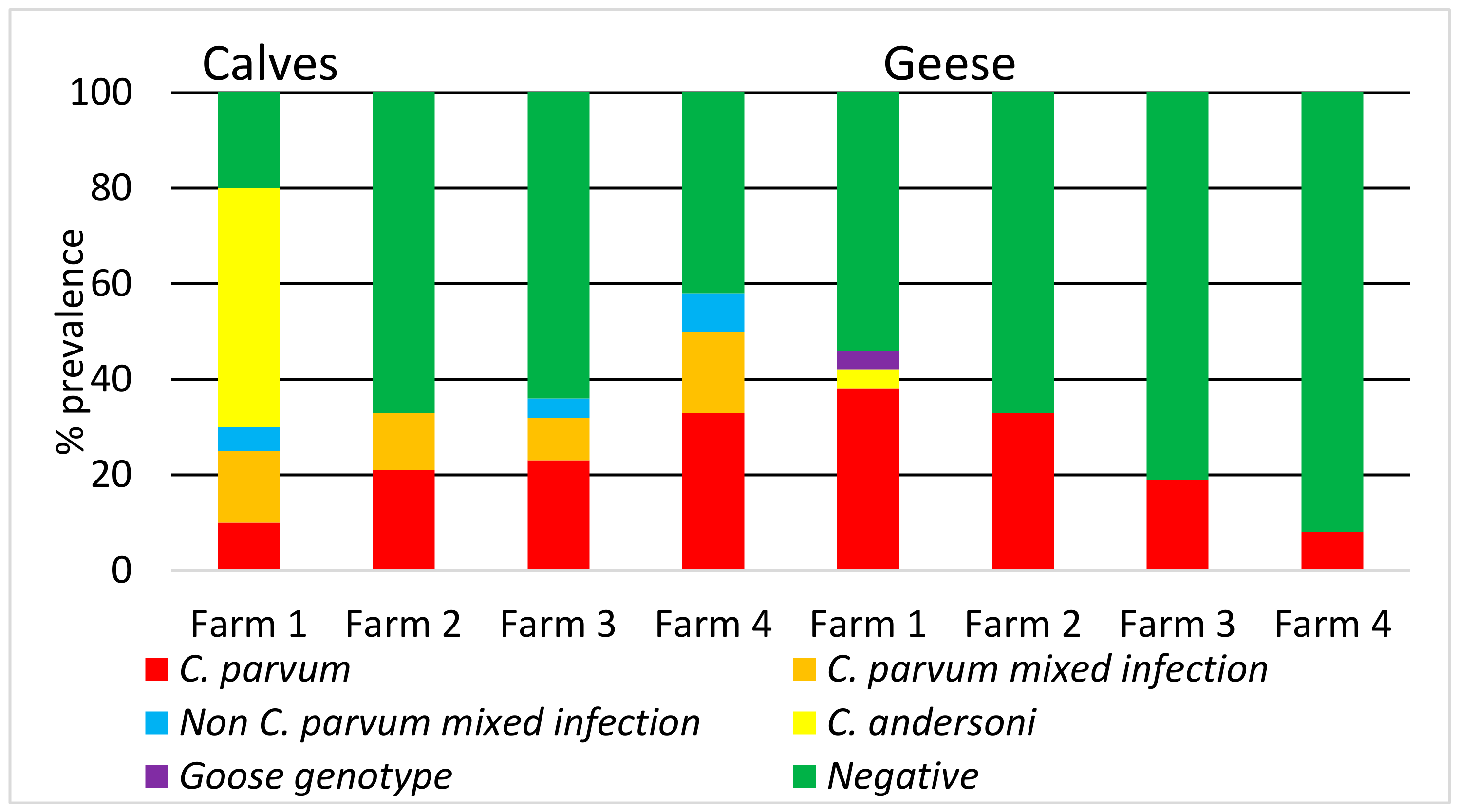

Figure 1. Cryptosporidium species prevalence (%) found on each farm in calves and geese.
Figure 1. Cryptosporidium species prevalence (%) found on each farm in calves and geese.
Microorganisms 07 00513 g001

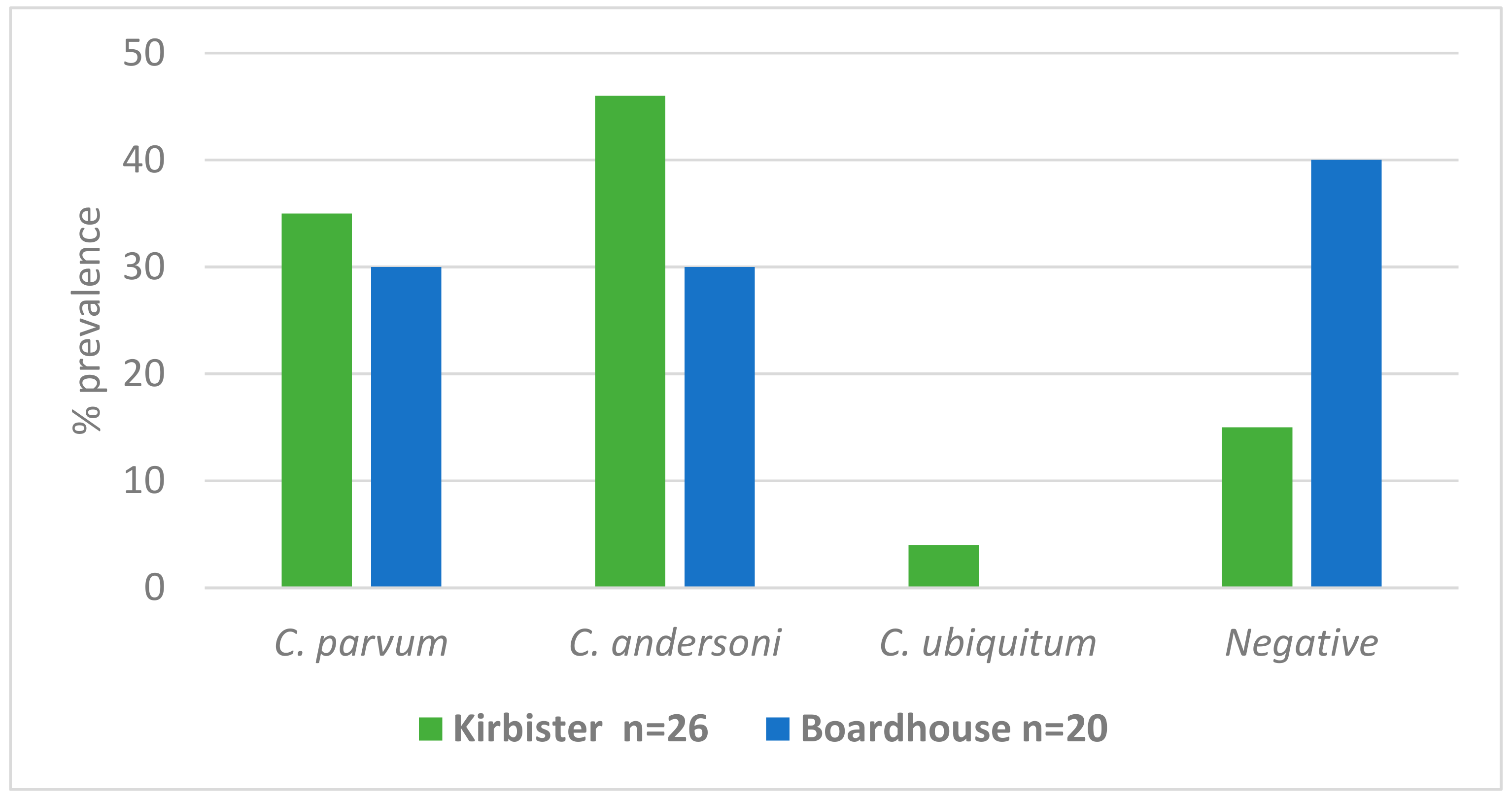

Figure 2. Cryptosporidium species prevalence (%) found in water samples from Kirbister and Boardhouse reservoirs.
Figure 2. Cryptosporidium species prevalence (%) found in water samples from Kirbister and Boardhouse reservoirs.
Microorganisms 07 00513 g002

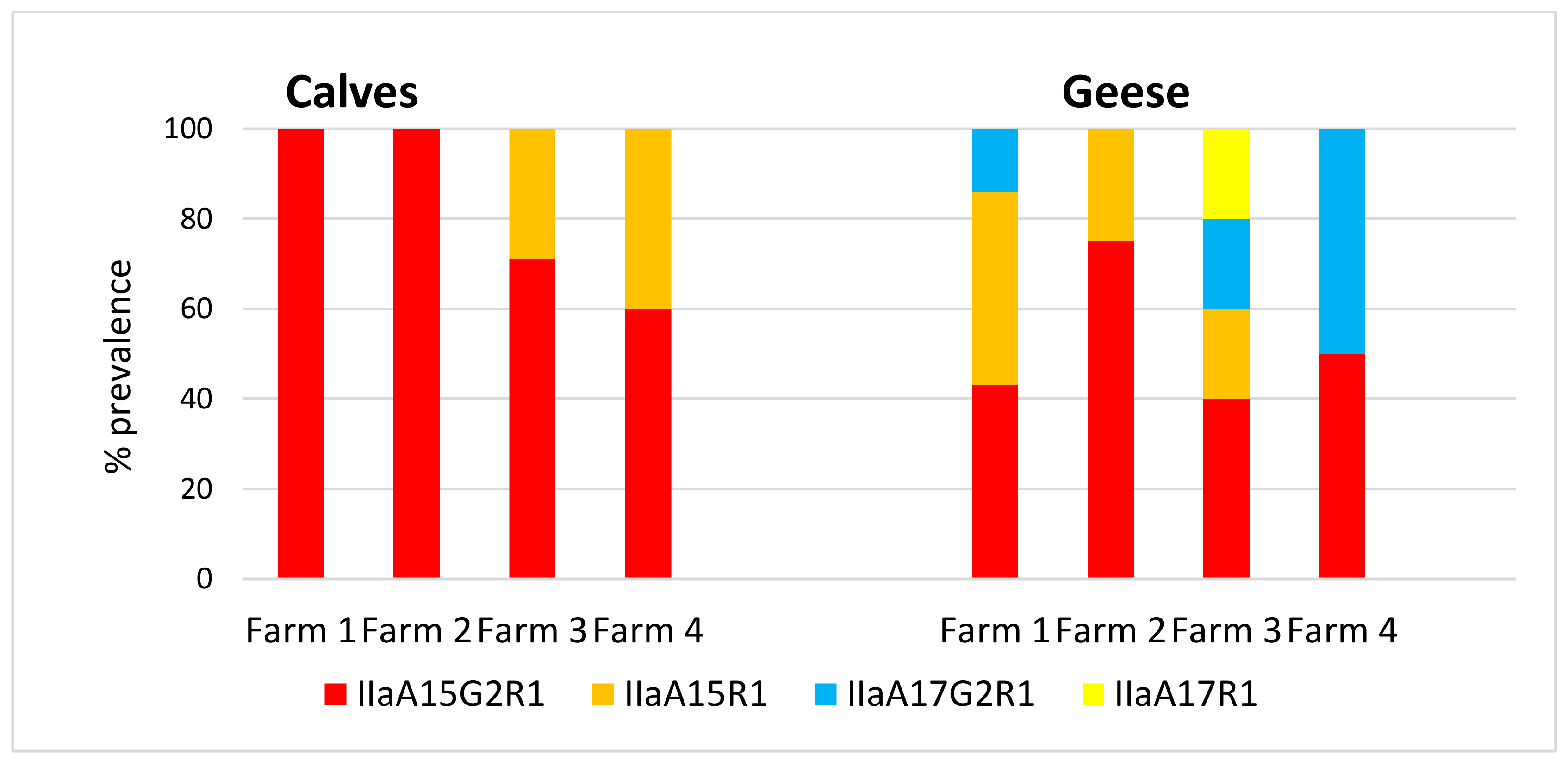

Figure 3. Percentage of C. parvum-positive samples with each identified genotype present in calf and goose samples.
Figure 3. Percentage of C. parvum-positive samples with each identified genotype present in calf and goose samples.
Microorganisms 07 00513 g003
Table 1. Orkney Greylag geese counts for 2012 to 2016 for summer counts and Table 2. 2012 to 2018 for winter counts (data supplied by Scottish Natural Heritage). Summer (August) counts—resident population.
Table 1. Orkney Greylag geese counts for 2012 to 2016 for summer counts and Table 2. 2012 to 2018 for winter counts (data supplied by Scottish Natural Heritage). Summer (August) counts—resident population.
LocationArea (ha)Number—August CountMean Number over 5 Years
North Ronaldsay690389132355546401365
Papa Westray93334315750161263
Small Holms (Faray, Muckle Green Holm)26592NCNCNCNCN/A
East Mainland52,325221622331862195229312239
West Mainland840976609759701278358135
South Ronaldsay4980123413702233211320211794
Hoy & South Walls14,55810727104950175
Flotta / Fara / Switha1212872558614264
TOTAL101,73521,36720,24222,91121,35424,250Mean 22,025
Table 2. Winter (November) Count Totals—resident and migratory geese.
Table 2. Winter (November) Count Totals—resident and migratory geese.
YearTotal Orkney
Table 3. Numbers of calf and goose samples collected from each farm.
Table 3. Numbers of calf and goose samples collected from each farm.
FarmNumbers of Calf SamplesNumbers of Goose Samples
Table 4. Cryptosporidium species found in calf and goose samples on four Orkney farms and in water samples from two reservoirs.
Table 4. Cryptosporidium species found in calf and goose samples on four Orkney farms and in water samples from two reservoirs.
Cryptosporidium SpeciesIdentified Cryptosporidium Species
Calves Stool Samples N (%)
Geese Stool Samples N (%)*** Water Samples N (%)
C. parvum19 (15/78)24 (24/100)33 (15/46)
* C. parvum mixed infection13 (10/78)00
** Non C. parvum mixed infection6 (5/78)00
C. andersoni9 (7/78)1 (1/100)39 18/46)
C. bovis1 (1/78)00
C. ubiquitum002 (1/46)
Goose genotype01 (1/100)0
Total No.7810046
* C. parvum mixed infections included C. parvum, C. andersoni and C. bovis. ** Non C. parvum mixed species comprised C. andersoni; C. bovis and C. ryanae. *** Water sample is one slide equivalent.
