Brief Report

Zymobacter palmae Pyruvate Decarboxylase is Less Effective Than That of Zymomonas mobilis for Ethanol Production in Metabolically Engineered Synechocystis sp. PCC6803

Department of Chemical Sciences, School of Natural Sciences and the Bernal Institute, University of Limerick, V94 T9PX Limerick, Ireland
School of Engineering, University of Limerick, V94 T9PX Limerick, Ireland
Authors to whom correspondence should be addressed.
Microorganisms 2019, 7(11), 494;
Submission received: 2 August 2019 / Revised: 19 October 2019 / Accepted: 25 October 2019 / Published: 27 October 2019
(This article belongs to the Special Issue The Emerging Role of Cyanobacteria in Green Biotechnology)


To produce bioethanol from model cyanobacteria such as Synechocystis, a two gene cassette consisting of genes encoding pyruvate decarboxylase (PDC) and alcohol dehydrogenase (ADH) are required to transform pyruvate first to acetaldehyde and then to ethanol. However the partition of pyruvate to ethanol comes at a cost, a reduction in biomass and pyruvate availability for other metabolic processes. Hence strategies to divert flux to ethanol as a biofuel in Synechocystis are of interest. PDC from Zymobacter palmae (ZpPDC) has been reported to have a lower Km then the Zymomonas mobilis PDC (ZmPDC), which has traditionally been used in metabolic engineering constructs. The Zppdc gene was combined with the native slr1192 alcohol dehydrogenase gene (adhA) in an attempt to increase ethanol production in the photoautotrophic cyanobacterium Synechocystis sp. PCC 6803 over constructs created with the traditional Zmpdc. Native (Zppdc) and codon optimized (ZpOpdc) versions of the ZpPDC were cloned into a construct where pdc expression was controlled via the psbA2 light inducible promoter from Synechocystis sp. PCC 6803. These constructs were transformed into wildtype Synechocystis sp. PCC 6803 for expression and ethanol production. Ethanol levels were then compared with identical constructs containing the Zmpdc. While strains with the Zppdc (UL071) and ZpOpdc (UL072) constructs did produce ethanol, levels were lower compared to a control strain (UL070) expressing the pdc from Zymomonas mobilis. All constructs demonstrated lower biomass productivity illustrating that the flux from pyruvate to ethanol has a major effect on biomass and ultimately overall biofuel productivity. Thus the utilization of a PDC with a lower Km from Zymobacter palmae unusually did not result in enhanced ethanol production in Synechocystis sp. PCC 6803.

1. Introduction

Recently, much effort has focused on the development of alternative sources of energy that are environmentally friendly and sustainable [1] in comparison to fossil fuels [2,3]. With many alternatives being explored, much research has focused on the metabolic engineering of the model cyanobacterium Synechocystis sp. PCC 6803 (referred to hereafter as Synechocystis PCC 6803) to produce biofuels such as ethanol [4] from CO2 and sunlight photoautotrophically [5]. Metabolic engineering has been utilized to direct Synechocystis PCC 6803 to produce a range of products [6] including ethanol via expression of heterologous pdc (pyruvate decarboxylase) and adhII (alcohol dehydrogenase) genes from Zymomonas mobilis (Zmpdc and ZmadhII).
In the late 1980s, Escherichia coli was initially engineered with these genes [7] to produce ethanol as a proof of concept. This was followed by the metabolic engineering of the first cyanobacterium Synechococcus elongatus PCC 7942 [8] and soon afterwards Synechocystis PCC 6803 was also used to produce ethanol using the same pdc and adhA genes from Zymomonas mobilis using a strong light driven native psbA2 promoter. This Synechocystis strain gave double the amount of ethanol production compared to the Synechococcus elongatus PCC 7942 strain [9]. US biofuel companies Algenol and Joule Unlimited have since worked towards the development of industrial ethanol producing cyanobacteria using an adhA (slr1192) native to Synechocystis PCC 6803 coupled to the pdc gene from Zymomonas mobilis allowing overexpression of these genes and enhanced ethanol production [10]. To enhance ethanol production further, gene dosage has been used, which employed two copies of the Zmpdc and slr1192 adhA genes coupled with the knockout of the PHB (poly-β-hydroxybutyrate) storage compound pathway [11] leading to further increased ethanol yields.
Other approaches that hold potential include the use of small native Synechocystis PCC 6803 plasmids for expression of the heterologous genes in the ethanol pathway [12], the alteration of pyruvate levels via the over expression or decreased expression of certain enzymes like pyruvate kinase (PK) or phosphoenolpyruvate carboxylase (PPC) [13,14] or the utilization of different promoters [15] for expression of the pdc and adhA genes [16] to enhance enzyme activity and flux to ethanol. Flux of metabolic intermediates, such as pyruvate, to maintain adequate cell homeostasis is a key issue for all microorganisms. All metabolic engineering strategies for bioethanol production in Synechocystis involve a diversion of pyruvate to ethanol [7] and any such diversion occurs at the expense of biomass production [1]. There is thus a balance between the need for biomass and the maximum product yield that is possible [1,7]. To maximize the amount of bioethanol or indeed any other engineered product being able to optimize the kinetics of the first enzyme, in this case pyruvate decarboxylase, to withdraw substrate towards the bioethanol pathway would represent a key strategy towards optimum production.
We hypothesized that the Zymomonas mobilis pdc gene could be replaced with a pdc gene from Zymobacter palmae that possesses a PDC with a reported lower Km value. This could potentially increase flux from pyruvate to ethanol in engineered Synechocystis PCC 6803 strains. This possibility was examined via cloning and expression of the Zppdc gene, both native (Zppdc) and codon optimized (ZpOpdc), with these cassettes compared to those expressing the Zmpdc with respect to ethanol.

2. Materials and Methods

2.1. Bacterial Strains

The bacterial strains, plasmids and DNA elements utilized as part of this study are listed in Table 1. Synechocystis PCC6803 (glucose tolerant, obtained from K. Hellingwerf, UvA, Amsterdam) cells were maintained at 30 °C on BG-11 medium (Sigma) supplemented with 10 mM TES-NaOH (pH 8.2), 20 mM glucose and 0.3% (w/v) sodium thiosulfate. Zymobacter palmae DSM-10491 was obtained from the DSMZ and grown in MY broth (1 g yeast extract, 2 g maltose (20% solution made, filter sterilized, 10 mL added for 2% after autoclaving), 0.2 g KH2PO4, 0.5 g NaCl). All routine plasmid construction and cloning was performed in E. coli using Luria–Bertani (LB) broth. All media were supplemented with appropriate antimicrobial agents as required: ampicillin, 100 μg ml−1 and kanamycin, 5–100 μg ml−1. All strains were stored at −80 °C in either Luria–Bertani (LB) broth containing 50% glycerol (E. coli) or 50% BG-11 medium containing 5% (v/v) methanol (Synechocystis PCC6803).
Transformation was carried out via electroporation with electro-competent cells [17]. The gene sequence for Zppdc was sent to IDT (Integrated DNA Technologies) to be codon optimized for Synechocystis PCC6803. Cassettes were constructed, which contained the psbA2 light driven promoter (from plasmid pUL004, Table 1) fused to the Zmpdc, the Zppdc, and the ZpOpdc genes coupled to the native Synechocystis PCC 6803 slr1192 adhA gene and the kanamycin resistance gene derived from the ICE R391 [18] as described in Lopez et al. [19] (Figure 1). The construct also contained 500 bp at each end with homology to the psbA2 neutral site to allow homologous recombination into this neutral site [10]. Constructs were generated by PCR amplification of the relevant genes and promoter with fusion of the genes carried out via a biobrick to form the ethanol cassettes similar in structure as previously reported [9,19]. Verification of the pUL101 and pUL102 plasmids was carried out via PCR amplification of the construct (Table 2) followed by sequencing. PCR mixes, Taq polymerase and restriction enzymes for cloning and PCR methods were purchased from Sigma Aldrich. The PCR cycle was as follows: after an initial denaturation at 98 °C for 1 min, 30 cycles of denaturing at 98 °C for 10 s, annealing at 50 °C for 20 s, and extension at 72 °C for 1 min (30 s/kb for ~2 kb gene) extension were undertaken, with a final step at 72 °C for 5 min. PCR products were then analyzed by electrophoresis on a 1.0% agarose gel stained with Sybersafe using 1× TAE buffer as running buffer.

2.2. Gene Cloning and Strain Construction

Cloning via homologous recombination was carried out using the In-Fusion® HD cloning kit (Clontech Laboratories Inc.). Primers used can be seen in Table 2.
Transformants of wild type Synechocystis PCC6803 were sub-cultured in BG-11 medium containing increasing concentrations of kanamycin (5–100 µg.mL−1) until full integration of the cassette was verified. Transformations were left at 30 °C for 16 h under medium intensity white-light illumination (~20–40 µE m−2 s−1). Verification of integration into the psbA2 neutral site was carried out with appropriate primers (Table 2) that bound the flanking homologous insertion site within psbA2. Wildtype Synechocystis PCC6803 amplified with these primers generated a PCR product approximately 1.2 kb in size, insertion of the UL071 and UL072 cassettes resulted in the amplification of a ~4 kb PCR product.

2.3. Growth Measurements

Optical density measurements were taken using a Cary UV-Vis spectrophotometer at either 600 nm for E. coli or 730 nm for Synechocystis sp. PCC 6803 as a measure of biomass yield.

2.4. Ethanol Determination

Ethanol determination was carried out using the Yellow line kit: UV-method from R-Biopharm AG. Here, ethanol is oxidized to acetaldehyde via alcohol dehydrogenase (ADH), which in the presence of aldehyde dehydrogenase (Al-DH) is oxidized to acetic acid while NAD+ is reduced to NADH, which was measured at 340 nm via a Cary UV-Vis spectrophotometer. All tests were carried in quintuplicate.

2.5. Assay for PDC from Crude Recombinant Extracts of Engineered Synechocystis sp PCC6803

Recombinant strains were adjusted to optical density (OD)730nm of 1.0 and disrupted by beads in pre-chilled buffer [14]. Cell debris was removed by centrifugation. PDC assays on crude preparations carried out as described [20] using sodium pyruvate as substrate and extracts normalized to 1.9 mg.mL−1 of protein for assay comparison. Assays were performed in triplicate.

2.6. Assays for Acetaldehyde in Recombinant Strains of Synechocystis sp PCC6803

Of the culture 50 mL of each recombinant strain adjusted to equal OD730nm was centrifuged at 15000 g at 4 °C and the cell pellets immediately frozen in liquid nitrogen and extracted as described [21]. Assays for cellular acetaldehyde utilized the EnzyFluo™ Acetaldehyde Assay Kit, BioAssay Systems based on colorimetric acetaldehyde assay coupled to formazan reduction measured at 565 nm. Assays were performed in triplicate.

3. Results and Discussion

Bacterial PDCs are rare with only a small number reported. Raj et al. reported four bacterial PDCs from Zymomonas mobilis (Zm), Zymobacter palmae (Zp), Acetobacter pasteurianus (Ap), and Sarcina ventriculi (Sv) [22]. By aligning the amino acid sequences of these PDCs, which are similar in length and size (between 552 and 568 amino acids and 59.83 and 61.8 KDa) it was found that the PDC from Z. palmae (ZpPDC) shared 72% identity with the PDC from Acetobacter pasteurianus (ApPDC) but only 62%/63% identity to the ZmPDC (Table 3) [22,23]. Comparison of kinetic parameters, which can be seen in Table 3, indicated that the ZpPDC might have some potential in metabolic engineering due to its lower Km value in comparison to the ZmPDC. Two other PDCs have since been reported from Gluconacetobacter diazotrophicus, GdPDC, and Gluconobacter oxydans, GoPDC [24] and are compared in Table 3.
pUL004 (containing Zmpdc and described previously [19], pUL101 (Zppdc) and pUL102 (ZpOpdc; Table 1) were transformed into wildtype Synechocystis PCC 6803 to create strains UL070 (pUL004), UL071 (pUL101), and UL072 (pUL102) respectively. The Zppdc gene sequence was codon optimized to minimize any possible effect of codon bias in limiting expression in the heterologous host giving UL072. Full segregation of the constructs into the chromosome at the psbA2 neutral site was confirmed via PCR screening (Supplementary Material). Using primers that spanned the psbA2 insertion site, wild type strains or those that failed to integrate cassettes into the polyploid Synechocystis PCC6803 chromosome resulted in an amplicon of ~1.1 kb. Fully segregated strains that integrated the cassettes also showed one band but at a size of ~4 kb (containing the psbA2 light promoter, pdc, adhA, and kanamycin genes). Strains that displayed partial integration into only some of the polyploid chromosomes showed two bands of both 1.1 and 4 kb (Supplementary Material).
It was decided to test overall ethanol levels to determine construct efficiency, as increasing levels of ethanol were the desired outcome of the research. All strains produced 0 g/L/OD of ethanol on day 0 and levels for each strain subsequently varied over the course of the 3, 7, and 11 days upon growth in BG11 medium. UL070 containing Zmpdc produced the largest amount of ethanol at each measurement time in comparison to the other strains (Figure 2).
Ethanol levels for the UL071 and UL072 strains were less than the Zmpdc expressing strain, which was somewhat surprising, given the lower Km that has been reported for this PDC (we subsequently purified the ZpPDC and verified its reported lower Km, data not shown) [22]. All recombinant strains grew at a slower rate than wildtype that is typical of strains diverting key metabolic intermediates such as pyruvate away from biomass and other metabolic needs. This can be observed in differential optical density (OD) in ethanol producers relative to wildtype strains. All three strains examined showed reduced OD after 3, 7, and 11 days of culture relative to the wildtype Synechocystis PCC 6803 strain with UL070 showing the lowest OD, which is an indication that it was most effected by the ethanol production relative to biomass (Figure 3). It can be seen in all cases that the levels of biomass were lower in the three constructs then in the wildtype strain. The level of biomass was also lower in UL071 and UL072 than in UL070.
Liu et al. also used the Zppdc gene in a study to increase ethanol production in lactic acid bacteria [28]. The ZpPDC was chosen for its low Km for pyruvate and high specific activity amongst all the bacterial PDCs [29]. By using acid inducible and highly conserved constitutive promoters with the Zppdc, Liu et al. reported that the acetaldehyde levels produced by the recombinant strains of Lactococcus lactis were eight-fold higher in comparison to the control strain but that there was no significant increase in ethanol levels [26,28]. The enzyme has also been recombinantly produced, purified, and structural studies initiated, which may cast more light on its potential [30].
There may be several reasons why the ZpPDC enzyme is apparently less effective than might be hypothesized from its kinetic data. Using cell free extracts from the three recombinant strains UL070, UL071, and UL072 we confirmed that all PDC activities were active in the recombinant strains. It is possible that ZpPDC is converting pyruvate at a faster rate to acetaldehyde compared to the ZmPDC and that this is not coupled effectively to the heterologous ADH resulting in a build-up of acetaldehyde that is known to cause cell toxicity [26]. Attempts were undertaken to measure the acetaldehyde levels (as described in Materials and Methods) however levels were below the detectable limit of the assay kit used. Measurement of acetaldehyde from crude extracts of all three recombinant strains did not identify any detectable alteration in acetaldehyde levels at least under the assay conditions utilized. However measurement of instantaneous acetaldehyde levels in biological systems is difficult with many pitfalls identified ranging from sampling, equilibrium levels, rapid oxidation, volatility, bound forms to various biomolecules, low residual levels, and artifactual acetaldehyde levels [31]. These issues may be factors in being unable to detect variation in acetaldehyde levels in the recombinant strains analyzed. However the lower levels of biomass seen in Figure 3 is suggestive of potential toxicity in the absence of extra ethanol production. To test the possibility that some deficiency in AdhA levels might be an issue we transformed pUL101 into a strain termed UL059, which contained the Zymomonas mobilis adhII gene under the control of the highly expressed ptrc promoter. Ethanol levels in this strain were identical to that of the UL071 strain (data not shown). This data suggested that there did not appear to be a deficiency in ADH for coupling under the experimental conditions used.
Another possibility for the lower than expected ethanol levels recovered from UL071 and UL072 might be the availability of pyruvate as more rapid flux from pyruvate to ethanol would lead to a reduction in biomass as observed. The rationale for using a more efficient PDC would be to avoid the necessity for gene dosage using two copies of the Zmpdc gene [11,19], which can lead to gene instability and the need for a double insertion of the cassette. The biomass reduction observed in double cassette strains [11,19] is more obvious than that observed with UL071 or UL072, which suggests that pyruvate availability may not be the limitation in this case. However providing sufficient pyruvate is a key issue in any drive for ethanol and indeed may be addressed by overexpressing pyruvate kinase as has previously been reported [14].
It may also be possible that there is a pH incompatibility issue as the optimum pH for ZpPDC is pH 6.0 [20], which is slightly more acidic than the optimum pH for Synechocystis PCC 6803, which is 8.2 with growth showing little reduction up to pH 10 [26]. We examined this possibility by examining crude extracts from all three recombinant strains buffered to pH 6 and pH 8.2 and noted that at the extract pH of pH 8.2 that the residual level of ZpPDC was in fact lower displaying only 60% of the activity observed when the cell extract was buffered to pH 6.0. The ZmPDC demonstrated no apparent loss of activity on dropping the pH to 6.0. We believed this might be at the heart of the issue and that the ZpPDC was not performing optimally in the recombinant strains UL071 and UL072 compared to the ZmPDC in UL070.
In addition to this, the ZpPDC has received little study and so it is possible that there are cofactor differences, metabolic regulatory issues or coupling issues, which have yet to be recognized. Although utilizing a PDC with a lower Km has potential, our data indicates that before such potential can be realized more detailed studies on candidate PDCs will be necessary before progress in this area can be achieved. Should a construct result in higher production levels than this is seen as a success. However if the strategy does not result in greater yields then there are a multitude of potential factors ranging from expression levels, substrate supply, cell pH compatibility, effective coupling with other enzymes in the inserted pathway, and potentially co factor supply and utilization that may be at the root of the issue. Such consequences are diverse and need to be considered when designing experiments for the optimization of metabolic strategies. Thus the utilization of a PDC with a lower Km from Zymobacter palmae in both the native and codon optimized form in a pathway for ethanol formation in Synechocystis PCC 6803 did not result in an increase of ethanol production levels under the conditions tested with the most likely candidate in this case being intercellular pH incompatibility of the expressed ZpPDC.

Supplementary Materials

The following are available online at Figure S1: pUL101, Figure S2: DNA agarose gel of PCR amplicons. Table S1: Ethanol yields as measured in g/L/OD for wild-type and metabolically engineered strains (n = 5).

Author Contributions

J.T.P., P.A., L.Q., T.S., C.S. conceptualized, planned, designed, analyzed the study and interpreted results. M.P.R. analyzed the study, interpreted results and wrote the manuscript.


This research was funded by the FP7 DEMA “Direct Ethanol from Microalgae” project, which received funding from the European Union’s Seventh Framework Programme for Research, Technological Development and Demonstration under grant agreement no 309086.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Pembroke, J.T.; Armshaw, P.; Ryan, M.P. Metabolic Engineering of the Model Photoautotrophic Cyanobacterium Synechocystis for Ethanol Production: Optimization Strategies and Challenges. In Fuel Ethanol Production from Sugarcane; Basso, T.P., Basso, L.C., Eds.; Intech Open: London, UK, 2019; pp. 199–219. [Google Scholar] [CrossRef]
  2. Bender, M.H. Potential conservation of biomass in the production of synthetic organics. Resour. Conserv. Recycl. 2000, 30, 49–58. [Google Scholar] [CrossRef]
  3. Demirbas, M.F. Current technologies for biomass conversion into chemicals and fuels. Energy Sources Part A Recover. Util. Environ. Eff. 2006, 28, 1181–1188. [Google Scholar] [CrossRef]
  4. Osamu, K.; Carl, H. Biomass Handbook; Gordon and Breach Science Publisher: New York, NY, USA, 1989. [Google Scholar]
  5. Touloupakis, E.; Cicchi, B.; Benavides, A.M.S.; Torzillo, G. Effect of high pH on growth of Synechocystis sp. PCC 6803 cultures and their contamination by golden algae (Poterioochromonas sp.). Appl. Microbiol. Biotechnol. 2016, 100, 1333–1341. [Google Scholar] [CrossRef] [PubMed]
  6. Rippka, R.; Deruelles, J.; Waterbury, J.B.; Herdman, M.; Stanier, R.Y. Generic assignments, strain histories and properties of pure cultures of cyano-bacteria. J. Gen. Microbiol. 1979, 111, 1–61. [Google Scholar]
  7. Dexter, J.; Armshaw, P.; Sheahan, C.; Pembroke, J.T. The state of autotrophic ethanol production in Cyanobacteria. J. Appl. Microbiol. 2015, 119, 11–24. [Google Scholar] [CrossRef]
  8. Ingram, L.O.; Conway, T.; Clark, D.P.; Sewell, G.W.; Preston, J.F. Genetic engineering of ethanol production in Escherichia coli. Appl. Environ. Microbiol. 1987, 53, 2420–2425. [Google Scholar]
  9. Deng, M.D.; Coleman, J.R. Ethanol synthesis by genetic engineering in cyanobacteria. Appl. Environ. Microbiol. 1999, 65, 523–528. [Google Scholar]
  10. Dexter, J.; Fu, P. Metabolic engineering of cyanobacteria for ethanol production. Energy Environ. Sci. 2009, 2, 857. [Google Scholar] [CrossRef]
  11. Gao, Z.; Zhao, H.; Li, Z.; Tan, X.; Lu, X. Photosynthetic production of ethanol from carbon dioxide in genetically engineered cyanobacteria. Energy Environ. Sci. 2012, 5, 9857–9865. [Google Scholar] [CrossRef]
  12. Armshaw, P.; Carey, D.; Sheahan, C.; Pembroke, J.T. Utilising the native plasmid, pCA2.4, from the cyanobacterium Synechocystis sp. strain PCC6803 as a cloning site for enhanced product production. Biotechnol. Biofuels 2015, 8. [Google Scholar] [CrossRef]
  13. Angermayr, S.A.; Paszota, M.; Hellingwerf, K.J. Engineering a cyanobacterial cell factory for production of lactic acid. Appl. Environ. Microbiol. 2012, 78, 7098–7106. [Google Scholar] [CrossRef] [PubMed]
  14. Angermayr, S.A.; van der Woude, A.D.; Correddu, D.; Vreugdenhil, A.; Verrone, V.; Hellingwerf, K.J. Exploring metabolic engineering design principles for the photosynthetic production of lactic acid by Synechocystis sp. PCC6803. Biotechnol. Biofuels 2014, 7. [Google Scholar] [CrossRef] [PubMed]
  15. Huang, H.-H.; Lindblad, P. Wide-dynamic-range promoters engineered for cyanobacteria. J. Biol. Eng. 2013, 7, 10. [Google Scholar] [CrossRef] [PubMed]
  16. Lewicka, A.J.; Lyczakowski, J.J.; Blackhurst, G.; Pashkuleva, C.; Rothschild-Mancinelli, K.; Tautvaišas, D.; Thornton, H.; Villanueva, H.; Xiao, W.; Slikas, J.; et al. Fusion of pyruvate decarboxylase and alcohol dehydrogenase increases ethanol production in Escherichia coli. ACS Synth. Biol. 2014, 3, 976–978. [Google Scholar] [CrossRef]
  17. Murphy, K.C. Use of bacteriophage λ recombination functions to promote gene replacement in Escherichia coli. J. Bacteriol. 1998, 180, 2063–2071. [Google Scholar]
  18. Böltner, D.; MacMahon, C.; Pembroke, J.T.; Strike, P.; Osborn, A.M. R391: A conjugative integrating mosaic comprised of phage, plasmid, and transposon elements. J. Bacteriol. 2002, 184, 5158–5169. [Google Scholar] [CrossRef]
  19. Lopes da Silva, T.; Passarinho, P.C.; Galriça, R.; Zenóglio, A.; Armshaw, P.; Pembroke, J.T.; Sheahan, C.; Reis, A.; Gírio, F. Evaluation of the ethanol tolerance for wild and mutant Synechocystis strains by flow cytometry. Biotechnol. Rep. 2018, 17, 137–147. [Google Scholar] [CrossRef]
  20. Raj, K.C.; Ingram, L.O.; Maupin-Furlow, J.A. Pyruvate decarboxylase: A key enzyme for the oxidative metabolism of lactic acid by Acetobacter pasteurianus. Arch. Microbiol. 2001, 176, 443–451. [Google Scholar]
  21. Takahashi, H.; Uchimiya, H.; Hihara, Y. Difference in metabolite levels between photoautotrophic and photomixotrophic cultures of Synechocystis sp. PCC 6803 examined by capillary electrophoresis electrospray ionization mass spectrometry. J. Exp. Botany. 2008, 59, 3009–3018. [Google Scholar] [CrossRef]
  22. Raj, K.C.; Talarico, L.A.; Ingram, L.O.; Maupin-Furlow, J.A. Cloning and characterization of the Zymobacter palmae pyruvate decarboxylase gene (PDC) and comparison to bacterial homologues. Appl. Environ. Microbiol. 2002, 68, 2869–2876. [Google Scholar] [CrossRef]
  23. Buddrus, L.; Andrews, E.S.V.; Leak, D.J.; Danson, M.J.; Arcus, V.L.; Crennell, S.J. Crystal structure of pyruvate decarboxylase from Zymobacter palmae. Acta Crystallogr. Sect. F Struct. Biol. Commun. 2016, 72, 700–706. [Google Scholar] [CrossRef] [PubMed]
  24. Van Zyl, L.J.; Schubert, W.D.; Tuffin, M.I.; Cowan, D.A. Structure and functional characterization of pyruvate decarboxylase from Gluconacetobacter diazotrophicus. BMC Struct. Biol. 2014, 14. [Google Scholar] [CrossRef] [PubMed]
  25. Dobritzsch, D.; König, S.; Schneider, G.; Lu, G. High resolution crystal structure of pyruvate decarboxylase from Zymomonas mobilis. Implications for substrate activation in pyruvate decarboxylases. J. Biol. Chem. 1998, 273, 20196–20204. [Google Scholar] [CrossRef] [PubMed]
  26. Gocke, D.; Berthold, C.L.; Schneider, G.; Pohl, H. Holostructure of pyruvate decarboxylase from Acetobacter pasteurianus. Protein Data Bank (PDB) PDB ID: 2VBI 2008. Available online: (accessed on 6 July 2019).
  27. Van Zyl, L.J.; Taylor, M.P.; Eley, K.; Tuffin, M.; Cowan, D.A. Engineering pyruvate decarboxylase-mediated ethanol production in the thermophilic host Geobacillus thermoglucosidasius. Appl. Microbiol. Biotechnol. 2014, 98, 1247–1259. [Google Scholar] [CrossRef]
  28. Liu, S.; Dien, B.S.; Cotta, M.A. Functional expression of bacterial Zymobacter palmae pyruvate decarboxylase gene in Lactococcus lactis. Curr. Microbiol. 2005, 50, 324–328. [Google Scholar] [CrossRef]
  29. Kunjapur, A.M.; Prather, K.L.J. Microbial engineering for aldehyde synthesis. Appl. Environ. Microbiol. 2015, 81, 1892–1901. [Google Scholar] [CrossRef]
  30. Alcover, N.; Carceller, A.; Álvaro, G.; Guillén, M. Zymobacter palmae pyruvate decarboxylase production process development: Cloning in Escherichia coli, fed-batch culture and purification. Eng. Life Sci. 2019, 19, 502–512. [Google Scholar] [CrossRef]
  31. Eriksson, P.C.J. Measurement of acetaldehyde: What levels occur naturally and in response to alcohol? In Acetaldehyde Related Pathology: Bridging the Transdisciplinary Divide: Novartis Foundation Symposium; Chadwick, D.J., Goode, J., Eds.; Wiley: Hoboken, NJ, USA, 2007; pp. 247–255. [Google Scholar]
Figure 1. Structure of the recombinant cassettes transformed in Synechocystis sp. PCC 6803.
Figure 1. Structure of the recombinant cassettes transformed in Synechocystis sp. PCC 6803.
Microorganisms 07 00494 g001

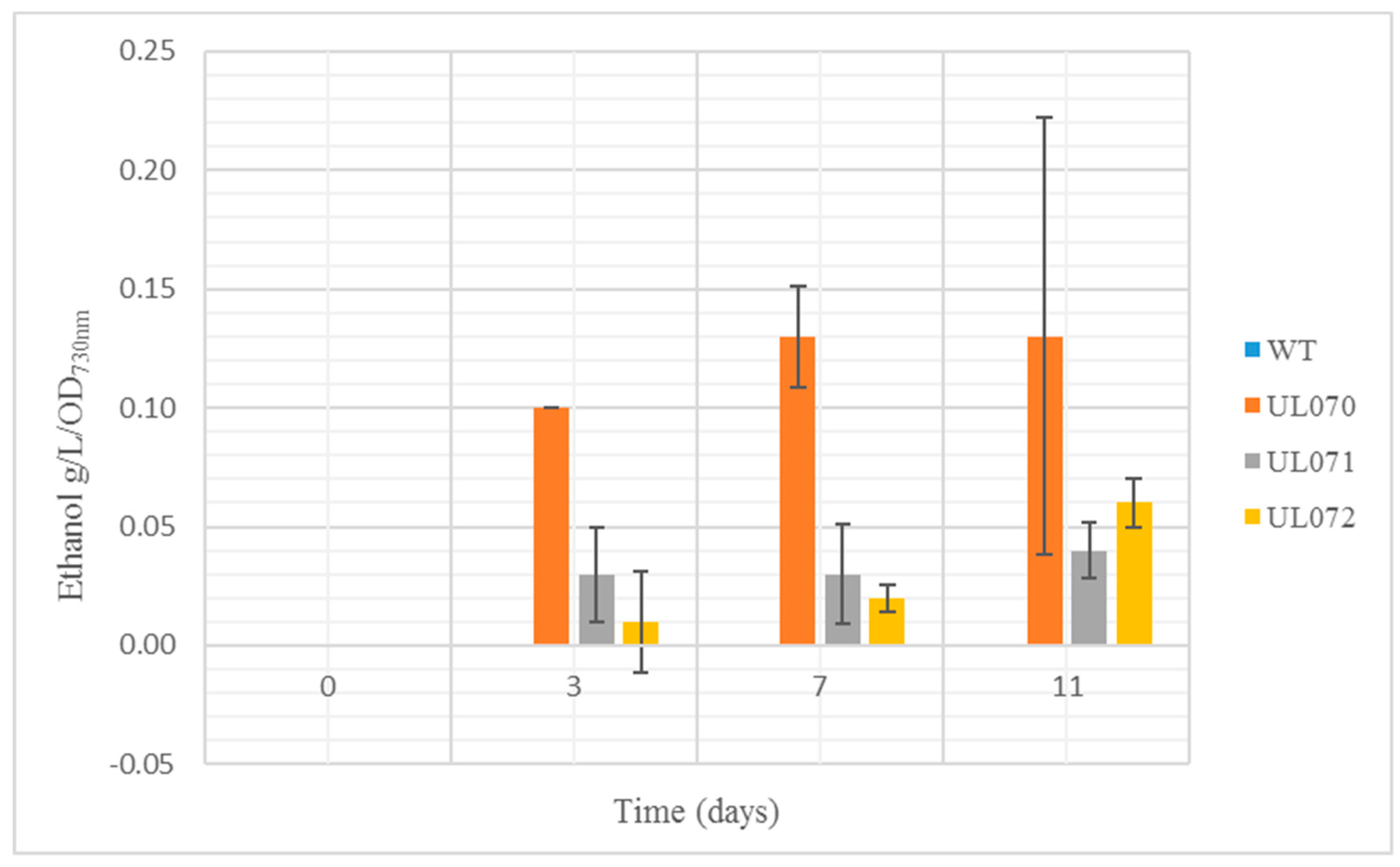

Figure 2. Ethanol levels in g/L/optical density (OD) 730 nm for tested WT(wild type) (Was zero in all cases), UL070 (ZmPDC), UL071 (ZpPDC) and UL072 (ZpOPDC) strains on days 0, 3, 7, and 11 (n = 5).
Figure 2. Ethanol levels in g/L/optical density (OD) 730 nm for tested WT(wild type) (Was zero in all cases), UL070 (ZmPDC), UL071 (ZpPDC) and UL072 (ZpOPDC) strains on days 0, 3, 7, and 11 (n = 5).
Microorganisms 07 00494 g002

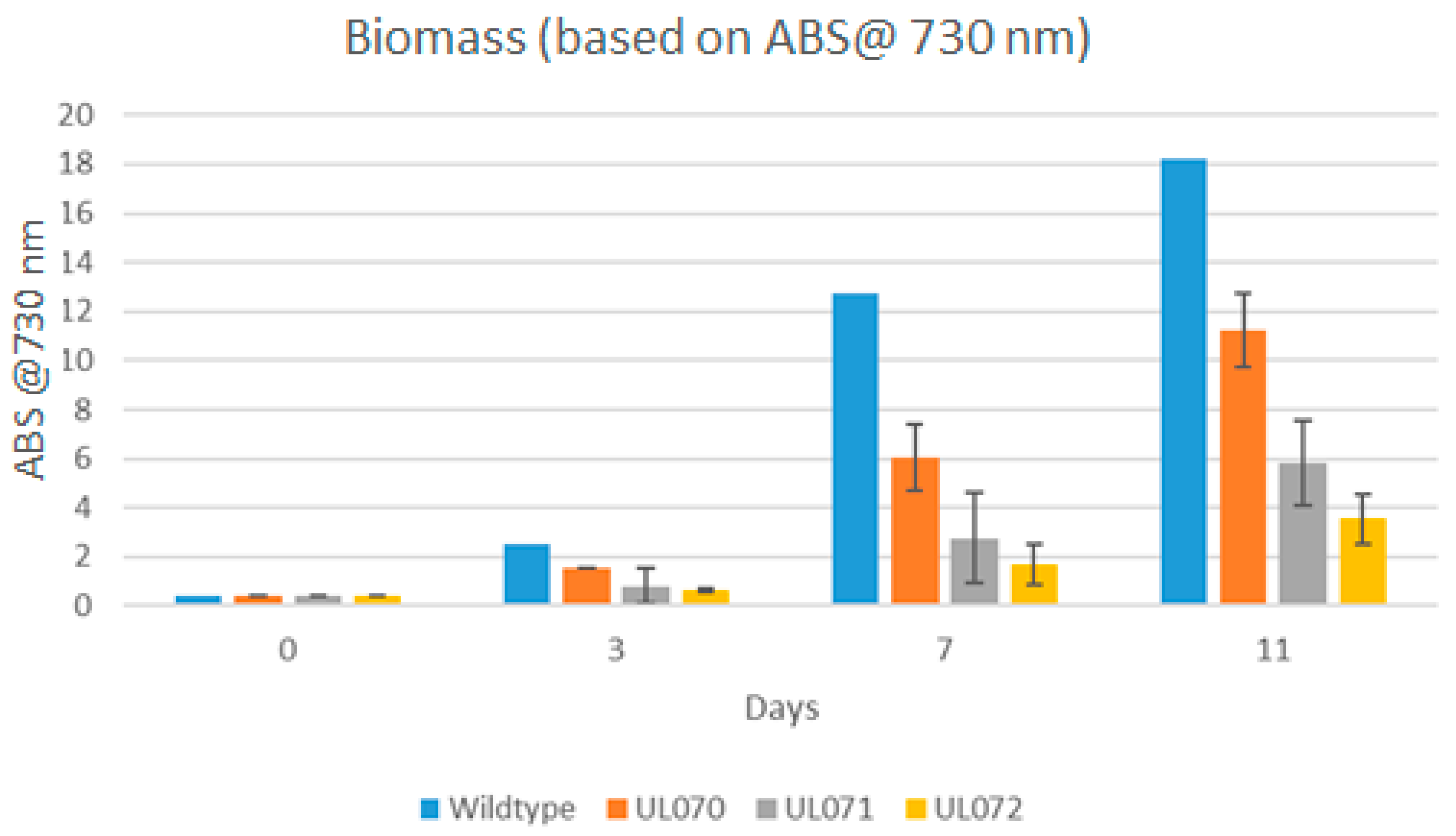

Figure 3. Biomass levels (OD 730 nm) for tested WT, UL070 (pZmpdc), UL071 (pZppdc), and UL072 (ZpOpdc) strains on days 0, 3, 7, and 11 (n = 5).
Figure 3. Biomass levels (OD 730 nm) for tested WT, UL070 (pZmpdc), UL071 (pZppdc), and UL072 (ZpOpdc) strains on days 0, 3, 7, and 11 (n = 5).
Microorganisms 07 00494 g003
Table 1. Bacterial strains and plasmids used in this study.
Table 1. Bacterial strains and plasmids used in this study.
BL21 (DE3) *E. coli B F ompT, gal, dcm, lon, hsdSB(rBmB), λ(DE3 [lacI lacUV5-T7p07 ind1, sam7, nin5]) [malB+]K-12S)Thermo Fisher Scientific Ballycoolin, Dublin 15, Ireland
DSM-10491Zymobacter palmaeDSMZ—German Collection of Microorganisms and Cell Cultures GmbH
AA314Wild-type Synechocystis PCC6803 strainK. Hellingwerf, UvA, Amsterdam, The Netherlands
UL004PCC6803 transconjugant with ZmPDC, slr1192- adhA, psbA2 locus, KanR[19]
UL059PCC6803 transconjugant with Zymomonas mobilis adh, ptrc promoterThis study
UL070PCC6803 transconjugant with ZmPDC, slr1192- adhA, psbA2 locus, KanRThis study
UL071PCC6803 transconjugant with ZpPDC, slr1192- adhA, psbA2 locus, KanRThis study
UL072PCC6803 transconjugant with ZpOpdc, slr1192- adhA, psbA2 locus, KanRThis study
pUC18AmpR backbone plasmidSigma-Aldrich, Arklow, Wicklow, Ireland
pUL004pUC18 backbone, PpsbA2 promoter, ZmPDC, slr1192- adhA, psbA2 integration site, KanR[19]
pUL101pUC18 backbone PpsbA2 promoter, ZpPDC, slr1192- adhA, psbA2 integration site, KanRThis study
pUL102pUC18 backbone PpsbA2 promoter, ZpOpdc, slr1192- adhA, psbA2 integration site, KanRThis study
Table 2. Primers used in this study.
Table 2. Primers used in this study.
PrimersSequence (5′–3′)
Zymobacter palmae pdc primers for the psbA2 vector to create pUL101
Codon optimized Zymobacter palmae pdc for the psbA2 vector to create pUL101
Linearize the psbA2 vector to create pUL101 and pUL102
Sequencing and screening primers for the ethanol cassette (psbA2 promoter, pdc, slr1192 adhA, kan) in the psbA2 vector
Table 3. Characteristics of known bacterial pyruvate decarboxylases.
Table 3. Characteristics of known bacterial pyruvate decarboxylases.
Bacterial speciesZymomonas mobilisZymobacter palmaeAcetobacter pasteurianusSarcina ventriculiGluconobacter oxydansGluconacetobacter diazotrophicus
Amino acid identity %*62/63Reference733167 71
Kinetics* M–M* M–M* M–M* Sigmoidal* M–M* M–M
Km mM (pH)* 0.43(6.0)
0.94 (7.0)
* 0.24 (6.0)
0.71 (7.0)
* 0.39 (5.0)
5.10 (7.0)
* 5.7 (6.5)
4.0 (7.0)
# 0.12 (5.0)
1.20 (6.5)
2.80 (7.0)
# 0.06 (5.0)
0.60 (6.0)
1.20 (7.0)
Optimum Temperature °C* 60* 55* 65N/A#53# 45–50
Optimum pH* 6.0* 5.5–6.0* 5.0–5.5* 6.3–6.7# 4.5–5.0# 5.0–5.5
M–M: Michaelis–Menten.
