When a human is infected with the protozoan parasite, Toxoplasma gondii
, the most common clinical manifestation is an inflammatory eye condition known as ocular toxoplasmosis [1
]. Approximately one-third of the world population is infected with T. gondii
], and the prevalence of ocular toxoplasmosis varies from less than 1% to approximately 18% of persons, depending on geographical location [3
]. For the majority, ocular toxoplasmosis involves the posterior eye and is characterized by recurrent necrotizing retinitis, with frequent extension of the inflammation and tissue destruction into the choroid, which encapsulates the retina. The toxoplasmic lesion has a central area of tissue destruction, which when the retina and choroid are breached reveals white sclera at the base, and is surrounded by a ring of pigment. Recurrences of retinitis occur at the edge of the pigment ring. This clinical picture is sufficiently characteristic that it is referred to in the ophthalmic medical literature as “typical ocular toxoplasmosis” [4
]; most ophthalmologists diagnose the condition and initiate treatment with anti-parasitic and corticosteroid drugs on the basis of the clinical appearance alone, without the need to sample and test ocular fluids [5
Changes in the pigment patterning of the retina indicate the involvement of the retinal pigment epithelium, which lies deep to the neural retina, directly opposed to the choroid [6
]. The multi-functional retinal pigment epithelium is a target cell for T. gondii
, with actively replicating tachyzoites identified in these cells during active disease [7
]. Historical articles, documenting histopathological findings in human eyes removed from immunocompromised patients with relatively severe ocular toxoplasmosis, make reference to alterations of this cellular layer [1
]. In their detailed descriptions, Yeo et al. [10
] and Parke et al. [11
] report multilaminar placoid proliferation of the retinal pigment epithelium; cells may show pseudo-sarcomatous changes, including pleomorphic nuclei and large nucleoli. More recently, optical coherence tomography has been used to image ocular toxoplasmosis in the living patient, and demonstrate retinal pigment epithelial changes, including thickening and splitting [12
]. The report of a study involving intraperitoneal infection of C57BL/6 mice with ME-49 strain T. gondii
cysts, and examination of the eyes post-mortem by electron microscopy, suggested that migration of retinal pigment epithelial cells within the retina also might contribute to the clinical picture [13
The characteristic clinical appearance of ocular toxoplasmosis suggests a specific interaction between T. gondii and host retinal pigment epithelial cells. To understand the nature of this interaction, we conducted translational bench research using human retinal pigment epithelial cells and naturally occurring T. gondii strains. However, first, we sought to quantify the clinical dogma that ocular toxoplasmosis presents with a lesion characterized by retinal hyperpigmentation—in 345 eyes of 263 patients with ocular toxoplasmosis, presenting to an inflammatory eye disease clinic in Brazil, where infection is endemic, this appearance was present in 94.2% of eyes. We show that human retinal epithelial cells secrete growth factors in response to infection with T. gondii that promote the proliferation of neighboring uninfected cells, which increases the susceptibility of these cells to infection with the parasite.
2. Materials and Methods
Between April 2015 and July 2017, patients presenting consecutively to the Uveitis Outpatient Clinic at the Ribeirão Preto General Hospital, Ribeirão Preto, São Paulo, Brazil, with ocular toxoplasmosis were enrolled in this study. This tertiary referral clinic serves a population of approximately 1.7 million people in a region where the prevalence of T. gondii
infection is estimated at 60% [14
]. The diagnosis of ocular toxoplasmosis required the presence of one or more foci of retinal inflammation, plus serological testing indicative of infection with T. gondii
(i.e., serum T. gondii
immunoglobulin (Ig)M and/or IgG). All patients had a complete ophthalmic examination, including dilated examination of the posterior segment of both eyes; patients were excluded if the posterior segment could not be adequately visualized because of complications that included cataract or persistent vitreous opacity. In addition to T. gondii
serology, if the clinical presentation suggested a differential diagnosis—including syphilis, tuberculosis, herpes virus infection, cytomegalovirus infection, or sarcoidosis—the relevant testing was performed to exclude these diseases. In selected cases, anterior eye fluid (aqueous) was tested for T. gondii
DNA by polymerase chain reaction (PCR).
The clinical data that were collected from the patients included: demographics, including gender, age, and self-stated ethnicity; classification of ocular toxoplasmosis; mode of infection, as verified by medical history; results of serological studies; number and location of retinal lesion(s); and the status of retinal pigmentation. For classification of ocular toxoplasmosis, active ocular toxoplasmosis was defined as focal retinal inflammation with retinal thickening and whitening with indistinct border, with a cellular response in the vitreous; active ocular toxoplasmosis was defined as primary if there was no associated retinal scarring and as recurrent if there was an adjacent retinal scar. Inactive ocular toxoplasmosis was defined as focal retinal scarring with atrophy of the neural retina, and with or without atrophy of the choroid. These definitions are consistent with well described clinical observations in this disease [4
]. For those patients classified as having active ocular toxoplasmosis, the eyes were examined again at 2–3 and 68 weeks after presentation, unless the clinical situation indicated more frequent review.
2.2. Primary Antibodies, Recombinant Proteins, and Enzyme-Linked Immunosorbent Assay Kits
Rabbit polyclonal anti-human antigen KI-67 (KI-67) antibody was sourced from Abcam (Cambridge, U.K.), and goat polyclonal anti-human vascular endothelial growth factor A (VEGF) antibody and goat polyclonal anti-human insulin-like growth factor 1 (IGF1) antibody were sourced from R&D Systems (Minneapolis, MN, USA). Rabbit immunoglobulin (Ig)G and goat IgG were purchased from Merck Sigma-Aldrich (St Louis, MO, USA) and Vector Laboratories (Burlingame, CA, USA), respectively. Human recombinant thrombospondin 1 (TSP1) was sourced from R&D Systems. The human VEGF and TSP1 enzyme-linked immunosorbent assay (ELISA) kits were obtained from R&D Systems (catalogue numbers: DVE00 and DTSP10), and the human IGF1 ELISA kit was obtained from Biovendor (Brno, Czech Republic).
The human retinal pigment epithelial cells used in these experiments included a commercially available cell line, and primary isolates generated from human cadaveric donor eyes that were obtained from the Eye Bank of South Australia (Adelaide, Australia) within 24 h of death. The ARPE-19 cell line (ATCC, Manassas, VA, USA) is a spontaneously arising retinal pigment epithelial cell line derived from the normal eyes of a 19 year old male [15
]. ARPE-19 cells were maintained in 1:1 Dulbecco’s modified Eagle’s medium:F12 medium (DMEM:F12, Thermo Fisher Scientific-GIBCO, Grand Island, NY, USA), supplemented with 10% heat-inactivated fetal bovine serum (FBS, Bovogen Biologicals, Keilor East, Australia, or GE Healthcare-HyClone, Logan, UT, USA) at 37 °C and at 5% CO2
in air. The term “senescent ARPE-19 cells” refers to ARPE-19 cells that were cultured to confluence, and after change of medium, were incubated for 7 days without passage.
Primary human retinal pigment epithelial cells were isolated, cultured, and immunophenotyped as we have described previously [16
]. In brief, after removal of vitreous and neural retina, the eyecup was treated with 0.5 mg/mL collagenase IA and 0.5 mg/mL collagenase IV (Merck Sigma-Aldrich, St Louis, MO, USA) in Hanks balanced salt solution (HBSS) at 37 °C, and the retinal pigment epithelium was removed by scraping in DMEM:F12 GlutaMAX (Thermo Fisher Scientific-GIBCO) supplemented with 1× insulin-transferrin-selenium (ITS) supplement (Thermo Fisher Scientific-GIBCO), 100 U/mL penicillin-streptomycin (Thermo Fisher Scientific-GIBCO), 1 μg/mL amphotericin (Merck Sigma-Aldrich), and 10% FBS. Cells were seeded on 35 mm diameter collagen IV-coated dishes (Corning, Corning, NY, USA) and incubated at 37 °C and 5% CO2
in air. After one week, concentration of the ITS in the supplemented medium was halved. Following initial growth, cells were passaged by trypsinization into 6-well plates (9.6 cm2
growth area) and further expanded in DMEM:F12 medium with 0.5× ITS supplement and 5% FBS until confluent, using brief treatments with 0.05% trypsin to remove any contaminating cells. Both ARPE-19 and primary human retinal pigment epithelial cells are contact-inhibited in culture.
GT-1 and DEG strains (gift of Dr. L. David Sibley, PhD, Washington University, St Louis, MI, USA) were maintained in tachyzoite form by serial passage in human neonatal dermal fibroblast monolayers (Thermo Fisher Scientific-Cascade Biologics, Portland, OR, USA) in DMEM supplemented with 40 mM sodium bicarbonate and 1% FBS at 37 °C and 5% CO2
in air. For every experiment, T. gondii
viability was evaluated by plaque assay; viability in this assay was required to be at least 15% or 2% for the virulent GT-1 strain and the avirulent DEG strain, respectively, consistent with published measurements [17
Yellow fluorescent protein (YFP)-expressing GT-1 tachyzoites were generated as previously described [17
]. In brief, GT-1 tachyzoites were transfected with pTUBYFP-YFPsagCAT, which is a 9289-bp plasmid expressing a tandem-repeat YFP element and chloramphenicol resistance (gift of Dr. Boris Striepen, PhD, University of Pennsylvania, Philadelphia, MA, USA). An 800 µL suspension of 5.0 × 107
freshly egressed GT-1 tachyzoites was electroporated with 1 mg/mL pTUBYFP-YFPsagCAT in transfection reagent (i.e., solution of 120 mM potassium chloride, 0.15 mM calcium chloride, 10 mM dipotassium hydrogen phosphate/potassium dihydrogen phosphate, 25 mM 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid [HEPES], 2 mM ethylenediaminetetraacetic acid, and 5 mM magnesium chloride) supplemented with 2 mM adenosine 5′-triphosphate and 5 mM glutathione, at 2000 V, 50 µF, and 25 Ω on the ECM 630 Electroporation System (BTX-Harvard Apparatus, Holliston, MA, USA). Tachyzoites were subsequently passaged in fibroblast monolayers in DMEM supplemented with 40 mM sodium bicarbonate, 1% FBS and, following the parasite first passage, 2 µM chloramphenicol (Merck Sigma-Aldrich). Fluorescent tachyzoites were passaged for approximately 1 month in chloramphenicol, and cloned by serial dilution.
2.5. Infection Protocols
In one series of experiments—involving either (1) detection of KI-67 in cell monolayers infected with T. gondii, with manipulation of culture conditions in some assays, or (2) infection of cells with YFP-expressing T. gondii—confluent retinal pigment epithelial cell monolayers in 6-well plates were infected with 100 (equivalent to multiplicity of infection (MOI), 0.0001) or 500 (equivalent to MOI, 0.0005) freshly egressed tachyzoites, or retained in medium alone. Cell monolayers were incubated in cell-appropriate medium with 5% FBS for 7 days without disturbance to allow formation of plaques through replication of individual parasites.
In a second series of experiments—performed for the purposes of: (1) preparing conditioned medium for use during cell culture, (2) tachyzoite growth assays, (3) harvesting cellular RNA for reverse transcription (RT)-PCR assays, and (4) collecting culture supernatant for ELISAs—confluent retinal pigment epithelial cell monolayers in 6-well plates were infected with freshly egressed tachyzoites at MOI of 5, or retained in medium alone. Cell monolayers were incubated in cell-appropriate medium with 5% FBS. After 4 h, monolayers were washed 4 times with Dulbecco’s phosphate-buffered saline (DPBS) (Thermo Fisher Scientific-GIBCO) to remove tachyzoites that had not yet invaded cells. The medium was refreshed, and cell monolayers were incubated for a further 20 h.
2.6. Antigen KI-67 Immunolabelling
After 7 days in culture after T. gondii infection, cell monolayers were washed 2 times with DPBS, fixed with 4% paraformaldehyde for 5 min, washed again, and blocked with 3% normal goat serum (Vector, Burlingame, CA, USA) and 0.05% Triton X-100 (Merck Sigma-Aldrich) in DPBS (blocking buffer) for 1 h at room temperature. The monolayers were incubated overnight at 4 °C with anti-human KI-67 antibody or rabbit IgG (2 µg/mL) in blocking buffer. Subsequently, cell monolayers were washed 3 times with 0.1% Tween-20 in DPBS (Merck Sigma-Aldrich) for 5 min and incubated with Alexa Fluor 488 or Alexa Fluor 594-conjugated goat anti-rabbit antibody (0.5 µg/mL, Thermo Fisher Scientific-Molecular Probes, Eugene, OR, USA) in blocking buffer for 1 h at room temperature. Cultures were washed 3 times with 0.1% Tween-20 in DPBS and fixed with 4% paraformaldehyde for 5 min. Following fixation, cultures were washed twice with DPBS and counter-stained with 4′,6-diamidino-2-phenylindole (DAPI, Merck Sigma-Aldrich).
Labelling was imaged at 100× magnification on the Olympus IX53 Inverted Microscope (Olympus Corporation, Tokyo, Japan). All plaques in T. gondii-infected cell monolayers were photographed. In the uninfected controls or monolayers treated with conditioned medium—which did not contain parasites—photographs were taken of 12 pre-designated fields identified by a grid that was scribed on culture surfaces. The area of KI-67 labelling relative to total cellular area was quantified using ImageJ 1.48v software. Images were converted to black/white and thresholds were adjusted to account for background labelling.
2.7. VEGF and IGF1 Blockade Assays and TSP1 Supplementation Assay
For the VEGF and IGF1 blockade assays, medium conditioned by T. gondii infection or the ‘no infection’ control medium were incubated with anti-VEGF antibody (5 µg/mL), anti-IGF1 antibody (15 µg/mL), anti-VEGF and anti-IGF1 (20 µg/mL total), or goat IgG antibody at matching concentration for 1 h at 37 °C. For the TSP1 supplementation assay, medium conditioned by T. gondii infection or the ‘no infection’ control medium were incubated with or without TSP1 (0.5, 1, or 2 µg/mL). Conditioned medium that had been collected from infected or uninfected ARPE-19 cell cultures was filtered through a 0.2 µm filter that excluded tachyzoites. Senescent ARPE-19 cells in 6-well plates (9.6 cm2 growth area) were cultured with the conditioned medium, and blocking antibodies or TSP1, or control antibodies or medium alone, for 24 h, at which time the cultures were harvested for KI-67 immunolabelling.
2.8. RNA Extraction and Reverse Transcription
At the end of incubation, cell monolayers were washed 4 times with DPBS, subsequently treated with 0.55 mM RLT buffer with β-mercaptoethanol (Qiagen, Hilden, Germany), and frozen at −80 °C ahead of RNA extraction. Total RNA was extracted using RNeasy Mini Kit (Qiagen) according to the manufacturer’s protocol and including the optional on-column DNase treatment. RNA concentration was determined using a NanoDrop 2000 Spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA). Reverse transcription was performed using iScript Reverse Transcription Supermix for RT-qPCR (Bio-Rad, Hercules, CA, USA), with 1 µg of RNA template yielding 200 µl of cDNA.
2.9. Quantitative Real-Time Polymerase Chain Reaction
Quantitative real-time PCR (qPCR) was performed on the CFX Connect Real-Time PCR Detection System with iQ SYBRGreen Supermix (Bio-Rad), using 2 µl of cDNA template per reaction. Amplification consisted of a pre-cycling hold at 95 °C for 5 min; 40 cycles of denaturation at 95 °C for 30 s, annealing at 60 °C for 30 s, and extension at 72 °C for 30 s; and a post-cycling hold at 72 °C for 5 min. All reactions were performed as technical duplicates. Abundance of transcript relative to two stable reference genes—60S acidic ribosomal protein P0 (RPLP0) and peptidylprolyl isomerase A (PPIA)—was calculated using CFX Manager 3.1 software and expressed as normalized expression. Primer sequences and expected product sizes are provided in Supplementary Table S1
. For each primer pair, gel electrophoresis was used to confirm a single amplicon of expected molecular weight, and amplicons were purified and sequenced to ensure authenticity. A minimum amplification efficiency of 85% was required for all primer pairs.
2.10. Statistical Analysis
The data were analyzed using IBM SPSS Statistics software (IBM Corp, Armonk, NY, USA). Two-tailed Student’s t-test was used to make comparisons between two groups, and one-way analysis of variance (ANOVA) test was used to make comparisons across multiple groups. Statistical significance was defined by a p-value calculated at less than 0.05.
2.11. Research Ethics and Biosafety
Collection of clinical information from patients with ocular toxoplasmosis for the purposes of research was approved by the Ethics Committee in Human Research at Ribeirão Preto General Hospital (protocol number 46015415.2.0000.5440). The use of human cadaver donor eyes for use in research on ocular toxoplasmosis was approved by the Southern Adelaide Clinical Human Research Ethics Committee (protocol number: 175.13). In vitro research with T. gondii was approved by the Flinders University Institutional Biosafety Committee (Microbiological Dealing protocol number 2013-08 and Notifiable Low Risk Dealing protocol number 2013-09).
The retinal lesion with heavy pigmentation, and often a central area of tissue loss, is sufficiently characteristic that ophthalmologists may diagnose ocular toxoplasmosis without need for additional testing. In one of the largest, prospectively recruited cohort of persons with ocular toxoplasmosis described in the literature to date—totaling 263 patients—we show that this picture is seen in the vast majority of patients. We observed the “typical” clinical phenotype in approximately 94% of affected eyes. Among patients without hyperpigmented retinochoroidal scars, who were followed over time post-quiescence, we watched the phenotype subsequently develop in a subset, suggesting our estimate of the typical appearance is conservative. Reports of other large clinical series of ocular toxoplasmosis have not categorized the appearance of the lesion specifically. However, in describing a retrospective review of 233 patients with ocular toxoplasmosis, who were evaluated at the Francis I. Proctor Foundation (San Francisco, CA) between 1977 and 2000, London et al. [26
] commented that “atypical presentations” accounted for 6.9% of all cases. In a second retrospective study conducted at University Medical Center Utrecht (Utrecht, The Netherlands) by Bosch-Driessen et al. [27
], 24% of 154 patients diagnosed with acute ocular toxoplasmosis between 1990 and 1997 did not have pigmented scars at first presentation, but their retinal lesion “eventually combined with hyperpigmented retinochoroidal scars.”

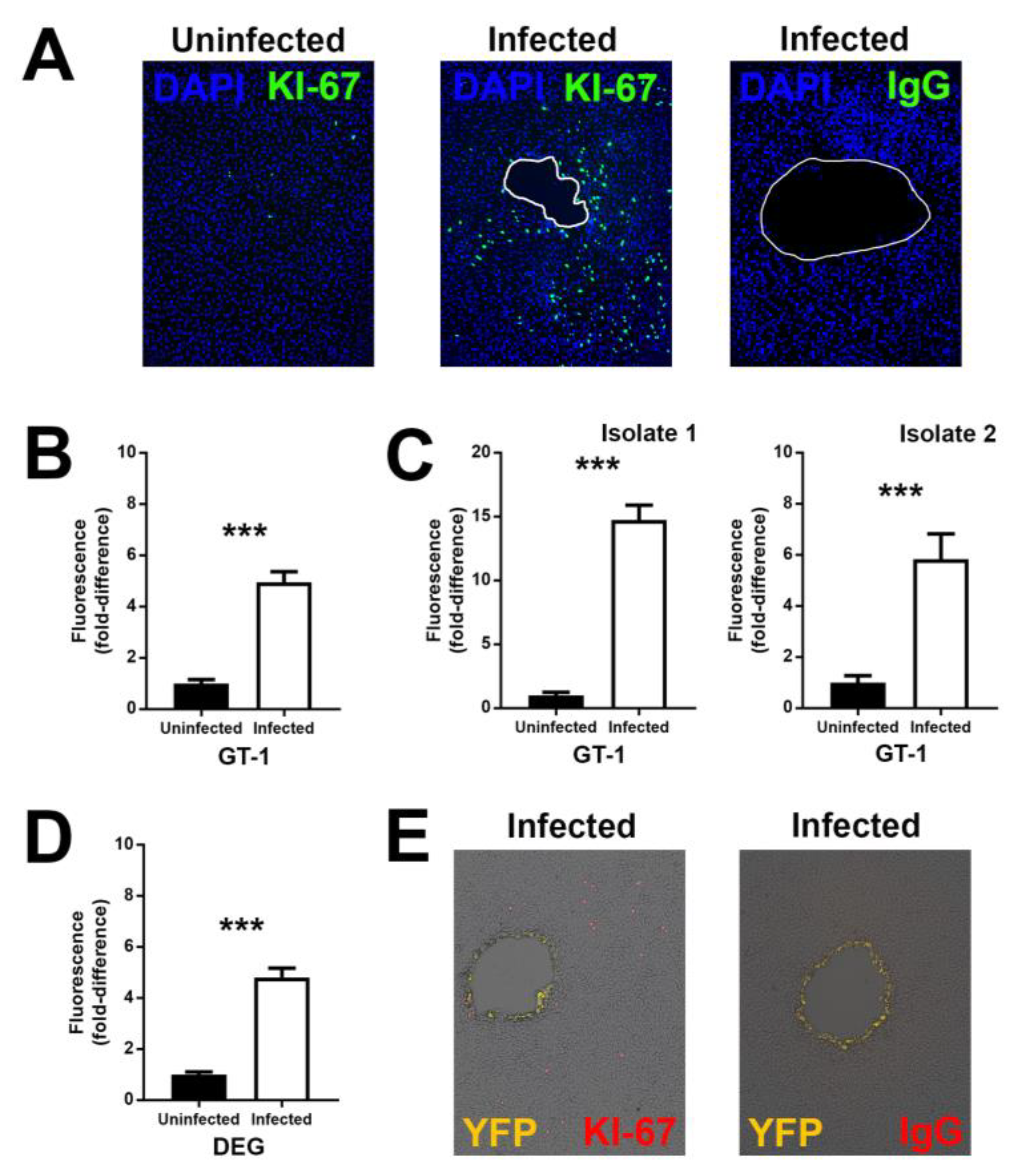

Seeking to simulate the characteristic ocular lesion in human retinal pigment epithelial cell monolayers, we observed that limited numbers of T. gondii

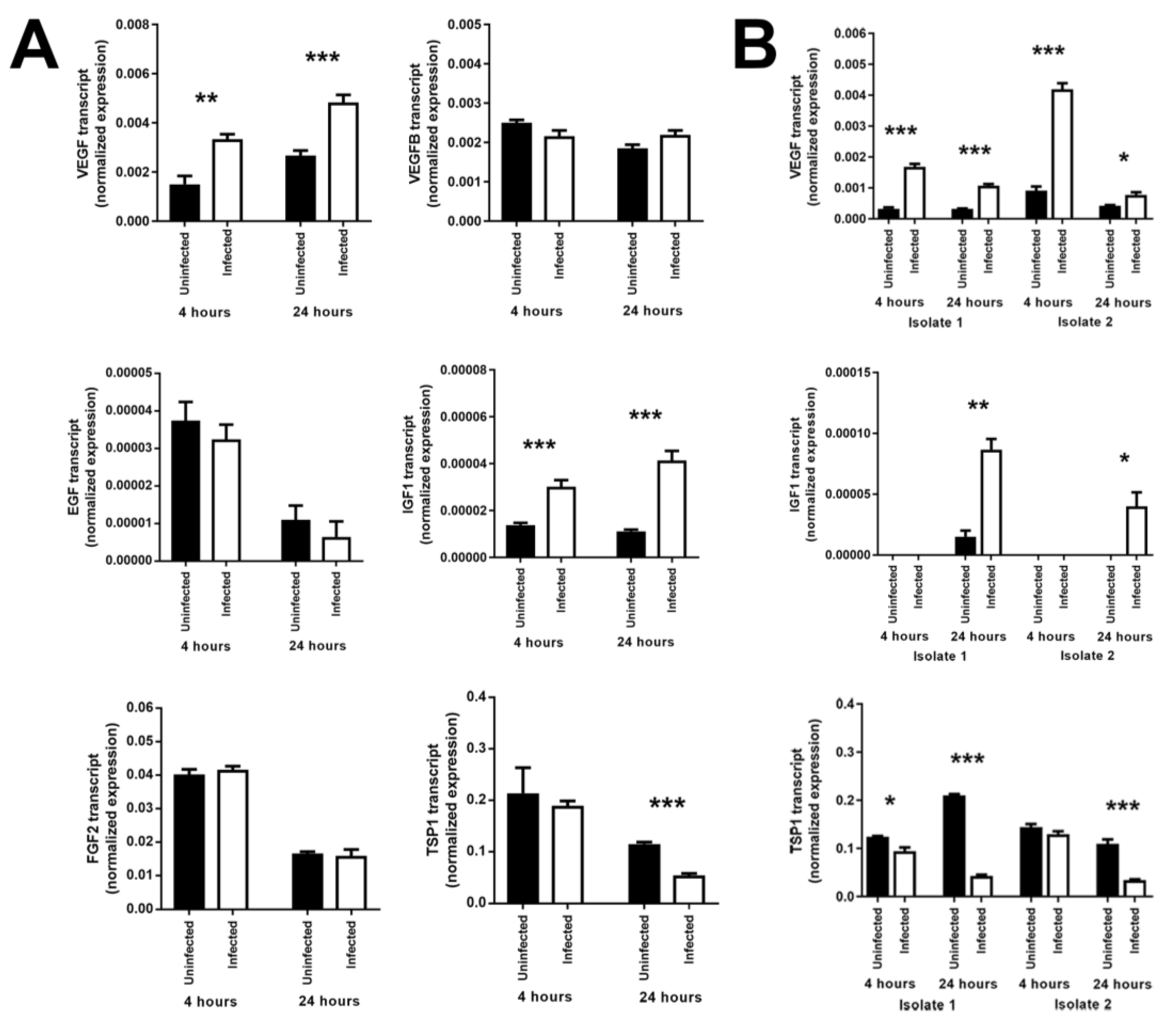

-infected cells were capable of inducing a proliferation phenotype—identified by expression of KI-67—in adjacent areas of uninfected cells. We used RT-qPCR to screen infected cells for multiple potential paracrine mediators of this effect, and identified consistent increases in growth factors, VEGF and IGF1, and a consistent decrease in the multifunctional glycoprotein, TSP1. We confirmed parallel changes in the secretion of these factors from infected cells by ELISA. Both VEGF and IGF1 are well-established as being growth factors that promote proliferation of human retinal pigment epithelial cells [20
]. Recent mouse experiments directed at delineating the pathogenesis of age-related macular degeneration have shown that TSP1 deficiency increases proliferation and migratory activity of retinal pigment epithelial cells [24
]. Consistently, blockade of VEGF and IGF1, and supplementation of TSP1, significantly reversed the proliferation of uninfected cells exposed to culture supernatant harvested from T. gondii
-infected cells. These findings suggest that the typical hyperpigmented retinochoroidal lesion of ocular toxoplasmosis is caused, at least in part, by the proliferating action of VEGF and IGF1 secreted by infected cells, along with reduced anti-proliferating action of TSP1, on adjacent uninfected cells.
Biopsy of the retinal pigment epithelium is not indicated or safe in patients with ocular toxoplasmosis, but several groups have investigated the expression of selected molecules in the ocular fluids collected from patients with ocular toxoplasmosis—VEGF, but not IGF1 or TSP1, has been measured. De-la-Torre et al. [28
] compared a 27-member “ocular cytokinome” in aqueous fluid collected from Colombian patients with active ocular toxoplasmosis or control patients who had a cataract and no evidence of T. gondii
infection. Levels of VEGF were significantly increased in the group of patients with ocular toxoplasmosis, and were positively correlated with the number of active lesions and number of scars, plus total number of recurrences. Wiertz et al. [29
] and Thieme et al. [30
] have reported increased VEGF levels in the aqueous of individual patients with ocular toxoplasmosis. T. gondii
exists as many strains, which belong to clonal lineages or present atypical or recombinant genetics; these strains are often distinguished on virulence, defined by rates of migration, invasion, and replication in vitro, and lethal dose 100 in vivo in mice [31
]. Both virulent and avirulent strains commonly cause human ocular toxoplasmosis [32
]. In keeping, we observed the proliferating phenotype in human retinal pigment epithelial cells exposed to virulent (GT-1) or avirulent (DEG) T. gondii
strains. De-la-Torre et al. [28
] compared the effect of T. gondii
strain on the ocular cytokinome, and observed no difference in the induction of VEGF between strains.

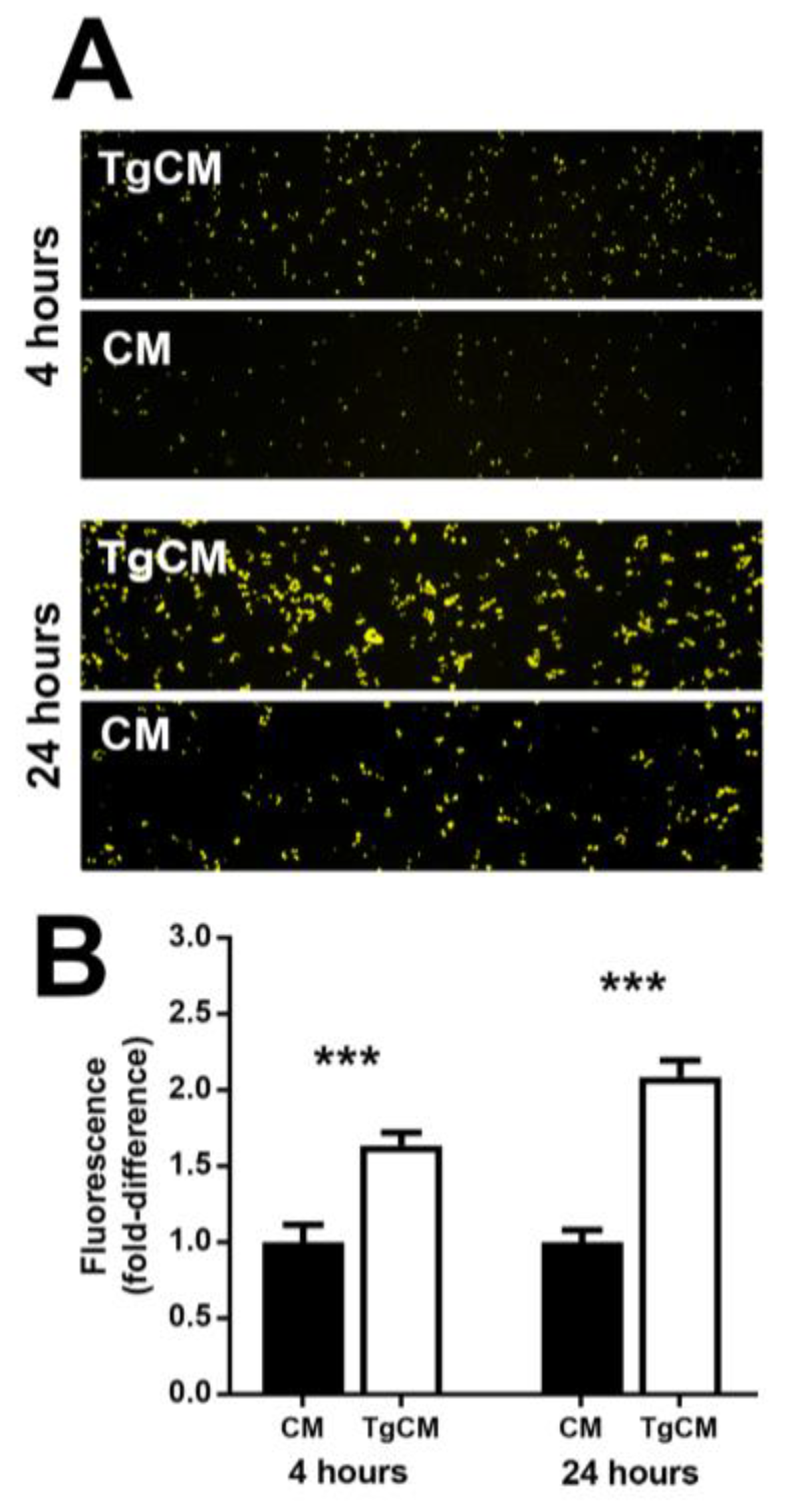

The proliferating phenotype induced in human retinal pigment epithelial cells rendered the cells more susceptible to infection with T. gondii
tachyzoites. Clearly this phenomenon would promote extension of the infectious focus within the retina. In different host cell populations—including human fibroblasts, trophoblastic cells and hepatoma cells, and mouse macrophages—both pro- and anti-proliferative effects of tachyzoite infection have been reported [25
]. Molestina et al. [25
] have speculated that the “proliferative response” is a mechanism for providing large quantities of nutrient molecules as the parasite seeks to replicate. A proliferating effect of tachyzoite-conditioned medium on adjacent cells has been observed in human fibroblasts, although the host molecules involved were not identified [35
]. In this work, we have focused solely on the host cell molecular response, and a key question for future study is whether the changes in human retinal pigment epithelial cell synthesis of VEGF, IGF1, and TSP1, which create this clinical appearance, are induced by the host or the parasite. Tachyzoite molecules may co-opt host cell machinery and effect gene transcription in the host cell [37
]. In relation to VEGF specifically, it may be a parasite-derived factor; the research team led by Blader have showed that a T. gondii
-derived factor triggers activin signaling to activate a key transcription factor for VEGF, hypoxia-inducible factor-1 [38
]. T. gondii
is capable of injecting effector proteins into host cells that it does not invade [40
]; however, our blockade and supplementation studies used conditioned medium that had been filtered to remove any extracellular parasites and was confirmed to be free of live parasites by plaque assay.
Most of our experiments were performed with ARPE-19 cells, which is a human retinal pigment epithelial cell line that is well characterized [15
] and commonly utilized to study mechanisms of intraocular infections, including ocular toxoplasmosis [41
]. Retinal pigment epithelial cells may be isolated from human eyes, but this opportunity is limited by the availability of globes and the limited numbers of cells that can be obtained from individual donors, as well as the tendency for the cells to undergo mesenchymal differentiation in culture [44
]. Recently, we have used RNA-sequencing to profile the transcriptome of GT-1 strain T. gondii
-infected human retinal pigment epithelial cells; as part of this work, we compared the response of ARPE-19 cells and primary human cell isolates [16
]. The work showed that, like primary retinal pigment epithelial cells, the ARPE-19 cell line mounts strong immunologic responses, and activation of broadly applicable cell cycle and cell signaling processes, but the molecular pathways involve some different molecules. Thus, in that work, we recommended experimental findings generated with the cell line should be confirmed in primary cells. In the present work, we replicated some experiments with primary cell isolates, including the critical experiment that demonstrated the cell-proliferating phenotype was induced in non-infected cells by tachyzoite-infected cells.
In summary, we have used human retinal pigment epithelial cells and natural isolate strain T. gondii to demonstrate the molecular basis of the characteristic retinal hyperpigmentation that is seen in over 90% of patients with toxoplasmic retinitis. Proliferating retinal pigment epithelial cells are relatively susceptible to infection with T. gondii, which would promote spread of the parasite within the retina and ultimately increase the likelihood of recurrences of active disease. We speculate that intraocular blockade of VEGF and/or IGF1, and/or supplementation with TSP1, might have a therapeutic application for limiting the extent of the ocular lesion in toxoplasmosis.
