Genomic Insights into Moderately Thermophilic Methanotrophs of the Genus Methylocaldum

by
Nathalie A. Delherbe
1,
David Pearce
2,
Sergey Y. But
3,
J. Colin Murrell
2,
Valentina N. Khmelenina
3 and
Marina G. Kalyuzhnaya
1,*
1
Department of Biology, San Diego State University, San Diego, CA 92129, USA
2
School of Environmental Sciences, University of East Anglia, Norwich NR4 7TJ, UK
3
G. K. Skryabin Institute of Biochemistry and Physiology of Microorganisms, Scientific Center for Biological Research of the Russian Academy of Sciences, 142290 Pushchino, Russia
*
Author to whom correspondence should be addressed.
Microorganisms 2024, 12(3), 469; https://doi.org/10.3390/microorganisms12030469
Submission received: 23 January 2024 / Revised: 19 February 2024 / Accepted: 19 February 2024 / Published: 26 February 2024
(This article belongs to the Special Issue Aerobic Methane Synthesis Bacteria)
Browse Figures
Review Reports Versions Notes

Abstract

:
Considering the increasing interest in understanding the biotic component of methane removal from our atmosphere, it becomes essential to study the physiological characteristics and genomic potential of methanotroph isolates, especially their traits allowing them to adapt to elevated growth temperatures. The genetic signatures of Methylocaldum species have been detected in many terrestrial and aquatic ecosystems. A small set of representatives of this genus has been isolated and maintained in culture. The genus is commonly described as moderately thermophilic, with the growth optimum reaching 50 °C for some strains. Here, we present a comparative analysis of genomes of three Methylocaldum strains—two terrestrial M. szegediense strains (O-12 and Norfolk) and one marine strain, Methylocaldum marinum (S8). The examination of the core genome inventory of this genus uncovers significant redundancy in primary metabolic pathways, including the machinery for methane oxidation (numerous copies of pmo genes) and methanol oxidation (duplications of mxaF, xoxF1-5 genes), three pathways for one-carbon (C1) assimilation, and two methods of carbon storage (glycogen and polyhydroxyalkanoates). We also investigate the genetics of melanin production pathways as a key feature of the genus.

1. Introduction

Microbial methane oxidation is a key process in the carbon cycle at local and global scales. Methane-utilizing bacteria (methanotrophs) inhabiting high-temperature ecosystems include members of the genera Methylococcus, Methylothermus, and Methylocaldum from the phylum Pseudomonadota (Proteobacteria) and the genus Methylacidiphilum in the phylum Verrucomicrobia [1,2,3]. Thermophilic and thermotolerant species of the Methylocaldum genus (Gammaproteobacteria class in the family Methylococcales) are commonly identified as important members of the bacterial communities in soils from a range of geographical locations [4], including hot springs [5], landfill cover soils [6,7], tin-mining ponds [8], oil sands [9], flooded rice fields [10], and marine sediments [11]. The genus Methylocaldum was introduced by Bodrossy et al. (1997) [5]. The genus currently includes four species: M. szegediense, M. tepidum, M. gracile [5], and M. marinum [11]. The isolate M. szegediense O-12 was obtained from a sample of cow manure from a farm near Pushchino in the Moscow region in Russia. The pure culture was obtained from an initial enrichment, followed by a serial dilution to extinction technique [12]. M. szegediense O-12 grows at a temperature range of 37–59 °C, with optimal growth at 55 °C. M. szegediense Norfolk was isolated from biofilter soil enrichments from a landfill in Norfolk County Council, UK, and grows between 37 °C and 62 °C, with an optimal growth at 50 °C [13]. Here we conduct a comparative analysis between thermotolerant methanotrophs to identify key genes potentially involved in their capability to grow at elevated temperatures. The genomic features of the two terrestrial, moderate thermophilic M. szegediense O-12 and Norfolk strains are compared with the thermotolerant M. marinus S8 (=NBRC 109686T = DSM 27392T) isolated from marine sediments in Kagoshima Bay, Japan, which grows optimally at 36 °C and a salinity of up to 5% NaCl [11].

2. Materials and Methods

Genome sequencing, assembly, and annotation. M. szegediense O-12 (taxon ID: 2508501066 (IMG)/675524 (NCBI)) genome sequencing and assembly was conducted in collaboration with U.S. Department of Energy Joint Genome Institute (NCBI assembly ASM42738v1). The genome and assembly of M. szegediense Norfolk (taxon ID: 8069803063 (IMG)/73780 (NCBI)) was generated by the laboratory of Dr. J. Colin Murrell, at University of East Anglia, Norwich, UK, utilizing an enhanced genome sequencing coupling short Illumina and long Nanopore reads (NCBI assembly strumpshaw02) [13]. The genome sequence of M. marinum S8 (taxon ID: 2832923104 (IMG)/1432792 (NCBI)) was generated by National Institute of Advanced Industrial Science and Technology (AIST), Japan (NCBI assembly ASM358464v1). In addition to being available in NCBI, the three genomes were uploaded and annotated in IMG/MER [14,15].
Methylocaldum phylogenic analysis was carried out using all (20) complete sequences available for the 16S rRNA gene assigned to Methylocaldum strains on NCBI at the time of the analysis (2022). The alignment was generated using the multiple alignment program for amino acid or nucleotide sequences MAFFT v7.511, choosing the E-INS-i method [16,17,18]. The phylogenetic relationship was inferred using the MEGA X software v10.2.6 using the maximum likelihood method and the model with the lowest Bayesian information criterion (BIC) scores for the set, which corresponded to Tamura 3-parameter (T92) with a discrete Gamma distribution (+G) with 5 rate categories and by assuming that a certain fraction of sites is evolutionarily invariable (+I) [19,20,21,22]. The analysis involved 32 nucleotide sequences (including Methylococcus capsulatus Bath and Methylobacter species as outgroups), and all positions with less than 95% site coverage were eliminated.
pMMO synteny, functional genomic comparison, and ANI x AC. The synteny and functional genomic comparison of the genomes was based on the information obtained using Anvi’o v7 software [23]. The visual representation of the pMMO operon synteny was generated by combining the outputs of Circa plot (v.1.2.1) utilizing the corresponding nucleotidic sequence coordinate data and combining them with the gene cluster visualization output from Geneious software v.2023.2.1. The generated data included a list of all coding sequences (CDS) from the detected open reading frames identified by Prodigal v.2.6.3 [24]. The CDS predicted functionality was annotated using the NCBI’s Clusters of Orthologous Groups (COG) database [25,26,27] and the KEGG KOfamKOALA database [28]. The pangenome analysis, based on the pangenome pipeline of Anvi’o v7 [29], generated orthologous groups (OG) of genes based on the homology of their amino acid sequences. A >70% of combined homogeneity index (derived from geometrical and functional homology) was the cut-off to consider a gene as part of an OG. Each OG contained at least one gene. Additionally, the OGs were organized by presence/absence through Euclidean distance and Ward linkage, which was used to categorize them as shared by the three genomes or unique for each of them. Then, within each of the shared and unique subsets, all CDS with COG assigned to them were used to determine which COG categories were the most represented (>5%). In addition to the top of the pangenome analysis, a whole genome comparison was generated using the program anvi-compute-genome-similarity utilizing the PyANI [22] similarity metric to calculate the average nucleotide identity (ANI). Additionally, the full percent identity was calculated for the ANI, which includes the regions that did not align, by multiplying the percent identity by the alignment coverage (ANI x AC).
pmoC homologs. Genomes of Methylocaldum, Methylobacter, and Methylococcus available on IMG/MER were used to search for the range of copies of pmoC. The search was based on IMG annotations using the different available identifiers for pmoC: TIGR03078, KO10946, and gene product name. A table containing the Anvi’o v7 results for synteny and functional genomic comparison of the genomes can be found in Supplementary Table S1.
XoxF phylogeny. The alignment was generated using the multiple alignment program for amino acid or nucleotide sequences v7.511 [17,18], choosing the E-INS-i method [16,17,18]. The tree topology was obtained after 100 bootstrap replications using the maximum likelihood method and general time reversible model [20] using MEGA X software v10.2.6 [19,21]. The tree with the highest log likelihood (−175,992.24) [22] was used to generate the summarized version of it.
Fdh phylogeny. The alignment was generated using the multiple alignment program for amino acid or nucleotide sequences MAFFT v7.511 [17,18], choosing the E-INS-i method [16,17,18]. The tree topology was obtained after 100 bootstrap replications using the maximum likelihood method and the Whelan and Goldman + Freq. model [30]. The tree with the highest log likelihood (−50,331.00) (Supplementary Figure S1) was used to generate the cartoon version of it. The percentage of trees in which the associated taxa clustered together is shown next to the branches. This analysis of 193 amino acid sequences was conducted in MEGA X v10.2.6 [19,21]. There were a total of 1638 positions in the final dataset.

3. Results

3.1. Genome Overview

The M. szegediense O-12 genome (taxon ID: 2508501066 (IMG)/675524 (NCBI)) includes two scaffolds of 2.37 Mb and 2.65 Mb, resulting in a genome of 5.02 Mb with an average GC content of 57.03%. It includes two rRNA operons, 22 types of tRNAs (47 total), and 4693 predicted protein-coding genes (3448 predicted functions). The genome of M. szegediense sp. Norfolk (taxon ID: 8069803063 (IMG)/73780 (NCBI)) includes a closed genome comprising one chromosome of 4.87 Mb and a 25.7 kb plasmid, resulting in a genome of 4.89 Mb with an average GC content of 57.17%. It contains two rRNA operons, 24 types of tRNAs (53 total), and 4491 predicted protein-coding genes (3378 predicted functions). Methylocaldum marinum S8 (taxon ID: 2832923104 (IMG)/1432792 (NCBI)) has a complete genome of 6.08 Mb with a 58.75% GC content, including two rRNA operons, 24 types of tRNAs (51 total), and 5596 predicted protein-coding genes (3846 predicted functions).

3.2. Methylocaldum Phylogeny

The phylogeny of Methylocaldum strains based on available 16S rRNA sequences shows five clades (Figure 1A). Four of these clades correspond to currently characterized species within the Methylocaldum genera (Methylocaldum tepidum LK6T, Methylocaldum szegediense OR2T, Methylocaldum gracile VKM 14LT, and Methylocaldum marinum S8T), while the fifth clade formed by strains BFH1, dr65, and r6f does not have a type strain. A comparison based on the presence or absence of orthologous genes between the three strains analyzed in this study revealed that the M. szegediense O-12 and Norfolk strains share 90% and 93%, respectively, of their predicted protein sequences as orthologous, while only 47% of the predicted protein sequences in M. marinum S8 were orthologous to genes in the M. szegediense O-12 and Norfolk strains (Figure 1B). The average nucleotide identity times the alignment coverage (ANI x AC) percentage between the three strains confirmed that M. szegediense O-12 and Norfolk are members of the same species (≥90%), while M. marinum S8 shared only 38% with the M. szegediense strains (Figure 1B).

3.3. Synteny of Methane Monooxygenase (MMO) Gene Clusters

The identification of key genes necessary for methane oxidation in bacteria revealed the presence of several copies of the pmoC gene, which is usually part of the pmoCAB operon for the particulate methane monooxygenase (pMMO). Five copies were found in M. marinum S8, six were found in M. szegediense O-12, and five were found in M. szegediense Norfolk (Figure 2). In the M. marinum S8 and M. szegediense Norfolk strains, two pmoC genes formed part of the complete gene cluster for the synthesis of the pMMO, whereas only one pmoC gene formed part of the complete gene cluster in M. szegediense O-12 (Figure 2). All pmoC genes forming part of pMMO operons had high sequence identity to each other and were denominated as type 1 (purple ribbon, Figure 2). Furthermore, the three Methylocaldum genomes contained paralogs of pmoC as independent genetic components in different loci of their genomes, which have been previously named as stand-alone copies of pmoC [31]. Except for a single stand-alone pmoC in M. szegediense O-12 assigned to type 1, the rest of the stand-alone copies of pmoC have different nucleotide sequences than the one forming the pMMO cluster (type 1) and form two separate groups of paralogs, denominated as type 2 and 5 (pink and magenta ribbons, respectively, Figure 2). Furthermore, both M. szegediense strains exhibit two stand-alone pmoC type 2 relatively next to each other. Additionally, two stand-alone pmoC without high homology to any other pmoC sequences within the three genomes were found in M. marinum S8 (type 4) and M. szegediense O-12 (type 3), shown in black-edged triangles in Figure 2. Only M. marinum S8 exhibits a complete gene cluster for the soluble methane monooxygenase (sMMO). When compared with other methanotrophs with genomes annotated on IMG/MER (Methylobacter [16] and Methylococcus [10]), Methylocaldum strains have between five and six coding sequences (CDS) assigned to pmoC, while Methylobacter strains have between one and two and Methylococcus have between two and three pmoC in the available genomes.

3.4. Comparative Abundance CDS Assigned to COG Categories

According to the pangenome analysis of the three Methylocaldum strains, from a total of 14,284 CDS predicted for the three genomes, 2214 CDS formed orthologous groups (OG) of amino acid sequences based on a ≥70% threshold of combined homogeneity index (derived from geometrical and functional homology; Figure 3). Each genome had at least one gene copy as part of each OG assigned as shared among the three strains. Based on their relative abundances, the main shared COG categories (comprising >5% of the total gene calls that could be categorized) were genes related to categories C (8.58%) involved in energy production and conversion; E (7.36%) amino acid transport and metabolism; H (5.74%) coenzyme transport and metabolism; J (8.04%) translation, ribosomal structure and biogenesis; M (7.09%) cell wall/membrane biogenesis; O (6.23%) post-translational modification; P (6.32%) inorganic ion transport and metabolism; and R (5.42%) classified only as general function.
On the contrary, the CDS found to be unique to each genome, based on a low combined homogeneity index of their amino acidic sequences when compared to their counterparts in the other genomes, were mainly assigned to COG categories M, cell wall/membrane biogenesis (11.57%); X, mobilome including prophages and transposons (10.9%); T, signal transduction mechanisms (8.15%); P, inorganic ion transport and metabolism (7.70%); R, general function (7.47%); V, defense mechanisms (5.67%); H, coenzyme transport and metabolism (5.17%); and C, energy production and conversion (5%) for M. marinum S8. At the same time, the pattern was similar between M. szegediense O-12 and Norfolk with V (13.91% and 23.07%), X (15.65% and 7.69%), L, replication, recombination, repair (17.39% and 16.92%), R (8.7% and 13.84), K, and transcription (8.70% and 13.84%), respectively (Figure 3).

3.5. Conjugation

Several predicted functions were only found in the two moderate thermophilic M. szegediense strains, including K12056, corresponding to the conjugal transfer mating pair stabilization protein TraG, which is one of the pilus assembly proteins in bacterial type IV secretion systems (T4SS) [32]. While M. szegediense Norfolk has only two conjugal transfer proteins, TraG and TraN, the M. szegediense O-12 genome contains two TraG, as well as TraW, TraF, TraE, and TraL, which participate in pilus assembly; TraA (pilin); TraN and TraU, which are responsible for mating pair stabilization; TraV, TraK, and TraB, which form the core complex; TraD and TraC, which are ATPase proteins reported to be complexed in the cytosol and inner membrane; and also TrbL, which is a subset of proteins described as F-like T4SS [32,33].

3.6. O-Antigen Biosynthesis

Interestingly, two homologs of O-antigen biosynthesis protein RfbC (K20444; COG0438|COG1216) were found only in the M. szegediense strains. RfbC is predicted to catalyze the incorporation of sugars and their products to form the O-antigen polysaccharides in the lipopolysaccharides (LPS) [34]. The enzyme’s specificity toward rare sugars enables the production of unusual LPS, thus providing the remarkable diversity of cell envelop recognition patterns observed among bacteria [35,36,37,38,39]. RfbC is a member of the glycosyltransferase family 2 (GT2). A search for other glycosyltransferases belonging to that family revealed the presence of six other OGs shared between the M. szegediense strains and absent in M. marinum S8. Additionally, the three Methylocaldum strains share three OGs of GT2, and M. marinum S8 has four different GT2, which are not shared with the M. szegediense strains. Differences between the genetic toolkit for the biosynthesis of the O-antigen among Methylocaldum offer a starting point for future studies to elucidate the mechanisms of specialization in their different niches and how they can tolerate a wide range of temperatures. It has been shown that O-antigen structural differences can confer resistance to different types of stress, such as oxidative [40], mechanical [39], and osmotic stresses [41]. Additionally, antigen molecular diversity is a current target of study to understand interdomain symbiosis [42].

3.7. Catalase

Among the distinct functions that were found to be unique for M. marinum S8 is catalase KatE (COG 0753, KEGG K03781), which can convert toxic hydrogen peroxide (H2O2) into water and oxygen. H2O2 is one of the three products of methanethiol (CH3SH) oxidation (HCOH, H2S, H2O2), for which all three genomes have a homolog to the gene mtoX, a copper-dependent methanethiol oxidase (MTO) gene characterized in Hyphomicrobium sp. VS [43] and annotated in our analysis as K17285. CH3SH is a volatile organic sulfur compound that can co-occur with methane. It can be consumed by the verrucomicrobial methanotroph Methylacidiphilum fumariolicum SolV, which produces H2S that is subsequently oxidized for energy [44]. It seems likely that this gene would be beneficial for methanotrophs since it could allow them to flourish in niches that release methane and CH3SH, an inhibitor of methane oxidation [45].

3.8. Cobalamin

Another unique function of M. marinum S8 among the three genomes was a nearly complete de novo cobalamin (B12) biosynthetic pathway. The only missing gene corresponds to cbiJ-cobK, whose product, precorrin-6X reductase, converts (Co)Precorrin-6A to (Co)Precorrin-6B. This gene had been previously described as missing in almost all characterized cobalamin-producing archaea [46,47,48]. This suggests the independence of an external source of the essential cofactor, which would be an advantage, given that most predicted cobalamin producers in the ocean belong to photoautotrophic Cyanobacteria, chemoautotrophic Nitrososphaerota (Thaumarcheota), and a selected group of Pseudomonadota (Proteobacteria), including Rhodobacterales, Rhodospirillales, Deltaproteobacteria, Oceanospirillales, and Pseudomonadales [49]. Both M. szegediense strains lacked any recognizable genetic elements required for the corrinoid ring biosynthesis [50]. Nonetheless, all three genomes contain the genes for 5,6-dimethylbenzimidazole (DMB) synthesis, 5,6-dimethylbenzimidazole synthase; bluB (COG0778, K04719), which is the lower ligand of coenzyme B12; all the genes for the final synthesis and repair (K19222 (cobA), K00798 (cobO), K02232 (cobQ), K02225 (cobC), K02227 (cobD), K02231 (cobP/cobU), and K02233 (cobS); and, for B12 transport, K16092 (btuB), which match the previous classification of M. szegediense O-12 as potentially unable to do de novo synthesis, but instead to salvage cobamide precursors, assemble the nucleotide loop, and attach a lower ligand, based on its in silico analysis of 11,000 strains [51].

3.9. M. marinum S8 Unique Predicted Functions

Additionally, only M. marinum S8 has several hydrogenases subunits, including Fe-S-cluster-containing hydrogenase component 2 (HycB) COG1142, hydrogenase-4 membrane subunit HyfE COG4237 (K12140), Ni,Fe-hydrogenase III small subunit (HycG) (PDB:6CFW) COG3260, and the Ni,Fe-hydrogenase III large subunit HycE2|Ni,Fe-hydrogenase III component G (HycE1) COG3261|COG3262, which suggests the metabolic potential to obtain energy through membrane-associated H2 involving hydrogenases. These hydrogenases are in the immediate vicinity of homologs to the formate hydrogenlyase subunit HyfC (COG0650).
Other functions found only in the genome of M. marinum S8 are homologs for molybdopterin biosynthesis (COG0303|1910, K07219); peroxiredoxin DsrE/DsrF-like family (COG2044); putative NADH-Flavin reductase YWNB (COG2910); RecA superfamily ATPase KaiC/GvpD/Rad55 (COG0467, K0882); Fe3+ permease component FepD, (COG0609|0614) Fe2+ transporter FeoB|FeoA (COG0370|1918, K04759); periplasmic components for ABC-type tungstate transport system, TupA (COG4662, K05773) and TupB (COG2998, K05772); heavy metal-binding TRASH/YHS Cu/Ag metallochaperone (COG3350, K16157); nitrous oxide reductase accessory protein NosL (COG4314, K19342); and cobalt transporter membrane subunit CgtA (COG5446).

3.10. C1-Oxidation Pathways Are Highly Redundant

As described above, in addition to having two pmoCAB operons in the M. szegediense Norfolk and M. marinum S8 genomes and the sMMO operon in M. marinum S8, the three genomes also contain multiple stand-alone pmoCs with unknown functions. They also have multiple methanol dehydrogenases. The mxaFJGIRACKLD gene clusters in the three Methylocaldum strains encode the two subunits of methanol dehydrogenase mxaF (K14028) and mxaI (K14029) and the natural electron acceptor, cytochrome cL (mxaG). Moreover, the three strains share two OGs of additional methanol dehydrogenases, lanthanide-dependent MDHs, corresponding to xoxF types 5 and 3 according to the phylogenetic reconstructions (Figure 4) following previously xoxF type assignation [52,53,54]. M. marinum has a third xoxF with no homology to genes in the M. szegediense strains that also belongs to xoxF type 3.
The three Methylocaldum have the set of genes for the tetrahydromethanopterin (HMPT)-dependent pathway required for the oxidation of formaldehyde to formate. Gene redundancy was also found in this pathway. Based on the OG analysis, three different OGs for fae (K10713), which encodes the 5,6,7,8-tetrahydromethanopterin hydrolyase, were found among the Methylocaldum. One fae OG included three CDS from M. marinum S8, and two were included for M. szegediense O-12 and Norfolk. The other two OGs had only one CDS in each strain. Each strain had two methylene-tetrahydromethanopterin dehydrogenases mtdB (K10714) in separate OGs. Only one of the following genes was found in each of the strains: methylenetetrahydrofolate dehydrogenase mtdA (K00300), methenyltetrahydromethanopterin cyclohydrolase mch (K01499), formylmethanofuran--tetrahydromethanopterin N-formyltransferase ftr (K00672), formylmethanofuran dehydrogenase fwdABC (K00200, K00201, K00202), glycine hydroxymethyltransferase glyA (K00600), and coenzyme F420 hydrogenase subunit beta frhB (K00441), for which only M. marinum S8 had two CDS.
Interestingly, several formate dehydrogenases encoding genes (fdh) were found in the three strains. These enzymes catalyze the oxidation of formate to CO2, donating electrons to NAD+ or cytochromes. The phylogenetic reconstruction based on the amino acid sequence of the major subunits (K00123) of the different formate dehydrogenases found in Methylocaldum revealed that they have four types of fdh (Figure 5 and Supplementary Figure S1). According to the previously described types of fdh in Methylobacterium extorquens AM1 [55,56], we detected the presence of three different fdh in the three Methylocaldum strains, corresponding to fdh types 2 and 3, including all their subunits. Additionally, FDH (K00122) was found in the three genomes as well. Moreover, M. marinum S8 has the major subunit for fdh type 1, although it was previously described to require the subunit B for functioning in the M. extorquens AM1 model [56,57].

3.11. Single-Carbon Assimilation Pathways

These Methylocaldum genomes encode three single-carbon assimilation pathways—the ribulose monophosphate (RuMP), serine, and Calvin–Benson–Bassham (CBB) cycle. The genes present in the RuMP pathway include two CDS for 3-hexulose-6-phosphate synthase in each genome, hxlA (K08093) and hps-pi (K13831), catalyzing the condensation of formaldehyde with ribulose-5-phosphate to D-arabino-hex-3-ulose 6-phosphate, which is converted to D-fructose 6-phosphate by the 6-phospho-3-hexuloisomerase, hxlB (K08094) present in the three genomes. D-fructose 6-P can then enter the pentose phosphate pathway.
The large rbcL/cbbL (K01601) and small rbcS/cbbS (K01602) subunits of the ribulose 1,5-bisphosphate carboxylase/oxygenase (RuBisCO) were found in the three strains, having a single gene difference between M. szegediense and M. marinum. This includes the presence of norQ and norD next to RuBisCO genes of the three Methylocaldum. M. marinum S8 also has pimeloyl-ACP methyl ester carboxylesterase between the RuBisCO and nor genes. The presence of rcb/cbb genes had been reported in other methanotrophs; however, its activity had not been demonstrated yet [58,59,60].
Similarly to other gammaproteobacterial methanotrophs, the regeneration of pentose phosphates from hexosephosphates requires fructose-bisphosphate aldolase, for which class I, ALDO (K01623), is present in all three Methylocaldum genomes.
As in other gammaproteobacterial methanotrophs, the Methylocaldum genomes contain some key genes for the serine pathway of formaldehyde assimilation. These include serine-glyoxylate transaminase, AGXT (K00830), which converts glyoxylate to hydroxypyruvate and glycine hydroxymethyltransferase, glyA (K00600), which uses 5,10-methylenetetrahydrofolate and glycine as substrates to produce tetrahydrofolate and L-serine, which can continue to the carbon fixation pathway or sulfur or serine metabolism, respectively. Also, as part of the serine pathway, the three genomes encode malyl-CoA/(S)-citramalyl-CoA lyase mcl (K08691), which produces acetyl-CoA and glyoxylate from L-malyl-CoA as a substrate. However, all strains lack phosphoenolpyruvate carboxylase, ppc (K01595), which produces oxaloacetate from phosphoenolpyruvate, necessary for the serine pathway. Anaplerotic functions of the serine pathway have been previously proposed in Methylococcus capsulatus Bath. Like the strain Bath, all three genomes have the necessary genes to convert malyl-CoA (mcl, K08691) to glyoxylate, then to glycine (AGXT, K00830), and subsequently to serine (glyA, K00600) as part of the serine pathway. In the same pathway, they also have the genes to convert from D-glycerate to glycerate-2P (gck, K11529) to phosphoenolpyruvate (eno, K01689).

3.12. Nitrogen Metabolism

All three strains of Methylocaldum have the structural genes for nitrogenase (nifH (K02588), nifD (K02586), and nifK (K02591)) in an operon with nifE, nifN, nifX, and nifQ genes and also a nif-specific ferredoxin III (TIGR02936) (Figure 6B). Two additional homologs of nifH and nifK genes were also found in the three strains, although their genetic context was different from each other and may not be related to nitrogen fixation. The genetic elements required for nitrate assimilation were found in the three strains, having as a difference the additional presence of the nrtABC gene cluster (K15576, K15577, K15578) for the nitrate/nitrite transport system in M. marinum S8 only (Figure 6A). The three strains have the norCB gene cluster (K02305, K04561) for the reduction of nitric oxide (NO) to nitrous oxide (N2O); however, only M. szegediense O-12 and Norfolk had the nirK (K00368) for dissimilatory nitrite reductase for denitrification, and none of them had the alternative nirS (K15864) nitrite reductase. Similarly to other methanotrophic species, homologs of hydroxylamine dehydrogenase (K10535) responsible for NH2OH oxidation to NO2, as well as hydroxylamine reductase reducing NH2OH to form NH4+ (K05601), are present in the three genomes. Additionally, the three strains have the genetic potential to assimilate NH4+ through the glutamate cycle, with their genes for glutamine synthetase (GS) glnA (K01915) and glutamate synthase (GOGAT) gltBD (K00265, K00266) [58]. The three strains have the genetic potential for the reversible conversion of glutamate to 2-oxoglutarate/α-ketoglutarate (which is an intermediate of the Krebs cycle) and ammonia through their glutamate dehydrogenase GDH2 (K15371). Additionally, the three strains also have the gene for alanine dehydrogenase ald (K00259), which had been described to participate in the reductive amination of pyruvate in other methanotrophs, under high NH4+ environments [58]. The two M. szegediense strains also have the gene for another glutamate dehydrogenase gdhA (K00262), which has been demonstrated to be required for Streptococcus pneumoniae for adaptation to high temperatures (40 °C) [61].

3.13. Carbon Storage

The carbon storage inventory includes glycogen biosynthesis glgABC as well as the genes for polyhydroxybutyrate biosynthesis (Supplementary Figure S2). The key genes for polyhydroxyalkanoate synthase phaC (K03821), as well as acetyl-CoA C-acetyltransferase phaA (K00626) and 3-oxoacyl-[acyl-carrier-protein] reductase phaB (K00023), were present in the three Methylocaldum strains. Furthermore, additional phaC homologs were found in the three strains, indicating possible PHB co-polymer biosynthesis. The ability to produce polyhydroxyalkanoates has been recently observed for axenic cultures of Methylocaldum, supporting the genetic observations [62]. In addition to genes for polymer biosynthesis, all three strains contain genes encoding pathways of sucrose biosynthesis.

3.14. Pyomelanin/HGA-Melanin Proposed Production

A signature characteristic of Methylocaldum strains is the development of light to dark brown-colored colonies/culture [63]. Previous analyses showed that M. szegediense O-12 synthesizes a tyrosine-derived melanin-like pigment upon a decrease in growth temperature (at a suboptimal temperature of 42 °C) [64]. Because of the lack of the canonical melC1 for tyrosinase (K00505) for the production of eumelanin in Methylocaldum, here it is proposed that this color corresponds to a type of melanin, known as pyomelanin or HGA-melanin [65]. The three Methylocaldum strains have genes encoding the tyrosine degradation pathway via homogentisic acid (HGA), hppD (K00457), and hmgA (K00451). In this pathway, the HGA intermediate can continue to be reincorporated into central metabolism as fumarate and acetoacetate [66] or accumulated and, through an spontaneous autoxidation process, converted to benzoquinone, which polymerizes to form pyomelanin [67,68] (Figure 7). The gene encoding histidinol-phosphateaminotransferase hisC (K00817), which produces the HGA precursor 4-hydroxyphenylpyruvate, has four CDS assigned to it in M. marinum S8, three CDS in M. szegediense O-12 and two CDS in Norfolk.

4. Discussion

Here, three genomes of thermophilic/thermotolerant methanotrophs of the genus Methylocaldum were analyzed. Most methanotrophs display metabolic plasticity in response to the availability of key nutrients (nitrogen, phosphates) or metals (copper, tungsten, lanthanides). However, all three members of the Methylocaldum genus are superior to other comparable methanotrophs in the number of paralogs for key enzymes as well as the number of metabolic pathways for C1-carbon conversions and storage. The comparison revealed several key findings regarding their genetic diversity and metabolic potential.
All three strains possess multiple gene clusters for particulate methane monooxygenase (pMMO), suggesting redundancy in methane oxidation capabilities. This redundancy may provide metabolic flexibility, allowing Methylocaldum strains to thrive in diverse environmental conditions. The analysis of the genes involved in nitrogen metabolism revealed the presence of nitrogen fixation genes in all three strains, indicating their potential ability to fix atmospheric nitrogen. Additionally, genes involved in nitrate assimilation and nitric oxide reduction are present, suggesting versatility in nitrogen metabolism.
The genome comparison of the three Methylocaldum strains revealed insights into their genetic composition and metabolic potential. M. szegediense O-12 and Norfolk exhibit similar genomic characteristics, including genome size, GC content, and predicted protein-coding genes. However, M. marinum S8 diverges significantly, with a larger genome size and a lower percentage of orthologous genes shared with the M. szegediense strains. Phylogenetic analysis based on 16S rRNA sequences and ANI x AC confirmed the close relationship between M. szegediense O-12 and Norfolk, while M. marinum S8 formed a distinct clade. Genome synteny analysis highlighted variations in methane monooxygenase gene clusters among the strains, suggesting potential differences in methane oxidation pathways. Comparative abundance analysis revealed shared and unique functional categories, with genes related to energy production, metabolism, and transport being predominant. In terms of the genetic toolkit for methane oxidation, the Methylocaldum strains display redundancy in key enzymes involved in methane metabolism, including multiple copies of pmoC genes and methanol dehydrogenases. Additionally, differences in the presence of formate dehydrogenase genes suggest potential variations in formate utilization strategies among the strains. The genomes also encode pathways for single-carbon assimilation, including the ribulose monophosphate (RuMP), serine, and Calvin–Benson–Bassham (CBB) cycles. Nitrogen metabolism genes indicate the capacity for nitrogen fixation and assimilation, with differences in nitrate transport systems among the strains. Carbon storage pathways involve genes for glycogen and polyhydroxybutyrate biosynthesis, suggesting adaptations for carbon storage under varying environmental conditions. Unique functions identified in M. marinum S8 include catalase, involved in the detoxification of hydrogen peroxide, and a nearly complete de novo cobalamin biosynthetic pathway, enabling independent synthesis of the essential cofactor. These genomic features may confer advantages for survival and adaptation in specific ecological niches. Furthermore, M. marinum S8 harbors additional hydrogenase subunits and genes related to molybdopterin biosynthesis, indicating potential metabolic capabilities for hydrogen metabolism and cofactor biosynthesis. The presence of putative stress response genes and heavy metal-binding proteins suggests adaptation to diverse environmental conditions. O-antigen biosynthesis genes unique to the M. szegediense strains offer insights into cell envelope diversity and potential adaptation mechanisms. These differences may contribute to niche specialization and stress resistance in different environments. Lastly, the proposed production of pyomelanin/HGA-melanin in Methylocaldum strains suggests a potential mechanism for pigment production and adaptation to suboptimal growth conditions. Genes involved in tyrosine degradation pathways indicate the capacity for melanin synthesis via homogentisic acid accumulation. The significance of preservation of orthologs in organisms inhabiting very different ecological niches remains to be elucidated. However, it is tempting to propose that the evolution of C1 genes was driven by an adaptation to tolerate dramatic changes in temperature.
In summary, genomic analysis of Methylocaldum strains reveals extensive genetic diversity and metabolic versatility, with implications for their ecological roles and environmental adaptation strategies. Further research is needed to elucidate the functional significance of these genomic features and their contributions to the ecological success of Methylocaldum in diverse habitats.

5. Conclusions

Our research aimed to investigate the genomic characteristics and metabolic potential of well-physiologically characterized Methylocaldum strains. Here, we conducted a comparative genomic analysis of three strains: M. szegediense O-12 and Norfolk and M. marinum S8. Through phylogenetic analysis, genome synteny analysis, and comparative abundance analysis, we identified similarities and differences in their genetic composition and metabolic pathways, particularly focusing on methane oxidation, single-carbon assimilation, nitrogen metabolism, carbon storage, stress response, and pigment production. The results of our study hold broader significance beyond Methylocaldum for several reasons. Firstly, the genomic features and metabolic pathways identified in Methylocaldum strains provide insights into microbial ecology and biogeochemical cycling. A deeper understanding of the metabolic potential of Methylocaldum adds to the current collective knowledge of methanotrophic bacteria, which can be used for biotechnological applications, such as bioconversion and bioenergy production. Additionally, the genetic diversity and metabolic versatility observed in Methylocaldum may serve as a model for studying microbial adaptation and evolution in response to changing environmental conditions. Insights gained from studying Methylocaldum strains will support future efforts to unveil the ecology and biogeochemical implications of methanotrophic communities in diverse habitats, thus contributing to our broader understanding of microbial ecology and ecosystem functioning.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/microorganisms12030469/s1, Figure S1: Maximum likelihood tree showing the phylogenetic relationship between the aminoacidic sequences of four different types of formate dehydrogenases major subunits; Figure S2: Gene clusters for Methylocaldum carbon storage inventory including glycogen biosynthesis glgABC and polyhydroxybutyrate biosynthesis; Table S1: Table containing Anvi’o v7 outputs for synteny and functional genomic comparison of the Methylocaldum genomes.

Author Contributions

N.A.D., D.P. and S.Y.B. contributed to genome sequencing, assembly, and annotation. N.A.D. carried out most of the genomic comparisons presented in this study. M.G.K., J.C.M. and V.N.K. provided conceptual framework for this study. Writing—original draft preparation, N.A.D., M.G.K. and S.Y.B. Writing—review and editing, N.A.D., S.Y.B., D.P., M.G.K., J.C.M. and V.N.K. All authors have read and agreed to the published version of the manuscript.

Funding

M. szegediense O-12 genome sequencing and assembly were carried out by the Joint Genome Institute (JGI) under the Office of Science of the U.S. Department of Energy contract DE-AC02-05CH11231. This work was funded by the EnvEast DTP (UKRI grant NE/L002582/1) and Norfolk County Council and by the U.S. Department of Energy under the DOE Office of Science (SC) RENEW contract DE-SC0024289.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Acknowledgments

We would like to thank Mio Takeuchi from the Biomedical Research Institute, National Institute of Advanced Industrial Science and Technology (AIST), Midorigaoka, Ikeda, Osaka, Japan, for providing the genome of M. marinum S8 and for her insightful comments on the manuscript. We also thank Alvaro Munoz Plominsky for his bioinformatic support and feedback.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dunfield, P.F.; Yuryev, A.; Senin, P.; Smirnova, A.V.; Stott, M.B.; Hou, S.; Ly, B.; Saw, J.H.; Zhou, Z.; Ren, Y. Methane oxidation by an extremely acidophilic bacterium of the phylum Verrucomicrobia. Nature 2007, 450, 879–882. [Google Scholar] [CrossRef]
  2. Islam, T.; Jensen, S.; Reigstad, L.J.; Larsen, Ø.; Birkeland, N.-K. Methane oxidation at 55 C and pH 2 by a thermoacidophilic bacterium belonging to the Verrucomicrobia phylum. Proc. Natl. Acad. Sci. USA 2008, 105, 300–304. [Google Scholar] [CrossRef]
  3. Pol, A.; Heijmans, K.; Harhangi, H.R.; Tedesco, D.; Jetten, M.S.; Op den Camp, H.J. Methanotrophy below pH 1 by a new Verrucomicrobia species. Nature 2007, 450, 874–878. [Google Scholar] [CrossRef] [PubMed]
  4. Yang, Y.; Shan, J.; Zhang, J.; Zhang, X.; Xie, S.; Liu, Y. Ammonia-and methane-oxidizing microorganisms in high-altitude wetland sediments and adjacent agricultural soils. Appl. Microbiol. Biotechnol. 2014, 98, 10197–10209. [Google Scholar] [CrossRef] [PubMed]
  5. Bodrossy, L.; Holmes, E.M.; Holmes, A.J.; Kovács, K.L.; Murrell, J.C. Analysis of 16S rRNA and methane monooxygenase gene sequences reveals a novel group of thermotolerant and thermophilic methanotrophs, Methylocaldum gen. nov. Arch. Microbiol. 1997, 168, 493–503. [Google Scholar] [CrossRef] [PubMed]
  6. Kong, J.Y.; Su, Y.; Zhang, Q.Q.; Bai, Y.; Xia, F.F.; Fang, C.R.; He, R. Vertical profiles of community and activity of methanotrophs in landfill cover soils of different age. J. Appl. Microbiol. 2013, 115, 756–765. [Google Scholar] [CrossRef] [PubMed]
  7. Zhang, X.; Kong, J.-Y.; Xia, F.-F.; Su, Y.; He, R. Effects of ammonium on the activity and community of methanotrophs in landfill biocover soils. Syst. Appl. Microbiol. 2014, 37, 296–304. [Google Scholar] [CrossRef] [PubMed]
  8. Sow, S.; Khoo, G.; Chong, L.; Smith, T.; Harrison, P.; Ong, H. Molecular diversity of the methanotrophic bacteria communities associated with disused tin-mining ponds in Kampar, Perak, Malaysia. World J. Microbiol. Biotechnol. 2014, 30, 2645–2653. [Google Scholar] [CrossRef]
  9. Saidi-Mehrabad, A.; He, Z.; Tamas, I.; Sharp, C.E.; Brady, A.L.; Rochman, F.F.; Bodrossy, L.; Abell, G.C.; Penner, T.; Dong, X. Methanotrophic bacteria in oilsands tailings ponds of northern Alberta. ISME J. 2013, 7, 908–921. [Google Scholar] [CrossRef]
  10. Lee, H.J.; Kim, S.Y.; Kim, P.J.; Madsen, E.L.; Jeon, C.O. Methane emission and dynamics of methanotrophic and methanogenic communities in a flooded rice field ecosystem. FEMS Microbiol. Ecol. 2014, 88, 195–212. [Google Scholar] [CrossRef]
  11. Takeuchi, M.; Kamagata, Y.; Oshima, K.; Hanada, S.; Tamaki, H.; Marumo, K.; Maeda, H.; Nedachi, M.; Hattori, M.; Iwasaki, W. Methylocaldum marinum sp. nov., a thermotolerant, methane-oxidizing bacterium isolated from marine sediments, and emended description of the genus Methylocaldum. Int. J. Syst. Evol. Microbiol. 2014, 64, 3240–3246. [Google Scholar] [CrossRef] [PubMed]
  12. Eshinimaev, B.T.; Medvedkova, K.; Khmelenina, V.; Suzina, N.; Osipov, G.; Lysenko, A.; Trotsenko, Y.A. New thermophilic methanotrophs of the genus Methylocaldum. Microbiology 2004, 73, 448–456. [Google Scholar] [CrossRef]
  13. Pearce, D.; Brooks, E.; Wright, C.; Rankin, D.; Crombie, A.T.; Murrell, J.C. Complete genome sequences of Methylococcus capsulatus (Norfolk) and Methylocaldum szegediense (Norfolk) isolated from a landfill methane biofilter. Microbiol. Resour. Announc. 2024, 13, e0067523. [Google Scholar] [CrossRef]
  14. Chen, I.M.A.; Chu, K.; Palaniappan, K.; Ratner, A.; Huang, J.; Huntemann, M.; Hajek, P.; Ritter, S.; Varghese, N.; Seshadri, R.; et al. The IMG/M data management and analysis system v.6.0: New tools and advanced capabilities. Nucleic Acids Res. 2021, 49, D751–D763. [Google Scholar] [CrossRef] [PubMed]
  15. Mukherjee, S.; Stamatis, D.; Bertsch, J.; Ovchinnikova, G.; Sundaramurthi, J.C.; Lee, J.; Kandimalla, M.; Chen, I.M.A.; Kyrpides, N.C.; Reddy, T.B.K. Genomes OnLine Database (GOLD) v.8: Overview and updates. Nucleic Acids Res. 2021, 49, D723–D733. [Google Scholar] [CrossRef] [PubMed]
  16. Katoh, K.; Kuma, K.-i.; Toh, H.; Miyata, T. MAFFT version 5: Improvement in accuracy of multiple sequence alignment. Nucleic Acids Res. 2005, 33, 511–518. [Google Scholar] [CrossRef] [PubMed]
  17. Katoh, K.; Rozewicki, J.; Yamada, K.D. MAFFT online service: Multiple sequence alignment, interactive sequence choice and visualization. Brief. Bioinform. 2019, 20, 1160–1166. [Google Scholar] [CrossRef]
  18. Kuraku, S.; Zmasek, C.M.; Nishimura, O.; Katoh, K. aLeaves facilitates on-demand exploration of metazoan gene family trees on MAFFT sequence alignment server with enhanced interactivity. Nucleic Acids Res. 2013, 41, W22–W28. [Google Scholar] [CrossRef]
  19. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across Computing Platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  20. Nei, M.; Kumar, S. Molecular Evolution and Phylogenetics; Oxford University Press: Oxford, MI, USA, 2000. [Google Scholar]
  21. Stecher, G.; Tamura, K.; Kumar, S. Molecular Evolutionary Genetics Analysis (MEGA) for macOS. Mol. Biol. Evol. 2020, 37, 1237–1239. [Google Scholar] [CrossRef]
  22. Tamura, K. Estimation of the number of nucleotide substitutions when there are strong transition-transversion and G+ C-content biases. Mol. Biol. Evol. 1992, 9, 678–687. [Google Scholar]
  23. Eren, A.M.; Esen, Ö.C.; Quince, C.; Vineis, J.H.; Morrison, H.G.; Sogin, M.L.; Delmont, T.O. Anvi’o: An advanced analysis and visualization platform for ‘omics data. PeerJ 2015, 3, e1319. [Google Scholar] [CrossRef]
  24. Hyatt, D.; Chen, G.L.; Locascio, P.F.; Land, M.L.; Larimer, F.W.; Hauser, L.J. Prodigal: Prokaryotic gene recognition and translation initiation site identification. BMC Bioinform. 2010, 11, 119. [Google Scholar] [CrossRef]
  25. Galperin, M.Y.; Wolf, Y.I.; Makarova, K.S.; Vera Alvarez, R.; Landsman, D.; Koonin, E.V. COG database update: Focus on microbial diversity, model organisms, and widespread pathogens. Nucleic Acids Res. 2021, 49, D274–D281. [Google Scholar] [CrossRef]
  26. Tatusov, R.L.; Galperin, M.Y.; Natale, D.A.; Koonin, E.V. The COG database: A tool for genome-scale analysis of protein functions and evolution. Nucleic Acids Res. 2000, 28, 33–36. [Google Scholar] [CrossRef] [PubMed]
  27. Tatusov, R.L.; Koonin, E.V.; Lipman, D.J. A genomic perspective on protein families. Science 1997, 278, 631–637. [Google Scholar] [CrossRef] [PubMed]
  28. Aramaki, T.; Blanc-Mathieu, R.; Endo, H.; Ohkubo, K.; Kanehisa, M.; Goto, S.; Ogata, H. KofamKOALA: KEGG ortholog assignment based on profile HMM and adaptive score threshold. Bioinformatics 2020, 36, 2251–2252. [Google Scholar] [CrossRef] [PubMed]
  29. Delmont, T.O.; Eren, A.M. Linking pangenomes and metagenomes: The Prochlorococcus metapangenome. PeerJ 2018, 6, e4320. [Google Scholar] [CrossRef] [PubMed]
  30. Whelan, S.; Goldman, N. A general empirical model of protein evolution derived from multiple protein families using a maximum-likelihood approach. Mol. Biol. Evol. 2001, 18, 691–699. [Google Scholar] [CrossRef]
  31. Chen, L.-X.; Méheust, R.; Crits-Christoph, A.; McMahon, K.D.; Nelson, T.C.; Slater, G.F.; Warren, L.A.; Banfield, J.F. Large freshwater phages with the potential to augment aerobic methane oxidation. Nat. Microbiol. 2020, 5, 1504–1515. [Google Scholar] [CrossRef] [PubMed]
  32. Bragagnolo, N.; Audette, G.F. Solution characterization of the dynamic conjugative entry exclusion protein TraG. Struct. Dyn. 2022, 9, 064702. [Google Scholar] [CrossRef]
  33. Lawley, T.; Klimke, W.; Gubbins, M.; Frost, L. F factor conjugation is a true type IV secretion system. FEMS Microbiol. Lett. 2003, 224, 1–15. [Google Scholar] [CrossRef] [PubMed]
  34. Guo, D.; Bowden, M.G.; Pershad, R.; Kaplan, H.B. The Myxococcus xanthus rfbABC operon encodes an ATP-binding cassette transporter homolog required for O-antigen biosynthesis and multicellular development. J. Bacteriol. 1996, 178, 1631–1639. [Google Scholar] [CrossRef] [PubMed]
  35. Liu, B.; Furevi, A.; Perepelov, A.V.; Guo, X.; Cao, H.; Wang, Q.; Reeves, P.R.; Knirel, Y.A.; Wang, L.; Widmalm, G. Structure and genetics of Escherichia coli O antigens. FEMS Microbiol. Rev. 2020, 44, 655–683. [Google Scholar] [CrossRef] [PubMed]
  36. Merino, S.; Gonzalez, V.; Tomás, J.M. The first sugar of the repeat units is essential for the Wzy polymerase activity and elongation of the O-antigen lipopolysaccharide. Future Microbiol. 2016, 11, 903–918. [Google Scholar] [CrossRef]
  37. Valvano, M.A. Export of O-specific lipopolysaccharide. Front. Biosci. 2003, 8, 452–471. [Google Scholar] [CrossRef]
  38. Balsanelli, E.; Serrato, R.V.; De Baura, V.A.; Sassaki, G.; Yates, M.G.; Rigo, L.U.; Pedrosa, F.O.; De Souza, E.M.; Monteiro, R.A. Herbaspirillum seropedicae rfbB and rfbC genes are required for maize colonization. Environ. Microbiol. 2010, 12, 2233–2244. [Google Scholar] [CrossRef]
  39. Jefferies, D.; Shearer, J.; Khalid, S. Role of O-antigen in response to mechanical stress of the E. coli outer membrane: Insights from coarse-grained MD simulations. J. Phys. Chem. B 2019, 123, 3567–3575. [Google Scholar] [CrossRef]
  40. Zheng, Y.; Wang, H.; Huang, L.; Zhang, T.; Zong, B.; Ren, X.; Zhu, Y.; Song, F.; Wang, X.; Chen, H. Effect of O antigen ligase gene mutation on oxidative stress resistance and pathogenicity of NMEC strain RS218. Microb. Pathog. 2019, 136, 103656. [Google Scholar] [CrossRef]
  41. Manieri, F.Z.; Moreira, C.G. Salmonella Typhimurium O-antigen and VisP play an important role in swarming and osmotic stress response during intracellular conditions. Braz. J. Microbiol. 2022, 53, 557–564. [Google Scholar] [CrossRef]
  42. Lerouge, I.; Vanderleyden, J. O-antigen structural variation: Mechanisms and possible roles in animal/plant–microbe interactions. FEMS Microbiol. Rev. 2002, 26, 17–47. [Google Scholar] [CrossRef] [PubMed]
  43. Eyice, Ö.; Myronova, N.; Pol, A.; Carrión, O.; Todd, J.D.; Smith, T.J.; Gurman, S.J.; Cuthbertson, A.; Mazard, S.; Mennink-Kersten, M.A. Bacterial SBP56 identified as a Cu-dependent methanethiol oxidase widely distributed in the biosphere. ISME J. 2018, 12, 145–160. [Google Scholar] [CrossRef]
  44. Schmitz, R.A.; Mohammadi, S.S.; Van Erven, T.; Berben, T.; Jetten, M.S.; Pol, A.; den Camp, H.J.O. Methanethiol consumption and hydrogen sulfide production by the thermoacidophilic methanotroph Methylacidiphilum fumariolicum SolV. Front. Microbiol. 2022, 13, 857442. [Google Scholar] [CrossRef]
  45. Börjesson, G. Inhibition of methane oxidation by volatile sulfur compounds (CH3SH and CS2) in landfill cover soils. Waste Manag. Res. 2001, 19, 314–319. [Google Scholar] [CrossRef] [PubMed]
  46. Kim, W.; Major, T.A.; Whitman, W.B. Role of the precorrin 6-X reductase gene in cobamide biosynthesis in Methanococcus maripaludis. Archaea 2005, 1, 375–384. [Google Scholar] [CrossRef]
  47. Rodionov, D.A.; Vitreschak, A.G.; Mironov, A.A.; Gelfand, M.S. Comparative genomics of the vitamin B12 metabolism and regulation in prokaryotes. J. Biol. Chem. 2003, 278, 41148–41159. [Google Scholar] [CrossRef] [PubMed]
  48. Santoro, A.E.; Dupont, C.L.; Richter, R.A.; Craig, M.T.; Carini, P.; McIlvin, M.R.; Yang, Y.; Orsi, W.D.; Moran, D.M.; Saito, M.A. Genomic and proteomic characterization of “Candidatus Nitrosopelagicus brevis”: An ammonia-oxidizing archaeon from the open ocean. Proc. Natl. Acad. Sci. USA 2015, 112, 1173–1178. [Google Scholar] [CrossRef]
  49. Heal, K.R.; Qin, W.; Ribalet, F.; Bertagnolli, A.D.; Coyote-Maestas, W.; Hmelo, L.R.; Moffett, J.W.; Devol, A.H.; Armbrust, E.V.; Stahl, D.A. Two distinct pools of B12 analogs reveal community interdependencies in the ocean. Proc. Natl. Acad. Sci. USA 2017, 114, 364–369. [Google Scholar] [CrossRef]
  50. Lu, X.; Heal, K.R.; Ingalls, A.E.; Doxey, A.C.; Neufeld, J.D. Metagenomic and chemical characterization of soil cobalamin production. ISME J. 2020, 14, 53–66. [Google Scholar] [CrossRef]
  51. Shelton, A.N.; Seth, E.C.; Mok, K.C.; Han, A.W.; Jackson, S.N.; Haft, D.R.; Taga, M.E. Uneven distribution of cobamide biosynthesis and dependence in bacteria predicted by comparative genomics. ISME J. 2019, 13, 789–804. [Google Scholar] [CrossRef]
  52. Chistoserdova, L.; Lidstrom, M.E. Molecular and mutational analysis of a DNA region separating two methylotrophy gene clusters in Methylobacterium extorquens AM1. Microbiology 1997, 143, 1729–1736. [Google Scholar] [CrossRef]
  53. Huang, J.; Yu, Z.; Chistoserdova, L. Lanthanide-dependent methanol dehydrogenases of XoxF4 and XoxF5 clades are differentially distributed among methylotrophic bacteria and they reveal different biochemical properties. Front. Microbiol. 2018, 9, 1366. [Google Scholar] [CrossRef]
  54. Keltjens, J.T.; Pol, A.; Reimann, J.; den Camp, H.J.O. PQQ-dependent methanol dehydrogenases: Rare-earth elements make a difference. Appl. Microbiol. Biotechnol. 2014, 98, 6163–6183. [Google Scholar] [CrossRef]
  55. Chistoserdova, L.; Crowther, G.J.; Vorholt, J.A.; Skovran, E.; Portais, J.-C.; Lidstrom, M.E. Identification of a fourth formate dehydrogenase in Methylobacterium extorquens AM1 and confirmation of the essential role of formate oxidation in methylotrophy. J. Bacteriol. 2007, 189, 9076–9081. [Google Scholar] [CrossRef] [PubMed]
  56. Chistoserdova, L.; Laukel, M.; Portais, J.-C.; Vorholt, J.A.; Lidstrom, M.E. Multiple formate dehydrogenase enzymes in the facultative methylotroph Methylobacterium extorquens AM1 are dispensable for growth on methanol. J. Bacteriol. 2004, 186, 22–28. [Google Scholar] [CrossRef] [PubMed]
  57. Laukel, M.; Chistoserdova, L.; Lidstrom, M.E.; Vorholt, J.A. The tungsten-containing formate dehydrogenase from Methylobacterium extorquens AM1: Purification and properties. Eur. J. Biochem. 2003, 270, 325–333. [Google Scholar] [CrossRef] [PubMed]
  58. Khmelenina, V.N.; Murrell, J.C.; Smith, T.J.; Trotsenko, Y.A. Physiology and biochemistry of the aerobic methanotrophs. In Aerobic Utilization of Hydrocarbons, Oils and Lipids; Springer: Berlin/Heidelberg, Germany, 2018; pp. 1–25. [Google Scholar]
  59. Schmitz, R.A.; Peeters, S.H.; Versantvoort, W.; Picone, N.; Pol, A.; Jetten, M.S.; Op den Camp, H.J. Verrucomicrobial methanotrophs: Ecophysiology of metabolically versatile acidophiles. FEMS Microbiol. Rev. 2021, 45, fuab007. [Google Scholar] [CrossRef]
  60. Stein, L.Y.; Roy, R.; Dunfield, P.F. Aerobic methanotrophy and nitrification: Processes and connections. Encycl. Life Sci. 2012, 1–11. [Google Scholar] [CrossRef]
  61. Gazioglu, O.; Kareem, B.O.; Afzal, M.; Shafeeq, S.; Kuipers, O.P.; Ulijasz, A.T.; Andrew, P.W.; Yesilkaya, H. Glutamate Dehydrogenase (GdhA) of Streptococcus pneumoniae is required for high temperature adaptation. Infect. Immun. 2021, 89, e0040021. [Google Scholar] [CrossRef]
  62. Luangthongkam, P. Biosynthesis of Polyhydroxyalkanoates (PHAs) in Methane-Utilizing Mixed Cultures. Ph.D. Thesis, The University of Queensland, St Lucia, QLD, Australia, 2019. [Google Scholar]
  63. Takeuchi, M. Methylocaldum. In Bergey’s Manual of Systematics of Archaea and Bacteria; Wiley: Hoboken, NJ, USA, 2016; pp. 1–5. [Google Scholar]
  64. Medvedkova, K.; Khmelenina, V.; Baskunov, B.; Trotsenko, Y.A. Synthesis of melanin by a moderately thermophilic methanotroph Methylocaldum szegediense depends on cultivation temperature. Microbiology 2008, 77, 112–114. [Google Scholar] [CrossRef]
  65. Singh, S.; Nimse, S.B.; Mathew, D.E.; Dhimmar, A.; Sahastrabudhe, H.; Gajjar, A.; Ghadge, V.A.; Kumar, P.; Shinde, P.B. Microbial melanin: Recent advances in biosynthesis, extraction, characterization, and applications. Biotechnol. Adv. 2021, 53, 107773. [Google Scholar] [CrossRef] [PubMed]
  66. Donoso, R.A.; Ruiz, D.; Gárate-Castro, C.; Villegas, P.; González-Pastor, J.E.; de Lorenzo, V.; Gonzalez, B.; Pérez-Pantoja, D. Identification of a self-sufficient cytochrome P450 monooxygenase from Cupriavidus pinatubonensis JMP134 involved in 2-hydroxyphenylacetic acid catabolism, via homogentisate pathway. Microb. Biotechnol. 2021, 14, 1944–1960. [Google Scholar] [CrossRef] [PubMed]
  67. Galeb, H.A.; Lamantia, A.; Robson, A.; König, K.; Eichhorn, J.; Baldock, S.J.; Ashton, M.D.; Baum, J.V.; Mort, R.L.; Robinson, B.J. The Polymerization of Homogentisic Acid In Vitro as a Model for Pyomelanin Formation. Macromol. Chem. Phys. 2022, 223, 2100489. [Google Scholar] [CrossRef]
  68. Singh, D.; Kumar, J.; Kumar, A. Isolation of pyomelanin from bacteria and evidences showing its synthesis by 4-hydroxyphenylpyruvate dioxygenase enzyme encoded by hppD gene. Int. J. Biol. Macromol. 2018, 119, 864–873. [Google Scholar] [CrossRef]
Microorganisms 12 00469 g001

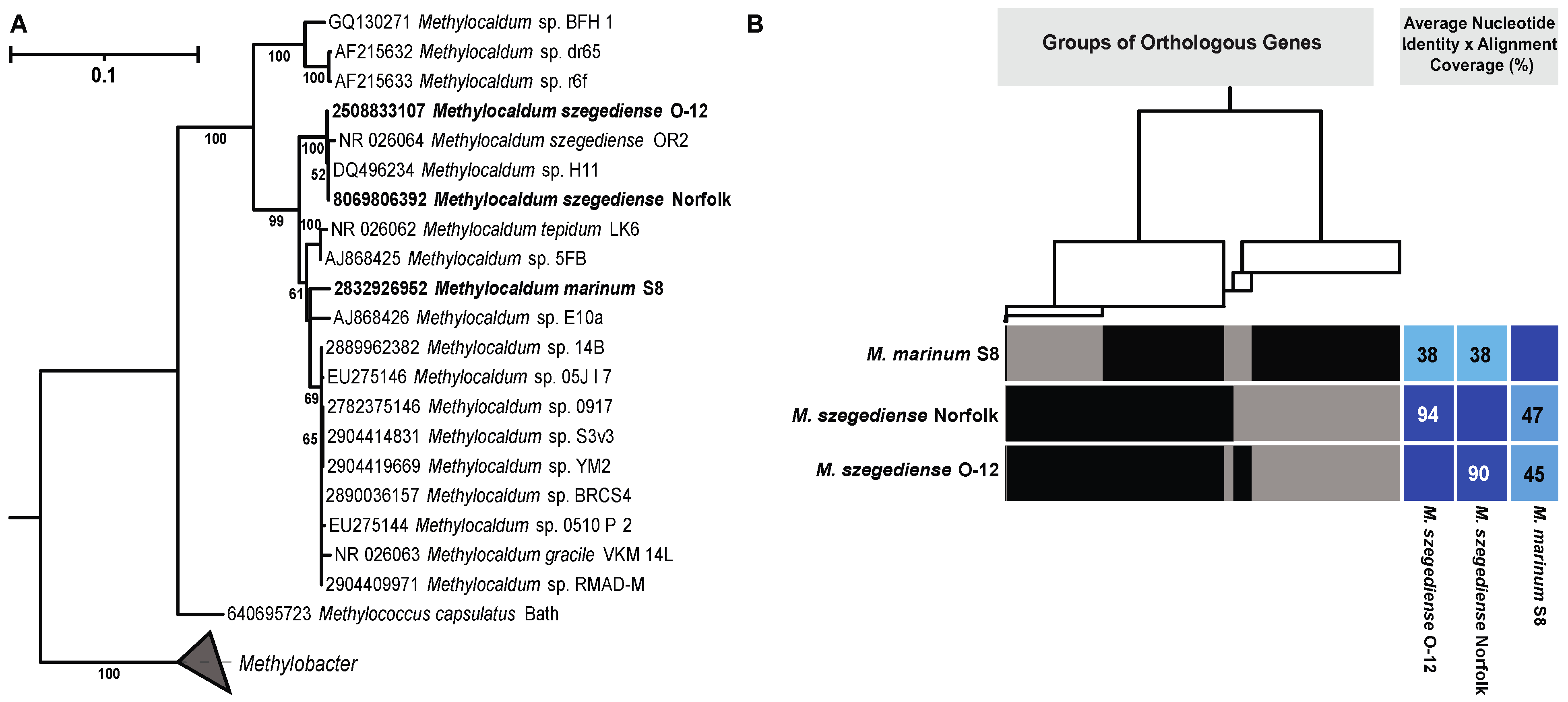

Figure 1. (A) Maximum likelihood tree representing the phylogenetic relationship of Methylocaldum based on 16S rRNA gene sequences. Leaf names with the strains analyzed in this article are in bold. Identifiers for each IMG gene ID are at the tip of each leaf. (B) Dendrogram showing the association between cluster of groups of orthologous genes, represented by thin vertical black lines, which, when grouped, form the rectangular blocks depicted on each genome. The clustering is based on the presence or absence of the orthologous genes on each genome. Average nucleotide identity (ANI) times the alignment coverage (AC) percentage of each genome when compared with one of the other Methylocaldum strains are shown inside of blue or light blue squares.
Figure 1. (A) Maximum likelihood tree representing the phylogenetic relationship of Methylocaldum based on 16S rRNA gene sequences. Leaf names with the strains analyzed in this article are in bold. Identifiers for each IMG gene ID are at the tip of each leaf. (B) Dendrogram showing the association between cluster of groups of orthologous genes, represented by thin vertical black lines, which, when grouped, form the rectangular blocks depicted on each genome. The clustering is based on the presence or absence of the orthologous genes on each genome. Average nucleotide identity (ANI) times the alignment coverage (AC) percentage of each genome when compared with one of the other Methylocaldum strains are shown inside of blue or light blue squares.
Microorganisms 12 00469 g001
Microorganisms 12 00469 g002

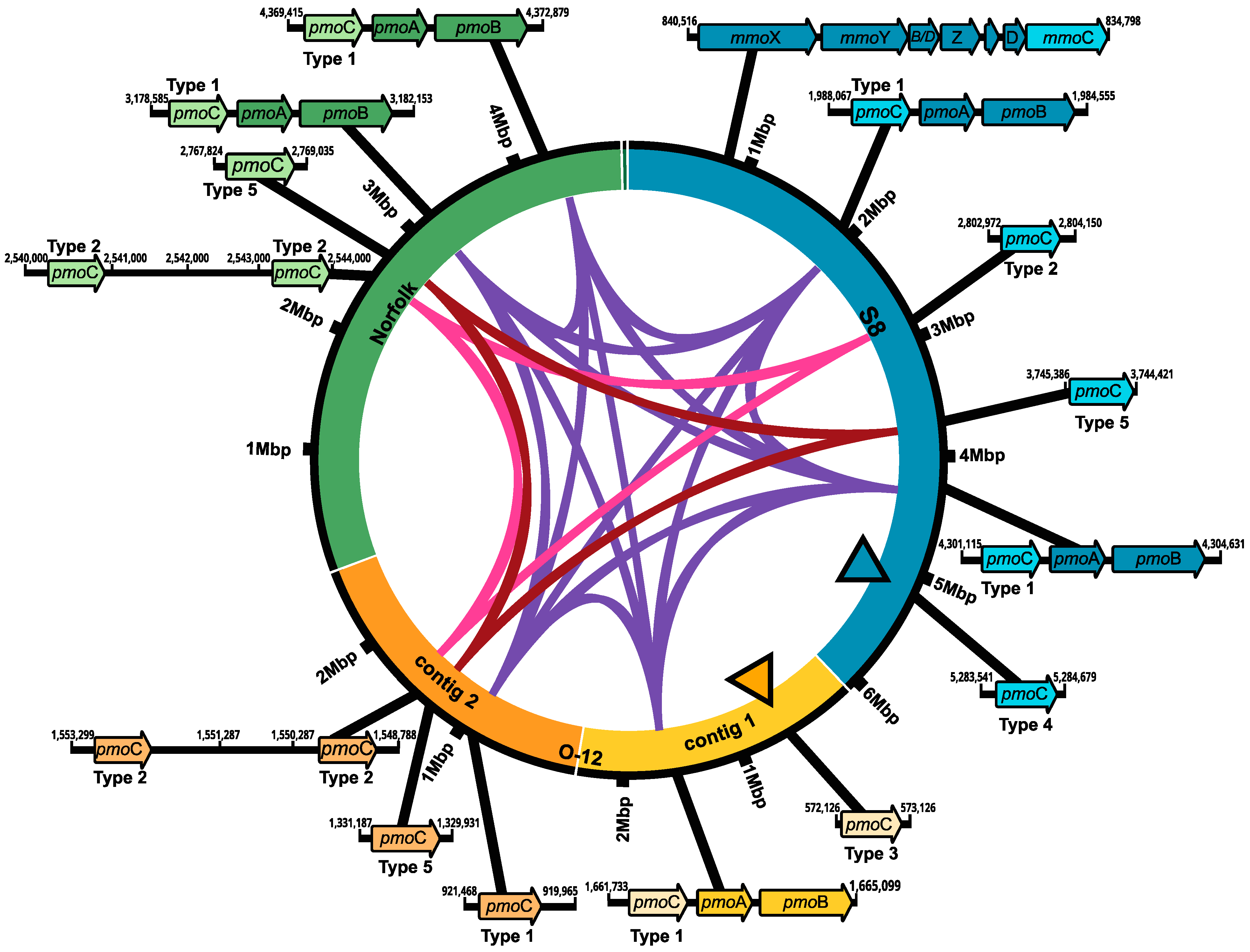

Figure 2. Synteny of methane monooxygenase (MMO) gene clusters in Methylocaldum genomes. Schematics for genomes of M. marinum S8, M. szegediense O-12, and M. szegediense Norfolk depicting the locus of MMO gene clusters. Ribbons connecting genomes show pmoC genes with high identity as part of pMMO gene cluster (purple) and as stand-alone genetic component (pink and magenta). Black-edge triangles indicate stand-alone copies of pmoC without high identity with any other pmoC within the three genomes. The gene cluster for soluble methane monooxygenase, sMMO, which is only found in M. marinum S8, is also shown.
Figure 2. Synteny of methane monooxygenase (MMO) gene clusters in Methylocaldum genomes. Schematics for genomes of M. marinum S8, M. szegediense O-12, and M. szegediense Norfolk depicting the locus of MMO gene clusters. Ribbons connecting genomes show pmoC genes with high identity as part of pMMO gene cluster (purple) and as stand-alone genetic component (pink and magenta). Black-edge triangles indicate stand-alone copies of pmoC without high identity with any other pmoC within the three genomes. The gene cluster for soluble methane monooxygenase, sMMO, which is only found in M. marinum S8, is also shown.
Microorganisms 12 00469 g002
Microorganisms 12 00469 g003

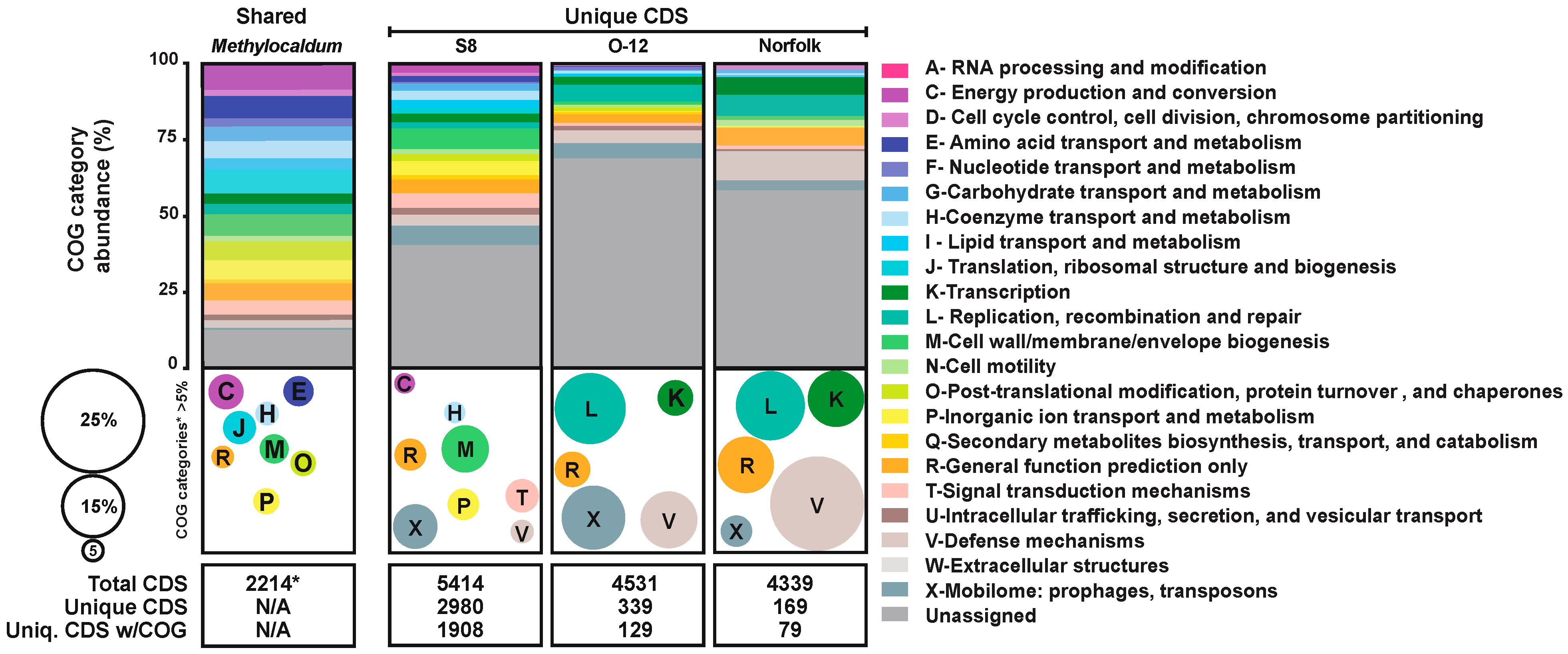

Figure 3. Comparative abundance of COG categories for Methylocaldum genomes. The relative percentage of each COG category is depicted by colored horizontal bars and bubbles according to the color-coded legend. Horizontal bars represent the percentage of coding sequences (CDS) assigned to each COG category among the three strains (shared) and the uniqueness of each strain (S8, O-12, and Norfolk). The total number of CDS considered for this comparison is at the bottom of each column. * indicates shared CDS; N/A indicates not applicable for the shared genes column. Bubble sizes and colors depict COG categories that represented >5% of the total when unassigned CDS were not considered.
Figure 3. Comparative abundance of COG categories for Methylocaldum genomes. The relative percentage of each COG category is depicted by colored horizontal bars and bubbles according to the color-coded legend. Horizontal bars represent the percentage of coding sequences (CDS) assigned to each COG category among the three strains (shared) and the uniqueness of each strain (S8, O-12, and Norfolk). The total number of CDS considered for this comparison is at the bottom of each column. * indicates shared CDS; N/A indicates not applicable for the shared genes column. Bubble sizes and colors depict COG categories that represented >5% of the total when unassigned CDS were not considered.
Microorganisms 12 00469 g003
Microorganisms 12 00469 g004

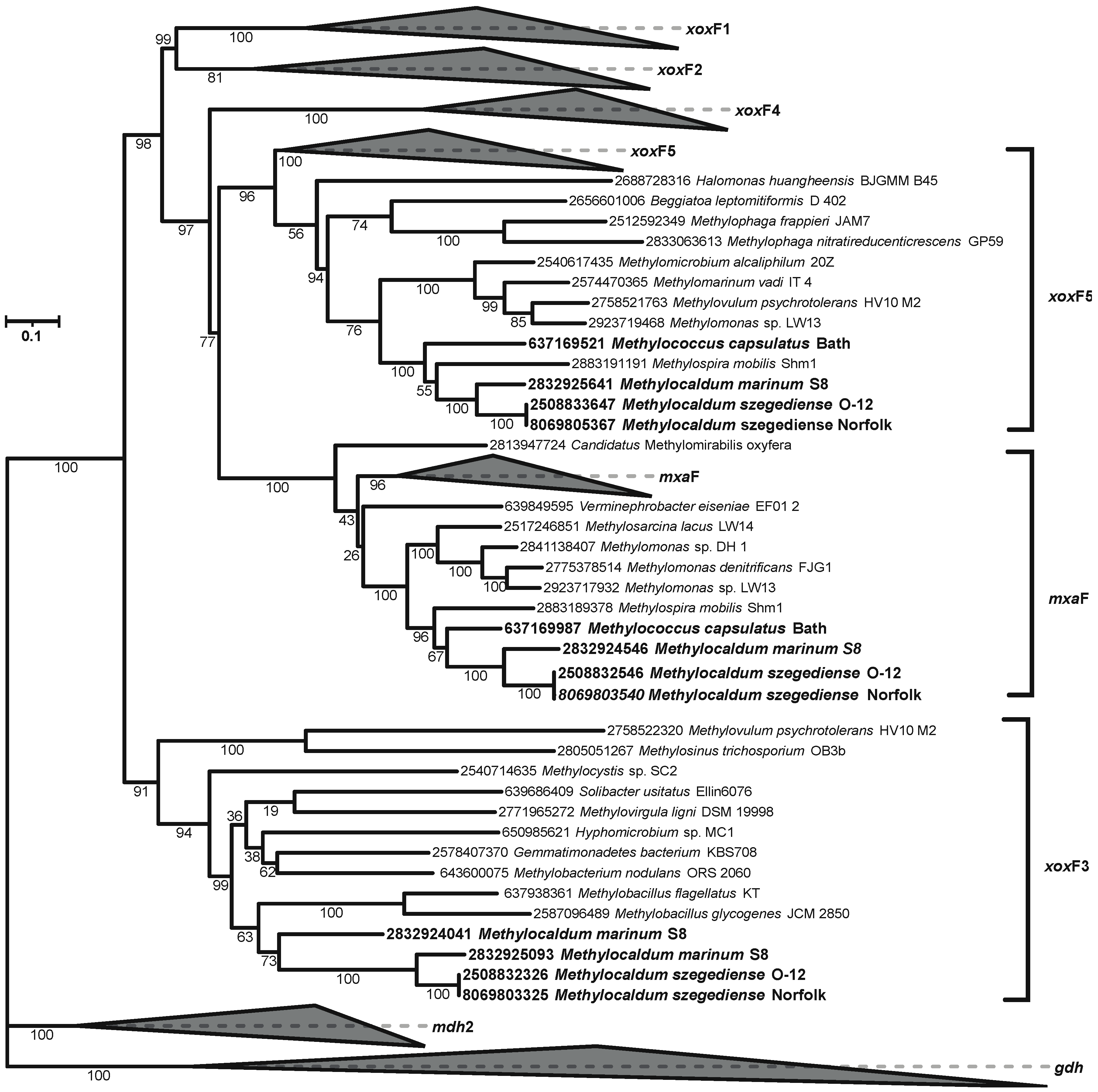

Figure 4. Phylogenetic reconstruction based on all xoxF and mxaF genes found in the three Methylocaldum genomes analyzed (highlighted in bold). The corresponding IMG gene IDs are at the tip of each leaf. Collapsed clades did not contain any genes from the three analyzed genomes.
Figure 4. Phylogenetic reconstruction based on all xoxF and mxaF genes found in the three Methylocaldum genomes analyzed (highlighted in bold). The corresponding IMG gene IDs are at the tip of each leaf. Collapsed clades did not contain any genes from the three analyzed genomes.
Microorganisms 12 00469 g004
Microorganisms 12 00469 g005
Figure 5. (A) Maximum likelihood tree reconstructing the phylogenetic relationship between the amino acidic sequences of four different types of formate dehydrogenase major subunits (K00123). Geometric figures next to each collapsed clade indicate the presence of a sequence from one of the three Methylocaldum strains analyzed in this study. Circles represent M. marinum S8, squares represent M. szegediense O-12, and triangles represent M. szegediense Norfolk. Formate dehydrogenase (FDH) K00122 was used as the outgroup. (B) Gene cluster genomic arrangement found on the three Methylocaldum strains analyzed in this study. The asterisk indicates the presence of a predicted protein with unknown function.
Figure 5. (A) Maximum likelihood tree reconstructing the phylogenetic relationship between the amino acidic sequences of four different types of formate dehydrogenase major subunits (K00123). Geometric figures next to each collapsed clade indicate the presence of a sequence from one of the three Methylocaldum strains analyzed in this study. Circles represent M. marinum S8, squares represent M. szegediense O-12, and triangles represent M. szegediense Norfolk. Formate dehydrogenase (FDH) K00122 was used as the outgroup. (B) Gene cluster genomic arrangement found on the three Methylocaldum strains analyzed in this study. The asterisk indicates the presence of a predicted protein with unknown function.
Microorganisms 12 00469 g005
Microorganisms 12 00469 g006
Figure 6. Nitrogen metabolism genes in Methylocaldum strains. (A) Diagram representing the presence and absence of genes involved in nitrogen cycling. (B) Synteny of nitrogenase gene cluster present in the three Methylocaldum strains. Pairwise identity percentage is indicated inside ribbons connecting homologous genes.
Figure 6. Nitrogen metabolism genes in Methylocaldum strains. (A) Diagram representing the presence and absence of genes involved in nitrogen cycling. (B) Synteny of nitrogenase gene cluster present in the three Methylocaldum strains. Pairwise identity percentage is indicated inside ribbons connecting homologous genes.
Microorganisms 12 00469 g006
Microorganisms 12 00469 g007
Figure 7. Proposed pyomelanin/HGA-melanin synthesis pathway via accumulation of homogentisic acid (HGA) in Methylocaldum. (A) Schematic representation of tyrosine degradation pathway having HGA as intermediate synthetized by 4-hydroxyphenylpyruvate dioxygenase (hppD, HPD, K00457), which can be degraded via homogentisate 1,2-dioxygenase (hmgA, HMG, K00451) to be reincorporated into central metabolism as fumarate and acetoacetate or accumulated and converted to pyomelanin/HGA-melanin via polymerization of the monomer benzoquinone acetate. (B) Synteny of gene cluster where the hppD gene (red-edge arrows) was present in the three Methylocaldum strains. Pairwise identity percentage is indicated inside ribbons connecting homologous genes.
Figure 7. Proposed pyomelanin/HGA-melanin synthesis pathway via accumulation of homogentisic acid (HGA) in Methylocaldum. (A) Schematic representation of tyrosine degradation pathway having HGA as intermediate synthetized by 4-hydroxyphenylpyruvate dioxygenase (hppD, HPD, K00457), which can be degraded via homogentisate 1,2-dioxygenase (hmgA, HMG, K00451) to be reincorporated into central metabolism as fumarate and acetoacetate or accumulated and converted to pyomelanin/HGA-melanin via polymerization of the monomer benzoquinone acetate. (B) Synteny of gene cluster where the hppD gene (red-edge arrows) was present in the three Methylocaldum strains. Pairwise identity percentage is indicated inside ribbons connecting homologous genes.
Microorganisms 12 00469 g007
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Delherbe, N.A.; Pearce, D.; But, S.Y.; Murrell, J.C.; Khmelenina, V.N.; Kalyuzhnaya, M.G. Genomic Insights into Moderately Thermophilic Methanotrophs of the Genus Methylocaldum. Microorganisms 2024, 12, 469. https://doi.org/10.3390/microorganisms12030469

AMA Style

Delherbe NA, Pearce D, But SY, Murrell JC, Khmelenina VN, Kalyuzhnaya MG. Genomic Insights into Moderately Thermophilic Methanotrophs of the Genus Methylocaldum. Microorganisms. 2024; 12(3):469. https://doi.org/10.3390/microorganisms12030469

Chicago/Turabian Style

Delherbe, Nathalie A., David Pearce, Sergey Y. But, J. Colin Murrell, Valentina N. Khmelenina, and Marina G. Kalyuzhnaya. 2024. "Genomic Insights into Moderately Thermophilic Methanotrophs of the Genus Methylocaldum" Microorganisms 12, no. 3: 469. https://doi.org/10.3390/microorganisms12030469

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
