Article

C-Terminal Lysine Residue of Pneumococcal Triosephosphate Isomerase Contributes to Its Binding to Host Plasminogen

by
Satoru Hirayama
1,
Takumi Hiyoshi
1,2,3,
Yoshihito Yasui
1,2,
Hisanori Domon
1,3 and
Yutaka Terao
1,3,*
1
Division of Microbiology and Infectious Diseases, Niigata University Graduate School of Medical and Dental Sciences, Niigata 951-8514, Japan
2
Division of Periodontology, Niigata University Graduate School of Medical and Dental Sciences, Niigata 951-8514, Japan
3
Center for Advanced Oral Science, Niigata University Graduate School of Medical and Dental Sciences, Niigata 951-8514, Japan
*
Author to whom correspondence should be addressed.
Microorganisms 2023, 11(5), 1198; https://doi.org/10.3390/microorganisms11051198
Submission received: 17 March 2023 / Revised: 19 April 2023 / Accepted: 2 May 2023 / Published: 4 May 2023
(This article belongs to the Section Medical Microbiology)
Browse Figures
Versions Notes

Abstract

The main causative agent of pneumonia, Streptococcus pneumoniae, is also responsible for invasive diseases. S. pneumoniae recruits human plasminogen for the invasion and colonization of host tissues. We previously discovered that S. pneumoniae triosephosphate isomerase (TpiA), an enzyme involved in intracellular metabolism that is essential for survival, is released extracellularly to bind human plasminogen and facilitate its activation. Epsilon-aminocaproic acid, a lysine analogue, inhibits this binding, suggesting that the lysine residues in TpiA are involved in plasminogen binding. In this study, we generated site-directed mutant recombinants in which the lysine residue in TpiA was replaced with alanine and analyzed their binding activities to human plasminogen. Results from blot analysis, enzyme-linked immunosorbent assay, and surface plasmon resonance assay revealed that the lysine residue at the C-terminus of TpiA is primarily involved in binding to human plasminogen. Furthermore, we found that TpiA binding to plasminogen through its C-terminal lysine residue was required for the promotion of plasmin activation by activating factors.

1. Introduction

Pneumococcal infections continue to be a global epidemic, posing a significant threat to children and the elderly with high incidence and mortality rates [1,2,3]. Streptococcus pneumoniae, the primary causative agent of pneumonia, is a gram-positive diplococcus that inhabits the human nasopharynx and commonly causes community-acquired pneumonia, otitis media, and sinusitis. In addition to these noninvasive diseases, it is also known to cause invasive diseases such as bacteremia, sepsis, and meningitis [4,5].
To achieve invasiveness in the host, S. pneumoniae utilizes human plasminogen by recruiting it to the bacterial surface and aiding in the breakdown of physiological barriers, such as the extracellular matrix (ECM) of host cells. Plasminogen bound to the bacterial cell surface is converted by human tissue-type plasminogen activator (tPA) or urokinase-type plasminogen activator (uPA) into plasmin, a serine protease with protein-degrading activity [6,7]. Several plasminogen-binding proteins have been identified in S. pneumoniae.
We recently identified triosephosphate isomerase (TpiA) as a novel plasminogen-binding protein in S. pneumoniae [8]. TpiA is a protein with a molecular weight of approximately 27,000 Da that exists as an enzymatic dimer [9]. It is present in all organisms and is one of the glycolytic enzymes that catalyzes the reversible isomerization of glyceraldehyde-3-phosphate and dihydroxyacetone phosphate [9,10,11]. Pneumococcal TpiA binds to human plasminogen and promotes activator-mediated plasminogen activation [8]. The binding of TpiA to plasminogen is suggested to involve lysine residues in TpiA, as it was dose-dependently inhibited by the addition of epsilon-aminocaproic acid (EACA), a lysine analogue [8].
In the present study, we generated site-specific mutants of pneumococcal TpiA by substituting each of the 18 lysine residues with alanine. Additionally, we prepared a recombinant mutant in which all three lysine residues located in a concentrated region were substituted with alanine. We analyzed the binding characteristics of the 19 site-specific mutant recombinants to plasminogen. Among them, the recombinant TpiA K252A mutant exhibited a significant decrease in binding with plasminogen, suggesting that the C-terminal lysine residue is involved in this binding characteristic.

2. Materials and Methods

2.1. Bacterial Strain and Growth Media

We expressed and produced His-tagged rTpiA proteins with site-specific amino acid substitutions using Brevibacillus choshinensis strain HPD31-SP3. Transformants of this strain were cultured on MTNm plates (10 g/L glucose, 10 g/L phytone peptone, 2 g/L yeast extract, 5.75 g/L Erlich bonito extract [35%], 10 mg/L MnSO4·4H2O, 10 mg/L FeSO4·7H2O, and 1 mg/L ZnSO4·7H2O, with the pH adjusted to 7.0 and supplemented with 15 g/L agar, 20 mM MgCl2, and 50 µg/mL neomycin) or in TMNm (MTNm without agar and MgCl2) or 2SYNm broths (20 g/L glucose, 40 g/L Bacto soytone, 5 g/L Bacto yeast extract, and 0.15 g/L CaCl2·2H2O, with the pH adjusted to pH 7.2, and supplemented with 50 µg/mL neomycin).

2.2. Construction of the Brevibacillus Strains Producing rTpiA

The off-the-shelf Brevibacillus cloning system (Takara Bio, Kusatsu, Shiga, Japan) was used to construct S. pneumoniae D39 rTpiA proteins with site-specific amino acid substitutions, as described in our previous study [8]. To introduce site-specific mutations into the tpiA gene, an inverse polymerase chain reaction (PCR) was performed using the primers shown in Table 1 with plasmid pBIC2-tpiA [8], where the open reading frame of the tpiA gene, except for the start codon, was inserted as the template. PCR was performed using KOD One PCR Master Mix (Toyobo, Osaka, Japan), according to the manufacturer’s instructions. To self-ligate the PCR fragments, aliquots of diluted PCR-amplified products were treated with T4 polynucleotide kinase (Takara Bio) and Ligation-High version 2 (Toyobo) and incubated at 16 °C for at least 2 h. Thereafter, B. choshinensis HPD31-SP3 was transformed with the self-ligating plasmid, and transformants were selected on MTNm plates. Colonies of the resultant transformants were inoculated into 2SYNm broth and cultured overnight at 37 °C with shaking at 120 rpm. Bacterial cells were collected, and plasmids were extracted using a QIAprep Spin Miniprep Kit (QIAGEN, Hilden, Germany). The DNA inserted into the plasmid was sequenced by Eurofins Genomics (Tokyo, Japan) using the primers for sequencing (Table 1).

2.3. Purification of rTpiA

Each rTpiA protein with a His-tag from the Brevibacillus culture supernatant was purified as described in our previous study [8]. B. choshinensis HPD31-SP3 expressing His-tagged rTpiA was inoculated and cultured in TMNm broth at 32 °C for 64 h with shaking at 120 rpm. During the stationary phase, the culture supernatant was harvested by centrifugation (12,000× g for 20 min) at 4 °C. Thereafter, the supernatant was filtered through a 0.45-µm polyvinylidene fluoride (PVDF) filter (Merck Millipore, Darmstadt, Germany). As pretreatment for the purification of His-tagged rTpiA, Ni Sepharose 6 Fast Flow beads (Cytiva, Marlborough, MA, USA) were washed and resuspended in binding buffer (20 mM NaHPO4, pH 7.4, 0.5 M NaCl, and 40 mM imidazole) to produce a 50% slurry. The prepared slurry (1 mL) was added to a dedicated chromatography column (Bio-Rad, Hercules, CA, USA), and the flow-through was discarded. The supernatant was supplemented with NaCl and imidazole until final concentrations of 0.5 M and 40 mM, respectively, were achieved. Next, <10 mL of the supernatant was added to the column using a stopper. The supernatant was incubated with Ni Sepharose 6 Fast Flow beads in a column for 1 h at 25 °C with rotation. After discarding the flow-through, the column was gently washed four times with binding buffer. The targeted proteins that were captured in the column via the interaction between the His-tag and Ni were extracted four times using 500 μL of elution buffer (20 mM NaHPO4, pH 7.4, 0.5 M NaCl, and 500 mM imidazole). If necessary, the purified rTpiA solution was desalted, and the solvent was replaced with phosphate-buffered saline (PBS) using PD-10 columns (GE Healthcare, Chicago, IL, USA).

2.4. SDS-PAGE and Far-Western Blotting

SDS-PAGE and far-Western blot analyses were conducted according to a previously described formula [8,12,13], with some modifications. Each site-specific substituted rTpiA (400 ng) prepared in PBS was subjected to SDS-PAGE on a 12.5% polyacrylamide gel (ATTO, Tokyo, Japan), and the separated proteins were stained with Coomassie Brilliant Blue (CBB). To investigate the binding activity of each substituted rTpiA to human plasma plasminogen (Sigma-Aldrich, Darmstadt, Germany), far-Western blotting was performed as previously described [8,14], with some modifications. rTpiA (200 ng) and bovine serum albumin (BSA, Sigma-Aldrich) were separated by SDS-PAGE, and the resultant electrophoresis patterns were transferred onto PVDF membranes (Merck Millipore). The transferred membranes were blocked by incubating them with 5% BSA in Tris-buffered saline containing 0.05% Tween 20 (TBST). After washing with TBST, the blocked membranes were incubated for 90 min with 30 µg/mL plasminogen in a blocking reagent at 25 °C. The plasminogen, which binds with proteins on membranes, was probed with rabbit polyclonal antibody against plasminogen (GeneTex, Irvine, CA, USA) in a blocking reagent at a dilution ratio of 1:5000. A horseradish peroxidase (HRP)-conjugated secondary antibody (goat anti-rabbit IgG; Cell Signaling Technology, Beverly, MA, USA) was used at a dilution ratio of 1:3000. Following the addition of the substrate against HRP (ECL Select Western Blotting Detection Reagent; Cytiva), chemiluminescence was visualized and analyzed using an ImageQuant LAS-4000 mini (Fujifilm, Tokyo, Japan).

2.5. Enzyme-Linked Immunosorbent Assay (ELISA)

To measure the binding activity of each site-specific substituted rTpiA to human plasminogen, we performed an ELISA based on standard methods [8,13], with some modifications. Each substituted rTpiA was diluted in an ELISA-coating buffer (Na2CO3 1.59 g/L, NaHCO3 2.93 g/L, and NaN3 0.2 g/L in water, at pH 9.6) and dispensed into 96-well Half Area Clear Flat Bottom Polystyrene High Bind Microplates (Corning, Corning, NY, USA) at 1 µg/well. Thereafter, the assay plates were incubated overnight at 4 °C. The reacted liquid in the wells was discarded, and 1% skim milk in PBS supplemented with 0.05% Tween 20 (PBST) was added to the wells at 37 °C for 2 h for blocking. The wells were washed with PBST, 1 µg/well of human plasminogen was added, and the plate was incubated at 37 °C for 1 h. Secondary rabbit polyclonal antibodies against plasminogen (GeneTex, Irvine, CA, USA), which were diluted 1:1000 in 0.5% skim milk in PBST, were added after washing with PBST. Following incubation at 37 °C for 1 h, the washed plate was reacted with an alkaline phosphatase (AP)-linked anti-rabbit IgG (H + L) (Bethyl Laboratories, Montgomery, TX, USA), which was diluted 1:5000 in 0.5% skim milk in PBST, and then the assay plate was incubated at 37 °C for 1 h. After washing with PBST, 3 g/L of disodium p-nitrophenylphosphate hexahydrate dissolved in diethanolamine buffer (diethanolamine 9.7 mL/L, NaN3 0.2 g/L, and MgCl2·6H2O 0.1 g/L in water, at pH 9.6) was added into each well. The wells were chemically reacted at 37 °C, and the absorbance at 405 nm (A405) was measured using a microplate spectrophotometer (Multiskan FC; Thermo Fisher Scientific, Waltham, MA, USA).

2.6. Evaluation of Protein Binding Activity by Surface Plasmon Resonance

Real-time analysis of biomolecular interactions between rTpiA proteins and human plasminogen was performed using surface plasmon resonance (SPR)-based techniques, as previously described [8,15,16,17], with some modifications. SPR measurements were performed using the Biacore X100 system (GE Healthcare). Wild-type rTpiA and site-specific amino acid-substituted rTpiA K252A were diluted in 10 mM sodium acetate buffer (pH 4; Cytiva) to a concentration of 50 μg/mL and thereafter immobilized on a Series S Sensor Chip CM5 (Cytiva) using an amine coupling kit (Cytiva) according to the manufacturer’s instructions. Human plasminogen was diluted from 6.25 nM to 100 nM in running buffer (100 mM HEPES, pH 7.4, containing 150 mM NaCl, 3 mM EDTA, and 0.005% surfactant P20; Cytiva) and injected into the flow cell with a contact time of 120 s. The flow rate was maintained at 10 μL/min and 20 μL/min for immobilization and analysis, respectively. The surface of the sensor chip was regenerated by washing it with 50 mM HCl. The data were analyzed using the Biacore X100 evaluation software (GE Healthcare).

2.7. Plasminogen Activation

Plasminogen was activated to form plasmin using tPA according to a previously reported method [8,17,18], with some modifications, to investigate the effect of rTpiA proteins on plasminogen activation. All reagents and proteins were prepared in PBS (pH 7.4). Human plasminogen (2 μg in 80 µL PBS) and 5–40 pmol of rTpiA proteins or BSA (in 10 µL PBS) were mixed and incubated at 37 °C for 30 min in a 96-well microtiter plate. Thereafter, 10 µL of recombinant human tPA (NKMAX, Sungnam, Republic of Korea) at a concentration of 10 µg/mL and 100 µL of 0.45 mM S-2251 chromogenic substrate (DiaPharma Group, West Chester, OH, USA) were added to the reacted wells and incubated at 37 °C. The release of chromogenic p-nitroaniline upon the degradation of S-2251 by the generated plasmin was monitored by measuring A405 sequentially using a microplate spectrophotometer (Multiskan FC).

2.8. Statistical Analysis

All statistical analyses were conducted using Prism 8 software version 8.4.3 (GraphPad Software, La Jolla, CA, USA). Statistical significance was defined as p < 0.05.

3. Results

3.1. rTpiA Proteins with Site-Specific Substitution of Lysine Residues with Alanine Residues

To clarify which lysine residue in S. pneumoniae TpiA is responsible for binding to human plasminogen, we prepared 19 different rTpiA proteins with site-specific amino acid substitutions, in which lysine residues were replaced with alanine residues (Figure 1). The amino acid sequence of S. pneumoniae TpiA contains 18 lysine residues, three of which are located close to each other. We prepared site-specific substituted rTpiA proteins in which each lysine residue was replaced with an alanine, as well as a substituted rTpiA in which all three closely located lysines were replaced with alanines.

3.2. Binding of rTpiA Proteins with Site-Specific Substitutions to Human Plasminogen

The binding properties of 20 rTpiA proteins, including the wild-type rTpiA, to human plasminogen were qualitatively analyzed. Each rTpiA was subjected to SDS-PAGE analysis and stained with CBB to confirm that each band was approximately 27 kDa (Figure 2A). In the K85A and K252A mutants of rTpiA, the bands were slightly shifted upward. The cause of this is not clear, but several instances have been reported in which a single amino acid substitution can result in fluctuations in the swim position in SDS-PAGE [19,20,21]. At least we have confirmed that the DNA sequence is correct in all rTpiA. Plasminogen was applied to each rTpiA protein, and the bound plasminogen was detected by far-Western blotting; no clear band was observed in the substituted rTpiA K252A (Figure 2B).
The binding properties of each site-specific substituted rTpiA to plasminogen were quantitatively measured in two ways. Plasminogen was added to microtiter plates coated with each rTpiA protein, and the amount of bound plasminogen was indirectly quantified using ELISA (Figure 3). Most of the substituted rTpiA showed significantly reduced binding to plasminogen compared to that of the wild-type rTpiA. Among them, the substituted rTpiA K252A showed significantly lower binding to plasminogen than the other substituted rTpiA proteins (p < 0.0001).
The binding profiles of plasminogen to wild-type rTpiA and substituted rTpiA K252A were quantitatively analyzed by SPR (Figure 4). Human plasminogen is bound to wild-type rTpiA mounted on the biosensor in a dose-dependent manner (Figure 4A). The apparent binding rate (ka), dissociation rate (kd), and dissociation constant (KD) of plasminogen and wild-type rTpiA were ka = 4.34 × 103 1/Ms, kd = 3.75 × 10−3 1/s, and KD = 8.65 × 10−7 M, respectively. In contrast, plasminogen showed little binding to the substituted rTpiA K252A at the same dose (Figure 4B), and therefore, ka, kd, and KD were not calculated (Figure 4B).

3.3. The Site-Specific Substituted rTpiA, Which Does Not Bind to Plasminogen, Does Not Promote Plasminogen Activation

In our previous studies, we discovered that the addition of rTpiA enhanced the activation of plasminogen by the activator tPA [8]. In this study, we investigated the effect of site-specific substitution of rTpiA, which no longer allows binding to plasminogen, on plasminogen activation. Plasminogen was activated by tPA; we observed a time-dependent increase in absorbance as the chromogenic plasmin substrate was degraded (Figure 5). As reported previously, pre-incubation of plasminogen with wild-type rTpiA led to a significant dose-dependent increase in tPA-induced plasminogen activation (Figure 5A). However, when plasminogen was pre-incubated with substituted rTpiA K252A, plasminogen activation by tPA was not promoted (Figure 5B). We used BSA as a control, which did not promote plasminogen activation (Figure 5C). Based on our findings, we conclude that TpiA binds to plasminogen to facilitate plasminogen activation.

4. Discussion

After infectious agents infect humans, they cross physical barriers such as human epithelial cells and ECM and enter the bloodstream, becoming invasive and moving to their preferred location in the host tissue while evading the host’s effector system [22,23,24,25]. During this process, infected pathogens often utilize host proteins, including plasminogen [26,27,28]. Human plasminogen is recruited by the pathogen and further activated and converted to plasmin, a proteolytic enzyme that degrades host proteins such as ECM and cell junction proteins to facilitate invasion and colonization [22,29,30].
Human plasminogen has seven structural domains, each with distinct properties. The N-terminal portion of the molecule consists of an activating peptide followed by five repeating homologous triple disulfide-linked peptide regions called Kringles (K1–K5), which are approximately 80 amino acids long [31]. Human plasminogen binds to physiological ligands by recognizing exposed C-terminal lysine residues through the Kringle domain [32,33]. The binding strength of Kringle depends on the nature of the ligand; K1 and K4 show the strongest ligand affinity [31,34,35,36,37], whereas K2 has the weakest affinity [38]. K2 shows a strong affinity for an endopolypeptide derived from the streptococcal plasminogen receptor M protein, which was first found in S. pyrogenes [39,40].
Recognition of plasminogen by S. pneumoniae is postulated to involve multiple proteins (receptors) that function simultaneously. The expression of these proteins may be regulated by factors such as the phases of growth and infection, tissue localization, and the host immune response. In S. pneumoniae, several proteins, including α-enolase [33,41,42,43,44,45,46], glyceraldehyde-3-phosphate dehydrogenase (GAPDH) [47], choline-binding protein E (CbpE) [48], plasminogen- and fibronectin-binding protein B [49], endopeptidase O (PepO) [50], elongation factor Tu (Tuf) [51], phosphate kinase [52], and PspC [53] have been reported to have plasminogen-binding properties. We recently discovered that the proteins triosephosphate isomerase (TpiA) [8], ClpC, and UvrC [18] also have plasminogen-binding properties. In particular, TpiA was shown not only to have high plasminogen-binding affinity but also to promote plasminogen activation. The binding of TpiA to plasminogen is inhibited by EACA, suggesting that lysine residues in TpiA are involved in plasminogen binding [8]. In α-enolase, CbpE, PepO, and Tuf, the lysine residues within the protein molecule are involved in binding to plasminogen [41,43,48,50,51]. However, the plasminogen-binding site is not necessarily located at the C-terminus of the protein molecule. For example, in CbpE, the lysine residue that binds to plasminogen is located approximately one-third the distance from the N-terminus [48]. The plasminogen binding site of phosphate kinases is located at the N-terminus [52]. Of these enzymes, α-enolase is the most studied, in which a plasminogen-binding motif and a C-terminal lysine residue have been identified as being located in the middle. In octameric α-enolase, the binding motif is thought to make a more marked contribution to binding [43].
In this study, we produced 19 mutant recombinants (Figure 1) in which lysine residues in TpiA were replaced with alanine and analyzed their binding to plasminogen. For the preparation of rTpiA, the Brevibacillus expression system was used because it is a Gram-positive bacterium, such as S. pneumoniae, and because the recombinant protein is easily purified. Three different analyses (far-WB, ELISA, and SPR measurement) showed that rTpiA K252A exhibited significantly lower binding to plasminogen than the other mutant recombinants (Figure 2, Figure 3 and Figure 4). This lysine residue is the C-terminal amino acid of TpiA, and its involvement in binding to plasminogen is consistent with the results of previous studies on pneumococcal α-enolase [41]. Furthermore, we found that TpiA K252A, which lost its ability to bind plasminogen, also lost its ability to promote the activation of plasminogen to plasmin (Figure 5). Therefore, our results suggest that while TpiA promotes activator-induced activation of plasminogen to plasmin, binding to plasminogen is essential for this activation. It will be interesting to see the extent to which TpiA actually contributes to plasminogen binding and its activation when S. pneumoniae infects the host. However, because TpiA is an enzyme essential for growth, it was not possible to generate the TpiA gene deletion mutant in S. pneumoniae. Instead, it may be possible to generate a strain with TpiA that carries a site-specific amino acid mutation; however, it is not easy to analyze the extent to which TpiA contributes to plasminogen binding because multiple molecules other than TpiA bind to plasminogen.
Note that a previous study has shown that the triosephosphate isomerase of S. aureus binds to plasminogen but inhibits plasminogen activation [17]. We compared the amino acid sequence of the triosephosphate isomerase homologue of S. pneumoniae with that of other Streptococcus species and S. aureus and found high identity in Streptococcus species (83.2–99.2%), but 58.1% identity in S. aureus [8]. This sequence difference may be responsible for the differences in interaction with plasminogen. As with TpiA in S. pneumoniae, the C-terminus of triosephosphate isomerase in S. aureus is also a lysine residue.
To identify pneumococcal proteins that contribute to infection, we collected bronchoalveolar lavage fluid from a mouse model of pneumococcal pneumonia and identified S. pneumoniae proteins using iTRAQ-MS/MS analysis [8]. Only 15 proteins were identified, many of which were endogenous molecules involved in metabolism. Among the proteins identified were α-enolase, GAPDH, Tuf, TpiA, ClpC, and UvrC, all of which have plasminogen-binding properties [8,18]. Although most of these proteins are intracellularly localized and do not have secretory or anchoring signals, they may perform other functions outside the cell or on the cell surface [54,55]. In S. pneumoniae, the release of intracellular proteins into the extracellular space is easily achieved because they undergo autolysis during the stationary phase of growth. Despite the fact that the genome of bacteria is small compared to that of eukaryotes and the number of protein molecules produced is small, a single protein molecule can have multiple functions and consequently utilize the functions of host molecules and host energy for infection and invasion, which may be a survival strategy acquired by bacteria through evolution.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/microorganisms11051198/s1, Figure S1: Original images of SDS-PAGE and CBB staining to detect substituted rTpiA proteins. Figure S2: Binding activity of wild-type rTpiA and the site-specific amino acid substitution rTpiA K252A to plasminogen measured by SPR (second and third experiments).

Author Contributions

Conceptualization, S.H. and Y.T.; methodology, S.H. and T.H.; validation, S.H. and H.D.; formal analysis, S.H. and H.D.; investigation, S.H., T.H. and Y.Y.; writing—original draft preparation, S.H.; writing—review and editing, Y.T.; supervision, Y.T.; project administration, S.H.; funding acquisition, S.H., T.H., H.D. and Y.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by JSPS KAKENHI, grant numbers 22K09923 to S.H., 22K17053 to T.H., 20K09903 to H.D., and 20H03858, 22K19614 to Y.T., Terumo Life Science Foundation 22-III1003 to Y.T., and Niigata University Interdisciplinary Research (U-go) Grant to S.H.

Data Availability Statement

All data are contained within the manuscript.

Acknowledgments

We thank Satomi Tsutsuura, Kazuki Suzuki, Maki Touma, and Tomoki Maekawa (Niigata University, Japan) for their expert advice on the experiments. We are also grateful to Hikaru Tamura, Toshihito Isono, Karin Sasagawa, Fumio Takizawa, and Rui Saito for their help in conducting this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Scelfo, C.; Menzella, F.; Fontana, M.; Ghidoni, G.; Galeone, C.; Facciolongo, N.C. Pneumonia and Invasive Pneumococcal Diseases: The Role of Pneumococcal Conjugate Vaccine in the Era of Multi-Drug Resistance. Vaccines 2021, 9, 420. [Google Scholar] [CrossRef]
  2. Tan, T.Q. Pediatric invasive pneumococcal disease in the United States in the era of pneumococcal conjugate vaccines. Clin. Microbiol. Rev. 2012, 25, 409–419. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Amblar, M.; Zaballos, Á.; de la Campa, A.G. Role of PatAB Transporter in Efflux of Levofloxacin in Streptococcus pneumoniae. Antibiotics 2022, 11, 1837. [Google Scholar] [CrossRef] [PubMed]
  4. O’Brien, K.L.; Wolfson, L.J.; Watt, J.P.; Henkle, E.; Deloria-Knoll, M.; McCall, N.; Lee, E.; Mulholland, K.; Levine, O.S.; Cherian, T.; et al. Burden of disease caused by Streptococcus pneumoniae in children younger than 5 years: Global estimates. Lancet 2009, 374, 893–902. [Google Scholar] [CrossRef] [PubMed]
  5. Fan, S.; Duan, N.; Chen, W.; Zhao, X.; Wang, L.; Du, P.; Guo, J. Genomic epidemiology of Streptococcus pneumoniae isolated in a tertiary hospital in Beijing, China, from 2018 to 2022. Pathogens 2023, 12, 284. [Google Scholar] [CrossRef]
  6. Eberhard, T.; Kronvall, G.; Ullberg, M. Surface bound plasmin promotes migration of Streptococcus pneumoniae through reconstituted basement membranes. Microb. Pathog. 1999, 26, 175–181. [Google Scholar] [CrossRef]
  7. Kuusela, P.; Ullberg, M.; Saksela, O.; Kronvall, G. Tissue-type plasminogen activator-mediated activation of plasminogen on the surface of group A, C, and G streptococci. Infect. Immun. 1992, 60, 196–201. [Google Scholar] [CrossRef][Green Version]
  8. Hirayama, S.; Domon, H.; Hiyoshi, T.; Isono, T.; Tamura, H.; Sasagawa, K.; Takizawa, F.; Terao, Y. Triosephosphate isomerase of Streptococcus pneumoniae is released extracellularly by autolysis and binds to host plasminogen to promote its activation. FEBS Open Bio 2022, 12, 1206–1219. [Google Scholar] [CrossRef]
  9. Rodríguez-Bolaños, M.; Perez-Montfort, R. Medical and veterinary importance of the moonlighting functions of triosephosphate isomerase. Curr. Protein Pept. Sci. 2019, 20, 304–315. [Google Scholar] [CrossRef]
  10. Roland, B.P.; Stuchul, K.A.; Larsen, S.B.; Amrich, C.G.; Vandemark, A.P.; Celotto, A.M.; Palladino, M.J. Evidence of a triosephosphate isomerase non-catalytic function crucial to behavior and longevity. J. Cell Sci. 2013, 126, 3151–3158. [Google Scholar] [CrossRef][Green Version]
  11. Roland, B.P.; Zeccola, A.M.; Larsen, S.B.; Amrich, C.G.; Talsma, A.D.; Stuchul, K.A.; Heroux, A.; Levitan, E.S.; VanDemark, A.P.; Palladino, M.J. Structural and genetic studies demonstrate neurologic dysfunction in triosephosphate isomerase deficiency is associated with impaired synaptic vesicle dynamics. PLoS Genet. 2016, 12, e1005941. [Google Scholar] [CrossRef][Green Version]
  12. Kawabata, S.; Tamura, Y.; Murakami, J.; Terao, Y.; Nakagawa, I.; Hamada, S. A novel, anchorless streptococcal surface protein that binds to human immunoglobulins. Biochem. Biophys. Res. Commun. 2002, 296, 1329–1333. [Google Scholar] [CrossRef] [PubMed]
  13. Hirayama, S.; Nakao, R. Glycine significantly enhances bacterial membrane vesicle production: A powerful approach for isolation of LPS-reduced membrane vesicles of probiotic Escherichia coli. Microb. Biotechnol. 2020, 13, 1162–1178. [Google Scholar] [CrossRef] [PubMed]
  14. Miranda-Ozuna, J.F.; Hernández-García, M.S.; Brieba, L.G.; Benítez-Cardoza, C.G.; Ortega-López, J.; González-Robles, A.; Arroyo, R. The Glycolytic enzyme triosephosphate isomerase of trichomonas vaginalis is a surface-associated protein induced by glucose that functions as a laminin- and fibronectin-binding protein. Infect. Immun. 2016, 84, 2878–2894. [Google Scholar] [CrossRef] [PubMed][Green Version]
  15. Terao, Y.; Mori, Y.; Yamaguchi, M.; Shimizu, Y.; Ooe, K.; Hamada, S.; Kawabata, S. Group A streptococcal cysteine protease degrades C3 (C3b) and contributes to evasion of innate immunity. J. Biol. Chem. 2008, 283, 6253–6260. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Nagai, K.; Domon, H.; Maekawa, T.; Oda, M.; Hiyoshi, T.; Tamura, H.; Yonezawa, D.; Arai, Y.; Yokoji, M.; Tabeta, K.; et al. Pneumococcal DNA-binding proteins released through autolysis induce the production of proinflammatory cytokines via toll-like receptor 4. Cell. Immunol. 2018, 325, 14–22. [Google Scholar] [CrossRef]
  17. Furuya, H.; Ikeda, R. Interaction of triosephosphate isomerase from Staphylococcus aureus with plasminogen. Microbiol. Immunol. 2011, 55, 855–862. [Google Scholar] [CrossRef]
  18. Hirayama, S.; Yasui, Y.; Sasagawa, K.; Domon, H.; Terao, Y. Pneumococcal proteins ClpC and UvrC as novel host plasminogen binding factors. Microbiol. Immunol. 2022, 67, 99–104. [Google Scholar] [CrossRef]
  19. de Jong, W.W.; Zweers, A.; Cohen, L.H. Influence of single amino acid substitutions on electrophoretic mobility of sodium dodecyl sulfate-protein complexes. Biochem. Biophys. Res. Commun. 1978, 82, 532–539. [Google Scholar] [CrossRef]
  20. Strauss, E.G.; Kaesberg, P. Acrylamide gel electrophoresis of bacteriophage Q beta: Electrophoresis of the intact virions and of the viral proteins. Virology 1970, 42, 437–452. [Google Scholar] [CrossRef]
  21. Noel, D.; Nikaido, K.; Ames, G.F. A single amino acid substitution in a histidine-transport protein drastically alters its mobility in sodium dodecyl sulfate-polyacrylamide gel electrophoresis. Biochemistry 1979, 18, 4159–4165. [Google Scholar] [CrossRef] [PubMed]
  22. Ayón-Núñez, D.A.; Fragoso, G.; Bobes, R.J.; Laclette, J.P. Plasminogen-binding proteins as an evasion mechanism of the host’s innate immunity in infectious diseases. Biosci. Rep. 2018, 38, BSR20180705. [Google Scholar] [CrossRef][Green Version]
  23. Figuera, L.; Gómez-Arreaza, A.; Avilán, L. Parasitism in optima forma: Exploiting the host fibrinolytic system for invasion. Acta Trop. 2013, 128, 116–123. [Google Scholar] [CrossRef] [PubMed]
  24. Raymond, B.B.; Djordjevic, S. Exploitation of plasmin(ogen) by bacterial pathogens of veterinary significance. Vet. Microbiol. 2015, 178, 1–13. [Google Scholar] [CrossRef] [PubMed]
  25. González-Miguel, J.; Siles-Lucas, M.; Kartashev, V.; Morchón, R.; Simón, F. Plasmin in Parasitic Chronic Infections: Friend or Foe? Trends Parasitol. 2016, 32, 325–335. [Google Scholar] [CrossRef] [PubMed]
  26. Counihan, N.A.; Chisholm, S.A.; Bullen, H.E.; Srivastava, A.; Sanders, P.R.; Jonsdottir, T.K.; Weiss, G.E.; Ghosh, S.; Crabb, B.S.; Creek, D.J.; et al. parasites deploy RhopH2 into the host erythrocyte to obtain nutrients, grow and replicate. elife 2017, 6, e23217. [Google Scholar] [CrossRef]
  27. Navarrete-Perea, J.; Toledano-Magaña, Y.; De la Torre, P.; Sciutto, E.; Bobes, R.J.; Soberón, X.; Laclette, J.P. Role of porcine serum haptoglobin in the host-parasite relationship of Taenia solium cysticercosis. Mol. Biochem. Parasitol. 2016, 207, 61–67. [Google Scholar] [CrossRef] [PubMed]
  28. Aldridge, J.R.; Jennette, M.A.; Kuhn, R.E. Uptake and secretion of host proteins by Taenia crassiceps metacestodes. J. Parasitol. 2006, 92, 1101–1102. [Google Scholar] [CrossRef]
  29. Salazar, N.; Souza, M.C.; Biasioli, A.G.; Silva, L.B.; Barbosa, A.S. The multifaceted roles of Leptospira enolase. Res. Microbiol. 2017, 168, 157–164. [Google Scholar] [CrossRef]
  30. Hsiao, K.C.; Shih, N.Y.; Fang, H.L.; Huang, T.S.; Kuo, C.C.; Chu, P.Y.; Hung, Y.M.; Chou, S.W.; Yang, Y.Y.; Chang, G.C.; et al. Surface α-enolase promotes extracellular matrix degradation and tumor metastasis and represents a new therapeutic target. PLoS ONE 2013, 8, e69354. [Google Scholar] [CrossRef]
  31. Bhattacharya, S.; Ploplis, V.A.; Castellino, F.J. Bacterial plasminogen receptors utilize host plasminogen system for effective invasion and dissemination. J. Biomed. Biotechnol. 2012, 2012, 482096. [Google Scholar] [CrossRef][Green Version]
  32. Plow, E.F.; Herren, T.; Redlitz, A.; Miles, L.A.; Hoover-Plow, J.L. The cell biology of the plasminogen system. FASEB J. 1995, 9, 939–945. [Google Scholar] [CrossRef]
  33. Ehinger, S.; Schubert, W.D.; Bergmann, S.; Hammerschmidt, S.; Heinz, D.W. Plasmin(ogen)-binding alpha-enolase from Streptococcus pneumoniae: Crystal structure and evaluation of plasmin(ogen)-binding sites. J. Mol. Biol. 2004, 343, 997–1005. [Google Scholar] [CrossRef]
  34. Sehl, L.C.; Castellino, F.J. Thermodynamic properties of the binding of alpha-, omega-amino acids to the isolated kringle 4 region of human plasminogen as determined by high sensitivity titration calorimetry. J. Biol. Chem. 1990, 265, 5482–5486. [Google Scholar] [CrossRef]
  35. Menhart, N.; Sehl, L.C.; Kelley, R.F.; Castellino, F.J. Construction, expression, and purification of recombinant kringle 1 of human plasminogen and analysis of its interaction with omega-amino acids. Biochemistry 1991, 30, 1948–1957. [Google Scholar] [CrossRef] [PubMed]
  36. Menhart, N.; McCance, S.G.; Sehl, L.C.; Castellino, F.J. Functional independence of the kringle 4 and kringle 5 regions of human plasminogen. Biochemistry 1993, 32, 8799–8806. [Google Scholar] [CrossRef] [PubMed]
  37. Menhart, N.; Castellino, F.J. The importance of the hydrophobic components of the binding energies in the interaction of omega-amino acid ligands with isolated kringle polypeptide domains of human plasminogen. Int. J. Pept. Protein Res. 1995, 46, 464–470. [Google Scholar] [CrossRef]
  38. Marti, D.N.; Schaller, J.; Llinás, M. Solution structure and dynamics of the plasminogen kringle 2-AMCHA complex: 3(1)-helix in homologous domains. Biochemistry 1999, 38, 15741–15755. [Google Scholar] [CrossRef] [PubMed]
  39. Wistedt, A.C.; Kotarsky, H.; Marti, D.; Ringdahl, U.; Castellino, F.J.; Schaller, J.; Sjöbring, U. Kringle 2 mediates high affinity binding of plasminogen to an internal sequence in streptococcal surface protein PAM. J. Biol. Chem. 1998, 273, 24420–24424. [Google Scholar] [CrossRef][Green Version]
  40. Berge, A.; Sjöbring, U. PAM, a novel plasminogen-binding protein from Streptococcus pyogenes. J. Biol. Chem. 1993, 268, 25417–25424. [Google Scholar] [CrossRef]
  41. Bergmann, S.; Rohde, M.; Chhatwal, G.S.; Hammerschmidt, S. Alpha-Enolase of Streptococcus pneumoniae is a plasmin(ogen)-binding protein displayed on the bacterial cell surface. Mol. Microbiol. 2001, 40, 1273–1287. [Google Scholar] [CrossRef]
  42. Whiting, G.C.; Evans, J.T.; Patel, S.; Gillespie, S.H. Purification of native alpha-enolase from Streptococcus pneumoniae that binds plasminogen and is immunogenic. J. Med. Microbiol. 2002, 51, 837–843. [Google Scholar] [CrossRef] [PubMed][Green Version]
  43. Bergmann, S.; Wild, D.; Diekmann, O.; Frank, R.; Bracht, D.; Chhatwal, G.S.; Hammerschmidt, S. Identification of a novel plasmin(ogen)-binding motif in surface displayed alpha-enolase of Streptococcus pneumoniae. Mol. Microbiol. 2003, 49, 411–423. [Google Scholar] [CrossRef]
  44. Bergmann, S.; Rohde, M.; Chhatwal, G.S.; Hammerschmidt, S. Characterization of plasmin(ogen) binding to Streptococcus pneumoniae. Indian J. Med. Res. 2004, 119, 29–32. [Google Scholar] [PubMed]
  45. Kolberg, J.; Aase, A.; Bergmann, S.; Herstad, T.K.; Rødal, G.; Frank, R.; Rohde, M.; Hammerschmidt, S. Streptococcus pneumoniae enolase is important for plasminogen binding despite low abundance of enolase protein on the bacterial cell surface. Microbiology 2006, 152, 1307–1317. [Google Scholar] [CrossRef][Green Version]
  46. Mori, Y.; Yamaguchi, M.; Terao, Y.; Hamada, S.; Ooshima, T.; Kawabata, S. α-Enolase of Streptococcus pneumoniae induces formation of neutrophil extracellular traps. J. Biol. Chem. 2012, 287, 10472–10481. [Google Scholar] [CrossRef] [PubMed][Green Version]
  47. Bergmann, S.; Rohde, M.; Hammerschmidt, S. Glyceraldehyde-3-phosphate dehydrogenase of Streptococcus pneumoniae is a surface-displayed plasminogen-binding protein. Infect. Immun. 2004, 72, 2416–2419. [Google Scholar] [CrossRef][Green Version]
  48. Attali, C.; Frolet, C.; Durmort, C.; Offant, J.; Vernet, T.; Di Guilmi, A.M. Streptococcus pneumoniae choline-binding protein E interaction with plasminogen/plasmin stimulates migration across the extracellular matrix. Infect. Immun. 2008, 76, 466–476. [Google Scholar] [CrossRef][Green Version]
  49. Papasergi, S.; Garibaldi, M.; Tuscano, G.; Signorino, G.; Ricci, S.; Peppoloni, S.; Pernice, I.; Lo Passo, C.; Teti, G.; Felici, F.; et al. Plasminogen- and fibronectin-binding protein B is involved in the adherence of Streptococcus pneumoniae to human epithelial cells. J. Biol. Chem. 2010, 285, 7517–7524. [Google Scholar] [CrossRef][Green Version]
  50. Agarwal, V.; Kuchipudi, A.; Fulde, M.; Riesbeck, K.; Bergmann, S.; Blom, A.M. Streptococcus pneumoniae endopeptidase O (PepO) is a multifunctional plasminogen- and fibronectin-binding protein, facilitating evasion of innate immunity and invasion of host cells. J. Biol. Chem. 2013, 288, 6849–6863. [Google Scholar] [CrossRef][Green Version]
  51. Mohan, S.; Hertweck, C.; Dudda, A.; Hammerschmidt, S.; Skerka, C.; Hallström, T.; Zipfel, P.F. Tuf of Streptococcus pneumoniae is a surface displayed human complement regulator binding protein. Mol. Immunol. 2014, 62, 249–264. [Google Scholar] [CrossRef] [PubMed]
  52. Fulde, M.; Bernardo-García, N.; Rohde, M.; Nachtigall, N.; Frank, R.; Preissner, K.T.; Klett, J.; Morreale, A.; Chhatwal, G.S.; Hermoso, J.A.; et al. Pneumococcal phosphoglycerate kinase interacts with plasminogen and its tissue activator. Thromb. Haemost. 2014, 111, 401–416. [Google Scholar] [CrossRef] [PubMed][Green Version]
  53. Meinel, C.; Spartà, G.; Dahse, H.M.; Hörhold, F.; König, R.; Westermann, M.; Coldewey, S.M.; Cseresnyés, Z.; Figge, M.T.; Hammerschmidt, S.; et al. Streptococcus pneumoniae from patients with hemolytic uremic syndrome binds human plasminogen via the surface protein PspC and uses plasmin to damage human endothelial cells. J. Infect. Dis. 2018, 217, 358–370. [Google Scholar] [CrossRef] [PubMed][Green Version]
  54. Kainulainen, V.; Korhonen, T.K. Dancing to another tune-adhesive moonlighting proteins in bacteria. Biology 2014, 3, 178–204. [Google Scholar] [CrossRef] [PubMed][Green Version]
  55. Terao, Y.; Yamaguchi, M.; Hamada, S.; Kawabata, S. Multifunctional glyceraldehyde-3-phosphate dehydrogenase of Streptococcus pyogenes is essential for evasion from neutrophils. J. Biol. Chem. 2006, 281, 14215–14223. [Google Scholar] [CrossRef] [PubMed][Green Version]
Microorganisms 11 01198 g001

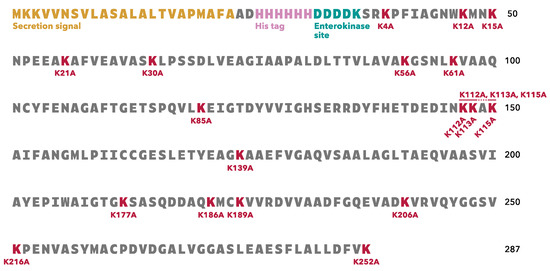

Figure 1. Amino acid sequence of rTpiA expressed by B. choshinensis in this study. The rTpiA contains a secretion signal, a His tag, and an enterokinase site.
Figure 1. Amino acid sequence of rTpiA expressed by B. choshinensis in this study. The rTpiA contains a secretion signal, a His tag, and an enterokinase site.
Microorganisms 11 01198 g001
Microorganisms 11 01198 g002

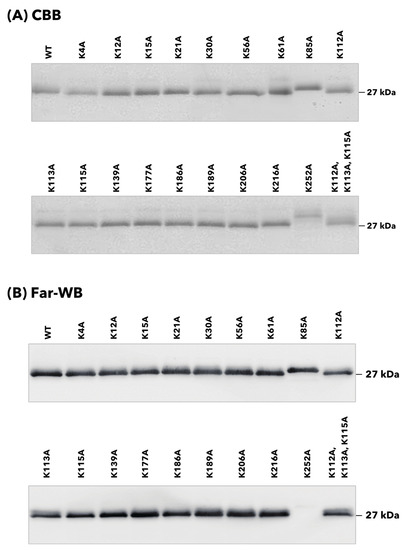

Figure 2. Binding analysis of site-specific amino acid-substituted rTpiA proteins to plasminogen by blot analysis. (A) Detection of substituted rTpiA proteins by SDS-PAGE and CBB staining. Each protein (400 ng) was subjected to SDS-PAGE and stained with CBB. The original, uncropped image is shown in Supplementary Figure S1. (B) Binding analysis of substituted rTpiA proteins to plasminogen by far-Western blotting. The detection of chemiluminescence from the enzymatic activity of HRP was performed with exposure times of 10 min.
Figure 2. Binding analysis of site-specific amino acid-substituted rTpiA proteins to plasminogen by blot analysis. (A) Detection of substituted rTpiA proteins by SDS-PAGE and CBB staining. Each protein (400 ng) was subjected to SDS-PAGE and stained with CBB. The original, uncropped image is shown in Supplementary Figure S1. (B) Binding analysis of substituted rTpiA proteins to plasminogen by far-Western blotting. The detection of chemiluminescence from the enzymatic activity of HRP was performed with exposure times of 10 min.
Microorganisms 11 01198 g002
Microorganisms 11 01198 g003

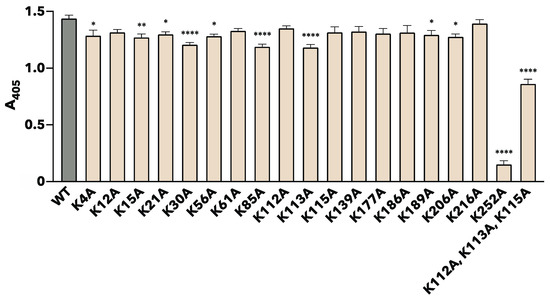

Figure 3. Binding analysis of site-specific amino acid-substituted rTpiA proteins to plasminogen by ELISA. After the addition of plasminogen to the wells of each rTpiA protein-coated microtiter plate, the bound plasminogen was detected using an anti-plasminogen antibody and an AP-conjugated secondary antibody. This result was measured 60 min after substrate addition. Error bars indicate the standard error (n = 9). Asterisks indicate significant differences from the WT group (* p < 0.05, ** p < 0.01, **** p < 0.0001, Dunnett’s multiple comparisons test).
Figure 3. Binding analysis of site-specific amino acid-substituted rTpiA proteins to plasminogen by ELISA. After the addition of plasminogen to the wells of each rTpiA protein-coated microtiter plate, the bound plasminogen was detected using an anti-plasminogen antibody and an AP-conjugated secondary antibody. This result was measured 60 min after substrate addition. Error bars indicate the standard error (n = 9). Asterisks indicate significant differences from the WT group (* p < 0.05, ** p < 0.01, **** p < 0.0001, Dunnett’s multiple comparisons test).
Microorganisms 11 01198 g003
Microorganisms 11 01198 g004

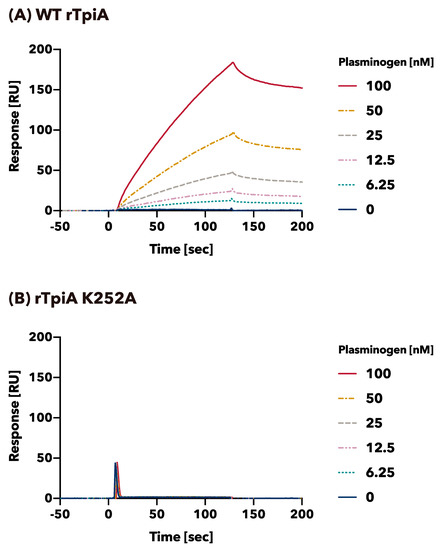

Figure 4. Binding activity of wild-type rTpiA and the site-specific amino acid substituted rTpiA K252A to plasminogen as measured by SPR. The binding of plasminogen to wild-type rTpiA (A) or substituted rTpiA K252A (B) was analyzed. The experiments were conducted at least three times, with results showing a similar trend. The results of the other two experiments performed using the identical chip are shown in Supplementary Figure S2.
Figure 4. Binding activity of wild-type rTpiA and the site-specific amino acid substituted rTpiA K252A to plasminogen as measured by SPR. The binding of plasminogen to wild-type rTpiA (A) or substituted rTpiA K252A (B) was analyzed. The experiments were conducted at least three times, with results showing a similar trend. The results of the other two experiments performed using the identical chip are shown in Supplementary Figure S2.
Microorganisms 11 01198 g004
Microorganisms 11 01198 g005

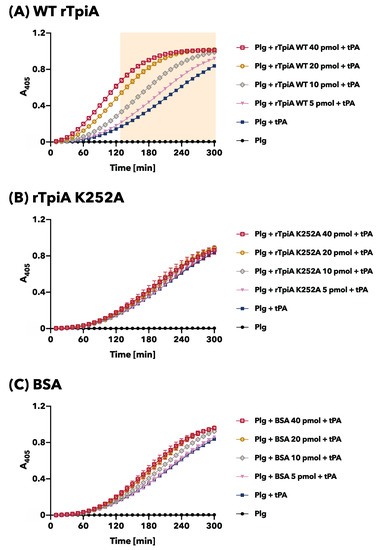

Figure 5. Plasminogen activation assay. Plasminogen was preincubated with wild-type rTpiA (A), the site-specific amino acid substituted rTpiA K252A (B), or BSA (C), and then tPA and the chromogenic substrate were added. The mixtures were incubated, and A405 was measured every 10 min. Error bars indicate standard error (n = 6). Filled background indicates areas that were significantly higher when preincubated with any dose of wild-type rTpiA compared to Plg + tPA (Dunnett’s multiple comparisons test).
Figure 5. Plasminogen activation assay. Plasminogen was preincubated with wild-type rTpiA (A), the site-specific amino acid substituted rTpiA K252A (B), or BSA (C), and then tPA and the chromogenic substrate were added. The mixtures were incubated, and A405 was measured every 10 min. Error bars indicate standard error (n = 6). Filled background indicates areas that were significantly higher when preincubated with any dose of wild-type rTpiA compared to Plg + tPA (Dunnett’s multiple comparisons test).
Microorganisms 11 01198 g005
Table 1. Primers used in this study. The lowercase letters in the forward primers indicate the sequence for replacing the lysine residue with an alanine residue (from AAA to GCT in the DNA sequence). The amino acid substitution positions (e.g., K4A) follow the number of amino acids in the original TpiA sequence of S. pneumoniae.
Table 1. Primers used in this study. The lowercase letters in the forward primers indicate the sequence for replacing the lysine residue with an alanine residue (from AAA to GCT in the DNA sequence). The amino acid substitution positions (e.g., K4A) follow the number of amino acids in the original TpiA sequence of S. pneumoniae.
Application Sequence (5′ to 3′)
K4AForwardgctCCATTTATCGCTGGTAACTGG
ReverseACGTGATTTGTCATCGTCATC
K12AForwardgctATGAACAAAAATCCAGAAGAAGC
ReverseCCAGTTACCAGCGATAAATGG
K15AForwardgctAATCCAGAAGAAGCTAAAGCATTC
ReverseGTTCATTTTCCAGTTACCAGCG
K21AForwardgctGCATTCGTTGAAGCAGTTG
ReverseAGCTTCTTCTGGATTTTTGTTC
K30AForwardgctCTTCCTTCATCAGATCTTGTTGAAG
ReverseTGATGCAACTGCTTCAACG
K56AForwardgctGGCTCAAACCTTAAAGTTGCTG
ReverseTGCAACAGCAAGAACAGTTGTC
K61AForwardCTTgctGTTGCTGCTCAAAACTGCTAC
ReverseGTTTGAGCCTTTTGCAACAG
K85AForwardgctGAAATCGGTACTGACTACGTTGTTATC
ReverseCAAAACTTGTGGGCTAGTTTCAC
K112AForwardgctAAAGCAAAAGCAATCTTTGCG
ReverseGTTGATATCTTCGTCAGTTTCATGG
K113AForwardgctGCAAAAGCAATCTTTGCGAAC
ReverseTTTGTTGATATCTTCGTCAGTTTCATG
K115AForwardgctGCAATCTTTGCGAACGG
ReverseTGCTTTTTTGTTGATATCTTCGTC
K139AForwardgctGCTGCTGAATTCGTAGGTGC
ReverseACCAGCTTCGTAAGTTTCAAGTG
K177AForwardgctTCAGCTTCACAAGACGATGC
ReverseACCAGTACCGATAGCCCAG
K186AForwardgctATGTGTAAAGTTGTTCGTGACGTTG
ReverseTTGTGCATCGTCTTGTGAAG
K189AForwardgctGTTGTTCGTGACGTTGTAGCTG
ReverseACACATTTTTTGTGCATCGTC
K206AForwardgctGTTCGTGTTCAATACGGTGG
ReverseGTCTGCGACTTCTTGACCAAAG
K216AForwardgctCCTGAAAATGTTGCTTCATACATG
ReverseAACAGAACCACCGTATTGAACAC
K252AForwardTAgctTAATCAGTAAGTAGC AAGCTTAACAGGATG
ReverseCAAAGTCAAGCAAAGCCAAGAAG
K112A, K113A, K115AForwardgctgctGCAgctGCAATCTTTGCGAACGGTATG
ReverseGTTGATATCTTCGTCAGTTTCATGG
SequencingForwardCGCGATATCAGGATTCGG
ReverseCAATGTAATTGTTCCCTACCTGC
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Hirayama, S.; Hiyoshi, T.; Yasui, Y.; Domon, H.; Terao, Y. C-Terminal Lysine Residue of Pneumococcal Triosephosphate Isomerase Contributes to Its Binding to Host Plasminogen. Microorganisms 2023, 11, 1198. https://doi.org/10.3390/microorganisms11051198

AMA Style

Hirayama S, Hiyoshi T, Yasui Y, Domon H, Terao Y. C-Terminal Lysine Residue of Pneumococcal Triosephosphate Isomerase Contributes to Its Binding to Host Plasminogen. Microorganisms. 2023; 11(5):1198. https://doi.org/10.3390/microorganisms11051198

Chicago/Turabian Style

Hirayama, Satoru, Takumi Hiyoshi, Yoshihito Yasui, Hisanori Domon, and Yutaka Terao. 2023. "C-Terminal Lysine Residue of Pneumococcal Triosephosphate Isomerase Contributes to Its Binding to Host Plasminogen" Microorganisms 11, no. 5: 1198. https://doi.org/10.3390/microorganisms11051198

APA Style

Hirayama, S., Hiyoshi, T., Yasui, Y., Domon, H., & Terao, Y. (2023). C-Terminal Lysine Residue of Pneumococcal Triosephosphate Isomerase Contributes to Its Binding to Host Plasminogen. Microorganisms, 11(5), 1198. https://doi.org/10.3390/microorganisms11051198

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
