# A Comparison Study of a Novel Self-Contained Electro-Hydraulic Cylinder versus a Conventional Valve-Controlled Actuator—Part 1: Motion Control

^{*}

## Abstract

**:**

## 1. Introduction

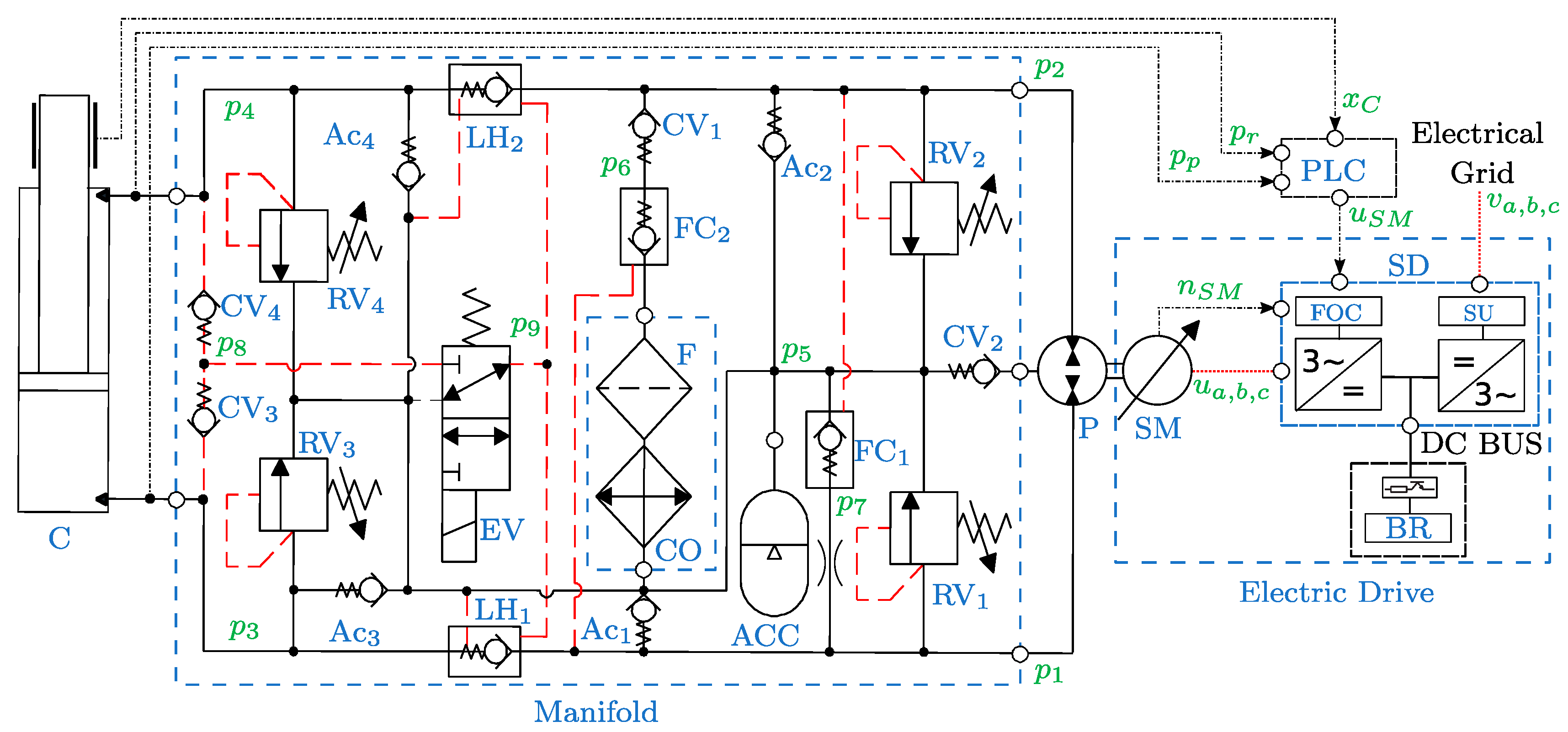

## 2. The Self-Contained Electro-Hydraulic Cylinder

_{1}and FC

_{2}, the check valves Ac

_{1}and Ac

_{2}, and the check valve CV

_{1}. The pilot-operated check valves LH

_{1}and LH

_{2}are used for passive load-holding purposes by isolating the cylinder when the 3/2 electro-valve (EV) is not actuated. The EV must be activated to enable the actuator motion, resulting in transferring the highest cylinder pressure, selected through the CV

_{3}and CV

_{4}, into the opening pilot line of LH

_{1}and LH

_{2}. Anti-cavitation valves (Ac

_{3}and Ac

_{4}) are installed between the actuator sides and the ACC to avoid cavitation in the cylinder chambers. Pressure-relief valves (RV

_{1}–RV

_{4}) on both pump ports and on both cylinder ports avoid over-pressurizations. Finally, a cooler (CO) and a low-pressure filter (F) complete the hydraulics.

#### 2.1. Nonlinear Model of the System

^{®}. Since the SCC used in this application only operates in two quadrants, the rod-side chamber is always connected to the low-pressure accumulator as visible in Figure 2b. (It is assumed that the 3/2 electro-valve is energized to enable motion).

#### 2.2. Linear Model of the System

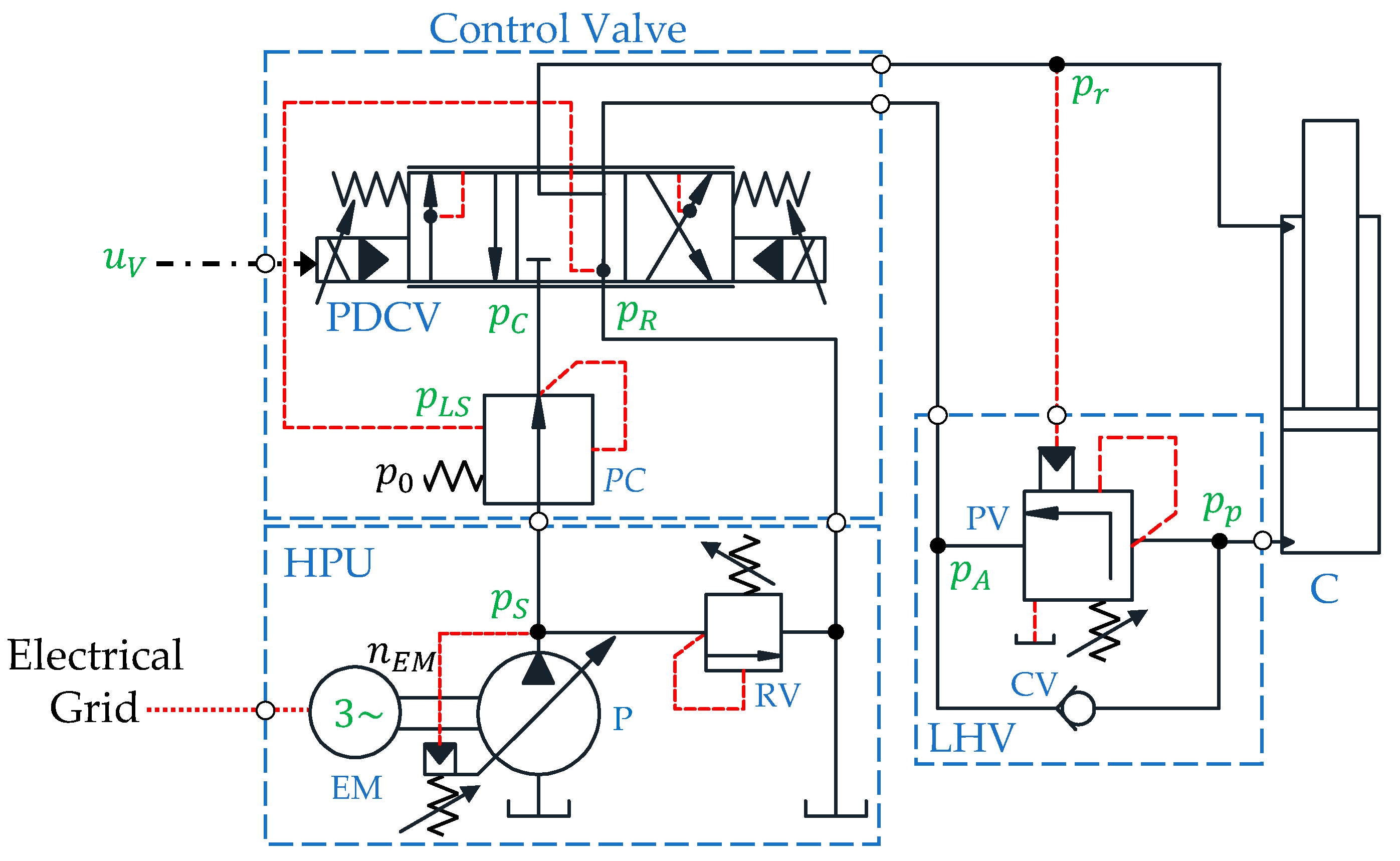

## 3. The Valve-Controlled System

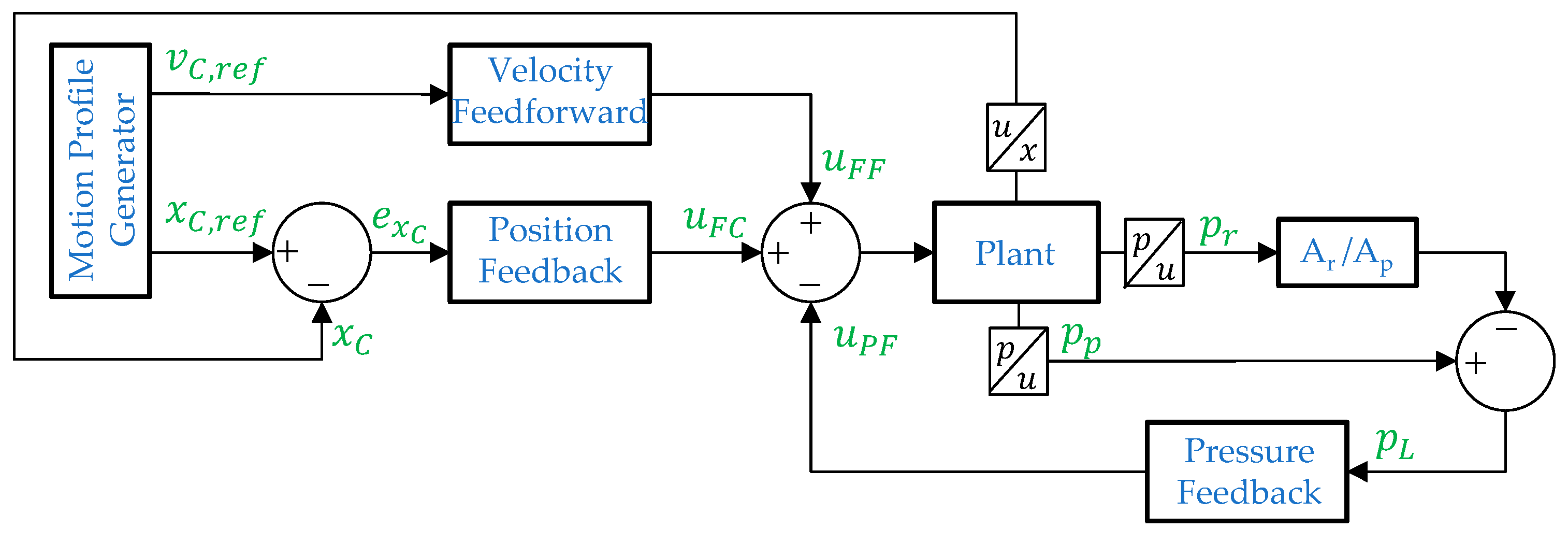

## 4. The Control Design

#### 4.1. Control Parameters for the Self-Contained Electro-Hydraulic Cylinder

#### 4.2. Control Parameters for the Valve-Controlled System

## 5. Results and Discussion

#### 5.1. Closed-Loop Step Response

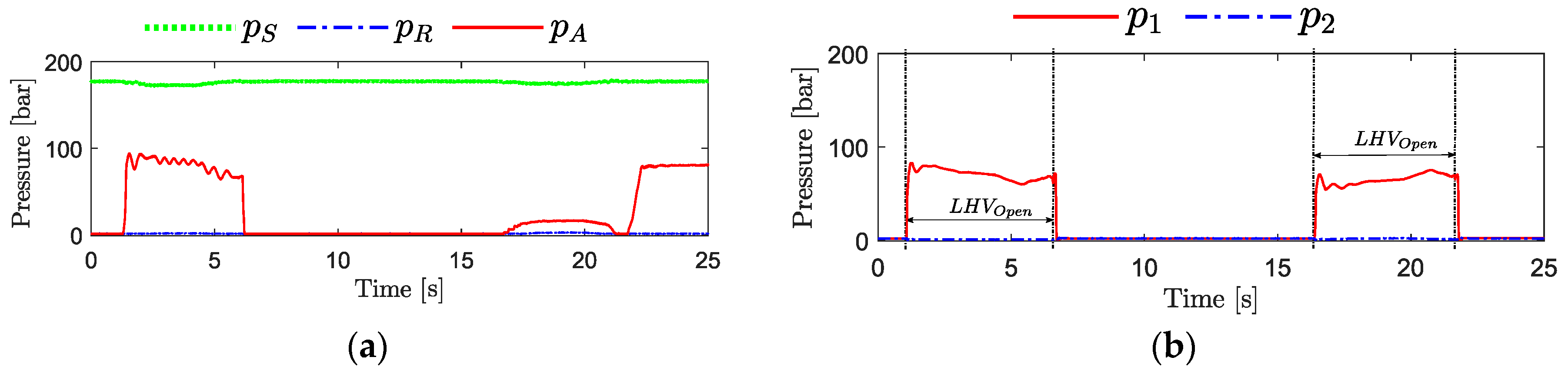

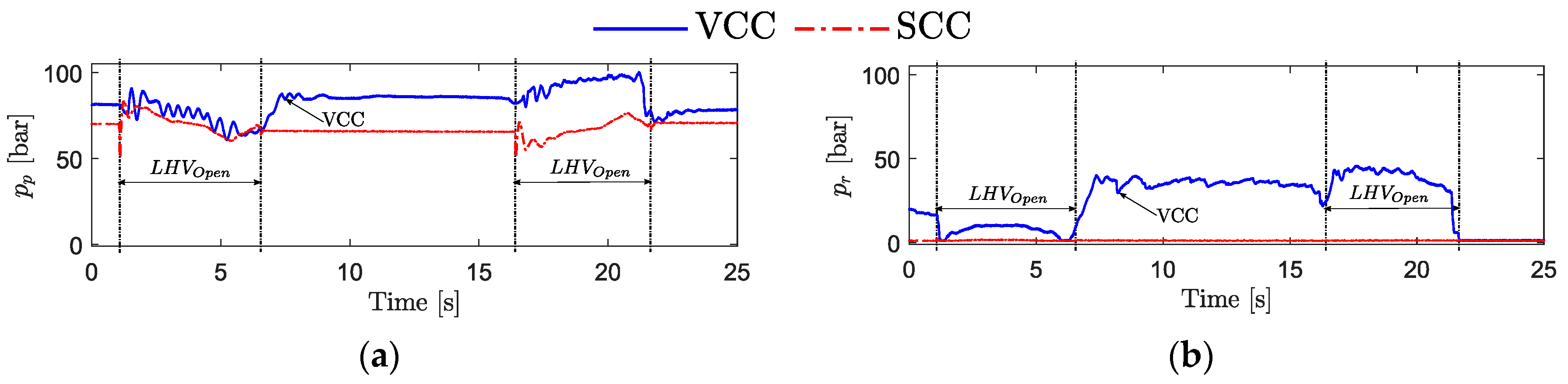

#### 5.2. Representative Working Cycle

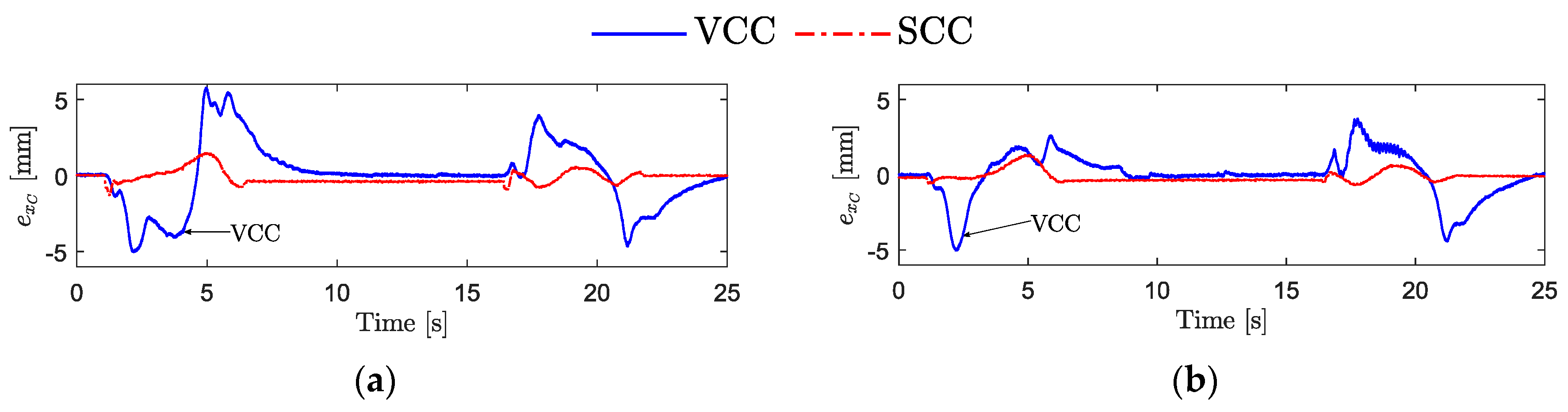

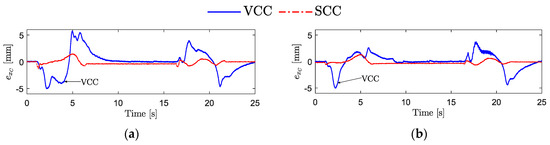

#### 5.3. Scenarios with Reduced Payload

## 6. Conclusions

- The SCC achieves significantly better position tracking (up to 66% less tracking error and 61% less overshoot) and faster response (i.e., 10 ms faster rise time and 75% faster settling time);
- The active pressure feedback in the SCC reduces the pressure oscillations more effectively since the electric drive has about 95% higher bandwidth than the control valve.

## Author Contributions

## Funding

## Conflicts of Interest

## Nomenclature

Abbreviations | |

AC | Alternating current |

ACC | Accumulator |

Ac | Anti-cavitation valve |

ALH | Active load-holding |

AV | Auxiliary valves |

BR | Brake resistor |

C | Hydraulic cylinder |

CO | Oil cooler |

CV | Check valve |

DC | Direct current |

ED | Electric drive |

EM | Electric motor |

EV | Electro-valve |

F | Low pressure oil filter |

FC | Flow compensation valve |

FOC | Field-oriented control |

Gm | Gain margin |

HPU | Hydraulic power unit |

HS | Hydraulic system |

LHV | Load-holding valve |

P | Axial piston machine (pump) |

PC | Pressure compensator |

PDCV | Proportional directional control valve |

PI | Proportional and integral |

PLC | Programmable logic controller |

PLH | Passive load-holding |

PV | Poppet valve |

PWM | Pulse-width modulation |

RMS | Root mean square |

RV | Pressure-relief valve |

SBC | Single-boom crane |

SCC | Self-contained electro-hydraulic cylinder |

SD | Servo-drive |

SM | Servo-motor |

SU | Supply unit |

V | Control valve |

VCC | Valve-controlled cylinder |

Symbols | |

${A}_{p}$ | Cylinder area on the piston-side |

${A}_{r}$ | Cylinder area on the rod-side |

$B$ | Viscous friction coefficient |

${C}_{p}$ | Piston-side capacitance |

${C}_{r}$ | Rod-side capacitance |

${D}_{p}$ | Pump displacement |

${e}_{{x}_{C}}$ | Actuator’s piston position error |

${K}_{D}$ | Gain of the mechanical-hydraulic system including direct pressure feedback |

${k}_{f,D}$ | Gain of the direct pressure feedback |

${k}_{f,HP}$ | Gain of the high-pass filtered pressure feedback |

${K}_{MH}$ | Gain of the uncompensated mechanical-hydraulic system |

${k}_{L}$ | Combined leakage flow gain |

${k}_{I}$ | Integral controller gain |

${k}_{q}$ | Pump flow gain |

${k}_{P}$ | Proportional controller gain |

${M}_{eq}$ | Equivalent mass |

${n}_{SM}$ | Rotational speed of the servo-motor in revolutions per minute |

${Q}_{C,\mathrm{L}}$ | Internal leakage in the hydraulic cylinder |

${Q}_{P}$ | Actuator’s flow demand |

${Q}_{P,e}$ | Effective pump flow |

${Q}_{r}$ | Rod-side flow |

${Q}_{S}$ | Pump’s flow losses |

${p}_{0}$ | Fixed pressure-drop across the proportional directional control valve |

${p}_{1}$ | Piston-side pump pressure |

${p}_{2}$ | Rod-side pump pressure |

${p}_{AC,0}$ | Pre-charge pressure of the accumulator |

${p}_{LS}$ | Load-sensing pressure |

${p}_{p}$ | Actuator’s piston chamber pressure |

${p}_{r}$ | Actuator’s rod chamber pressure |

${p}_{R}$ | Return pressure |

${p}_{S}$ | Supply pressure |

${u}_{ED}$ | On/off command to enable power to the servo-motor |

${u}_{EV}$ | On/off command to open or close the 3/2 electro-valve |

${u}_{\mathrm{FC}}$ | Position feedback control signal |

${u}_{FF}$ | Velocity feedforward control signal |

${u}_{\mathrm{PF}}$ | Pressure feedback control signal |

${u}_{SM}$ | Commanded servo-motor speed |

${u}_{V}$ | Commanded opening of the control valve’s spool position |

${V}_{AC,0}$ | Effective accumulator gas volume |

${v}_{C}$ | Actuator’s piston velocity |

${v}_{C,ref}$ | Actuator’s piston velocity reference command |

${V}_{p,0}$ | Transmission lines’ volumes between the pump and the piston-side chamber |

${V}_{r,0}$ | Transmission lines’ volumes between the pump and the rod-side chamber |

${x}_{C}$ | Actuator’s piston position |

${x}_{C,0}$ | Actuator’s initial piston position |

${x}_{C,ref}$ | Actuator’s piston position reference command |

Greek symbols | |

$\beta $ | Constant bulk modulus of the hydraulic fluid |

${\kappa}_{air}$ | Adiabatic air constant |

${\tau}_{f,HP}$ | Time constant of the high-pass filtered pressure feedback |

${\varphi}_{m}$ | Phase angle |

${\omega}_{gc}$ | Gain cross over frequency |

${\omega}_{n,D}$ | Natural-frequency of mechanical-hydraulic system including direct pressure feedback |

${\omega}_{n,ED}$ | Natural-frequency of the electric drive |

${\omega}_{n,MH}$ | Natural-frequency of the uncompensated mechanical-hydraulic system |

${\omega}_{pc}$ | Phase cross over frequency |

${\omega}_{SM}$ | Angular velocity of the servo-motor in radians per second |

${\zeta}_{D}$ | Damping ratio of the mechanical-hydraulic system including direct pressure feedback |

${\zeta}_{ED}$ | Damping ratio of the electric drive |

${\zeta}_{MH}$ | Damping ratio of the uncompensated mechanical-hydraulic system |

${\zeta}_{3}$ | Damping ratio of the complex conjugate pole pair in the transfer function ${G}_{3,HP}\left(s\right)$ |

## Appendix A

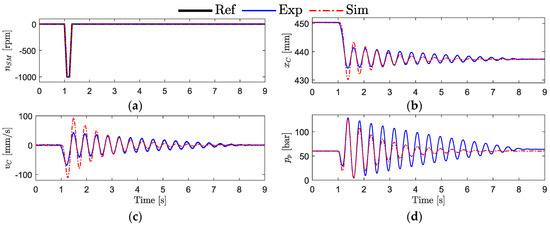

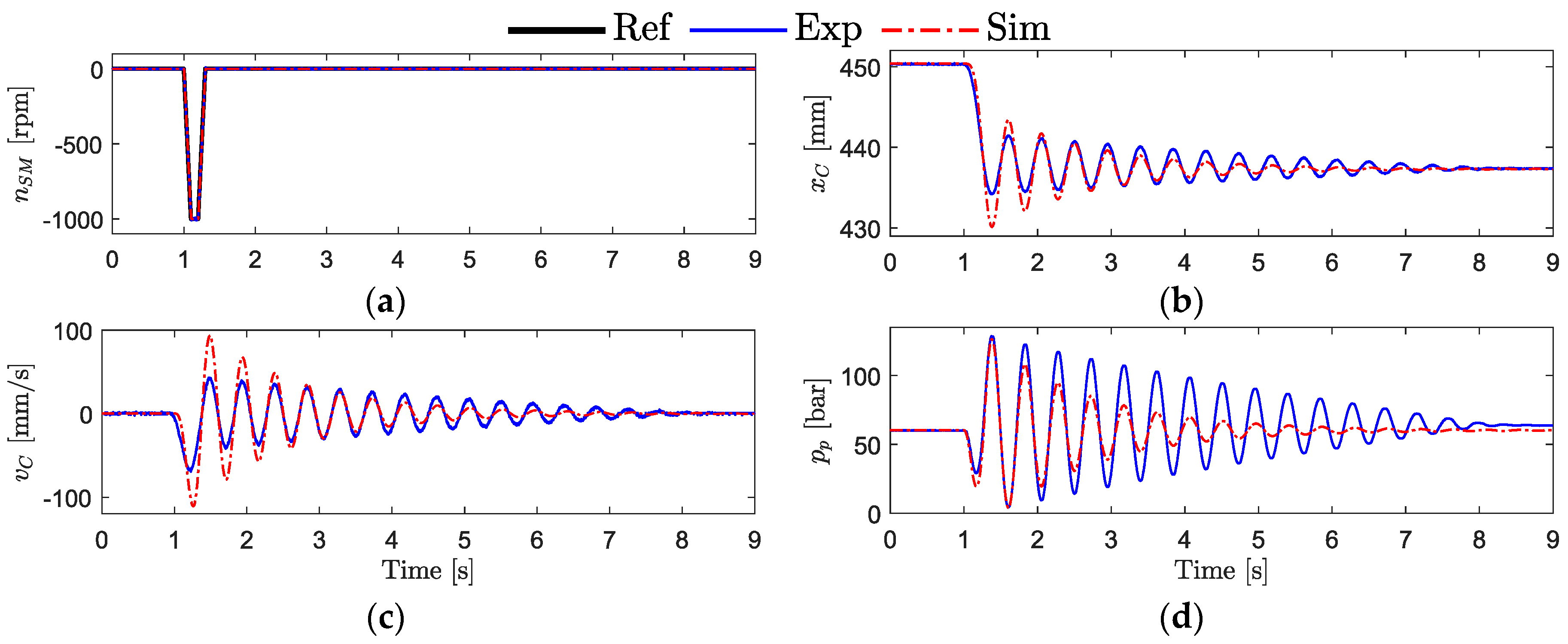

**Figure A1.**Open-loop validation of the linear system model: (

**a**) commanded, simulated, and measured speed of the servo-motor; (

**b**) simulated and measured piston position; (

**c**) simulated and estimated piston velocity; and (

**d**) simulated and measured piston chamber pressure.

Parameter | Value | Parameter | Value |
---|---|---|---|

${\omega}_{n,ED}$ | $550\text{}(\mathrm{rad}/\mathrm{s})$ | ${V}_{p,0}$ | $0.88\cdot {10}^{-3}\text{}({\mathrm{m}}^{3})$ |

${\zeta}_{ED}$ | $0.8$ | ${k}_{L}$ | $1.00\cdot {10}^{-15}\text{}({\mathrm{m}}^{3}$/$(\mathrm{s}\cdot \mathrm{Pa}))$ |

${k}_{q}$ | $2.17\cdot {10}^{-7}\text{}({\mathrm{m}}^{3}/(\mathrm{s}\cdot \mathrm{rpm}))$ | ${A}_{p}$ | $0.0033\text{}({\mathrm{m}}^{2})$ |

${C}_{p}$ | $3.60\cdot {10}^{-12}\text{}({\mathrm{m}}^{3}/\mathrm{Pa})$ | $B$ | $22500\text{}(\mathrm{N}\cdot \mathrm{s}/\mathrm{m})$ |

$\beta $ | $6600\cdot {10}^{5}\text{}(\mathrm{Pa})$ | ${M}_{eq}$ | $15500\text{}(\mathrm{kg})$ |

## Appendix B

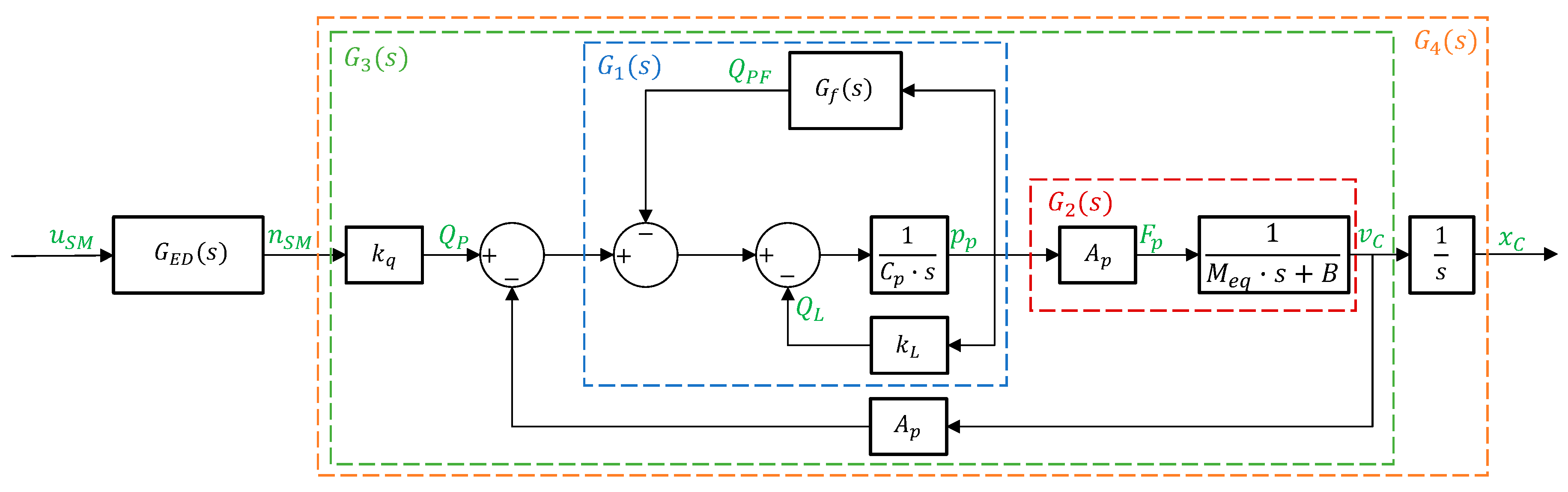

**Figure A2.**A function block representing the modified plant model that includes the pressure feedback.

#### Appendix B.1. Direct Pressure Feedback

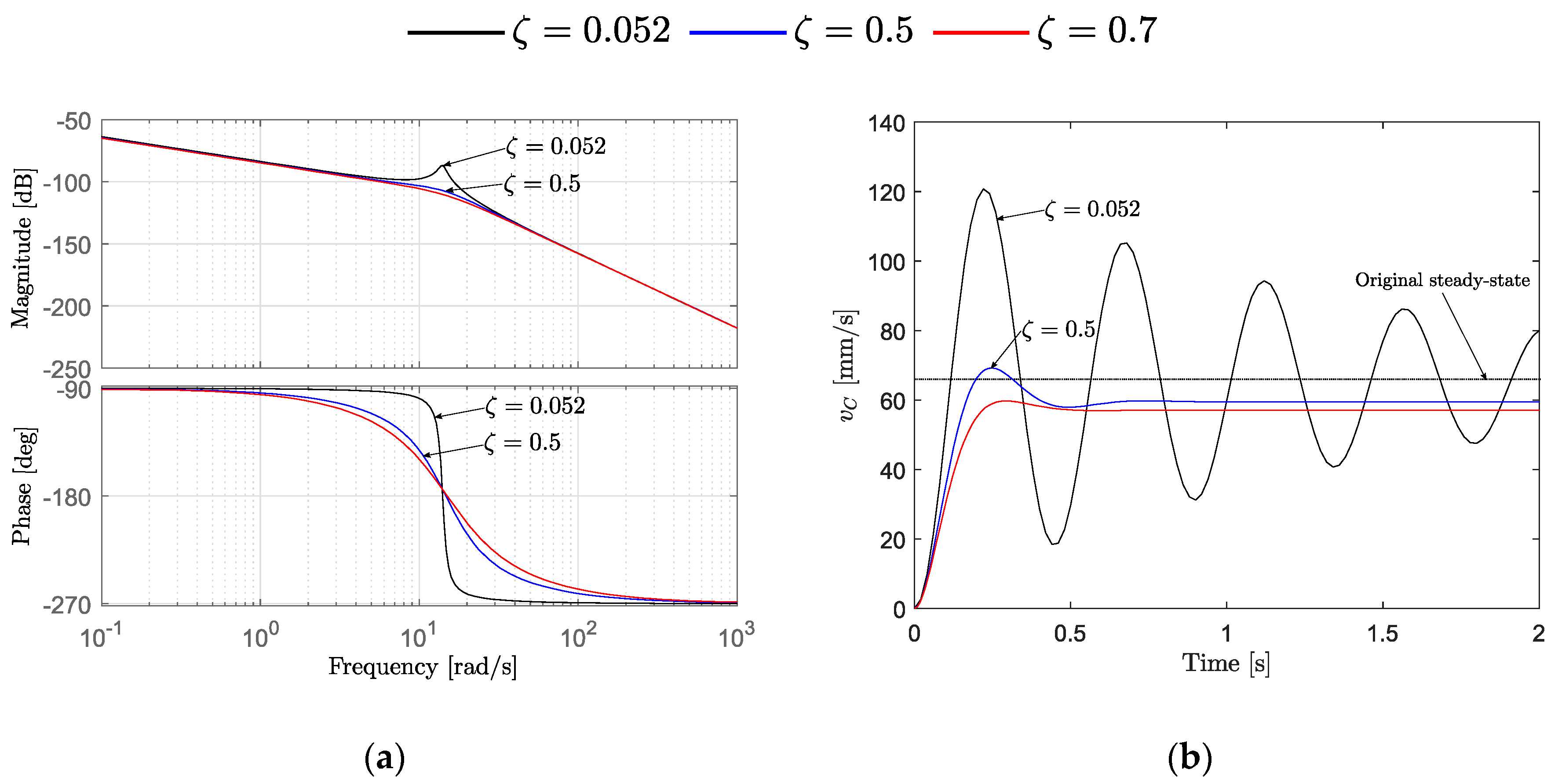

**Figure A3.**The effect of different damping ratios in comparison to the uncompensated system: (

**a**) Bode plots of ${G}_{4,D}\left(s\right)$ and ${G}_{{x}_{C}}\left(s\right)$; (

**b**) step response (${n}_{SM}=1000$ rpm) of ${G}_{3,D}\left(s\right)$ and ${G}_{{v}_{C}}\left(s\right)$.

$\zeta $ | Gm (dB) | ${\omega}_{gc}$ (rad/s) | Rise Time (s) | Settling Time (s) | Overshoot (mm/s) |

$0.052$ | $86.9$ | 14.0 | 0.077 | 5.39 | 85.02 |

$0.5$ | 108 | 14.7 | 0.11 | 0.55 | 16.29 |

$0.7$ | 111 | 15.0 | 0.14 | 0.40 | 4.59 |

#### Appendix B.2. High-Pass Filtered Pressure Feedback

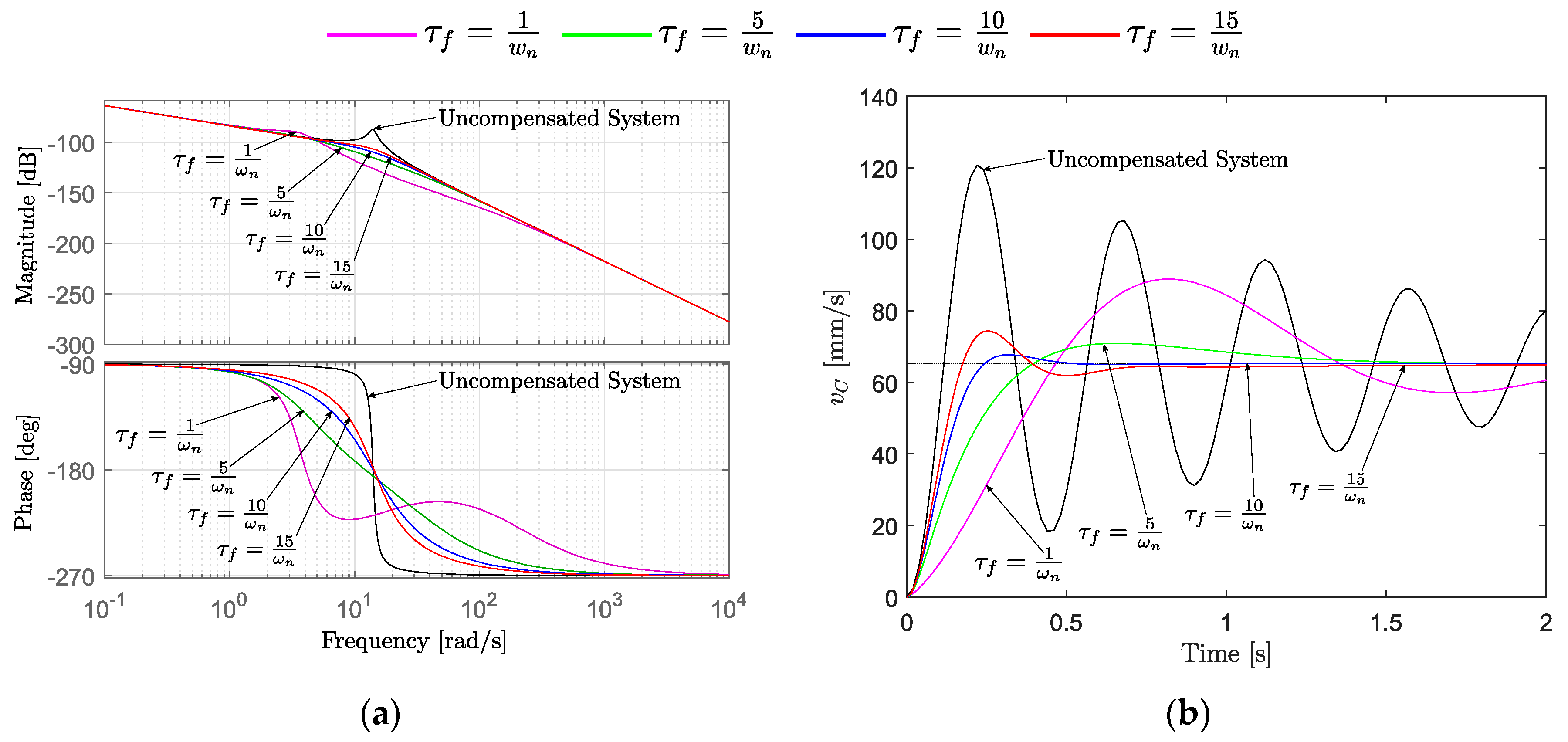

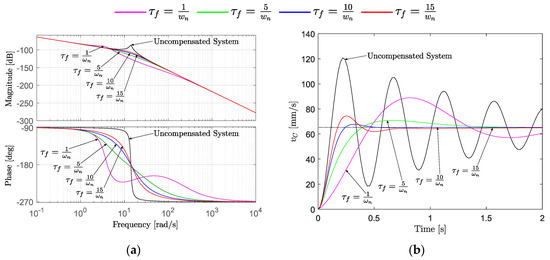

**Figure A4.**The effect of varying the time constant of the high-pass filter: (

**a**) Bode plots of ${G}_{4,HP}\left(s\right)$ and ${G}_{{x}_{C}}\left(s\right)$; (

**b**) step response of ${G}_{3,HP}\left(s\right)$ and ${G}_{{v}_{C}}\left(s\right)$.

${\mathbf{\tau}}_{\mathbf{f},\mathbf{H}\mathbf{P}}$ $\left(\mathit{s}\right)$ | Gm (dB) | ${\mathit{\omega}}_{\mathit{g}\mathit{c}}$ (rad/s) | ${\mathit{\zeta}}_{3}$ | Rise Time (s) | Settling Time (s) | Overshoot (mm/s) |
---|---|---|---|---|---|---|

$\text{}1\text{}/{\omega}_{n}$ | $\text{}92.6\text{}$ | 4.06 | 0.319 | 0.34 | 2.93 | 36.14 |

$\text{}5\text{}/{\omega}_{n}$ | 113 | 12.2 | 0.864 | 0.27 | 1.27 | 8.61 |

$\text{}10/{\omega}_{n}\text{}$ | 110 | 14.1 | 0.713 | 0.16 | 0.41 | 3.72 |

$\text{}15/{\omega}_{n}$ | 107 | 14.3 | 0.486 | 0.12 | 0.67 | 13.99 |

## References

- Michel, S.; Weber, J. Electrohydraulic Compact-drives for Low Power Applications considering Energy-efficiency and High Inertial Loads. In Proceedings of the 7th FPNI PhD Symposium on Fluid Power, Reggio Emilia, Italy, 27–30 June 2012; pp. 27–30. [Google Scholar]
- Minav, T.A.; Sainio, P.; Pietola, M. Direct Driven Hydraulic Drive without Conventional Oil Tank. In Proceedings of the ASME/BATH 2014 Symposium on Fluid Power and Motion Control, Bath, UK, 10–12 September 2014. [Google Scholar]
- Altare, G.; Vacca, A.; Richter, C. A Novel Pump Design for an Efficient and Compact Electro-Hydraulic Actuator. In Proceedings of the IEEE Aerospace Conference, Big Sky, MT, USA, 1–8 March 2014. [Google Scholar]
- Altare, G.; Vacca, A. A design solution for efficient and compact electro-hydraulic actuators. Procedia Eng.
**2015**, 106, 8–16. [Google Scholar] [CrossRef][Green Version] - Jalayeri, E.; Imam, A.; Tomas, Z.; Sepehri, N. A throttle-less single-rod hydraulic cylinder positioning system: Design and experimental evaluation. Adv. Mech. Eng.
**2015**, 7, 1687814015583249. [Google Scholar] [CrossRef][Green Version] - Rexroth, B. Electrification and Digitalization: The Fitness Program for Hydraulics. 2015. Available online: https://www.boschrexroth.com/en/xc/products/product-groups/industrial-hydraulics/the-fitness-program-for-hydraulics (accessed on 21 September 2019).
- Helbig, A.; Boes, C. Electric Hydrostatic Actuation-modular building blocks for industrial applications. In Proceedings of the 10th International Fluid Power Conference, Dresden, Germany, 8–10 March 2016; pp. 93–102. [Google Scholar]
- Hagen, D.; Padovani, D.; Ebbesen, M.K. Study of a Self-Contained Electro-Hydraulic Cylinder Drive. In Proceedings of the 2018 Global Fluid Power Society PhD Symposium (GFPS), Samara, Russia, 18–20 July 2018. [Google Scholar]
- Padovani, D.; Ketelsen, S.; Hagen, D.; Schmidt, L. A Self-Contained Electro-Hydraulic Cylinder with Passive Load-Holding Capability. Energies
**2019**, 12, 292. [Google Scholar] [CrossRef][Green Version] - Weber, I.J.; Schneider, D.I.; Shabi, M.S.; Sitte, D.I.; Weber, D.I.; Willkomm, D.I.; Beck, D.I.; Fischer, D.I.; Ivantysyn, M.S.; Kolks, D.I.; et al. Novel System Architectures by Individual Drives. In Proceedings of the 10th International Fluid Power Conference, Dresden, Germany, 8–10 March 2016; pp. 29–62. [Google Scholar]
- Ketelsen, S.; Padovani, D.; Andersen, T.; Ebbesen, M.; Schmidt, L. Classification and Review of Pump-Controlled Differential Cylinder Drives. Energies
**2019**, 12, 1293. [Google Scholar] [CrossRef][Green Version] - Schmidt, L.; Ketelsen, S.; Brask, M.H.; Mortensen, K.A. A class of energy efficient self-contained electro-hydraulic drives with self-locking capability. Energies
**2019**, 12, 1866. [Google Scholar] [CrossRef][Green Version] - Pedersen, H.C.; Schmidt, L.; Andersen, T.O.; Brask, M.H. Investigation of New Servo Drive Concept Utilizing Two Fixed Displacement Units. 9th JFPS Int. J. Fluid Power Syst.
**2014**, 8, 1–9. [Google Scholar] [CrossRef][Green Version] - Michel, S.; Weber, J. Energy-efficient electrohydraulic compact drives for low power applications. In Proceedings of the ASME/BATH 2012 Symposium on Fluid Power and Motion Control, Arlington, VA, USA, 31 October–2 November 2012; pp. 93–107. [Google Scholar]
- Schmidt, L.; Roemer, D.B.; Pedersen, H.C.; Andersen, T.O. Speed-Variable Switched Differential Pump System for Direct Operation of Hydraulic Cylinders. In Proceedings of the ASME/BATH Symposium on Fluid Power and Motion Control, Chicago, IL, USA, 12–14 October 2015. [Google Scholar]
- Schmidt, L.; Ketelsen, S.; Padovani, D.; Mortensen, K.A. Improving the Efficiency and Dynamic Properties of a Flow Control Unit in a Self-Locking Compact Electro-Hydraulic Cylinder Drive. In Proceedings of the ASME/Bath Symposium on Fluid Power and Motion Control, Longboat Key, FL, USA, 7–9 October 2019. [Google Scholar]
- Schmidt, L.; Groenkjaer, M.; Pedersen, H.C.; Andersen, T.O. Position Control of an Over-Actuated Direct Hydraulic Cylinder Drive. Control Eng. Pract.
**2017**, 64, 1–14. [Google Scholar] [CrossRef] - Hagen, D.; Padovani, D.; Choux, M. A Comparison Study of a Novel Self-Contained Electro-Hydraulic Cylinder versus a Conventional Valve-Controlled Actuator—Part 2: Energy Efficiency. Actuators
**2019**. on press. [Google Scholar] - Hagen, D.; Padovani, D.; Choux, M. Enabling Energy Savings in Offshore Mechatronic Systems by using Self-Contained Cylinders. Model. Identif. Control
**2019**, 40, 89–108. [Google Scholar] [CrossRef] - Hagen, D.; Padovani, D.; Choux, M. Design and Implementation of Pressure Feedback for Load-Carrying Applications with Position Control. In Proceedings of the Sixteenth Scandinavian International Conference on Fluid Power, Tampere, Finland, 22–24 May 2019. [Google Scholar]
- Bak, M.K. Model Based Design of Electro-Hydraulic Motion Control Systems for Offshore Pipe Handling Equipment. Ph.D. Thesis, University of Agder, Kristiansand S, Norway, 2014. [Google Scholar]
- Kjelland, M.B. Offshore Wind Turbine Access Using Knuckle Boom Cranes. Ph.D. Thesis, University of Agder, Kristiansand S, Norway, 2016. [Google Scholar]
- Phillips, C.L.; Harbor, R.D. Feedback Control System; Prentice-Hall International Editions: Upper Saddle River, NJ, USA, 1991. [Google Scholar]
- Mohieddine, J.; Kroll, A. Hydraulic Servo-Systems: Modelling, Identification and Control; Springer: London, UK, 2003. [Google Scholar]
- Krus, P.; Palmberg, J.O. Damping of mobile systems in machines with high inertia loads. In Proceedings of the JFPS International Symposium on Fluid Power; The Japan Fluid Power System Society: Tokyo, Japan, 1989; Volume 1989, pp. 63–70. [Google Scholar]
- Pedersen, H.C.; Andersen, T.O.; Hansen, M.R. Guidelines for Properly Adjusting Pressure Feedback in Systems with Over-Centre Valves. In Proceedings of the BATH/ASME Symposium on Fluid Power & Motion Control, Bath, UK, 7–9 September 2016. [Google Scholar]

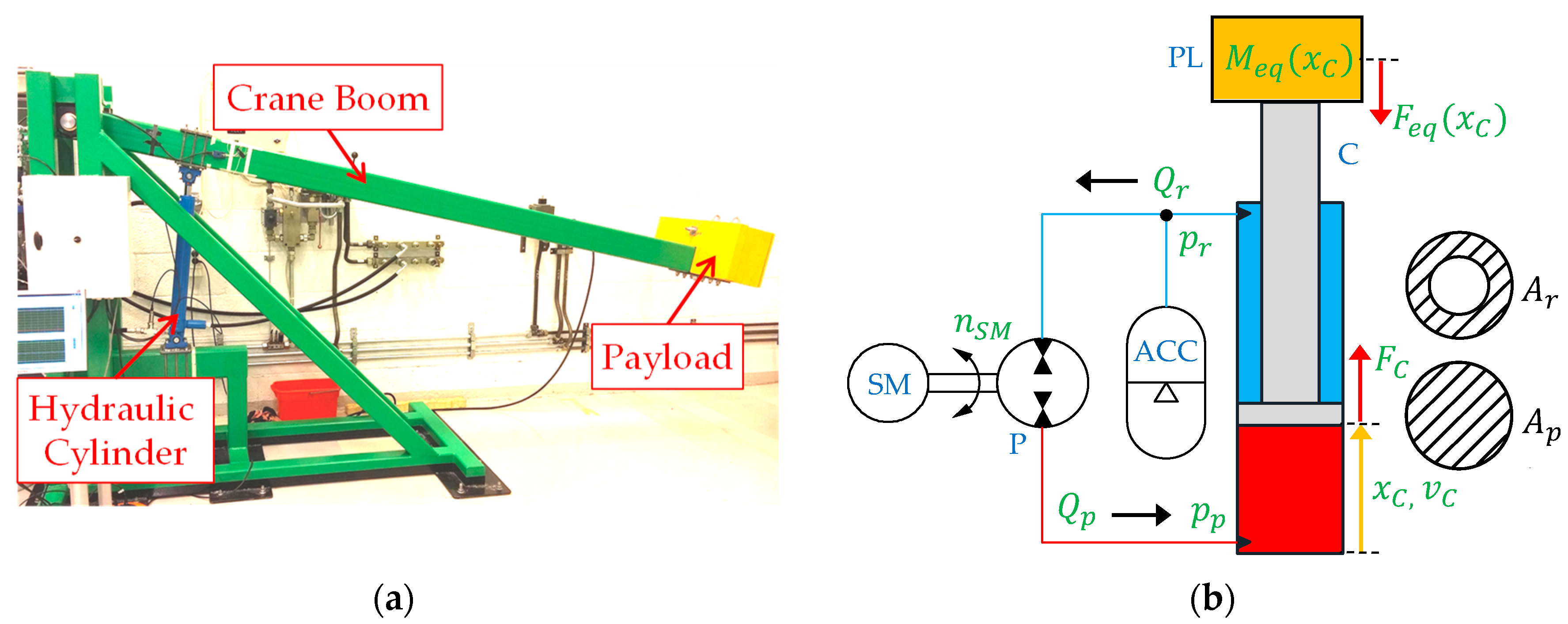

**Figure 2.**The considered application and the electro-hydraulic linear actuator: (

**a**) single-boom crane; (

**b**) simplified electro-hydraulic cylinder’s circuit.

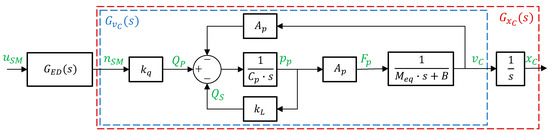

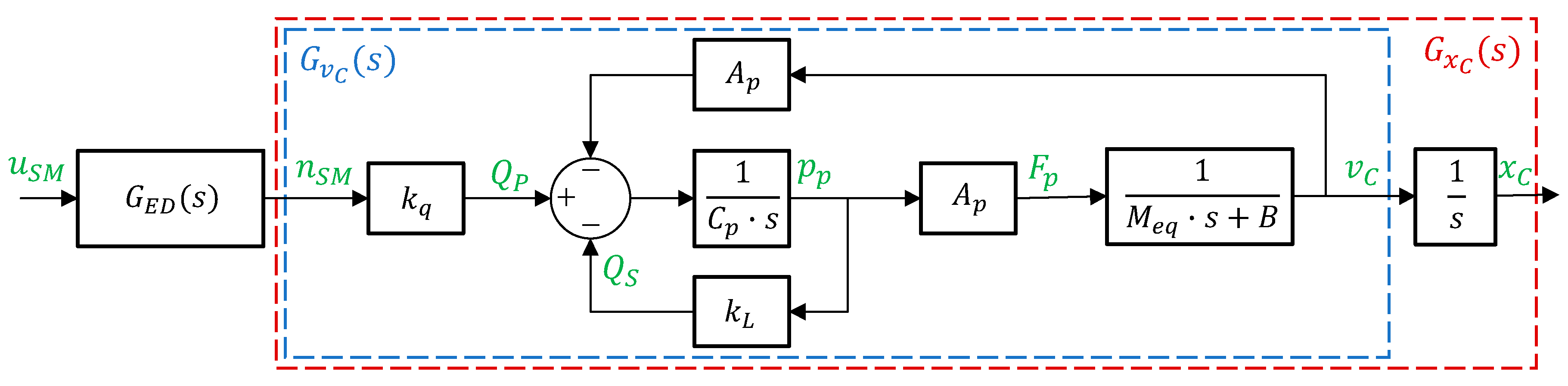

**Figure 3.**Block diagram representing the linear model of the uncompensated self-contained electro-hydraulic cylinder.

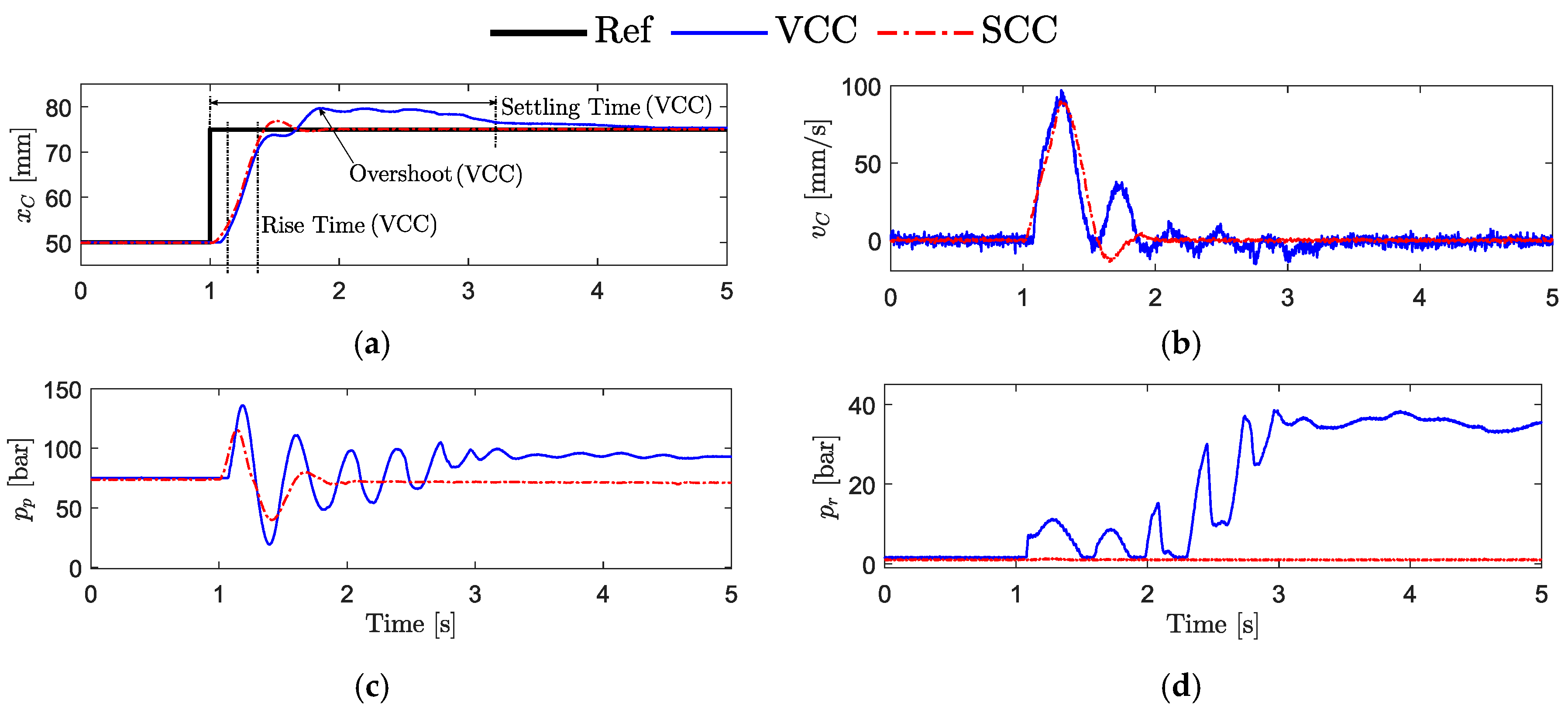

**Figure 6.**The closed-loop position step response comparison: (

**a**) commanded and measured piston positions; (

**b**) position tracking errors; (

**c**) piston chamber pressures; and (

**d**) rod chamber pressures.

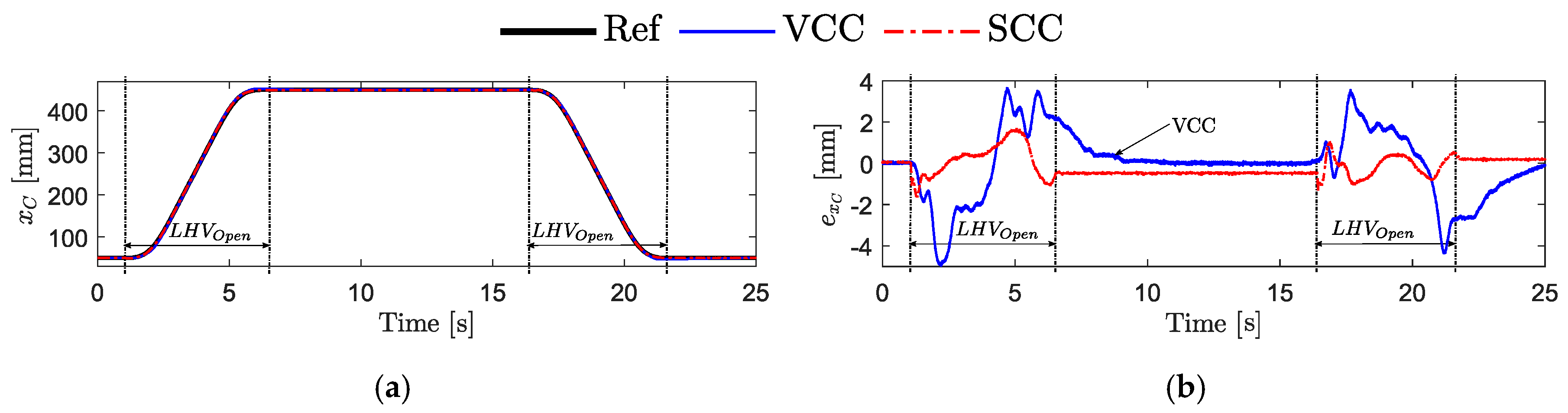

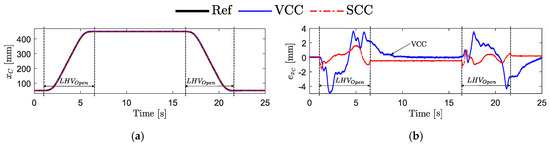

**Figure 7.**Position tracking performance comparison: (

**a**) commanded and measured piston position; (

**b**) tracking error.

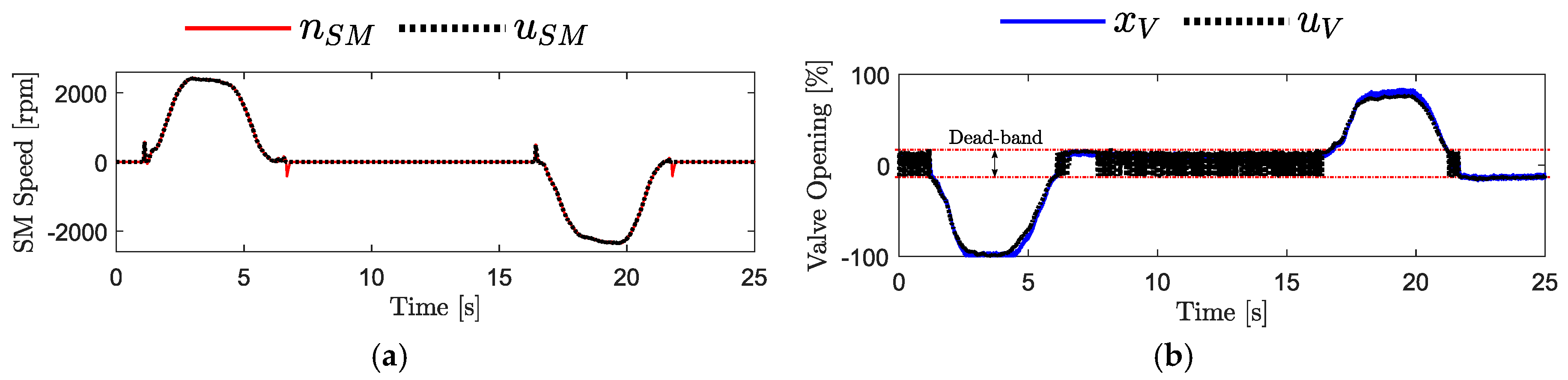

**Figure 8.**Commanded and measured control inputs: (

**a**) self-contained system; (

**b**) valve-controlled system.

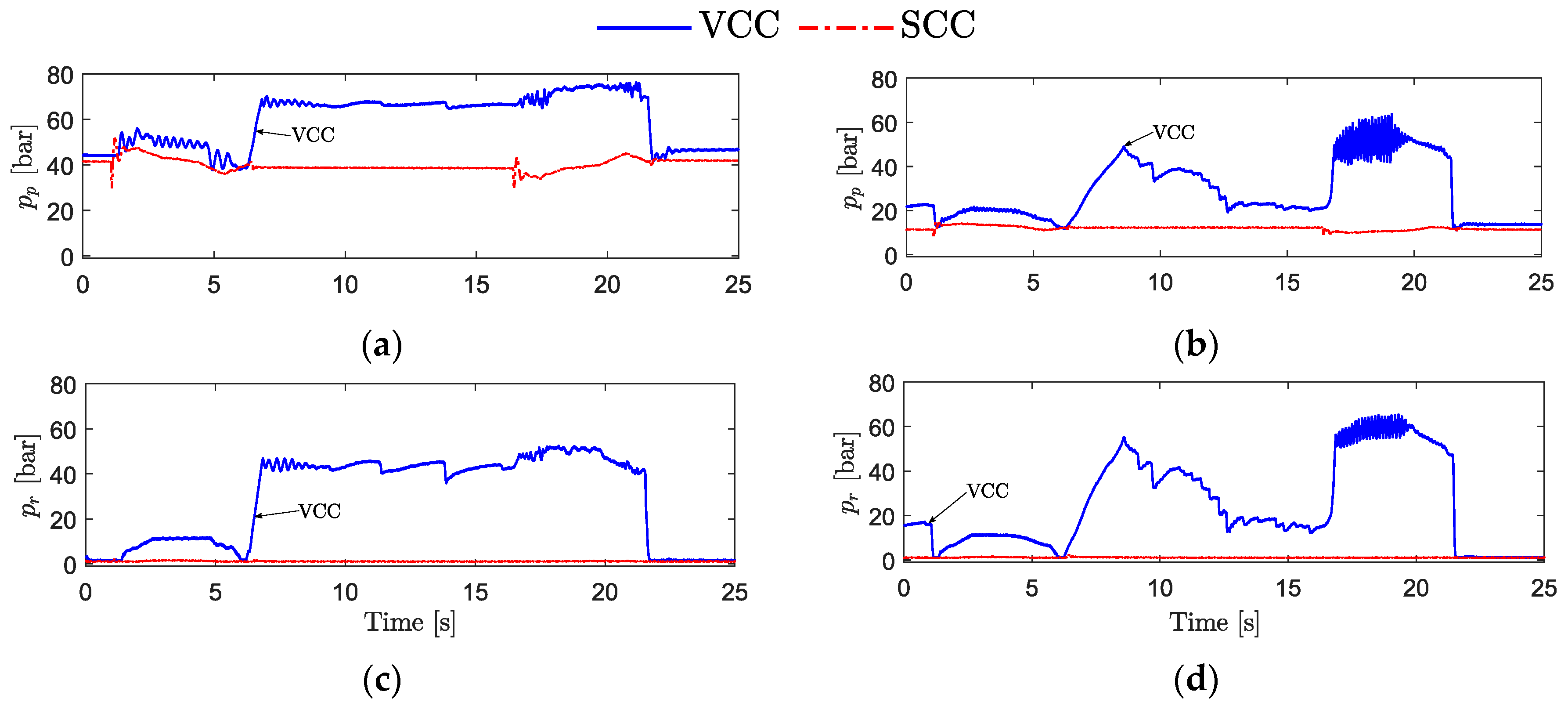

**Figure 12.**Actuator pressures: (

**a**) piston chamber with half payload; (

**b**) piston chamber without payload; (

**c**) rod chamber with half payload; and (

**d**) rod chamber without payload.

System | $\mathbf{P}\mathbf{m}$ (deg) | $\mathbf{G}\mathbf{m}\left({\mathbf{\omega}}_{\mathbf{p}\mathbf{c}}\right)$ (dB) | ${\mathbf{\omega}}_{\mathbf{p}\mathbf{c}}$ $(\mathbf{r}\mathbf{a}\mathbf{d}/\mathbf{s})$ | ${\mathbf{k}}_{\mathbf{P}}$ $(\mathbf{r}\mathbf{a}\mathbf{d}/(\mathbf{s}\cdot \mathbf{m}\left)\right)$ | ${\mathbf{k}}_{\mathbf{I}}$ $(\mathbf{r}\mathbf{a}\mathbf{d}/({\mathit{s}}^{2}\cdot \mathbf{m}\left)\right)$ |
---|---|---|---|---|---|

${G}_{{x}_{C}}\left(s\right)$ | $45$ | $89.1$ | $13.3$ | $2.69\cdot {10}^{4}$ | $3.61\cdot {10}^{4}$ |

${G}_{4,HP}\left(s\right)$ | $45$ | $102$ | $8.93$ | $1.26\cdot {10}^{5}$ | $1.19\cdot {10}^{5}$ |

$\mathbf{P}\mathbf{m}\text{}\left(\mathbf{deg}\right)$ | $\mathbf{G}\mathbf{m}\left({\mathbf{\omega}}_{\mathbf{p}\mathbf{c}}\right)\text{}\left(\mathbf{dB}\right)$ | ${\mathbf{\omega}}_{\mathbf{p}\mathbf{c}}\text{}(\mathbf{rad}/\mathbf{s})$ | ${\mathbf{k}}_{\mathbf{P}}$$\left(1/\mathbf{m}\right)$ | ${\mathbf{k}}_{\mathbf{I}}\text{}(1/(\mathbf{m}\xb7\mathbf{s}\left)\right)$ | ${\mathbf{k}}_{\mathbf{q}}\text{}({\mathbf{m}}^{3}/\mathbf{s})$ |
---|---|---|---|---|---|

45 | 29.3 | 6.68 | 29.17 | 19.49 | $5.83\cdot {10}^{-4}$ |

System | Rise Time (s) | Settling Time (s) | Overshoot (mm) |
---|---|---|---|

VCC | 0.27 | 2.23 | 4.65 |

SCC | 0.26 | 0.57 | 1.83 |

Velocity SP (mm/s) | 20 | 75 | 120 | |||
---|---|---|---|---|---|---|

System | VCC | SCC | VCC | SCC | VCC | SCC |

RMS error (mm) | 0.17 | 0.25 | 1.26 | 0.37 | 1.5 | 0.52 |

Load Case | Max Payload | Half Payload | No Payload | |||
---|---|---|---|---|---|---|

System | VCC | SCC | VCC | SCC | VCC | SCC |

RMS error (mm) | 1.5 | 0.52 | 1.94 | 0.41 | 1.36 | 0.37 |
