Asynchronous Control of a Prototype Inchworm Actuator: Control Design and Test Results

Jet Propulsion Laboratory, California Institute of Technology, 4800 Oak Grove Drive, Pasadena, CA 91109, USA
Actuators 2019, 8(1), 20; https://doi.org/10.3390/act8010020
Received: 17 January 2019 / Revised: 15 February 2019 / Accepted: 19 February 2019 / Published: 27 February 2019

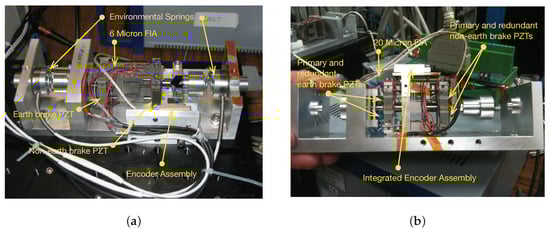

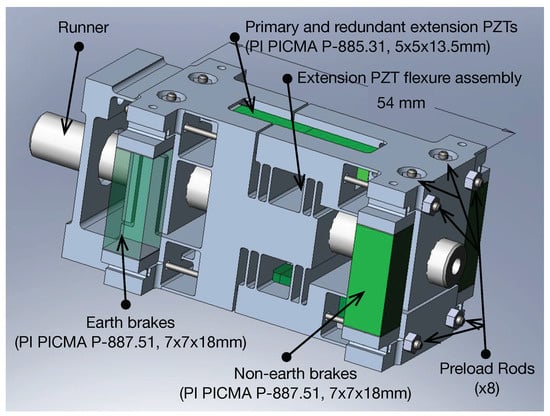

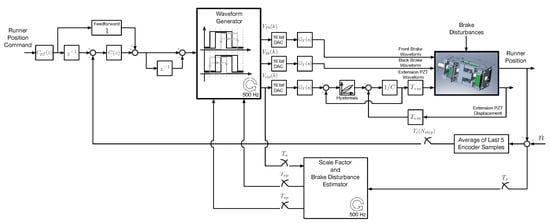

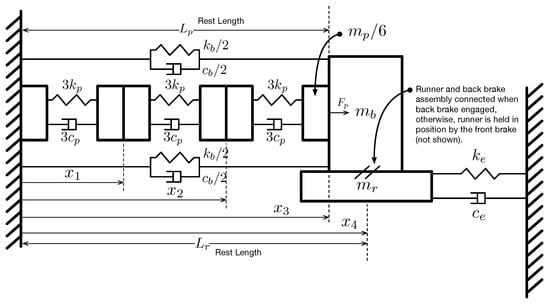

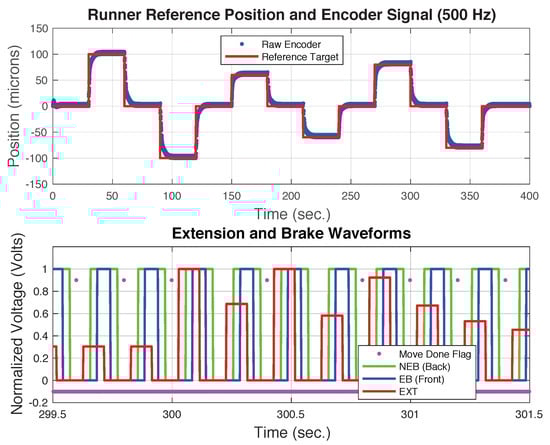

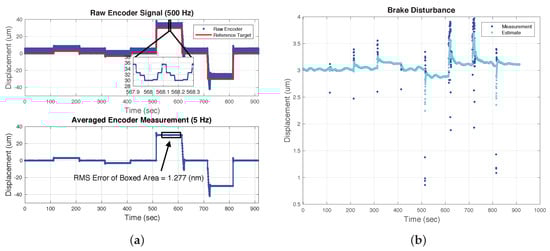

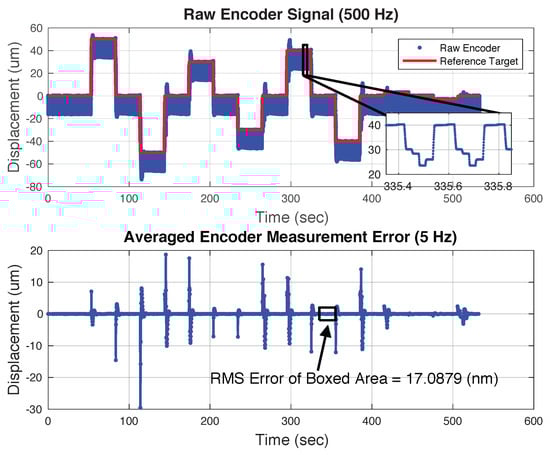

Inchworm actuators are innovative mechanisms that offer nanometer-level positioning coupled with extreme dynamic range. Because of this, they have found applications in optical instruments of various types including interferometers, segmented reflectors, and coronagraphs. In this paper, we present two prototypes of flight-qualifiable inchworm actuators developed at the Jet Propulsion Laboratory. These actuators have two sets of brake piezoceramic (PZT) stacks and an extension PZT stack used for mobility. By proper phasing of the signals to these PZTs, a walking gait can be achieved that moves a runner attached via a flexure to the optic to be moved. A model of these devices, based on first principles, is developed as well as an estimation and control scheme for precise positioning. The estimator estimates physical parameters of the device as well as a self-induced motion disturbance caused by the brakes. Simulations and test data are presented that demonstrate nanometer-level positioning precision as well as the cause of variations in the brake-induced disturbance. View Full-Text
Keywords: inchworm actuators; PZT; fuzzy basis functions; parameter estimation; hysteresis inchworm actuators; PZT; fuzzy basis functions; parameter estimation; hysteresis
Show Figures

Figure 1

MDPI and ACS Style

Shields, J. Asynchronous Control of a Prototype Inchworm Actuator: Control Design and Test Results. Actuators 2019, 8, 20.
