The Systematic Design of Voice Coil Motor Structures for Rapid Zoom Optical Lens

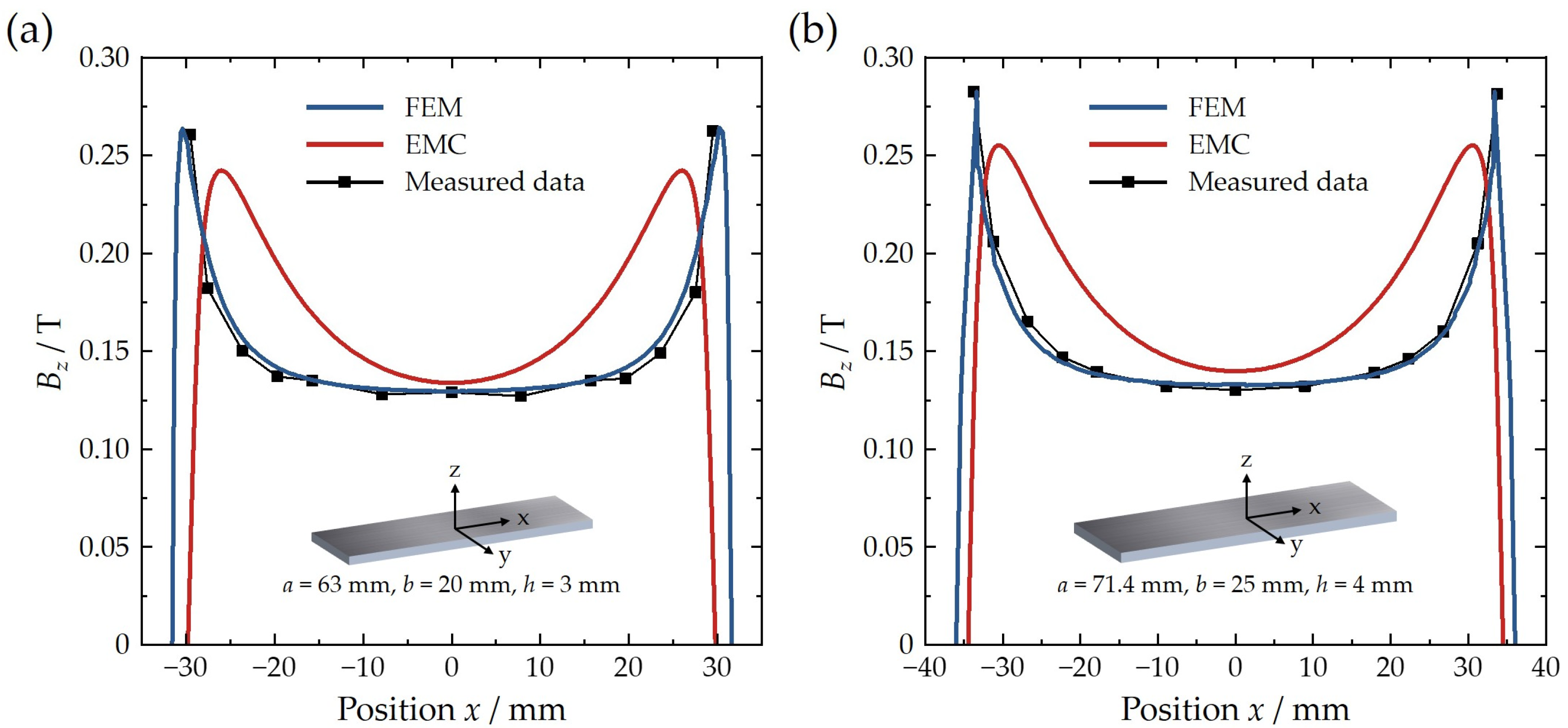

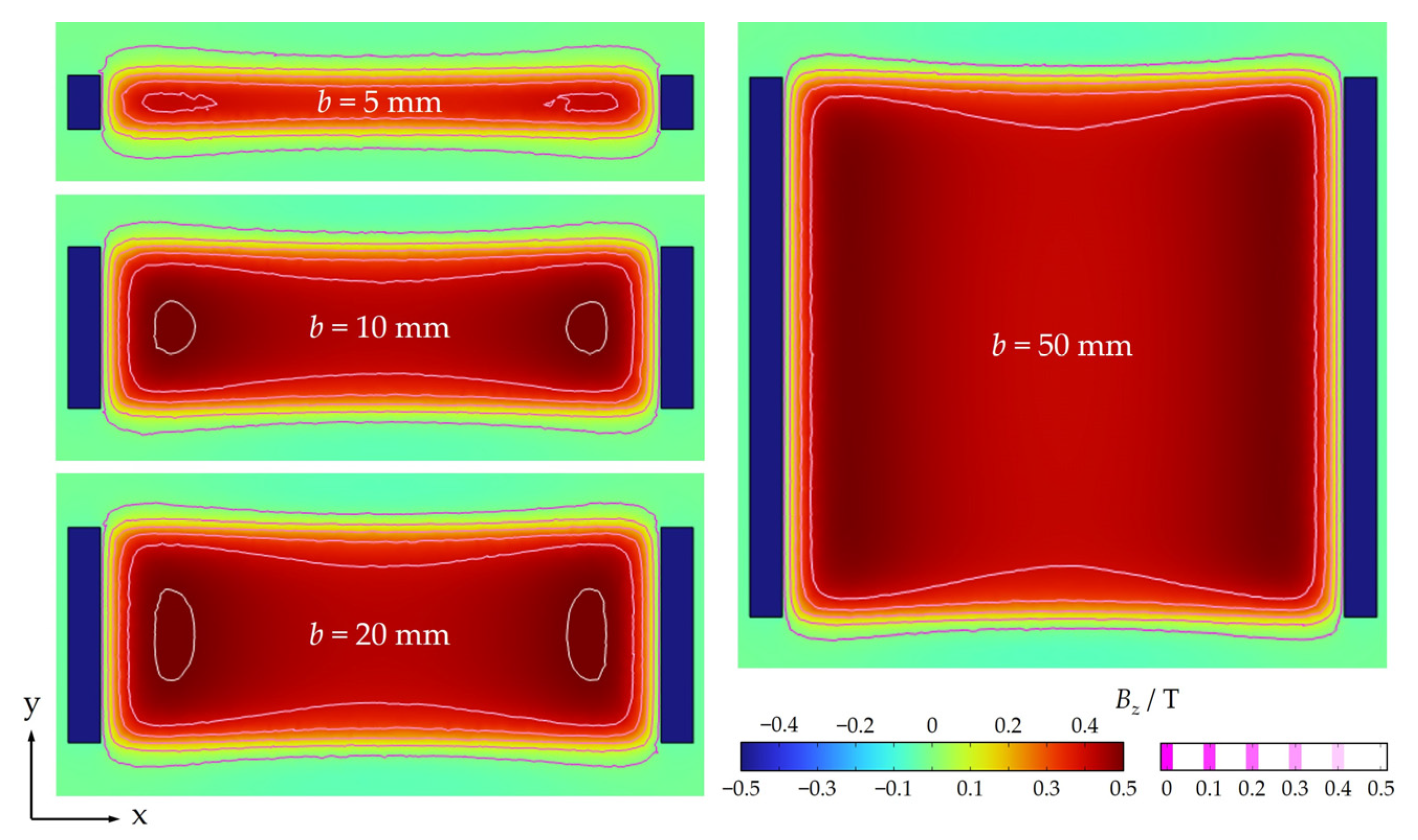

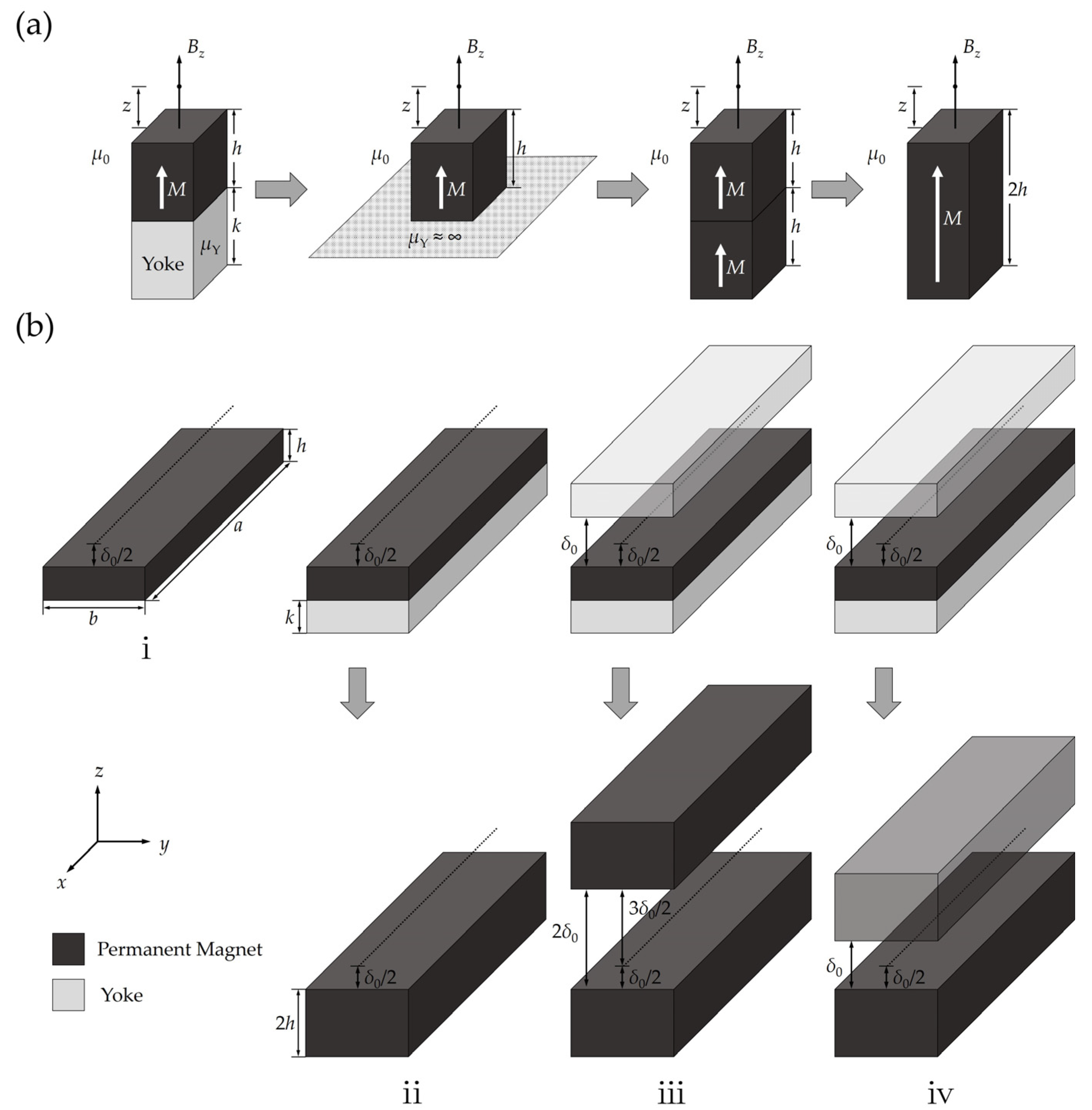

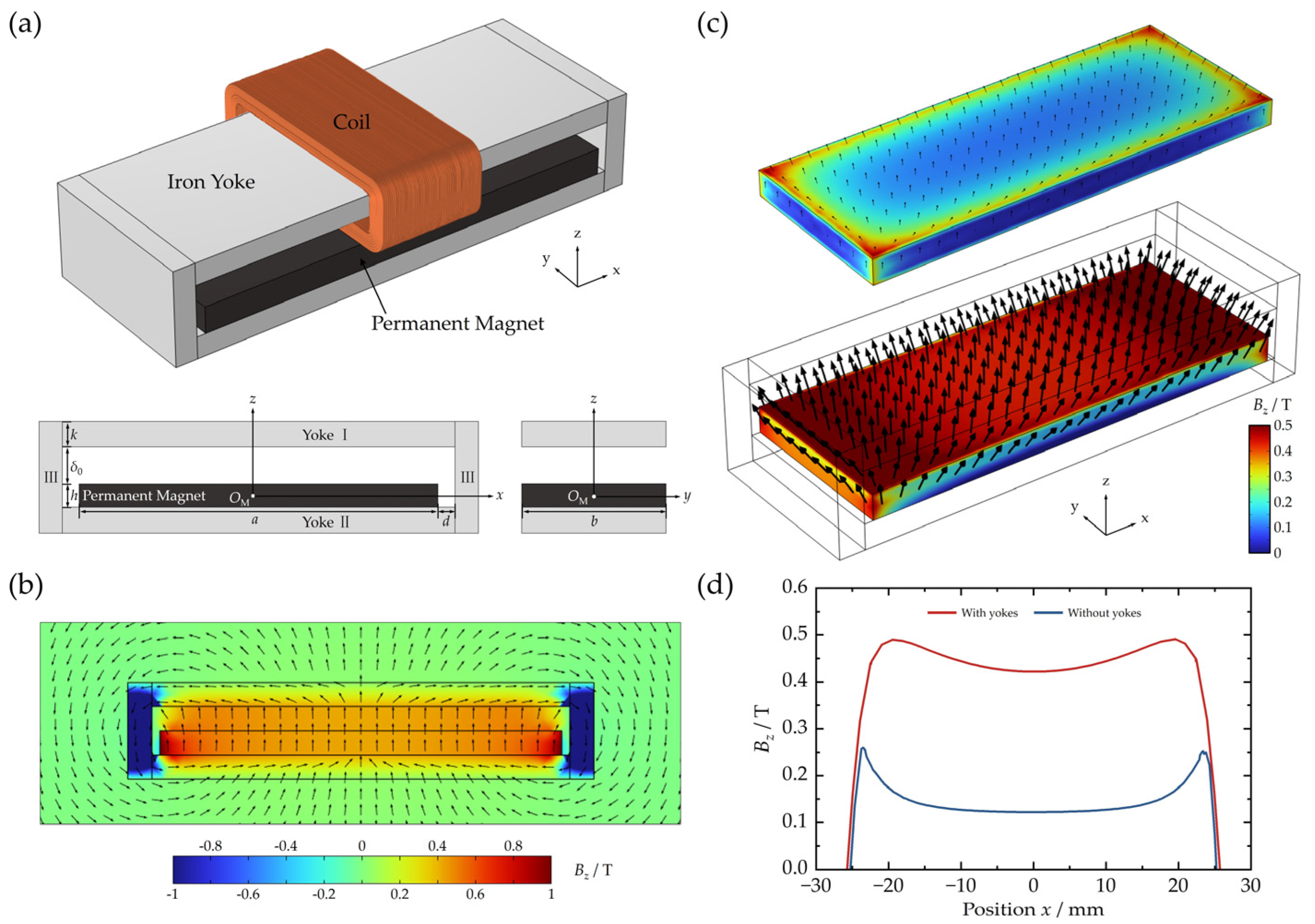

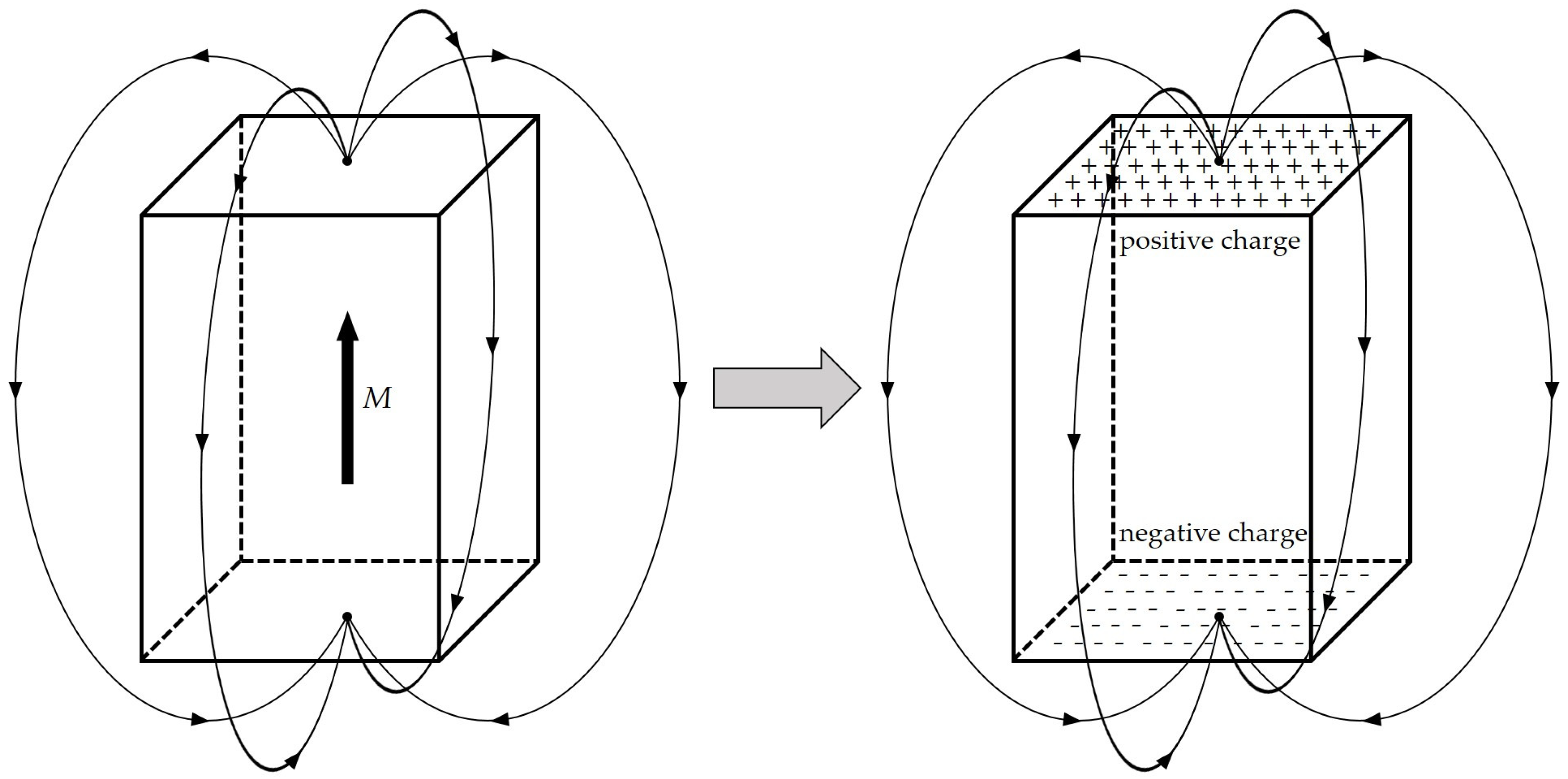

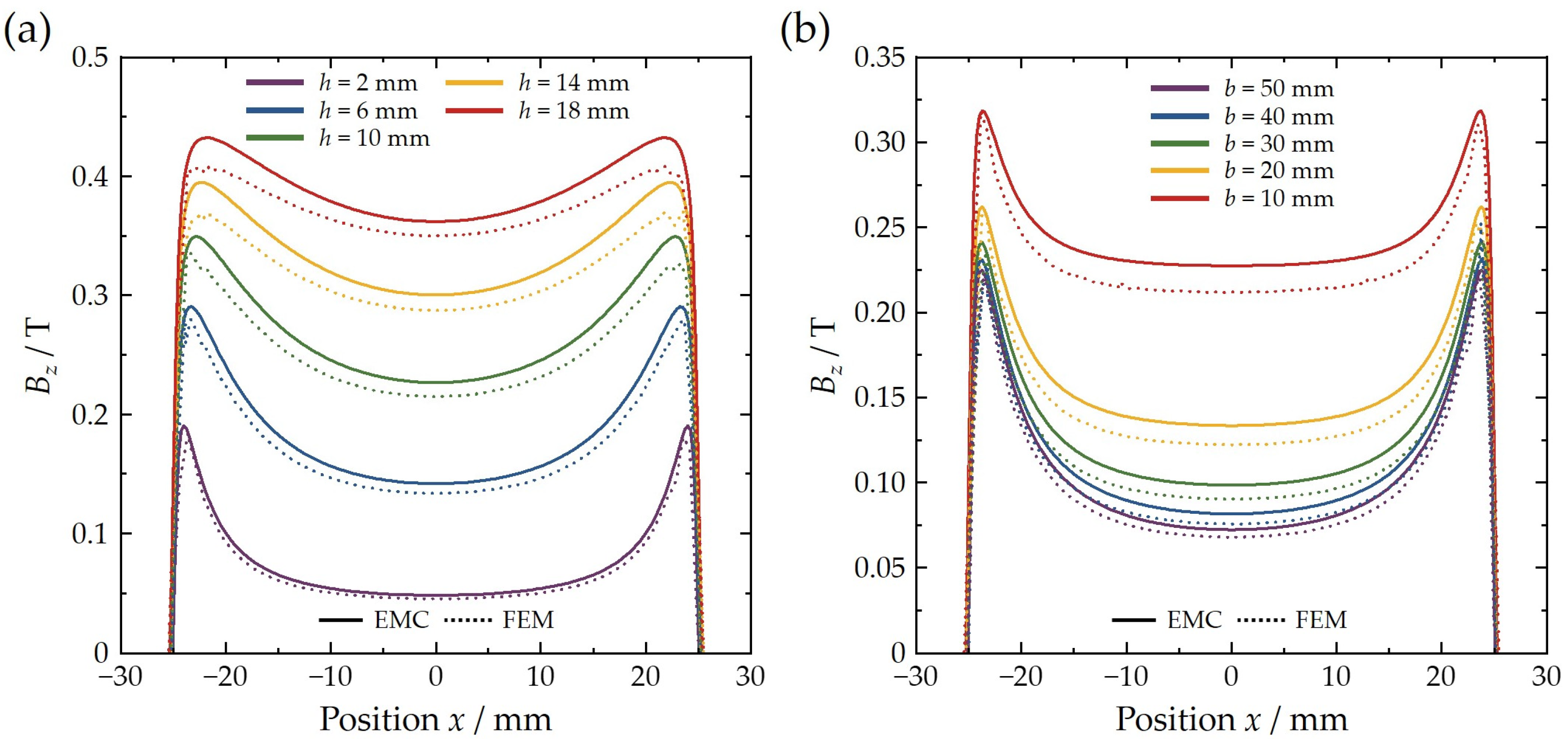

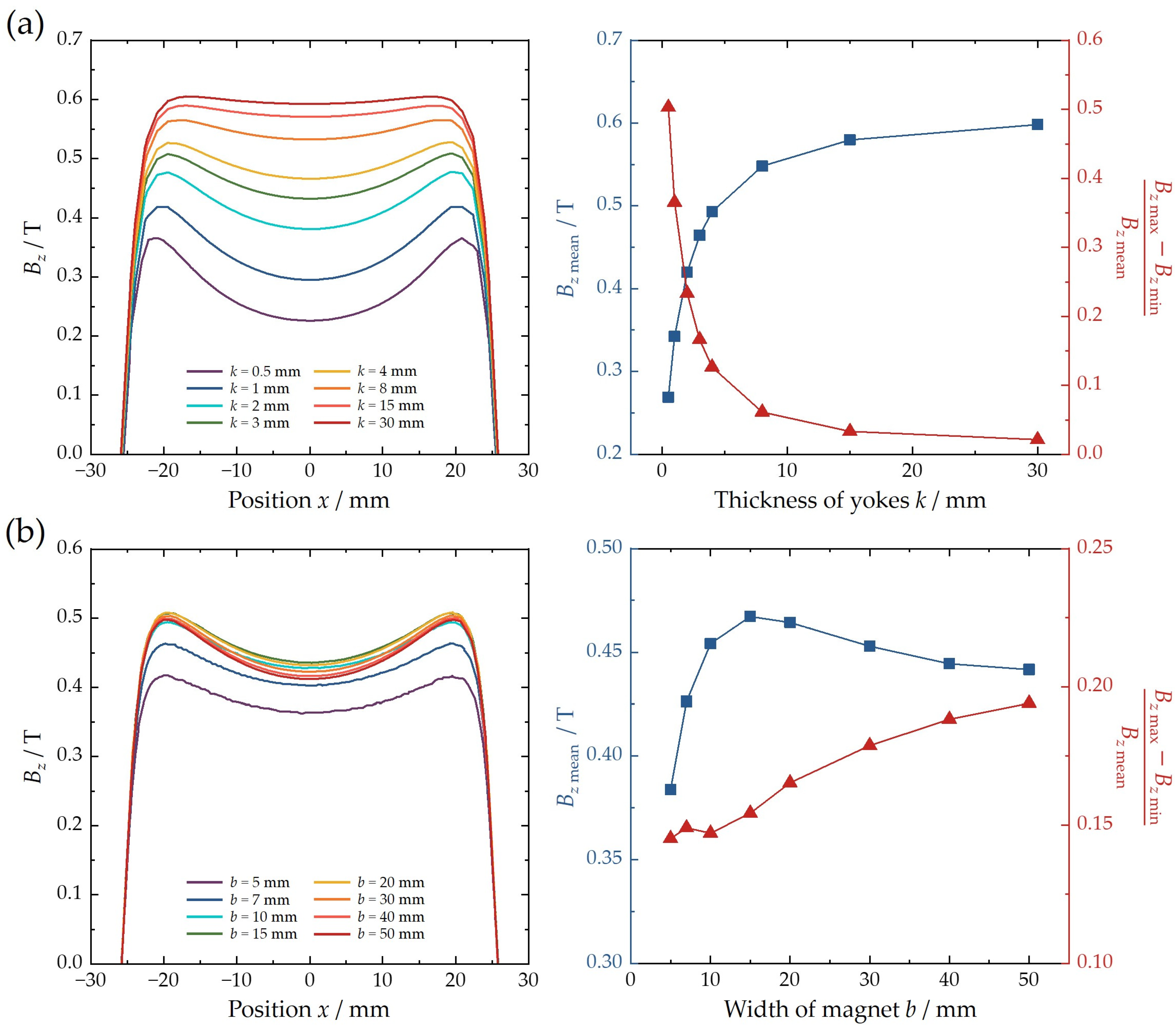

In order to solve the zoom delay issue for high-magnification zoom optical systems, a voice coil motor (VCM) is used to achieve rapid zooming. In this paper, the structural design of VCMs is systematically analyzed through magnetic field numerical computations. Firstly, finite element method (FEM) is used to analyze magnetic field of single magnets, and simulations correspond to experimental results. Both FEM and equivalent magnetic charge (EMC) results confirm that increasing magnet thickness while reducing its lateral dimensions will contribute to magnetic enhancement. Furthermore, the influence of structural parameters VCM is analyzed, validating the yoke’s critical role in suppressing edge effects and optimizing magnetic circuit efficiency, and optimal yoke thickness and magnet width range are determined. Moreover, a simple EMC calculation method is proposed for rapid and accurate determination of the magnetic field distribution in the VCM air gap. Optimal structural parameters of VCM are determined for a 40× rapid zoom lens with cost and space limitations. Driving force F_drive = 5.58 N is about 5 times the demand force F_d = 1.06 N, and the prototype fabrication of the rapid zoom lens is successfully accomplished. Moving group reaches 35.4 mm destination within 0.18 s, and photographs confirm that the rapid zoom system achieves 100-ms-level short/long-focus transition. Rapid zoom lens shows great potential in applications including security surveillance, industrial visual inspection, and intelligent logistics management.
