Robust and Non-Fragile Path Tracking Control for Autonomous Vehicles

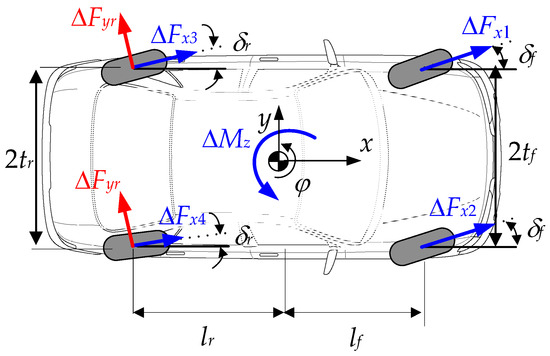

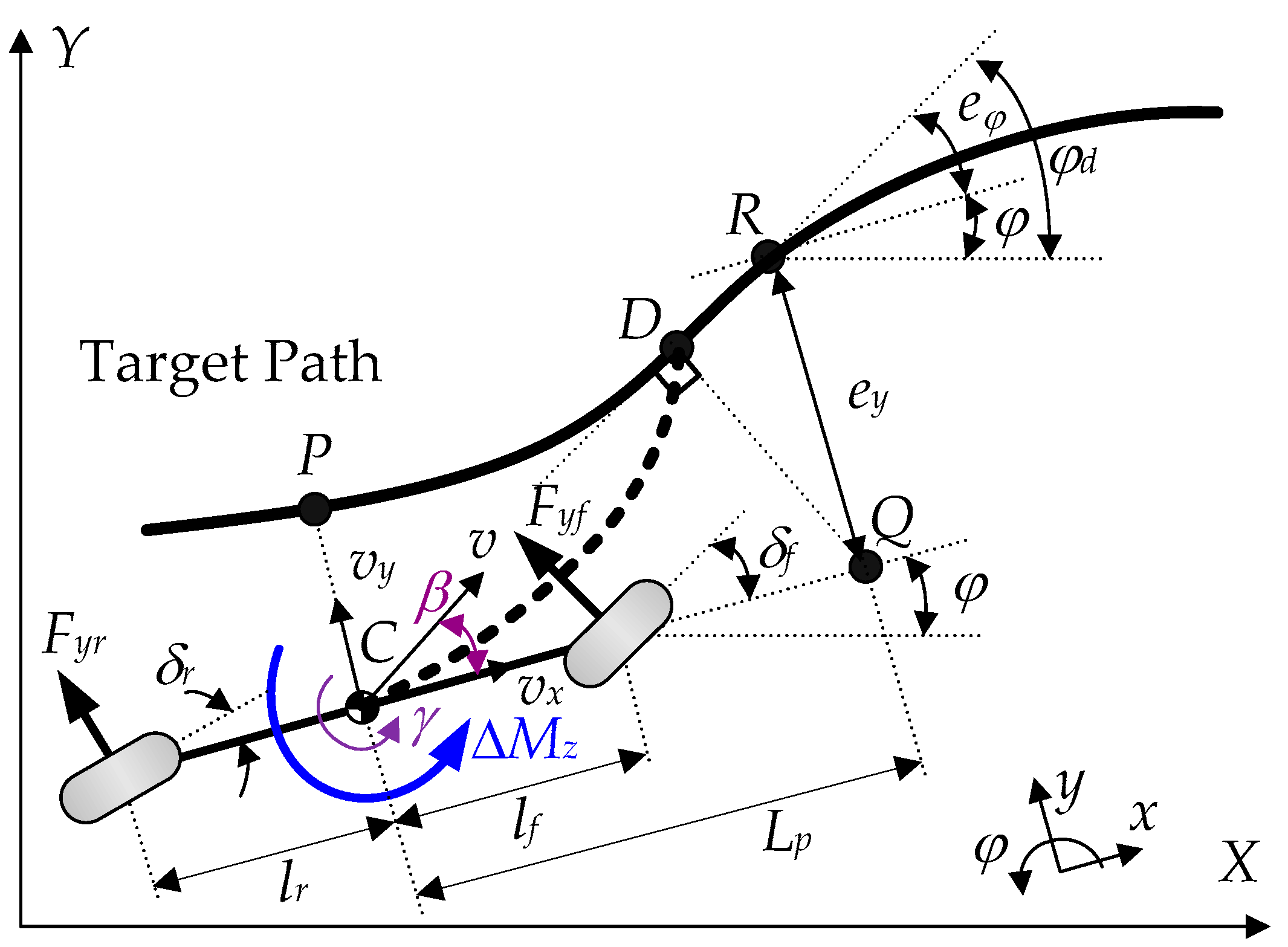

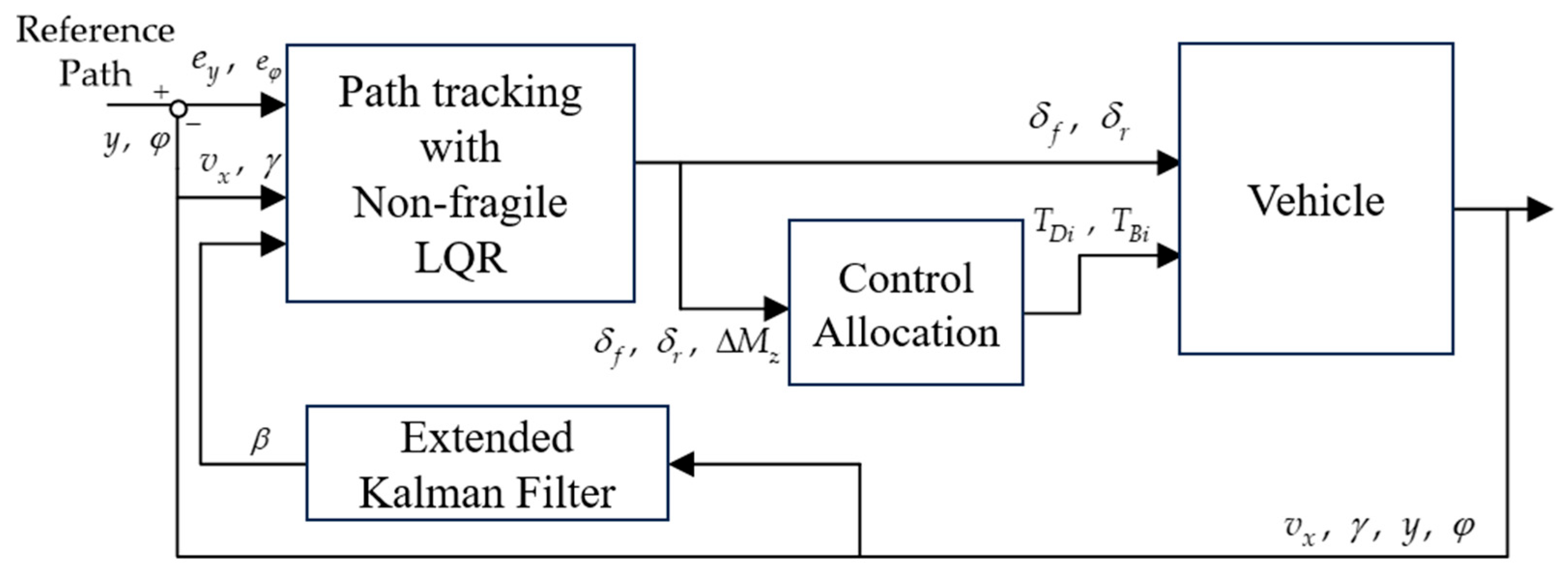

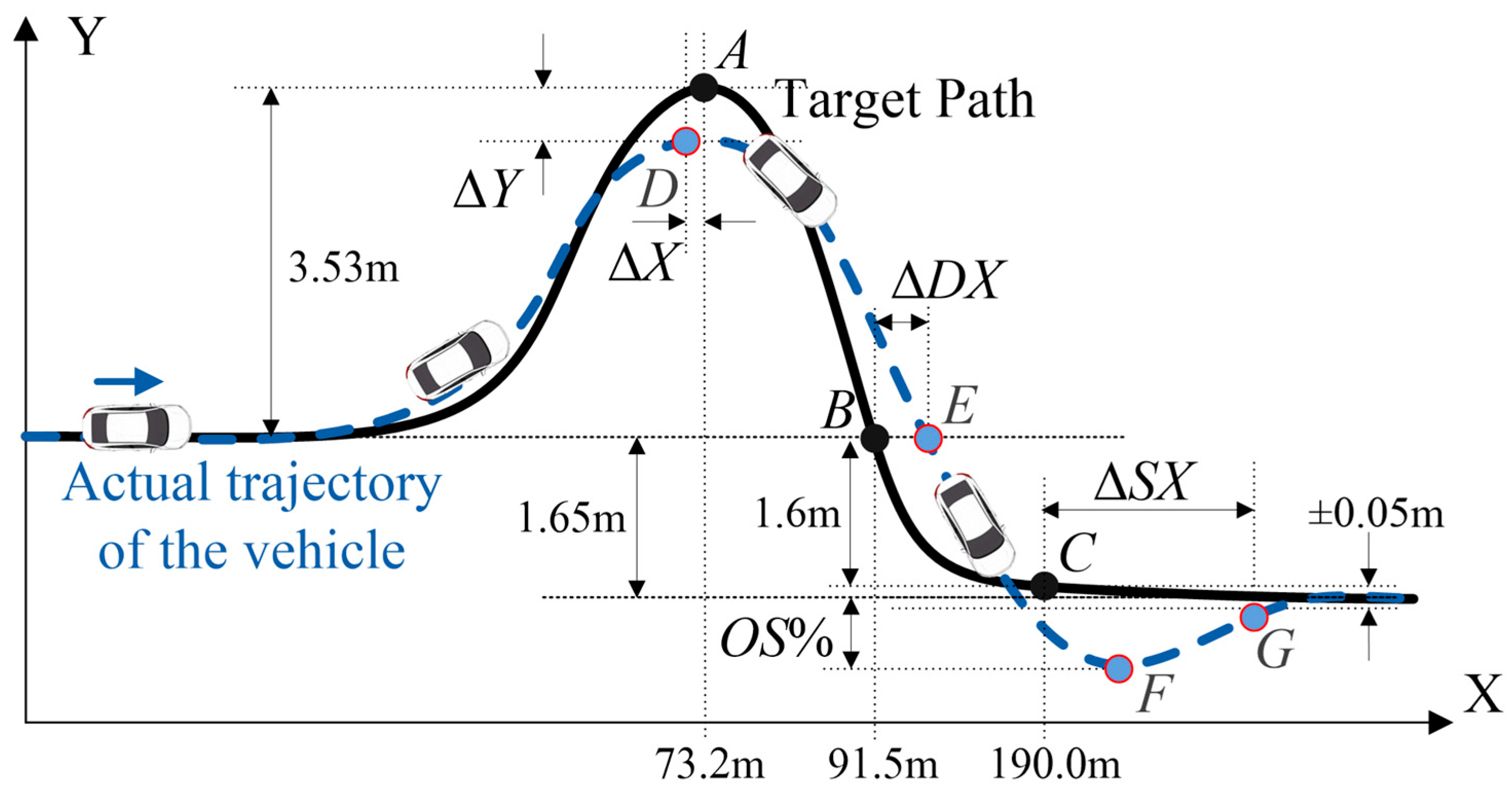

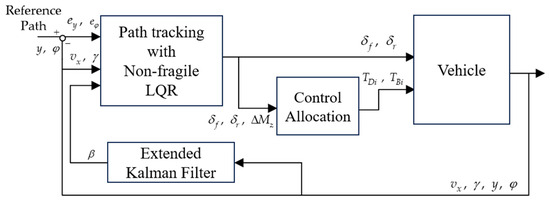

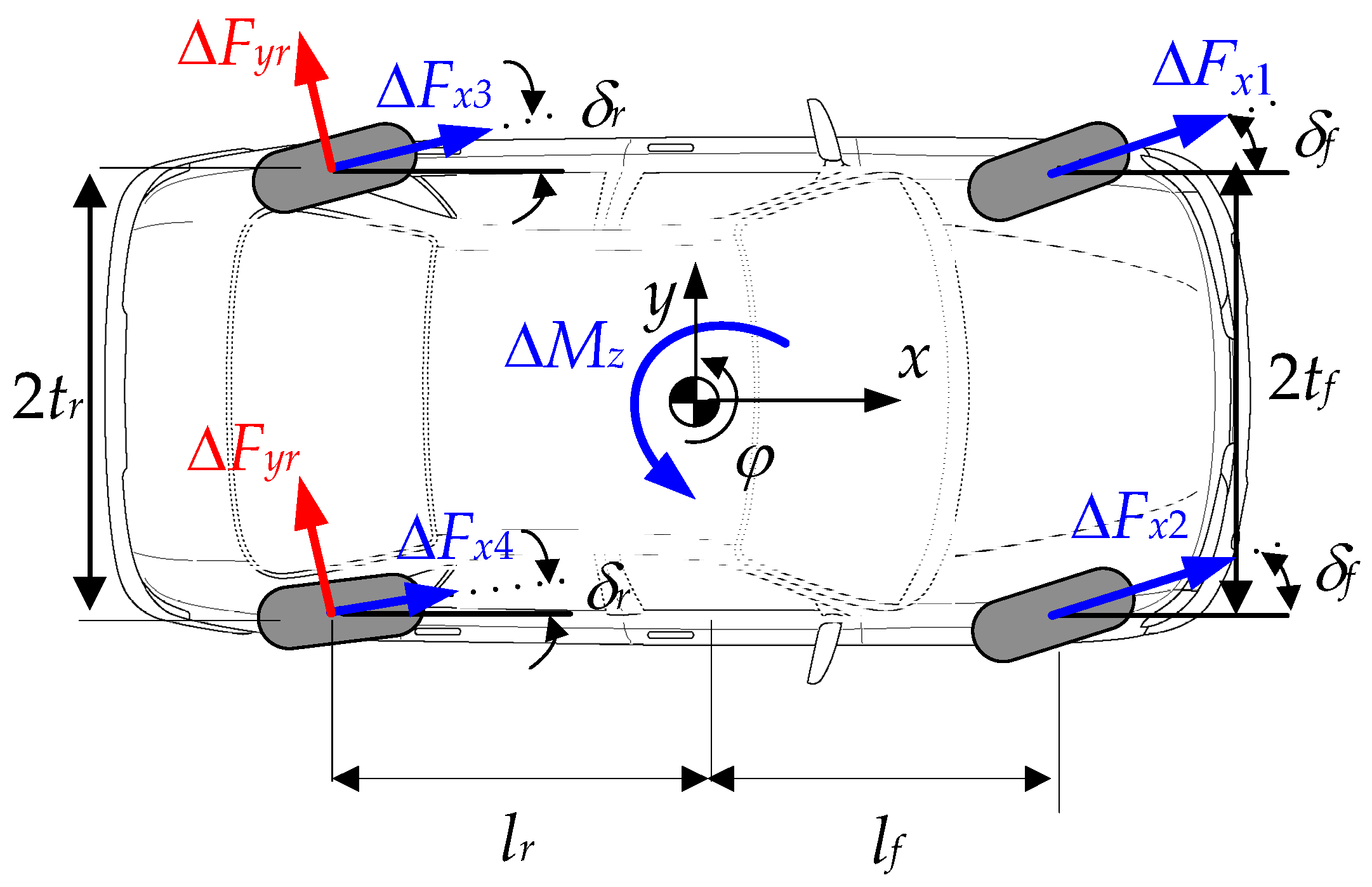

Path tracking is a fundamental function for autonomous vehicles, but its performance often degrades under parameter variations and controller fragility—an issue seldom addressed together in prior studies. This paper develops a robust non-fragile Linear Quadratic Regulator (LQR) using linear matrix inequality (LMI) optimization, explicitly considering uncertainties in vehicle speed, mass, and cornering stiffness as well as gain perturbations from implementation. A two-degrees-of-freedom bicycle model is employed for controller design, and a weighted least-squares allocation method integrates multiple actuators, including front steering, rear steering, four-wheel independent drive, and braking. A double lane-change maneuver in CarSim evaluates the proposed design. The robust and non-fragile LQR maintains lateral offset within 0.02 m and overshoot below 1% under ±20% parameter variation, offering improved stability margins compared with the baseline LQR. The results highlight context-dependent actuator effects and clarify the trade-off between control complexity, robustness, and real-world applicability.
