Topology Optimization of Shape Memory Alloy Actuators for Prescribed Two-Way Transforming Shapes

Abstract

This paper proposes a new topology optimization formulation for obtaining shape memory alloy actuators which are designed with prescribed two-way transforming shapes. The actuation behaviors of shape memory alloy structures are governed by austenite-martensite phase transformations effected by thermal-mechanical loading processes; therefore, to realize the precise geometric shape variations of shape memory alloy actuators, traditional methods involve iteration processes including heuristic structural design, numerical predictions and experimental validation. Although advanced structural optimization methods such as topology optimization have been used to design three-dimensional (3D) shape memory alloy actuators, the maximization/minimization of quantities such as structural compliance or inaccurate stroke distances has usually been selected as the optimization objective to obtain feasible solutions. To bridge the gap between precise shape-morphing requirements and efficient shape memory alloy actuator designs, this paper formulates optimization criteria with quantitatively desired geometric shapes, and investigates the automatic designs of two-way prescribed shape morphing shape memory alloy structures based on the proposed topology optimization method. The super element method and adjoint method are used to derive the analytical sensitivities of the objective functions with respect to the design variables. Numerical examples demonstrate that the proposed method can obtain 3D actuator designs that have the desired two-way transforming shapes.

1. Introduction

The phenomenon of shape memory materials to produce reversible shape transformations under cyclical temperature variation is called Two-Way Shape Memory Effect (TWSME). The transformation strain can produce larger structural deformations than thermal expansions. Therefore, actuators that exhibit the TWSME have great application potential in various fields, such as aeronautics [1,2], soft robotics [3], and medical instruments [4] (see Figure 1). Among all the shape memory materials, shape memory polymers [5,6] (SMPs) and shape memory alloys (SMAs) [7] are the most widely studied. To obtain two-way shape-morphing SMPs with desired geometric patterns, researchers have utilized various approaches [8], such as designing specific macro composite structures, adjusting the chemical composition of the transition material phase, or using 3D-printed micro structural arrangements. The TWSME from SMP is limited to low actuation forces due to its polymer nature. Shape memory alloys have high actuation forces, excellent superelastic, and shape memory performances, thus attract continuously growing attentions [9]. Due to inherent martensite-austenite phase transitions, the shape-morphing precision of shape memory effect is influenced by multiple factors like the SMA material composition, macro structural configuration, and thermal–mechanical loading process, which vary from material to material [10]. Therefore, the efficient development of SMA actuators with desired two-way shape morphing requires investigations from both experimental and numerical perspectives [11]. Material experiments have been conducted for desired morphing shapes, such as laser processing [12], heat treatments [13], and “pre-training” [14]. Innovative designs of active jet engine chevrons [11,15] and smart morphing wings [16,17,18] have also been proposed.

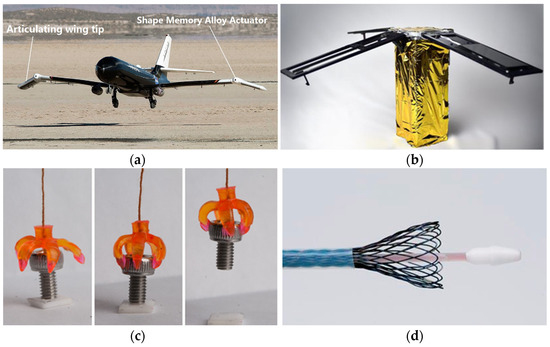

Figure 1. Applications of shape memory materials as well as structures: (a) spanwise adaptive wing using SMA actuator [1]; (b) deploying solar panels by SMA mechanism [2]; (c) soft gripper printed by SMP, and (d) SMA arterial stent [4].

Previous studies were based on heuristic arrangements of regular-geometry SMA actuators and traditional elastic structures to obtain the required actuation deformation. Numerically, the macroscopic [19,20,21,22] and microscopic [23,24,25] models have been studied to theoretically predict the superelasticity, shape memory effects and “training” effects of SMA materials and structures. Conventional SMA actuator configurations (such as beams, springs, and strips) integrated with elastic structures have been optimized to achieve the target shapes [26,27,28], resulting in limited actuation modes for smart morphing structures. Nevertheless, topology optimization methods have been used to design shape memory structures for preferred motion patterns. Maximization/minimization of quantities such as structural compliance, energy dissipation or inaccurate stroke distances has usually been selected as the optimization objectives [10,29,30,31,32]. Realizing topologically innovative designs of 3D SMA devices for desired spatial actuation shapes is expected to broaden the structural morphing functionality and application potentials, as complex-geometry SMA actuators, like lattice structures, have been manufactured by 3D-printing technology [33].

This study investigated the topology optimization design of SMA actuators that exhibit a predefined TWSME under prescribed thermal–mechanical conditions. Inherently, actuation deformations are generated mainly due to the transformation strain of SMA materials between the austenite phase and the martensite phase. By manipulating the SMA material spatial distribution as well as the phase transformation region, desired actuation shapes can be expected for optimized blueprint designs. To reduce the massive computational efforts for solving structural optimization problems with large-scale integer variables, the modified Solid Isotropic Material with Penalty (SIMP) material interpolation scheme has been introduced in the original SMA material constitutive model. Furthermore, the Heaviside projection function and minimum length constraints were considered to guarantee the geometrical regulations of SMA device designs [34]. Numerical examples show that the proposed method could obtain the optimized SMA actuator designs with desired two-way actuation shapes.

Following Section 1, which introduced the state of the art of smart material and structures with TWSME, the rest of the paper is organized as follows. Section 2 explains the basic ideas of constructing a new topology-optimization formulation for prescribed two-way shape-morphing SMA actuator designs. The nonlinear finite element analysis processes and analytical sensitivity derivation of the optimization responses are described in Section 3. Numerical examples are presented in Section 4, and the conclusions are given in Section 5.

2. Topology Optimization Method for Two-Way Shape-Morphing SMA Actuators

2.1. Material Constitutive Model for Shape Memory Alloys

The microscopic models [23,35], derived based on microscale theory, such as phase transition kinetics and crystal growth theory, are suitable for predicting the behaviors of SMA microstructures. The macroscopic models have few parameters and can represent the SMA continuum behaviors well with only a few experimental calibrations. Thus, they are computationally efficient for topology optimization of large-scale SMA actuators. In this work, the ZM material model [19] was used with sets of state variables to simulate the specific phenomena of SMA, including superelasticity, martensite orientation, and shape memory effects. The state variables are the macroscopic strain tensor ε, temperature T, local deformation strain tensors ε_A for austenite, local deformation strain tensors ε_M for martensite, martensite volume fraction z, and local martensitic reorientation strain ε_tr. Within the framework of generalized standards materials, the Helmholtz free-energy density of SMA materials is defined as:

$$\begin{array}{ll}W& =W(T,{\mathit{\epsilon }}_A,{\mathit{\epsilon }}_M,z,{\mathit{\epsilon }}_{tr})\\ & =(1-z)\left(\frac{1}{2}{\mathit{\epsilon }}_A:{\mathit{C}}_A:{\mathit{\epsilon }}_A\right)+z\left[\frac{1}{2}({\mathit{\epsilon }}_M-{\mathit{\epsilon }}_{tr}):{\mathit{C}}_M:({\mathit{\epsilon }}_M-{\mathit{\epsilon }}_{tr})+H(T)\right]\\ & +G\frac{z^2}{2}+\frac{z}{2}[{\alpha }_{s}z+{\beta }_s(1-z)]\left(\frac{2}{3}{\mathit{\epsilon }}_{tr}:{\mathit{\epsilon }}_{tr}\right)\end{array}$$

(1)

where C_A and C_M are the austenite elastic modulus and martensite elastic modulus tensors, respectively. H(T) is heat density associated with the phase transformation and defined as H(T) = ξ_s(T−A_f⁰) + k. A_f⁰ is the reverse phase transformation finish temperature; G, α_s, β_s, ξ_s, and k are parameters relevant to material properties. In the aforementioned formulation, (1−z)(1/2ε_A:C_A:ε_A) is the free energy of austenite; z [1/2(ε_M−ε_tr):C_M: (ε_M−ε_tr) + H(T)] is the free energy of martensite; Gz²/2 + z/2[α_sz + β_s(1−z)](2/3ε_tr:ε_tr) represents the interaction energy inside the SMA material. For the state variables ε, ε_A, ε_M, ε_tr, and z, the following physical constraints must be satisfied:

$$z\ge 0 \mathrm{and} 1-z\ge 0$$

(2)

$$(1-z){\mathit{\epsilon }}_A+z{\mathit{\epsilon }}_M-\mathit{\epsilon }=0$$

(3)

$${\epsilon }_0-\sqrt{\raisebox{1ex}{$2$}\!\left/ \!\raisebox{-1ex}{$3$}\right.{\mathit{\epsilon }}_{tr}:{\mathit{\epsilon }}_{tr}}\ge 0$$

(4)

where ε₀ denotes the maximum phase transformation strain. The Lagrange multipliers λ, μ, v₁, and v₂ are introduced to include the physical constraints into the total Helmholtz free energy L(W,W_cons):

$$\begin{array}{l}L(W,W_{cons})=W+W_{cons}\\ =(1-z)\left(\frac{1}{2}{\mathit{\epsilon }}_A:{\mathit{C}}_A:{\mathit{\epsilon }}_A\right)+z\left[\frac{1}{2}({\mathit{\epsilon }}_M-{\mathit{\epsilon }}_{tr}):{\mathit{C}}_M:({\mathit{\epsilon }}_M-{\mathit{\epsilon }}_{tr})+H(T)\right]\\ +G\frac{z^2}{2}+\frac{z}{2}[{\alpha }_{s}z+{\beta }_s(1-z)]\left(\frac{2}{3}{\mathit{\epsilon }}_{tr}:{\mathit{\epsilon }}_{tr}\right)\\ -\mathit{\lambda }:\left[(1-z){\mathit{\epsilon }}_A+z{\mathit{\epsilon }}_M-\mathit{\epsilon }\right]-\mu \left({\epsilon }_0-\sqrt{\raisebox{1ex}{$2$}\!\left/ \!\raisebox{-1ex}{$3$}\right.{\mathit{\epsilon }}_{tr}:{\mathit{\epsilon }}_{tr}}\right)-v_{1}z-v_2(1-z)\end{array}$$

(5)

Thus, the stress–strain relation of SMA can be mathematically derived from Lagrange Equation (5):

$$\mathit{\sigma }=\frac{\partial L}{\partial \mathit{\epsilon }}={\mathit{C}}_{eq}:(\mathit{\epsilon }-z{\mathit{\epsilon }}_{tr})$$

(6)

where σ is the Cauchy stress tensor. A large deformation–small strain formulation is used to account for the evident shape morphing effects. Thermal strain is neglected here, considering its insignificant magnitude compared with that of the SMA phase transformation strain ε_tr.

The equivalent elastic modulus tensor C_eq is computed as SMA austenite–martensite mixture:

$${\mathit{C}}_{\mathrm{eq}}={\left[(1-z){\mathit{C}}_{\mathrm{A}}^{-1}+z{\mathit{C}}_{\mathrm{M}}^{-1}\right]}^{-1}$$

(7)

Thermodynamic forces A_z and A_tr, which determine the evolution process of the martensite phase transformation and reorientation, can be derived from the Lagrangian L(W,W_cons):

$$\begin{array}{r}{A}_z=-\frac{\partial L}{\partial z}=\frac{1}{2}[{\mathit{\epsilon }}_A:{\mathit{C}}_A:{\mathit{\epsilon }}_A-({\mathit{\epsilon }}_M-{\mathit{\epsilon }}_{tr}):{\mathit{C}}_M:({\mathit{\epsilon }}_M-{\mathit{\epsilon }}_{tr})]-H(T)\\ -Gz-[({\alpha }_s-{\beta }_s)z+\frac{{\beta }_s}{2}]\left(\frac{2}{3}{\mathit{\epsilon }}_{tr}:{\mathit{\epsilon }}_{tr}\right)-\mathit{\lambda }:({\mathit{\epsilon }}_A-{\mathit{\epsilon }}_M)\end{array}$$

(8)

$$\begin{array}{c}{\mathit{A}}_{tr}=-\frac{\partial L}{\partial {\mathit{\epsilon }}_{tr}}=z\left\{{\mathit{C}}_M:({\mathit{\epsilon }}_M-{\mathit{\epsilon }}_{tr})-\frac{2}{3}\left[{\alpha }_{s}z+{\beta }_s(1-z)\right]{\mathit{\epsilon }}_{tr}\right\}\\ -\frac{2\mu }{3}\frac{{\mathit{\epsilon }}_{tr}}{\sqrt{2/3({\mathit{\epsilon }}_{tr}:{\mathit{\epsilon }}_{tr})}}\end{array}$$

(9)

The pseudopotential D is defined as a function of the evolution ratio of martensite volume fraction z and martensite orientation strain ε_tr:

$$\begin{array}{l}D=D(\dot{z},{\dot{\mathit{\epsilon }}}_{tr})\\ =[a(1-z)+bz]\left|\dot{z}\right|+z^{2}Y\sqrt{2/3({\dot{\mathit{\epsilon }}}_{tr}:{\dot{\mathit{\epsilon }}}_{tr})}\end{array}$$

(10)

where a, b, and Y are parameters relevant to the material properties. The thermodynamic forces A_z and A_tr are sub-gradients of the pseudopotential of dissipation D according to the theory of generalized standard materials. The yield functions associated with the forward phase transformation F_z¹, reverse phase transformation F_z², and martensite orientation F_tr can be defined as

$$\begin{array}{ll}{F}_{\mathrm{z}}^1& =A_z-a(1-z)-bz\\ & =\left\{\frac{1}{3}E{l}_{\mathrm{MA}}{\sigma }_{\mathrm{VM}}^2+\frac{1}{2}\left(\frac{1}{3}E{l}_{\mathrm{MA}}+P_{\mathrm{MA}}\right){(tr\mathit{\sigma })}^2-H(T)\right\}\\ & +\mathit{\sigma }:{\mathit{\epsilon }}_{tr}-(G+b)z-a(1-z)-\left[({\alpha }_{\mathrm{s}}-{\beta }_{\mathrm{s}})z+\frac{{\beta }_{\mathrm{s}}}{2}\right]\left(\frac{2}{3}{\mathit{\epsilon }}_{\mathrm{tr}}:{\mathit{\epsilon }}_{\mathrm{tr}}\right)\le 0\end{array}$$

(11)

$$\begin{array}{ll}{F}_{\mathrm{z}}^2& =-A_z-a(1-z)-bz\\ & =-\left\{\frac{1}{3}E{l}_{\mathrm{MA}}{\sigma }_{\mathrm{VM}}^2+\frac{1}{2}\left(\frac{1}{3}E{l}_{\mathrm{MA}}+P_{\mathrm{MA}}\right){(tr\mathit{\sigma })}^2-H(T)\right\}\\ & -\mathit{\sigma }:{\mathit{\epsilon }}_{\mathrm{tr}}+(G-b)z-a(1-z)+\left[({\alpha }_{\mathrm{s}}-{\beta }_s)z+\frac{{\beta }_s}{2}\right]\left(\frac{2}{3}{\mathit{\epsilon }}_{\mathrm{tr}}:{\mathit{\epsilon }}_{\mathrm{tr}}\right)\le 0\end{array}$$

(12)

$$\begin{array}{l}{F}_{\mathrm{ori}}=\frac{F_{tr}}{z}=\frac{{\left|{\mathit{A}}_{\mathrm{tr}}\right|}_{\mathrm{VM}}}{z}-zY={\Vert \mathit{X}\Vert }_{\mathrm{VM}}-zY\le 0\\ \mathrm{with} \mathit{X}=\mathit{\sigma }-\frac{2}{3}\left[{\alpha }_{\mathrm{s}}z+{\beta }_s(1-z)\right]{\epsilon }_{\mathrm{tr}}-\frac{2\mu \hspace{1em}{\epsilon }_{\mathrm{tr}}}{3z\sqrt{\frac{2}{3}{\mathit{\epsilon }}_{\mathrm{tr}}:{\mathit{\epsilon }}_{\mathrm{tr}}}}\end{array}$$

(13)

where F_z¹ and F_z² represent the forward transformation yield function (from austenite to martensite) and reverse transformation yield function (from martensite to austenite); F_ori governs the detwinning process of twinned martensite, Y denotes the initiation yield stress of twinned martensite; ||X||_VM is the von Mises equivalent of the thermodynamic force X; El_MA, P_MA, α_s, β_s, a, b, and G are material parameters defining the superelastic hysteresis loops in the work of Zaki et al. [19]. The evolution laws of state variables z and ε_tr can be derived as

$$F_Z^1\le 0,\dot{z}\ge 0,F_Z^1\dot{z}=0$$

(14)

$$F_Z^2\le 0,\dot{z}\le 0,F_Z^2\dot{z}=0$$

(15)

$${\mathit{\epsilon }}_{tr}=\frac{3}{2}\eta \frac{\mathit{X}}{{\Vert \mathit{X}\Vert }_{VM}}=\eta \mathit{N},F_{ori}\le 0, \eta \ge 0, F_{tr}\eta =0$$

(16)

where η is a non-negative value related to the Kuhn–Tucker condition. N indicates the direction of the orientation strain rate in strain space. When simultaneously solving Equations (11)–(13) for predicting superelastic behaviors of SMAs, the coupling of multiple yield surfaces may lead to convergence difficulties and extensive computational efforts. To simplify numerical integration, martensite is assumed to be fully oriented by the applied stress as soon as the phase transformation from austenite to martensite takes place [36]. Therefore, the equivalent magnitude of the martensite transformation strain ε_tr is related to the martensite volume fraction z by the following equation:

$$\Vert {\mathit{\epsilon }}_{\mathrm{tr}}\Vert =z{\epsilon }_0;\Vert {\mathit{\epsilon }}_{\mathrm{tr}}\Vert =\sqrt{\raisebox{1ex}{$2$}\!\left/ \!\raisebox{-1ex}{$3$}\right.\left({\mathit{\epsilon }}_{\mathrm{tr}}:{\mathit{\epsilon }}_{\mathrm{tr}}\right)}$$

(17)

The above material constitutive relations are solved using the classic plastic trial and correction method.

As shown in Figure 2, the Two-Way Shape Memory Effect (TWSME) can be found when SMA actuators go through temperature variations. When the SMA material temperature T_L is higher than the austenite finish temperature A_f⁰, the forward transformation and martensite orientation processes occur under external mechanical loading, resulting in a large transformation deformation along load path (1). If the external mechanical loading is kept constant and SMA device is heated uniformly to a higher material temperature T_H, the large transformation deformation would vanish when detwinned martensite recovers to austenite phase via load path (2). Consequently, evident reversible structural shape transformations can be obtained via material temperature variations.

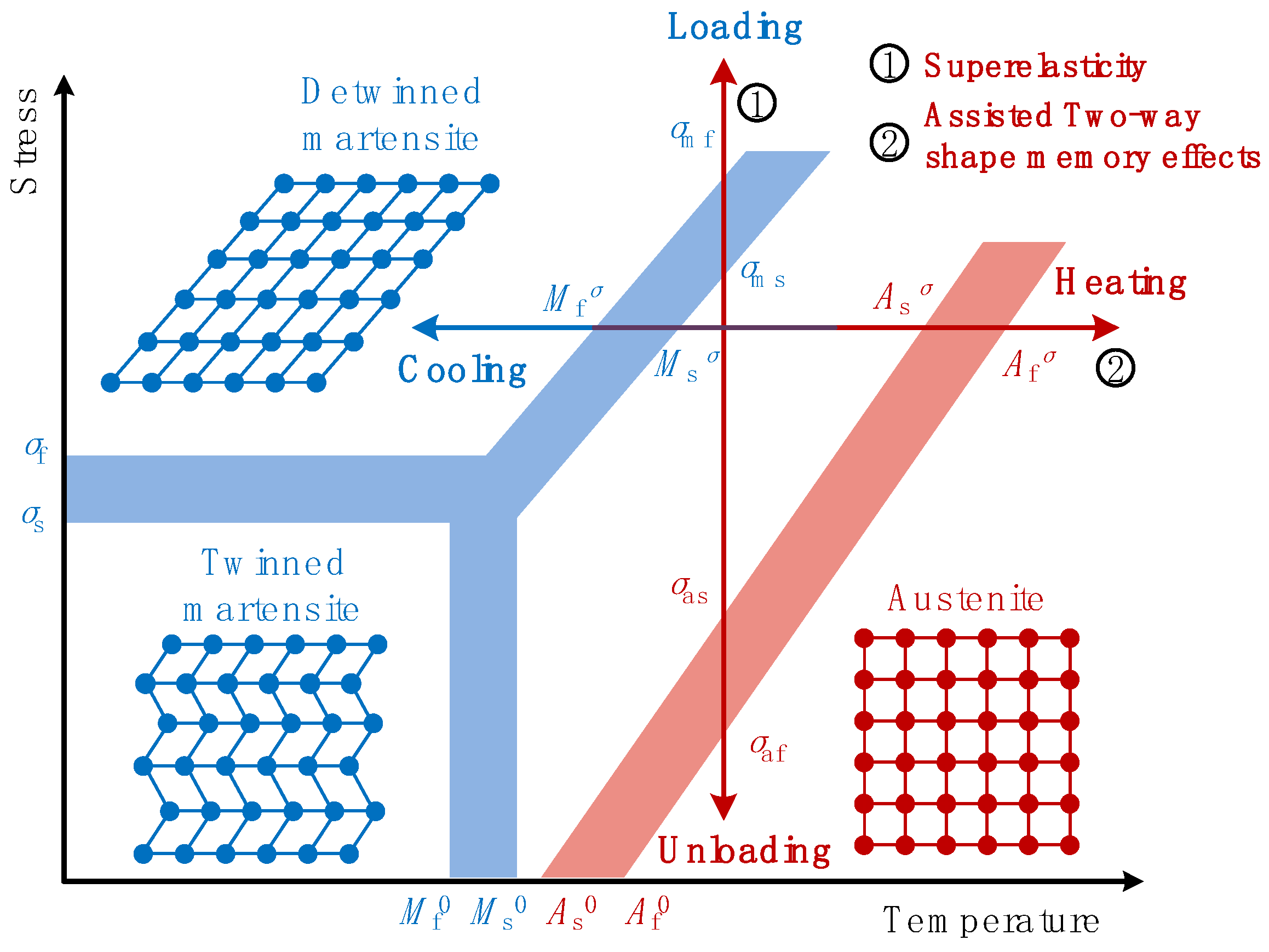

Figure 2. Stress–temperature diagram of SMA materials.

During the thermal-mechanical loading processes of TWSME, forward and martensite orientation transformations are associated with equations F_z¹ = 0 and F_ori = 0. Reverse transformation is associated with equation F_z² = 0. The material constitutive relations are solved using the subroutine [19] at each numerical integration point of finite elements. Parameter values of SMA Material is provided in Table 1.

Table 1. Parameter values using data from Shaw and Kyriakides [37].

Material Parameter		Material Parameter
CA	61,500 MPa	a	6.8920 MPa
CM	24,000 MPa	b	6.9091 MPa
v	0.3	ε0	4%
Y	110 MPa	G	4.6556 MPa
αs	2750 MPa	βs	5500 MPa
ξs	0.4381 MPa/°C	k	2.4920 MPa
Af0	40 °C	T	Material temperature

This study considers SMA material states related with following temperature conditions:

T = {T_L, T_H}

(18)

where temperatures T_L and T_H denote the low and high material temperatures, respectively. The temperature-sensitive superelastic behaviors of shape memory alloys are of great interest during applications.

2.2. Material Interpolation Model for SMA

In the popular Solid Isotropic Material with Penalty (SIMP) topology optimization method, the pseudo-density variable ${\overline{\rho }}_i=\{0,1\}$ determines the existence or absence of design material inside finite element i. When ${\overline{\rho }}_i$ equals 1, the solid SMA material should be put inside finite element i. When ${\overline{\rho }}_i$ equals 0, this means void material should be put inside finite element i. Normally, large-scale integer optimization problem requires enormous computational efforts to find a desired solution. For ease of the design problem, continuous pseudo-density variables were used here. In this work, the desired shape control was considered for the starting and ending temperature points. Only the Young’s moduli of austenite and martensite are interpolated with density variables. The influences of other parameters were proven to be negligible numerically, given that the optimization process sought to obtain “black and white” designs without intermediate density variables. Following the idea of Sigmund et al. [38,39], we interpolated the elastic moduli of austenite and martensite with the SMA material pseudo-density ${\overline{\rho }}_i$, as expressed in Equation (19).

$$\begin{array}{l}{C}_{\mathrm{A}}({\overline{\rho }}_i)=C_A^0\cdot P\left({\overline{\rho }}_i\right)\\ C_{\mathrm{M}}({\overline{\rho }}_i)=C_M^0\cdot P\left({\overline{\rho }}_i\right)\\ P({\overline{\rho }}_i)=C_{min}+{\overline{\rho }}^{p_e}\left(C_0-C_{min}\right)\end{array}$$

(19)

Here, C_A and C_A⁰ denote the designed and solid Young’s moduli of the SMA austenite phase. C_M and C_M⁰ denote the designed and solid Young’s moduli of the SMA martensite phase. P(·) is the material interpolation function, with p_e being the stiffness penalty factor. C₀ and C_min represent the unit value 1 and a small value greater than 0. It should be noted that intermediate density variables introduced artificial simulation responses to the analysis results (see Figure 3). Hence, the three-field scheme proposed by Wang et al. [40] was used in the following proposed topology optimization method. ${\overline{\rho }}_i$ denotes the Heaviside filtered density, which was the physical density for the finite element analysis.

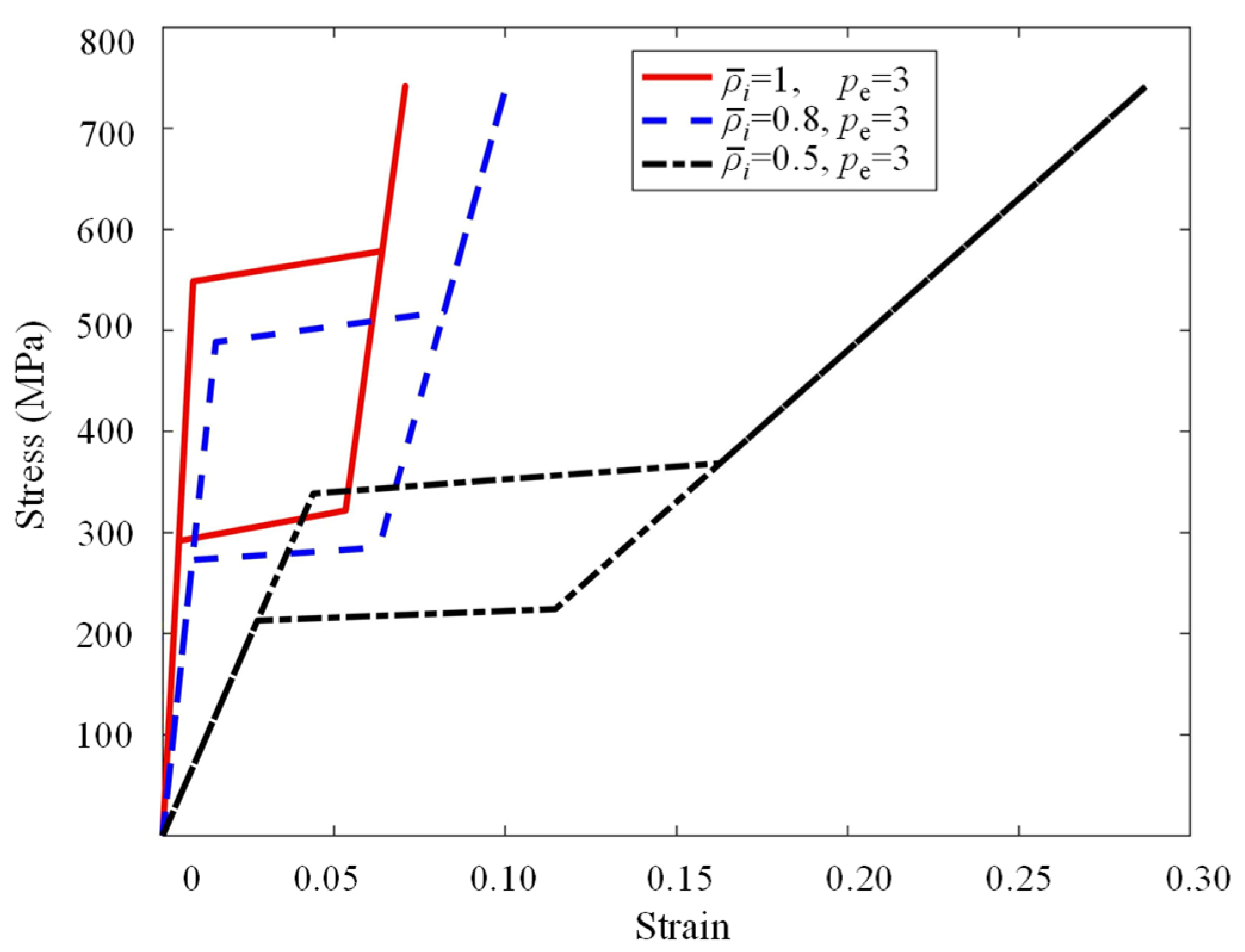

Figure 3. The interpolated SMA material constitutive curves and corresponding physical densities.

When the pseudo-density variable ${\overline{\rho }}_i$ was close to zero, the constitutive curve became highly distorted, as shown in Figure 3. To accelerate the nonlinear analysis process, the constitutive material models for low density elements were simplified as linear elastic models. Meanwhile, the super-element technique [41] was adopted to alleviate the geometry distortions of low-density finite elements caused by large deformation.

2.3. Definition of the Shape Error Function

As shown in Figure 4, the deviations between the actual computed shape and desired target shape can be defined as follows:

$$\begin{array}{ll}Er({\mathit{x}}^{\prime },{\mathit{y}}^{\prime })& ={\displaystyle \sum _{i=1}^m{w}_{0,i}\left[{(x_i-{x_i}^{\prime })}^2+{(y_i-{y_i}^{\prime })}^2\right]}\\ & ={\left(\mathit{x}-{\mathit{x}}^{\prime }\right)}^T{\mathit{W}}_0\left(\mathit{x}-{\mathit{x}}^{\prime }\right)+{\left(f(\mathit{x})-{\mathit{y}}^{\prime }\right)}^T{\mathit{W}}_0\left(f(\mathit{x})-{\mathit{y}}^{\prime }\right)\end{array}$$

(20)

where w_0,i is the weighting factor of the i^th observation point given by the designer. Er is the shape error function between target and actual shapes. W₀ is the weight factor coefficient matrix. m is the total number of observation points. x and y are the coordinate vectors for target positions of the observation points. x′ and y′ represent the coordinate vectors for actual computed positions of the observation points. The shape error functions at different material temperatures {T_L, T_H} can be calculated as

$$E{r}_L={\left({\mathit{x}}_L-{\mathit{x}}_L^{\prime }\right)}^T{\mathit{W}}_0\left({\mathit{x}}_L-{\mathit{x}}_L^{\prime }\right)+{\left(f_L({\mathit{x}}_L)-{\mathit{y}}_L^{\prime }\right)}^T{\mathit{W}}_0\left(f_L({\mathit{x}}_L)-{\mathit{y}}_L^{\prime }\right)$$

(21)

$$E{r}_{\mathrm{H}}={\left({\mathit{x}}_{\mathrm{H}}-{\mathit{x}}_{\mathrm{H}}^{\prime }\right)}^T{\mathit{W}}_0\left({\mathit{x}}_{\mathrm{H}}-{\mathit{x}}_{\mathrm{H}}^{\prime }\right)+{\left(f_{\mathrm{H}}({\mathit{x}}_{\mathrm{H}})-{\mathit{y}}_{\mathrm{H}}^{\prime }\right)}^T{\mathit{W}}_0\left(f_{\mathrm{H}}({\mathit{x}}_{\mathrm{H}})-{\mathit{y}}_{\mathrm{H}}^{\prime }\right)$$

(22)

where f_L(·) denotes the mathematical function for desired structural target shape at the lower material temperature T_L. f_H(·) denotes the mathematical function for desired structural target shape at the higher material temperature T_H. For the three-dimensional shape error calculation, Equations (20)–(22) can be easily extended with the third coordinate item.

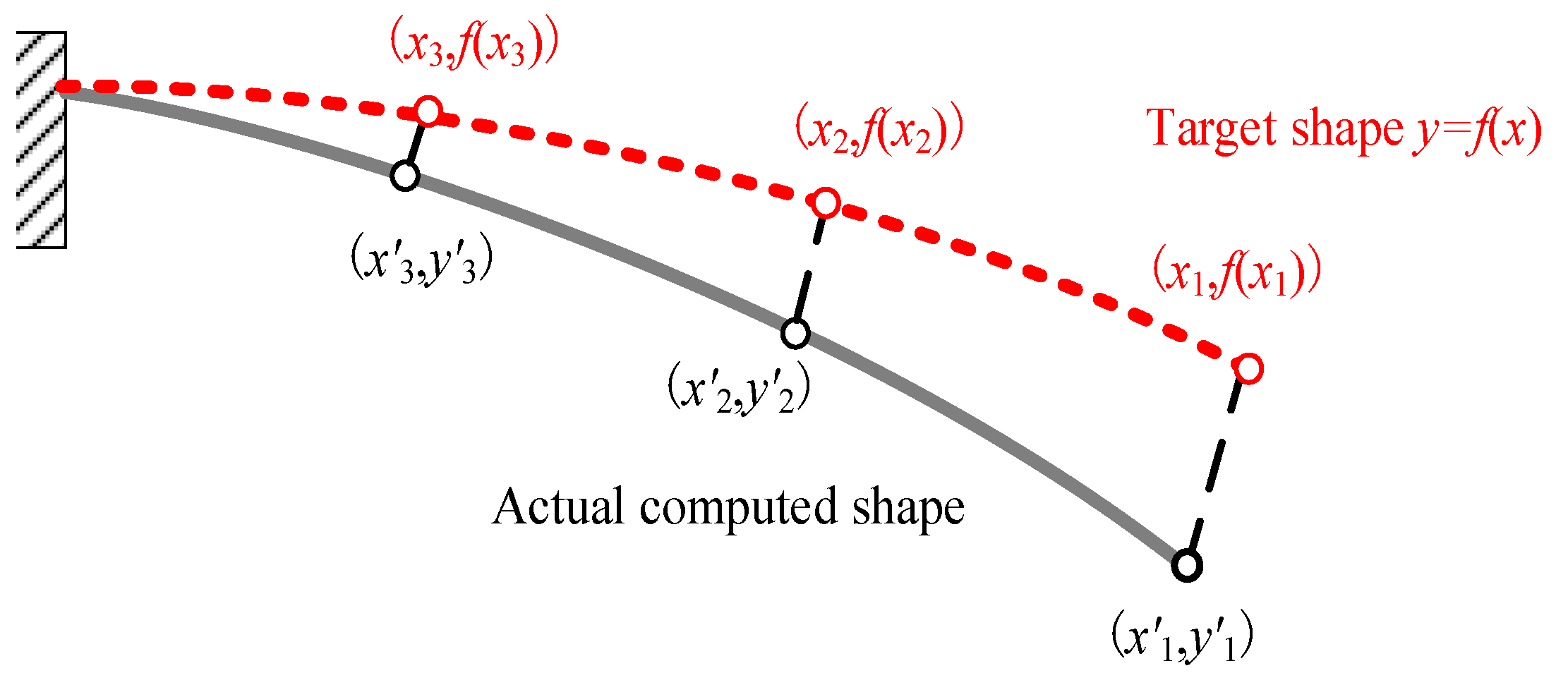

Figure 4. Definition of the shape error function.

2.4. Topology Optimization Model for Prescribed Two-Way Shape-Morphing SMA Actuators

The topology optimization model for the prescribed two-way shape-morphing SMA actuators is defined mathematically as follows:

$$\begin{array}{ll}\mathrm{Find}:& {\rho }_i, i=1,2,\dots ,N;\\ \mathrm{Minimize} :& {Er}_{\mathrm{L}} \\ \mathrm{Subject}\mathrm{to}:& {Er}_H \le \delta ;\\ & V_{fra}\le V_0;\\ & { \mathrm{g}}_s\le {\delta }_s;{ \mathrm{g}}_v\le {\delta }_v;\\ & 0 \le {\rho }_i\le 1 ;\end{array}$$

(23)

Minimizing the shape error function Er_L is chosen as the optimization objective. At the same time, the shape error function Er_H is constrained below a small value δ. N denotes the total number of density design variables. The allowed material volume fraction V_fra of the design domain was set below V₀. The geometric minimum length scale constraints g_s and g_v [34,42] for both the solid and void material were introduced into the topology optimization model to obtain “black and white” designs. δ_s and δ_v represent the upper-bound values. The globally convergent method of moving asymptotes (GCMMA) [43] is applied to solve the above optimization problem, which requires the derivative information of structural responses with respect to the design variables.

3. Nonlinear Finite Element Analysis and Optimization Response Sensitivity Analysis

3.1. Nonlinear Finite Element Analysis

In the SIMP topology optimization framework, fictitious regions [38], which are composed of finite elements with very low Young’s moduli, exist to imitate void regions. The fictitious regions enable different optimized topologies to be obtained using the fixed finite element mesh. When elements in low density areas have relatively large deformations, geometric distortions may occur and cause divergence of nonlinear analysis process. Various methods such as revising convergence criteria in the void regions [44], the additive hyperelasticity method [45], the energy interpolation method [46], and the super element method [41] have been proposed to alleviate the convergence difficulties. Here, the super element method was adopted to alleviate the numerical instabilities caused by weak elements of the topologically optimized SMA actuators.

A finite element equilibrium, accounting for the temperature-dependent superelastic behaviors of shape memory alloys, was found universally since we considered quasi-static deformations:

$${\mathit{R}}_1\left(\mathit{u}\right)={\mathit{f}}_{ext}-{\mathit{f}}_{\mathrm{int}}=0$$

(24)

Equation (24) was solved using the Newton–Raphson method, expressed as follows:

$$\{\begin{array}{c}{\mathit{u}}^{t+1}={\mathit{u}}^t+\Delta {\mathit{u}}^{t+1}\\ {{\mathit{K}}_T}^t\Delta {\mathit{u}}^{t+1}=\Delta {{\mathit{R}}_1}^t\end{array}$$

(25)

K_T is the structural tangent stiffness matrix, which was computed by Equation (26).

$${\mathit{K}}_T={\displaystyle \sum _{e=1}^N{\mathit{K}}_{\mathrm{T}}^e};{\mathit{K}}_{\mathrm{T}}^e={\displaystyle \underset{{\Omega }_e}{\int }{\mathit{B}}^{\mathrm{T}}{\mathit{C}}^{\mathrm{T}}\mathit{B}\mathrm{d}v}$$

(26)

${\mathit{K}}_{\mathrm{T}}^e$ denotes the elemental tangent matrix of the eth element. B is the elemental geometric matrix.C^T represents the consistent tangent moduli of the SMA material. K_T is composed of several parts. As shown in Figure 5, the finite element model of the optimized SMA actuator can be divided into part p1 and part p2 by the pseudo-density threshold D_th. p1 is discretized with finite elements considering SMA material nonlinearity and geometric nonlinearity. p2 is modeled by linear elasticity material model and low-density elements, and their finite element degrees of freedom were suppressed in the total nonlinear iteration loop. Equation (25) can be further unfolded as follows:

$$\left[\begin{array}{cc}{\mathit{K}}_{ss}^{p1}& {\mathit{K}}_{sb}^{p1}\\ {\mathit{K}}_{bs}^{p1}& {\mathit{K}}_{bb}^{p1}+\overline{\mathit{K}}\end{array}\right]\left[\begin{array}{c}\Delta {\mathit{u}}_s\\ \Delta {\mathit{u}}_b\end{array}\right]=\left[\begin{array}{c}\Delta {\mathit{R}}_{1,s}\\ \Delta {\mathit{R}}_{1,b}\end{array}\right]$$

(27)

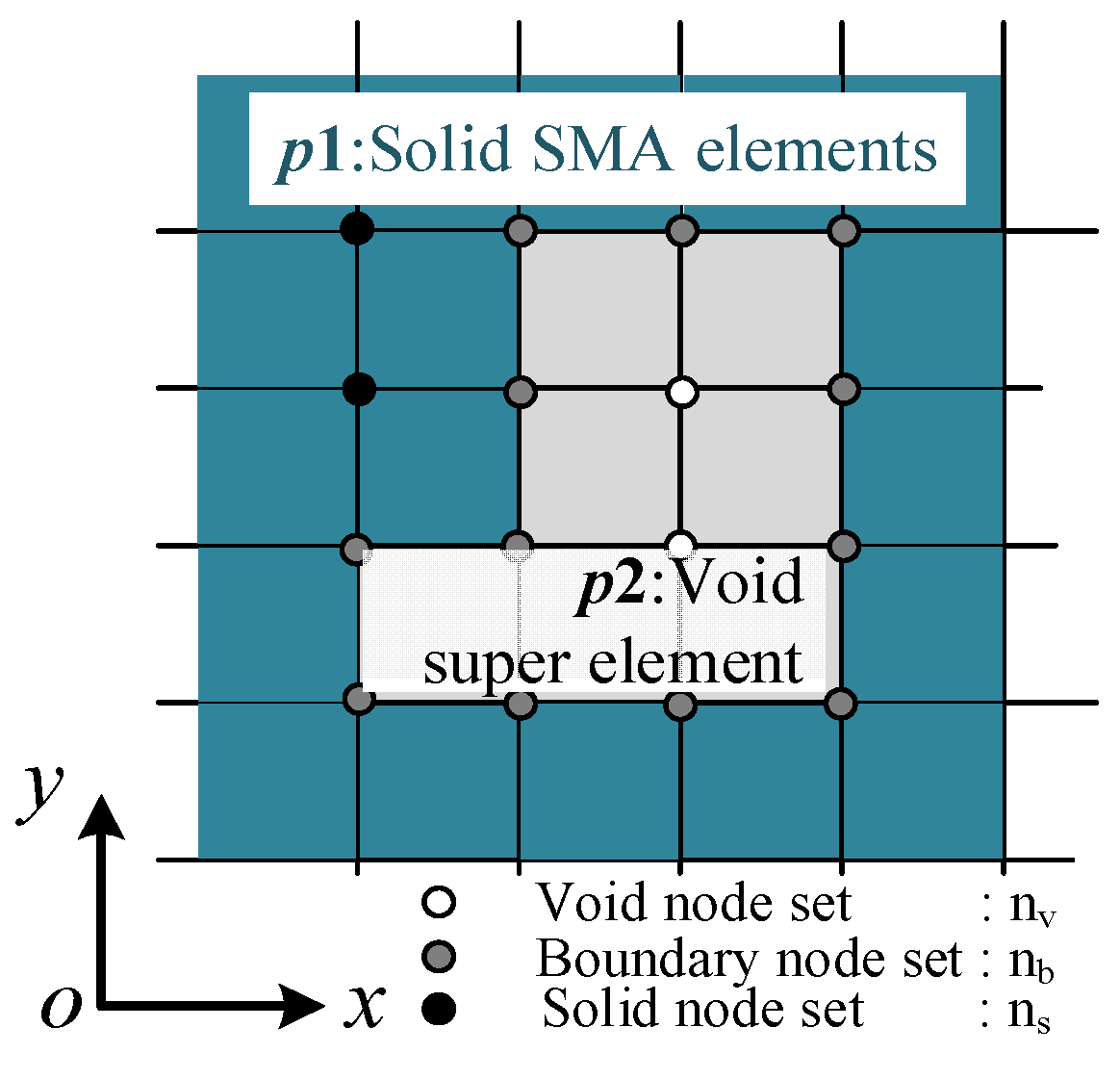

Figure 5. Illustration for super element definition and finite element treatment.

According to the division of solid part p1 and void part p2, all nodes were divided into three groups (see Figure 5). Node type n_s represented all the nodes surrounded by solid elements; node type n_v represented all the nodes surrounded by void elements. Node type n_b represented the nodes on the shared boundary of the solid elements and void elements. The block matrices K_ss, K_sb, K_bb are stiffness matrices between nodes n_s-n_s, n_s-n_b, and n_b-n_b, respectively. denoted the additional stiffness brought to the boundary nodes n_b by the void nodes n_v in fictitious regions. It was calculated at the very beginning of nonlinear analysis on the undeformed configuration and remained unchanged during the iterations. The Newton–Raphson method in common finite element software is used to solve the material and geometrical nonlinear problem. Umat subroutine is programmed to capture the constitutive behaviors of SMA materials at each integration point of the finite element analysis.

3.2. Sensitivity Analysis of the Shape Error Optimization Response

The tangent stiffness matrix K_T is also defined as

$${\mathit{K}}_{\mathrm{T}}=-{\partial {{\mathit{R}}_1}^t/\partial \mathit{u}}^t$$

(28)

The detailed calculation procedure for nonlinear equilibrium can be found in the study of Zienkiewicz et al. [47] and is not stated here. By introducing the zero-valued item λ₁^TR₁, the sensitivity of the shape error function with respect to projected density ${\overline{\rho }}_i$ can be expressed as

$$\begin{array}{r}\frac{\partial \left(Er+{{\mathit{\lambda }}_1}^{\mathrm{T}}{\mathit{R}}_1\right)}{\partial {\overline{\rho }}_i}=\frac{\partial {\left(f(\mathit{x})-{\mathit{y}}^{\prime }\right)}^T{\mathit{W}}_0\left(f(\mathit{x})-{\mathit{y}}^{\prime }\right)}{\partial {\overline{\rho }}_i}+{{\mathit{\lambda }}_1}^{\mathrm{T}}\left(\frac{\partial {\mathit{R}}_1}{\partial \mathit{u}}\frac{\partial \mathit{u}}{\partial {\overline{\rho }}_i}+\frac{\partial {\mathit{R}}_1}{\partial {\overline{\rho }}_i}\right)\\ =2{\left(f(\mathit{x})-{\mathit{y}}^{\prime }\right)}^T{\mathit{W}}_0\frac{\partial \left(f(\mathit{x})-{\mathit{y}}^{\prime }\right)}{\partial {\overline{\rho }}_i}-{{\mathit{\lambda }}_1}^{\mathrm{T}}{\mathit{K}}_{\mathrm{T}}\frac{\partial \mathit{u}}{\partial {\overline{\rho }}_i}+{{\mathit{\lambda }}_1}^{\mathrm{T}}\frac{\partial {\mathit{R}}_1}{\partial {\overline{\rho }}_i}\end{array}$$

(29)

The item $\partial \left(f(\mathit{x})-{\mathit{y}}^{\prime }\right)/\partial {\overline{\rho }}_i$ can be further written as Equation (30).

$$\begin{array}{ll}\partial \left(f(\mathit{x})-{\mathit{y}}^{\prime }\right)/\partial {\overline{\rho }}_i& =\partial f(\mathit{x})/\partial {\overline{\rho }}_i-\partial {\mathit{y}}^{\prime }/\partial {\overline{\rho }}_i\\ & =\frac{\partial f(\mathit{x})}{\partial \mathit{x}}\frac{\partial \mathit{x}}{\partial {\overline{\rho }}_i}-\frac{\partial {\mathit{y}}^{\prime }}{\partial {\overline{\rho }}_i}\\ & =\left(\frac{\partial f(\mathit{x})}{\partial \mathit{x}}{\mathit{L}}_x-{\mathit{L}}_y\right)\frac{\partial \mathit{u}}{\partial {\overline{\rho }}_i}\end{array}$$

(30)

L_x and L_yare binary matrices to extract desired output displacement vectors from the global displacement vector u. Since λ is the Lagrange multiplier, which can take an arbitrary value, a particular value is selected according to Equation (31) so that the sensitivity of shape error function can be analytically computed:

$$2{\left(f(\mathit{x})-{\mathit{y}}^{\prime }\right)}^T{\mathit{W}}_0\frac{\partial f(\mathit{x})}{\partial \mathit{x}}{\mathit{L}}_x-2{\left(f(\mathit{x})-{\mathit{y}}^{\prime }\right)}^T{\mathit{W}}_0{\mathit{L}}_y={{\mathit{\lambda }}_1}^{\mathrm{T}}{\mathit{K}}_{\mathrm{T}}={\mathit{F}}_{adj}^T$$

(31)

By substituting Equations (30) and (31) into Equation (29), the analytical sensitivity information of shape error response with respect to density design variables is obtained:

$$\begin{array}{ll}\frac{\partial Er}{\partial {\overline{\rho }}_i}& ={{\mathit{\lambda }}_1}^{\mathrm{T}}\frac{\partial {\mathit{R}}_1}{\partial {\overline{\rho }}_i}\\ & ={{\mathit{\lambda }}_1}^{\mathrm{T}}\frac{\partial ({\mathit{f}}_{ext}-{\mathit{f}}_{\mathrm{int}})}{\partial {\overline{\rho }}_i}\\ & ={{\mathit{\lambda }}_1}^{\mathrm{T}}\left(\frac{\partial {\mathit{f}}_{ext}}{\partial {\overline{\rho }}_i}-\frac{\partial P({\overline{\rho }}_i)}{\partial {\overline{\rho }}_i}\frac{{\mathit{f}}_{\mathrm{int}}}{P({\overline{\rho }}_i)}\right)\end{array}$$

(32)

4. Numerical Examples

In this section, two kinds of SMA actuators are optimized with the proposed topology optimization method for desired two-way shape morphing. There are several aspects that need to be addressed:

(i) The desired target shapes should be compatible with the structural configurations and mechanical boundary conditions.

(ii) The relative deformations between two target shapes are in compliance with the magnitudes of transformation strain and structural dimensions.

(iii) The thermal–mechanical loading processes facilitated the forward and reverse transformations between martensite and austenite material phases of the SMA actuators.

The flowchart for the topology optimization of two-way shape-morphing SMA actuators is depicted in Figure 6. The convergence criterion for the topology optimization procedure is selected as: the maximum variation of the design variables between two adjacent iteration steps, which was less than 1 percent. The smoothed Heaviside projection factor β was increased gradually from 1 to 64 by a multiplying factor of 1.5 every 20 steps. The geometric minimum constraints are added to the optimization process when the discreteness of Heaviside filtered density $\overline{\rho }$ are below 10% [34]. The penalty factor p_e was chosen as a constant value of 3. The pseudo-density threshold D_th was chosen as 0.1. Since the modified SIMP interpolation scheme was used, C_min corresponding to void space was set one millionth of C₀ = 1. To afford the computational effort, the reduced-integration 3D element is used. All numerical examples were run on a computer equipped with four-core CPU (clock speed 4.0 GHz) and 16 GB of RAM.

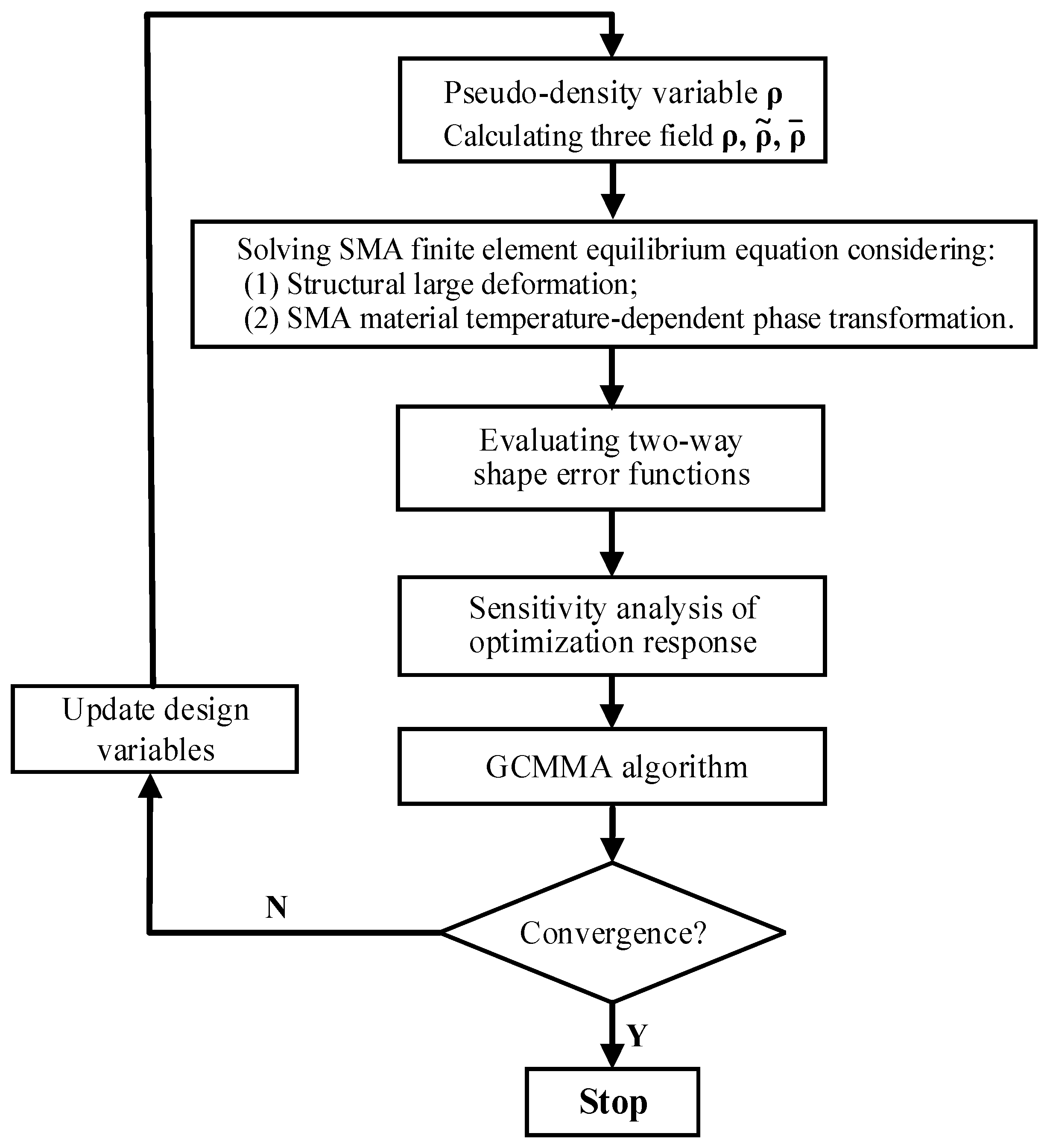

Figure 6. Flowchart for topology optimization of two-way shape-morphing SMA actuators.

4.1. Topology Optimization of SMA Cantilever Beam for Prescribed Two-Way Shape Morphing

In this subsection, the topology optimization of an SMA cantilever beam is considered. Figure 7 shows the information of the detailed geometry and boundary condition. The SMA cantilever structure was discretized with finite elements with an average length scale of 8 mm. A total of 4215 3D solid finite elements with 8568 nodes were generated and arranged in one single plane. The upper-bound values δ_s and δ_v of geometric minimum length constraints were 1.0 × 10⁻⁵. The basic morphing shapes were defined as straight lines with different slopes. Their target shapes at two material temperatures {T_L, T_H} are given as follows:

$$y_{\mathrm{L}}=-0.1x;T_{\mathrm{L}}=300\mathrm{K}$$

(33)

$$y_{\mathrm{H}}=-0.05x;T_{\mathrm{H}}=400\mathrm{K}$$

(34)

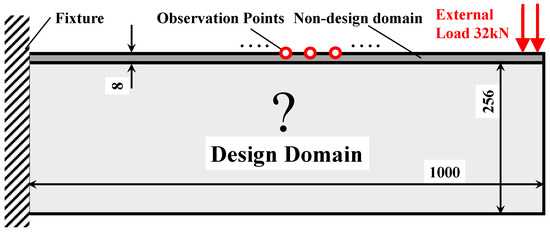

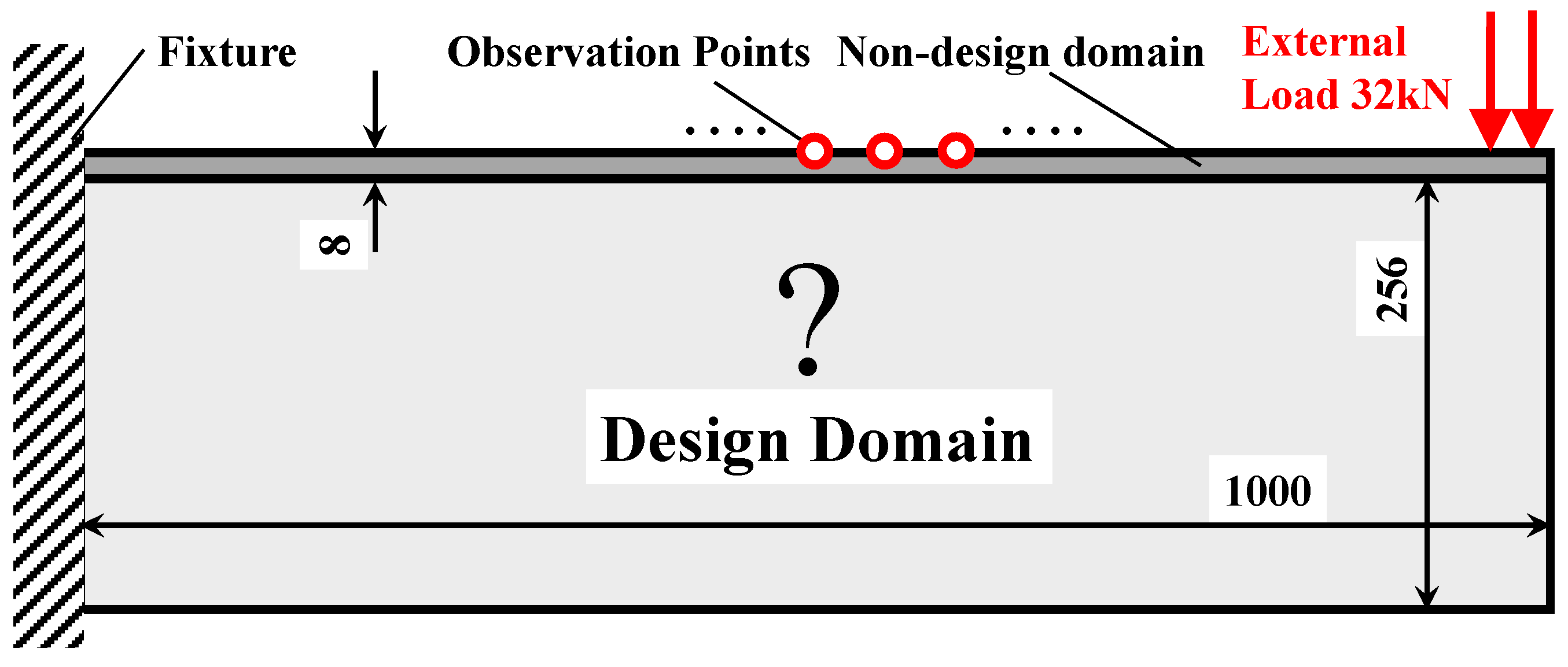

Figure 7. Geometric configuration and boundary conditions of SMA cantilever beam (thickness of cantilever beam: 8 mm).

The material parameters are listed in Table 2. The external mechanical load has a magnitude of 32 kN and is distributed uniformly in an area of 24 mm × 8 mm. Material volume fraction upper bound V₀ was set as 50%; the density filter radius R_filter was chosen as four times the average size of the finite elements. In total, 25 × 2 observation points were located equidistantly on the upper surface. To normalize the values of shape error functions, the weighting factor w_0,i was chosen as the reciprocal of the desired displacement magnitude at the ith observation point. The shape error function Er_H at the material temperature T_H was constrained below δ = 0.1.

Table 2. Material parameters of SMA from the work of Gu et al. [36].

Material Parameter		Material Parameter
CA	30,340 MPa	a	5.16 MPa
CM	18,000 MPa	b	6.36 MPa
v	0.3	ε0	4%
Y	30 MPa	G	13.17 MPa
αs	500 MPa	βs	1250 MPa
ξs	0.2 MPa/K	κ	4.16 MPa
A0f	300 K	T	Material temperature

Figure 8 illustrates the topology evolution history of the SMA cantilever beam as the proposed optimization algorithm proceeded. The whole topology-optimization process for SMA cantilever beam took approximately 40 h. After 430 iterations, the topology optimization algorithm found a reasonable local optimum. The iteration history is plotted in Figure 9. The optimized SMA cantilever had a well-defined topological configuration and distinct material boundary, and satisfied the imposed minimum length and scale geometric constraints. The upper part of the fixed root was designed to be weak, and a massive amount of material was gathered in the middle part. This design scheme facilitated the desired slope deformation under the mechanical load.

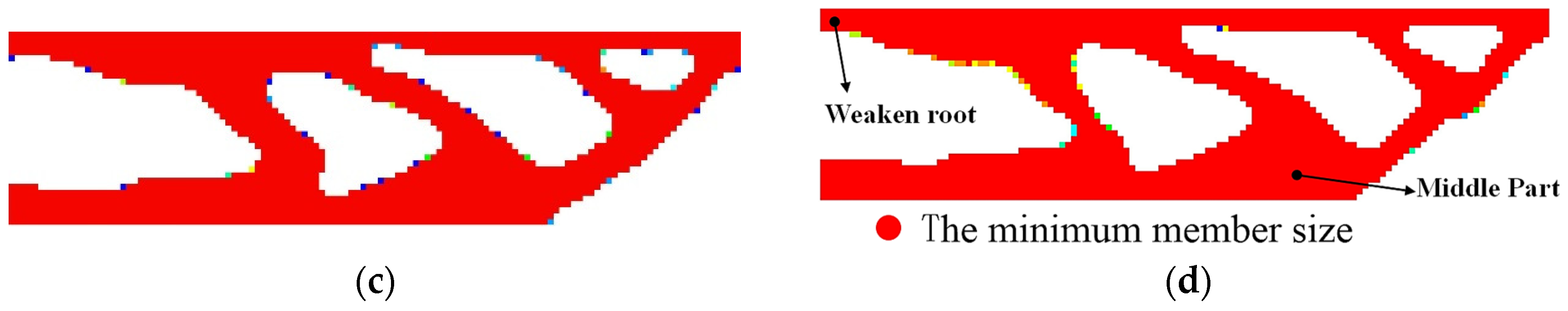

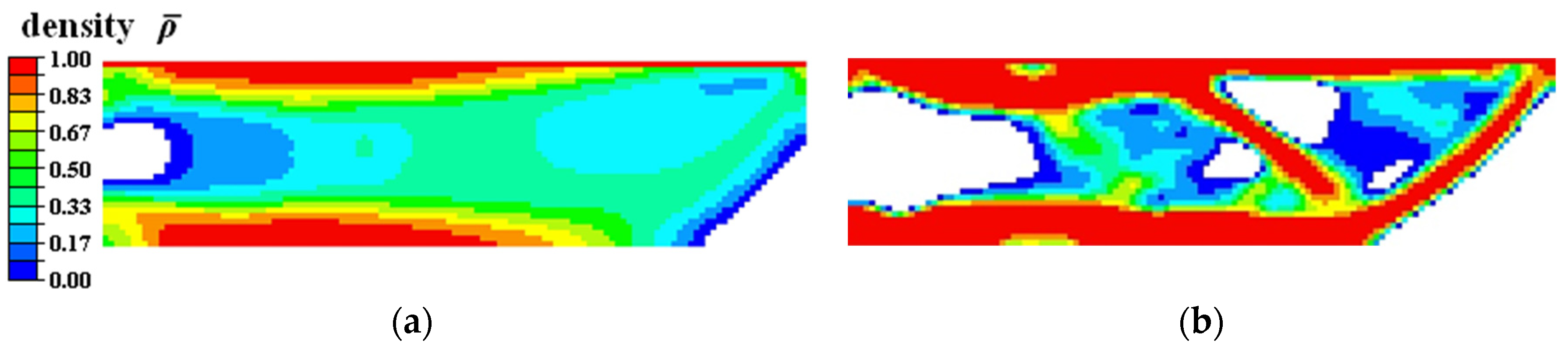

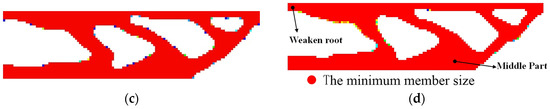

Figure 8. Topological designs of SMA cantilever beam at (a) Iteration 20, (b) Iteration 100, (c) Iteration 240, and (d) Iteration 430 (final design).

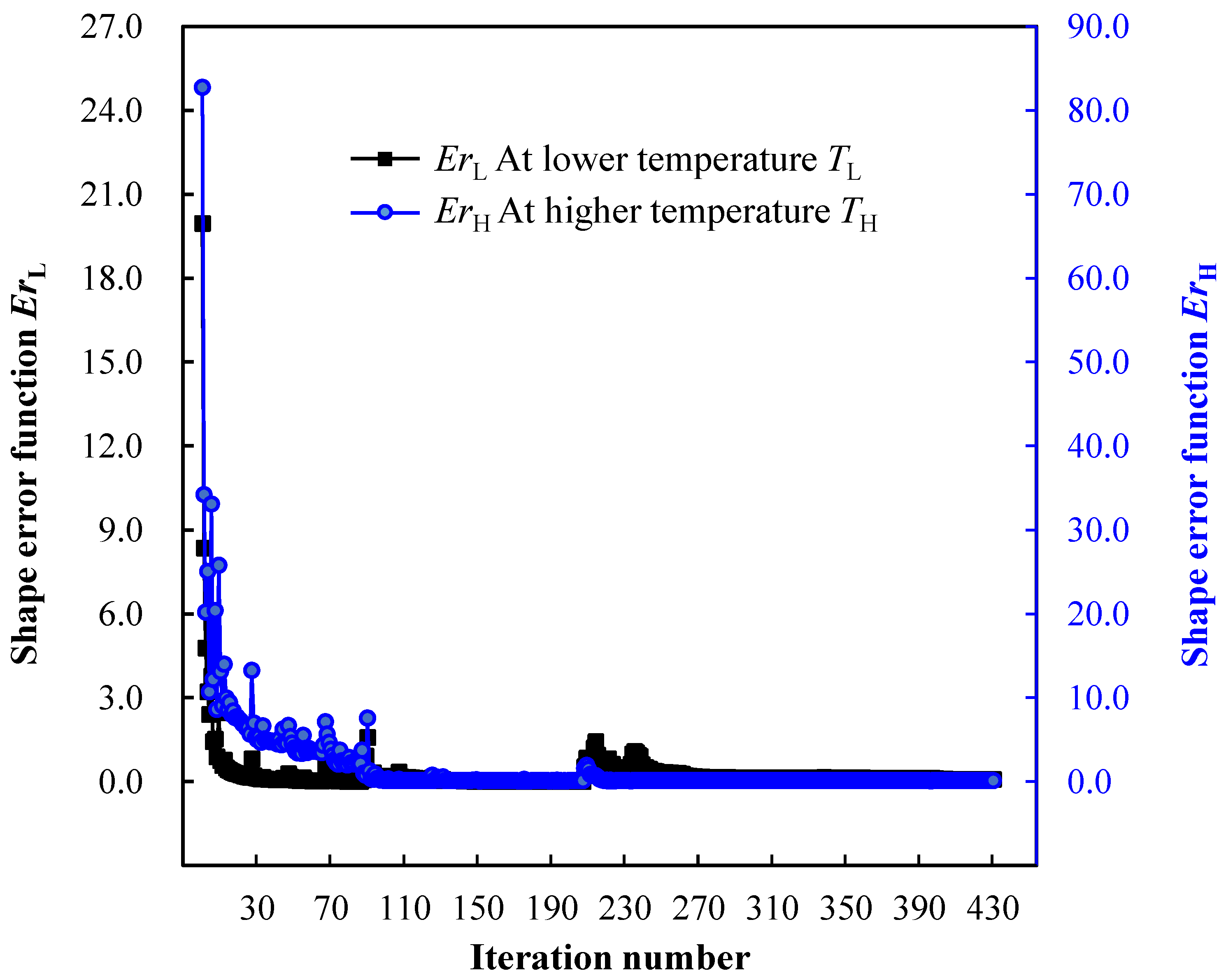

Figure 9. Shape error iteration history of two-way shape morphing design for SMA cantilever beam.

As shown in Figure 9, the value of objective function Er_L decreased from 19.950 to 0.079, while the value of the shape error constraint Er_H evolved from 82.730 to 0.100, satisfying the prescribed upper-bound value δ. The final values of the shape error functions Er_L and Er_H were only 0.4% and 0.1% of the initial values, respectively. The optimization process only oscillated for a few iteration steps when the geometric minimum length constraints were strengthened.

The two-way shape-morphing patterns, martensite phase transformation regions, and structural stress distributions are depicted in Figure 10. As shown in Figure 10a,d, the upper surface of the topology-optimized SMA cantilever beam transformed precisely into the preferred slope configurations at material temperatures T_L and T_H, thus fulfilling the desired two-way shape morphing effect.

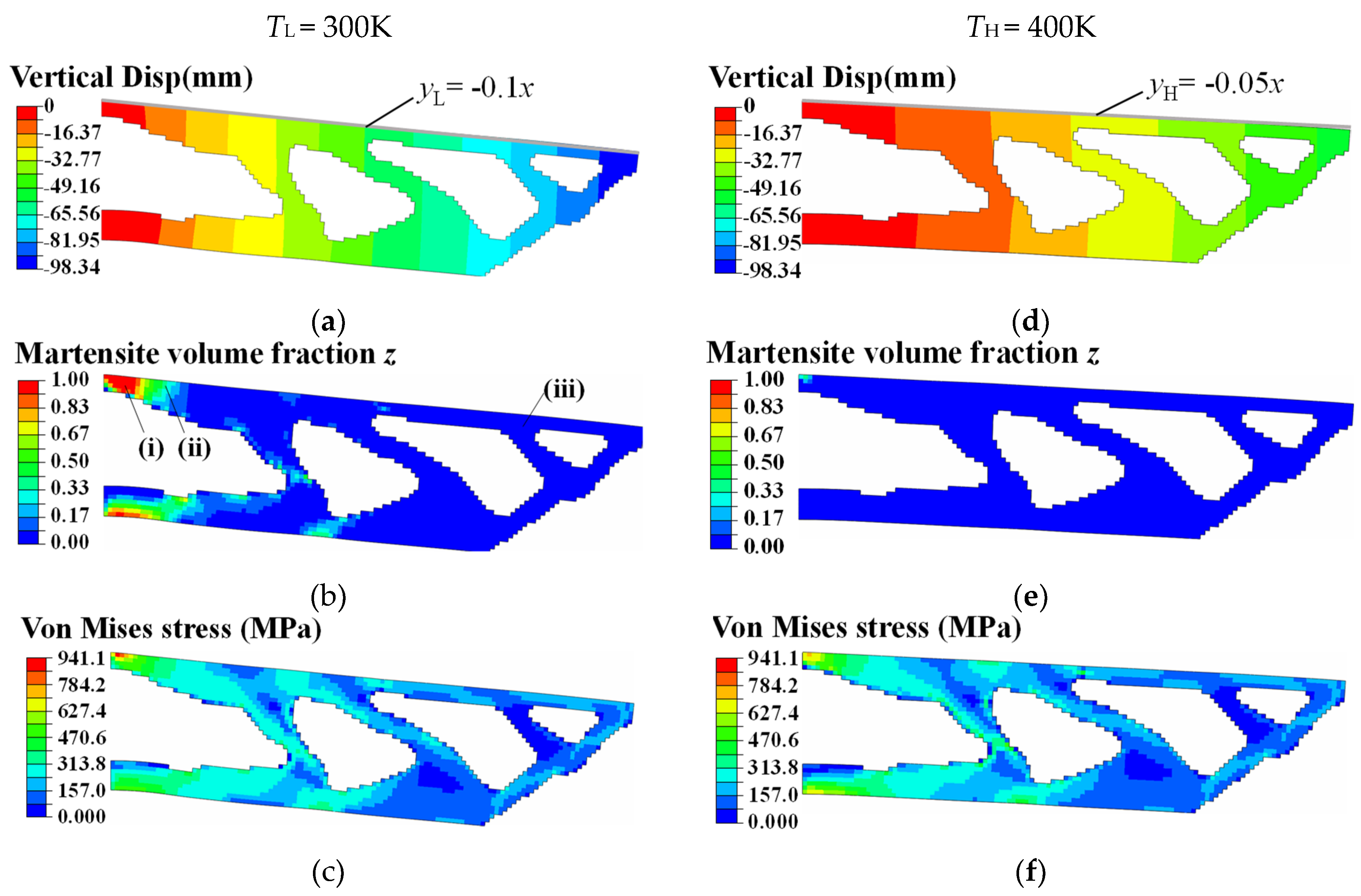

Figure 10. Simulated deformation, phase transformation, and structural stress contours of optimized SMA cantilever at different material temperatures. T_L = 300 K. (a) Vertical displacement contour (Min: −98.34 mm). (b) Martensite volume fraction z contour (max: 1.0). (c) Von Mises stress contour (max: 941.10 MPa). T_H = 400 K. (d) Vertical displacement contour (Min: −53.63 mm). (e) Martensite volume fraction z contour (max: 0.36). (f) Von Mises stress contour (max: 737.30 MPa).

The internal mechanical principles are explained in the following. Under the conditions of the lower material temperature T_L and the external mechanical load, the SMA material at the root of the cantilever beam detwinned from austenite to martensite (see Figure 10b,e), resulting in a reversible martensite transformation strain ε_tr. Meanwhile, the loaded upper surface approached the slope shape defined in Equation (33). According to Equation (17), there was a positive correlation between the transformation strain ε_tr and martensitic material volume fraction. As shown in Figure 10b and Figure 11(i), the complete martensite detwinning process occurred in the locations where the martensite volume fraction z equaled 1. Therein, the magnitude of the martensite transformation strain ||ε_tr|| reached ε₀. The total mechanical strain ε comprised austenite elastic strain ε_A, martensite transformation strain ε_tr, and detwinned martensite elastic strain ε_M. As shown in zone (ii) of Figure 10b, a partial martensite detwinning process occurred in the locations where the martensite volume fraction z was in the internal of (0,1). Here, the magnitude of martensite transformation strain ||ε_tr|| was less than ε₀, and the total mechanical strain ε comprised the austenite elastic strain ε_A and the partial martensite transformation strain ε_tr. As shown in zone (iii) of Figure 10b, the SMA material remained austenite in the locations where martensite volume fraction z equaled 0. Therein, the total mechanical strain ε only represented the austenite elastic strain ε_A.

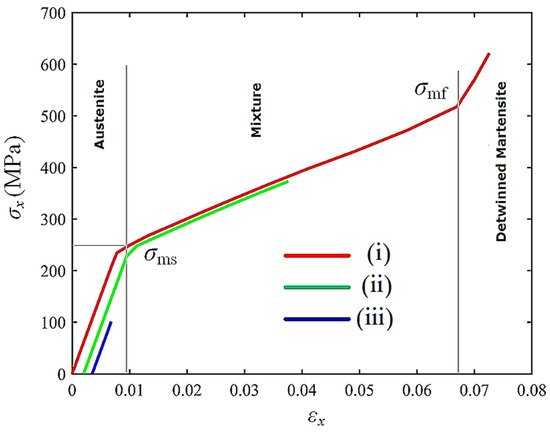

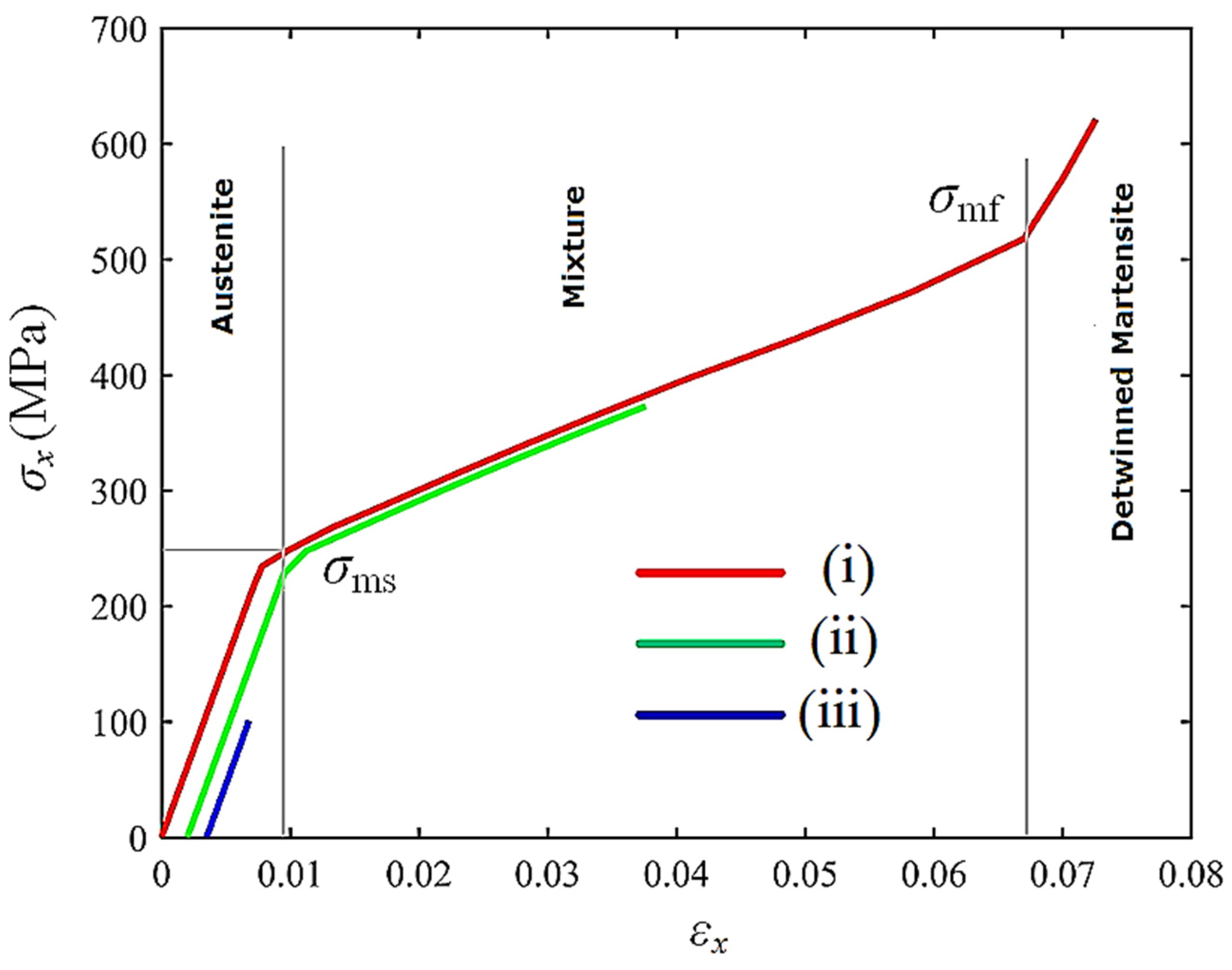

Figure 11. Constitutive behaviors of SMA material in different transformation zones.

Under the constant external load, when the SMA material was heated to a higher temperature T_H, detwinned martensite in zones (i) and (ii) transformed reversely to the austenite phase (see Figure 2 and Figure 10e). The transformation strain ε_tr, which was proportional to the martensite volume fraction z, vanished. From a macroscopic point of view, the optimized SMA cantilever overcame the external load and produced actuation deformation, reaching the slope shape defined in Equation (34).

Figure 12 shows the topology-optimized results when we set minimizing compliance as the optimization objective. After 247 iterations, the algorithm evolved to a local optimum. In contrast to the cantilever design in Figure 8d, the SMA cantilever design in Figure 12a had a robust root near the fixture. The loaded upper surface deformed into an arbitrary curve shape, distorting the original geometric shape. A few areas of the SMA material detwinned into the martensite material phase. The maximizing stiffness optimization method was more likely to obtain SMA actuator designs that suppressed the forward transformation from austenite to martensite. The topology-optimization process converged stably, and the compliance iteration history of the optimized SMA cantilever is plotted in Figure 13.

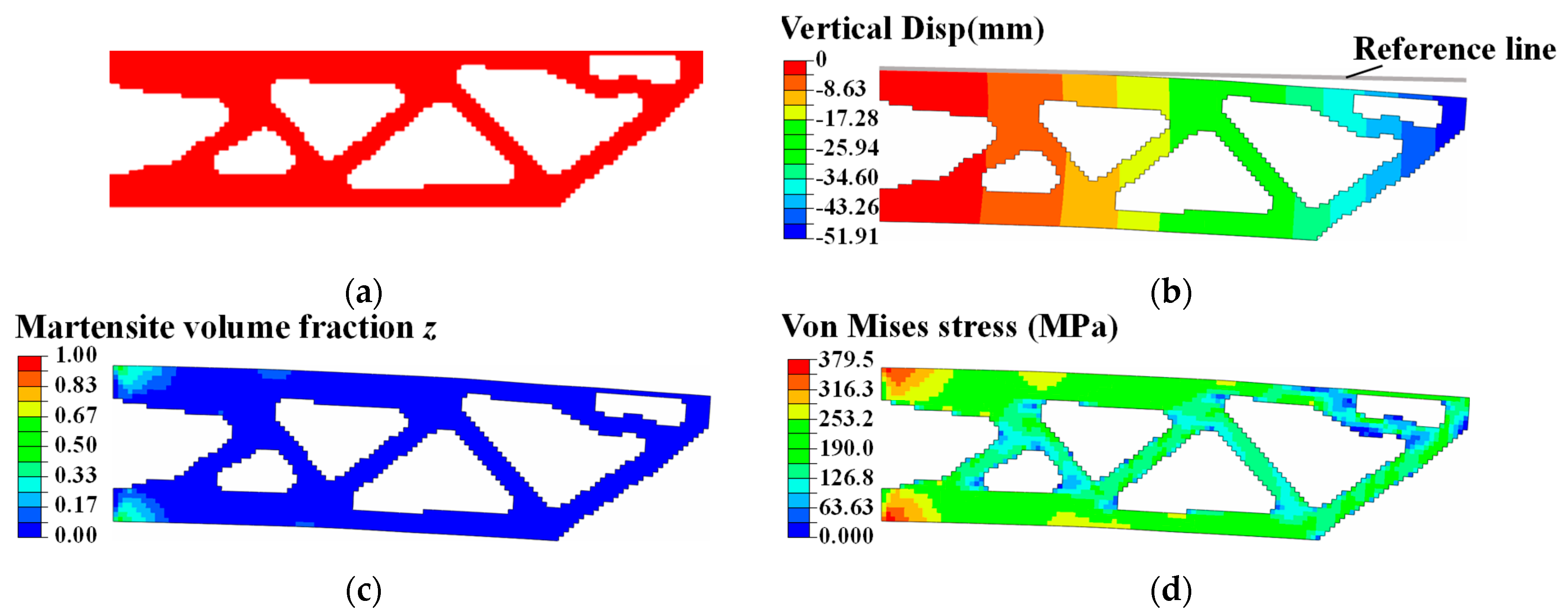

Figure 12. Minimizing compliance design of SMA cantilever beam (T = 300 K). (a) Optimized topology configuration. Simulation contours of (b) vertical displacement (Min: −51.91 mm), (c) martensite volume fraction z (max: 0.49), and (d) Von Mises stress (max: 379.50 MPa).

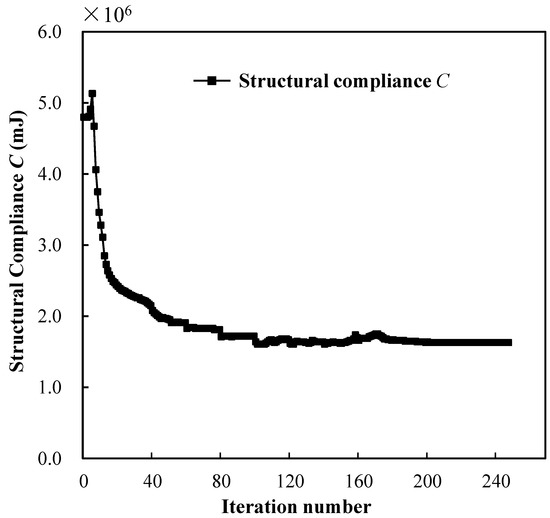

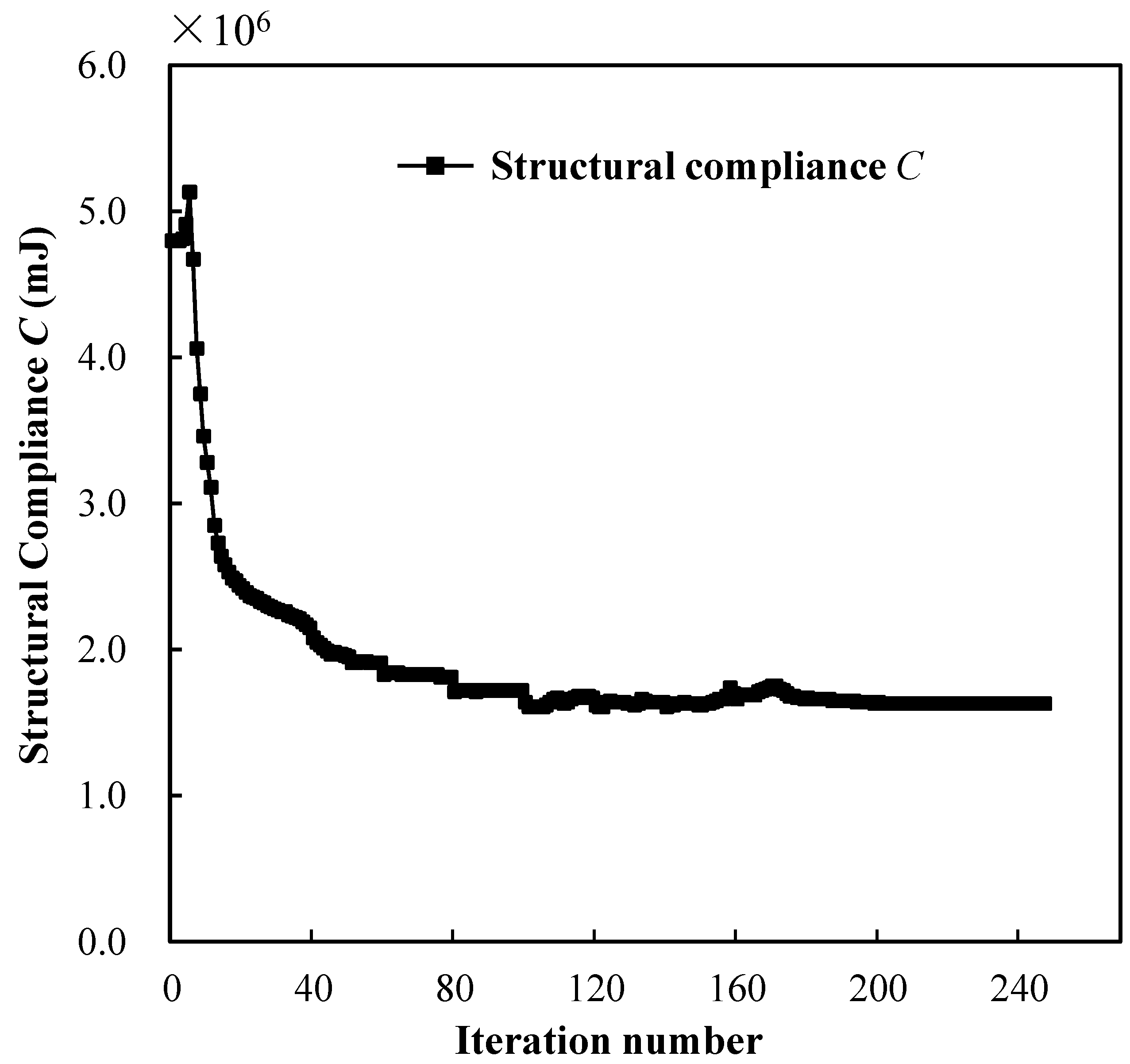

Figure 13. Iteration history for minimizing compliance design of SMA cantilever beam.

The choice of the upper-bound value δ of Er_H affected the topology optimization results, showing the necessity of considering shape error constraints in the prescribed material temperature T_H. Figure 14 depicts a set of topology-optimized configurations when we selected different upper-bound values δ of Er_H as the optimization criterion. When δ of Er_H was set as a relatively large value of 1, the SMA cantilever design with the minimal value of shape error function Er_L (about 0.0033) was obtained, as shown in Figure 14, design scheme I. This shows that the upper surface of the SMA cantilever design I approached the expected slope shape y_L precisely, while it diverged from the slope shape y_H with Er_H of 0.7260. As the upper bound δ of Er_H decreased from 1 to 0.01 (see designs II, III, IV and V), the SMA material redistributed from the left-side fixture region to the right-side loading region, to satisfy the strict shape error constraint Er_H. As a consequence, the shape error function Er_L at the material temperature T_L increased from 0.0033 to 0.1330. The above results showed that minimizing the values of both shape error functions Er_H and Er_L was contradictory. Hence, a precision compromise is necessary for two-way shape-morphing designs when the uniform heating/cooling control strategy is adopted.

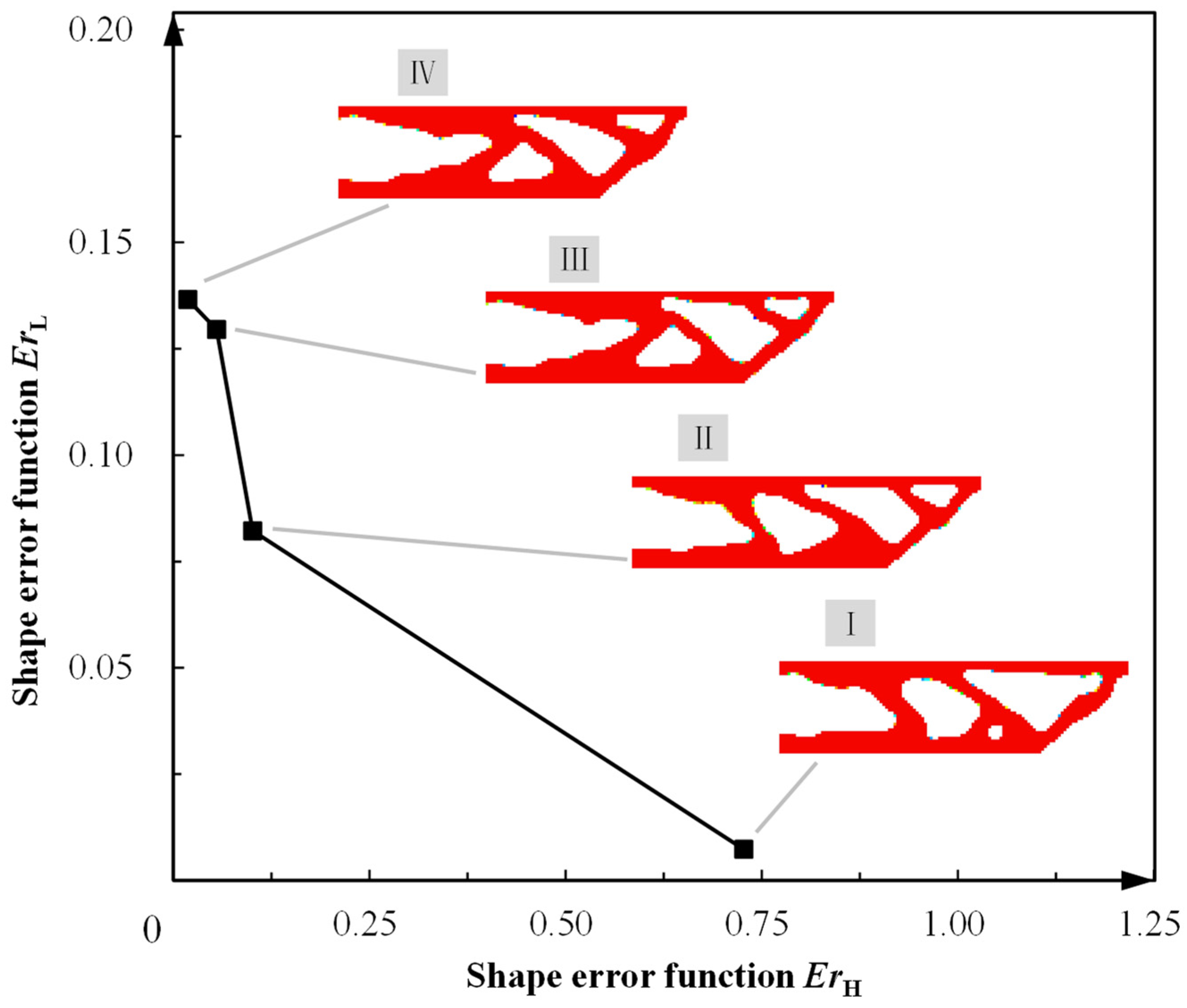

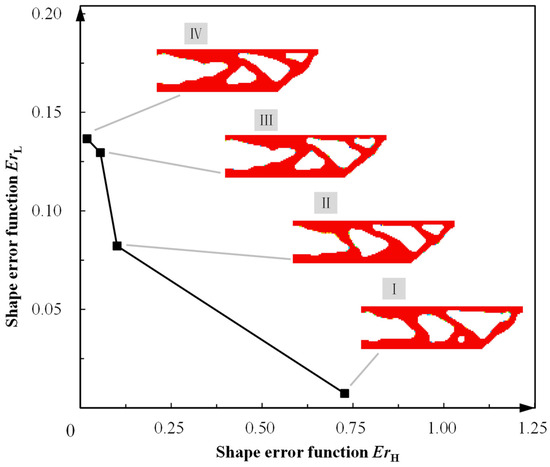

Figure 14. Relationship between shape error values of Er_H and Er_L for optimized SMA cantilever beams.

4.2. Topology Optimization of SMA Curved Wing for Prescribed Two-Way Shape Morphing

Here, an SMA curved wing design problem for prescribed two-way shape morphing was considered. The material parameters are listed in Table 3. The detailed geometric information of the curved wing structure is depicted in Figure 15. The curved wing structure was discretized with finite elements of averaged 5 mm length scale. A total of 15,556 3D solid finite elements with 60,375 nodes were generated. The upper-bound values δs and δv for geometric minimum length constraints were 9.0 × 10⁻⁵. The bottom surface of the curved wing structure was the non-design zone with uniform pressure load P = 0.4 N/mm². Its thickness is 5 mm. A total of 80 observation points were selected according to Figure 15b. All the weighting factors are chosen as unit value 1. The density filter radius R_filter = 10 was set as two times the average length of the finite elements.

Table 3. SMA material parameters [21].

Material Parameter		Material Parameter
CA	45,200 MPa	a	0.24 MPa
CM	26,400 MPa	b	0.096 MPa
v	0.3	ε0	0.8%
Y	30 MPa	G	1.92 MPa
αs	2500 MPa	βs	6250 MPa
ξs	0.0145 MPa/K	κ	0.038 MPa
A0f	300 K	T	Material temperature

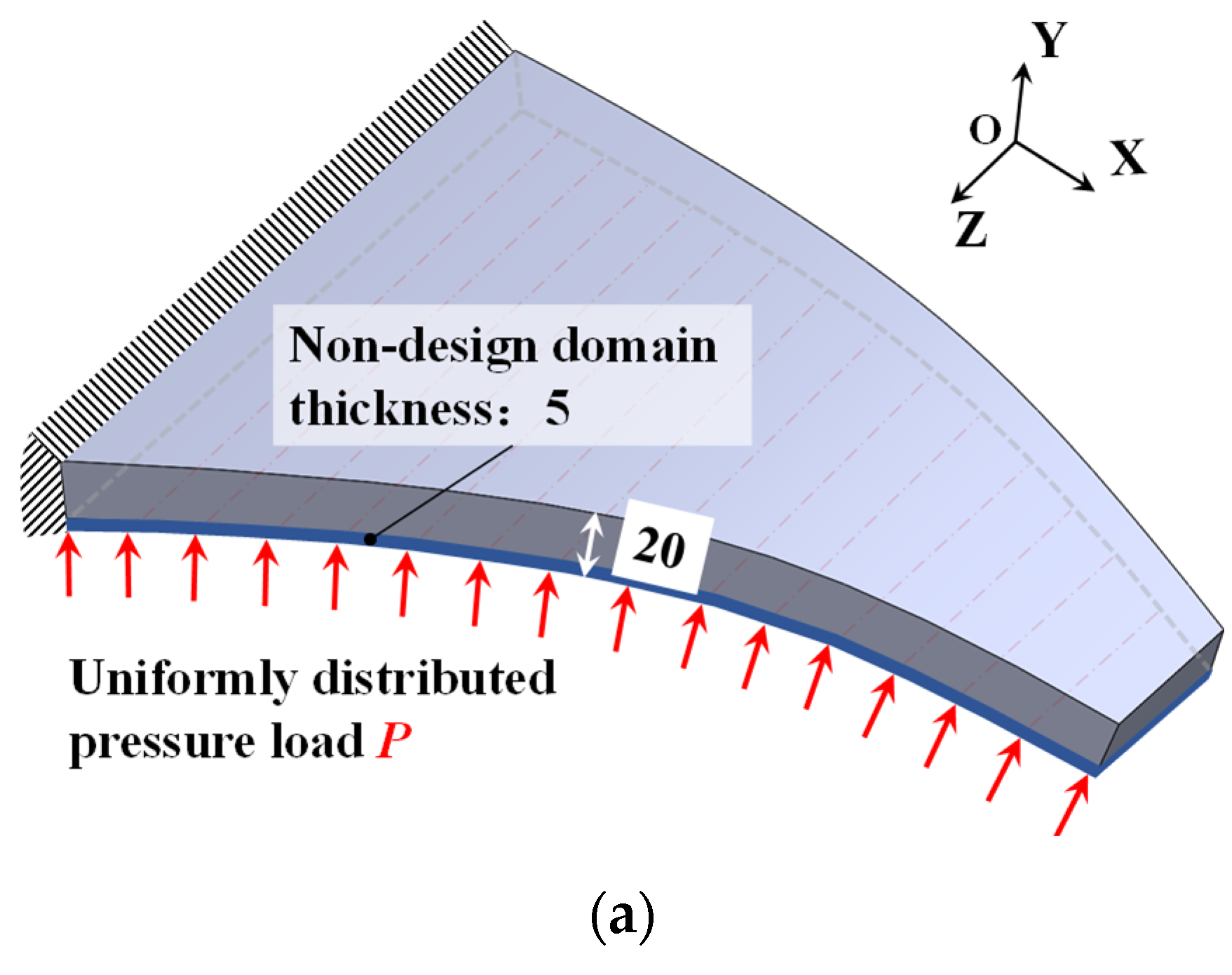

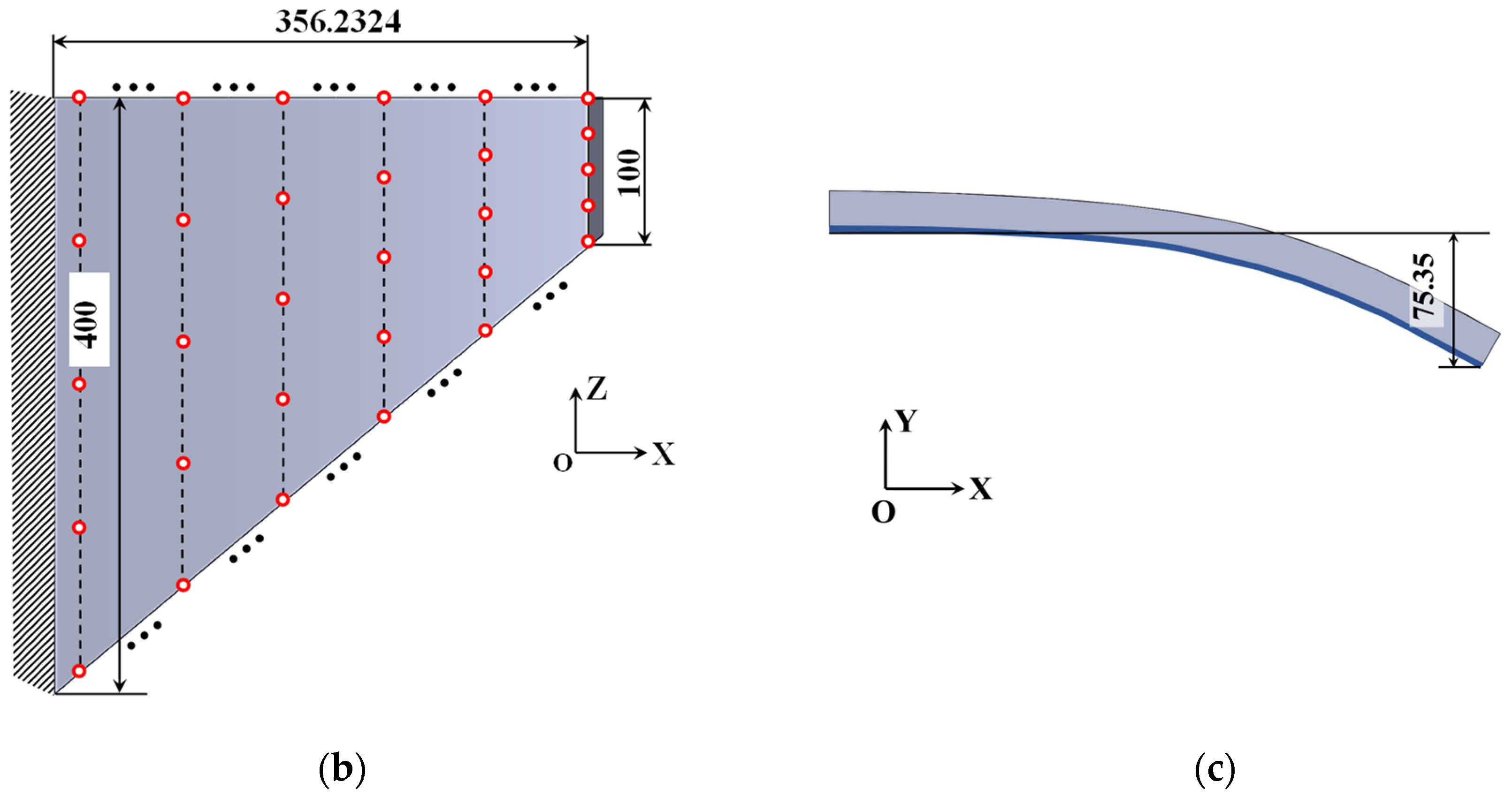

Figure 15. Illustrations of SMA curved wing structure design problem from (a) axonometric view, (b) bottom view, and (c) front view.

From Figure 16a,b, we found that, for the SMA curved wing structure, with the compliance minimization design scheme, the central ribs were sandwiched with two side panels. This configuration enhanced the out-of-plane stiffness to the greatest extent, thus reducing the structural compliance. Based on the displacement contour in Figure 16c, the tip of the wing had a significant twisting geometric distortion while withstanding a uniform pressure load. The martensite volume fraction contour in Figure 16d shows that this design scheme minimized the austenite–martensite transformation region. The maximum Von Mises stress was about 180 MPa, as depicted in Figure 16e.

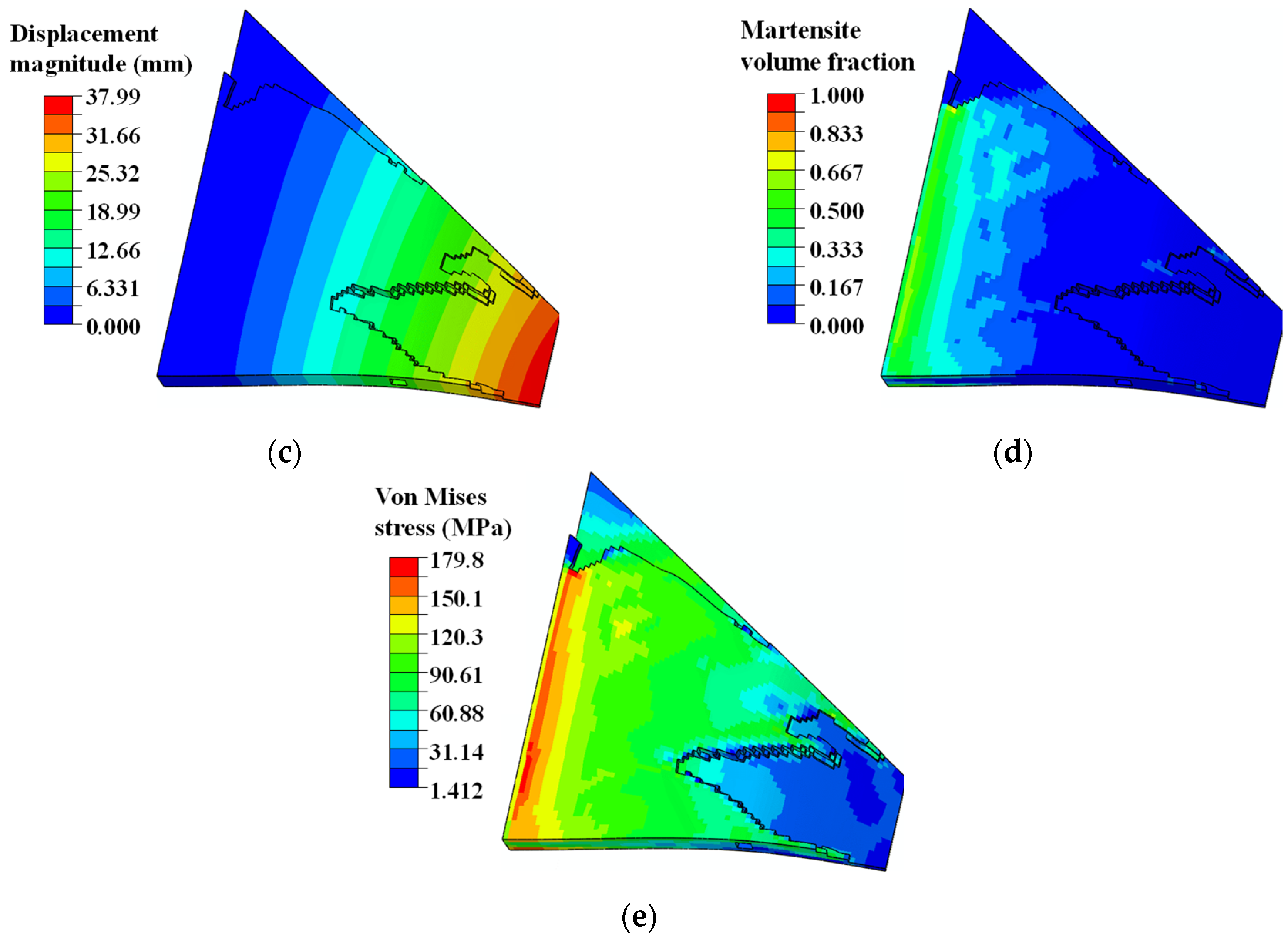

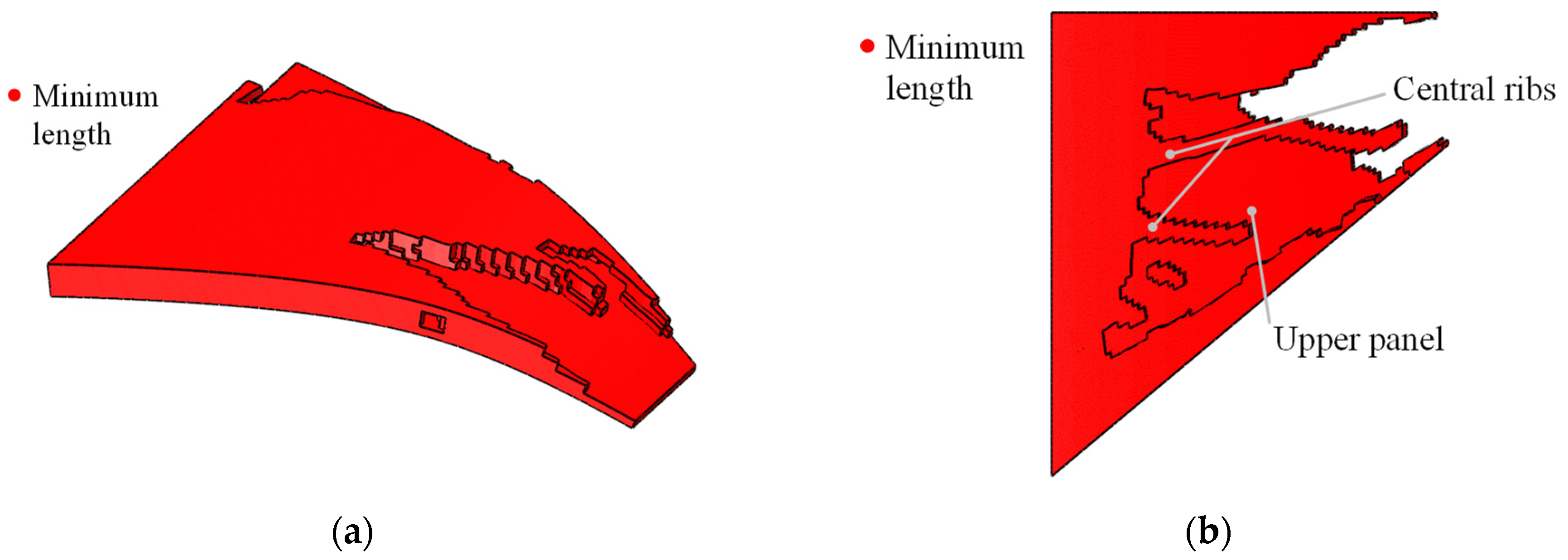

Figure 16. Minimizing compliance design of SMA curved wing structure. Topology-optimized design from (a) axonometric view (depicted with non-design zone) and (b) bottom view (depicted without non-design zone). Simulation contours of (c) displacement magnitude (max: 37.99 mm), (d) martensite volume fraction z (max: 0.76), and (e) Von Mises stress (max: 179.80 MPa).

The upper-bound value δ for the shape error function Er_H was set as 100 mm². At material temperatures {T_L, T_H}, the expected geometric shapes of the bottom wing surface were defined as follows:

$$y_{\mathrm{L}}=0.0;T_{\mathrm{L}}=310\mathrm{K}$$

(35)

$$y_{\mathrm{H}}=-1.754\times {10}^{-4}{x}^2; T_H=400\mathrm{K}$$

(36)

Compared with the topology optimization results in Figure 16, the proposed topology optimization method, which considered plane–parabolic shape morphing, obtained different structural designs, as depicted in Figure 17. The enforcement structure was spatially distributed with span-wise, chord-wise ribs and material concentrations near the fixture. The whole topology-optimization process for the SMA wing structure took around 103 h. After 313 optimization iterations, the values of the shape error functions {Er_L, Er_H} decreased from {93,072.47 mm², 53,608.01 mm²} to {120.30 mm², 97.88 mm²}, only 0.13% and 0.18% of the initial values, respectively. Figure 18 shows that the topology-optimization process converged stably. The shape comparison in Figure 19 illustrates that the optimized SMA curved wing design precisely approached the prescribed plane and parabolic shapes under the conditions of pre-defined material temperatures and the constant pressure load. Below, detailed explanations of the topology-optimized design in Figure 17 are given with the simulation results in Figure 20.

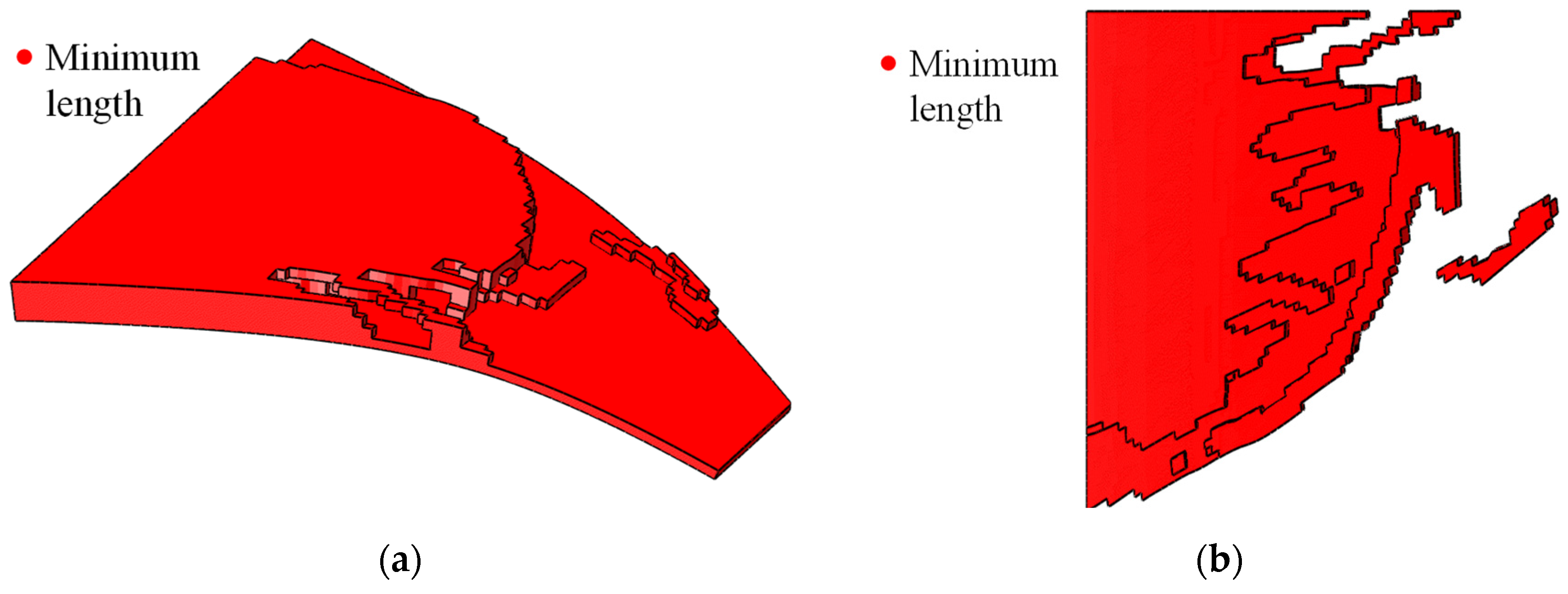

Figure 17. Topology-optimized curved wing design for prescribed two-way shape morphing from (a) axonometric view (depicted with non-design domain) and (b) bottom view (depicted without non-design domain).

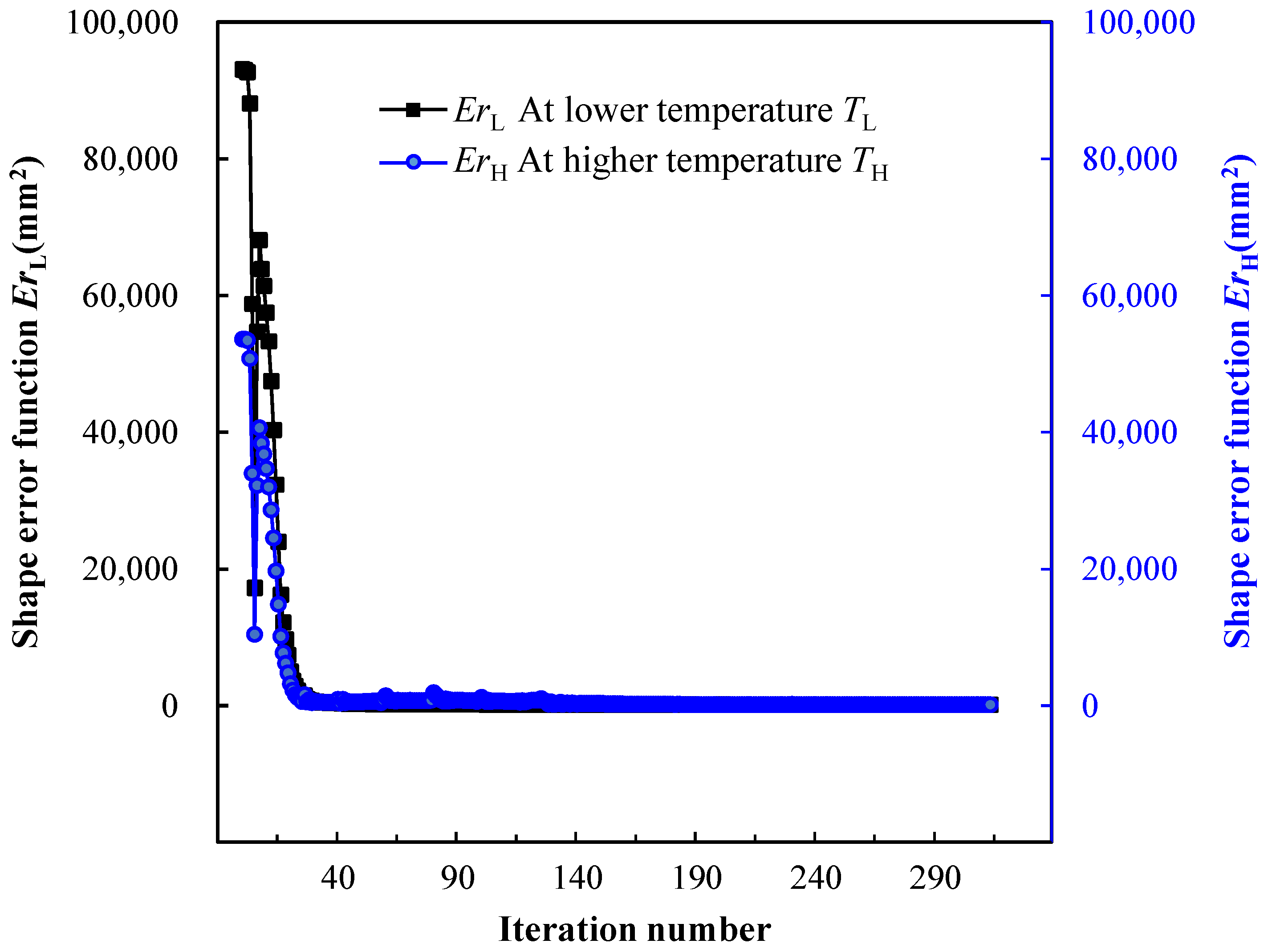

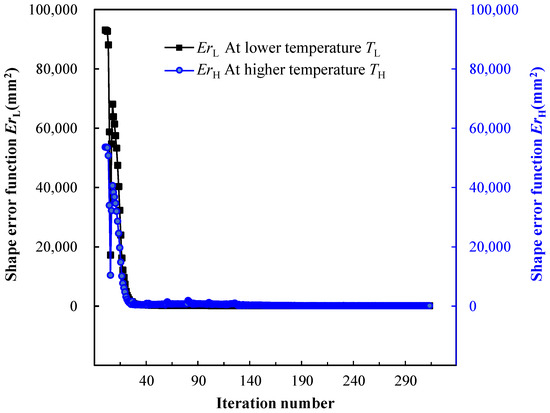

Figure 18. Topology optimization iteration history of SMA curved wing structure.

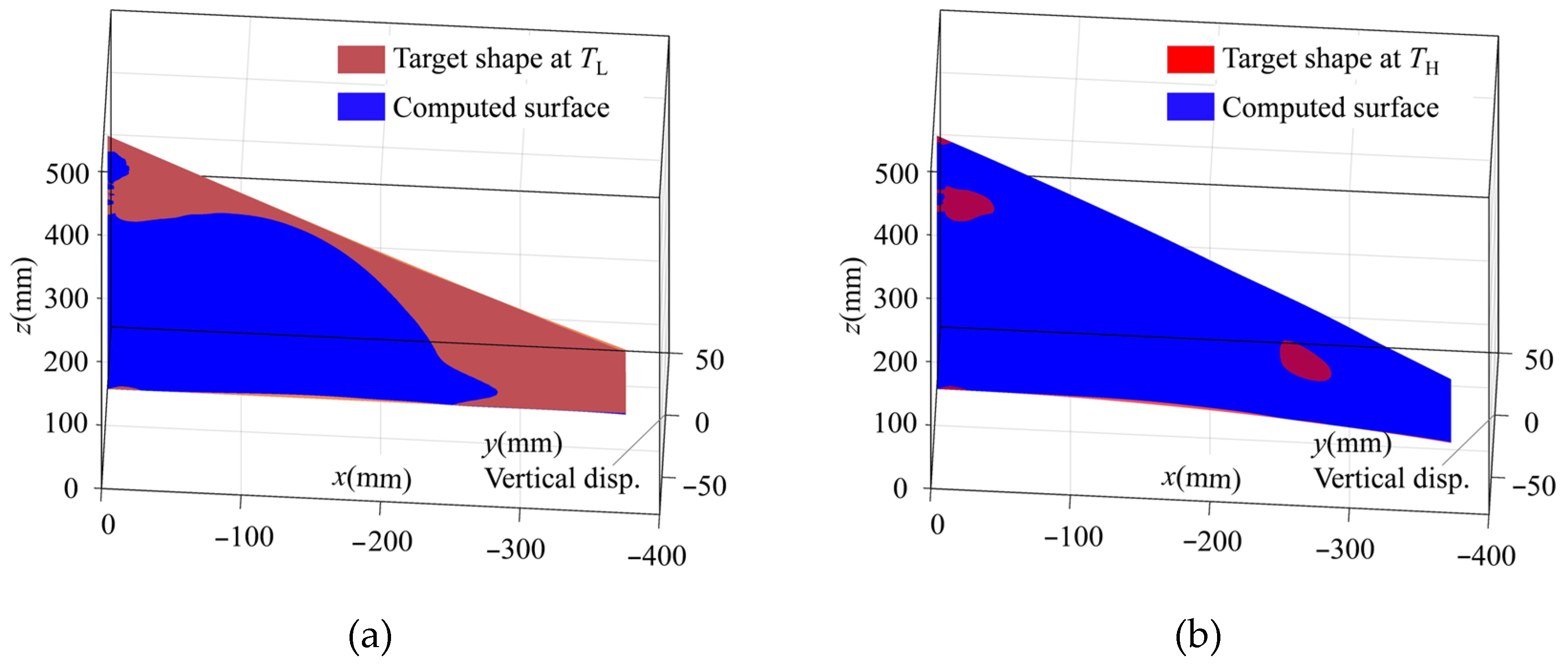

Figure 19. Comparison between computed shape and desired target shape of curved wing structure at (a) material temperature T_L and (b) material temperature T_H.

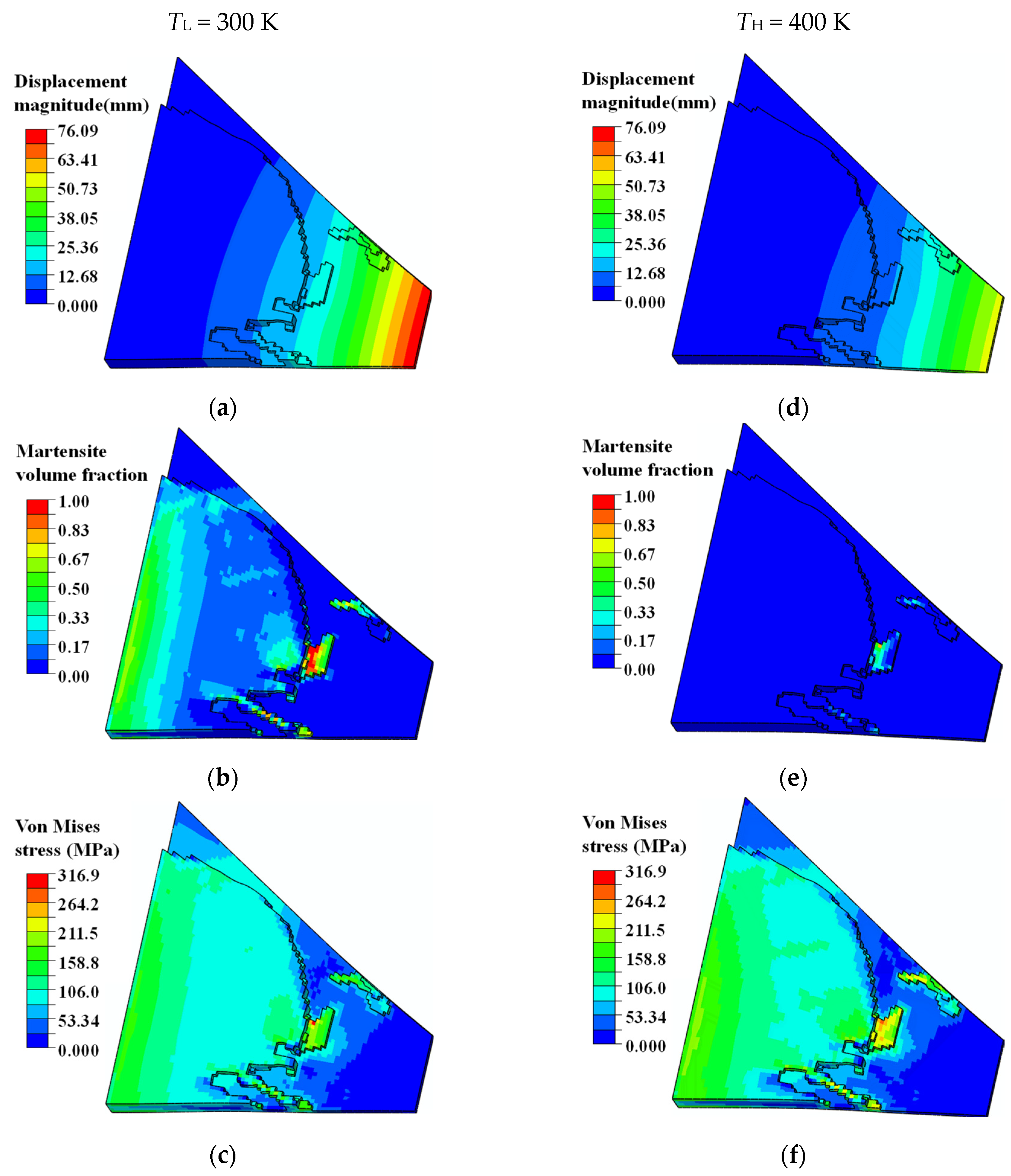

Figure 20. Simulated deformation, phase transformation, and structural stress contours of optimized SMA curved wing structure at different material temperatures. For T_L = 310 K: (a) displacement contour (max: 76.09 mm), (b) martensite volume fraction z contour (max: 1.0), and (c) Von Mises stress contour (max: 316.90 MPa). For T_H = 400 K: (d) displacement contour (max: 54.08 mm), (e) martensite volume fraction z contour (max:0.77), and (f) Von Mises stress (max: 284.20 MPa).

According to the displacement contours in Figure 20a,d, this particular designed enforcement structure compensated for the imbalance of the curved wing geometry configuration and external pressure distribution, resulting in normalized and expected structural deformations. As shown in Figure 20b,e, stress-induced local martensite phase transformation facilitated the deformation of the curved wing structure into the expected plane shape at the material temperature T_L. Assuming that the external pressure load was unchanged, the SMA wing bent into the target parabolic shape upon heating the structure to a higher material temperature T_H. This was due to the transformation of detwinned martensite to austenite material phase, resulting in a reversible actuation deformation. Although the maximum martensite transformation strain was only 0.8%, the actuation displacement of the wing tip was about 22 mm, which was 1.1 times the total thickness of the curved wing structure.

5. Conclusions

This study aimed to resolve the automatic design problems of SMA actuators for prescribed two-way transforming shapes; we established a new topology-optimization formulation. To constrain the geometric distortions of SMA devices bearing external mechanical loads, the proposed topology optimization method formulated optimization criteria with desired target shapes instead of total structural compliance. When the topology-optimized SMA actuators withstood external mechanical loads, the key surfaces reached the desired two-way transforming shapes at the predefined material temperatures. Although the numerical examples demonstrated that minimizing both the shape error functions Er_L and Er_H was contradictory, feasible optimization results could be obtained for two-way shape-morphing designs by allowing reasonable tolerances. In this study, the macroscopic topology configurations of SMA were optimized to satisfy the desired shape morphing requirements. The simultaneous design of SMA macro material layouts and microstructures are expected to increase the availability of shape transformation mechanisms in future works.
